TL-WN320G 54M Wireless USB Adapter User Guide
- 1 -
Package Contents
The following contents should be found in your box:
¾ One TL-WN320G Wireless USB Adapter
¾ One USB extension cable
¾ Quick Installation Guide
¾ One TL-WN320G Wireless Adapter Resource CD, including:
• Utility and Drivers
• User Guide
• Other Helpful Information
Note: If any of the listed contents is damaged or missing, please contact the retailer from
whom you purchased the TL-WN320 Wireless Adapter for assistance.
![](/img.php?id=589711&img=bg7.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 2 -
Chapter 1: Introduction
1.1 Overview of the product
The TP-LINK TL-WN320G Wireless USB Adapter gives you the flexibility to install your
PC or notebook PC in the most convenient location available, without the cost of running
the network cables.
Its auto-sensing capability allows high packet transfer up to 54Mbps for maximum
throughput, or dynamic range shifting to lower speeds due to distance or operating
limitations in an environment with a lot of electromagnetic interference. It can also
interoperate with all 11Mbps wireless (802.11b) products. Your wireless communications
are protected by up to 128-bit WEP and WPA encryption, so your data stays secure.
1.2 Features
¾ Complies with IEEE802.11g, IEEE802.11b standards
¾ Supports WPA data security, TKIP/AES encryption, 64/128-bit WEP encryption
¾ Supports 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps wireless LAN data transfer rates
¾ Provides USB interface
¾ Supports Ad-Hoc and Infrastructure modes
¾ Supports roaming between access points when configured in Infrastructure mode
¾ Eases configuration and provides monitoring information
¾ Supports Windows 98SE, Me, 2000, XP
¾ Internal Antenna
1.3 LED Status
LED Indications Status Working Status
Green Lit The adapter has power
Green Flashing The adapter is active.
![](/img.php?id=589711&img=bg8.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 3 -
Chapter 2: Installation Guide
2.1 Software Installation
2.1.1 Overview
The Adapter’s Setup Wizard will guide you through the installation procedure for
Windows 98SE, Me, 2000, XP. The Setup Wizard will install the Utility and drivers.
If you install the hardware before the software, the system will prompt “Found New
Hardware Wizard”, click the Cancel button, and run the Setup Wizard program on the
CD-ROM.
The Setup steps for windows 98SE, Me, 2000 and windows XP are very similar. The
following setup steps are for windows 2000.
2.1.2 Software Installation for Windows 2000
0. Insert the Resource CD into your CD-ROM drive, click the Start button and choose
Run. In the field that appears, enter F:\XXX\Setup.exe (if “F” is the letter of your
CD-ROM drive; XXX presents the setup program path, which is labeled on the
Resource CD), figure 2-1 should then appear.
0. You can click the Cancel button to end the installation on the Preparing Setup
screen, figure 2-1. Otherwise, the Setup Wizard will display a screen similar to that
shown in figure 2-2 after a moment.

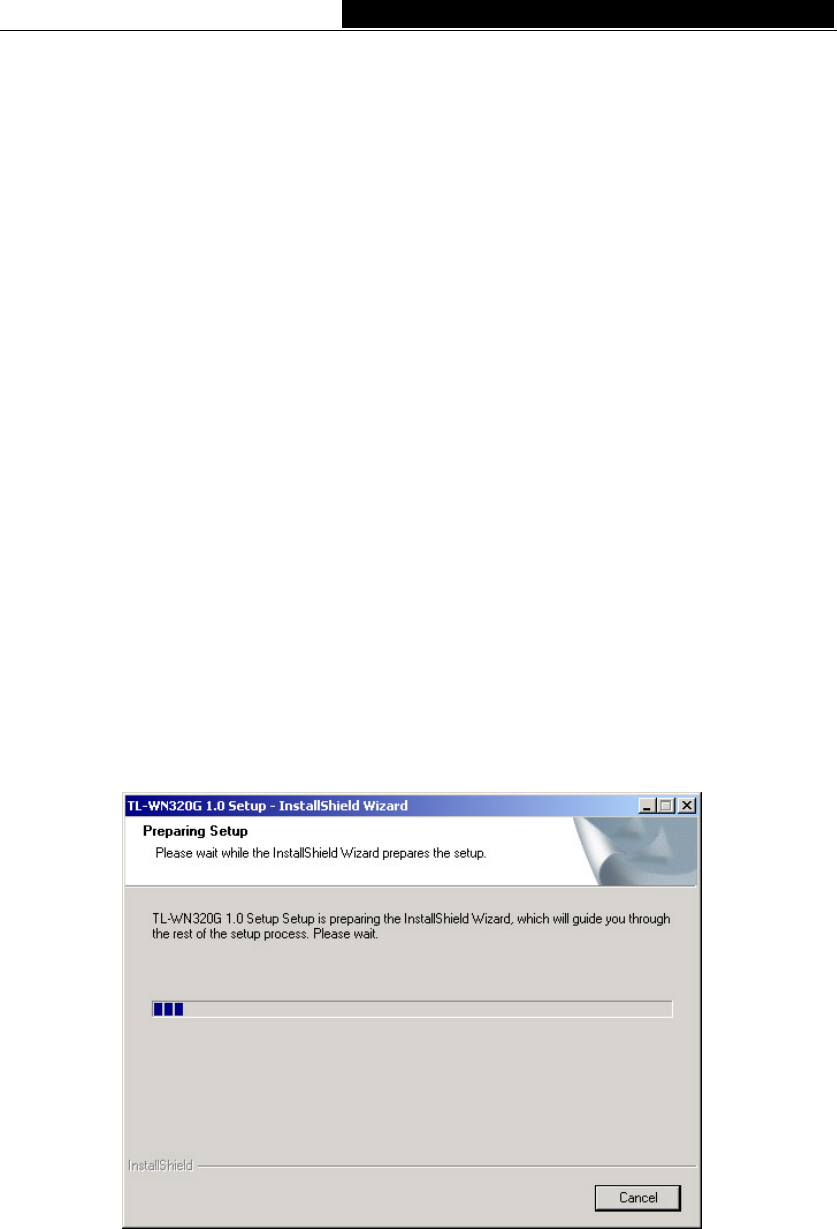

Figure 2-1 Preparing Setup
0. To continue, click the Next button on the screen, figure 2-2. Click the Cancel button
to end the Installation.
![](/img.php?id=589711&img=bg9.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 4 -

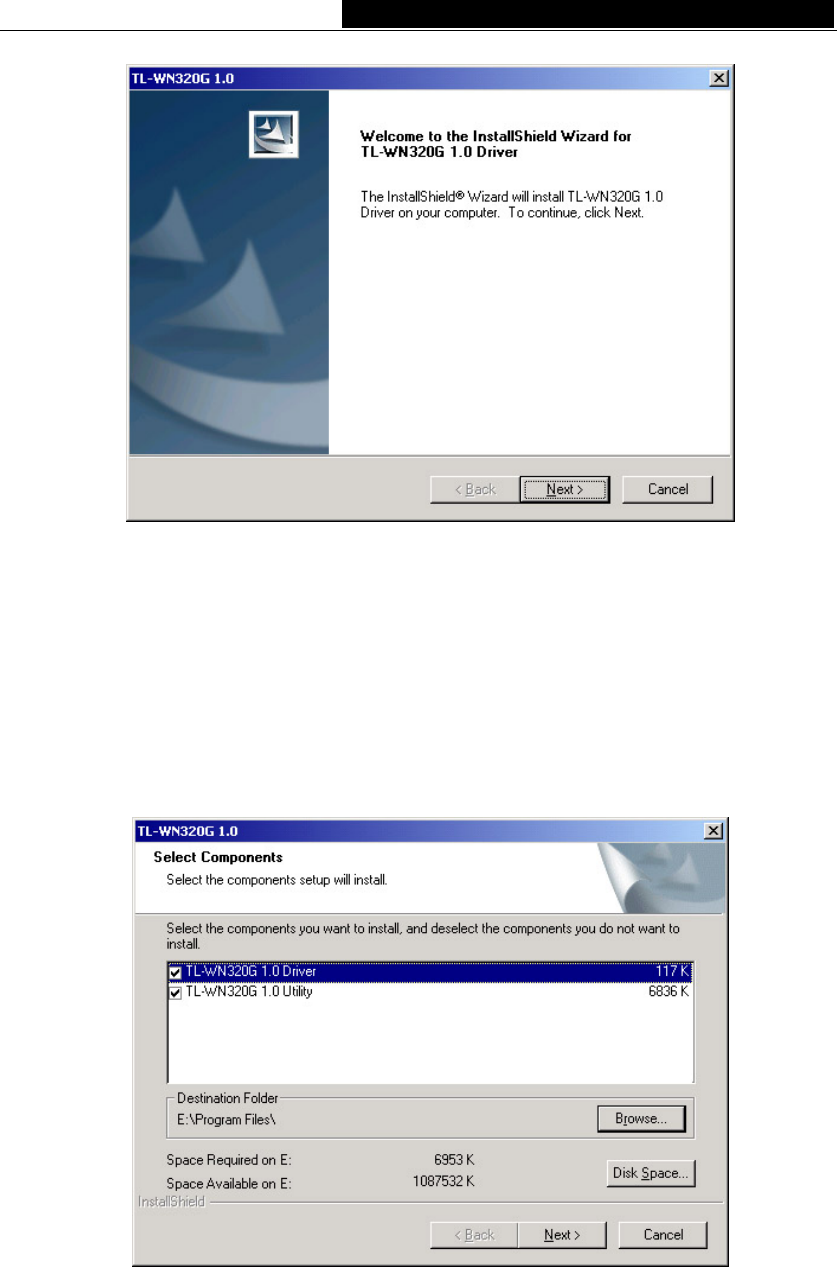

Figure 2-2 Start Setup
0. The Setup Wizard will ask you to choose a Setup type in figure 2-3. It is
recommended that you select all (including TL-WN320G 1.0 Driver and
TL-WN320G 1.0 Utility). Select TL-WN320G 1.0 Driver only to install driver only,
select TL-WN320G 1.0 Utility to install utility only. You can click the Browse...
button to change the Destination Folder for the software. Click the Next button to
continue the Installation. Click the Back button to return to the previous page, or
click the Cancel button to end the Installation.
Figure 2-3 Select the setup type.
0. While files are copying, you will see a warning box shown in figure 2-4. Please
select YES to continue installation. Our drivers have been tested thoroughly, and are
able to work with the operating system.
![](/img.php?id=589711&img=bga.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 5 -

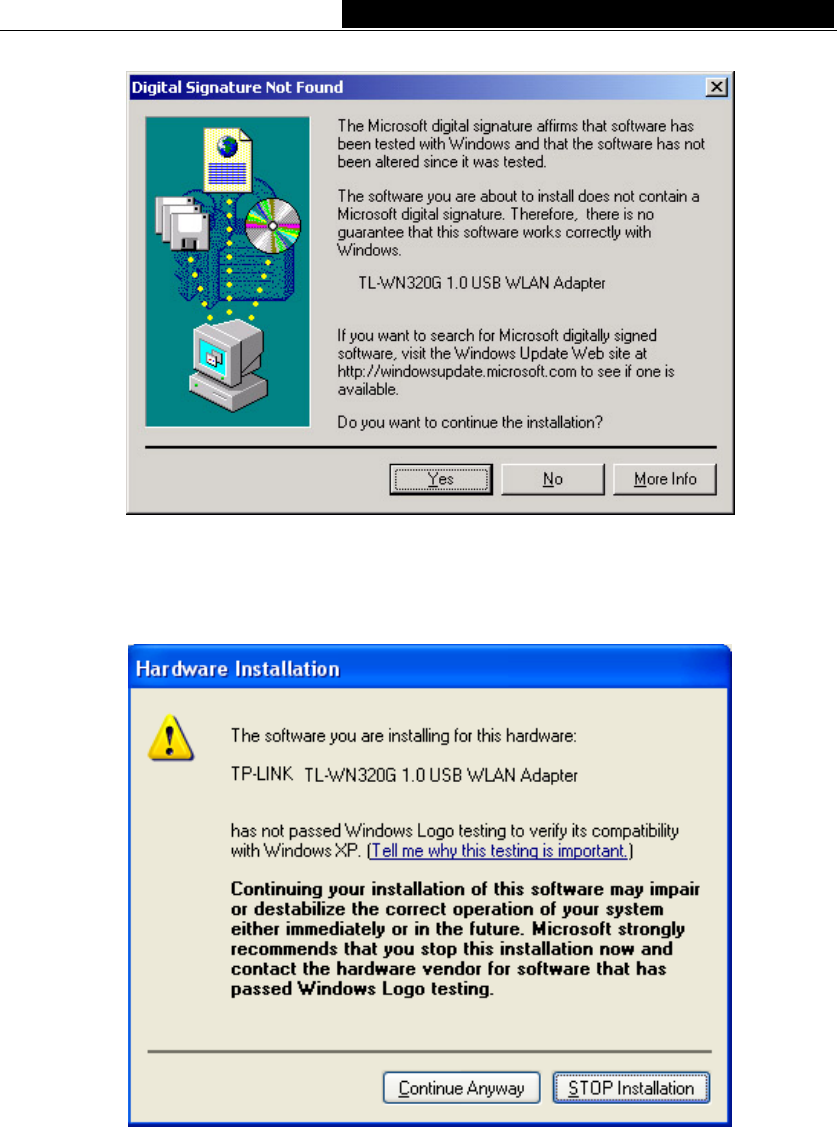

Figure 2-4 Windows 2000 Warning Box
Note: In Windows XP, the warning box is similar to that shown figure 2-5, Please select
Continue Anyway to continue installation.
Figure 2-5 Windows XP Warning Box
0. After the files have been successfully copied, the screen in figure 2-6 will appear.
Click the Finish button to finish the wizard.
![](/img.php?id=589711&img=bgb.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 6 -

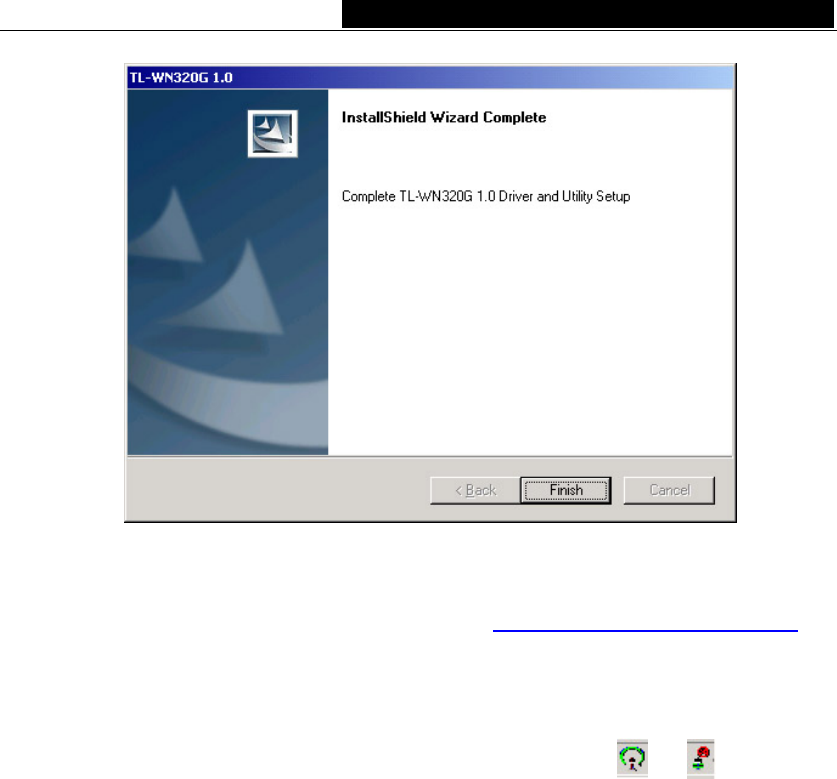

Figure 2-6 Finish
0. After installing the software, Please plug the adapter into your PC. If you need
instructions as to how to do this, please refer to section 2.2 Hardware Installation. If
you have plugged it into you PC already, please un-plug it and plug it back in. The
OS will automatically detect the adapter and automatically setup the driver for the
adapter. If it does not, please follow the setup steps to finish the driver installation.
After installing the driver successfully, you should see an icon, or , appear in
your system tray
2.2 Hardware Installation
0. Connect one end of the USB cable to the Adapter.
0. Connect the other end of the USB cable to the USB port on your computer. Because
the Adapter gets its power from the host, there is no external power supply. The LED
should light up when the Adapter is plugged in and the PC is on.
2.3 Uninstall Software
2.3.1 Uninstall the driver software from your PC
0. On the Windows taskbar, click the Start button, point to Settings, and then click
Control Panel.
0. Double-click the System icon, click on the Hardware tab in the System window that
appears.
0. Click on the Device Manager button, double-click Network Adapters, and then
right-click TL-WN320G 1.0 USB WLAN Adapter.
![](/img.php?id=589711&img=bgc.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 7 -

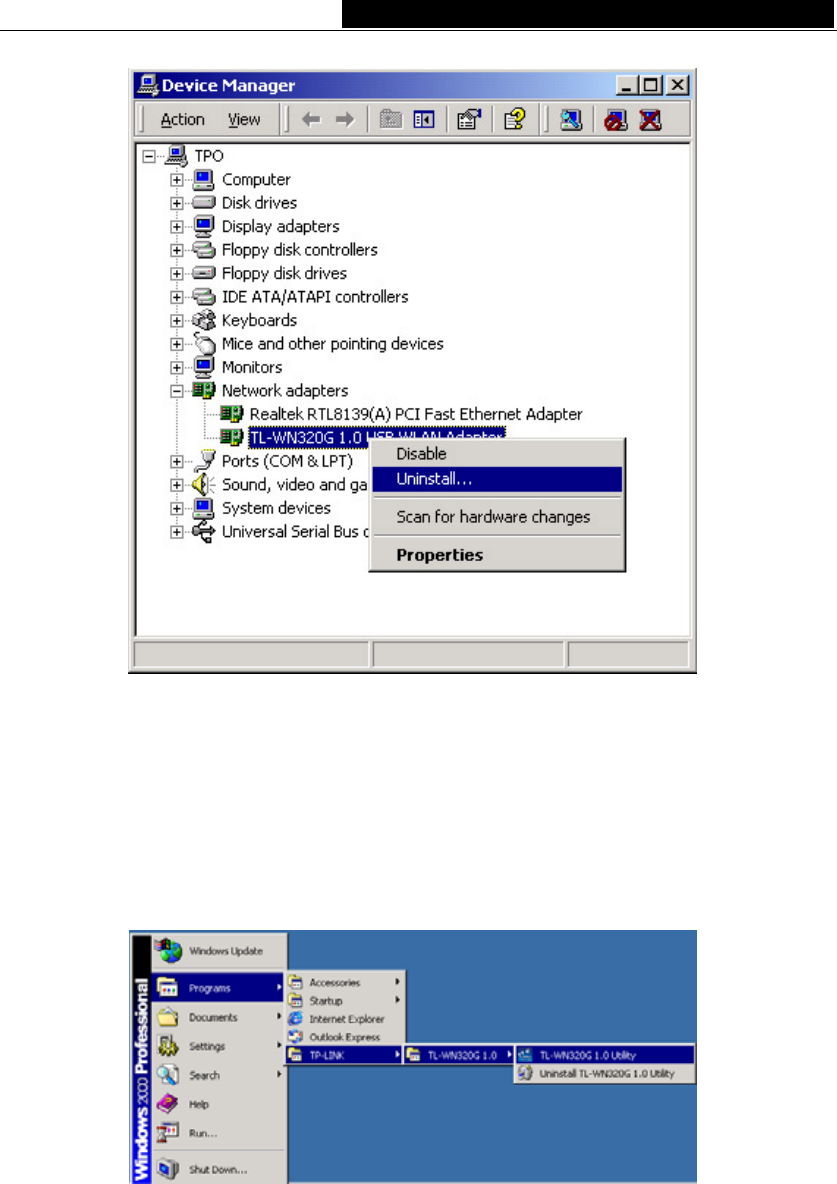

Figure 2-7 uninstall driver
0. Click Uninstall..., shown in above figure 2-7, the system will uninstall the driver
software of the adapter from your PC.
2.3.2 Uninstall the utility software from your PC
0. You can uninstall the utility software by clicking the Start>Program>TP-LINK>
TL-WN320G 1.0>Uninstall TL-WN320G 1.0 Utility, shown in figure 2-8:
Figure 2-8 uninstall utility software
0. Please follow the Install Shield Wizard steps, the system will uninstall the utility
software from your PC automatically.
![](/img.php?id=589711&img=bgd.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 8 -
Chapter 3: Configuration
TP-LINK TL-WN320G Wireless USB Adapter can be configured by its utility. This section
describes how to configure your Wireless USB Adapter for wireless connectivity on your
Wireless Local Area Network (WLAN) and use the data security encryption features.
After the Adapter's driver and utility has been installed, the adapter’s tray icon, or
, will appear in your system tray. It means the utility is running on your system. If the
utility does not run, you can run the utility by clicking: Start> Program> TP-LINK>
TL-WN320G 1.0> TL-WN320G1.0 Utility. If the icon still does not appear, the driver or
utility may be installed incorrectly or the adapter is unplugged, please try again.
Icon , means the connection has been established. Icon , means there is no
connection.
Double-click the icon and the configuration screen of the utility will appear. You can
also run the utility by clicking: Start> Program> TP-LINK> TL-WN320G 1.0>
TL-WN320G1.0 Utility. The utility provides a complete and easy to use set of tools to:
¾ Display current status information
¾ Edit and add configured profiles
¾ Display current diagnostics information
The section below introduces these above capabilities.
Note: If your OS is Windows XP, you can use Windows XP to configure the wireless
network settings. (To use this function, you must update Windows XP to Windows XP
sp1).
If you want to use Windows XP to configure wireless network settings, you should exit
the utility. Right-click the icon , at the bottom of the screen, and click Exit to exit the
utility.
3.1 Network Status
The Network Status tab displays the adapter's current status.
![](/img.php?id=589711&img=bge.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 9 -

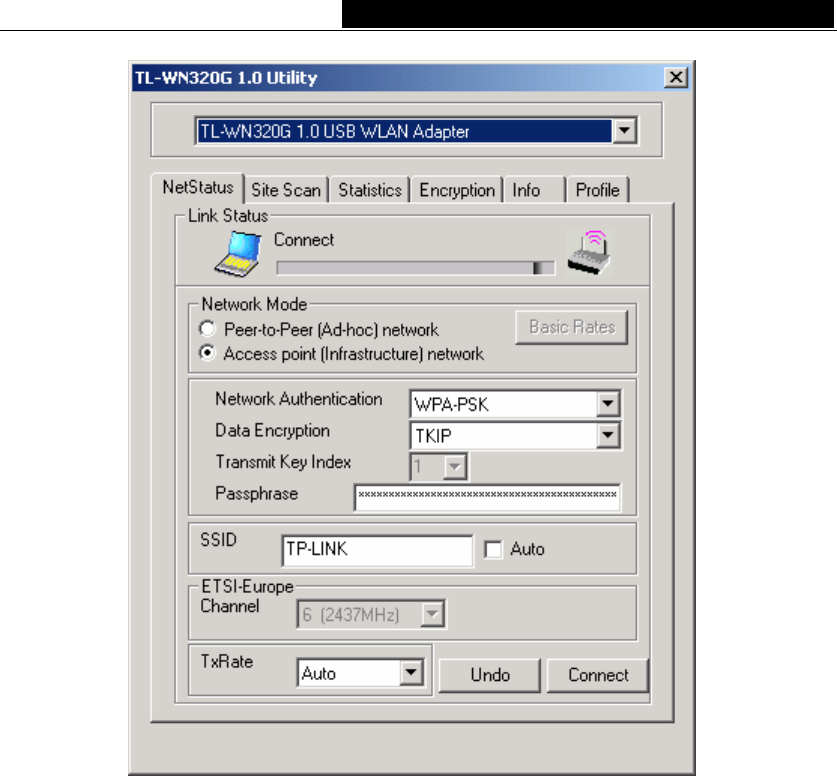

Figure 3-1 Network Status
The following table describes the items found on the Network Status screen.
¾ Link Status - Shows whether the station is connected to the wireless network.
¾ Network Mode - Displays the wireless mode, either Ad-hoc or Infrastructure mode.
¾ Network Authentication - Displays which authentication type that the driver is
using. There are four options: Open System, Shared-Key System, Auto Switch
and WPA-PSK.
• Open System - IEEE802.11 Open System authentication.
• Shared-Key System - IEEE802.11 Shared Key authentication.
• Auto Switch - Select Shared-Key System or Open System authentication
type automatically based on the wireless station request.
• WPA-PSK - WPA authentication type based on pre-shared passphrase.
¾ Data Encryption - Displays which encryption type that the driver is using. When you
select Open System, Shared-Key System, or Auto Switch as Network
Authentication, there are two options: WEP and Disabled. If you select WPA-PSK
as Network Authentication, there are TKIP and AES options instead of WEP and
Disabled.
¾ Transmit Key Index - Displays which key group that the adapter is using.
¾ Network Key - The value of the Key in use. When you select WPA-PSK as
![](/img.php?id=589711&img=bgf.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 10 -
Network Authentication, this option will change to Passphrase.
¾ SSID (Service Set Identification) - The IEEE 802.11 wireless network name. For the
wireless devices in a network to communicate with each other, all devices must be
configured with the same SSID. This value is case-sensitive. For example, TP-LINK
is NOT the same as TP-Link.
¾ Channel - Shows the current channel in use. This field determines which operating
frequency will be used.
¾ TxRate - Shows the current Transfer rate.
Click the Change button to modify the above items. After you have modified any desired
items on this page, you can click the Connect button to establish the wireless network
connection or click the Undo button to restore previous values.
Figure 3-2 Modify – Shared-Key system
![](/img.php?id=589711&img=bg10.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 11 -
Figure 3-2a Modify - WPA-PSK
3.2 Site Scan
Click the Site Scan tab of the Utility and the Site Scan screen will appear, figure 3-3. On
the Site Scan screen you can scan the Available Infrastructure and Ad Hoc Networks.
![](/img.php?id=589711&img=bg11.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 12 -
Figure 3-3 Site Scan tab
Click the Re-Fresh button to refresh the list at any time. Highlight an SSID and click the
Connect button to connect to an available network. If the network is encrypted, you
should complete the network encryption items first.
If you want to save the current configuration for the connection, please click the Add to
Profile button and the utility will prompt a screen for configuration, shown in figure 3-4:
![](/img.php?id=589711&img=bg12.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 13 -

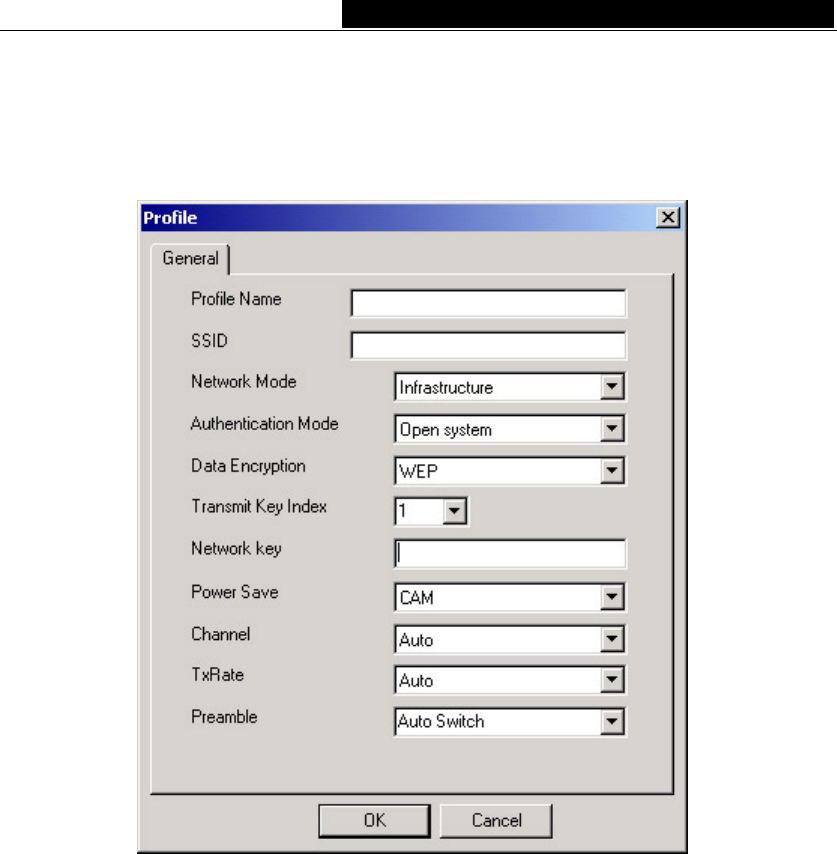

Figure 3-4 Profile
Fill in the above items carefully and click OK to save it. The items found on the Network
Status screen are described below:
¾ Profile Name - The name of current selected configuration profile.
¾ Power Save - The power save mode, either CAM or MAX PSP, or Fast PSP
• CAM - Continuous Access Mode.
• MAX PSP - Maximum Power Saving.
• Fast PSP - Fast Power Saving mode.
¾ Preamble - Specifies the preamble setting in 802.11b. The default setting is Auto
Switch (access point mode), which allows both short and long headers in the
802.11b frames. The adapter can only use short radio headers if the access point
supports and uses them.
Note:
0. If you need instructions as to how to configure other items on this screen,
please refer to section 3.1 Network Status.
0. The last four items usually need not change.
3.3 Statistics
The Statistics tab shows receiving and transmitting statistical information.
![](/img.php?id=589711&img=bg13.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 14 -

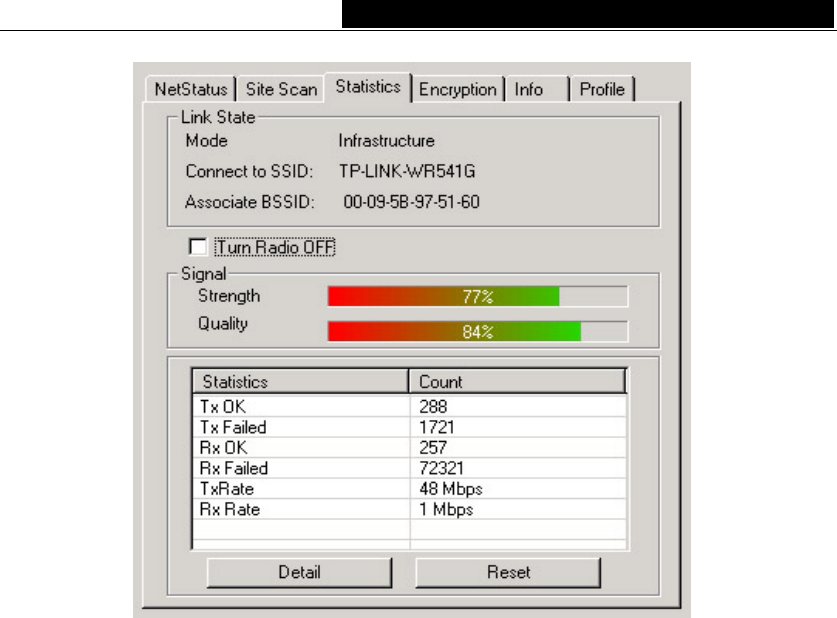

Figure 3-5 Statistics tab
¾ Link State - Displays the current link status for the wireless adapter including Mode,
Connect to SSID and Associate BSSID.
• Mode - Displays the current network mode, either Ad-hoc or Infrastructure.
• Connect to SSID - Displays the current SSID of the wireless network the
adapter has connected to.
• Associate BSSID - Displays the current BSSID of the wireless network the
adapter associated.
¾ Signal Strength and Signal Quality - Display the strength and quality of the signal.
In Ad-Hoc mode, this item will not be displayed here.
¾ Turn Radio OFF - The wireless radio of this adapter can be enabled or disabled.
You can turn the wireless radio off by selecting the check-box.
¾ Statistics Information - This field displays receiving and transmitting statistics
information of the adapter, including Tx OK, Tx Failed, Rx OK and Rx Failed. If you
desire more information about this adapter, please click the Detail button. Click the
Reset button to reset the count of the statistics information.
3.4 Encryption
On this Screen, you can configure the WEP key or view the configured WEP key.
![](/img.php?id=589711&img=bg14.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 15 -

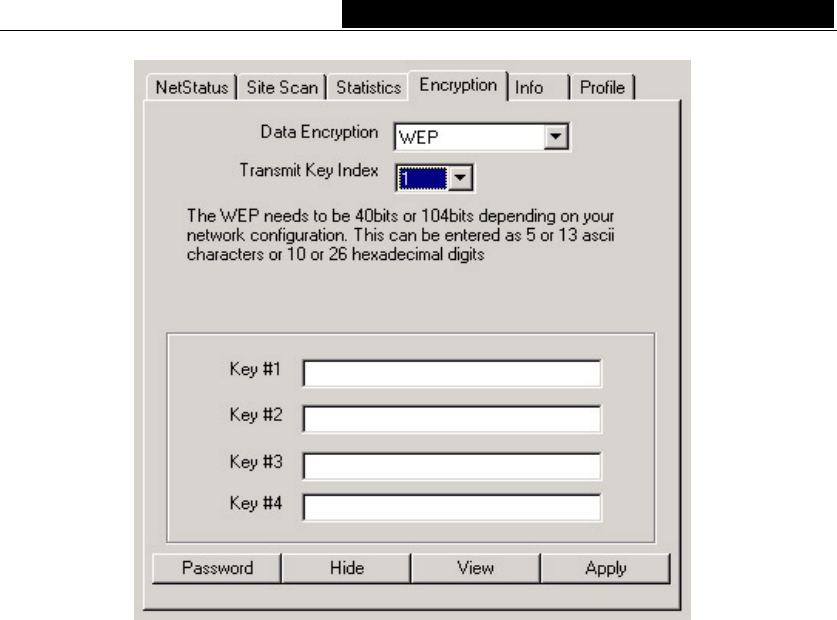

Figure 3-6 Encryption tab
¾ Data Encryption: Selects the data encryption type, either WEP or Disabled. If you
select Disabled, the following fields do not need to be filled.
¾ Transmit Key Index: Selects which the key group that the adapter will use.
¾ Key #1, Key #2, Key #3, Key #4: The Key groups. You can enter 10 hexadecimal
digits (any combination of 0-9, a-f, A-F) or 5 ASCII characters for 64-bit (also called
40bits) encryption. You can enter 26 hexadecimal digits (any combination of 0-9, a-f,
A-F) or 13 ASCII characters for 128-bit (also called 104bits) encryption.
Click the Password button to enter the password for viewing the key.
Click the Hide button to hide the keys in "*" format.
Click the View button to view hidden keys. Note: you need to enter the password to view
hidden keys. The password can be set by clicking the Password button.
Click the Apply button to save the keys.
3.5 Info
This screen displays some information about this adapter, including Driver Date, Driver
Version, Utility Date, Utility Version, MAC Address, IP Address, SubMask, Power Save
mode and Preamble.
¾ Driver Date - The creation date of the wireless network adapter driver.
¾ Driver Version - The version of the wireless network adapter driver.
¾ Utility Date - The creation date of this utility.
¾ Utility Version - The version of this utility.
¾ MAC Address - The MAC address of the wireless network adapter.
¾ IP Address - The IP address of the wireless network.
¾ SubMask - The subnet mask of the wireless network.
![](/img.php?id=589711&img=bg15.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 16 -
Figure 3-7 Info.
The screen will appear shown in figure 3-8, after you click the Advance button. On this
screen, you can configure Power Save mode and Preamble mode.
Figure 3-8 Advanced configuration
![](/img.php?id=589711&img=bg16.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 17 -
3.6 Profile
Click the Profile tab of the utility and the Profile screen will appear, figure 3-9. The
Profile screen provides tools to:
¾ Create a profile
¾ Delete a profile
¾ Edit a profile
¾ Add to Profile

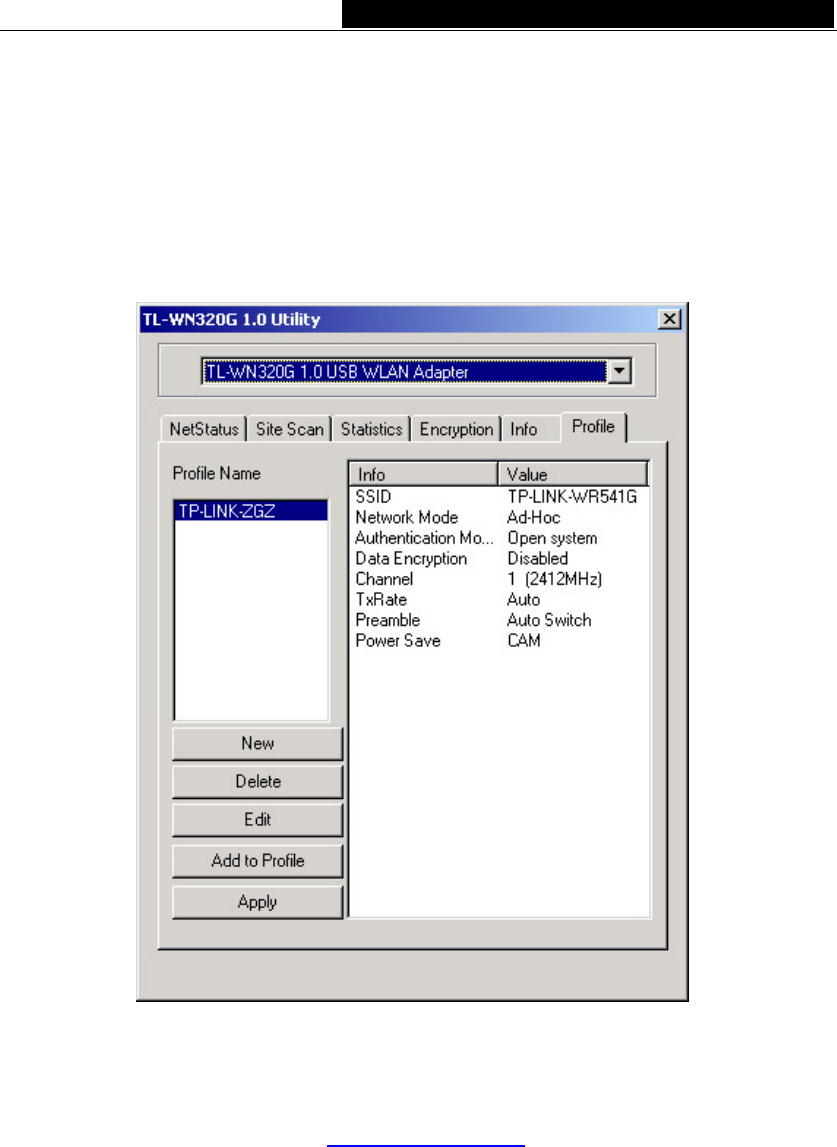

Figure 3-9 Profile Tab
To create a new profile, click the New button on the Profile tab, the Profile
configuration screen will appear shown in figure 3-10. If you need instructions as to how
to configure profile, please refer to section 3.2 Site Scan.
To edit a profile, highlight the desired profile name on Profile Name list, and click the
Edit button, the Profile configuration screen will appear shown in figure 3-10.
To delete a profile, highlight the desired profile name on Profile Name list, and click the
Delete button.
To switch to another profile, highlight the desired profile name on Profile Name list,
and click the Apply button.
If the utility scans automatically and establishes a connection, the Add to Profile button
![](/img.php?id=589711&img=bg17.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 18 -
will be enabled, click this button and enter a name to save this profile.
Note: Do not forget to click the Apply button when you create a new profile for
connection.

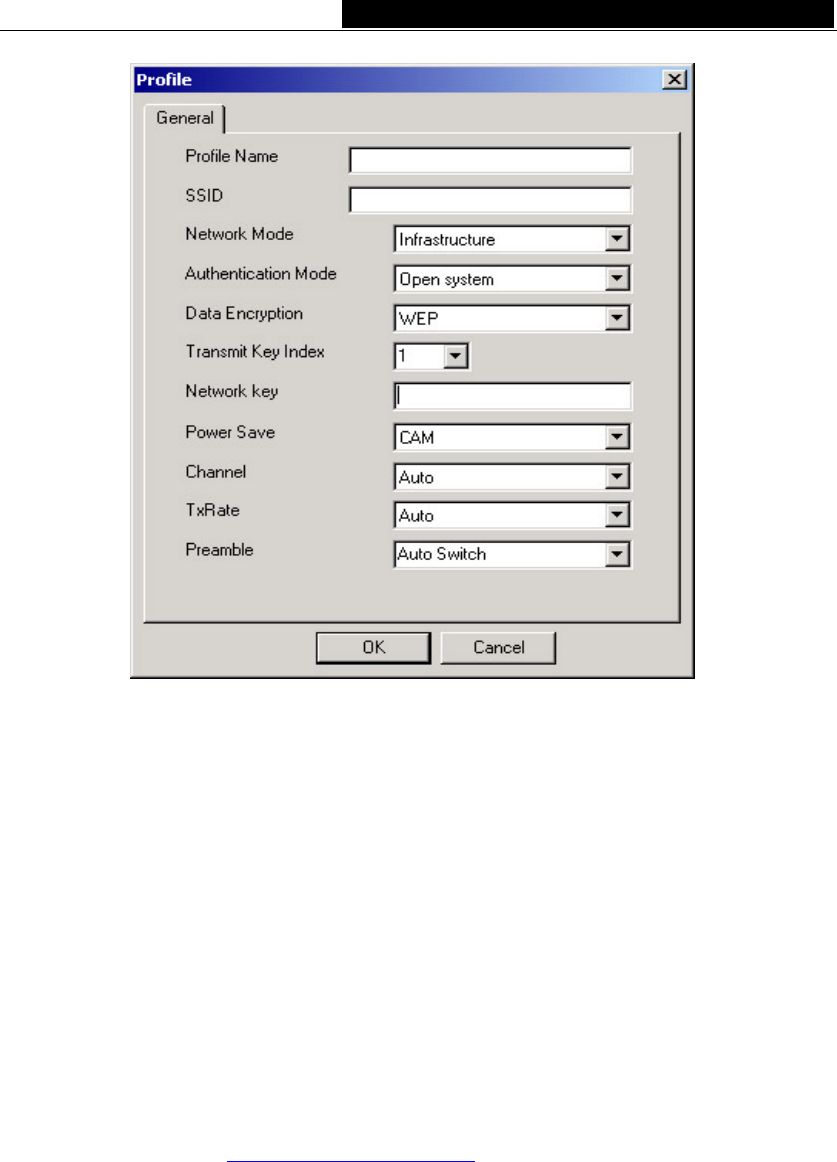

Figure 3-10 Profile configuration
3.7 An example for application
Suppose you have an installed and using AP, its SSID is TPLINK and adopts 64-bit
encryption with the key 0123456789. To establish a connection with this AP, you should
follow these steps below:
0. Launch TL-WN320G 1.0 Utility.
0. Click the Profile tab of the utility and click the New button on the screen that
appears.
0. The Profile configuration screen will appear, please enter Test for the Profile Name,
TPLINK for the SSID, select Infrastructure for the Network Mode, select WEP for the
Data Encryption and enter 0123456789 for Network key.
0. Click OK to save this profile.
0. Click Apply on the Profile screen. The utility will establish a connection with this AP
by configured profile.
![](/img.php?id=589711&img=bg18.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 19 -
Appendix A: Specifications
Normal
Interface A-type USB 2.0 Connector
Standards IEEE802.11b; IEEE802.11g
Operating System Windows 2000; Windows XP; Windows Me; Windows 98SE
Transmission
Distance
In door up to 100m, out door up to 300m (it is limited to the
environment).
Radio Data Rate 54/48/36/24/12/9/6/11/5.5/2/1 Mbps (Auto Rate Sensing)
Modulation 1M DBPSK; 2M DQPSK; 5.5M, 11M CCK; 6M, 9M, 12M, 18M,
24M, 36M, 48M, 54M OFDM;
Media Access
Protocol
CSMA/CA with ACK
Transmit Power 18dBm (Typical)
Data Security WPA; 64/128 BIT WEP; TKIP/AES
Frequency 2.4 ~ 2.4835GHz
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Power
Consumption
Typically 480mA in full Transmit (TX), 420mA in full Receive (RX)
Safety & Emissions FCC, CE
Physical Environmental
Operating Temp 0℃~40℃ (32℉~104℉)
Storage Temp -40℃ – 70℃ (-40℉~158℉)
Humidity 10% - 95% RH, Non-condensing
Dimensions
(W×D×H)
3.9×1.2×.4 in. (100×30×11 mm)
![](/img.php?id=589711&img=bg19.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 20 -
Appendix B: Glossary
¾ 802.11b - The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the
unlicensed radio spectrum at 2.4GHz, and WEP encryption for security. 802.11b
networks are also referred to as Wi-Fi networks.
¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b
devices, and WEP encryption for security.
¾ Ad-hoc Network - An ad-hoc network is a group of computers, each with a wireless
adapter, connected as an independent 802.11 wireless LAN. Ad-hoc wireless
computers operate on a peer-to-peer basis, communicating directly with each other
without the use of an access point. Ad-hoc mode is also referred to as an
Independent Basic Service Set (IBSS) or as peer-to-peer mode, and is useful at a
departmental scale or SOHO operation.
¾ DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern
for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one
or more bits in the chip are damaged during transmission, statistical techniques
embedded in the receiver can recover the original data without the need for
retransmission. To an unintended receiver, DSSS appears as low power wideband
noise and is rejected (ignored) by most narrowband receivers. However, to an
intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized
as the only valid signal, and interference is inherently rejected (ignored).
¾ FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops)
the carrier frequency of a conventional carrier several times per second according to
a pseudo-random set of channels. Because a fixed frequency is not used, and only
the transmitter and receiver know the hop patterns, interception of FHSS is extremely
difficult.
¾ Infrastructure Network - An infrastructure network is a group of computers or other
devices, each with a wireless adapter, connected as an 802.11 wireless LAN. In
infrastructure mode, the wireless devices communicate with each other and to a
wired network by first going through an access point. An infrastructure wireless
network connected to a wired network is referred to as a Basic Service Set (BSS). A
set of two or more BSS in a single network is referred to as an Extended Service Set
(ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to
connect the wired and wireless networks.
¾ Spread Spectrum - Spread Spectrum technology is a wideband radio frequency
technique developed by the military for use in reliable, secure, mission-critical
communications systems. It is designed to trade off bandwidth efficiency for reliability,
integrity, and security. In other words, more bandwidth is consumed than in the case
![](/img.php?id=589711&img=bg1a.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 21 -
of narrowband transmission, but the trade off produces a signal that is, in effect,
louder and thus easier to detect, provided that the receiver knows the parameters of
the spread-spectrum signal being broadcast. If a receiver is not tuned to the right
frequency, a spread-spectrum signal looks like background noise. There are two
main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric
key identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID.
This is typically the configuration parameter for a wireless PC card. It corresponds to
the ESSID in the wireless Access Point and to the wireless network name.
¾ WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or
128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard.
¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the
Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an
industry standards group promoting interoperability among 802.11b devices.
¾ WLAN (Wireless Local Area Network) - A group of computers and associated
devices communicate with each other wirelessly, which network serving users are
limited in a local area.
¾ WPA (Wi-Fi Protected Access) - A wireless security protocol use TKIP (Temporal
Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS
server.
![](/img.php?id=589711&img=bg1b.png)
TL-WN320G 54M Wireless USB Adapter User Guide
- 22 -
Appendix C: Contact Information
For help with the Installation or operation of the TP-LINK TL-WN320G Wireless Adapter,
please contact us.
E-mail: support@tp-link.com
Website: http://www.tp-link.com
