TL-WN353G 54M Wireless PCI Adapter User Guide
1
Chapter 1. Introduction
1.1 Overview of the product
The TP-LINK TL-WN353G 54M Wireless PCI Adapter will provide you the flexibility to install your
PC in the most convenient location available, without the cost of running network cables.
The Adapter's auto-sensing capability allows high packet transfer rate of up to 54Mbps for
maximum throughput, or dynamic range shifting to lower speeds due to distance or operating
limitations in an environment with a lot of electromagnetic interference. It can also interoperate
with all 11Mbps wireless (802.11b) products. Your wireless communications are protected by up
to 152-bit WEP and WPA encryption for high security.
1.2 Features
¾ Complies with IEEE802.11g, IEEE802.11b standards
¾ Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
64/128/152-bit WEP encryption
¾ Supports 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps wireless LAN data transfer rates
¾ Provides 32-bit PCI interface
¾ Supports Ad-Hoc and Infrastructure modes
¾ Supports roaming between access points when configured in Infrastructure mode
¾ Ease to configure and provides monitoring information
¾ Supports Windows 98, ME, 2000, 2003, XP, Vista, XP64
¾ Supports fixed antenna
1.3 LED Status
LED Indications Status Working Status
Status Green Intermittently
The adapter is in an electricity saving status or
the adapter is already connected but is not
transmitting or receiving data.
Status Green On The adapter is on wake up status.
Status Green Flashing The adapter is transmitting and receiving data.
![](/img.php?id=833309&img=bg7.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
2
Chapter 2. Installation Guide
2.1 Hardware Installation
To install the Adapter, follow these steps listed below:
1. Turn off your desktop PC and disconnect the power.
2. Open your PC case and locate an available PCI slot on the motherboard. Remove the metal
slot cover on the back of the PC. Check with your computer manufacturer for instructions if
needed.
3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's
contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis
with a mounting screw. Then, close your PC case.
4. Reconnect your PC’s power and turn on your desktop PC.
2.2 Software Installation
2.2.1 Overview
The Adapter’s Setup Wizard will guide you through the Installation procedure for Windows XP and
Vista. The Setup Wizard will install the TP-LINK Wireless Utility and drivers.
When you install the hardware before installing the software, the system will prompt “Found New
Hardware Wizard”, click Cancel, and run the Setup Wizard program on the CD-ROM.
The Setup steps for Windows operation Systems are very similar. The User guide takes the
Windows XP and Vista for example to explain the installation.
2.2.2 Software Installation for Windows XP

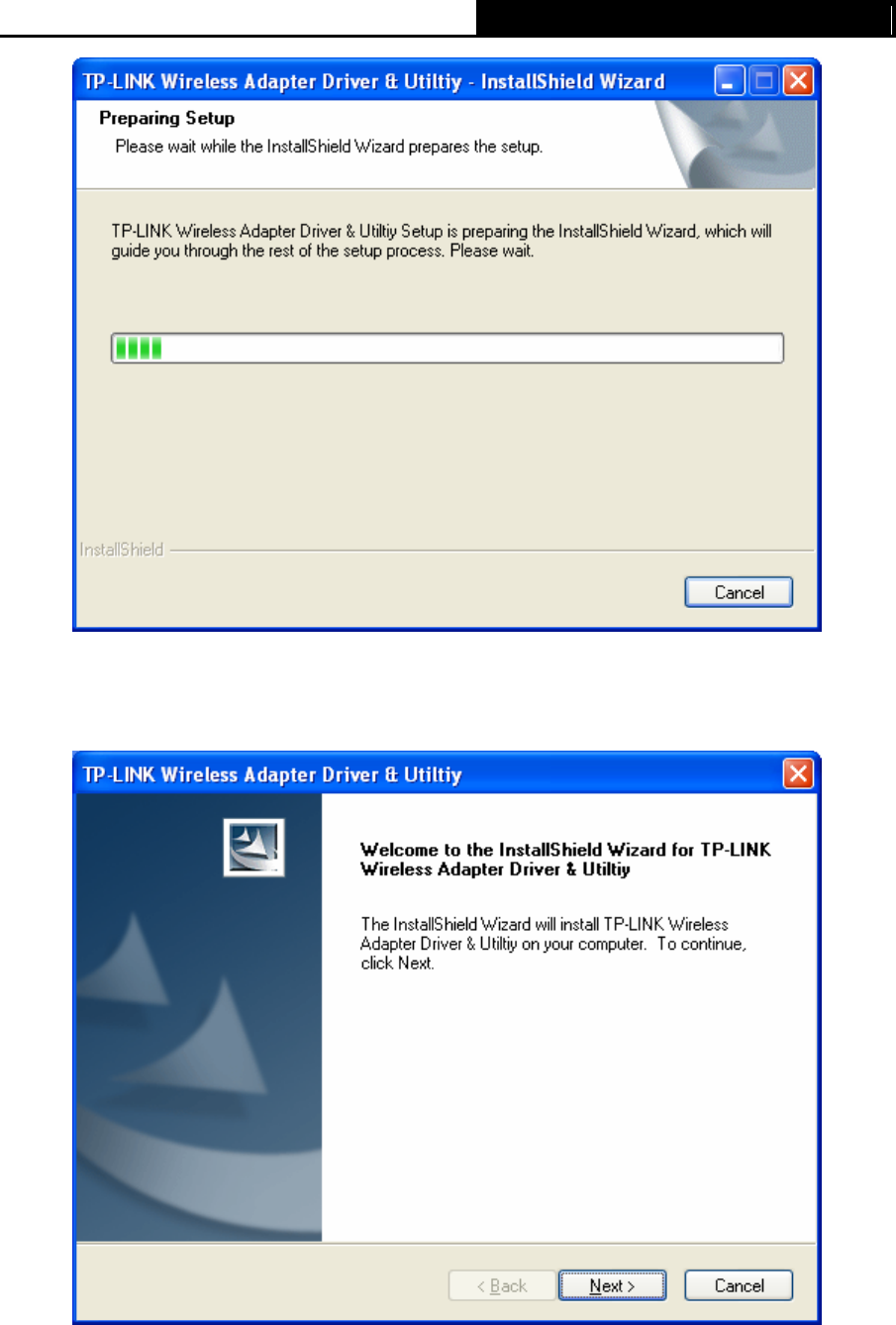

Step 1: Insert the Resource CD into your CD-ROM drive, Click the Start button and choose Run.
In the field that appears, enter F:\XXX\setup.exe (if "F" is the letter of your CD-ROM
drive, XXX represents the setup program path, which is labeled on the Resource CD),
then Figure 2-1 will appear; Click Cancel to end the installation in the screen. Otherwise,
the installation will continue.
![](/img.php?id=833309&img=bg8.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
3
Figure 2-1
Step 2: Click Next in the screen below (shown in Figure 2-2) to continue, you can click Cancel to
end the installation.
Figure 2-2
Step 3: After that, the files will be copied as the next screen shown (shown in Figure 2-3). To end
the Installation, click Cancel.
![](/img.php?id=833309&img=bg9.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
4
Figure 2-3
) Note:
During the installation, the system will warn about Windows Logo testing, please click Continue
Anyway to continue the installation.
Figure 2-4

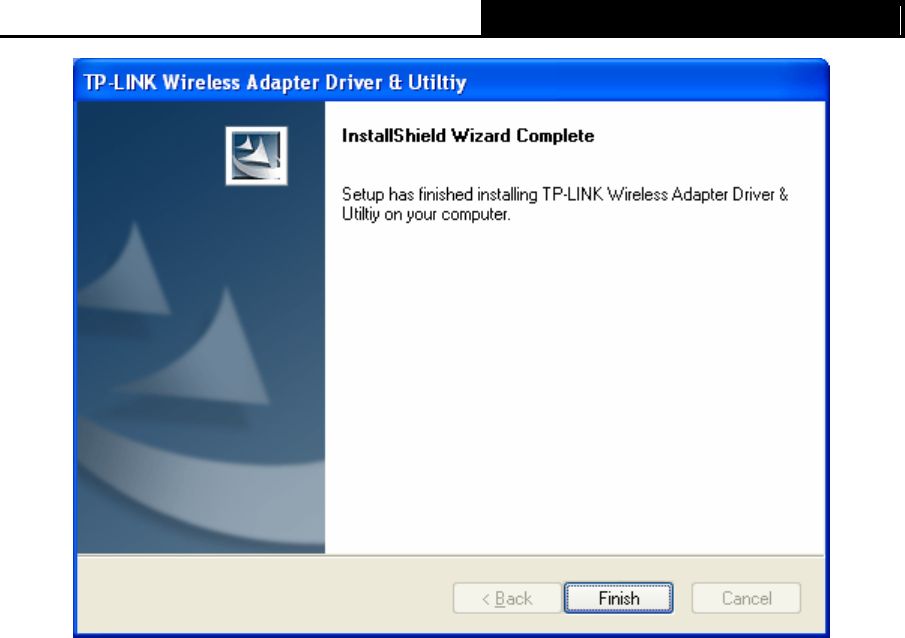

Step 4: Click the Finish button to complete.
![](/img.php?id=833309&img=bga.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
5
Figure 2-5
2.2.3 Software Installation for Windows Vista
Step 1: Insert the Resource CD into your CD-ROM drive, Click the Start button and choose Run.
In the field that appears, enter F:\XXX\setup.exe (if "F" is the letter of your CD-ROM
drive, XXX represents the setup program path, which is labeled on the Resource CD),
then Figure 2-6 will appear; Click Cancel to end the installation in the screen. Otherwise,
the installation will continue.
![](/img.php?id=833309&img=bgb.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
6
Figure 2-6

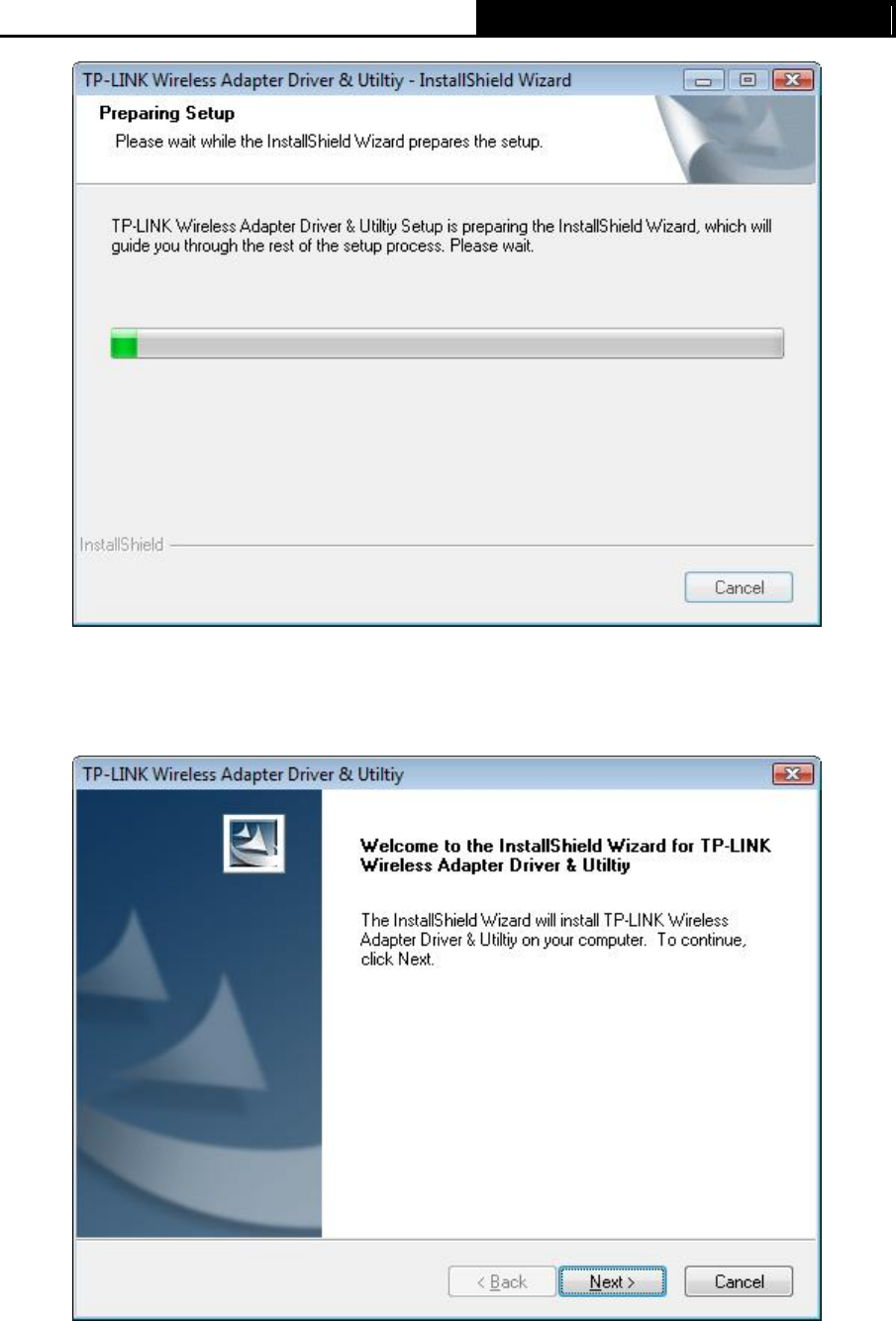

Step 2: Click Next in the screen below (shown in Figure 2-2) to continue, you can click Cancel to
end the installation.
Figure 2-7
Step 3: After that, the files will be copied as the next screen shown (shown in Figure 2-3). To end
the Installation, click Cancel.
![](/img.php?id=833309&img=bgc.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
7
Figure 2-8
) Note:

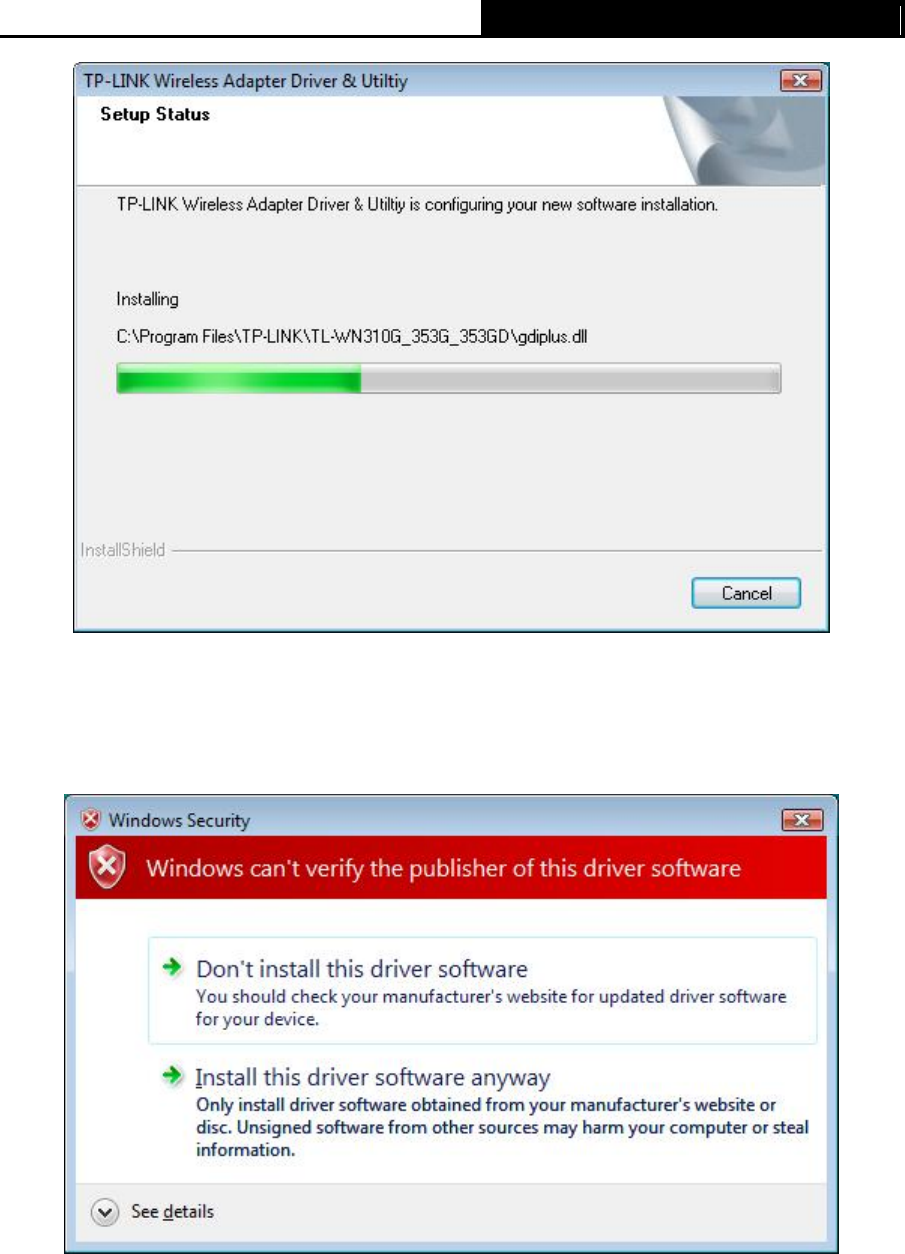

During the installation, the system will warn about Windows Security testing, please click “Install
this driver software anyway” to continue the installation.
Figure 2-9

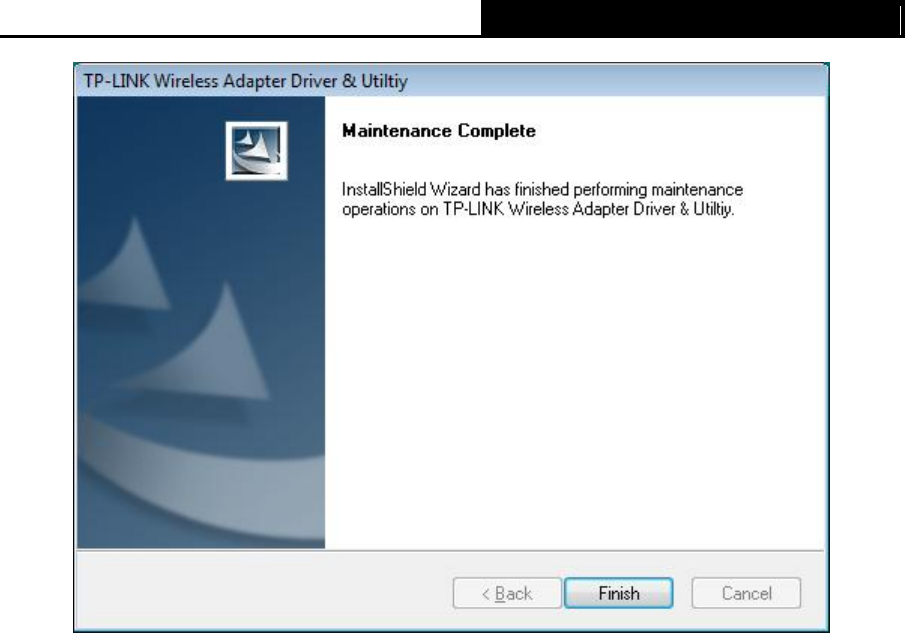

Step 4: Click the Finish button to complete.
![](/img.php?id=833309&img=bgd.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
8
Figure 2-10
![](/img.php?id=833309&img=bge.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
9
Chapter 3. Configuration
TP-LINK Wireless PCI Adapter TL-WN353G can be configured by TP-LINK Wireless Utility. This
chapter describes how to configure your TP-LINK Wireless PCI Adapter for wireless connectivity
on your Wireless Local Area Network (WLAN) and use the data security encryption features.

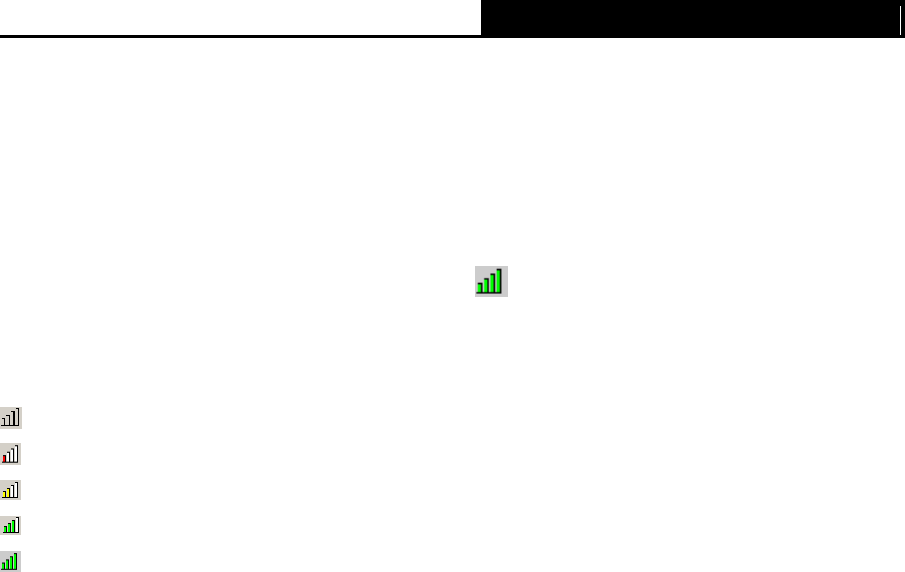

After Installing the Adapter, the Adapter’s tray icon will appear in your system tray. It appears
at the bottom of the screen, and shows the signal strength using color and the received signal
strength indication (RSSI).
If the icon is gray, there is no connection.
If the icon is red, there is poor signal strength and the RSSI is less than 5dB.
If the icon is yellow, there is poor signal strength and the RSSI is between 5dB and 10dB.
If the icon is green, there is good signal strength and the RSSI is between 10dB and 20dB.
If the icon is green, there is excellent signal strength and the RSSI is more than 20dB.

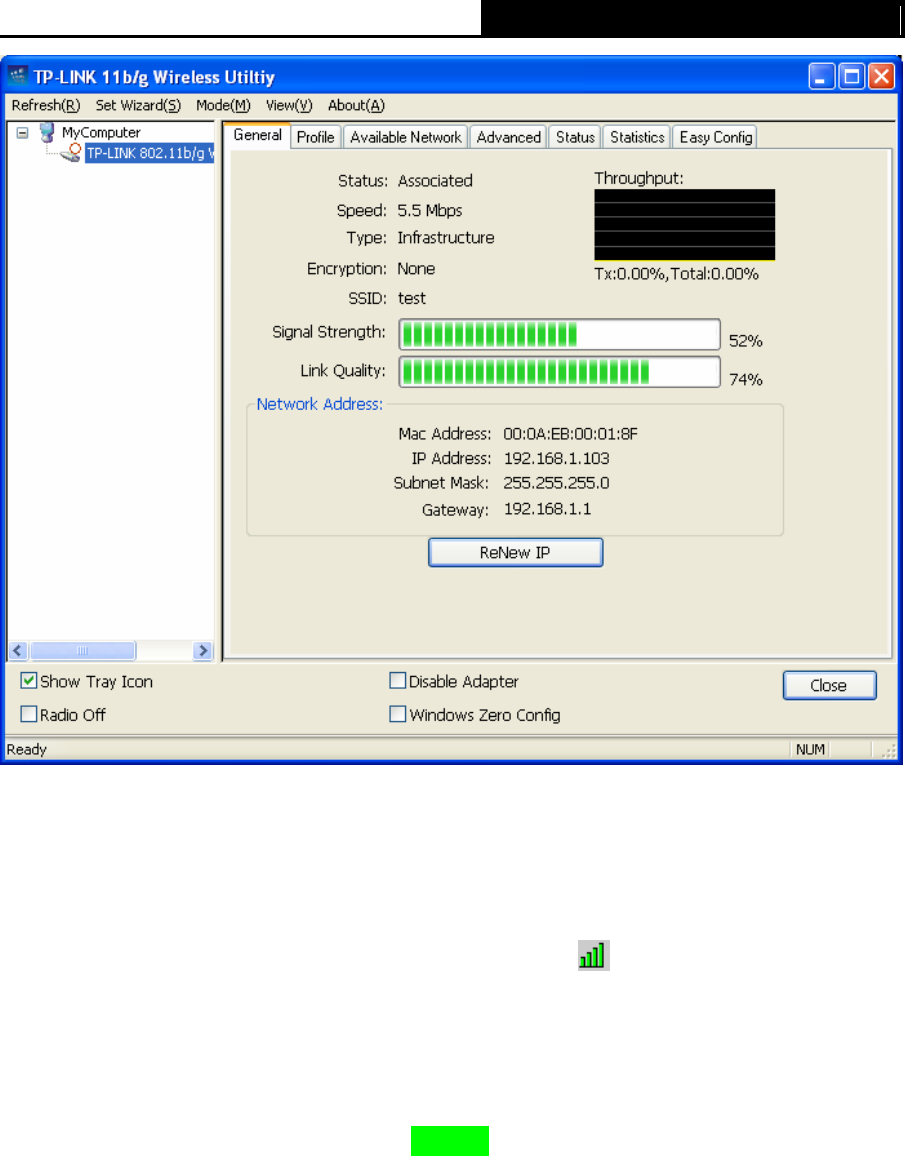

Double-click the icon and the TP-LINK Wireless Utility will run. You can also run the utility by
clicking the Start>Programs>TP-LINK>RTWCU>TP-LINK Wireless Utility. The utility provides
a integrated and easy tools to:
¾ Display current status information
¾ Edit and add configuration profiles
¾ Display current statistics information
The sections below take Windows XP for example to introduce these above capabilities.
3.1 Set Wizard

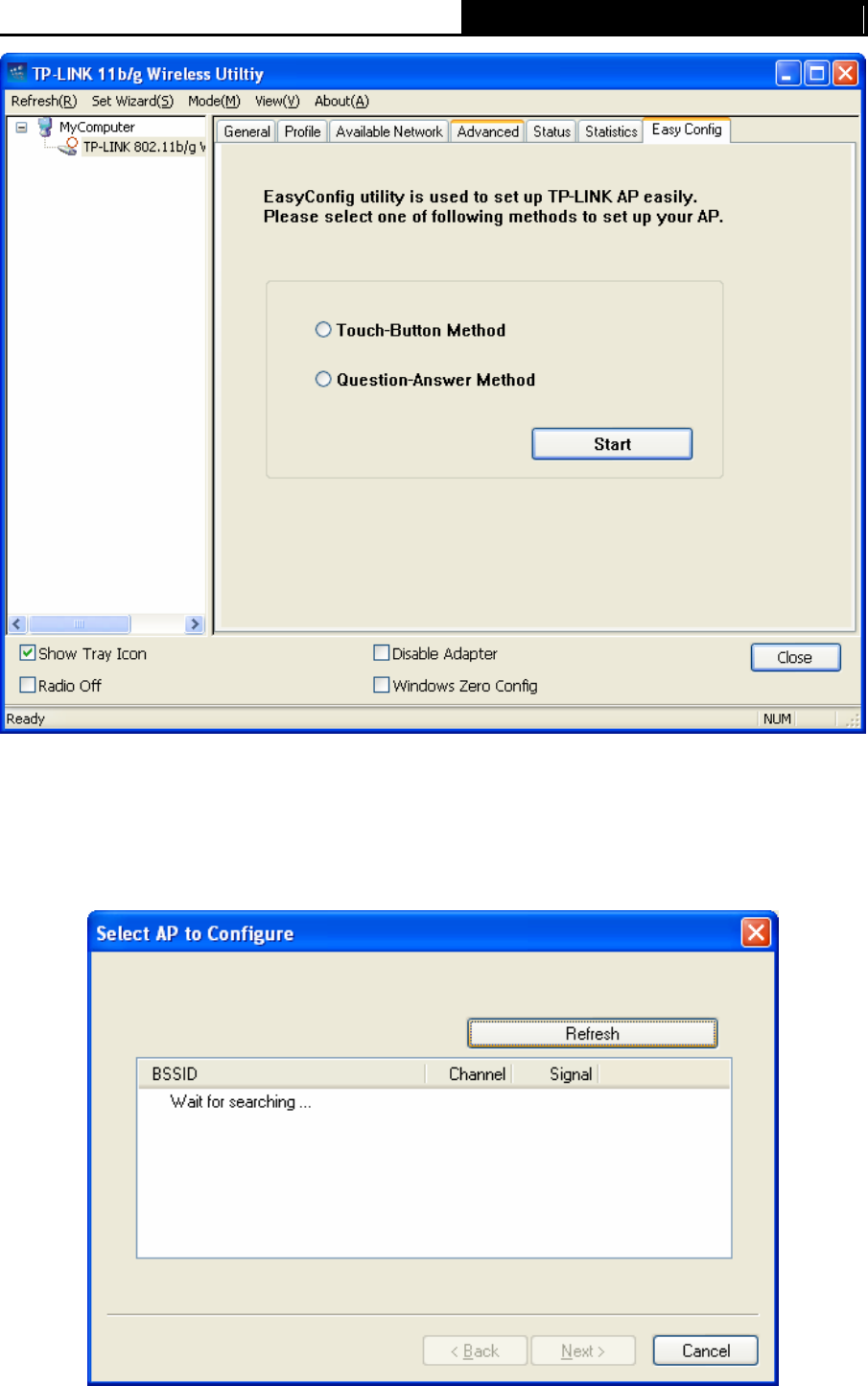

Choose the menu Set Wizard on the top of the utility screen, you can follow the steps below to
configure the adapter quickly to connect to the wireless network.

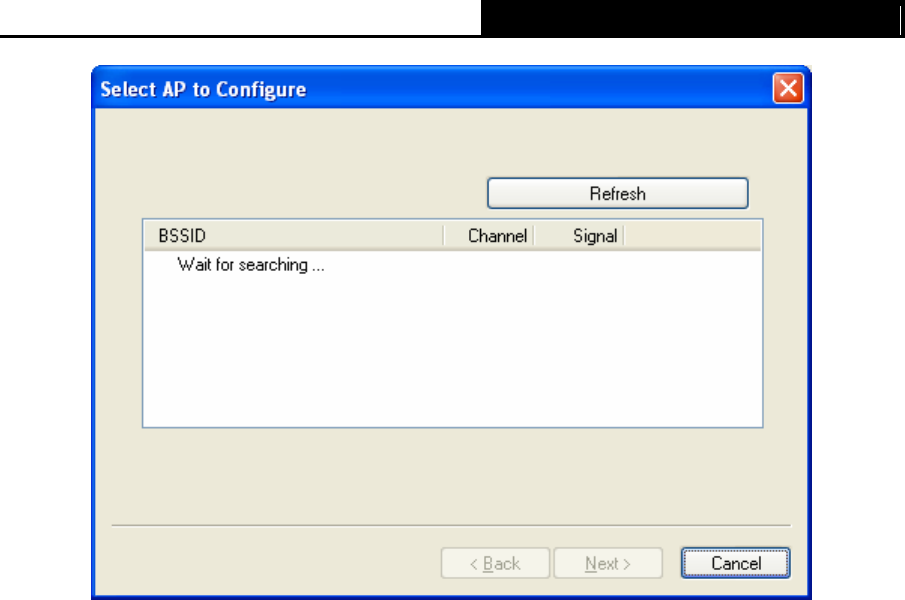

Step 1: Click Refresh button to update the wireless network (show in Figure 3-1). Then select
the wireless network and click Next.
![](/img.php?id=833309&img=bgf.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
10
Figure 3-1
Step 2: Click OK to continue.
Figure 3-2
Step 3: After that, Select the network authentication and data encryption, then click OK.
![](/img.php?id=833309&img=bg10.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
11
Figure 3-3
Step 4: Configure the IP information for the adapter. You can select “Obtain an IP address
automatically” and “Obtain DNS server address automatically” to obtain an IP address.
) Note:
If you want use the method, the AP that the adapter connects should support DHCP function.
![](/img.php?id=833309&img=bg11.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
12
Figure 3-4
) Note:
You can also select “Use the following IP address” and “Use the following DNS server addresses”
to assign the specific address.
3.2 General Status
Choose the tab General as shown in Figure 3-5, the left filed displays the type of the adapter, the
right field displays the status about the connection, including Status, Speed, Type, SSID, Signal
Strength, Link Quality and other IP information.
![](/img.php?id=833309&img=bg12.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
13
Figure 3-5
¾ Signal Strength - This shows the strength of the wireless signal.
¾ Link Quality - This shows the quality of the wireless connection.
¾ ReNew IP - Click the button to get the IP address from the AP.
¾ Show Tray Icon - Select the option to display the icon on the bottom of the desktop.
Otherwise, you can see the two icons.
¾ Disable Adapter - If you select the option, the adapter can’t work.
¾ Radio Off - If you select the option, the wireless function will be ineffective.
¾ Windows Zero Config - Select the option to connect to the wireless network via the
Windows Zero Config. In the event, the RTWCU does not take effect.
Click Close to close the screen.
3.3 Profile Management
Click the tab Profile as shown in Figure 3-6 to add, remove, edit, duplicate or set default for a
profile.
![](/img.php?id=833309&img=bg13.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
14
Figure 3-6
3.3.1 Add or Edit a Configuration Profile
Click the button Add or Edit (you should select an existed profile first to edit it) on the screen
above, you can configure the profile as shown in Figure 3-7.
We add a new profile and configure it for example here.
![](/img.php?id=833309&img=bg14.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
15

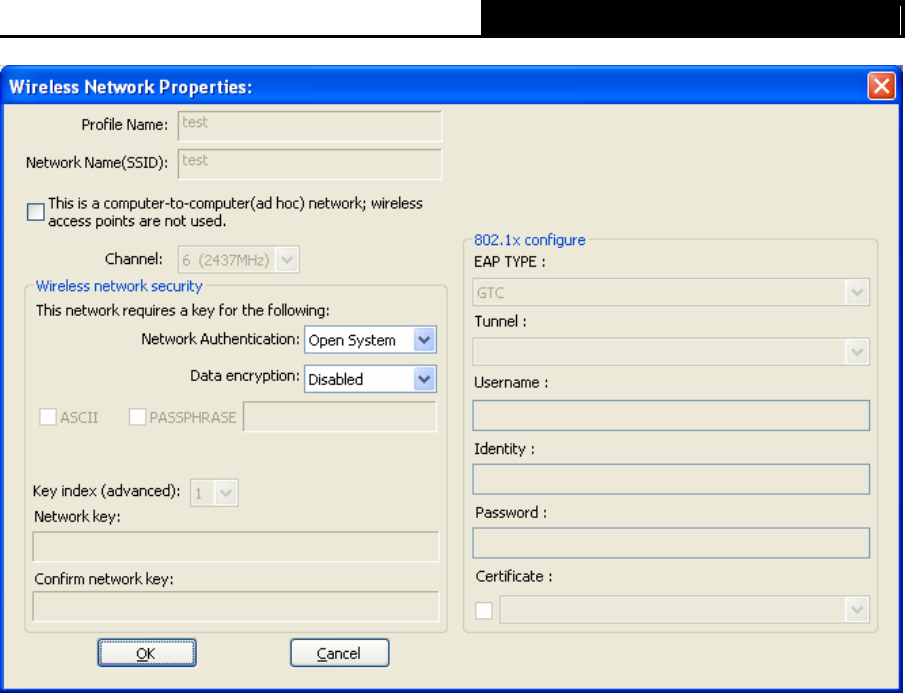

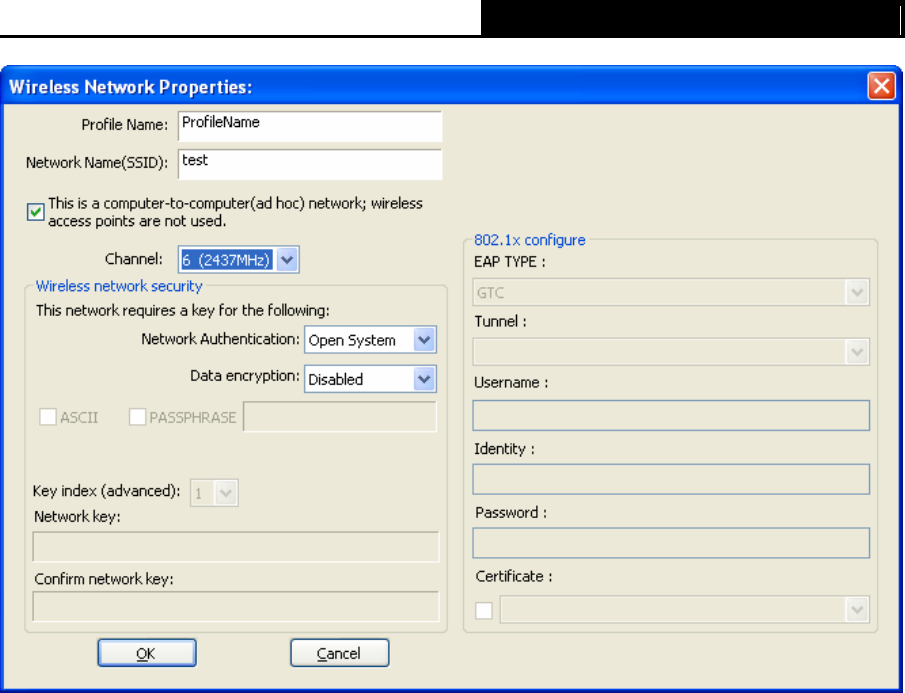

Figure 3-7
¾ Profile Name - Please enter the Profile name which identifies the configuration profile. This
name must be unique. Note that the profile names are not case-sensitive.
¾ Network Name (SSID) - Please enter the IEEE 802.11 wireless network name. This field has
a maximum limit of 32 characters.
) Note:
The Profile Name and Network Name are necessary for the profile, you must configure it.
¾ Channel - If you want to use the specific channel to connect to the wireless network, select
the option “This is a computer-to-computer (ad-hoc) network; wireless access points are not
used.” If you don't select the option, the system will search the available channel to connect.
¾ Wireless network security - This configure the security for the adapter.
) Note:
You should configure the security for the adapter according with the wireless network that you
want to connect. If the wireless network takes some security measure, you should configure the
same security for the adapter accordingly. If the wireless network doesn’t take security measure,
you don’t need to configure the security for the adapter.
• Network Authentication - Select which mode the Wireless PCI Adapter uses to
authenticate to an access point. These modes are: Open System, Shared key,
WPA-PSK, WPA2-PSK, WPA 802.1X, WPA2 802.1X, WEP 802.1X.
• Data encryption - Select the corresponding data encryption for the authentication.
These encryptions are: Disabled, WEP, TKIP and AES.
![](/img.php?id=833309&img=bg15.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
16
) Note:
1) Select different authentications and data encryptions, the security configuration is
different.
2) When you select channel manually, the available network authentication are Open
System, Shared key and WPA-None.
• ASCII - Select this option, you can enter any ASCII characters to compose the
password.
• PASSPHRASE - Select this option, you can enter the characters from 0~9 to compose
the password.
• Key Index - Select the index of the password.
• Network Key & Confirm network key - The fields configure the network key. The two
should be the same.
¾ 802.1x configure - This configures the 802.1x security, it is available when you select the
data encryption as WPA 802.1X, WPA2 802.1X or WEP 802.1X.
• EAP TYPE - Select the EAP type for the 802.1x configuration, the options are: GTC, TLS,
LEAP, TTLS, PEAP.
• Tunnel - Select the tunnel: MD5, GTC, TLS, MSCHAP-V2. The option is necessary for
the EAP type of TTLS and PEAP.
• Username - Enter the username for authentication. The option is necessary for the EAP
type of TTLS and PEAP.
• Identity - Enter the identity for the authentication.
• Password - Enter the password for the authentication. The option is necessary for the
EAP type of LEAP, TTLS and PEAP.
• Certificate - Select the certificate you apply.
1. Open System authentication
When you select the Open System as the authentication, the Disabled and WEP can be available
for the data encryption. If you select Disabled, you don’t need to configure any passwords. If you
select WEP, you can configure the password as follows.
For example: If the wireless network takes Open System authentication, WEP data encryption,
the password is 64bit with the value of 0123456789. The index is 1.
![](/img.php?id=833309&img=bg16.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
17
Figure 3-8
Step 1: Select the “Open System” as the Network Authentication.
Step 2: Select the “WEP” as Data encryption.
Step 3: Select the type for the password, you can select the ASCII or PASSPHRASE. For ASCII,
you can enter any characters in the keyboard; For PASSPHRASE, you can enter the
characters from 0 to 9.
Step 4: Select “64 Bits” as the Key Length, then enter “0123456789” as the password value.
Step 5: Select the Key index “1”, and click the OK to save the configuration.
2. Shared Key authentication
When you select the Shared Key as the authentication, the only available data encryption is
WEP.
) Note:
The configuration for Shared Key authentication and Open System are similar, you can refer to
the Open System authentication to configure it.
3. WPA-PSK authentication
When you select the WPA-PSK as the authentication, the available data encryptions are TKIP
and AES. Please select the one according your need.
For example: If the wireless network takes WPA-PSK authentication, TKIP data encryption, the
network key is 0123456789. You can configure it for adapter as follows.
![](/img.php?id=833309&img=bg17.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
18
Figure 3-9
Step 1: Select the “WPA-PSK” as the Network Authentication.
Step 2: Select the “TKIP” as Data encryption.
Step 3: Enter the Network key and confirm it.
Step 4: Click the OK to save the configuration.
4. WAP2-PSK authentication
When you select the WPA2-PSK as the authentication, the available data encryptions are TKIP
and AES. Please select the one according your need.
) Note:
The configuration for WPA2-PSK and WPA-PSK are similar, you can refer to WAP-PSK
authentication to configure it.
5. WPA 802.1x
When you select the WPA 802.1x as the authentication, the available data encryptions are TKIP
and AES. For the authentication, you should configure the 802.1x security. Select the EAP Type
and configure the corresponding options.
![](/img.php?id=833309&img=bg18.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
19
Figure 3-10
) Note:
Select different EAP types, the configuration are different.
6. WAP2 802.1x
When you select the WPA 802.1x as the authentication, the available data encryptions are TKIP
and AES. For the authentication, you should configure the 802.1x security.
) Note:
The configuration for WPA2 802.1x and WPA 802.1x are similar, you can refer to WPA 802.1x
authentication to configure it.
7. WEP 802.1x
When you select the WEP 802.1x as the authentication, the only available data encryption is
WEP.
) Note:
The configuration for WEP 802.1x authentication and WPA 802.1x are similar, you can refer to
WPA 802.1x authentication to configure it.
3.3.2 Remove a configuration profile
Follow the steps below to delete a configuration profile.

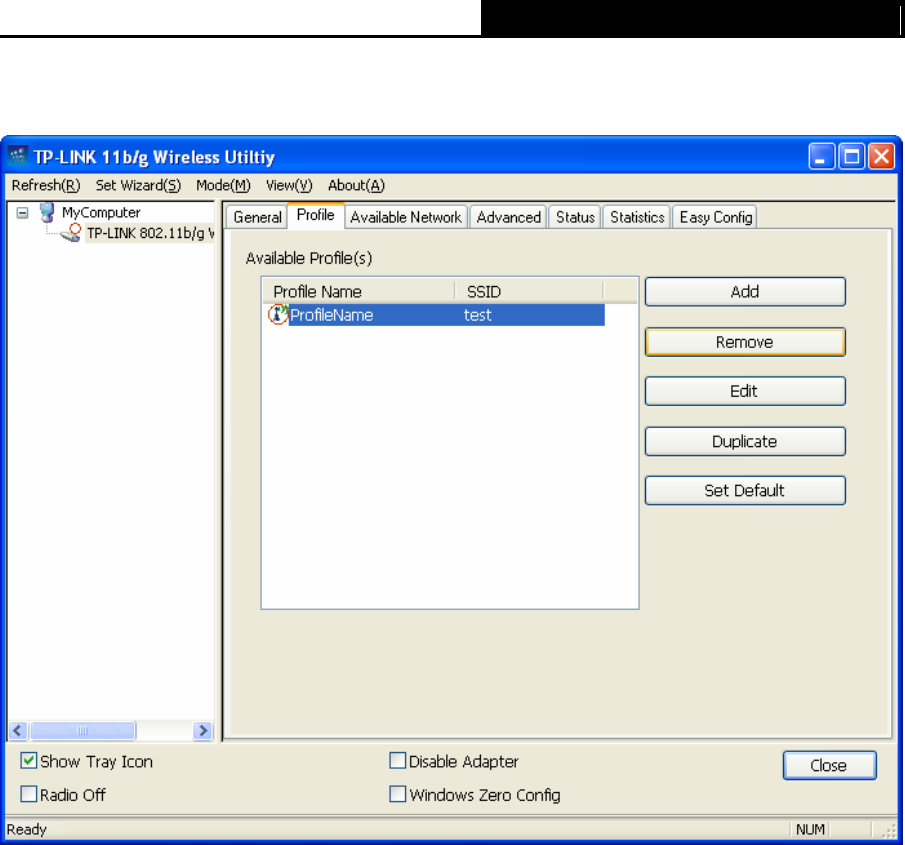

Step 1: Go to the Profile tab (shown in Figure 3-11).
![](/img.php?id=833309&img=bg19.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
20
Step 2: Select the profile name in the Profiles List.
Step 3: Click Remove.
Figure 3-11
3.3.3 Duplicate a configuration file
Follow the steps below to change the name of a configuration profile.
Step 1: Go to the Profile tab (shown in Figure 3-11).
Step 2: Select the profile name in the Profiles List.
Step 3: Click Duplicate, and then enter the new name for the configuration profile.
3.3.4 Set default configuration profile
Follow the steps below to select a configuration profile as default. Once the adapter wants to
connect a wireless network, it will select the default profile to connect firstly.
Step 1: Go to the Profile tab (shown in Figure 3-11).
Step 2: Select the profile name in the Profiles List.
Step 3: Click Set Default.
3.4 Available Network

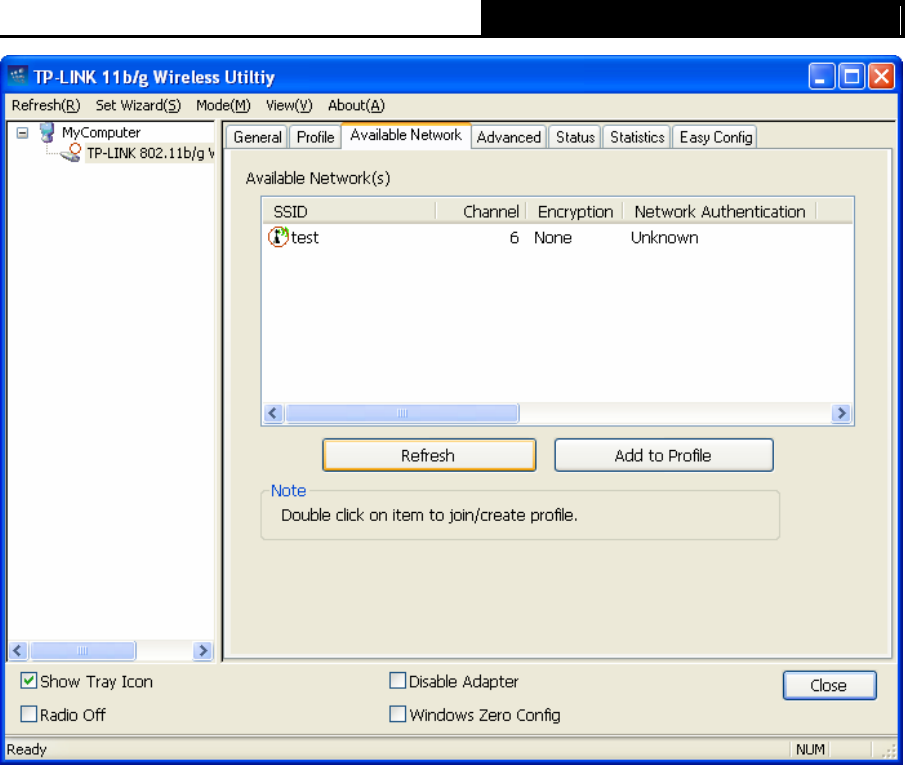

Click the tab Profile as shown in Figure 3-12 to view the wireless networks. You can follow the
steps below to accede to a specific network.
![](/img.php?id=833309&img=bg1a.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
21
Figure 3-12
Step 1: Click Refresh to refresh the list at any time.
Step 2: Highlight a network name and click Add to Profile to connect to an available network.
Fill in the Profile name and click OK to create the new configuration profile for that
network.
3.5 Advanced
Click the tab Advanced as shown in Figure 3-13 to make further advanced configuration.
![](/img.php?id=833309&img=bg1b.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
22
Figure 3-13
¾ Power Save Mode - Select the power save mode.
• None - Turns power saving off, thus powering up the Wireless PCI Adapter continuously
for a short message response time.
• Min - Normal mode uses max when retrieving a large number of packets, then switches
back to power save mode after retrieving the packets.
• Max - Selects max mode to let the access point buffer incoming messages for the
Wireless PCI Adapter. The Adapter will detect the access point if any messages are
waiting periodically.
¾ Wireless Mode - Select the wireless mode for the network: 802.11b, 802.11g/b. The
Wireless PCI Adapter must match the wireless mode of the access point with which it
associates.
¾ PSP XLink Mode - If you want to enable the function, please select it.
Click Set Defaults to restore the configuration to defaults.
Click Apply to make all the configurations to be effective.
3.6 Status

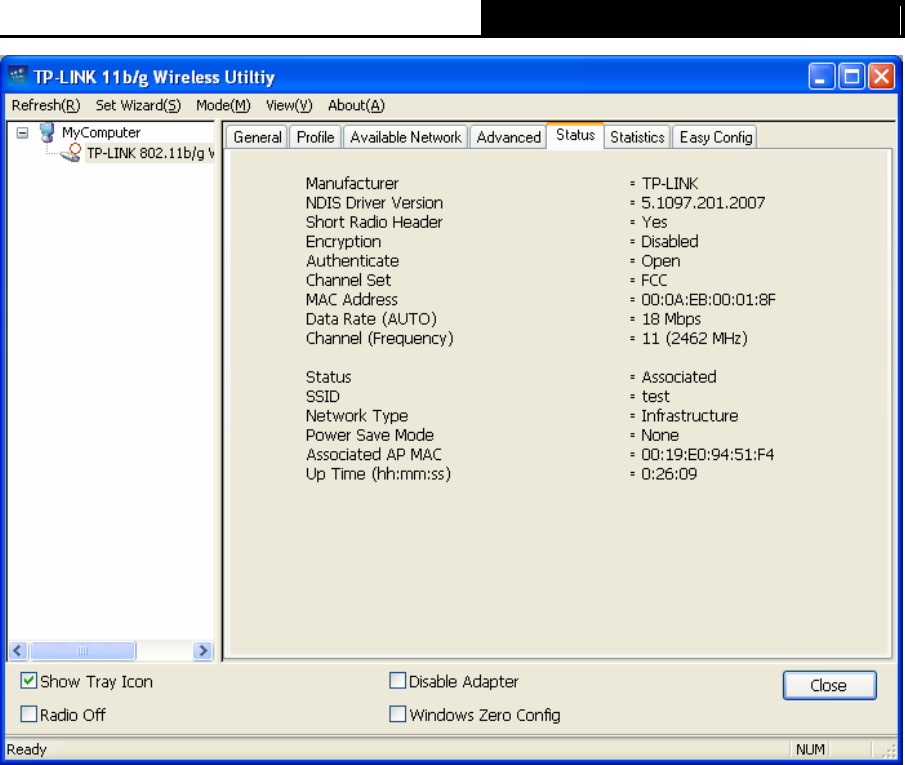

Click the tab Status as shown in Figure 3-14 to view the information about the connection.
![](/img.php?id=833309&img=bg1c.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
23
Figure 3-14
3.7 Statistics

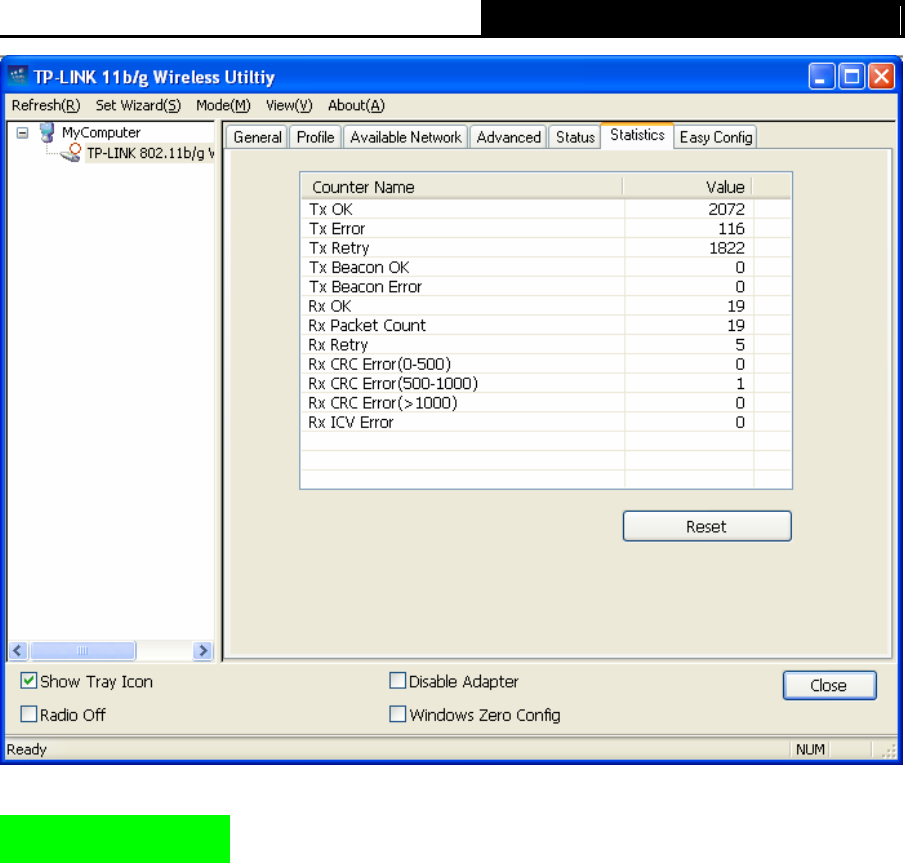

Click the tab Statistics as shown in Figure 3-13 to view the traffic statistics about the connection.
Click the Reset to refresh the information.
![](/img.php?id=833309&img=bg1d.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
24
Figure 3-15
3.8 Easy Config
Click the tab Easy Config as shown in Figure 3-16 to configure the adapter.
![](/img.php?id=833309&img=bg1e.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
25
Figure 3-16
3.8.1 Touch-Button Method
Select the Touch-Button Method (shown in Figure 3-16), then click Start, you can connect to the
wireless network quickly, follow the steps below (shown in Figure 3-17).
Figure 3-17
![](/img.php?id=833309&img=bg1f.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
26
Step 1: Click the Refresh button to update the wireless network (shown in Figure 3-17), and
then select the network you want to connect. Click Next.
Step 2: Finally, enter the profile name for the network. Click Ok to complete.

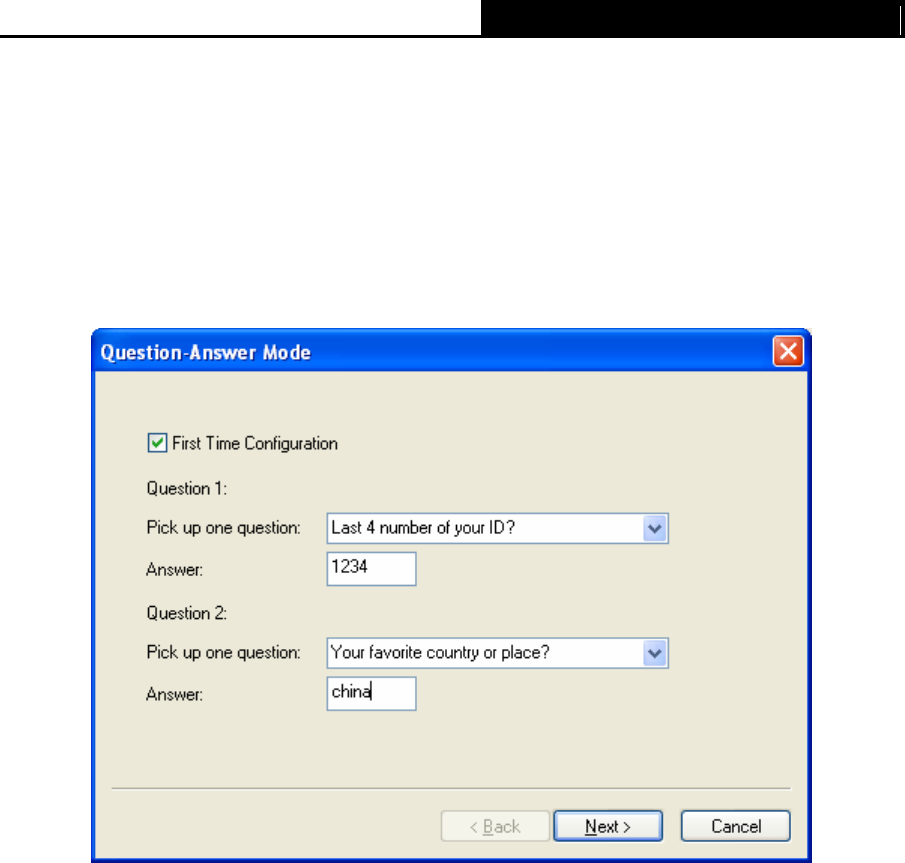

3.8.2 Question-Answer Method
Select the Touch-Button Method (shown in Figure 3-16), then click Start, you can connect to the
wireless network quickly, follow the steps below (shown in Figure 3-18).
Figure 3-18
Step 3: Answer the question as shown in Figure 3-18. Click Next to continue.
Step 4: Click the Refresh button to update the wireless network (shown in Figure 3-19), and
then select the network you want to connect. Click Next.
![](/img.php?id=833309&img=bg20.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
27
Figure 3-19
Step 5: Finally, enter the profile name for the network. Click Ok to complete.
![](/img.php?id=833309&img=bg21.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
28
Appendix A: Specifications
Normal
Interface 32bit PCI Interface
Standards IEEE802.11b; IEEE802.11g
Operating System Windows 98, ME, 2000, 2003, XP, Vista, XP64
Transmission Distance Indoor up to 100m, outdoor up to 300m (Standard transmission
distance, it is limited to the environment).
Radio Data Rate 54/48/36/24/18/12/9/6Mbps or 11/5.5/2/1Mbps
(Auto Rate Sensing)
Modulation 1M DBPSK; 2M DQPSK; 5.5M, 11M CCK; 6M, 9M, 12M, 18M,
24M, 36M, 48M, 54M OFDM;
Media Access Protocol CSMA/CA with ACK
Transmit Power 15dBm (Typical)
Data Security WPA/WPA2; 64/128/152-bit WEP; TKIP/AES
Frequency 2.4 ~ 2.4835GHz
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Power Consumption
(Max)
11g: 420mA in full Transmit (TX), 330mA in full Receive (RX)
11b: 520mA in full Transmit (TX), 325mA in full Receive (RX)
Safety & Emissions FCC, CE
Environmental and Physical
Operating Temp. 0℃~40℃ (32 ~104℉℉)
Storage Temp. -40℃– 70 (℃-40℉~158℉)
Humidity 10% - 95% RH, Non-condensing
Dimensions
(W×D×H) 5.2×4.8×.9 inch. (133×121×22 mm),
![](/img.php?id=833309&img=bg22.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
29
Appendix B: Glossary
¾ 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
¾ Ad-hoc Network - An ad-hoc network is a group of computers, each with a Wireless PCI
Adapter, connected as an independent 802.11 wireless LAN. Ad-hoc wireless computers
operate on a peer-to-peer basis, communicating directly with each other without the use of an
access point. Ad-hoc mode is also referred to as an Independent Basic Service Set (IBSS) or
as peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
¾ DSSS (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all
data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits
in the chip are damaged during transmission, statistical techniques embedded in the receiver
can recover the original data without the need of retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS
signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
¾ FHSS (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the
carrier frequency of a conventional carrier several times per second according to a
pseudo-random set of channels. Because a fixed frequency is not used, and only the
transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
¾ Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless PCI Adapter, connected as an 802.11 wireless LAN. In infrastructure
mode, the wireless devices communicate with each other and to a wired network by first
going through an access point. An infrastructure wireless network connected to a wired
network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single
network is referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a
corporation scale, or when it is necessary to connect the wired and wireless networks.
¾ Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique
developed by the military for use in reliable, secure, mission-critical communications systems.
It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but the
trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the
receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is
not tuned to the right frequency, a spread-spectrum signal looks like background noise.
There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
![](/img.php?id=833309&img=bg23.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
30
¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
¾ WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
¾ WLAN (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
¾ WPA (Wi-Fi Protected Access) - A wireless security protocol use TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.
![](/img.php?id=833309&img=bg24.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
31
Appendix C: PSP Setting

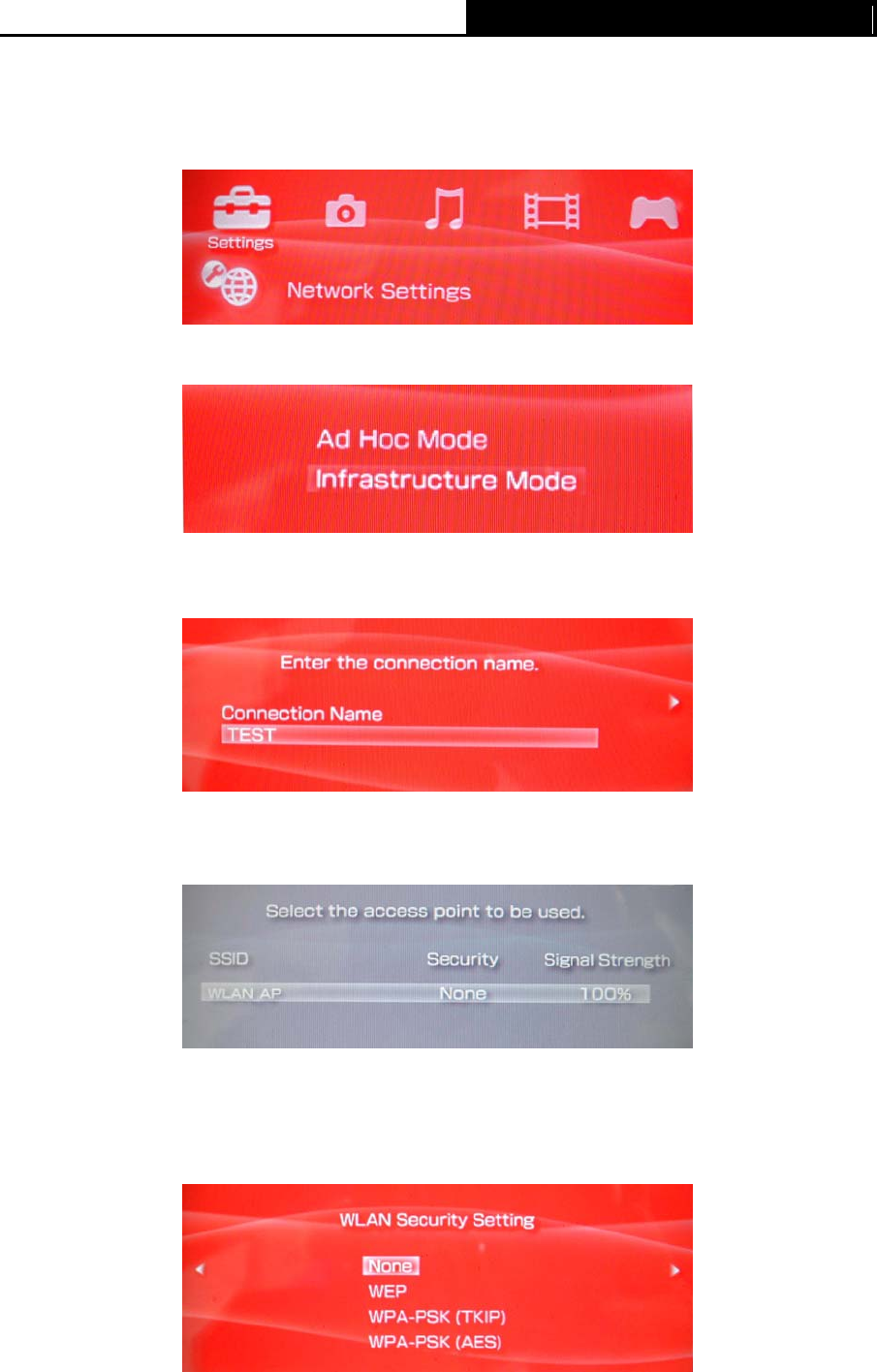

Step 1: Choose "Network Settings”
Step 2: Choose ”Infrastructure Mode”
Step 3: Establish a new connection , enter the name of this connection. (any is ok),we use TEST
for example.
Step 4: Select SCAN, and let PSP scan the nearer AP automatic,then choose the default
network SSID WLAN_AP of TL-WN322G 54M Wireless USB Adapter.
Step 5: ”WLAN Security Setting” If you haven’t set pass phrase. select the first ”None” .if you
have set the pass phase, select the second "WEP”, the pass phase must identical with
WEP key that you have set.
Step 6: Select address settings mode—Easy
![](/img.php?id=833309&img=bg25.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
32

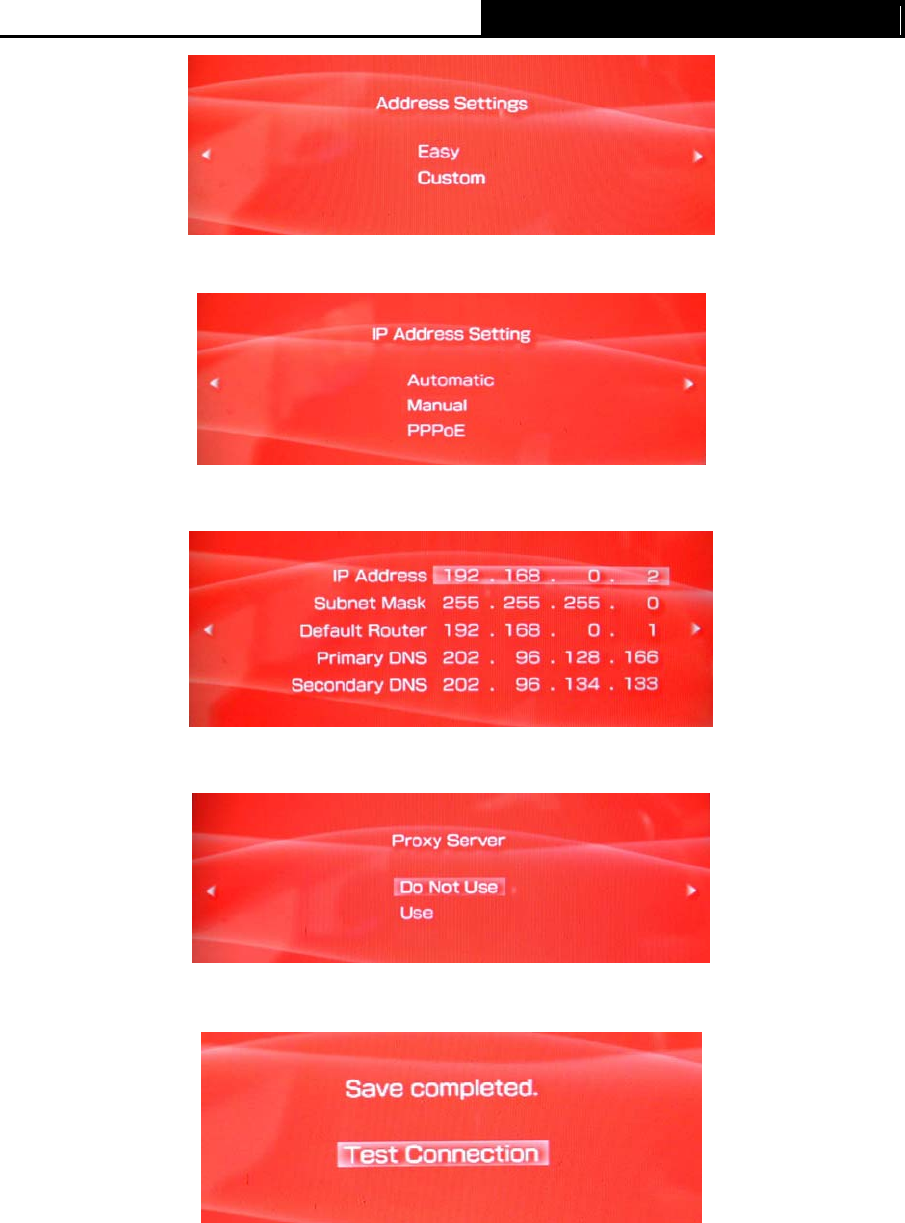

Step 7: In "IP Address Setting"screen ,we select "Manual”
Step 8: In ”Address Setting” screen, please set IP address
Step 9: ”Proxy Server” select ”Do Not Use”
Step 10: Select ”Test Connection”
Step 11: Test network connection. After the configuration that was set above, we can connect to
web successfully. Till now, we have finished the configuration of PSP mode.
![](/img.php?id=833309&img=bg26.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
33
) Note:
If you didn’t startup WEP Encryption, any PSP could link in, and the wireless network won’t be
protected by encryption key.
![](/img.php?id=833309&img=bg27.png)
TL-WN353G 54M Wireless PCI Adapter User Guide
34
Appendix D: Contact Information
For help with the Installation or operation of the TP-LINK TL-WN353G 54M Wireless PCI Adapter,
please contact us.
http://www.tp-link.com
