TP Link Technologies WN751ND 150Mbps Wireless N PCI Adapter User Manual TL WN751ND REV1

TP-Link Technologies Co., Ltd. 150Mbps Wireless N PCI Adapter TL WN751ND REV1

TL-WN751ND_User manual_REV1

TL-WN751ND
150Mbps Wireless N PCI Adapter
Rev: 1.0.0
1910010468
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating
in conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor use and
public service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy If used outside of own premises, general authorization
is required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical
area within a radius of 20 km from the centre of
Ny-Ålesund
Russian Federation Only for indoor applications
Note: Please don’t use the product outdoors in France.
This device has been designed to operate with the antennas listed below which have a
maximum gain of 2 dBi. Antennas not included in this list or having a gain greater than 2 dBi are
strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so
chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted
for successful communication.
TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 150Mbps Wireless N PCI Adapter
Model No.: TL-WN751ND
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents:
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008
EN60950-1:2006
EN62311:2008
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
CONTENTS
Chapter 1 Product Overview ................................................................................. 1
1.1 Package Contents................................................................................................... 1
1.2 Introduction ............................................................................................................. 1
1.3 Features.................................................................................................................. 1
1.4 Hardware Overview................................................................................................. 2
Chapter 2 Installation............................................................................................. 3
2.1 Hardware Installation .............................................................................................. 3
2.2 Software Installation................................................................................................ 3
Chapter 3 Connect to a Wireless Network ........................................................... 8

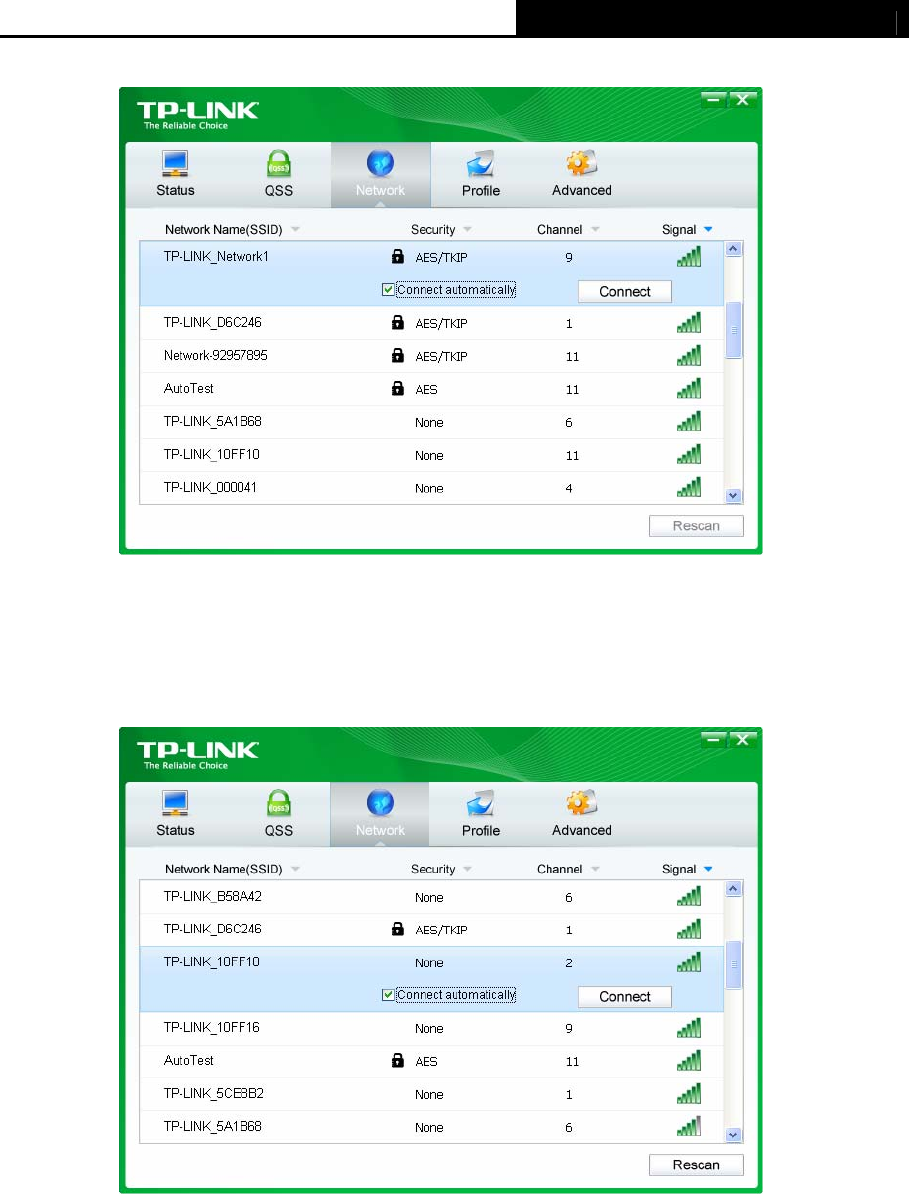

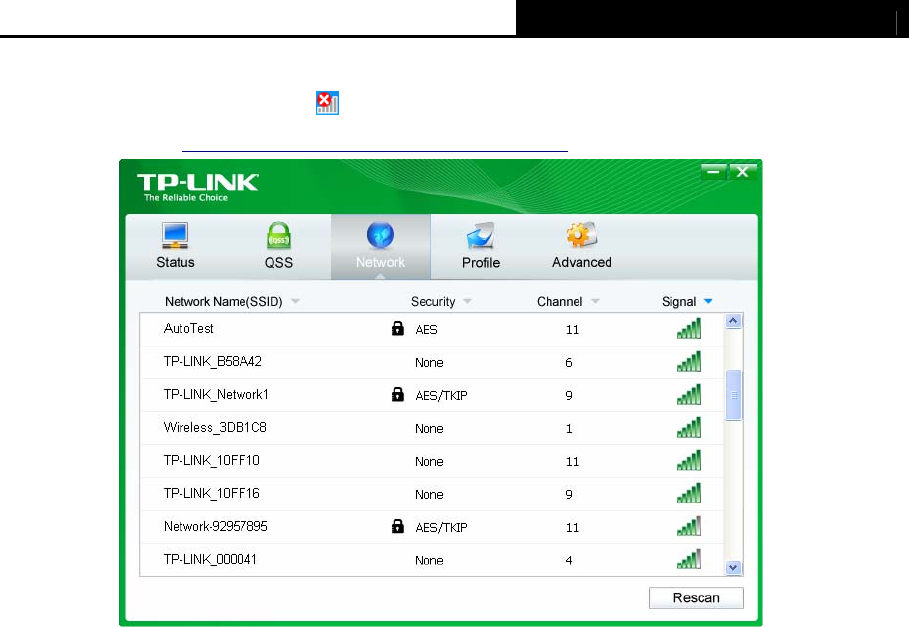

3.1 To connect using TWCU ......................................................................................... 8

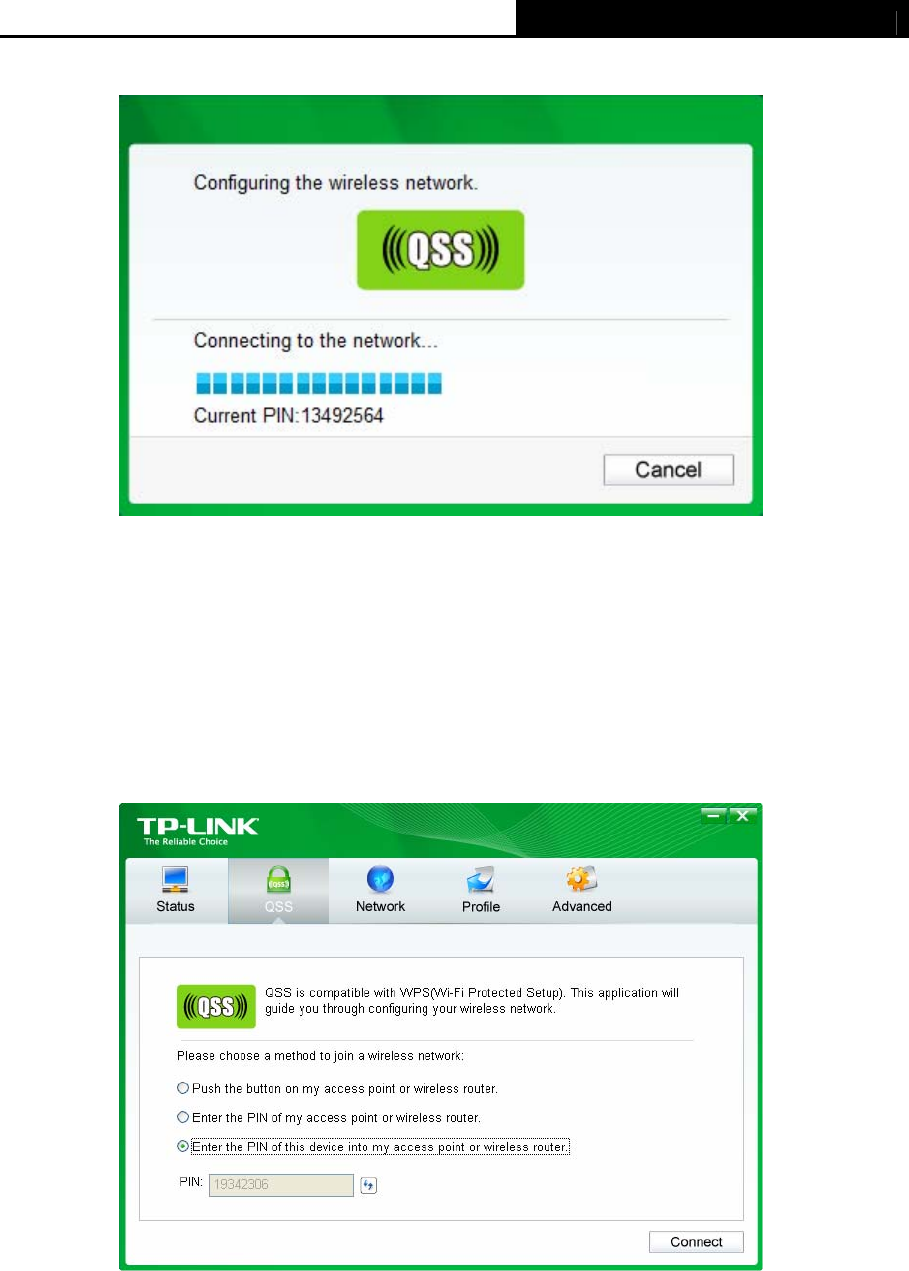

3.2 To connect using QSS .......................................................................................... 11

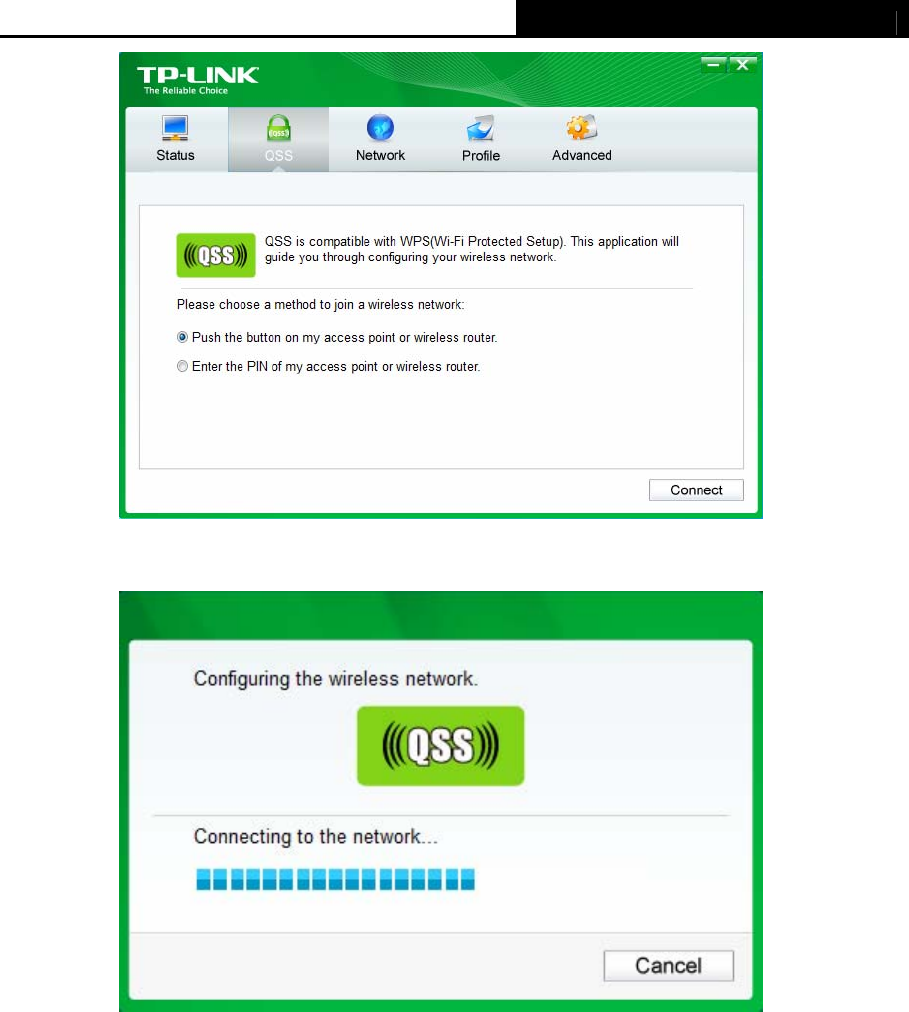

3.2.1 PBC (Push Button Configuration) method................................................ 11

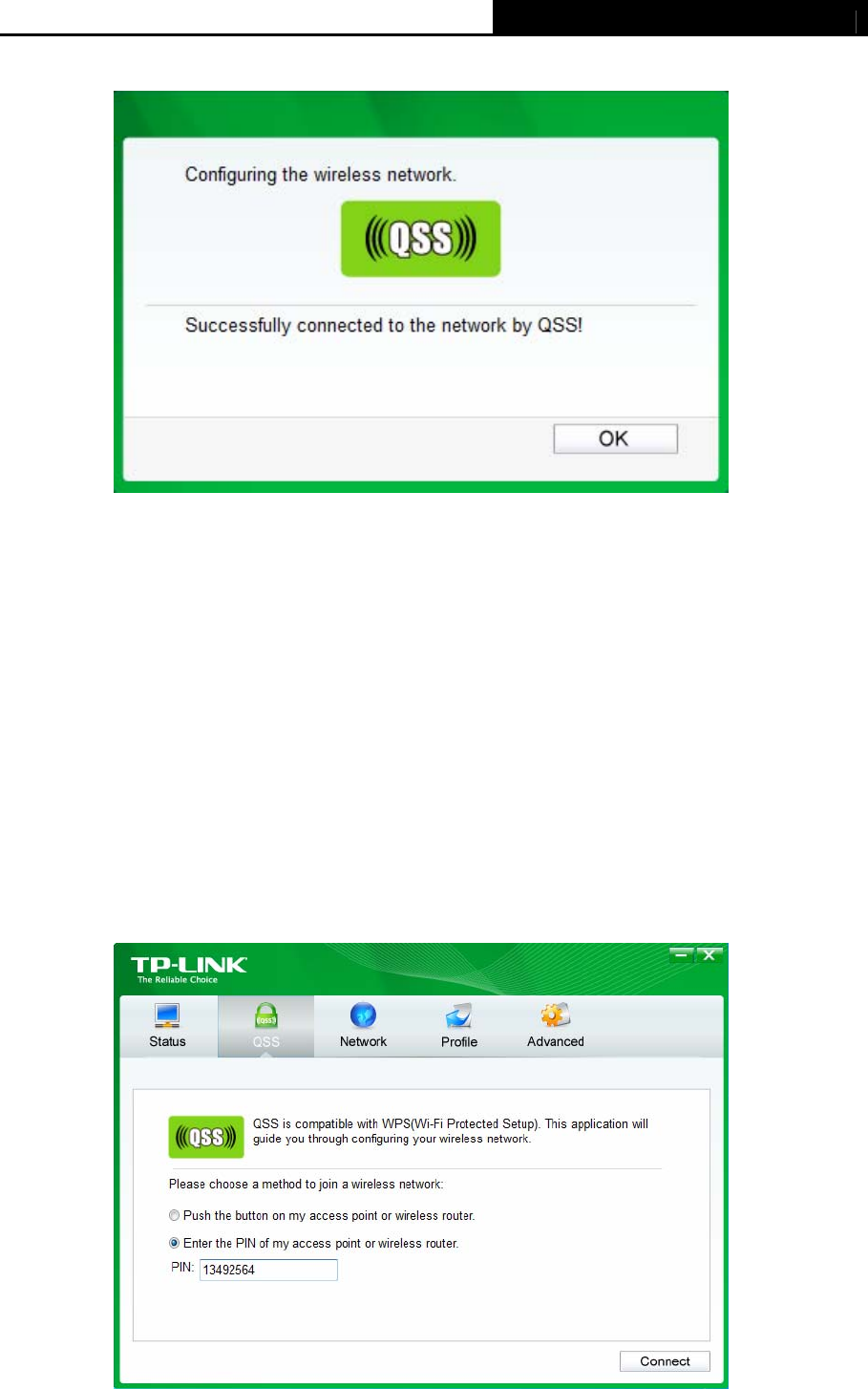

3.2.2 PIN method .............................................................................................. 13
3.3 To connect using Windows built-in wireless utility................................................. 16

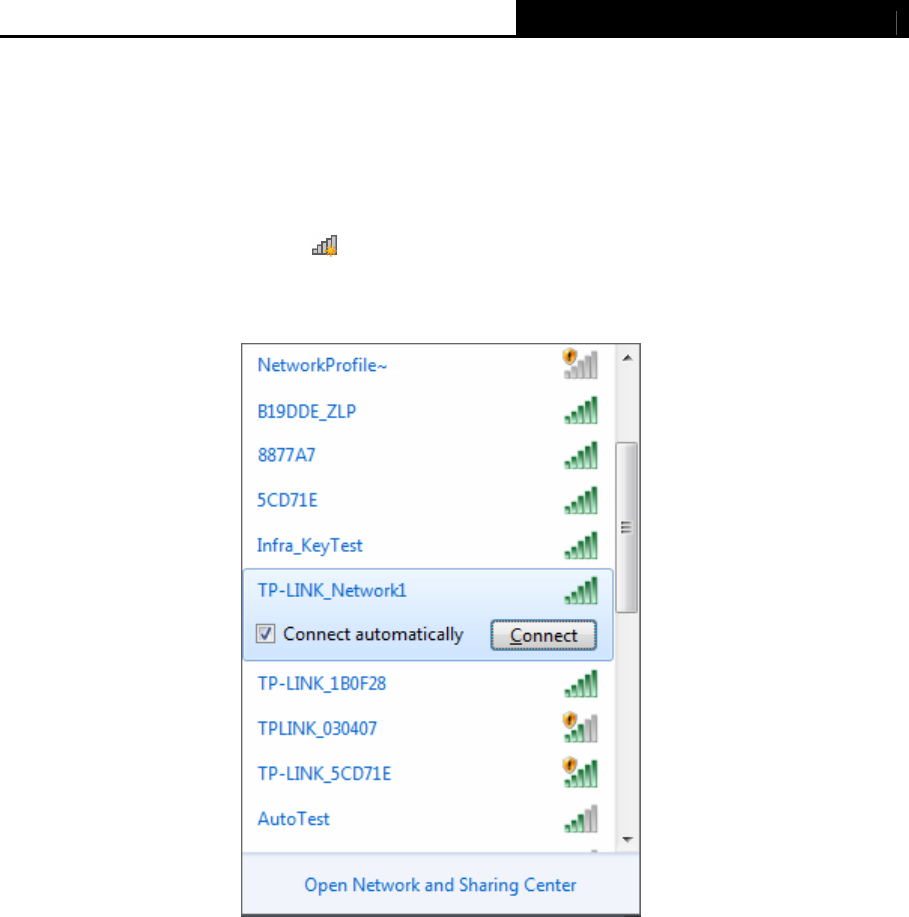

3.3.1 In Windows 7............................................................................................ 16

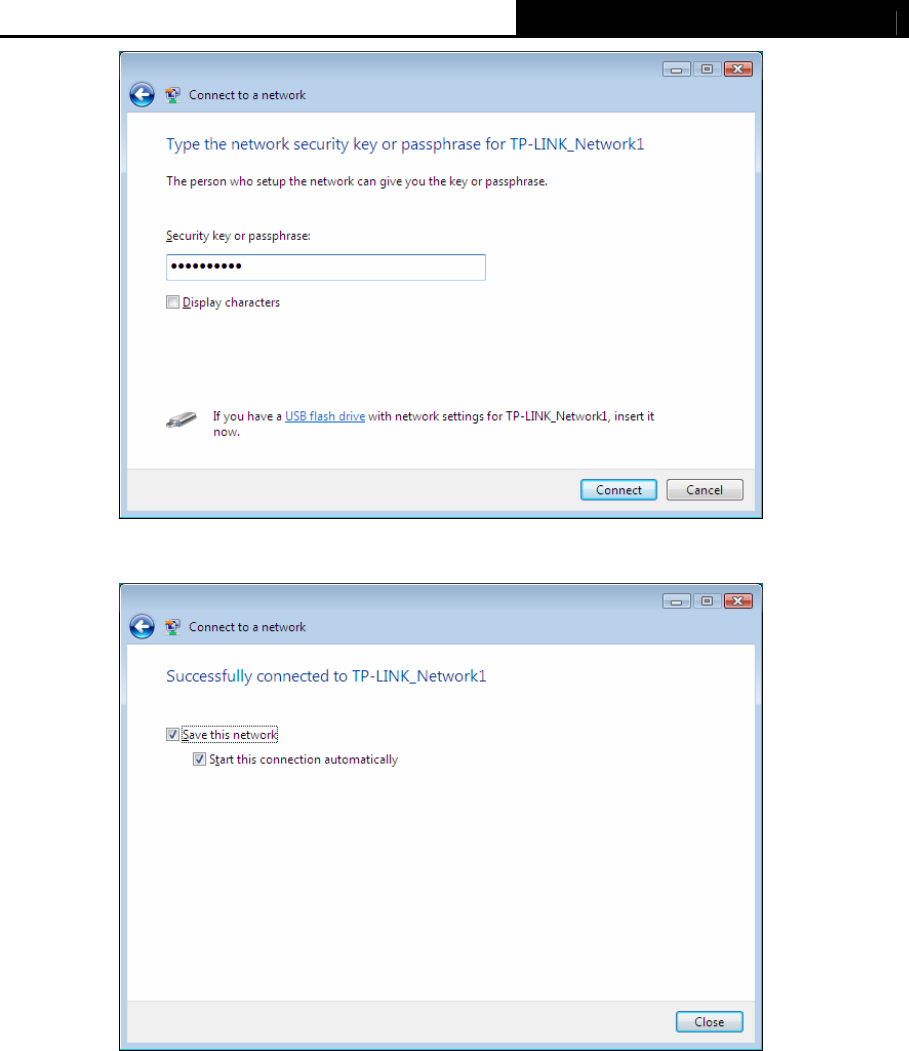

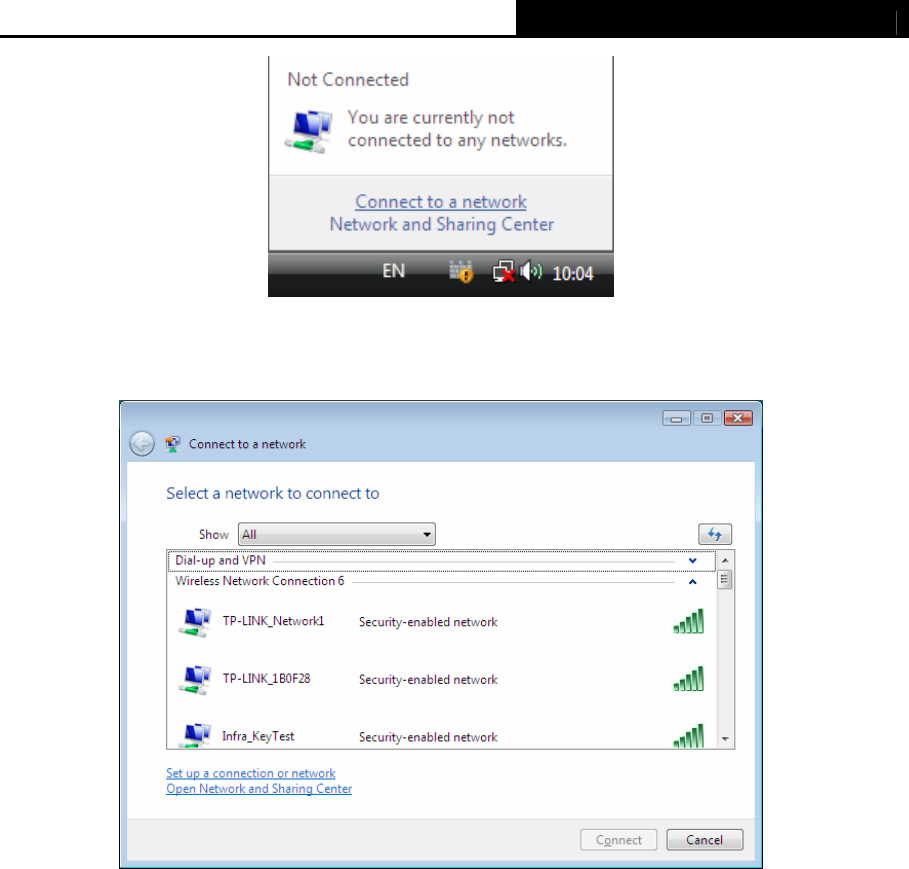

3.3.2 In Windows Vista...................................................................................... 17

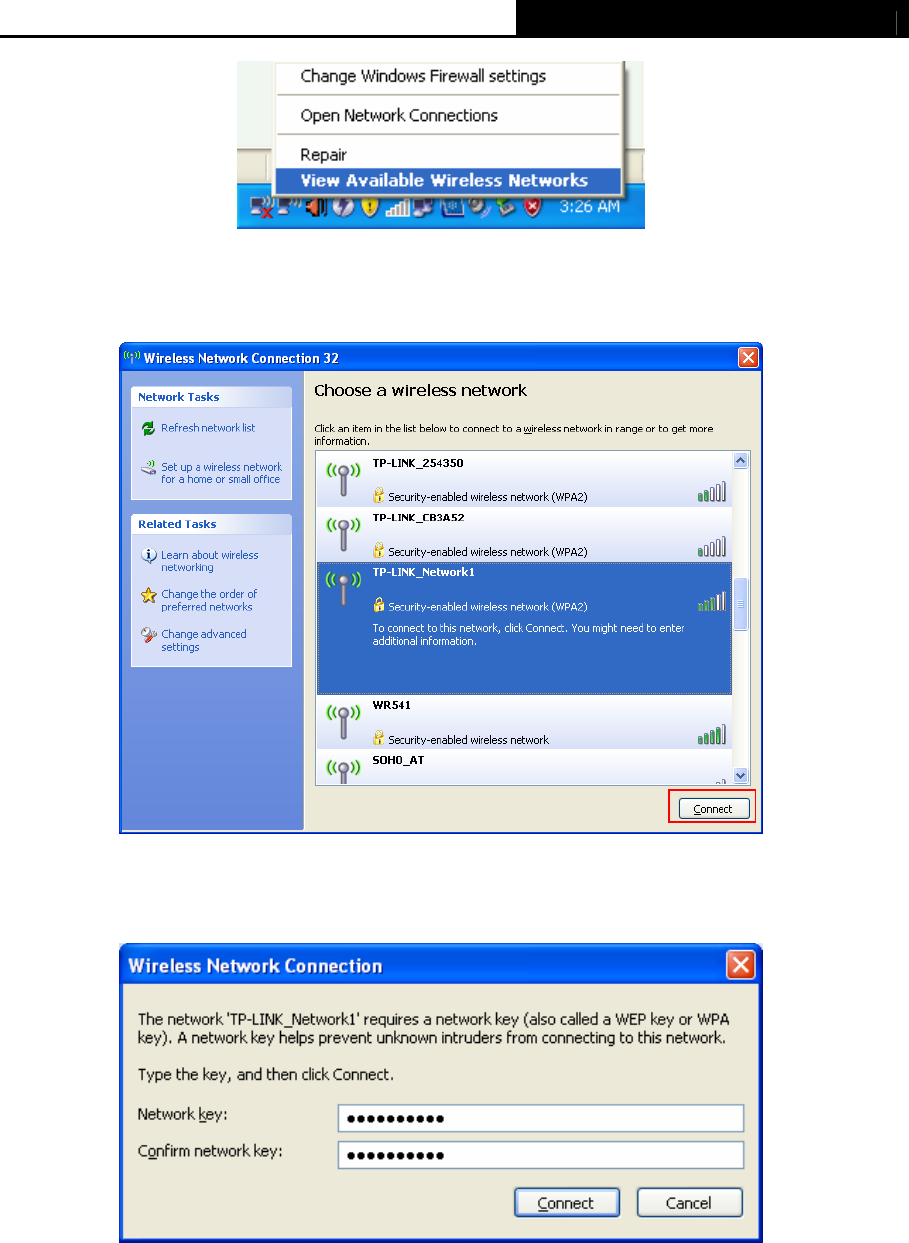

3.3.3 In Windows XP......................................................................................... 19
Chapter 4 Management........................................................................................ 22
4.1 Profile.................................................................................................................... 22

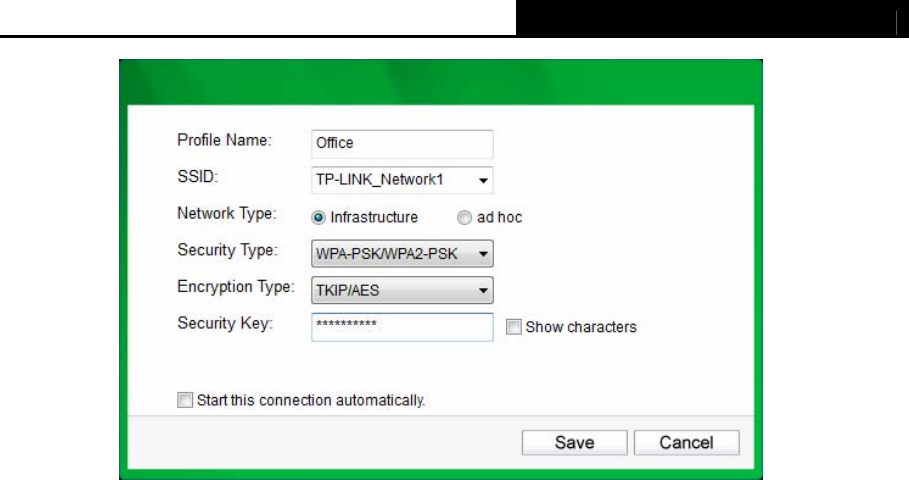

4.1.1 Add a profile ............................................................................................. 22
4.1.2 Modify a profile......................................................................................... 24
4.1.3 Delete a profile ......................................................................................... 24
4.2 Advanced .............................................................................................................. 25

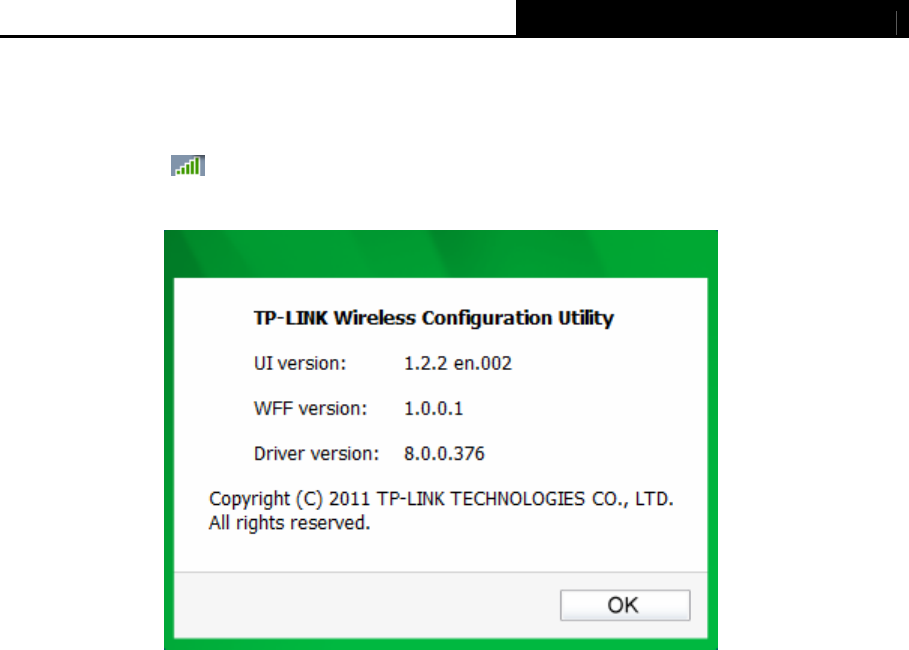

4.3 About..................................................................................................................... 26

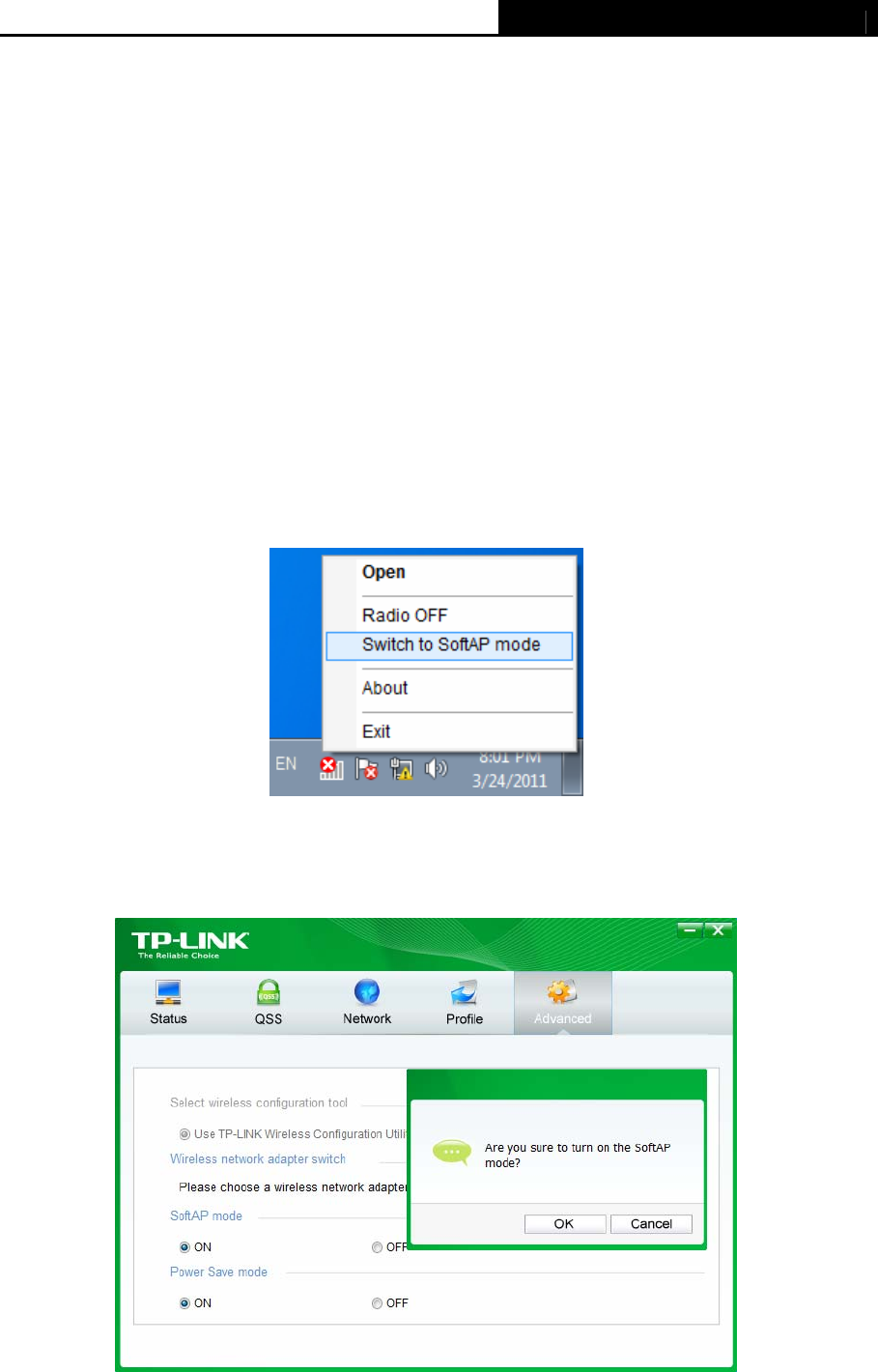

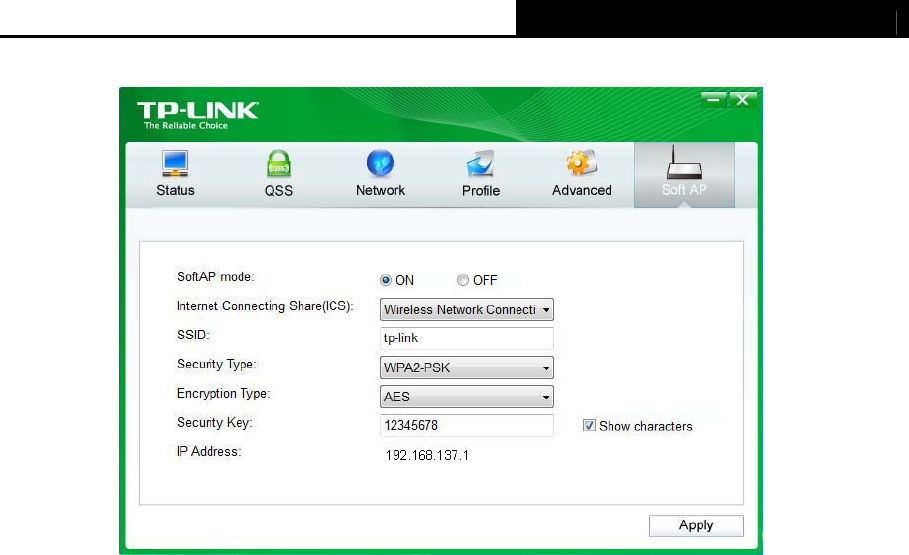

Chapter 5 AP Mode .............................................................................................. 27
Chapter 6 Uninstall Software............................................................................... 29

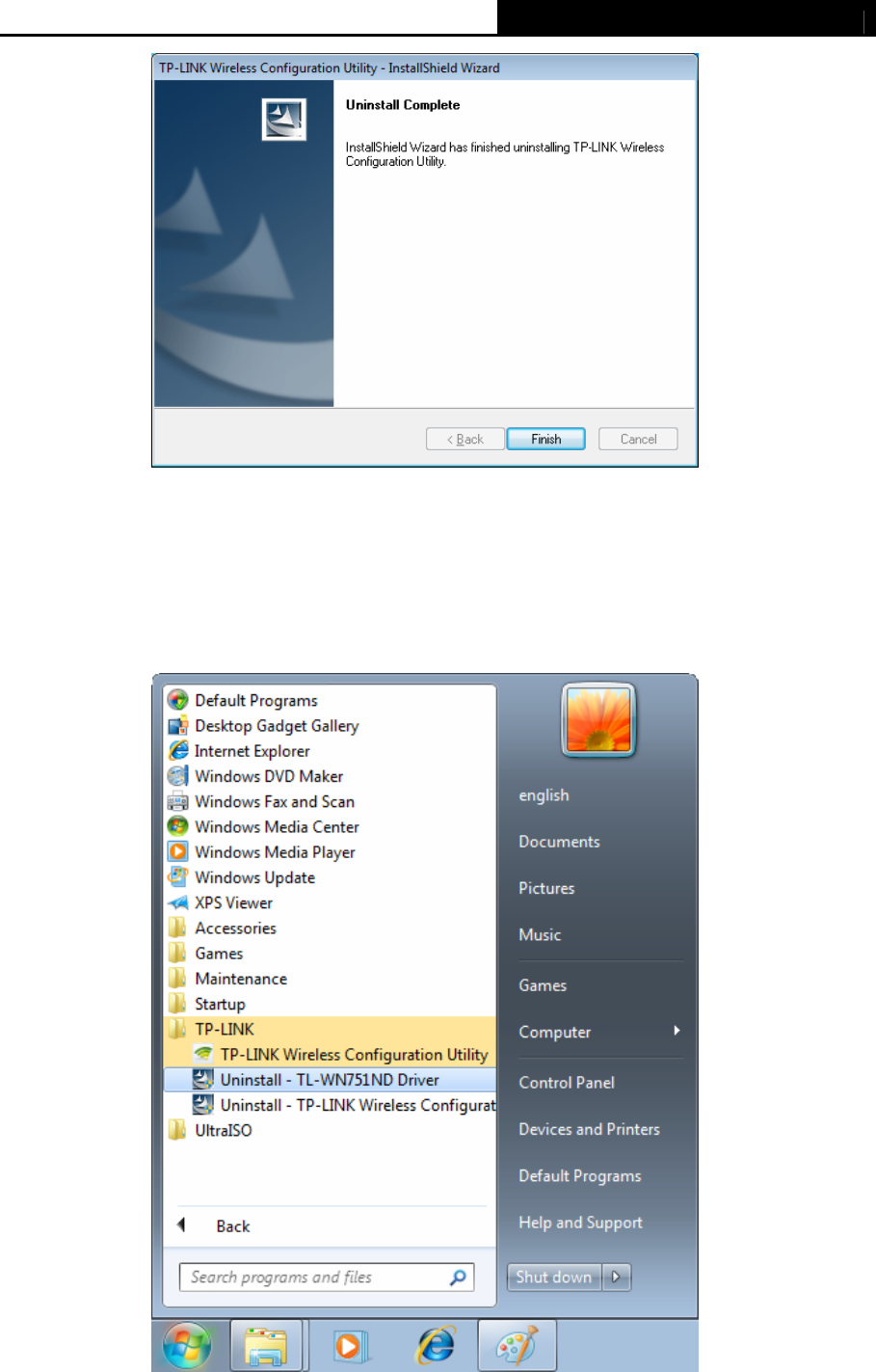

6.1 Uninstall the utility software from your PC............................................................. 29
6.2 Uninstall the driver software from your PC............................................................ 30
Appendix A: Specifications................................................................................... 32
Appendix B: Glossary............................................................................................ 33
TL-WN751ND 150Mbps Wireless N PCI Adapter
1
Chapter 1 Product Overview
1.1 Package Contents
Please verify that all the package contents below are available.
¾ One TL-WN751ND 150Mbps Wireless N PCI Adapter
¾ Quick Installation Guide
¾ One resource CD for TL-WN751ND, including:
TP-LINK Wireless Configuration Utility (TWCU) and Drivers
User Guide
Other helpful information
Make sure that the above items are contained in the package. If any of the above items are
damaged or missing, please contact your distributor.
) Note:
The ‘adapter’ mentioned in this User Guide stands for TL-WN751ND 150Mbps Wireless N PCI
Adapter without any explanations.
1.2 Introduction
The adapter is a 802.11n client device designed to deliver a high-speed and unrivaled wireless
performance for your desktop. With a faster wireless connection, you can get a better Internet
experience, such as downloading, gaming, video streaming.
With the 802.11n technology, higher throughput improvements using 1T1R, the TL-WN751ND’s
auto-sensing capability allows high packet transfer rate of up to 150Mbps for maximum
throughput. It has good capability on anti-jamming, and it can also interoperate with other wireless
(802.11b) products. The adapter supports WEP, WPA and WPA2 encryption to prevent outside
intrusion and protect your personal information from being exposed.
The adapter is easy to install and manage with the Quick Setup Wizard guiding you step-by-step
through the installation process and the TP-LINK Wireless Configuration Utility instructing you to
quickly set up a wireless connection.
With unmatched wireless performance, reception, and security protection, the TL-WN751ND is
the best choice for easily adding or upgrading wireless connectivity to your desktop.
1.3 Features
¾ Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
¾ Supports WPA/WPA2 data security, TKIP/AES encryption
¾ Supports high rate of up to 150Mbps for maximum throughput, supports automatically
adjust to lower speeds due to distance or other operating limitations
TL-WN751ND 150Mbps Wireless N PCI Adapter
2
¾ Provides 32-bit PCI interface
¾ Supports Ad Hoc and Infrastructure modes
¾ Good capability on anti-jamming
¾ Supports roaming between access points when configured under Infrastructure mode
¾ Easy to configure and provides monitoring information
¾ Supports Windows XP, Windows Vista and Windows 7
¾ Adopts one detachable antenna
1.4 Hardware Overview
LED status:
Status Working Status
Off
The driver has not been installed;
The adapter's radio has been disabled.
Flashing Slowly The driver has been installed but no data is being transmitted or
received.
Flashing Quickly Data is being transmitted or received.
TL-WN751ND 150Mbps Wireless N PCI Adapter
3
Chapter 2 Installation
Please install the PCI adapter into your computer before installing the driver software from the
resource CD.
2.1 Hardware Installation
1. Turn off your computer and unplug the power cord from the computer.
2. Open the case and locate an available PCI slot. Remove the metal slot cover on the back of
the PC. Keep the screws. Turn to your computer manufacturer for instructions if needed.
3. Insert the PCI adapter into the PCI slot. Make sure that all of its pins have touched the slot's
contacts. Once the adapter has been firmly inserted, screw its fastening tab. Then, close your
PC case.
4. Insert the power cable back into the computer and turn on your computer.
When the Found New Hardware wizard appears, click Cancel.
2.2 Software Installation
The adapter’s Setup Wizard will guide you through the installation procedures for Windows 7,
Windows Vista, and Windows XP. The procedures in different systems are quite similar,
therefore here takes the procedures in Windows 7 for example.

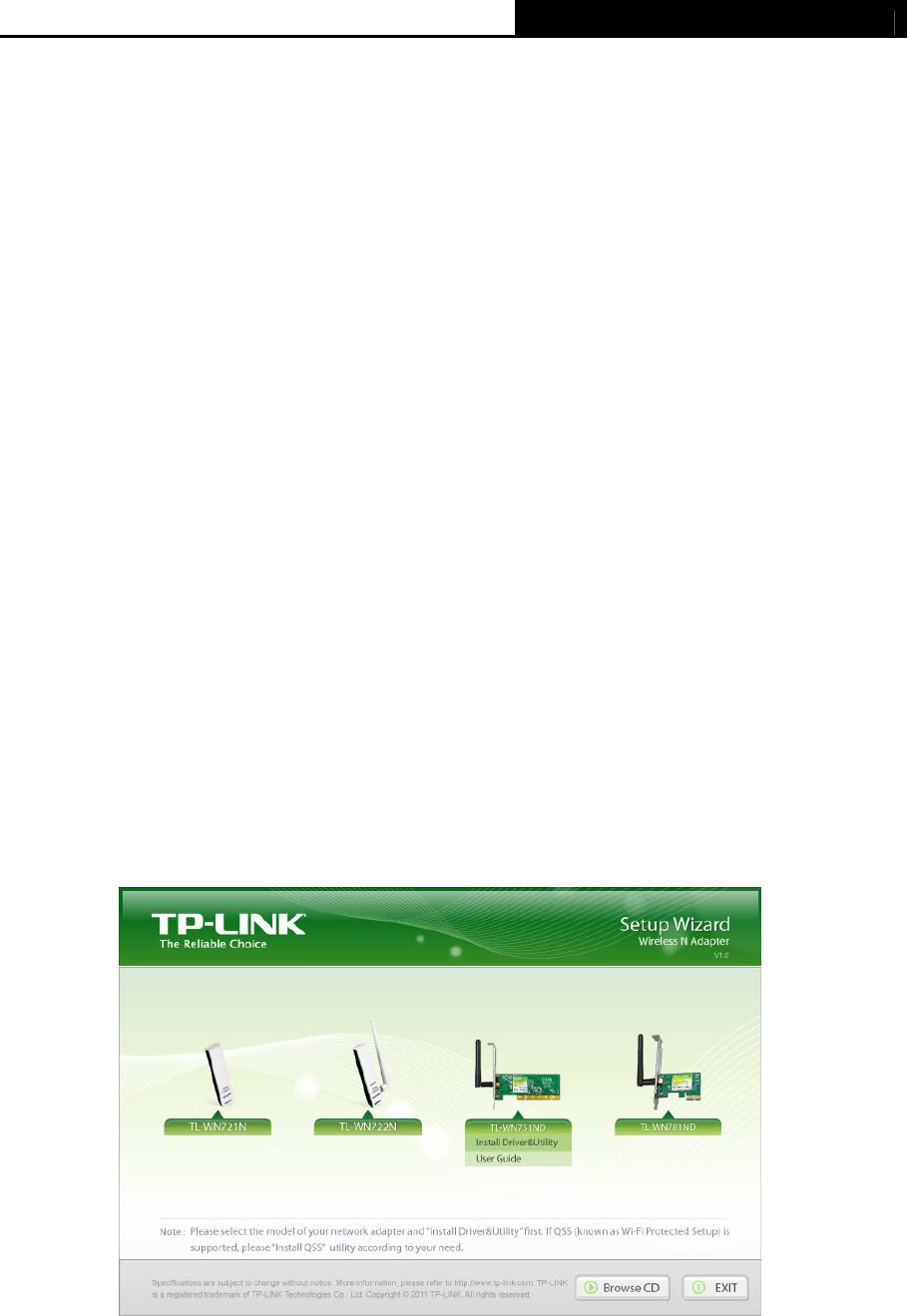

1. Insert the Resource CD into your CD-ROM drive, and the window below will appear. Select
model TL-WN751ND. There will be a menu including: Install Driver&Utility and User
Guide. Click Install Driver&Utility to begin.
Figure 2-1
TL-WN751ND 150Mbps Wireless N PCI Adapter
4

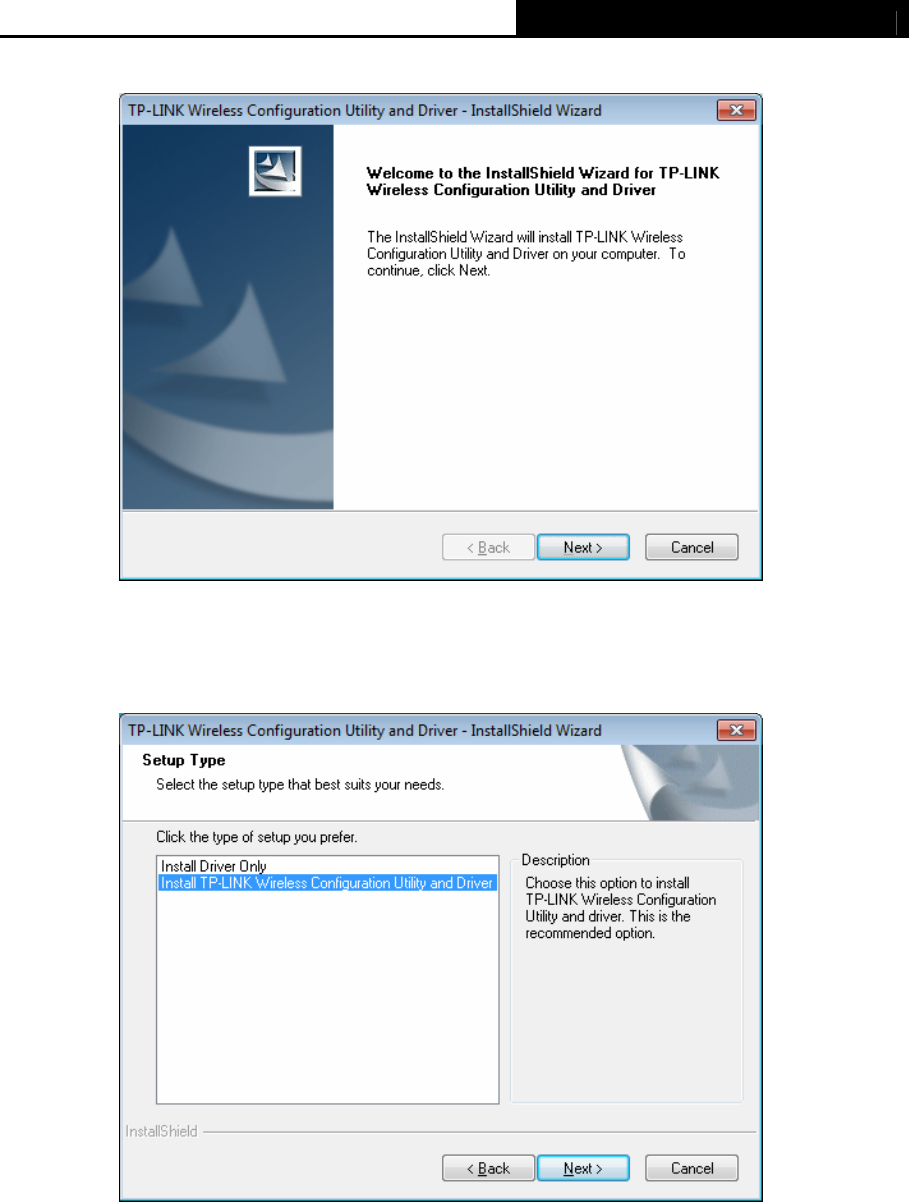

2. The InstallShield Wizard window will appear. Click Next to continue.
Figure 2-2
3. Choose a setup type. It is recommended to select Install TP-LINK Wireless
Configuration Utility and Driver. Selecting Install Driver Only will only install driver.
Click Next to continue.
Figure 2-3
TL-WN751ND 150Mbps Wireless N PCI Adapter
5

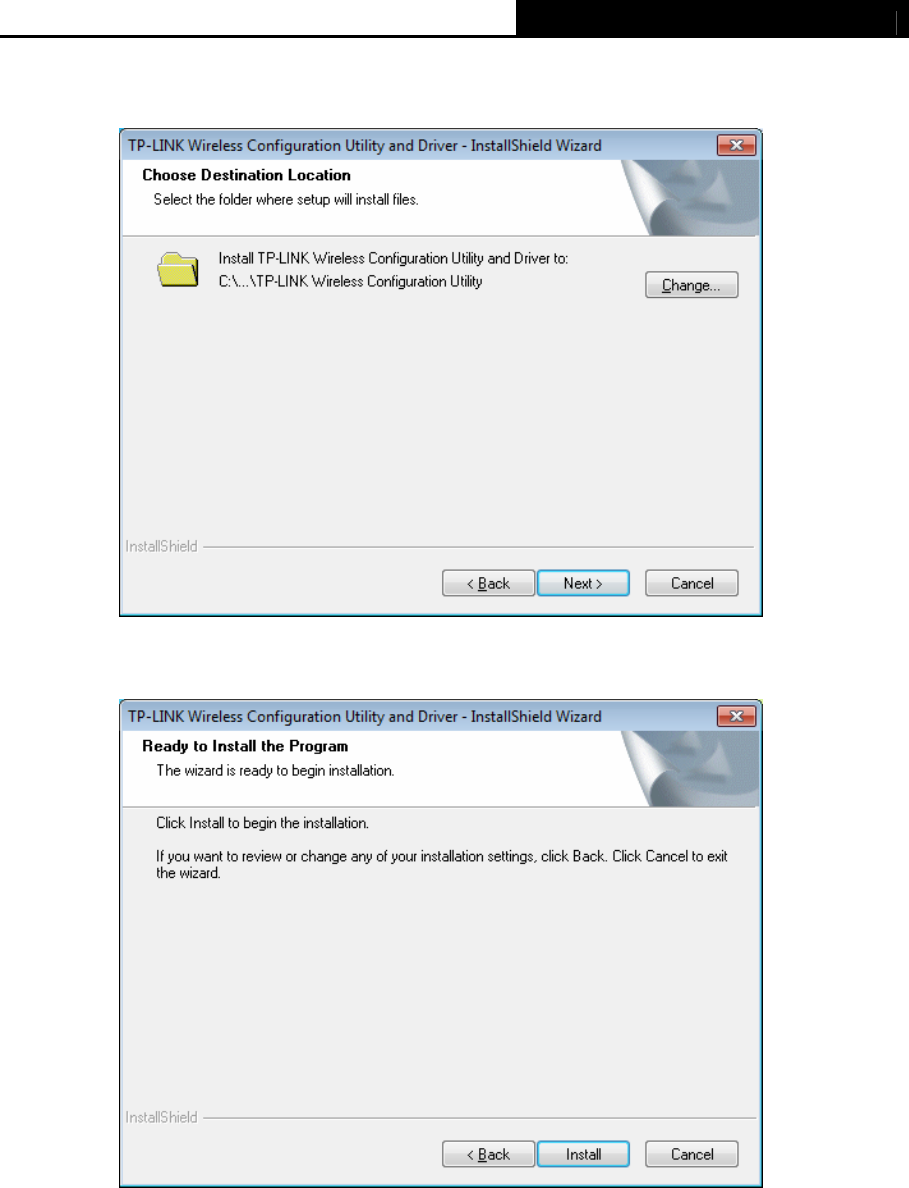

4. Click Change to specify the destination location for the software or you can leave it default.
Click Next in the screen below to continue.
Figure 2-4
5. Click Install to continue the setup.
Figure 2-5
TL-WN751ND 150Mbps Wireless N PCI Adapter
6

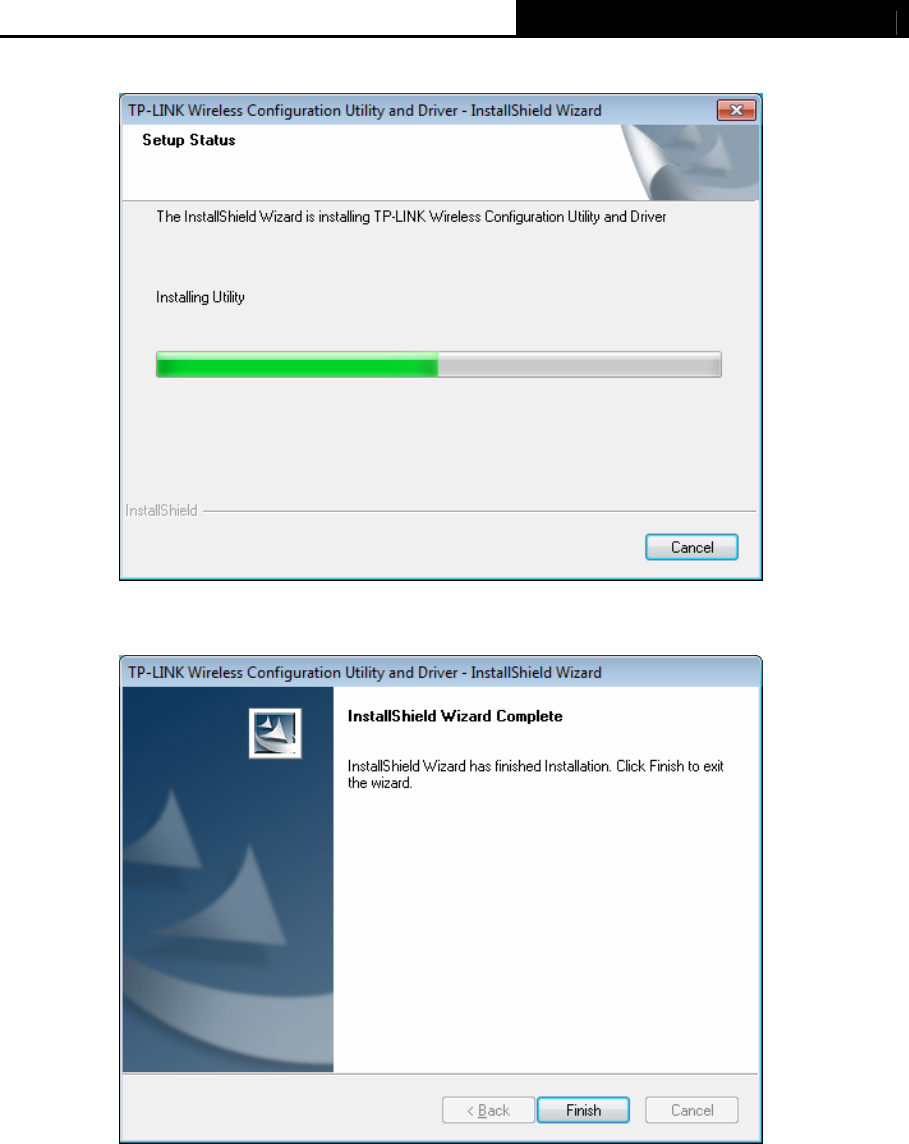

6. The utility and drivers will install. This may take 1~2 minutes.
Figure 2-6
7. After all the steps above, you will see the screen below. Click Finish to complete the setup.
Figure 2-7
TL-WN751ND 150Mbps Wireless N PCI Adapter
7

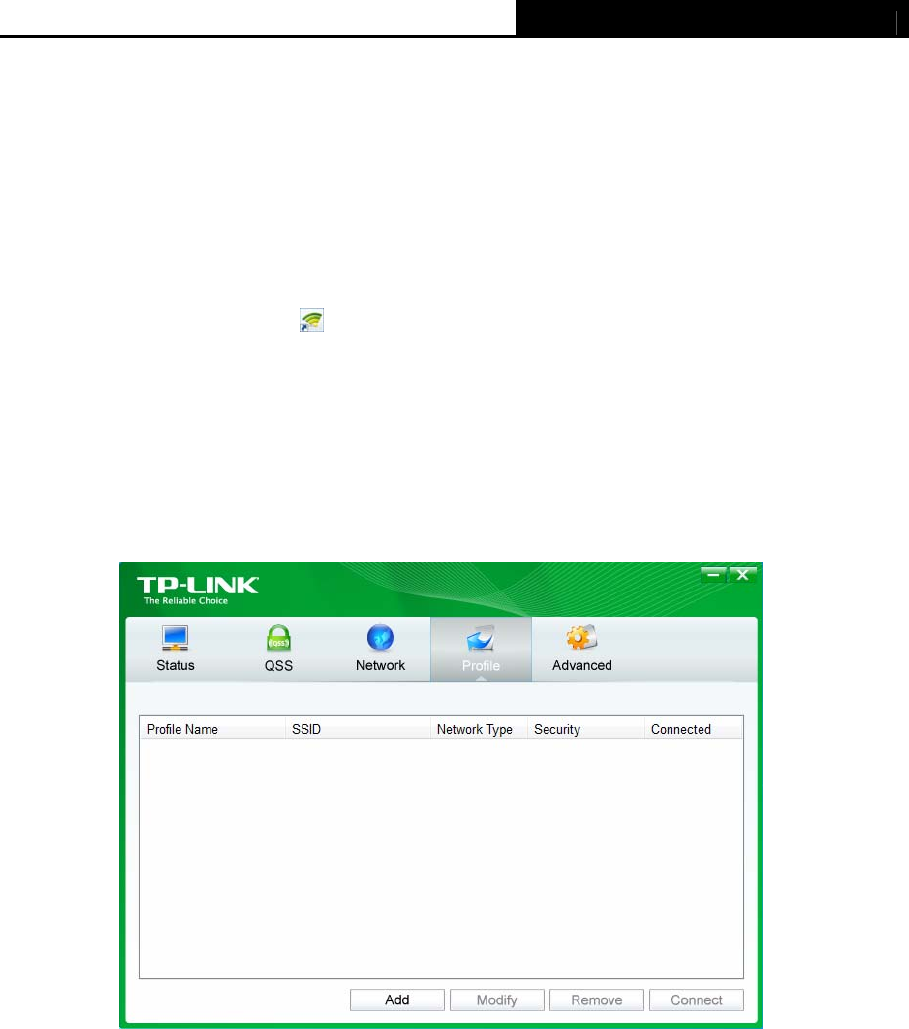

8. After installation, the utility configuration page will automatically pop up as shown in the
following figure and the icon will appear in your system tray. To connect to a network,
please refer to Chapter 3 Connect to a Wireless Network.
Figure 2-8
TL-WN751ND 150Mbps Wireless N PCI Adapter
8
Chapter 3 Connect to a Wireless Network
With both the hardware and software successfully installed into your computer, you can quickly
connect to a wireless network using one of the following methods.
¾ Method One:
To connect using TWCU
TL-WN751ND uses the TP-LINK Wireless Configuration Utility as the management software.
The utility provides you an easy interface to connect to a network and to change any settings
related to the wireless adapter.
¾ Method Two:
To connect using QSS
By this method, you can connect to your network quickly on the condition that your router or
access point supports QSS or WPS as is called by some other brands.
¾ Method Three:
To connect using Windows built-in wireless utility
Windows users may use the built-in wireless utility to connect to a wireless network. For specific
operations, please go to To connect using Windows built-in wireless utility.
3.1 To connect using TWCU
1. After installation, the utility configuration page will automatically pop up on the screen. If the
utility page does not pop up, you can also launch the utility by double-clicking on the
icon on your desktop or the icon in your system tray.
Figure 3-1
2. The Network page will display all wireless networks that are available in your area. To
connect to a network, simply highlight the wireless network name and click Connect.
SSID (Service Set Identifier) is the name of the wireless network. The adapter will
TL-WN751ND 150Mbps Wireless N PCI Adapter
9
automatically connect to your target network next time if you tick Connect automatically.
Figure 3-2
3. If word None appears behind the SSID, this means the network to be connected is not
security-enabled and you can connect to the network without entering a key. To prevent
outside intrusion and safeguard your network, it is strongly recommended to set a
password to your router or access point.
Figure 3-3
If there is a “lock” icon behind the SSID, this means the wireless network is secure and the
corresponding security type will display. You must know the encryption key/security
settings to connect.
Input the password which can be found on the configuration page of your router or access
point, then click OK to continue. Or push the QSS/WPS button on your router if your router
features the QSS/WPS function to quickly build a connection without having to enter a key.
TL-WN751ND 150Mbps Wireless N PCI Adapter
10
Figure 3-4
4. You have now successfully connected to your network. Click Close to enjoy the Internet.
Figure 3-5

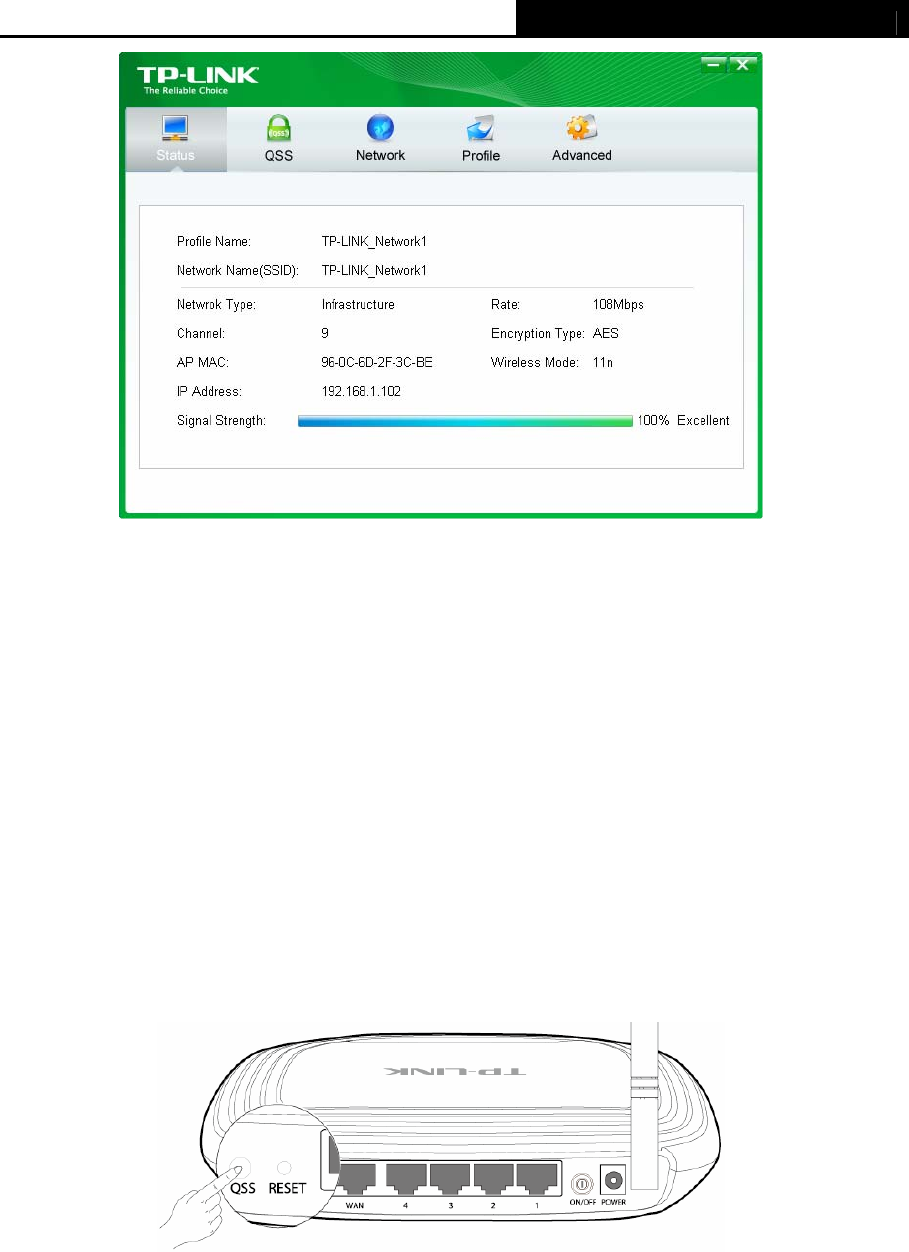

5. To view more information about the network currently connected, click Status in the tools
section and the page will display information such as the network type, link quality and
wireless mode.
TL-WN751ND 150Mbps Wireless N PCI Adapter
11
Figure 3-6
3.2 To connect using QSS
QSS (Quick Secure Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless router supports QSS or Wi-Fi Protected Setup (WPS), you can establish a
wireless connection between wireless card and router using either Push Button Configuration
(PBC) method or PIN method. Three QSS connection methods are listed in the following parts
while the third method is only supported in Windows XP and Windows Vista.
3.2.1 PBC (Push Button Configuration) method
1. Press the QSS button on the back panel of the router. Here takes router TL-WR741ND for
example.
2. Open TWCU and click QSS tab. Select Push the button on my access point or wireless
router and then click Connect.
TL-WN751ND 150Mbps Wireless N PCI Adapter
12
Figure 3-7
3. The adapter will be connecting to the target network.
Figure 3-8
TL-WN751ND 150Mbps Wireless N PCI Adapter
13
4. When the following window appears, you have successfully connected to the network.
Figure 3-9
3.2.2 PIN method
There are two ways to configure the QSS by PIN method:
1) Enter the PIN from your AP device.
2) Enter a PIN into your AP device.
Following are detailed configuration procedures of each way.
3.2.2.1. Enter the PIN from your AP device
1. Open TWCU and click QSS tab. Select Enter the PIN of my access point or wireless
router. In the empty field beside PIN, enter the PIN labeled on the bottom of the router
(here takes 13492564 for example). If you have generated a new PIN code for your router,
please enter the new one instead. Click Connect to continue.
Figure 3-10
TL-WN751ND 150Mbps Wireless N PCI Adapter
14
2. The adapter will be connecting to the target network.
Figure 3-11
3. When Figure 3-9 appears, you have successfully connected to the network.
3.2.2.2. Enter a PIN into your AP device
This method is only available in Windows XP and Windows Vista.
1. Open TWCU and click QSS tab. Select Enter the PIN of this device into my access
point or wireless router. In the field beside PIN, you will see the PIN value of the adapter
which is randomly generated. Click Connect to continue.
Figure 3-12
2. Open your router’s Web-based Utility and click QSS link on the left of the main menu. Then
click Add device and the following figure will appear. Enter the PIN value of the adapter in
the empty field beside PIN and then click Connect.
TL-WN751ND 150Mbps Wireless N PCI Adapter
15
Figure 3-13
3. When Connect successfully appears on the screen, the QSS configuration is complete.
Or you can view the adapter’s utility page to see whether the connection has been
successful as shown in Figure 3-15.
Figure 3-14
Figure 3-15
TL-WN751ND 150Mbps Wireless N PCI Adapter
16
3.3 To connect using Windows built-in wireless utility
3.3.1 In Windows 7
Windows 7 users may use the built-in wireless utility. Follow the steps below.
1. Left-click the wireless icon in your system tray (lower-right corner). The utility will
display any available wireless networks in your area. Highlight the wireless network
(displayed using the SSID) to be connected and then click Connect.
Figure 3-16

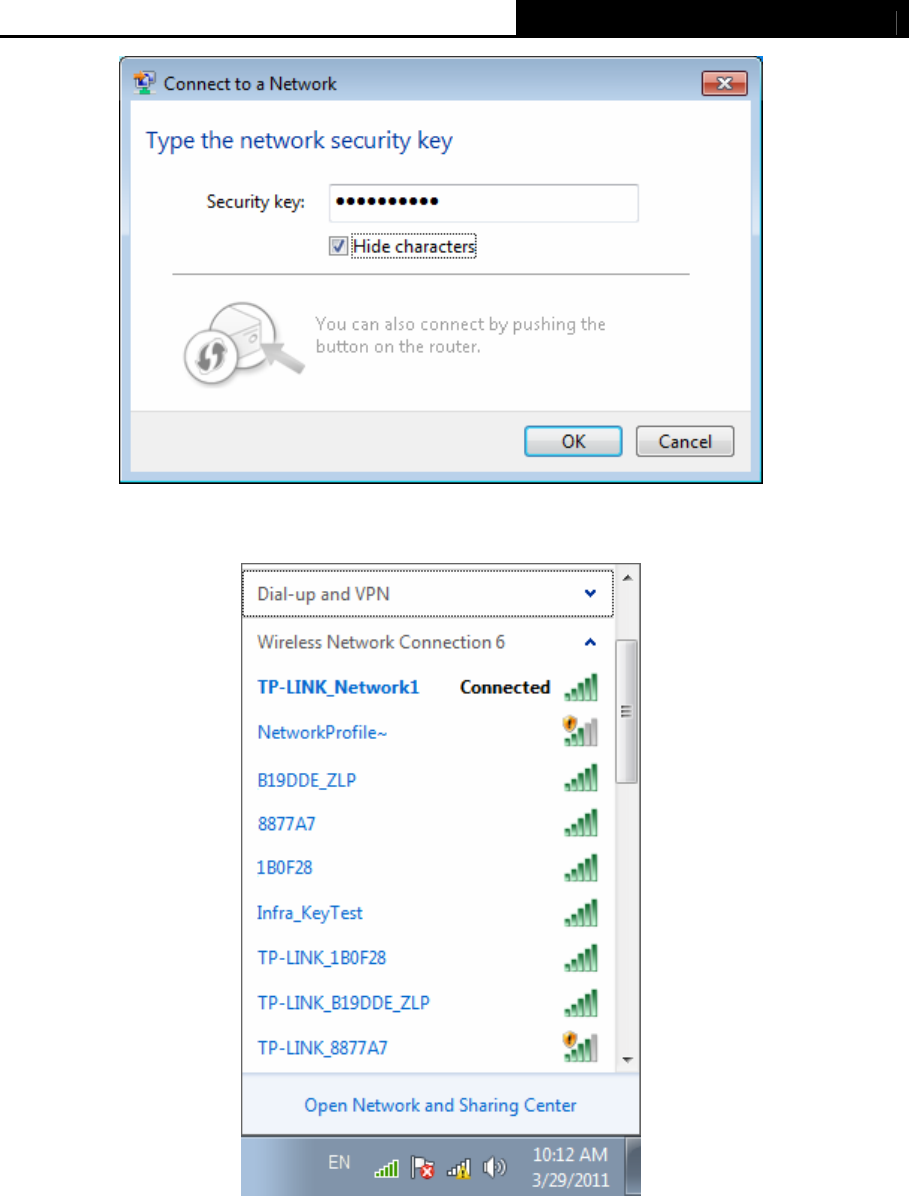

2. If the network you would like to connect is security-enabled, enter the same security key or
passphrase that is on your router. Or push the QSS button (other brands may call it WPS)
on the router or access point (You will be prompted to push the button on the window if
QSS function is supported as shown in the figure below). If the network to be connected is
not secure, the connection will be built without entering a key.
TL-WN751ND 150Mbps Wireless N PCI Adapter
17
Figure 3-17
3. You have now successfully connected to the network.
Figure 3-18
3.3.2 In Windows Vista
Windows Vista users may use the built-in wireless utility. Follow the steps below.
1. Open the wireless utility by right-clicking on the wireless computer icon in your system tray
as shown in the figure below. Select Connect to a network.
TL-WN751ND 150Mbps Wireless N PCI Adapter
18
Figure 3-19
2. The utility will display any available wireless networks in your area. Highlight the wireless
network you would like to connect and then click Connect.
Figure 3-20
3. If the network you would like to connect is security-enabled, enter the same security key or
passphrase that is on your router. If the network to be connected is not secure, the
connection will be built without entering a key.
TL-WN751ND 150Mbps Wireless N PCI Adapter
19
Figure 3-21
4. You have now successfully connected to the network.
Figure 3-22
3.3.3 In Windows XP
Windows XP users may use the built-in wireless utility. Follow the steps below.

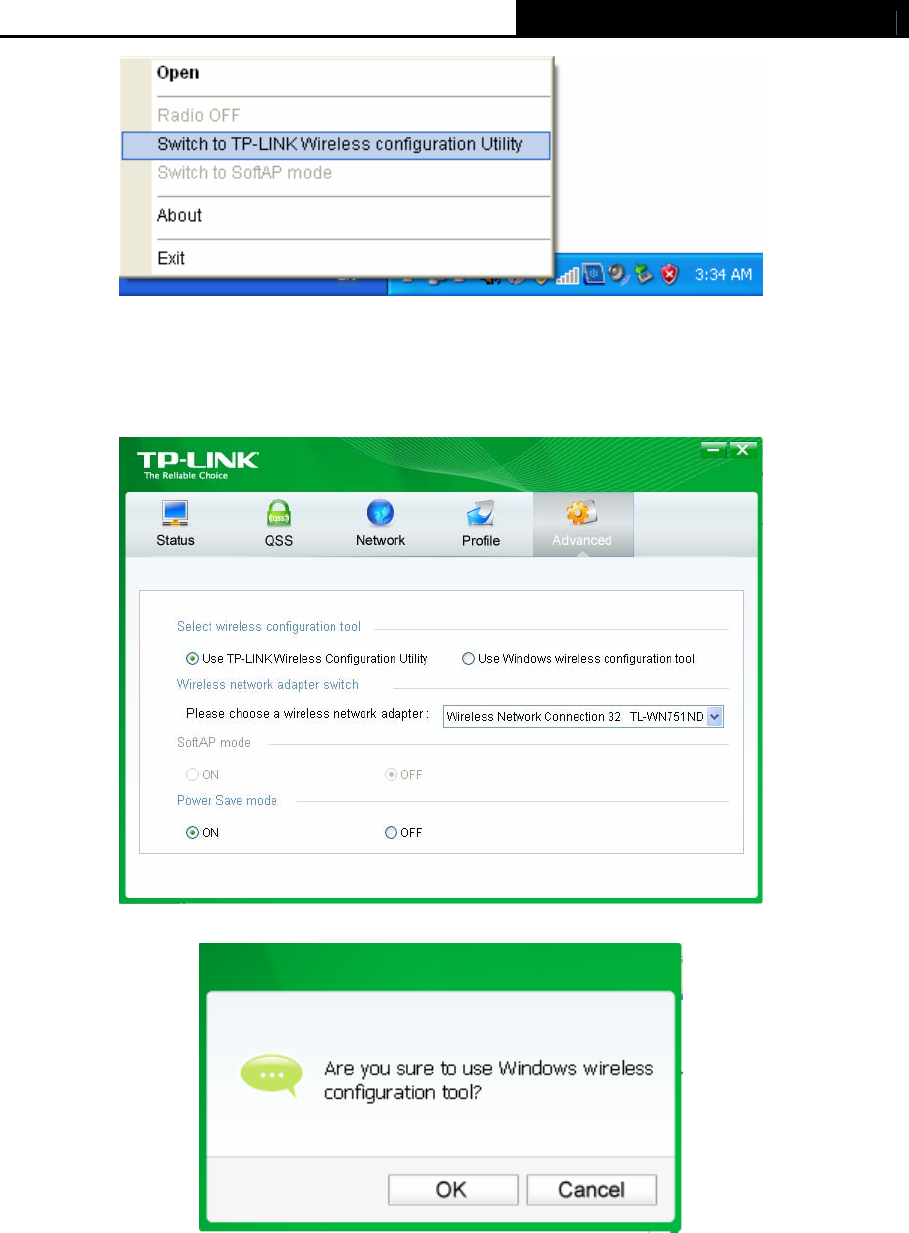

1. Right-click on the utility icon in your system tray (lower-right corner). Select Switch to
TP-LINK Wireless configuration Utility.
TL-WN751ND 150Mbps Wireless N PCI Adapter
20
Figure 3-23
Or double-click the utility icon to load the utility configuration page. Click Advanced in the
tools section and then select Use Windows wireless configuration tool in the figure
shown below. Click OK when Figure 3-25 appears to continue.
Figure 3-24
Figure 3-25
2. Right-click on the wireless computer icon in your system tray (lower-right corner). Select
View Available Wireless Networks.
TL-WN751ND 150Mbps Wireless N PCI Adapter
21
Figure 3-26
3. The utility will display any available wireless networks in your area. Click on a network
(displayed using the SSID) and click the Connect button.
Figure 3-27
4. If the network is security-enabled, you will be prompted to enter the key as shown below. If
not, you will connect to the network directly without entering a key.
Figure 3-28
TL-WN751ND 150Mbps Wireless N PCI Adapter
22
Chapter 4 Management
This section will show you how to configure your TL-WN751ND adapter using the TP-LINK
Wireless Configuration Utility (TWCU).
The TL-WN751ND adapter uses the TP-LINK Wireless Configuration Utility as the management
software. The utility provides users with an easy interface to change any settings related to the
adapter. Double-clicking on the icon on your desktop will start the utility.
4.1 Profile
Your wireless networks may vary in different places like home, office or coffee shop. With
Profile management, you can easily save and manage various networks to be connected,
saving you the trouble of having to repeat the same configurations. Click Profile in the tools
section, the following page will appear.
Figure 4-1
4.1.1 Add a profile
To add a profile, click the Add button on the bottom of the screen. Then the configuration
window will appear.
TL-WN751ND 150Mbps Wireless N PCI Adapter
23
Figure 4-2
The following items can be found on the screen.
¾ Profile Name: Enter a name for your profile (e.g. Home, Office, CoffeeShop). The same
name is not allowed. Please also note that no space is allowed between words.
¾ SSID: Select the target network from the drop-down list.
¾ Network Type: Select the network type. If you are connecting to a wireless router or
access point, select Infrastructure. If you are connecting to another wireless client such as
an adapter, select ad-hoc.
¾ Security Type: Select the security type from the list. Three options are available:
WPA-PSK/WPA2-PSK, WEP and None. The security type should be the same as on your
router or access point, otherwise, you will not be able to build a successful connection.
WPA-PSK/WPA2-PSK uses a passphrase or key to authenticate your wireless connection.
The key must be the exact same key entered on your wireless router or access point. None
stands for no security. It is recommended to enable WPA-PSK/WPA2-PSK on your
wireless router or access point before configuring your wireless adapter.
¾ Encryption Type: From the drop-down menu, select the encryption type that is the same
as on your router or access point.
¾ Security Key: Enter the passphrase exactly as it is on your wireless router or access point.
Click the Show characters box to see the passphrase. Unchecking it will hide it.
¾ Start this connection automatically: check this box to automatically connect to this
network next time.
¾ Save: Click Save to save your settings.
Complete the above settings, the Profile page should look like the following figure. To connect
to a desired network, just highlight the network you would like to connect to and click the
Connect button on the bottom of the window.
TL-WN751ND 150Mbps Wireless N PCI Adapter
24
Figure 4-3

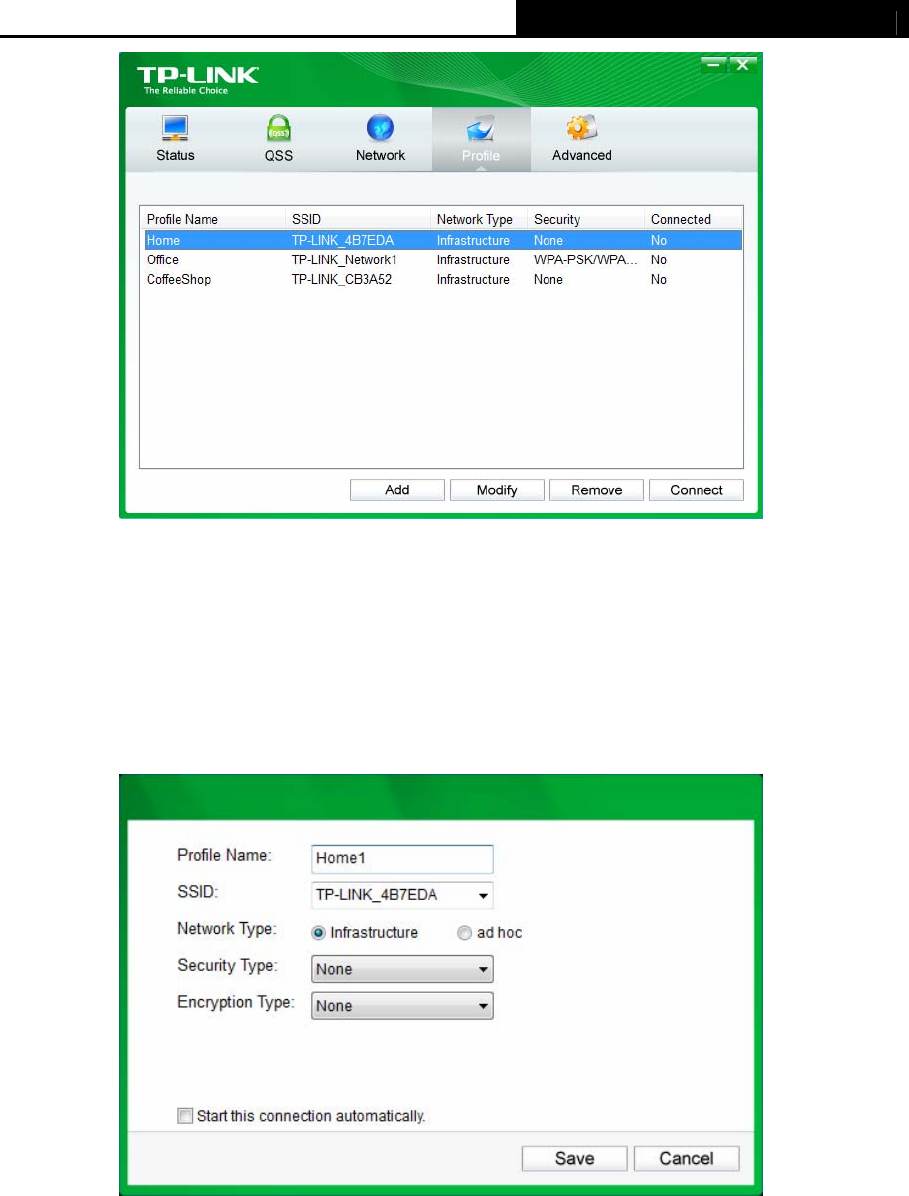

4.1.2 Modify a profile
You may edit an existing profile by clicking the Modify button from the Profile page. For
instance, you may like to change the profile name from Home to Home1 or you may want to
specify another SSID for profile Home. After all the changes, click Save to make the changes
take effect.
Figure 4-4

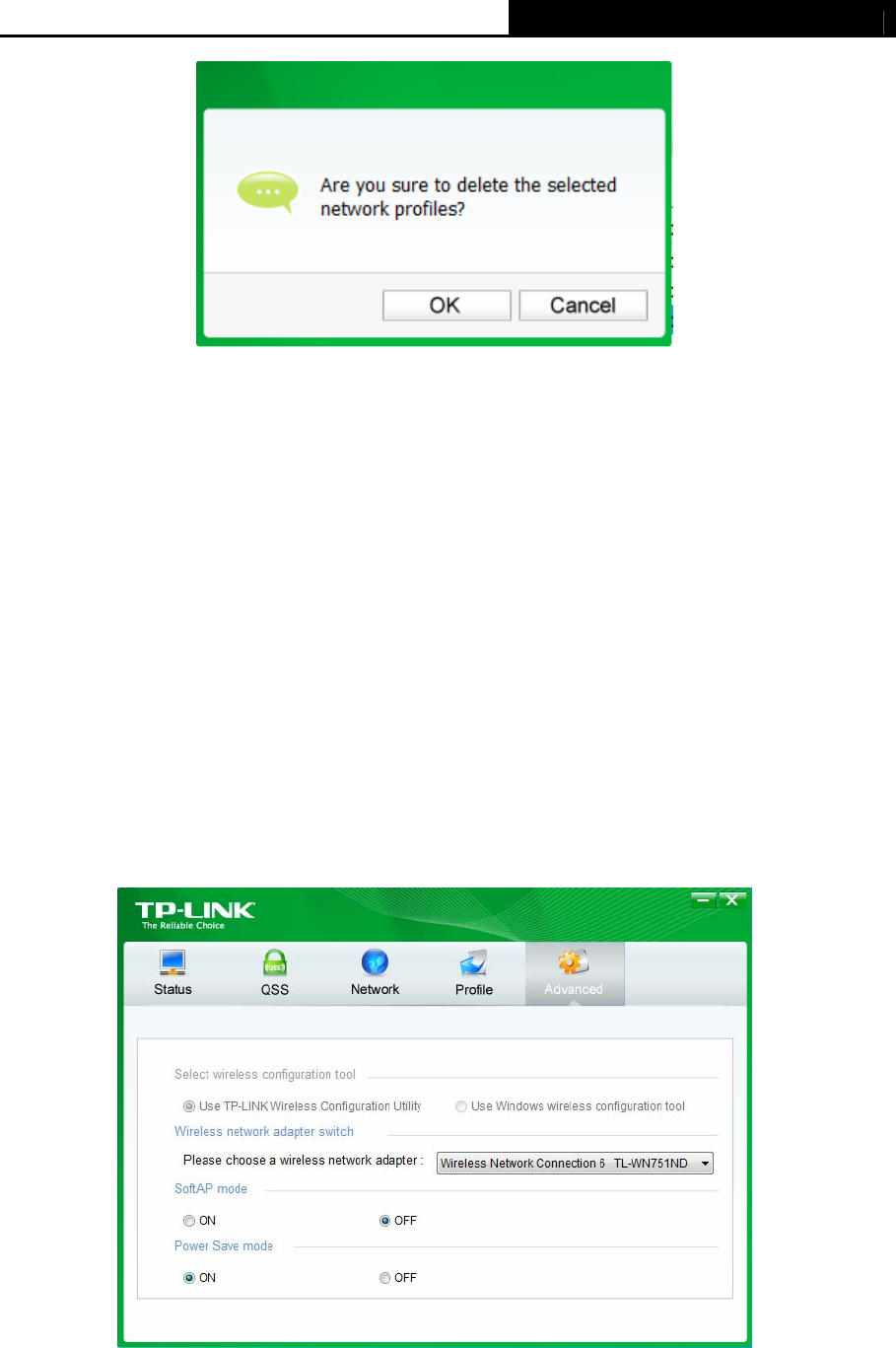

4.1.3 Delete a profile
To delete an existing profile, highlight the profile name and click Remove on the bottom of the
screen or press the Delete button on your keyboard. When the following figure appears, click
OK to continue.
TL-WN751ND 150Mbps Wireless N PCI Adapter
25
Figure 4-5
4.2 Advanced
The following configurations can be made on the Advanced page:
1) To select wireless configuration tool.
Here you can decide which tool to use, either the TP-LINK Configuration Utility or the
Windows wireless configuration tool. This option is available only in Windows XP.
2) To switch to another wireless network adapter.
Here you can switch to another adapter installed in your computer. The adapters
successfully installed in your computer will be listed in the drop-down menu if the adapters
are supported by this utility.
3) To switch to SoftAP mode.
Once enabled, the adapter will be able to work as an AP. This option is only available in
Windows 7.
4) To change the power save mode. The default option is ON.
Figure 4-6
TL-WN751ND 150Mbps Wireless N PCI Adapter
26
4.3 About
The About screen gives you information about the Driver and Utility versions of the adapter.
Right-click on the icon in your system tray and select About from the list.
Figure 4-7
TL-WN751ND 150Mbps Wireless N PCI Adapter
27
Chapter 5 AP Mode
In Soft AP mode, the adapter will work as an AP. This function is available only in Windows7.
Suppose that only one computer in your house can access the Internet for various reasons like
only one WLAN port is available on your wired broadband router, however, other
wireless-capable devices also want to share the Internet. Then the adapter can be configured
as an AP under the Soft AP mode, saving you the trouble of having to get a separate access
point or a router.
With this feature, a computer can use a single physical wireless adapter to connect as a client
to a hardware access point while at the same time acting as a software AP allowing other
wireless-capable devices to connect to it.
To switch to this mode, right-click on the utility icon in your system tray and select Switch to
SoftAP mode.
Figure 5-1
Or from the Advanced page of the utility, tick ON under the SoftAP mode as shown in the
following figure. Click OK when prompted to confirm the setting.
Figure 5-2
TL-WN751ND 150Mbps Wireless N PCI Adapter
28
The Soft AP icon should then appear beside Advanced icon in the utility.
Figure 5-3
¾ SoftAP mode: Select to enable or disable the function.
¾ Internet Connecting Share(ICS): Specify a connection through which devices connected
know which
ey to authenticate your
e corresponding key can other computers establish a successful connection with
¾ IP Address: Here displays the IP address of the SoftAP.
to your AP can access the Internet.
¾ SSID: Enter the name for your soft AP (for example, Jone) so that others can
AP is yours when trying to connect to it. The default name (SSID) is “tp-link”.
¾ Security Type: The security type here is set to be WPA2-PSK which is based on 802.11i
and uses Advanced Encryption Standard instead of TKIP. It was designed to improve the
security features of WEP. WPA2-PSK uses a passphrase or k
wireless connection. You needn’t make any configuration here.
¾ Encryption Type: The encryption type here is set to be AES.
¾ Security Key: Enter the Key in the field to make your AP security enabled. It is
recommended that you specify another key instead of the default key 12345678. Only by
entering th
your AP.
TL-WN751ND 150Mbps Wireless N PCI Adapter
29
Chapter 6 Uninstall Software
6.1 Uninstall the utility software from your PC

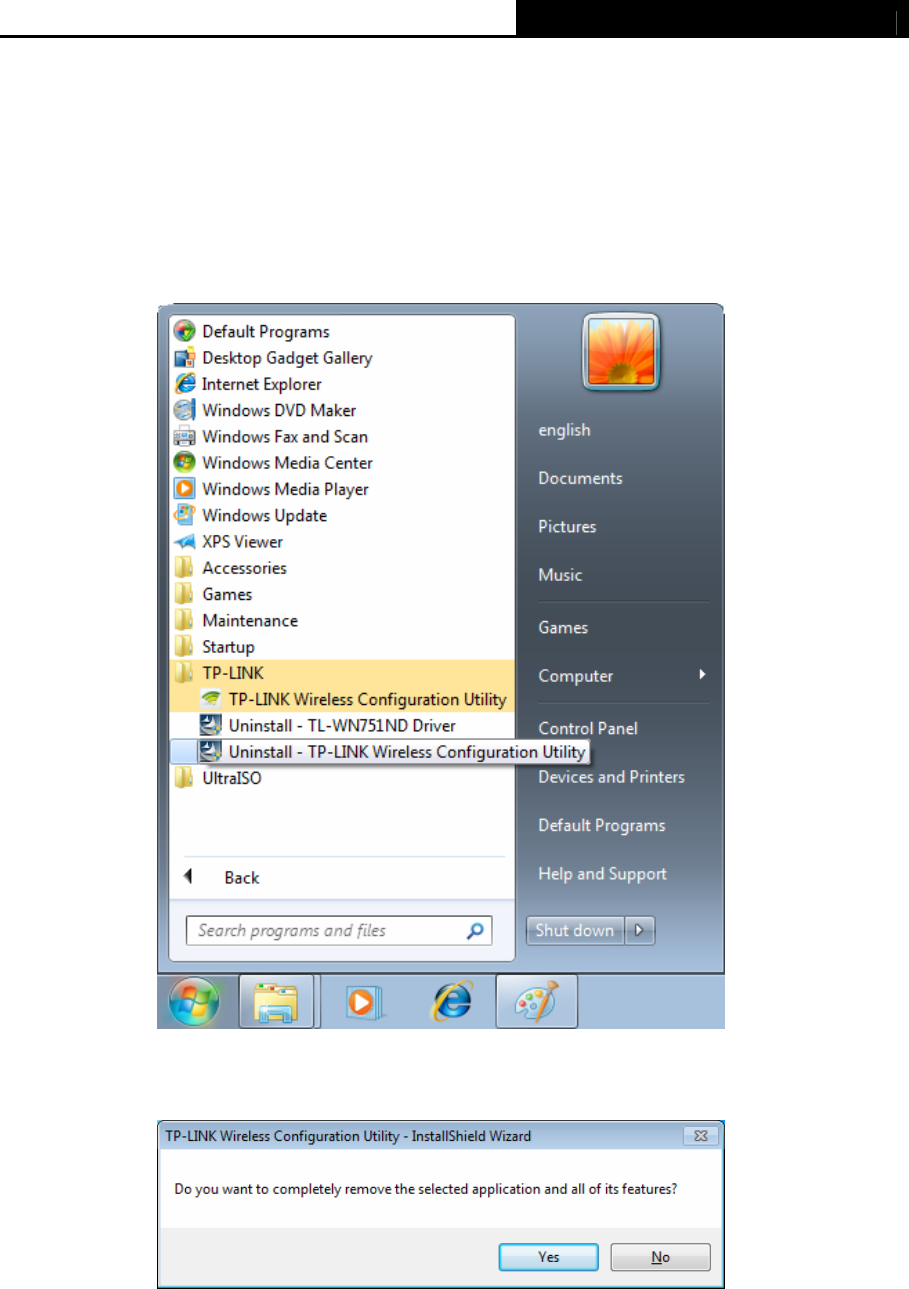

1. On the Windows taskbar, click the Start button, click All programsÆTP-LINK, and then
click Uninstall-TP-LINK Wireless Configuration Utility.
Figure 6-1 Uninstall Utility
2. Follow the Install Shield Wizard to uninstall the utility software from your PC.
Figure 6-2
3. Click Finish when the figure below appears.
TL-WN751ND 150Mbps Wireless N PCI Adapter
30
Figure 6-3
6.2 Uninstall the driver software from your PC
1. On the Windows taskbar, click the Start button, click All programsÆTP-LINK, and then
click Uninstall-TL-WN751ND Driver.
Figure 6-4 Uninstall Driver
TL-WN751ND 150Mbps Wireless N PCI Adapter
31
2. Click Uninstall shown in above Figure 6-4, the system will uninstall the driver software of
the adapter from your PC.
TL-WN751ND 150Mbps Wireless N PCI Adapter
32
Appendix A: Specifications
Normal
Interface 32 bit PCI Interface
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Operating System Windows XP, Windows Vista, Windows 7
Throughput 150Mbps (Maximal)
Radio Data Rate
11b: 1/2/5.5/11Mbps
11g: 6/9/12/18/24/36/48/54Mbps
11n: Up to 150Mbps
Modulation
11b:CCK,QPSK,BPSK
11g:OFDM
11n: QPSK, BPSK, 16-QAM, 64-QAM
Media Access Protocol CSMA/CA with ACK
Data Security WPA/WPA2, WEP, TKIP/AES
Frequency* 2.4 ~ 2.4835GHz
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC, CE
Environmental and Physical
Working Temperature 0~40 (32~104℉℉)
Working Humidity 10% ~ 90% RH, Non-condensing
Storage Temperature -40 ~70 (℃℃-40 ~158)
Storage Humidity 5% ~ 90% RH, Non-condensing
* Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11 is
available for American users to choose.
TL-WN751ND 150Mbps Wireless N PCI Adapter
33
Appendix B: Glossary
¾ 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
¾ Ad hoc Network - An ad hoc network is a group of computers, each with a Wireless Adapter,
connected as an independent 802.11 wireless LAN. Ad hoc wireless computers operate on a
peer-to-peer basis, communicating directly with each other without the use of an access point.
Ad hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as
peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
¾ DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all
data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits
in the chip are damaged during transmission, statistical techniques embedded in the receiver
can recover the original data without the need of retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS
signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
¾ FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the
carrier frequency of a conventional carrier several times per second according to a
pseudo-random set of channels. Because a fixed frequency is not used, and only the
transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
¾ Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode,
the wireless devices communicate with each other and to a wired network by first going
through an access point. An infrastructure wireless network connected to a wired network is
referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation
scale, or when it is necessary to connect the wired and wireless networks.
¾ Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique
developed by the military for use in reliable, secure, mission-critical communications systems.
It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but the
trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the
receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is
not tuned to the right frequency, a spread-spectrum signal looks like background noise.
There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
TL-WN751ND 150Mbps Wireless N PCI Adapter
34
¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
¾ WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a
WEP network, you must know the key. The key is a string of characters that you create.
When using WEP, you must determine the level of encryption. The type of encryption
determines the key length. 128-bit encryption requires a longer key than 64-bit encryption.
Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters)
format. ASCII format is provided so you can enter a string that is easier to remember. The
ASCII string is converted to HEX for use over the network. Four keys can be defined so that
you can change keys easily.
¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
¾ WLAN - (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
¾ WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

Navigation menu
