TP-Link Technologies Co., Ltd. 300Mbps Wireless N CardBus Adapter User Guide rev2

User Guide_rev2

TL-WN811N
300Mbps Wireless N CardBus Adapter
Rev: 2.0.0
1910010318
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from
TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2010 TP-LINK TECHNOLOGIES CO., LTD.
All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
End users must follow the specific operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This equipment has been SAR-evaluated as portable device. SAR measurements are based on a
10mm spacing from the body and that compliance is achieved at that distance. 
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor use and
public service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz
band has been ongoing in recent years to allow current
relaxed regulation. Full implementation planned 2012
Italy If used outside of own premises, general authorization
is required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented
This subsection does not apply for the geographical
area within a radius of 20 km from the centre of
Ny-Ålesund
Russian Federation Only for indoor applications
Note: Please don’t use the product outdoors in France.
TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps Wireless N CardBus Adapter
Model No.: TL-WN811N
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents:
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008
EN60950-1:2006
EN62311:2008
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
CONTENTS
Package Contents .................................................................................................... 1
Chapter 1 Introduction...........................................................................................2
1.1 Overview of the Product.......................................................................................... 2
1.2 Features.................................................................................................................. 2
1.3 LED Status.............................................................................................................. 3
Chapter 2 Installation Guide.................................................................................. 4
2.1 Hardware Installation .............................................................................................. 4
2.2 Software Installation................................................................................................ 4
2.2.1 Software Installation for Windows XP......................................................... 4
2.2.2 Software Installation for Windows Vista ..................................................... 9
2.2.3 Software Installation for Windows 7 ......................................................... 13
Chapter 3 Configuration ......................................................................................17

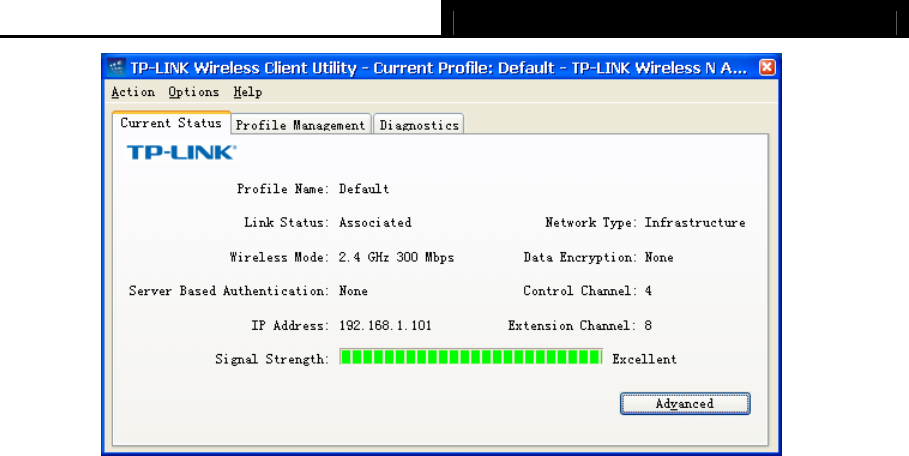

3.1 Current Status....................................................................................................... 17
3.2 Profile Management.............................................................................................. 18
3.2.1 Add or Modify a Configuration Profile....................................................... 19
3.2.2 Remove a profile ...................................................................................... 23
3.2.3 Switch another Profile .............................................................................. 23
3.2.4 Export a Profile......................................................................................... 23
3.2.5 Import a Profile......................................................................................... 24
3.2.6 Scan Available Networks.......................................................................... 24
3.2.7 Auto Profile Selection Management ......................................................... 25
3.3 Diagnostics............................................................................................................ 26
3.3.1 Check Driver Information.......................................................................... 26
3.3.2 Check Receive and Transmit Statistical Information ................................ 27
3.4 Configuration for Windows Vista ........................................................................... 27
3.5 Configuration for Windows 7 ................................................................................. 29
Chapter 4 QSS Configuration.............................................................................. 32
4.1 PBC (Push Button Configuration) method............................................................. 33
4.2 PIN method ........................................................................................................... 35
4.2.1 Enter a PIN into your AP device............................................................... 35
4.2.2 Enter the PIN from your AP device........................................................... 36
Appendix A: Specifications...................................................................................38
Appendix B: Glossary............................................................................................ 39
1
Package Contents
The following items should be found in your package:
¾ One TL-WN811N 300Mbps Wireless N CardBus Adapter
¾ Quick Installation Guide
¾ One resource CD for TL-WN811N, including:
TP-LINK Wireless Client Utility (TWCU) and Drivers
User Guide
Other Helpful Information
) Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions:
The ‘Adapter’ mentioned in this user guide stands for TL-WN811N 300Mbps Wireless N
CardBus Adapter without any explanations.
TL-WN811N 300Mbps Wireless N CardBus Adapter
2
Chapter 1 Introduction
Thank you for choosing the TL-WN811N 300Mbps Wireless N CardBus Adapter!
1.1 Overview of the Product
The adapter is a 802.11n client device; it is designed to provide a high-speed and unrivaled
wireless performance for your notebook. With a faster wireless connection, you can get a better
Internet experience, such as downloading, gaming, video streaming and so on.
With the 802.11n technology, higher throughput improvements using MIMO (multiple input,
multiple output antennas), the TL-WN811N’s auto-sensing capability allows high packet transfer
rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming, and it can
also interoperate with other wireless (802.11b) products. The adapter supports WEP, WPA and
WPA2 encryption to prevent outside intrusion and protect your personal information from being
exposed.
The adapter is easy to install and manage. The Quick Setup Wizard guides you step-by-step
through the installation process; the TP-LINK Wireless Client Utility helps you create a wireless
connection immediately.
With unmatched wireless performance, reception, and security protection, the TL-WN811N is the
best choice for easily adding or upgrading wireless connectivity to your notebook computer.
1.2 Features
¾ Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards
¾ Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
64/128/152-bit WEP encryption
¾ Supports high rate of up to 300Mbps for maximum throughput, supports automatically
adjust to lower speeds due to distance or other operating limitations
¾ Provides 32-bit CardBus interface
¾ Supports Ad-Hoc and Infrastructure modes
¾ Good capability on anti-jamming
¾ Supports roaming between access points when configured in Infrastructure mode
¾ Ease to configure and provides monitoring information
¾ Supports Windows 2000, Windows XP, Windows Vista, Windows 7
¾ Built-in two internal antennas which are listed in a format of 2x2 for two receivers and two
transmitters.
TL-WN811N 300Mbps Wireless N CardBus Adapter
3
1.3 LED Status
LED Indications Status Working Status
Status Solid Light The adapter is inserted in the slot and the power is on.
Flashing slowly
The adapter is trying to scan a networking connection;
The adapter is already connected but is not
transmitting or receiving data.
Activity
Flashing Quickly The adapter is transmitting or receiving data.
TL-WN811N 300Mbps Wireless N CardBus Adapter
4
Chapter 2 Installation Guide
2.1 Hardware Installation
To install the adapter, follow these steps listed below:
1. Locate an available CardBus slot on your laptop.
2. With the connector pin end facing the CardBus slot and the label facing up, slide the
Adapter into the CardBus slot until it locks in place.
) Note:
The promoted Found New Hardware Wizard screen will pop up when the adapter is installed
correctly. Click Cancel.
2.2 Software Installation
2.2.1 Software Installation for Windows XP
The Setup steps for Windows 2000 and XP are similar with each other. This user guide takes
Windows XP for example.

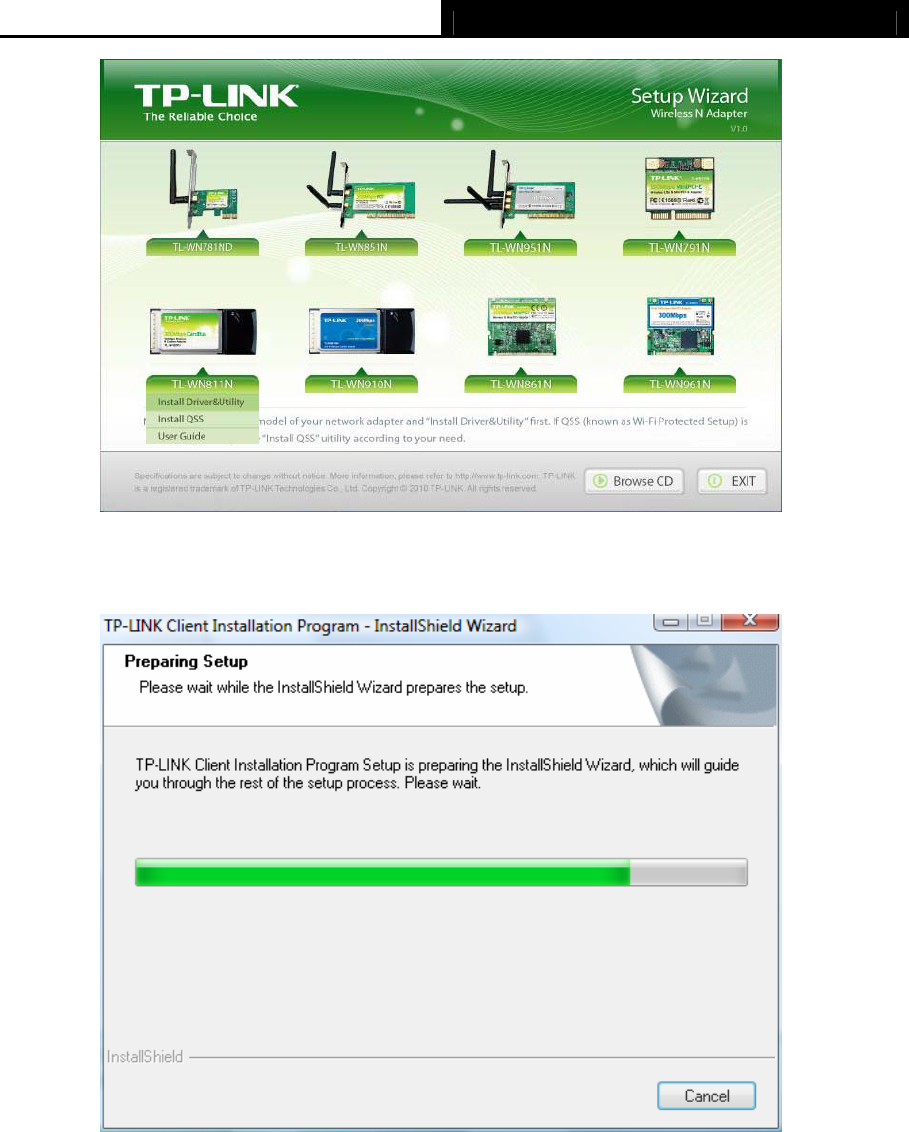

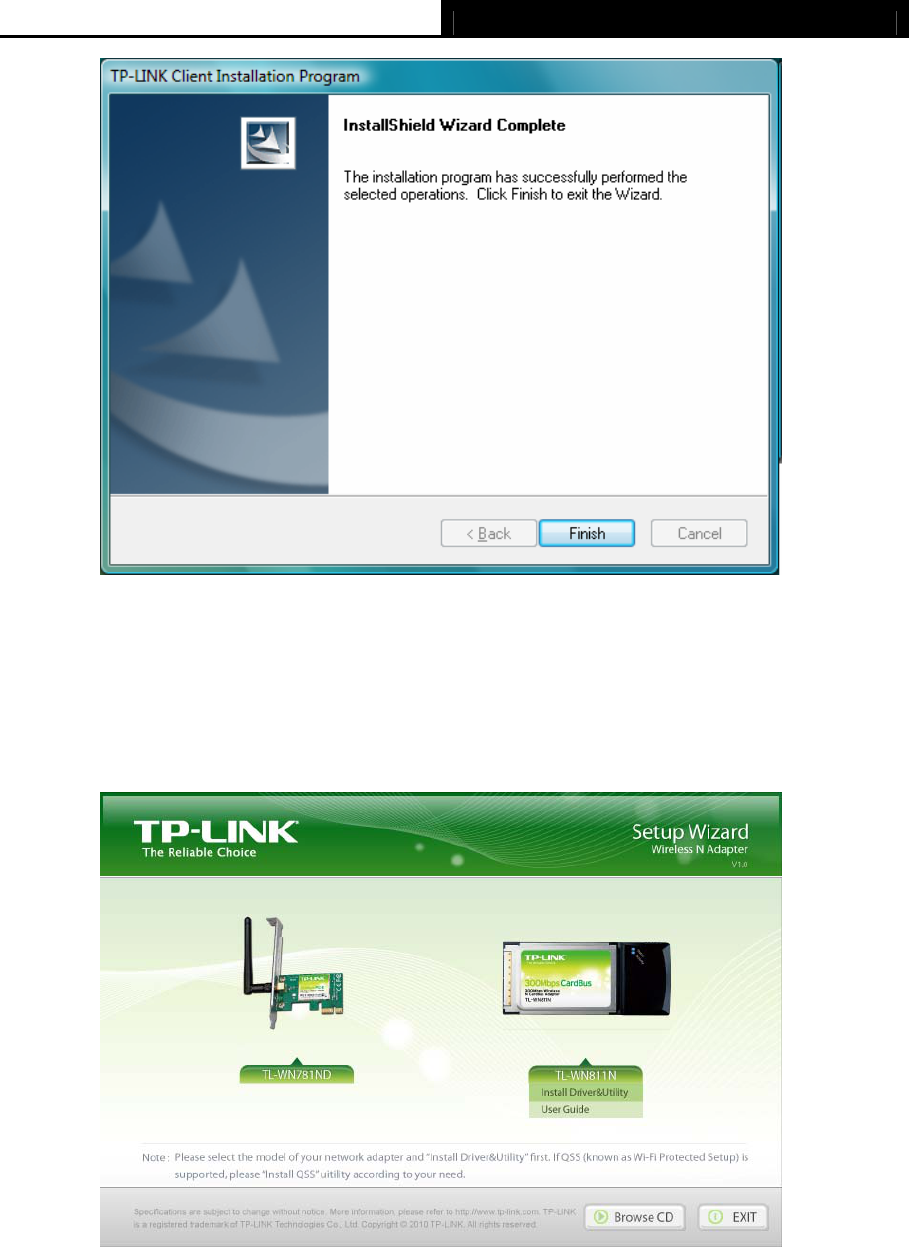

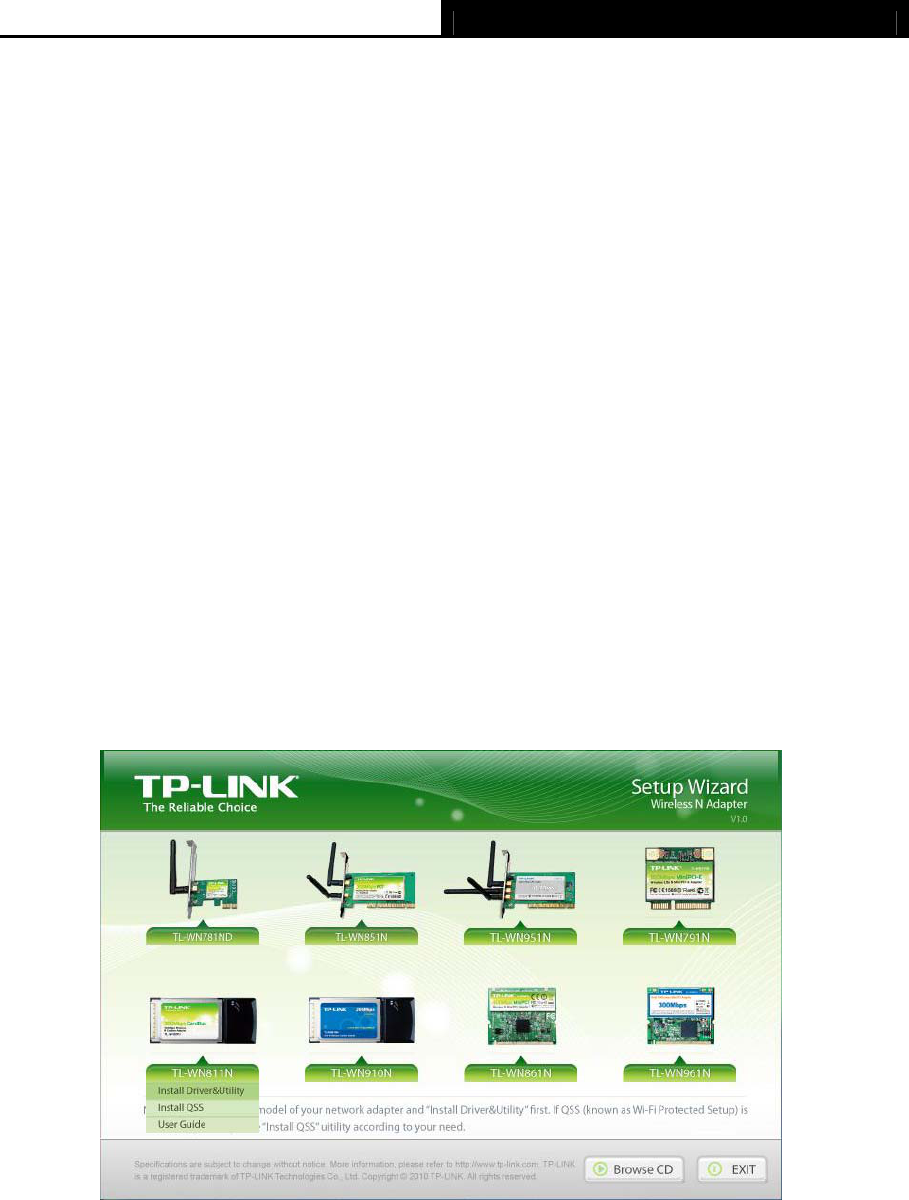

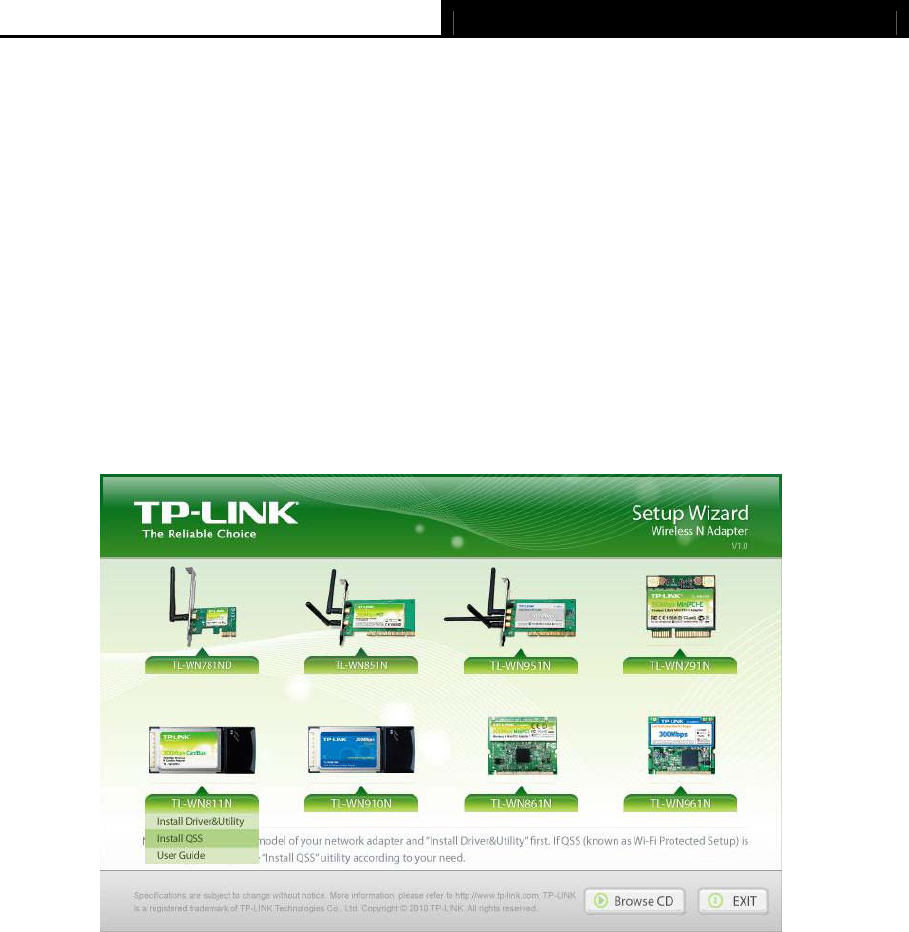

1. Insert the Resource CD into your CD-ROM drive, and the Figure 2-1 will appear. To
continue, select the TL-WN811N.There will be a menu including: Install Driver & Utility,
Install QSS and User Guide.
Figure 2-1

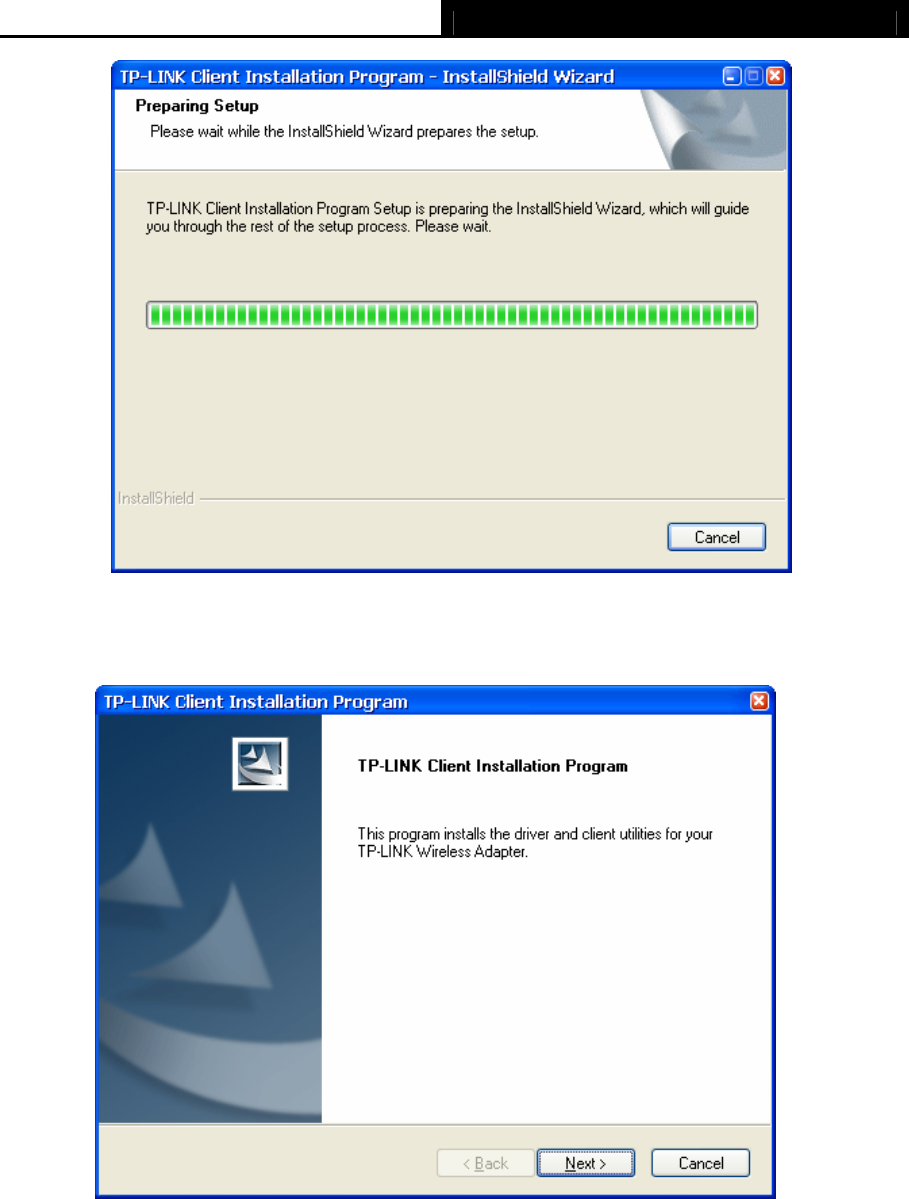

2. Click Install Driver & Utility to load the following screen.
TL-WN811N 300Mbps Wireless N CardBus Adapter
5
Figure 2-2

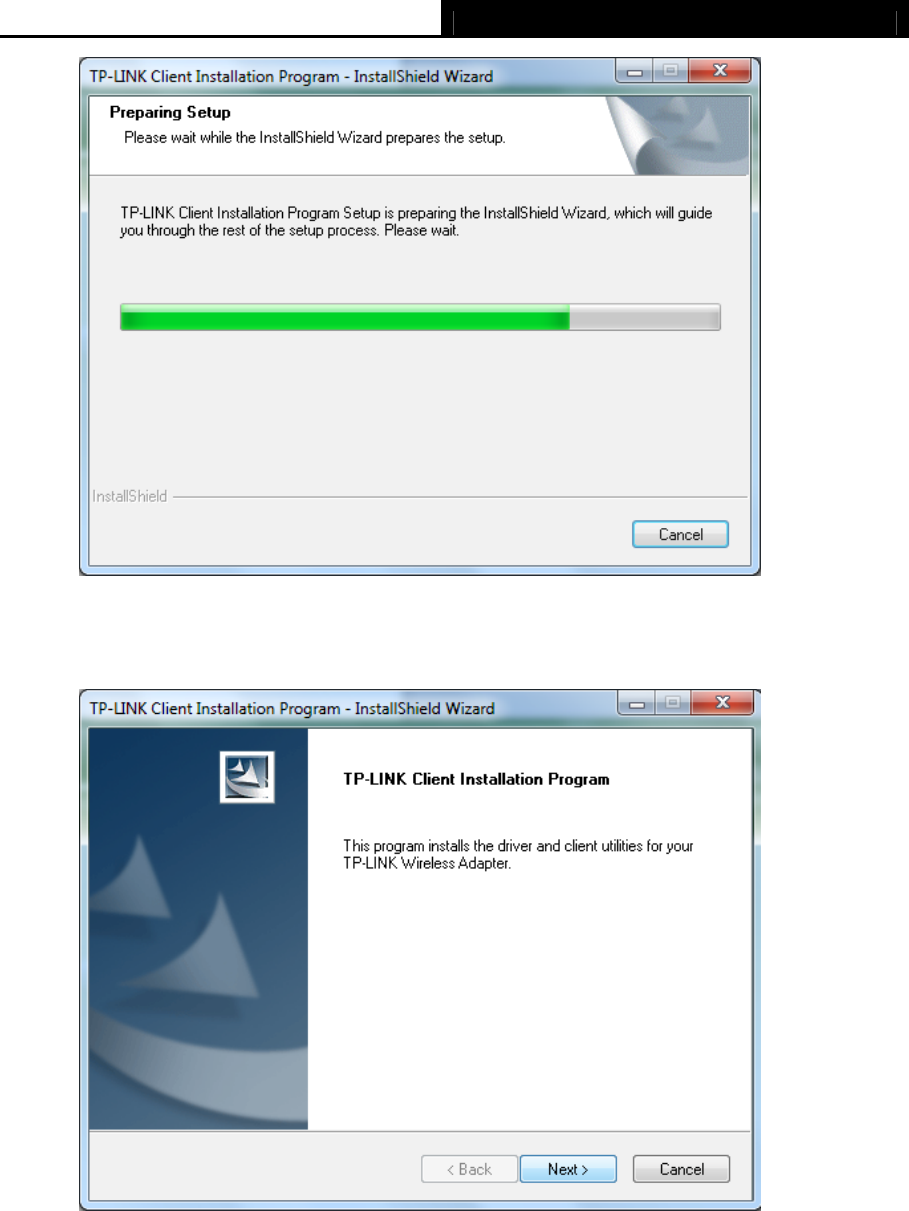

3. Soon, Figure 2-3 will display after a moment. Click Next to continue.
Figure 2-3
4. After that, you should choose a Setup type. It is recommended that you select Install
Client Utilities and Driver. Select Install Driver Only to install driver only (shown in
Figure 2-4). Click Next to continue.
TL-WN811N 300Mbps Wireless N CardBus Adapter
6
Figure 2-4
5. Click Browse to change the destination location for the software, then click Next in the
screen below (shown in Figure 2-5).
Figure 2-5

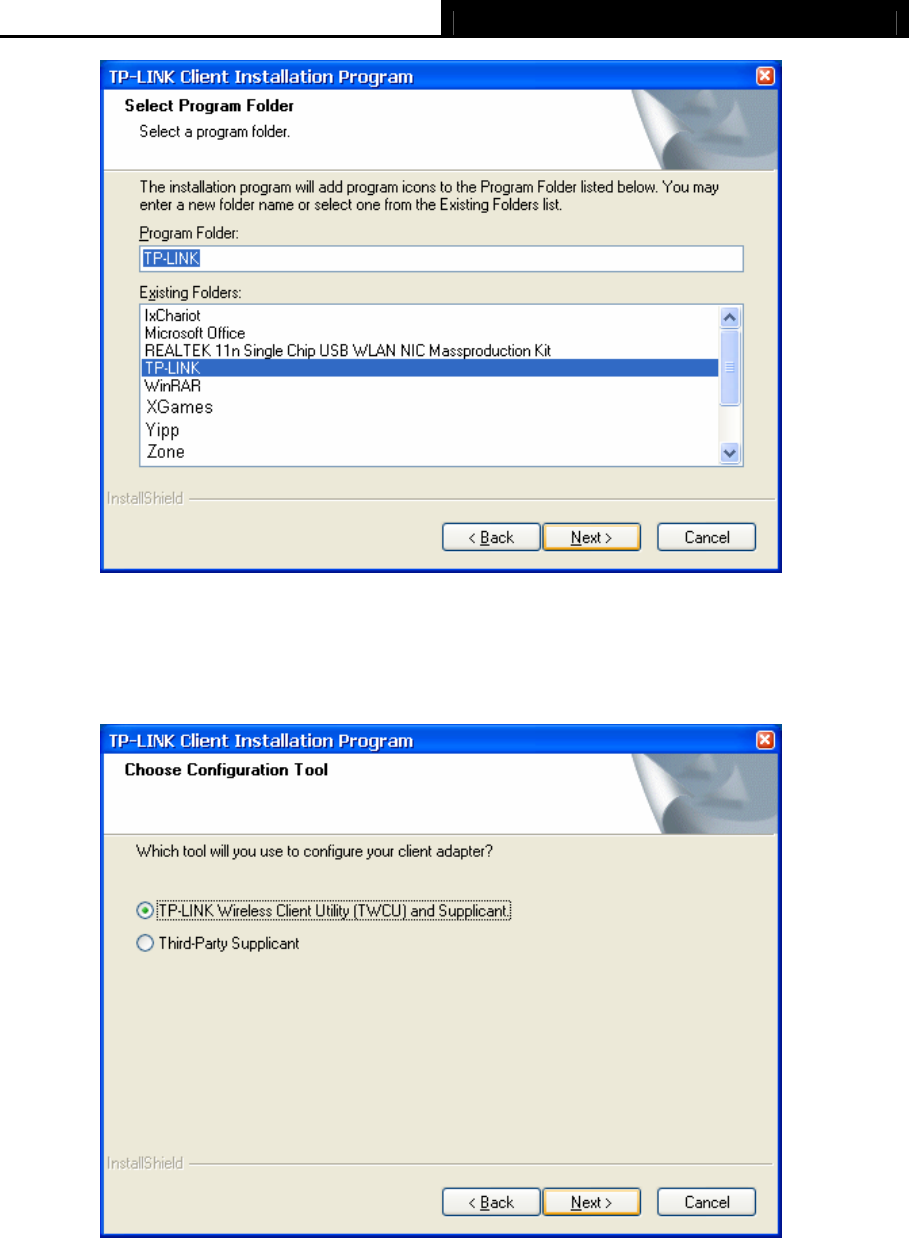

6. After that, select the program folder, you should create a new folder name or select one
from the Existing Folders list. It is recommended that you keep the default setting. Click
Next to continue the installation.
TL-WN811N 300Mbps Wireless N CardBus Adapter
7
Figure 2-6
7. Choose configuration tool, if you are not sure, please leave it default. Then click Next to
continue.
Figure 2-7
8. Wait a while for the setup as shown in Figure 2-8.
TL-WN811N 300Mbps Wireless N CardBus Adapter
8
Figure 2-8
) Note:
1) For Windows XP, the Setup Wizard will notify you of how to proceed with the installation
during these steps (shown in Figure 2-9). Our drivers have been tested thoroughly, and
are able to work with the operating system. Click Continue Anyway to continue the
Installation.
Figure 2-9
2) In Windows 2000, the warning screen is shown below (Figure 2-10), and please select
Yes to continue installation.
TL-WN811N 300Mbps Wireless N CardBus Adapter
9
Figure 2-10
9. After all the steps above, you will see the screen below, click Finish to complete the
installation.
Figure 2-11
2.2.2 Software Installation for Windows Vista
1. Insert the Resource CD into your CD-ROM drive, and the Figure 2-12 will appear. To
continue, select the TL-WN811N.There will be a menu including: Install Driver & Utility,
Install QSS and User Guide.
TL-WN811N 300Mbps Wireless N CardBus Adapter
10
Figure 2-12
2. Click Install Driver & Utility to load the following screen.
Figure 2-13

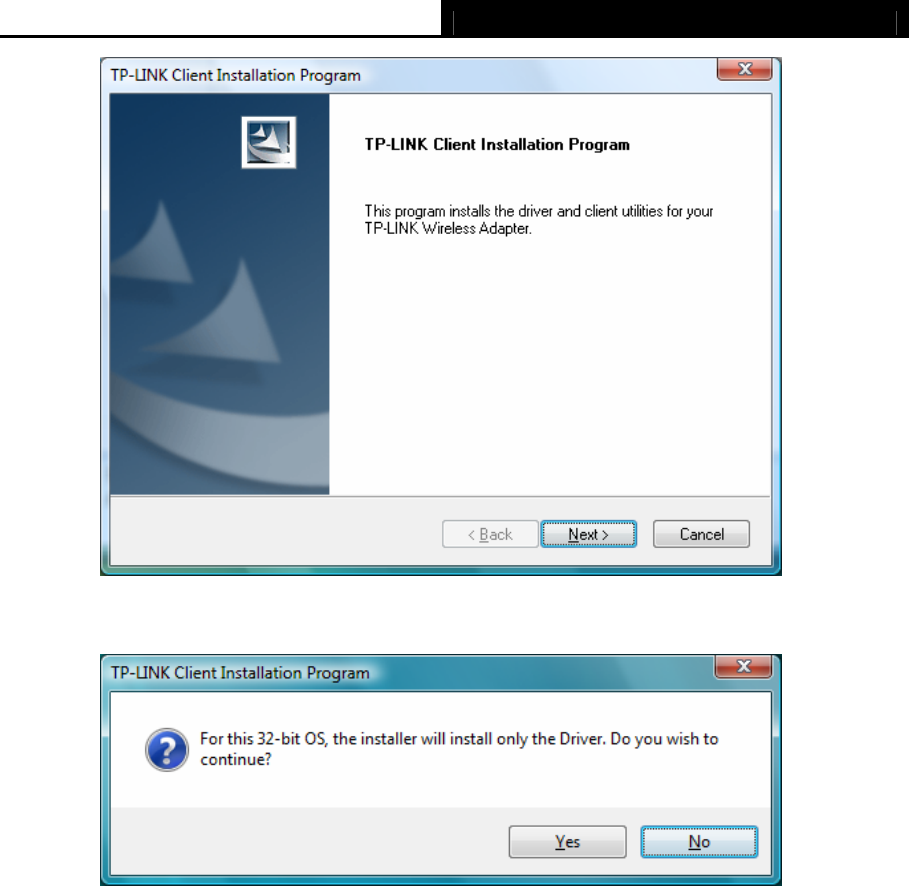

3. Soon, Figure 2-14 will display after a moment. Click Next to continue.
TL-WN811N 300Mbps Wireless N CardBus Adapter
11
Figure 2-14
4. Click Yes to continue.
Figure 2-15

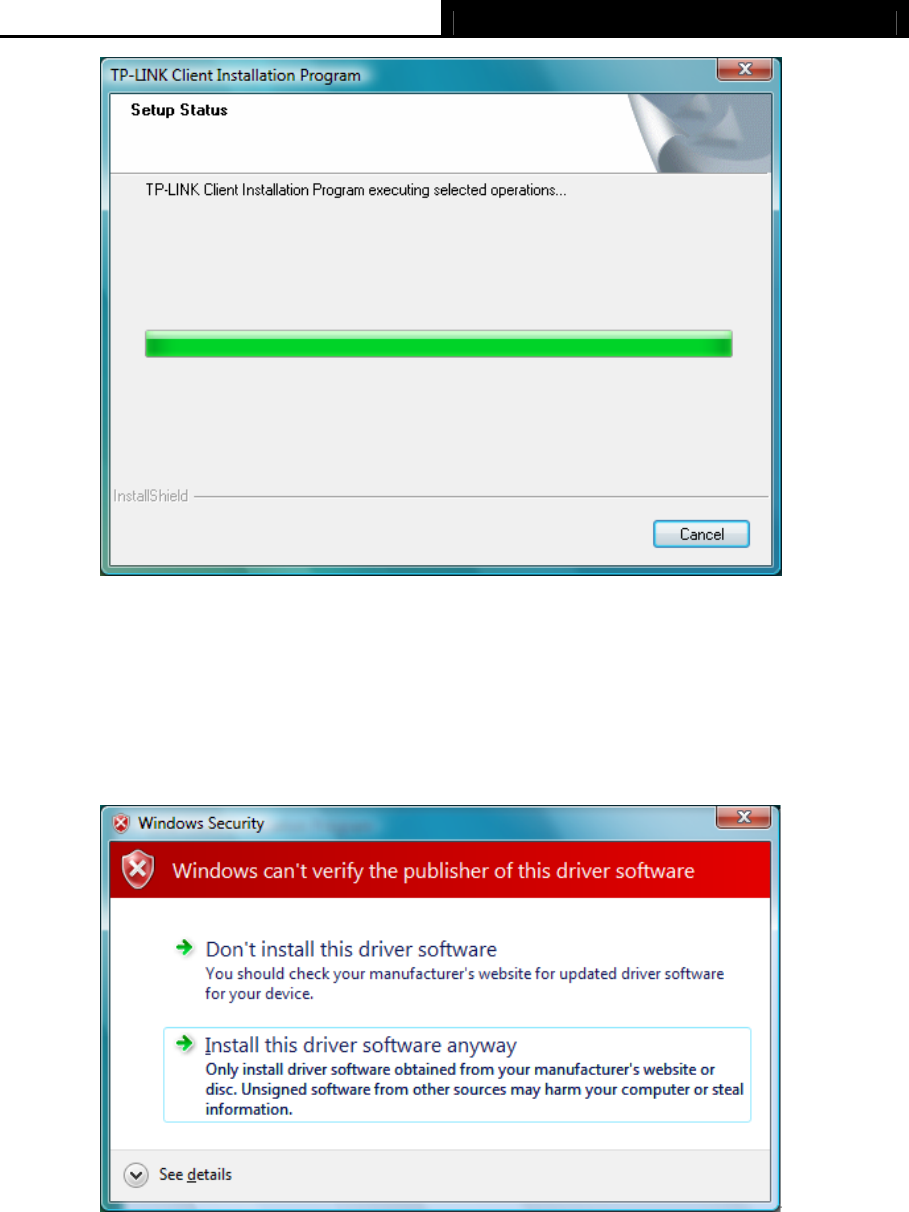

5. The following page will display and please wait a moment.
TL-WN811N 300Mbps Wireless N CardBus Adapter
12
Figure 2-16
) Note:
For Windows Vista, the Setup Wizard will notify you of how to proceed with the installation
during these steps (shown in Figure 2-17). Our drivers have been tested thoroughly, and are
able to work with the operating system. Click Install this driver software anyway to
continue the Installation.
Figure 2-17
6. Click Finish to complete the installation.
TL-WN811N 300Mbps Wireless N CardBus Adapter
13
Figure 2-18
2.2.3 Software Installation for Windows 7
1. Insert the Resource CD into your CD-ROM drive, and theFigure 2-19 will appear. To
continue, select the TL-WN811N.There will be a menu including: Install Driver & Utility,
Install QSS and User Guide.
Figure 2-19
2. Click Install Driver & Utility to load the following screen.
TL-WN811N 300Mbps Wireless N CardBus Adapter
14
Figure 2-20
3. Soon, Figure 2-21 will display after a moment. Click Next to continue.
Figure 2-21
4. Click Yes to continue.
TL-WN811N 300Mbps Wireless N CardBus Adapter
15
Figure 2-22
5. Wait a while for the setup as shown in Figure 2-23.
Figure 2-23
) Note:
For Windows 7, the Setup Wizard will notify you about the Windows Security with the installation
during these steps (shown in 8Figure 2-24). Our drivers have been tested thoroughly, and are able
to work with the operating system. Click Installation this driver software anyway to continue the
installation.
TL-WN811N 300Mbps Wireless N CardBus Adapter
16
Figure 2-24
6. Then you will see Figure 2-25. Click Finish to complete.
Figure 2-25
TL-WN811N 300Mbps Wireless N CardBus Adapter
17
Chapter 3 Configuration
TP-LINK TL-WN811N can be configured by TP-LINK Wireless Client Utility (TWCU). This
chapter describes how to configure your Adapter for wireless connectivity on your Wireless
Local Area Network (WLAN) and use the data security encryption features.
After Installing the Adapter, the Adapter’s tray icon will appear in your system tray. It
appears at the bottom of the screen, and shows the signal strength using color and the received
signal strength indication (RSSI).
If the icon is gray, there is no connection.
If the icon is red, there is poor signal strength and the RSSI is less than 5dB.
If the icon is yellow, there is poor signal strength and the RSSI is between 5dB and 10dB.
If the icon is green, there is good signal strength and the RSSI is between 10dB and 20dB.
If the icon is green, there is excellent signal strength and the RSSI is more than 20dB.
Double-click the icon and the TWCU will run. You can also run the utility by clicking the Start
All programsTP-LINKTP-LINK Wireless Client Utility. The TWCU provides some
integrated and easy tools to:
¾ Display current status information
¾ Edit and add configuration profiles
¾ Display current diagnostics information
The section below introduces these above capabilities.
3.1 Current Status
The Current Status tab contains general information about the program and its operations. The
Current Status tab needn’t any configurations.
TL-WN811N 300Mbps Wireless N CardBus Adapter
18
Figure 3-1
The following table describes the items found on the Current Status screen.
¾ Profile Name - This shows the name of current selected configuration profile. The
configuration of Profile name will be described on the General tab of Profile Management.
¾ Link Status - This shows whether the station is associated to the wireless network.
¾ Wireless Mode - Here displays the wireless mode.
¾ Network Type - The type of network and the station currently connected are shown here.
The options include:
Infrastructure (access point)
Ad Hoc
) Note:
You can configure the network type and wireless mode on the Advanced tab of Profile
Management.
¾ IP Address - This displays the computer’s IP address.
¾ Control Channel - This shows the currently connected channel.
¾ Data Encryption - Here displays the encryption type the driver is using. You can configure
it on the Security tab of Profile Management.
¾ Server Based Authentication - This shows whether the server based authentication is
used.
¾ Signal Strength - This shows the strength of the signal.

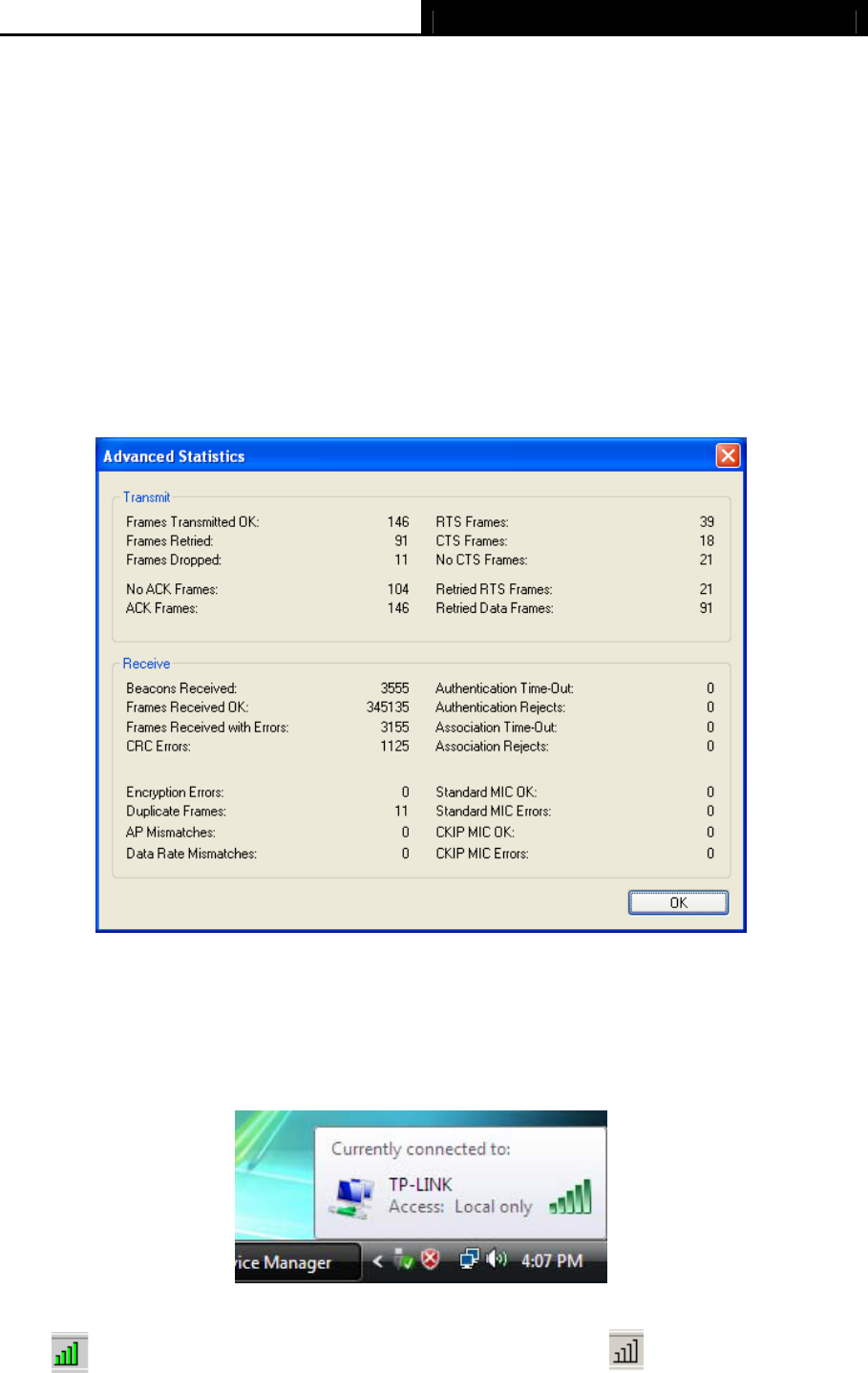

Click Advanced on the screen above, you can see advanced information about the program
and its operations.
3.2 Profile Management

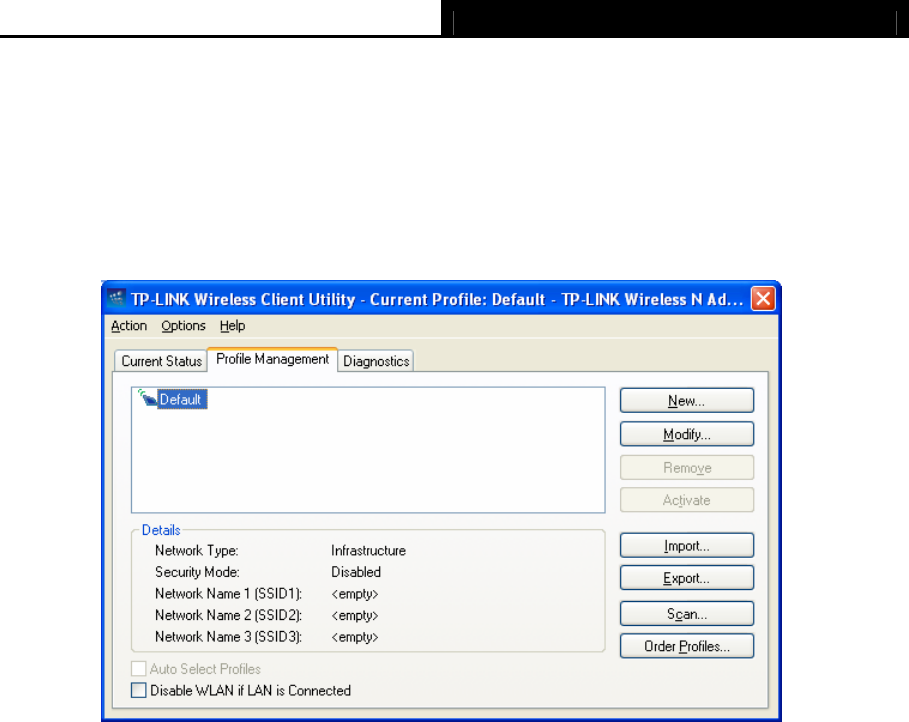

Click the Profile Management tab of the TWCU and the next screen will appear (shown in
Figure 3-2). The Profile Management screen provides tools to:
¾ Add a new profile
¾ Modify a profile
TL-WN811N 300Mbps Wireless N CardBus Adapter
19
¾ Remove a profile
¾ Activate a Profile
¾ Import a Profile
¾ Export a Profile
¾ Scan Available Networks
¾ Order profiles
Figure 3-2

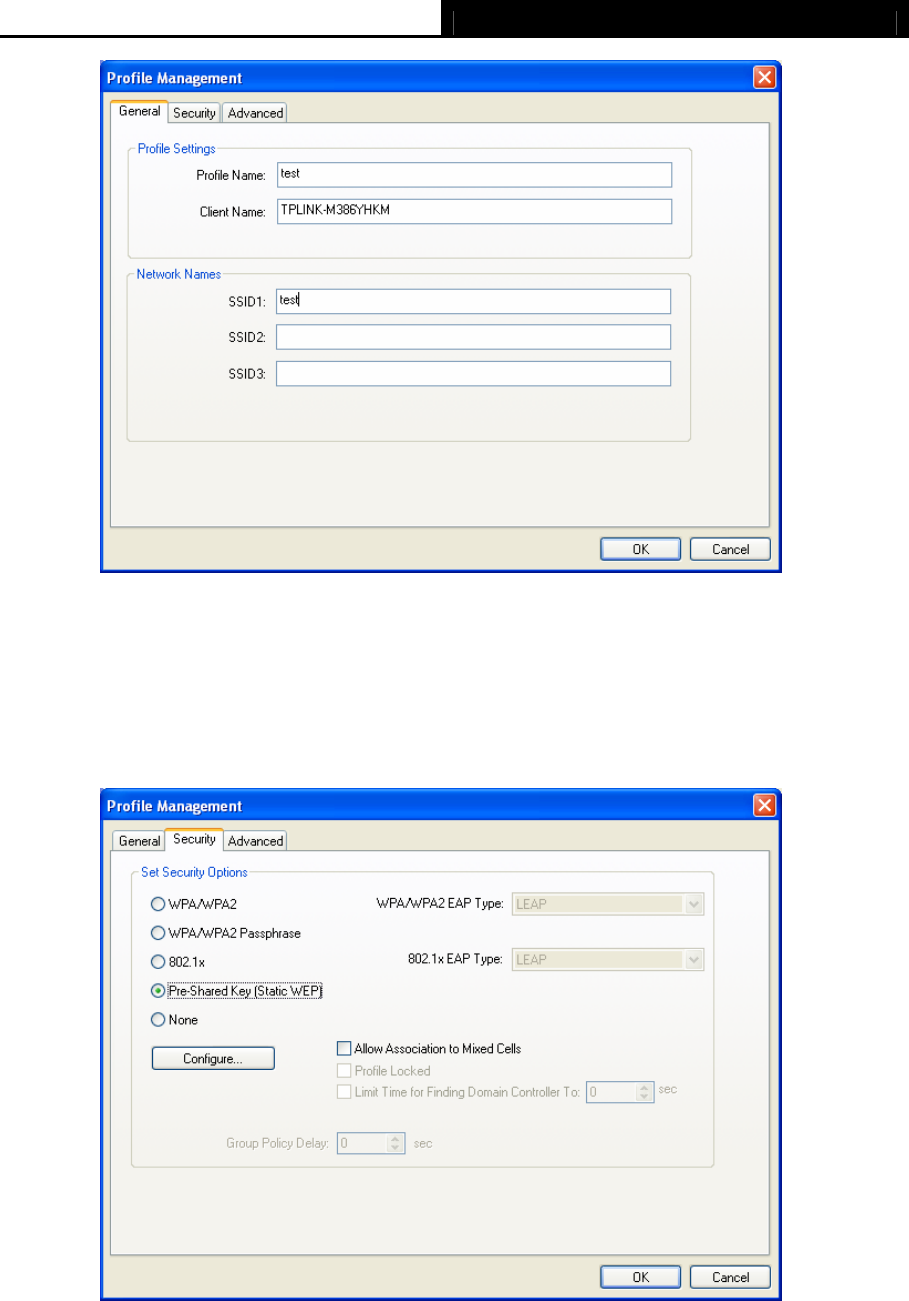

3.2.1 Add or Modify a Configuration Profile
To add a new configuration profile, click New on the Profile Management tab. To modify a
configuration profile, select the configuration profile from the Profile list and click Modify. Then
you will see the Management dialog box (shown in Figure 3-3).
1. Edit the General tab
¾ Profile Name - Please enter the Profile name which identifies the configuration profile. This
name must be unique. Note that the profile names are not case-sensitive.
¾ Client Name - Please enter the Profile name which identifies the client machine.
¾ Network Names (SSIDs) - Please enter the IEEE 802.11 wireless network name. This
field has a maximum limit of 32 characters.
TL-WN811N 300Mbps Wireless N CardBus Adapter
20
Figure 3-3
2. Edit the Security tab
Select the Security tab in the screen above, and then you can edit the fields to configure the
profile. To define the security mode, select the radio button of the desired security mode as
follows.
Figure 3-4
¾ WPA/WPA2: Wi-Fi Protected Access.
¾ WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase.
¾ 802.1x: Enables 802.1x security.
TL-WN811N 300Mbps Wireless N CardBus Adapter
21
¾ Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both
the access point and the station. To define shared encryption keys, choose the Shared Key
radio button and click Configure to fill in the Define Shared Keys window (shown in Figure
3-5).
) Note:
The WEP security mode is not available for 802.11n.
¾ None: No security (not recommended).
) Note:
If the access point which the Adapter is associated has WEP set and the client has WEP enabled,
make sure that Allow Association to Mixed Cells is checked on the Security tab to allow
association. To complete WEP encryption configuration, you must select the 802.11
Authentication Mode as appropriate on the Advanced tab of this Profile Management dialog.

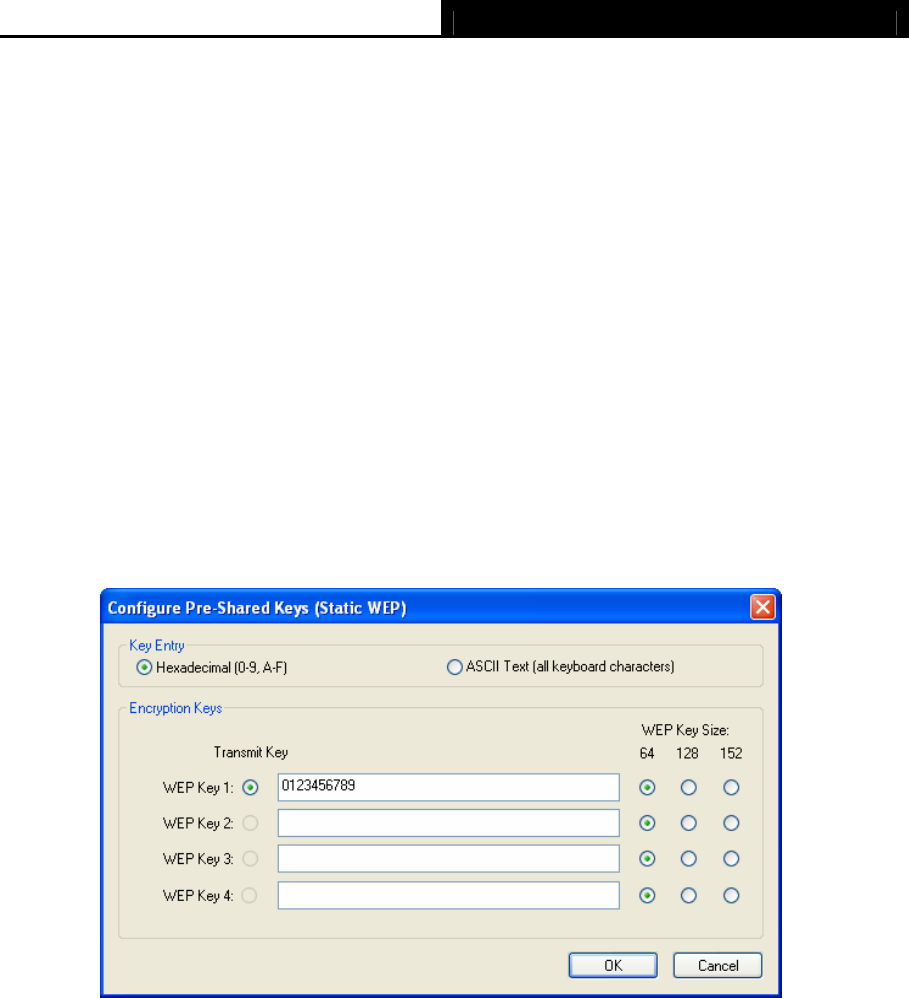

To configure the Encryption Keys under the Pre-Shared keys (Static WEP) Security mode:
Figure 3-5
) Note:
Select different Security Options, the configurations are different; you can select the
appropriate security option and configure the exact key as your need.
3. Edit the Advanced tab

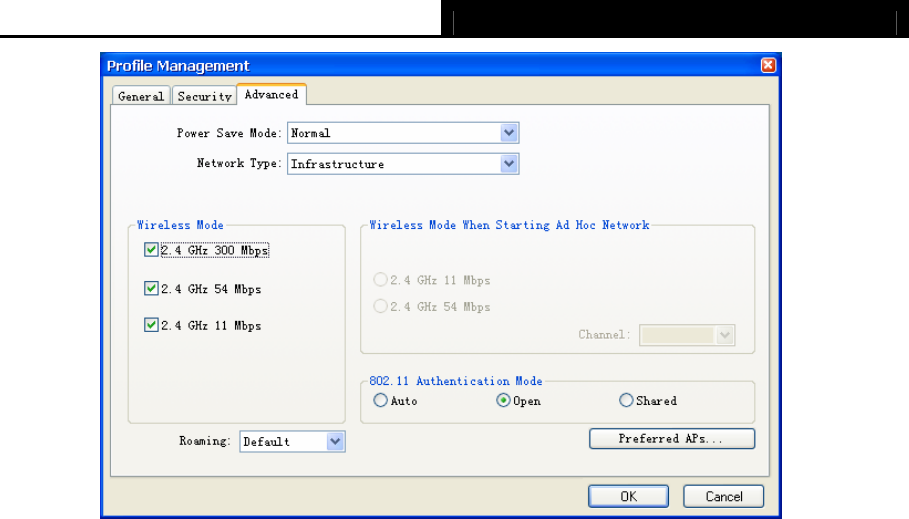

This screen below allows you to make advanced configuration for the profile.
TL-WN811N 300Mbps Wireless N CardBus Adapter
22
Figure 3-6
¾ Power Save Mode - Please select the power save mode in the drop-down list.
Maximum - Selects maximum mode to let the access point buffer incoming messages
for the Adapter. The Adapter will detect the access point if any messages are waiting
periodically.
Normal - Normal mode uses maximum when retrieving a large number of packets,
then switches back to power save mode after retrieving the packets.
Off - Turns power saving off, thus powering up the Wireless CardBus Adapter
continuously for a short message response time.
¾ Network Type: There are basically two modes of networking:
Infrastructure - All wireless clients will connect to an access point or wireless router.
Ad-Hoc - Directly connecting to another computer, for peer-to-peer communication,
using wireless network adapters on each computer, such as two or more TL-WN811N
wireless adapters.
) Note:
1) An Infrastructure network contains an Access Point or wireless router. All the wireless
devices or clients will connect to the wireless router or access point.
2) An Ad-Hoc network contains only clients, such as laptops with wireless desktop adapters. All
the adapters must be in Ad-Hoc mode to communicate.
¾ Wireless Mode: Specifies 2.4 GHz 300 Mbps, 2.4 GHz 54 Mbps or 2.4 GHz 11 Mbps
operation in an access point network. The Wireless adapter must match the wireless mode
of the access point with which it associates.
¾ Wireless Mode when Starting an Ad Hoc Network: Specifies 2.4 GHz 300/54/11 Mbps
to start an Ad Hoc network if no matching network name is found after scanning all
available modes. This mode also allows the selection of the channel that the Wireless
Adapter uses. The channels available depend on the regulatory domain. If the adapter
finds no other ad hoc adapters, the channel that the adapter starts the ad hoc network with
TL-WN811N 300Mbps Wireless N CardBus Adapter
23
will be selected automatically. The Adapter must match the wireless mode and channel of
the clients it associates.
¾ 802.11 Authentication Mode: Select which mode the Adapter uses to authenticate to an
access point:
Auto causes the adapter to attempt authentication using shared, but switches it to
open authentication if shared fails.
Open enables an adapter to attempt authentication regardless of its WEP settings. It
will only associate with the access point if the WEP keys on both the adapter and the
access point match.
Shared only allows the adapter to associate with access points that have the same
WEP key.

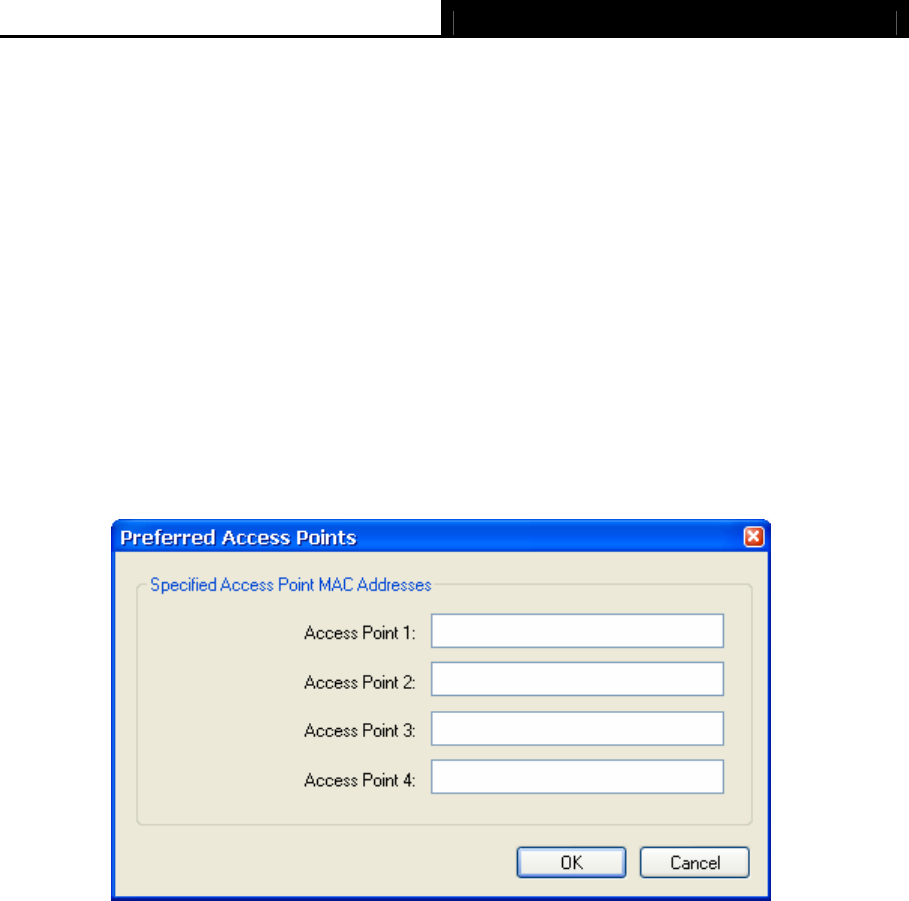

For infrastructure (access point) networks, click Preferred APs… to specify four access points
at most to the client adapter that attempts to be associated to the access points. The four
access points have different priorities; the frontal has the higher priority.
Figure 3-7
3.2.2 Remove a profile
1. Go to the Profile Management tab (shown in Figure 3-2).
2. Select the profile name in the Profiles List.
3. Click Remove.
) Note:
The profile being used can’t be removed.
3.2.3 Switch another Profile
1. Go to the Profile Management screen (shown in Figure 3-2).
2. Select the profile name required in the Profiles List.
3. Click Activate.

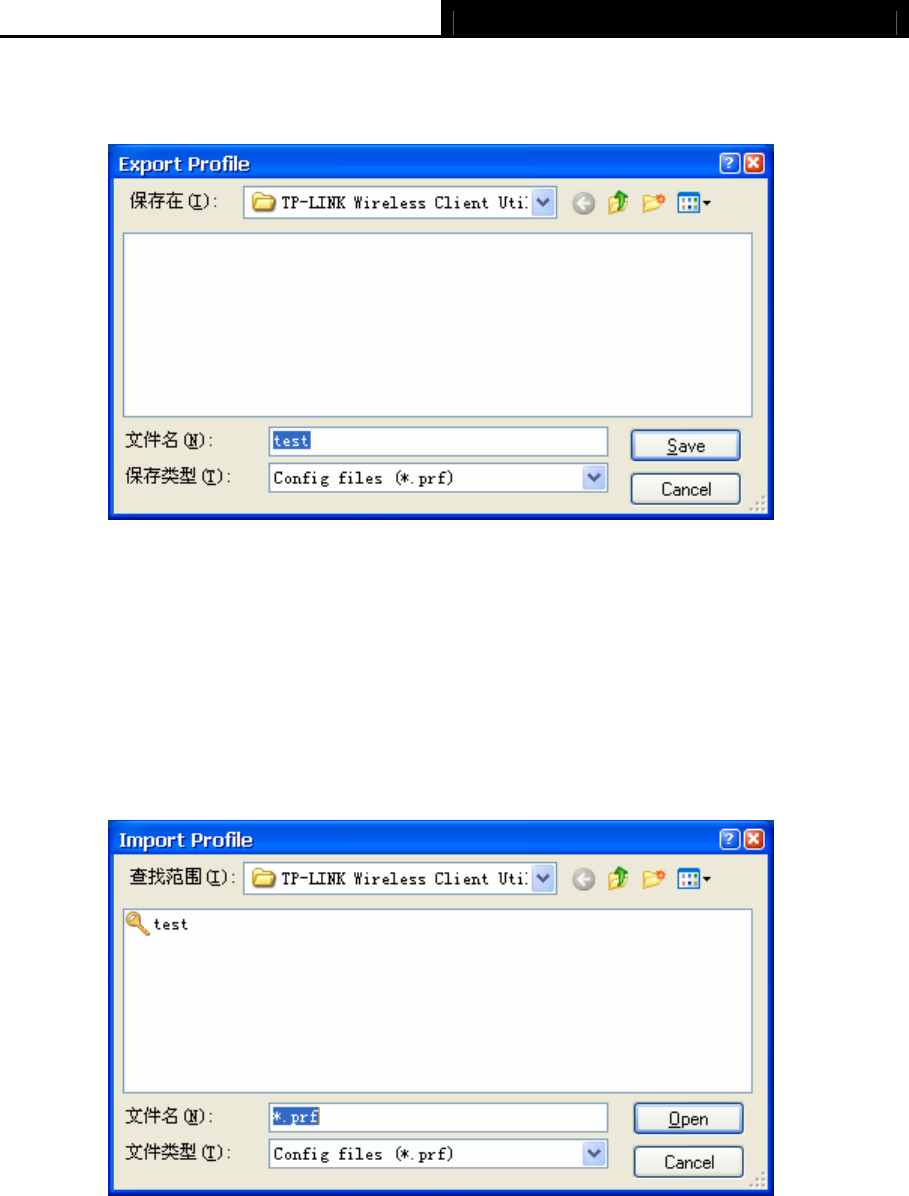

3.2.4 Export a Profile
1. From the Profile Management screen (shown in Figure 3-2), highlight the profile to export.
2. Click Export…, the Export Profile window will then appear below.
TL-WN811N 300Mbps Wireless N CardBus Adapter
24
3. Browse the directory to export the profile to.
4. Click Save. The profile should then be exported to the specified location.
Figure 3-8
3.2.5 Import a Profile
1. From the Profile Management screen (shown in Figure 3-2), click Import…. Then the
Import Profile will appear below.
2. Browse to the directory where the profile is located.
3. Highlight the profile name.
4. Click Open, the imported profile will then appear in the Profiles List.
Figure 3-9
3.2.6 Scan Available Networks
1. Click Scan on the Profile Management screen (shown in Figure 3-2), the Available
Infrastructure and Ad Hoc Networks window will appear below.
2. Click Refresh to refresh the list at any time.
3. Highlight a network name and click Activate to connect to an available network. If no
configuration profile exists for that network, the Profile Management window will open the
TL-WN811N 300Mbps Wireless N CardBus Adapter
25
General tab screen. Fill in the Profile name and click OK to create the configuration profile
for that network.
Figure 3-10
3.2.7 Auto Profile Selection Management
The auto selection feature allows the adapter to automatically select a profile from the list of
profiles and use it to connect to the network. To add a new profile into the Auto Selected
Profiles list, please follow these steps.
1. On the Profile Management screen (shown in Figure 3-2), click Order Profiles….
2. The Auto Profiles Selection management window will appear (shown in Figure 3-11) with a
list of all created profiles in the Available Profiles.
Figure 3-11
3. Highlight the profiles to add to auto profile selection, and click Add. The profile will appear
in the Auto Selected Profiles box.
4. Highlight a profile in the Auto Selected Profiles box.
5. Click Move Up or Move Down as appropriate.
TL-WN811N 300Mbps Wireless N CardBus Adapter
26
) Note:
The first profile in the Auto Selected Profiles box has highest priority, while the last profile has the
lowest priority.
6. Click OK.
7. Check the Auto Select Profiles checkbox on the Profile Management tab (shown in
Figure 3-2).
) Note:
When auto profile selection is enabled by checking Auto Select Profiles on the Profile
Management tab, the client adapter will scan for an available network. The profile with the
highest priority and the same SSID as one of the found networks will be used to connect to the
network. If the connection fails, the client adapter will try the next highest priority profile that
matches the SSID until an available network is found.

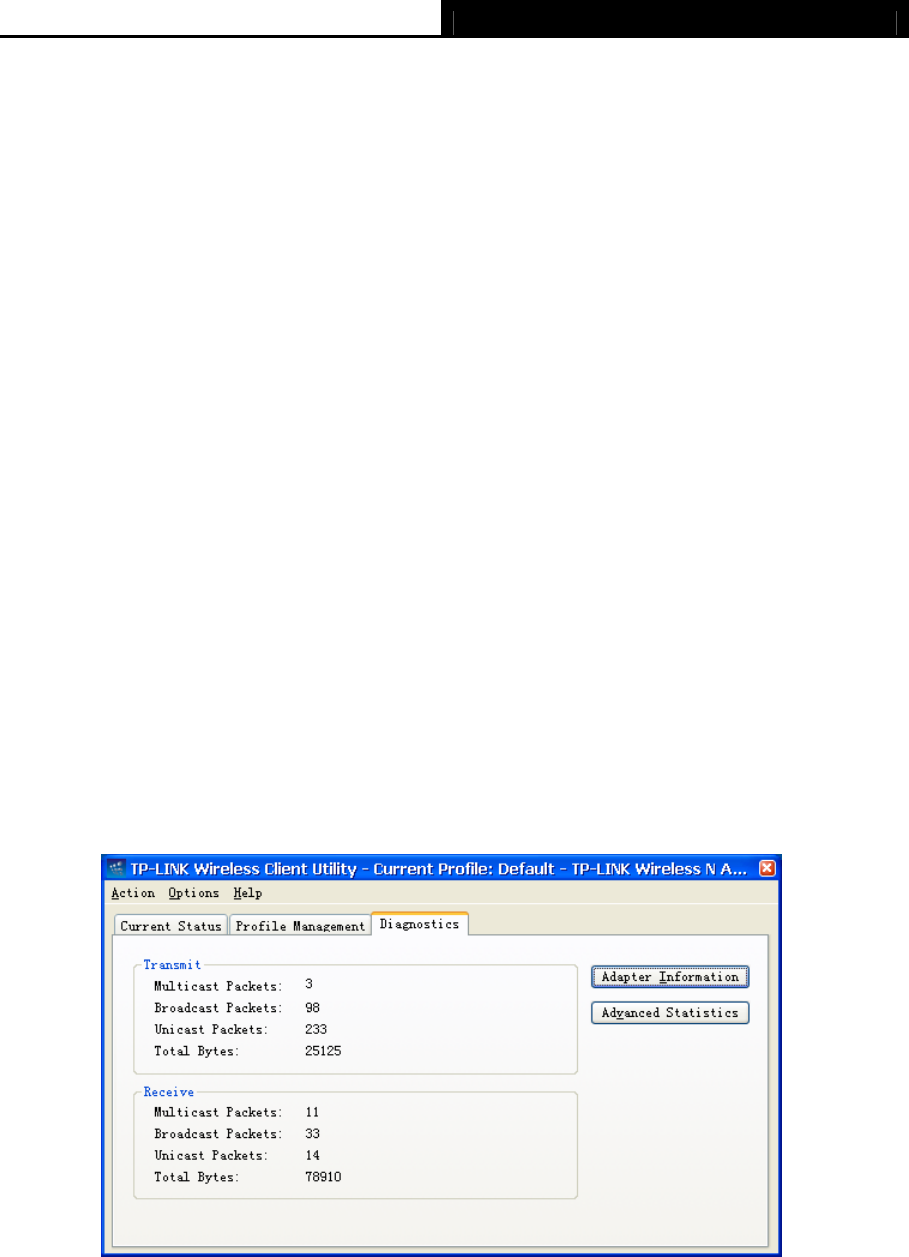

3.3 Diagnostics
The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to
retrieve receiving and transmitting statistics. The Diagnostics tab does not require any
configuration.
The Diagnostics tab lists the following receiving and transmitting diagnostics for frames
received or transmitted by the wireless network adapter:
¾ Multicast frames transmitted and received
¾ Broadcast frames transmitted and received
¾ Unicast frames transmitted and received
¾ Total bytes transmitted and received
Figure 3-12
3.3.1 Check Driver Information
Click the Adapter Information button in the screen above, you will see the adapter information,
including general information about the wireless network adapter and the Network Driver
Interface Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.
TL-WN811N 300Mbps Wireless N CardBus Adapter
27
¾ Card Name - The name of the wireless network adapter.
¾ MAC Address - The MAC address of the wireless network adapter.
¾ Driver - The driver name and path of the wireless network adapter driver.
¾ Driver Version - The version of the wireless network adapter driver.
¾ Driver Date - The creation date of the wireless network adapter driver.
¾ Client Name - The name of the client computer.
3.3.2 Check Receive and Transmit Statistical Information
The Advanced Statistics show receiving and transmitting statistical information about the
following receiving and transmitting diagnostics for frames received by or transmitted to the
wireless network adapter.
Figure 3-13
3.4 Configuration for Windows Vista
After the Adapter's driver has been installed, Windows Vista will display a wireless Network
Connection message like this one.
Figure 3-14
Icon means the connection has been established. Icon means there is no
connection.
TL-WN811N 300Mbps Wireless N CardBus Adapter
28
To establish a connection, please follow the steps below.

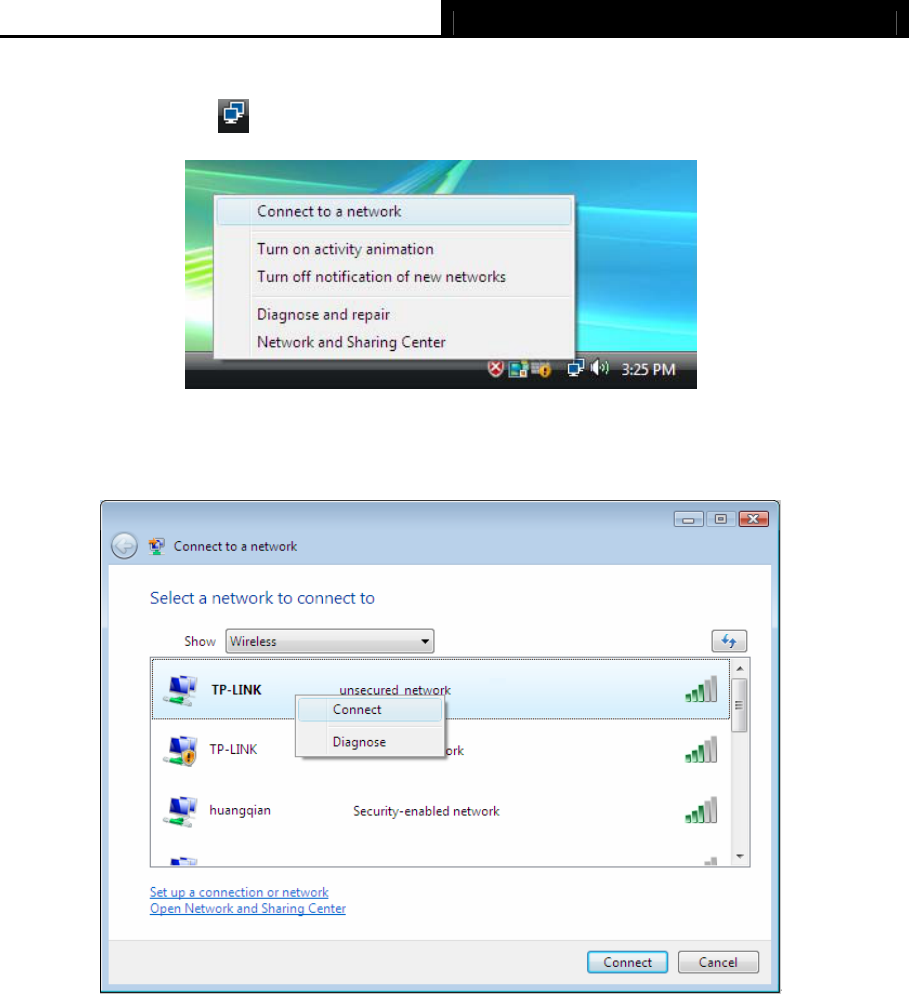

1. Right-click the icon in your system tray, then click Connect to a network.
Figure 3-15
2. The following screen will show you available wireless networks. Highlight the one you want
to join, and then click Connect.
Figure 3-16

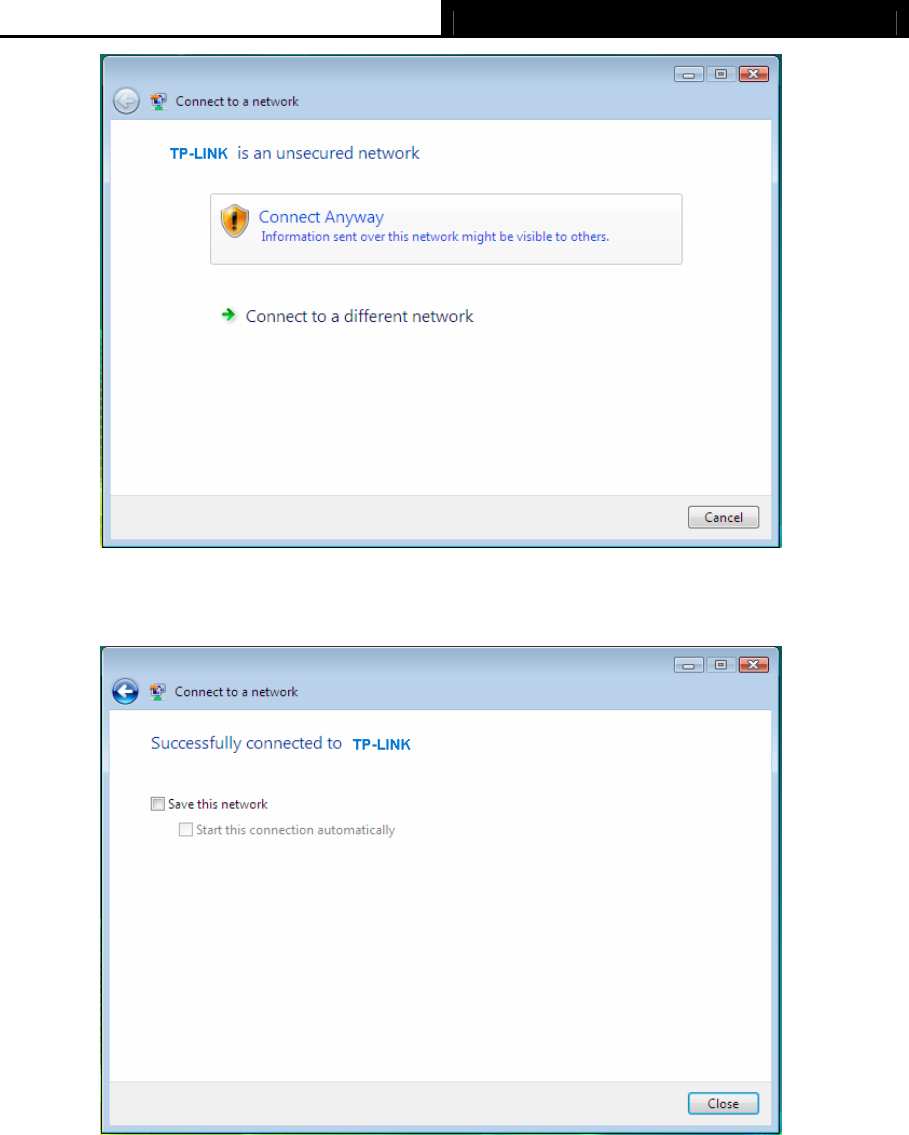

3. To continue, click Connect Anyway. Click the Cancel button to end the connection.
TL-WN811N 300Mbps Wireless N CardBus Adapter
29
Figure 3-17
4. If the connection is successful established, the following screen will appear, click close to
finish the connection.
Figure 3-18
3.5 Configuration for Windows 7
TP-LINK Wireless Client Utility (TWCU) is not available for Windows 7. So after the Adapter's
driver has been installed, we have to use Windows WLAN Autoconfig to establish a connection.
Please follow the steps below.
TL-WN811N 300Mbps Wireless N CardBus Adapter
30
1. Click the icon at the bottom of your screen in your system tray and then you will see
the available wireless network list. Select the SSID of your Access Point and click
Connect.
Figure 3-19
2. If your wireless network is secured, you will be required to enter the security key as shown
in Figure 3-20. Enter the passphrase, take 1234567890 for example. And then click OK.
Figure 3-20
TL-WN811N 300Mbps Wireless N CardBus Adapter
31

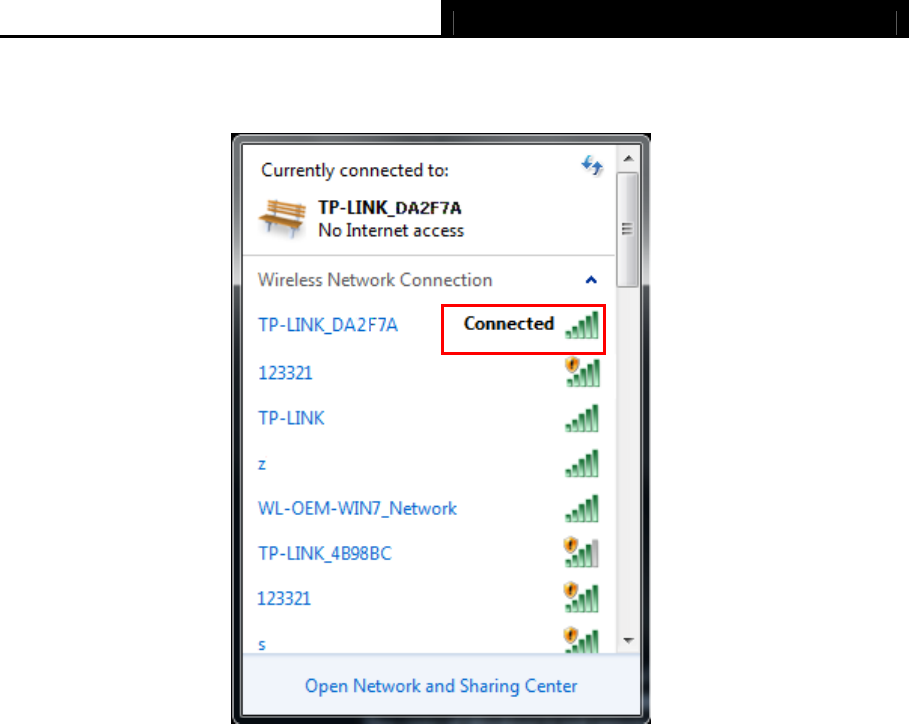

3. If the key entered is correct, you will successfully connect to the network as shown in
Figure 3-21.
Figure 3-21 Connecting
TL-WN811N 300Mbps Wireless N CardBus Adapter
32
Chapter 4 QSS Configuration
QSS (Quick Secure Setup) function allows you to add a new wireless device to an existing
network quickly.
If the wireless card supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless card and router using either Push Button Configuration (PBC)
method or PIN method.
First, the QSS software should be installed. Insert the Resource CD into your CD-ROM drive,
and the Figure 4-1 will appear. To continue, select the TL-WN811N.There will be a menu
including: Install Driver & Utility, Install QSS and User Guide.
Figure 4-1

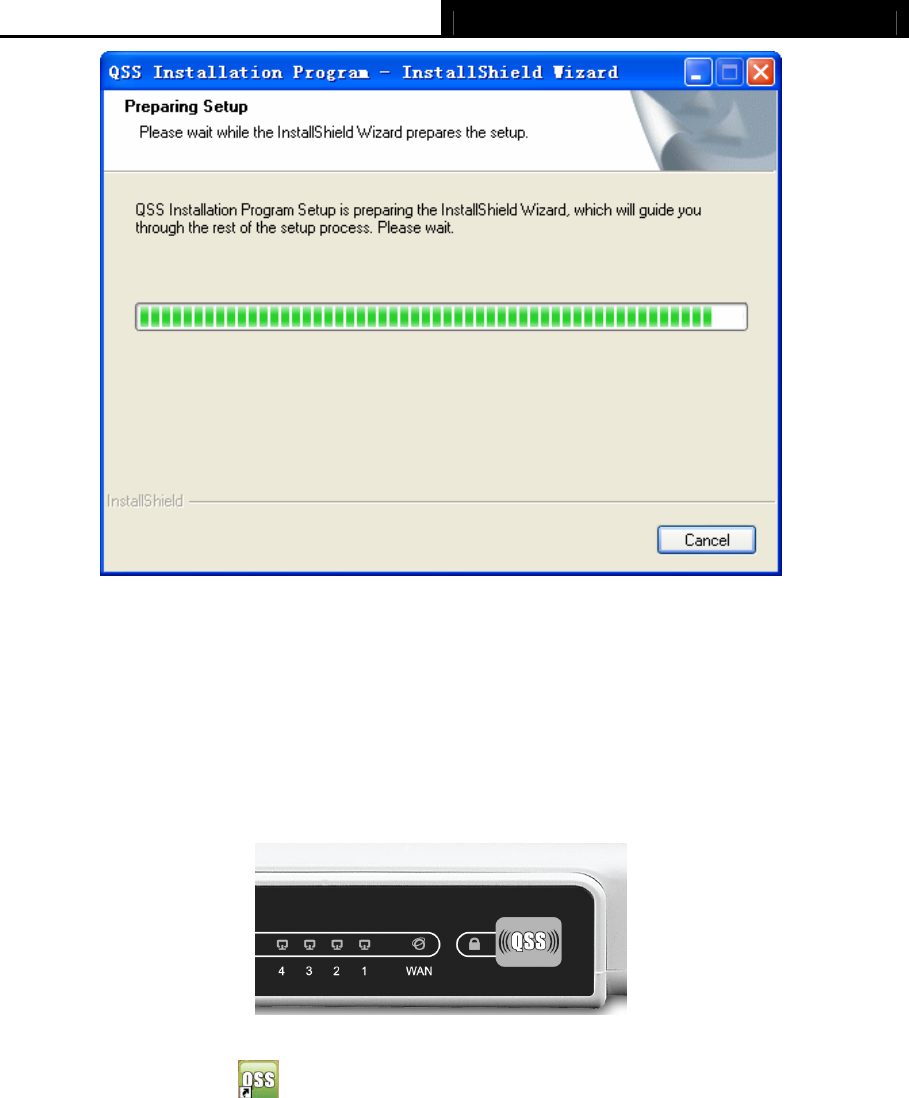

Next, select Install QSS to load the following screen.
TL-WN811N 300Mbps Wireless N CardBus Adapter
33
Figure 4-2
Then, please follow the clue of the Operation System to complete the QSS installation. After
that, QSS function can be enabled. Here we will introduce two ways to configure the QSS (For
the configuration of QSS, here takes the Wireless Router of our company for example).
4.1 PBC (Push Button Configuration) method
1. Firstly, Press the QSS button directly on the front panel of the Router shown in Figure 4-3.
Figure 4-3

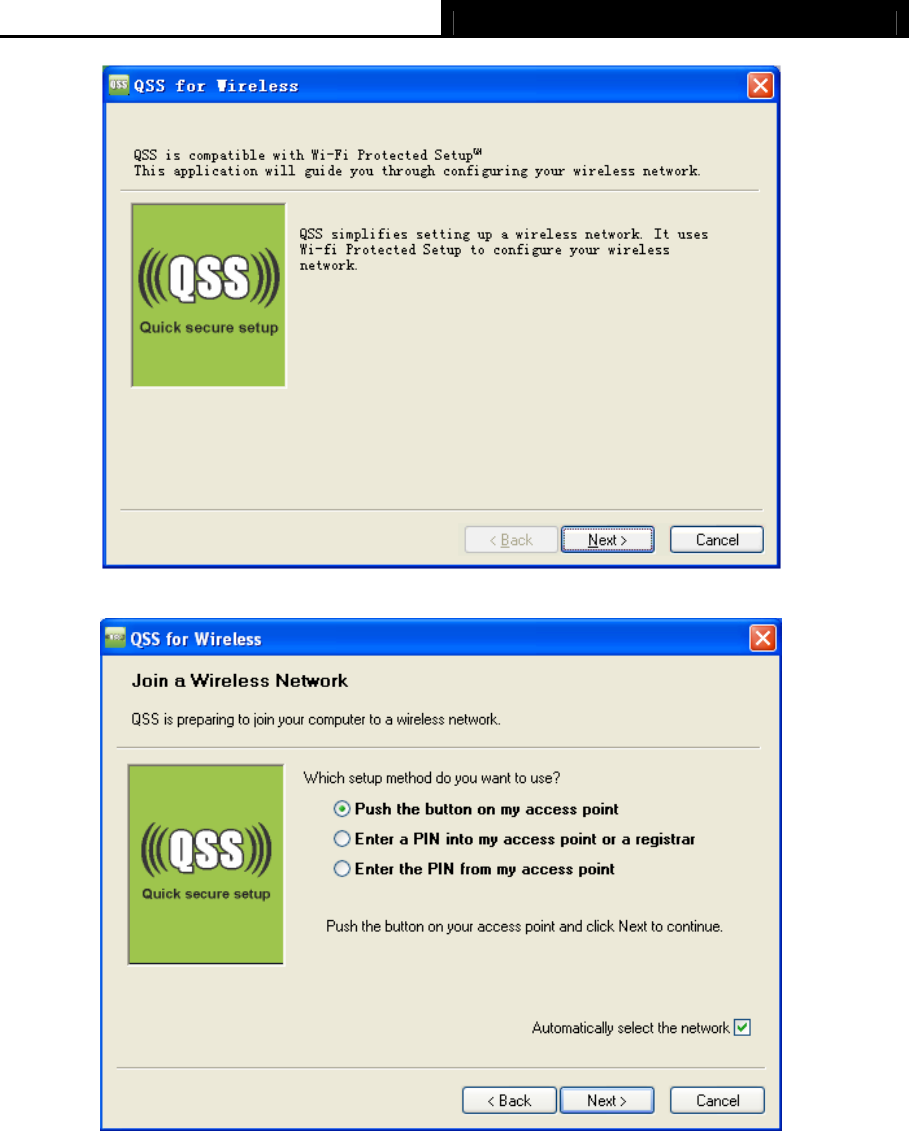

2. Double click the icon on the desktop to open the QSS Utility and then you can see the
welcome screen shown as Figure 4-4. Click Next to continue. Then select Push the button
on my access point in the next screen shown in Figure 4-5 and click Next.
TL-WN811N 300Mbps Wireless N CardBus Adapter
34
Figure 4-4
Figure 4-5

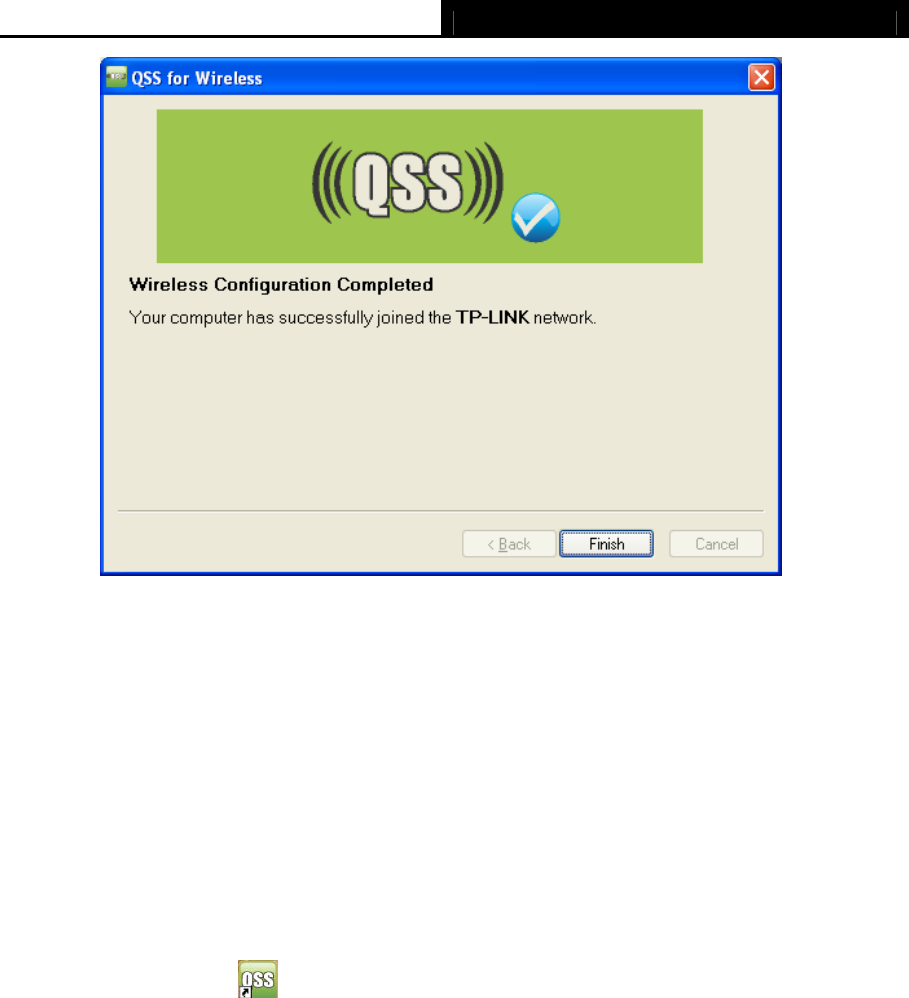

3. Then wait a minute until Figure 4-6 appears. Click Finish to complete the QSS
configuration.
TL-WN811N 300Mbps Wireless N CardBus Adapter
35
Figure 4-6
4.2 PIN method
There are two ways to configure the QSS by PIN method:
1) Enter a PIN into your AP device.
2) Enter the PIN from your AP device.
Following are the detailed configuration procedure of each way.
4.2.1 Enter a PIN into your AP device

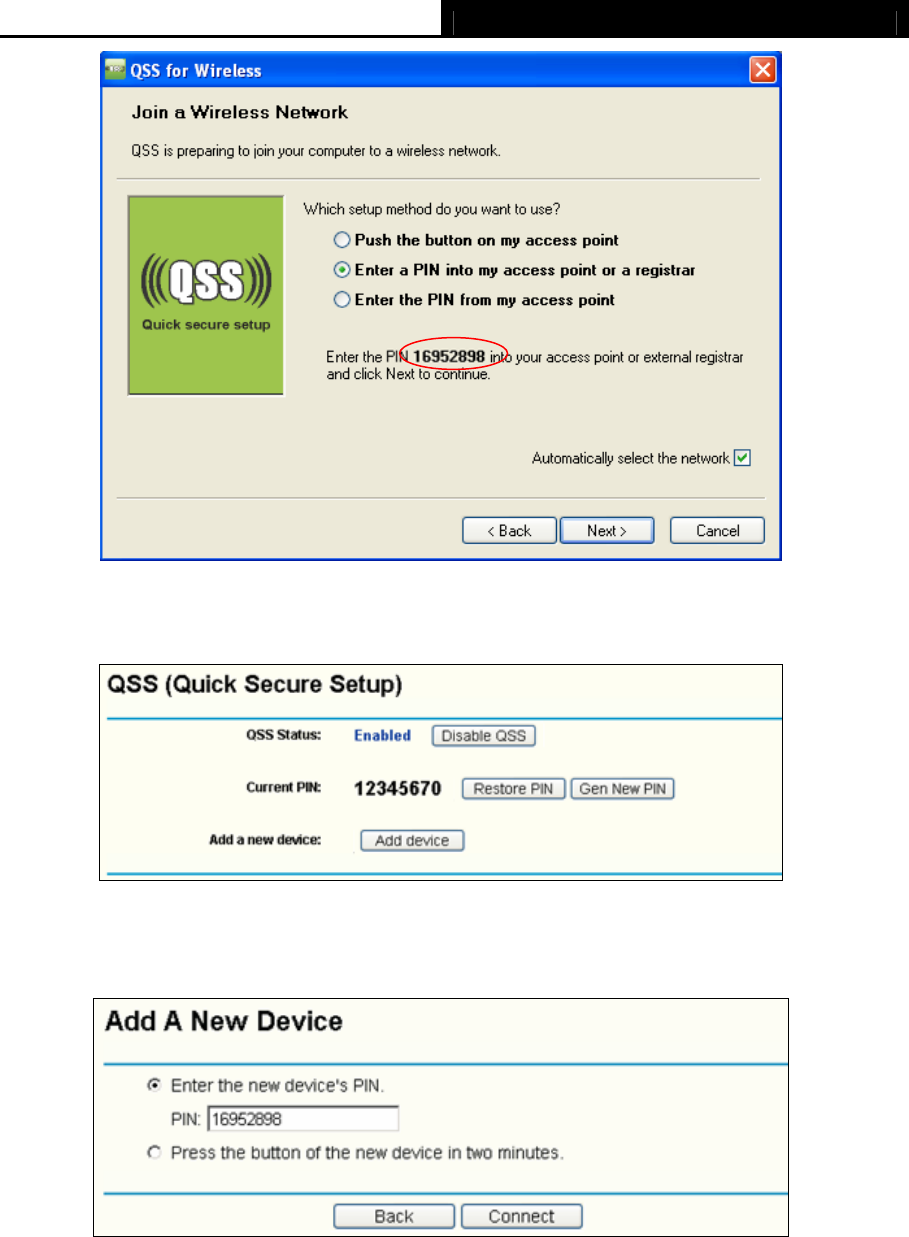

1. Double click the icon on the desktop to open the QSS Utility and then you can see the
welcome screen shown as Figure 4-4. Click Next to continue. Figure 4-5 will appear. Select
the second option, and you will see the PIN value of the adapter which is randomly
generated. Click Next.
TL-WN811N 300Mbps Wireless N CardBus Adapter
36
Figure 4-7
2. Open the Router’s Web-based Utility and click QSS link on the left of the main menu. Then
Figure 4-8 will appear.
Figure 4-8
3. Click Add device, then you can see Figure 4-9. Select Enter the new device’s PIN and
enter the PIN value of the adapter shown in Figure 4-7, click Connect.
Figure 4-9
4. When Figure 4-6 appears, the QSS configuration is complete.
4.2.2 Enter the PIN from your AP device
1. Open the QSS Utility and you will see Figure 4-4. Click Next to continue. Then Figure 4-5
will appear. Select the third option and enter the PIN value which is labeled on the bottom of
the Router. Click Next.
TL-WN811N 300Mbps Wireless N CardBus Adapter
37
Figure 4-10
2. When Figure 4-6 appears, the QSS configuration is complete.
) Note:
If you generate a new PIN code for your Router, please enter the new one instead.
TL-WN811N 300Mbps Wireless N CardBus Adapter
38
Appendix A: Specifications
Normal
Interface 32 bit CardBus Interface
Standards IEEE802.11n; IEEE802.11g; IEEE802.11b;
Operating System Windows 2000, Windows XP, Windows Vista, Windows 7
Throughput 300Mbps (Maximal)
Radio Data Rate
27/54/81/108/162/216/243/270Mbps
13.5/27/40.5/54/81/108/121.5/135Mbps
13/26/39/52/78/104/117/130Mbps
6.5/13/19.5/26/39/52/58.5/65Mbps
1/2/5.5/11Mbps
(Auto Rate Sensing)
Modulation
11b:CCK,QPSK,BPSK;
11g:OFDM;
11n: QPSK,BPSK,16-QAM,64-QAM
Media Access Protocol CSMA/CA with ACK
Data Security WPA/WPA2; 64/128/152-bit WEP; TKIP/AES
Frequency 2.4 ~ 2.4835GHz*
Spread Spectrum Direct Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC, CE
Environmental and Physical
Operating Temp. 0~40 (32 ~104℉℉)
Storage Temp. -40~ 70 (-40~158)
Humidity 10% ~ 95% RH, Non-condensing
* Only 2.412GHz~2.462GHz is allowed to be used in USA, which means only channel 1~11
is avaliable for American users to choose.
TL-WN811N 300Mbps Wireless N CardBus Adapter
39
Appendix B: Glossary
¾ 802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to
as Wi-Fi networks.
¾ 802.11g - specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the
unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices,
and WEP encryption for security.
¾ 802.11n - 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC)[3] was formed to help accelerate the IEEE 802.11n development process and promote
a technology specification for interoperability of next-generation wireless local area
networking (WLAN) products.
¾ Ad-hoc Network - An ad-hoc network is a group of computers, each with a Wireless Adapter,
connected as an independent 802.11 wireless LAN. Ad-hoc wireless computers operate on a
peer-to-peer basis, communicating directly with each other without the use of an access point.
Ad-hoc mode is also referred to as an Independent Basic Service Set (IBSS) or as
peer-to-peer mode, and is useful at a departmental scale or SOHO operation.
¾ DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all
data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits
in the chip are damaged during transmission, statistical techniques embedded in the receiver
can recover the original data without the need of retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband
receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS
signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
¾ FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the
carrier frequency of a conventional carrier several times per second according to a
pseudo-random set of channels. Because a fixed frequency is not used, and only the
transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
¾ Infrastructure Network - An infrastructure network is a group of computers or other devices,
each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode,
the wireless devices communicate with each other and to a wired network by first going
through an access point. An infrastructure wireless network connected to a wired network is
referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is
referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation
scale, or when it is necessary to connect the wired and wireless networks.
TL-WN811N 300Mbps Wireless N CardBus Adapter
40
¾ Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique
developed by the military for use in reliable, secure, mission-critical communications systems.
It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other
words, more bandwidth is consumed than in the case of narrowband transmission, but the
trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the
receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is
not tuned to the right frequency, a spread-spectrum signal looks like background noise.
There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency
Hopping Spread Spectrum (FHSS).
¾ SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to
communicate with each other, all devices must be configured with the same SSID. This is
typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in
the wireless Access Point and to the wireless network name. See also Wireless Network
Name and ESSID.
¾ WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a
WEP network, you must know the key. The key is a string of characters that you create.
When using WEP, you must determine the level of encryption. The type of encryption
determines the key length. 128-bit encryption requires a longer key than 64-bit encryption.
Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or
ASCII (American Standard Code for Information Interchange – alphanumeric characters)
format. ASCII format is provided so you can enter a string that is easier to remember. The
ASCII string is converted to HEX for use over the network. Four keys can be defined so that
you can change keys easily.
¾ Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards
group promoting interoperability among 802.11b devices.
¾ WLAN - (Wireless Local Area Network) - A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local
area.
¾ WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key
Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

Navigation menu
