IOSTALLATIORATiTE CEALL phases of this installation must comply withNATIONAL, STATE AND LOCAL CODESYCP-IIOM-lC18=EB21 D6=4Product Section UnitaryProduct Rooftop Air ConditioningModel YCPLiterature Type installation, Operation, MaintenanceSequence 1BDate November 2003File No. SV-UN-RT-YCP-IOM-1C 11/03Supercedes YCP-IOM-1BModel:YCP024FIUMYCP030FIL-MYCP036F1,3UMYCP036F1,3,4-HYCP042F1,3-MYCP048F1,3,4-HYCP060F1,3,4-MBAYLIFT002ALIFTING LUG KITSingle Package Gas/Electric12 SEER Convertible2 -5TonIMPORTANT -- This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.All phases of this installation must comply with the NATIONAL, STATE &LOCAL CODES. In the absence of local codes, theinstallation must conform with National Electric Code -- ANSI/NFPA 70 or "LATEST REVISION."Since Trane has a policy of continuous product and product data improvement,it reserves the right to change design and specification without notice.© 2003 American Standard Inc. All rights reserved

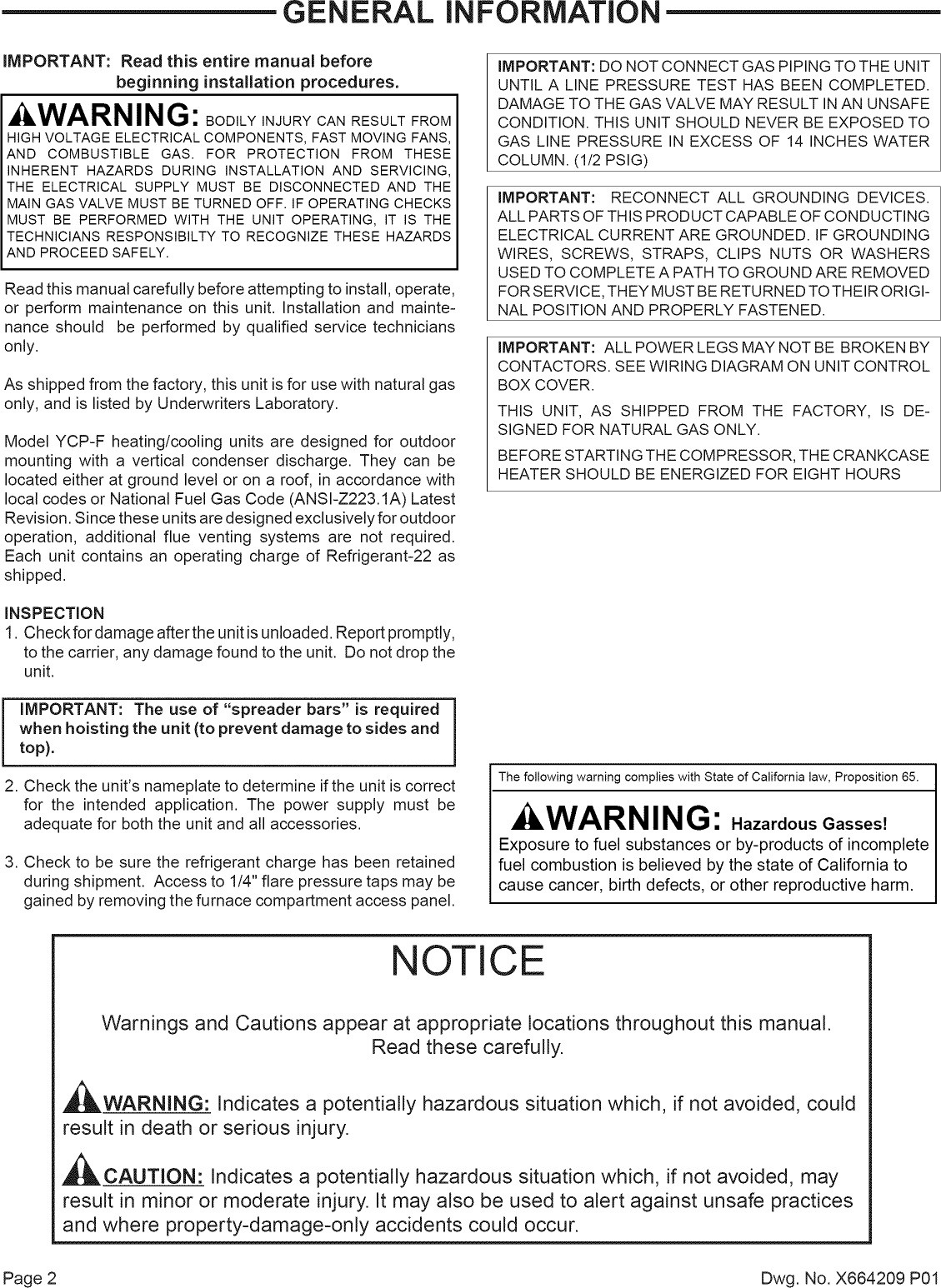

GENERAL INFORMATIONIMPORTANT: Read this entire manual beforebeginning installation procedures. /,WARNIN G: BOD,LY,NJURYCANRESU'TFROMHIGHVOLTAGE ELECTRICAL COMPONENTS, FAST MOVING FANS,AND COMBUSTIBLE GAS. FOR PROTECTION FROM THESEINHERENT HAZARDS DURING INSTALLATION AND SERVICING,THE ELECTRICAL SUPPLY MUST BE DISCONNECTED AND THEMAIN GAS VALVE MUST BE TURNED OFF. IF OPERATING CHECKSMUST BE PERFORMED WITH THE UNIT OPERATING, IT IS THETECHNICIANS RESPONSIBILTY TO RECOGNIZE THESE HAZARDSAND PROCEED SAFELY.Read this manual carefully before attempting to install, operate,or perform maintenance on this unit. Installation and mainte-nance should be performed by qualified service techniciansonly.As shipped from the factory, this unit is for use with natural gasonly, and is listed by Underwriters Laboratory.Model YCP-F heating/cooling units are designed for outdoormounting with a vertical condenser discharge. They can belocated either at ground level or on a roof, in accordance withlocal codes or National Fuel Gas Code (ANSI-Z223.1A) LatestRevision. Since these units are designed exclusively for outdooroperation, additional flue venting systems are not required.Each unit contains an operating charge of Refrigerant-22 asshipped.INSPECTION1. Check for damage after the unit is unloaded. Report promptly,to the carrier, any damage found to the unit. Do not drop theunit.IMPORTANT: The use of "spreader bars" is requiredwhen hoisting the unit (to prevent damage to sides andtop).2. Check the unit's nameplate to determine if the unit is correctfor the intended application. The power supply must beadequate for both the unit and all accessories.3. Check to be sure the refrigerant charge has been retainedduring shipment. Access to 1/4" flare pressure taps may begained by removing the furnace compartment access panel.IMPORTANT: DO NOT CONNECT GAS PIPING TO THE UNITUNTIL A LINE PRESSURE TEST HAS BEEN COMPLETED.DAMAGE TO THE GAS VALVE MAY RESULT IN AN UNSAFECONDITION. THIS UNIT SHOULD NEVER BE EXPOSED TOGAS LINE PRESSURE IN EXCESS OF 14 INCHES WATERCOLUMN. (1/2 PSIG)IMPORTANT: RECONNECT ALL GROUNDING DEVICES.ALL PARTS OF THIS PRODUCT CAPABLE OF CONDUCTINGELECTRICAL CURRENT ARE GROUNDED. IF GROUNDINGWIRES, SCREWS, STRAPS, CLIPS NUTS OR WASHERSUSED TO COMPLETE A PATH TO GROUND ARE REMOVEDFOR SERVICE, THEY MUST BE RETURNED TO THEIR ORIGI-NAL POSITION AND PROPERLY FASTENED.IMPORTANT: ALL POWER LEGS MAY NOT BE BROKEN BYCONTACTORS. SEE WIRING DIAGRAM ON UNIT CONTROLBOX COVER.THIS UNIT, AS SHIPPED FROM THE FACTORY, IS DE-SIGNED FOR NATURAL GAS ONLY.BEFORE STARTING THE COMPRESSOR, THE CRANKCASEHEATER SHOULD BE ENERGIZED FOR EIGHT HOURSThe following warning complies with State of California law, Proposition 65. WARNING: HazardousGasses!Exposure to fuel substances or by-products of incompletefuel combustion is believed by the state of California tocause cancer, birth defects, or other reproductive harm.NOTICEWarnings and Cautions appear at appropriate locations throughout this manual.Read these carefully._WARNING: Indicates a potentially hazardous situation which, if not avoided, couldresult in death or serious injury._CAUTION" Indicates a potentially hazardous situation which, if not avoided, mayresult in minor or moderate injury. It may also be used to alert against unsafe practicesand where property-damage-only accidents could occur.Page 2 Dwg. No. X664209 P01
