Users Manual



TBW‐107UB

UserGuide

MicroBluetooth®USBAdapter



1. Introduction



Perfectforyourhomeorofficewiththisdongleswhichallowsyoutoconnect

withyourentireBluetoothdevicesuchasphones,PCs,PDA,Printer,Laptop,web

pad…andsoon.Eliminateproprietarycables,andallowmobileusertoconnect

tomobileoperatingdeviceswirelesslyandeffortlessly.



ThedongleisfullycompliantwiththeBluetoothv2.1specificationand

backward‐compatiblewithBluetoothversion1.1or1.2standards.Moreover,it

supportsthenewBluetoothEnhancedDataRate(EDR),providingrawbandwidth

of3Mbpsforwirelessapplications.



Features



 CompliantwithBluetoothv2.1specificationwithEDR(EnhancedDataRate)

support

 BackwardcompatiblewithBluetoothv1.1andv1.2devices

 Upto3MbpsAccessDataRateandLowPowerconsumption

 CompatiblewithWindows2000/XP/Vista/7operatingsystems

 Built‐in128‐bitencryptionofsecureddatacommunications

 EnablecomputerstoconnectBluetooth‐enableddevicessuchasprinters,

headset,audio/video,basicimages,PDAs,andmobilephone

 CompliantwithClass1(TBW‐106UB)orClass2(TBW‐107UB)Bluetooth

operations

 Trouble‐freePlug&Playinstallation

 SupportOHCIandUHCIhostinterface

 Portable,lightweightandminisize



PackageContents



 TBW‐106UBorTBW‐107UB

 Multi‐LanguageQuickInstallationGuide

 Driver&UtilityCD‐ROM



2. installation

1. SystemRequirements

 Atlease500MBoffreedisk.

 Windows7/VistaorWindowsXP.

2.InstallingBlueSoleil

2.1Beforeinstalling

UninstalltheearlierversionofBlueSoleilyouinstalledonyourcomputer:ClickStart

‐>ControlPaneltoopenControlPanel,andthenchooseUninstallaprogram.Select

BlueSoleilintheprogramlistanduninstallit.

Note:Bluetoothadaptercanberemainedpluggedorunpluggedduringthe

installation.

2.2InstallingBlueSoleil

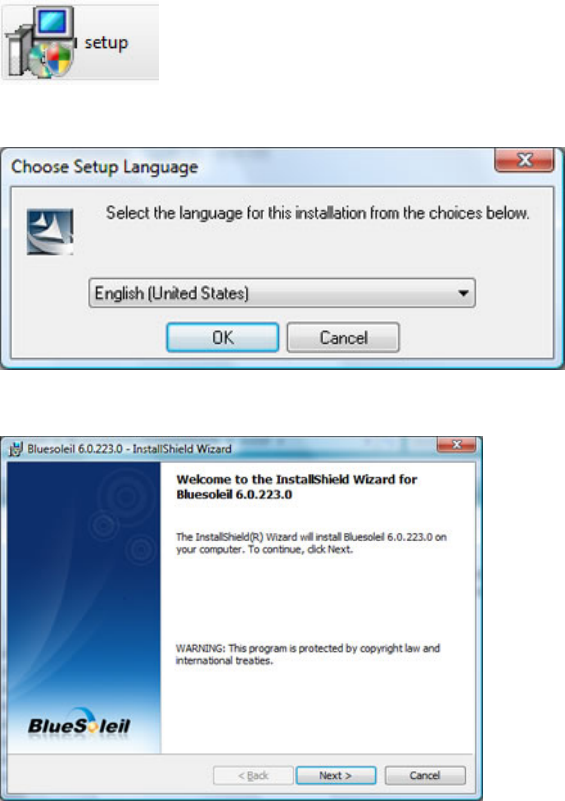

2.2.1.InsertBlueSoleilinstallationCDintotheCD‐ROM.

2.2.2.Double‐clicksetup.exetostartinstallation.

 

2.2.3.Choosethesetuplanguage.

 

2.2.4.Followtheinstructionsonthescreen.

 

2.2.5.Restartyourcomputer.

 

Note:Ifyoudonotrestart,someoperationsmaybeabnormal.

3.UninstallingBlueSoleil

BlueSoleilcanonlyberemovedfromControlPanel.Fordetailedinstructions,please

referto"step3.1beforeinstalling"inthisguide.

4.GettingStarted

4.1StartingBlueSoleil

Doubleclick"BluetoothPlaces"icononthedesktoporright‐clicktheBluetooth

iconinthesystemtrayandselect"ExploreBluetoothPlaces".

4.2SearchremoteBluetoothDevices

Makethedevicesdiscoverablefirst.Double‐clickSearchDevicesiconandthen

Bluetoothdeviceswillappearinthewindow.

4.3SearchServices

Double‐clickthedeviceicontoenterthedevice'ssubfolder.Servicessupportedby

thedevicewillappearinthewindowautomatically.Ifnot,double‐clickSearch

Servicesicontorefresh.

4.4Establishaconnection

Doubleclickaserviceicontoinitiateaconnection.

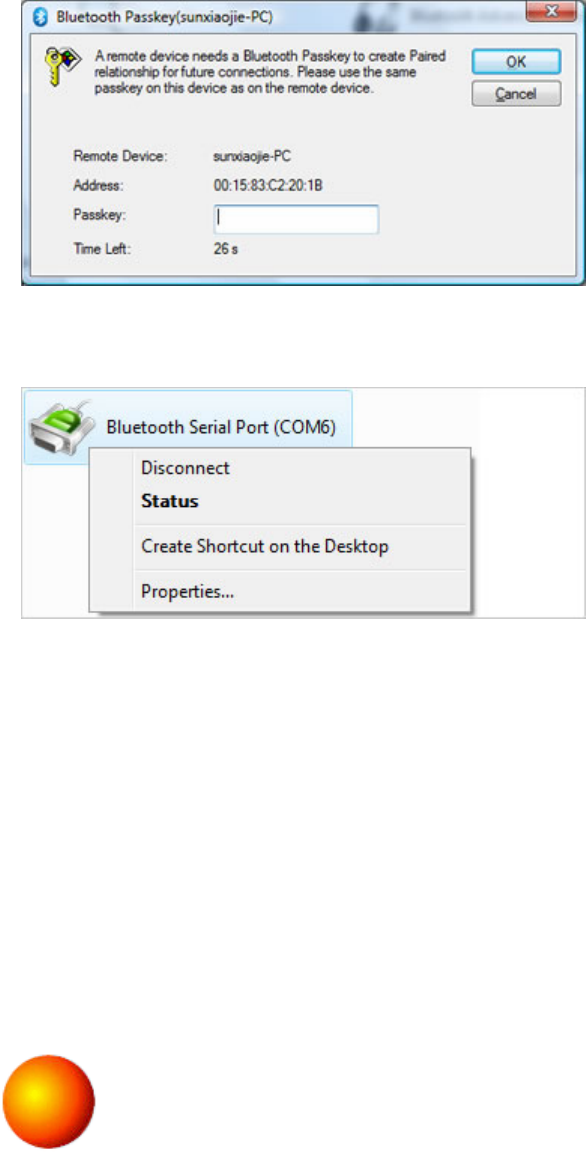

Youmightbepromptedtoenterapasskeytoauthenticate.Enterthesamepasskey

onbothsides,orenterthespecificoneprovidedbythedevicemanufactureonyour

computersideonly.OnBlueSoleilside,thedialogboxasshowninthefollowing

picturewillpopupforyoutoenterapasskey.

 

4.5Termi nateaconnection

Right‐clicktheconnectingremoteserviceicon,andselectDisconnect.

 



3. UserGuides



LocalBluetoothDevice

TheLocalBluetoothenableddevice,knownas"MyDevice",representstheuser's

computerthatisrunningBlueSoleil.



Icon:



Operations:

• HovermousetodisplaythelocalBluetoothdevice'snameoraddress(if

withoutname).

• ClickontheredballtostartorstopsearchingforBluetoothdevicesinrange.

• Right‐clickontheredballtodisplayapop‐upmenuofrelatedoperations(e.g.,

GeneralInquiry,MyServices,Security,etc.).

RemoteBluetoothDevices

RemotedevicesareotherBluetoothenableddevicesthatareintheBluetoothradio

rangeofyourlocaldevice.BlueSoleilusesdifferenticonstoindicateddifferenttypes

ofremotedevices..

Icons

DevicesIconDevicesIcon

Personal

Computer

Laptop



Modem



Mobile



PDA



LANAccess

Point

Keyboard

Mouse



Microphone



HiFiAudio



LoudSpeaker



Headset



Printer



Scanner



FAX



Camera



Gamebar



Server



Unknown

device



IconMeanings

Remotedevicescanbeinanyofthreestates,whichBlueSoleilindicateswith

differentcolors.

• White‐Idle.Thenormalstateofthedevice.

• Yellow‐Selected.Youhaveselectedthedevice.

• Green‐Connected.Thedeviceisconnectedtoyourcomputer.

Operations

• Single‐clickontheicontoselect.

• Double‐clickontheicontosearchfortheservicessupportsbytheremote

Bluetoothdevice.

• Right‐clickontheicontodisplayapop‐upmenuofrelatedoperations(e.g.

RefreshServices,PairDevices,Connect,etc.).

BluetoothServiceButtonsofRemoteDevice

ServicebuttonsatthetopoftheMainWindowrepresentarangeofBluetooth

servicespotentiallysupportedbyRemoteDevices.

ServicesButtonImageServicesButtonImage

PAN



DUN



SPP



Advanced

Audio

FTP



SYNC



OPP



HCRP



HID



FAX



BIP



Headset



IconMeanings

Thereare3statesfortheserviceicons,indicatedbydifferentcolors.

• White‐Idle.Thenormalstate.

• Yellow‐Available.TheBluetoothserviceisavailableontheselectedremote

device.

• Green‐Connected.TheBluetoothserviceisactiveinaconnectionwiththe

remotedevice.

Operations

• Hoveryourmouseovertheserviceicontodisplaythenameoftheservice.

• Single‐clickontheserviceicontoconnect.

• Right‐clickontheserviceicontodisplayapop‐upmenuofrelatedoperations.



LocalServiceStatus

ThelocalservicestatuscanbeviewedfromtheLocalServiceStatusdialogbox.

RightclickwhicheverlocalserviceiconinservicewindowandselecttheStatus...on

thepop‐upmenu.

TheLocalServiceStatusdialogwillbedisplayed.



Figure1:LocalServiceStatus(e.g.SerialPortAservice)



Connection:

 Status:Whetherthelocalserviceisconnected.

 DeviceAddress:DisplaytheBluetoothaddressofremotedevicewhichconnectto

theservice.

 Duration:Thetimeelapsedsincetheconnectionwassetup.

 COMPort:ThevirtualBluetoothCOMportsconnectedbyremotedevice. 

PANServiceStatusdialogisdifferentfromothers.



Figure2:LocalServiceStatus(PAN)

Connection:

 Status:Whetherthelocalserviceisconnected.

 DeviceName:Displaythenameofremotedevicewhichconnectstotheservice.

 Duration:Thetimeelapsedsincetheconnectionwassetup.

ConnectionList:

 DisplaythenamesandaddressesofremotedeviceswhichconnecttothePAN

Service.

LocalServiceList

TheLocalServiceListdisplaysalltheBluetoothservicessupportedbythelocal

computer.Usethisscreentostart/stopservices.

ServicesIconsServicesIcons

PANSPP

OPPFTP

SYNCBIP

AudioSink 

IconMeanings

Thereare3statesforthelocalBluetoothservices,indicatedbydifferenticoncolors.

• White‐Idle.Theservicehasnotbeenstarted.

• Yellow‐Started.ThelocalBluetoothservicehasbeenstarted.

• Green‐Connected.Someremotedevicehasconnectedtotheservice.

Operations

• Single‐clickontheicontoselecttheservice.

• Double‐clickontheicontoStart/Stopaservice.

• Right‐clicktodisplayapop‐upmenuofrelatedoperations.

Menus

BlueSoleilcontainsthefollowingsixmenus:

FileMenu

• Hide‐‐‐HidetheBlueSoleilwindow.Connectionscanstillrunwhenthe

windowishidden.

• AlwaysonTop‐‐‐KeepBlueSoleilwindowalwaysontop.

• Exit‐‐‐ExitBlueSoleil.

Note:YoucanalsoexitBlueSoleilbyright‐clickingonthetasktrayiconatthe

bottomofyourscreen.Inthepop‐upmenu,clickExit.

ViewMenu

• MainWindow‐‐‐ShowtheBlueSoleilMainWindow.

• ServiceWindow‐‐‐ShowtheBlueSoleilServiceWindow.

• ArrangeDevices‐‐‐ArrangeallremotedevicesbyDeviceName,Device

AddressorDeviceType.

• RefreshDevices‐‐‐RefreshthelistofremotedevicesdetectedbyBlueSoleil.

Note:IfyouselectRefreshDevices,thelistofpreviouslydetecteddeviceswillnot

becleared.Toinitiateanewdevicesearchthatwillfirstclearthelist,pressF5.

MyBluetoothMenu

• BluetoothDeviceDiscovery‐‐‐SearchforotherBluetoothenableddevicesin

range.

• BluetoothServiceDiscovery‐‐‐Browsefortheservicesoftheselected

remotedevice.

• Security‐‐‐Configurethesecuritysettingofthelocaldevice(e.g.passkey

requirement,dataencryption,etc.).

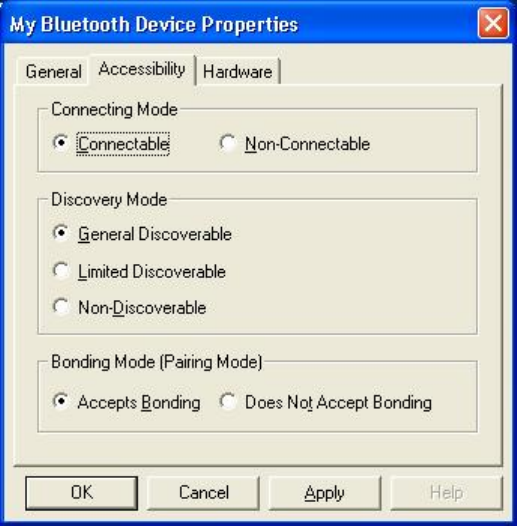

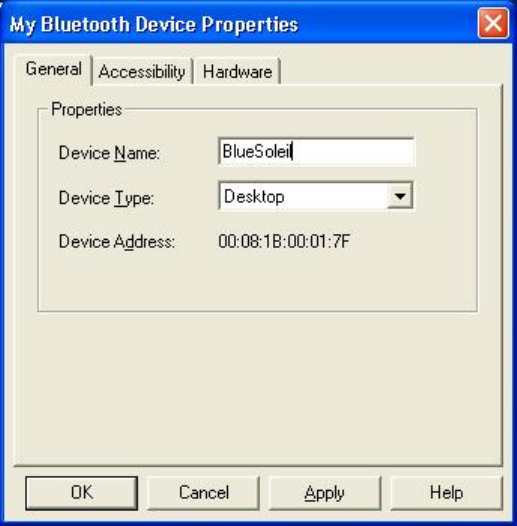

• Properties‐‐‐Configurethepropertiesofthelocaldevice(e.g.devicename,

accessibility,etc.).

MyServicesMenu

• StartsService‐‐‐StarttheselectedlocalBluetoothservice.

• StopService‐‐‐StoptheselectedlocalBluetoothservice.

• Status‐‐‐ViewthestatusoftheselectedlocalBluetoothservice.

• Properties‐‐‐ConfigurethepropertiesofthelocalBluetoothservices(e.g.,

automaticconnections,sharedfilelocations,etc.).

ToolsMenu

• FindDevice‐‐‐Clicktofindadevice,byeitheroftwosearchcriteria.(Figure

1)

o ByBluetoothDeviceAddress:

EnteraBluetoothdeviceaddress,instandardformat:

(xx:xx:xx:xx:xx:xx),andclickontheFindbutton.Thedevicewiththe

specifiedaddresswillappearhighlightedintheMainWindow. 

o ByName:

ChecktheByNamecheckbox,entertheNameofthedevice,andclick

ontheFindbutton.Thedevicewiththespecifiednamewillappear

highlightedintheMainWindow.



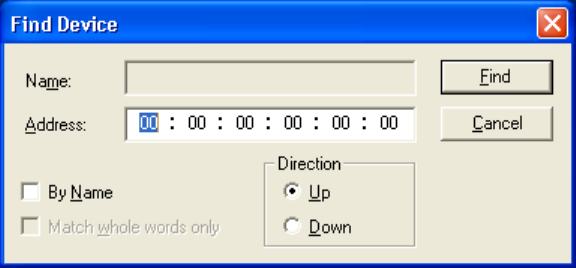

• Figure1FindDevice

• AddNewDevice‐‐‐AddaremotedevicebyenteringitsBluetoothdevice

address.(Figure2)



Figure2AddNewBluetoothDevice

• AddDeviceFromHistory‐‐‐Addaremotedevicefromhistorylist.(Figure3)

(1)Add:AddtheselecteddevicetotheMainWindow.

(2)Delete:Deletetheselecteddevicefromthehistorylist.



Figure3AddDevicefromHistory

• Configurations‐>QuickConnect‐‐‐Ifdesired,assignaremotedeviceto

automaticallyconnectwithwheneveranapplicationopensaspecified

Bluetoothserialport.

(1)Assign:Assignadevicetotheselectedport.

(2)Remove:RemovetheAuto‐Connectiondeviceassignmentfortheselectedport.



 Figure4QuickConnect

• Configurations‐>UnplugHID‐‐‐RemoveHumanInterfaceDevicesfrom

BlueSoleil.(Figure5)

Unplug:UnplugtheselectedHIDdevice.

WhenyoufirstconnecttheHIDdevicetoyourcomputer,BlueSoleilsetsup

thedevicessothattheywillautomaticallyreconnectincasetheconnectionis

everbroken.AfteryouunpluganHIDdevice,itwillnolongerautomatically

reconnecttoyourcomputer.



Figure5UnplugHIDDevice

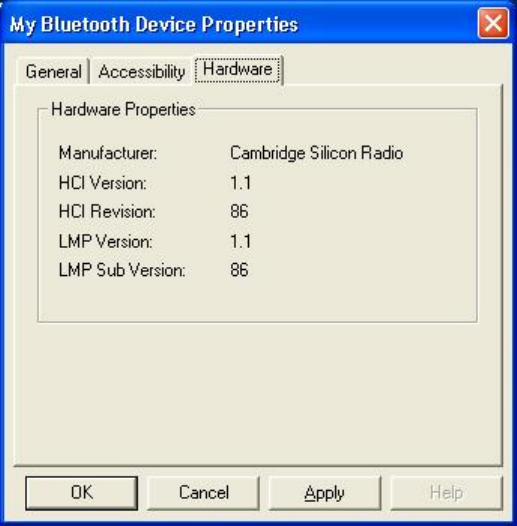

• MyBluetoothDevice‐‐‐Advancedhardwareconfiguration,recommendedfor

advancedusersonly.PleaserefertoHardwareConfigurationformoredetails.

• Options‐‐‐Enable/DisablesomeotherfeatureslikemakingBlueSoleilstarts

upwithWindows,auto‐checkingonlineupdateorenable/disableprompts

whendoingsomeoperationsbychecking/uncheckingtherelatedoption.

o Startup:

(1)StartBlueSoleilwhenIstartWindows‐‐‐BlueSoleilwillstartupwith

Windowsifthisoptionisenabled.

(2)Checkforupdatesautomatically‐‐‐Apromptwillpopuptoinformuser

checkingupdatefromBlueSoleilwebsiteonceBlueSoleilstartingup.

Note:Thecheckingupdatefunctionisenabledbydefault.

o Others:

(1)Promptmebeforeaddinga"QuickConnect"item‐‐‐Inquiryifaddinga

newQuickConnectitemonceestablishinganewoutgoingSPPconnection.

(2)Promptmebeforestoppingaservicetoconnectout‐‐‐Inquiryif

stoppinglocalservicebeforeconnectingout.ItonlyappliestoPANand

Synchronizationprofiles.

(3)SupportVoIPInstantMessengers‐‐‐InquiryifsupportingVoIPfunction.



Figure6:Options

HelpMenu

• ContentsandIndex‐‐‐AccessBlueSoleilOnlineHelp.

• CheckforUpdate‐‐‐AccessBlueSoleilwebsitetocheckifanyupdate

available.

• OnlineSupport‐‐‐Findasolutionorreportaproblemonline.

• AboutBlueSoleil‐‐‐InformationaboutyourversionofBlueSoleil.

BluetoothstatusIcon

TherearetherestatusesofBluetoothiconinthesystemtray.

IconMeaning

• ‐‐‐BlueSoleilstartsup,butBluetoothisnotactive.

• ‐‐‐BlueSoleilstartsupandBluetoothisactive.

• ‐‐‐ThereareexistingBluetoothconnections.

Right‐clickPopped‐upMenu

• Display‐‐‐DisplaytheBlueSoleilmainwindowonthedesktop.

• Showmessages‐‐‐Checkwhethertodisplaythetipmessagesontheright

corner.

• SupportVoIP‐‐‐CheckifBlueSoleilsupportsVoIPfunction.

• Exit‐‐‐ExitBlueSoleilprogram.

FindRemoteDevices

TosetupaBluetoothconnection,theremotedevicemustbefoundfirst.Thereare3

waystofindremotedevicesinBlueSoleil.

InquireDevice

1. Single‐clicktheredballinthemainwindowtostartinquiry. 

2. Bluetoothdeviceswithintheradiorangewillbeshownaroundthecenter

ball. 

3. Waitforafewsecondsuntilthenamesofallthedevicesareobtained.

AddDevicefromHistoryList

Thedeviceswhichhadbeenfoundorconnectedcanbeaddedfromthehistory

devicelistdirectly.

1. SelectmenuTools|AddDevicefromHistory....TheHistorydialogboxpops

up. 

2. SelectthedevicefromthelistandclickbuttonAdd,thedevicewillbeadded

tothemainwindow.

AddaNewDevicebyEnteringDeviceAddress

IfthedevicecannotbefoundbyInquiring,youcanenterthedeviceaddresstoadd

thedevice.

1. SelectmenuTools|AddNewDevice....TheAddNewDevicedialogpopsup.

2. EntertheBluetoothdeviceaddressandclickbuttonOK,thedevicewillbe

addedtothemainwindow.

Note:ThedevicetypewillbeunknownifadditbyinputtingitsBluetoothaddress.

ConnectandDisconnect

Connect

1. Selectaremotedeviceanddoubleclickittobrowseitsservices.

Bluetoothpasskeymaybeaskedifsecuritylevelofeithersideissettohigh

andtheyarenotpaireddevices.

Afterservicebrowsing,theservicestheremotedevicesupportsare

highlightedbychangingthecoloroftheservicebuttonsonthetopofthe

mainwindow.

2. Singleclickoneoftheservicebuttontoconnect.

Afterconnectionissetup,theremotedeviceandtheservicebuttonwillturn

green.

Note:Userscanrightclicktheremotedeviceiconortheservicebuttontopopup

operationmenuforconnection.

Disconnect

Method1:Selecttheremotedevice,rightclicktheservicebutton.Onthepopup

menu,selectDisconnect.

Method2:Rightclickthedeviceicon.Onthepop‐upmenu,selectDisconnect|(the

connectionyouwanttodisconnect).

Method3:ForFTPandSynchronizationconnection,closetheoperationwindow,the

connectionwillbedisconnected.

Method4:Disconnectfromtheremotedevicedirectly.

Method5:IfthelocalBluetoothdeviceisremovedortheremotedeviceispowered

off,alltheconnectionswillbedisconnected.Iftheremotedevicemovesoutofthe

radiorange,alltheconnectionswiththeremotedevicewillbedisconnectedin1

minute.

ConnectviaShortcuts

Afteraconnectionissetup,userscangenerateashortcutonWindowsdesktop.

Userscanconnectlaterusingtheshortcutwithoutdeviceinquiryandservice

browsingsteps.

ShortcutsapplytoPersonalAreaNetworking,Dial‐Upnetwork,HeadsetandAV.

Steps

1. Saveshortcut

Afterconnected,rightclickthedeviceicon;selecttheSaveConnectionas

Shortcutonthepopupmenu.

2. Executetheshortcutondesktop.

RemoteDeviceStatus

TheremotedevicestatuscanbeviewedfromtheRemoteDeviceStatusdialogbox.

RightclicktheremotedeviceiconandselecttheStatus...onthepopupmenu.The

RemoteDeviceStatusdialogboxwillbedisplayed.



Figure1RemoteDeviceStatus

• Connection:

 DeviceName:TheremoteBluetoothdevice'sname.

 Status:Whethertheremotedeviceisconnectedtothelocaldevice.

 Duration:Thetimeelapsedsincetheconnectionwassetup.

 Paired:Whetherthisdeviceispairedwiththelocaldevice.

 Role:TheBluetoothMaster/Slaveroleoftheremotedeviceforthis

connection.

 COMPort:ThevirtualBluetoothCOMportsusedfortheconnection(s),

especiallyforDUN,FAX,SPP,andLAP.

• Activity:

Theamountofthedatasentandreceived.

• RadioSignalStrength:

ThisistheRSSIoftheremotedevice.Thisindexindicatestheradioquality

betweentheremotedeviceandthelocaldevice.Iftheradiosignalistoo

weak,thedatatransferringspeedwillbeslow.

• PropertiesButton:

Displaytheremotedevice’sproperties.

• DisconnectButton:

Disconnectoneoftheconnection(s)betweentheremotedeviceandthelocal

device.

• UnpairedButton:

Removethepairedrelationshipbetweentheremotedeviceandthelocal

device. 

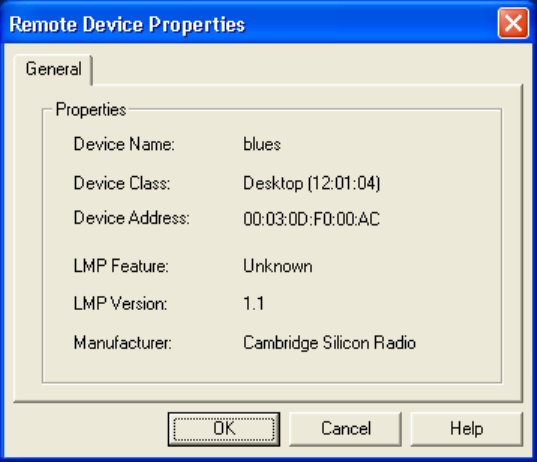

RemoteDeviceProperties

Theremotedevice’spropertiescanbeviewedfromtheRemoteDeviceProperties

dialogbox.

RightclicktheremotedeviceiconandselecttheProperties...onthepopupmenu.

TheRemoteDevicePropertiesdialogwillbedisplayed.



Figure1RemoteDevicePropertyDialog

DeviceName:TheremoteBluetoothdevice'sname.

DeviceClass:Theremotedevice'sdeviceclass.Bluetoothdevicesareclassifiedby

devicetype,suchasDesktop,Laptop,Headset,LANAccessPoint,andotherenabled

devices.

DeviceAddress:Theremotedevice'sBluetoothdeviceaddress.

LMPFeature:Thefeaturesthattheremotedevicesupports.

LMPVersion:TheversionoftheLMPfirmwareoftheremotedevice.

Manufacturer:Themanufactureroftheremotedevice.

HardwareConfiguration

BlueSoleilsupportsthefollowingkindsofBluetoothradioadapters:USB,

CompactFlashcard(UARTorBCSP).

Toaccessthehardwareconfigurationscreens,clickTools|MyBluetoothDevice...,

• BluetoothDevice

SelectthetypeofBluetoothenableddevicethatyouplantouse,eitheraUSB

adapteroraCompactFlash(CF)card.(Figure1).



• Figure1SelectBluetoothDevice

• AdvancedConfiguration

TheAdvancedConfigurationpagewillbeenabledonlyifyouselectedCFcard

intheBluetoothDevicescreen.UsetheAdvancedConfigurationscreento

configuredetailedparametersincludingCOMPort,BaudRate,ByteSize,

Parity,StopBits,andFlowControl.



Figure2AdvancedConfigurationsforUARTHardwareDevice

PropertiesConfiguration

Toconfigurethepropertiesofyourlocaldevice,clickMyBluetooth|Device

Properties…,

General

• DeviceName

Thelocaldevice'sname,whichwillbeshowntootherBluetoothenabled

devices. 

• DeviceType

Thedevice'stypeofyourlocalcomputer(i.e.,Desktop,LaptoporServer)

• DeviceAddress

Theaddressofthelocaldevice;EveryBluetoothenableddevicehasaunique

address.



Figure1GeneralPropertiesPage

Accessibility

ConnectingMode

• Connectable: PermitsotherBluetoothenableddevicestoconnectwithyour

computer.

• Non‐Connectable:ProhibitsotherBluetoothenableddevicesfromconnecting

withyourcomputer.

DiscoveryMode

• GeneralDiscoverable:PermitsotherBluetoothenableddevicestodetectyour

computer.

• LimitedDiscoverable:PermitsotherBluetoothenableddevicestodetectyour

computerwithLimitedInquiry.

• Non‐Discoverable:ProhibitsotherBluetoothenableddevicesfromdetecting

yourcomputer.

BondingMode(PairingMode)

• AcceptsBonding:AllowotherBluetoothenableddevicestopairwithyour

computer.Iftheotherdeviceinitiatesapairingprocedurewithyourcomputer,

eachdevicemustenterthesamepasskeybeforetheywillbepaired.

• DoesNotAcceptBonding:Rejectspairingattemptsinitiatedbyother

Bluetoothenableddevices.



Figure2AccessibilityPropertiesPage

Hardware

ViewinformationaboutyourBluetoothhardware.

• Manufacturer: ThemanufacturerofthelocalBluetoothdevice.

• HCIVersion:TheHCIversionofthelocalBluetoothdevice.

• HCIRevision:TheHCIrevisionofthelocalBluetoothdevice.

• LMPVersion:TheLMPversionofthelocalBluetoothdevice.

• LMPSubversion:TheLMPsubversionofthelocalBluetoothdevice.



Figure3HardwarePropertiesPage

Pair/Un‐pairDevices

Oncearemotedevicehaspairedwithyourcomputerbyexchangingpasskeys,

passkeyswillnolongerberequiredforfurtherconnectionsbetweenyourcomputer

andthedevice.

Howtopairwithanotherdevice

• Automatically

Ifapasskeyisrequiredforconnection,thedeviceswillbepaired

automaticallythefirsttimetheysuccessfullyexchangepasskeysandconnect.

Afteradevicehassuccessfullypairedwithyourcomputer,theremotedevice

iconintheMainWindowwillhavearedcheckmarknexttoit.

• Manually

IntheMainWindow,rightclickonthedeviceicon,andinthepop‐upmenu,

selectPairDevice.IntheEnterBluetoothPasskeydialog,enterthesame

passkeythatyouenterontheremotedevice.Afteradevicehassuccessfully

pairedwithyourcomputer,theremotedeviceiconwillhavearedcheckmark

nexttoit.

Howtoun‐pairwithanotherdevice

• Manually

IntheMainWindow,right‐clickonthedeviceicon,andinthepop‐upmenu,

selectsUnpaired.Theredcheckmarknexttothedeviceiconwilldisappear.

GeneralSecurity

Toaccessthesecurityconfigurationscreen,clickMyBluetooth|Security…

SecurityLevel

• Low

Ifchecked,otherdeviceswillbeabletoaccessyourdevicefreelywithout

enteringapasskey.

However,iftheremotedevicerequiresapasskeytoconnect,thenboth

devicesneedtoexchangepasskeys.

• Medium

Themediumlevelisservicelevelsecurity;youcanassigntheappropriate

levelofaccessforeachspecificservice.

• High

Ifchecked,passkeysmustbeexchangedforeveryincomingandoutgoing

connection,unlessthetwodeviceshavealreadypairedinthepast.

BluetoothPasskey

• SetDefaultPasskey

Usethissettingtosetadefaultpasskeyforallconnections.BlueSoleilwilluse

thispasskeywheneveroneisrequired.

DataEncryption

• EnableDataEncryption

Ifchecked,thedatatransmittedwillbeencrypted.

PairedDevicesManagement

Toaccessthedevicesecurityconfigurationscreen,clickMyBluetooth|Securityand

clickontheDevicestab.



PairedDevicesListBox

Thisscreenlistsdeviceswhichhavealreadypairedwiththelocaldevice.

RemovePairingButton

Clicktoremovethepairingrelationshipbetweentheselecteddeviceandthelocal

device.

AuthorizeServicesButton

Clicktoselectwhichservicesyouauthorizetheselectedpaireddevicetouse.Alist

oflocalserviceswillappear.Selecttheservicesyouwishtoallowtheremotedevice

touse,andthenclickOK.



Figure1AuthorizeServices

Note:

• Thescreenwillonlylistthelocalservicesthatrequireauthentication.The

localservicesthatdonotrequireauthenticationcanbeaccessedfreely.

• TheAuthorizationbuttonisenabledonlywhentheSecurityLevelissetto

Medium.

LocalServicesSecurity

Toaccessthelocalservicessecurityconfigurationscreen,clickMyBluetooth|

SecurityandclickontheServicestab.Youcanonlyconfiguresecurityforlocal

serviceswhentheSecurityLevelissettoMedium.



LocalServices:

• Authentication

Ifchecked,apasskeyisrequiredwheneveraremotedeviceattemptsto

connectwiththisservice.

• Encryption

Ifchecked,datatransmittedbetweendevicesforthisservicewillbe

encrypted.

AuthorizationButton:

Clicktoselectthedevicesyouwishtoallowtousetheselectedservice.



IntheServiceAuthorizationscreen,enterthefollowingsettings:

• TrustedDevices

Selecttotrustdeviceslistedinthisscreentousetheselectedserviceonyour

device.

Adevicecanfreelyaccesstheservicefromyourlocaldevicewhentrusted.

ClickAdd/Removetoeditthedevicelist.

• Trustalldevices

Connectionrequestswillbeacceptedfromeverydevice.

• Prompttouserifthedeviceisnotatrusteddeviceofthisservice

Ifanon‐trusteddeviceattemptstoaccesstheservice,adialogwillappearto

allowyoutoacceptorrejecttheconnection.

• Rejectthedevicetousetheserviceifitisnotatrusteddeviceofthisservice

Ifanon‐trusteddeviceattemptstoaccesstheservice,theconnectionwillbe

rejectedautomaticallywithoutinformingtheuser.

Notes:Ifadeviceistrustedforaservice,itmayconnecttothisserviceonyourlocal

devicewithoutinformingyou.



4. FAQ

WhatcanBluetoothdo?

• Dial‐uptoInternetwirelesslyviaBluetoothmodemorBluetoothmobile

phone.

• ConnecttoLANviaLANAccessdevicesorPANbridges.

• ShareInternetconnectiontootherBluetoothcomputers.

• ConnectcomputerswirelesslyviaPAN,LAP,SPPorFTP.

• PrintdocumentswirelesslytoBluetoothprinter.

HowcanIfindmyBluetoothdeviceinformation?

Rightclickmydevice‐>SelectProperties….IntheMyBluetoothDevicedialog

box,therearedevicename,deviceaddress,devicemanufacturer,deviceHCIand

LMP(LinkManagerProtocol)versionsandeditions.

WhatismyBluetoothdevicename,andhowtochangeit?

MyBluetoothdevicenameisthenameofUSBdongleinsertedtomycomputer.It

isyourBluetoothidentifierandwillbeshowntootherBluetoothdevices.Youcan

changeitintheMyBluetoothDevicedialogboxbymodifyingDeviceNamein

theGeneralPropertysheet.



Figure1rightclickMyDeviceandselectProperties



Figure2MyBluetoothDevicedialog

Can'tfindtheremotedeviceservices?

• Verifywhethertheremotedeviceiswithintheradiorange.

• Verifythatwhethertheremotedeviceisinconnectablemode.Iftheremote

deviceissettonon‐connectable,otherdevicescannotconnecttoit,and

servicecannotbefound.

• Checkwhethertheremotedevicehasconnectionsalready.

Currently,someBluetoothdevicesdonotsupportscatternet.Thatis,the

devicehaslimitationsinsupportingconnectionamongmulti‐devicesatthe

sametime.Itisrecommendedthatuserstrytoconnectpointtopointifthe

connectioncannotbesetup.

• VerifywhetherbothsideshaveinputtherightBluetoothpasskeyifanysideis

atsecuritylevelHigh.

TheBluetoothpasskeymustbethesameatbothsides.Ifbothsideshaveset

FixedPasskey(thedefaultpasskey)andthepasskeysaredifferent,the

connectioncannotbesetupwiththeauthenticationfailureerror.

HowBluetoothpasskeyworks?IfIchangethefixedpasskey,willitaffectthepaired

devices?

BluetoothpasskeyisusedinauthenticationprocedureforBluetoothsecurity

purpose.Whenremotedeviceconnectstoyourcomputer,hehastoofferthe

sameBluetoothpasskeyaswhatyouinput.IftheBluetoothpasskeysfromtwo

sidesaresame,connectioncanbesetup.Apairedrelationshipisestablishedon

bothsides.Thereisnoneedtoinputpasskeyforthenexttimeofconnection.Any

sidecandeletethepairedrelationship.Changingfixedpasskeywillnotaffectthe

existedpairedrelationship.

Howtoprotectmyservicesfromother’sunauthorizedusage?

• SetSecurityLeveltoHigh.

• Donotstarttheservicesyouarenotusing.

• IfyoustartPANorLAPservice,donotshareyourimportantfoldersinthe

windowsexplorer.WhenotherBluetoothcomputersconnecttoyour

computerviaPANorLAP,yoursharedwindowsfolderwillbeabletobe

accessedtoothercomputers.



5. Specification

General

Radio

Bluetooth

Class

100

meters

(in

open

space)

Carrier

Frequency:

2.4

2.483GHz

Data

Rate:

3Mbps

(The

maximum

operating

range

depends

the

environmental

Bluetooth

Standard

Bluetooth

v2.1

EDR

Spread

Spectrum

FHSS

(Frequency

Hopping

Spread

Spectrum)

Modulation

Method

GFSK

(1Mbps),

¦Ð/4-DOPSK

(2Mbps)

8DPSK

(3Mbps)

I/O

Interface

USB

V2.0

Input

Power

5V,

USB

Power

Sensitivity

-82

dBm

(typical),

GFSK

Output

Power

4 ~ -6

dBm

(typical),

GFSK

System

Support

Windows

Vista/XP/2000

(The

product

driven

the

bundled

IVT

BlueSoleil

Bluetooth

software

Windows

SP2

Bluetooth

stack)

Dimensions

19.0

12.0

5.5

LED

Indicator

Single LED

Advantage

Functions

Serial

Port

Profile

Dial

Networking

Profile

File

Transfer

Profile

Human

Interface

Device

Profile

Hardcopy

Cable

Replacement

Profile

Headset

Profile

Object

Push

Profile

Synchronization

Profile

LAN

Access

Profile

(only

available

Windows)

FAX

Profile

(only

available

Windows)

Bounded Bluetoot

Software

IVT

BlueSoleil

(Language

Supported:

English,

Simplified

Chinese,

Traditional

Chinese,

Japanese,

Korean,

French,

Italian,

ih)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try

to correct the interference by one of the following measures:

. Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and receiver.

. Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

. Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, any changes or modifications

not expressly approved by the party responsible for compliance could void the

user's authority to operate this equipment. (Example - use only shielded

interface cables when connecting to computer or peripheral devices).

FCC Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated

with a minimum distance of 20 centimeters between the radiator and your

body.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

The antennas used for this transmitter must be installed to provide a

separation distance of at least 20 cm from all persons and must not be

co-located or operating in conjunction with any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference, and (2) This device must

accept any interference received, including interference that may cause

undesired operation.

TRENDNET TBW107UB Micro Bluetooth® USB Adapter User Manual User guide TBW 107UB

TRENDNET, Inc. Micro Bluetooth® USB Adapter User guide TBW 107UB

Users Manual

Navigation menu

Namespaces

Views

Navigation

TRENDNET TBW107UB Micro Bluetooth&#174; USB Adapter User Manual User guide TBW 107UB

TRENDNET, Inc. Micro Bluetooth® USB Adapter User guide TBW 107UB

Users Manual

Navigation menu

TRENDNET TBW107UB Micro Bluetooth® USB Adapter User Manual User guide TBW 107UB
