TRENDNET TEW434APB 54Mbps Wireless Access Point with PoE User Manual UG TEW 434APB A1 0R
TRENDNET, INC. 54Mbps Wireless Access Point with PoE UG TEW 434APB A1 0R
TRENDNET >
Manual
i
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are
country dependent and are firmware programmed at the factory to match the
intended destination. The firmware setting is not accessible by the end user.
ii
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article
3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-
17 and EN 55024 has been conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328-2 has been conducted. These
are considered relevant and sufficient.
CE in which Countries where the product may be used freely:
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: The use of other channels that the channel 10 through 13 is prohibited by
law.
iii
TABLE OF CONTENT
About This Guide..........................................................................................................1
Purpose......................................................................................................................1
Overview of this User’s Guide ....................................................................................1
Unpacking and Setup....................................................................................................2
Unpacking ..................................................................................................................2
Setup..........................................................................................................................2
Hardware Instalation.....................................................................................................3
Front panel.................................................................................................................3
Rear Panel .................................................................................................................3
Hardware connections................................................................................................4
Connect to the Switch/Hub ......................................................................................4
Check the installation...............................................................................................4
Configuring the Wireless LAN Access Point..................................................................5
Login to the Wireless AP through WLAN....................................................................5
Login ..........................................................................................................................5
Main Screen of the Access Point................................................................................6
Wizard........................................................................................................................7
Status.........................................................................................................................9

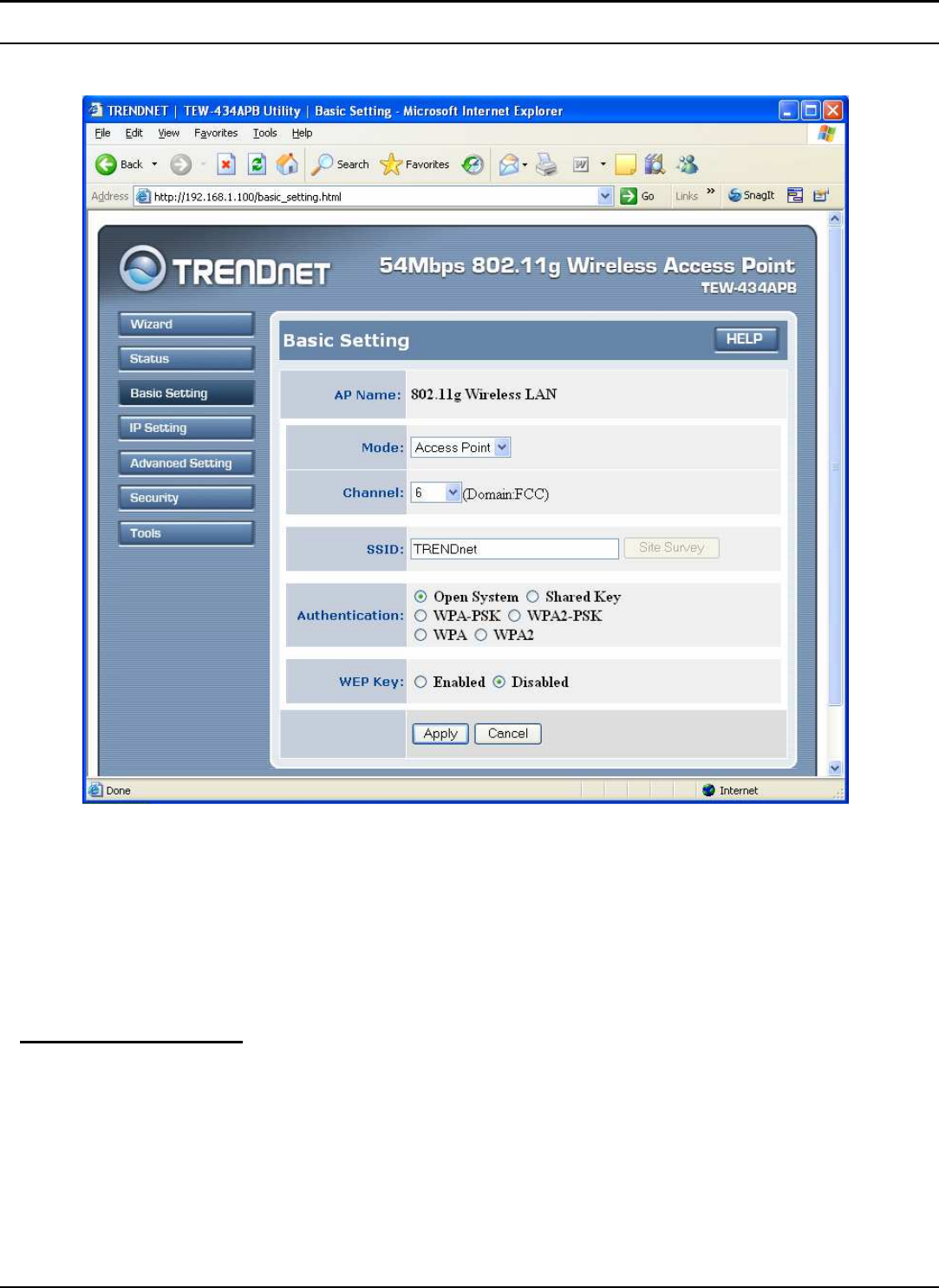

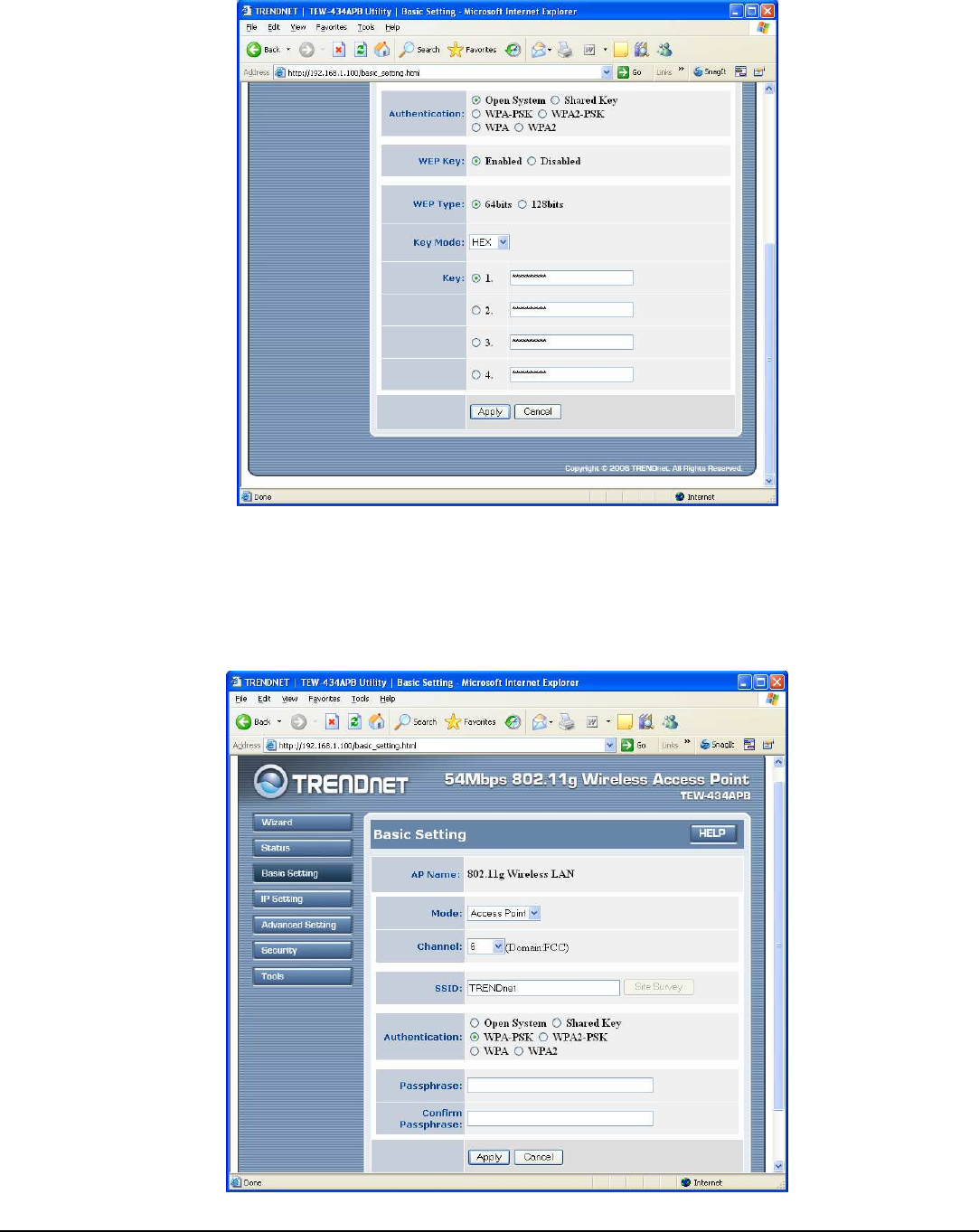

Basic Setting ............................................................................................................11
Access Point Mode................................................................................................11

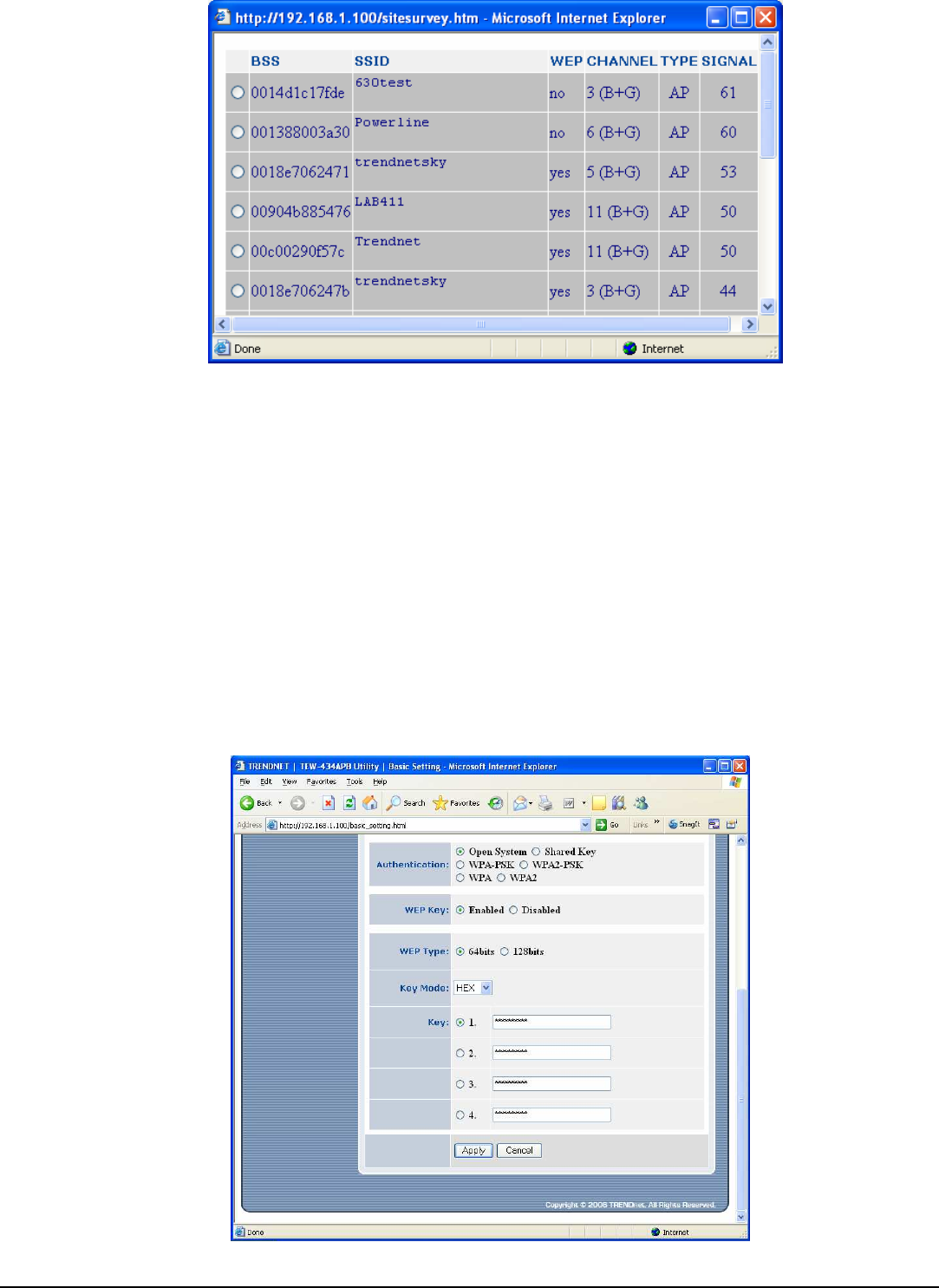

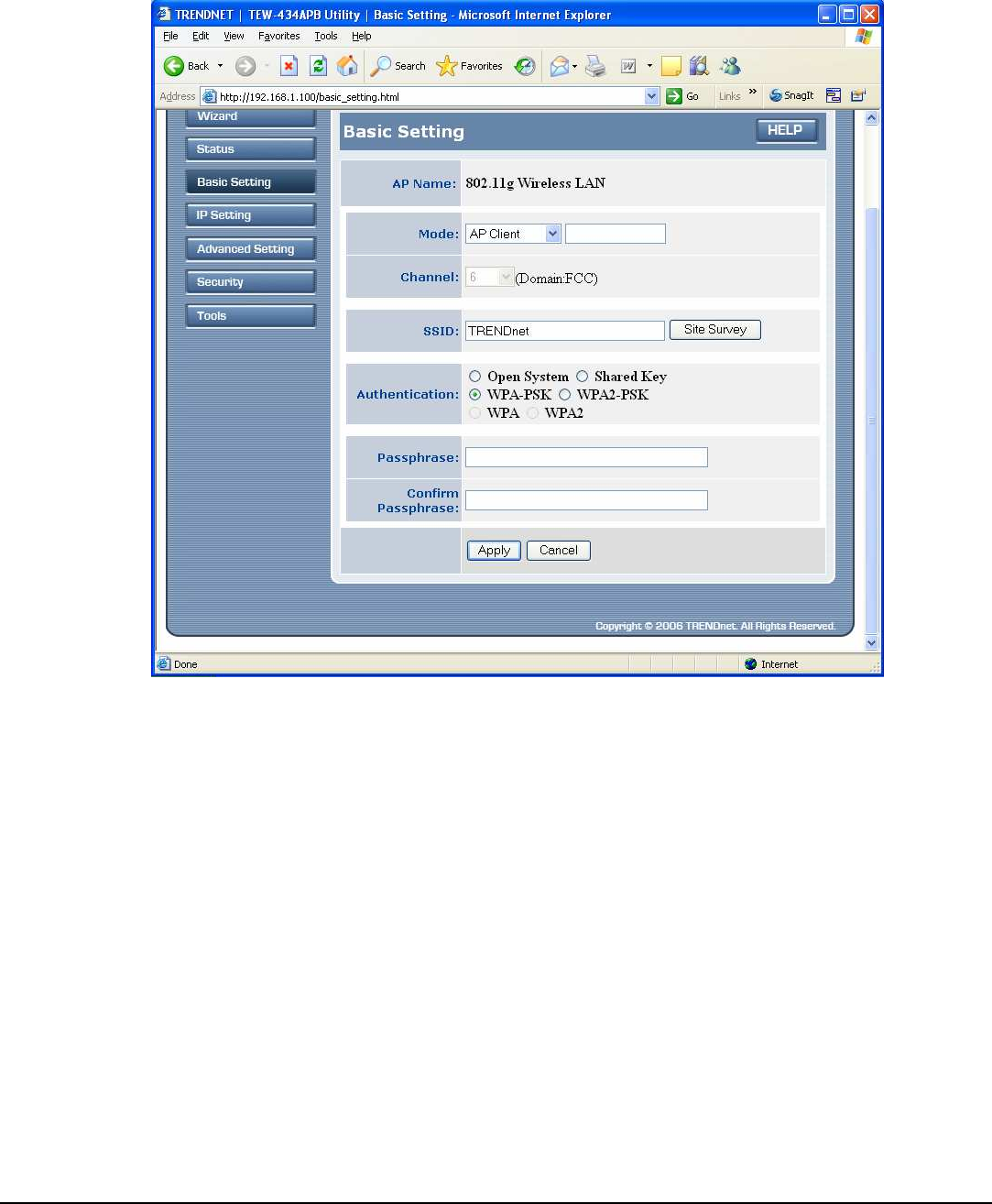

AP Client mode......................................................................................................15

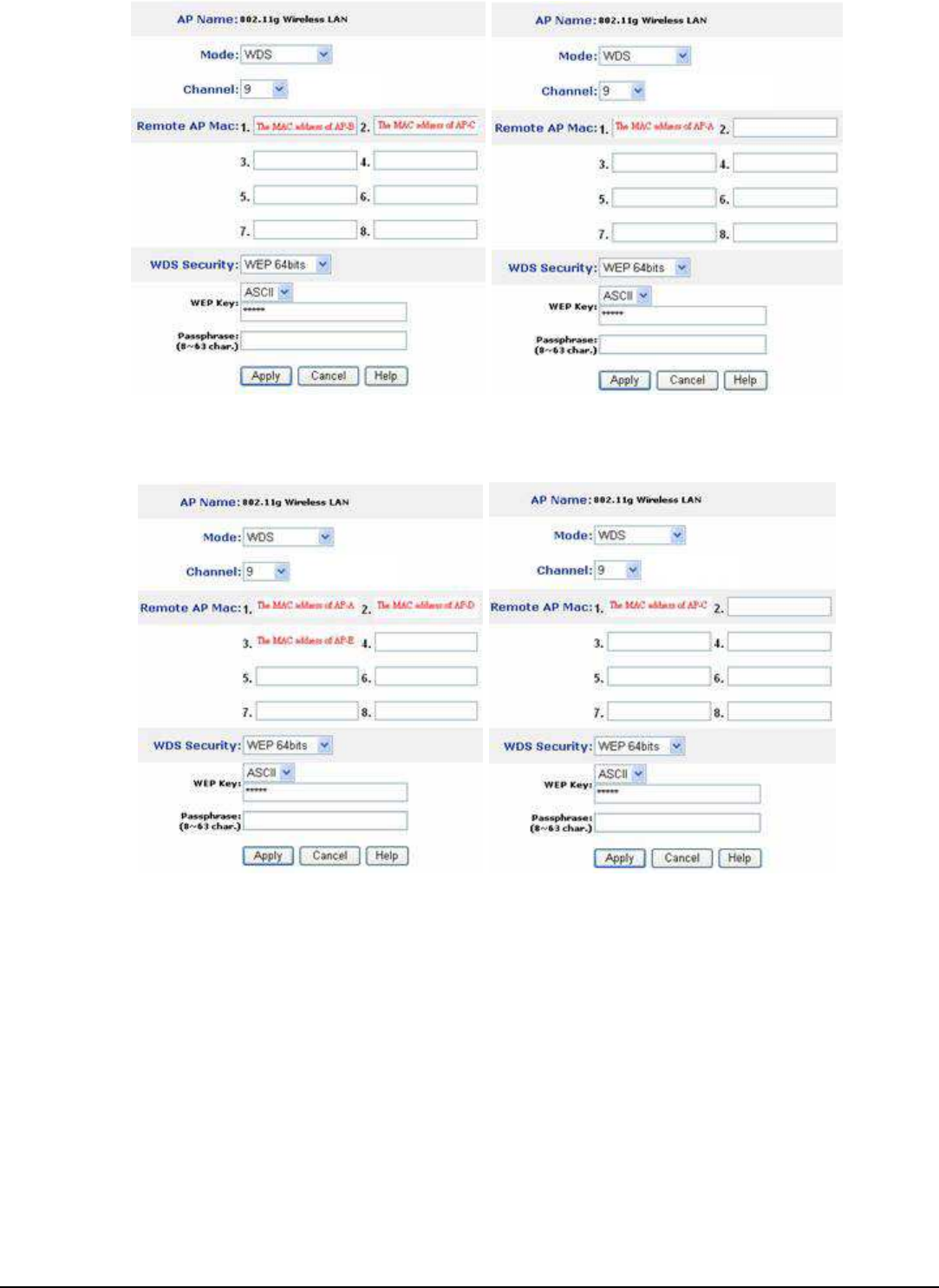

WDS mode ............................................................................................................18

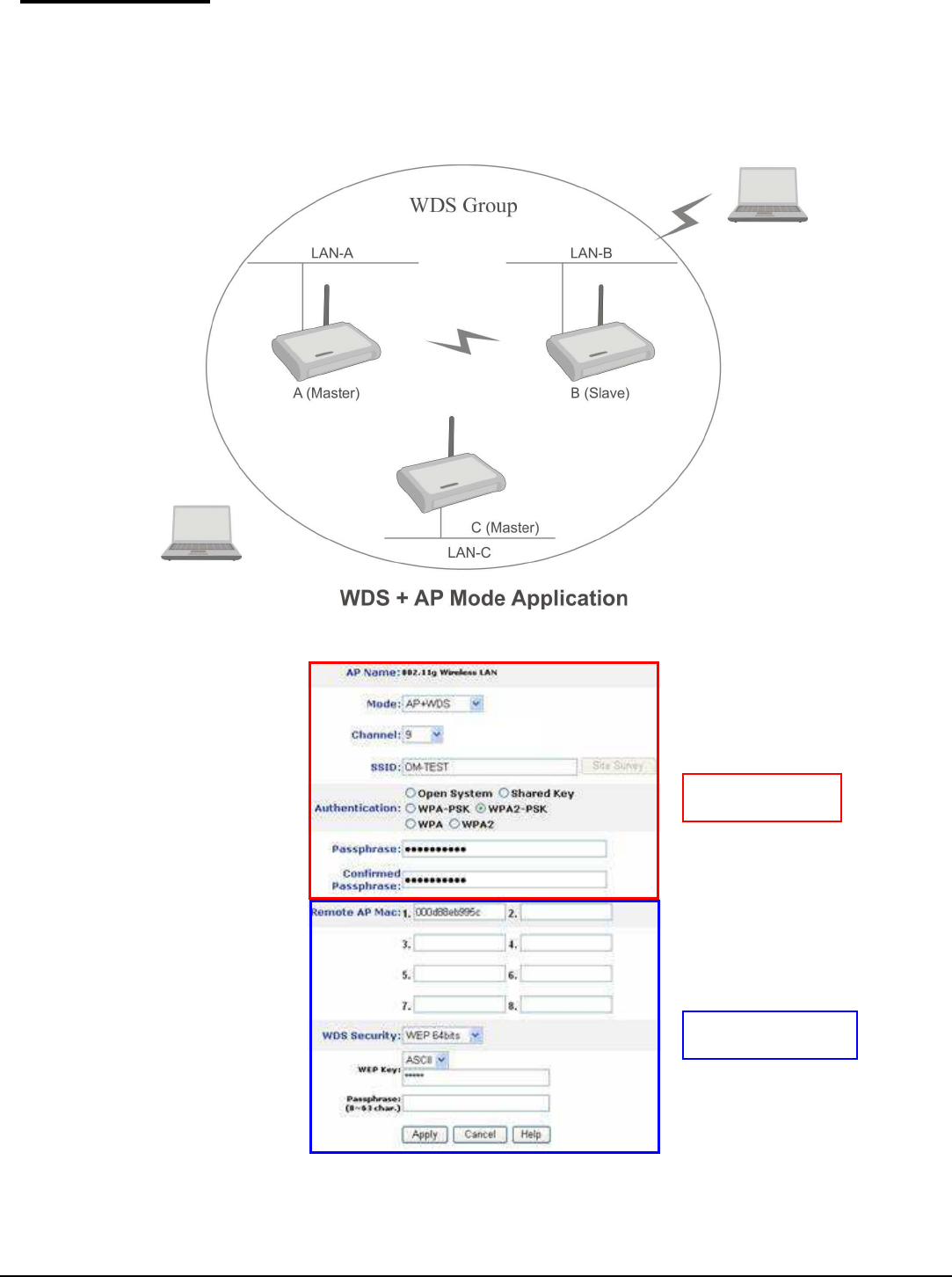

AP+WDS mode .....................................................................................................21
Repeater mode......................................................................................................22

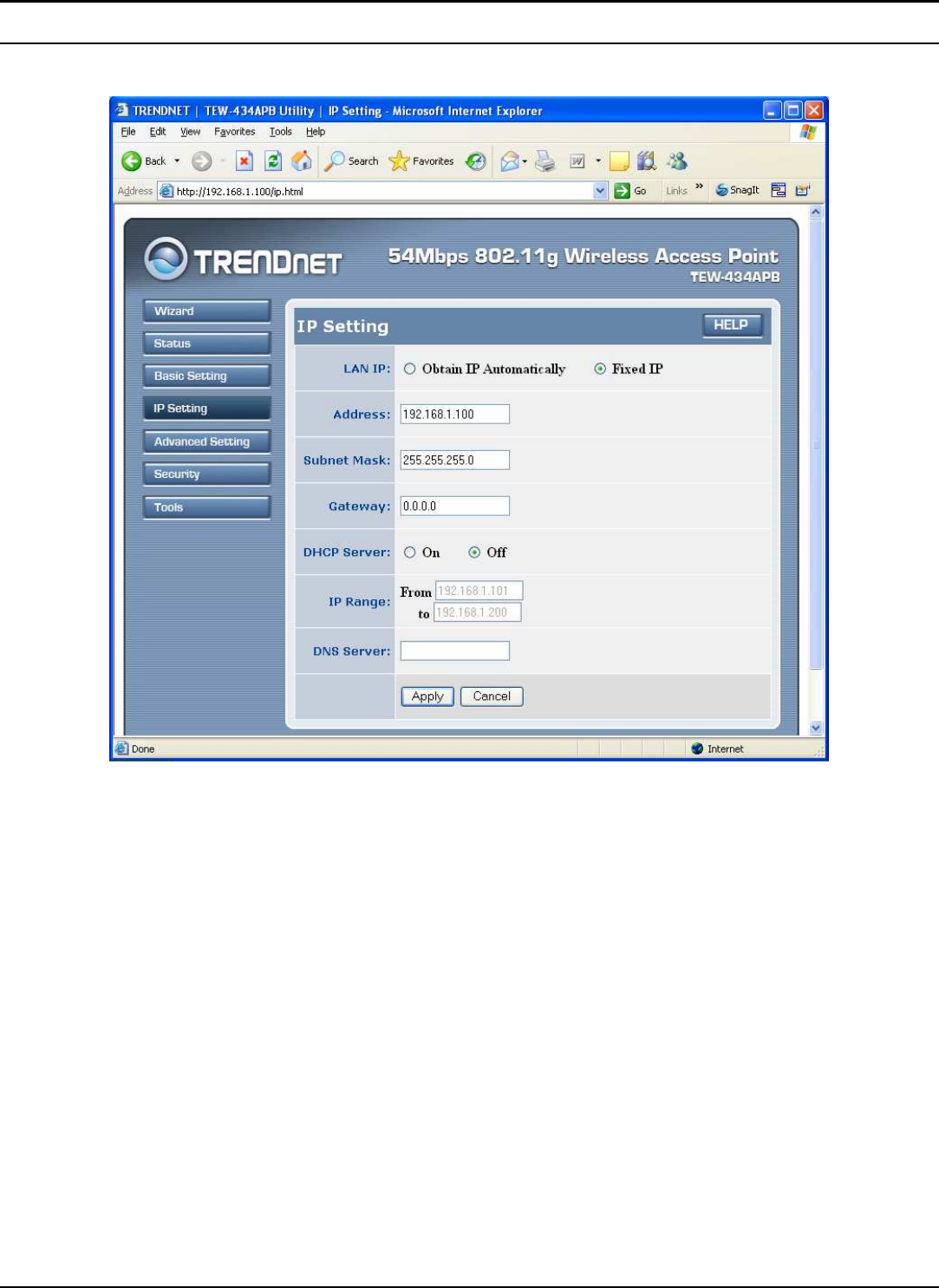

IP Setting..................................................................................................................25

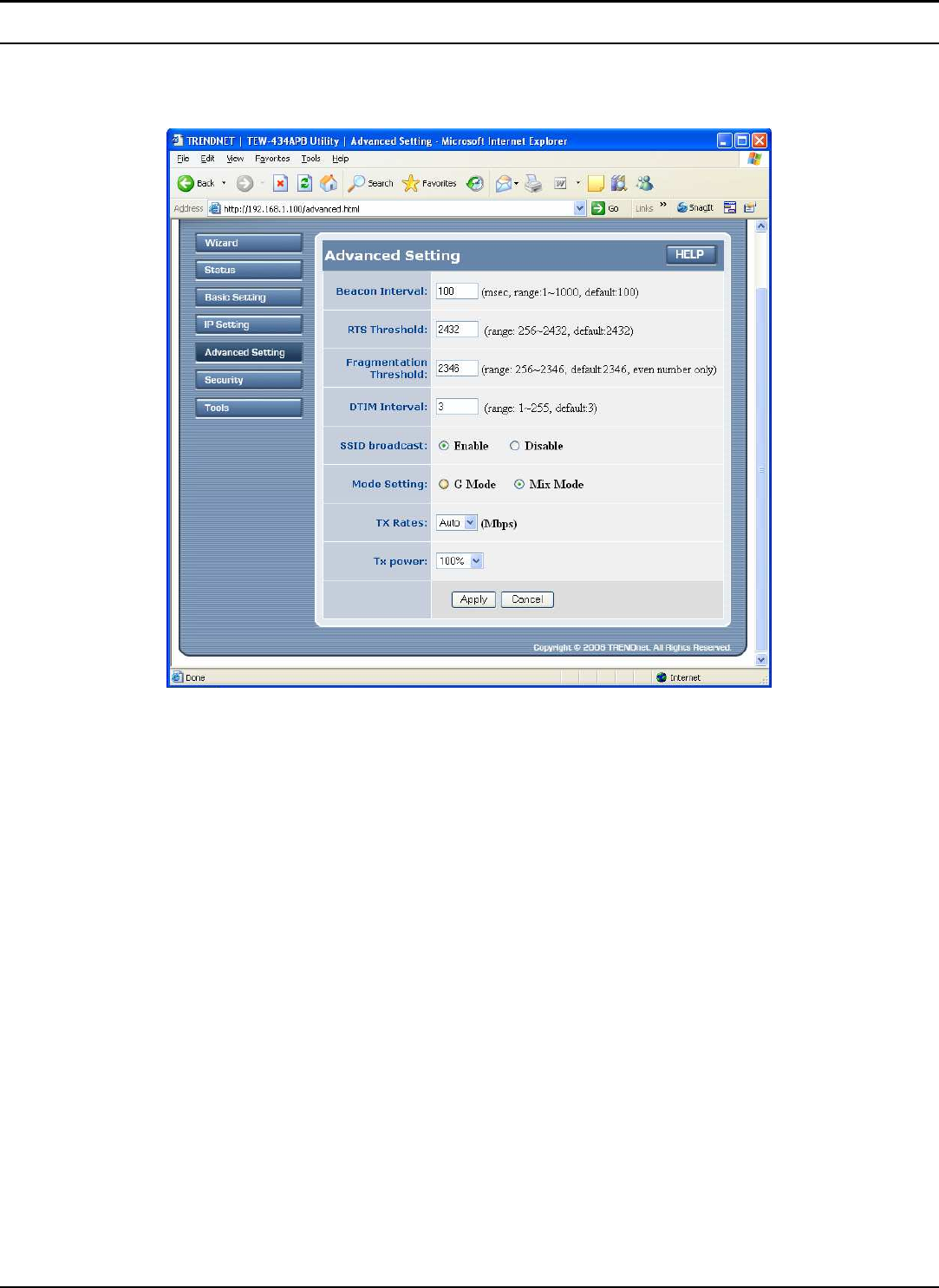

Advanced Setting .....................................................................................................26

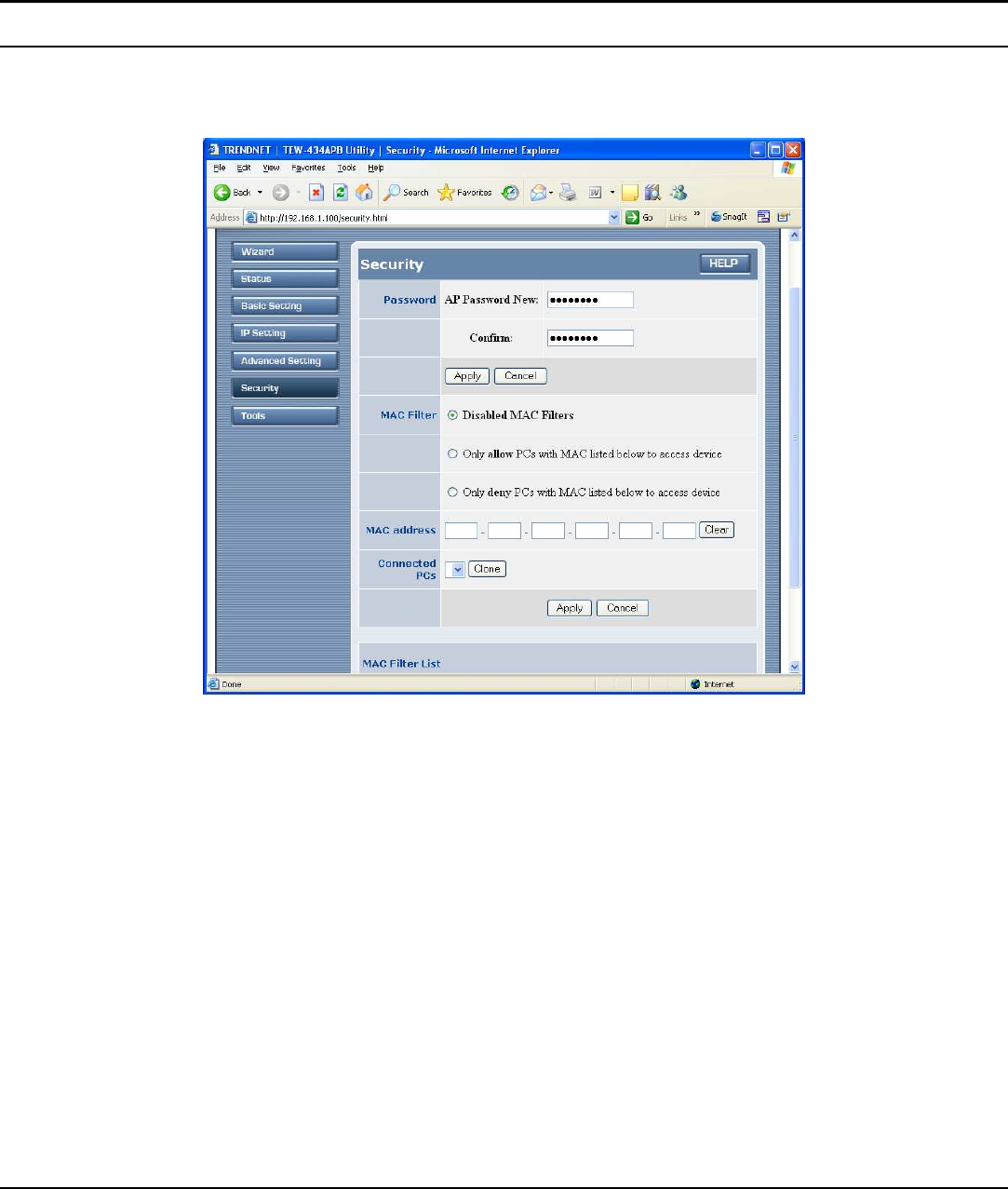

Security....................................................................................................................27
Tools ........................................................................................................................28
Technical Specifications .............................................................................................29
1
ABOUT THIS GUIDE
Congratulations on your purchase of this IEEE 802.11g Wireless LAN Access
Point. This manual helps to features the innovating wireless technology that can
help you build a wireless network easily! This manual contains detailed instructions
in operation of this product. Please keep this manual for future reference.
With a WLAN (IEEE 802.11g) Access Point, a mobile computer can share data
with another mobile computer in a wireless way. Easy-to-use utilities are bundled
with WLAN Access Point for configuration and monitoring purposes.
WLAN networking can wirelessly transmit and receive data, minimizing the need
for wired connections, at a speed of up to Fifty-four megabit per second. With
WLAN networking, you can locate your PC wherever you want without wires and
cables.
WLAN networking provides users with an access to real-time information
anywhere in their organization. The mobility provides productivity and service,
which are not available under wired networks.
The Access Point has an integrated 802.3af Power over Ethernet (PoE) support,
allowing installation of this device in areas where power outlets are not readily
available
Purpose
This manual discusses how to install the WLAN Access Point.
Overview of this User’s Guide
Introduction. Describes the WLAN Access Point and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
WLAN Access Point.
Hardware Installation. Describes the LED indicators of the AP.
Software Installation. Tells how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the WLAN Access Point.
2
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the Access Point.
Unpacking
Open the box of the Access Point and carefully unpack it. The box should contain
the following items:
One Wireless PoE Access Point
One Quick Installation Guide
One external power adapter
One CD-Rom (User’s guide)
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
The setup of the Wireless Access Point can be performed using the following steps:
Locate an optimum location for the Wireless LAN Access Point (AP). The best
place for your AP is usually the center of your wireless network, with line of
sight to all of your mobile stations.
Visually inspect the Ethernet RJ45 port connector and make sure that it is fully
plugged in to the system’s Ethernet switch/hub port.
Fix the direction of the antennas. Try to place the AP in a position that can best
cover your wireless network. Normally, the higher you place the antenna, the
better the performance will be. The antenna’s position enhances the receiving
sensitivity.
Visually inspect if the Power Adapter was fully plugged to the device power
jack.
3
HARDWARE INSTALATION

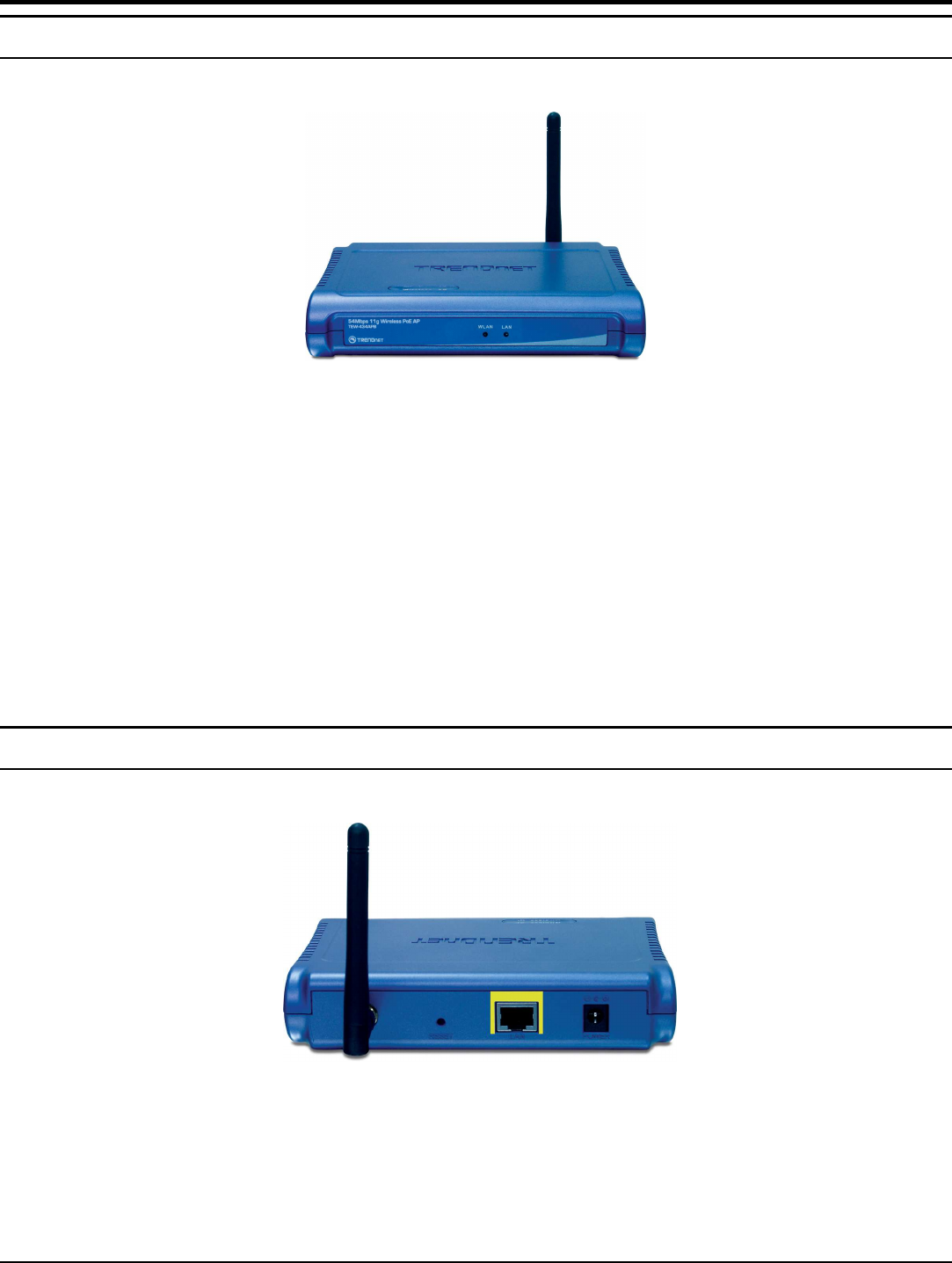

Front panel
The figure below shows the LED Indicator of the Wireless LAN Access Point.
Power:
This indicator lights green when the Access Point receives power. Otherwise, it
turns off.
WLAN:
The indicator blinking green whiles the wireless LAN activity.
LAN (Link/ACT):
The indicator lights green when the LAN port is connected to a Ethernet network
successful. Otherwise, the indicator blinking green while transmitting or receiving
data on the Ethernet network.
Rear Panel
The figure below shows the rear panel of the Access Point
Rear Panel
LAN
Ethernet port with 10/100Mbps Fast Ethernet connections, connect this port to
switch/hub.
4
RESET
The Reset function is to reset the setting back to factory default setting, once you
press the “RESET” button more than 5 seconds.
Power
Connect the Power Adapter DC plug to the AP’s power jack.
Antenna
One external dipole antenna.
Hardware connections
Connecting with power adapter
1. Plug in network cable to the Ethernet port of the Switch/Hub, and plug in the
other end to the Ethernet port of the Wireless Access Point.
2. Plug in DC plug of the power adapter to the DC jack of the Wireless Access
Point, and plug in the power adapter to the power outlet.
Connecting with PoE switch
1. Plug in network cable to the Ethernet port of the PoE Switch, and plug in the
other end to the Ethernet port of the Wireless Access Point.
Check the installation
The LEDs of the Access Point are clearly visible and the status of the network link
can be seen instantly:
1. With the power source on, once the device is connected, the Power, LAN and
WLAN port LEDs will light up indicating a normal status.
2. If the LAN Port’s Link indicator does not light up then check the RJ-45 cable if
it is firmly feed to the RJ45 port, while the LAN is link up to the Switch/Hub,
the LAN port’s LED will light up.
5
CONFIGURING THE WIRELESS LAN ACCESS POINT
The Wireless Access Point has a Web GUI interface for the configuration. The AP
can be configured through the Web Browser. A network manager can manage,
control and monitor the AP from the local LAN. This section indicates how to
configure the AP to enable its functions.
Login to the Wireless AP through WLAN
Before configuring the Wireless AP through WLAN, make sure that the SSID,
Channel and the WEP was set properly.
The default setting of the Wireless AP that you will use:
SSID: TRENDnet
Channel: 6
WEP Encryption: disable
IP address: 192.168.1.100
Login
Before you configure this device, note that when the AP is configured through an
Ethernet connection, make sure the manager PC must be set on same the IP
network. For example, when the default network address of the default IP address
of the AP is 192.168.1.100, then the manager PC should be set at 192.168.1.x
(where x is a number between 2 and 254), and the default subnet mask is
255.255.255.0.

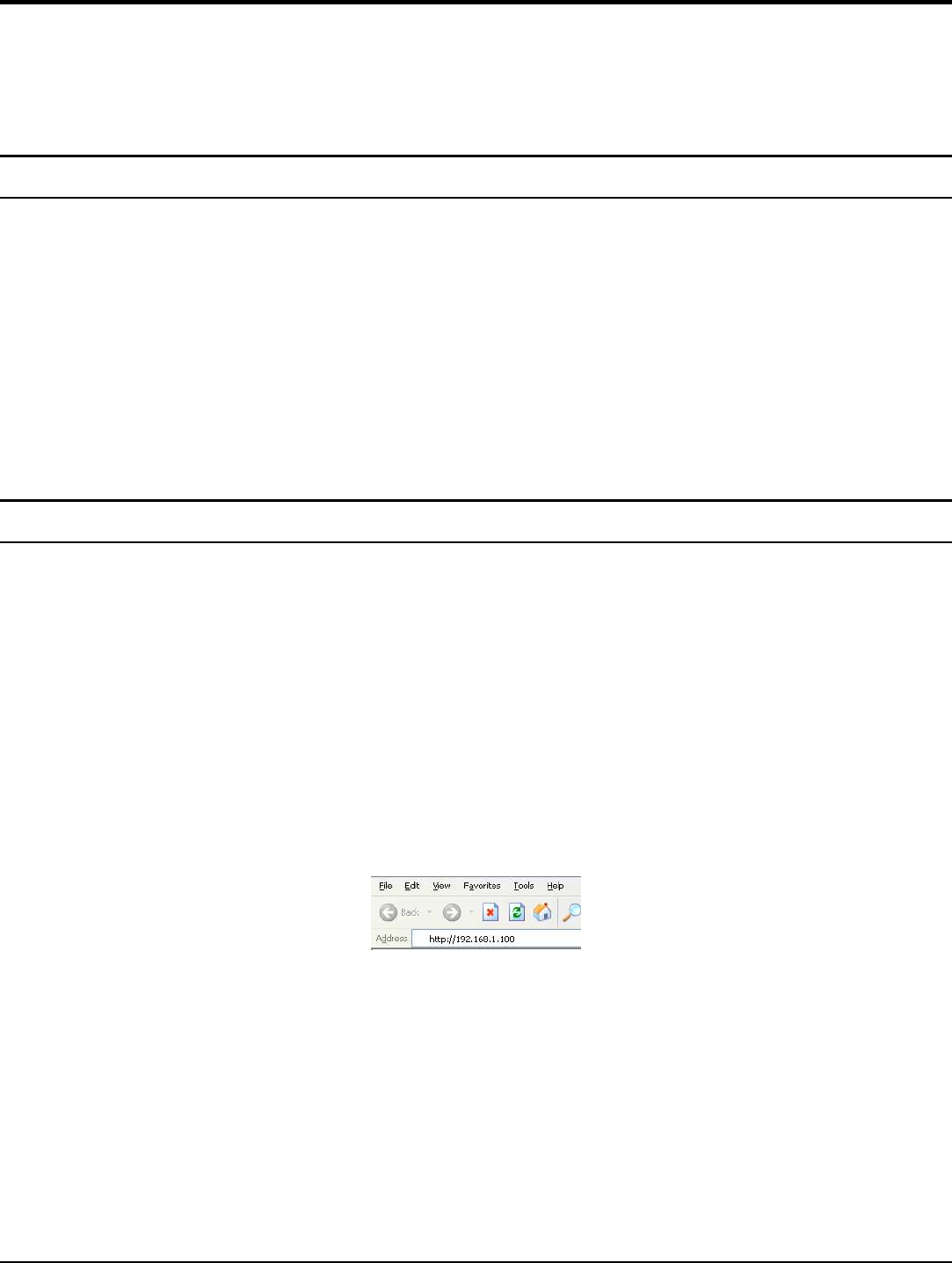

Open Internet Explorer 5.0 or above Web browser.
Enter IP address http://192.168.1.100 (the factory-default IP address setting) to the
address location.
When there is a screen needs to enter the User name and Password, both of the
default Username and Password is “admin”
6

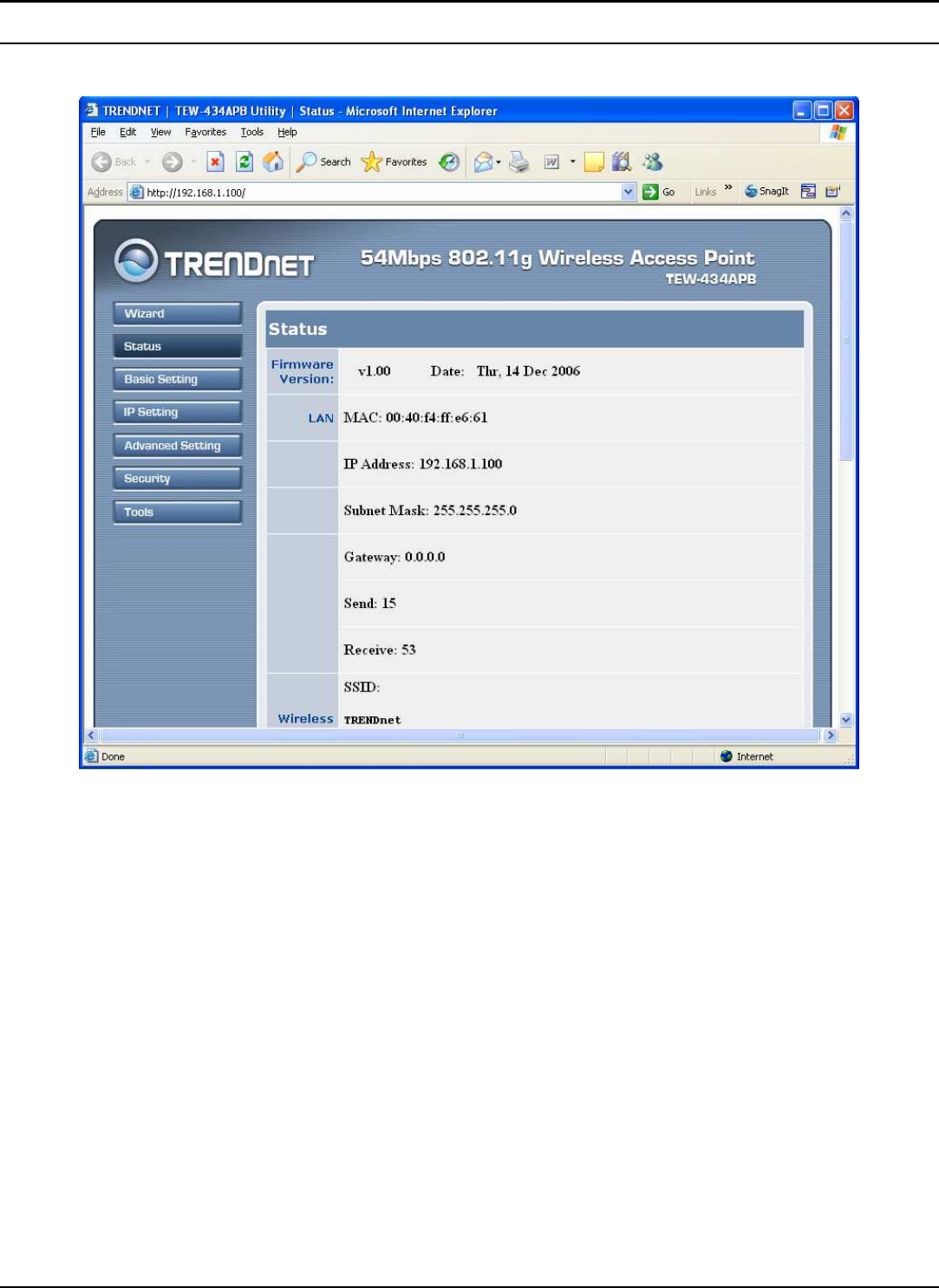

Main Screen of the Access Point
The screen will show the status of the AP when you login to the AP.
There are seven main functions included in the top side of the main screen: Wizard,
Status, Basic Setting, IP Setting, Advanced Setting, Security and Tools. Point the
selections in the top side of the menu screen.
7
Wizard
Setup wizard is provided as the part of the web configuration utility. User can
simply follow the step-by-step process to get Access Point configuration ready to
run in 4 easy steps by clicking on the “Wizard” button on the function menu. The
following screen will appear. Please click “Next” to continue.
Step 1: Set Password
User can change the password and then click “Next” to continue.
Step2: Set WLAN Connection
Please type the name of SSID and select the Channel. Then, click “Next” to
continue.
8
Step 3: Set WEP Encryption
If user wants to enable WEP, please click “Enabled”. Then, select the key size of
WEP encryption and enter the key value in the key text box. Please click “Next” to
continue.
Step 4: Restart
The Setup wizard is now completed. The new settings will be effective after the
Access Point restarted. Please click “Restart” to reboot the Access Point. If user
does not want to make any changes, please click “exit” to quit without any changes.
User also can go back to modify the setting by clicking “back”.
9
Status
This page as below shows the following information.
Firmware Version: Shows the current firmware version and released date code.
LAN: Shows the Mac address, IP address (default: 192.168.1.100), Subnet Mask,
Gateway Address. The current LAN traffic calculated in terms of number of
packets sent and received by AP through wired connection is also displayed.
Wireless: Shows the Mac address, current SSID, the status of Encryption Function
(Enable or Disable), the current using channel. The current wireless traffic
calculated in terms of number of packets sent and received by AP through wireless
communication is also displayed.
10
View Log: Once clicked, the page will change to login page. The login page
records every event and the time that it happens.
User may clear the entries recorded in the log by clicking the “Clear Log” button,
and refresh the screen to show the latest log entries by clicking the “Refresh” button.
11
Basic Setting
This is the page allow user to change the access point settings.
.
AP Name: The name of the AP, which can be used to identify the Access Point
among the all the Access Points in the wireless network.
Mode: The WLAN AP supports five operation mode for Access Point, AP Client,
WDS (Wireless Distribution System), AP+WDS and Repeater mode.
Access Point Mode
Configure the AP to Access Point mode; with this mode, WLAN clients can
access LAN or other WLAN clients through this AP.
12
AP mode configuration
Channel: The channel that AP will operate in. Channel 1 to 11 is North
America (FCC) version, 1 to 13 is European (ETSI) version.
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients and
nodes in the wireless network.
Authentication Type: The authentication type default is set to Open system.
There are six options: Open system; Shared Key; WPA-PSK, WPA2-PSK, WPA
and WPA2. User may want to set to Shared Key when the clients and AP in the
same wireless network enable the encryption. All the nodes and hosts on the
network must use the same authentication type.
WEP Key: To disable WEP security, click on the “Disable” option. To enable
WEP security, there are 2 types to select – 64bits and 128 bits. When it is
selected, the key value must be entered in ASCII or HEX format.
13
Note: When the WEP security is enabled, all the wireless clients that wish to
connect to the Access Point must also have WEP enabled with the identical
WEP Key value entered.
WPA-PSK / WPA2-PSK:
If WPA-PSK or WPA2-PSK is selected, user needs to set the key in the
passphrase field as the below screen. The key length should be 8 characters at
least.
14
WPA / WPA2:
If WPA or WPA2 is selected, the below screen is shown. Please set the length
of the encryption key and the parameters for the RADIUS server.
RADIUS Server 1:
Enter the IP address of and the Port used by the Primary Radius Server, enter
the Shared Secret, which is used by the Radius Server.
RADIUS Server 2: (optional)
Enter the IP address of and the Port used by the Secondary Radius Server, enter
the Shared Secret, which is used by the Radius Server.
Apply: For the changes made to any of the items above to be effective, click
“Apply”. The new settings are now been saved to Access Point and will be
effective once the Access Point restarts.
15
AP Client mode
Configure the AP to AP Client mode; the AP will be a wireless Ethernet adapter
transforms any Ethernet-enabled devices to have the wireless function.
AP Client mode configuration
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients and
nodes in the wireless network.
Site Survey: This button allows user to enable the Site Survey function to scan
for the available wireless network (wireless clients and Access Points) and
establish wireless communications with one. Selected one of them in list to
establish communications and click “Connect” button.
16
Authentication Type: The authentication type default is set to Open system.
There are four options: Open system; Shared Key; WPA-PSK and WPA2-PSK.
User may want to set to Shared Key when the clients and AP in the same
wireless network enable the WEP encryption. All the nodes and hosts on the
network must use the same authentication type.
WEP Key: To disable WEP security, click on the “Disable” option. To enable
WEP security, there are 2 types to select – 64bits and 128 bits. When it is
selected, the key value must be entered in ASCII or HEX format.
Note: When WEP security is enabled, all the wireless clients that wish to
connect to the Access Point must also have WEP enabled with the identical
WEP Key value entered.
17
WPA-PSK / WPA2-PSK:
If WPA-PSK or WPA2-PSK is selected, user needs to set the key in the
passphrase field as the below screen. The key length should be 8 characters at
least.
Apply: For the changes made to any of the items above to be effective, click
“Apply”. The new settings are now been saved to Access Point and will be
effective once the Access Point restarts.
Note: For entering to the Web Setting page after changing to AP Client mode,
change your PC/Notebook IP address to 192.168.1.x. After changing your
IP address, type 192.168.1.100 on the Web browser to enter the setting of
this Wireless AP.
18
WDS mode
With WDS (Wireless Distribution System) mode, user can use wireless media to
communicate two or more LANs through the AP with WDS mode, all of the LAN
will be combined in the WDS group, for example:
Single WDS group application:
When there are three APs joined to the WDS group, one of the AP in WDS
mode will be the Master, the other two APs will be the Slave, all of the APs in
the WDS group must use the same wireless channel and the same security
setting, the Master need to fill all the Slave’s MAC address in the “Remote AP
Mac” list, and the Slave need to fill the Master’s MAC address in the “Remote
AP Mac” list, the maximum of one Master can join eight Slave to be one WDS
group.
In this example, LAN-A can communicate with LAN-B and LAN-C, and LAN-
B can communicate with LAN-C through the AP-A. All of LANs will be at the
same LAN environment coming through LAN-A.
Master setting (AP-A) Slave setting (AP-B and AP-C)
WDS mode configuration for Example-1
19
Multiple WDS group application:
When there are five APs to be join into two separated WDS group, the member
of WDS group 1 is AP-A, AP-B and AP-C, and member of the WDS group 2 is
AP-C, AP-D and AP-E, the AP-C will join both of WDS group 1 and WDS
group 2, each WDS Group 1 will be one master and the other will be slave.
The AP-A and AP-C will be both as a Master AP for both WDS Groups, the AP-
A represent for the master of WDS Group 1, the AP-C represent for the master
of the WDS Group 2 and at the same time AP-C will be the slave of WDS
Group 1, so all of the APs in the two WDS groups must use the same wireless
channel and same security, the Master need to fill all of Slave’s MAC address in
the “Remote AP Mac” list, and the Slave need to fill the Master’s MAC address
in the “Remote AP Mac” list, maximum allow one Master can be join eight
Slaves to be one WDS group.
In this example, LAN-A can communicate with LAN-B and LAN-C, and LAN-
B can communicate with LAN-C through the AP-A. LAN-B will have the same
LAN environment coming through LAN-A.
LAN-E can communicate with LAN-B and LAN-D, LAN-E can communicate
with LAN-D through AP-C, LAN-E can communicate with LAN-B through AP-
C and AP-A, LAN-E will have the same LAN environment coming through
LAN-A.
20
Master setting (AP-A, WDS Group 1) Slave setting (AP-B, WDS Group 1)
Master setting (AP-C, WDS Group 2) Slave setting (AP-D and AP-E, WDS Group 2)
WDS mode configuration for Example-2
21
AP+WDS mode
With WDS+AP mode, user can use wireless media to communicate two or more
LANs through the AP with WDS+AP mode, all of LAN will be combined in the
WDS group and WLAN client can access to the AP with AP+WDS mode.
Please refer the AP mode and WDS mode for detail configuration.
AP configuration
WDS configuration
22
Repeater mode
Configure the AP to Repeater mode; the AP will be a wireless LAN repeater that
will be extended the WLAN coverage range.
Repeater mode configuration
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients and
nodes in the wireless network.
23
Site Survey: This button allows user to enable the Site Survey function to scan
for the available wireless network (wireless clients and Access Points) and
establish wireless communications with one. Selected one of them in list to
establish communications and click “Connect” button.
Authentication Type: The authentication type default is set to Open system.
There are four options: Open system; Shared Key; WPA-PSK and WPA2-PSK.
User may want to set to Shared Key when the clients and AP in the same
wireless network enable the WEP encryption. All the nodes and hosts on the
network must use the same authentication type.
WEP Key: To disable WEP security, click on the “Disable” option. To enable
WEP security, there are 2 types to select – 64bits and 128 bits. When it is
selected, the key value must be entered in ASCII or HEX format.
Note: When WEP security is enabled, all the wireless clients that wish to
connect to the Access Point must also have WEP enabled with the identical
WEP Key value entered.
24
WPA-PSK / WPA2-PSK:
If WPA-PSK or WPA2-PSK is selected, user needs to set the key in the
passphrase field as the below screen. The key length should be 8 characters at
least.
Apply: For the changes made to any of the items above to be effective, click
“Apply”. The new settings are now been saved to Access Point and will be
effective once the Access Point restarts.
25
IP Setting
This page allows user to configure the IP and DHCP settings of the Access Point.
The default IP address of this access point is 192.168.1.100 with the subnet mask of
255.255.255.0. User can type in other values for IP Address, Subnet Mask and
Gateway and click “Apply” button for the changes to be effective.
User can also set the Access Point to obtain the IP from a DHCP server, but it is not
recommended. Select the option “Obtain IP Automatically” and click “Apply”
button for the changes to be effective.
DHCP Server: It is not recommended to enable the DHCP Server if user has a
DHCP server running in LAN network because it probably will cause possible the
conflict of IP assignment. Enable the DHCP server function by selecting the option
“On”, and enter the IP range.
DNS Server: Type up to DNS IP address in the text boxes. Your ISP will provide
you with this information.
Click “Apply” for the changes to be effective
26
Advanced Setting
This page contains configurations for advanced users, which the change reflects the
wireless performance and operating modes.
Beacon Interval: To set the period of time in milliseconds that AP sends out a
beacon. Default is 100 milliseconds.
RTS Threshold: To set the size of RTS/CTS packet size. Default is 2432 bytes.
Fragmentation Threshold: To set the number of bytes used for the fragmentation
boundary for directed messages. Default is 2436 bytes.
DTIM Interval: This value indicates the interval of the Delivery Traffic Indication
Message (DTIM). A DTIM field is a countdown field informing clients of the next
window for listening to broadcast and multicast messages. When the access point
has buffered broadcast or multicast messages for associated clients, it sends the
next DTIM with a DTIM interval value. Access point clients hear the beacons and
awaken to receive the broadcast and multicast messages.
SSID Broadcast: While SSID Broadcast is enabled, all wireless clients will be able
to communicate with the access point. For secure purpose, user may want to disable
SSID broadcast to allow only those wireless clients with the AP SSID to
communicate with the access point.
27
Mode Setting: To setting the AP operation mode for 802.11g only or
802.11b/802.11g mix mode
TX Rates: Select one of the wireless communications transfer rates, measured in
megabytes per second, based upon the speed of wireless adapters connected to the
WLAN.
Security
This page is where user configures the security features supported by this Access
Point.
Password: Allow user to change the new login password. Here are the necessary
steps:
1. Enter the new password in the “AP Password New:” field.
2. Enter the new password again in the “Confirm” field.
3. Click “Apply”
MAC Filter: MAC Filter function controls the MAC of the network devices that
are listed in this table for access authorization or denial. There have three choices:
Disable MAC Filters
Only allow PCs with MAC listed below to access device
Only deny PCs with MAC listed below to access device
28
The maximum number of MAC addresses that can be stored is 50. User can browse
through the MAC address saved by selecting the MAC Filter List.
For any changes made in the security page, click “Apply” for the changes to be
effective.

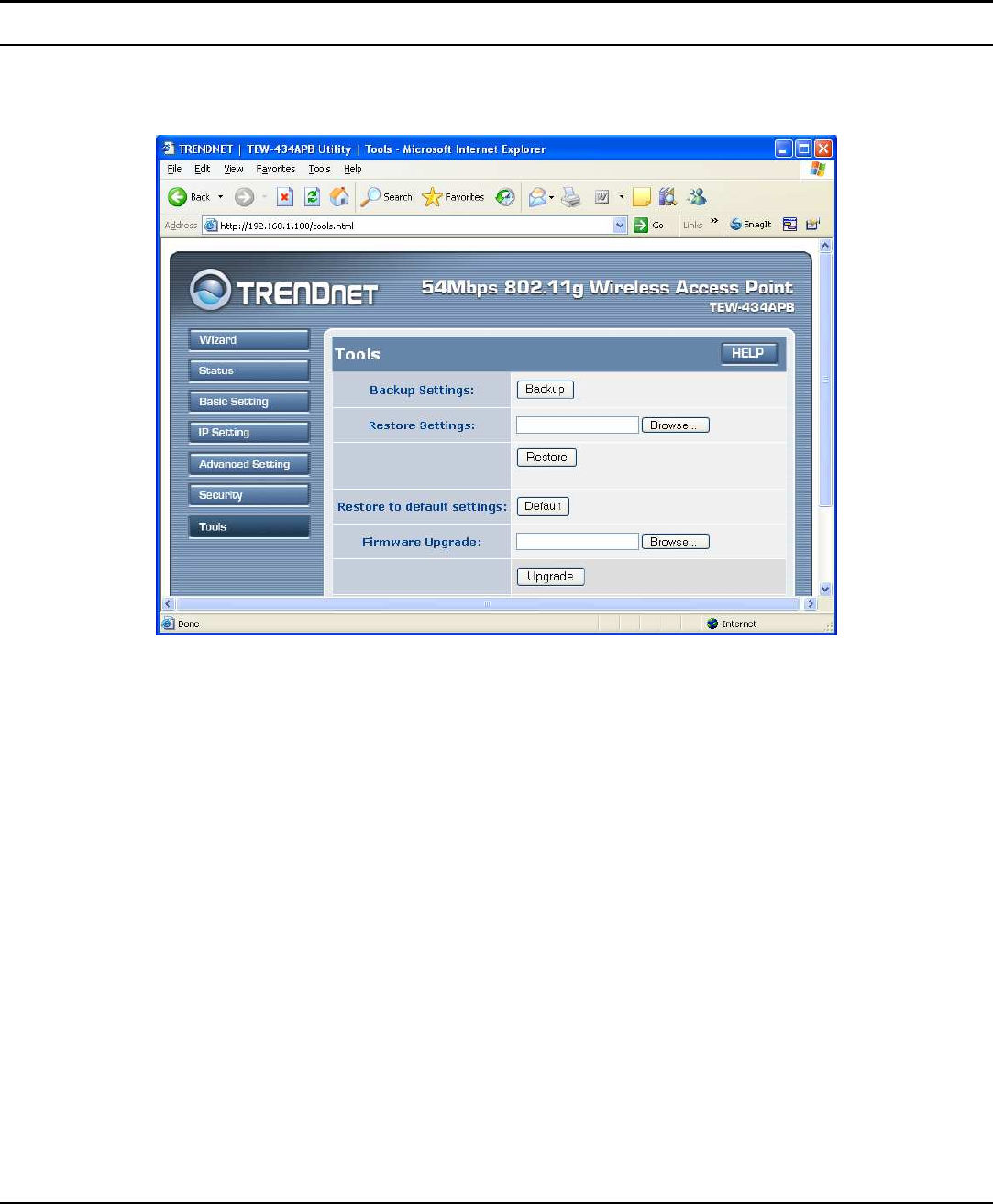

Tools
Four functions are provided in this page, Backup, Restore Settings, Restore default
settings and Firmware Upgrade.
Save Settings to Local Hard Drive: Click on “Save Settings to Local Hard
Drive” button, which will open a FileSave Dialog box, where user gets to save all
the current settings and configurations to a file.
Restore Settings: Click on the “Browse” button to open a FileOpen Dialog box,
where user gets to select the file, which saves previous settings and configurations.
Upon selecting the saved file, click “Restore” and complete the restore process
when the access point re-operates after it restarts.
Restore to default settings: Click on “Default” button to restore the access point
back to its manufacture default settings.
Firmware Upgrade: Click on the “Browse” button to open a FileOpen Dialog box,
where gets to select the firmware file, which download from the web for the latest
version. Upon selecting the firmware file, click “Upgrade” and complete the
firmware upgrade process when the Access Point re-operates after it restarts.
29
TECHNICAL SPECIFICATIONS
General
Standards IEEE 802.11b/g
IEEE 802.3u 10/100BASE-TX Fast Ethernet
IEEE 802.3af Power over Ethernet
Signal Type: DSSS (802.11b)
OFDM (802.11g)
Modulation: QPSK / BPSK / CCK / OFDM
LED Indicators: Power, LAN (Link/Activity), WLAN (Link)
Frequency 2412 MHz ~ 2462 MHz (FCC)
2412 MHz ~ 2472 MHz (ETSI)
2400 MHz ~ 2484 MHz (Japan)
Channel 1 ~ 11 Channels (FCC)
1 ~ 13 Channels (ETSI)
Data Encryption: 64 bit / 128 bit WEP Encryption, WPA, WPA2, WPA-
PSK, WPA2-PSK
Data Transfer Rate Fast Ethernet: 10/100Mbps
Wireless: Up to 54Mbps (with Automatic Scale
Back)
Receiver Sensitivity 54Mbps: Typical -68 dBm @10% PER
11Mbps: Typical -81 dBm @8% PER
Transmit Power 802.11g: Minimum 13dBm typically
802.11b: Minimum 15dBm typically
Transmission Range:
Outdoor: 100~300M (depends on environment)
Indoor: 50~100M (depends on environment)
Network Cables 2-pair UTP/STP Cat. 3,4,5 (100 m)
Interface 1 x 10/100Mbps RJ45 port
30
Antenna: 1 x 2 dBi Dipole Antenna
Physical and Environmental
DC inputs DC 7.5V /1A
Power Consumption 4.2W (Max)
Temperature Operating: 0 ~ 40
o
C, Storage: -10 ~ 70
o
C
Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%
Certifications: FCC Class B, CE Mark B,
31
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the
following lengths of time from the date of purchase.
Wireless Three years
If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option
and expense, repair the defective product or deliver to customer an equivalent product to replace the defective item. All
products that are replaced will become the property of TRENDnet. Replacement products may be new or reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in,
stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product through any
unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized
service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions
more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable warranty period for a Return
Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to
TRENDnet must be pre-authorized by TRENDnet with RMA number marked on the outside of the package, and sent
prepaid, insured and packaged appropriately for safe shipment.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE
CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE
THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY
THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO
REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,
FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF
AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE),
FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS
OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS
LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION.
THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN
SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry 1-Year Warranty
32
