TRENDNET TEW624UB Wireless N USB 2.0 Adapter User Manual UG TEW 624UB C1 0R
TRENDNET, Inc. Wireless N USB 2.0 Adapter UG TEW 624UB C1 0R
TRENDNET >
User Manual
i
Regulatory notes and statements
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far less than the electromagnetic
energy emissions from wireless devices such as mobile phones. Wireless LAN
devices are safe for use frequency safety standards and recommendations. The use
of Wireless LAN devices may be restricted in some situations or environments for
example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use these
devices prior to operating the equipment.
Regulatory Information/disclaimers
The installation and use of this Wireless LAN device must be in strict accordance
with the instructions included in the user documentation provided with the product.
Any changes or modifications made to this device that are not expressly approved
by the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device. The Manufacturer and its authorized
resellers or distributors will assume no liability for any damage or violation of
government regulations arising from the failure to comply with these guidelines.
USA-FCC (Federal Communications Commission) statement
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of this device.
FCC Radio Frequency Exposure statement
This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65
and found compliant to the requirements as set forth in CFR 47 Sections 2.1091,
2.1093, and 15.247 (b) (4) addressing RF Exposure from radio frequency devices.
The radiated output power of this Wireless LAN device is far below the FCC radio
ii
frequency exposure limits. Nevertheless, this device shall be used in such a manner
that the potential for human contact during normal operation is minimized.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and radiates radio frequency energy. If not installed
and used in accordance with the instructions, it may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the distance between the equipment and the receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
Export restrictions
This product or software contains encryption code that may not be exported or
transferred from the US or Canada without an approved US Department of
Commerce export license.
Safety Information
Your device contains a low power transmitter. When the device is transmitted it
sends out radio frequency (RF) signal.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions
for satisfying RF exposure compliance. To maintain compliance with FCC RF
exposure compliance requirements, please follow operation instruction as
documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
iii
SAR compliance has been established in typical laptop computer(s) with USB slot,
and product could be used in typical laptop computer with USB slot. Other
application like handheld PC or similar device has not been verified and may not
compliance with related RF exposure rule and such use shall be prohibited.
The USB dongle transmitter is approved for use in typical laptop computers. To
comply with FCC RF exposure requirements, it should not be used in other devices
or certain laptop and tablet computer configurations where the USB connectors on
the host computer are unable to provide or ensure the necessary operating
configurations intended for the device and its users or bystanders to satisfy RF
exposure compliance requirements.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
Protection requirements for health and safety – Article 3.1a
Testing for electric safety according to EN 60950 has been conducted. These are
considered relevant and sufficient.
Protection requirements for electromagnetic compatibility – Article
3.1b
Testing for electromagnetic compatibility according to EN 301 489-1, EN 301 489-
17 and EN 55024 has been conducted. These are considered relevant and sufficient.
Effective use of the radio spectrum – Article 3.2
Testing for radio test suites according to EN 300 328-2 has been conducted. These
are considered relevant and sufficient.
CE in which Countries where the product may be used freely:
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: French regulations prohibit the use of all channels except channels 10
through 13.
iv
v
TABLE OF CONTENT
Introduction................................................................................................1
Overview of this User’s Guide .................................................................................1
Unpacking and Setup .................................................................................2
Unpacking.................................................................................................................2
Setup..........................................................................................................................2
Connecting the USB Extension Cable......................................................................2
Software Installation ..................................................................................3
Windows Based Utility Installation..........................................................................3
Wireless Utility Setting.............................................................................................4
I.
Link Information..................................................................................................................................................................... 5
II.
Configuration ...................................................................................................................................................................... 5
III.
Site Survey ........................................................................................................................................................................... 8
V.
About.................................................................................................................................................................................. 11
Technical Specifications ..........................................................................12
Limited Warranty.....................................................................................13
1
INTRODUCTION
Congratulations on your purchase of this 300Mbps Wireless N USB Adapter.
This manual contains detailed instructions regarding the operation of this product.
Please keep this manual for future reference.
With the 300Mbps Wireless N USB Adapter, a desktop or laptop computer can
communicate with another computer wirelessly. An easy-to-use utility is bundled
with the Wireless USB Adapter for configuration, monitoring, and diagnostic
purposes.
The 300Mbps Wireless N USB Adapter can wirelessly transmit and receive data, at
a speed of up to 54 megabits per second.
The 300Mbps Wireless N USB Adapter provides users with access to real-time
information anywhere in their organization. The mobility of the 300Mbps Wireless
N USB Adapter provides productivity and service, which are not available under
wired networks. The 300Mbps Wireless N USB Adapter can easily adapt from
peer-to-peer networks, suitable for a small number of users, to full infrastructure
networks of thousands of users that allow roaming around a broad area.
Overview of this User’s Guide
Introduction. Describes the 300Mbps Wireless N USB Adapter and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
300Mbps Wireless N USB Adapter.
Hardware Installation. Describes the LED indicator on the Adapter.
Software Installation. Describes how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the 300Mbps Wireless N USB Adapter.
2
UNPACKING AND SETUP
This section provides unpacking and setup information for the 300Mbps Wireless N
USB Adapter.
Unpacking
The box should contain the following items:
One TEW-624UB 300Mbps Wireless N USB Adapter
One Driver & Utility CD-ROM
One Multi-Language Quick Installation Guide
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
Before installation, check the following:
Make sure your computer is running at least a 300MHz or above processor with
256MB RAM or above
Make sure the USB ports are is USB 2.0 port
The operating system on your computer must be the following: Windows 2000
(Service Pack 4), XP (Service Pack 2), Windows Vista
A draft 802.11n or 802.11b/g access point.
Make sure the environment has minimal interference and obstructions.
Connecting the USB Extension Cable
The USB extension cradle that comes with the Adapter has Type A connectors on
both ends. One end of the cradle is a male Type A connector that plugs into the
PC’s USB port. The other end of the cradle is a female Type A connector that
plugs into the Adapter.
This USB extension cradle can be adjusted to improve the wireless connection. It is
recommended that the 300Mbps Wireless N USB Adapter is perpendicular to the
ground.
3
SOFTWARE INSTALLATION
This section describes how to install the driver and utility for the 300Mbps Wireless
N USB Adapter.
Windows Based Utility Installation

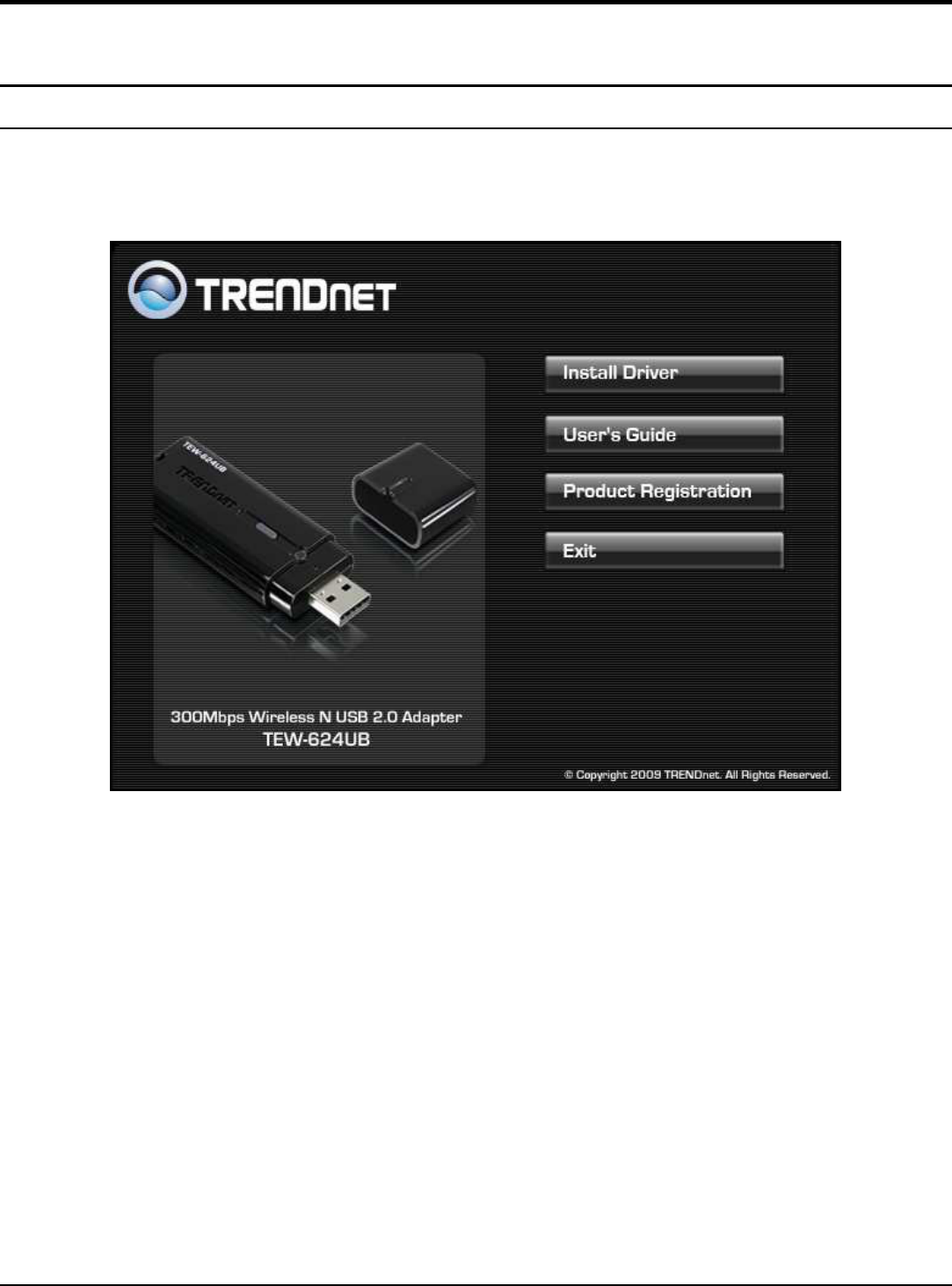

1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and
then click Install Utility.
2) Follow the InstallShield Wizard Instructions
4

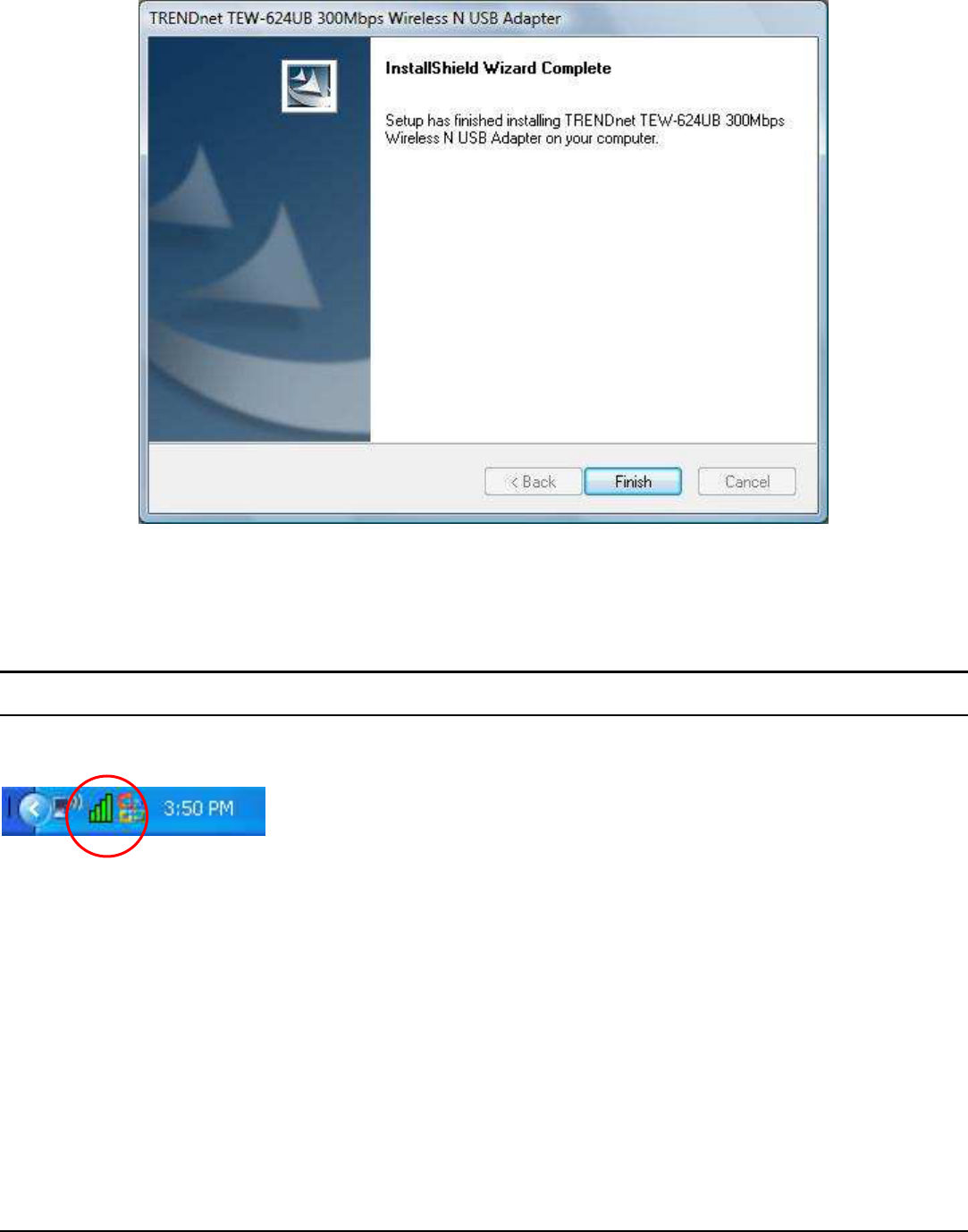

3) Click Finish to restart the computer.
4) Plug the 300Mbps Wireless N USB Adapter into an available USB slot on your
computer
Wireless Utility Setting
The user can configure the wireless settings using the Wireless Adapter
Configuration Utility. Double-click the utility icon that appears in the taskbar.
The Wireless Adapter Configuration Utility is divided into five sections: Link Info,
Configuration, Advanced, Site Survey and About.
5

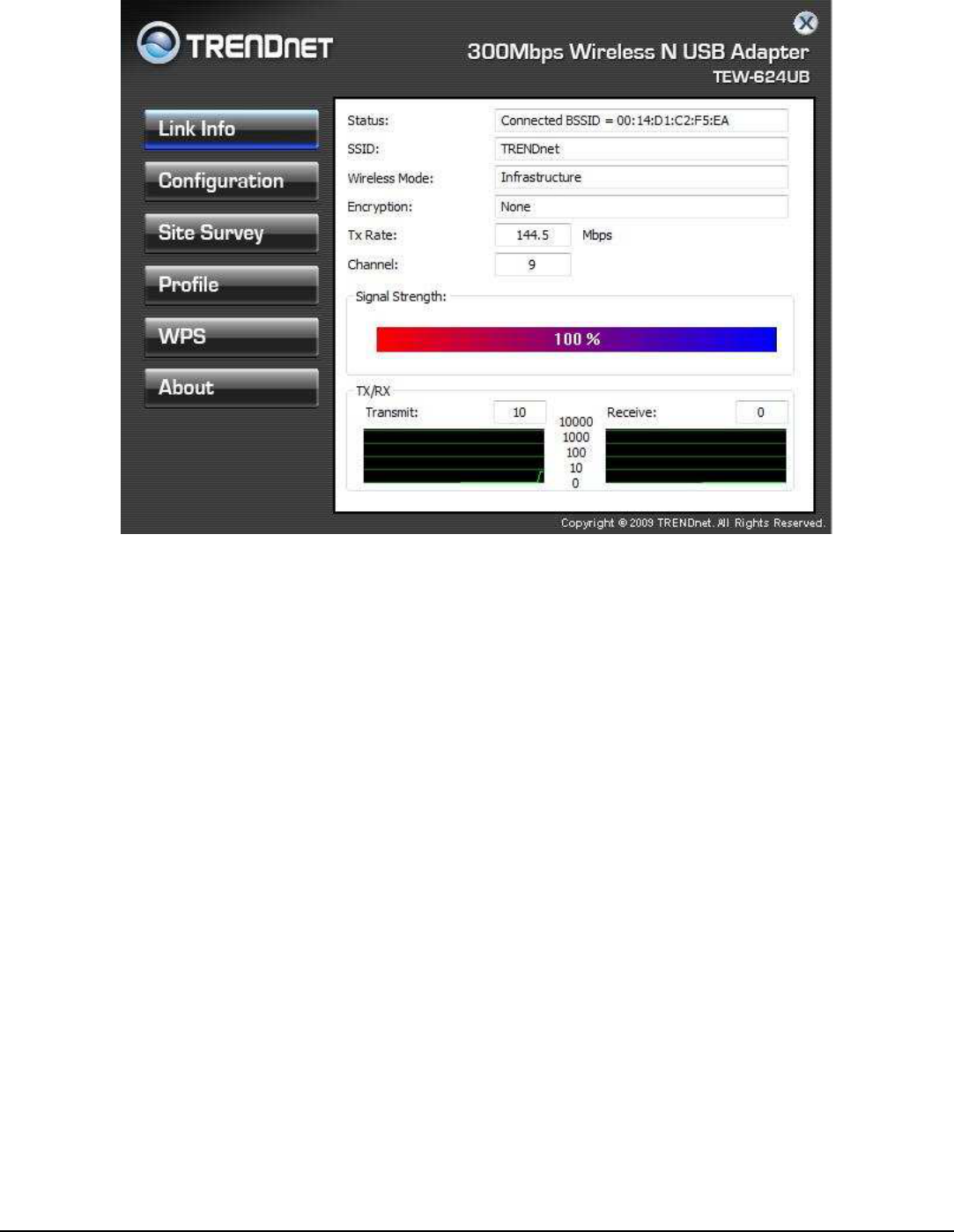

I. Link Information
This is the default screen after launching the Utility program.
Status: Shows the associated BSSID, which can be used to identify the wireless
access point.
SSID: Shows the current SSID, which must be the same on the wireless client and
AP in order for communication to be established.
Wireless Mode: Shows the current wireless mode used for wireless communication.
Encryption: Shows the current encryption mode used on the wireless network.
TxRate: Shows the current data rate used for transmitting.
Channel: Shows the current channel for communication.
Signal Strength: Shows the wireless signal strength of the connection between the
300Mbps Wireless N USB Adapter with the Access Point.
Data Rate: Shows the statistics of data transfer, and the calculation is based on the
number of packets transmitted and received.

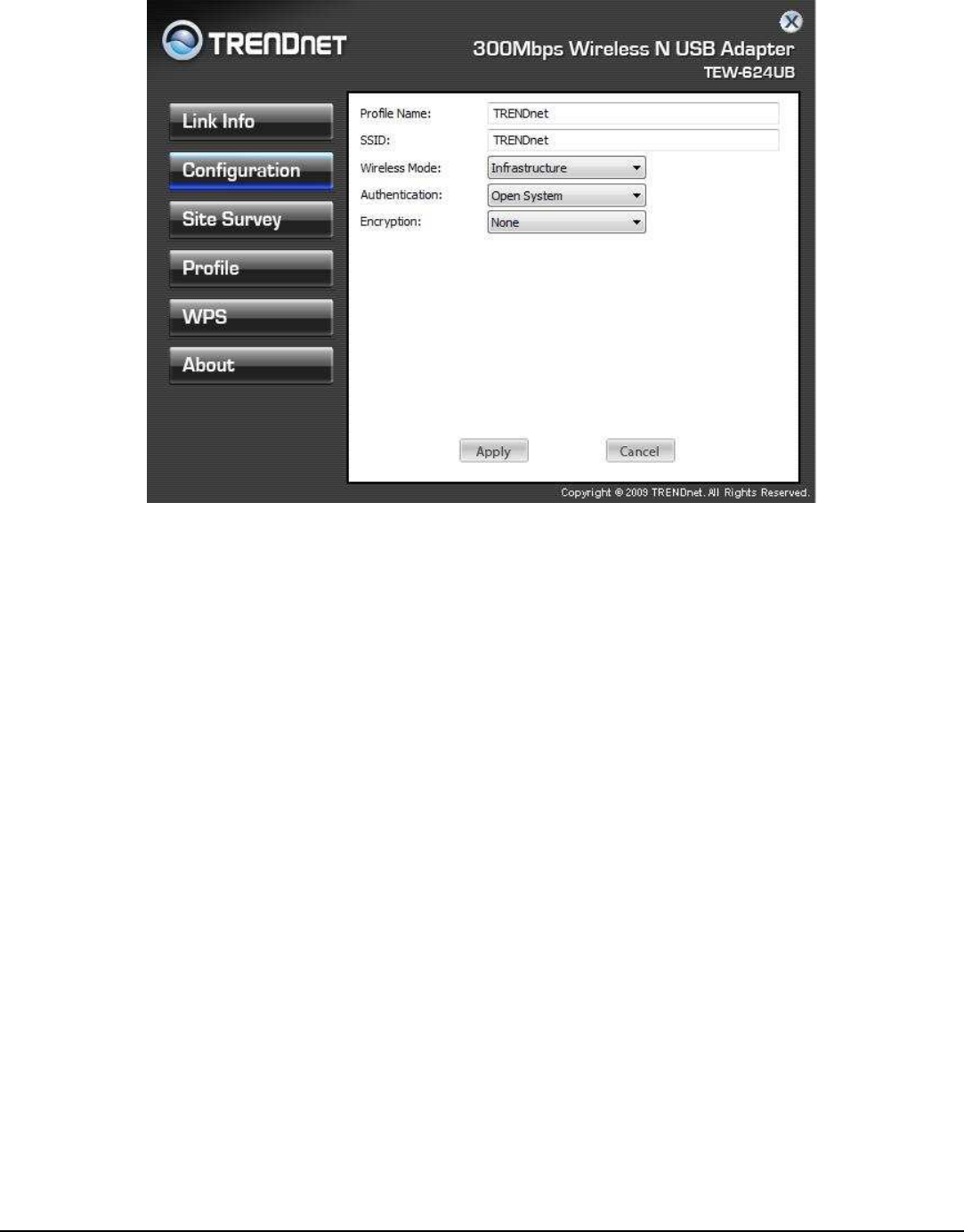

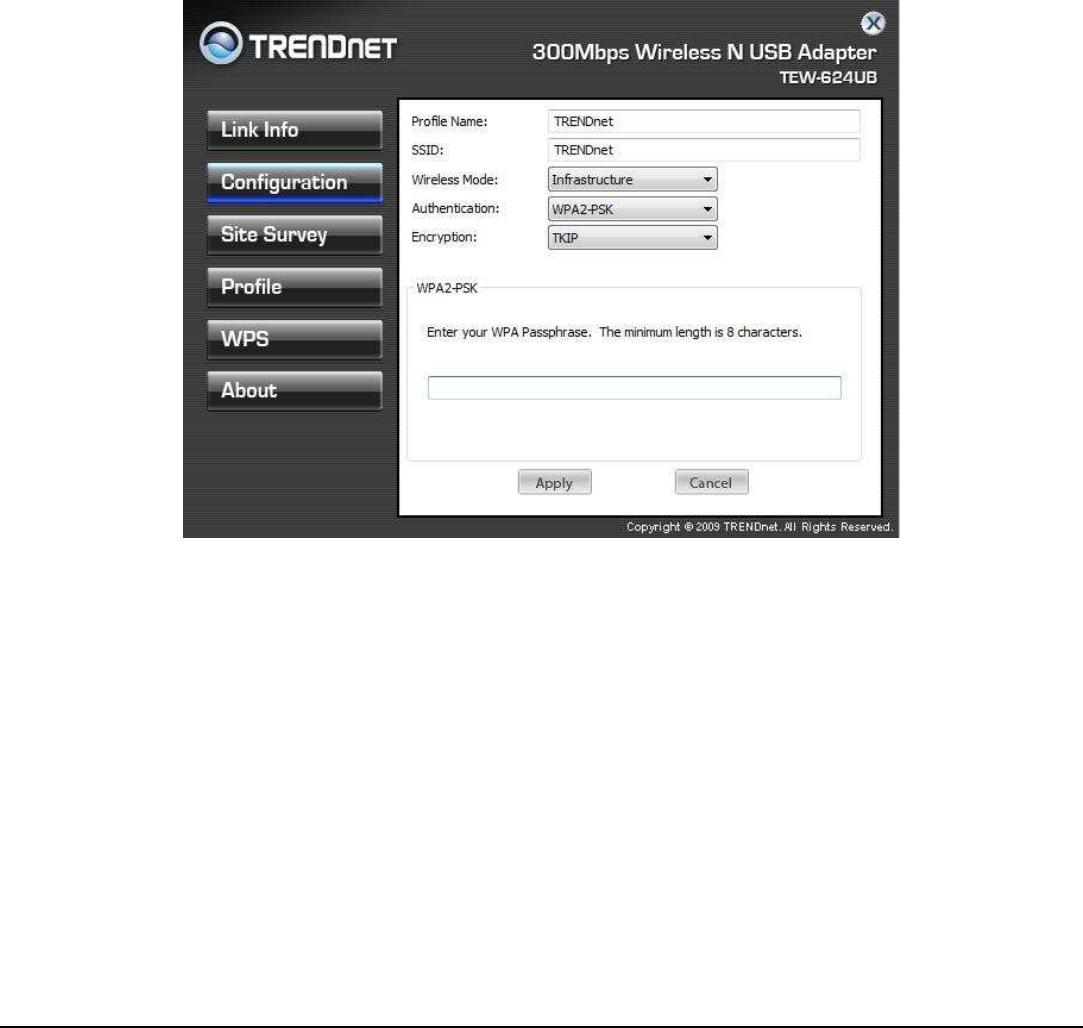

II. Configuration
6
This screen is where you set the basic wireless settings for the 300Mbps Wireless N
USB Adapter
SSID: Service Set Identifier, which is a unique name shared among all clients in a
wireless network. The SSID must be identical for each client in the wireless
network.
Wireless Mode: There are two modes available for selection
●Infrastructure – to establish wireless communication with the LAN and other
wireless clients through the use of Access Points.
●Ad-Hoc – to establish point-to-point wireless communication directly with other
wireless client devices.
AdHoc Band: There are three available selection for Auto, 11b and 11g
Channel: The channel the AP operates on. Users can select the channel range of 1
to 11 for North America (FCC) domain and 1 to 13 for European (ETSI) and Japan
(MKK) domains.
Authentication: The following options are available: Open System, Shared Key,
Auto, WPA/WPA2 and WPA-PSK/WPA2-PSK. Select Open System, Shared
Key or Auto for WEP data encryption feature.
Open System and Shared Key requires the user to set a WEP key to exchange data
with other wireless clients that have the same WEP key. Auto automatically selects
the proper authentication mode.
7
The following will only be activated when Open, Shared Key or Auto is enabled:
Network Key: choose the encryption way, either in HEX or ASCII formats,
and enter the password in the blank space.
Key Length: select 64 or 128 bits as the length of the keys
Default Key: select one of the 4 keys to use.
Key Format: ASCII or HEX
If WPA/WPA2 is selected, configuration is enabled.
Please click the
“configuration” button. The following window appears. Select the desired
Certification, select the desired Certification Authority and then enter the
Server/Domain name and Login Name
If WPA-PSK/WPA2-PSK is selected, click the “configuration” button. The
below window appears. Please enter a WPA Passphrase.
8
III. Site Survey
This screen allows the user to scan for available wireless networks (wireless clients
and Access Points). It also allows the user to establish wireless communications
with an available wireless network.
Available Network – displays the wireless networks (wireless clients and access
points) that are within range.
9
Select any one of the wireless networks by double-clicking on it or clicking on the
“Connect” button.
Click the “Refresh” button to scan for available networks.

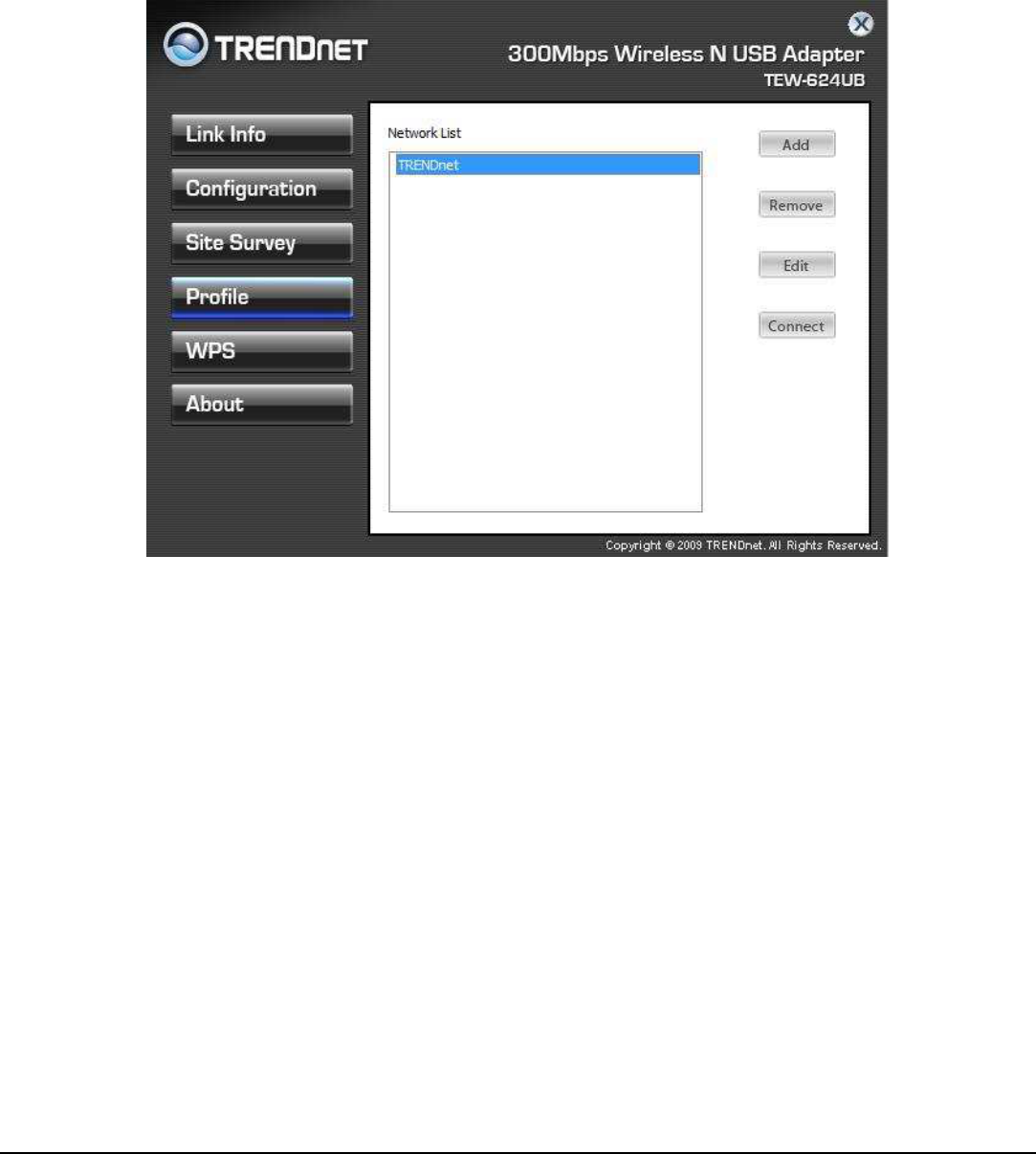

IV. Profile
This screen allows the user to scan manually add, edit and connect to existing
profiles.
Add: Adds a profile. The following screen will appear. The user can enter the
necessary information required for accessing Access Points or Wireless Router.
Remove: Deletes the selected profile
Edit: The user can edit an existing profile.
Profile – The user can create and manage the created profiles for home, work or
public areas. By double-clicking on one of the created profile, the setting will adjust
to the specific setting such as SSID, channel, and WEP as saved by that particular
profile.
Connect: The user can manually connect to the selected profile.
10
WPS
WiFi Protected Setup (WPS) is an optional certification program from the Wi-Fi
Alliance that is designed to ease the task of setting up and configuring security on a
wireless network. There are two methods used in the WPS as below instruction.

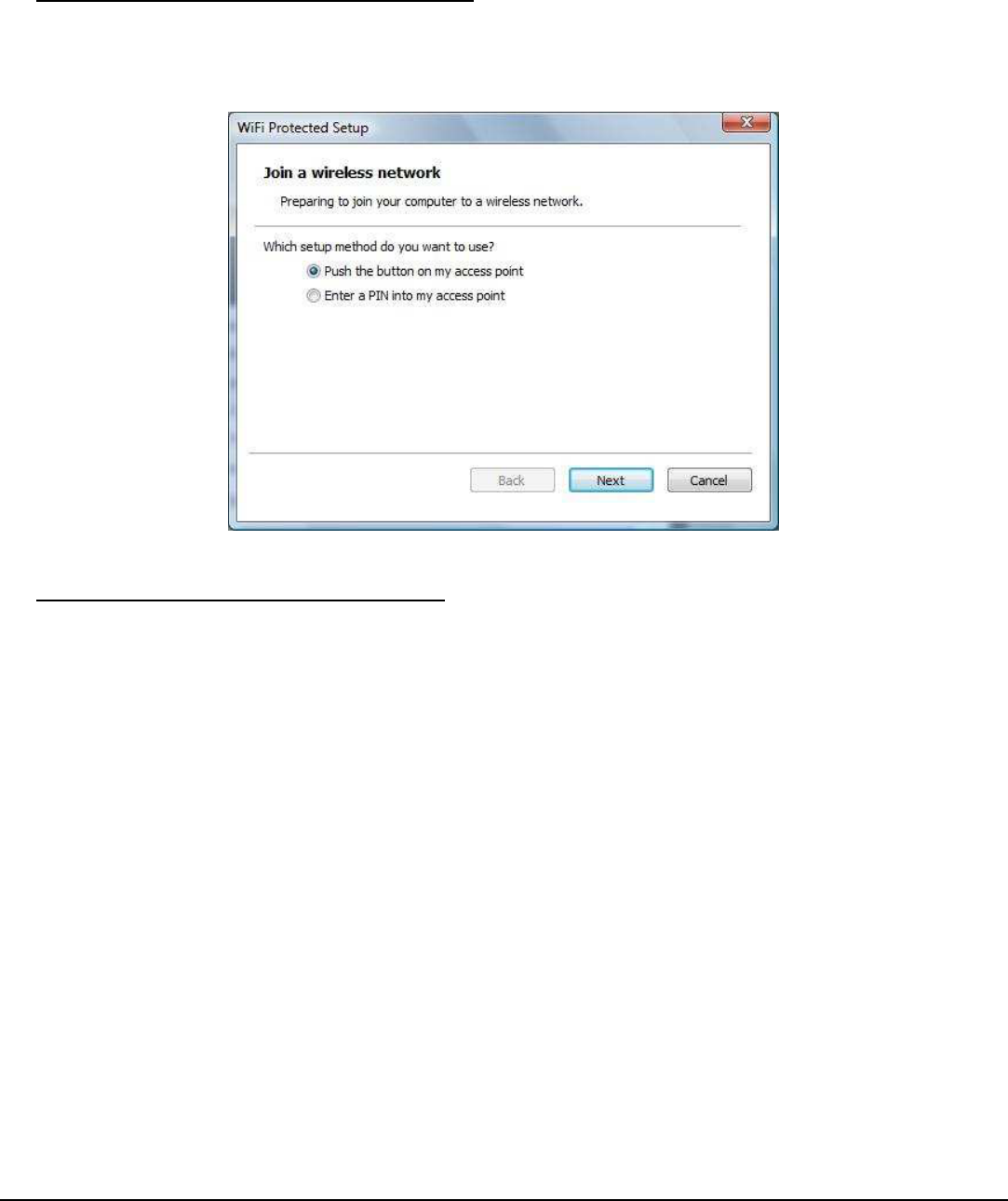

- Push the button on my access point -
To select the Push the button on my access point is for wireless client option.
There is a push button on the device or through a simulated button in the utility

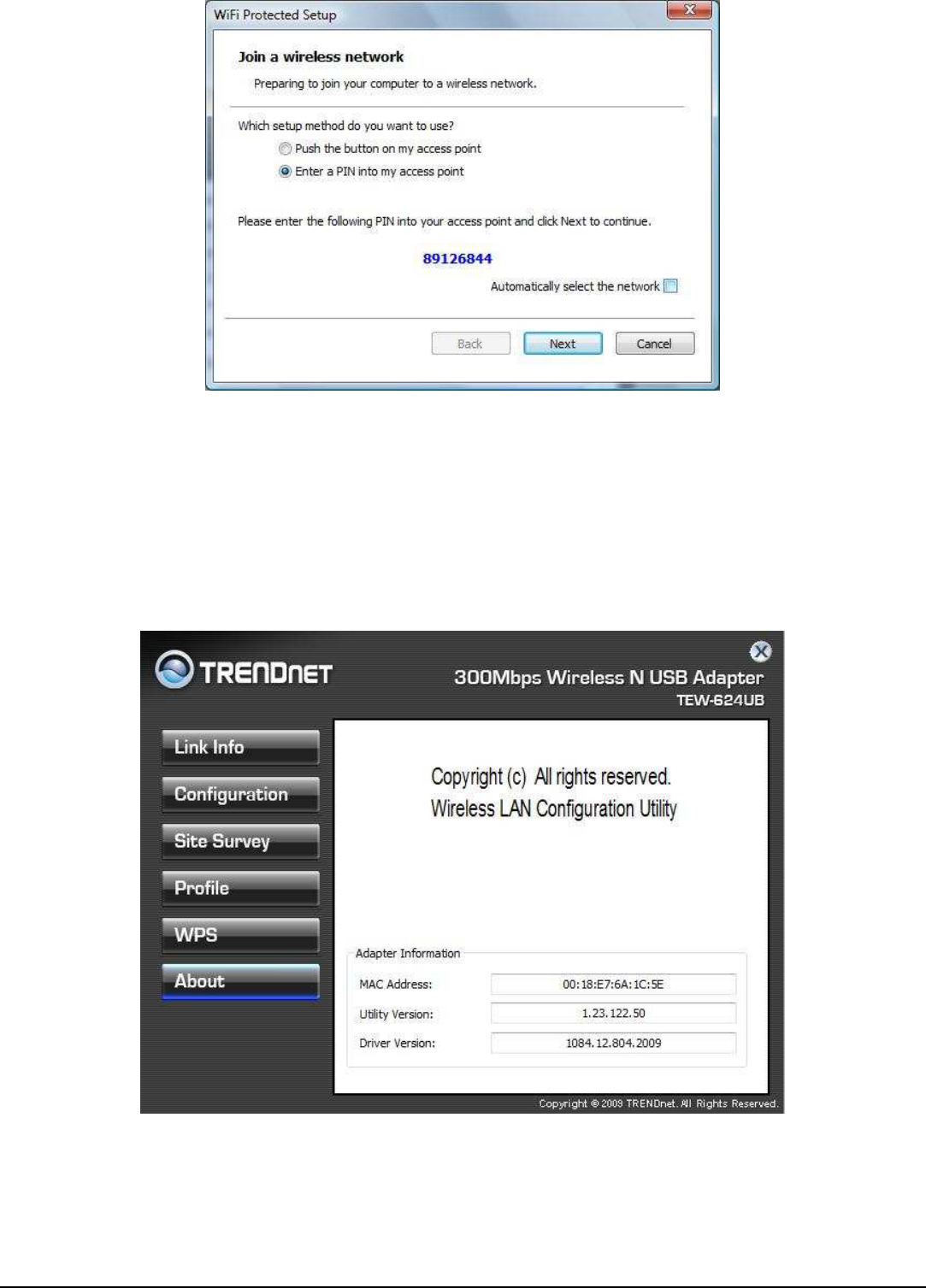

- Enter a PIN into my access point -
To Enter a PIN is a mandatory method of setup for all WPS certified devices. If
you are using this method, you will need a Registrar Access Points or Wireless
Router to initiate the registration between the Wireless N USB Adapter and
Access Points or Wireless Router. PIN No. is a random numeral.
Select one Registrar Access Points or Wireless Router.
11
V. About
This screen displays information about the 300Mbps Wireless N USB Adapter,
such as the Driver and Utility version. When a new version of the utility becomes
available for upgrade, users will be able to identify by version numbers.
Remove: Deletes the selected profile
12
TECHNICAL SPECIFICATIONS
Hardware
Interface USB 2.0, 1.1 Standard
Standards IEEE 802.11b, IEEE 802.11g and IEEE 802.11n (draft 2.0)
Power Consumption Receive Mode: 167mA(max) ; Transmit Mode: 224mA(max)
Supported OS Windows XP(32-bit) /Vista (32/64-bit)
Dimensions (LxWxH) 80 x 27 x 12mm (3.1 x 1 x 0.5 inches)
Weight 20g (0.7oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity 10% ~ 95%max (Non-condensing)
Certification CE, FCC
Wireless
Module Technique 802.11b: DSS
802.11g: OFDM801.11n: OFDM
Antenna Built-in 2 High Performance Internal Printed Antennas
Frequency 2.412 ~ 2.484 GHz
Media Access Protocol CSMA/CA with ACK
Data Rate
(auto fallback)
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n (draft): up to 270Mbps
Output Power 27 dBm
Receiving Sensitivity 802.11b: -84dBm (typical) @ 10% PER
802.11g: -65dBm (typical) @ 10% PER
802.11n : -62dBm (typical) @ 8% PER
Encryption 64/128-bit WEP (Hex & ASCII), WPA/WPA2-RADIUS, WPA-PSK/WPA2-PSK (AES/TKIP)
Channels 1~11 (FCC), 1~13 (ETSI)
LIMITED WARRANTY
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the
following lengths of time from the date of purchase.
TEW-624UB – 3 Years Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.
If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at
its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer.
The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced
become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue
refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in,
stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any
unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any
unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was
subject to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy
of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization
(RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet
products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of
return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers
shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside
of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S
SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE
ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE,
NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER
CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS
SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID,
AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY
PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU
General Public License ("GPL") or GNU Lesser General Public License ("LGPL").
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet
product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to
the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to
http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.
PWP05202009v2
