TRENDNET TEW624UBD1 300Mbps Mini Wireless N USB Adapter User Manual UG TEW 624UB D1 0R labreviewd

TRENDNET, Inc. 300Mbps Mini Wireless N USB Adapter UG TEW 624UB D1 0R labreviewd

User Man_XU8TEW624UBD1

i
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended
operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible
from the user body or set the device to lower output power if such function is available.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop
computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with
related RF exposure rule and such use shall be prohibited.
The USB dongle transmitter is approved for use in typical laptop computers. To comply with FCC RF exposure requirements, it
should not be used in other devices or certain laptop and tablet computer configurations where the USB connectors on the host
computer are unable to provide or ensure the necessary operating configurations intended for the device and its users or bystanders to
satisfy RF exposure compliance requirements.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at
the factory to match the intended destination. The firmware setting is not accessible by the end user.
For Taiwan 警語
警語警語
警語：
：：
：
經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之
特性及功能。
低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方
得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫
療用電波輻射性電機設備之干擾。
ii
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been
applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2009
Safety of Information Technology Equipment
EN 62311: 2008
Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz – 300GHz)
EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1 (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements
EN 301 489-17 V2.1.1 (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN
equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries,
except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device
for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10
mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum
authority in France.
iii
Česky [Czech] TRENDnet tímto prohlašuje, že tento TEW-624UB je ve shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk [Danish] Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-624UB overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Deutsch [German] Hiermit erklärt TRENDnet, dass sich das Gerät TEW-624UB in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti [Estonian] Käesolevaga kinnitab TRENDnet seadme TEW-624UB vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, TRENDnet, declares that this TEW-624UB is in compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
Español [Spanish] Por medio de la presente TRENDnet declara que el TEW-624UB cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική [Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ∆ΗΛΩΝΕΙ ΟΤΙ TEW-624UB ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.
Français [French]
Par la présente TRENDnet déclare que l'appareil TEW-624UB est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano [Italian] Con la presente TRENDnet dichiara che questo TEW-624UB è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski [Latvian] Ar šo TRENDnet deklarē, ka TEW-624UB atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių [Lithuanian] Šiuo TRENDnet deklaruoja, kad šis TEW-624UB atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands [Dutch] Hierbij verklaart TRENDnet dat het toestel TEW-624UB in overeenstemming is met de essentiële eisen en de
andere relevante bepalingen van richtlijn 1999/5/EG.
Malti [Maltese] Hawnhekk, TRENDnet, jiddikjara li dan TEW-624UB jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti
oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar [Hungarian] Alulírott, TRENDnet nyilatkozom, hogy a TEW-624UB megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish] Niniejszym TRENDnet oświadcza, że TEW-624UB jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português [Portuguese]
TRENDnet declara que este TEW-624UB está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko [Slovenian] TRENDnet izjavlja, da je ta TEW-624UB v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky [Slovak] TRENDnet týmto vyhlasuje, že TEW-624UB spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi [Finnish] TRENDnet vakuuttaa täten että TEW-624UB tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska [Swedish] Härmed intygar TRENDnet att denna TEW-624UB står I överensstämmelse med de väsentliga egenskapskrav
och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
iv
TABLE OF CONTENT
Introduction................................................................................................1
Overview of this User’s Guide .................................................................................1
Unpacking and Setup .................................................................................2
Unpacking.................................................................................................................2
Setup..........................................................................................................................2
Connecting the USB Extension Cable......................................................................2
Software Installation ..................................................................................3
Windows Based Utility Installation..........................................................................3
Wireless Utility Setting.............................................................................................4
General......................................................................................................................4

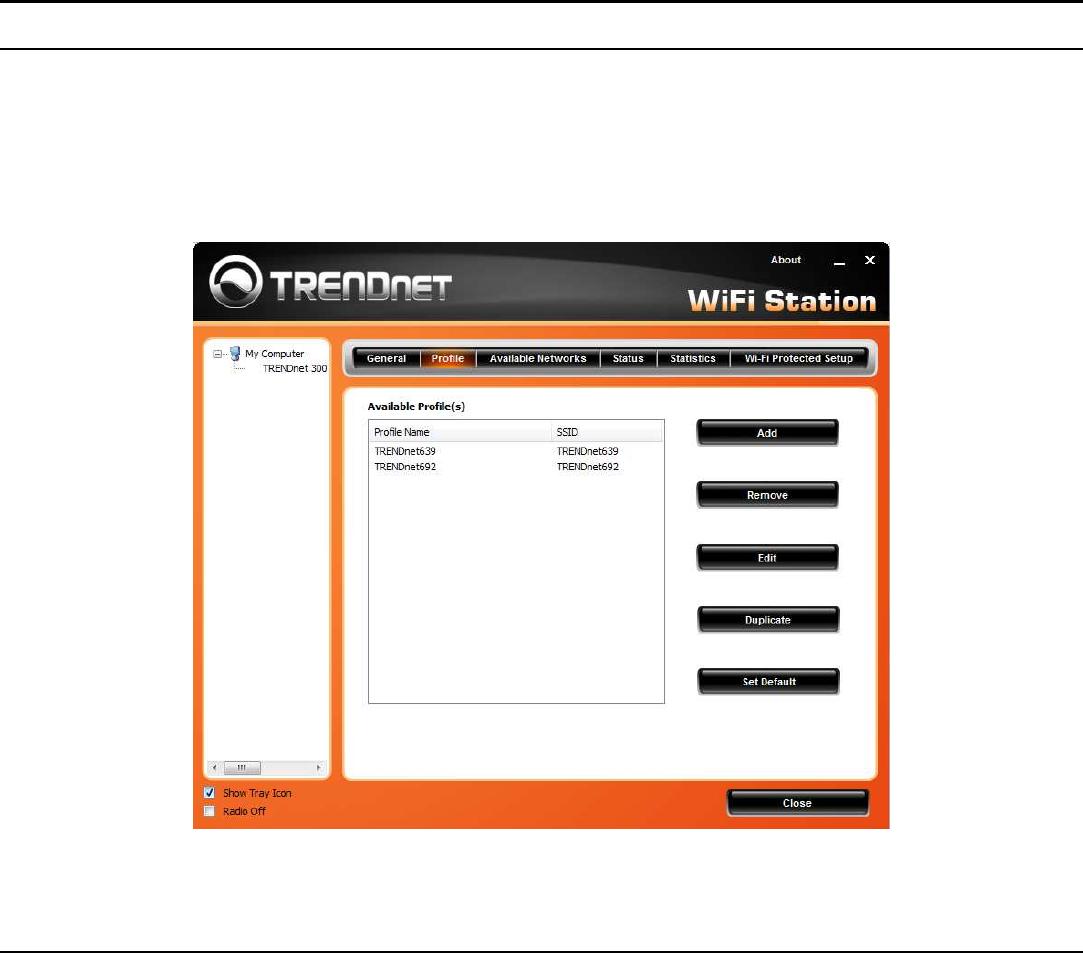

Profile........................................................................................................................5

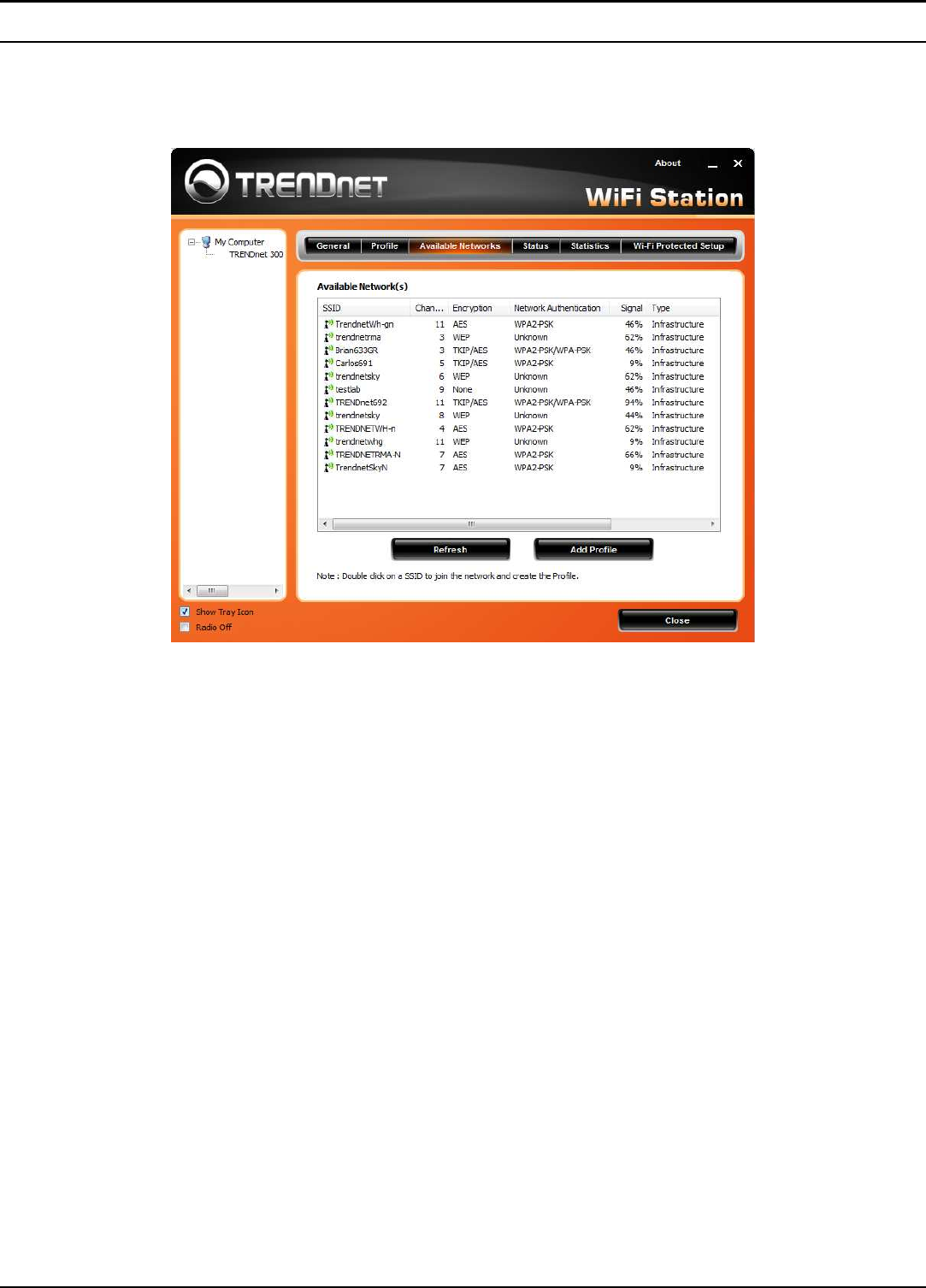

Available Networks ..................................................................................................8
Status.........................................................................................................................9

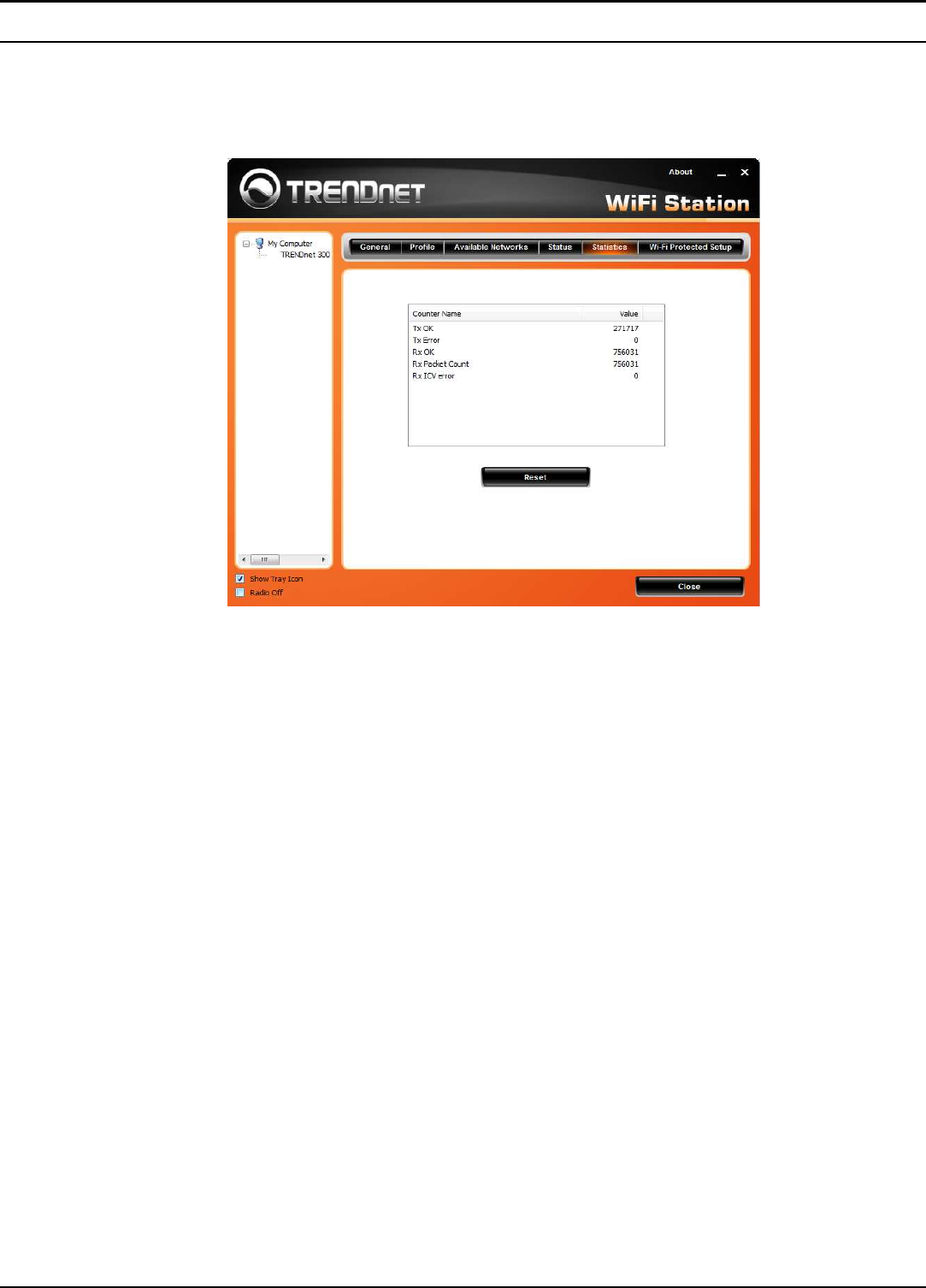

Statistics ..................................................................................................................10

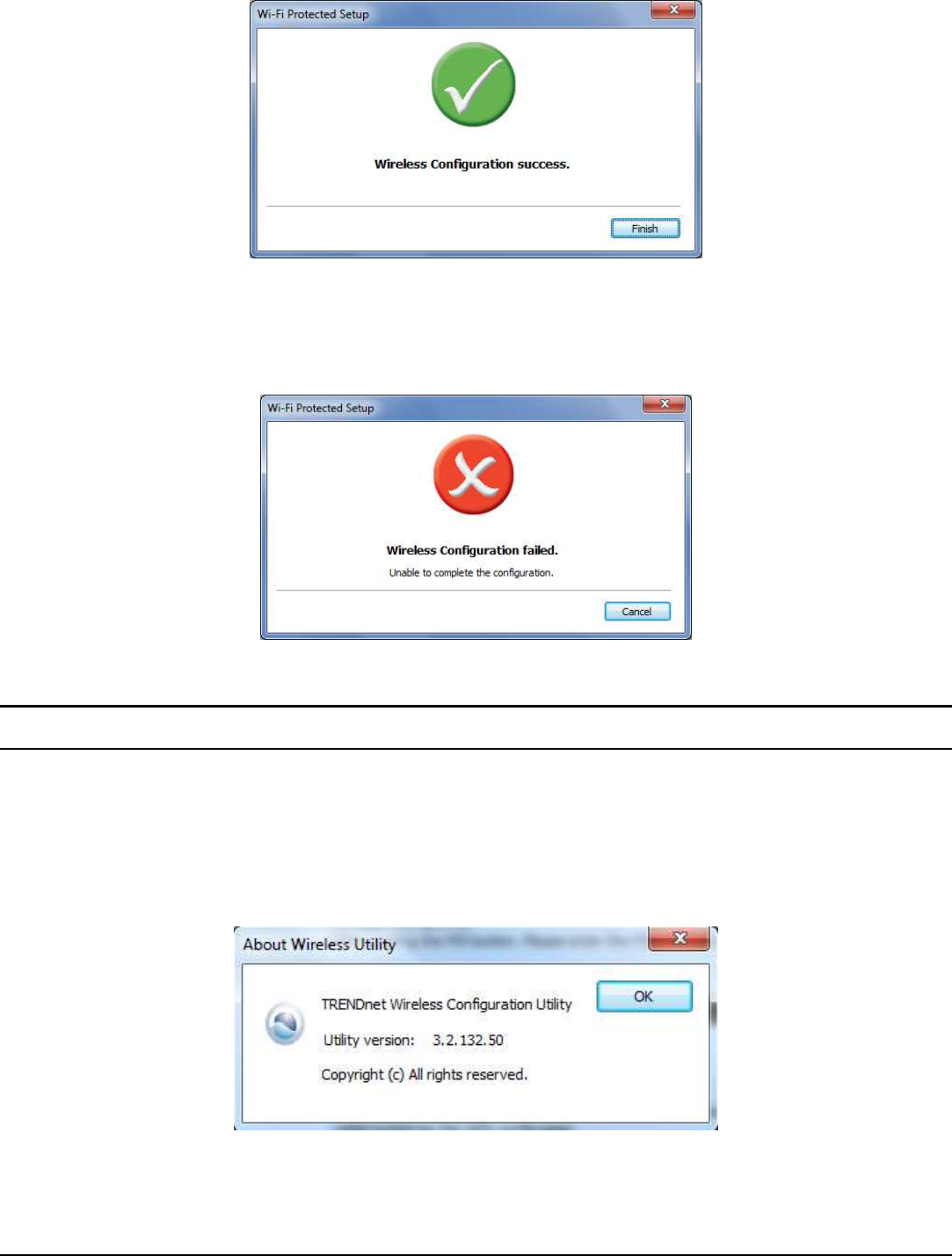

WPS.........................................................................................................................11
About.......................................................................................................................16
Technical Specifications ..........................................................................17
Limited Warranty.....................................................................................18
1
INTRODUCTION
Congratulations on your purchase of this 300Mbps Wireless N Mini USB Adapter.
This manual contains detailed instructions regarding the operation of this product.
Please keep this manual for future reference.
With the 300Mbps Wireless N Mini USB Adapter, a desktop or laptop computer
can communicate with another computer wirelessly. An easy-to-use utility is
bundled with the Wireless USB Adapter for configuration, monitoring, and
diagnostic purposes.
The 300Mbps Wireless N Mini USB Adapter can wirelessly transmit and receive
data, at a speed of up to 54 megabits per second.
The 300Mbps Wireless N Mini USB Adapter provides users with access to real-
time information anywhere in their organization. The mobility of the 300Mbps
Wireless N Mini USB Adapter provides productivity and service, which are not
available under wired networks. The 300Mbps Wireless N Mini USB Adapter can
easily adapt from peer-to-peer networks, suitable for a small number of users, to
full infrastructure networks of thousands of users that allow roaming around a
broad area.
Overview of this User’s Guide
Introduction. Describes the 300Mbps Wireless N Mini USB Adapter and its
features.
Unpacking and Setup. Helps you get started with the basic installation of the
300Mbps Wireless N Mini USB Adapter.
Hardware Installation. Describes the LED indicator on the Adapter.
Software Installation. Describes how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the 300Mbps Wireless N Mini USB Adapter.
2
UNPACKING AND SETUP
This section provides unpacking and setup information for the 300Mbps Wireless N
Mini USB Adapter.
Unpacking
The box should contain the following items:
One TEW-624UB 300Mbps Wireless N Mini USB Adapter
One Driver & Utility CD-ROM
One Multi-Language Quick Installation Guide
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
Before installation, check the following:
Make sure your computer is running at least a 300MHz or above processor with
256MB RAM or above
Make sure the USB ports are is USB 2.0 port
The operating system on your computer must be the following: Windows 2000
(Service Pack 4), XP (Service Pack 2), Windows Vista
A draft 802.11n or 802.11b/g access point.
Make sure the environment has minimal interference and obstructions.
Connecting the USB Extension Cable
The USB extension cradle that comes with the Adapter has Type A connectors on
both ends. One end of the cradle is a male Type A connector that plugs into the
PC’s USB port. The other end of the cradle is a female Type A connector that
plugs into the Adapter.
This USB extension cradle can be adjusted to improve the wireless connection. It is
recommended that the 300Mbps Wireless N Mini USB Adapter is perpendicular to
the ground.
3
SOFTWARE INSTALLATION
This section describes how to install the driver and utility for the 300Mbps Wireless
N Mini USB Adapter.

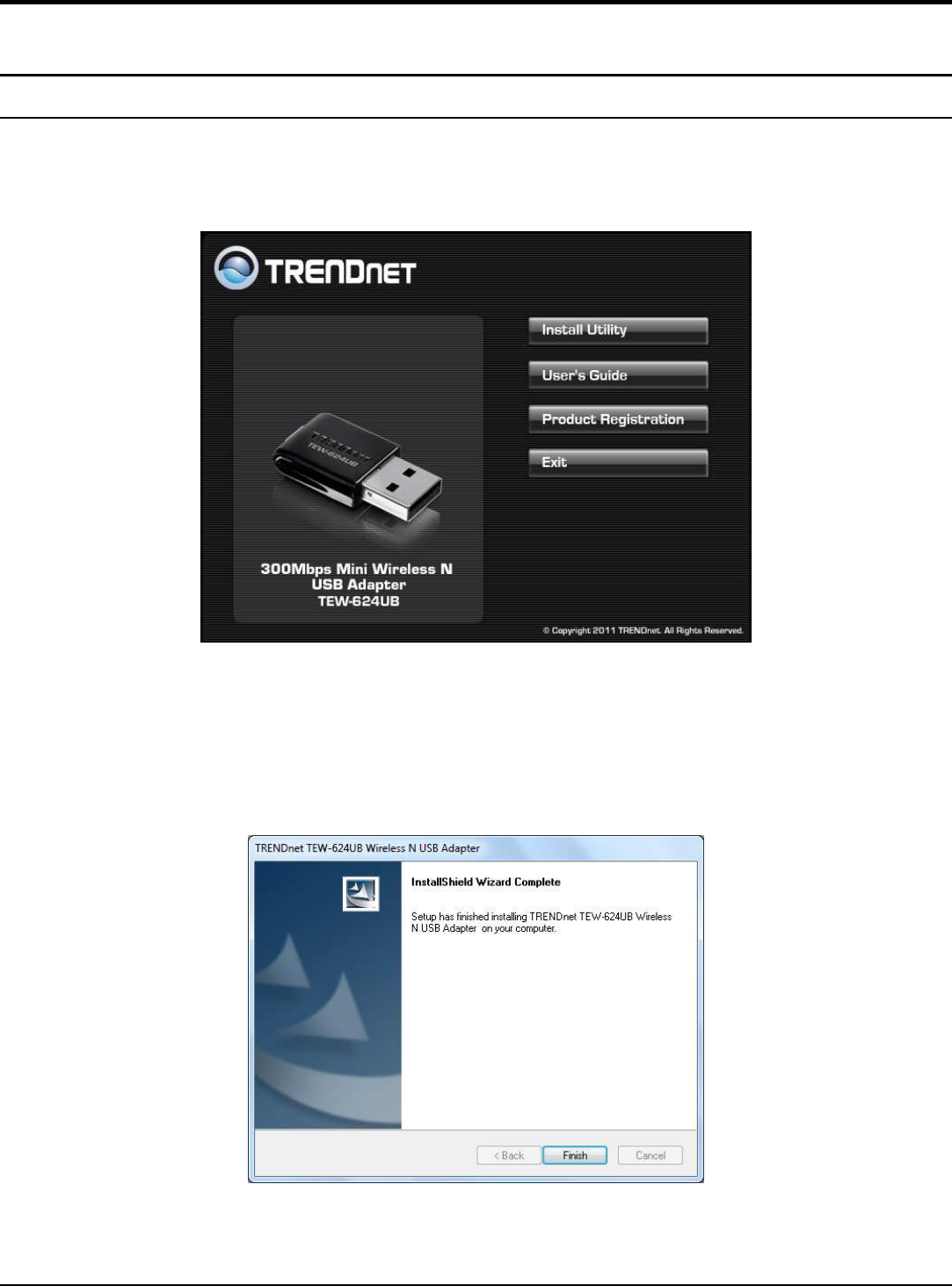

Windows Based Utility Installation
1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and
then click Install Utility.
2) Follow the InstallShield Wizard Instructions
3) Click Finish to restart the computer.
4
4) Plug the 300Mbps Wireless N Mini USB Adapter into an available USB slot on
your computer
Wireless Utility Setting
The user can configure the wireless settings using the Wireless Adapter
Configuration Utility. Double-click the utility icon that appears in the taskbar.
The Wireless Adapter Configuration Utility is divided into six sections: General,
Profile, Available Networks, Status, Statistics and WPS.

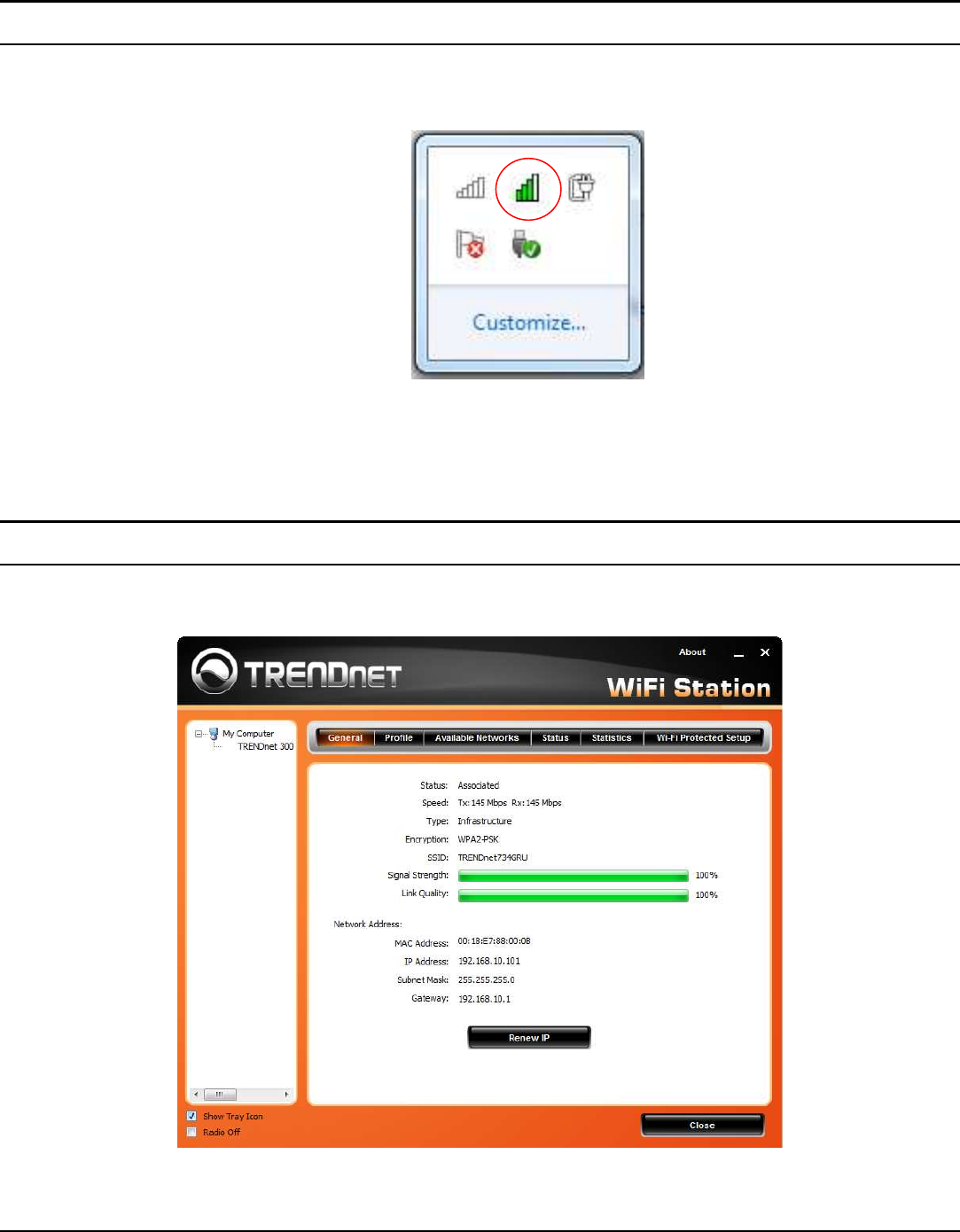

General
This screen shows the general information of the wireless adapter.
5
Status: Shows connection status.
Speed: Shows the transmission and the reception data rate.
Type: Shows the connection type, Infrastructure or Ad-Hoc mode.
Encryption: Shows the current encryption type used.
SSID: Shows the current SSID, which must be the same as your wireless access
point or router in order to establish the connection correctly.
Wireless Mode: Shows the current wireless mode used.
Signal Strength: Shows the wireless signal strength of the connection between the
adapter and the Access Point or router.
Link Quality:
Shows the statistics of data transfer, and the calculation is based on
the number of packets transmitted and received.
Network Address: Shows the MAC address and IP address of the adapter.
Profile
The user can create and manage the created profiles for home, work or public
areas. By double-clicking on one of the created profile, the setting will adjust to
the specific setting such as SSID, channel, and encryption as saved by that
particular profile.
6

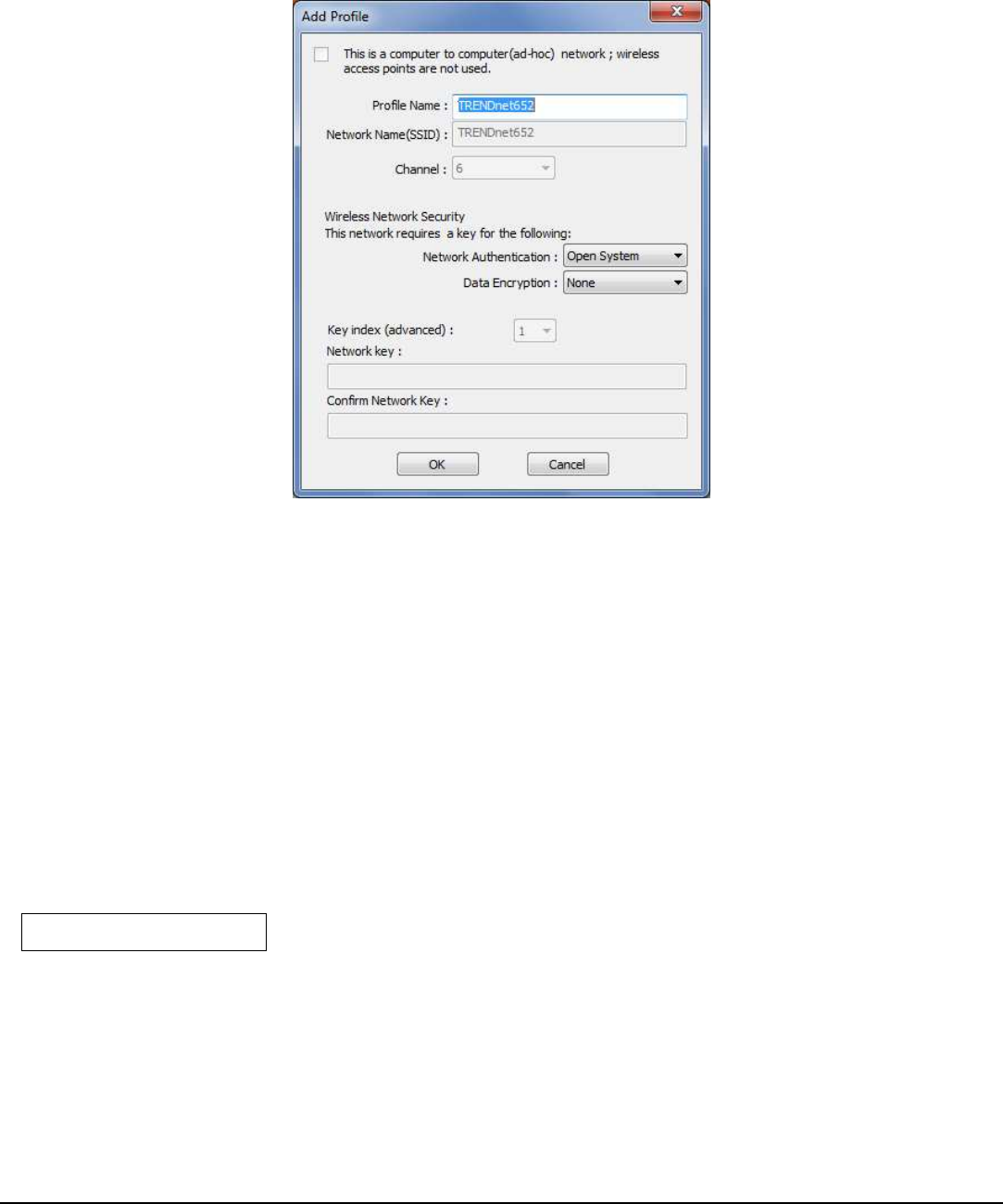

Add: Adds a profile. The following screen will appear. The user can enter the
necessary information required for accessing the particular Access Point or
Wireless Router. Or you can search the desire wireless router or AP under
Available Networks section and click on Add Profile button to add the Profile.
Remove: Deletes the selected profile
Edit: Edit an exist profile. The screen will back to profile. Edit the SSID and select
the Wireless Mode, Authentication and Encryption then click Apply to save the
profile. When the Profile name was changed, a new profile will be added in the list.
Duplicate: Duplicate the selected Profile.
Set Default: Set the selected Profile as default connection.
Wireless Network Security: The following options are available: Open System,
Shared Key, WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open
System, Shared Key for WEP data encryption feature.
Open or Shared Key
Open System and Shared Key require the user to set a WEP key to exchange data
with other wireless clients that have the same WEP key. WEP is considered basic
level of wireless encryption, if you would like higher security connection, WPA2
encryption is recommended.
Default Key: select one of the 4 keys to use.
7
Network Key: choose the encryption way, either in HEX or ASCII formats,
and enter the password in the blank space.
Key Length: select 64 or 128 bits as the length of the keys
Key Format: HEX or ASCII
Key Length Hex ASCII
Type characters 0-9, A-F, a-f alphanumeric format
64-bit 10 characters 5 characters
128-bit 26 characters 13 characters
WPA-PSK / WPA2-PSK
If using the WPA-PSK/WPA2-PSK authentication method, please select the
Encryption type for TKIP or AES then enter the Passphrase key. The minimum
length is 8 characters.
WPA EAP-TLS
If using the WPA/WPA2 EAP-TLS authentication method, please select the
Encryption type for TKIP or AES then select the WPA/WPA2 Certificate from drop
down list.
8
Available Networks
This screen allows the user to scan for available wireless network. It also allows
the user to establish wireless communications with a target device.
Available Networks – displays the wireless networks (wireless clients, access
points or routers) that are within range.
Select any one of the wireless networks and connect to it by double-clicking.
Click the “Refresh” button to rescan for available networks.
9

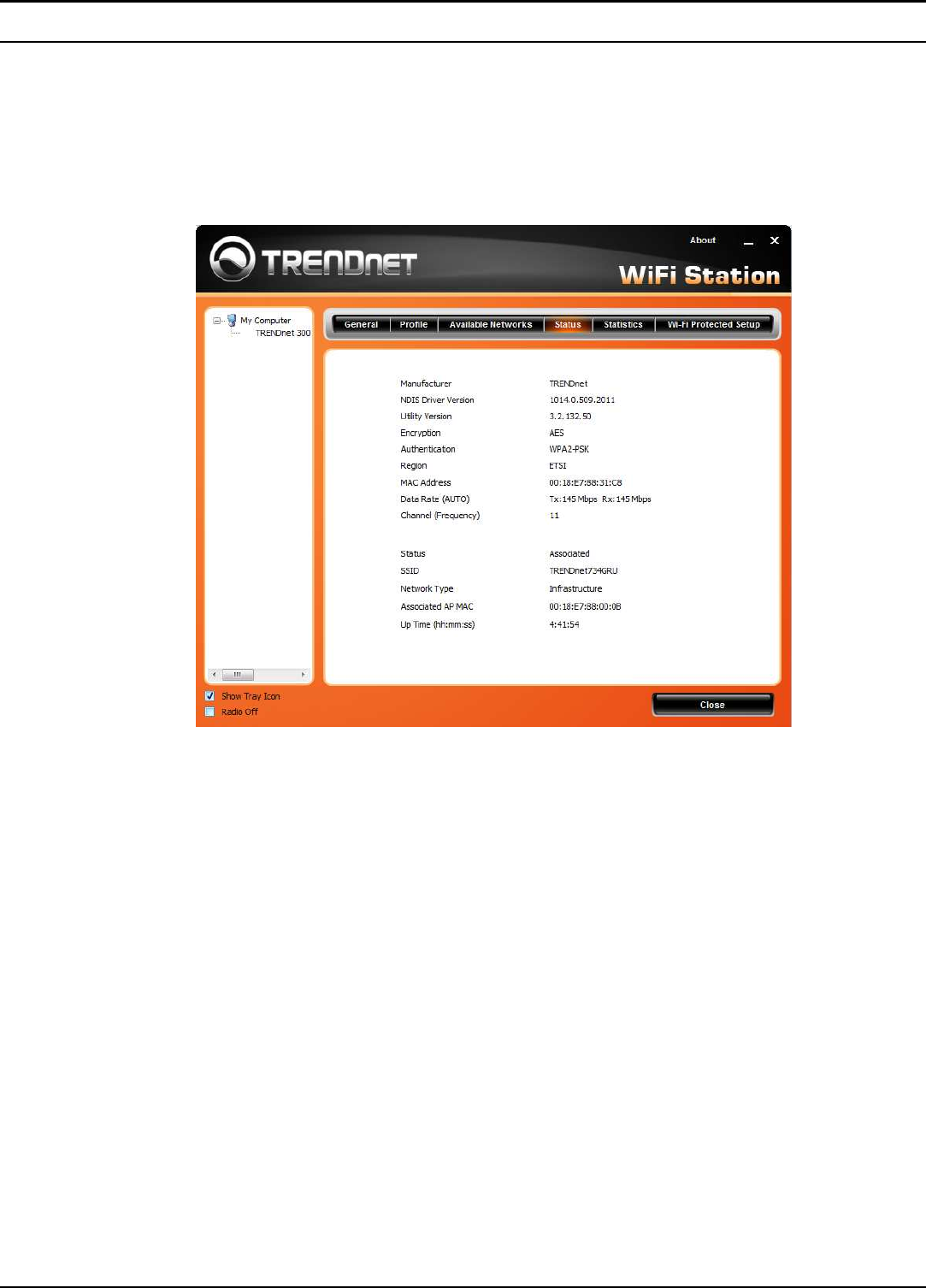

Status
Display the information of the adapter including manufacturer, driver version,
utility version, encryption, encryption type, region, adapter’s MAC address,
current connection data rate, channel, connection status, the associated router or
Access Point’s SSID, network type, associated device’s MAC address, and Up time.
SSID: Service Set Identifier, which is a unique name shared among all wireless
clients in a wireless network. The SSID must match the wireless access point or
router’s SSID that you are connecting to.
Network Type:
● Infrastructure – to establish wireless communication with the LAN and other
wireless clients through the use of Access Points or Wireless Router. This is
most common type of connection.
● Ad-Hoc – to establish point-to-point wireless communication directly with
other wireless client devices.
10
Statistics
This section displays the statistics of the adapter connection. TX means
transmission and RX means Reception.
11

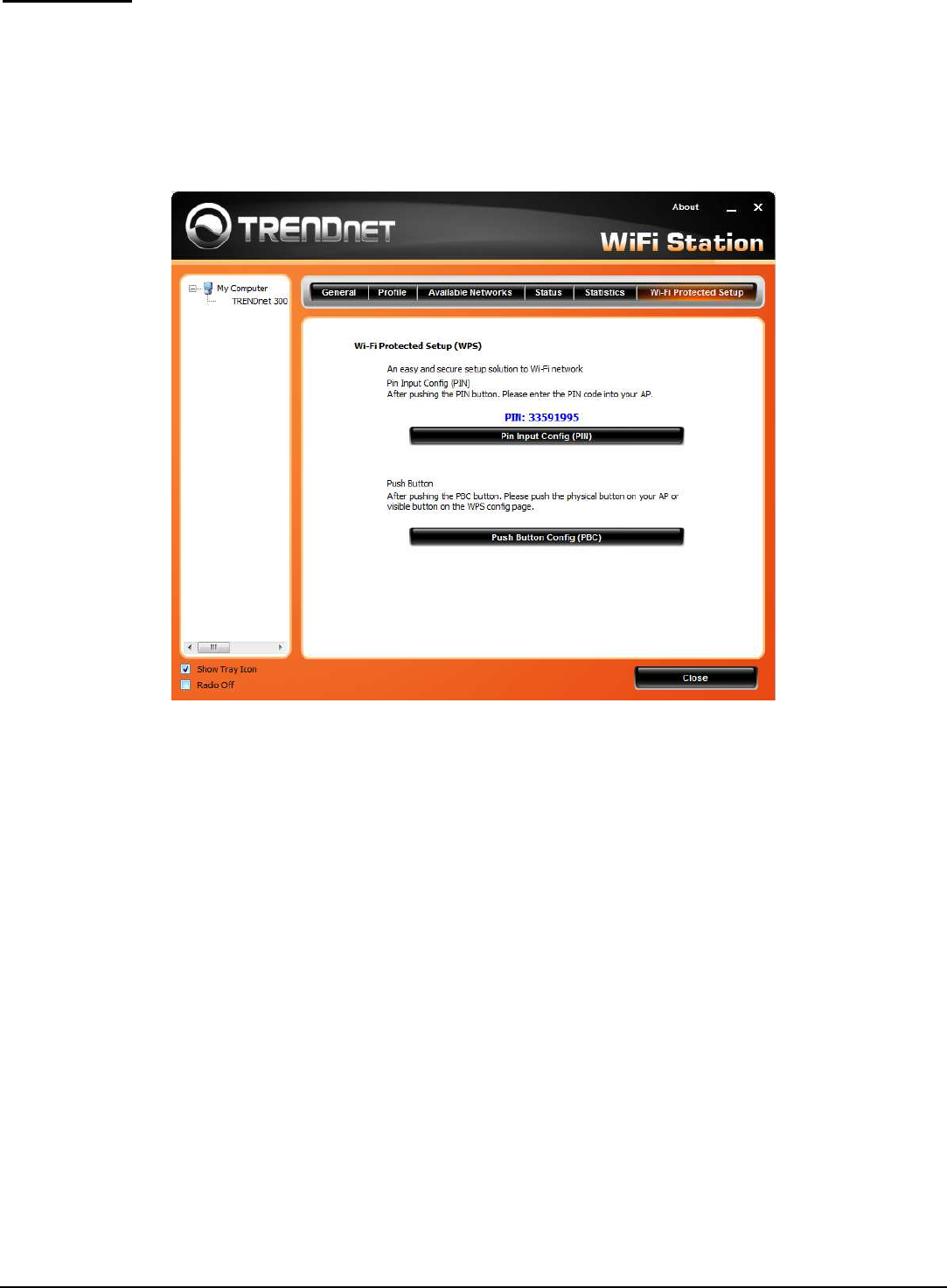

WPS
Wi-Fi Protected Setup (WPS) is an optional certification program from the Wi-Fi
Alliance that is designed to ease the task of setting up and configuring security on
a wireless network. There are two methods used in the WPS as below instruction.
Push Button
Using the WPS configuration with the Push Button method, the configuration
steps as below:
12

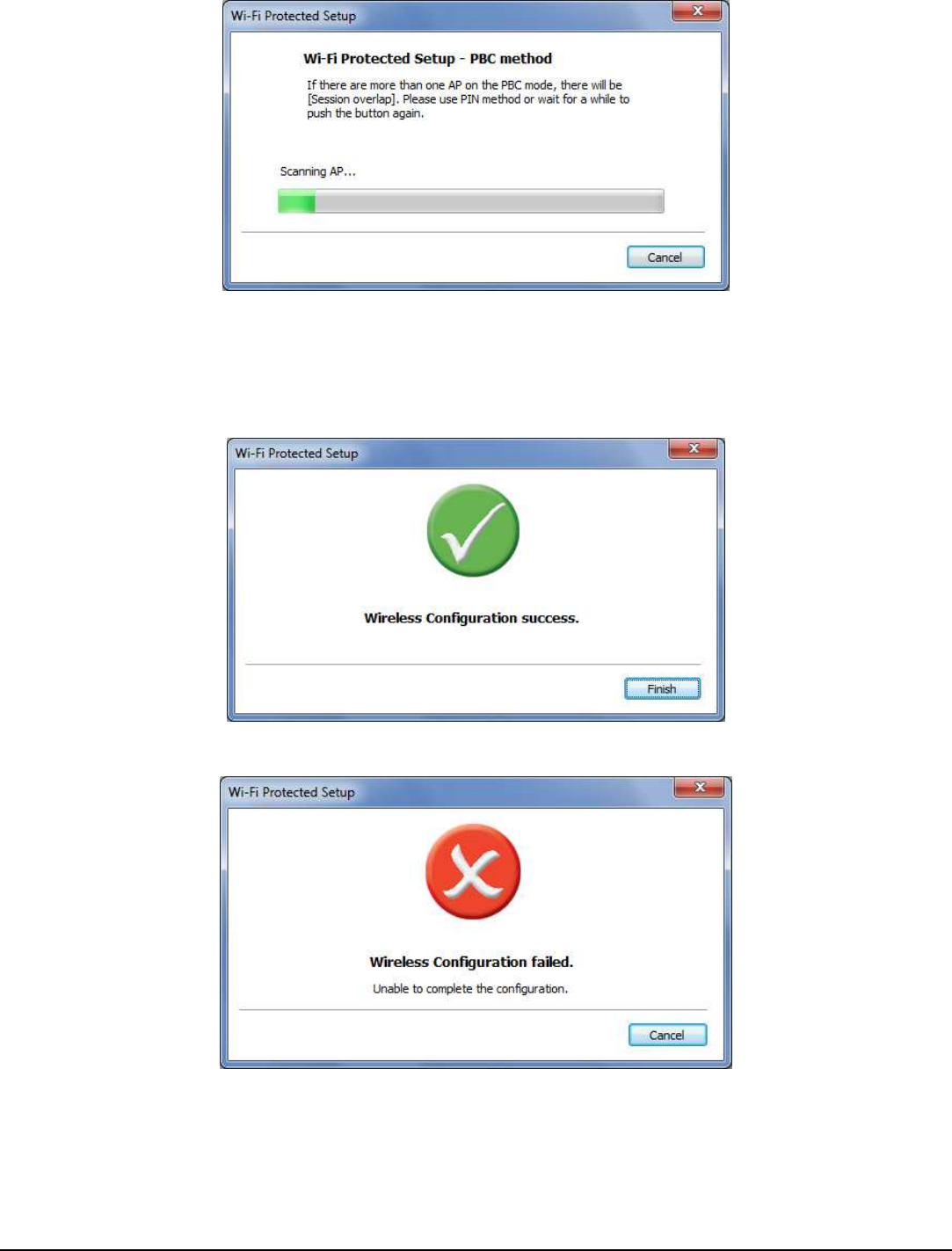

1) Click on the “Push Button Config(PBC)” button.
2)
3) Push the WPS button on your wireless access point or router.
4) Cliek the Next button start the WPS configuration.
5) If the WPS configuration was successful, the follow window will show on.
6)
7) If the WPS configuration was failed, the follow window will show on.
13
Enter a PIN
Using the WPS configuration with the PIN Input method, the configuration steps
as below:
1) Click on the Pin Input Config (PIN) button, the PIN is shown on the button of
the windows.

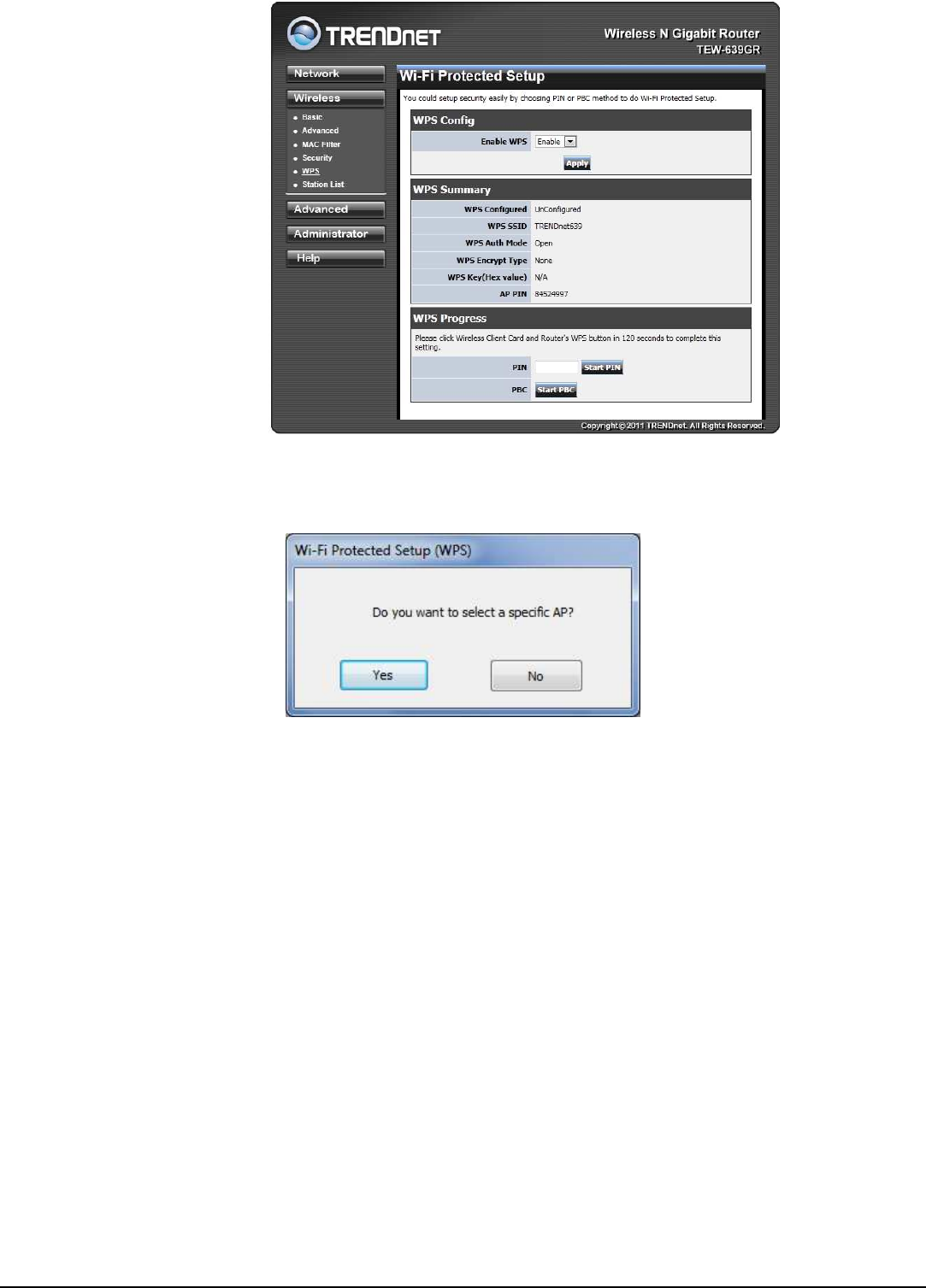

2) Enter the PIN code into the WPS “Clint PIN number” of you wireless access
point or router ( in example, TRENDnet TEW-652BRP Wireless N Router) then
click the Start PIN button, the wireless access point or router will start the WPS
configuration process.
14
3) Choose to select the specific AP/Router or a WPS enabled device with client PIN
entered.
15

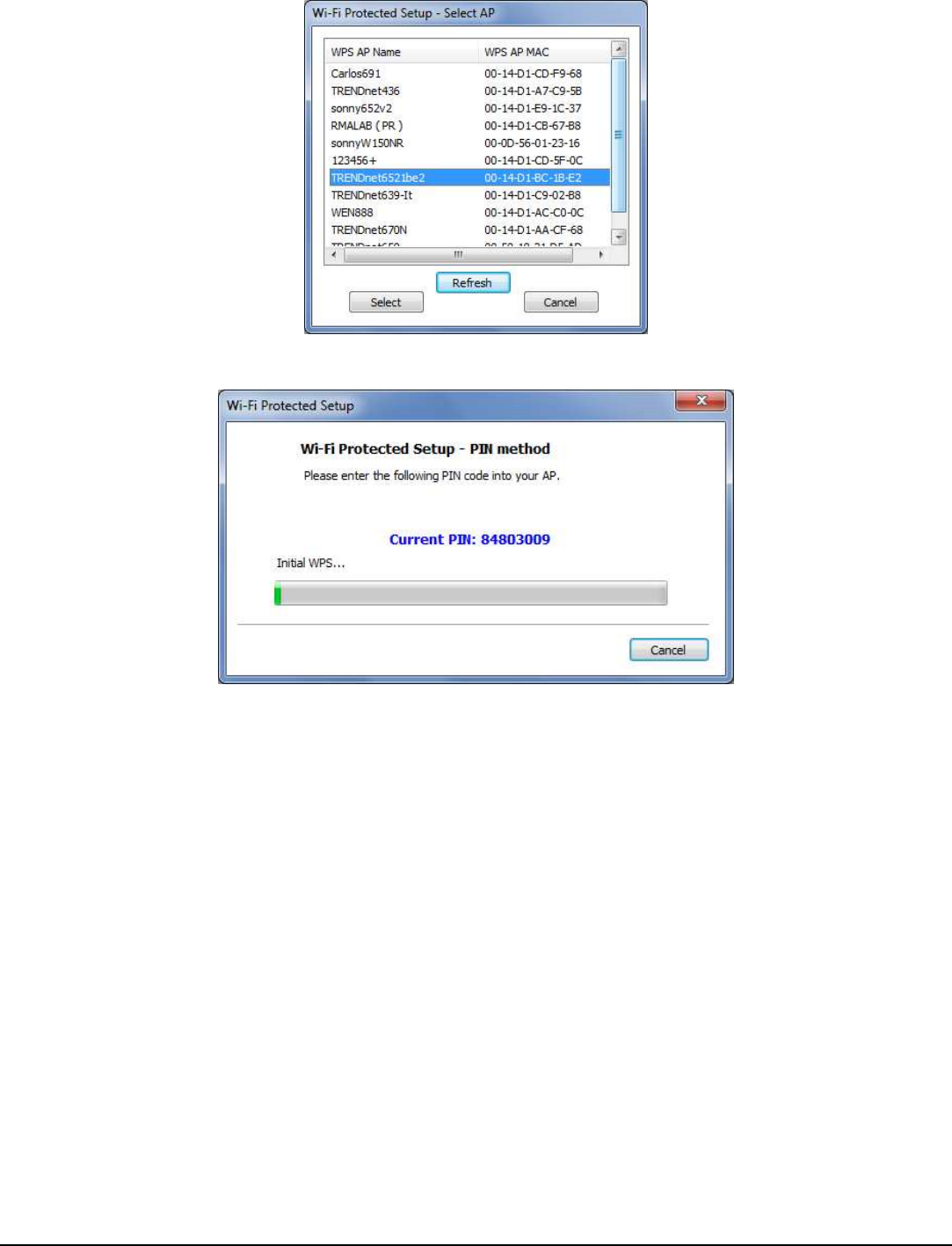

4) Select a wireless access point or router then click the Select button start the
WPS configuration.
16
5) If the WPS configuration was successful, the follow window will show on.
6) If the WPS configuration was failed, the follow window will show on.
Try to repeat the steps again if this screen appears.
About
screen displays information about the 300Mbps Wireless N Mini USB Adapter,
such as the Driver and Utility version. When a new version of the utility becomes
available for upgrade, users will be able to identify by version numbers.
Remove: Deletes the selected profile
17
TECHNICAL SPECIFICATIONS
Hardware
Interface USB 2.0, 1.1 standard
Standards IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n
WPS Button Enables WPS connection
Power Consumption Receive mode: 200mA (max) ; Transmit mode: 400mA (max)
Supported OS Windows 7 (32/64-bit) / Vista (32/64-bit) / Windows XP(32/64-bit)
Dimensions (LxWxH)
33.9 x 17 x 7mm (1.3 x 0.7 x 0.3in)
Weight
3g (0.1oz)
Temperature Operating: 0° ~ 40° C (32° ~ 104° F)
Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity Max. 95% (non-condensing)
Certifications CE, FCC
Wireless
Modulation OFDM, DSSS
Antenna 2 high performance internal PIFA antennas
Frequency 2.412 ~ 2.484 GHz
Media Access Protocol
CSMA/CA with ACK
Data Rate
(auto fallback)
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 300Mbps
Output Power 24.5dBm
Receiving Sensitivity 802.11b: -84dBm (typical)
802.11g: -65dBm (typical)
802.11n : -62dBm (typical)
Encryption 64/128-bit WEP, WPA/WPA2-RADIUS, WPA /WPA2-PSK (AES/TKIP)
Channel 1~11 (FCC), 1~13 (ETSI)
LIMITED WARRANTY
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the
following lengths of time from the date of purchase.
TEW-624UB – 3 Years Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.
If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at
its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer.
The repair/replacement unit’s warranty continues from the original date of purchase. All products that are replaced
become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue
refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in,
stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product by any
unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any
unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was
subject to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable warranty period and providing a copy
of the dated proof of the purchase. Upon proper submission of required documentation a Return Material Authorization
(RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet
products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of
return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers
shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside
of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER’S
SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY
OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY
OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE
ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE,
NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER
CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS
SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID,
AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY
PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU
General Public License ("GPL") or GNU Lesser General Public License ("LGPL").
Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section and look for the desired TRENDnet
product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to
the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to
http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.
PWP05202009v2

Navigation menu
