TEW652BRU User Manual HTML Version

User Man_XU8TEW652BRU

TRENDnet User’s Guide

Cover Page

TRENDnet User’s Guide

Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features ........................................................................................... 2

Application Diagram ...................................................................................................... 4

Basic Router Setup .......................................................................... 5

Creating a Home Network ............................................................................................. 5

Router Installation ......................................................................................................... 6

Connect additional wired devices to your network ..................................................... 11

Wireless Networking and Security ................................................. 12

How to choose the type of security for your wireless network................................... 12

Secure your wireless network ..................................................................................... 13

Connect wireless devices to your router ..................................................................... 15

Connect wireless devices using WPS ........................................................................... 15

Basic wireless settings ................................................................................................. 17

Steps to improve wireless connectivity ....................................................................... 19

Advanced wireless settings .......................................................................................... 20

Access Control Filters .................................................................... 21

Access control basics ................................................................................................... 21

MAC address filters ................................................................................................. 21

Domain/URL Filters ................................................................................................. 22

Protocol/IP filters .................................................................................................... 23

Firewall rules ........................................................................................................... 24

Advanced Router Setup ................................................................. 26

Access your router management page ........................................................................ 26

Change your router login password ............................................................................ 26

Set your router date and time ..................................................................................... 27

Manually configure your Internet connection............................................................. 27

Clone a MAC address ................................................................................................... 28

Change your router IP address .................................................................................... 29

Set up the DHCP server on your router ....................................................................... 29

Set up DHCP reservation ............................................................................................. 30

Enable/disable UPnP on your router ........................................................................... 31

Allow/deny VPN connections through your router ..................................................... 31

Allow/deny multicast streaming .................................................................................. 32

Identify your network on the Internet ........................................................................ 32

Allow remote access to your router management page ............................................. 33

Open a device on your network to the Internet .......................................................... 33

DMZ ......................................................................................................................... 33

Virtual Server .......................................................................................................... 34

Special Applications ................................................................................................ 35

Change your router IP address .................................................................................... 37

Add static routes to your router .................................................................................. 37

Enable dynamic routing on your router ...................................................................... 39

Router Maintenance & Monitoring ............................................... 40

Reset your router to factory defaults .......................................................................... 40

Router Default Settings ............................................................................................... 40

Backup and restore your router configuration settings .............................................. 41

Upgrade your router firmware .................................................................................... 42

Restart your router ...................................................................................................... 43

Check connectivity using the router management page ............................................. 43

TRENDnet User’s Guide

Table of Contents

Check the router system information .......................................................................... 44

View your router log .................................................................................................... 45

Configure your router log ............................................................................................ 46

View your router packet statistics ............................................................................... 47

View wireless devices connected to your router ......................................................... 47

Capture packets using the router management page ................................................. 48

Enable SNMP on your router ....................................................................................... 48

USB Storage and Printer Sharing .................................................... 49

USB Port Software Utility Requirements ..................................................................... 49

Software Installation .................................................................................................... 49

Windows OS ............................................................................................................ 49

MAC OS X ................................................................................................................ 51

Using the Utility ........................................................................................................... 52

Connect to a Printer ................................................................................................ 57

Connect to a Scanner .............................................................................................. 58

Connect to a Storage Device ................................................................................... 58

Router Management Page Structure.............................................. 59

Technical Specifications ................................................................. 60

Troubleshooting ............................................................................ 61

Appendix ...................................................................................... 62

TRENDnet User’s Guide

TEW-652BRU

Product Overview

TEW-652BRU

Package Contents

In addition to your router, the package includes:

• Muti-Language Quick Installation Guide

• CD-ROM (Utility & User’s Guide)

• Network cable (1.5m / 5ft)

• Power adapter (5V DC, 2A)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

The 300Mbps Wireless N Home Router with USB Port (model TEW-652BRU) delivers

high performance wireless n speed, coverage, and security.

Share data across your network by connecting USB flash drives, hard drives, or printers

directly to the USB share port on the front of the router. Network wired devices to the

four Fast Ethernet ports on the back of the router.

GREENnet technology reduces power consumption by up to 50%. Advanced Multiple

Input Multiple Output (MIMO) antenna technology reduces wireless dead spots. Wi-Fi

Protected Setup (WPS) connects other WPS supported wireless adapters at the touch of

a button. The latest in wireless encryption and a secure firewall protect your digital

network. WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls,

and video streams. LEDs on the front of the router convey device status.

• Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards

• 4 x 10/100Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)

• 1 x USB 2.0 port for file & printer sharing*

• Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, & L2TP

connection types

• High-speed data rates up to 300Mbps using an IEEE 802.11n connection

• 2 fixed external antennas support high speed performance and great coverage

with MIMO technology

• Network Address Translation (NAT) firewall

• Wi-Fi Protected Setup (WPS) button for simple network connectivity

• Universal Plug and Play (UPnP) and Application Level Gateway support for

Internet applications such as email, FTP, gaming, remote desktop, Net Meeting,

telnet and more

• Provides additional security with Internet Access Control (MAC Address,

Domain, and IP Filtering)

• Easy remote management via Web browser

• Wireless security support for WEP, WPA & WPA2

• Indoor coverage up to 100 meters (330ft.)* *

• Outdoor coverage up to 300 meters (980ft.)**

*Requires included software utility. **Maximum wireless signal rates are referenced from IEEE

802.11 theoretical specifications. Actual data throughput and coverage will vary depending on

interference, network traffic, building materials and other conditions.

TRENDnet User’s Guide

TEW-652BRU

Product Hardware Features

Rear Panel View

• Reset Button – Use an item such as a paperclip to push and hold this button for

15 seconds and release to reset your router to its factory defaults.

• LAN Ports – Connect Ethernet cables (also called network cables) from your

router LAN ports and to your wired network devices.

• WAN Port - Connect an Ethernet cable (also called network cable) from your

router WAN port and to your xDSL/Cable modem.

• Power Port – Connect the included power adapter from your router power

port and to an available power outlet.

Note: Use only the adapter that came with your router.

• On/Off Power Switch – Push your router On/Off push button power switch to

turn your router “On” (Inner position) or “Off” (Outer position).

• Antennas – The antennas broadcasts wireless signals to allow your wireless

clients and wireless network devices to connect to your router.

TRENDnet User’s Guide

TEW-652BRU

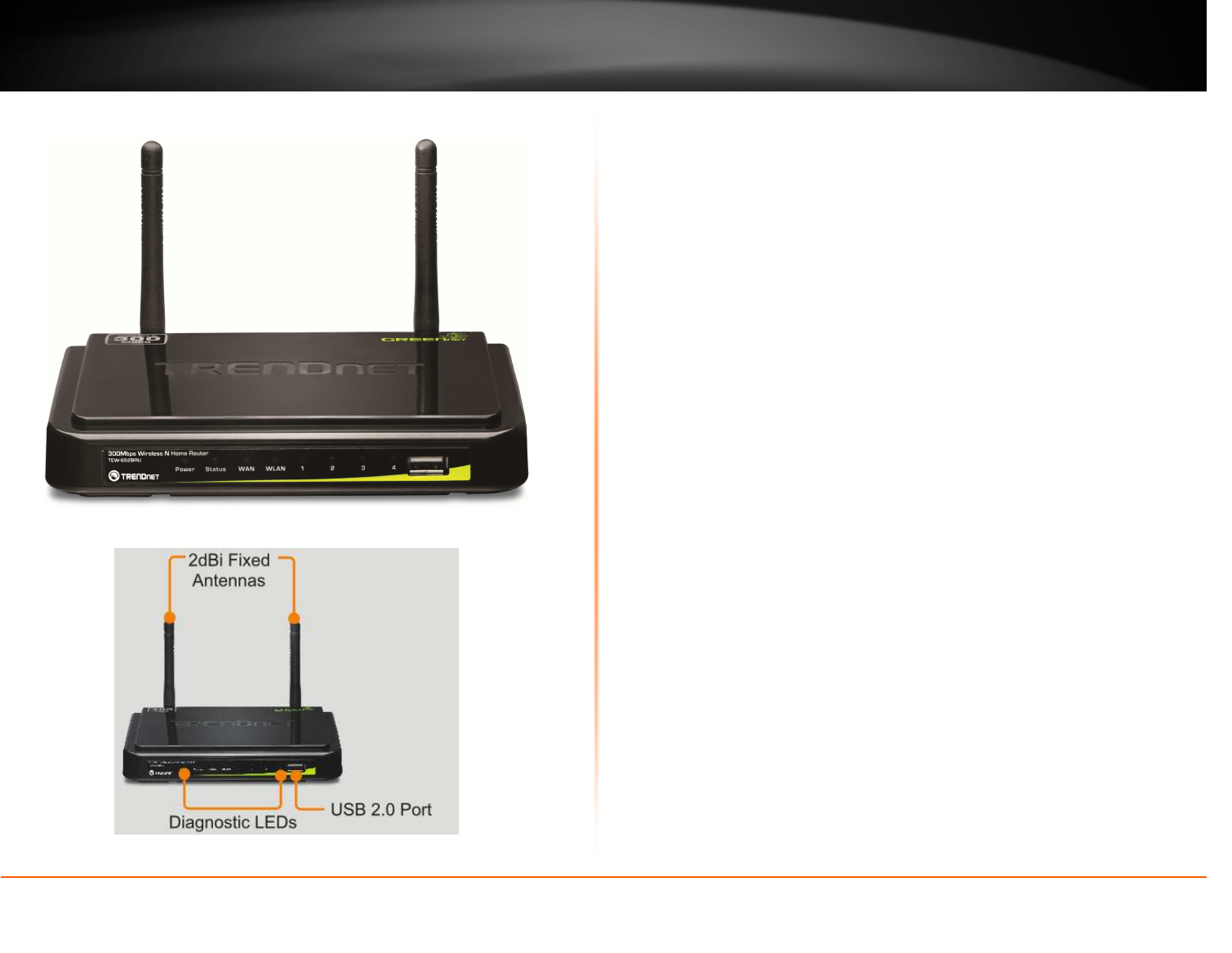

Front Panel View

• Power - This LED indicator is solid green when your router is powered on.

Otherwise if this LED indicator is off, there is no power to your router.

• Status - This LED indicator is blinking green when your router is ready and

working successfully. If this LED indicator is solid green on or off, your router is

not receiving power or not working properly.

• WAN (Link/Activity) – This LED indicator is solid green when your router WAN

port is physically connected to the xDSL/Cable modem Ethernet port (also

called network port) successfully with an Ethernet cable (also called network

cable). The LED indicator will be blinking green while data is transmitted or

received through the WAN port of your router.

• WLAN (Link/Activity) – This LED indicator is blinking green when the wireless is

“On” and functioning properly on your router. This LED indicator will be

blinking green rapidly while data is transmitted or received by your wireless

clients or wireless network devices connected to your router.

• LAN 1-4 (Link/Activity) – These LED indicators are solid green when the LAN

ports are physically connected to your wired network devices successfully with

an Ethernet cable (also called network cable). These LED indicators will be

blinking green while data is transmitted or received through your router LAN

ports.

• USB Port 2.0 Port – The USB 2.0 port allows you to connect USB printers and

storage devices to your network and share access to these devices to

computers on your network through the use of the included USB software

utility.

TRENDnet User’s Guide

TEW-652BRU

Side Panel View

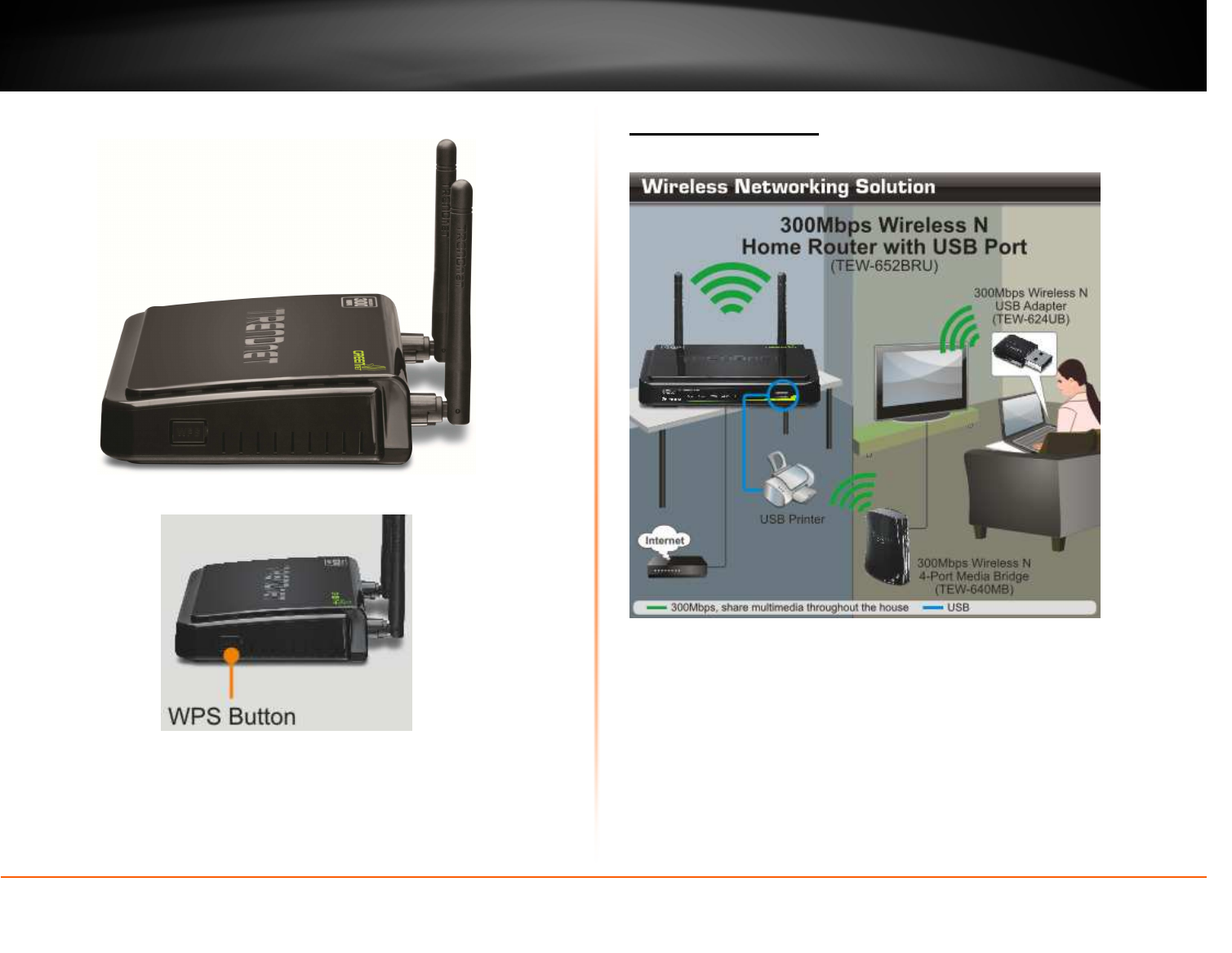

• WPS (Wi-Fi Protected Setup) – Push and hold this button for 3 seconds to

activate WPS. The button LED is blinking blue when WPS is activated.

Application Diagram

The router is installed in the room where the xDSL/Cable modem (typically supplied by

your ISP “Internet Service Provider”) is located in order to physically connect an

Ethernet cable (also called network cable) from the router WAN port to the modem

network port which connects to the Internet. Wireless signals from the router are

broadcasted to allow wireless clients such as laptops with wireless capability to discover

and connect to the router providing wireless access to the local network and the

Internet. In addition, a USB printer is connected to the USB 2.0 port located on the front

of the router, allowing any wired or wireless computer connected to the this network

centralized access to the printer through the use of the included software utility.

TRENDnet User’s Guide

TEW-652BRU

Basic Router Setup

Creating a Home Network

What is a network?

A network is a group of computers or devices that can communicate with each other. A

home network of more than one computer or device also typically includes Internet

access, which requires a router.

A typical home network may include multiple computers, a media player/server, a

printer, a modem, and a router. A large home network may also have a switch,

additional routers, access points, and many Internet-capable media devices such as TVs,

game consoles, and web cameras.

• Modem – Connects a computer or router to the Internet or ISP (Internet

Service Provider).

• Router – Connects your wireless and wired network devices to each other and

to the modem.

• Switch – Allows you to connect several wired network devices to your home

network. Your router has a built-in network switch (the LAN port 1-4). If you

have more wired network devices than available Ethernet ports on your router,

you will need an additional switch to add more wired connections.

How to set up a home network

1. For a network that includes Internet access, you’ll need:

• Computers/devices with an Ethernet port (also called network port) or wireless

networking capabilities

• A modem and Internet service to your home, provided by your ISP (modem

typically supplied by your ISP)

• A router to connect your computers and devices and also connects to the

modem.

2. Make sure that your modem is working. Your ISP can help you set up your modem

and verify that it’s working correctly.

3. Set up your router. See “How to setup your router” below.

4. To connect additional wired computers or wired network devices to your network,

see “Connect additional wired devices to your network” on page 11.

5. To set up wireless networking on your router, see “Wireless Networking and Security”

on page 12.

How to setup your router

The easiest way and fastest way to follow the included Quick Installation Guide or

continue to the next section “Router Installation” on page 6, and complete the

remaining sections of “Router Installation”.

Where to find more help

In addition to this User’s Guide, you can find help below:

• http://www.trendnet.com/support

(documentation, downloads, FAQs, how to contact technical support)

• Internet service to your home, provided by an ISP (Internet Service Provider)

• Autorun CD (Quick Installation Guide)

TRENDnet User’s Guide

TEW-652BRU

Router Installation

Before you Install

It is recommended, that you verify your Internet connection type with your ISP (Internet

Service Provider) and ensure you have all the information for one of the following

connection types below before proceeding with the router installation.

1. Obtain IP Address Automatically (DHCP)

Host Name (Optional)

Clone Mac Address (Optional)

2. Fixed IP address

WAN IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

WAN Subnet Mask: _____. _____._____._____

WAN Gateway IP Address: _____. _____._____._____

DNS Server Address 1: _____. _____._____._____

DNS Server Address 2: _____. _____._____._____

3. PPPoE to obtain IP automatically

User Name: _________

Password: ________________

Verify Password: ________________

4. PPPoE with a fixed IP address

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

5. PPTP or Russian PPTP

Type (Dynamic IP or Static IP )

My IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

PPTP Account: ________________

PPTP Password: ________________

Retype Password: ________________

6. L2TP or Russia L2TP

Type (Dynamic IP or Static IP)

My IP Address: _____. _____._____._____

(e.g. 215.24.24.129)

Subnet Mask:_____. _____._____._____

Gateway:_____. _____._____._____

Server IP: _____. _____._____._____

L2TP Account: ________________

L2TP Password: ________________

Retype Password: ________________

7. Russia PPPoE

Type (Dynamic IP or Static IP)

User Name: _________

Password: ________________

Verify Password: ________________

IP Address: ____. _____._____._____ (e.g. 215.24.24.129)

TRENDnet User’s Guide

TEW-652BRU

Hardware Installation

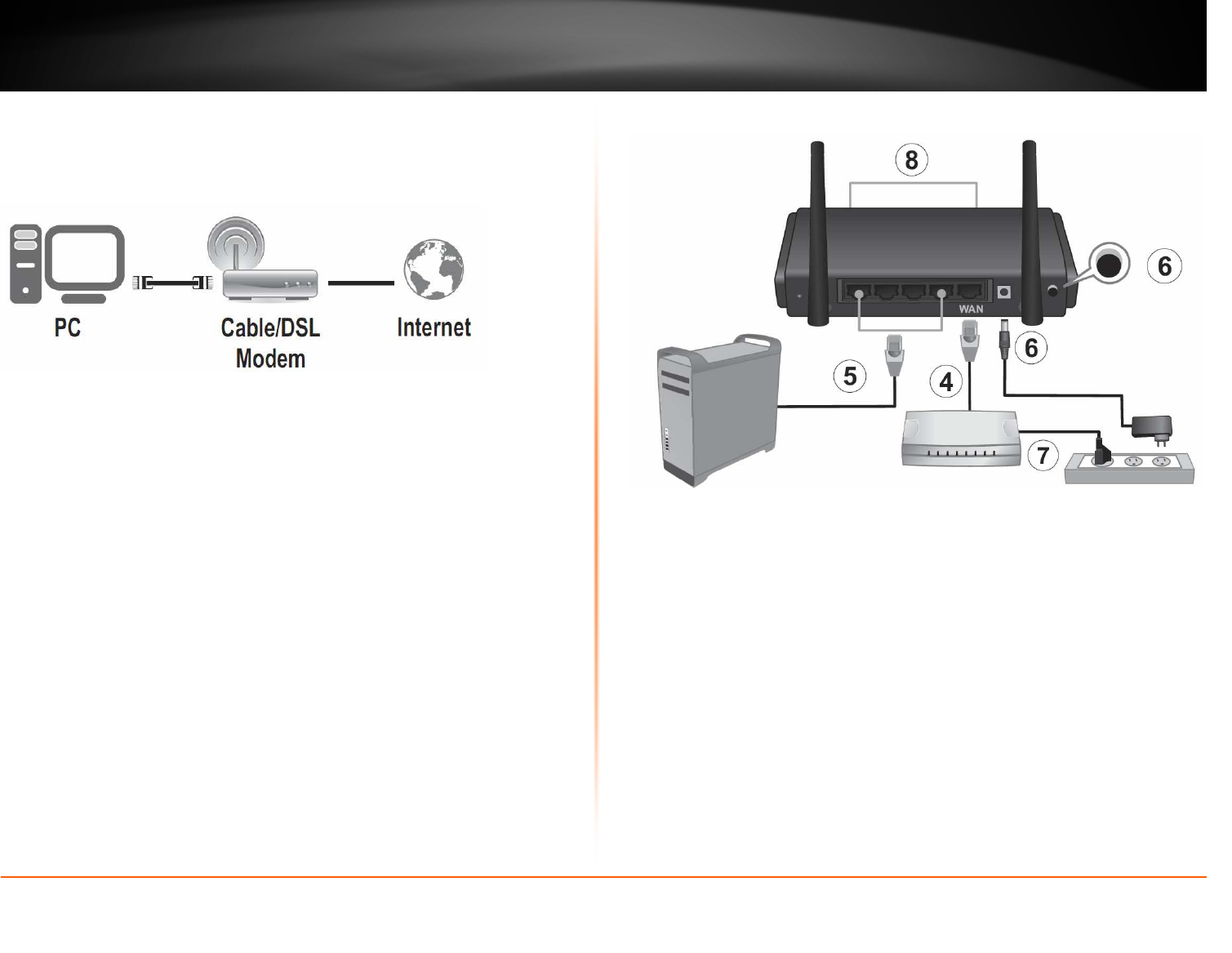

1. Verify that you have an Internet connection when connecting your computer directly

to the xDSL/Cable modem.

2. Turn off your xDSL/Cable modem.

3. Disconnect the Ethernet cable (also called network cable) from your xDSL/Cable

modem and your computer.

4. Connect one end of a network cable to your router WAN port. Connect the other end

of the network cable to your xDSL/Cable modem network port.

5. Connect one end of a network cable to one of your router LAN ports (1-4). Connect

the other end of the network cable to the computer Ethernet port (also called network

port).

6. Connect the included power adapter to your router Power Port and then to an

available power outlet. Push the On/Off Power Switch on your router to the “On” (inner)

position.

7. Turn on your xDSL/Cable modem.

8. Verify that the following front panel LED indicators on your router (Power is solid

green, Status is blinking green, WAN and WLAN (Wireless) are solid green, and the LAN

port for which your computer is connected is sold green.

TRENDnet User’s Guide

TEW-652BRU

Setup Wizard

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and

go to http://192.168.10.1. Your router will prompt you for a user name and password.

2. Next to Language, click the drop-down list to select your preferred language. Enter

the default user name and password and then click Login.

Default User Name: admin

Default Password: admin

3. The Setup Wizard will automatically appear. Click Next.

Note: If the Setup Wizard does not automatically appear, click Wizard.

4. Enter a new login password for your router and enter it again next to “Verify

Password” to confirm. This will change the password required to log into your router.

Click Next.

Note: Once you change the login password, it will be required every time you log into

your router.

TRENDnet User’s Guide

TEW-652BRU

5. Select the Time Zone for your router and click Next.

6. Click Next at the Set LAN connection and DHCP Server window.

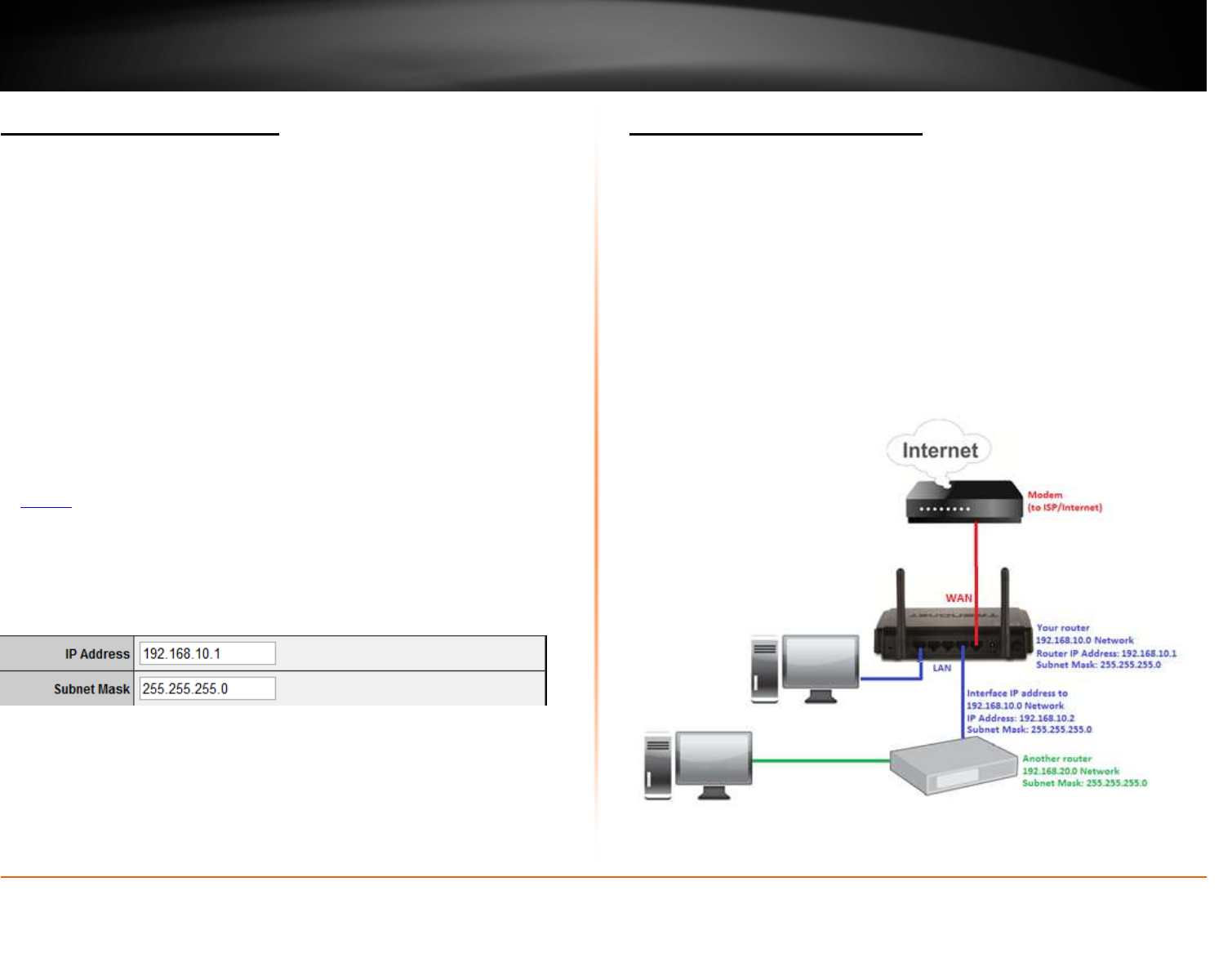

Note: If you are an advanced user, you can make LAN IP address interface and DHCP IP

address range changes here.

7. Configure the settings based on information provided by your ISP (Internet Service

Provider). Follow the Wizard instructions to complete your configuration.

Note: Each Internet connection type may have different options.

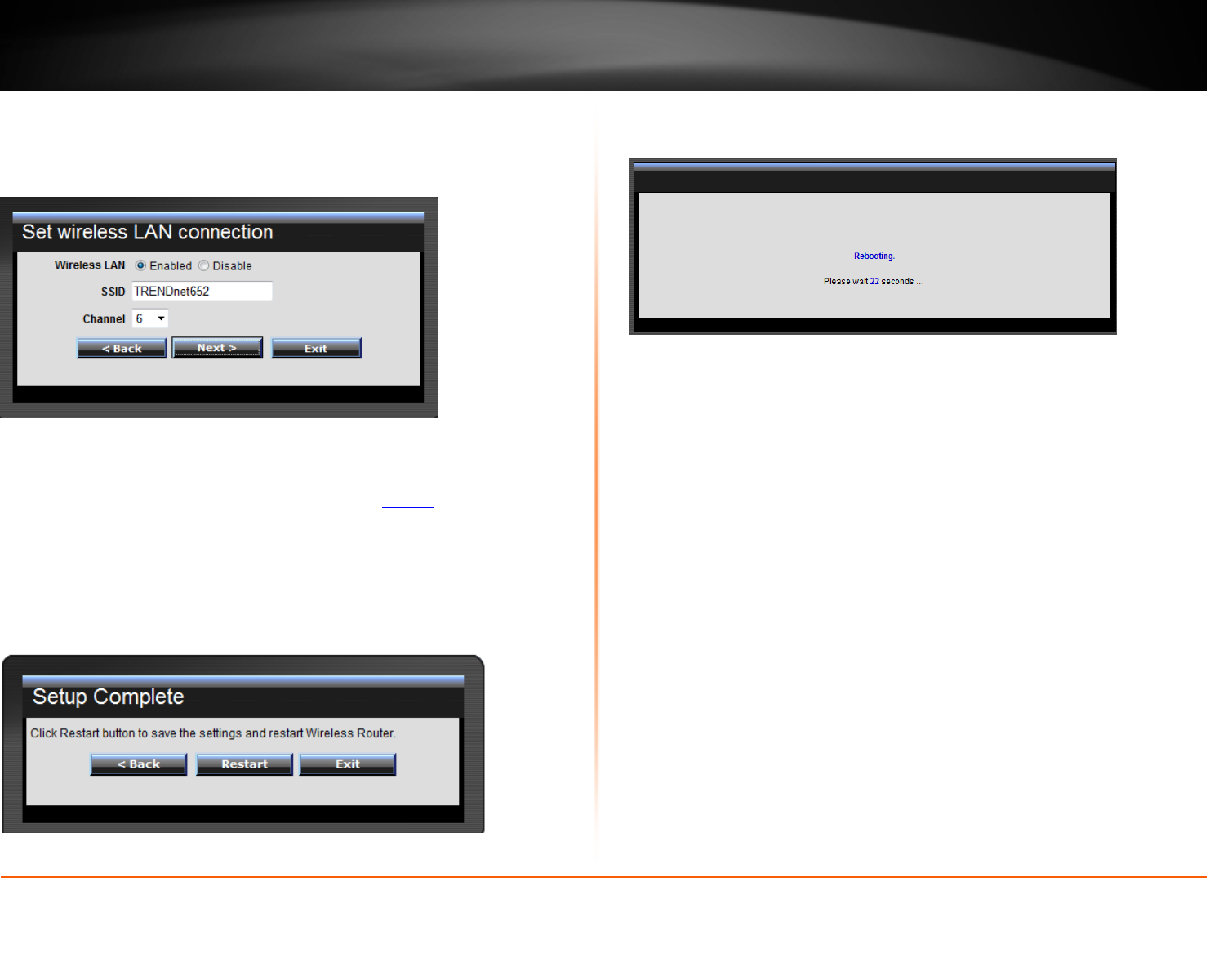

8. Wireless LAN: Select Enable for Wireless LAN.

Note: Selecting Disable will disable the wireless functionality of the router and will not

allow wireless clients to connect.

TRENDnet User’s Guide

TEW-652BRU

9. SSID: Enter a unique SSID (Wireless Network Name). Choose something that you

would easily identify when searching for available wireless networks (using laptops,

smart phones, etc.) Click Next.

Note:

1. To protect your network from unauthorized access, it is recommended to enable

wireless encryption. See “Secure your wireless network” on page 13) for information on

configuring wireless security.

2. Once wireless security is enabled on your router, each wireless device connecting to

your router must be configured with the same wireless security type and key.

10. Click Restart and wait for your router to reboot.

11. Wait for your router to reboot.

TRENDnet User’s Guide

TEW-652BRU

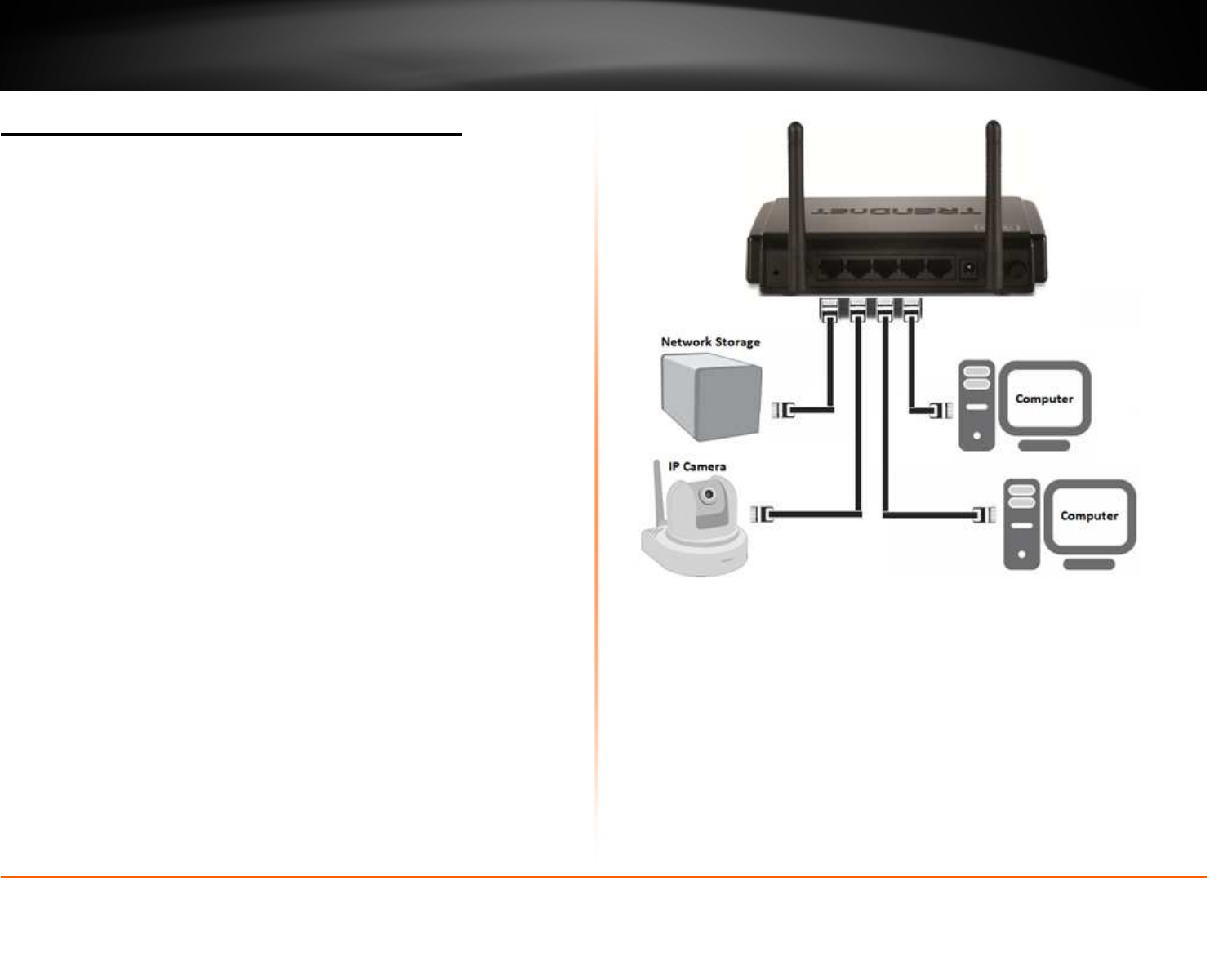

Connect additional wired devices to your network

You can connect an additional computer or device to your network by connecting one

end of an Ethernet cable (also called network cable) from your computer or device

Ethernet port (also called network port) to one of the available LAN ports labeled 1,2,3,4

on your router. Check the status of the LED indicators (1, 2, 3, or 4) on the front panel of

your router to ensure the physical cable connection from your computer or device.

Note: If you encounter issues connecting to your network, there may be a problem with

your computer or device network settings. Please ensure that your computer or device

network settings (also called TCP/IP settings) are configured to obtain IP address settings

automatically (also called dynamic IP address or DHCP) and to Obtain DNS Server

address settings automatically.

TRENDnet User’s Guide

TEW-652BRU

Wireless Networking and Security

How to choose the type of security for your wireless network

There are a few different wireless security types supported in wireless networking

each having its own characteristics which may be more suitable for your wireless

network taking into consideration compatibility, performance, as well as the security

strength along with using older wireless networking hardware (also called legacy

hardware).

It is strongly recommended to enable wireless security to prevent unwanted users

from accessing your network and network resources (personal documents, media, etc.).

In general, it is recommended that you choose the security type with the highest

strength and performance supported by the wireless computers and devices in your

network. Please review the security types to determine which one you should use for

your network.

• WEP: Legacy encryption method supported by most 802.11b/g

hardware. Older hardware may only support up to WEP encryption.

• WPA: Legacy encryption method supported in most 802.11g hardware.

• WPA2: Currently the most secure method of wireless security and required for

802.11n performance.

Note: Check the specifications of your wireless network adapters and wireless appliances

to verify the highest level of encryption supported.

Below is brief comparison chart of the wireless security types and the recommended

configuration depending on which type you choose for your wireless network.

Security

Comparison WEP WPA WPA2

Wireless Standard

IEEE 802.11a/b/g IEEE 802.11a/b/g IEEE 802.11a/b/g/n

Performance Up to 54Mbps Up to 54Mbps Up to 450Mbps*

Strength Low Medium High

Additional

Options

Open System or

Shared Key,

HEX or ASCII,

Different key sizes

TKIP or AES,

Preshared Key or

RADIUS

TKIP or AES,

Preshared Key or

RADIUS

Recommended

Configuration

Open System ASCII

13 characters

TKIP

Preshared Key

8-63 characters

AES

Preshared Key

8-63 characters

*Dependent on the maximum 802.11n data rate supported by the device (150Mbps,

300Mbps, or 450Mbps)

TRENDnet User’s Guide

TEW-652BRU

Secure your wireless network

Wireless > Security

After you have determined which security type to use for your wireless network (see

“How to choose the security type for your wireless network” on page 12), you can set up

wireless security.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Wireless, and click on Security.

3. Click on the Authentication Type drop-down list to select your wireless security type.

If selecting WEP (Wired Equivalent Privacy), please review the WEP settings to configure

and click Apply to save the changes.

• WEP– Choose Open System or Shared Key.

Note: It is recommended to use Open System because it is known to be more secure

than Shared Key.

• Mode – Choose HEX or ASCII.

Note: It is recommended to use ASCII because of the much larger character set that

can be used to create the key.

• WEP Key – Choose the key length 64-bit or 128-bit.

Note: It is recommended to use 128-bit because it is more secure to use a key that

consists of more characters.

• Key 1-4 – Choose a key index 1,2,3, or 4 and enter the key.

Note: The Key Index # must also match when configuring wireless devices to connect to

your wireless network.

WEP Key Format HEX ASCII

Character set 0-9 & A-F, a-f only alphanumeric (a,b,C,?,*, /,1,2, etc.)

64-bit key length 10 characters 5 characters

128-bit key length 26 characters 13 characters

TRENDnet User’s Guide

TEW-652BRU

If selecting WPA or WPA2 (Wi-Fi Protected Access) PSK (Preshared Key), please review

the WPA or WPA2 PSK settings to configure and click Apply to save the changes.

Note: It is recommended to choose the specific security type WPA or WPA2, instead of

choosing WPA-AUTO.

• PSK/EAP– Choose PSK (Preshared Key) or EAP (Extensive Authentication

Protocol, also called RADIUS) Remote Authentication Dial-In User Service).

Note: It is recommended to use PSK because it is easier to setup and simply requires

you to create a passphrase compared to EAP which requires you to connect an

external RADIUS server and requires more configuration.

• Cipher Type – Choose TKIP, AES, or Auto.

Note: For best the wireless performance and compatibility with wireless devices:

o When selecting WPA security, it is recommended to use TKIP.

o When selecting WPA2 security, it is recommended to use AES.

o It is recommended to configure the specific cipher type instead of

choosing Auto.

• Passphrase – Enter the passphrase.

• Confirmed Passphrase – Re-enter the passphrase.

Note: 8-63 alphanumeric characters (a,b,C,?,*, /,1,2, etc.)

For advanced users, if selecting WPA or WPA2 (Wi-Fi Protected Access) EAP (Extensible

Authentication Protocol, also called RADIUS, Remote Authentication Dial-In User

Service), please review the WPA or WPA2 EAP settings to configure and click Apply to

save the changes.

• RADIUS Server 1/2 - Configure the RADIUS server settings.

Note: RADIUS Server 2 is optional and can be configured as a backup if there are any

issues with RADIUS Server 1.

o IP – Enter the IP address of the RADIUS server. (e.g. 192.168.10.250)

o Port – Enter the port your RADIUS server is configured to use for

RADIUS authentication.

Note: It is recommended to use port 1812.

o Shared Secret – Enter the shared secret used to authorize your router

with your RADIUS server.

TRENDnet User’s Guide

TEW-652BRU

Connect wireless devices to your router

There is a variety of wireless network devices that can connect to your wireless network

such as:

• Gaming Consoles

• Internet enabled TVs

• Network media players

• Smart Phones

• Wireless Laptop computers

Each device may have its own software utility for searching and connecting to available

wireless networks, therefore, you must refer to the User’s Manual/Guide of your

wireless capable laptop/computer or wireless adapter to determine how to search and

connect to available wireless networks.

See the “Appendix” on page 52 for general information on connecting to a wireless

network.

Connect wireless devices using WPS

WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your

wireless network. If your wireless devices support WPS, you can use this feature to

easily add wireless devices to your network.

Note: You will not be able to use WPS if you set the SSID Broadcast setting to Disabled.

There are two methods the WPS feature can easily connect your wireless devices to

your network.

• PBC (Push Button Configuration) Method

o Hardware Push Button - located physically on your router

o WPS Software/Virtual Push Button - located in router management

page

• PIN (Personal Identification Number) Method - located in router management

page

Note: Refer to your wireless device documentation for details on the operation of WPS.

PBC (Hardware Push Button)

To add a wireless device to your network, simply push the WPS button on the wireless

device you are connecting, then push and hold the WPS button located on your router

for 3 seconds and release it. A blue LED on your router WPS button will flash indicating

that the WPS setup process has been activated on your router. (See “Product Hardware

Features” on page 2)

For connecting additional WPS supported devices, repeat this process for each

additional device.

TRENDnet User’s Guide

TEW-652BRU

PBC (Software/Virtual Push Button)

Wireless > WiFi Protected Setup

In addition to the hardware push button located physically on your router, the router

management page also has push button which is a software or virtual push button you

can click to activate WPS on your router.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Wireless, and click on WPS.

3. To add a wireless device to your network, simply the push the WPS button on the

wireless device you are connecting, then, in your router management page next to Push

Button Configuration, click Start PBC.

4. You will receive a message counting down indicating the WPS process is activated on

your router.

5. You will receive a success message indicate that the wireless device successfully

connected using WPS.

PIN (Personal Identification Number)

Wireless > WiFi Protected Setup

If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless

device product label or located in the wireless device wireless software utility), you can

use this method.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Wireless, and click on WPS.

3. Next to Client PIN Number, enter the WPS PIN of the wireless device you are

connecting and click Start PIN.

Note: You may need to initiate the WPS PIN on your wireless device first when using this

method. Refer to your wireless device documentation for details on the operation of WPS.

TRENDnet User’s Guide

TEW-652BRU

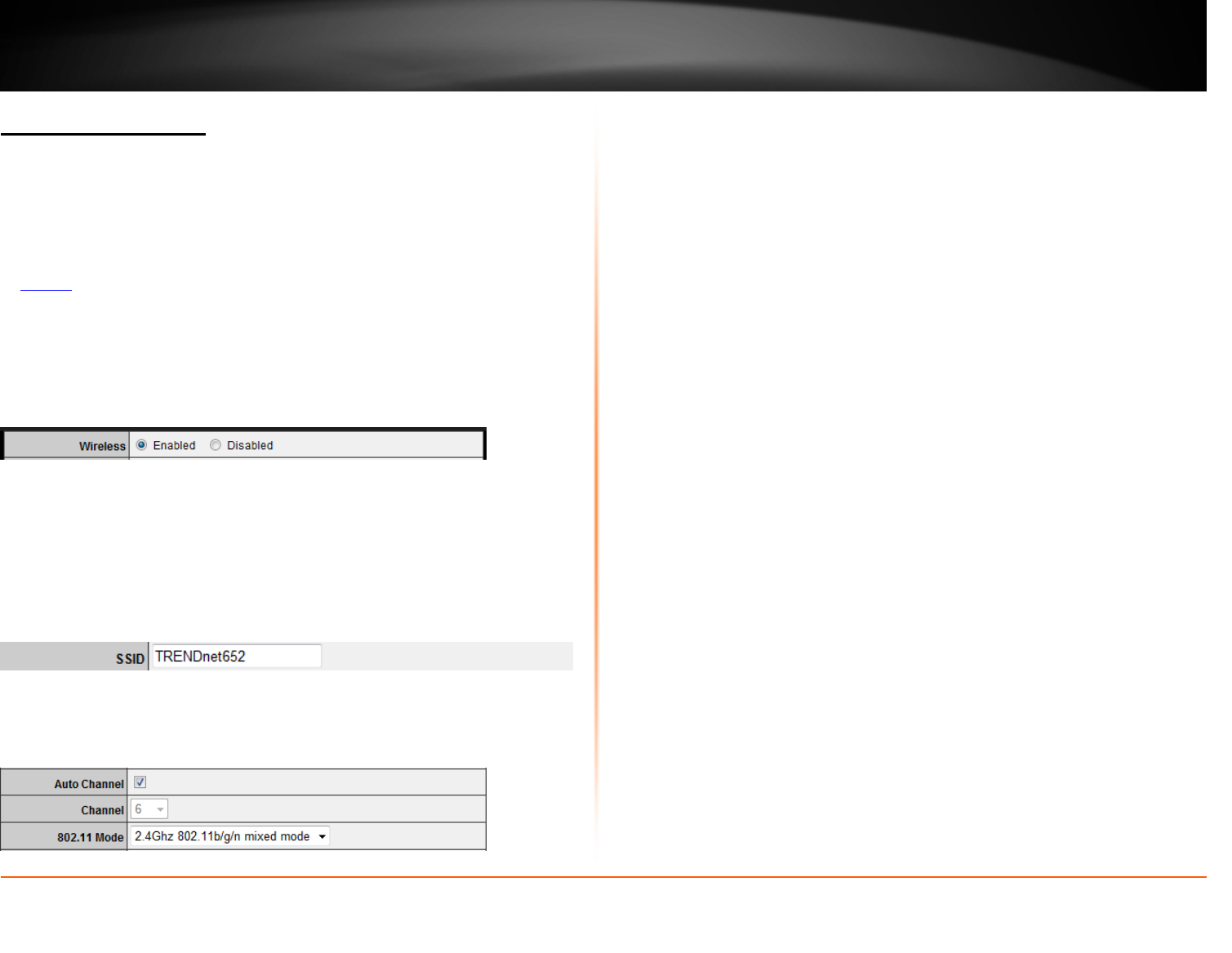

Basic wireless settings

Wireless > Basic

You can change the basic wireless network settings on your router such as the SSID (also

called wireless network name), 802.11 mode, channel, and channel width.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Wireless, and click on Basic.

3. Please review the additional wireless settings to configure and click Apply to save the

changes.

• Wireless –Enabled turns on the wireless networking on your router and

Disabled turns off wireless networking on your router.

Note: It is recommended to leave the wireless setting to Enabled unless you do not

plan on connecting any wireless computers or devices to your network.

• SSID – The name of your wireless network. Identifies your wireless network

when connecting with wireless devices. Enter the wireless network name.

• Auto Channel – Check the option to allow your router to automatically select

the best channel for wireless communication.

• Channel – To manually set the channel, uncheck Auto Channel, then click the

drop-down list and select the channel for wireless communication.

• 802.11 Mode - Select the appropriate mode for your network.

o 2.4GHz 802.11b/g/n mixed mode – Select this mode for the best

compatibility. This mode allows 802.11b, 11g, and 11n wireless

devices to connect your wireless network.

o 2.4GHz 802.11b/g mixed mode – This mode allows wireless devices to

connect to your wireless network at only 802.11b and 802.11g.

o 2.4GHz 802.11n only mode – This mode allows wireless devices to

connect to your wireless network at only 802.11n.

o 2.4GHz 802.11g only mode – This mode allows wireless to connect to

your wireless network at only 802.11g.

o 2.4GHz 802.11b only mode – This mode allows wireless devices to

connect your wireless network only at 802.11b.

TRENDnet User’s Guide

TEW-652BRU

Note: Please check the specifications on your wireless devices for the highest wireless

capability supported first before applying these settings. If you are unsure, it is

recommended that you keep the default setting for the best compatibility.

When applying the 802.11 mode setting, please keep in mind the following:

• Wireless devices that support 802.11n are backwards compatible and can

connect wirelessly at 802.11g or 802.11b.

• Connecting at 802.11b or 802.11g will limit the capability of your 802.11n

supported wireless devices from obtaining higher performance and data rates.

• Allowing 802.11b or 802.11g devices to connect to an 802.11n capable wireless

network may degrade the wireless network performance below the higher

performance and data rates of 802.11n.

• Wireless devices that only support 802.11b or 802.11g will not be able to

connect to a wireless network that is set to 802.11n only mode.

• Wireless devices that only support 802.11b will not be able to connect to a

wireless network that is set to 802.11g only mode.

• Channel Width – This setting only applies to wireless devices connecting at

802.11n. Select the appropriate channel width for your wireless network.

o 20 MHz – This mode operates using a single 20MHz channel for

wireless devices connecting at 802.11n. This setting may provide more

stability than Auto 20/40 MHz for connectivity in busy wireless

environments where there are several wireless networks in the area.

o Auto 20/40 MHz – This mode can automatically switch between using

a single 20MHz channel or 40MHz (two 20MHz channels). When

40MHz is active, this mode is capable of providing higher performance

only if the wireless devices support the 40MHz channel width and if

there is no adjacent wireless interference.

• SSID Broadcast – Enabled allows wireless devices to search and discover your

wireless network name (also called SSID) broadcasted by your router. Disabled

turns off the ability for wireless devices to find your network. It is still possible

for wireless devices to be configured to connect to your wireless network.

Note: Setting this option to Disabled, will disable WPS.

• WMM – Wi-Fi Multimedia is QoS feature that improves quality of audio, video,

and voice applications by prioritizing wireless traffic. This feature requires the

wireless device to also support WMM. Click Enabled or Disabled to turn this

feature on or off on your router.

TRENDnet User’s Guide

TEW-652BRU

Steps to improve wireless connectivity

There are a number of factors that can impact the range of wireless devices. Follow

these tips to help improve your wireless connectivity:

1. Adjust your wireless devices so that the signal is traveling in a straight path,

rather than at an angle. The more material the signal has to pass through the

more signal you will lose.

2. Keep the number of obstructions to a minimum. Each obstruction can reduce

the range of a wireless device. Position the wireless devices in a manner that

will minimize the amount of obstructions between them.

3. Building materials can have a large impact on your wireless signal. In an indoor

environment, try to position the wireless devices so that the signal passes

through less dense material such as dry wall. Dense materials like metal, solid

wood, glass or even furniture may block or degrade the signal.

4. Antenna orientation can also have a large impact on your wireless signal. Use

the wireless adapter’s site survey tool to determine the best antenna

orientation for your wireless devices.

5. Interference from devices that produce RF (radio frequency) noise can also

impact your signal. Position your wireless devices away from anything that

generates RF noise, such as microwaves, radios and baby monitors.

6. Any device operating on the 2.4GHz frequency will cause interference. Devices

such as 2.4GHz cordless phones or other wireless remotes operating on the

2.4GHz frequency can potentially drop the wireless signal.

7. Although the phone may not be in use, the base can still transmit wireless

signal. Move the phone’s base station as far away as possible from your

wireless devices.

8. Make sure that your router is in a good location.

a. For the widest coverage area, install your router near the center of your

home, and near the ceiling, if possible.

b. Avoid placing the router on or near metal objects (such as file cabinets and

metal furniture), reflective surfaces (such as glass or mirrors), and masonry

walls.

c. Any obstruction can weaken the wireless signal (even non-metallic objects),

so the fewer obstructions between the router and the wireless device, the

better.

d. Place the router in a location away from other electronics, motors, and

fluorescent lighting.

e. Many environmental variables can affect the router’s performance, so if

your wireless signal is weak, place the router in several locations and test

the signal strength to determine the ideal position.

If possible, upgrade wireless network interfaces (such as wireless cards in computers)

from older wireless standards to 802.11n. If a wirelessly networked device uses an older

standard, the performance of the entire wireless network may be slower. If you are still

experiencing low or no signal consider repositioning the wireless devices or installing

additional access points.

TRENDnet User’s Guide

TEW-652BRU

Advanced wireless settings

Wireless > Advanced

These settings are advanced options that can be configured to change the advanced

wireless functionality mechanisms of your router. It is recommended that these settings

remain set to their default values unless you are knowledgeable about the effects of

changing these values. It is possible to have undesirable wireless functionality from your

router if these settings are improperly modified. The general information regarding

these options is listed for reference only.

• Beacon Interval – A beacon is a management frame used in wireless networks

that transmitted periodically to announce the presence and provide

information about a specific wireless network. The interval is the amount time

between each beacon transmission.

Default Value: 100 milliseconds (range: 25-1000)

• RTS Threshold – In the RTS/CTS function in wireless networks, a wireless device

that needs to send data will need to send out a RTS (Request To Send) frame

first, and the destination wireless device will need to send a response called a

CTS (Clear to Send) frame. The RTS/CTS function is used to prevent wireless

data traffic collisions. The RTS Threshold defines the smallest data packet size

allowed to initiate the RTS/CTS function.

Default Value: 2346 (range: 256-2346)

• Fragmentation Threshold – Fragmentation in wireless networks is the process

breaking down of data communication into smaller data packets in order to

improve data efficiency when transferring or receiving data between wireless

devices. The fragmentation threshold defines the maximum size of the data

packets that are broken down.

Default Value: 2346 (range: 1500~2346, even numbers only)

• DTIM Interval – A DTIM (Delivery Traffic Indication Message) is an

informational message that is sent as part of a beacon by an access point (your

wireless router) to a wireless client (wireless device or connecting station) in

sleep mode to provide an alert that data is awaiting delivery. The DTIM Interval

(also called Data Beacon Rate) is the amount of time between DTIM

transmission included in part of a beacon.

Default Value: 1 (range: 1-255)

TRENDnet User’s Guide

TEW-652BRU

Access Control Filters

Access control basics

Access > Filter

MAC address filters

Access > Filter > MAC Filters

Every network device has a unique, 12-digit MAC (Media Access Control) address. Using

MAC filters, you can allow only known MAC addresses to connect your network and

deny all other unknown MAC addresses from connecting to your network.

Note: Denied MAC addresses will not be able to communicate to your wired or wireless

devices, connect to your router management page, or access the Internet.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, click on Filter, and click on MAC Filters.

3. Add the MAC addresses to the MAC Table first before applying the MAC filter function.

Note: MAC filter can be configured to allow access to the listed MAC address and deny

all others unlisted or vice versa. The recommended function is to choose to only allow

access to the MAC addresses listed and deny all others unlisted because it is easier to

determine the MAC addresses of devices in your network then to determine which MAC

addresses you do not want to allow access.

• Name – Enter a name for the MAC address entry.

• MAC Address – Enter the 12-digit MAC address. (e.g. 00-11-22-AA-BB-CC)

Note: You can check the Dynamic DHCP List for the MAC addresses of the devices on

your network, see “Set up the DHCP server on your router” on page 29 or refer to your

computer or device documentation to find the MAC address.

Click Add to save the new MAC address entry to the MAC Table. After clicking Add, the

MAC address entry will appear in the list below. Repeat for each device.

• Add – Saves a new MAC address entry.

To modify an existing MAC address entry, click on the entry in the MAC Table. When

selected, the entry will be highlighted.

• Delete – Removes an existing MAC address entry.

• Update – Modifies an existing MAC address entry.

• Cancel – Discard changes to an existing MAC address entry.

TRENDnet User’s Guide

TEW-652BRU

4. Review the MAC Filter options.

• Disabled – disables MAC address filter.

• Only Allow computers/devices with MAC addresses listed below to access the

local network (LAN/WLAN), web management, and the Internet.

• Only Deny computers/devices with MAC addresses listed below to access the

local network (LAN/WLAN), web management, and the Internet

Note: Do not configure this setting until you have added the MAC addresses to the MAC

Table first. The recommended option is to only Allow access to the MAC addresses listed

and deny all others unlisted.

Click Apply to save the changes.

Domain/URL Filters

Access > Filter > Domain/URL Blocking

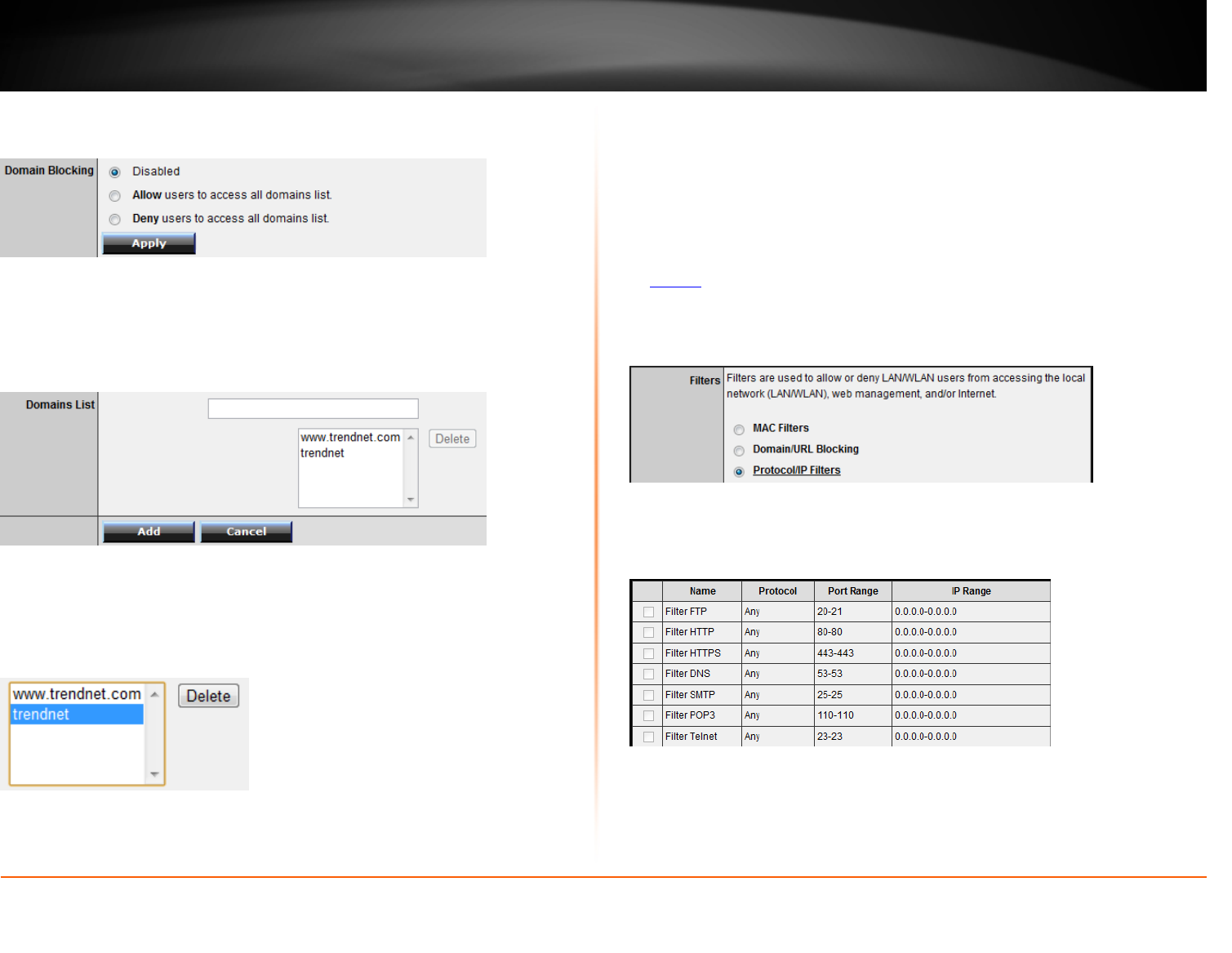

You may want to allow or block computers or devices on your network access to specific

websites (e.g. www.trendnet.com, etc.), also called domains or URLs (Uniform Resource

Locators). You may also enter a keyword (e.g instead of complete URL to generally allow

or block computers or devices access to websites that may contain the keyword in the

URL or on the web page.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, click on Filter, and click on Domain/URL Blocking.

3. Review the Domain/URL blocking options.

• Disabled – disables domain/URL blocking

• Allow users to access all domains listed.

(Deny access to all other unlisted websites)

• Deny users to access all domains listed.

(Allow access to all other unlisted websites)

TRENDnet User’s Guide

TEW-652BRU

Click Apply to save the changes.

4. Next to Domains List, enter the website/URL/domain (e.g.www.trendnet.com) or

keyword (e.g. trendnet) to allow or block access and click Add to add this to the domains

list. The entry will be listed below. Repeat for each additional website or keyword

added.

• Cancel - Discard changes to the domains list.

• Delete - Delete an existing website/URL/domain or keyword entry, click on the

entry in the Domains List. When selected, the entry will be highlighted. Click

Delete to remove it from the list.

Protocol/IP filters

Access > Filter > Protocol/IP Filters

You may want to block computers or devices on your network access to specific ports

(used or required by a specific application) to the Internet.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, click on Filter, and click on Protocol/IP Filters.

To simplify configuration, there is a list of commonly used pre-defined protocol/IP filters

to modify otherwise, you can choose to manually add a new protocol/IP filter.

3. Review the protocol/IP filter settings.

• Enabled – Selecting Enabled turns on the protocol/IP filter and selecting

Disabled turns it off.

• Name – Enter a name for the protocol/IP filter.

TRENDnet User’s Guide

TEW-652BRU

• Protocol – Select the protocol type to filter. TCP, UDP, or you can select * to

choose all protocol types.

• Port – Enter the port number or port range numbers to block. (e.g. 80-80 or 20-

21).

• IP Range – Enter the IP address or IP address range to apply the protocol/IP

filter. (e.g. 192.168.10.20-192.168.10.20 or 192.168.10.20-192.168.10.30).

Note: The filter will not be applied to IP addresses outside of the range specified.

• Add – Saves a new protocol/IP filter.

To modify an existing protocol/IP filter, click on the entry in the protocol/IP filter list.

When selected, the entry will be highlighted.

• Delete – Removes an existing protocol/IP filter.

• Update – Modifies an existing protocol/IP filter.

• Cancel – Discard changes to an existing protocol/IP filter.

Firewall rules

Access > Filter > Firewall Rule

You may want specify inbound or outbound access control to allow/deny sources (or

Internet IP addresses) to your network from the Internet or from computers or devices

on your network to the Internet. Firewall rules may allow for more granular control of

specific inbound and outbound access between your network and the Internet. It is

recommended that these settings remain set to default unless you are knowledgeable

about the effects of changing the firewall rule configuration. It is possible to have

undesirable functionality from your router if these settings are improperly modified.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, click on Filter, and click on Firewall Rule.

3. In the list, there are two default rules specific which cannot be modified. One rule to

deny all access from the Internet to your network for security and the other to allow all

access from your network to the Internet. Any additional rules will take precedence over

the default rules.

TRENDnet User’s Guide

TEW-652BRU

3. Review the firewall rule settings.

• Enabled – Selecting Enabled turns on the firewall ruler and selecting Disabled

turns it off.

• Name – Enter a name for the firewall rule.

• Action – Select Allow will allow access and selecting Deny will block or deny

access.

• Source – Configure the source information for the firewall rule.

o Interface - Click the drop-down list and select LAN (your network) or

WAN (Internet) depending on where the traffic will be coming from.

o IP Range Start – Changes the starting address for the firewall rule to

apply (e.g. 192.168.1.20)

o IP Range End – Changes the last address for the firewall rule to apply

(e.g. 192.168.1.30)

Note: The IP Range Start and End specify the range of IP addresses

that the firewall rule will apply. Both fields need to be completed so

use the same value to specify a single IP address.

• Destination – Configure the destination information for the firewall rule.

o Interface - Click the drop-down list and select LAN (your network) or

WAN (Internet) depending on where the traffic will be coming from.

o IP Range Start – Changes the starting address for the firewall rule to

apply (e.g. 192.168.10.20)

o IP Range End – Changes the last address for the firewall rule to apply

(e.g. 192.168.10.30)

Note: The IP Range Start and End specify the range of IP addresses that the

firewall rule will apply. Both fields need to be completed so use the same

value to specify a single IP address.

o Protocol – Select the protocol type to filter. TCP, UDP, ICMP, or you

can select * to choose all protocol types. Below, enter the port

number or range of port numbers to apply the firewall rule. (e.g. 80-80

or 20-21). For all ports, use the port range 1 - 65534.

• Add – Saves a new firewall rule.

• Update – Modifies an existing firewall rule.

• Delete – Removes an existing firewall rule.

• New - Saves a new firewall rule.

• Cancel – Discard changes to an existing firewall rule.

•

• Priority Up – Moves an existing firewall rule one step higher in priority.

• Priority Down – Moves an existing firewall rule one step below in priority.

• Update Priority – Save updated changes to priority.

Note: Top position in the list is the highest priority, bottom position in the list is

the lowest priority.

To modify an existing firewall rule, click on the rule in the firewall rules list. When

selected, the entry will be highlighted.

TRENDnet User’s Guide

TEW-652BRU

Advanced Router Setup

Access your router management page

Note: Your router management page http://192.168.10.1 is accessed through the use of

your Internet web browser (e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and

will be referenced frequently in this User’s Guide.

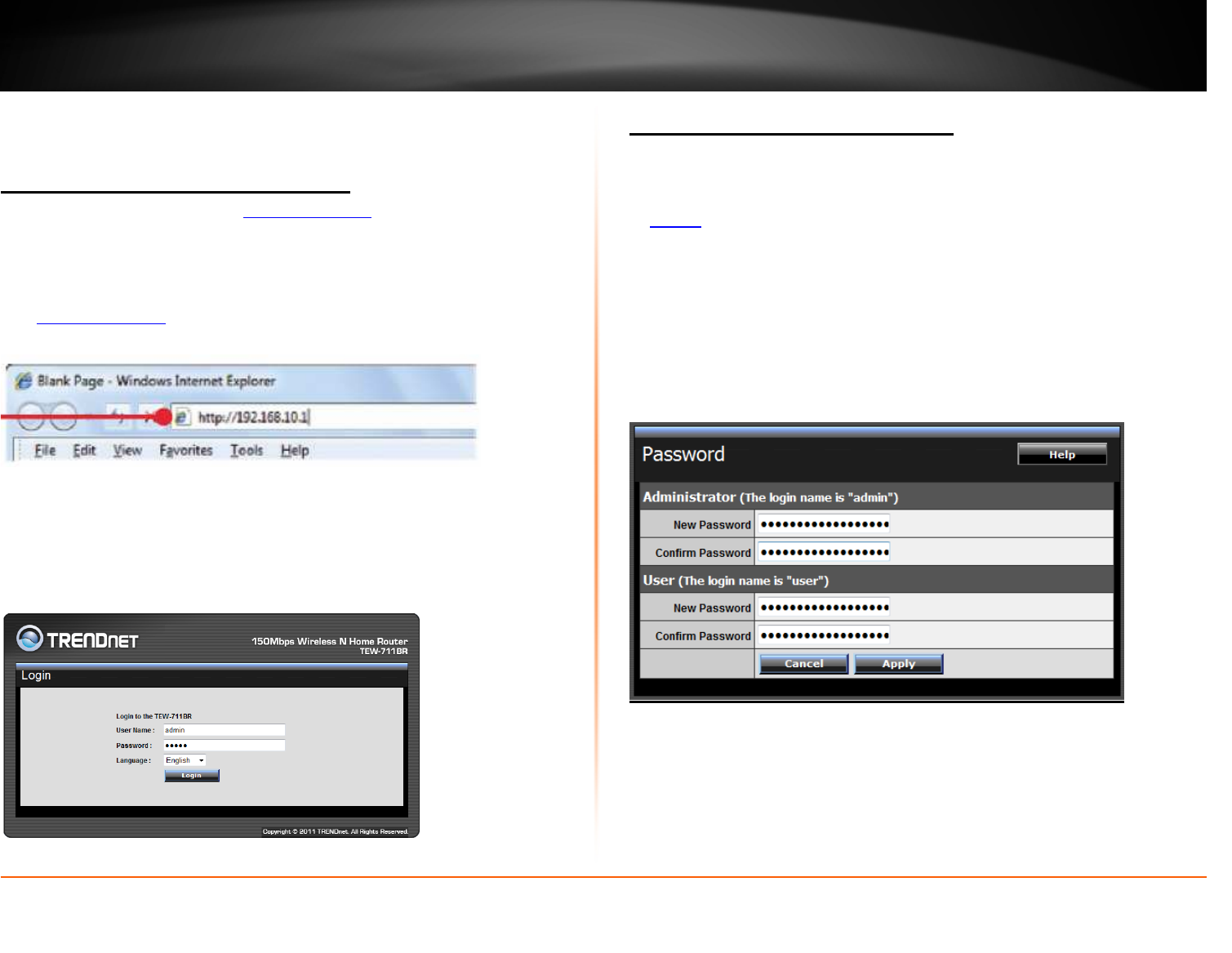

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and

go to http://192.168.10.1. Your router will prompt you for a user name and password.

2. Next to Language, click the drop-down list to select your preferred language. Enter

the default user name and password and then click Login.

Default User Name: admin

Default Password: admin

Change your router login password

Main > Password

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on Password.

3. Under the Administrator section, in the New Password field, enter the new password,

and in the Confirm Password field, retype the new password again to confirm.

4. To save changes, click Apply.

Note: If you change the router login password, you will need to access the router

management page using the User Name “admin” and the new password instead of the

default password “admin”.

TRENDnet User’s Guide

TEW-652BRU

User (Optional): The User account is an additional account used for viewing the settings

on the router management page only. Accessing the router management page using the

User account will restrict access to viewing only and will not allow any settings to be

changed.

Default User Name: user

Default Password: user

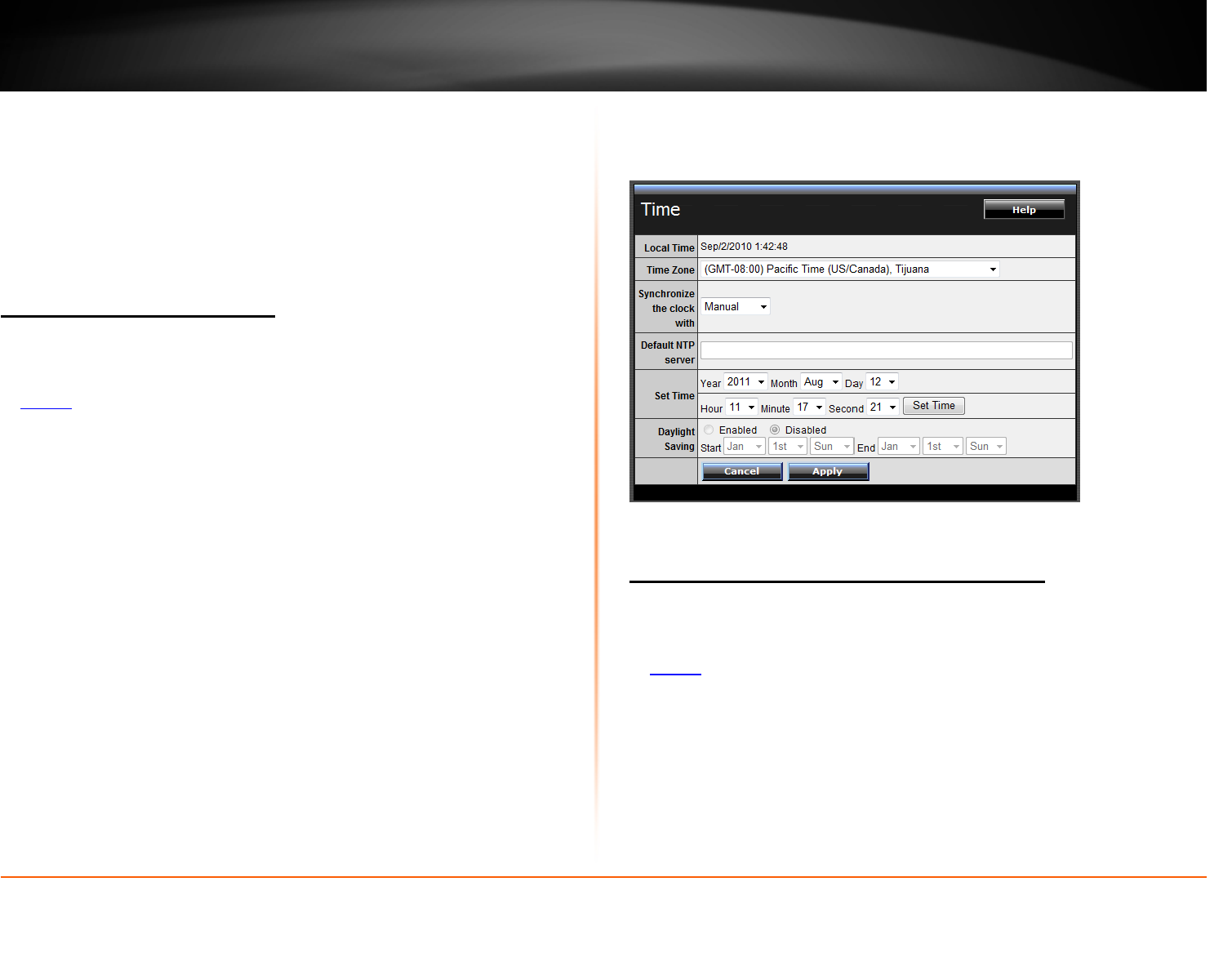

Set your router date and time

Main > Time

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on Time.

3. Next to Time Zone, click the drop-down list to select your Time Zone.

4. Next to Synchronize the clock with, you can choose one of the following options:

• Manual – Set your router date and time manually in the Set Time section. To

save changes, click Apply.

Note: Time is specified in 24-hour format.

• Automatic – Set your router date and time to synchronize with an NTP

(Network Time Protocol) server address (e.g. pool.ntp.org). Enter the NTP

server address next to Default NTP server, (e.g. pool.ntp.org). Next to Daylight

Saving, set the annual range when daylight saving is activated. To save changes,

click Apply.

Note: NTP servers are used for computers and other network devices to synchronize

time across network.

5. You can verify the time/date settings next to Local Time at the top of the page. Local

Time displays the current date and time set on your router.

Manually configure your Internet connection

Main > WAN

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on WAN.

3. In the Connection Type drop-down list, click the type of Internet connection provided

by your ISP (Internet Service Provider).

4. Complete the fields required by your ISP.

TRENDnet User’s Guide

TEW-652BRU

5. Complete the optional settings only if required by your ISP.

6. To save changes, click Apply.

Note: If you are unsure which Internet connection type you are using, please contact

your ISP (Internet Service Provider).Note: If your ISP requires a host name to be specified,

you can specify it under Main > LAN & DHCP Server, in the Host Name field. To save

changes, click Apply at bottom of the page.

Clone a MAC address

Main > WAN

On any home network, each network device has a unique MAC (Media Access Control)

address. Some ISPs (Internet Service Providers) register the MAC address of the device

(usually a router or a computer) connected directly to the modem. If your computer

MAC address is already registered with your ISP and to prevent the re-provisioning and

registration process of a new MAC address with your ISP, then you can clone the

address (assign the registered MAC address of your previous device to your new router).

If you want to use the MAC address from the previous device (computer or old router

that directly connected to the modem, you should first determine the MAC address of

the device or computer and manually enter it into your router using the clone MAC

address feature.

Note: For many ISPs that provide dynamic IP addresses automatically, typically, the

stored MAC address in the modem is reset each time you restart the modem. If you are

installing this router for the first time, turn your modem before connecting the router to

your modem. To clear your modem stored MAC address, typically the procedure is to

disconnect power from the modem for approximately one minute, then reconnect the

power. For more details on this procedure, refer to your modem’s User Guide/Manual or

contact your ISP.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on WAN.

3. Under your Internet connection settings, find the MAC Address section shown below.

4. Click either Clone MAC Address to clone the MAC address of the computer you are

currently using or manually enter the 12-digit MAC address of your old router.

5. To save changes, click Apply.

TRENDnet User’s Guide

TEW-652BRU

Change your router IP address

Main > LAN & DHCP Server

In most cases, you do not need to change your router IP address settings. Typically, the

router IP address settings only needs to be changed, if you plan to use another router in

your network with the same IP address settings, if you are connecting your router to an

existing network that is already using the IP address settings your router is using, or if

you are experiencing problems establishing VPN connections to your office network

through your router.

Note: If you are not encountering any issues or are not faced with one of the cases

described above or similar, it is recommended to keep your router IP address settings as

default.

Default Router IP Address: 192.168.10.1

Default Router Network: 192.168.10.0 / 255.255.255.0

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on LAN & DHCP Server.

3. Enter the router IP address settings.

• IP Address – Enter the new router IP address.

(e.g. 192.168.200.1)

• Subnet Mask – Enter the new router subnet mask.

(e.g. 255.255.255.0)

Note: The DHCP address range will change automatically to your new router IP

address settings so you do not have to change the DHCP address range manually to

match your new router IP address settings.

4. To save changes, click Apply.

Note: You will need to access your router management page using your new router IP

address to access the router management page. (e.g Instead of using the default

http://192.168.10.1 using your new router IP address will use the following format using

your new router IP address http://(new.router.ipaddress.here) to access your router

management page.

Set up the DHCP server on your router

Main > LAN & DHCP Server

Your router can be used as a DHCP (Dynamic Host Configuration Protocol) server to

automatically assign an IP address to each computer or device on your network. The

DHCP server is enabled by default on your router. If you already have a DHCP server on

your network, or if you do not want to use your router as a DHCP server, you can disable

this setting. It is recommended to leave this setting enabled.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on LAN & DHCP Server.

3. Review the DHCP Server settings.

• DHCP Server – Enable or Disable the DHCP server.

• Start IP – Changes the starting address for the DHCP server range. (e.g.

192.168.10.20)

• End IP – Changes the last address for the DHCP server range. (e.g.

192.168.10.30)

Note: The Start IP and End IP specify the range of IP addresses to automatically

assign to computers or devices on your network.

TRENDnet User’s Guide

TEW-652BRU

• Domain Name (Optional) – Specifies a domain name to assign to computers or

devices. (e.g. trendnet.com)

• Lease Time – Click the drop-down list to select the lease time.

Note: The DHCP lease time is the amount of time a computer or device can keep an

IP address assigned by the DHCP server. When the lease time expires, the computer

or device will renew the IP address lease with the DHCP server, otherwise, if there is

no attempt to renew the lease, the DHCP server will reallocate the IP address to be

assigned to another computer or device.

4. To save changes, click Apply.

Dynamic DHCP List – You can view the list of active lease entries for computers or

devices that have been assigned IP addresses automatically from the DHCP server on

your router.

Set up DHCP reservation

Main > LAN & DHCP Server

DHCP (Dynamic Host Configuration Protocol) reservation (also called Static DHCP) allows

your router to assign a fixed IP address from the DHCP server IP address range to a

specific device on your network. Assigning a fixed IP address can allow you to easily

keep track of the IP addresses used on your network by your computers or devices for

future reference or configuration such as virtual server (also called port forwarding, see

“Virtual Server” on page 34) or special applications (also called port triggering, see

“Special Applications” on page 35).

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on LAN & DHCP Server.

3. Review the DHCP reservation settings.

• Static DHCP– Enable or Disable the DHCP reservation feature.

• Name – Enter a name for the reservation.

• IP Address – Enter the IP address to assign to the reservation. (e.g.

192.168.10.101)

Note: You cannot assign IP addresses outside of the DHCP range. The IP address is

required to be within the DHCP IP address range (Start IP & End IP).

• MAC Address – Enter the MAC (Media Access Control) address of the computer

or network device to assign to the reservation. (e.g. 00:11:22:AA:BB:CC)

TRENDnet User’s Guide

TEW-652BRU

• Add - Saves the

reservation.

Static DHCP List – You can view the list of reservations for computers or devices that

have been created in this list.

To modify an existing reservation, click on the entry in the Static DHCP list. When

selected, the entry will be highlighted.

• Update – Saves changes to an existing reservation.

• Delete – Removes an existing reservation.

• Cancel – Discards changes to existing reservation.

Enable/disable UPnP on your router

Management > Remote Management

UPnP (Universal Plug and Play) allows devices connected to a network to discover each

other and automatically open the connections or services for specific applications (e.g.

instant messenger, online gaming applications, etc.) UPnP is enabled on your router by

default to allow specific applications required by your computers or devices to allow

connections through your router as they are needed.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management, and click on Remote Management.

3. Next to UPnP, click Enabled or Disabled to turn the feature on or off on your router.

Note: It is recommended to leave this setting enabled, otherwise, you may encounter

issues with applications that utilize UPnP in order allow the required communication

between your computers or devices and the Internet.

4. To save changes, click Apply.

Allow/deny VPN connections through your router

Management > Remote Management

VPN (Virtual Private) Network) is a network that uses a public network, such as the

Internet, to provide secure communications between a remote computer or network

and another network. Some offices often provide VPN access to their networks to

enable employees to work their remote office/home office, or while traveling.

If your office or place of work has allowed and authorized access for you to access their

network through VPN, the default VPN settings in your router have been configured to

pass through the most common types of VPN protocols, which typically does not require

any additional configuration changes.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management, and click on Remote Management.

TRENDnet User’s Guide

TEW-652BRU

3. Next to PPTP, L2TP, or IPsec (depending the VPN protocol your corporation requires)

click Enabled or Disabled to turn the VPN pass through feature on or off on your router.

Note: It is recommended to leave these settings enabled.

4. To save changes, click Apply.

Allow/deny multicast streaming

Management > Remote Management

In some cases, applications require multicast communication (also called IP multicast

which is the delivery of information to a specific group of computers or devices in a

single transmission) typically used in media streaming applications. Multicast streaming

is enabled by default on your router to allow applications that require multicast

communication through your router which typically does not require and additional

configuration changes.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management, and click on Remote Management.

3. Next to Multicast Stream, click Enabled or Disabled to turn the feature on or off on

your router.

Note: It is recommended to leave this setting enabled.

4. To save changes, click Apply.

Identify your network on the Internet

Main > Dynamic DNS

If you want to remotely access computers or devices on your network attached to your

router, you will need to be able to identify your network on the Internet. The DDNS

(Dynamic DNS) feature allows you to identify your network on the Internet even if your

Internet IP address changes as the DDNS service providers allow you to create a domain

name you can use to easily identify your network on the Internet.

Note: First, you will need to sign up for one of the DDNS service providers listed in the

Server Address drop-down list.

1. Sign up for one of the DDNS available service providers list under Server Address. (e.g.

dyndns.com, no-ip.com, etc.)

2. Log into your router management page (see “Access your router management page”

on page 26).

3. Click on Main and click on Dynamic DNS.

4. Next to DDNS, click Enabled.

5. In the Server Address drop-down list, select the provider you selected, and enter your

information in the fields.

6. To save changes, click Apply.

TRENDnet User’s Guide

TEW-652BRU

Allow remote access to your router management page

Management > Remote Management

You may want to make changes to your router from a remote location such at your

office or another location while away from your home.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management, and click on Remote Management.

3. Under the HTTP section, click Enabled.

• Port– It is recommended to leave this setting as 8080.

Note: If you have configured port 8080 for another configuration section such

as virtual server or special application, please change the port to use.

(Recommended port range 1024-65534)

• Remote IP Range – It is recommended to leave this setting as *, to allow

remote access from anywhere on the Internet.

Note: You can enter a specific range of Internet IP addresses that are allowed to

access your router management page, all others will be denied.

4. To save changes, click Apply.

Open a device on your network to the Internet

DMZ

Access > DMZ

You may want to expose a specific computer or device on your network to the Internet

to allow anyone to access it. Your router includes the DMZ (demilitarized zone) feature

that makes all the ports and services available on the WAN/Internet side of the router

and forwards them to a single IP address (computer or network device) on your network.

The DMZ feature is an easy way of allowing access from the Internet however, it is also

very insecure method.

It is strongly recommended to use virtual server (also called port forwarding, see

“Virtual Server” on page 34) instead, to allow access to your computers or network

devices from the Internet.

1. Make sure to configure your computer or network device to use a static IP address or

you can use the DHCP reservation feature (see “Set up DHCP reservation” on page 30).

2. Log into your router management page (see “Access your router management page”

on page 26).

3. Click on Access, and click on DMZ.

4. Next to DMZ Enable, click Enabled.

5. Next to DMZ Host IP, enter the IP address you assigned to the computer or network

device to expose to the Internet.

6. To save changes, click Apply.

TRENDnet User’s Guide

TEW-652BRU

Virtual Server

Access > Virtual Server

Virtual Server (also called port forwarding) allows you to define specific ports (used or

required by a specific application) and forward them to a single IP address (a computer

or device) on your network. Using this feature is more secure compared to using DMZ

(see “DMZ” on page 33) in which DMZ forwards all ports instead of only specific ports

used by an application. An example would be forwarding a port to an network/IP

camera (typically on TRENDnet IP cameras use HTTP TCP port 80 for remote access web

requests) on your network for to allow remote access to it.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, and click on Virtual Server.

To simplify configuration, there is a list of commonly used pre-defined virtual server

entries to modify, otherwise, you can choose to manually add a new virtual server.

3. Review the virtual server settings.

• Enabled – Selecting Enabled turns on the virtual server and selecting Disabled

turns off the virtual server.

• Name – Enter a name for the virtual server.

• Protocol – Select the protocol required for your device. TCP, UDP, or you can

select Both to choose both TCP & UDP.

Note: Please refer to the device documentation to determine which ports and

protocols are required.

• Private Port – Enter the port number required by your device.

• Public Port – Enter the port number used to access the device from the

Internet.

Note: The Public Port can be assigned a different port number than the Private Port

(also known as port redirection), however it is recommended to use the same port

number for both settings. Please refer to the device documentation to determine

which ports and protocols are required.

• LAN Server – Enter the IP address of the device to forward the port. (e.g.

192.168.10.101).

Note: You should assign a static IP address to the device or use DHCP reservation to

ensure the IP address of the device does not change.

• Add – Saves a new virtual server entry.

• Delete – Removes an existing virtual server.

• Update – Modifies an existing virtual server.

• Cancel – Discard changes to an existing virtual server.

TRENDnet User’s Guide

TEW-652BRU

Example: To forward TCP port 80 to your network/IP camera

1. Make sure to configure your network/IP camera to use a static IP address or you can

use the DHCP reservation feature (see “Set up DHCP reservation” on page 30).

Note: You may need to reference your camera documentation on configuring a static IP

address.

2. Log into your router management page (see “Access your router management page”

on page 26).

3. Click on Access, and click on Virtual Server.

4. In the list below, click the pre-defined virtual server entry named Virtual Server HTTP.

Note: The selected item will be highlighted in yellow when selected.

5. The fields will be populated with the selected pre-defined virtual server entry.

6. Click Enabled to turn on this virtual server.

7. Next to Name, you can enter another name for the virtual server, otherwise, leave

the default name.

8. Next to Protocol, make sure TCP is selected in the drop-down list.

9. The Private Port and Public Port, make sure port number 80 is configured for both

settings.

10. Next to LAN Server, enter the IP address assigned to the camera. (e.g.

192.168.10.101)

11. To save the changes, click Update.

Special Applications

Access > Special AP

Special applications (also called port triggering) is typically used for online gaming

applications or communication applications that require a range of ports or several

ports to be dynamically opened on request to a device on your network. The router will

wait for a request on a specific port or range of ports (or trigger port/port range) from a

device on your network and once a request is detected by your router, the router will

forward a single port or multiple ports (or incoming port/port range) to the device on

your network. This feature is not typically used as most devices and routers currently

use UPnP (Universal Plug and Play) to automatically configure your router to allow

access for applications. See “Enable/disable UPnP on your router” on page 31.

Note: Please refer to the device documentation to determine if your device supports

UPnP first, before configuring this feature.

TRENDnet User’s Guide

TEW-652BRU

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Access, and click on Special AP.

To simplify configuration, there is a list of commonly used pre-defined special

application entries to modify, otherwise, you can choose to manually add a new special

application.

3. Review the special application settings.

• Enabled – Selecting Enabled turns on the special application and selecting

Disabled turns it off.

• Name – Enter a name for the special application.

• Trigger – Port or port range requested by the device.

o Protocol – Select the protocol requested by the device. TCP, UDP, or you

can select Both to choose both TCP and UDP.

o Port Range – Enter the ports or port range requested by the device.

(e.g. 554-554 or 6112-6112).

Note: Please refer to the device documentation to determine which ports and protocols

are required.

• Incoming – Port(s) forwarded to the device.

o Protocol – Select the protocol to be forwarded to the device. TCP,

UDP, or you can select Both to choose both TCP and UDP.

o Port Range – Enter the ports or port range to be forwarded to the

device.

(e.g. 2000-2038,2069,2081,2200-2210).

Note: Please refer to the device documentation to determine which ports and

protocols are required.

• Add – Saves a new special application.

•

To modify an existing application, click on the entry in the special applications list. When

selected, the entry will be highlighted.

• Delete – Removes an existing special application.

• Update – Modifies an existing special application.

• Cancel – Discard changes to an existing special application.

TRENDnet User’s Guide

TEW-652BRU

Change your router IP address

Main > LAN & DHCP Server

In most cases, you do not need to change your router IP address settings. Typically, the

router IP address settings only needs to be changed, if you plan to use another router in

your network with the same IP address settings, if you are connecting your router to an

existing network that is already using the IP address settings your router is using, or if

you are experiencing problems establishing VPN connections to your office network

through your router.

Note: If you are not encountering any issues or are not faced with one of the cases

described above or similar, it is recommended to keep your router IP address settings as

default.

Default Router IP Address: 192.168.10.1

Default Router Network: 192.168.10.0 / 255.255.255.0

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Main, and click on LAN & DHCP Server.

3. Enter the router IP address settings.

Add static routes to your router

Routing > Static

You may want set up your router to route computers or devices on your network to

other local networks through other routers. Generally, different networks can be

determined by the IP addressing assigned to those networks. Generally speaking and for

the case of an example, your network may have 192.168.10.x IP addressing and another

network may have 192.168.20.x IP addressing and because the IP addressing of these

two networks are different, they are separate networks. In order to communicate

between the two separate networks, routing needs to be configured. Below is an

example diagram where routing is needed for devices and computers on your network

to access the other network.

Note: Configuring this feature assumes that you have some general networking

knowledge.

TRENDnet User’s Guide

TEW-652BRU

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Routing, and click on Static.

3. Review the static route settings.

• Network Address – Enter the IP network address of the destination network

for the route.

(e.g. 192.168.20.0)

• Network Mask – Enter the subnet mask of the destination network for the

route.

(e.g. 255.255.255.0)

• Gateway Address – Enter the gateway to the destination network for the route.

(e.g. 192.168.10.2)

• Interface – Click the drop-down list and select the Interface on your router

where the route is active.

(e.g. LAN)

• Metric – Enter the metric or priority of the route. The metric range is 1-15, the

lowest number 1 being the highest priority. (e.g. 1 )

• Add – Saves the static route.

To modify an existing reservation, click on the entry in the static route list. When

selected, the entry will be highlighted.

• Update – Saves changes to an existing static route.

• Delete – Removes an existing static route.

• Cancel – Discards changes to existing static route.

TRENDnet User’s Guide

TEW-652BRU

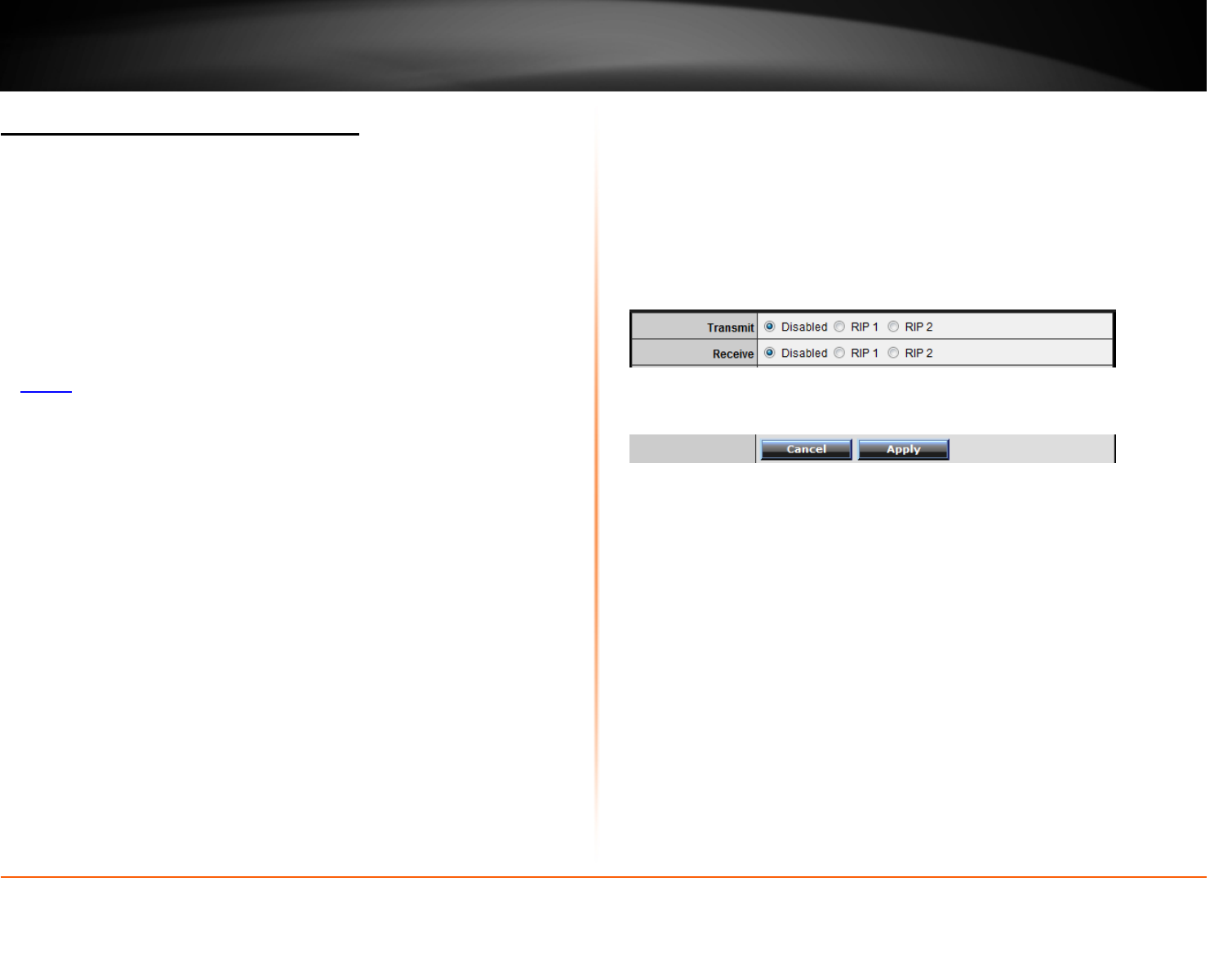

Enable dynamic routing on your router

Routing > Dynamic

You may want set up your router to route computers or devices on your network to

other local networks through other routers. If other routers support dynamic routing

such as RIP (Routing Information Protocol), you can enable this feature on your router

to automatically learn the required routes to reach those networks. It is required that

the same dynamic routing protocol and version is also enabled on the other routers in

order your router and the other routers to exchange information about the network.

Note: Configuring this feature assumes that you have some general networking

knowledge.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Routing, and click on Dynamic.

3. Select the appropriate dynamic routing protocol and version communicate with other

routers.

• Transmit – Allows your router to send out network information to other

routers so other routers can dynamically build routes to your network.

o Disabled – Disable sending routing information from your router to

other routers.

o RIP 1 - Sends out routing information to other routers using the RIP

version 1 protocol.

o RIP 2 – Sends out routing information to other routers using the RIP

version 2 protocol.

• Receive - Allows your router to receive network information from other router

so your router can build routes to other networks.

o Disabled – Disable receiving routing information from other routers to

your router.

o RIP 1 - Receive routing information from other routers using the RIP

version 1 protocol.

o RIP 2 – Receive routing information from other routers using the RIP

version 2 protocol.

4. Click Apply to save the changes or click Cancel to discard the changes.

TRENDnet User’s Guide

TEW-652BRU

Router Maintenance & Monitoring

Reset your router to factory defaults

Tools > Settings

You may want to reset your router to factory defaults if you are encountering difficulties

with your router and have attempted all other troubleshooting. Before you reset your

router to defaults, if possible, you should backup your router configuration first, see

“Backup and restore your router configuration settings” on page 41.

There are two methods that can be used to reset your router to factory defaults.

• Reset Button – Located on the rear panel of your router, see “Product

Hardware Features” on page 2 . Use this method if you are encountering

difficulties with accessing your router management page.

• Router Management Page

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Tools and click on Settings.

3. Under Restore factory default settings, and next to Restore, click Restore. If

prompted, click Yes or OK.

Router Default Settings

Administrator User Name admin

Administrator Password admin

Router IP Address 192.168.10.1

Router Subnet Mask 255.255.255.0

DHCP Server IP Range 192.168.10.101-192.168.199

Wireless Enabled

SSID (wireless network name) TRENDnet652

Wireless Security Disabled

802.11 Mode 2.4GHz 802.11b/g/n mixed mode

Channel Auto Channel

TRENDnet User’s Guide

TEW-652BRU

Backup and restore your router configuration settings

Tools > Settings

You may have added many customized settings to your router and in the case that you

need to reset your router to default, all your customized settings would be lost and

would require you to manually reconfigure all of your router settings instead of simply

restoring from a backed up router configuration file.

To backup your router configuration:

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Tools and click on Settings.

3. Under Save Configuration Settings and next to Save Settings, click Save.

4. Depending on your web browser settings, you may be prompted to save a file (specify

the location) or the file may be downloaded automatically to the web browser settings

default download folder. (Default Filename: cfg.bin)

To restore your router configuration:

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Tools and click on Settings.

3. Under Restore Configuration Settings, next to Load Settings, depending on your web

browser, click on Browse or Choose File.

A separate file navigation window should open.

4. Navigate to the router configuration file to restore

(Default Filename: cfg.bin).

5. Select the router configuration file to restore and click Load.

(Default Filename: cfg.bin). If prompted, click Yes or OK.

6. Wait for the router to restore settings.

TRENDnet User’s Guide

TEW-652BRU

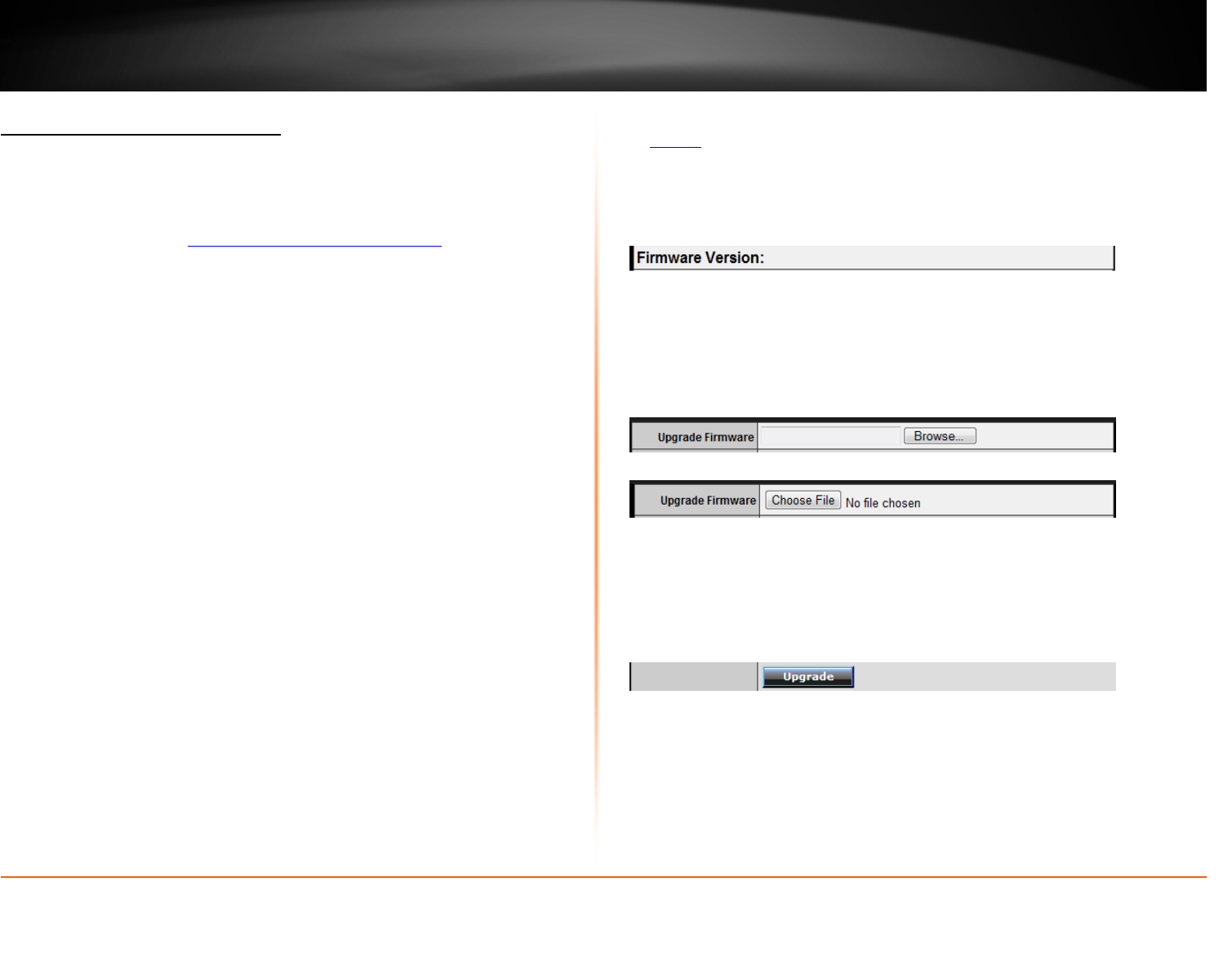

Upgrade your router firmware

Tools > Firmware

TRENDnet may periodically release firmware upgrades that may add features or fix

problems associated with your TRENDnet router model and version. To check if there is

a firmware upgrade available for your device, please check your TRENDnet model and

version using the link below. http://www.trendnet.com/downloads/

In addition, it is also important for you to check the firmware version and compare it to

the version your router is currently running. If there is a newer version available, also

review the release notes to check if there were any new features you may want or if

any problems were fixed that may have been experiencing.

1. If a firmware upgrade is available, download the firmware to your computer.

2. Unzip the file to a folder on your computer.

Please note the following:

• Do not interrupt the firmware upgrade process. Do not turn off the device or

press the Reset button during the upgrade.

• If you are upgrade the firmware using a laptop computer, ensure that the

laptop is connected to a power source or ensure that the battery is fully

charged.

• Disable sleep mode on your computer as this may interrupt the firmware

upgrade process.

• Do not upgrade the firmware using a wireless connection, only using a wired

network connection.

• Any interruptions during the firmware upgrade process may permanently

damage your router.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Device Information to check your router’s current

firmware version at the top of the page.

3. Click on Tools and click on Firmware.

4. Depending on your web browser, next to Upgrade Firmware, click Browse or Choose

File.

5. Navigate to the folder on your computer where the unzipped firmware file (.bin) is

located and select it.

6. Click Upgrade. If prompted, click Yes or OK.

TRENDnet User’s Guide

TEW-652BRU

Restart your router

Tools > Restart

You may want to restart your router if you are encountering difficulties with your router

and have attempted all other troubleshooting.

There are two methods that can be used to restart your router.

• Disconnect the power adapter – Located on the rear panel of your router, see

“Product Hardware Features” on page 2 .

Use this method if you are encountering difficulties with accessing your router

management page. This is also known as a hard reboot or power cycle.

Disconnect the power adapter from the power port of your router for 10

seconds, then, plug the power adapter back into the power of your router.

Wait for your router Status light to begin flashing.

• Router Management Page – This is also known as a soft reboot or restart.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Tools and click on Restart. If prompted, click Yes or OK.

Check connectivity using the router management page

Tools > Ping Test

For troubleshooting purposes, you may want to check your router connectivity using the

ping (also known as a network connectivity test) test tool on your router management

page.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Tools and click on Ping Test.

3. Enter in the IP address (e.g. 192.168.10.101) or host name (e.g. www.trendnet.com)

to test.

4. Click Ping.

5. You will receive a success or fail result message of the address you entered providing

a basic indicating of the router’s connectivity to the Internet or devices that are

connected to your network. Click Back to bring you back to the Ping Test page.

TRENDnet User’s Guide

TEW-652BRU

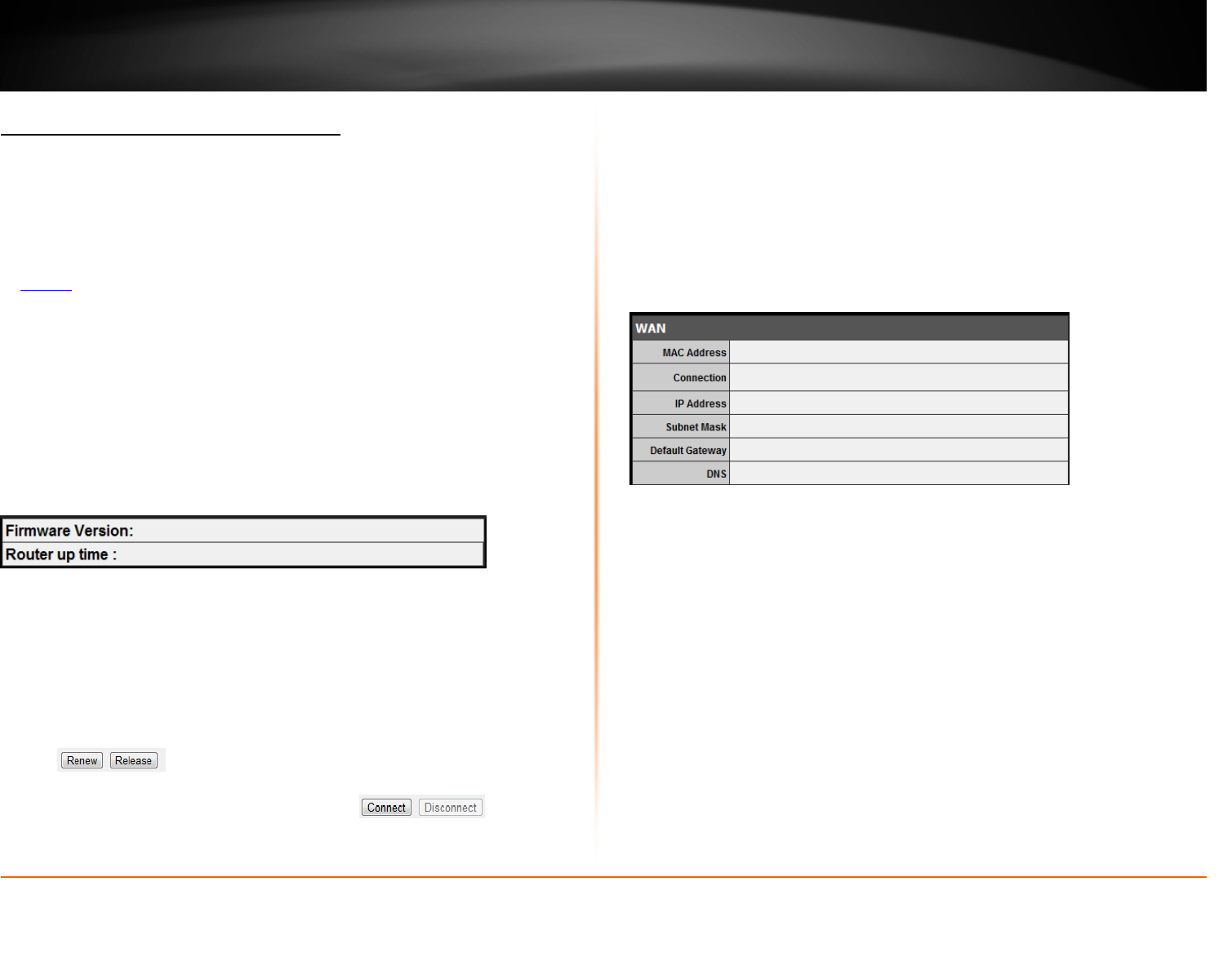

Check the router system information

Status > Device Information

You may want to check the system information of your router such as WAN (Internet)

connectivity, wireless and wired network settings, router MAC address, and firmware

version.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Device Information.

3. Review the device information.

• Firmware Version – The current firmware version your router is running.

• Router Up Time – The duration your router has been running continuously

without a restart/power cycle (hard or soft reboot) or reset.

WAN (Internet) Information

• MAC Address – The current MAC address used by your router’s WAN port or

interface configuration.

• Connection – Displays the current WAN (Internet) connection status. When

using DHCP Client (or Dynamic IP address) Internet connection type, you will

provide the option to Release and Renew your IP address settings.

Other Internet connection types such as PPPoE will and the mode set will

provide the option to Connect and Disconnect.

• IP Address – The current IP address assigned to your router WAN port or

interface configuration.

• Subnet Mask - The current subnet mask assigned to your router WAN port or

interface configuration.

• Default Gateway – The current gateway assigned to your router WAN port or

interface configuration.

• DNS (Domain Name System) – The current DNS address(es) assigned to your

router port or interface configuration.

Wireless Information

• MAC Address – The current MAC address of your router’s wireless or interface

configuration.

• Connection – Displays the status if your wireless functionality on your router is

enabled or disabled.

• SSID – Displays the current wireless network name assigned to your router.

• Channel – Displays the current wireless channel your router is operating.

• Authentication – Displays the current wireless security configured on your

router.

TRENDnet User’s Guide

TEW-652BRU

Wired LAN Information

• MAC Address – The current MAC address of your router’s wired LAN or

interface configuration.

• IP Address - Displays your router’s current IP address.

• Subnet Mask – Displays your router’s current subnet mask.

• DHCP Server - Display your router’s DHCP server status, enabled or disabled,

and provides a link to the DHCP client listing.

View your router log

tatus > Log

Your router log can be used to obtain activity information on the functionality of your

router or for troubleshooting purposes.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Log.

3. Review the device log information.

• Time – Displays the time of the log entry. If the time is inaccurate, make sure to

set the router date and time correctly. (See “Set your router date and time” on

page 27)

• Type – Displays a notification regarding the type of log.

• Message – Displays the log message.

Router Log Navigation

• First Page – Displays the first page of the log.

• Last Page – Displays the last page of the log.

• Previous Page – Display the log page previous to the current. The Page: 1/1 will

display the current page.

• Next Page – Displays the log page next to the current.

• Clear Log - Clears all logging

• Refresh - The Page: 1/1 will display the current page.

TRENDnet User’s Guide

TEW-652BRU

Configure your router log

Status > Log Setting

You may want send your router log to your e-mail address or to an external log server

(also known as Syslog server) so you can check it periodically while away from home.

You may also want to only see specific categories of logging.

Send router logs to your e-mail address

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Log Setting.

3. Review the e-mail log settings.

• SMTP Authentication – Set this option to Enabled if your e-mail service

requires authentication. If not, leave this setting to Disabled.

Note: If you unsure of this setting check with your e-mail service provider if

authentication is required.

• SMTP Account – Enter your account user name for your e-mail service.

• SMTP Password – Enter your password for your e-mail service.

• SMTP Server – Enter the IP address (e.g. 10.10.10.10) or domain name (e.g.

mail.trendnet.com) of your e-mail server.

• SMTP Server Port – Enter the port used by your e-mail service. (e.g. Default

SMTP Server Port: 25)

• From Email Address – Enter a sender e-mail address. (e.g.

router@trendnet.com)

Note: This does not need to be real e-mail address, only used for identification

purposes when checking your e-mail.

• To Email Address – Enter your e-mail address.

• Email Log Now – Click this option to send an e-mail with the current router log

using your email settings.

• Email Logs – Select when you want the router log to be e-mailed.

o When log is full – The router log will be e-mailed to your e-mail

address when router internal log is full.

o Click the drop-down list and configure to e-mail logs according to a set

schedule. Once on a specific day of the week or once every day.

4. To save changes, click Apply.

Send router logs to an external log server

1. Log into your router management page (see “Access your router management page”

on page 26).

TRENDnet User’s Guide

TEW-652BRU

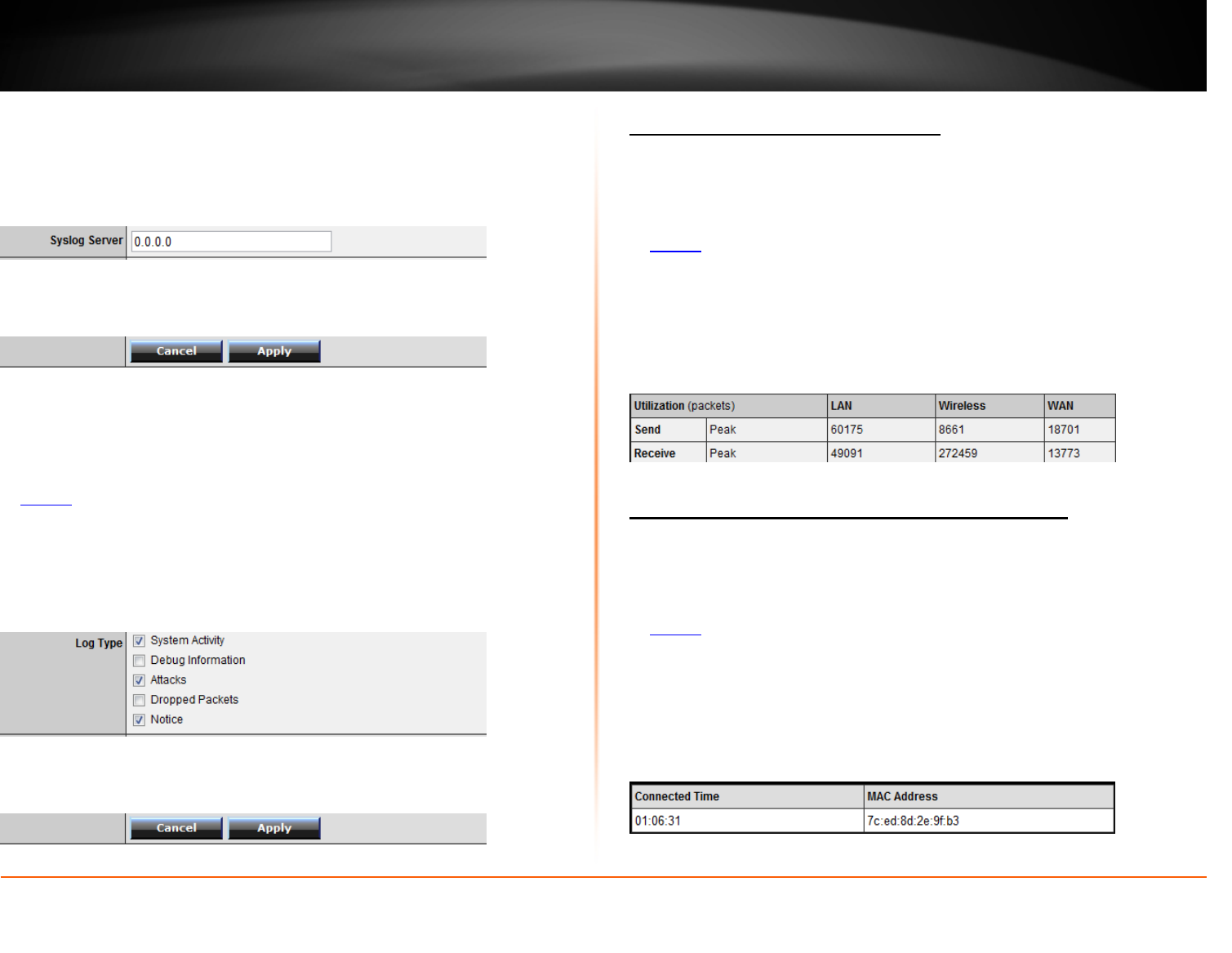

2. Click on Status and click on Log Setting.

3. Next to Syslog Server, enter the IP address of the external log server to send router

logging.

4. To save changes, click Apply.

Set the types or categories to include in logging

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Log Setting.

3. Next to Log Type, check the types or categories to include in logging.

4. To save changes, click Apply.

View your router packet statistics

Status > Statistics

You may want to check your router packet statistics for informational purposes only.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Statistic.

3. The table displays the amount of packets sent and received on your router’s wired

LAN, wireless, and WAN (Internet).

View wireless devices connected to your router

Status > Wireless

You may want to check the wireless devices connected to your router.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Status and click on Wireless.

3. The table displays the amount time each wireless device has been connected and the

MAC address of each wireless device.

TRENDnet User’s Guide

TEW-652BRU

Capture packets using the router management page

Management > Capture Packets

You may want to use the router management page to capture data packets for further

troubleshooting and analysis. Packet captures allow you to see what type of data and

information is inside each packet. You will need a packet capture software application to

be able to open and view the packet capture files downloaded from the router.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management and click on Capture Packets.

3. Click on the Network Interface drop-down list and select which interface you would

like to capture data packets, LAN or WAN.

4. Review the options for capturing packets.

• Start – Starts the packet capture.

• Stop - Stops the packet capture

• Download – Download the packet capture file.

(.pcap file)

Enable SNMP on your router

Management > SNMP

SNMP (Simple Network Management Protocol) is a network management protocol used

to monitor (read) and/or manage (write) multiple network devices on a network. This

preconfigured external SNMP server.

1. Log into your router management page (see “Access your router management page”

on page 26).

2. Click on Management and click on SNMP.

3. Review the options for SNMP.

• SNMP – Select Enabled to enable SNMP.

• System Location – Enter the location. (optional)

• System Contact – Enter the contact. (optional)

• Community – Enter the community to match the settings with the external

SNMP server.

• Trap Receiver 1-3 – Enter the IP address of the external SNMP trap receiver.

You can enter up to three receivers. (e.g. 192.168.10.250)

4. To save changes, click Apply.

TRENDnet User’s Guide

TEW-652BRU

USB Storage and Printer Sharing

The USB Control Center Utility is used to connect your computer to USB devices that are

connected to your network through your router. The software utility allows you to use

USB devices over your network as if they were connected directly to your computer.

Note: The USB Control Center Utility is required to be installed on every computer that

will be accessing the USB devices connected to your network. The utility will only allow

one computer to connect to a USB device at any given time.

Two computers cannot connect to the same USB device at the same time, one computer

must disconnect from the USB device using the utility in order to make it available for

another computer to connect to it.

USB Port Software Utility Requirements

Supported Operating Systems CPU Memory

Windows 7 (32/64-bit) 1GHz or above 1GB RAM or above

Windows Vista (32/64-bit) 800MHz or above 512MB RAM or above

Windows XP (32/64-bit) 300MHz or above 256MB RAM or above

Mac OS X (10.7) 1.8GHz or above 2GB RAM or above

Mac OS X (10.6) 1.06GHz or above 1GB RAM or above

Mac OS X (10.5) 867MHz or above 512MB RAM or above

Mac OS X (10.4) 333MHz or above 256MB RAM or above

Software Installation

Windows OS

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. At the CD Autorun Prompt window, click Run Autorun.exe

Note: If the Autorun prompt does not appear automatically, open the CD contents and

double-click Autorun.exe.

3. At the CD-ROM menu window, click Install Utility.

TRENDnet User’s Guide

TEW-652BRU

4. At the Installation Wizard window, click Next.

5. At the Customer Information window, enter your information and click Next.

6. At the prompt, you can choose another destination folder to install the program or to

install in the default location, click Next.

7. Click Install to start the software installation.

TRENDnet User’s Guide

TEW-652BRU

8. Wait for the installation status to complete.

9. At the completion window, click Finish.

Note: If you leave the “Launch TRENDnet USB Control Center Utility” option checked, this

will automatically start the utility after you click “Finish”. If the option is unchecked, it

will not start automatically and you will need to manually start the utility.

MAC OS X

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. Open the CD contents and locate the “TRENDnet USB Control Center Utility Installer”

(.dmg) file. Double-click the file.

3. Double-click the file in the window.

4. You will be prompted to install the utility. Click Install to start the installation.

TRENDnet User’s Guide

TEW-652BRU

5. You will be prompted for your password to allow the installation. Enter your

password and click OK.

6. Once the installation is completed. Click Restart to restart your computer.

Using the Utility

Windows OS – Launching the Utility

Upon completing the software installation, a desktop shortcut is automatically created.

You double click the icon to start the utility or open the utility if it is already running.

If the utility is already running and you attempt to close the window, it will continue to

run in the background and you will find the icon in your notification area if the utility is

still running. To close and exit the utility and exit the application, you can right-click the

notification icon and select Exit or click System > Exit in the utility main window,

however, it is recommended to keep this utility running in the background.

MAC OS X – Launching the Utility

Upon completing the software installation, a desktop shortcut is automatically created.

Double-click the icon to start the utility. Closing the utility will exit the application.

TRENDnet User’s Guide

TEW-652BRU

In the utility window, you will see the model name and IP address of your router listed.

Once the USB devices are connected to the router USB port, they will be listed under

the model name and IP address of your router.

Note: Please refer to “Product Hardware Features” on page 2 for location of USB port.

Windows OS - Utility Main Window

MAC OS X – Utility Main Window

Menu Items (Windows Only)

• System - Clicking Exit will close the utility and exit the application.

• Tools (Windows Only)

o Configuration – Checking the option Automatically execute when

logging on Windows will automatically start the utility when you log

on. Unchecking the option will disable the utility from automatically

starting when logging on.

o Auto-Connect Printer List – Provides a list of printers installed on your

computer. Select the printer you would like to assign to the Auto-

Connect printer list. If you would like to delete printers from this

listing, select the printer in the list and click Delete. Click Close to close

the window.

• About (Windows Only)

o About – Displays the software/driver version and support contact

information.

TRENDnet User’s Guide

TEW-652BRU

By selecting this entry in the list,

Windows OS

MAC OS X

Clicking the Configure Server button will open your router management page in your

web browser.

Windows OS MAC OS X

To connect your computer to a USB device, select the USB device in the list, then click

the Connect button to connect your computer to the USB device.

Note: The utility will only allow one computer to connect to one USB device at any given

time, therefore, a computer must disconnect from the USB device first before another

computer can connect to it.

Windows OS MAC OS X

To verify if you are connected to the USB device, a message will appear next to the USB

device displaying a message that the USB device is “Manually connected by <your

computer name>”.

Windows OS

MAC OS X

To disconnect your computer from a USB device, select the USB device in the list, then

click the Disconnect button to disconnect your computer to the USB storage device or

printer.

Note: The utility will only allow one computer to connect to one USB device at any given

time, therefore, a computer must disconnect from the USB device first before another

computer can connect to it.

Windows OS MAC OS X

To verify if you disconnected from the USB device, the status message next to the

message will not show any status message.

Windows OS

MAC OS X

TRENDnet User’s Guide

TEW-652BRU

If another computer is currently connected to the USB device you are trying to connect

your computer to, you will not be able to connect to it. You can send a request to

connect to the computer that is currently connected that is currently connected to the

USB device.

To verify if another computer is connected to the device, a message will appear next to

the USB device displaying a message that the USB device is “Manually connected by

<another computer name>”.

Windows OS

MAC OS X

If a USB device is currently being used by another computer, click the Request to

Connect button to send a request to the computer that is currently connected to the

USB device. The computer that is currently connected to USB device will be prompted to

“Accept” or “Reject” your connection request.

Windows OS MAC OS X

Sending a Request to Connect

Windows OS

To send t a request to connect to a USB device, click the Request to Connect button.

The remote computer will receive the request message below.

• Accept – Clicking this option will disconnect your computer from the device

and allow the requesting computer to connect to the USB device.

• Reject – Clicking this option will disregard the request and your computer will

not be able to connect to the USB

TRENDnet User’s Guide

TEW-652BRU

MAC OS X

To send t a request to connect to a USB device, click the Request to Connect button.

The local computer sending the request will show the status message below.

The remote computer will receive the request message below.

• Accept – Clicking this option will disconnect your computer from the device

and allow the requesting computer to connect to the device.

If the remote computer accepts the request, the local computer will display the message

below. Click Close to close the message.

• Reject – Clicking this option will disregard the request.

If the remote computer rejects the request, the local computer will display the message

below. Click OK to close the message.

TRENDnet User’s Guide

TEW-652BRU

Connect to a Printer

Note: This function applies to stand-alone USB printers or USB multi-function printers. It

is required that the printer drivers are installed before your computer is able to print.

Please ensure the printer drivers are installed. If the printer drivers are not installed,

please refer to your printer manufacturer website or documentation on where to

download and how to install the printer drivers. Before installing the printer drivers,

connect your computer to the printer using the USB utility first. Some printers may

require that the printer is directly connected to the computer in order to complete the

driver installation.

Once the printer drivers are installed properly on your computer,

1. Connect the USB cable from the printer to the USB 2.0 port on the router. Select the

printer listed in the utility.

2. Click Connect to connect your computer to the printer.

Windows OS MAC OS X

3. Once your computer is connected, you can send print jobs to the printer.

4. After you have finished printing, click Disconnect, to make the printer available to

other computers on your network that use the printer, or, you can use the Auto-

Connect Printer Feature.

Windows OS MAC OS X

Auto-Connect Printer Feature

When a USB printer is connected and selected in the main window, clicking this option

allows you to enable/disable the auto connect feature to a selected printer in the Auto-

Connect printer list. When your computer attempts to print, the Auto-Connect feature

will automatically connect your computer to the set Auto-Connect printer assigned in

the utility. Once the print job from your computer is completed, it will automatically

disconnect to make the printer available to other computers on your network.

Note: It is recommended to enable this feature on all computers that will need to

connect to the USB printer. Enabling the Auto-Connect Printer feature will avoid the

complexity of having to manually connect and disconnect from the printer for each

computer when multiple computers are sending print jobs to the USB printer.

1. Click Auto-Connect Printer.

Windows OS MAC OS X

2. Select the assigned printer to use as the auto connect printer by checking the box.

3. When you are finished, click Apply.

Windows OS MAC OS X

TRENDnet User’s Guide

TEW-652BRU

Connect to a Scanner

Note: This function applies to stand-alone USB scanners or USB scanners included with

multi-function printers. It is required that the scanner drivers are installed before your

computer is able to scan. Please ensure the scanner drivers are installed. If the scanner

drivers are not installed, please refer to your printer manufacturer website or

documentation on where to download and how to install the scanner drivers. Before

installing the scanner drivers, connect your computer to the printer using the USB utility

first. Some scanners may require that the scanner is directly connected to the computer

in order to complete the driver installation.

1. Connect the USB cable from the scanner or multi-function printer with scanning

capability to the USB 2.0 port on the router and select the scanner or multi-function

printer with scanning capability listed in the utility.

2. Click Connect to connect your computer to the scanner or printer with multi-function

printer with scanning capability.

Windows OS MAC OS X

3. Once your computer is connected, you can receive scanned files from the scanner.

Click Network Scanner, to open your computer’s default scanning application.

Windows OS MAC OS X

4. After you have finished printing, click Disconnect, to make the scanner available to

other computers on your network that use the scanner.

Windows OS MAC OS X

Connect to a Storage Device

1. Connect the USB cable from storage device to the USB 2.0 port on the router and

select the storage device listed in the utility.

2. Click Connect to connect your computer to the scanner or printer with multi-function

printer with scanning capability.

Windows OS MAC OS X

3. Once connected,

• To access the USB storage device in Windows OS, the USB storage device can

be located under “Computer” or “My Computer”.

• To access the USB storage device in MAC OS X, the USB storage device can be

located on your desktop.

You will now be able to read and write files to the USB storage device as if it was

connected directly to your computer.

4. After you have finished printing, click Disconnect, to make the storage device

available to other computers on your network that use the storage device..

Windows OS MAC OS X

TRENDnet User’s Guide

TEW-652BRU

Router Management Page Structure

Main

• LAN & DHCP Server

o Static DHCP Reservation

• WAN

o Clone MAC Address

• Password

• Time

• Dynamic DNS

Wireless

• Basic

• Security

• Advanced

• Wi-Fi Protected Setup

Status

• Device Information

• Log

• Log Setting

o Email Log

o Syslog

Log Type

• Statistic

• Wireless

Routing

• Static

• Dynamic

• Routing Table

Access

• Filter

o MAC Filters

o Domain/URL Blocking

o Protocol/IP Filters

• Virtual Server

• Special AP

• DMZ

• Firewall Rule

Management

• SNMP

• Remote Management

• Capture Packets

Routing

• Static

• Dynamic

• Routing Table

Tools

• Restart

• Settings

o Save Configuration Settings

o Restore Configuration Settings

o Reset to Factory Default

• Firmware

• Upgrade Firmware

• Ping Test

Wizard

• Setup Wizard

TRENDnet User’s Guide

TEW-652BRU

Technical Specifications

Hardware

Standards IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX),

IEEE 802.11b/g/n, IEEE 802.3az

WAN 1 x 10/100Mbps Auto-MDIX WAN port (Internet)

LAN 4 x 10/100Mbps Auto-MDIX LAN port

USB 1 x USB 2.0 port for file and printer sharing*

WPS Button Enables Wi-Fi Protected Setup (WPS) function

Utility OS Compatibility Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-

bit), MAC OS X 10.4, 10.5, 10.6, 10.7

Connection Type Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP

DMZ DMZ host & Virtual Servers

DNS Static or WAN assigned DNS servers; 3 verified

services for DDNS

SNMP Up to 3 external trap receivers

Internet Access Control MAC Address Filter, Domain/URL Filter, Protocol/IP

Filter

Logging 5 types of event logging; email report

LED Indicator Power, LAN1~LAN4, WAN, WLAN, Status

Power Switch On/Off power switch

Power Adapter 5V DC, 2A external power adapter

Power Consumption 6 watts (max)

Dimension (L x W x H) 158 x 109 x 34mm (6.2 x 4.3 x 1.3in)

Weight 215g (7.6oz)

Temperature Operation: 0°~ 40°C (32°F~ 104°F); Storage: -10°~

70°C (14°F~158 °F)

Humidity Max. 95% (non-condensing)

Certifications CE, FCC

Wireless

Modulation DSSS, DBPSK, DQPSK, CCK, OFDM with BPSK, QPSK,

16QAM, and 64QAM

Frequency 2.412~2.484GHz

Antenna 2 x 2dBi fixed dipole antennas

Media Access Protocol CSMA/CA with ACK

Data Rate

802.11b: Up to 11Mbps

802.11g: Up to 54Mbps

802.11n: Up to 300Mbps

Security

WEP(HEX/ASCII): 64/128-bit

WPA(AES/TKIP): WPA/WPA2-RADIUS, WPA-

PSK/WPA2-PSK

Output Power 27.8dBm

Receiving Sensitivity

802.11b: -85dBm (typical) @ 11Mbps

802.11g: -68dBm (typical) @ 54Mbps

802.11n: -62dBm (typical) @ 300Mbps

Channels 1~ 11 (FCC), 1~13 (ETSI)

*Requires included software utility.

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications.

Actual data throughput and coverage will vary depending on interference, network traffic,

building materials and other conditions.

TRENDnet User’s Guide

TEW-652BRU

Troubleshooting

Q: I typed http://192.168.10.1 in my Internet Browser Address Bar, but an error

message says “The page cannot be displayed.” How can I access the router

management page?

Answer:

1. Check your hardware settings again. See “Router Installation” on page 2.

2. Make sure the LAN and WLAN lights are lit.

3. Make sure your network adapter TCP/IP settings are set to Obtain an IP address

automatically or DHCP (see the steps below).

4. Press on the factory reset button for 15 seconds, the release.

Windows 7

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

Q: I am not sure what type of Internet Account Type I have for my Cable/DSL

connection. How do I find out?

Answer:

Contact your Internet Service Provider (ISP) for the correct information.

Q: The Wizard does not appear. What should I do?

Answer:

1. Click on Wizard on the left hand side.

2. Near the top of the browser, “Pop-up blocked” message may appear. Right click on

the message and select Always Allow Pop-ups from This Site.

3. Disable your browser's pop up blocker.

Q: I went through the Wizard, but I cannot get onto the Internet. What should I do?

Answer:

1. Verify that you can get onto the Internet with a direct connection into your modem.

2. Contact your ISP and verify all the information that you have in regards to your

Internet connection settings is correct.

3. Power cycle your modem and router. Unplug the power to the modem and router.

Wait 30 seconds, and then reconnect the power to the modem. Wait for the modem to

fully boot up, and then reconnect the power to the router.

Q: I cannot connect wirelessly to the router. What should I do?

Answer:

1. Double check that the WLAN light on the router is lit.

2. Power cycle the router. Unplug the power to the router. Wait 15 seconds, then plug

the power back in to the router.

3. Contact the manufacturer of your wireless network adapter and make sure the

wireless network adapter is configured with the proper SSID. The preset SSID is

TRENDnet(model_number).

4. To verify whether or not wireless is enabled, login to the router management page,

click on Wireless.

5. Please see “Steps to improve wireless connectivity” on page 19 if you continue to

have wireless connectivity problems.

TRENDnet User’s Guide

TEW-652BRU

Appendix

How to find your IP address?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general guidelines,

however, it is strongly recommended that you consult your computer or operating

system manufacturer directly for assistance on the proper procedure for configuring

network settings.

Command Prompt Method

Windows 2000/XP/Vista/7

1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run

dialog box.

2. In the dialog box, type cmd to bring up the command prompt.

3. In the command prompt, type ipconfig /all to display your IP address settings.

MAC OS X

1. Navigate to your Applications folder and open Utilities.

2. Double-click on Terminal to launch the command prompt.

3. In the command prompt, type ipconfig getifaddr <en0 or en1> to display the wired

or wireless IP address settings.

Note: en0 is typically the wired Ethernet and en1 is typically the wireless Airport

interface.

Graphical Method

MAC OS 10.6/10.5

1. From the Apple menu, select System Preferences.

2. In System Preferences, from the View menu, select Network.

3. In the Network preference window, click a network port (e.g., Ethernet, AirPort,

modem). If you are connected, you'll see your IP address settings under "Status:"

MAC OS 10.4

1. From the Apple menu, select Location, and then Network Preferences.

2. In the Network Preference window, next to "Show:", select Network Status. You'll see

your network status and your IP address settings displayed.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

How to configure your network settings to obtain an IP address automatically or use

DHCP?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general guidelines,

however, it is strongly recommended that you consult your computer or operating

system manufacturer directly for assistance on the proper procedure for configuring

network settings.

Windows 7

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

MAC OS 10.4/10.5/10.6

a. From the Apple, drop-down list, select System Preferences.

b. Click the Network icon.

c. From the Location drop-down list, select Automatic.

d. Select and view your Ethernet connection.

In MAC OS 10.4, from the Show drop-down list, select Built-in

Ethernet and select the TCP/IP tab.

In MAC OS 10.5/10.6, in the left column, select Ethernet.

e. Configure TCP/IP to use DHCP.

TRENDnet User’s Guide

TEW-652BRU

In MAC 10.4, from the Configure IPv4, drop-down list, select Using

DHCP and click the Apply Now button.

In MAC 10.5, from the Configure drop-down list, select Using DHCP

and click the Apply button.

In MAC 10.6, from the Configure drop-down list, select Using DHCP

and click the Apply button.

f. Restart your computer.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

How to find your MAC address?

In Windows 2000/XP/Vista/7,

Your computer MAC addresses are also displayed in this window, however, you can type

getmac –v to display the MAC addresses only.

In MAC OS 10.4,

1. Apple Menu > System Preferences > Network

2. From the Show menu, select Built-in Ethernet.

3. On the Ethernet tab, the Ethernet ID is your MAC Address.

In MAC OS 10.5/10.6,

1. Apple Menu > System Preferences > Network

2. Select Ethernet from the list on the left.

3. Click the Advanced button.

3. On the Ethernet tab, the Ethernet ID is your MAC Address.

How to connect to a wireless network using the built-in Windows utility?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general guidelines,

however, it is strongly recommended that you consult your computer or operating

system manufacturer directly for assistance on the proper procedure for connecting to a

wireless network using the built-in utility.

Windows 7

1. Open Connect to a Network by clicking the network icon ( or ) in the notification

area.

2. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

Windows Vista

1. Open Connect to a Network by clicking the Start Button. and then click Connect

To.

2. In the Show list, click Wireless.

3. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

Windows XP

1. Right-click the network icon in the notification area, then click View Available

Wireless Networks.

2. In Connect to a Network, under Available Networks, click the wireless network you

would like to connect to.

3. You may be prompted to enter a security key in order to connect to the network.

4. Enter in the security key corresponding to the wireless network, and click Connect.

TRENDnet User’s Guide

TEW-652BRU

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the intended

destination. The firmware setting is not accessible by the end user.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.

The following test methods have been applied in order to prove presumption of

conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN60950-1: 2006 + A11 : 2009 + A1 : 2010

Safety of Information Technology Equipment

EN 50385: 2002

Product standard to demonstrate the compliance of radio base stations and fixed

terminal stations for wireless telecommunication systems with the basic restrictions or

the reference levels related to human exposure to radio frequency electromagnetic

fields (110MHz - 40 GHz) - General public

EN 300 328 V1.7.1 (2006-10)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band

and using wide band modulation techniques; Harmonized EN covering essential

requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 V1.8.1 (2008-04)

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 1: Common

technical requirements

EN 301 489-17 V2.1.1 (2009-05)

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Specific

conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance

RLAN equipment

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in

all EU member states and EFTA countries, except in France and Italy where restrictive

use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in

order to obtain authorization to use the device for setting up outdoor radio links and/or

for supplying public access to telecommunications and/or network services.

TRENDnet User’s Guide

TEW-652BRU

This device may not be used for setting up outdoor radio links in France and in some

areas the RF output power may be limited to 10 mW EIRP in the frequency range of

2454 – 2483.5 MHz. For detailed information the end-user should contact the national

spectrum authority in France.

Česky

[Czech]

TRENDnet tímto prohlašuje, že tento TEW-652BRU je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními

směrnice 1999/5/ES.

Dansk

[Danish]

Undertegnede TRENDnet erklærer herved, at følgende udstyr

TEW-652BRU overholder de væsentlige krav og øvrige relevante

krav i direktiv 1999/5/EF.

Deutsch

[German]

Hiermit erklärt TRENDnet, dass sich das Gerät TEW-652BRU in

Übereinstimmung mit den grundlegenden Anforderungen und

den übrigen einschlägigen Bestimmungen der Richtlinie

1999/5/EG befindet.

Eesti

[Estonian]

Käesolevaga kinnitab TRENDnet seadme TEW-652BRU vastavust

direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist

tulenevatele teistele asjakohastele sätetele.

English Hereby, TRENDnet, declares that this TEW-652BRU is in

compliance with the essential requirements and other relevant

provisions of Directive 1999/5/EC.

Español

[Spanish]

Por medio de la presente TRENDnet declara que el TEW-652BRU

cumple con los requisitos esenciales y cualesquiera otras

disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-652BRU

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français

[French]

Par la présente TRENDnet déclare que l'appareil TEW-652BRU est

conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE.

Italiano Con la presente TRENDnet dichiara che questo TEW-652BRU è

[Italian]

conforme ai requisiti essenziali ed alle altre disposizioni pertinenti

stabilite dalla direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo TRENDnet deklarē, ka TEW-652BRU atbilst Direktīvas

1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

noteikumiem.

Lietuvių

[Lithuanian]

Šiuo TRENDnet deklaruoja, kad šis TEW-652BRU atitinka esminius

reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlands

[Dutch]

Hierbij verklaart TRENDnet dat het toestel TEW-652BRU in

overeenstemming is met de essentiële eisen en de andere

relevante bepalingen van richtlijn 1999/5/EG.

Malti

[Maltese]

Hawnhekk, TRENDnet, jiddikjara li dan TEW-652BRU jikkonforma

mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li

hemm fid-Dirrettiva 1999/5/EC.

Magyar

[Hungarian]

Alulírott, TRENDnet nyilatkozom, hogy a TEW-652BRU megfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv

egyéb elõírásainak.

Polski

[Polish]

Niniejszym TRENDnet oświadcza, że TEW-652BRU jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi

postanowieniami Dyrektywy 1999/5/EC.

Português

[Portuguese]

TRENDnet declara que este TEW-652BRU está conforme com os

requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Slovensko

[Slovenian]

TRENDnet izjavlja, da je ta TEW-652BRU v skladu z bistvenimi

zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky

[Slovak]

TRENDnet týmto vyhlasuje, že TEW-652BRU spĺňa základné

požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi

[Finnish]

TRENDnet vakuuttaa täten että TEW-652BRU tyyppinen laite on

direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien

direktiivin muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar TRENDnet att denna TEW-652BRU står I

överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EG.

TRENDnet User’s Guide

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEW-652BRU – 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit’s warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please

contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to TRENDnet

prepaid, insured and packaged appropriately for safe shipment. Customers shipping

from outside of the USA and Canada are responsible for return shipping fees. Customers

shipping from outside of the USA are responsible for custom charges, including but not

limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S

OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE

EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE

OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST

OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR

MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO

EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN

CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL

LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY

OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY

FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL

OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Some TRENDnet products include software code written by third party developers.

These codes are subject to the GNU General Public License ("GPL") or GNU Lesser

General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section

and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.

These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of

the developers. TRENDnet does not provide technical support for these codes. Please go

to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for

specific terms of each license.

PWP05202009v2 2011/10/12

TRENDNET TEW652BRU 300Mbps Wireless N Home Router with USB Port User Manual manual 1116

TRENDNET, Inc. 300Mbps Wireless N Home Router with USB Port manual 1116

User Man_XU8TEW652BRU

Navigation menu

Namespaces

Views

Navigation
