TRENDNET TEW664UB 802.11n dual band USB adapter User Manual User s Guide
TRENDNET, INC. 802.11n dual band USB adapter User s Guide
TRENDNET >
Manual
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
For operation within 5.15 ~ 5.25GHz frequency range, it is restricted to indoor environment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the
specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance
requirements, please follow operation instruction as documented in this manual.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop
computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with
related RF exposure rule and such use shall be prohibited.
The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at
the factory to match the intended destination. The firmware setting is not accessible by the end user.
The USB dongle transmitter is approved for use in typical laptop computers. To comply with FCC RF exposure requirements, it
should not be used in other devices or certain laptop and tablet computer configurations where the USB connectors on the host
computer are unable to provide or ensure the necessary operating configurations intended for the device and its users or bystanders to
satisfy RF exposure compliance requirements.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been
applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:
EN60950-1: 2006
Safety of Information Technology Equipment
EN 62311: 2008
Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz – 300GHz)
i
EN 301 893 V1.4.1: (2007-07)
Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of
article 3.2 of the R&TTE Directive
EN 300 328 V1.7.1 (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission equipment
operating in the 2,4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements
under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1 (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 1: Common technical requirements
EN 301 489-17 V1.3.2 (2008-04)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio
equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN
equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries,
except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device
for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10
mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum
authority in France.
0560
Česky
[Czech]
TRENDnet tímto prohlašuje, že tento TEW-664UB je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-664UB overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt TRENDnet, dass sich das Gerät TEW-664UB in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab TRENDnet seadme TEW-664UB vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, TRENDnet, declares that this TEW-664UB is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente TRENDnet declara que el TEW-664UB cumple con los requisitos esenciales y
cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-664UB ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français Par la présente TRENDnet déclare que l'appareil TEW-664UB est conforme aux exigences essentielles et
ii
[French] aux autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente TRENDnet dichiara che questo TEW-664UB è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo TRENDnet deklarē, ka TEW-664UB atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar
to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo TRENDnet deklaruoja, kad šis TEW-664UB atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart TRENDnet dat het toestel TEW-664UB in overeenstemming is met de essentiële eisen en
de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, TRENDnet, jiddikjara li dan TEW-664UB jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, TRENDnet nyilatkozom, hogy a TEW-664UB megfelel a vonatkozó alapvetõ követelményeknek
és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym TRENDnet oświadcza, że TEW-664UB jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese]
TRENDnet declara que este TEW-664UB está conforme com os requisitos essenciais e outras disposições
da Directiva 1999/5/CE.
Slovensko
[Slovenian]
TRENDnet izjavlja, da je ta TEW-664UB v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky
[Slovak]
TRENDnet týmto vyhlasuje, že TEW-664UB spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi
[Finnish]
TRENDnet vakuuttaa täten että TEW-664UB tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar TRENDnet att denna TEW-664UB står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
iii
TABLE OF CONTENT
Introduction ................................................................................................ 1
Overview of this User’s Guide ............................................................................... 1
Unpacking and Setup.................................................................................. 2
Unpacking .............................................................................................................. 2
Setup....................................................................................................................... 2
IDentifying external components ............................................................... 3
LED ........................................................................................................................ 3
Check the installation ............................................................................................. 3
Software Installation................................................................................... 4
Windows Based Utility Installation........................................................................ 4
Wireless Utility Setting .............................................................................. 6
Link Information .................................................................................................... 6

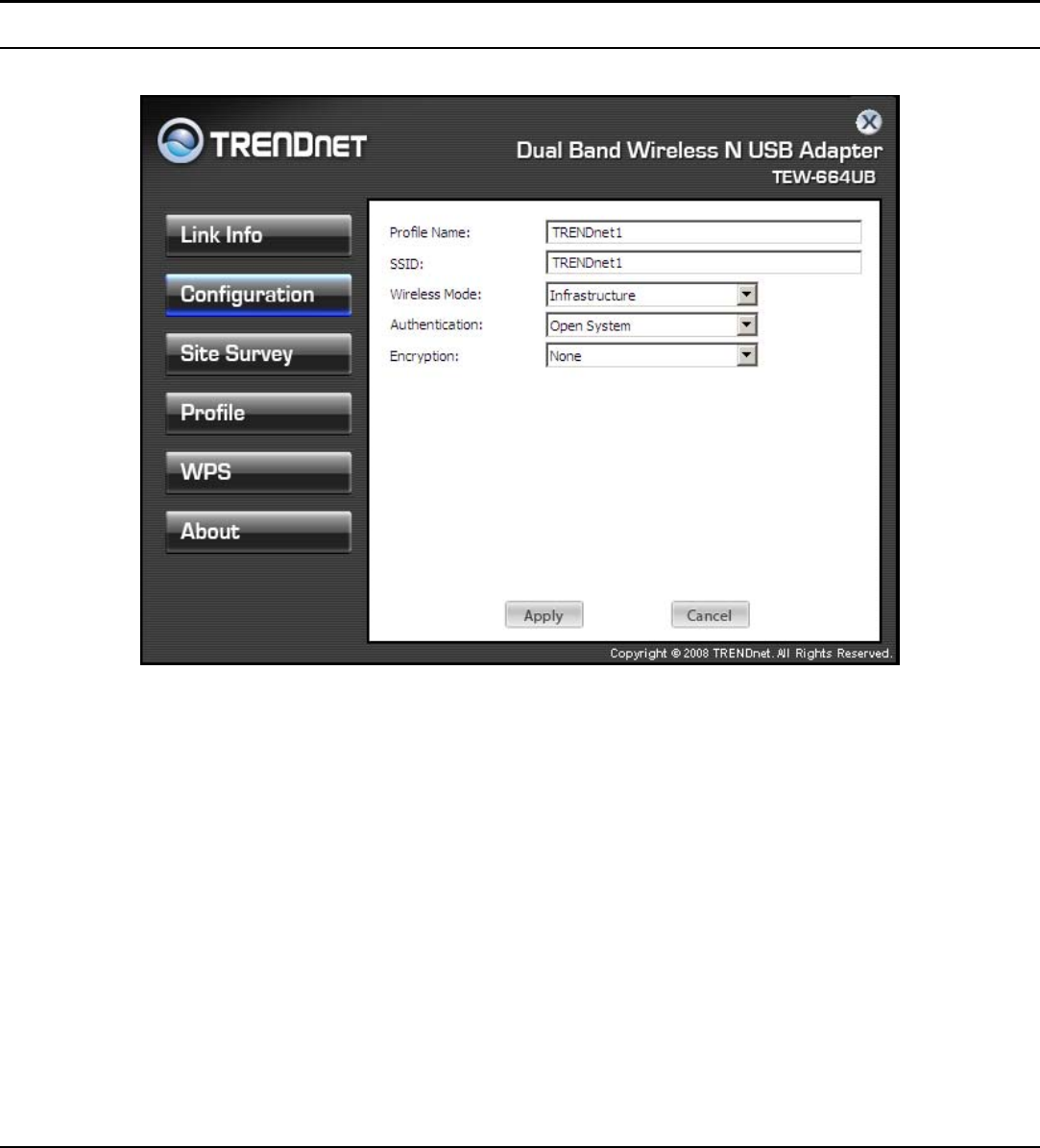

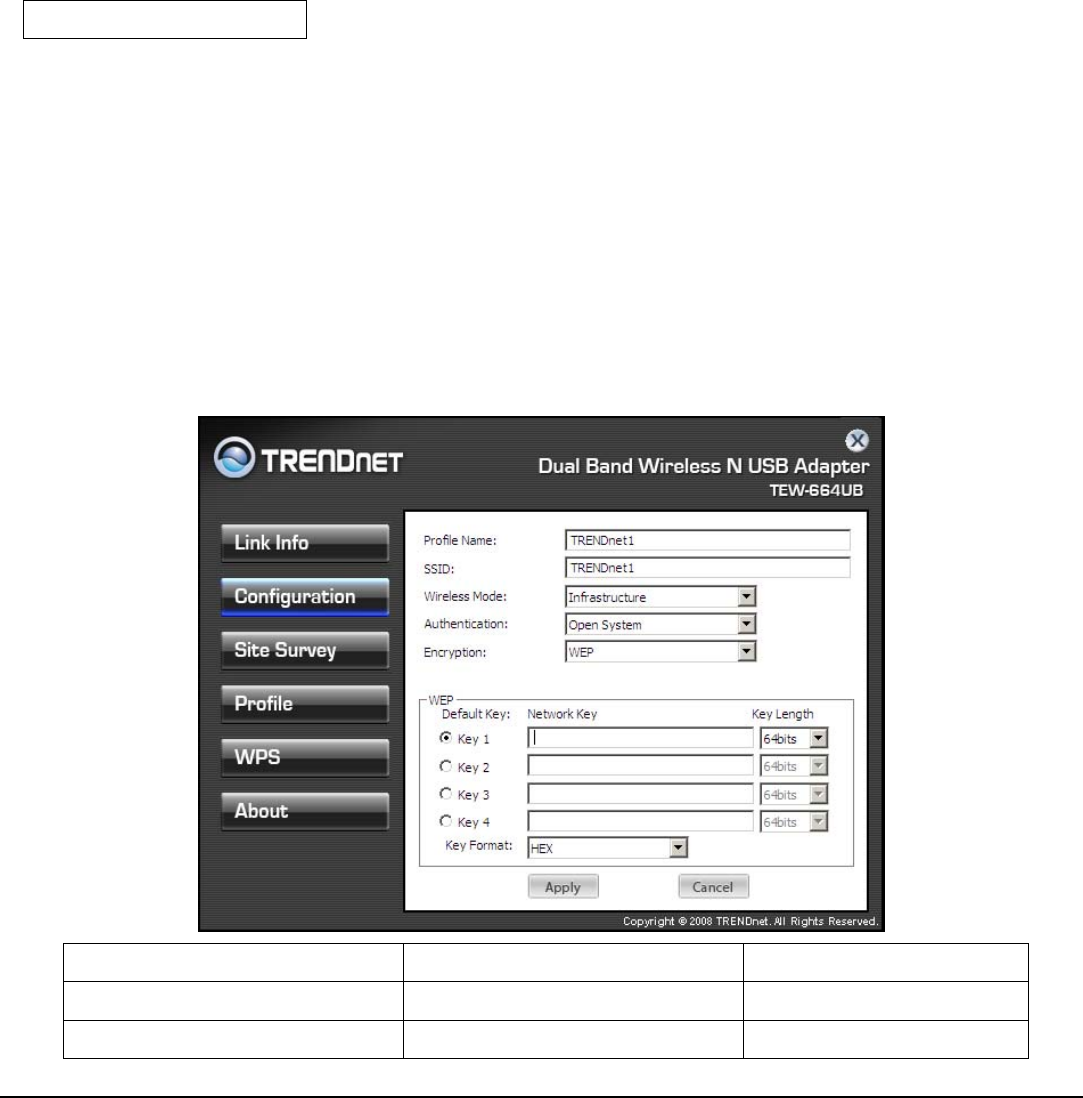

Configuration.......................................................................................................... 7
Site Survey ........................................................................................................... 10
Profile ................................................................................................................... 11

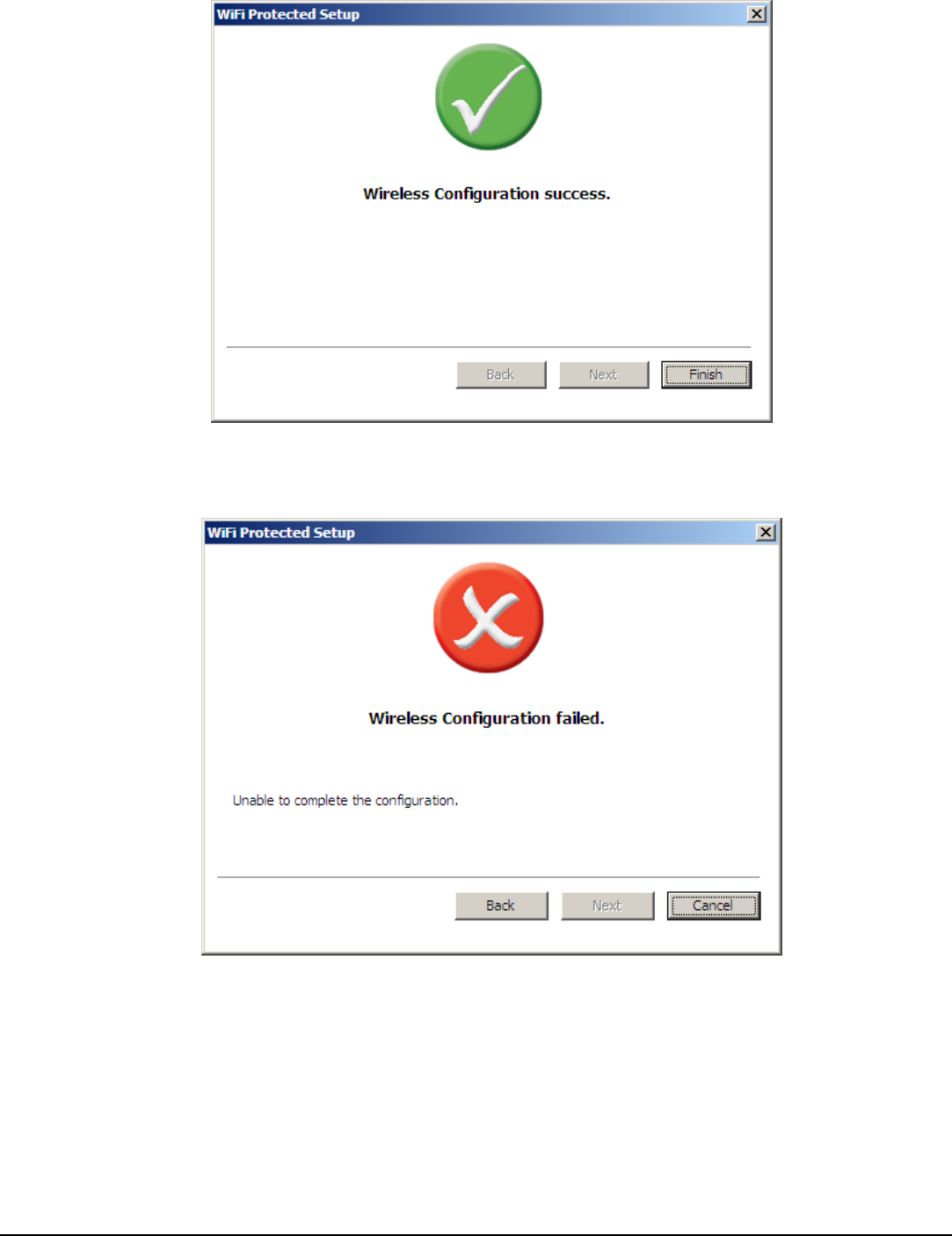

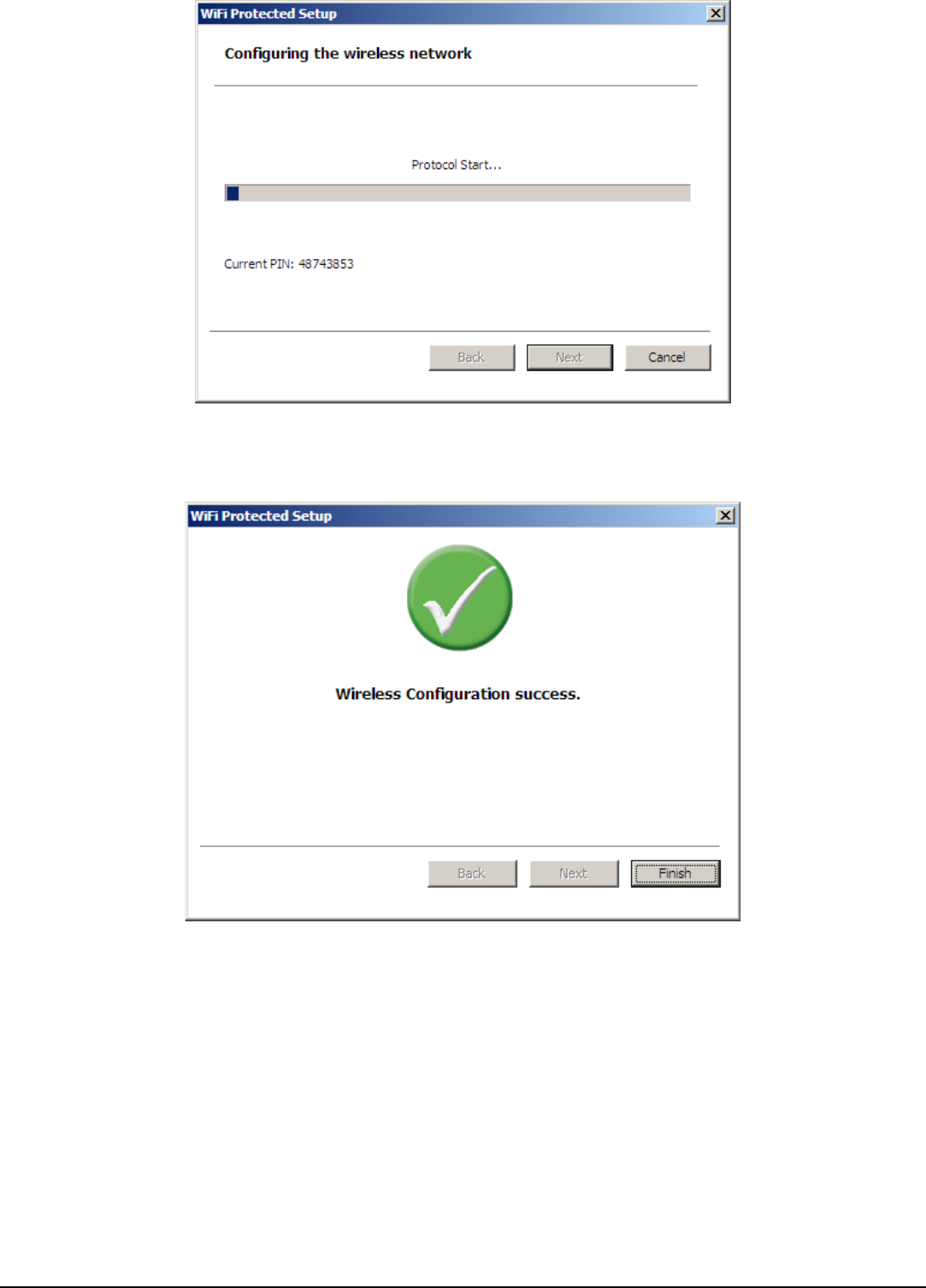

WPS...................................................................................................................... 12

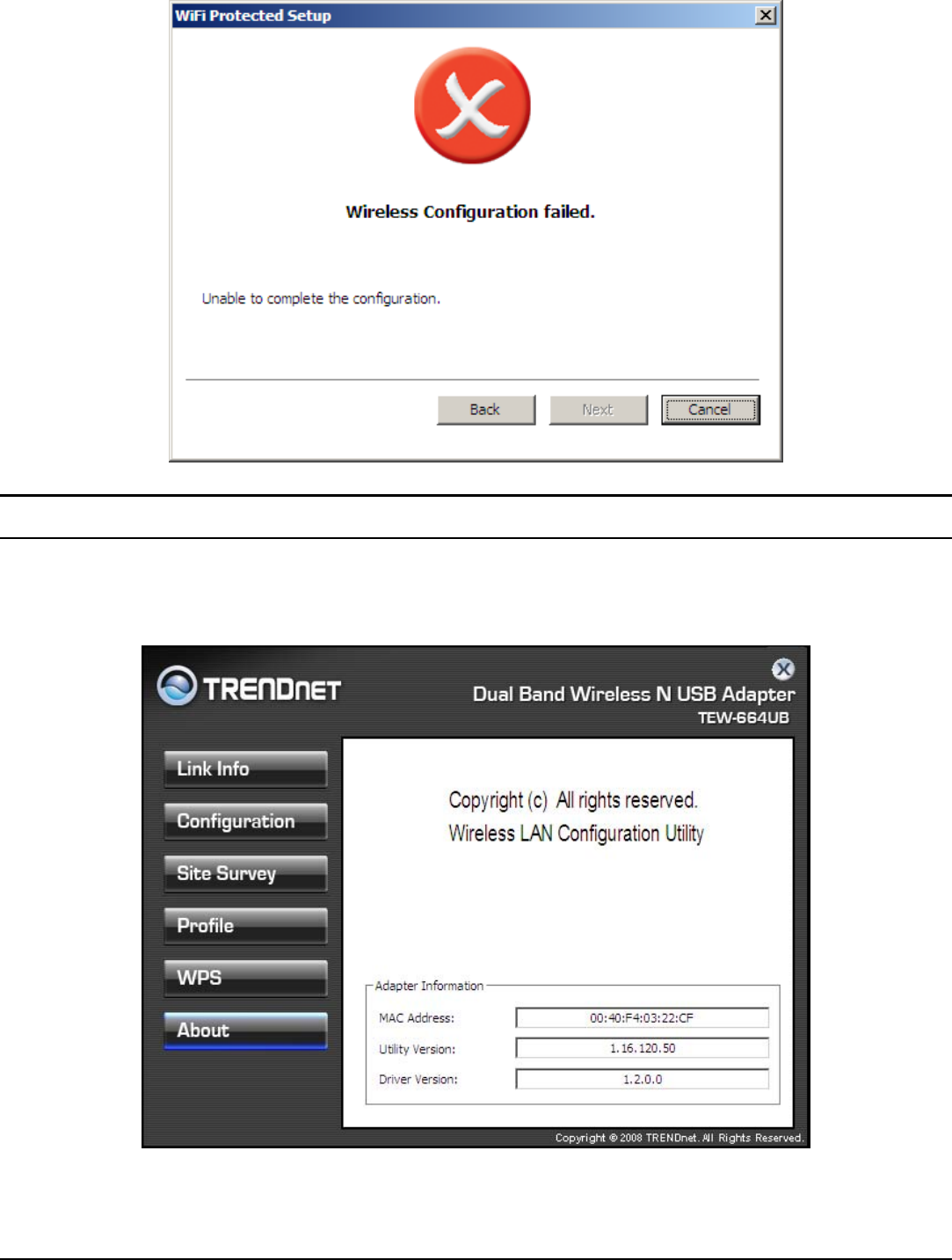

About.................................................................................................................... 16
Technical Specifications........................................................................... 17
iv
INTRODUCTION
Congratulations on your purchase of this TEW-664UB.
This manual contains detailed instructions regarding the operation of this product.
Please keep this manual for future reference.
With the TEW-664UB, a desktop or laptop computer can communicate with
another computer wirelessly. An easy-to-use utility is bundled with the Wireless
USB Adapter for configuration, monitoring, and diagnostic purposes.
The TEW-664UB can wirelessly transmit and receive data, at a speed of up to 300
megabits per second.
The TEW-664UB provides users with access to real-time information anywhere in
their organization. The mobility of the TEW-664UB provides productivity and
service, which are not available under wired networks. The TEW-664UB can easily
adapt from peer-to-peer networks, suitable for a small number of users, to full
infrastructure networks of thousands of users that allow roaming around a broad
area.
Overview of this User’s Guide
Introduction. Describes the TEW-664UB and its features.
Unpacking and Setup. Helps you get started with the basic installation of the
TEW-664UB.
Hardware Installation. Describes the LED indicator on the Adapter.
Software Installation. Describes how to setup the driver and the utility setting.
Technical Specifications. Lists the technical (general, physical and environmental)
specifications of the TEW-664UB.
1
UNPACKING AND SETUP
This section provides unpacking and setup information for the TEW-664UB.
Unpacking
The box should contain the following items:
One the IEEE 802.11a/b/g/n 2.4GHz/5GHz Dual-Band Wireless LAN USB
Adapter
One Driver & Utility CD-ROM
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
Before installation, check the following:
Make sure your computer is running at least a 300MHz or above processor with
256MB RAM or above
Make sure the USB port is USB 2.0 port
The operating system on your computer must be the following: Windows 2000
(Service Pack 4), XP (Service Pack 2), Windows Vista
An 802.11n or 802.11a/b/g access point.
Make sure the environment has minimal interference and obstructions.
2
IDENTIFYING EXTERNAL COMPONENTS
LED
When the LED is blinking, the WLAN Adapter is transmitting or receiving data on
the Wireless Ethernet network.
Check the installation
The LED of the TEW-664UB is clearly visible and the status of the network link
can be seen instantly:
1. When connected to the USB port and the driver were installed, the LINK LED
will start blinking, and it means that the device is starting to scan a wireless
device near the TEW-664UB.
2. While the TEW-664UB linked up to the Access Point or to other Wireless LAN
station, the LINK LED will always light up.
3
SOFTWARE INSTALLATION
This section describes how to install the driver and utility for the TEW-664UB.
Windows Based Utility Installation

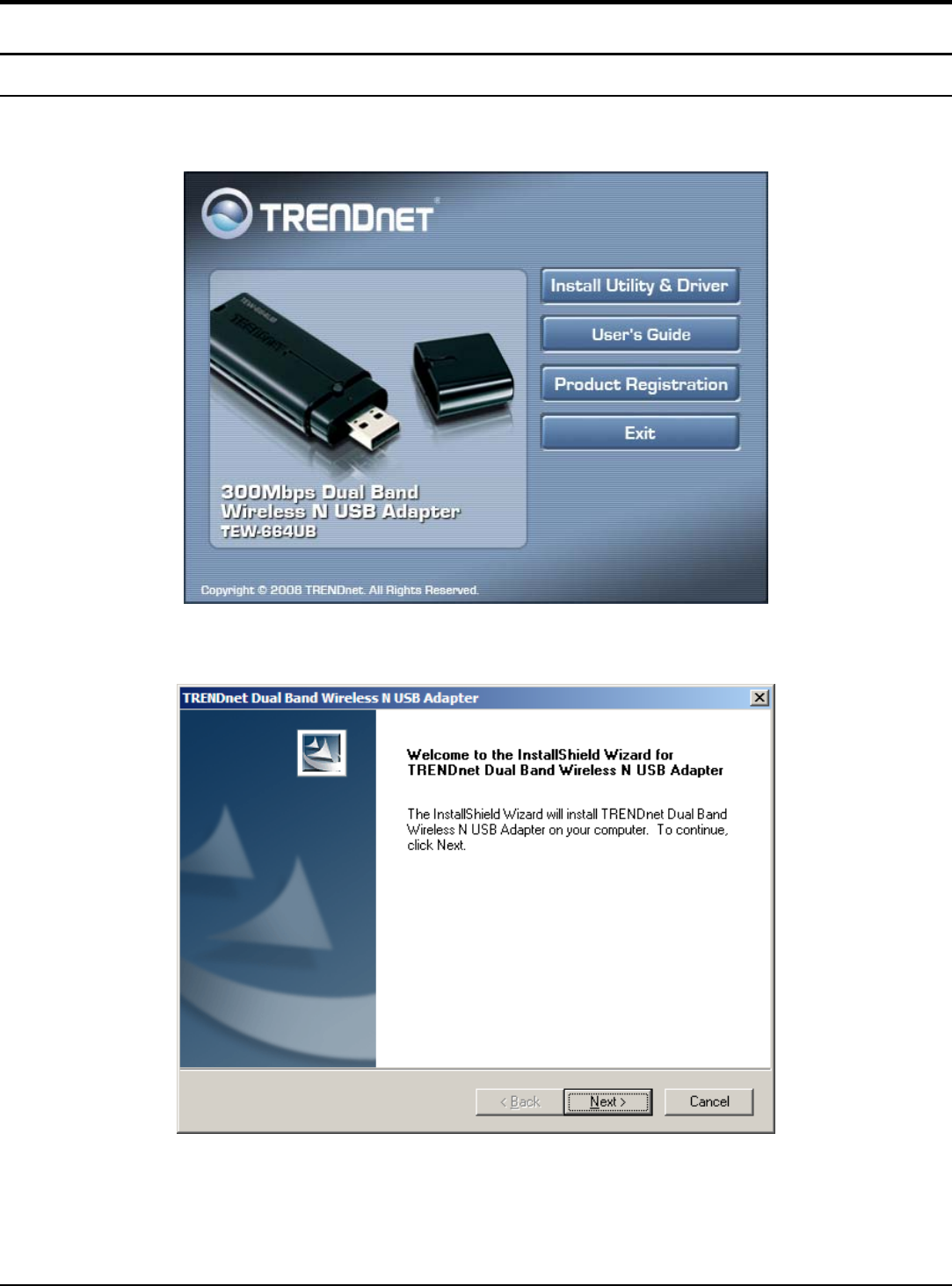

1) Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and
then clicks Install Utility & Driver option.
2) Follow the Installation Wizard Instructions
4

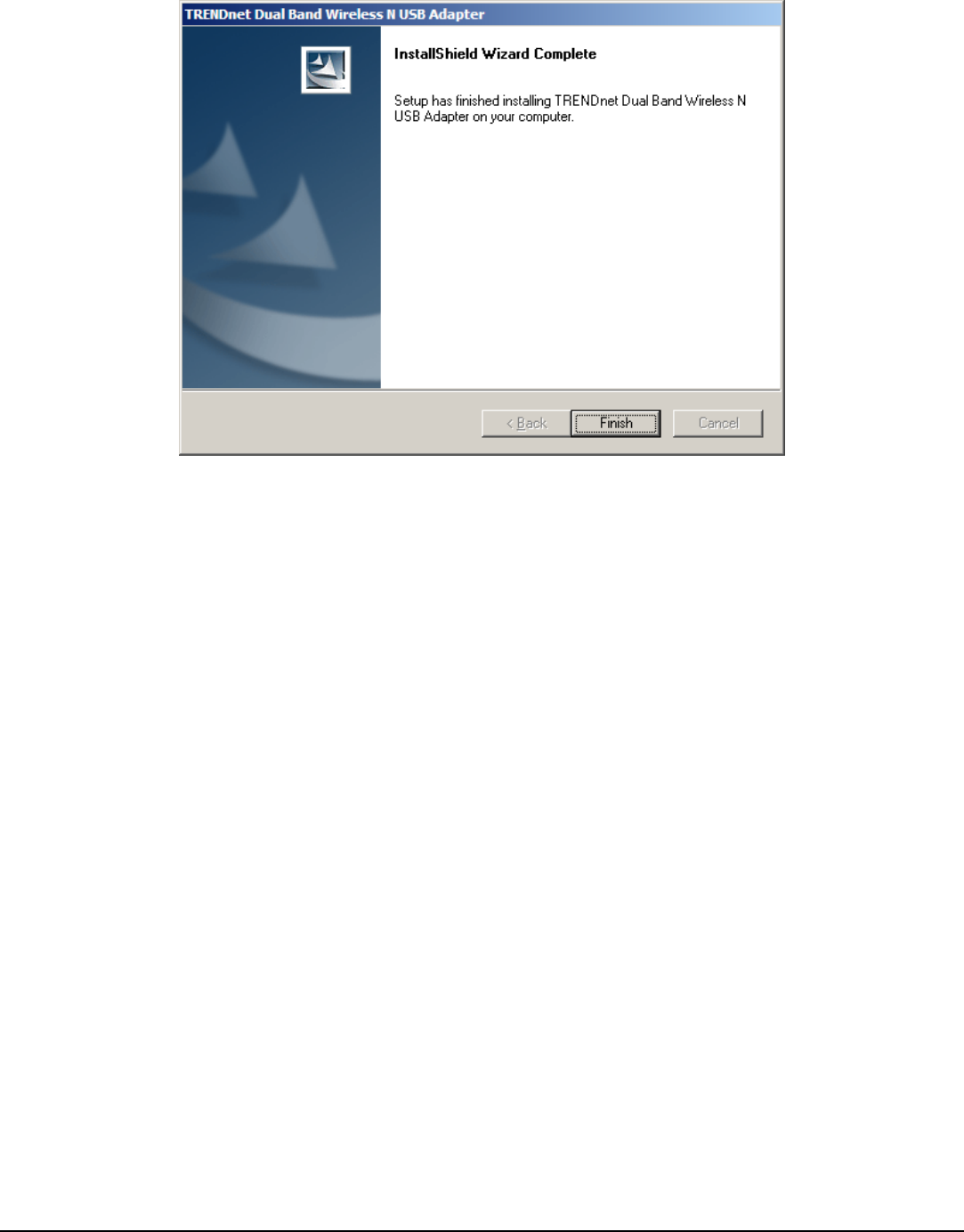

3) After you reach this screen, click Finish to complete the utility installation.
Restart your computer.
4) After your computer is rebooted, plug in the TEW-664UB into an available
USB slot on your computer.
5
WIRELESS UTILITY SETTING

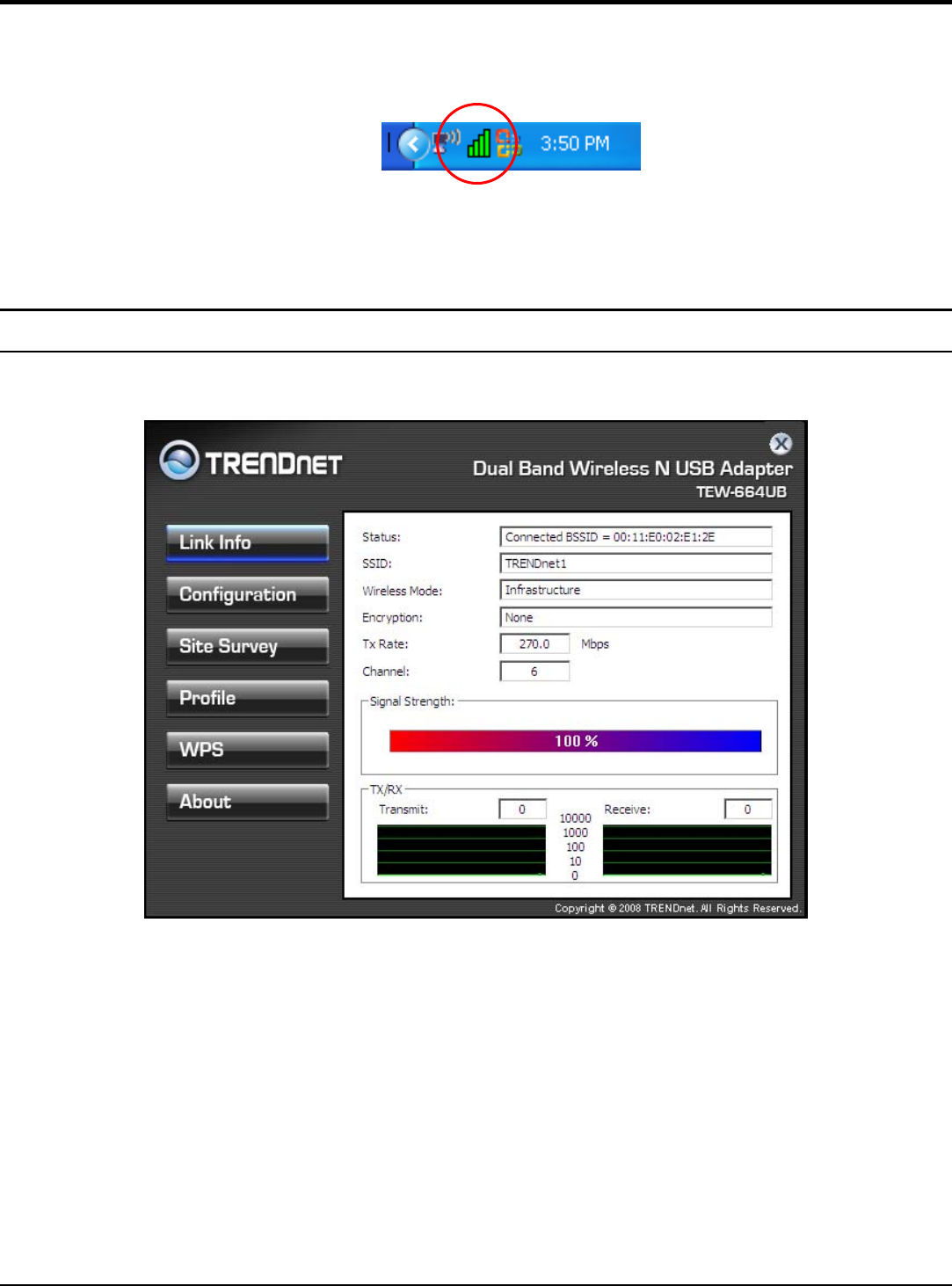

You can start to configure the wireless settings using the Wireless Adapter
Configuration Utility. Double-click the utility icon that appears in the taskbar.
The Wireless Adapter Configuration Utility is divided into six sections: Link Info,
Configuration, Site Survey, Profile, WPS and About.
Link Information
This is the default screen after launching the Utility program.
Status: Shows the associated BSSID, which can be used to identify the wireless
access point.
SSID: Shows the current SSID, which must be the same on the wireless client and
AP in order for communication to be established.
Frequency: Shows the current frequency used for the wireless network.
Wireless Mode: Shows the current wireless mode used for wireless communication.
Encryption: Shows the current encryption mode used on the wireless network.
TxRate: Shows the current data rate used for transmitting.
6
Channel: Shows the current channel for communication.
Link Quality: Shows the link quality of the TEW-664UB with an access point or a
wireless router when operating under Infrastructure mode.
Signal Strength: Shows the wireless signal strength of the connection between the
TEW-664UB and a wireless router or an access point.
Data Rate: Shows the statistics of data transfer, and the calculation is based on the
number of packets transmitted and received.
Configuration
This screen is where you set the basic wireless settings for the TEW-664UB.
Profile Name: You can create a profile name for the current wireless network
connection. For different wireless network, set different profiles for quick
connection uses.
SSID: Service Set Identifier, which is a unique name shared among all clients in a
wireless network. The SSID must be identical with your wireless router or access
point’s SSID settings.
7
Wireless Mode: There are two modes available for selection
● Infrastructure – to establish wireless communication with the LAN and other
wireless clients through the use of Access Points.
● Ad-Hoc – to establish point-to-point wireless communication directly with
other wireless client devices.
Authtication: The following options are available: Open System, Shared Key,
WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open System,
Shared Key for WEP data encryption feature.
Open or Shared Key
Open System and Shared Key require the user to set a WEP key to exchange
data with other wireless clients that have the same WEP key.
z Default Key: select one of the 4 keys to use.
z Network Key: choose the encryption way, either in HEX or ASCII formats,
and enter the password in the blank space.
z Key Length: select 64 or 128 bits as the length of the keys
Key Format: HEX or ASCII
Key Length Hex ASCII
64-bit 10 characters 5 characters
128-bit 26 characters 13 characters
8

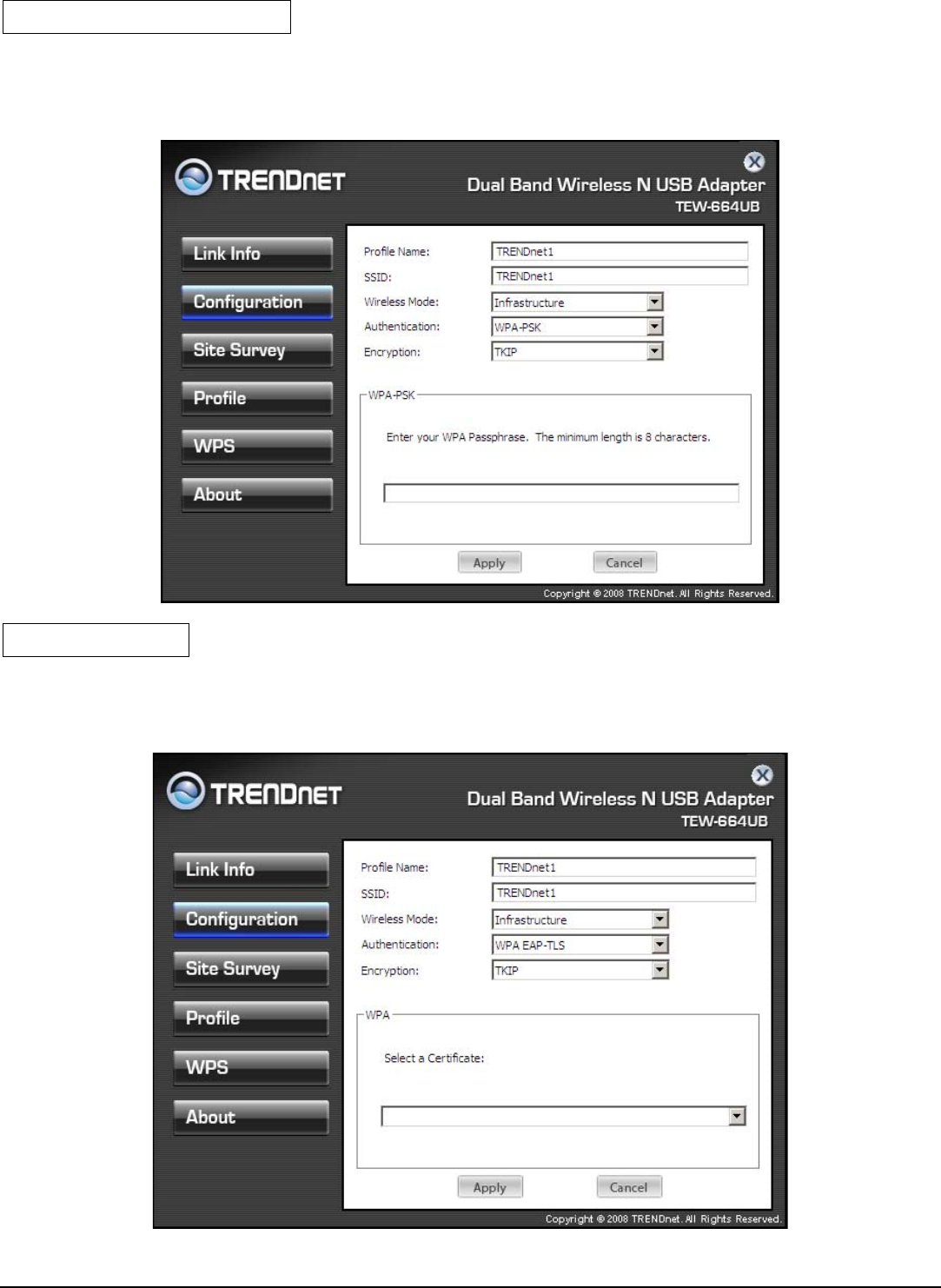

WPA-PSK / WPA2-PSK
If using the WPA-PSK/WPA2-PSK authentication method, please select the
Encryption type for TKIP or AES then enter the Passphrase key. The minimum
length is 8 characters.
WPA EAP-TLS
If using the WPA/WPA2 EAP-TLS authentication method, please select the
Encryption type for TKIP or AES then select the WPA/WPA2 Certificate from
drop down list.
9

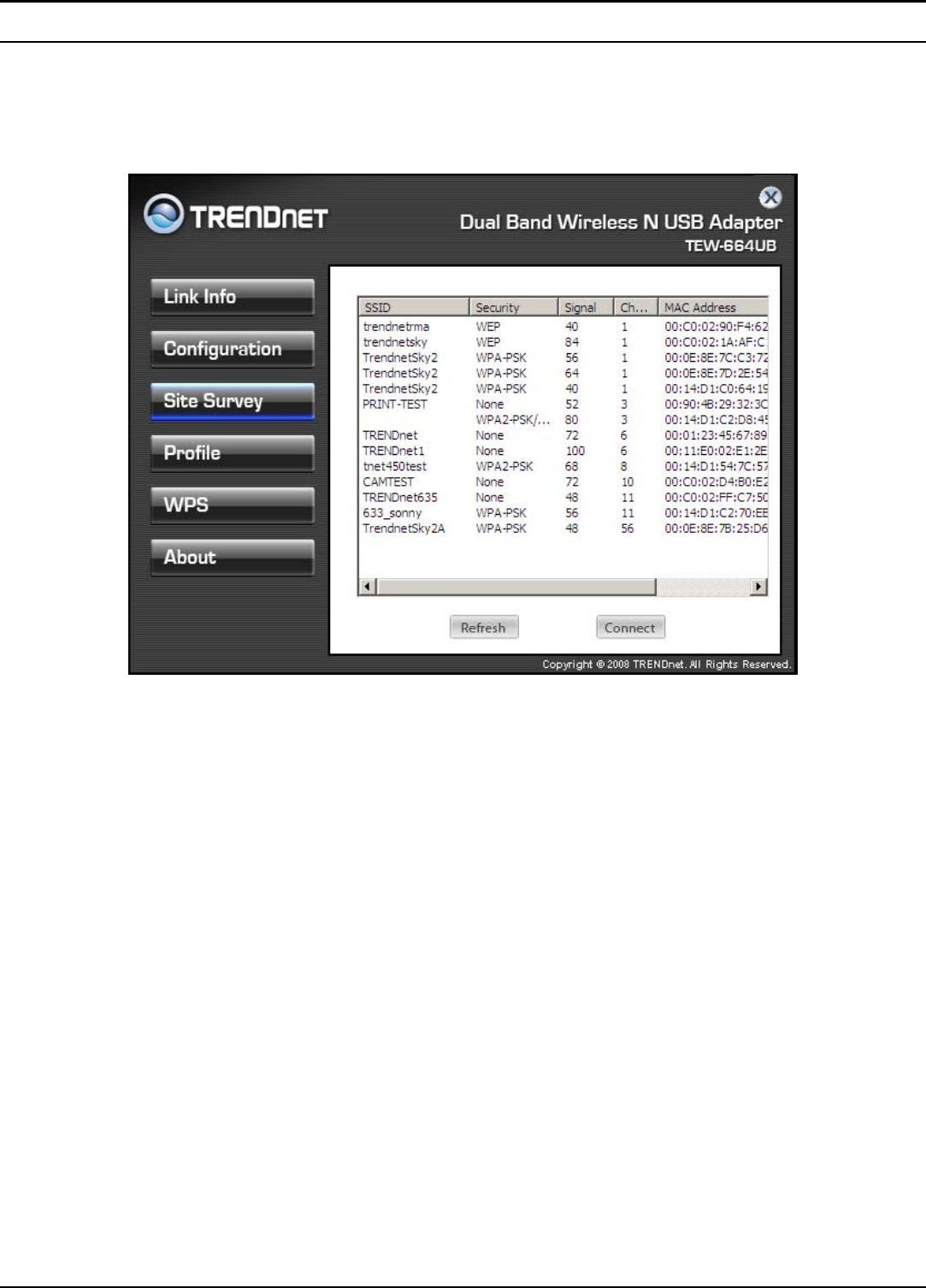

Site Survey
This screen allows the user to scan for available wireless networks (wireless clients
and Access Points). It also allows the user to establish wireless communications
with an available wireless network.
Available Network – displays the wireless networks (wireless clients and access
points) that are within range.
Select any one of the wireless networks by double-clicking on it or select the ideal
wireless SSID then click on the “Connect” button.
Click the “Refresh” button to rescan available networks.
10
Profile
Profile – The user can create and manage the created profiles for home, work or
public areas. By double-clicking on one of the created profile, the setting will adjust
to the specific setting such as SSID, channel, and encryption as saved by that
particular profile.
Add: Adds a profile. The following screen will appear. The user can enter the
necessary information required for accessing Access Points or Wireless Router
Remove: Deletes the selected profile
Edit: Edit an exist profile. The screen will back to profile. Edit the SSID and select
the Wireless Mode, Authentication and Encryption then click Apply to save the
profile. When the Profile name was changed, a new profile will be added in the list.
Connect: Selected a profile from list then click the Connect to connecting to the
wireless network with the profile setting.
11
WPS
WiFi Protected Setup (WPS) is an optional certification program from the Wi-Fi
Alliance that is designed to ease the task of setting up and configuring security on a
wireless network. There are two methods used in the WPS as below instruction.

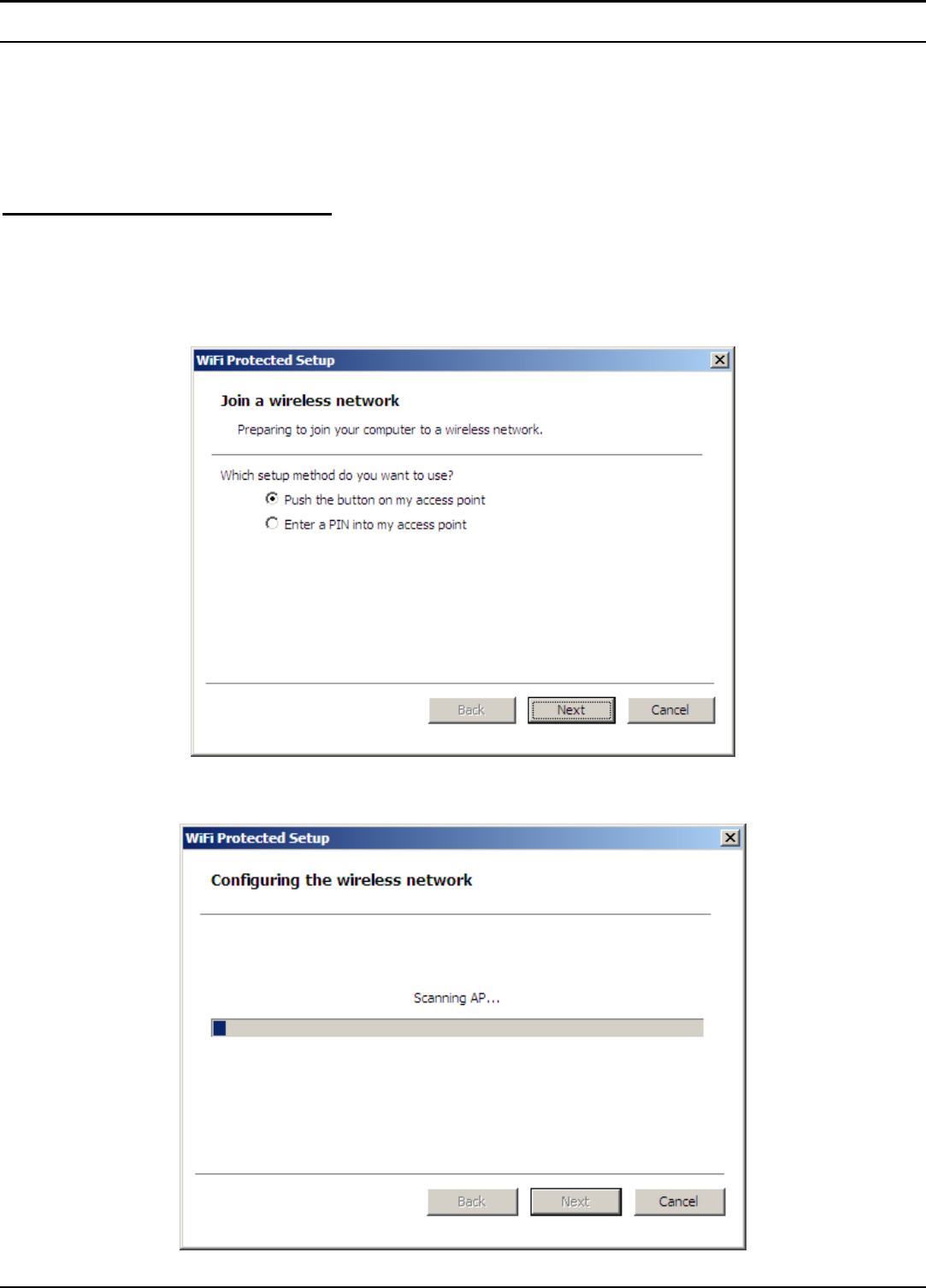

Push Button Connect (PBC)
Using the WPS configuration with the PBC method, the configuration steps as
below:
1) Selected the “Push the button on my access point”.
2) Push the WPS configuration button on your wireless access point or router.
3) Click the Next button start the WPS configuration.
12
4) If the WPS configuration was successful, the follow window will show on.
5) If the WPS configuration was failed, the follow window will show on.
13

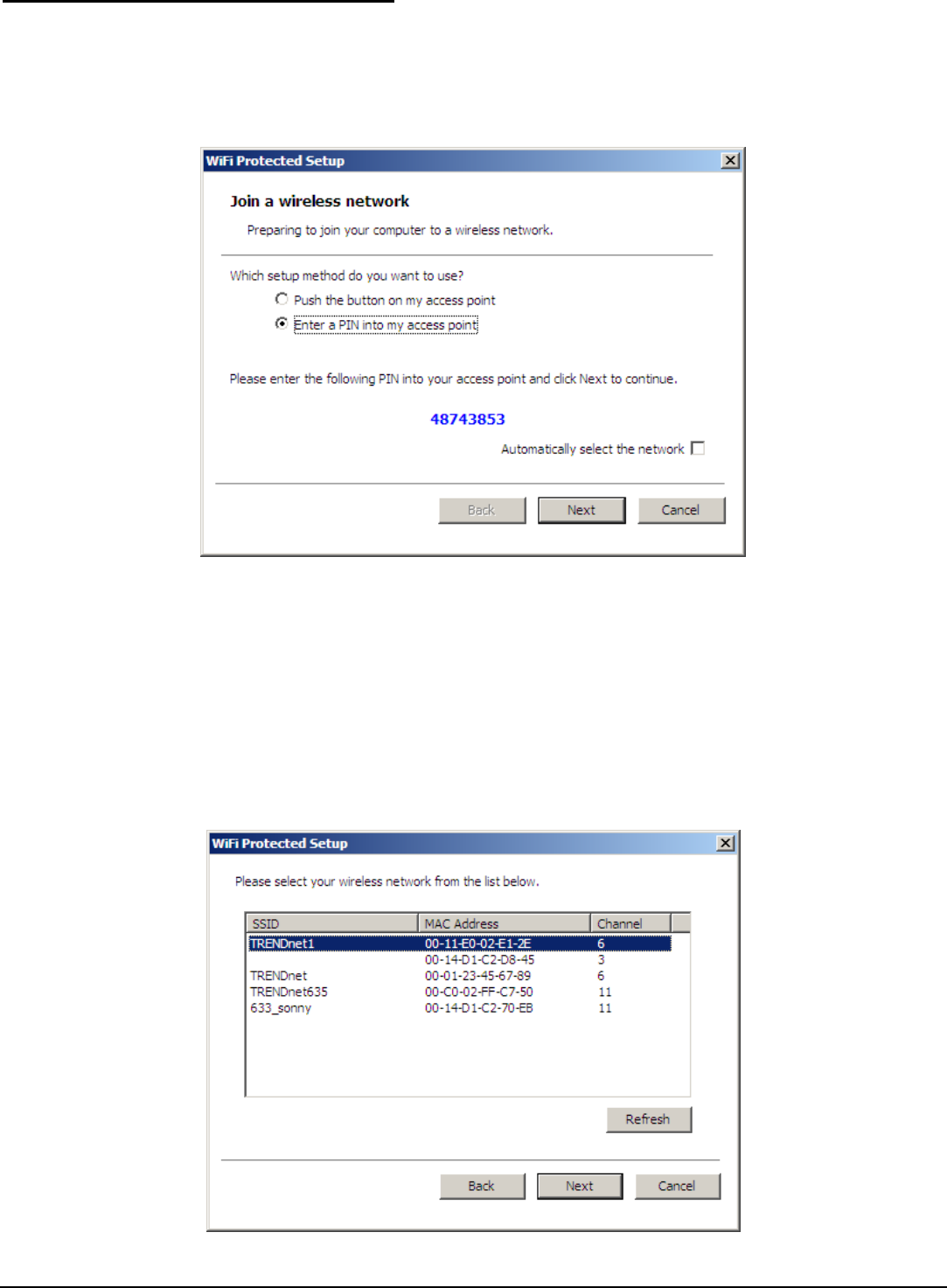

Enter a PIN into my access point
Using the WPS configuration with the PIN method, the configuration steps as
below:
1) Selected the “Enter a PIN into my access point”, the PIN will be show on the
button of the windows.
2) Enter the PIN code from the adapter into the WPS “Clint PIN number” of you
wireless access point or router then press/choose the apply option, the wireless
access point or router will start the WPS configuration process.
3) Selected a wireless access point or router which one will be connecting then
click the Next button start the WPS connection. If the “Automatically select the
network” was checked, the setup step will be skip.
14
4) If the WPS configuration was successful, the follow window will show on.
15
5) If the WPS configuration was failed, the follow window will show on.
About
This screen displays information about the TEW-664UB, such as the Driver and
Utility version. When a new version of the utility becomes available for upgrade,
users will be able to identify by version numbers.
16
TECHNICAL SPECIFICATIONS
Hardware
InterfaceUSB2.0Compliant
StandardsIEEE802.11ndraftv2.0,IEEE802.11a,IEEE802.11bandIEEE
802.11g
AntennaInternaltwohighperformanceAntenna
LEDIndicatorActivity
SupportedOSWindows2000,XP,Vista,MACOSX10.3,10.4,10.5
Dimensions
(LxWxH)
86.5x30x13mm
TemperatureOperating:0°~40°C(32°~104°F)
Storage:‐10°~70°C(14°~158°F)
Humidity10%~95%max(Non‐condensing)
CertificationFCCPart15.247forUS,ETS300,328forEurope
Wireless
ModuleTechniqueIEEE802.11a/g/n:OFDM(BPSK,QPSK,16QAM,64QAM)
IEEE802.11b:DSSS(DBPSK,DQPSK,CCK)
Frequency2.4GBand:802.11b/g/n2412‐2484MHz(FCCfor2412‐2462MHz)
5GBand:802.11a/n:5150–5250MHz/5725‐5850MHz
MediaAccess
Protocol
CSMA/CAwithACK
DataRate(auto
fallback)
1,2,5.5,6.5,13,13.5,19.5,26,27,39,40.5,52,54,58.5,65,78,81,104,
108,117,121.5,130,135,162,216,243,270,300Mbps(autosense)
OutputPower26dBm
Receiving
Sensitivity
300Mbps:Typically‐66dBm(g)@10%PER
Typically‐69dBm(a)@10%PER
54Mbps:Typically‐71dBm(g)@10%PER
Typically‐70dBm(a)@10%PER
11Mbps:Typically‐86dBm@8%PER
Security64/128‐bitWEP,WPA/WPA2,WPA‐PSK/WPA2‐PSK
Channel2.4G:1~11Channels(FCC);1~13Channels(ETSI)
5G:36,40,44,48,149,153,157,161,165(FCC);36,40,44,48(ETSI)
17
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the
following lengths of time from the date of purchase.
TEW-664UB 3 years limited
If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option
and expense, repair the defective product or deliver to customer an equivalent product to replace the defective item. All
products that are replaced will become the property of TRENDnet. Replacement products may be new or reconditioned.
TRENDnet shall not be responsible for any software, firmware, information, or memory data of customer contained in,
stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to service the product through any
unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized
service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions
more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet office within the applicable warranty period for a Return
Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to
TRENDnet must be pre-authorized by TRENDnet with RMA number marked on the outside of the package, and sent
prepaid, insured and packaged appropriately for safe shipment.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE
CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S OPTION, REPAIR OR REPLACEMENT. THE
FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TRENDNET
NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE
THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY
THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO
REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT,
FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF
AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE),
FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS
OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS
LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION.
THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN
SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Note: AC/DC Power Adapter, Cooling Fan, Cables and Power Supply carry 1-Year Warranty
18
19
