TABLE OF CONTENT
INTRODUCTION ........................................................................................... 1
Features: ................................................................................................................................................................................................ 1
UNPACKING AND SETUP ............................................................................. 2
Unpacking ............................................................................................................................................................................................. 2
Setup ..................................................................................................................................................................................................... 2
HARDWARE INSTALLATION ........................................................................ 4
LED ....................................................................................................................................................................................................... 4
Web-based Configuration Setup Wizard............................................................................................................................................... 5
WiFi-Setting .......................................................................................................................................................................................... 6
Extended WiFi Setup ............................................................................................................................................................................ 7
Advance ................................................................................................................................................................................................ 7
Wi-Fi Protected Setup (WPS) ............................................................................................................................................................... 8
Management .......................................................................................................................................................................................... 9
Upload Firmware ................................................................................................................................................................................ 10
Setting Management ........................................................................................................................................................................... 10
Status ................................................................................................................................................................................................... 11
TECHNICAL SPECIFICATIONS .................................................................. 12
2x2 Internal PIFA antenna .............................................................................................................................................................. 12
1
INTRODUCTION
The Wireless Range Extender enables you to extend your existing wireless network coverage
by placing the Wireless Range Extender in between your router and the wireless client devices.
This is great for extending wireless coverage to basements, home offices or bedrooms that
might be distant from your wireless router. The Wireless Range Extender increases the range
of your wireless network by extending the wireless coverage of an existing wireless network.
Features:
Faster Wireless Networking - The Wireless Range Extender provides up to 300Mbps* wireless
connection with other 802.11n wireless clients. This capability allows users to participate in
real-time activities online, such as video streaming, online gaming, and real-time audio.
Extend Internet access for wireless devices - Allows you to extend your internet access
throughout your home with devices such as laptops, Smartphones, tablets and more.
IEEE 802.11n and 802.11g Compliant - The Wireless Range Extender is still fully compatible
with the IEEE 802.11g standards, so it can connect with existing 802.11g USB and Cardbus
adapters.
2
UNPACKING AND SETUP
This chapter provides unpacking and setup information for the N300 High Power
Easy-N-Range Extender.
Unpacking
Open the box of the Wireless Range Extender and carefully unpack it. The box should
contain the following items:
One N300 High Power Easy-N-Range Extender
One CD contain Users Guide
If any item is found missing or damaged, please contact your local reseller for
replacement.
Setup
The setup of the Wireless Range Extender can be performed properly using the
following methods:
The easiest and most secure way to connect your Wireless Range Extender to your the
router or access point is WPS (Wi-Fi Protected Setup).
Please refer to your user manual for information on your router or access point make sure
you understand how to enable WPS.
Once you know, follow the steps below:
Step 1 - Plug the Wireless Range Extender into a wall outlet and verify if the power
LED has turned from red to a blinking amber.
Step 2 - Press the WPS button on your AP/Router.
Note: Usually the WPS LED will blink once it is pressed. Check your
routers manual for more information.
Step 3 - Press and hold the WPS button until the light starts blinking
green and then release. Please allow up to two minutes for
the WPS process to finish. Once the connection is successful
the LED will be solid green.
Step 4 - Your AP/Router and Wireless Range Extender will be connected when the LED
light turns solid green.
Note: If connection fails, try moving your
Wireless Range Extender
closer to your wireless
router/access point and repeat steps 2 and 3.
3
Step 5 - To connect your wireless clients to the Wireless Range Extender, use the
Wi-Fi Network SSID and the Wi-Fi Password located on your
configuration note. You may also use WPS to connect your clients
to the Wireless Range Extender.
4
HARDWARE INSTALLATION
LED

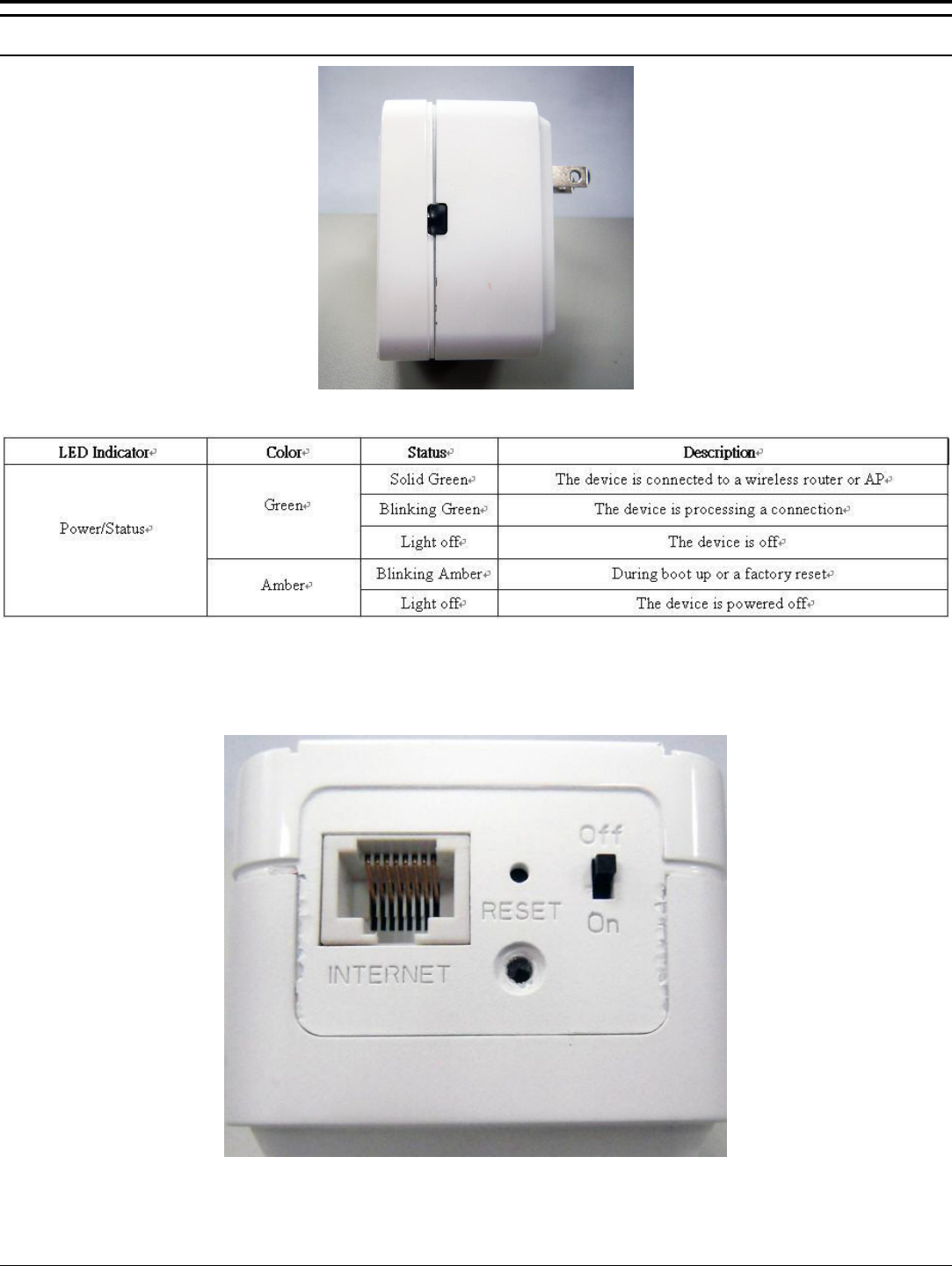

The figure below shows the rear panel of the IEEE 802.11b/g/n Wireless Range
Extender.
Rear Panel
5
INTERNET
There is an RJ-45 10/100Mbps Auto-MDIX port for the WAN that connects to the
xDSL/Cable modem for Internet connectivity.
RESET
Use a pin-shaped item to push to reset this device to factory default settings. It will be a useful tool when the manager forgot the
password to login, and needs to restore the device back to default settings.
On/Off Power Switch

(down up position).
Web-based Configuration Setup Wizard

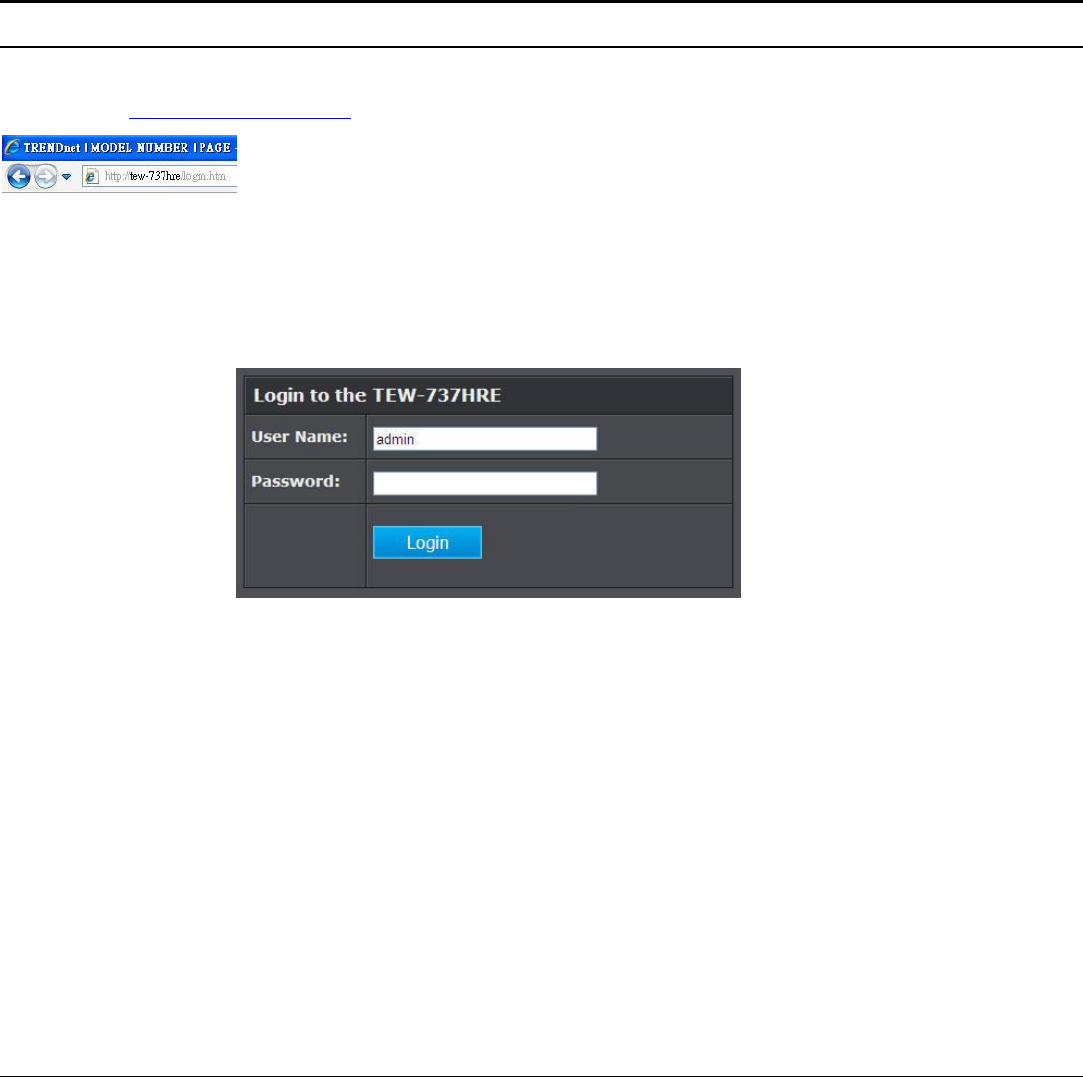

1)To access the configuration utility, open a web-browser such as Internet Explorer
and enter http://tew-737hre
2. Enter the Password you created when you first logged on during the setup wizard and click
Login.
6
WiFi-Setting

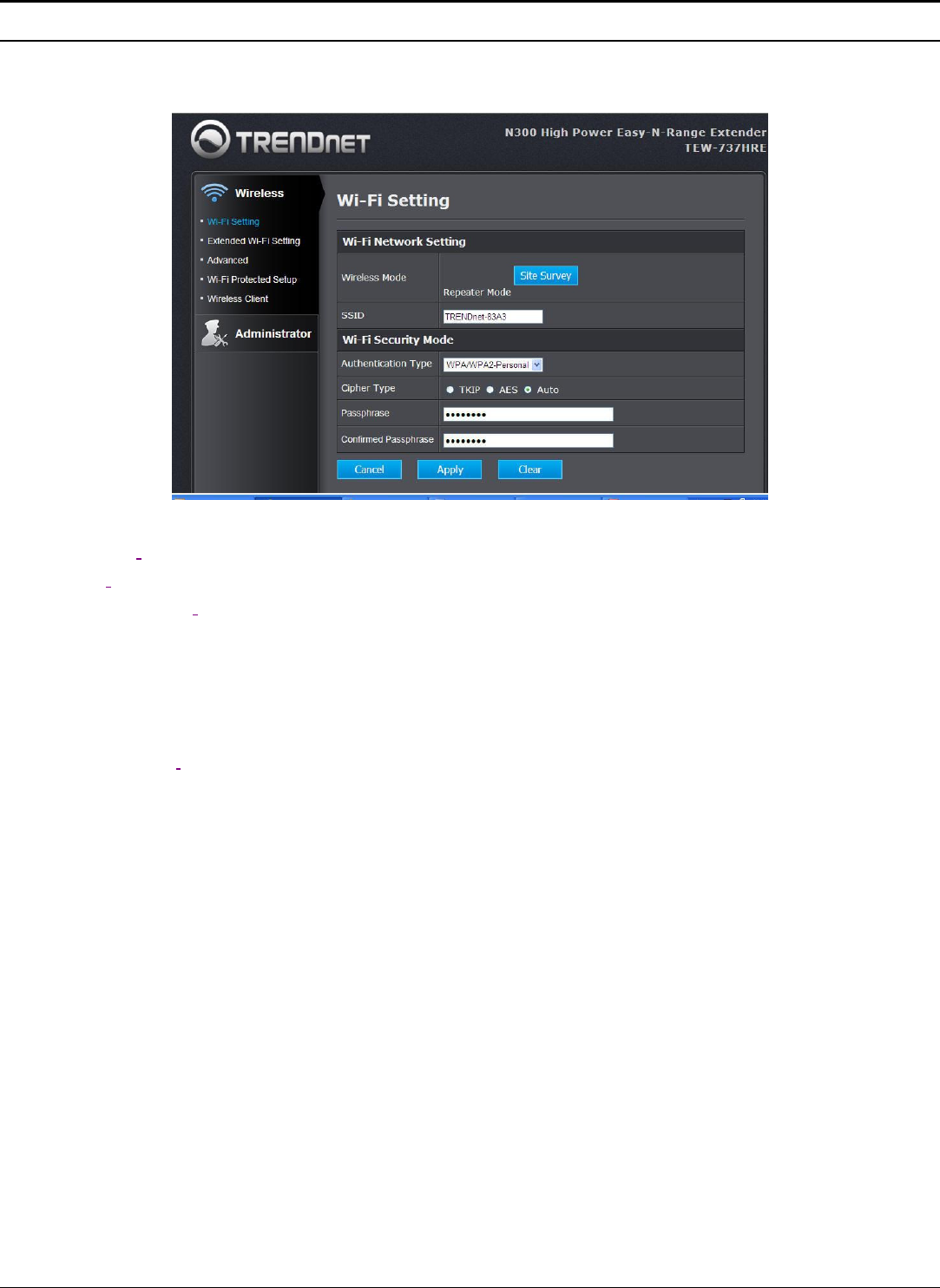

Use this section to manually configure the wireless settings for your Repeater.
Wireless Mode: This will automatically be Repeater Mode.
Site Survey: Scans and displays available Wi-Fi networks.
Wi-Fi Network Name: When you are browsing for available wireless networks, this is the name that will appear in
the list (unless Visibility Status is set to Invisible, see below). This name is also referred to as the SSID. For security
purposes, it is highly recommended to change from the default network name.
Channel Width: Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
WiFi Security Mode: Select WEP or WPA Personal.
7
Extended WiFi Setup

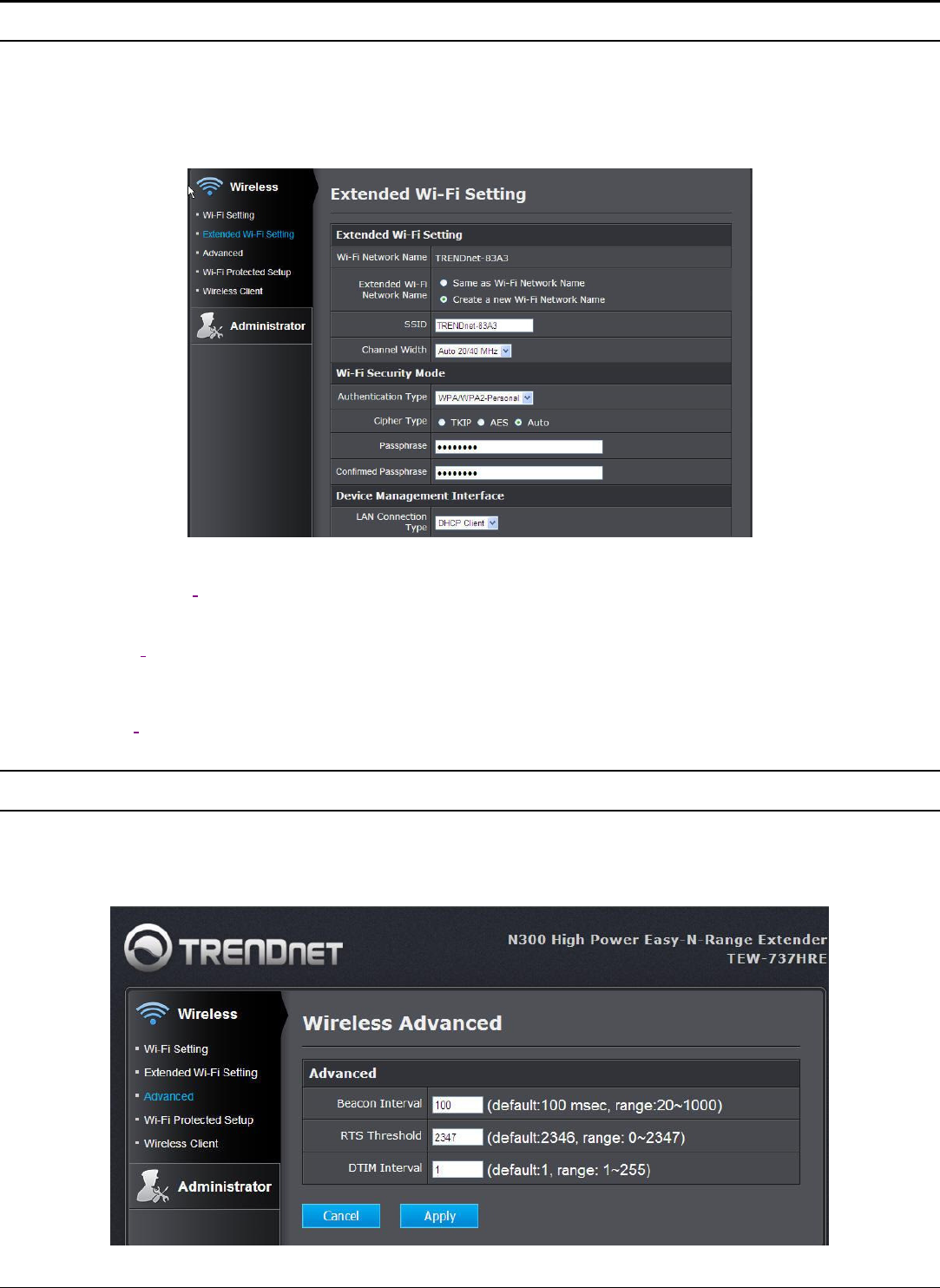

This page allows you to configure the wireless LAN settings for your Repeater. You have the
option of creating a new Wi-Fi Network Name for your Repeater or you may use the same Wi-
Fi Network Name as your wireless router or AP.
Wi-Fi Network Name: Displays the current Wi-Fi Network Name you are connected to.
Extended Wi-Fi Network Name: Select Same as Wi-Fi Network Name or Create a new Wi-Fi Network Name.
Channel Width: Select the Channel Width:
Auto 20/40 - This is the default setting. Select if you are using both 802.11n and non-802.11n wireless devices.
20MHz - Select if you are not using any 802.11n wireless clients.
Security Mode: Select WEP or WPA Personal.
Advance
These settings are advanced options that can be configured to change advanced wireless broadcast specifications. It is recommended
that these settings remain set to their default values unless you are knowledgeable about the effects of changing these values.
Changing these settings incorrectly can degrade performance.
8
Beacon Interval A beacon is a management frame used in wireless networks that transmitted periodically to announce the
presee ad proide iforatio aout the router’s ireless etork. The iteral is the aout tie etee eah eao
transmission.
Default Value:100 milliseconds (range: 25-1000)
RTS Threshold The Request To Send (RTS) function is part of the networking protocol. A wireless device that needs to send data
will send a RTS before sending the data in question. The destination wireless device will send a response called Clear to Send (CTS).
The RTS Threshold defines the smallest data packet size allowed to initiate the RTS/CTS function.
Default Value: 2346 (range: 256-2346)
DTIM Interval A Delivery Traffic Indication Message (DTIM) is an informational message that is sent as part of a beacon by an
access point (your wireless router) to a wireless client (wireless device or connecting station) in sleep mode to provide an alert that
data is awaiting delivery. The DTIM Interval (also called Data Beacon Rate) is the amount of time between DTIM transmissions
included in part of a beacon.
Default Value: 1 (range: 1-255)

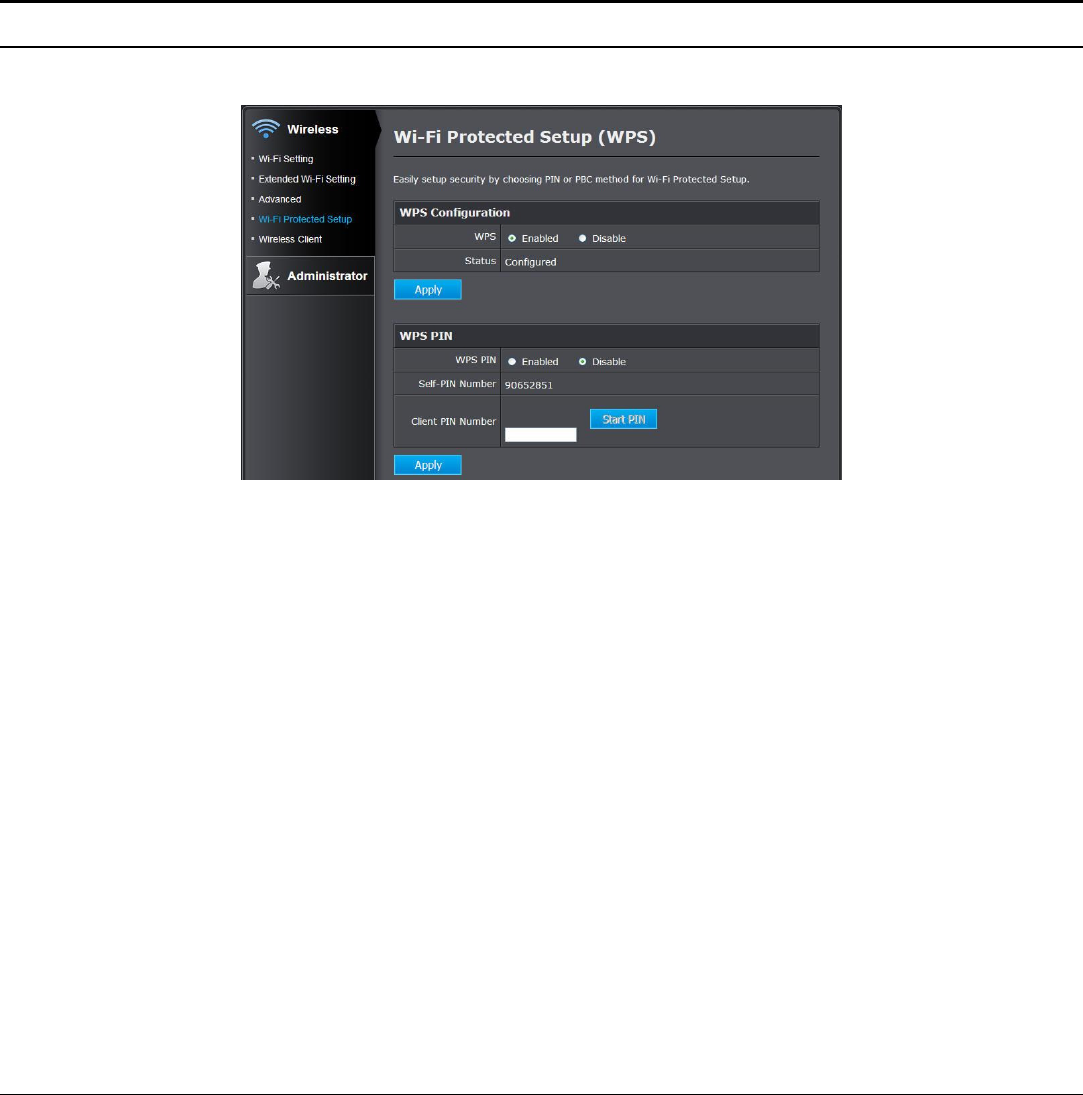

Wi-Fi Protected Setup (WPS)
If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless device product label or located in the wireless
device wireless software utility), you can use this method.
WPS: Enable or Disable the WPS (Wi-Fi Protected Setup) function
Status: Display the state (Un-configured State/Configured State) information of WPS.
Self-PIN Number: Display the default PIN number of WLAN Router.
Client PIN Number: Type Client PIN number the client uses to negotiate with WLAN Router via WPS protocol. It is only used when
users want their station to join Router's network.
Push Button Configuration: Clicking the Start PBC button will invoke the Push Button Configuration (PBC) method of WPS. It is only
used when WLAN Router acts as a Registrar.
9

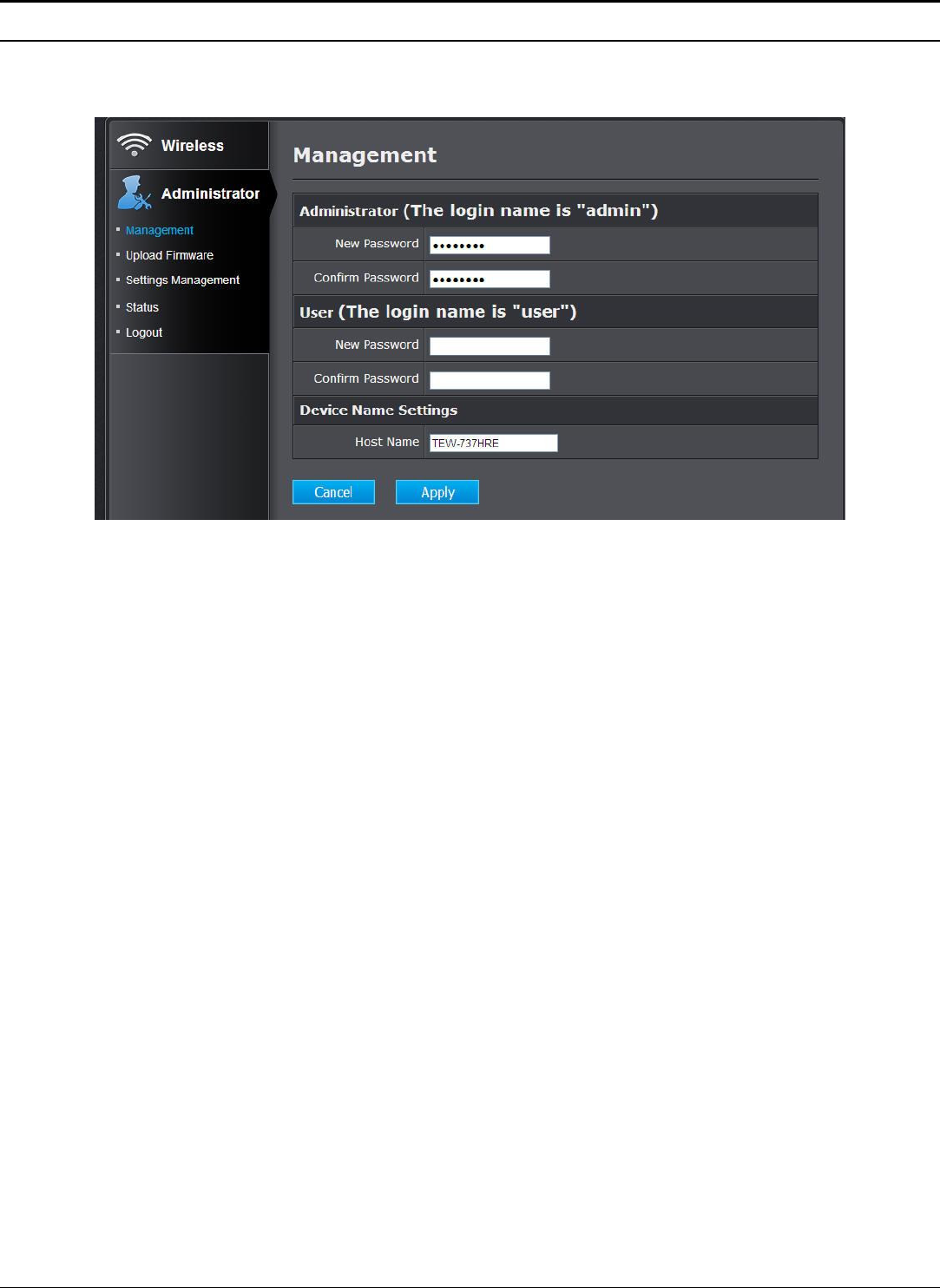

Management
Your router management page http://192.168.10.100 is accessed through the use of your Internet web browser (e.g. Internet Explorer,

1. Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and go to http://192.168.10.100. Your router
will prompt you for a user name and password.
2. Next to Language, click the drop-down list to select your preferred language. Enter the default user name and password and then
click Login.
Default User Name: admin
Default Password: admin
3. Log into your router management page
4. Click on Main, and click on Password.
5. Under the Administrator section, in the New Password field, enter the new password, and in the Confirm Password field, retype the
new password again to confirm.
6.User (Optional): The User account is an additional account used for viewing the settings on the router management page only.
Accessing the router management page using the User account will restrict access to viewing only and will not allow any settings to
be changed.
Default User Name: user
Default Password: user
7. To save changes, click Apply.
Host Name: Type the host name in the text box. The host name is required by some ISPs. The default host name is " TEW-737HRE"
10

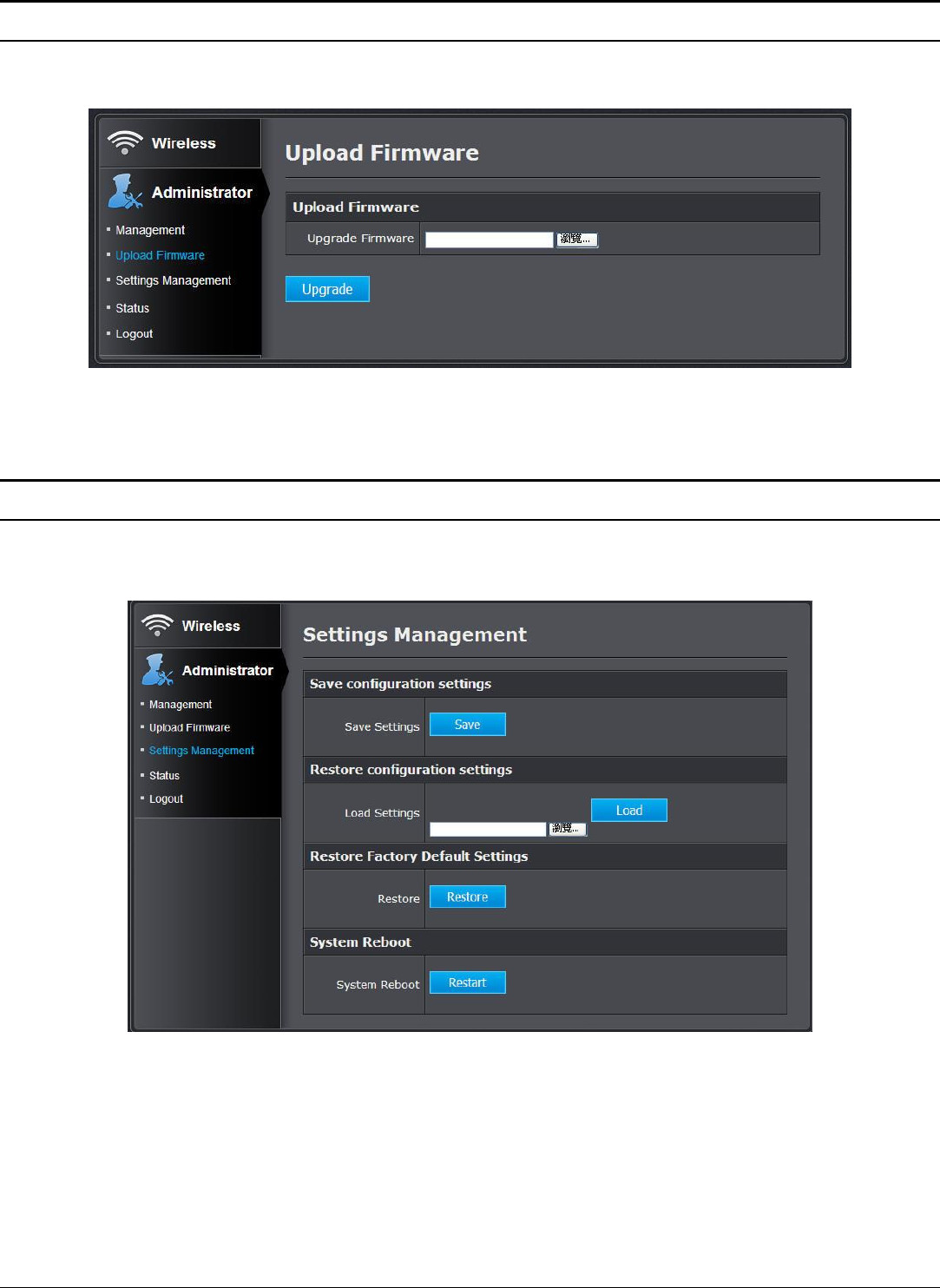

Upload Firmware
This function enables users to keep the Repeater firmware up to date.
Setting Management
You may have added many customized settings to your repeater and in the case that you need to reset your router to default, all your
customized settings would be lost and would require you to manually reconfigure all of your router settings instead of simply
restoring from a backed up router configuration file.
11

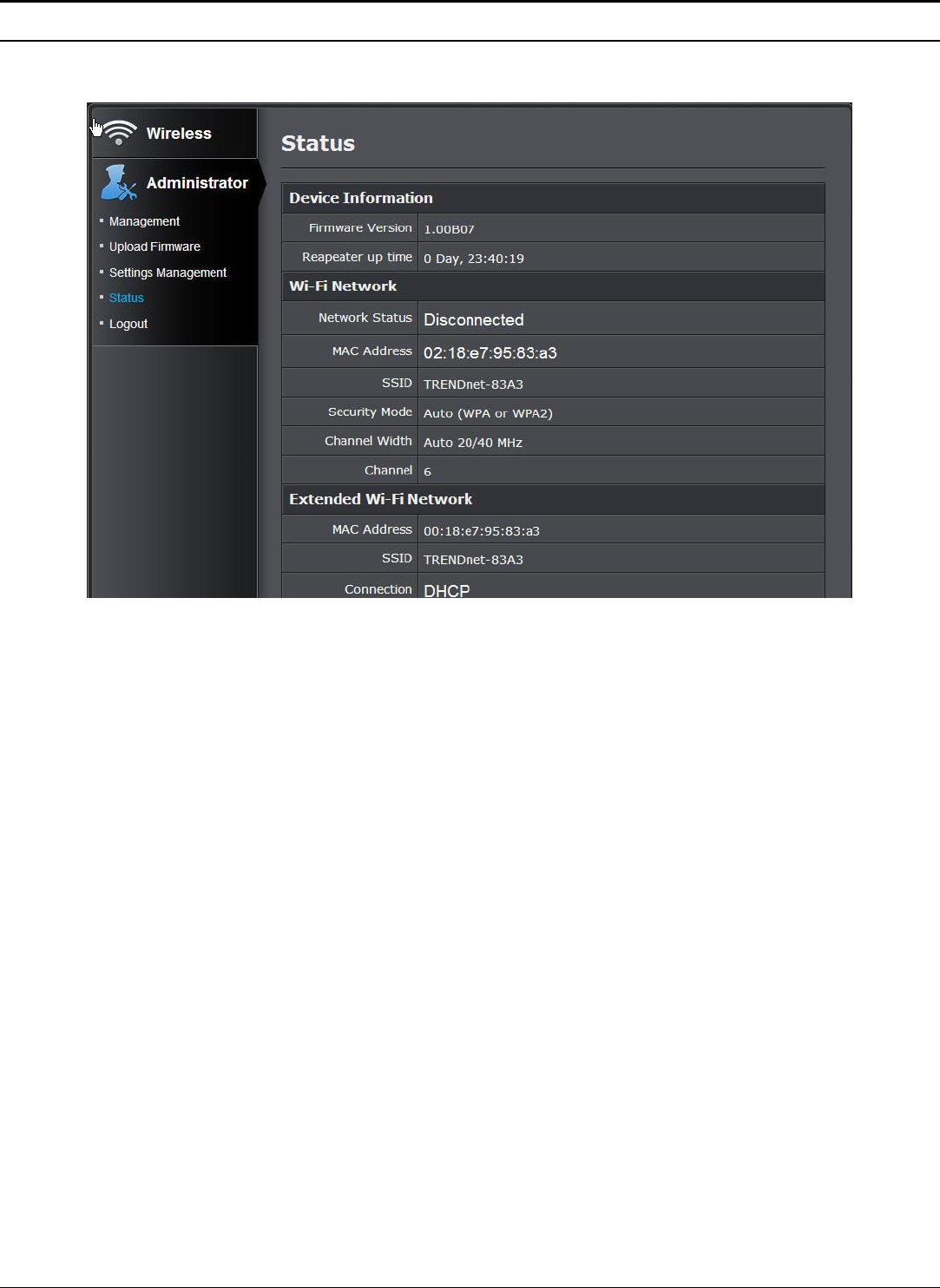

Status
You may want to check the system information of your repeater such as WAN (Internet) connectivity, wireless and wired network
settings, router MAC address, and firmware version.
12
TECHNICAL SPECIFICATIONS
General
Standards
IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.11b, IEEE 802.11g, IEEE
802.11n, IEEE 802.3az
Protocol
CSMA/CA with ACK
Radio Technology
DSSS/OFDM
Data Transfer Rate
802.11n mode: up to 300Mbps (auto sense)
802.11g mode: up to 54Mbps (auto sense)
802.11b mode: up to 11Mbps (auto sense)
Receiver Sensitivity
300Mbps: Typical - 66dBm @ 10% PER
54Mbps: Typical - 72dBm @ 10% PER
11Mbps: Typical - 90dBm @ 8% PER
Transmit Power
(mean EIRP)
20dBm (+/- 1.5dB) typically @ 802.11b at 1 to 11Mbps
20dBm (+/- 1.5dB) typically @ 802.11g at 6Mbps
18dBm (+/- 1.5dB) typically @ 802.11g at 54Mbps
20dBm (+/- 1.5dB) typically @ 802.11n at MCS0/HT20
18dBm (+/- 1.5dB) typically @ 802.11n at MCS7/HT20
19dBm (+/- 1.5dB) typically @ 802.11n at MCS0/HT40
17dBm (+/- 1.5dB) typically @ 802.11n at MCS7/HT40
Antenna Type
2x2 Internal PIFA antenna
Frequency Range
2412 ~ 2484 MHz ISM band
Modulation Schemes
DBPSK/DQPSK/CCK/OFDM
Security
64/128-bits WEP Encryption; WPA, WPA-PSK, WPA2,
WPA2-PSK
Channels
1~11 Channels (US) 1~13 Channels (EU)
Number of Ports
LAN: 1 x 10/100Mbps Auto-MDIX Fast Ethernet port
Physical and Environmental
AC inputs
100-240VAC, 50-60Hz, 0.1A
Power Consumption
6.0W (Max)
Temperature
Operating: 0oC ~ 40o C, Storage: -10o ~ 70o C
Humidity
Operating: 10% ~ 90%, Storage: 5% ~ 90%
Dimensions
67 x 56 x 45 mm
EMI:
FCC Class B, CE Mark B

Navigation menu
