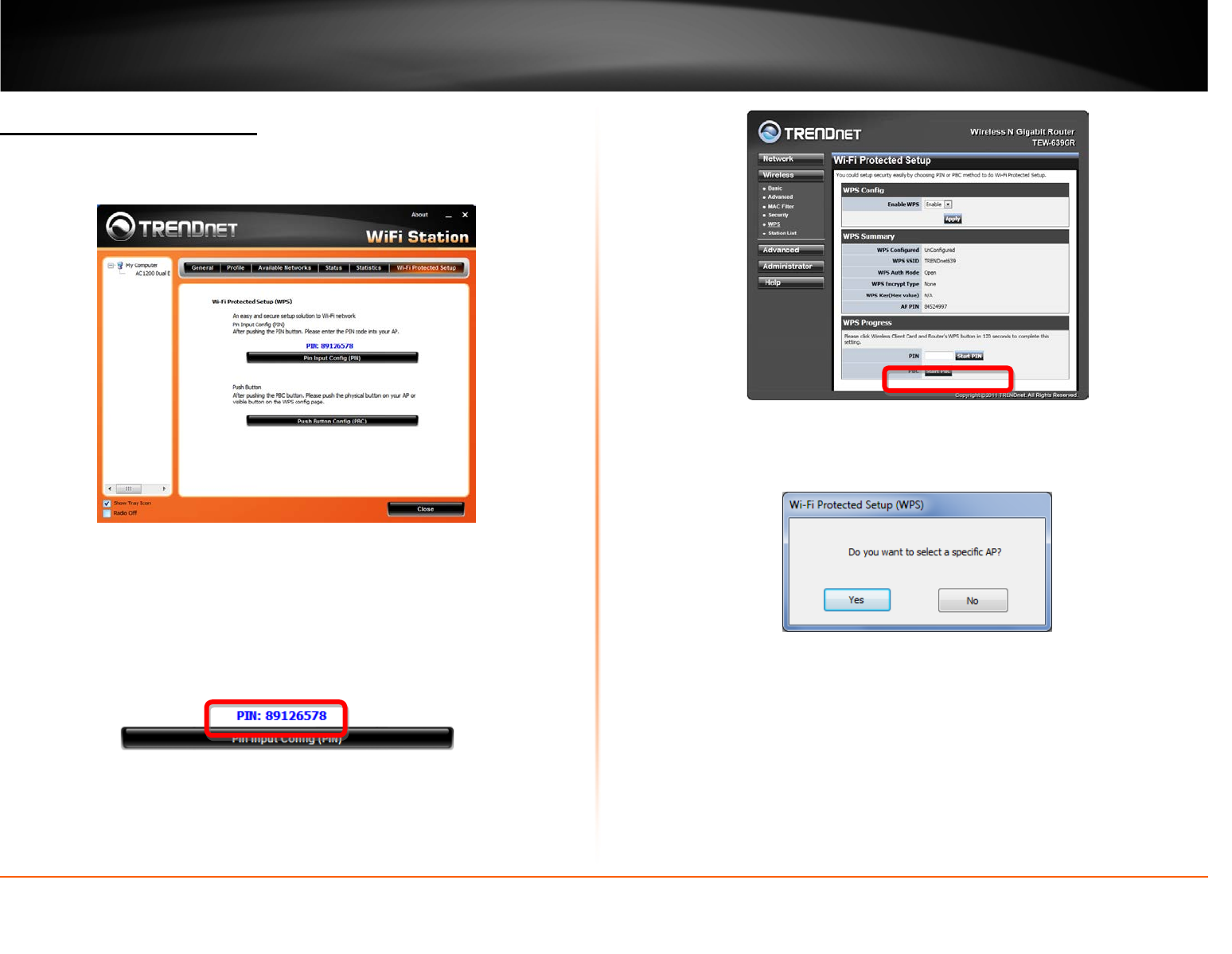

WiFi Protected Setup (WPS) .......................................................................................... 8

Pin Input Configuration (PIN) .................................................................................... 8

Push Button Configuration (PBC) .............................................................................. 9

About ........................................................................................................................... 10

Technical Specifications................................................................. 11

Troubleshooting ............................................................................ 12

Appendix ...................................................................................... 13

Federal Communication Commission Interference Statement ................................... 16

Europe – EU Declaration of Conformity ...................................................................... 17

Limited Warranty ......................................................................................................... 19

TRENDnet User’s Guide TEW-805UB

Product Overview

TEW-805UB

Package Contents

In addition to your wireless adapter, the package includes:

• TEW-805UB

• CD-ROM (Utility & Driver)

• Multi-Language Quick Installation Guide

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Features

TRENDnet's AC1200 Dual Band Wireless USB Adapter, model TEW-805UB, connects a

laptop or desktop computer to a revolutionary Wireless AC network. Connect to a

Wireless AC network at an amazing 867 Mbps or to a Wireless N network at up to 300

Mbps. A SuperSpeed 5 Gbps USB 3.0 port maintains a high speed connection to your

computer.

Quickly connect to a Wireless AC or N network at the touch of a button with the

convenience of one-touch Wi-Fi Protected Setup (WPS). An LED on the front of the

adapter conveys device status. Upgrade your computer's wireless connection to

experience the speed of revolutionary Wireless AC.

Wireless AC: Next generation Wireless AC

Dual Band: Up to 867 Mbps Wireless AC or 300 Mbps Wireless N

Compatible: Connects to standard Wireless N networks

USB 3.0: SuperSpeed 5 Gbps USB 3.0 connection to computer

Coverage: Expanded coverage with MIMO technology

One Touch Connection: Connect to a router at the touch of the Wi-Fi Protected Setup

(WPS) button

• Wi-Fi compliant with IEEE 802.11ac and 802.11n standards

• High-speed data rates up to 867 Mbps with 802.11ac technology and 300 Mbps with

802.11n technology

• USB 3.0 connector

• LED indicator

• Backwards compatible with IEEE 802.11g, IEEE 802.11b, and IEEE 802.11a networks

• Compatible with Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), and XP(32/64-bit)

operating systems

• One-touch network connection with Wi-Fi Protected Setup (WPS) button

• Dynamic Data Rate Scaling from 867 Mbps to 1 Mbps

• Supports advanced wireless encryption up to WPA2-RADIUS

• Easy user setup and diagnostic utilities

• Coverage of up to 100 meters indoor (330 feet) and 300 meters outdoor (980 feet)

• 3-year limited warranty

TRENDnet User’s Guide TEW-805UB

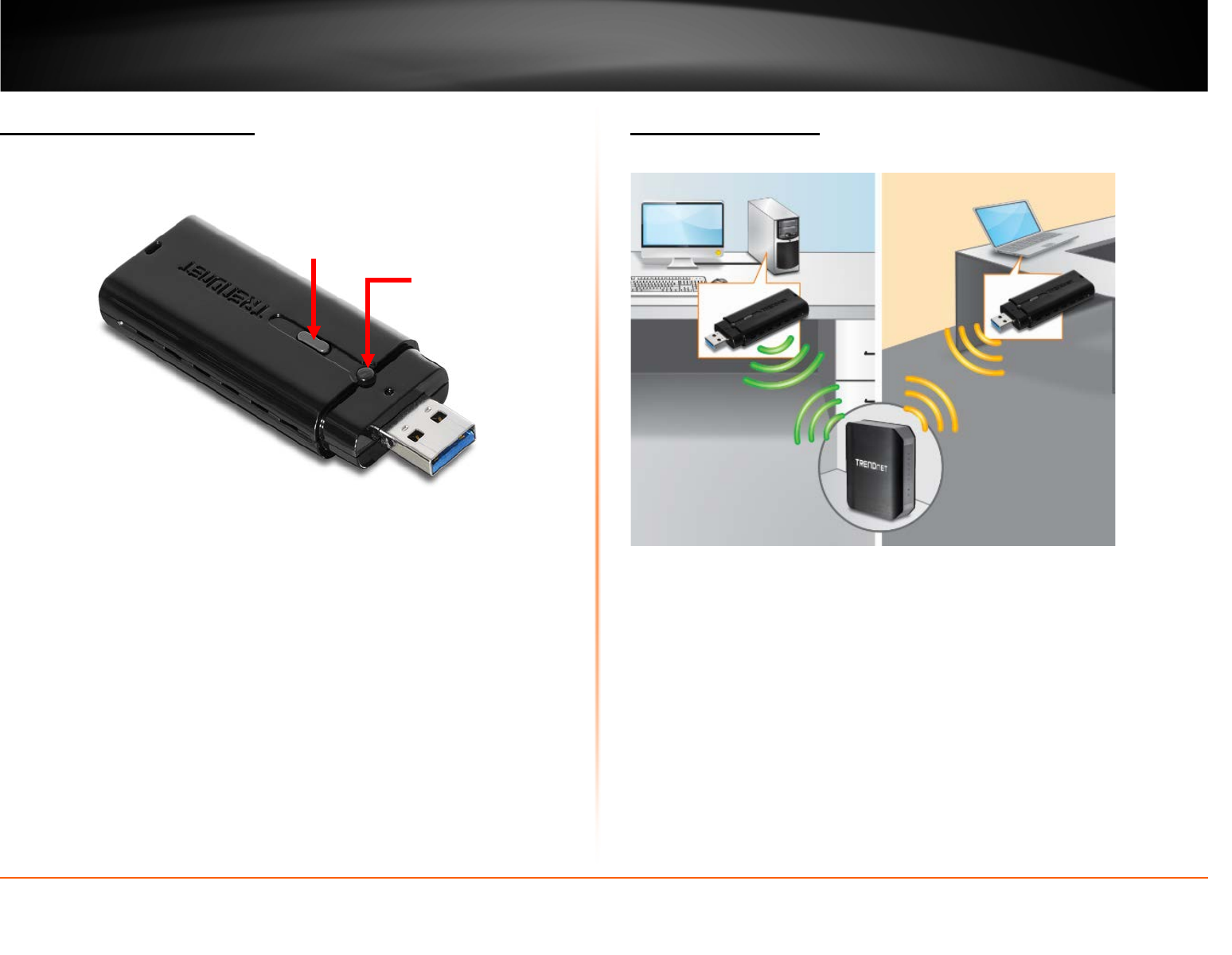

Product Hardware Features

• Power/Status LED -This LED turns on when the USB adapter has power and ready

for use and blinks during wireless data transmission.

• WPS (Wi-Fi Protected Setup) button – Push and hold this button for 3 seconds to

activate WPS. The Power/Status LED will blink blue when WPS is activated.

Application Diagram

A router is installed near the modem (typically supplied by your ISP “Internet Service

Provider”) and physically connected to it from the router’s WAN port to the modem’s

network port which connects to the Internet creating a wireless network. Wireless

signals from the router are broadcasted to wireless clients such as laptops with wireless

capabilities. The TEW-805UB is used for computers without wireless capabilities and to

connect to the wireless network.

WPS button

LED Indicator

TRENDnet User’s Guide TEW-805UB

Installation

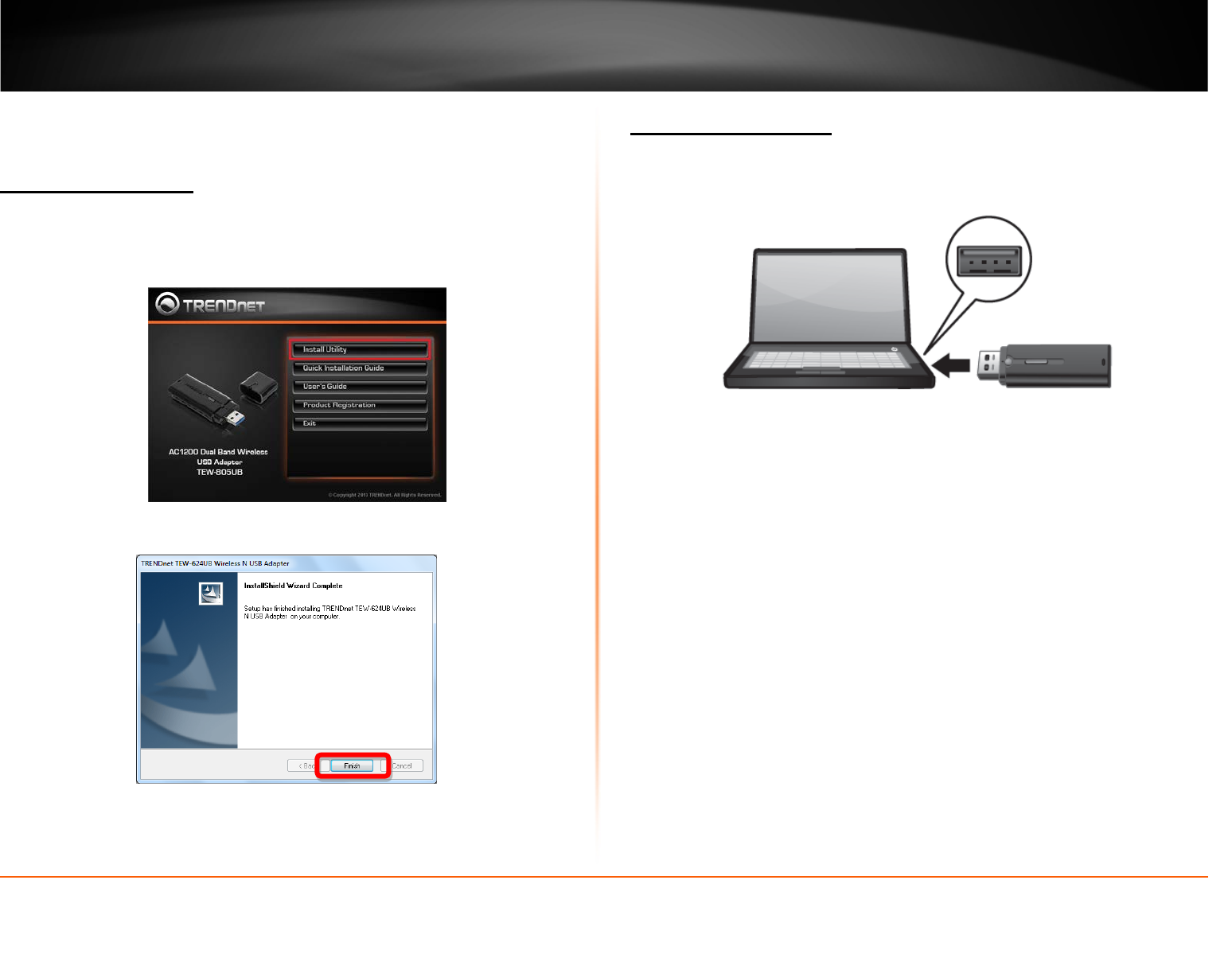

Software Installation

This section describes how to install the driver and utility for the AC1200 Dual Band

Wireless USB Adapter.

1. Insert the Utility and Driver CD-ROM into your computer’s CD-ROM Drive and then

click Install Utility.

2. Follow the InstallShield Wizard Instructions

3. Click Finish to complete installation if prompted for computer restart the computer

click OK.

Hardware Installation

1. Plug the AC1200 Dual Band Wireless USB Adapter into an available USB slot on your

computer.

Note: Plug the device into an available USB 3.0 port for maximum performance.

2. Verify that the LED is turned on. Continue to the next section on how to configure

that wireless adapter.

TRENDnet User’s Guide TEW-805UB

Wireless Utility

Wireless Utility Setting

The user can configure the wireless settings using the Wireless Adapter Configuration

Utility. Double-click the utility icon that appears in the taskbar.

The Wireless Adapter Configuration Utility is divided into six sections: General, Profile,

Available Networks, Status, Statistics and WPS.

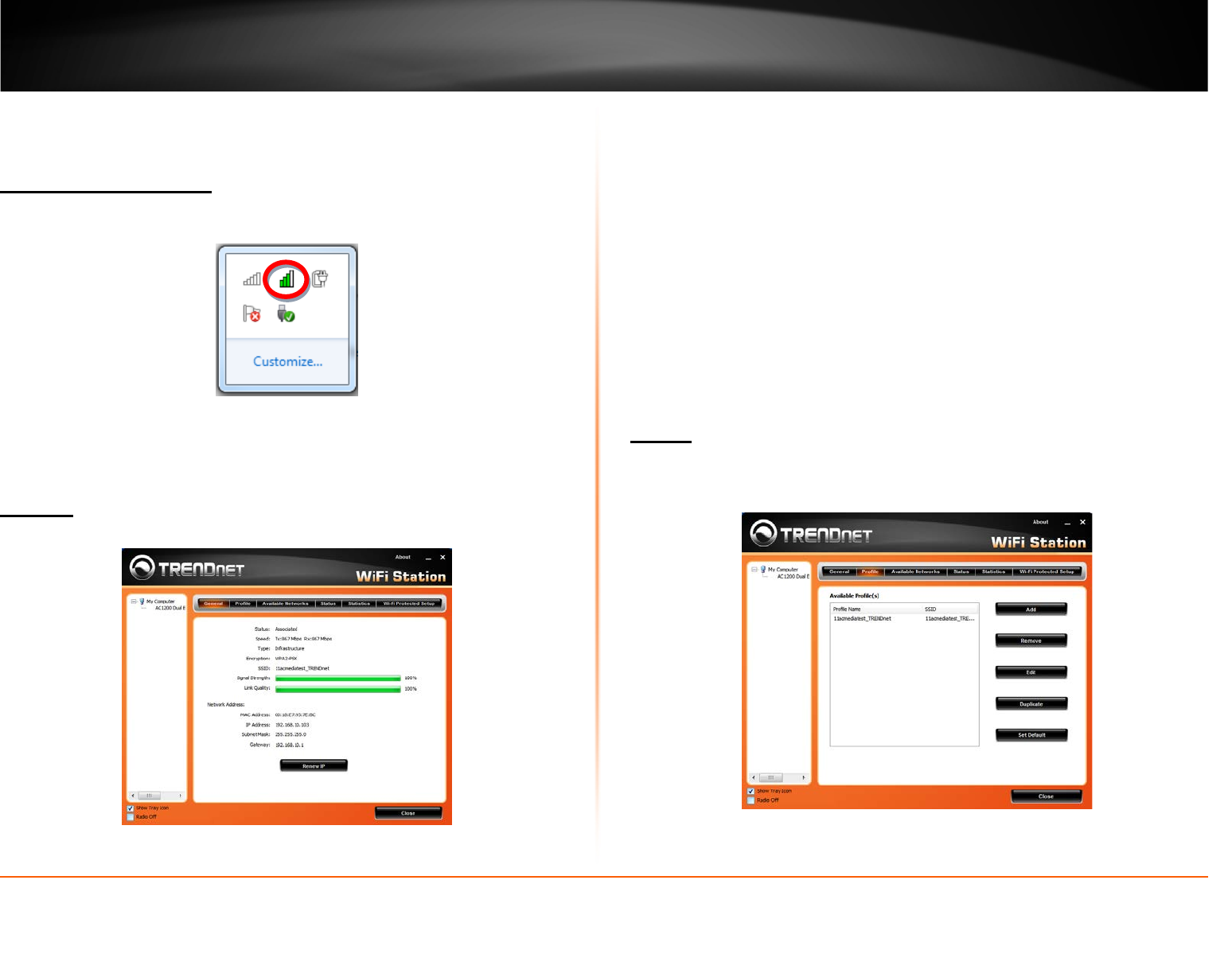

General

This screen shows the general information of the wireless adapter.

• Status: Shows connection status.

• Speed: Shows the transmission and the reception data rate.

• Type: Shows the connection type, Infrastructure or Ad-Hoc mode.

• Encryption: Shows the current encryption type used.

• SSID: Shows the current SSID, which must be the same as your wireless access point

or router in order to establish the connection correctly.

• Wireless Mode: Shows the current wireless mode used.

• Signal Strength: Shows the wireless signal strength of the connection between the

adapter and the Access Point or router.

• Link Quality: Shows the statistics of data transfer, and the calculation is based on the

number of packets transmitted and received.

• Network Address: Shows the MAC address and IP address of the adapter.

Profile

The user can create and manage the created profiles for home, work or public areas. By

double-clicking on one of the created profile, the setting will adjust to the specific

setting such as SSID, channel, and encryption as saved by that particular profile.

TRENDnet User’s Guide TEW-805UB

• Add: Adds a profile. The following screen will appear. The user can enter the

necessary information required for accessing the particular Access Point or Wireless

Router. Or you can search the desire wireless router or AP under Available Networks

section and click on Add Profile button to add the Profile.

• Remove: Deletes the selected profile

• Edit: Edit an exist profile. The screen will back to profile. Edit the SSID and select the

Wireless Mode, Authentication and Encryption then click Apply to save the profile.

When the Profile name was changed, a new profile will be added in the list.

• Duplicate: Duplicate the selected Profile.

• Set Default: Set the selected Profile as default connection.

When adding a new profile the below screen will appear. This screen will allow you to

set the wireless encryption settings from your wireless network to the wireless adapter.

Wireless Network Security: The following options are available: Open System, Shared

Key, WPA-PSK, WPA2-PSK, WPA EAP-TLS, WPA2 EPA-TLS . Select Open System, Shared

Key for WEP data encryption feature.

o Open System and Shared: Requires the user to set a WEP key to exchange data

with other wireless clients that have the same WEP key. WEP is considered basic

level of wireless encryption, if you would like higher security connection, WPA2

encryption is recommended.

 Default Key: select one of the 4 keys to use.

 Network Key: choose the encryption way, either in HEX or ASCII formats, and

enter the password in the blank space.

 Key Length: select 64 or 128 bits as the length of the keys

Key Format: HEX or ASCII

Key Length Hex ASCII

Type characters 0-9, A-F, a-f alphanumeric

format

64-bit 10 characters 5 characters

128-bit 26 characters 13 characters

o WPA-PSK/WPA2-PSK: Requires the user to use a passphrase as the encryption key,

with a minimum length of 8 characters long or maximum of 64 characters long.

Please select the cipher of TKIP or AES then enter the Passphrase key. AES cipher

type is for WPA2 and TKIP is for WPA.

o WPA/WPA2 EAP-TLS: Also known as RADIUS or Enterprise requires the user to have

a radius server connected to their network for wireless authentication and a

password. Please select the cipher of TKIP or AES then enter the Passphrase key.

AES cipher type is for WPA2 and TKIP is for WPA. Then select the WPA/WPA2

Certificate from drop down list.

TRENDnet User’s Guide TEW-805UB

Available Networks

This screen allows the user to scan for available wireless network. It also allows the user

to establish wireless communications with a target device.

• Available Networks: Displays the wireless networks (wireless clients, access points or

routers) that are within range.

• Refresh: Click this button to rescan for available networks. Select any one of the

wireless networks and connect to it by double-clicking.

• Add Profile: Select your wireless network on the available network list and click “Add

Profile” button to connect. You can also double click your wireless network from the

available network list.

Status

Display the information of the adapter including manufacturer, driver version, utility

version, encryption, encryption type, region, adapter’s MAC address, current connection

data rate, channel, connection status, the associated router or Access Point’s SSID,

network type, associated device’s MAC address, and Up time.

• Manufacture: Wireless adapter’s manufacture

• NDIS Driver Version: Driver version the wireless adapter is using. This can be useful to

determine if the drivers installed are the latest or correct.

• Utility Version: Utility version the wireless adapter is using. This information is useful

to determine if the utility version is the latest version.

• Encryption: The wireless encryption used on the wireless adapter. This information is

useful to determine if the applied wireless encryption is the same as your wireless

network.

• Authentication: The authentication type used on the wireless adapter. This

information is useful to determine if the applied wireless authentication is the same

as your wireless network.

• Region: The wireless adapter’s wireless region.

TRENDnet User’s Guide TEW-805UB

• MAC Address: The MAC address of the wireless adapter. This information is useful to

determine your wireless adapter when looking at the DHCP server list of your wireless

adapter.

• Data Rate: Displays the data rate of the wireless adapter and your wireless network.

• Channel: Displays the channel of your wireless network is using and the wireless

adapter is connected to.

• Status: Displays the status of the wireless adapter. This information is useful when

troubleshooting the connection of the wireless adapter and your wireless network.

• SSID: The SSID your wireless network is connected to.

• Network Type: Displays the type of network the wireless adapter set to.

• Associated AP MAC: Displays the MAC address of the device the wireless adapter is

connected to.

• Up Time: Displays how long the wireless adapter has been connected.

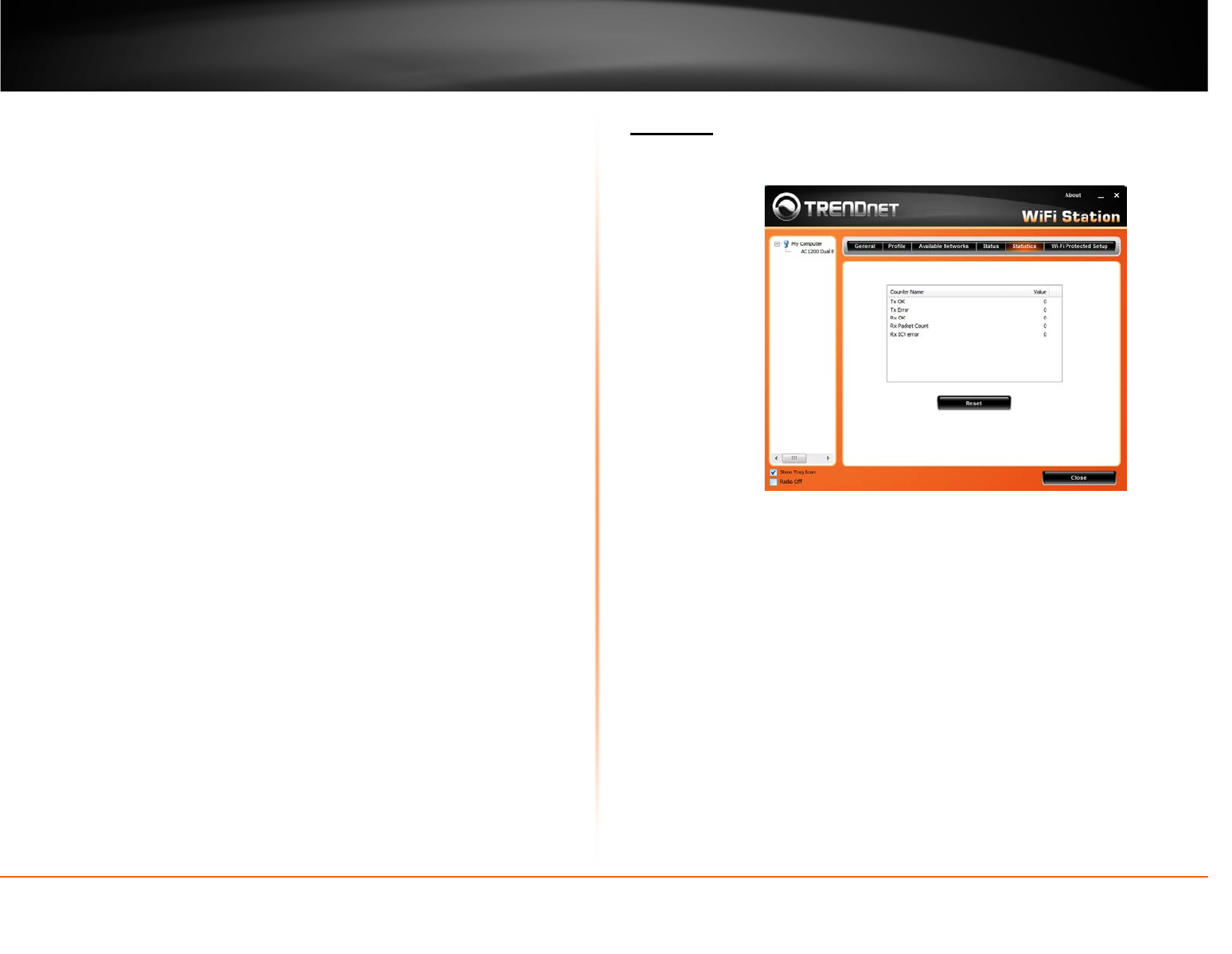

Statistics

This section displays the statistics of the adapter connection. TX means transmission and

RX means Reception.

• Counter Name: Type of packets.

• Value: The value of packets.

• Reset: Click this button to clear the table.

TRENDnet User’s Guide TEW-805UB

WiFi Protected Setup (WPS)

Wi-Fi Protected Setup (WPS) is an optional certification program from the Wi-Fi Alliance

that is designed to ease the task of setting up and configuring security on a wireless

network. There are two methods used in the WPS as below instruction.

Pin Input Configuration (PIN)

Follow the steps below when using the WPS configuration with the Pin Input

Configuration method. Please note that WPS will attempt to authenticate in 120

seconds. Make sure you allow this time frame to prevent any failures.

1. Click on the Pin Input Configuration (PIN) button, the PIN is shown on the button of

the windows.

2. Enter the PIN code into the WPS “Client PIN number” of you wireless access point or

router ( in example, TRENDnet TEW-639GR Wireless N Gigabit Router) then click the

Start PIN button, the wireless access point or router will start the WPS configuration

process.

3. Choose to select the specific AP/Router or a WPS enabled device with client PIN

entered. Choose Yes to allow you to select your wireless network. Choose No to have

the wireless adapter select your wireless network on its own.

4. Select a wireless access point or router then click the Select button start the WPS

configuration.

TRENDnet User’s Guide TEW-805UB

5. The wireless utility will automatically attempt to authenticate to your wireless

network.

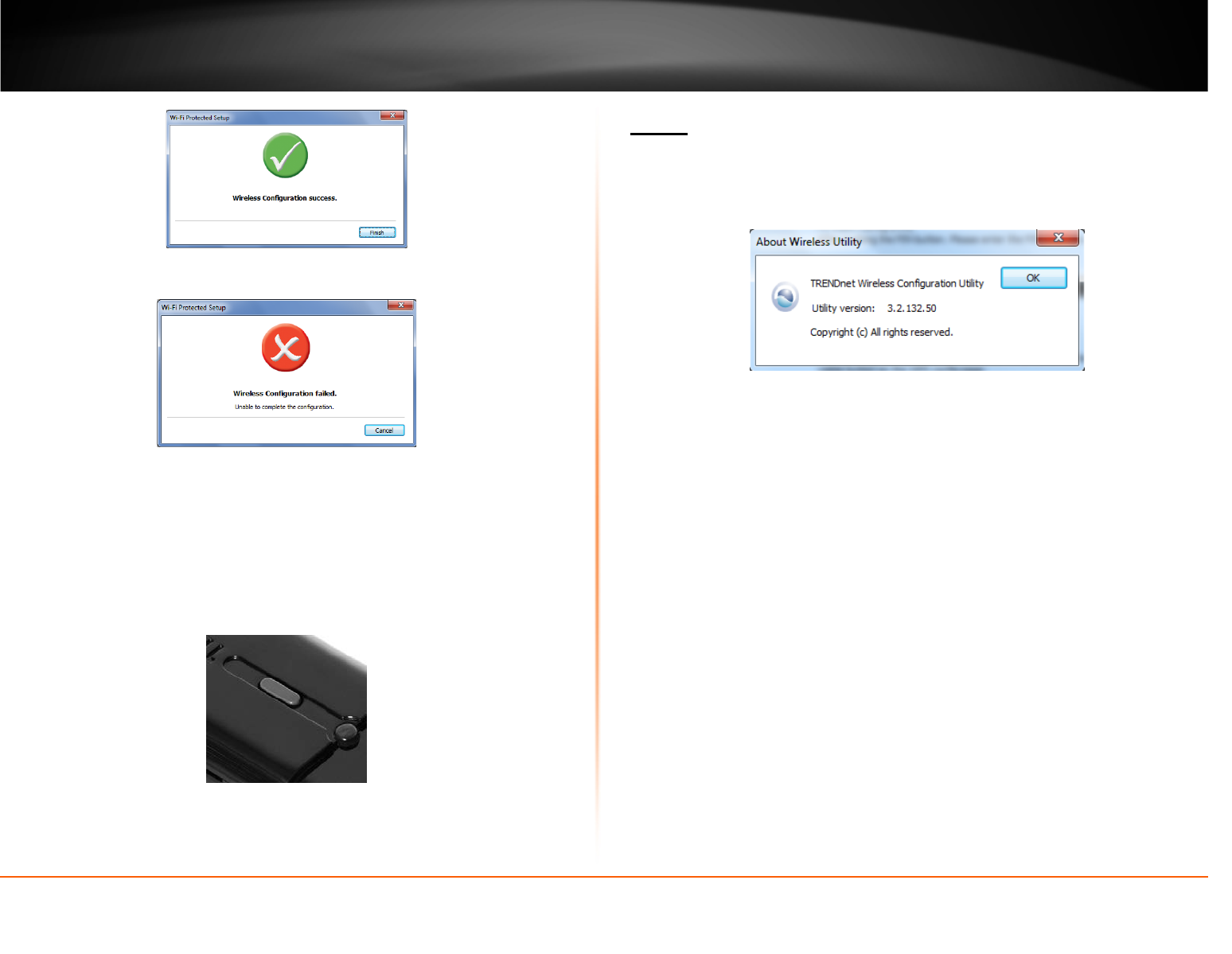

6. If the WPS configuration was successful, the following window will appear.

7. If the WPS configuration was failed, the follow window will show on. Try to repeat the

steps again if this screen appears.

Push Button Configuration (PBC)

There are 2 ways to run WPS Push Button Configuration. Follow the steps below when

using the WPS configuration with the Push Button Configuration (PBC) method through

the wireless utility. Please note that WPS will attempt to authenticate in 120 seconds.

Make sure you allow this time frame to prevent any failures.

1. Click on the Push Button Configuration (PBC) button, the PIN is shown on the button

of the windows.

2. Push the WPS button on your wireless access point or router.

3. If the WPS configuration was successful, the follow window will show on.

TRENDnet User’s Guide TEW-805UB

4. If the WPS configuration was failed, the follow window will show on.

The other way to configure method of WPS Push Button Configuration is through the

physical button located on the unit.

1. Press and hold the WPS button on your wireless router or access point. In most

cases the WPS LED will turn on when WPS is activated.

2. Push and hold for 5 seconds the WPS button on the wireless adapter.

3. Once the WPS LED turns off you can check if the authentication was successful by

checking the Status tab on the wireless utility.

About

This screen displays information about the AC1200 Dual Band Wireless USB Adapter,

such as the Driver and Utility version. When a new version of the utility becomes

available for upgrade, users will be able to identify by version numbers.

TRENDnet User’s Guide TEW-805UB

Technical Specifications

Hardware

Interface USB 3.0, 2.0, 1.1 standard

Standards IEEE 802.11a, IEEE 802.11ac (draft), IEEE 802.11b, IEEE

802.11g, and IEEE 802.11n

WPS Button Enables WPS connection

Power

Consumption

Receive mode: 167 mA (max.) ; Transmit mode: 224 mA

(max.)

Supported OS Windows 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit),

Windows XP (32/64-bit)

Dimensions

(LxWxH)

80 x 27 x 12 mm (3.1 x 1 x 0.5 in.)

Weight 20 g (0.7 oz)

Temperature Operating: 0° ~ 40° C (32° ~ 104° F)

Storage: -10° ~ 70° C (14° ~ 158° F)

Humidity Max. 95% (non-condensing)

Certifications CE, FCC

Wireless

Modulation DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-

QAM/128-QAM/256-QAM)

Antenna 2 internal antennas

Frequency 802.11b/g/n: 2.412 ~ 2.472 GHz

802.11a/n/ac: 5.150GHz ~ 5.350 GHz / 5.725 GHz ~ 5.825 GHz

(FCC), 5.150 GHz ~5.350 GHz / 5.470 GHz ~ 5.725 GHz (ETSI)

Media Access

Protocol

CSMA/CA with ACK

Data Rate

(auto

fallback)

802.11a: up to 54 Mbps

802.11b: up to 11 Mbps

802.11g: up to 54 Mbps

802.11n: up to 300 Mbps (for both 2.4 & 5 GHz)

802.11ac: up to 867 Mbps

Output Power 802.11b: 15 dBm (typical)

802.11g: 15 dBm (typical)

802.11n : 15 dBm (typical) (for both 2.4 & 5 GHz)

802.11a: 15 dBm (typical)

802.11ac: 12 dBm (typical)

Receiving

Sensitivity

802.11b: -76 dBm (typical)

802.11g: -65 dBm (typical)

802.11n : -61 dBm (typical)

802.11a: -65 dBm (typical)

802.11ac: -51 dBm (typical)

Encryption 64/128-bit WEP, WPA/WPA2-RADIUS, WPA / WPA2-PSK

(AES/TKIP)

Channels 2.4 GHz: 1~11 (FCC), 1~13 (ETSI)

5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

(FCC) 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,

120, 124, 128, 132, 136, 140 (ETSI)

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual

data throughput and coverage will vary depending on interference, network traffic, building

materials and other conditions.

TRENDnet User’s Guide TEW-805UB

Troubleshooting

Q: I inserted the Utility & Driver CD-ROM into my computer's CD-ROM Drive and the

installation menu does not appear automatically. What should I do?

Answer:

1. For Windows 7, if the installation menu does not appear automatically, click on

the Windows Icon on the bottom left hand corner of the screen,, click the “Search

programs and files” box, and type D:\autorun.exe, where “D” in

“D:\autorun.exe” is the letter assigned to your CD-ROM Drive, and then press the

ENTER key on your keyboard

2. For Windows Vista, if the installation menu does not appear automatically, click

Start, click the Start Search box, and type D:\autorun.exe where "D" in

"D:\autorun.exe" is the letter assigned to your CD-ROM Drive, and then press the

ENTER key on your keyboard.

3. For Windows 2000/XP, if the installation menu does not appear automatically,

click Start, click Run, and type

D:\autorun where "D" in "D:\autorun.exe" is the letter assigned to your CD-ROM

Drive, and then press the ENTER key on your keyboard.

Q: I completed all the steps in the quick installation guide, but my Wireless USB

Adapter is not connecting to my access point. What should I do?

Answer:

1. Verify that the SSID (Network Name) matches your wireless router or access point's

SSID

2. Please check with your network administrator for security key in order to access a

secured wireless access point or router. Please refer to the User's Guide for more

information regarding wireless network security.

3. Check your TCP/IP properties to ensure that Obtain an IP address automatically is

selected.

4. Double-click the Wireless Configuration Utility icon, click Available Networks and

then click Refresh to check and see if there are any available wireless networks

listed.

Q: Windows is unable to recognize my hardware. What should I do?

Answer:

1. Make sure your computer meets the minimum requirements as specified in

Section 1 of this quick installation guide.

2. You must complete the installation of the Wireless Configuration Utility (as

described in Section 2) before connecting the Wireless USB Adapter to your

computer.

3. Connect the Wireless USB Adapter to a different USB port on your computer.

Q: I cannot open the Wireless Configuration Utility. What should I do?

Answer:

Access your device manager to make sure the adapter is installed properly.

1. To access the device manager on Windows 7, click on the Windows icon on the

bottom left-hand corner, click Computer, click System Properties and then click

Device Manager.

2. To access the device manager on Windows Vista, right-click Computer, click

Properties and then click Device Manager.

3. To access the device manager on Windows XP, right-click My Computer, click

Properties, click the Hardware tab, and then click Device Manager.

If you see a networking device with a yellow question mark or exclamation point:

1. Uninstall the device from device manager

2. Remove the adapter from the computer

3. Click the Windows / Start icon, click All Programs, click TRENDnet Wireless and

then click Uninstall.

TRENDnet User’s Guide TEW-805UB

Appendix

How to choose the type of security for your wireless network

Setting up wireless security is very important. Leaving your wireless network open and

unsecure could expose your entire network and personal files to outsiders. TRENDnet

recommends reading through this entire section and setting up wireless security on your

new router.

There are a few different wireless security types supported in wireless networking each

having its own characteristics which may be more suitable for your wireless network

taking into consideration compatibility, performance, as well as the security strength

along with using older wireless networking hardware (also called legacy hardware).

It is strongly recommended to enable wireless security to prevent unwanted users from

accessing your network and network resources (personal documents, media, etc.).

In general, it is recommended that you choose the security type with the highest

strength and performance supported by the wireless computers and devices in your

network. Please review the security types to determine which one you should use for

your network.

Wireless Encryption Types

• WEP: Legacy encryption method supported by older 802.11b/g hardware. This is

the oldest and least secure type of wireless encryption. It is generally not

recommended to use this encryption standard, however if you have old 802.11 b or

802.11g wireless adapters or computers with old embedded wireless cards(wireless

clients), you may have to set your router to WEP to allow the old adapters to

connect to the router.

Note: This encryption standard will limit connection speeds to 54Mbps.

• WPA: This encryption is significantly more robust than the WEP technology. Much

of the older 802.11g hardware was been upgraded (with firmware/driver upgrades)

to support this encryption standard. Total wireless speeds under this encryption

type however are limited to 54Mbps.

• WPA-Auto: This setting provides the router with the ability to detect wireless

devices using either WPA or WPA2 encryption. Your wireless network will

automatically change the encryption setting based on the first wireless device

connected. For example, if the first wireless client that connects to your wireless

network uses WPA encryption your wireless network will use WPA encryption. Only

when all wireless clients disconnect to the network and a wireless client with WPA2

encryption connects your wireless network will then change to WPA2 encryption.

Note: WPA2 encryption supports 802.11n speeds and WPA encryption will limit

your connection speeds to 54Mbps

• WPA2: This is the most secure wireless encryption available today, similar to WPA

encryption but more robust. This encryption standard also supports the highest

connection speeds. TRENDnet recommends setting your router to this encryption

standard. If you find that one of your wireless network devices does not support

WPA2 encryption, then set your router to either WPA or WPA-Auto encryption.

Note: Check the specifications of your wireless network adapters and wireless

appliances to verify the highest level of encryption supported.

Below is brief comparison chart of the wireless security types and the recommended

configuration depending on which type you choose for your wireless network.

Security Standard WEP WPA WPA2

Compatible

Wireless

Standards

IEEE 802.11a/b/g

(802.11n devices

will operate at

802.11g to connect

using this standard)

IEEE 802.11a/b/g

(802.11n devices

will operate at

802.11g to connect

using this

standard)

IEEE 802.11a/b/g/n

Highest

Performance

Under This

Setting Up to 54Mbps Up to 54Mbps Up to 450Mbps*

Encryption

Strength Low Medium High

Additional

Options

Open System or

Shared Key,

HEX or ASCII,

Different key sizes

TKIP or AES,

Preshared Key or

RADIUS

TKIP or AES,

Preshared Key or

RADIUS

Recommended

Configuration

Open System ASCII

13 characters

TKIP

Preshared Key

8-63 characters

AES

Preshared Key

8-63 characters

*Dependent on the maximum 802.11n/ac data rate supported by the device (150Mbps,

300Mbps, 450Mbps or 867Mbps)

TRENDnet User’s Guide TEW-805UB

How to find your IP address?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Windows 2000/XP/Vista/7/8

1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run

dialog box.

2. In the dialog box, type cmd to bring up the command prompt.

3. In the command prompt, type ipconfig /all to display your IP address settings.

How to configure your network settings to obtain an IP address automatically or use

DHCP?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Windows 7/8

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

How to find your MAC address?

In Windows 2000/XP/Vista/7

Your computer MAC addresses are also displayed in this window, however, you can type

getmac –v to display the MAC addresses only.

How to connect to a wireless network using the built-in Windows utility?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

connecting to a wireless network using the built-in utility.

Windows 7/8

1. Open Connect to a Network by clicking the network icon ( or ) in the notification

area.

2. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

Windows Vista

1. Open Connect to a Network by clicking the Start Button. and then click Connect

To.

2. In the Show list, click Wireless.

3. In the list of available wireless networks, click the wireless network you would like to

connect to, then click Connect.

4. You may be prompted to enter a security key in order to connect to the network.

5. Enter in the security key corresponding to the wireless network, and click OK.

TRENDnet User’s Guide TEW-805UB

Windows XP

1. Right-click the network icon in the notification area, then click View Available

Wireless Networks.

2. In Connect to a Network, under Available Networks, click the wireless network you

would like to connect to.

3. You may be prompted to enter a security key in order to connect to the network.

4. Enter in the security key corresponding to the wireless network, and click Connect.

TRENDnet User’s Guide TEW-805UB

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

IMPORTANT NOTE:

Radiation Exposure Statement:

This device meets the government’s requirements for exposure to radio waves.

This device is designed and manufactured not to exceed the emission limits for exposure

to radio frequency (RF) energy set by the Federal Communications Commission of the

U.S. Government.

The exposure standard for wireless device employs a unit of measurement known as the

Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR

are conducted using standard operating positions accepted by the FCC with the device

transmitting at its highest certified power level in all tested frequency bands.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The USB dongle transmitter is approved for use in typical laptop computers. To comply

with FCC RF exposure requirements, it should not be used in other devices or certain

laptop and tablet computer configurations where the USB connectors on the host

computer are unable to provide or ensure the necessary operating configurations

intended for the device and its users or bystanders to satisfy RF exposure compliance

requirements.

Note: The country code selection is for non-US model only and is not available to all US

model. Per FCC regulation, all WiFi product marketed in US must fixed to US operation

channels only.

For Taiwan 警語：

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變

更頻率、加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，

應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作

業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射

性電機設備之干擾。

TRENDnet User’s Guide TEW-805UB

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.

The following test methods have been applied in order to prove presumption of

conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN60950-1: 2006+A11:2009+A1: 2010+A12:2011

Safety of Information Technology Equipment

EN62311: 2008

Generic standard to demonstrate the compliance of electronic and electrical apparatus

with the basic restrictions related to human exposure to electromagnetic fields (0 Hz -

300 GHz)

EN 300 328 V1.7.1: 2006

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band

and using spread spectrum modulation techniques; Harmonized EN covering essential

requirements under article 3.2 of the R&TTE Directive

EN 301 893 V1.6.1: 2011

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized

EN covering essential requirements of article 3.2 of the R&TTE Directive

EN 301 489-1 V1.9.2: 2011-09

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 1: Common

technical requirements

EN 301 489-17 V2.2.1: 2012-09

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Specific

conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance

RLAN equipment

This device is a 5GHz wideband transmission system (transceiver), intended for use in all

EU member states and EFTA countries, except in France and Italy where restrictive use

applies.

In Italy the end-user should apply for a license at the national spectrum authorities in

order to obtain authorization to use the device for setting up outdoor radio links and/or

for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some

areas the RF output power may be limited to 10 mW EIRP in the frequency range of

2454 – 2483.5 MHz. For detailed information the end-user should contact the national

spectrum authority in France.

TRENDnet User’s Guide TEW-805UB

Česky

[Czech]

TRENDnet tímto prohlašuje, že tento TEW-805UB je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními směrnice

1999/5/ES.

Dansk

[Danish]

Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-805UB

overholder de væsentlige krav og øvrige relevante krav i direktiv

1999/5/EF.

Deutsch

[German]

Hiermit erklärt TRENDnet, dass sich das Gerät TEW-805UB in

Übereinstimmung mit den grundlegenden Anforderungen und den

übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.

Eesti

[Estonian]

Käesolevaga kinnitab TRENDnet seadme TEW-805UB vastavust direktiivi

1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele

asjakohastele sätetele.

English Hereby, TRENDnet, declares that this TEW-805UB is in compliance with

the essential requirements and other relevant provisions of Directive

1999/5/EC.

Español

[Spanish]

Por medio de la presente TRENDnet declara que el TEW-805UB cumple

con los requisitos esenciales y cualesquiera otras disposiciones aplicables

o exigibles de la Directiva 1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-805UB

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ

ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français

[French]

Par la présente TRENDnet déclare que l'appareil TEW-805UB est

conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE.

Italiano

[Italian]

Con la presente TRENDnet dichiara che questo TEW-805UB è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla

direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo TRENDnet deklarē, ka TEW-805UB atbilst Direktīvas 1999/5/EK

būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.

Lietuvių

[Lithuanian]

Šiuo TRENDnet deklaruoja, kad šis TEW-805UB atitinka esminius

reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlands Hierbij verklaart TRENDnet dat het toestel TEW-805UB in

overeenstemming is met de essentiële eisen en de andere relevante

[Dutch]

bepalingen van richtlijn 1999/5/EG.

Malti

[Maltese]

Hawnhekk, TRENDnet, jiddikjara li dan TEW-805UB jikkonforma mal-

ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-

Dirrettiva 1999/5/EC.

Magyar

[Hungarian]

Alulírott, TRENDnet nyilatkozom, hogy a TEW-805UB megfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb

elõírásainak.

Polski

[Polish]

Niniejszym TRENDnet oświadcza, że TEW-805UB jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami

Dyrektywy 1999/5/EC.

Português

[Portuguese]

TRENDnet declara que este TEW-805UB está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Slovensko

[Slovenian]

TRENDnet izjavlja, da je ta TEW-805UB v skladu z bistvenimi zahtevami in

ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky

[Slovak]

TRENDnet týmto vyhlasuje, že [typ zariadenia] spĺňa základné požiadavky

a všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi

[Finnish]

TRENDnet vakuuttaa täten että [type of equipment = laitteen

tyyppimerkintä] tyyppinen laite on direktiivin 1999/5/EY oleellisten

vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar TRENDnet att denna TEW-805UB står I överensstämmelse

med de väsentliga egenskapskrav och övriga relevanta bestämmelser som

framgår av direktiv 1999/5/EG.

TRENDnet User’s Guide Limited Warranty

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEW-805UB – 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit’s warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please

contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to TRENDnet

prepaid, insured and packaged appropriately for safe shipment. Customers shipping

from outside of the USA and Canada are responsible for return shipping fees. Customers

shipping from outside of the USA are responsible for custom charges, including but not

limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S

OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE

EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE

OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST

OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR

MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO

EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN

CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL

LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY

OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY

FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL

OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

PWP05202009v2 2013/02/14

TRENDNET TEW805UB AC1200 Dual Band USB Adapter User Manual test 3

TRENDNET, Inc. AC1200 Dual Band USB Adapter test 3

Manual.pdf

Navigation menu

Namespaces

Views

Navigation
