TRENDnet User’s Guide Cover Page

TRENDnet User’s Guide Table of Contents

Contents

Product Overview ........................................................................... 1

Package Contents .......................................................................................................... 1

Features ......................................................................................................................... 1

Product Hardware Features ........................................................................................... 2

Application Diagram ...................................................................................................... 3

Utility Installation ........................................................................... 4

Windows Installation ..................................................................................................... 4

MAC OS X Installation .................................................................................................... 4

Network Installation ....................................................................... 5

Wi-Fi Protected Setup (WPS) Push Button Configuration (PBC) Setup .......................... 5

Manual Setup ................................................................................................................. 6

Using the Utility .............................................................................. 8

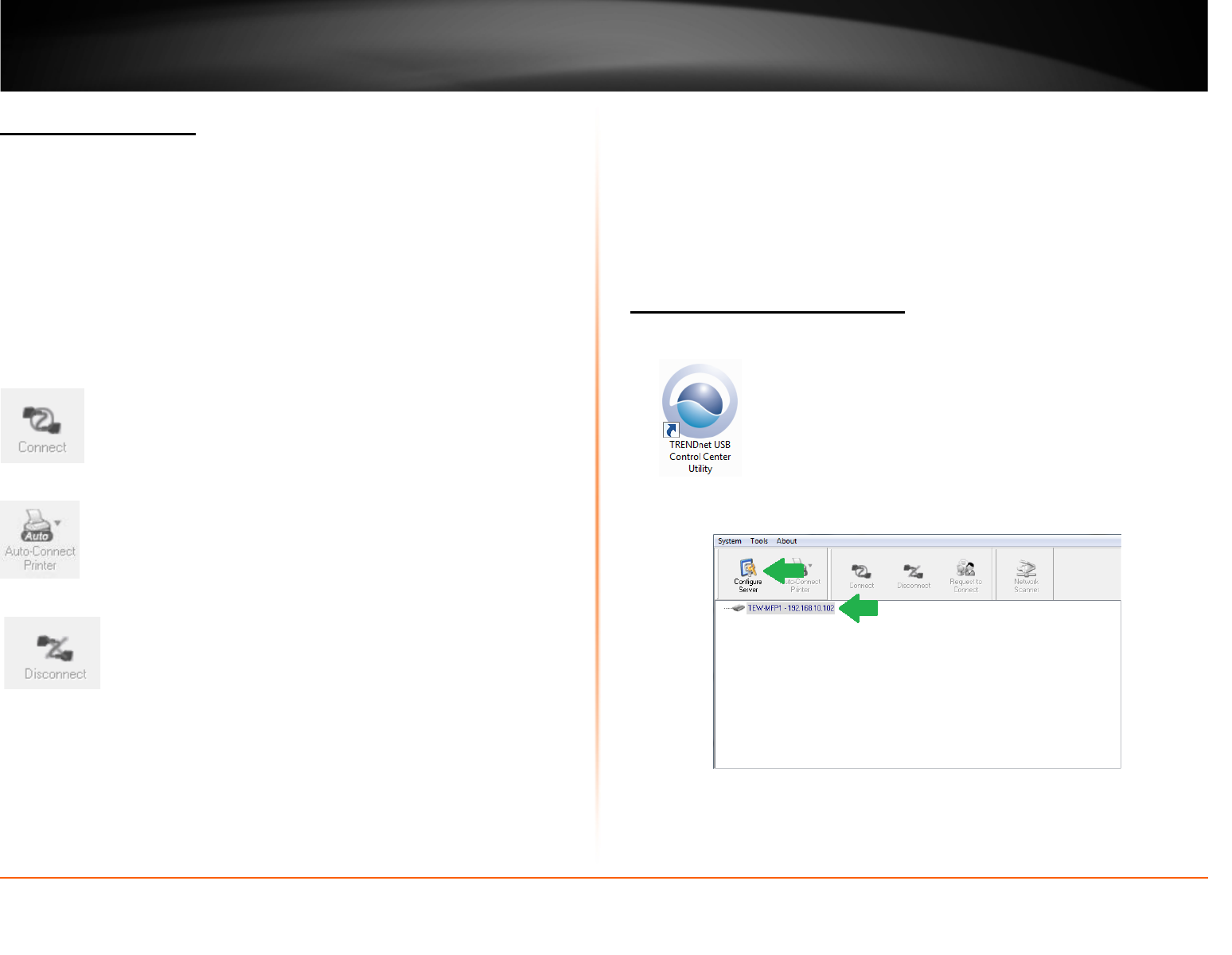

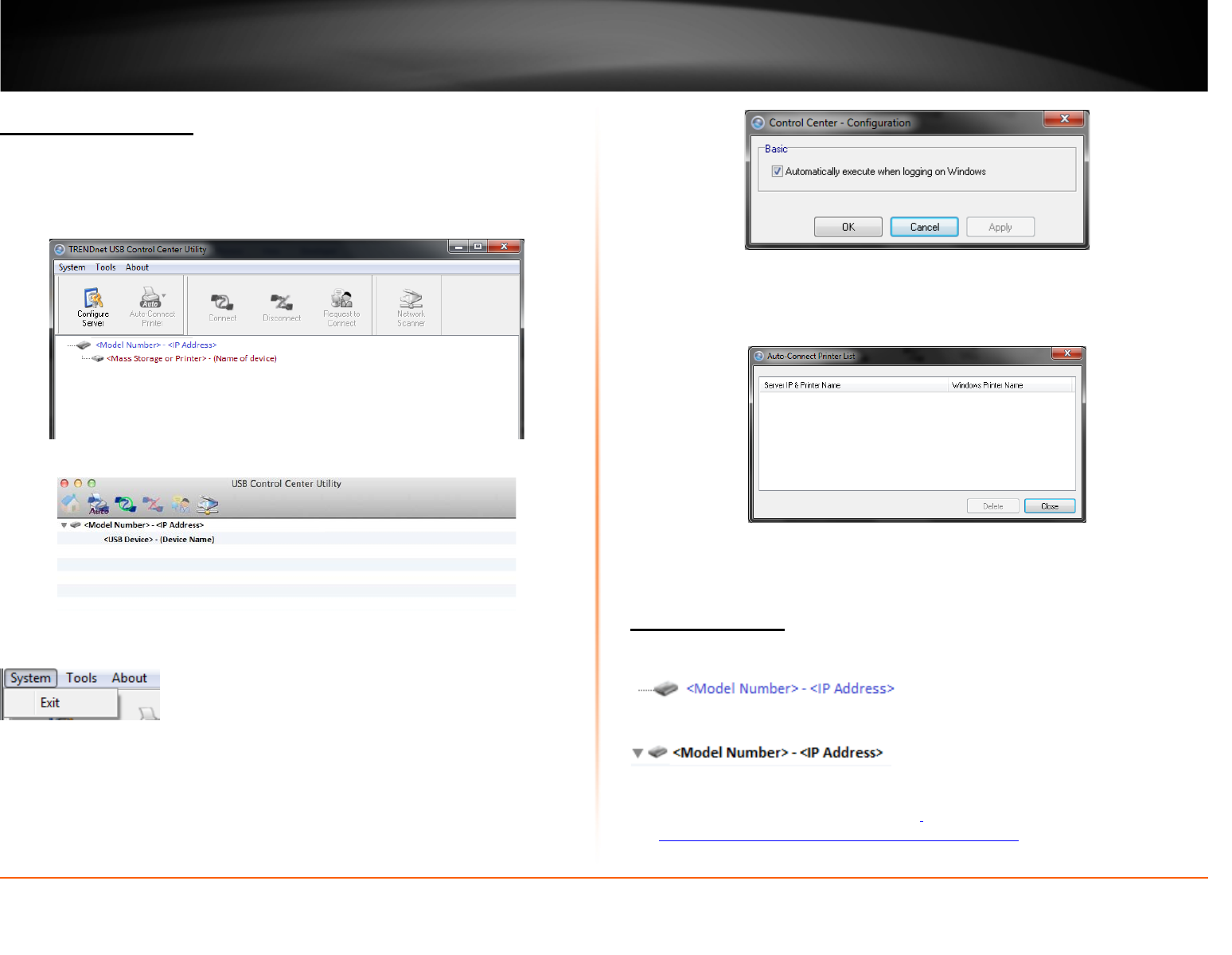

Launching the Utility ...................................................................................................... 8

Utility Main Window ...................................................................................................... 9

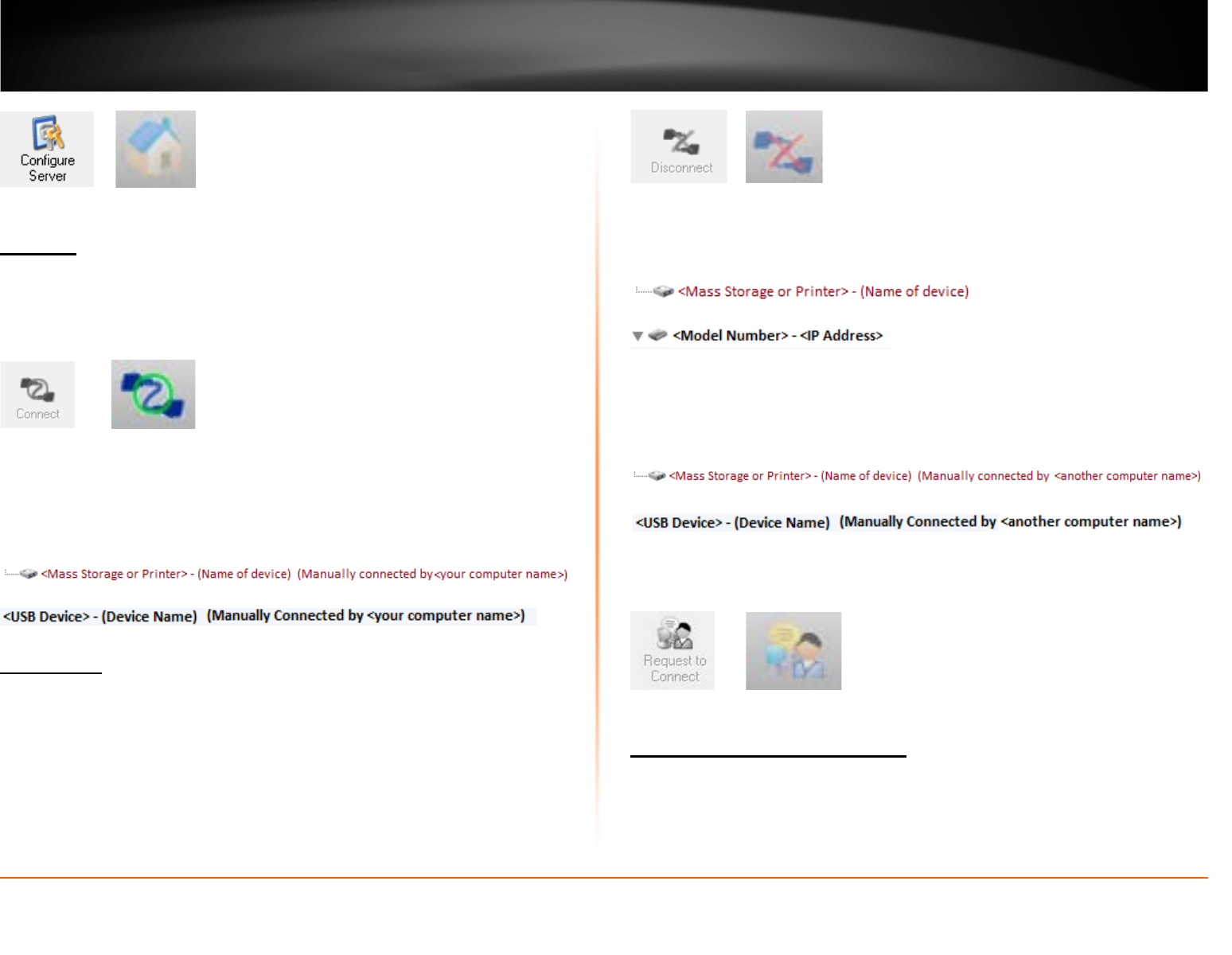

Configure Server ............................................................................................................ 9

Connect ........................................................................................................................ 10

Disconnect ................................................................................................................... 10

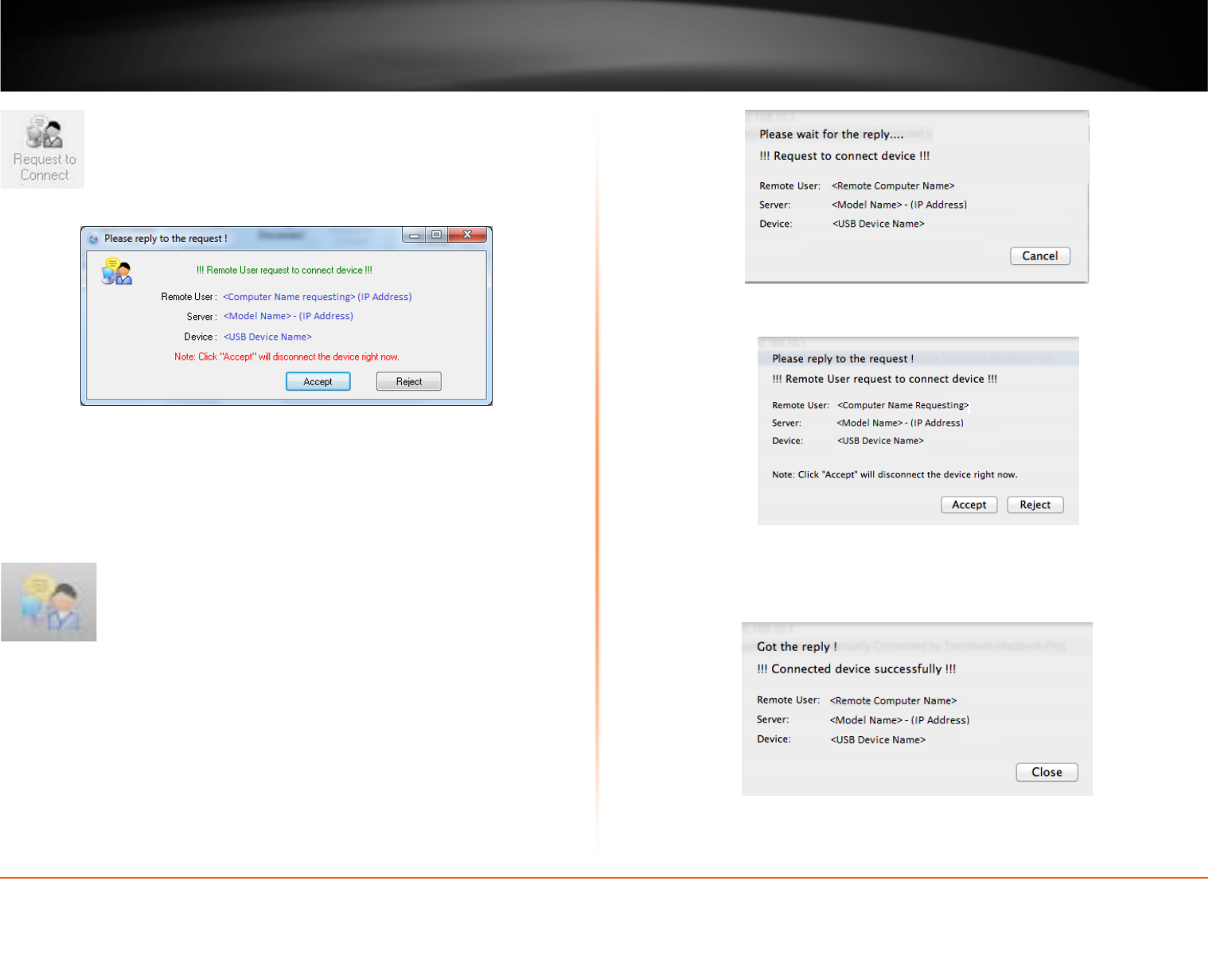

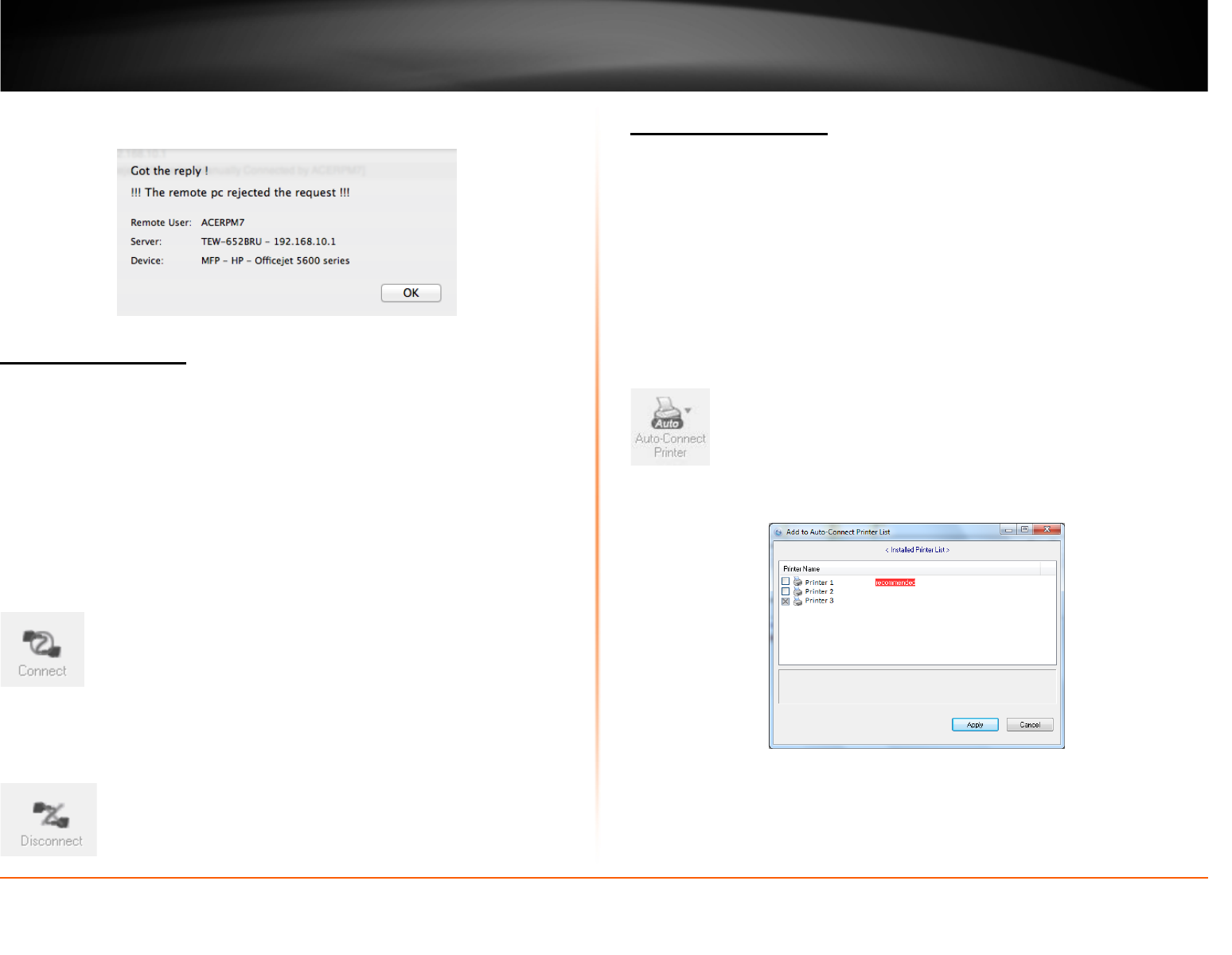

Sending a Request to Connect ..................................................................................... 10

Connect to a Printer ..................................................................................................... 12

Auto-Connect Printer ................................................................................................... 12

Connect to a Scanner ................................................................................................... 13

Advanced Configuration ................................................................ 13

Access the management page ..................................................................................... 13

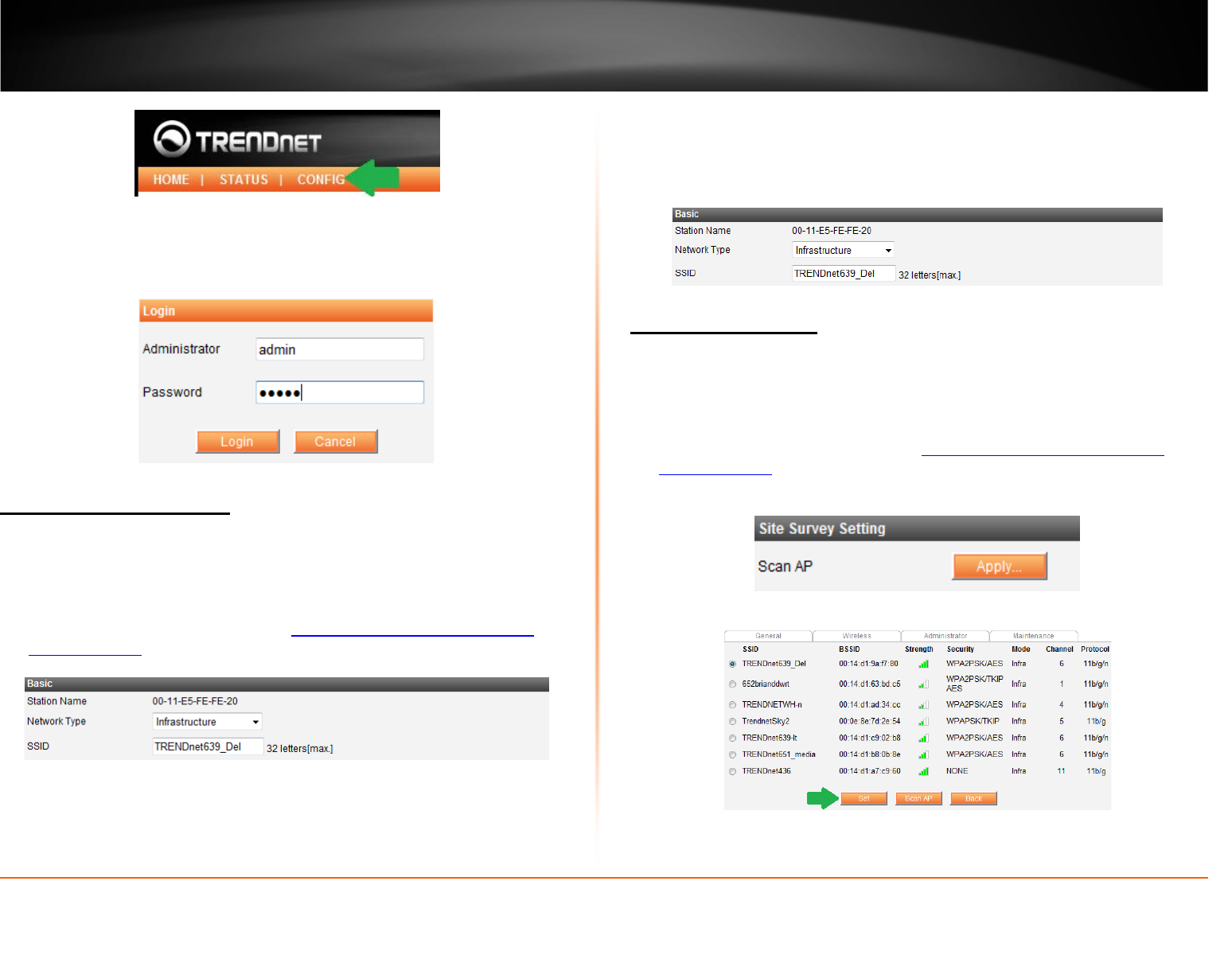

Change Wireless settings ............................................................................................. 14

Wireless Site Survey ..................................................................................................... 14

Wireless Security settings ............................................................................................ 15

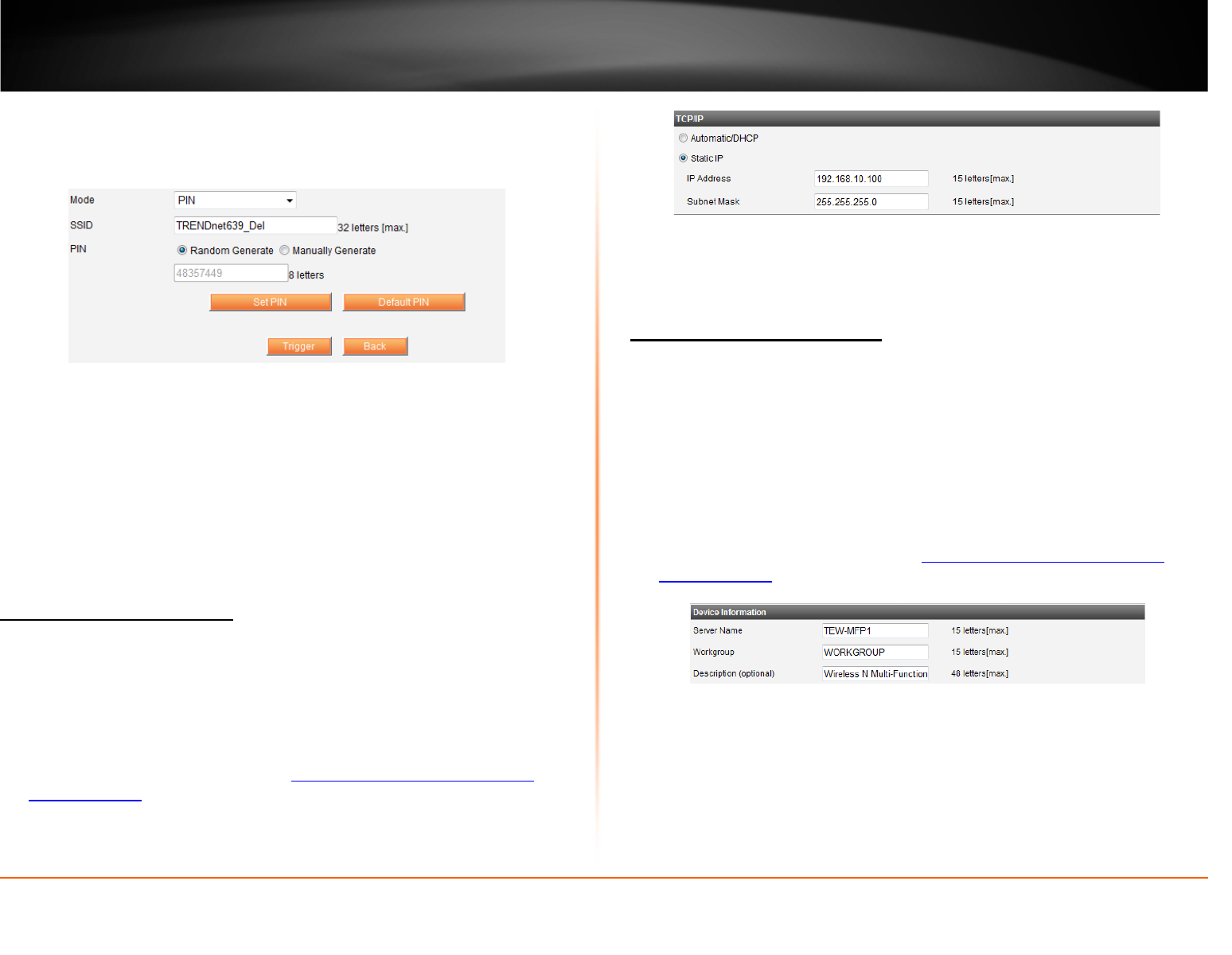

WPS Setting ................................................................................................................. 15

Change device IP address ............................................................................................ 16

Change Device Information ......................................................................................... 16

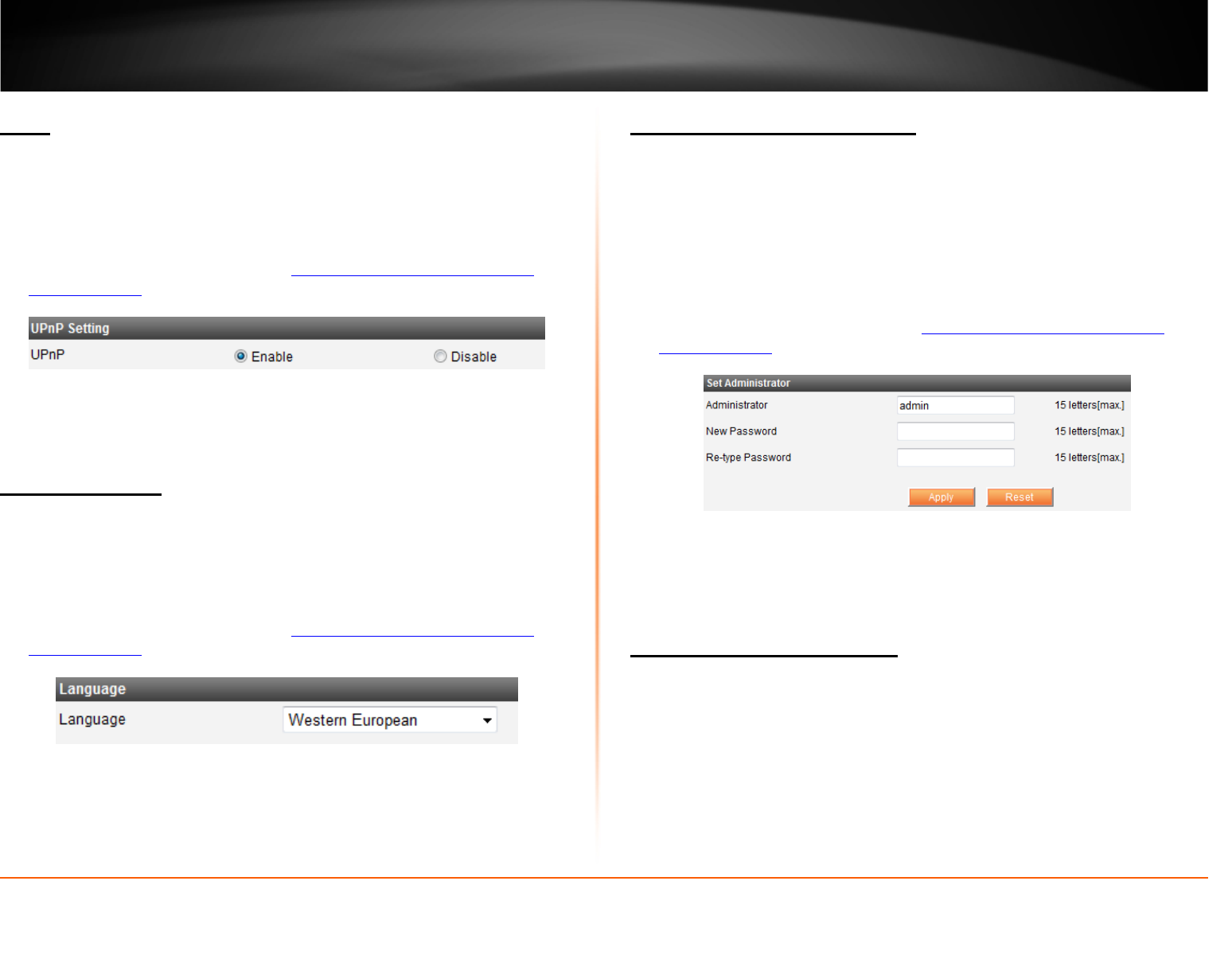

UPnP ............................................................................................................................ 17

Change Language ......................................................................................................... 17

Change Admin Account Setting ................................................................................... 17

Change User Account Setting ...................................................................................... 17

Maintenance ................................................................................ 18

Restart device .............................................................................................................. 18

Reset device ................................................................................................................. 18

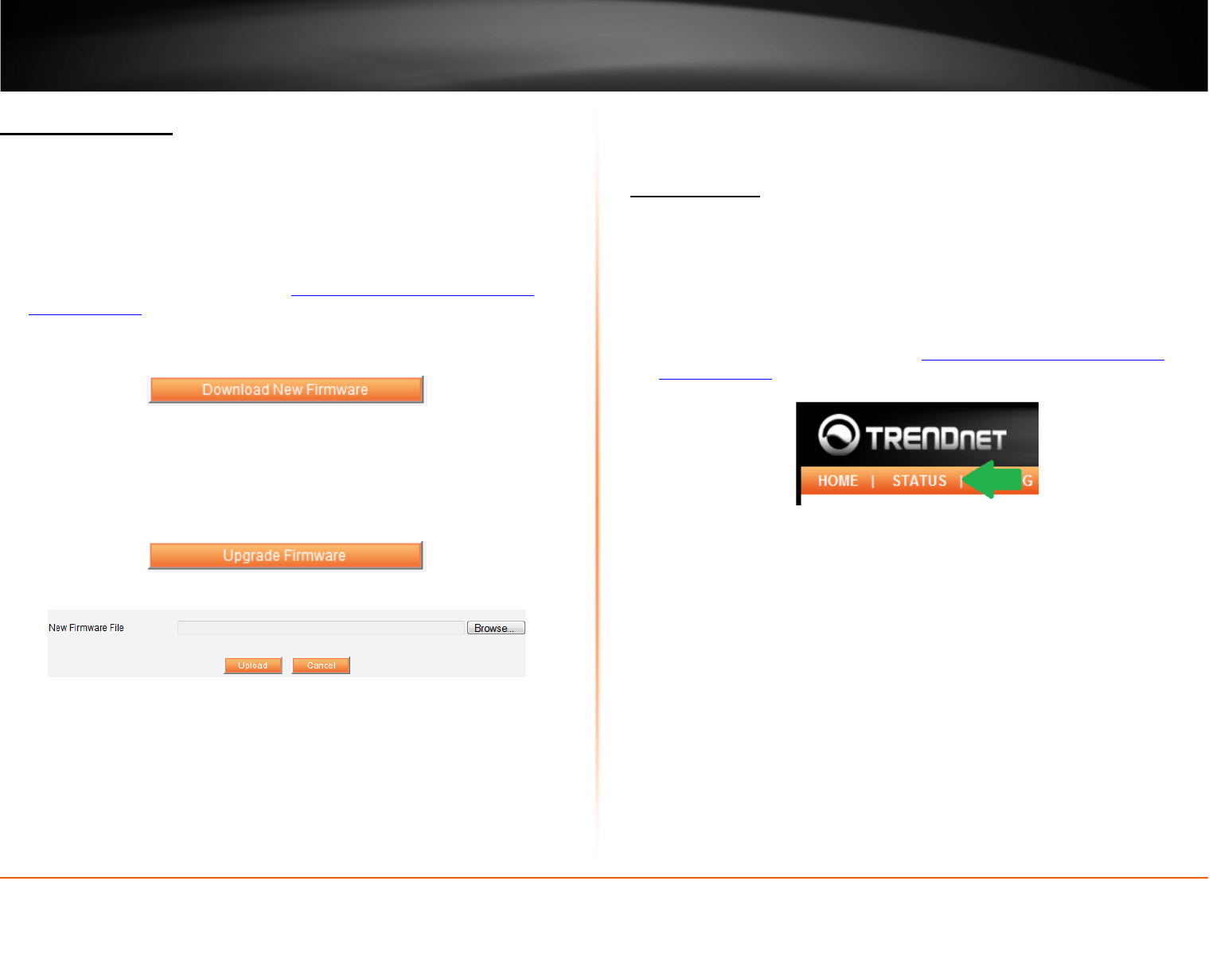

Upgrade Firmware ....................................................................................................... 19

Device Status ................................................................................ 19

System Status .............................................................................................................. 19

Network Status ............................................................................................................ 20

Wireless Status ............................................................................................................ 20

Management Page Structure ......................................................... 21

Troubleshooting ........................................................................... 22

Appendix ...................................................................................... 23

Federal Communication Commission Interference Statement ........ 25

Technical Specifications ................................................................ 26

TRENDnet User’s Guide TEW-MFP1

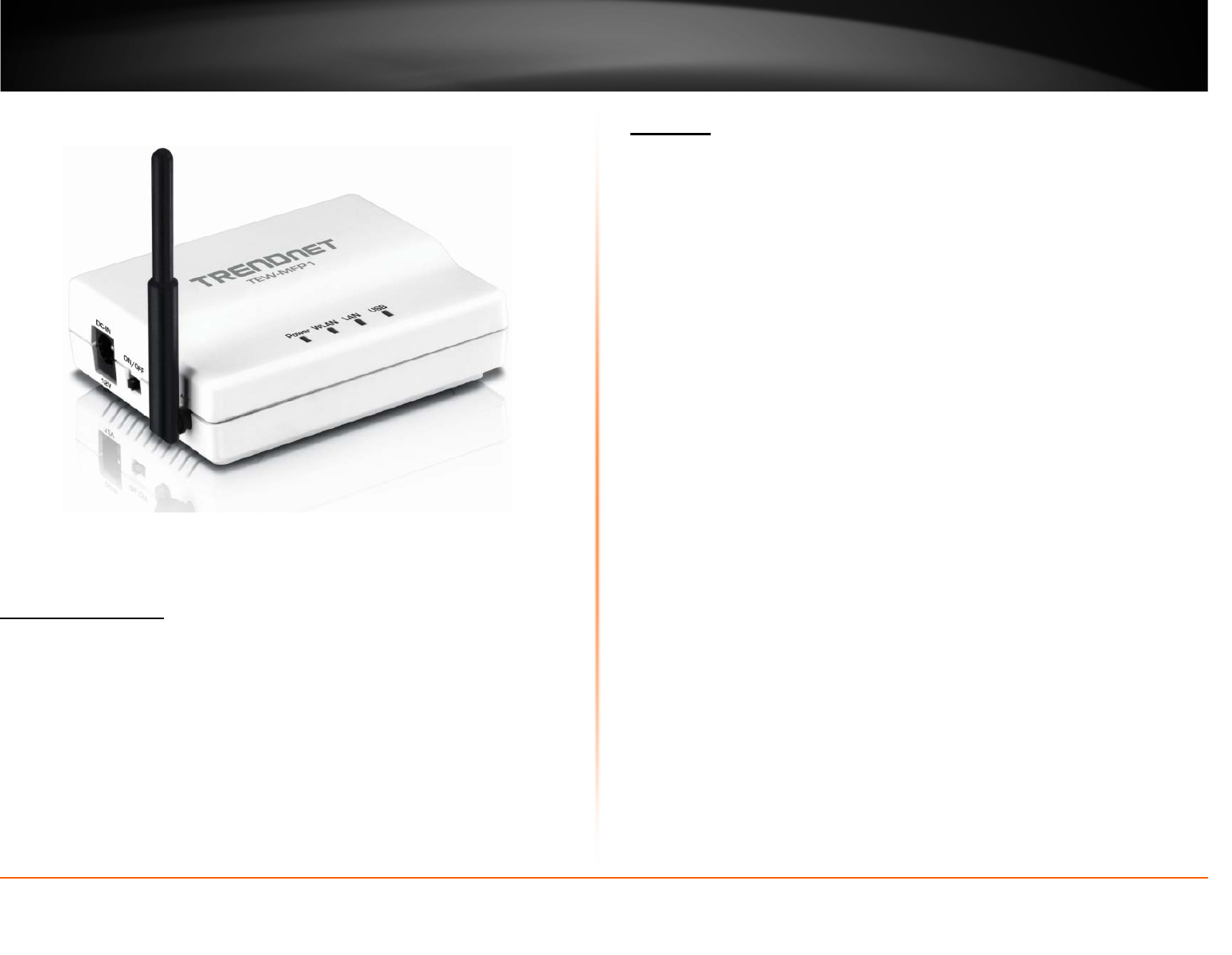

Product Overview

TEW-MFP1

Package Contents

In addition to the print server, the package includes:

• Muti-Language Quick Installation Guide

• CD-ROM (User’s Guide & Utility)

• Network cable (1.5m / 5ft)

• Power adapter (5V DC, 2A)

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

TRENDnet’s 1-Port Wireless N Multi-Function USB Print Server, model TEW-MFP1,

transforms most stand-alone multi-function and standard USB printers into a shared

network resource. Install your multifunction printer in the most ergonomic location and

then connect the compact TEW-MFP1 to a high speed Wireless N network.

An intuitive utility supports Windows and Mac operating systems and provides a

seamless user experience. Scan, fax, and print functionality from any networked

workstation. Integrated Wireless N provides greater installation flexibility. An Ethernet

port facilitates optional wired networking. Wi-Fi Protected Setup (WPS) streamlines the

process of connecting to a wireless network. This compact device fits into the smallest

spaces.

• 1 x 10/100Mbps Auto-MDIX Fast Ethernet port (for optional wired installation)

• 1 x USB 2.0 high speed port

• Wi-Fi Protected Setup (WPS) connects to wireless networks at the push of a button

• Based on IEEE 802.11n technology and compliant with IEEE 802.11b/g standards

• High-speed data rates of up to 150Mbps with IEEE 802.11n*

• Backwards Compatible with USB 1.1 Devices

• Control Center utility supports Windows 7 (32/64-bit) / Vista (32/64-bit) / Windows

XP(32/64-bit) and Mac OS X 10.4/10.5/10.6/10.7 operating systems

• Supports most All-In-One multi-function printers and regular USB printers

• Share multi-function printers and regular USB printers over the network

• Supports LPR/LPD printing protocols

• Control Center utility includes built in scan feature**

• Supports NetUSB technology**

• Share USB peripheral devices over the network including; digital cameras, web

cams, speakers, iPods™, flash drives, external hard drives, printers, and memory

card readers**

• Universal Plug & Play (UPnP) installation

• Diagnostic LEDs

TRENDnet User’s Guide TEW-MFP1

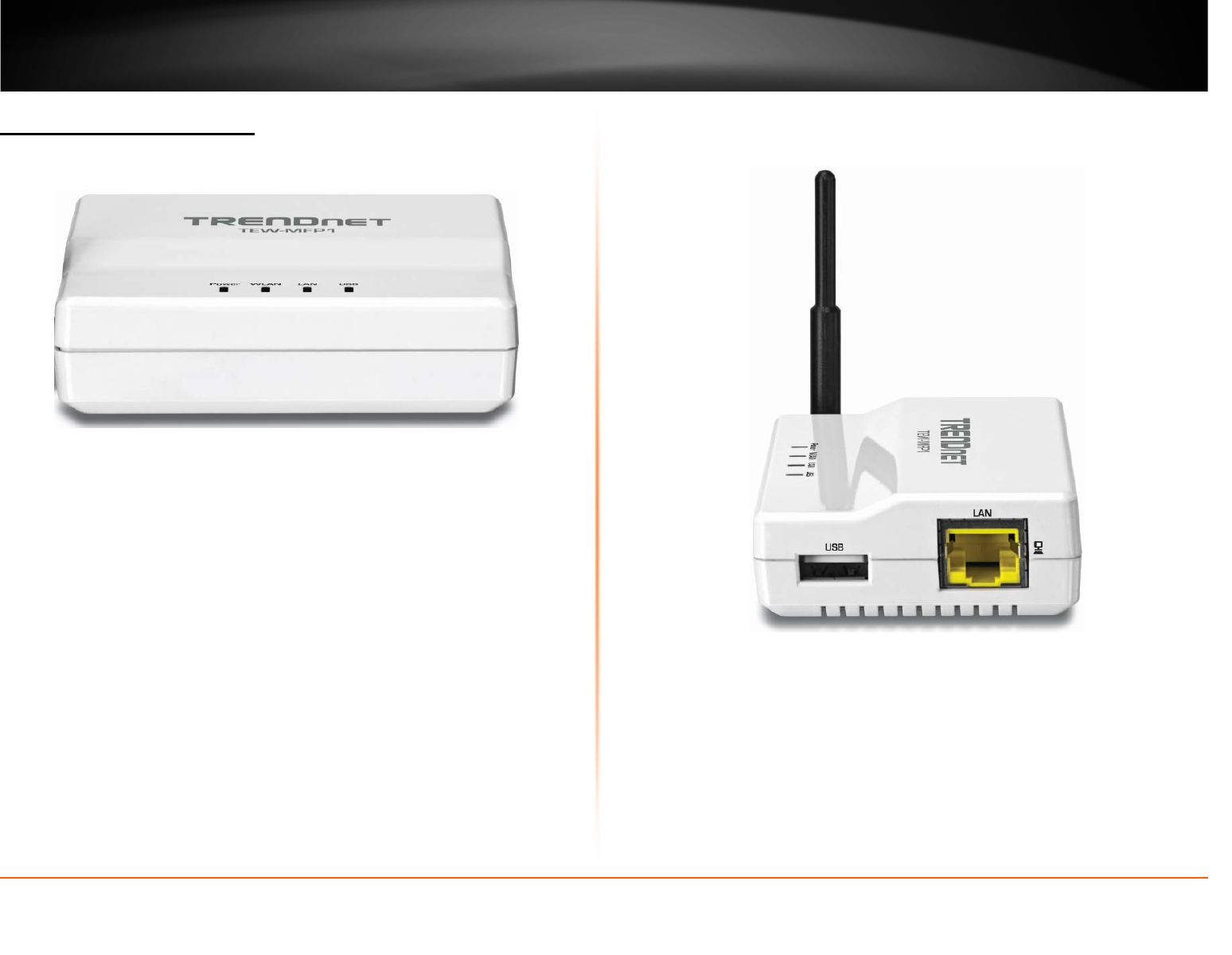

Product Hardware Features

Front View

• Power - This LED indicator is solid green when your router is powered on.

Otherwise if this LED indicator is off, there is no power to your router.

• WLAN – This LED indicator is blinking green when the wireless is “On” and

functioning properly with your . This LED indicator will be blinking green rapidly

while data is transmitted or received by your wireless clients or wireless

network devices connected to your router.

• LAN – This LED indicators will be blinking green while data is transmitted or

received through your router LAN port.

• USB – This LED indicator will be blinking green while data is transmitted or

received through the USB port.

Side View (Right)

• USB Port – The USB 2.0 port allows you to connect USB printers and storage

devices to your network and share access to these devices to computers on

your network through the use of the included USB software utility.

• LAN Port - Connect Ethernet cables (also called network cables) to your router

or network LAN ports.

TRENDnet User’s Guide TEW-MFP1

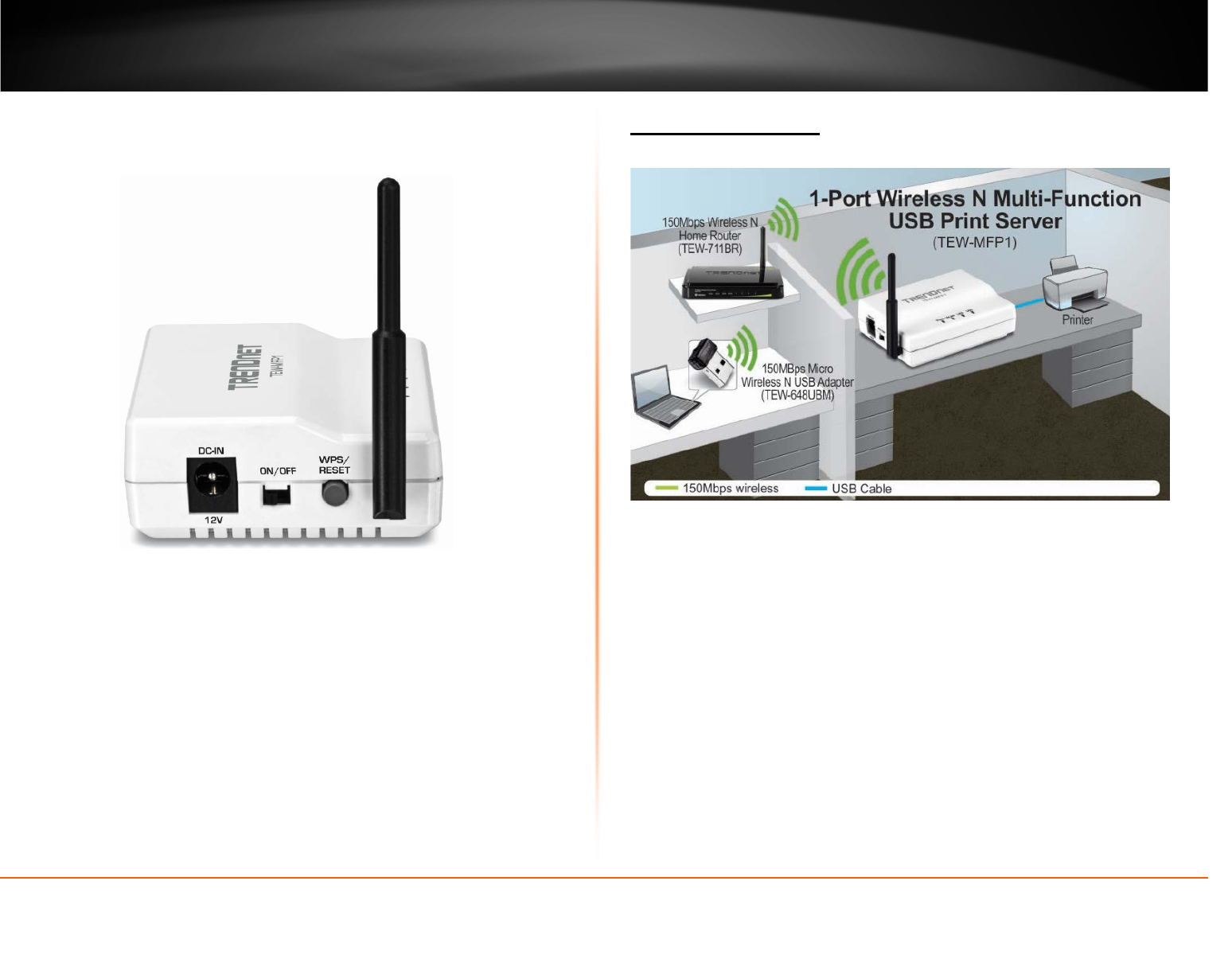

Side View (Left)

• Power Port – Connect the included power adapter from your router power

port and to an available power outlet.

Note: Use only the adapter that came with your router.

• On/Off Power Switch – Move the On/Off switch to power “On” (Left position)

or “Off” (Outer position) the device.

• WPS/Reset Button – Push and hold this button for 5 seconds to activate Wi-Fi

Protected Setup (WPS) Push Button Configuration (PBC) setup. Push and hold

for 15 seconds to reset the device to its factory default setting.

• Antenna – Fixed 2dBi antenna.

Application Diagram

The print server allows you to share your regular printer or multi-function printer

through a network. It is typically placed in the same location of your printer or multi-

function printer. Unlike many print servers the TEW-MFP1 has the ability to

communicate to your wireless network at data rates at Wireless N speeds eliminating

any wires throughout your household or office. In addition to its print server

functionality the TEW-MFP1 can also allows you to share USB storage devices over the

network.

TRENDnet User’s Guide TEW-MFP1

Utility Installation

Windows Installation

1. For each computer that requires access to the print server, insert the Utility CD-

ROM into your computer's CD-ROM Drive.

2. Click Install Utility

3. Follow the InstallShield Wizard instructions. Then click Finish.

4. Double click on the TRENDnet USB Control Center Utility icon.

5. The utility will automatically find the TEW-MFP1 and your printer. When the TEW-

MFP1 is connected to your network.

MAC OS X Installation

1. Insert the included CD-ROM into your computer’s CD-ROM drive.

2. Open the CD contents and locate the “TRENDnet USB Control Center Utility Installer”

(.dmg) file. Double-click the file.

3. Double-click the file in the window.

TRENDnet User’s Guide TEW-MFP1

4. You will be prompted to install the utility. Click Install to start the installation.

5. You will be prompted for your password to allow the installation. Enter your

password and click OK.

6. Once the installation is completed. Click Restart to restart your computer.

7. Run the TRENDnet USB Control Center Utility. The utility will automatically find the

TEW-MFP1 when it is connected to your network

Network Installation

There are 2 ways to install the TEW-MFP1. The easiest way is to use Wi-Fi Protected

Setup (WPS) Push Button Configuration (PBC) setup. This feature allows you to setup

your TEW-MFP1 with your wireless network with just a push of a button. Please refer to

the Manual Setup section if your wireless network does not support Wi-Fi Protected

Setup (WPS) Push Button Configuration (PBC).

Wi-Fi Protected Setup (WPS) Push Button Configuration (PBC)

Setup

Note:

• Make sure your wireless router or access point supports WPS (Wi-FI Protected

Setup) PBC (Push button configuration). If not, please refer to the User’s Guide on

the provided CD-ROM for alternative installation instructions.

• The TEW-736RE must be placed in a location where it can still establish a wireless

connection to your wireless network. The most ideal locations are areas where

wireless adapters can maintain a 2-3 bars or 30-20% connection rating.

• Verify that any software that is required to operate your printer or multi-function

printer is installed before installing the TEW-MFP1.

• The utility must be installed on each computer in order to use your multi-function

printer.

1. Place the print server in the desired location. The TEW-MFP1 must be placed in a

location where it can establish a wireless connection to your wireless network. The

most ideal locations are areas where wireless adapters can maintain a 2-3 bars or

30-20% connection rating.

2. Plug in the power adapter and connect the print server. Move the power switch to

the “On” position.

3. Connect your printer to the USB port on the print server.

TRENDnet User’s Guide TEW-MFP1

4. Power on the printer.

5. Verify that the status LED indicators on the front of the print server to confirm that

the device is fully functional (Power is solid green, WLAN is solid green and USB

port is solid green).

6. Press and hold for 5 seconds the WPS button of your wireless router or access

point. Verify that the WPS feature is enabled and functioning. Please refer to your

wireless router or access point’s manual or contact their technical support for

instructions.

7. Press and hold for 5 seconds the WPS button on the TEW-MFP1.

Wait 30 seconds while the print server synchronizes with your wireless router or

access point.

8. Verify that the status LED indicators on the front of the print server to confirm that

the device is fully functional (Power is solid green, WLAN is solid green and USB

port is solid green).

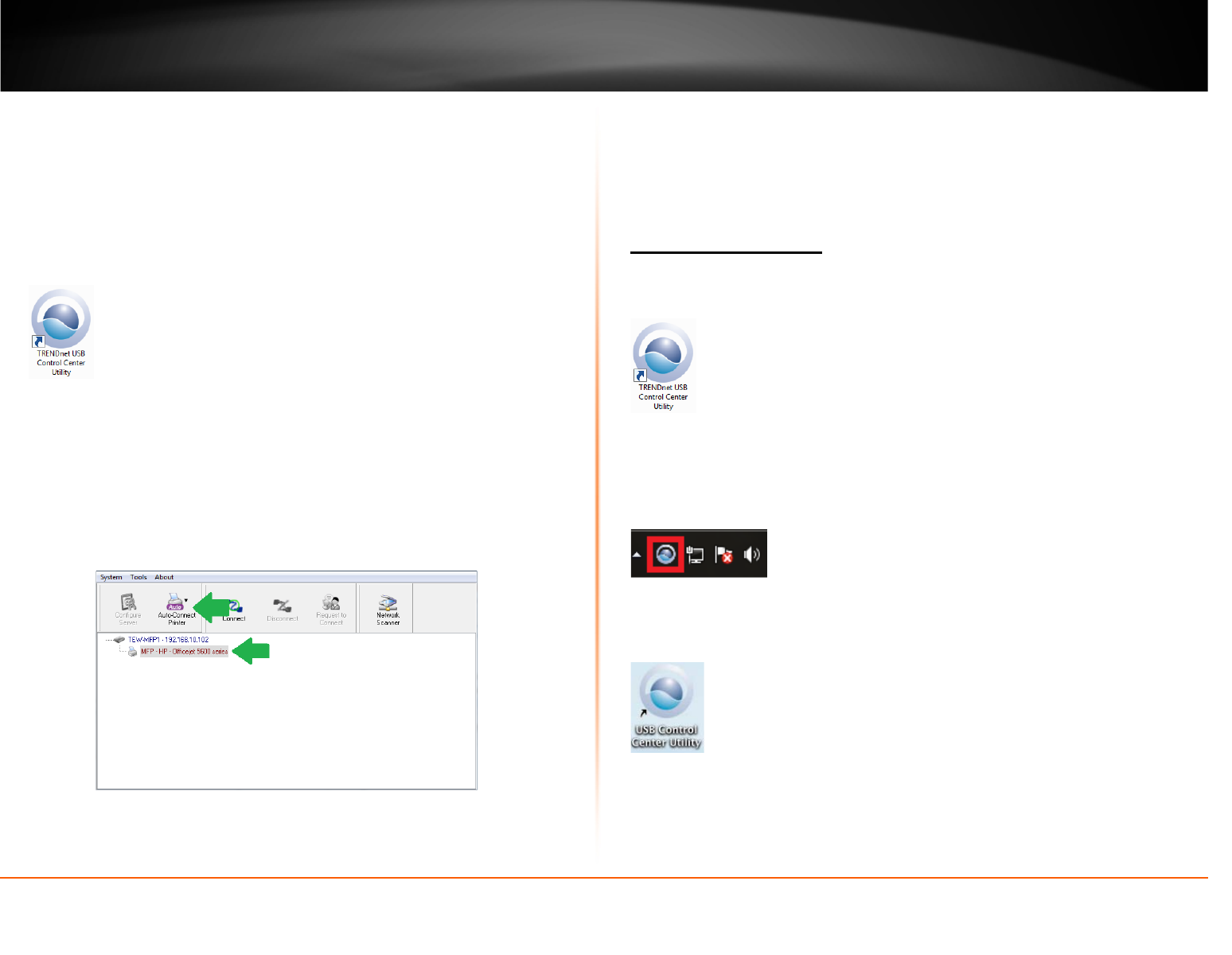

9. Double click on the TRENDnet USB Control Center Utility icon.

10. The utility will automatically find the TEW-MFP1 and the USB device you have

connected to it.

Note: If the utility cannot find your TEW-MFP1,try to close and reopen the utility. If

the utility still cannot locate your TEW-MFP1, it is likely the TEW-MFP1 cannot

establish a connection to your wireless network. Place the TEW-MFP1 to a location

where it can establish a wireless connection to your wireless network.

11. Select your printer and click Auto-Connect Printer. This will set your selected

printer to connect to your computer for any print jobs.

Manual Setup

1. Plug the TEW-MFP1 with the provided network cable to one of the LAN ports of

your router or your network switch.

2. Plug in the power adapter and move the power switch to the “On” position on the

TEW-MFP1.

3. Verify the status LED indicators on the front of the TEW-MFP1 are fully functional

(Power is solid green and LAN port is solid green).

4. Double click on the TRENDnet USB Control Center Utility icon.

5. The utility will automatically find the TEW-MFP1.

TRENDnet User’s Guide TEW-MFP1

6. Select the TEW-MFP1 and press Configure Server.

7. When the management page of the TEW-MFP1 opens click on Config.

8. Enter the User Name and Password and then click Login. By default:

Administrator (User Name): admin

Password: admin

Note: User name and Password are case sensitive

9. Click the Wireless tab.

10. Under the Site Survey Setting section, click Apply. The TEW-MFP1 will scan your

environment for available wireless networks.

11. Select your wireless router or access point and click Set button.

12. If your wireless network has wireless security/encryption enabled, select and enter

the correct settings and click Submit.

13. The device will restart.

14. Move the power switch of the TEW-MFP1 to the “Off” position and disconnect the

power adapter and network cable.

15. Place theTEW-MFP1 in the desired location with the near your printer.

Note: The TEW-MFP1 must be placed in a location where it can establish a wireless

connection to your wireless network. The most ideal locations are areas where

wireless adapters can maintain a 2-3 bars or 30-20% connection rating.

TRENDnet User’s Guide TEW-MFP1

16. Plug in the power adapter and move the power switch to the “On” position of the

TEW-MFP1

17. Connect your printer to the USB port on the TEW-MFP1.

18. Power on the printer.

19. Verify that the status LED indicators on the front of the TEW-MFP1 are fully

functional (Power is solid green, WLAN is solid green and USB port is solid green).

20. Return to the computer you have installed the TRENDnet USB Control Center

Utility.

21. Double click on the TRENDnet USB Control Center Utility icon.

22. The utility will open and will automatically find the TEW-MFP1 and your printer.

Note: If the utility cannot find your TEW-MFP1,try to close and reopen the utility. If

the utility still cannot locate your TEW-MFP1, it is likely the TEW-MFP1 cannot

establish a connection to your wireless network. Place the TEW-MFP1 to a location

where it can establish a wireless connection to your wireless network.

23. Select your printer and click Auto-Connect Printer. This will set your selected

printer to connect to your computer for any print jobs.

Using the Utility

The TRENDnet USB Control Center utility is used to communicate with the TE100-MFP1

and any USB device that is connected to the unit. Below describes in detail how to

operate the utility for both Windows and Macintosh operating systems.

Launching the Utility

Windows OS

Upon completing the software installation, a desktop shortcut is automatically created.

You double click the icon to start the utility or open the utility if it is already running.

If the utility is already running and you attempt to close the window, it will continue to

run in the background and you will find the icon in your notification area if the utility is

still running. To close and exit the utility and exit the application, you can right-click the

notification icon and select Exit or click System > Exit in the utility main window,

however, it is recommended to keep this utility running in the background.

MAC OS X

Upon completing the software installation, a desktop shortcut is automatically created.

Double-click the icon to start the utility. Closing the utility will exit the application.

TRENDnet User’s Guide TEW-MFP1

Utility Main Window

In the utility window, you will see the model name and IP address of your print server

listed. When USB devices are connected, they will be listed under the model name and

IP address of the print server.

Windows OS

MAC OS X Utility

Menu Items (Windows Only)

• System - Clicking Exit will close the utility and exit the application.

• Tools

o Configuration – Checking the option Automatically execute when logging on

Windows will automatically start the utility when you log on. Unchecking the

option will disable the utility from automatically starting when logging on.

o Auto-Connect Printer List – Provides a list of printers installed on your

computer. Select the printer you would like to assign to the Auto-Connect

printer list. If you would like to delete printers from this listing, select the

printer in the list and click Delete. Click Close to close the window.

• About

o About – Displays the software/driver version and support contact information.

Configure Server

Select the print server you would like to configure in the utility window.

Windows OS

MAC OS X

1. Clicking the Configure Server button will open the print server’s management page

in your web browser. Please refer to see Log into your router management page

see “Access your router management page” on page 14 for additional information

on advance settings.

TRENDnet User’s Guide TEW-MFP1

Windows OS MAC OS X

Connect

To connect your computer to a USB device, select the USB device in the list, then click

the Connect button to connect your computer to the USB device.

Note: The utility will only allow one computer to connect to one USB device at any given

time, therefore, a computer must disconnect from the USB device first before another

computer can connect to it.

Windows OS MAC OS X

To verify if you are connected to the USB device, a message will appear next to the USB

device displaying a message that the USB device is “Manually connected by <your

computer name>”.

Windows OS

MAC OS X

Disconnect

To disconnect your computer from a USB device, select the USB device in the list, then

click the Disconnect button to disconnect your computer to the USB storage device or

printer.

Note: The utility will only allow one computer to connect to one USB device at any given

time, therefore, a computer must disconnect from the USB device first before another

computer can connect to it.

Windows OS MAC OS X

To verify if you disconnected from the USB device, the status message next to the

message will not show any status message.

Windows OS

MAC OS X

If another computer is currently connected to the USB device you are trying to connect

your computer to, you will not be able to connect to it. To verify if another computer is

connected to the device, a message will appear next to the USB device displaying a

message that the USB device is “Manually connected by <another computer name>”.

Windows OS

MAC OS X

If a USB device is currently being used by another computer, click the Request to

Connect button to send a request to the computer that is currently connected to the

USB device. The computer that is currently connected to USB device will be prompted to

“Accept” or “Reject” the your connection request.

Windows OS MAC OS X

Sending a Request to Connect

You can send a request to connect to the computer that is currently connected to the

USB device you would like to establish connection too.

Windows OS

To send t a request to connect to a USB device, click the Request to Connect button.

TRENDnet User’s Guide TEW-MFP1

The remote computer will receive the request message below.

• Accept – Clicking this option will disconnect your computer from the device

and allow the requesting computer to connect to the USB device.

• Reject – Clicking this option will disregard the request and your computer will

not be able to connect to the USB

MAC OS X

To send t a request to connect to a USB device, click the Request to Connect button.

The local computer sending the request will show the status message below.

The remote computer will receive the request message below.

• Accept – Clicking this option will disconnect your computer from the device

and allow the requesting computer to connect to the device.

If the remote computer accepts the request, the local computer will display the message

below. Click Close to close the message.

• Reject – Clicking this option will disregard the request.

TRENDnet User’s Guide TEW-MFP1

If the remote computer rejects the request, the local computer will display the message

below. Click OK to close the message.

Connect to a Printer

Note: This function applies to stand-alone USB printers or USB multi-function printers. It

is required that the printer drivers are installed before your computer is able to print.

Please ensure the printer drivers are installed. If the printer drivers are not installed,

please refer to your printer manufacturer website or documentation on where to

download and how to install the printer drivers. Before installing the printer drivers,

connect your computer to the printer using the USB utility first. Some printers may

require that the printer is directly connected to the computer in order to complete the

driver installation.

Once the printer drivers are installed properly on your computer,

1. Select the printer listed in the utility.

2. Click Connect to connect your computer to the printer.

3. Once your computer is connected, you can send print jobs to the printer.

4. After you have finished printing, click Disconnect, to make the printer available to

other computers on your network that use the printer, or, you can use the Auto-

Connect Printer Feature.

Auto-Connect Printer

When a USB printer is connected and selected in the main window, clicking this option

allows you to enable/disable the auto connect feature to a selected printer in the Auto-

Connect printer list. When your computer attempts to print, the Auto-Connect feature

will automatically connect your computer to the set Auto-Connect printer assigned in

the utility. Once the print job from your computer is completed, it will automatically

disconnect to make the printer available to other computers on your network.

Note: It is recommended to enable this feature on all computers that will need to

connect to the USB printer. Enabling the Auto-Connect Printer feature will avoid the

complexity of having to manually connect and disconnect from the printer for each

computer when multiple computers are sending print jobs to the USB printer.

1. Click Auto-Connect Printer.

2. Select the assigned printer to use as the auto connect printer by checking the box.

3. When you are finished, click Apply.

TRENDnet User’s Guide TEW-MFP1

Connect to a Scanner

Note: This function applies to stand-alone USB scanners or USB scanners included with

multi-function printers. It is required that the scanner drivers are installed before your

computer is able to scan. Please ensure the scanner drivers are installed. If the scanner

drivers are not installed, please refer to your printer manufacturer website or

documentation on where to download and how to install the scanner drivers. Before

installing the scanner drivers, connect your computer to the printer using the USB utility

first. Some scanners may require that the scanner is directly connected to the computer

in order to complete the driver installation.

1. Select the scanner or multi-function printer with scanning capability listed in the

utility.

2. Click Connect to connect your computer to the scanner.

3. Once your computer is connected, you can receive scanned files from the scanner.

4. After you have finished printing, click Disconnect, to make the scanner available to

other computers on your network that use the scanner.

Advanced Configuration

Note:

• The management page is accessed through the use of your Internet web browser

(e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and will be referenced

frequently in this User’s Guide.

• When the TEW-MFP1 is set to DHCP the easiest way to access the management

page is through the USB Control Center Utility. Follow the below steps to proceed.

Access the management page

1. Double click on the USB Control Center Utility icon.

2. The utility will automatically find the TEW-MFP1.

3. Select the TEW-MFP1 and press Configure Server.

4. The user interface of the TEW-MFP1 will open. Click on Config.

TRENDnet User’s Guide TEW-MFP1

5. Enter the User Name and Password and then click Login. By default:

Administrator (User Name): admin

Password: admin

Note: User name and Password are case sensitive

Change Wireless settings

Wireless

You can change the wireless settings of the device and connect to another wireless

network. Any changes applied to these settings must match your wireless network.

Incorrect settings may cause issues.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on the Wireless tab and scroll down to the Basic section.

3. Select the Network Type you would like set on the device.

• Ad-Hoc: Peer to Peer connection type

• Infrastructure: Wireless networking connection type

4. Enter the SSID or wireless name of your wireless network. Characters entered must

match exactly to your wireless network.

5. Click Submit to apply setting.

Wireless Site Survey

Wireless

The site survey feature allows the device to scan the surrounding area for any available

wireless network. This feature can be used instead of manually entering the SSID or

wireless name of your wireless network.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on the Wireless tab and scroll down to the Site Survey Setting section.

3. Press the Apply button to start scanning for available wireless networks.

4. Select your wireless network and click Set button

5. The selected wireless network will automatically be entered in the SSID field.

6. If you cannot see your wireless network click on Scan AP to refresh the list.

TRENDnet User’s Guide TEW-MFP1

Wireless Security settings

Wireless

Similar to the previous section, you can change the wireless security settings of the

device when changes were made on your wireless network. The TEW-MFP1 supports

WEP, WPA-PSK and WPA2-PSK security types. WEP is the only security type that can be

used when the device is set to Ad-Hoc Network Type. Any changes applied to these

settings must match your wireless network. Incorrect settings may cause issues.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on the Wireless tab and scroll down to the Security section.

3. Select the wireless security/encryption type applied on your wireless network under

Security System.

4. Enter your wireless network’s encryption information.

• WEP

o Authentication: Select the authentication type

o Key Size: Authentication Key Size

o Key: Selected and enter key set on your wireless network

• WPA-PSK or WPA2-PSK

o Key Format: Select the format type

o Pre-Shared Key: Enter the key or password

o Encryption: Selected encryption type set on your wireless network

5. Click Apply.

WPS Setting

General

Wi-Fi Protected Setup or WPS is a feature that allows the device to authenticate to your

wireless network, the TEW-MFP1 supports WPS Push Button and PIN Configuration.

When using WPS make sure your wireless router or access point supports these

features. The WPS Push Button Configuration or PBC can be initialized from a virtual

button following the steps below or from a physical button located on the side of the

unit. Please refer to Product Hardware Features section for more information.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Wireless tab and scroll down to the WPS Setting section.

3. Select Enable and click on Apply

4. Select the type of WPS Mode you would like to use.

TRENDnet User’s Guide TEW-MFP1

• PBC

o Mode: Select PBC

o Click Trigger to initialize WPS

o Initiate WPS Push Button on your wireless router or access point

• PIN

o Mode: Select PIN

o SSID: Enter the SSID of your WPS wireless router or access point

o PIN: Select if you want the PIN to Random Generate or Manually

Generate the PIN key

o Set PIN: Press to apply the entered PIN key

o Default PIN: Press to return PIN key back to default settings

o Click Trigger to initialize WPS

o Enter the device’s PIN key on your wireless router or access point

Change device IP address

General

Bydefault the device is set to Automatic/DHCP. This setting allows the device to

automatically obtain an IP address from your network. However you can statically assign

an IP address to the device.

Note: The IP address must be in the same subnet as your network. Incorrect settings

may cause issues.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on General tab and scroll down to the TCP/IP section.

3. Select Static IP

4. Enter the IP address and Subnet Mask settings.

5. Click Apply to save settings.

Change Device Information

General

In most cases, you do not need to change the device information and the default

settings are just fine. However you can customize these settings to match your network.

These settings help you determine or find the device from features like Windows

Network Map or a router’s client list.

• Server Name: The device name described on your network

• Workgroup: The work group assigned to the device

• Description: The product descript of the device

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on General tab and scroll down to the Device Information section.

3. Enter the updated device information

4. Click Apply.

TRENDnet User’s Guide TEW-MFP1

UPnP

General

Universal Plug and Play (UPnP) is a networking protocol that makes your networking

devices discoverable in the network. By default the UPnP setting is set to enable. The

device can be discovered under your computer’s network map

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on General tab and scroll down to the UPnP section

3. Select Enable or Disable option

4. Click Apply to save settings.

Change Language

General

The device supports multiple languages of the management page. Currently the

languages offered are; Western European (English), Central European, Traditional

Chinese, Simplified Chinese, Japanese, Korean, Cyrillic, Greek, Arabic, and Thai. You can

change the displayed language with the below steps.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on General tab and scroll down to the Language section

3. Select your desired language on the pull down menu.

4. Click Apply to save settings.

Change Admin Account Setting

Administrator

By default username and login password of the device is admin for both username and

password. It is recommended to change the default password for added security. You

can change both login username and password of the device management page by

following the steps below.

Note: Changes to these settings are case sensitive and should be written down

somewhere and stored.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Administrator tab and scroll down to the Set Administrator section

3. Under Administrator section enter your new username information.

4. Under New Password and Re-Type Password section, enter your new password

information.

5. Click Apply to save settings.

Change User Account Setting

Administrator

A user account does not have the ability to make changes to the device settings. You can

assign a user account’s password information by following the steps below. By default

username and login password of the device is admin for both username and password.

It is recommended to change the default password for added security. You can change

both login username and password of the device management page by following the

steps below.

Note: Changes to these settings are case sensitive and should be written down

somewhere and stored.

TRENDnet User’s Guide TEW-MFP1

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Administrator tab and scroll down to the Set Administrator Set

Administrator section

3. Under User Name section enter the new login username you would you would like

to assign to the user account.

4. Under the password section enter the new login password you would you would

like to assign to the user account.

5. Under Permission section select the type of access you would like to permit user

accounts with; Read Only or Read-Write.

6. Click Add to create the new user account information.

7. To delete a user account, select the user account you would like to delete.

8. Click the Delete button to permanently remove selected user account.

Maintenance

Restart device

Maintenance

A device restart is similar to power cycling the unit using but using the management

screen. A device restart can be a useful tool when troubleshooting your network. The

steps below shows you how to perform a device restart.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Maintenance tab

3. Click the Restart button

4. Click Yes to confirm the device restart

5. The home page will automatically appear once the device has completed restarting.

Reset device

Maintenance

A device reset will set the device back to factory default settings. This can be a useful

tool when troubleshooting your network. There are two ways on how to reset the

device. You can simply press and hold for 10 second the reset button located on the side

of the unit. The other way is to follow the steps below.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Maintenance tab

3. Click the Reset to Factory Default button

4. Click Yes to confirm the reset

TRENDnet User’s Guide TEW-MFP1

Upgrade Firmware

Maintenance

Firmware upgrades are available to A device reset will set the device back to factory

default settings. This can be a useful tool when troubleshooting your network. There

are two ways on how to reset the device. You can simply press and hold for 10 seconds

the reset button located on the side of the unit. The other way is to follow the steps

below.

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Maintenance tab

3. Click the Download New Firmware button, this will automatically open a web

browser to TRENDnet.com

4. Go to the product webpage and in the download section of the product webpage

you will find available update firmware.

5. Download and save .zip firmware file to our computer

6. Unzip the downloaded file into your computer

7. Return back to the device management screen and click the Upgrade Firmware

button

8. Click Browse and select the firmware file from the unzipped folder

9. Click the Upload button to upgrade the device firmware

Device Status

System Status

Status

The system status page provides device information of your unit. This information can

be used when troubleshooting your network.

• Firmware Version: Device firmware version

• Model: Device model name

• MAC Address: MAC address of the device

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Status

3. Select System Status tab

TRENDnet User’s Guide TEW-MFP1

Network Status

Status

The network status page provides network information of your unit. This information

can be used when troubleshooting your network.

• Name: Device name

• Access Mode: Device mode set

• IP Address: Current IP address assigned to the device

• Subnet Mask: Current subnet mask assigned to the device

• DHCP Server: DHCP Server address of the device

• Lease Time: IP address lease time

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Status

3. Select Network Status tab

Wireless Status

Status

The wireless status page provides wireless network information of your unit. This

information can be used when troubleshooting your network.

• Name: Device name

• SSID: SSID of your wireless network the device currently connected to

• BSSID: BSSID information your wireless network

• Channel No: Channel your wireless network is using

• Network Type: Type of network is being used on the device

• Link Quality: Quality of the wireless connection

• Signal Strength: Wireless signal strength of the wireless connection

• Security: Wireless security or encryption applied on the device

1. Log into your router management page (see “Access your router management

page” on page 13).

2. Click on Status tab

3. Select Wireless Status tab

TRENDnet User’s Guide TEW-MFP1

Management Page Structure

General

• Device Information

o Server Name

o Workgroup

o Description

• Access Mode

o Server Mode

o NetUSB mode

• TCP/IP

o Automatic/DHCP

o Static IP

• UPnP

• Language

Wireless

• Basic

o Network Tyoe

o SSID

• Security

• Site Survey Setting

• WPS Setting

Administrator

• Set Administrator

o Administrator user name

o Administrator Password

• User Account List

o User account username

o User account password

o User account Permission

Maintenance

• Restart

• Reset to Factory Default

• Download new Firmware

• Upgrade Firmware

Status

• System Status

o Firmware Version

o Model Name

o MAC Address

• Network Status

o Name

o Access Mode

o IP Address

o Subnet Mask

o DHCP Server

o Lease Time

• Wireless Status

o Name

o SSID

o BSSID

o Channel No

o Network Type

o Link Quality

o Signal Strength

o Security

TRENDnet User’s Guide TEW-MFP1

Troubleshooting

Q Q: I typed http://192.168.10.100 in my Internet Browser Address Bar, but an error

message says “The page cannot be displayed.” How can I access the printer server’s

management page?

Answer:

1. Check your hardware settings again. See “Network Installation” on page 4.

2. Make sure the Power and LAN lights are lit.

3. Make sure your network adapter TCP/IP settings are set to Obtain an IP address

automatically or DHCP (see the steps below).

4. Press on the factory reset button for 15 seconds, the release.

Windows 7

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

Q: How can I verify if my wireless router or access point supports Wi-Fi Protected

Setup (WPS) Push Button Configuration (PBC)?

Answer:

1. Check the product specifications of your wireless router or access point.

2. Contact your wireless router or access point technical support.

Q: Can I use Wi-Fi Protected Setup PIN Configuration and not Push Button

Configuration (PBC).

Answer:

1. No, the TEW-MFP1 only supports Wi-Fi Protected Setup (WPS) Push Button

Configuration (PBC).

Q: The utility cannot find my print server. What should I do?

Answer:

1. Make sure your router and your wireless network is properly working.

2. Verify that your computer is properly connected to your network.

2. Make sure that the print server is turned on and is connected to your network

3. Close the utility and re-open it

Q: I cannot print to my printer. What should I do?

Answer:

1. Make sure that all drivers and software that is provided with your printer are installed

on your computer. Please note these drivers and software are required to be installed

on computers that will be using the printer behind the print server.

2. Verify that the printer is working.

3. Power cycle the printer and print server. Close and re-open the utility.

Q: I cannot find my USB device connected to the print server. What should I do?

Answer:

1. Make sure that all drivers and software that is provided with your USB device

installed on your computer. Please note these drivers and software are required to be

installed on computers that will be using the printer behind the print server.

2. Verify that the USB device is properly working and connect it directly to your

computer.

3. Power cycle the printer and print server. Close and re-open the utility.

Q: Can I connect a USB Hub to the print server to add additional USB devices?

Answer:

TRENDnet User’s Guide TEW-MFP1

1. Yes you can, however please consider that most USB devices are powered by the USB

port and some devices requires an optimal power source. Connecting a USB hub will

degrade the power source and your device may not work properly.

Q: I have completed the utility installation but the utility does not open. What should I

do?

Answer:

1. Make sure that your computer meets utility’s the minimum requirements.

2. Uninstall the utility and reinstall the utility.

3. Restart your computer

Appendix

How to find your IP address?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Command Prompt Method

Windows 2000/XP/Vista/7

1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run

dialog box.

2. In the dialog box, type cmd to bring up the command prompt.

3. In the command prompt, type ipconfig /all to display your IP address settings.

MAC OS X

1. Navigate to your Applications folder and open Utilities.

2. Double-click on Terminal to launch the command prompt.

3. In the command prompt, type ipconfig getifaddr <en0 or en1> to display the wired

or wireless IP address settings.

Note: en0 is typically the wired Ethernet and en1 is typically the wireless Airport

interface.

Graphical Method

MAC OS 10.6/10.5

1. From the Apple menu, select System Preferences.

2. In System Preferences, from the View menu, select Network.

3. In the Network preference window, click a network port (e.g., Ethernet, AirPort,

modem). If you are connected, you'll see your IP address settings under "Status:"

MAC OS 10.4

1. From the Apple menu, select Location, and then Network Preferences.

2. In the Network Preference window, next to "Show:", select Network Status. You'll see

your network status and your IP address settings displayed.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

TRENDnet User’s Guide TEW-MFP1

How to configure your network settings to obtain an IP address automatically or use

DHCP?

Note: Please note that although the following procedures provided to follow for your

operating system on configuring your network settings can be used as general

guidelines, however, it is strongly recommended that you consult your computer or

operating system manufacturer directly for assistance on the proper procedure for

configuring network settings.

Windows 7

a. Go into the Control Panel, click Network and Sharing Center.

b. Click Change Adapter Settings, right-click the Local Area Connection icon.

c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).

d. Then click Obtain an IP address automatically and click OK.

Windows Vista

a. Go into the Control Panel, click Network and Internet.

b. Click Manage Network Connections, right-click the Local Area Connection

icon and click Properties.

c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.

d. Then click Obtain an IP address automatically and click OK.

Windows XP/2000

a. Go into the Control Panel, double-click the Network Connections icon

b. Right-click the Local Area Connection icon and the click Properties.

c. Click Internet Protocol (TCP/IP) and click Properties.

d. Then click Obtain an IP address automatically and click OK.

MAC OS 10.4/10.5/10.6

a. From the Apple, drop-down list, select System Preferences.

b. Click the Network icon.

c. From the Location drop-down list, select Automatic.

d. Select and view your Ethernet connection.

In MAC OS 10.4, from the Show drop-down list, select Built-in

Ethernet and select the TCP/IP tab.

In MAC OS 10.5/10.6, in the left column, select Ethernet.

e. Configure TCP/IP to use DHCP.

In MAC 10.4, from the Configure IPv4, drop-down list, select Using

DHCP and click the Apply Now button.

In MAC 10.5, from the Configure drop-down list, select Using DHCP

and click the Apply button.

In MAC 10.6, from the Configure drop-down list, select Using DHCP

and click the Apply button.

f. Restart your computer.

Note: If you are experiencing difficulties, please contact your computer or operating

system manufacturer for assistance.

Steps to improve wireless connectivity

There are a number of factors that can impact the range of wireless devices. Follow

these tips to help improve your wireless connectivity:

1. Adjust your wireless devices so that the signal is traveling in a straight path,

rather than at an angle. The more material the signal has to pass through the

more signal you will lose.

2. Keep the number of obstructions to a minimum. Each obstruction can reduce

the range of a wireless device. Position the wireless devices in a manner that

will minimize the amount of obstructions between them.

3. Building materials can have a large impact on your wireless signal. In an indoor

environment, try to position the wireless devices so that the signal passes

through less dense material such as dry wall. Dense materials like metal, solid

wood, glass or even furniture may block or degrade the signal.

4. Antenna orientation can also have a large impact on your wireless signal. Use

the wireless adapter’s site survey tool to determine the best antenna

orientation for your wireless devices.

5. Interference from devices that produce RF (radio frequency) noise can also

impact your signal. Position your wireless devices away from anything that

generates RF noise, such as microwaves, radios and baby monitors.

6. Any device operating on the 2.4GHz frequency will cause interference. Devices

such as 2.4GHz cordless phones or other wireless remotes operating on the

2.4GHz frequency can potentially drop the wireless signal.

TRENDnet User’s Guide TEW-MFP1

7. Although the phone may not be in use, the base can still transmit wireless

signal. Move the phone’s base station as far away as possible from your

wireless devices.

8. Make sure that your router is in a good location.

a. For the widest coverage area, install your router near the center of your

home, and near the ceiling, if possible.

b. Avoid placing the router on or near metal objects (such as file cabinets and

metal furniture), reflective surfaces (such as glass or mirrors), and masonry

walls.

c. Any obstruction can weaken the wireless signal (even non-metallic

objects), so the fewer obstructions between the router and the wireless

device, the better.

d. Place the router in a location away from other electronics, motors, and

fluorescent lighting.

e. Many environmental variables can affect the router’s performance, so if

your wireless signal is weak, place the router in several locations and test

the signal strength to determine the ideal position.

If possible, upgrade wireless network interfaces (such as wireless cards in computers)

from older wireless standards to 802.11n. If a wirelessly networked device uses an older

standard, the performance of the entire wireless network may be slower. If you are still

experiencing low or no signal consider repositioning the wireless devices or installing

additional access point.

Federal Communication Commission Interference

Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from thatto which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the intended

destination. The firmware setting is not accessible by the end user.

Certifications

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

TRENDnet User’s Guide TEW-MFP1

Technical Specifications

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical

specifications. Actual data throughput and coverage will vary depending on

interference, network traffic, building materials and other conditions.

** Control Center utility installation required for each computer in order to access the

print server

Hardware

Standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE

802.3 (10Base-T), IEEE 802.3u (100Base-TX), USB

1.1/2.0

LAN Port 1 x 10/100Mbps Auto-MDIX Ethernet port

USB Ports 1 x USB 2.0 Type-A

LED Indicators Power, WLAN, LAN, USB

TCP/IP Protocol Supported DHCP

Control Center Utility

Supported OS

Windows: 7(32/64-bit) / Vista (32/64-bit) /

XP(32/64-bit)

Mac OS X: 10.4/ 10.5/10.6/10.7

USB Devices Supported 127 Max.

Button

Init button: restores factory default settings

(press over 10 seconds), Activates WPS Function

(press for 2~9 seconds)

Power Input: 120 ~ 240V AC, 50~60Hz

Output: 12V DC, 1.5A

Power Consumption 2.04 Watts (max.)

Dimensions (LxWxH) 75 x 58 x 24 mm (3 x 2.3 x 1 in.)

Weight 62 g ( 2.2 oz.)

Temperature Storage: -10 ~ 60°C (13.9~139 °F)

Operating: 5 ~ 40°C (41~104 °F)

Humidity Max. 90% (non-condensing)

Wireless

Frequency 2.412 ~ 2.462 GHz (FCC)

2.412 ~ 2.472 GHz (ETSI)

Antenna 2dBi external fixed dipole antenna

Media Access Protocol CSMA/CA with ACK

Modulation CCK, DQPSK, BDSPK, OFDM with BPSK, QPSK and

16/64-QAM sub-carrier modulations

Data Rate

802.11b:11Mbps

802.11g: 54Mbps

802.11n: 150Mbps

Security 64/128-bit WEP, WPA/WP2-PSK

Output Power

802.11b: 16dBm (typical)

802.11g: 13dBm (typical)

802.11n: 13dBm (typical)

Receiving Sensitivity

802.11b: -85dBm (typical) @ 11Mpbs

802.11g: -68dBm (typical) @ 54Mpbs

802.11n: -68dBm (typical) @ 150Mpbs

Channels 1~ 11 (FCC), 1~13 (ETSI)

Certifications CE, FCC

TRENDnet User’s Guide Limited Warranty

Limited Warranty

TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TEW-MFP1 – 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit’s warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please

contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to TRENDnet

prepaid, insured and packaged appropriately for safe shipment. Customers shipping

from outside of the USA and Canada are responsible for return shipping fees. Customers

shipping from outside of the USA are responsible for custom charges, including but not

limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S

OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE

EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE

OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST

OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR

MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO

EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN

CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL

LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY

OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY

FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL

OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Some TRENDnet products include software code written by third party developers.

These codes are subject to the GNU General Public License ("GPL") or GNU Lesser

General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section

and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.

These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of

the developers. TRENDnet does not provide technical support for these codes. Please go

to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for

specific terms of each license.

PWP05202009v2 2011/11/29

TRENDNET TEWMFP1 1-Port Wireless N Multi-Function USB Print Server User Manual test 3

TRENDNET, Inc. 1-Port Wireless N Multi-Function USB Print Server test 3

User Manual

Navigation menu

Namespaces

Views

Navigation
