TRENDnet User’s Guide Cover Page

TV-IP762IC

720P 雲端無線夜視網路攝影機

Wireless HD Day/Night Cloud Camera

TRENDnet User’s Guide Table of Contents

Contents

Product Overview .............................................................................. 1

Package Contents ................................................................................................................ 1

Features ................................................................................................................................ 1

Product Hardware Features ................................................................................................ 2

Application Diagram ............................................................................................................ 3

Installation Option Description* ........................................................ 4

Wired Connection .................................................................................................................... 4

WPS Connection ....................................................................................................................... 4

TRENDnet Cloud Service .................................................................... 5

Image A (connecting using WPS) ........................................................................................ 5

Image B (wired connection) ................................................................................................ 5

Blue Mode ............................................................................................................................ 5

Green Mode ......................................................................................................................... 6

Red Mode ............................................................................................................................. 6

Install the Camera .............................................................................. 8

Configure Manual Wireless settings (without WPS) ....................................................... 12

Connect to your TV-IP762IC with a Mobile App ............................... 19

Mobile Apps, QR code Download Option ........................................................................ 19

Configuration ................................................................................... 22

The Interface ...................................................................................................................... 22

Setup ................................................................................................................................... 22

Wizard ..................................................................................................................................... 23

System ..................................................................................................................................... 23

Network .................................................................................................................................. 23

Video/Audio ............................................................................................................................ 23

Action ...................................................................................................................................... 24

Motion Detection ................................................................................................................... 24

Tools ........................................................................................................................................ 24

Advanced ................................................................................................................................ 24

Configuring Camera Settings ............................................................................................ 25

Wizard ..................................................................................................................................... 25

Camera Settings...................................................................................................................... 26

Time Settings .......................................................................................................................... 26

Setup Complete ...................................................................................................................... 27

System ..................................................................................................................................... 27

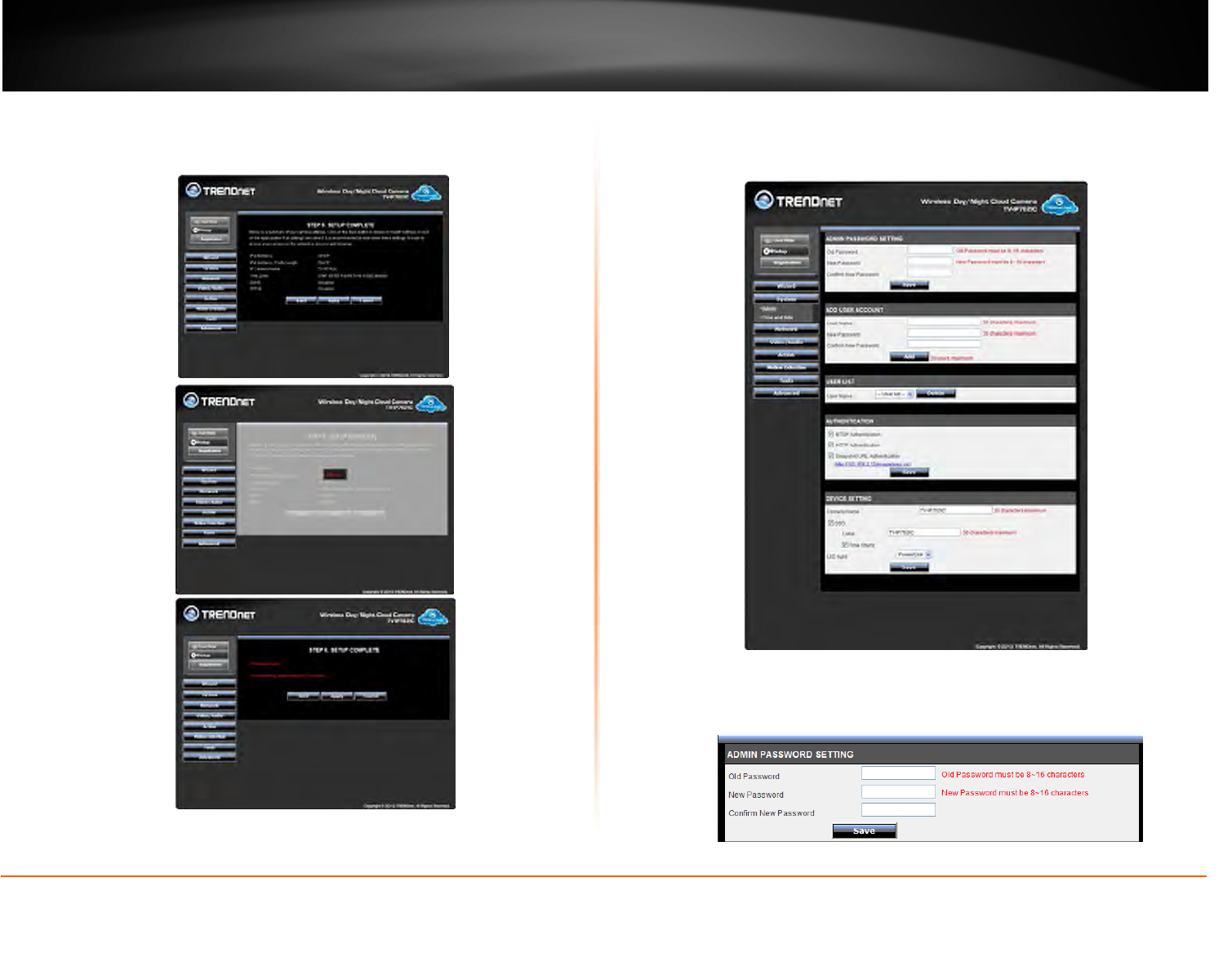

Admin Password Settings ...................................................................................................... 27

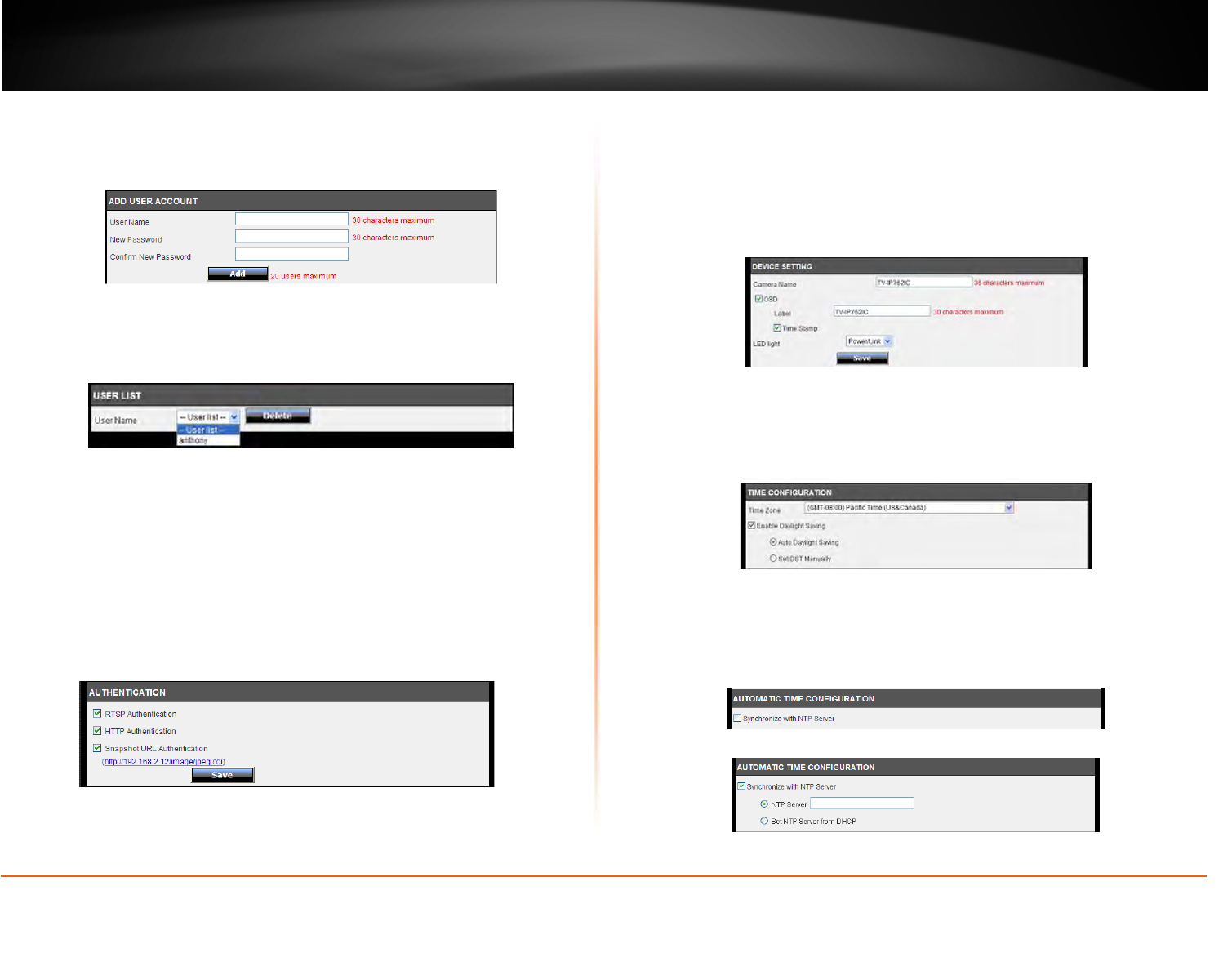

Add User Account ................................................................................................................... 28

User List................................................................................................................................... 28

Authentication ........................................................................................................................ 28

Device Settings ....................................................................................................................... 28

System – Time and Date ........................................................................................................ 28

Network – Network ................................................................................................................ 29

Network – Wireless Setup ..................................................................................................... 29

Video/Audio – Video and Audio ............................................................................................ 31

Video/Audio – Image Setup ................................................................................................... 31

Motion Detection allows for users to record captured video when it notices motion..... 34

How to Register ............................................................................... 36

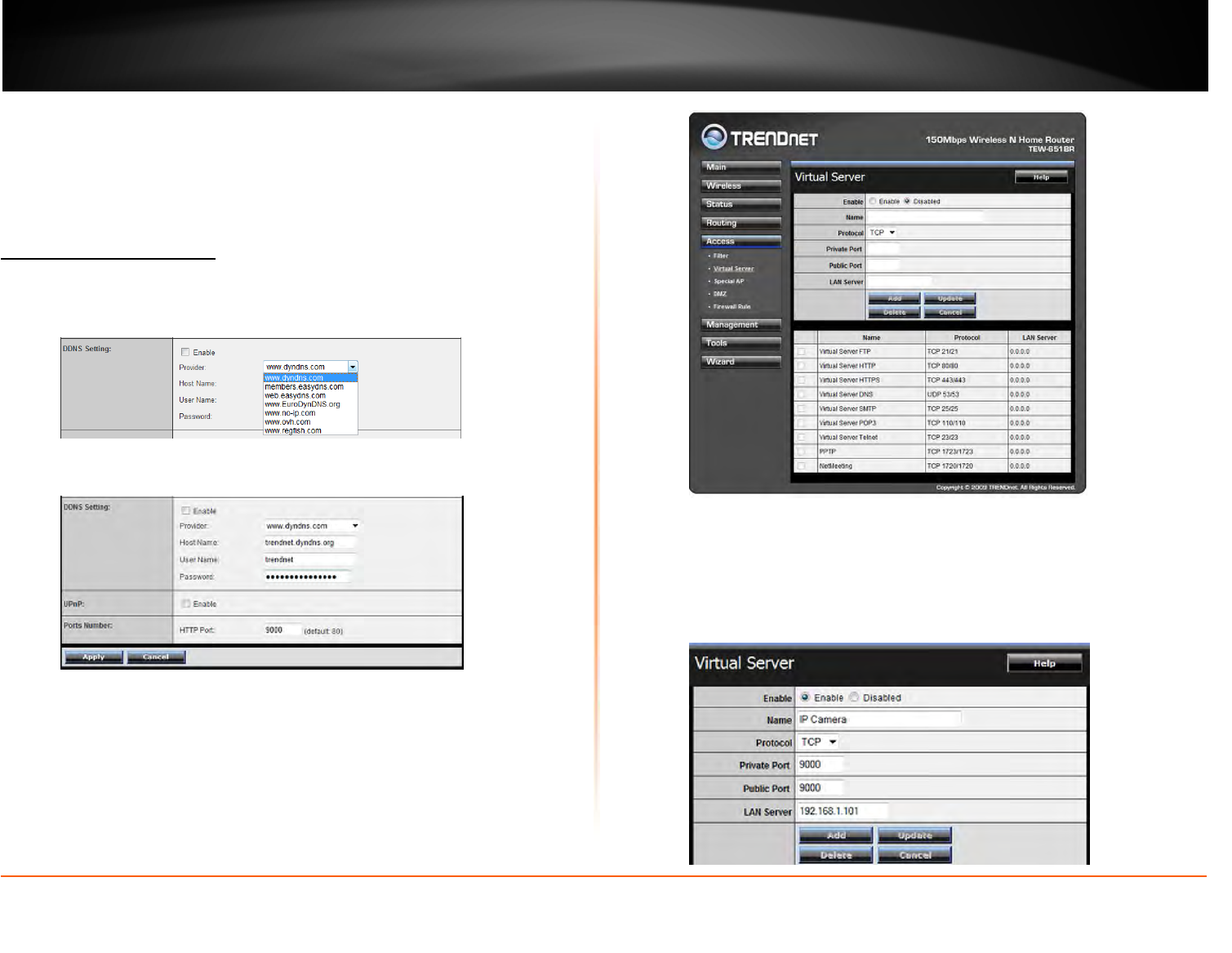

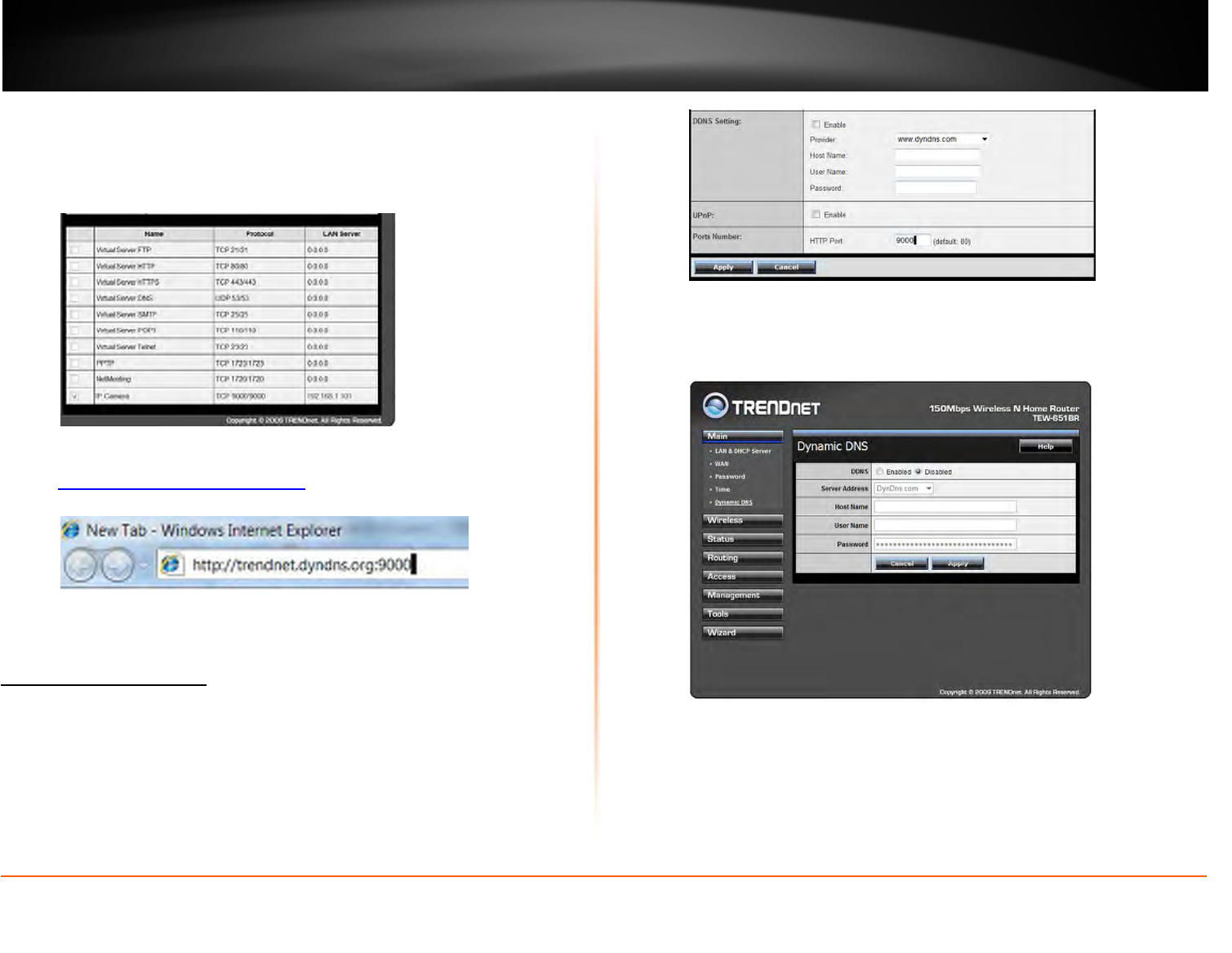

How to setup/access the camera remotely ..................................... 37

Technical Specifications ................................................................... 40

Troubleshooting ............................................................................... 41

TRENDnet User’s Guide TV-IP762IC

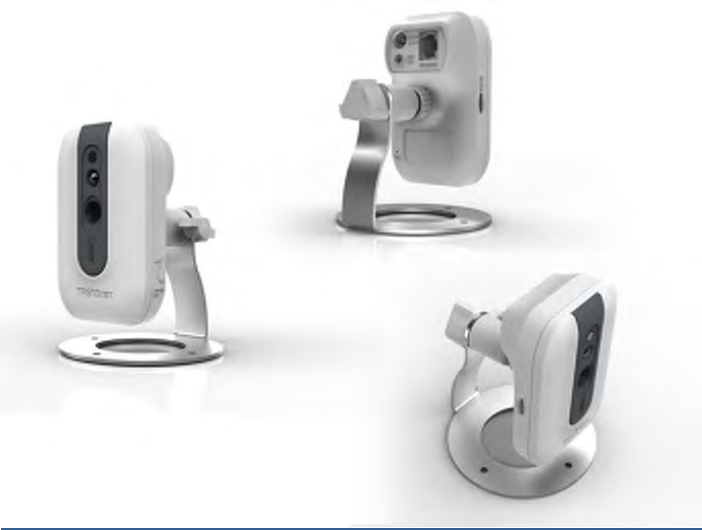

Product Overview

TV-IP762IC

Package Contents

In addition to your camera, the package includes:

 Muti-Language Quick Installation Guide

 CD-ROM (Utility, software & User’s Guide)

 Network cable (1.5m / 5ft)

 Power adapter (5V DC, 1.2A)

 Camera mounting kit

If any package contents are missing or damaged, please contact the retail store, online

retailer, or reseller/distributor that the item was purchased.

Features

TV-IP762IC

The Wireless Cloud Camera, model TV-IP762IC, transmits real-time video over the

Internet. Wireless n technology provides unsurpassed wireless coverage and improved

streaming video quality. Add this camera to your wireless network at the touch of a

button with Wi-Fi Protected Setup (WPS).

Record 1280 x 800 (VGA) video at up to 30 frames per second (fps). Manage up to 32

TRENDnet cameras with the included complimentary camera management software.

Advanced features include adjustable motion detection recording areas, email alerts,

scheduled recording sessions, one-way audio, an adjustable lens, and four times digital

zoom. A wall/ceiling mounting kit is included and the camera’s off white housing blends

into most environments.

TV-IP762WIC

The Wireless Day/Night Cloud Camera, model TV- IP762IC, transmits real-time video

over the Internet. Record crisp video in complete darkness for distances of up to 7.5

meters. Wireless n technology provides unsurpassed wireless coverage and improved

streaming video quality. Add this camera to your wireless network at the touch of a

button with Wi-Fi Protected Setup (WPS).

Record 1280 x 800 (VGA) video at up to 30 frames per second (fps). Manage up to 32

TRENDnet cameras with the included complimentary camera management software.

Advanced features include adjustable motion detection recording areas, email alerts,

scheduled recording sessions, one-way audio, an adjustable lens, and four times digital

zoom. A wall/ceiling mounting kit is included and the camera’s off white housing blends

into most environment.

TRENDnet User’s Guide TV-IP762IC

Product Hardware Features

Rear Panel View

 Power Port – Connect the included power adapter from your camera to an

available power outlet.

 Line Out Port – Connect the line-out cable to any connecting device.



 LAN Port – Connect Ethernet cables to your wired network devices

 Micro SD Slot – Insert an empty Micro SD card into the available slot.

 Reset Inset Button – Use a paper clip to depress the reset button to set the

camera settings.

Note: Use only the adapter that came with your camera.

Front Panel View

 IR LED – Built-in IR LED for night vision use

 Light Sensor – Detects the light source to turn IR on or off.

 Camera Lens –Adjusts automatically when in focus of the camera.

 Microphone – Built-in microphone for audio can be turn on or off.

 Stand – a portable adjustable stand

 Link – This LED indicator is blinking orange when there is connection/data to

your camera.

 WPS Button – Use this button to enable WPS

Power Port

Micro SD Slot

LAN Port

Line Out

Reset Inset Button

Light Sensor

IR LED

WPS Indicator

WPS Button

Power Link LED

Indicator

Camera Lens

Microphone

Stand

Adjustable Knob

TRENDnet User’s Guide TV-IP762IC

 WPS Indicator – This LED indicator blinks orange when there is a

connection/data link.

 Adjustable Knob – Use this to tilt and pan the camera



Application Diagram

IP NETWORK CAMERA SOLUTION

TRENDnet User’s Guide TV-IP762IC

Installation Option Description*

Wired Connection

1. Connect the Ethernet Cable

If you intend to use the network camera as a wired device, connect one end of

the included Ethernet cable into the Ethernet port on the rear panel of the

camera and connect the other end to an available port on your network. If you

prefer to use the camera on a wireless network, see below for instructions on

connecting the power adapter.

2. Attach the Power Supply

Attach the included power supply to the DC 5V 1.A receptor on the rear panel

of the camera and then connect it to a wall outlet or power strip. A blue LED

will light up under the lens indicating that the camera has power.

WPS Connection

An alternative method of connecting your camera to your network is by using WPS. WPS

is a quick, simple and secure method of adding devices to a network. If you have a

router which supports WPS follow the steps below, otherwise, please use the wired

mode of setting up the camera.

1. Attach the Power Supply

2. Press the WPS button on your wireless device then press the WPS button on

the camera.

*The Install wizard CD TV-IPinside the package box will guide you step-by-step of

wired or wireless options with the TRENDnet Cloud Service of installation; please refer

to the page 7.

TRENDnet User’s Guide TV-IP762IC

TRENDnet Cloud Service

Note: (Before starting this configuration segment, make sure you are connected to the

internet and the camera is accessible to the web).

1. Take a look for a similar URL to this (11223344.cam.trendnetcloud.com) at the

label on the back of the camera.

2. Connect the power cable to the camera.

There are two methods to connect to the internet, wired and wireless. For wireless,

follow the instructions from Image A below. For wired, follow the instructions from

Image B below.

Image A (connecting using WPS)

Image B (wired connection)

3. Open your browser, type the URL listed at the back of your camera and hit

Enter to connect to the camera’s live stream. Please note: you can also use this

URL to connect to the camera from any location or computer.

There are three modes when connecting your TV-IP762IC to the web. This is visible

through the “cloud” at the top right side of the web interface.

Blue Mode

The Blue Mode indicates the camera is connecting directly to the internet or local

network. This mode offers configuration and management options.

TRENDnet User’s Guide TV-IP762IC

Green Mode

The Green Mode indicates the camera is connecting to media in a peer-to-peer fashion

to the internet or local network. This mode doesn’t offer configuration and

management options – only live streaming.

Red Mode

The Red Mode indicates the camera is connecting to the internet or local network

through a firewall. This mode doesn’t offer configuration and management options –

just live streaming for 180 seconds.

The firewall settings limits live streaming for each user.

The “red” notification at the bottom of the viewing area warns users of the limited time

TRENDnet User’s Guide TV-IP762IC

Refresh this screen continuously if you wish to view your camera’s live stream.

TRENDnet User’s Guide TV-IP762IC

Install the Camera

Insert the included CD-ROM into your CD/DVD drive. The Install Wizard program will

run automatically.

Note: If the Install Wizard does not run, you may have autorun disabled on your

machine. In this case, browse to the CD drive and run InstallWizard.exe to begin the

installation wizard.

Begin by selecting a language from the drop-down menu. Currently, the TV-IP762IC

supports the following languages: English, French, German, Russian and Spanish. Then

click Install Camera and follow the on-screen steps to continue the installation.

1. This is TRENDnet’s Terms of Use. Click Agree to continue.

2. The next step references information on the camera itself. Go to your camera

and check the details at the back of the device. Click Next to continue, Back to

go to the previous screen or Home to return to the Main Menu.

3. The most important part of the setup process is the network connection type.

There are three options:

a. Connect camera to your wireless network using Wi-Fi Protected Setup

(WPS) button (Verify your router has a WPS button. If not, select the

next option).

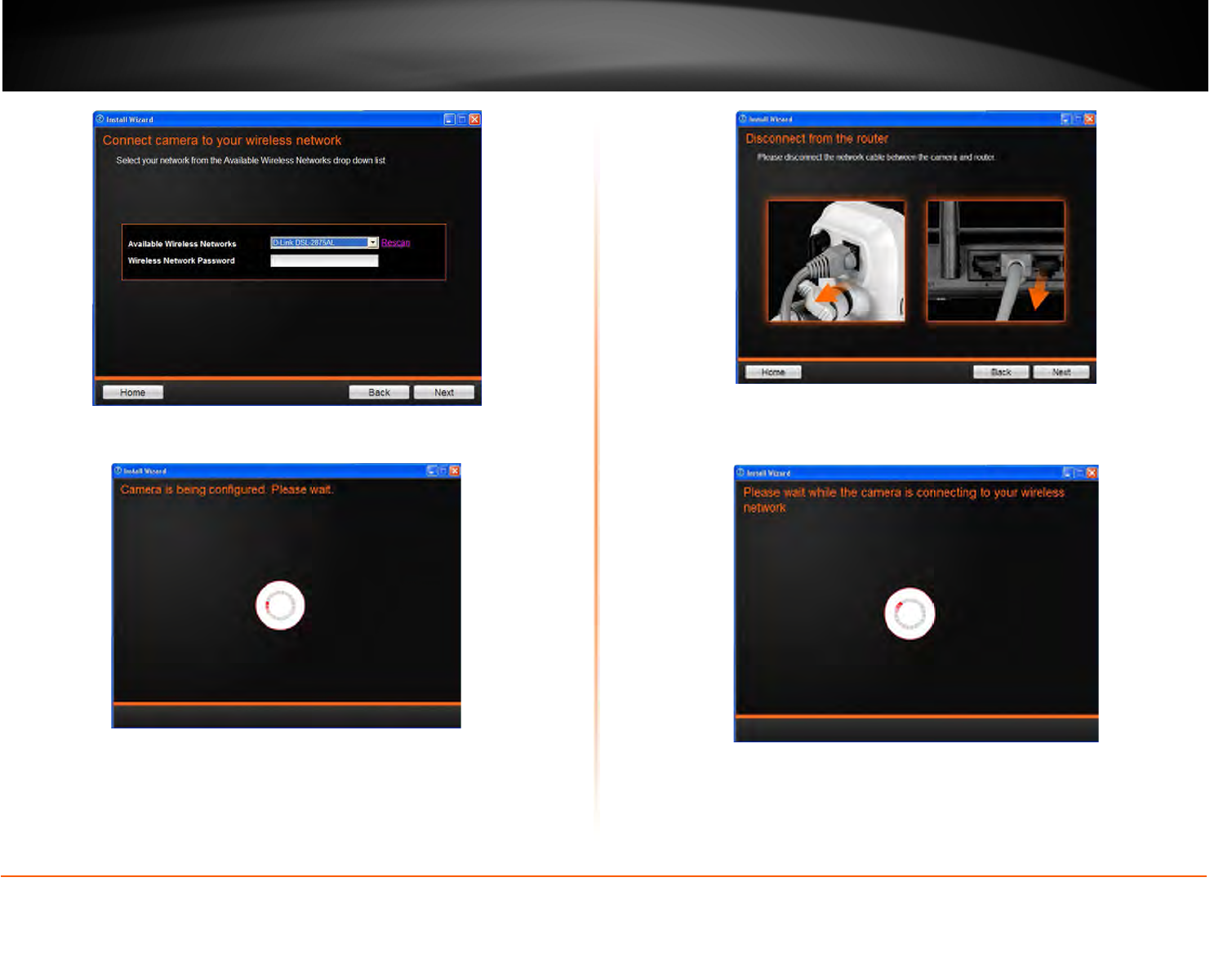

b. Connect camera to your wireless network manually

TRENDnet User’s Guide TV-IP762IC

c. Connect camera to your network using a network cable.

4. The basic connection type is “C”, using a network cable. Let’s begin the

installation process using the network cable connection first. Click this radio

button and click Next to continue, Back to go to the previous screen or Home

to return to the Main Menu.

5. Follow the instructions in the next screen to Power up the Camera. Click Next

to continue, Back to go to the previous screen or Home to return to the Main

Menu.

6. Connect one end of the network cable to your camera and the other end to

your router. Click Next to continue, Back to go to the previous screen or Home

to return to the Main Menu.

TRENDnet User’s Guide TV-IP762IC

7. The wizard searches the network for your camera.

8. If you only have one camera on your network, the wizard will automatically

select it (as shown below). Otherwise, if you have more than one camera, it

provides several options from the list. The wizard provides the Model Number

and MAC Address of the camera. If you do not see any of your camera(s) in the

wizard, click Retry to scan for the camera again. Click Next to continue, Back to

go to the previous screen or Home to return to the Main Menu.

9. Password Settings. Follow the instructions on the screen. The Default

username is admin. Click the Change Password checkbox to enter the new

password details. Click Next to continue, Back to go to the previous screen or

Home to return to the Main Menu.

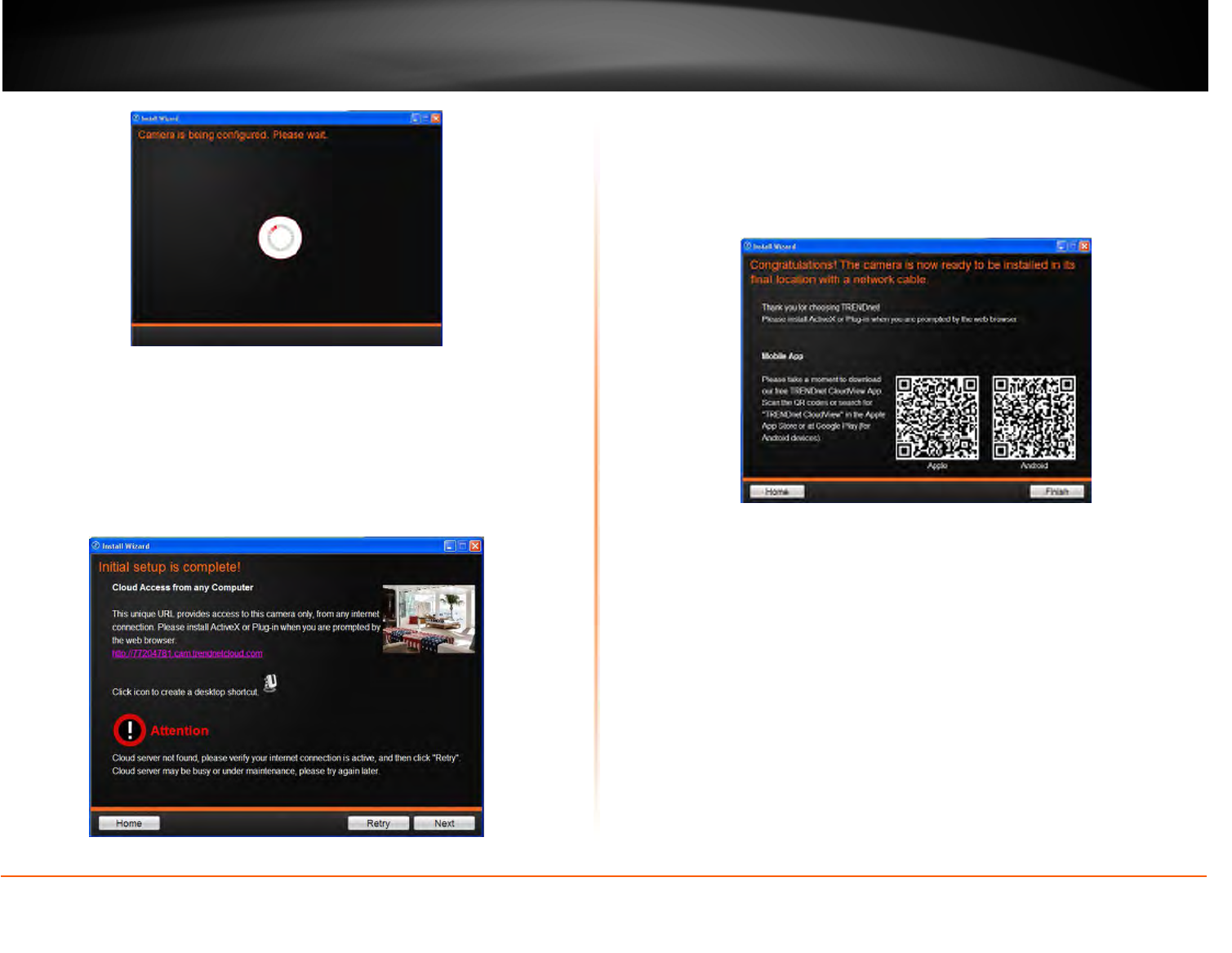

10. The wizard configures your parameters.

TRENDnet User’s Guide TV-IP762IC

11. The initial setup is complete. The main feature is the Cloud Access accessibility

feature. Click the link(s) or icon below to create a shortcut on your desktop.

Also, below the icon is a warning. This warning is only shown when the internet

connection is inactive or the Cloud server cannot be found. Make sure the

internet connection is active, click Retry. When the Cloud server isn’t found,

the server may be busy or under maintenance. Under these circumstances,

click Retry later again. If there is no warning, click Next.

12. The mobile option allows the user to download the TRENDnet CloudView App

in either Apple or Google android format. To use this feature, the user must

have a QR Scanner App on their mobile device. This is also available from the

Apple App Store or Google’s Play store. Click Next to continue, or Home to go

to the main menu.

You are now ready to use your camera. Click Finish to exit.

Connecting to your TV-IP762IC with a Mobile App

Please refer to the page 15 for mobile apps download through the QR code option.

TRENDnet User’s Guide TV-IP762IC

Configure Manual Wireless settings (without WPS)

Under Network connection and initial setup method, read the instructional warning on

router wireless settings. Provided you are familiar with these optional settings, select

the method that best suits your needs otherwise select the easier method, Connect

camera to your wireless network manually. This preferred setup requires no security

and is much easier to configure. Use, Connect camera to your wireless network using

Wi-Fi Protected Setup (WPS) only if you know where your WPS button is and have a

good knowledge of how it works.

Click Next to continue, Back to go to the previous screen or Home to return to the Main

Menu.

Please read the next steps carefully as it pertains to the wireless manual settings feature

on your router and camera.

1. Power Up the Camera. Follow the instructions and click Next to continue. If you

wish to go to the previous screen, click Back or Home to return to the main

menu.

2. Connect the network cable. Click Next to continue.

3. Please wait while the wizard searches for your camera.

TRENDnet User’s Guide TV-IP762IC

4. Once your camera has been detected, the wizard displays the Model number

and MAC address. If you have more than one camera then select the one you

want to activate. Click Next to continue.

5. Change the password settings here or leave it at default. Click Next to continue.

6. Wait while the camera is configured with the new settings.

7. Once the wizard has found your Access Point, you will be prompted to enter an

8-16 bit password depending on your router configuration. Click Next to

continue, Back to go to the previous screen or Home to return to the Main

Menu.

TRENDnet User’s Guide TV-IP762IC

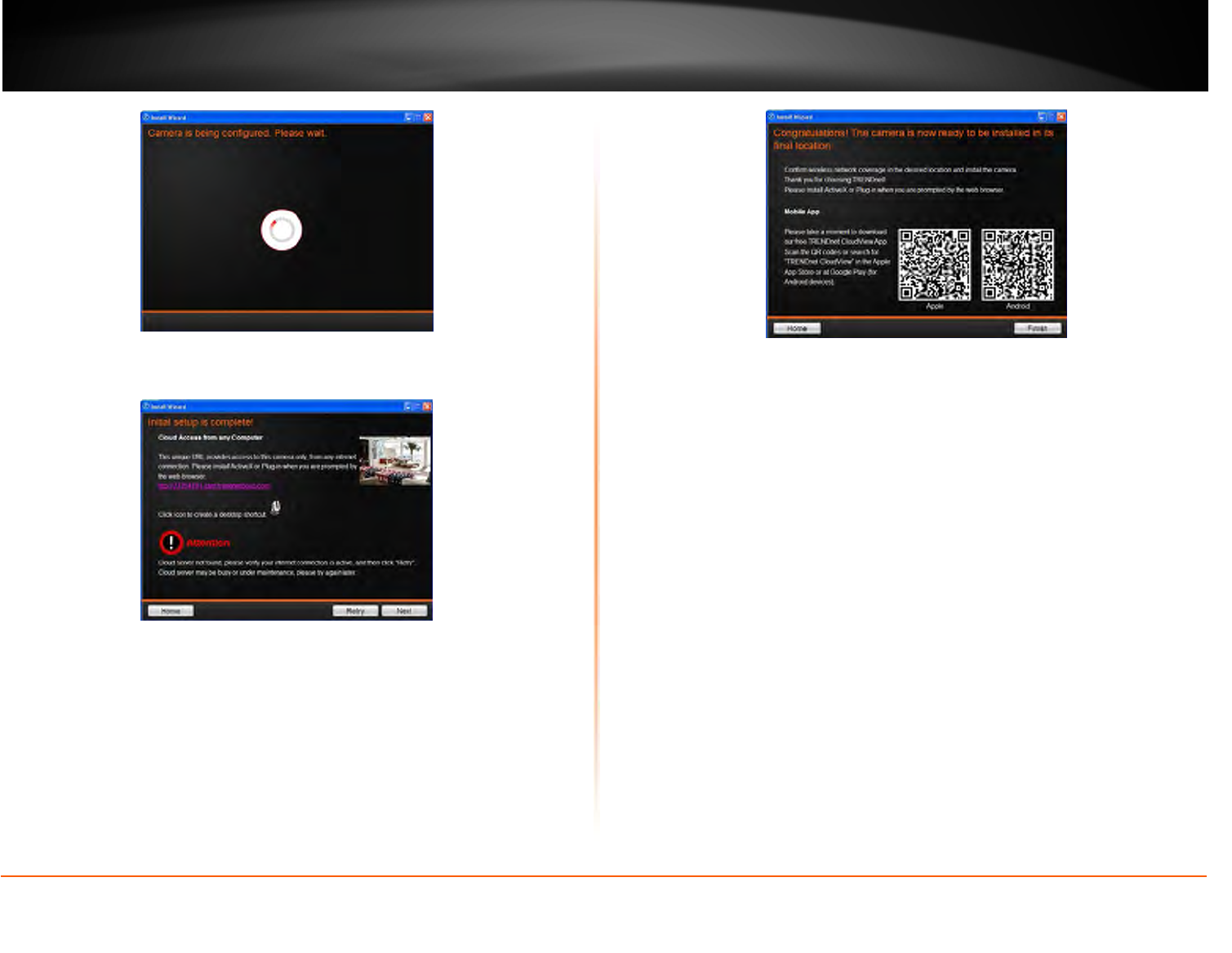

8. The camera once again configures the settings.

9. Disconnect the cable from the camera and click Next to continue.

The camera connects to the wireless router. Make sure your router has

wireless activated.

10. The initial setup is complete. The main feature is the Cloud Access accessibility

feature. Click the link(s) or icon below to create a shortcut on your desktop.

Also, below the icon is a warning. This warning is only shown when the internet

connection is inactive or the Cloud server cannot be found. Make sure the

internet connection is active, click Retry. When the Cloud server isn’t found,

TRENDnet User’s Guide TV-IP762IC

the server may be busy or under maintenance. Under these circumstances,

click Retry later again. If there is no warning, click Next. When you click the link

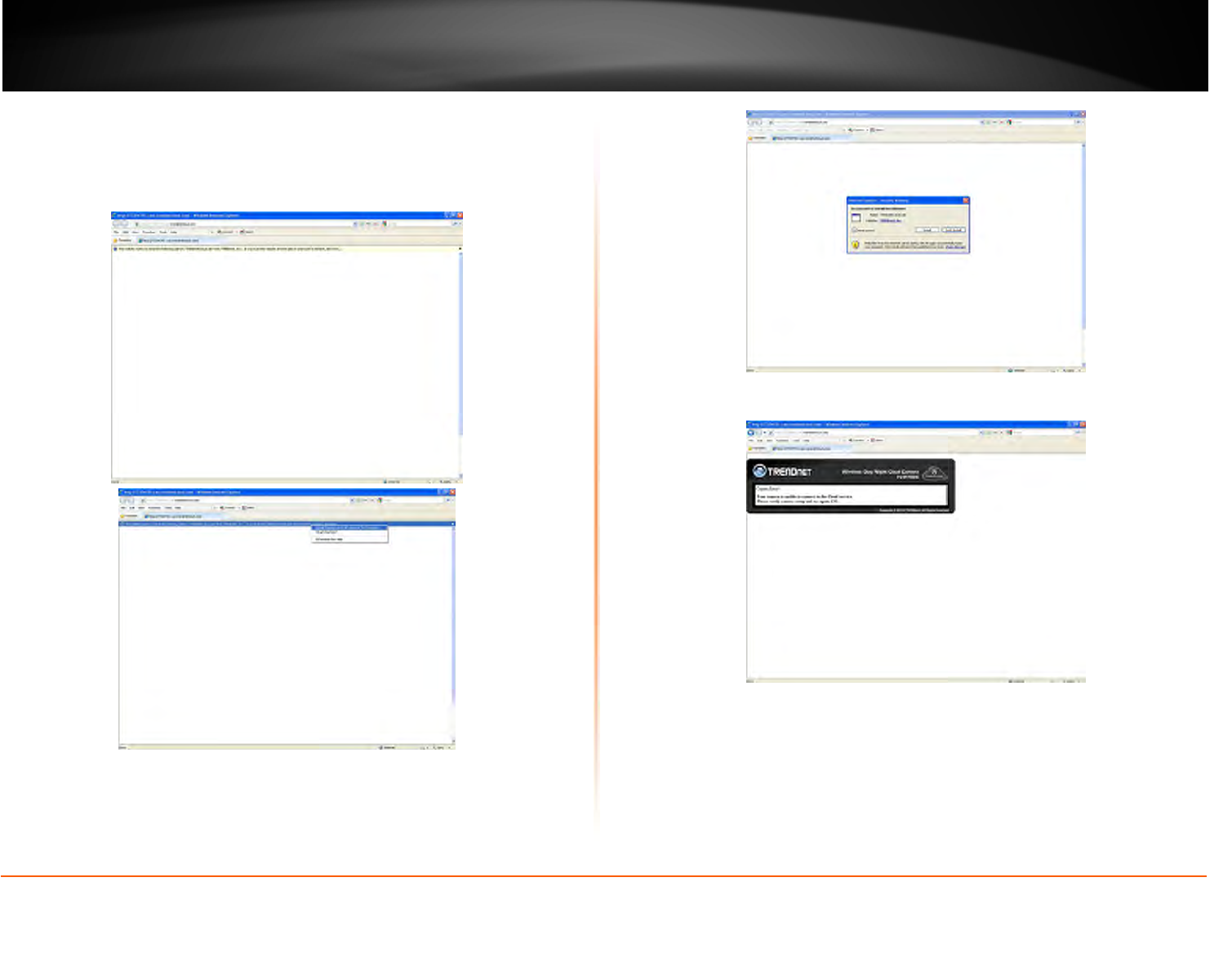

and it connects using a browser, IE will display a warning for you to install an

add-on. Click the pop-up screen to install the add-on. Click Install to install the

software. The technique is illustrated below:

If the camera is not configured correctly, an error indicates that you aren’t connected to

the cloud.

Alternatively, the camera will connect to the wireless router.

TRENDnet User’s Guide TV-IP762IC

11. The mobile option allows the user to download the TRENDnet CloudView App

in either Apple or Google android format. To use this feature, the user must

have a QR Scanner App on their mobile device. This is also available from the

Apple App Store or Google’s Play store. The QR codes of Apple and Android

are presented on the last page of the autorun wizard.

Use the links to access the camera or QR codes on your desired mobile device. Click

Next to continue or Home to return to the main menu.

Click Finish to exit the wizard and start using your TRENDnet camera.

Please refer to the page 15 for mobile apps download through the QR code option.

The third option available is: Connect camera to your wireless network using Wi-Fi

Protected Setup (WPS) button. Select this option using the radio button and click Next.

The wizard instructs you to power up the camera. Click Next to continue.

TRENDnet User’s Guide TV-IP762IC

Then activate the WPS on the router and sync it with the WPS on the camera. See the

illustrations on the screen. Click Next to continue once you have followed the hardware

side.

The wizard searches for the camera via WPS.

Once detected, the model number and MAC address is detected. If the screen below

doesn’t appear, click Retry. If you are unsure of the camera, click Back to go back one

step to attempt the process again. Otherwise, once the camera is detected click the

Next button.

Change the password if necessary or keep the original. Click Next to continue.

The camera is being configured.

TRENDnet User’s Guide TV-IP762IC

A summary report displays the Cloud access link to TRENDnet . Click the icon to create a

shortcut to the camera. The warning message at the bottom of the screen displays a

failed connection to the Trendnet Cloud service. Click Next to continue.

The camera setup is complete. Use your own QR code reader from either an iPhone or

Android device to access the apps from the market. Click Finish to end the wizard.

TRENDnet User’s Guide TV-IP762IC

Connect to your TV-IP762IC with a Mobile App

TRENDnet Cloud Services also offers mobile connectivity. Access the iPhone App by

going to the Apple™ App Store and downloading “TRENDnet CloudView” App.

Alternatively, if you are using the Google™ Android service, go to the Google Play™

Store and download the app from there. Currently, TRENDnet does not support

Blackberry™ or the Windows™ App stores.

Mobile Apps, QR code Download Option

The mobile option allows the user to download the TRENDnet CloudView App

in either Apple or Google android format. To use this feature, the user must

have a QR Scanner App on their mobile device. This is also available from the

Apple App Store or Google’s Play store. The QR codes of Apple and Android

are presented on the last page of the Install wizard.

Mobile Apps

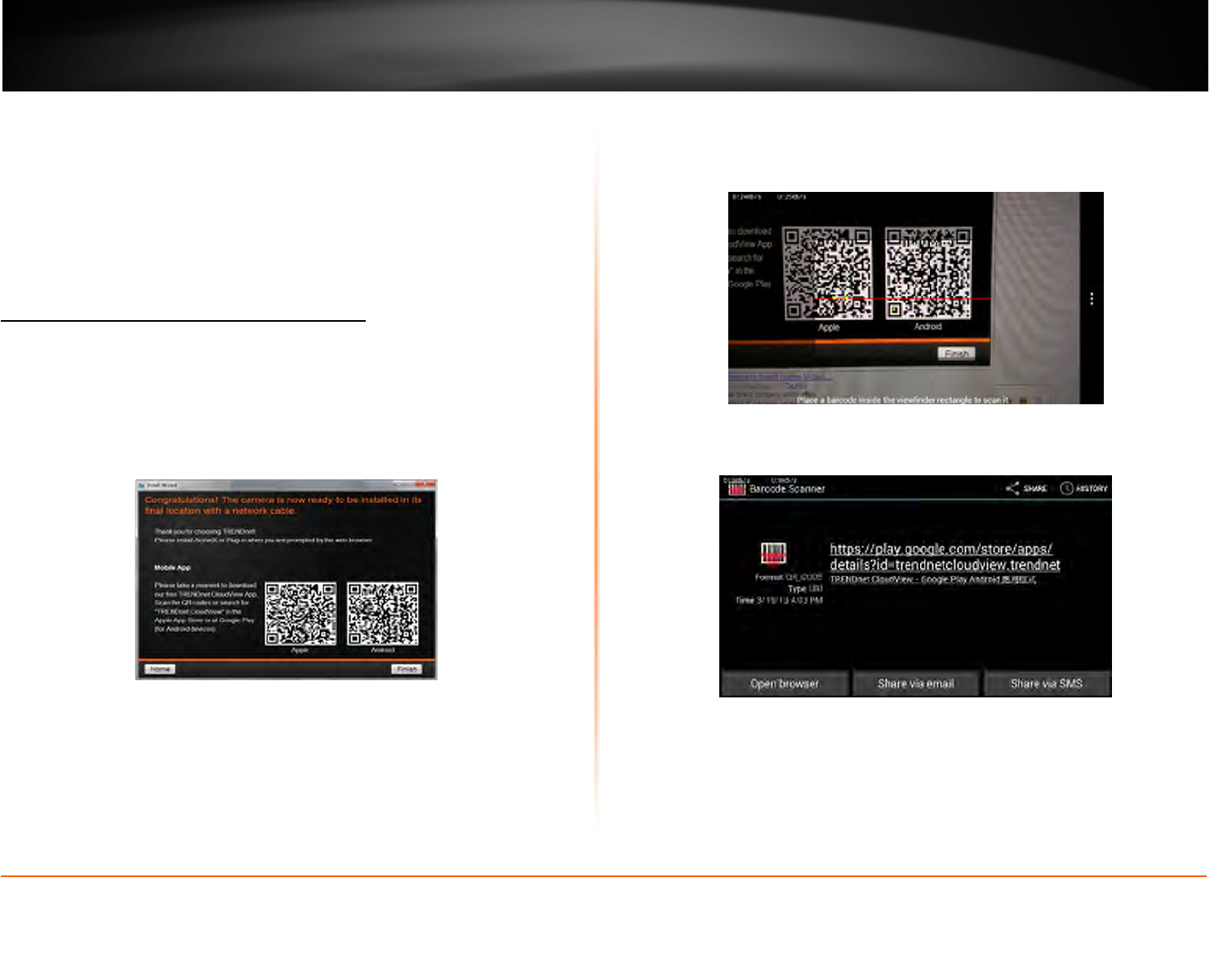

Using your mobile device, in this example it is an Android phone, touch the Bar Code

scanning app on your phone (You need to download a bar code scan APP prior to QR

code scan). Hold it up to the QR Code on the wizard that reads, Android, and snap to

scan the image. The Bar Code app will read the QR Code and record it.

The app copies the QR link and provides a HTML link to the TRENDnet app. Click on the

link.

You will be directed to the Google Play Storefront to download the app.

TRENDnet User’s Guide TV-IP762IC

Click the install button and accept the license agreement. As the app downloads and

installs, use the pull-down menu to see the status of the download.

When you click the downloaded icon the app starts to load.

Accept the license agreement from TRENDnet by clicking the arrow key.

Enter your camera details and click Next.

TRENDnet User’s Guide TV-IP762IC

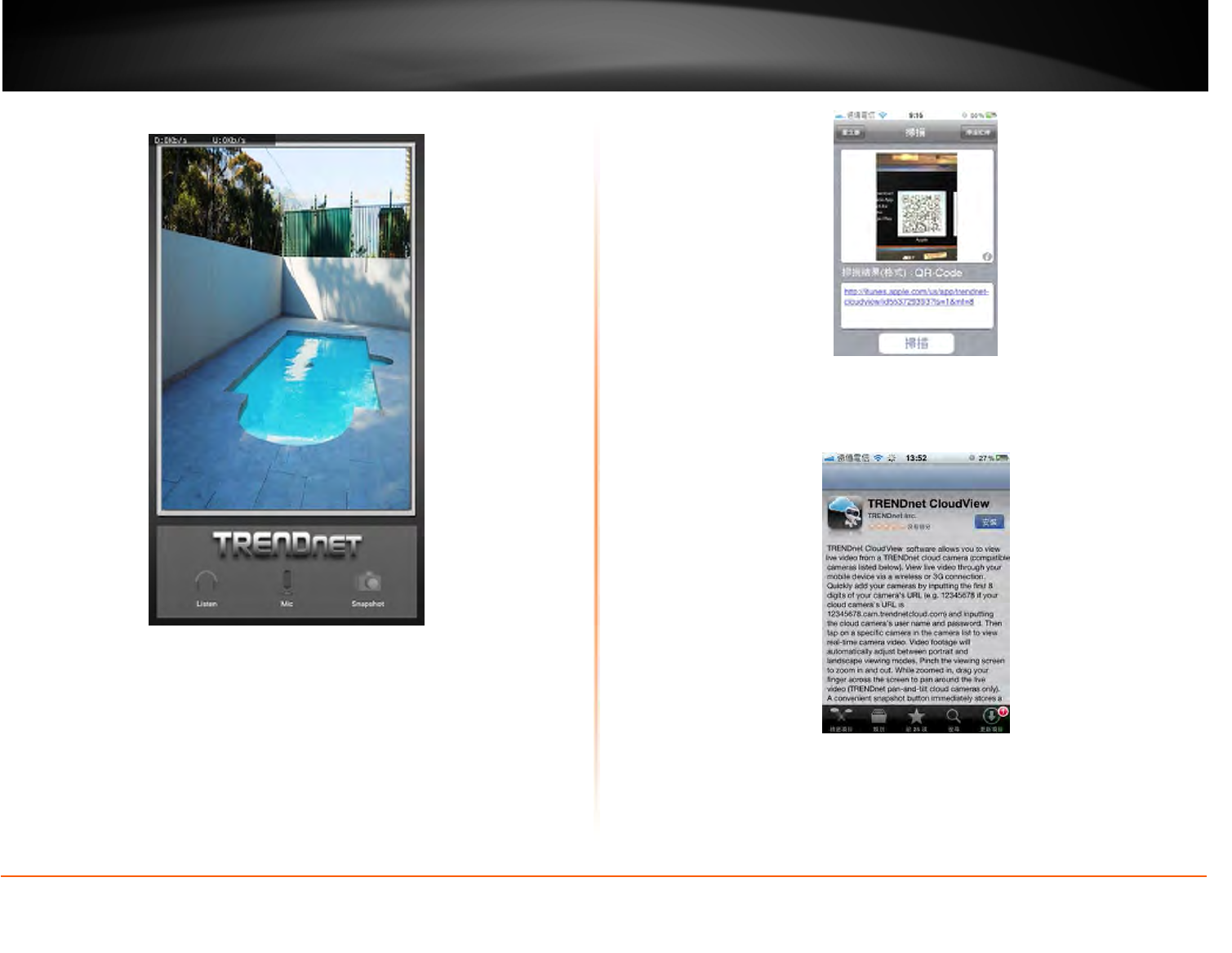

The app opens to the main interface. View the camera feed.

Here is Apple iTunes version

Scan the QR Code using one of iOS’s QR Code apps. The app automatically creates an

HTML link to the iTunes App Store. Link the link.

You are immediately directed to the iTunes App Store. Click the link to download.

TRENDnet User’s Guide TV-IP762IC

Configuration

After completing the Setup Wizard, you are ready to use your camera. The

camera’s built-in Web configuration utility is designed to allow you to easily access and

configure your TV-IP762IC camera. Open a web browser such as Internet Explorer® and

enter the IP address of your camera. To log in, use the Username “admin” and the

Password created in the Setup Wizard. If you did not create a password, the default

Password is admin. You will then be prompted to change the default password, admin.

After entering your password, click OK.

The home page for the TV-IP762IC appears.

The Interface

The main screen displays some simple options you can configure.

The main window consists of the main viewing screen, the settings tab (consists of

LiveView, Setup, and Registration), the Motion Trigger indicator, the Record Indicator,

the Language Selection, and the Main Camera viewing panel.

Setup

This panel consists of Wizard, System, Network, Video/Audio, Action, Motion Detection,

Tools, and Advanced.:

1. Login to the camera

2. Click Setup . The Wizard screen appears.

From the menu on the left side of the screen, select an option under the Sub-Headings.

TRENDnet User’s Guide TV-IP762IC

Wizard

This screen shows the six steps to setting up the TV-IP762IC. It guides you through LAN

Settings, Internet Settings, DDNS Settings, Camera Name Settings, Time Settings, and

the Setup is Complete.

System

This screen shows the Admin Password Settings, User Account, User List, and

Authentication. The next tab allows you to configure Time and Date Settings.

Network

This screen shows the Network Settings. The Network tab consists of Network,

Wireless Setup, Dynamic DNS, Cloud Settings, and Cloud Status Settings.

Video/Audio

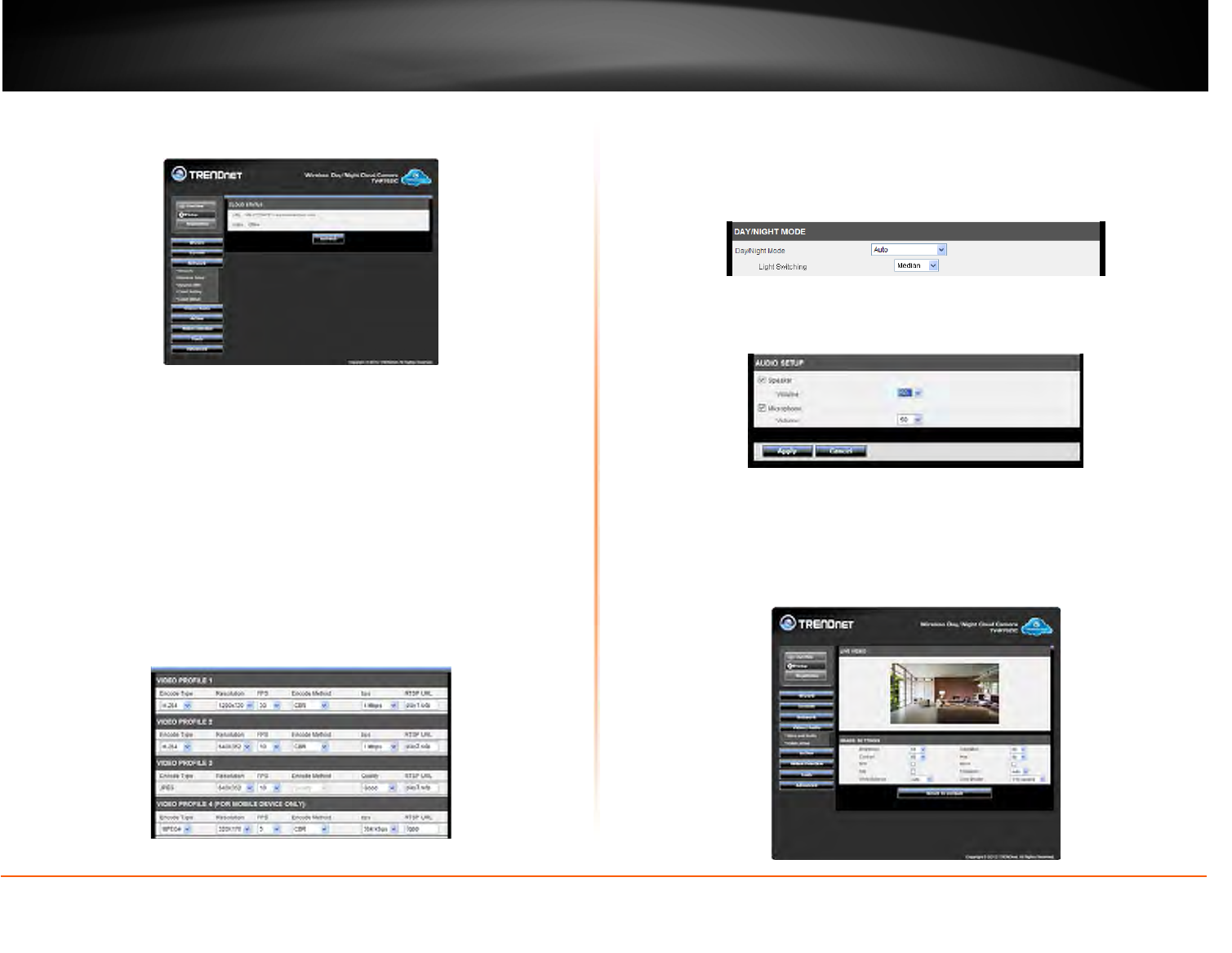

This screen shows the Video and Audio Profile Settings for each camera, and the next

tab offers Image Setup configuration settings.

TRENDnet User’s Guide TV-IP762IC

Action

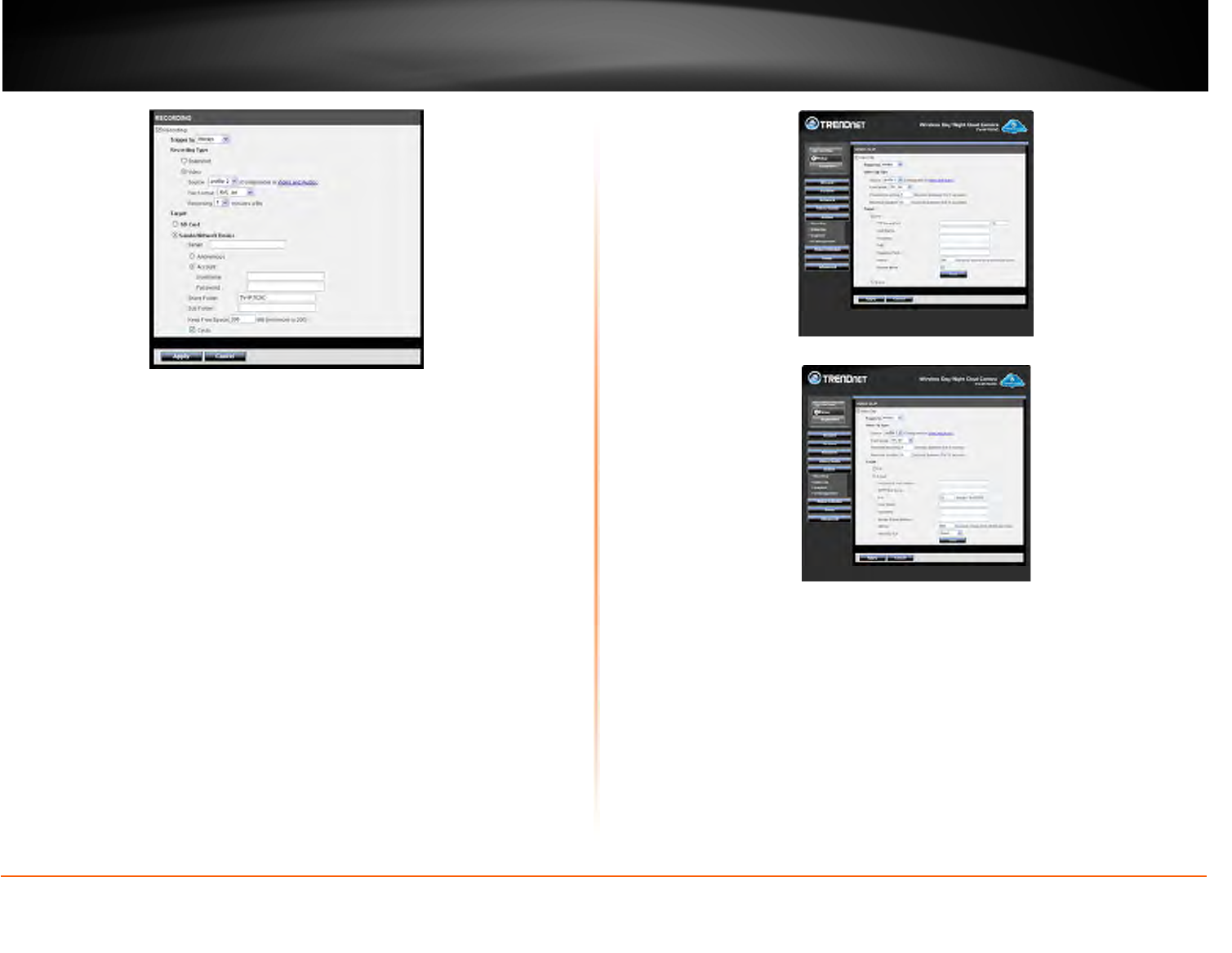

This screen shows the Recording Settings, Video Clip Settings, Snapshot Settings, and

SD Management Settings.

Motion Detection

This screen shows the Motion Detection Video Settings for Live Video.

Tools

This screen shows the System and Firmware Upgrade Settings.

Advanced

This screen shows the Device Info and Log results.

TRENDnet User’s Guide TV-IP762IC

Configuring Camera Settings

The TV-IP762IC allows you to make configuration changes from anywhere by connecting

to the camera using a standard web browser.

To configure camera settings:

1. Login to the camera as described in the section Setup.

2. Click SETUP. The Wizard screen appears.

3. Click the menu on the left side of the screen. The System configuration

screen is displayed. You can then click on any of the menu items on the left

of the screen under the Setup menu to modify settings.

Wizard

 LAN Settings: Setup IPv4 and IPv6 DHCP and IP static settings.

 Internet Settings: Select a Username and Password for your PPPoE settings (if

it applies).

TRENDnet User’s Guide TV-IP762IC

 DDNS Settings: Select a Username and Password for your PPPoE settings (if it

applies).

Camera Settings

 Camera Name: This is the name used to identify your camera on your network.

Enter a suitable name or leave it at default.

Time Settings

 Time Zone: Use the drop-down menu to select the region you are located in.

 Daylight Savings: Here you can adjust the time for .

 Date and Time: Use this setting to maintain the current time and date settings

you have

 NTP Server: Use this setting to sync it with an NTP server.

 Set Time and Date Manually: Set the time and date manually by using the

drop-down list and radio buttons. Alternatively, copy the computer settings.

TRENDnet User’s Guide TV-IP762IC

Setup Complete

 This section gives a summary of the settings completed. Click Apply to have the

settings accepted. The system restarts.

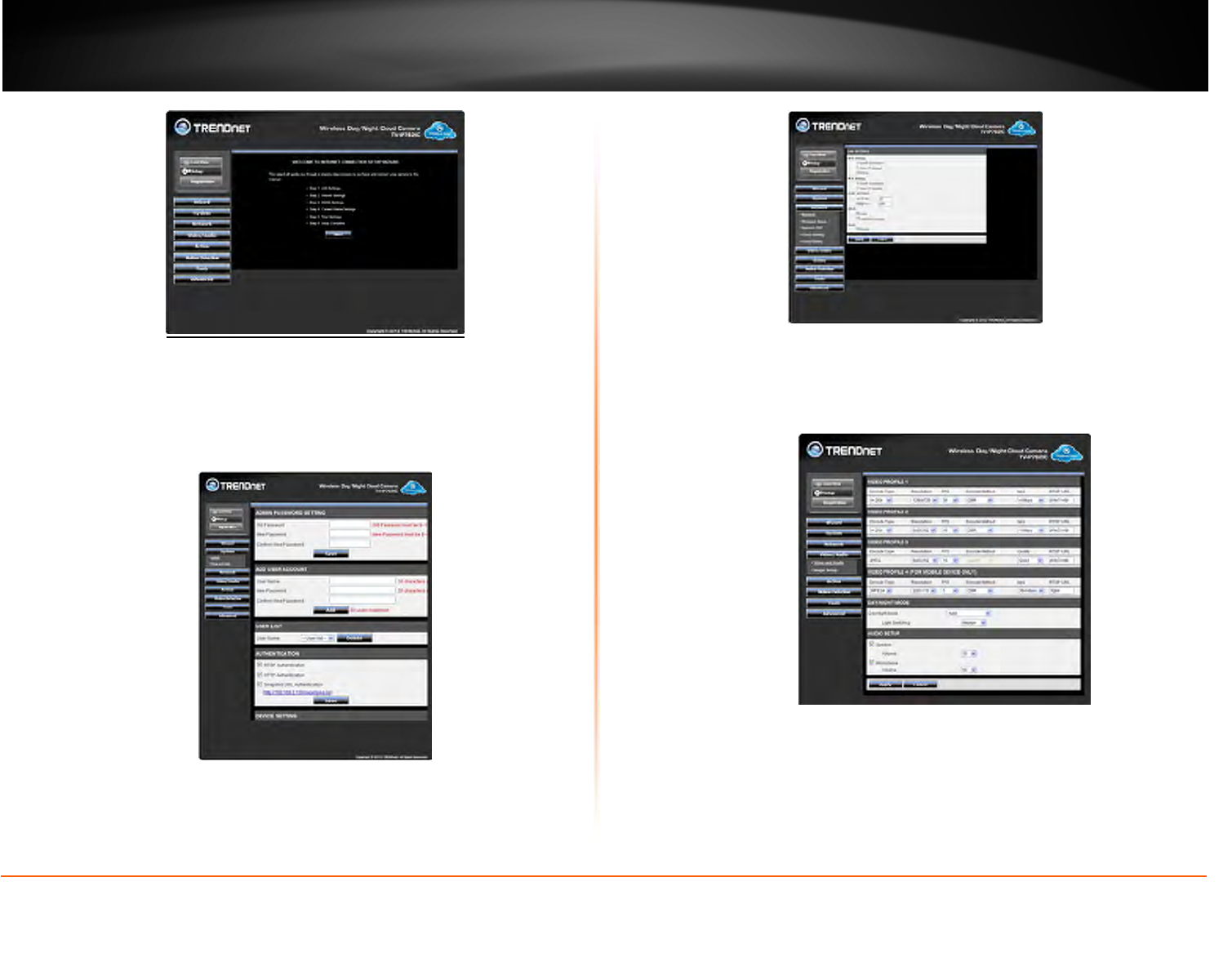

System

This tab displays all the administration settings.This includes, Admin settings, User

settings, Authentication, and Device settings.

Admin Password Settings

 Enter the old password and create a new password. Retype the password again

to confirm Characters must be between 8-16 characters. Click Save.

TRENDnet User’s Guide TV-IP762IC

Add User Account

 Enter a Username for the new user, password and confirm the password. Click

Add to add the user.

User List

 This list populates as you add users. View the details from the drop-down list.

Select a user and then click the Delete button to erase the user.

Authentication

 This tab consists of three authentication methods. RTSP (Real Time Streaming

Protocol) which stands for s an application-level protocol for control over the

delivery of data with real-time properties. RTSP provides an extensible

framework to enable controlled, on-demand delivery of real-time data, such as

audio and video. HTTP Authentication allows for browser access. You can use

the browser to view the camera. Snapshot URL Authentication is needed to

take a snapshot of the camera’s video. This authentication is essential for

photo capture using the TV-IP762IC. Click Save to set the protocols.

Device Settings

 Change the Camera name and setup an OSD ID here. OSD is On-Screen Display.

As the name suggests it displays information on screen. This records data for

time and date capture. The LED light can also be configured to “OFF”,

Power/Link or Flicker. This means, it can be turned off, it can blink when there

is power or a network link or it can flicker for the same settings.

System – Time and Date

Time Configuration

 Set the Time Zone from the drop-down list. Choose the region you are located

in. Enable Daylight Savings time if needed or set the DST manually.

Automatic Time Configuration

 Use the checkbox to enable synchronization with an NTP server. To do this you

need the NTP server IP address. Two options are available, manual setup or Set

NTP server from the DHCP router/server.

TRENDnet User’s Guide TV-IP762IC

Set Date and Time Manually

 Use the checkbox to enable date and time settings. From the drop-down menu

select the Year/Month/Day and Hour/Minute/Second. Alternatively, click the

Copy Your Computer’s Time Settings. Click Apply to complete the setup.

Network – Network

LAN Settings

 Configure the IPv4/IPv6, Port setting, UPnP, and Apple Bonjour from this

location. For IPv4/IPv6 DHCP settings, leave the settings as is and click Apply.

 For IPv4/IPv6 Static IP Address selection, click the radio button next to their

respective locations. The menu enlarges to allow for more data fields. Then you

can edit the IP/Subnet Mask/Gateway/Primary DNS/Secondary DNS and

optional Search Domain fields. This can be tweaked for both IPv4 and IPv6.

For IPv4 there is also a PPPoE. When you click the checkbox, the data field allows you to

setup the PPPoE username, password, and password.

Port Settings

 The two main ports HTTP and RTSP are set to default at 80 and 554 respectively.

These settings can be left without changing.

UPnP

 Universal Plug n Play allows for the devices to access audio and video. Click the

checkboxes to enable the UPnP and also forward the ports to the respective

location.

Bonjour

 Activate Bonjour for Apple Mac devices. Click the checkbox to enable it.

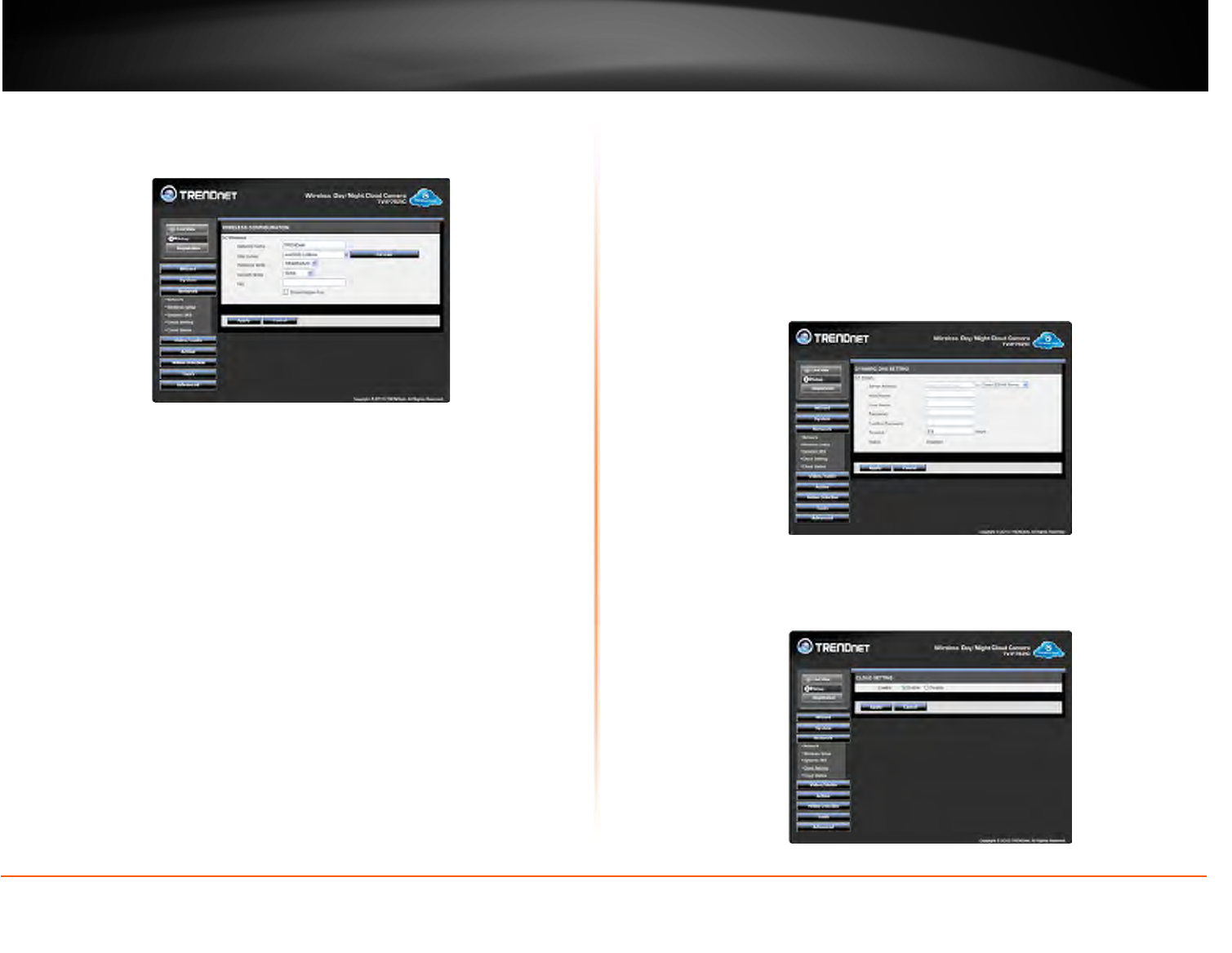

Network – Wireless Setup

Wireless Configuration

TRENDnet User’s Guide TV-IP762IC

Configure the wireless parameters with a Network Name, Site Survey or Network

Access Point, the Wireless Mode, Security Mode, and the encryption key.

 Network Name: The default is TRENDnet but you can change this name to

anything you want.

 ‘Site Survey: This is a drop-down of available Access Points. You can press the

Rescan button to search more devices.

 Wireless Mode: There are 2 types, Infrastructure and Ad-Hoc mode.

Infrastructure is a wireless connection using an access point as a transmission

point of all wireless devices. Ad-Hoc is a wireless connection used without an

access point, where your TV-IP762IC is directly connected to your PC. This is

done using the on-board wireless adapter on the TV- TV-IP762IC connected

to a wireless adapter on the PC.

 Security Mode: There are four options available – None, WEP, WPA-PSK, and

WPA2-PSK. For None, no “key” is required. WEP/WPA-PSK/WPA2-PSK all

require a key. Keys are usually obtained from the network administrator or use

one off the web.

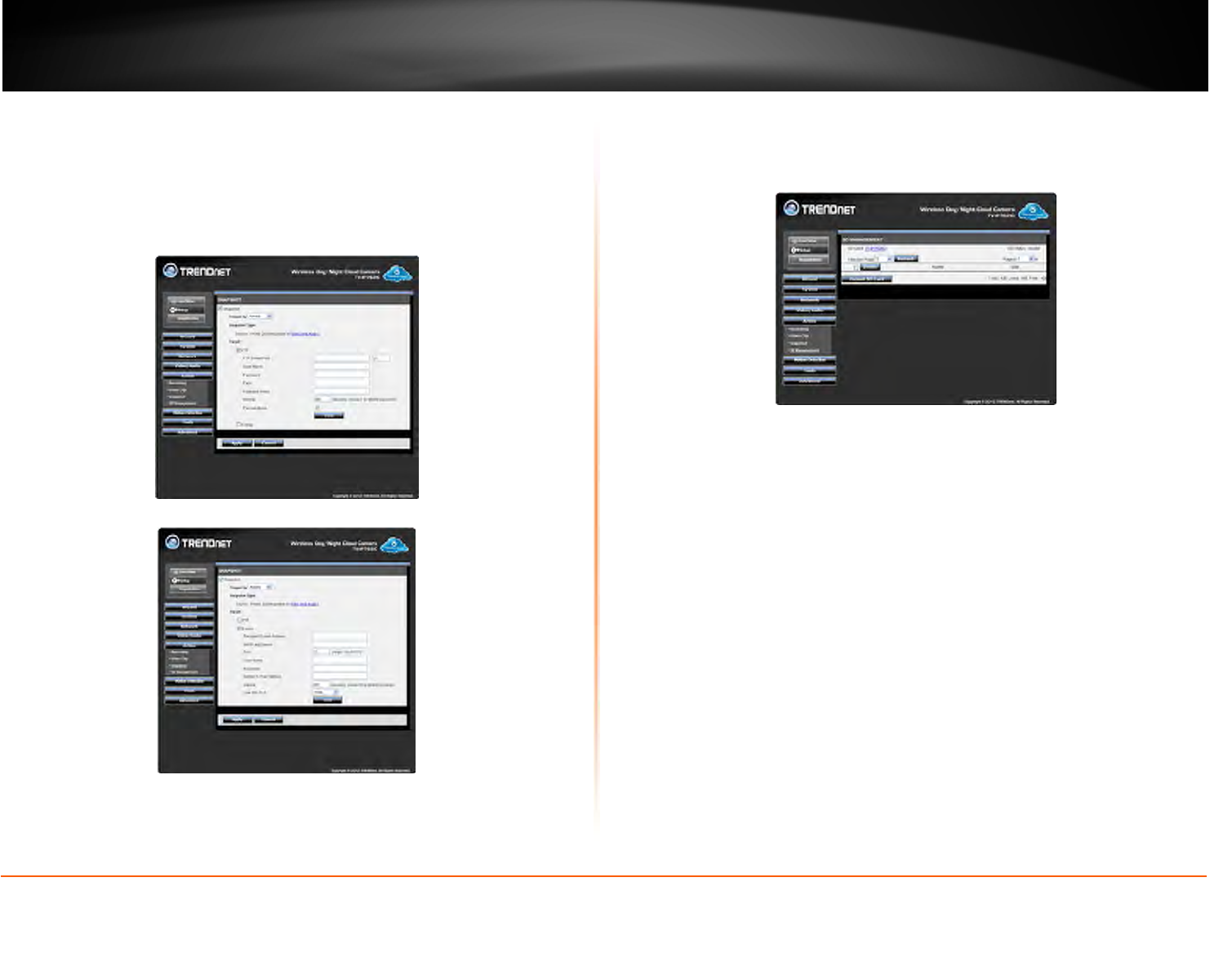

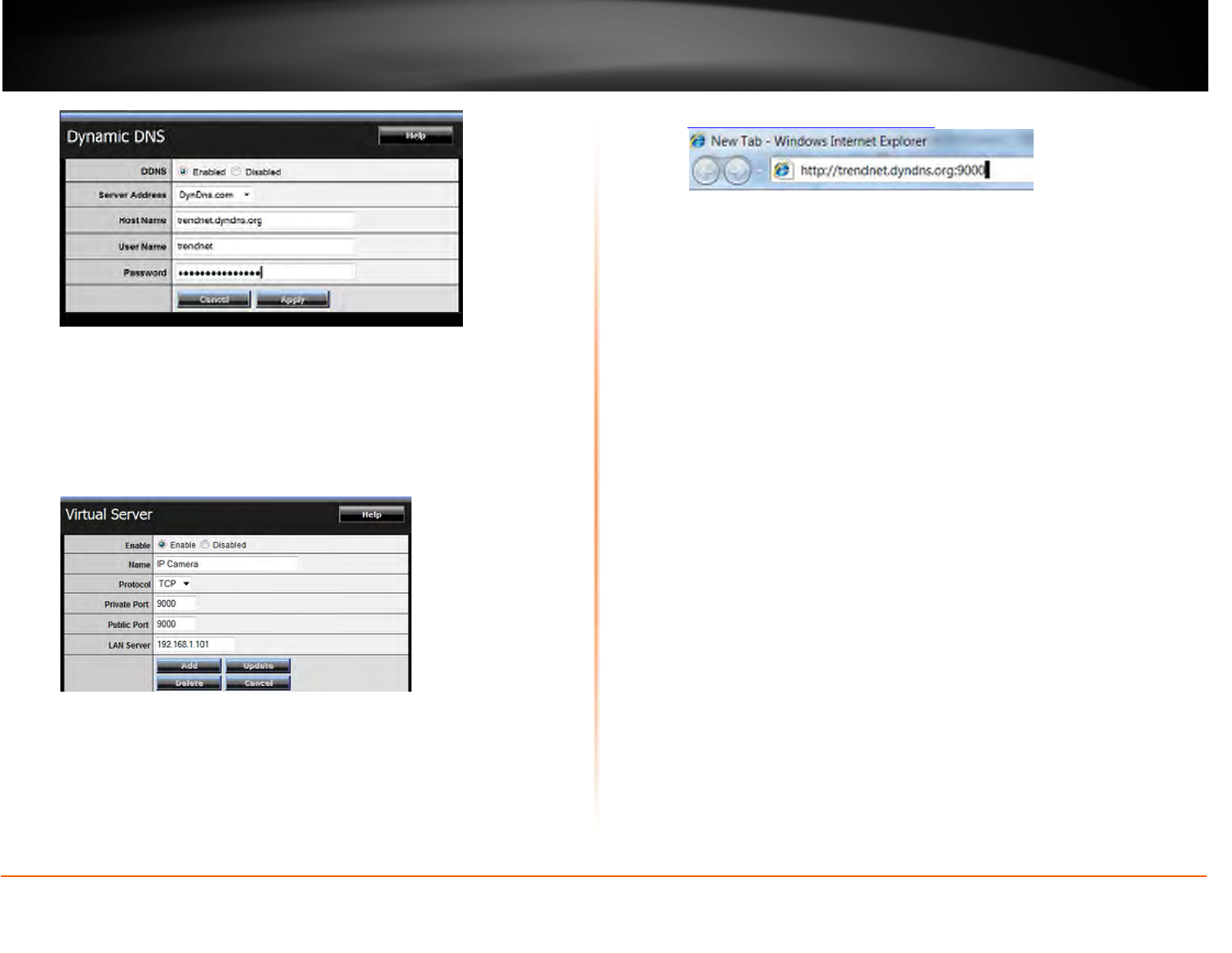

 Dynamic DNS

The Dynamic DNS feature allows you to host a server (e.g. web server, FTP or Game

server) using a domain that you own with a dynamically assigned IP address. Many

ISPs assign IP addresses dynamically i.e. the IP address changes each time you

connect and disconnect. Using a Dynamic DNS service provider, you can connect to

your camera no matter what your IP address. Enter the details of your dynamic DNS

service provider here.

Go to Camera’s DDNS Setting page, click the checkbox to activate the feature. Then

select a DDNS provider from the list.

Enter your DDNS’s the Host Name, User Name and Password, Timeout (in hours)

and Status (this displays the current setting).

Cloud Settings

Click the radio button to Enable or Disable cloud server syncing. Click Apply when

ready.

TRENDnet User’s Guide TV-IP762IC

Cloud Status

Click this link to display Cloud URL and status. Click Refresh to update the status.

Video/Audio – Video and Audio

Video Profile 1/2/3

 Video Resolution: Select from one of the two resolutions. Higher values

provide better quality but at the expense of higher bandwidth requirements on

your network or internet connection.

 Compression Rate: Select a compression rate. Higher rates of compression will

reduce network load at the expense of lower image quality.

 Frame Rate (Frames/Sec.): Select the number of frames per second you would

like for your video. Higher rates provide smoother video but require more

bandwidth on your network or internet connection.

 Video Profile 4: This part caters to mobile devices.

Day/Night Mode

Select a day/night mode from the drop-down menu. These options are Auto, Manual IR,

Always Day Mode, Always Night Mode, and Schedule. For Light Switching select the light

composition from the drop-down list.

Audio Setup

Control the speaker and microphone settings by using the volume drop-down

Video/Audio – Image Setup

Using the Live video feed, you can toggle between the various image settings. They

include: Brightness, Contrast, B/W, Flip (changing the image direction of the camera

angle, White Balance, Saturation, Hue, Mirror, Frequency, and Slow Shutter. If you wish

to reset the values you have toggled, click the Reset to Default button.

TRENDnet User’s Guide TV-IP762IC

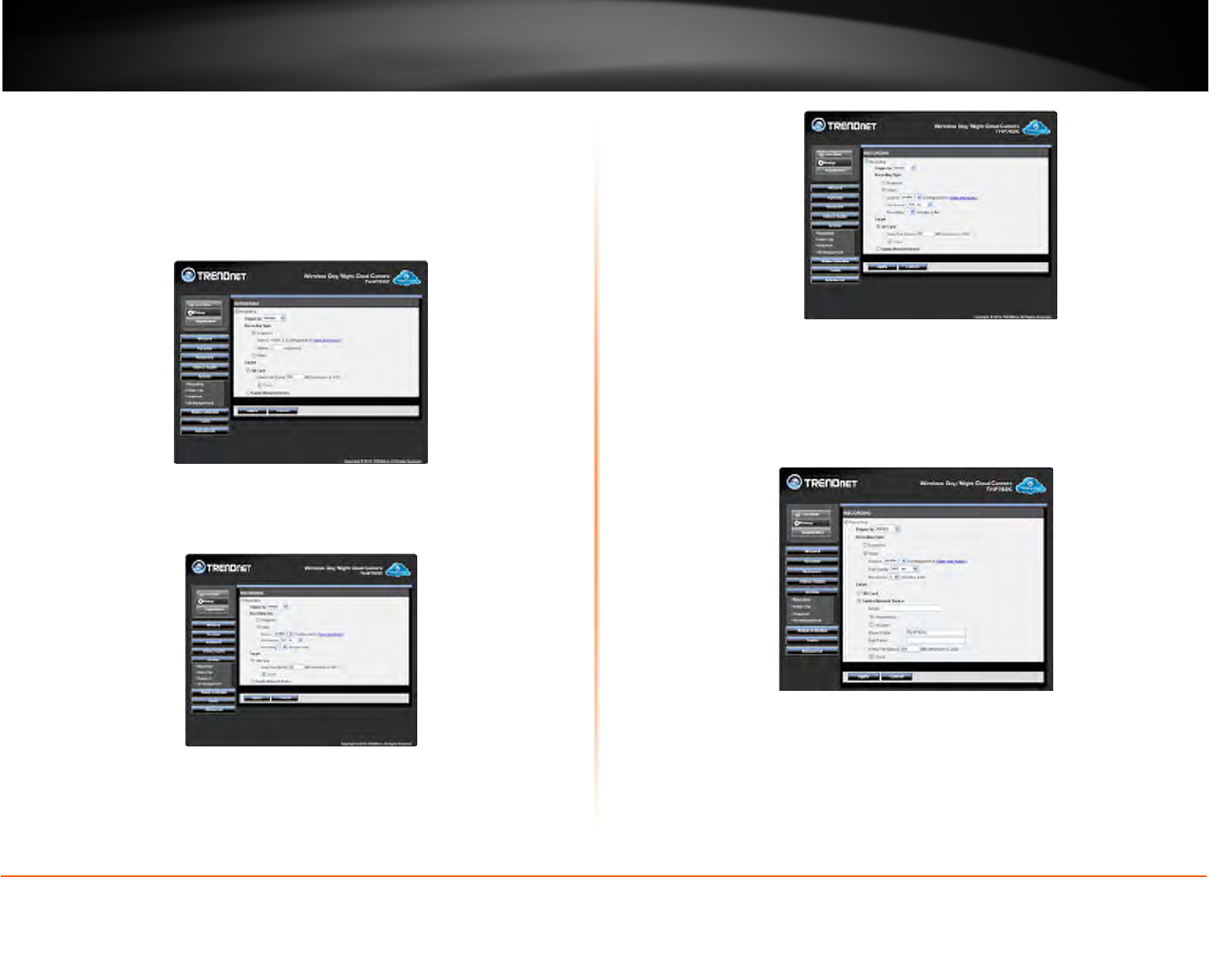

Action

Recording

 Click the checkbox to enable this feature. Select the trigger recording action

from the drop-down list. Select between Always, Motion, or Schedule. For the

Recording type select between a Snapshot or Video. With Snapshot, select the

radio button then select the interval period. Click Apply to complete the

configuration.

 For the Video option, select the source from the drop down menu, select a file

format and then the recording duration

 For the Target directory, select between the SD card and Samba Network

Device. For SD , select the radio button, enter the Free Space amount, and click

the Cyclic checkbox. Click Apply to apply the settings.

 For Samba Network Device, enter the server details in the field provided. If the

account is Anonymous, continue to the Share Folder, Sub Folder (if needed),

the free space, and click Cyclic if you want it continuous. Alternatively, set the

operation to Account, then enter a username and password. Click Apply to save

the settings.

TRENDnet User’s Guide TV-IP762IC

Action

Video Clip

 Click the checkbox to enable this feature. Select the trigger recording action

from the drop-down list. Select between Always, Motion, or Schedule. For the

Video Clip type select the source, File Format, Pre-event Recording time, the

Maximum duration and select the Target. The Target can either be FTP or Email.

With FTP you will need to enter the FTP server, username, password,

path/directory, filename prefix, interval, check Passive Mode and Apply to save.

If you would like to test the service click the Test button to see if it can connect

the FTP server. Alternatively, set the target as Email. With Email, enter the

recipient email address, SMTP Mail Server, the port number (default is 25),

enter the username, password, Sender’s email, interval (600 seconds is default),

and SSL/TLS parameters from the drop-down list. Select from either SSL-TLS or

STARTTLS. Click the Test button to test the data entered. Click Apply once the

settings are acceptable.

Action

Snapshot

 Snapshot takes an instant photo of an event the camera is recording. To take a

snapshot of the camera recording, click the checkbox to enable Snapshot.

Select the trigger recording action from the drop-down list. Select between

Always, Motion, or Schedule from the Trigger drop-down menu. The Snapshot

Type works only for one camera profile. This profile can be configured under

Video and Audio. For the Target, you can select between FTP or Email. With

FTP you will need to enter the FTP server, username, password, path/directory,

filename prefix, interval, check Passive Mode and Apply to save. If you would

like to test the service click the Test button to see if it can connect the FTP

TRENDnet User’s Guide TV-IP762IC

server. Alternatively, set the target as Email. With Email, enter the recipient

email address, SMTP Mail Server, the port number (default is 25), enter the

username, password, Sender’s email, interval (600 seconds is default), and

SSL/TLS parameters from the drop-down list. Select from either SSL-TLS or

STARTTLS. Click the Test button to test the data entered. Click Apply once the

settings are acceptable.

Action

SD Management

SD Management allows users to save or backup video data to an SD card. The program

creates a database of the video. This screen is also the place where you can delete video.

Select the video and click the Delete key. The other option available is to format the SD

Card.

Motion Detection

Motion Detection allows for users to record captured video when it notices motion.

 Motion Detection: Select whether to Enable or Disable motion detection. This

will allow your camera to perform different functions when activity has been

detected in the parts of the screen that you specify.

 Sensitivity: Set a percentage level to determine how sensitive the camera is to

activity.

 Detection Areas: From the live image shown on this screen, you can left-click

on blocks of the grid shown to indicate which parts of the screen you would like

to monitor for motion.

TRENDnet User’s Guide TV-IP762IC

Using the mouse, draw a framed table to select which viewing position is going to be

used to monitor the motion on the camera.

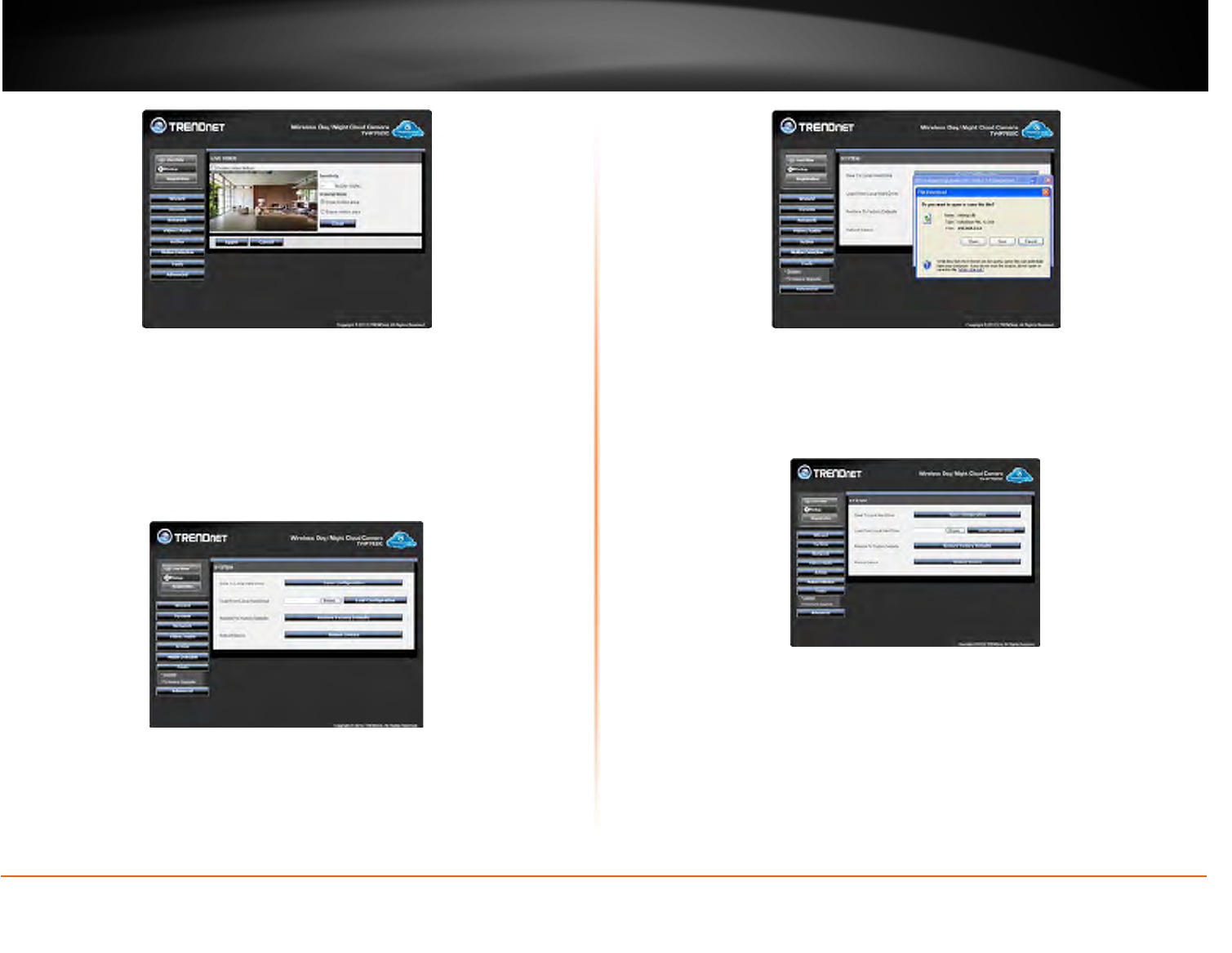

Tools

System

The System panel displays options to adjust and manage the system.

Click the Save Configuration button to copy the system data to your local hard drive.

Click the Save button to save the data.

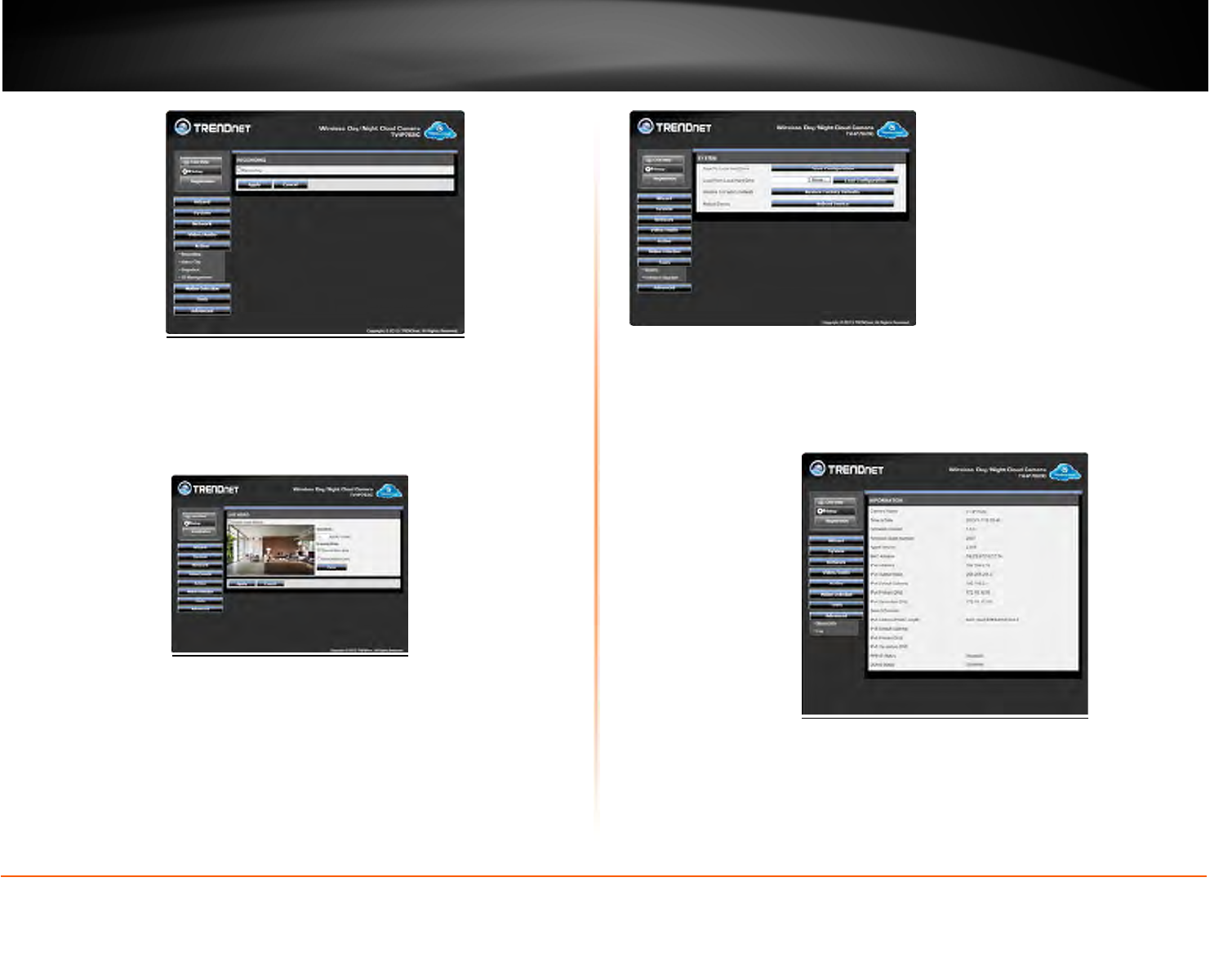

To Load From a Local Hard Drive click the Browse button to find the file on your local

hard drive to load up to the camera. Click Load Configuration. Click the Restore To

Factory Default to return the camera to factory defaults. Click the Reboot Device to

reboot the camera. You will get a warning message to notify you the camera is

rebooting.

Tools

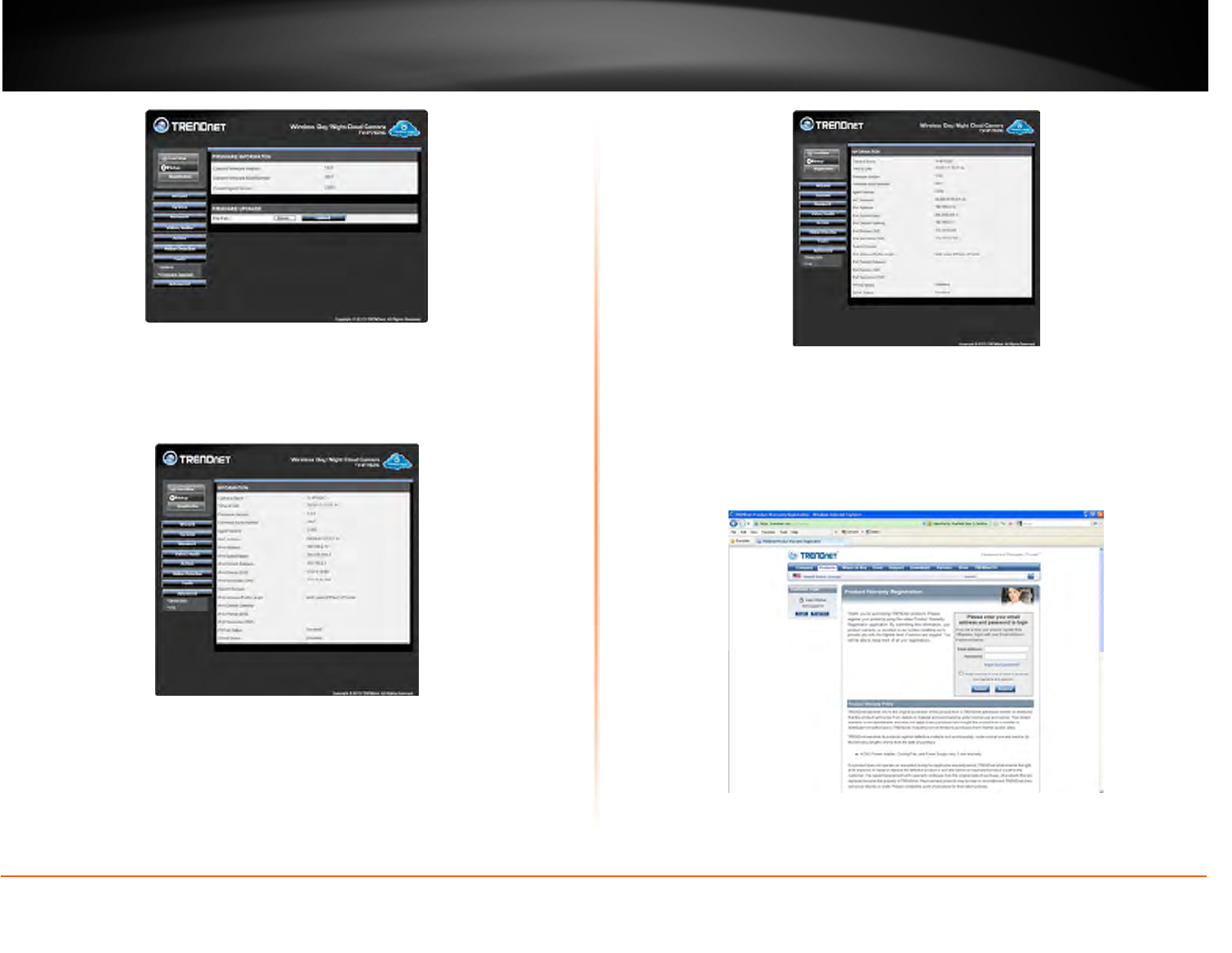

Firmware Upgrade

The Firmware Upgrade panel displays the camera information, the firmware version, the

firmware build number, and the current agent version. To do a firmware upgrade, click

the Browse button to locate the path of the file. Then click the Upload button.

TRENDnet User’s Guide TV-IP762IC

Advanced

Device Info

The information provides all configured data on the camera. To view this data click

Advanced, Device Info.

Advanced

Log

The camera log records the camera’s video activity. Click Clear to clear the log or click

Download to save the log file to a PC

How to Register

Click the Register link. A new browser window will open and you will be prompted to

TRENDnet User’s Guide TV-IP762IC

How to setup/access the camera remotely

You can either setup the Dynamic DNS connection via camera itself or your home router.

An account from any of the listed DDNS providers is required prior to this operation.

Configure DDNS on your Camera

1. Go to Camera’s DDNS Setting page, click Enable to activate the feature. Then

select a DDNS provider from the list.

2. Enter your DDNS’s the Host Name, User Name and Password.

3. In the Port Number section, assign an HTTP port of the camera. The default

HTTP Port on the camera is 80. The example shows above is using port number

9000.

4. Open another web browser and go to your Router’s Web Configuration page.

(In the example, TRENDnet’s TEW-651BR Wireless N router is used)

5. Go to Virtual Server* section and create a new entry.

Enable: Click Enable

Name: Enter the application name (eg. CameraName)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

TRENDnet User’s Guide TV-IP762IC

Then click Add to add the application.

* Please refer to your router’s user’s manual for detail Virtual Server setting.

Some router might use Port Forwarding or Special applications for this

function. The setup steps should be very similar.

6. Open another web browser and enter your DDNS domain and camera’s port

number.

http://yourDomainName:PortNumber

7. Camera’s login page will appear.

Configure DDNS on your router

1. Go to Camera’s DDNS  Ports Number section, assign a HTTP port for your

camera and click Apply.

2. Login to your router’s web configuration page.

3. Find the Dynamic DNS configuration section.

4. Enable DDNS, fill out the following information and then click Apply.

TRENDnet User’s Guide TV-IP762IC

5. Go to Virtual Server* section and create a new entry.

Enable: Click Enable

Name: Enter the application name (eg. Camera Name)

Protocol: Select TCP

Private Port: The HTTP port that you assign on your Camera.

Public Port: The port used on remote side to access to your Camera.

LAN Server: The local IP address of your Camera.

Click Add to add the application.

* Please refer to your router’s user’s manual for detail Virtual Server setting.

Some router might use Port Forwarding or Special applications for this

function. The setup steps should be very similar.

6. Open another web browser and enter your DDNS domain and camera’s port

number.

http://yourDomainName:PortNumber

7. The camera login page will appear.

TRENDnet User’s Guide TV-IP762IC

Technical Specifications

TV-IP762IC

Camera

General Sensor: 1/4” CMOS Sensor

Board Lens

Focal Length: 4 mm

F/No: 1.5

Minimum illumination: 1 lux

Focus Depth: 20 cm ~ infinity

View:

Horizontal: 52°

Vertical: 40°

Diagonal: 65°

Digital Zoom: 4x

Audio Built-in omni-directional microphone

Sensitivity: -42dB +/- 3dB (5 meters max.)

Frequency: 50~16000Hz

S/N: >58dB

Format: PCM/ ADPCM/AAC

Hardware

Network IEEE 802.3u 10/100Mbps Fast Ethernet

LED Power, Link/Act

WPS Button Enable WPS connection

Reset Button Reset to factory default

Power

Consumption

Max. 5 watts

Power Input: 100~240V 50/60Hz 0.2A

Output: 5V, 1A external power adapter

Dimension 75 x 115 x 30 mm (2.95 x 4.5 x 1.2 in.)

Weight 110 g (3.8 oz)

Temperature Operating: 0C ~ 40C (32F ~ 104F)

Storage: -25C ~ 70C (5F ~ 95F)

Humidity Max. 90% (non-condensing)

Certifications CE, FCC, BVD, Anatel

Requirement

Management

Interface

Internet Explorer 7.0 or higher

Firefox 12 or higher

Safari 4.0 or higher

Google Chrome 19.0 or higher

To Run software Windows 8, Windows 7 (32/64-bit), Vista (32/64-bit), XP

(32/64-bit)

Windows Server 2003, 2008

SecurView Pro

Software

Channel: supports up to 32 cameras

Record/Playback/Motion Detection/Audio

Network

Protocols

IPv4, ARP, TCP, UDP, ICMP

DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP

Client, FTP Client, HTTP, PPPoE, UPnP, RTP, RTCP, RTSP

Wireless

Standard IEEE 802.11b, 802.11g and 802.11n

Frequency 2.4 ~ 2.497 GHz ISM band

Modulation DQPSK, DBPSK, DSSS and CCK

TRENDnet User’s Guide TV-IP762IC

Antenna Built-in 1.3 dBi antenna

Data Rate 802.11b: up to 11 Mbps

802.11g: up to 54 Mbps

802.11n: up to 150 Mbps

Security 64/128-bit WEP, WPA/WPA2-PSK

Output Power 802.11b: 17 dBm (typical)

802.11g: 14.5 dBm (typical)

802.11n: 14.5 dBm (typical)

Receiving

Sensitivity

802.11b: -89 dBm at 11 Mbps

802.11g: -74 dBm at 54 Mbps

802.11n: -71 dBm at 150 Mbps

Channels 1~11 (FCC), 1~13 (ETSI)

Management

Accounts Up to 20 user accounts

Remote Login Remote management supported

Backup / Restore

Save/retrieve configuration files

Cloud Link Display status and URL, enable / disable, refresh

Settings

Image Brightness, contrast, saturation, light frequency, flip,

mirror (horizontal/vertical)

Video Setting Encoding: H.264/MJPEG

1. Resolution and frame rate: VGA@20fps, QVGA@30fps,

QQVGA@30fps

2. JPEG quality: Very Low, Low, Medium (default), High,

Very High

Recording event based (motion detection) and scheduled

Snapshot Trigger event: motion detection

Action: send alert email and/or upload to FTP

real time snapshot

Port Settings HTTP port: 80 (default)

RTSP PORT 554 (default)

Time Synchronize with NTP server or PC, or set time/date

manually

Troubleshooting

1. The Power LED and Ethernet Activity LED do not light up.

The power supply or camera might be faulty. Check that the connection to both

the power source and the terminal on the back of the camera are secure and

that you are using the provided power supply. If the camera is otherwise

functioning correctly, the LEDs might have been disabled in the configuration.

See the section of this guide on Configuration of System settings.

2. The camera can’t be accessed or access is slow

There might be a problem with the network cable. To confirm that the cables

are working, ping the address of a known device on the network. If the cabling

is OK and your network is reachable, you should receive a reply similar to the

following (…bytes = 32 time = 2 ms).

Another possible problem may be that the network device such as a hub or

switch utilized by the Network Camera is not functioning properly. Please

confirm the power for the devices are well connected and functioning properly.

3. The camera can be accessed locally but not remotely

This might be caused by a firewall. Check the Internet firewall with your system

administrator. The firewall may need to have some settings changed in order

for the Network Camera to be accessible outside your local LAN. For more

information, please refer to the section about installing your camera behind a

router.

TRENDnet User’s Guide TV-IP762IC

Make sure that the Network Camera isn’t conflicting with any Web server you

may have running on your network.

The default router setting might be a possible reason. Check that the

configuration of the router settings allow the Network Camera to be accessed

outside your local LAN.

4. White vertical lines appear on the image from the camera

It could be that the CMOS sensor (a square panel situated behind the lens

that measures the light signals and changes it into a digital format so your

computer can present it into an image that you are familiar with) has become

overloaded when it has been exposed to bright lights such as direct exposure

to sunlight or halogen lights. Reposition the Network Camera into a more

shaded area immediately as prolonged exposure to bright lights will damage

the CMOS sensor.

5. The camera images are ‘noisy’

Often if the camera is in a low-light environment, the images can contain a lot

of noise. Try enabling Night mode and see if that improves the image quality.

Otherwise, try to use the camera in a location where there is a bit more light.

6. The camera images are of poor quality.

Make sure that your computer’s display properties are set to at least 16-bit

color. Using 16 or 256 colors on your computer will produce dithering artifacts

in the image, making the image look as if it is of poor quality.

Try also adjusting the brightness, contrast, saturation, light frequency and anti-

flicker controls on the Video Settings under the Configuration menu. You may

also consider adjusting the resolution of the camera and the compression rate

to improve the image.

7. Video can’t be viewed through the web browser interface.

ActiveX might be disabled. If you are viewing the images from Internet Explorer

make sure ActiveX has been enabled in the Internet Options menu. You may also

need to change the security settings on your browser to allow the ActiveX plug-

in to be installed.

If you are using Internet Explorer with a version number lower than 6, then you

will need to upgrade your Web browser software in order to view the

streaming video transmitted by the Network Camera. Try also viewing the

video using Java. Ensure that you have the latest version of Java installed

before you do. Go to www.java.com for more information.

以下警語適用台灣地區

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得

擅自變更頻率、加大功率或變更原設計之特性及功能。

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，

應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作

業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射

性電機設備之干擾

TRENDnet User’s Guide TV-IP762IC

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this equipment.

IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to

channels 1 through 11.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC.

The following test methods have been applied in order to prove presumption of

conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

EN 60950-1: 2006 +A11:2009 +A1: 2010 +A12: 2011

Safety of Information Technology Equipment

EN 62311: 2008

Assessment of electronic and electrical equipment related to human exposure

restrictions for electromagnetic fields (0 Hz-300 GHz)

(IEC 62311:2007 (Modified))

EN 300 328 V1.7.1: (2006-10)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband

Transmission systems; Data transmission equipment operating in the 2,4 GHz ISM band

and using spread spectrum modulation techniques; Harmonized EN covering essential

requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 V1.9.2: 2011

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 1: Common

technical requirements

EN 301 489-17 V2.1.1 (2009-05)

Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic

Compatibility (EMC) standard for radio equipment and services; Part 17: Specific

conditions for 2,4 GHz wideband transmission systems

This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in

all EU member states and EFTA countries, except in France and Italy where restrictive

use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in

order to obtain authorization to use the device for setting up outdoor radio links and/or

for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some

areas the RF output power may be limited to 10 mW EIRP in the frequency range of

2454 – 2483.5 MHz. For detailed information the end-user should contact the national

spectrum authority in France.

TRENDnet User’s Guide TV-IP762IC

Česky [Czech]

TRENDnet tímto prohlašuje, že tento TV-IP762IC je ve shodě se

základními požadavky a dalšími příslušnými ustanoveními

směrnice 1999/5/ES.

Dansk

[Danish]

Undertegnede TRENDnet erklærer herved, at følgende udstyr TV-

IP762IC overholder de væsentlige krav og øvrige relevante krav i

direktiv 1999/5/EF.

Deutsch

[German]

Hiermit erklärt TRENDnet, dass sich das Gerät TV-IP762IC in

Übereinstimmung mit den grundlegenden Anforderungen und

den übrigen einschlägigen Bestimmungen der Richtlinie

1999/5/EG befindet.

Eesti

[Estonian]

Käesolevaga kinnitab TRENDnet seadme TV-IP762IC vastavust

direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist

tulenevatele teistele asjakohastele sätetele.

English Hereby, TRENDnet, declares that this TV-IP762IC is in compliance

with the essential requirements and other relevant provisions of

Directive 1999/5/EC.

Español

[Spanish]

Por medio de la presente TRENDnet declara que el TV-IP762IC

cumple con los requisitos esenciales y cualesquiera otras

disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ TRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TV-IP762IC

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ

ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.

Français

[French]

Par la présente TRENDnet déclare que l'appareil TV-IP762IC est

conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE.

Italiano

[Italian]

Con la presente TRENDnet dichiara che questo TV-IP762IC è

conforme ai requisiti essenziali ed alle altre disposizioni pertinenti

stabilite dalla direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo TRENDnet deklarē, ka TV-IP762IC atbilst Direktīvas

1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

noteikumiem.

Lietuvių

[Lithuanian]

Šiuo TRENDnet deklaruoja, kad šis TV-IP762IC atitinka esminius

reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.

Nederlands

[Dutch]

Hierbij verklaart TRENDnet dat het toestel TV-IP762IC in

overeenstemming is met de essentiële eisen en de andere

relevante bepalingen van richtlijn 1999/5/EG.

Malti

[Maltese]

Hawnhekk, TRENDnet, jiddikjara li dan TV-IP762IC jikkonforma

mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li

hemm fid-Dirrettiva 1999/5/EC.

Magyar

[Hungarian]

Alulírott, TRENDnet nyilatkozom, hogy a TV-IP762IC megfelel a

vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv

egyéb elõírásainak.

Polski

[Polish]

Niniejszym TRENDnet oświadcza, że TV-IP762IC jest zgodny z

zasadniczymi wymogami oraz pozostałymi stosownymi

postanowieniami Dyrektywy 1999/5/EC.

Português

[Portuguese]

TRENDnet declara que este TV-IP762IC está conforme com os

requisitos essenciais e outras disposições da Directiva 1999/5/CE.

Slovensko

[Slovenian]

TRENDnet izjavlja, da je ta TV-IP762IC v skladu z bistvenimi

zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.

Slovensky

[Slovak]

TRENDnet týmto vyhlasuje, že TV-IP762IC spĺňa základné

požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.

Suomi

[Finnish]

TRENDnet vakuuttaa täten että TV-IP762IC tyyppinen laite on

direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien

direktiivin muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar TRENDnet att denna TV-IP762IC står I

överensstämmelse med de väsentliga egenskapskrav och övriga

relevanta bestämmelser som framgår av direktiv 1999/5/EG.

Limited Warranty TRENDnet warrants its products against defects in material and workmanship, under

normal use and service, for the following lengths of time from the date of purchase.

TRENDnet User’s Guide Limited Warranty

TV-IP762IC– 3 Years Warranty

AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.

If a product does not operate as warranted during the applicable warranty period,

TRENDnet shall reserve the right, at its expense, to repair or replace the defective

product or part and deliver an equivalent product or part to the customer. The

repair/replacement unit’s warranty continues from the original date of purchase. All

products that are replaced become the property of TRENDnet. Replacement products

may be new or reconditioned. TRENDnet does not issue refunds or credit. Please

contact the point-of-purchase for their return policies.

TRENDnet shall not be responsible for any software, firmware, information, or memory

data of customer contained in, stored on, or integrated with any products returned to

TRENDnet pursuant to any warranty.

There are no user serviceable parts inside the product. Do not remove or attempt to

service the product by any unauthorized service center. This warranty is voided if (i) the

product has been modified or repaired by any unauthorized service center, (ii) the

product was subject to accident, abuse, or improper use (iii) the product was subject to

conditions more severe than those specified in the manual.

Warranty service may be obtained by contacting TRENDnet within the applicable

warranty period and providing a copy of the dated proof of the purchase. Upon proper

submission of required documentation a Return Material Authorization (RMA) number

will be issued. An RMA number is required in order to initiate warranty service support

for all TRENDnet products. Products that are sent to TRENDnet for RMA service must

have the RMA number marked on the outside of return packages and sent to TRENDnet

prepaid, insured and packaged appropriately for safe shipment. Customers shipping

from outside of the USA and Canada are responsible for return shipping fees. Customers

shipping from outside of the USA are responsible for custom charges, including but not

limited to, duty, tax, and other fees.

WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, THE CUSTOMER’S SOLE REMEDY SHALL BE, AT TRENDNET’S

OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE

EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR

IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE

OR USE OF TRENDNET’S PRODUCTS.

TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND

EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST

OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT,

IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR

MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO

EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN

CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,

INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR

PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL

LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY

OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND

OF THE PURCHASE PRICE PAID, AT TRENDNET’S OPTION. THIS DISCLAIMER OF LIABILITY

FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL

OF ITS ESSENTIAL PURPOSE.

Governing Law: This Limited Warranty shall be governed by the laws of the state of

California.

Some TRENDnet products include software code written by third party developers.

These codes are subject to the GNU General Public License ("GPL") or GNU Lesser

General Public License ("LGPL").

Go to http://www.trendnet.com/gpl or http://www.trendnet.com Download section

and look for the desired TRENDnet product to access to the GPL Code or LGPL Code.

These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of

the developers. TRENDnet does not provide technical support for these codes. Please go

to http://www.gnu.org/licenses/gpl.txt or http://www.gnu.org/licenses/lgpl.txt for

specific terms of each license.

V1.0R / 4.25.2012

TRENDNET TVIP562-762 Wireless HD Day/Night Cloud Camera User Manual TV IP762IC UserMan

TRENDNET, Inc. Wireless HD Day/Night Cloud Camera TV IP762IC UserMan

Contents

(TV-IP762IC)UserMan

Navigation menu

Namespaces

Views

Navigation
