TRENDNET TW100-S4W1CA 4-PORT CABLE / DSL BROADBAND ROUTER User Manual USERS MANUAL
TRENDNET, INC. 4-PORT CABLE / DSL BROADBAND ROUTER USERS MANUAL
TRENDNET >
USERS MANUAL
LKR-604
About This Manual
Congratulations on your purchase of the LKR-604 4-port Cable/DSL
Broadband Router. This device integrates 100Mbps Fast Ethernet
and 10Mbps Ethernet network capabilities. This router is a complete
solution for sharing the Broadband Internet connection and other
office resources.
Purpose
This manual discusses how to install the LKR-604 4-port Broadband
Router and gives an overview of this User’s Manual.
Introduction
Describes the LKR-604 Broadband Router and its features.
Unpacking and Setup
Helps you get started with the basic installation of the Router.
Identifying External Components
Describes the front panel, rear panel, and LED indicators of the
Router.
Connecting the Router
Explains how you connect the LKR-604 Broadband Router to your
Cable/DSL Modem.
Technical Specifications
Lists the technical (general, physical, environmental, performance
and Routers settings) specifications of the Broadband Router.
LKR-604
Introduction
The LKR-604 is a 4-port Ethernet Broadband Router. It enables users
quickly and easily sharing a single high-speed Internet connection as
well as sharing information and resources such as files and printers with
a built-in 4-port 10/100 Switch. The LKR-604 also incorporates many
advanced features, traditionally found in more expensive routers.
This manual is designed to help you connect the LKR-604 4-port
Ethernet Broadband Router to a high-speed Internet connection and 4
wired-Ethernet PCs connect to a built-in 4-port 10/100 Switch.
This manual provides a quick introduction to Ethernet Broadband router
technology, Firewalls, and Local Area Networking. Please take a
moment to read through this manual and get acquainted with these
various technologies.
Check Package Contents
z LKR-604 Ethernet Broadband Router
z Quick Installation Guide
z User’s Manual CD-ROM
z 1 X RJ-45 Ethernet Cable
z Power Adapter
Installation Requirements
z A computer with a wired network adapter properly installed
z Broadband Internet Connection
z Installed Cable or DSL Modem
z Web Brower: Internet Explorer (5.0 or higher)
LKR-604
Applications
• Local Network Access
The LKR-604 Broadband Router provides connectivity to 10/100 Mbps
wired-Ethernet devices that making it easy to create a network in small
offices or homes.
• Internet Access
The LKR-604 supports Broadband Internet access through a CABLE
or DSL connection. Since many DSL providers use PPPoE to establish
communications with end users, the LKR-604 includes a built-in client
for these protocols, eliminating the need to install these services on
your computer.
• Shared Internet Connection
The LKR-604 shares a single Broadband Internet connection using only
one ISP account, multiple users on your network can access the
Internet at the same time.
• Virtual Server
If you have a static public IP address, you can set the LKR-604 to act as
a virtual host for network address translation. Remote users access
various services at your site using a static IP address. Then, depending
on the requested service (or port number), the LKR-604 routes the
request to the appropriate server (at a local private IP address). This
secures your network from direct attack by hackers, and provides more
flexible management by allowing you to change internal private IP
addresses without affecting outside access to your network.
LKR-604
• DMZ Host Support
Allows a networked computer to be fully exposed to the Internet. This
function is used when NAT or Firewall security prevent the special
application feature from functioning correctly.
• Virtual Private Network (VPN)
The LKR-604 supports most commonly used VPN protocols — PPTP
and IPSec. These protocols allow remote users to establish a secure
VPN connection over the Internet to their corporate network. If your
Internet service provider supports PPTP and IPSec protocols, then
these protocols can be used to create an authenticated and encrypted
VPN tunnel for passing secure data over the Internet (i.e., a traditionally
shared data network).
LKR-604
Features and Benefits
High-speed data transfer rate
Supports NAT (sharing one IP address with all LAN users)
Supports PPPoE and PPTP protocol for Dial-Up ADSL
Supports DHCP Server / Client
Supports UPnP (Universal Plug and Play)
Supports virtual server mapping
Supports VPN PPTP and IPSec pass-through
Supports packet filtering
Simple Firewall protection
Upgradeable firmware for future functions
Easy setup via Web Browser.
LKR-604
T
TA
AB
BL
LE
E
O
OF
F
C
CO
ON
NT
TE
EN
NT
TS
S
HARDWARE DESCRIPTION..............................................................................1
FRONT PANEL ..................................................................................................1
POWER..........................................................................................................1
STATUS..........................................................................................................1
WAN...............................................................................................................2
LAN (LINK/ACT)..............................................................................................2
REAR PANEL ....................................................................................................2
WAN...............................................................................................................2
LAN (1-4)........................................................................................................3
RESET ...........................................................................................................3
POWER............................................................................................................3
HARDWARE CONNECTIONS............................................................................4
CONNECT THE LKR-604 INTERNET BROADBAND ROUTER..................................4
CHECK THE INSTALLATION ................................................................................5

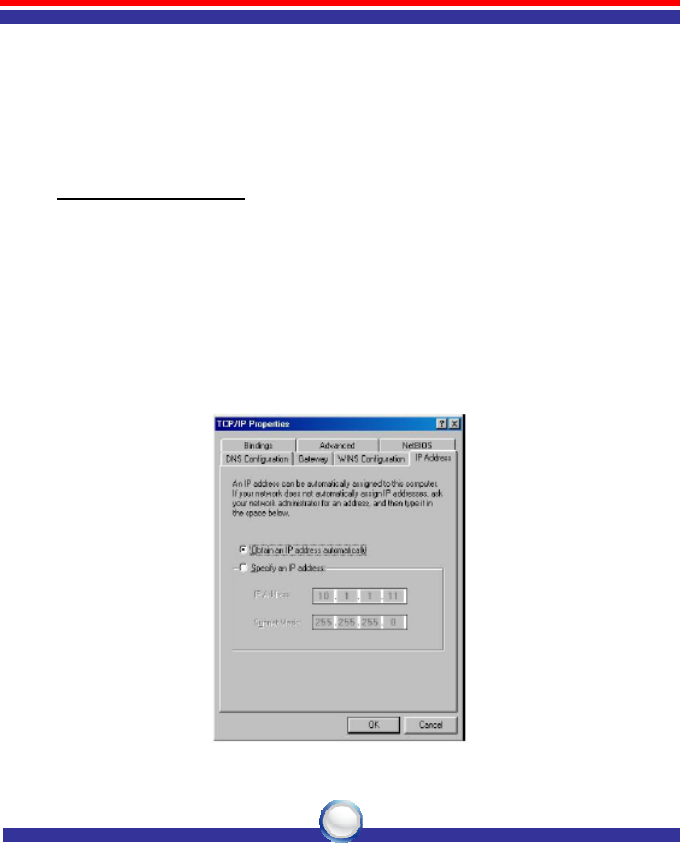

CONFIGURING PC NETWORK TCP/IP SETTINGS..........................................6

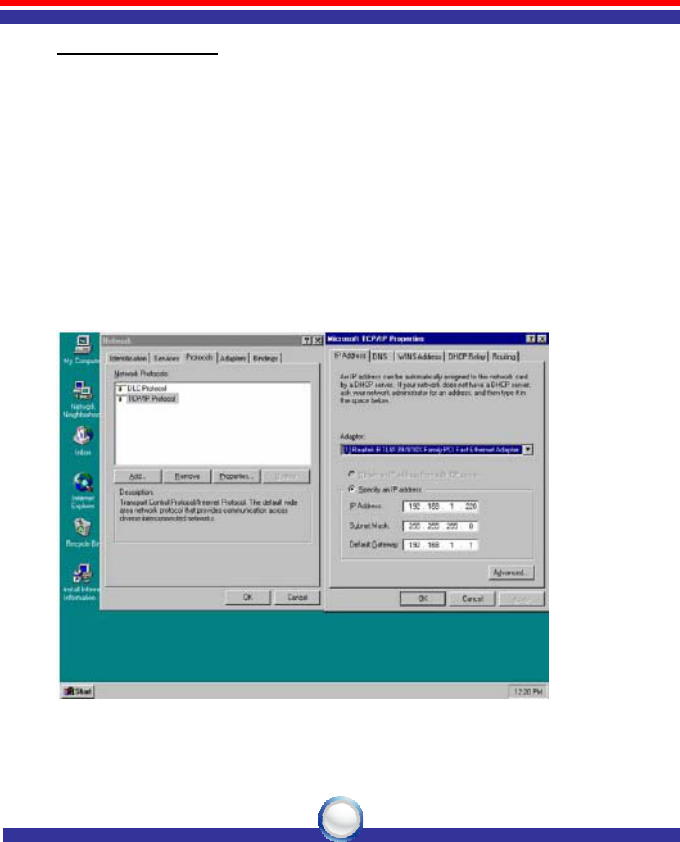

WINDOWS 95/98/ME........................................................................................6

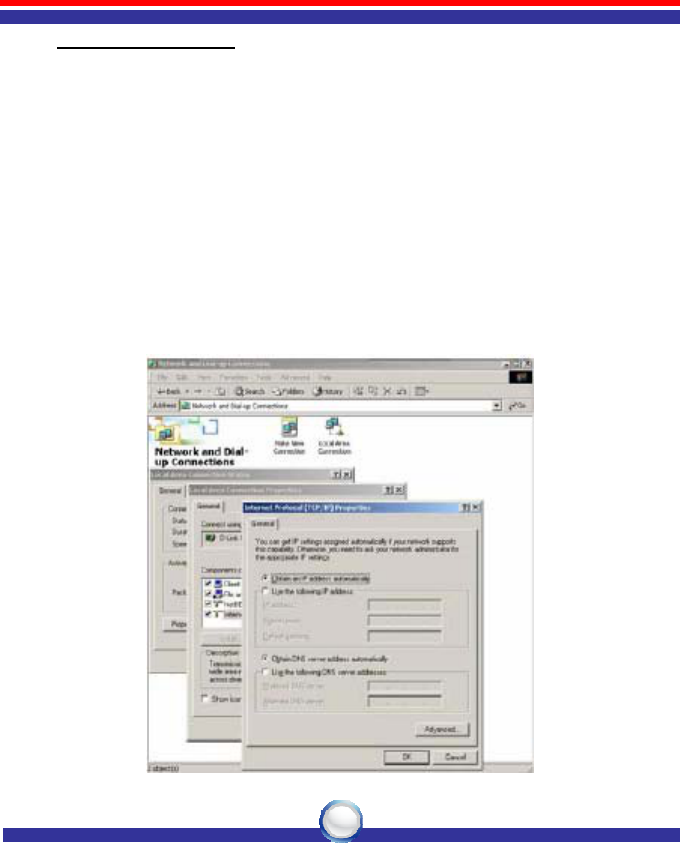

WINDOWS XP/2000 .........................................................................................8

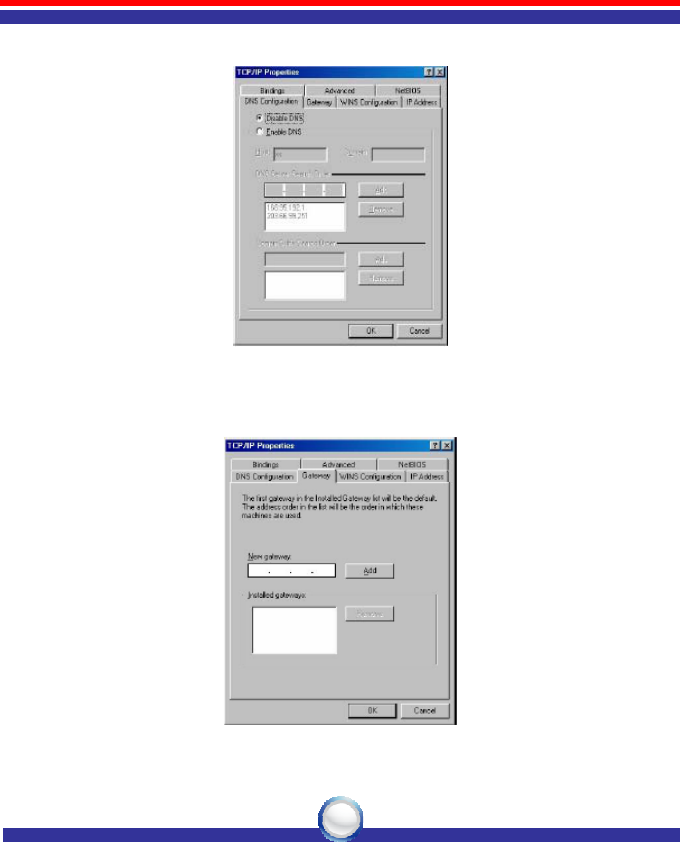

WINDOWS NT 4.0.............................................................................................9

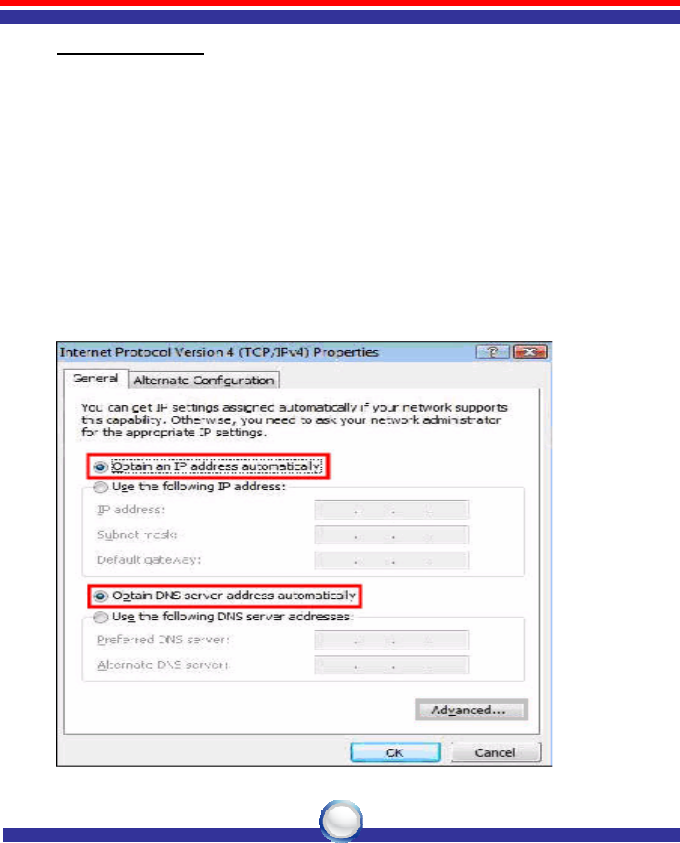

WINDOWS VISTA ............................................................................................10
NETWORK SETTINGS .....................................................................................11
FOR EXAMPLE: ...............................................................................................11
DISABLE HTTP PROXY................................................................................... 11
CONFIGURING THE LKR-604 .........................................................................12

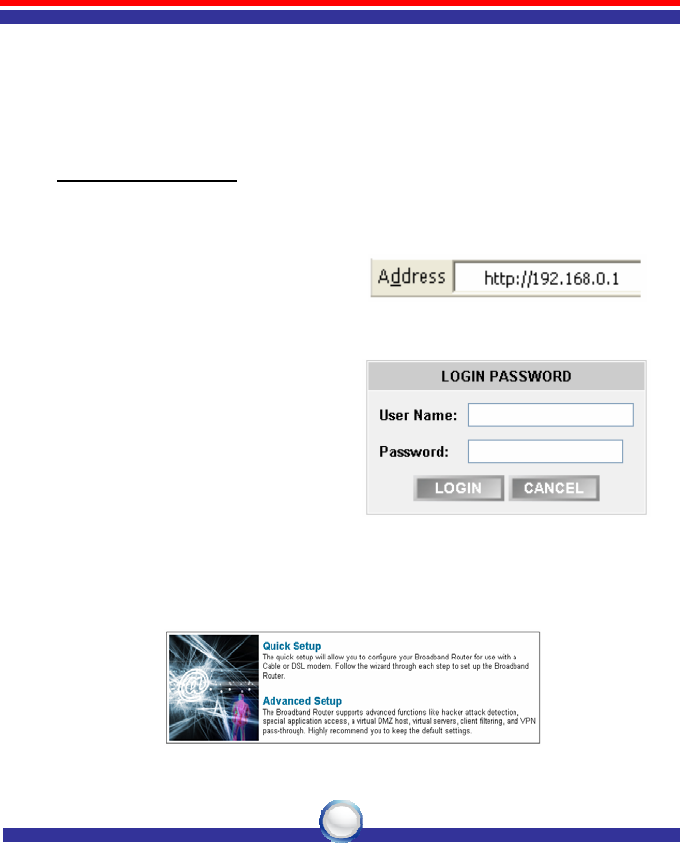

STARTUP AND LOGIN ......................................................................................12
QUICK SETUP ..................................................................................................13

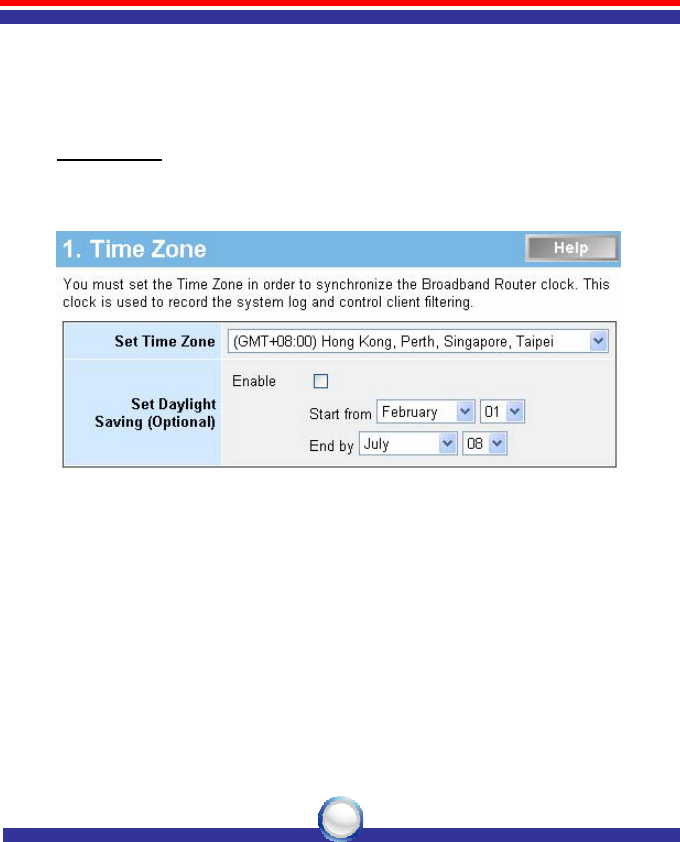

TIME ZONE.....................................................................................................13

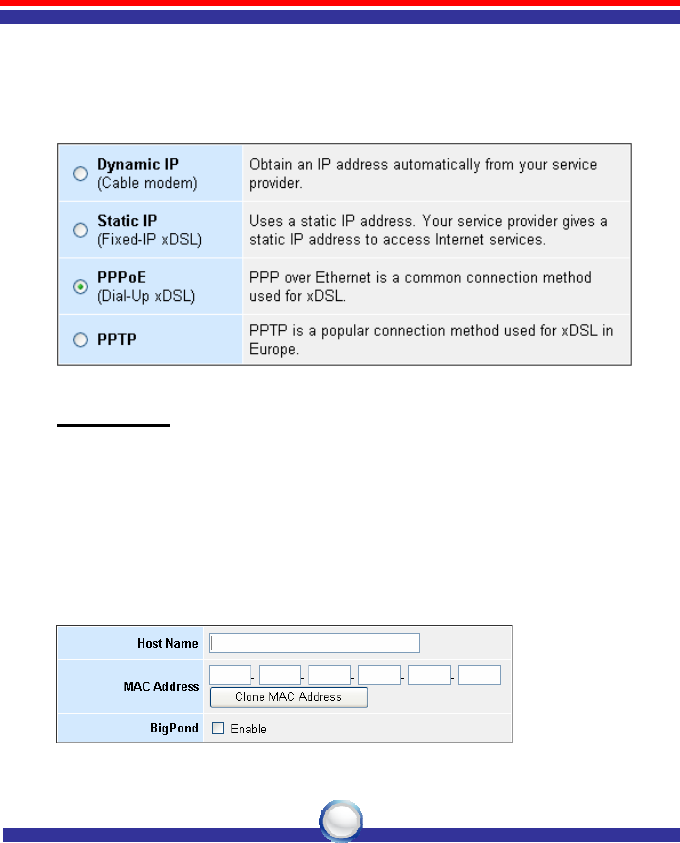

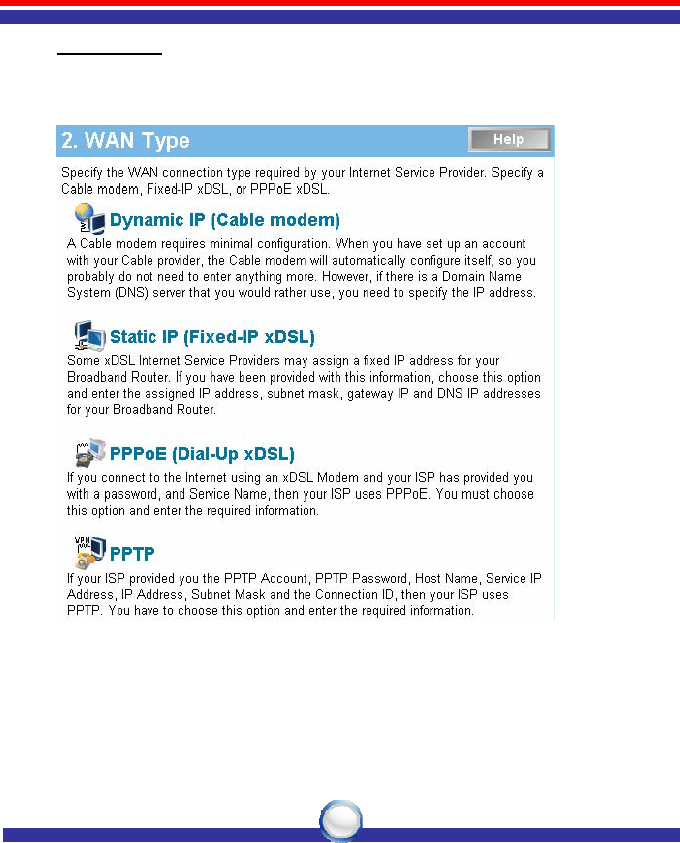

WAN TYPE ....................................................................................................14
DYNAMIC IP (CABLE MODEM) .........................................................................15

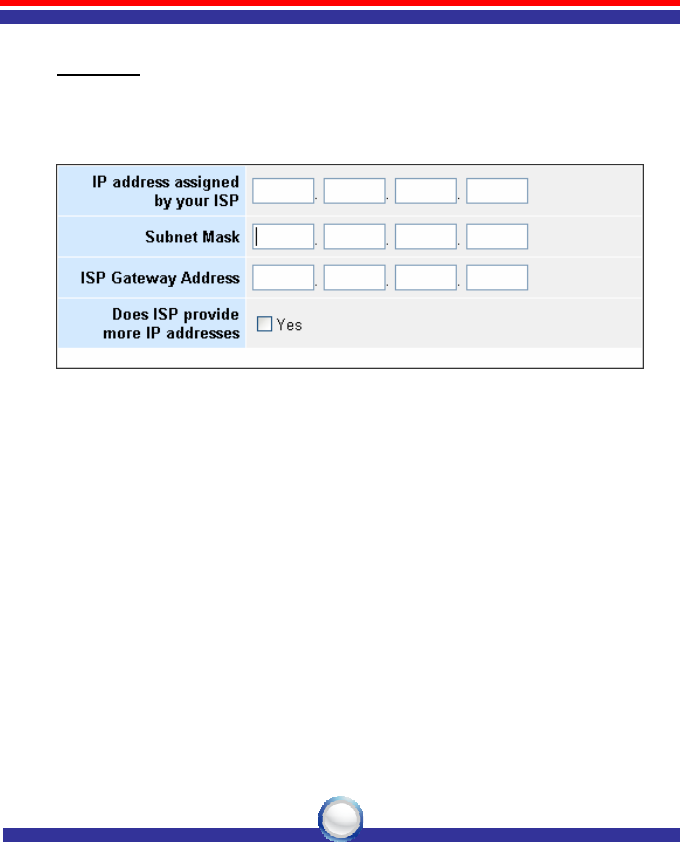

STATIC IP (FIXED-IP XDSL) ............................................................................15

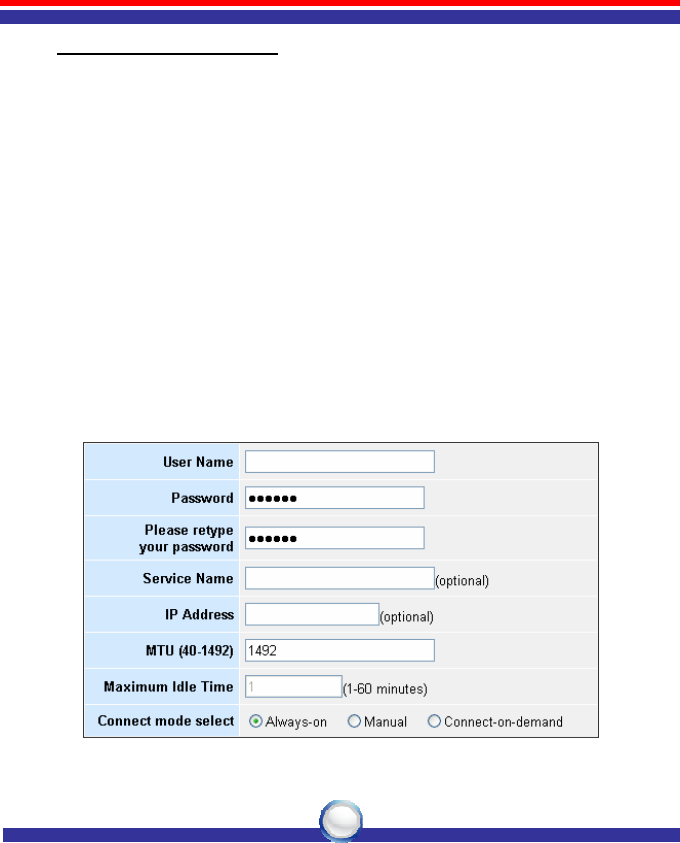

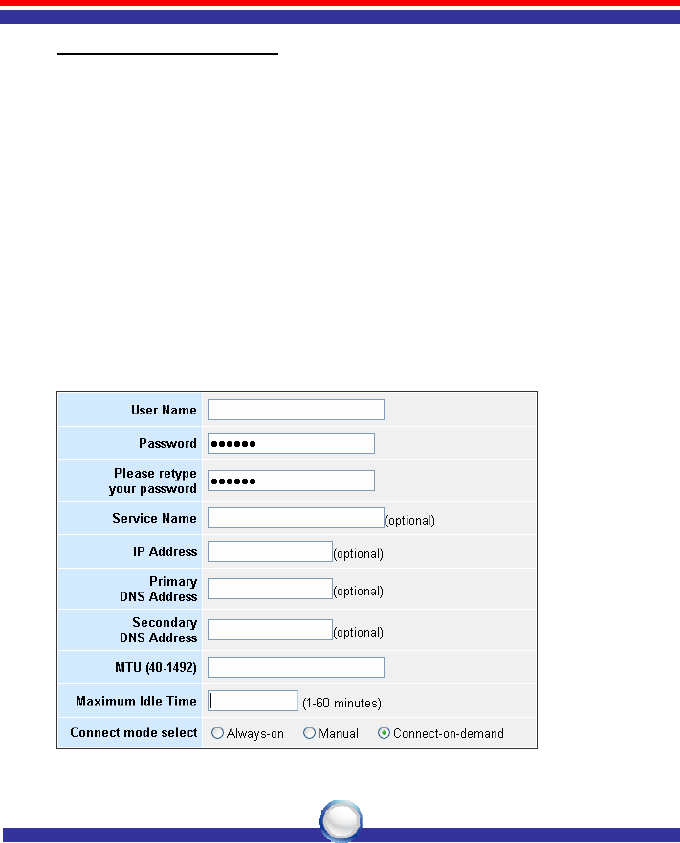

PPPOE (DIAL-UP XDSL)................................................................................16

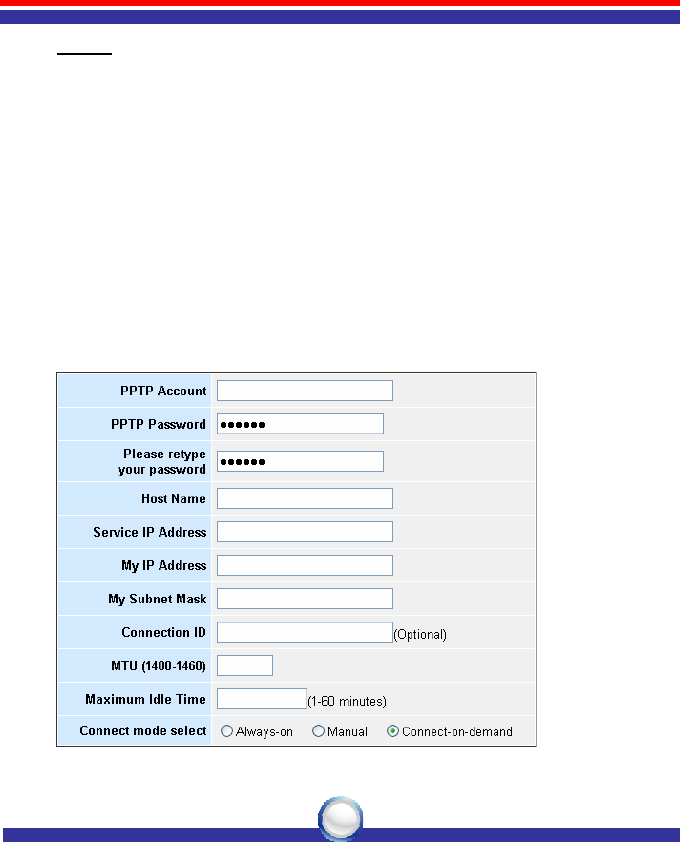

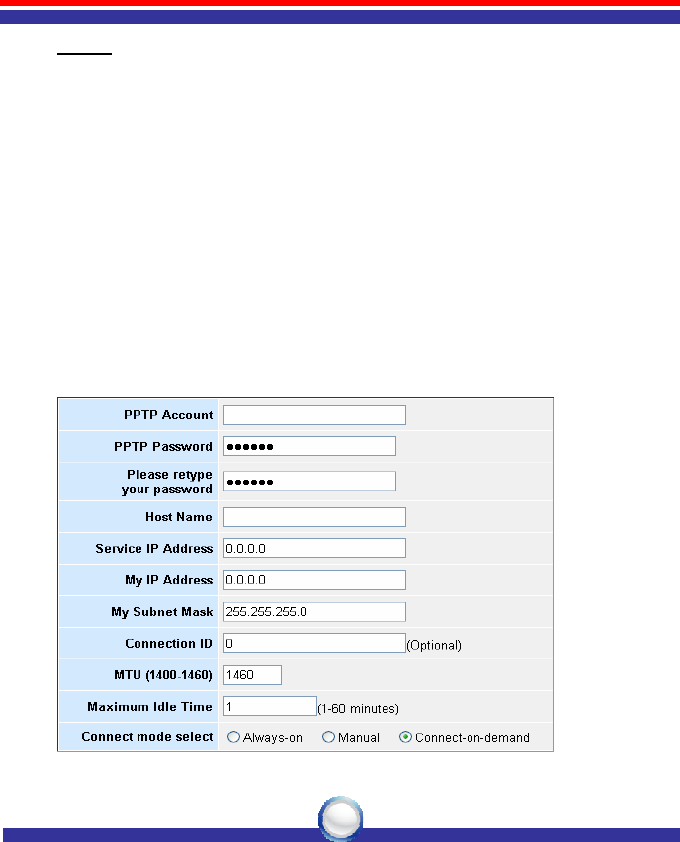

PPTP............................................................................................................17

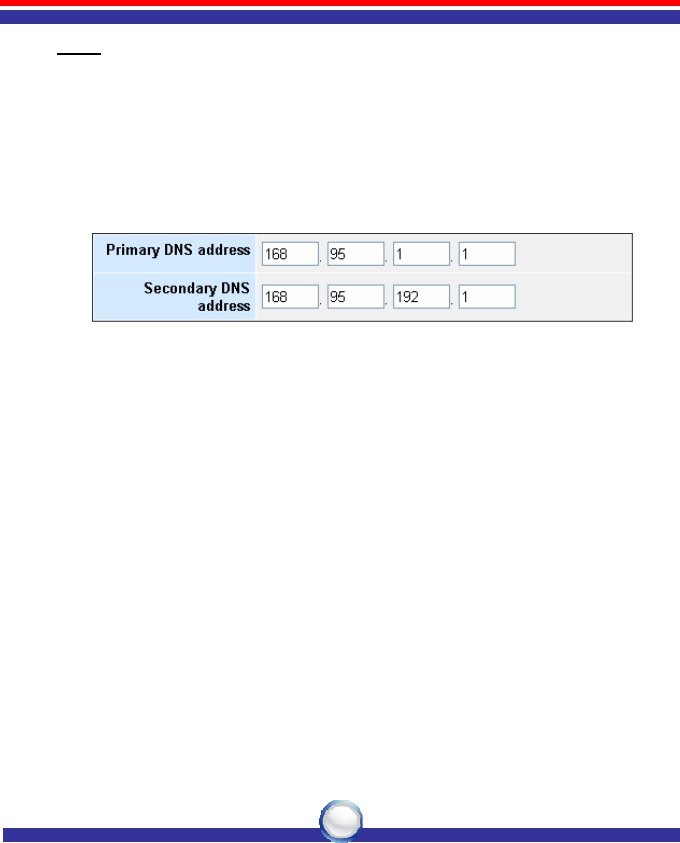

DNS..............................................................................................................18
LKR-604
ADVANCED SETUP..........................................................................................19

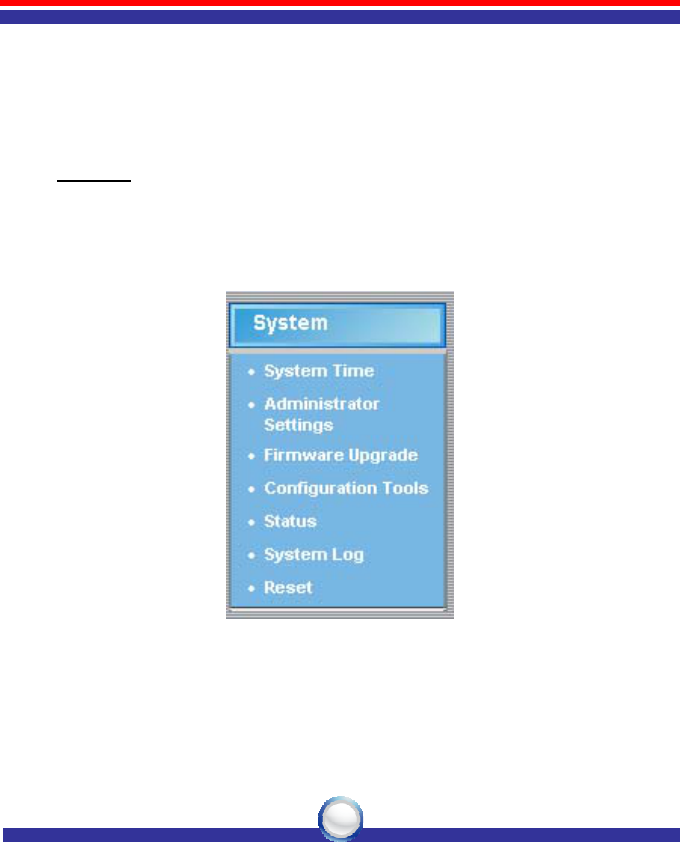

SYSTEM.........................................................................................................19

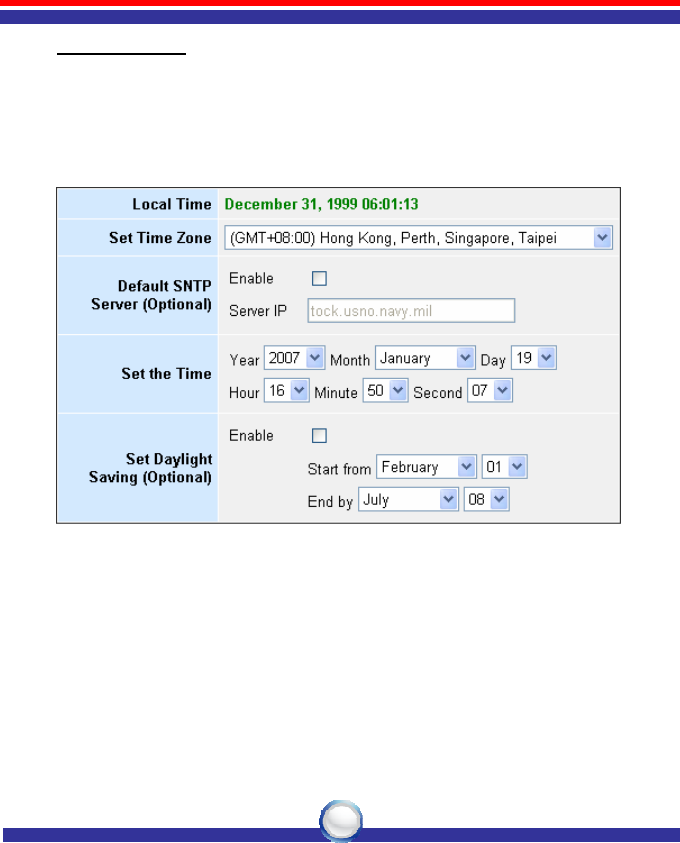

SYSTEM TIME.................................................................................................20

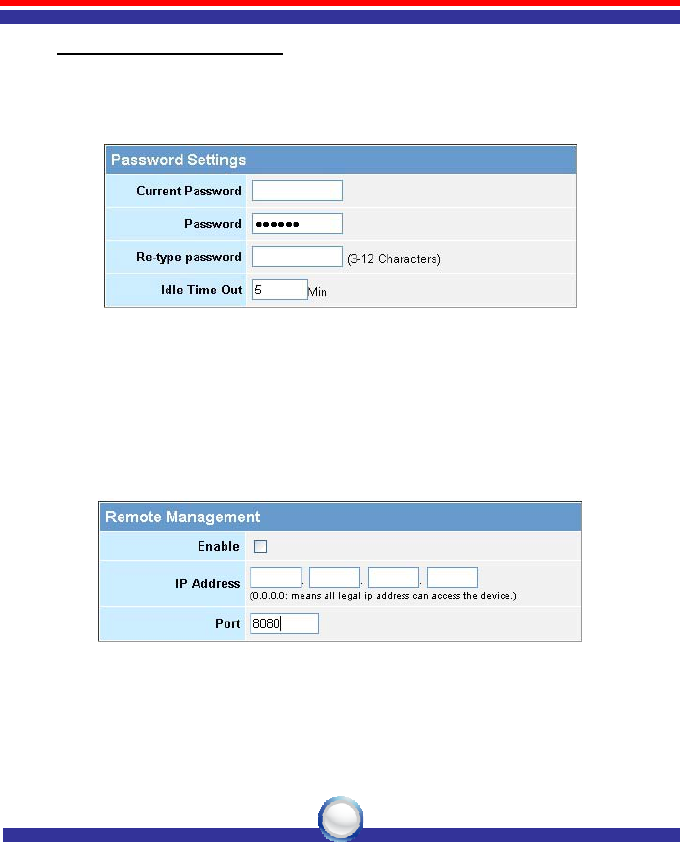

ADMINISTRATOR SETTINGS .............................................................................21

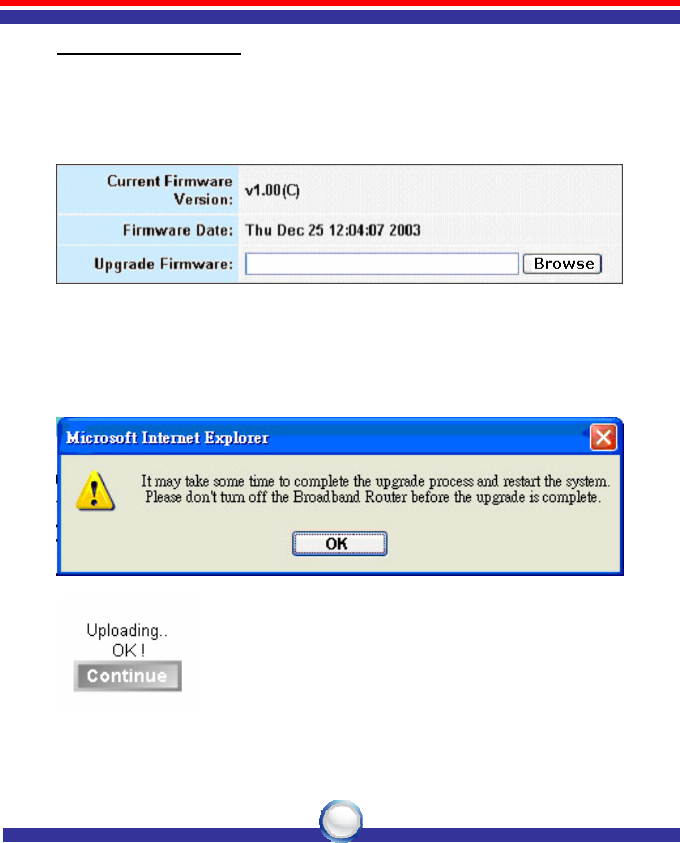

FIRMWARE UPGRADE .....................................................................................22

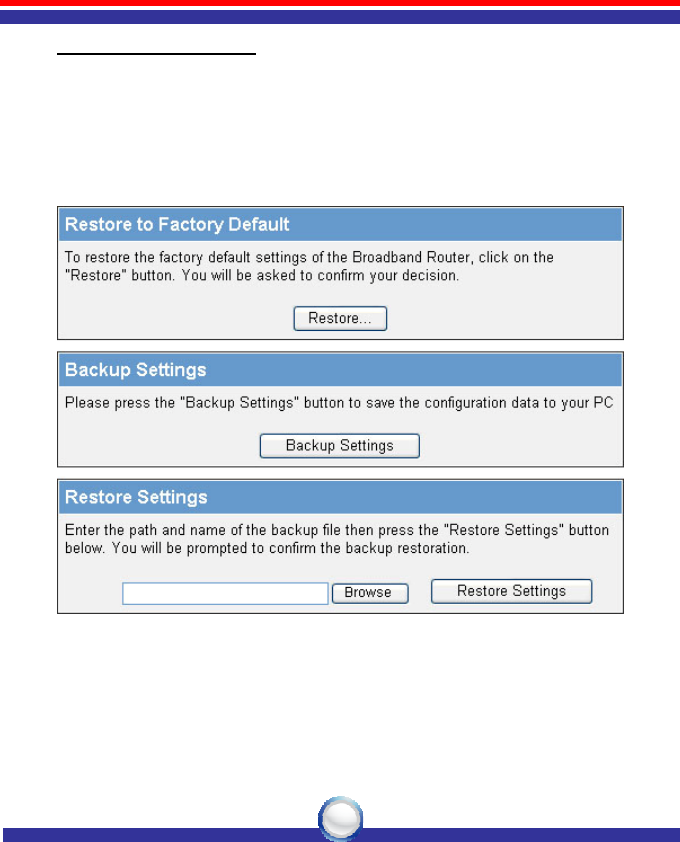

CONFIGURATION TOOLS .................................................................................23

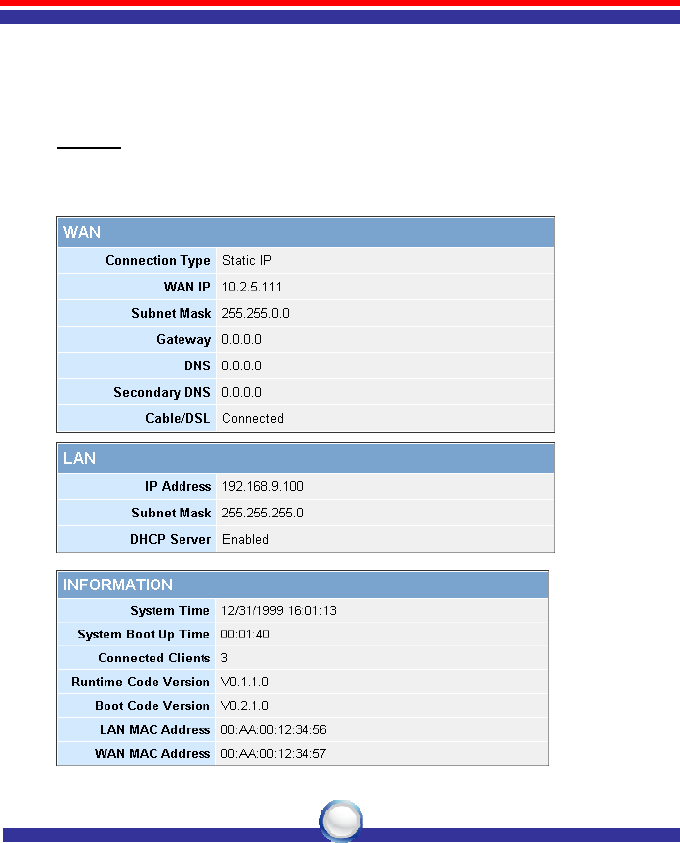

STATUS ..........................................................................................................24
SYSTEM LOG .................................................................................................25
RESET ...........................................................................................................25
WAN ..................................................................................................................26

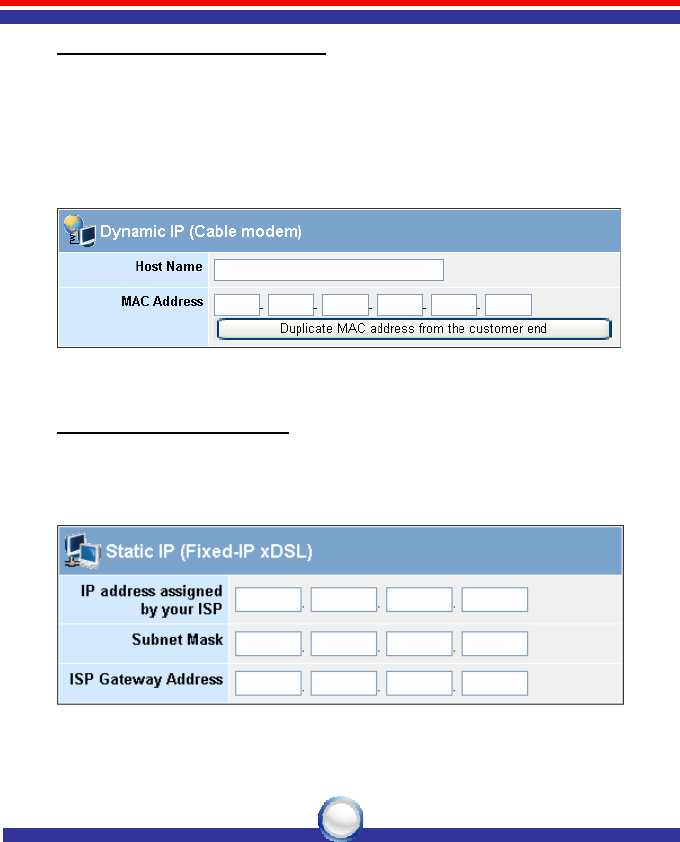

DYNAMIC IP ...................................................................................................26
STATIC IP.......................................................................................................27
PPPOE (DIAL-UP XDSL)................................................................................28
PPTP............................................................................................................29

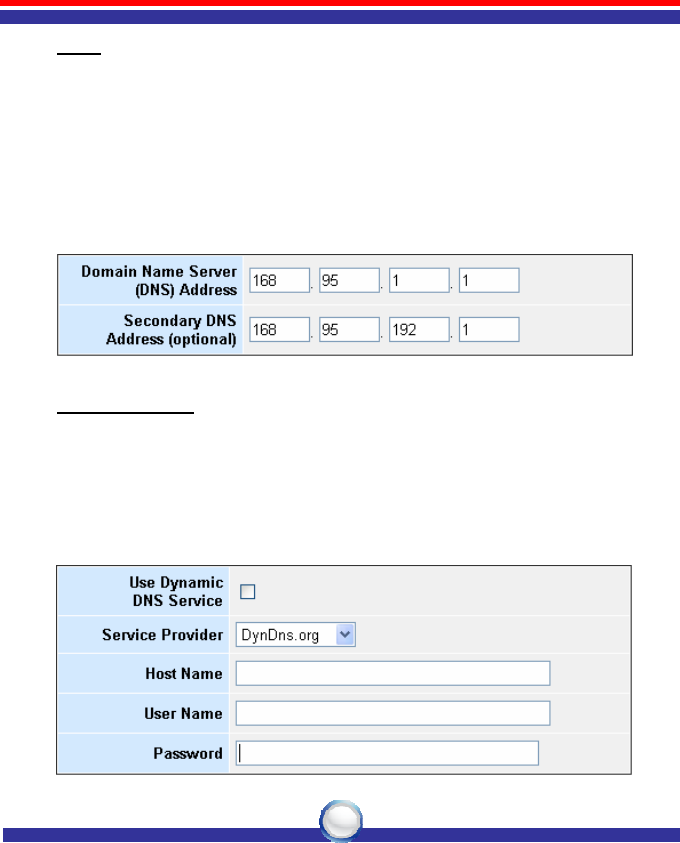

DNS..............................................................................................................30
DYNAMIC DNS...............................................................................................30
LAN ...................................................................................................................32

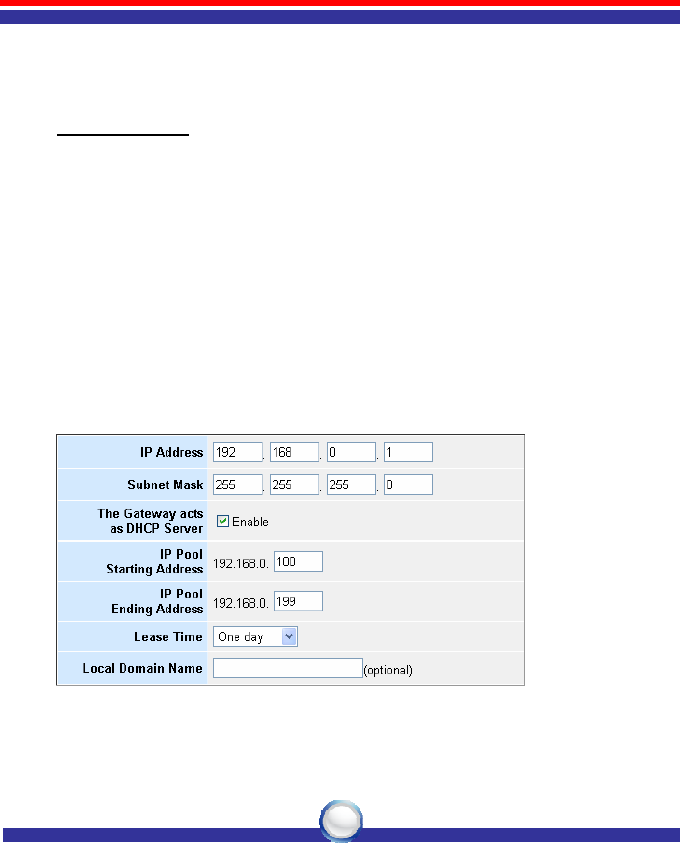

LAN SETTINGS ..............................................................................................32

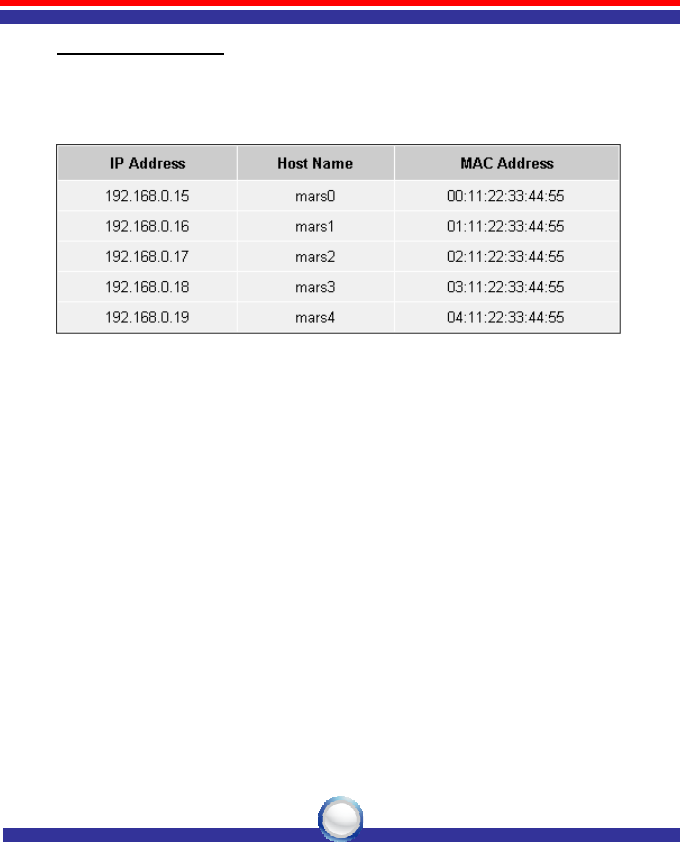

DHCP CLIENT LIST ........................................................................................33
NAT....................................................................................................................34

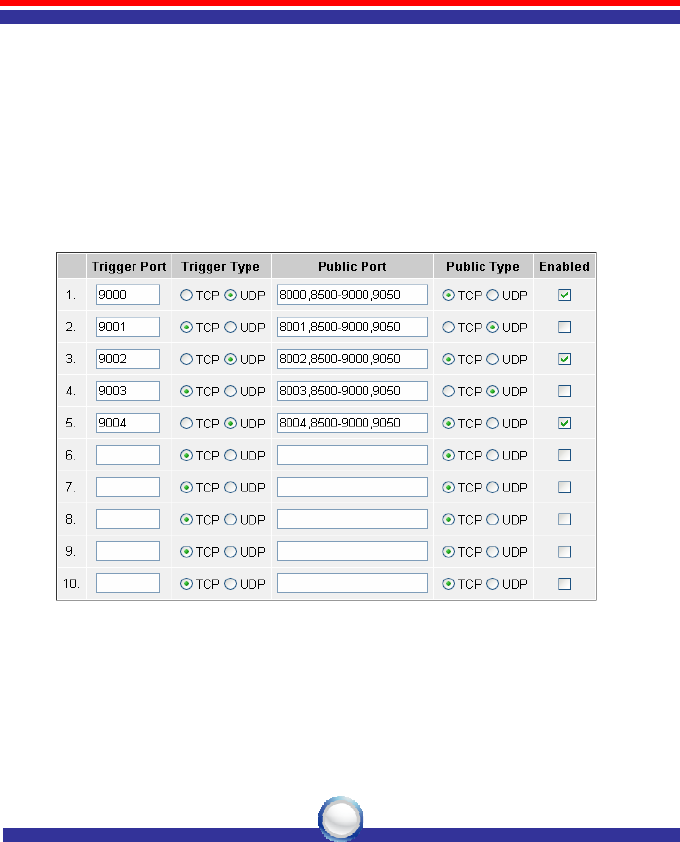

SPECIAL APPLICATION ....................................................................................34

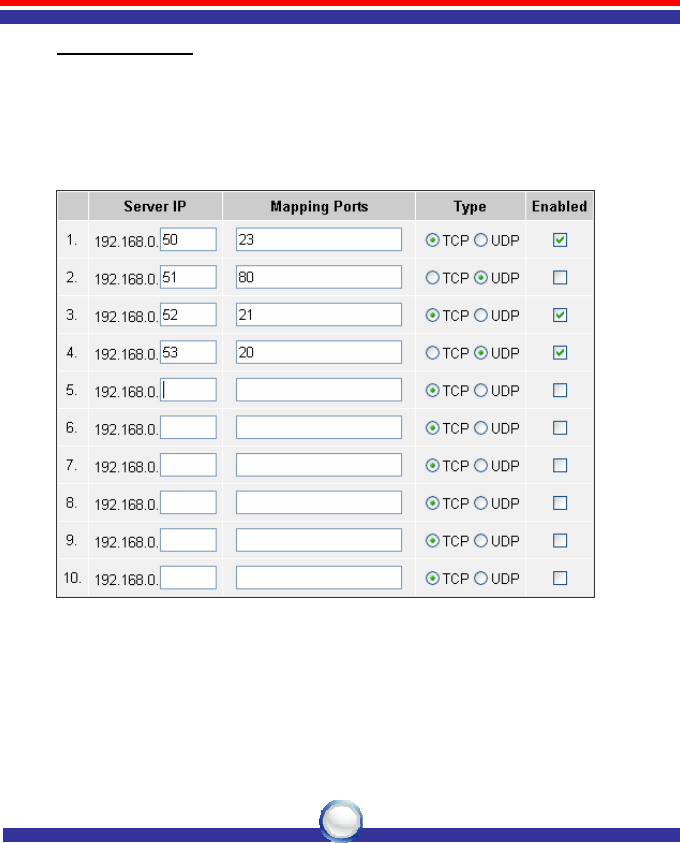

VIRTUAL SERVER ...........................................................................................36
FIREWALL ......................................................................................................37
DISCARD PING FROM WAN SIDE ...................................................................37
CLIENT FILTERING ..........................................................................................38

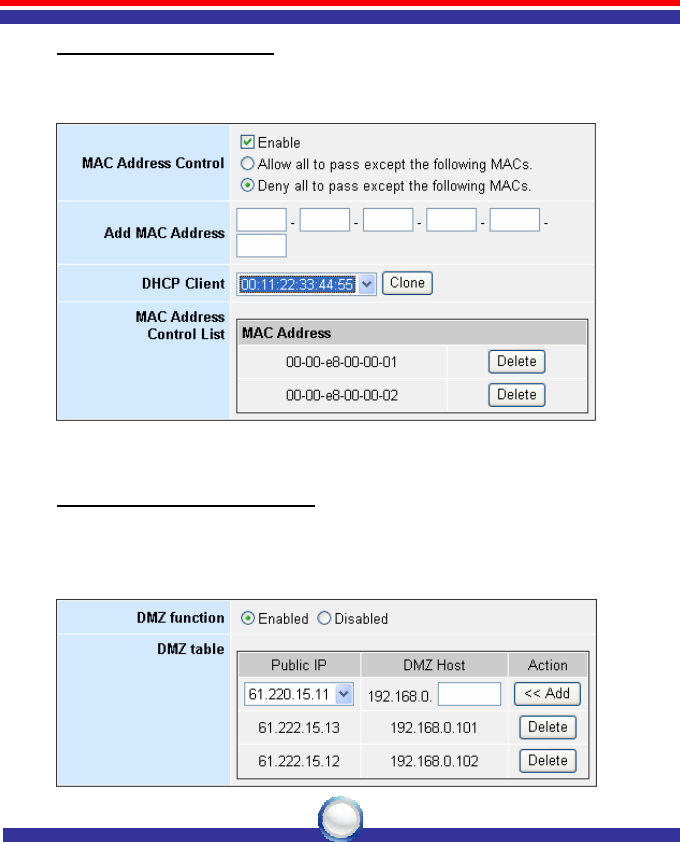

MAC ADDRESS CONTROL ..............................................................................39
DMZ (DE-MILITARIZED ZONE).........................................................................39

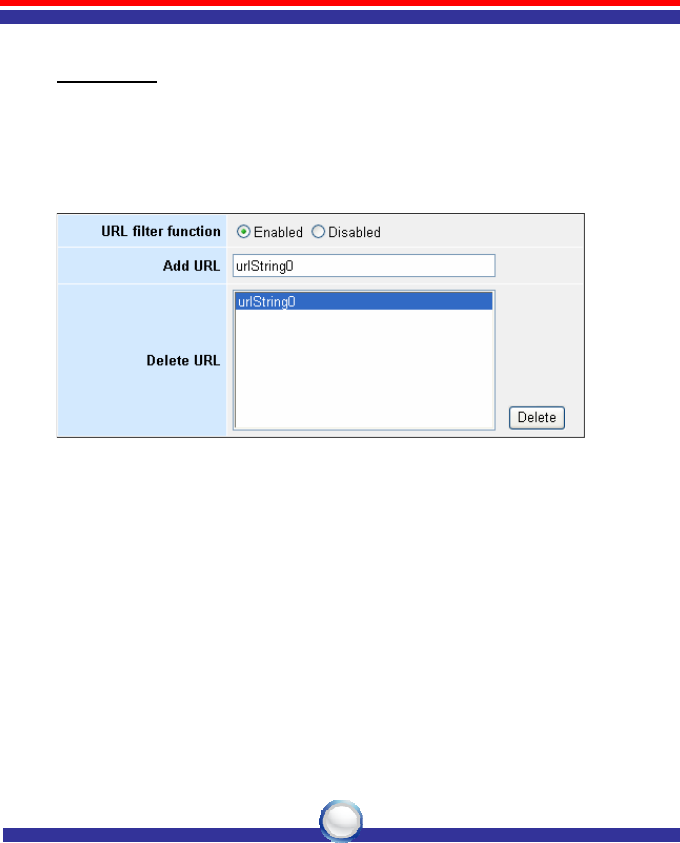

URL FILTER ...................................................................................................40
ROUTING ..........................................................................................................41

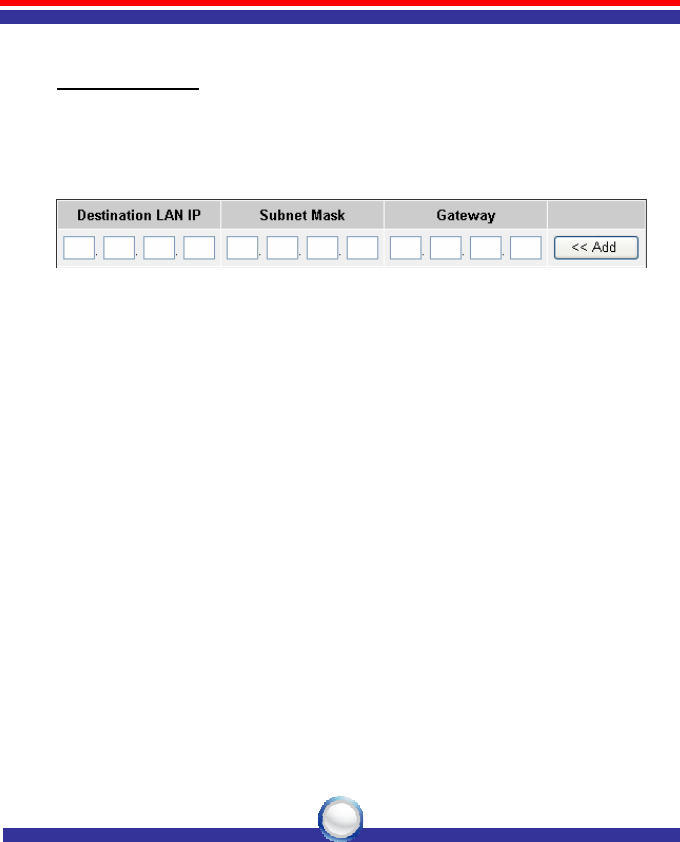

STATIC ROUTING ............................................................................................41
TECHNICAL SPECIFICATIONS .......................................................................42
FCC WARNING.................................................................................................43
CE MARK WARNING........................................................................................43
LKR-604
1
Hardware Description
LKR-604 4-port Cable/DSL Broadband Router

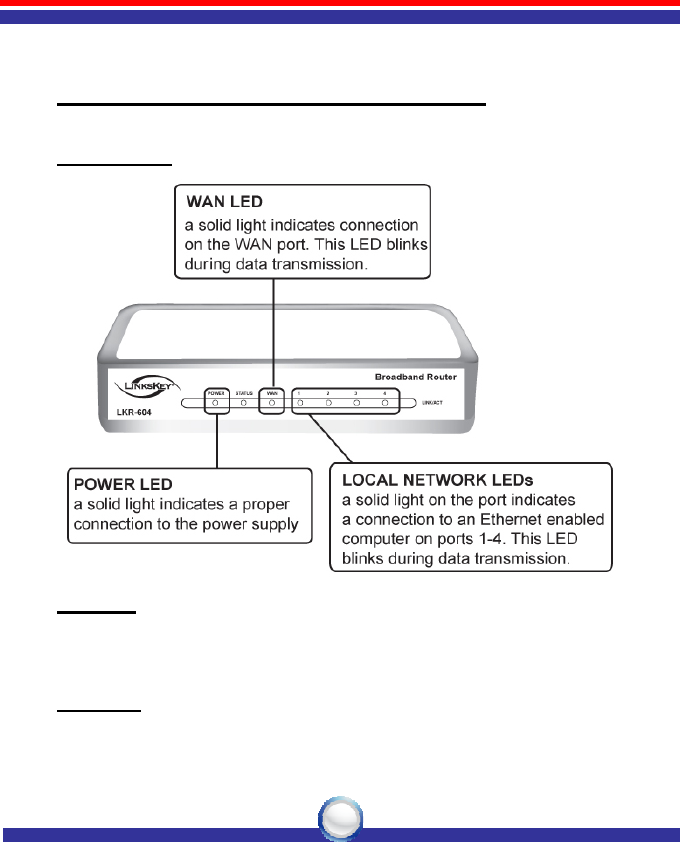

Front Panel
POWER
The LED lights up a solid green when the Router is powered on.
Otherwise, it is off.
STATUS
The LED is flashing when the Router is successfully working. If the
LED is either always on or off, the Router is not working properly.
LKR-604
2
WAN
The LED lights up a solid green when the WAN port is connected to a
Cable/DSL Modem successfully. If the LED is flashing, the WAN port
is sending or receiving data from the Cable/DSL modem.
LAN (Link/ACT)
The LED lights up a solid green when the port is connected to a
100Mbps Fast Ethernet device. If the LED is flashing, the port is
sending or receiving data over the network.

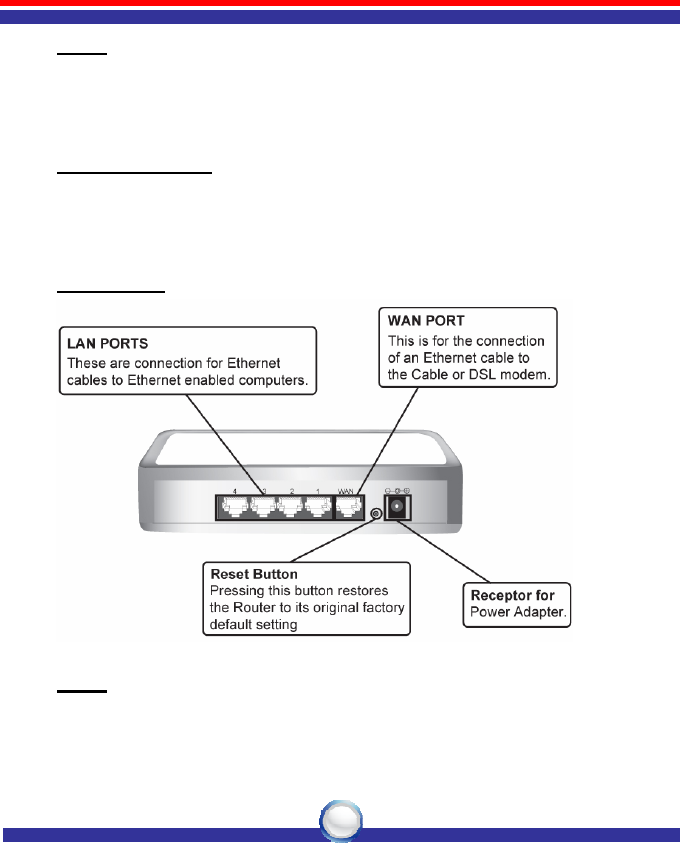

Rear Panel
WAN
One RJ-45 10/100Mbps Auto-MDIX WAN port for connecting to your
Cable/DSL Modem.
LKR-604
3
LAN (1-4)
Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to Ethernet
enabled computers.
RESET
Use a pin-shaped object to reset the Router to factory default settings.
Resetting the Router will also reset the login password to the default.
Power
Connect one end of the included power adapter to the power port on
the Router and the other end into a power outlet.
LKR-604
4
Hardware Connections

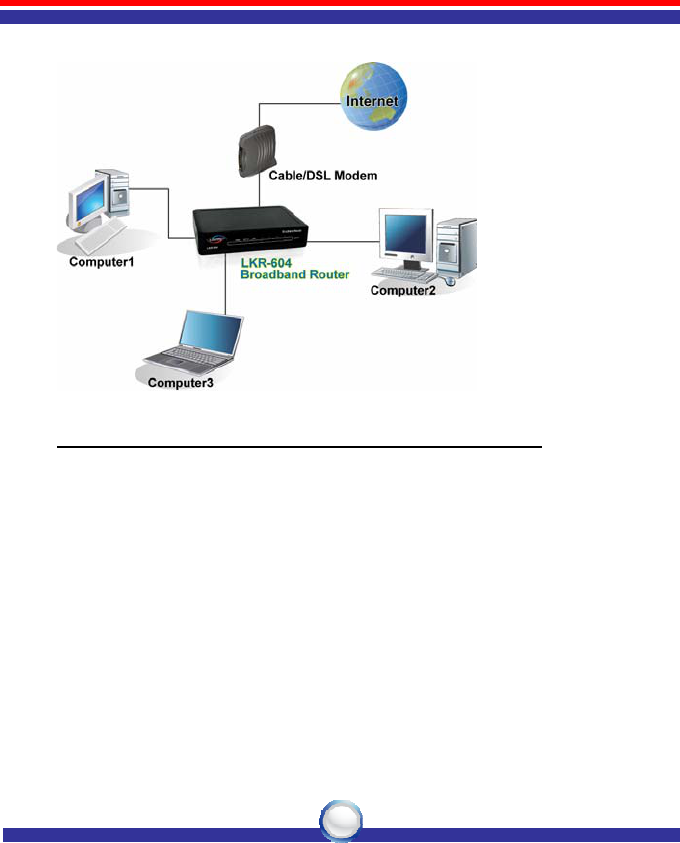

Connect the LKR-604 Internet Broadband Router
1. Connect one end of the included Ethernet cable to the WAN port on
the LKR-604 Internet Broadband Router.
2. Connect the other end of the included Ethernet cable to the Ethernet
port on the Cable or DSL modem.
3. Connect one end of another Ethernet cable to the Ethernet port on
the computer and the other end of the Ethernet cable to any of the
LAN ports on the Router. Since the LKR-604 Internet Broadband
Router has four LAN ports, you can connect up to four computers
directly to the Router.
LKR-604
5
Check The Installation
The LEDs on the LKR-604 Internet Broadband Router are clearly
visible and the status of the traffic can be seen immediately:
1. Once the Router is connected to the Cable or DSL modem and the
power is connected, the Power, System and WAN port LEDs on the
LKR-604 Internet Broadband Router will light up.
2. If the LAN port is connected to the Ethernet port on the computer, the
LAN port LED on the LKR-604 Internet Broadband Router will light up
LKR-604
6
Configuring PC Network TCP/IP Settings
The network TCP/IP settings differ based on the computer’s operating
system (Win95/98/ME/NT/2000/XP/Vista), if you need information on
how to configure a TCP/IP settings on a computer, refer to the following
section.
Windows 95/98/ME
1. On Desktop screen, right-click the “Network Neighborhood” icon
and click “Properties”.
2. Select the TCP/IP line that has been assigned to your Ethernet
network adapter on the “Configuration” tab of the “Network”
windows then click the “Properties” button.
3. Select “Obtain an IP address automatically” in the “IP Address”
tab.
LKR-604
7
4. Click on the “DNS Configuration” tab and select “Disable DNS”.
5. Click on the “Gateway” tab. If there is a gateway listed under
“Installed gateways”, select it and click “Remove” button.
6. Click “OK” button, and Windows might ask you to restart the
computer, click “Yes”.
LKR-604
8
Windows XP/2000
1. Click the “Start” button then right-click “My Network Places” and
then click “Properties”.
2. Right-click “Local Area Connection” listed under “LAN or
High-Speed Internet” then click “Properties”.
3. Select the “Internet Protocol (TCP/IP)” then click “Properties”
button.
4. Select “Obtain an IP address automatically” and “Obtain DNS
server address automatically” in “General” tab.
6. Click “OK” button.
LKR-604
9
Windows NT 4.0
1. Click the “Start” button, located in the lower left corner of the screen.
2. Move to “Settings” and then click “Control Panel.”
3. In the “Control Panel” window, double-click the “Network” icon to
open “Network” configuration windows.
4. Click on the “Protocols” tab, then double-click “TCP/IP Protocol”.
5. Select “Obtain an IP address from a DHCP server” in “IP Address”
tab.
LKR-604
10
Windows Vista
1. Click the “Start” button then right-click “Network” then click
“Properties”.
2. Under “Tasks” located on the left-hand side of the windows, click
“Manage network connections”.
3. Right-click “Local Area Connection” listed under “LAN or
High-Speed Internet” then click “Properties”.
4. Click “Continue” to open the “Local Area Connection Properties”
windows.
5. Select “Internet Protocol Version 4 (TCP/IPv4)”, then click
“Properties” button.
6. Select “Obtain an IP address automatically” and “Obtain DNS
server address automatically” in “General” tab.
7. Click “OK” button.
LKR-604
11
Network Settings
Accessing the Internet through the LKR-604 Internet Broadband Router,
you have to properly configure the network settings of your computers
to use the same IP subnet as the LKR-604.
The default IP address of the LKR-604 is 192.168.0.1, and the default
subnet mask is 255.255.255.0. These addresses can be changed as
needed, but the default values are used in this manual. If the network
TCP/IP settings of your computer has not yet been configured, you can
refer to Configuring PC Network TCP/IP Settings and configure it.
For example:
1. Configure your computer using a static IP address as 192.168.0.10,
subnet mask is 255.255.255.0 and gateway as 192.168.0.1, since the
default IP address of the LKR-604 is 192.168.0.1, the IP address of
your computer must be 192.168.0.X (where “X” is a number between
2 and 254.). Each computer on your network must have a different IP
address within the range. The default gateway must be 192.168.0.1
(the default IP address of the LKR-604).
2. Or more conveniently, configure your computer to obtain TCP/IP
settings automatically from the DHCP server feature of the LKR-604.
Disable HTTP Proxy
In order to access and view the LKR-604’s configuration web pages,
you need to verify that the “HTTP Proxy” feature of your web browser
is disabled.
LKR-604
12
Configuring The LKR-604
First, make sure that the network connections are functioning normally.
The LKR-604 Internet Broadband Router can be configured using
Internet Explorer 5.0 or above or Netscape Navigator 5.0 or above.
Startup and Login
Open your web browser and type in the IP address of the LKR-604 into
the Location (for Netscape) or
Address (for IE) field and press
“Enter”. The default IP address of
the LKR-604 is 192.168.0.1
After the connection is established,
a logon screen will pop up. To log in
as an administrator, type in the user
name “admin” and the password
(by default, there is no password),
then click the “LOGIN” button, the
web-based management interface
will appear.
Two setup options appear: Quick Setup and Advanced Setup. It is
recommended that you use Quick Setup if you are a beginner. It will
lead you through the step-by-step configuration.
LKR-604
13
Quick Setup
On the main webpage, select “Quick Setup” to setup the Time Zone
and the WAN Type.
Time Zone
Select the appropriate time zone so your system clock can synchronize
itself through the SNTP Server.
LKR-604
14
WAN Type
To select the WAN connection type, click Dynamic IP (Cable Modem),
Static IP (Fixed-IP), PPPoE (Dial-Up xDSL) or PPTP
LKR-604
15
Dynamic IP (Cable Modem)
To connect to a Dynamic IP (Cable Modem) Broadband Internet
connection with the LKR-604 Broadband Router, check the Cable
Modem with the related user’s guide. The Cable Modem will
automatically configure itself, and the LKR-604 Broadband Router is
configured to automatically assign IP addresses to each PC. If required
by your ISP, input a host name and MAC address.
Static IP (Fixed-IP xDSL)
If your Internet Service Provider (ISP) has assigned you a fixed IP
address, select this option. Enter the assigned IP address, subnet mask,
and the gateway IP address for the LKR-604 Broadband Router.
LKR-604
16
PPPoE (Dial-Up xDSL)
If your DSL Broadband Internet connection is PPPoE (Dial-Up xDSL),
your ISP will provide a password and user name. Select this option, and
enter the required information. If your ISP provides a Service Name,
enter it in the Service Name field. Otherwise, leave it blank.
The Service Name and IP Address fields must be completed if provided
by your ISP. If your ISP provides a Dynamic IP Address, you should
skip these fields. The MTU feature specifies the maximum packet size
permitted for network transmission. Enter the value desired; for most
DSL Broadband Internet connection users, 1492 is recommended. By
default, MTU is set at 1492. The Maximum Idle Time feature can control
the Internet connection time if you want to reduce the connection fees
charged by your ISP (default time=0, always connect).
Select Connect-on-demand for the Connect mode select feature to
enable the LKR-604 Broadband Router to connect to your ISP
whenever an Internet connection is required.
LKR-604
17
PPTP
If connecting to the Internet using a PPTP DSL Modem, enter the PPTP
Account Name, PPTP Password, Host Name, Service IP Address, My
IP Address, and My Subnet Mask in the appropriate fields provided by
your ISP. If your ISP has provided you with a Connection ID, enter it in
the Connection ID field. Otherwise, leave it blank.
The MTU feature specifies the maximum packet size permitted for
network transmission. Enter the value desired; for most DSL
Broadband Internet connection users, 1460 is recommended. By
default, MTU is set at 1460. The Maximum Idle Time feature can control
the Internet connection time (default time=0, always connect).
Select Connect-on-demand for the Connect mode select feature to
enable the LKR-604 Broadband Router to connect to your ISP
whenever an Internet connection is required.
LKR-604
18
DNS
The Domain Name System (DNS) manages the translation of a
domain name into an IP address, and vice versa that of an IP
address into a domain name.
Your ISP should provide one or more DNS Server IP addresses, type
those IP addresses in the Primary DNS address and Secondary DNS
address fields, the LKR-604 Broadband Router will utilize these
simultaneously for quicker access to functioning DNS Servers.
LKR-604
19
Advanced Setup
The LKR-604 Broadband Router supports advanced functions like
System settings, WAN settings, LAN settings, NAT Settings, and
Firewall settings.
System
This page includes all of the basic configuration tools for the LKR-604
Broadband Router. Under “System” located on the left-hand of the
windows, select that you want to configure.
LKR-604
20
System Time
Connecting to a Simple Network Time Protocol (SNTP) server allows
the LKR-604 Broadband Router to synchronize the system clock to the
global Internet time through the SNTP Server. The synchronized clock
in the LKR-604 Broadband Router is used to record the system log and
control client filtering.
LKR-604
21
Administrator Settings
Password Settings: Set an Administrator password if you wish to
restrict management access to the LKR-604
Broadband Router.
Remote Management: To manage the LKR-604 Broadband Router
from a remote location (outside of the local
network), you must specify the IP address of
the remote computer. Leave the IP address as
0.0.0.0, to allow any IP address to access to the
LKR-604 Broadband Router.
LKR-604
22
Firmware Upgrade
Upgrading firmware for the LKR-604 Broadband Router improves
functionality and performance. Specify the path and name of the
upgrade file then click the “APPLY” button. You will be prompted to
confirm the upgrade.
While upgrading the firmware, please wait after pressing the “APPLY”
button, and follow the instructions on the screen; the System LED on
the front panel will start blinking when the firmware has been upgraded
successfully.
LKR-604
23
Configuration Tools
Use the "Backup Settings" tool to save the LKR-604 Broadband
Router current configuration to a file named "config.bin" on your PC.
You can then use the "Restore Settings" tool to restore the saved
configuration file back to the LKR-604 Broadband Router that was set
previously. Select "Restore to Factory Default" tool to force the
LKR-604 Broadband Router to reset and restore the original factory
settings.
• Restore Factory Default
To restore the factory default settings of the LKR-604 Broadband Router,
select the “Restore to Factory Default ” option.
• Backup Settings
Select the “Backup Settings” option to save the current LKR-604
Broadband Router settings in a file called “config.bin,” or save to a
filename of your choosing.
LKR-604
24
• Restore Settings
To restore a backup file back to the LKR-604 Broadband Router, specify
the path and filename of the backup file (i.e. config.bin).
Status
The “Status” screen will display the LKR-604 Broadband Routers'
WAN/LAN interfaces, firmware and hardware version numbers, and the
number of connected clients to the network.
LKR-604
25
System Log
View any attempts that have been made to gain access to the network.
Reset
For some reason if you need to reset the LKR-604 Broadband Router
without changing any settings, click on the “Reset” to reset the LKR-604
Broadband Router.
LKR-604
26
WAN
The LKR-604 Broadband Router supports the following types of the
Internet connections: Dynamic IP Address, Static IP Address, PPPoE,
and PPTP.
Dynamic IP
The Host Name is optional, but may be required by some Internet
Service Providers. The MAC address is set to the WAN's physical
interface on the LKR-604 Broadband Router. If the Internet Service
Provider requires the MAC address, type it in. Click the "Clone MAC
Address" button to copy the MAC address of the Ethernet network
adapter installed in the PC. The WAN MAC address will be replaced by
this MAC address. If your ISP is BigPond (Australia), check the Enable
box.
LKR-604
27
Static IP
If the Internet Service Provider has assigned a fixed IP address, enter
the assigned IP address, subnet mask and gateway IP address fields.
Click “Yes” if you are using two or more IP addresses.
LKR-604
28
PPPoE (Dial-Up xDSL)
If you are connecting to the Internet using a PPPoE (Dialup xDSL)
Modem and your ISP has provided you with a password and username,
then your ISP uses PPPoE. Select this option, and enter the required
information. If the ISP provided a Service Name, enter it in the Service
Name field. Otherwise, leave it blank.
The Service Name, IP Address, and DNS Address fields must be
completed if your ISP provides you with this information. If your ISP
provides a Dynamic IP Address, skip these fields.
The MTU feature specifies the maximum packet size permitted for
network transmission. Enter the value desired; for most DSL
Broadband Internet connection users, 1492 is recommended. By
default, MTU is set at 1492. The Maximum Idle Time feature can control
the Internet connection time if you want to reduce the connection fees
charged by your ISP (default time=0, always connect).
LKR-604
29
PPTP
If connecting to the Internet using a PPTP DSL Modem, enter the PPTP
Account Name, PPTP Password, Host Name, Service IP Address, My
IP Address, and My Subnet Mask as provided by your ISP in the
appropriate fields. If your ISP has provided you with a Connection ID,
enter it in the Connection ID field. Otherwise, leave it blank.
The MTU feature specifies the maximum packet size permitted for
network transmission. Enter the value desired; for most DSL
Broadband Internet connection users, 1460 is recommended.
By default, MTU is set at 1460.
The Maximum Idle Time feature can control the Internet connection
time (default time=0, always connect). Select Connect-on-demand for
the Connect mode select feature to enable the LKR-604 Broadband
Router to connect to your ISP whenever an Internet connection is
required.
LKR-604
30
DNS
The Domain Name System (DNS) manages the translation of a
domain name into an IP address, and vice versa that of an IP
address into a domain name.
Your ISP should provide one or more DNS Server IP addresses, type
those IP addresses in the Primary DNS address and Secondary DNS
address fields, the LKR-604 Broadband Router will utilize these
simultaneously for quicker access to functioning DNS Servers.
Dynamic DNS
The Dynamic DNS feature allows you to host a server (Web, FTP,
Game Server, etc.) using a host name with your dynamically assigned
IP address. Most Broadband Internet Service Providers assign dynamic
IP addresses. When you use a Dynamic DNS service provider, your
friends can enter your host name to connect to your server, no matter
what your IP address is.
LKR-604
31
z Use Dynamic DNS Service :
Check this option to enable Dynamic DNS.
z Service Provider :
Select a Dynamic DNS service provider from the drop down list.
z Host Name :
Enter the host name that your Dynamic DNS service provider
has assigned to you; for example: myhost.mydomain.net.
z User Name :
Enter the user name provided by your Dynamic DNS service
provider.
z Password :
Enter the password provided by your Dynamic DNS service
provider.
LKR-604
32
LAN
To set the LAN’s IP Address.
LAN Settings
The default value of the LKR-604 Broadband Router is 192.168.0.1 for
the IP address and 255.255.255.0 for the Subnet Mask. You may
change the value according to your needs.
To enable the DHCP server to allocate dynamic IP addresses to the
clients PCs, click “Enable”. The client can get an IP Address that is
between the IP Pool Starting Address and the IP Pool Ending Address.
You may also change the IP Pool range value.
The Lease Time is the amount of time a network user will be allowed to
connect to the LKR-604 Broadband Router with his/her current dynamic
IP address. Enter the amount of time, in hours, days or weeks, which
the user will be “leased” this dynamic IP address.
You can enter your local domain name in the Local Domain Name
fields.
LKR-604
33
DHCP Client List
The DHCP client list allows you to see which clients are connected to
the LKR-604 Broadband Router via IP address, host name, and MAC
address.
LKR-604
34
NAT
Network Address Translation (NAT) allows multiple users at the local
site to access the Internet through a single public IP address. NAT can
also prevent hacker attacks by mapping local addresses to public
addresses for key services such as the Web or FTP.
Special Application
Some applications require multiple connections, such as Internet
gaming, video conferencing, and Internet telephony. These applications
cannot work when Network Address Translation (NAT) is enabled.
When users send this type of request to your network via the Internet,
the LKR-604 Broadband Router will forward those requests to the
appropriate PC. If you need to run applications that require multiple
connections, specify the port normally associated with an application in
the "Trigger Port" field, select the protocol type as TCP or UDP, then
enter the public ports associated with the trigger port to open them for
inbound traffic.
z TCP (Transmission Control Protocol) - A method (protocol) used
along with the Internet Protocol (Internet Protocol) to send data in
the form of message units between computers over the Internet.
While IP takes care of handling the actual delivery of the data,
TCP takes care of keeping track of the individual units of data
(called packets) that a message is divided into for efficient routing
through the Internet.
z UDP (User Datagram Protocol) - A communications method
(protocol) that offers a limited amount of service when messages
are exchanged between computers in a network that use the
Internet Protocol IP). UDP is an alternative to the TCP and,
together with IP, is sometimes referred to as UDP/IP. Like the
Transmission Control Protocol, UDP uses the Internet Protocol to
actually get a data unit (called a datagram) from one computer to
another. Unlike TCP, however, UDP does not provide the service
LKR-604
35
of dividing a message into packets (data grams) and
reassembling it at the other end. Specifically, UDP doesn't
provide sequencing of the packets that the data arrives in. This
means that the application program that uses UDP must be able
to make sure that the entire message has arrived and is in the
right order. Network applications that want to save processing
time because they have very small data units to exchange (and
therefore very little message reassembling to do) may prefer UDP
to TCP
LKR-604
36
Virtual Server
The virtual server option allows you to define port number on your
LKR-604 Broadband Router for redirection to an internal LAN IP
address. This feature is useful for hosting online services such as FTP
or Web servers.
LKR-604
37
Firewall
The LKR-604 Broadband Router provides extensive Firewall protection
by restricting connection parameters to limit the risk of hacker attacks
and by defending against a wide array of common hacker attacks.
The LKR-604 Broadband Router provides packet filtering rules by
restricting service ports, IP address or MAC address. However, for
applications that require unrestricted access to the Internet, you may
configure a specific client/server as a demilitarized zone (DMZ)
Discard PING From WAN Side
When "Discard PING from WAN side" is checked, it causes the public
WAN IP address on the LKR-604 Broadband Router to ignore ping
commands. Pinging public WAN IP addresses is a common method
used by hackers to test whether the WAN IP address is valid.
LKR-604
38
Client Filtering
To block certain client PCs from accessing the Internet:
You can filter Internet access for local clients based on IP addresses,
application types, (i.e., HTTP port), and time of day.
For example, this screen shows that clients in the address range
192.168.0.50-60 are blocked from using FTP (Port 21) from Sunday to
the following Saturday and from 2:00AM to 11:00 PM
LKR-604
39
MAC Address Control
MAC Address Control allows you to block certain client PCs from
accessing the Internet based on MAC addresses.
DMZ (De-Militarized Zone)
If a local client PC cannot run an Internet application properly from
behind the NAT firewall, open the client up to unrestricted two-way
Internet access by defining a PC as a virtual DMZ Host.
LKR-604
40
URL Filter
URL Filter is used to deny LAN computers from accessing specific web
sites by its URL. A URL is a specially formatted text string that defines a
location on the Internet. If any part of the URL contains the blocked
word, the site will not be accessible. If any part of the URL contains the
blocked word, the web page will also not display.
LKR-604
41
Routing
Static Routing
The process by manually specify a specific route packets should take
on the way to a destination address. You need to configure the Static
Routing only for such as multiple Routers or multiple IP subnets located
on your network.
LKR-604
42
Technical Specifications
Standards IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Flow Control
WAN Interface RJ-45 10BASE-T/100BASE-TX port
LAN Interfaces 4 x RJ-45 10BASE-T/100BASE-TX ports
Firewall IP Filter
MAC Filter
Domain Blocking
URL Blocking
Scheduling
UPnP enable
VPN Support IPSec pass-through, PPTP pass-through
Configuration & Management Web-based configuration
Diagnostic LED Power
Status
WAN
Link/Act
1, 2, 3, 4 LAN ports
Power Input DC 5V, 800mA
Dimension 109 x 155 x 33mm
Operating Temperature 0°- 55°C (32c – 131c F)
Humidity 90%RH maximum non-condensing
EMI Certification FCC Class B
CE Class B
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE: The manufacturer is not responsible for and radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
