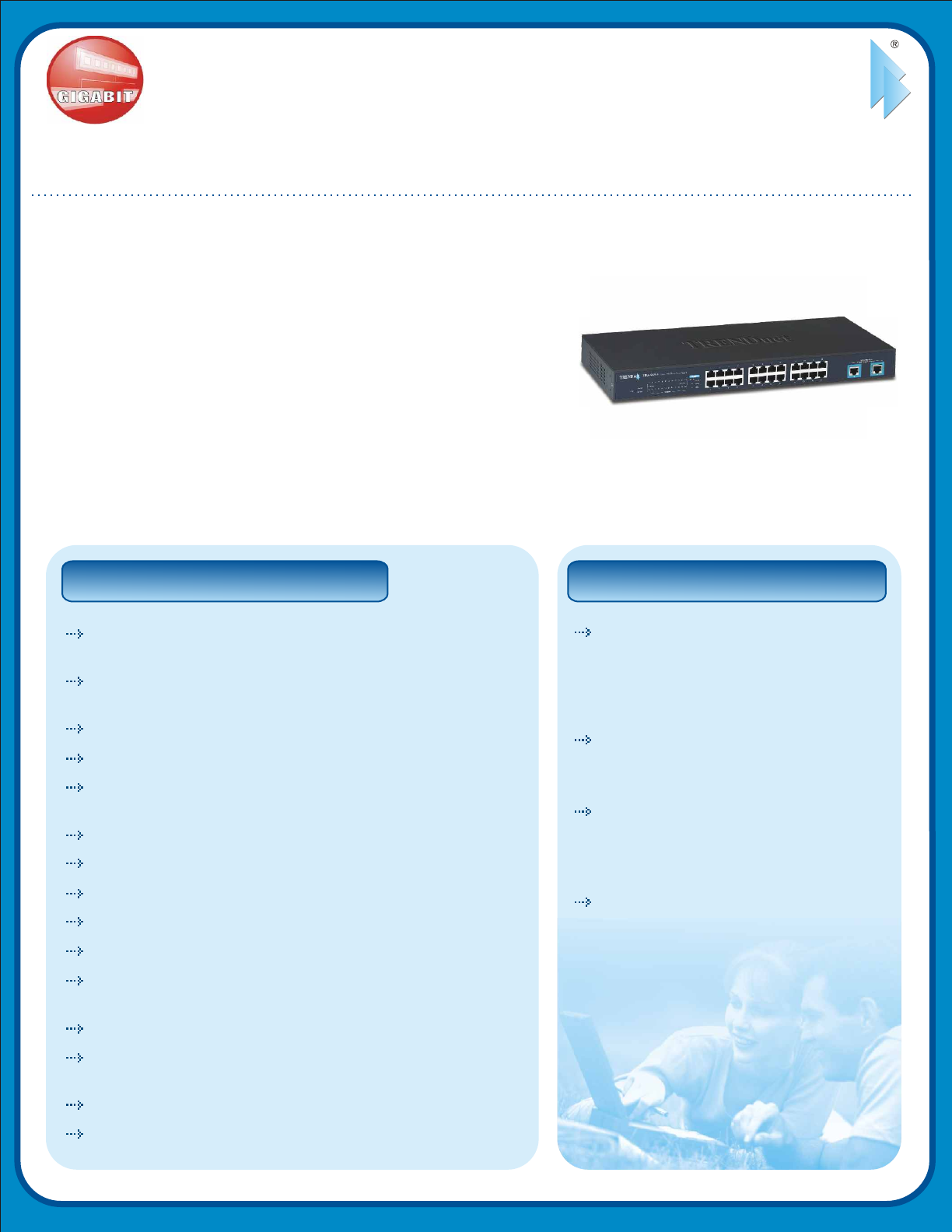

TRENDnet's TEG-224WS 26-port 10/100/1000Mbps Web-
Based Smart Switch is the ideal Switch for network
segmenting and flexibility. It has 24 10/100Mbps and 2
10/100/1000Mbps Auto-Sensing and Auto-MDIX ports. TEG-
224WS supports web browser configuration allowing Network
Administrators to configure speed, VLAN, QoS, Trunking and
Mirroring down to the port level. TRENDnet's TEG-224WS is
powerful, easy-to-use and enhances network security.
TEG-224WS
26-port 10/100/1000Mbps Gigabit Web-Based Smart Switch
BENEFITSFEATURES
Easy Upgrade:
Flexibility:
Performance:
Cost-Effectiveness:
Ethernet workgroups are able to
upgrade to Fast Ethernet by changing
adapters and a hub without changing
switches.
Easy management and configuration
through Web browser
Provides non-blocking high
performance with internal switch
controller.
The TEG-224WS presents Gigabit
Ethernet at an affordable rate.
24 x 10/100Mbps Auto-negotiation MDIX Fast Ethernet
Ports
2 x 10/100/1000Mbps Auto-negotiation, Auto-MDIX
Gigabit Ports
Full/Half duplex mode for each port
Store and Forward switching method
Integrated address Look-Up Engine with 6K absolute
MAC address table
Supports 4MB RAM Data Buffering
Extensive diagnostic LED’s on the front panel
IEEE 802.3x flow control for full/half-duplex mode
Back pressure flow control for full/half-duplex mode
Easy configuration the device from a Web browser
Supports Port-Based VLAN and Port-Based IEEE
802.1p QoS
Supports Trunking and Port Mirroring
Support Port setting function allow user setting each
port’s speed, duplex mode, and flow control
Standard 19” Rack-mount design
5-Years Warranty
TEG-224WS (04-21-2004)
TRENDnet
TRENDware, USA
What's Next in Networking
RELATED PRODUCT
To Order Please Call:
1-888-326-6061
TEG-224WS:
26-Port 10/100/1000Mbps Gigabit Web-Based Smart
Switch(Rack Mount)
TEG-S18TXE:
9-Port (8 10/100, 1 10/100/1000) Copper Gigabit Mini
Switch
TEG-S80TXD:
8-Port Copper Gigabit Switch
NETWORKING SOLUTIONS
SPECIFICATIONS
TEG-224WS
26-port 10/100/1000Mbps Gigabit Web-Based Smart Switch
TEG-224WS
26-port 10/100/1000Mbps Gigabit Web-Based Smart Switch
LAN Standards:
• IEEE 802.3 10Base-T, IEEE 802.3u
100Base-TX, IEEE 802.3ab 1000Base-T,
IEEE 802.3x Full Duplex Flow Control
Network Media:
• Ethernet: UTP/STP Cat. 3, 4, 5
• Fast Ethernet: UTP/STP Cat. 5
• Gigabit : UTP/STP Cat. 5, Cat 5E
(Recommend)
Protocol:
• CSMA/CD
Topology:
• Star
LAN Port:
• 24 x 10/100Mbps Auto Negotiation,
Auto-MDIX Fast Ethernet ports,
• 2 x 10/100/1000Mbps Auto Negotiation,
Auto MDIX Gigabit ports
• Address Table: 6K entries per device )
Data Transfer Rate:
• Ethernet: 10/20Mbps – Half/Full-Duplex
• Fast Ethernet: 100/200Mbps – Half/Full
Duplex
• Gigabit Ethernet: 1000/2000Mbps –
Half/Full Duplex
Diagnostic LEDs:
• Per Unit: Power, System
• Per Fast Ethernet Port: Link/ACT,
100M (port 1~24)
• Per Gigabit Ethernet Port: Link/ACT,
1000M, 100M (port 25,26)
Power Consumption:
• 16 Watts. Max
Power Supply:
• 100-240V AC, 50/60Hz Internal
Universal Power Supply
Dimensions:
• 440 x 140 x 44 mm
(17.32" x 5.5" x 1.73")
Weight:
• 4.7 lb
Temperature:
• Operating: 0° ~ 40° C (32° ~ 104° F)
• Storage: -10° ~ 70° C (14° ~ 158° F)
Humidity:
• 10% ~ 90% (no-condensing)
Certifications:
• FCC Class A, CE Mark A, VCCI-A
