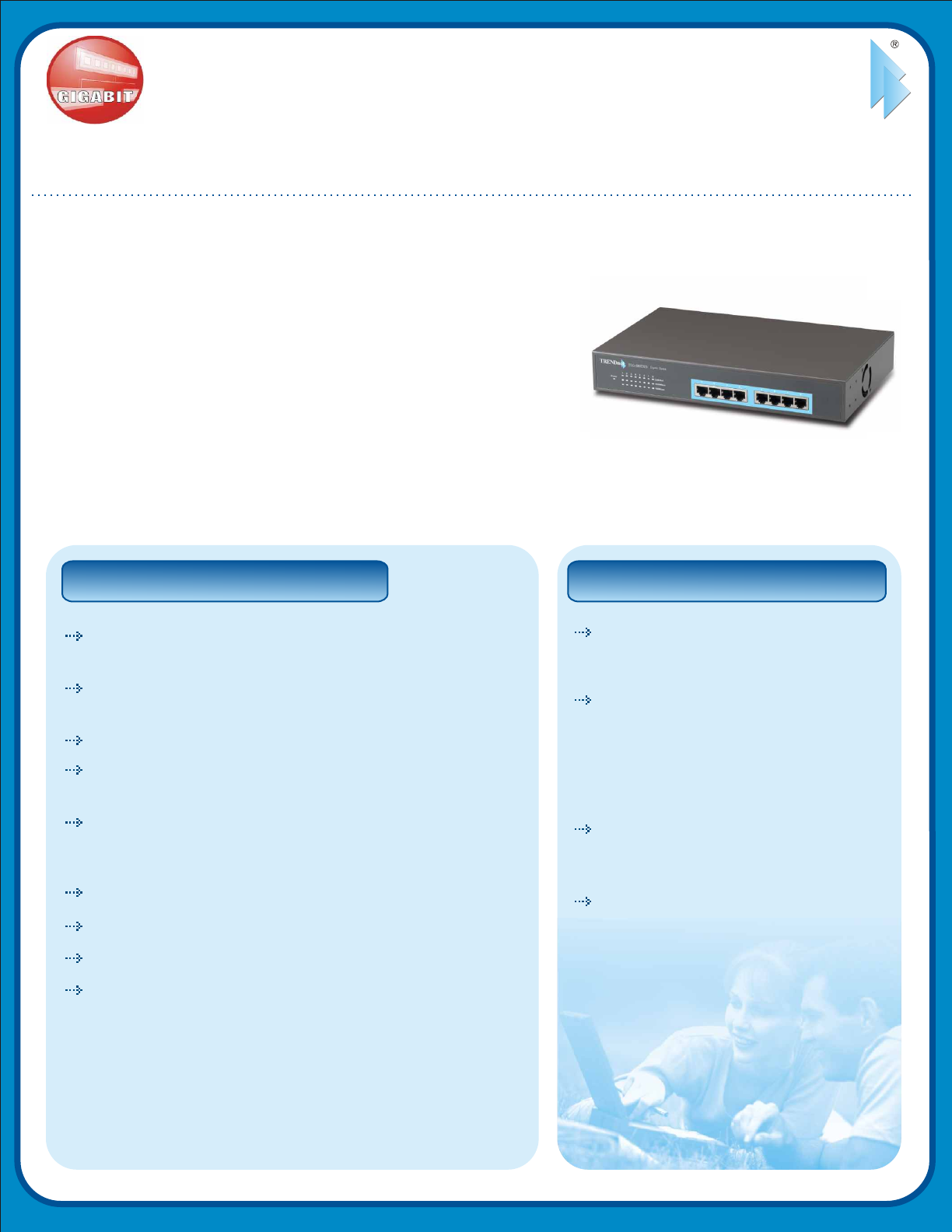

TRENDnet’s TEG-S80TXD Copper Gigabit Switch consist of
eight 10/100/1000Mbps Copper Gigabit Ethernet ports with
each port having Auto-negotiation and Auto-MDIX features.
The Switch offers a reliable and affordable LAN solution to
meet immediate bandwidth demand. Users can connect
Server(s) to the Gigabit port(s) to increase network
performance or cascade Copper Gigabit Switches together to
create high-bandwidth Gigabit backbones. TRENDnet’s TEG-
S80TXD provides simple migration, scalability, and flexibility
to handle new applications and data types making it a highly
reliable and cost effective solution for high-speed network
connectivity.
TEG-S80TXD
8-Port 10/100/1000Mbps Copper Gigabit Ethernet Switch
BenefitsFeatures
Integration Friendly:
Flexible:
Expandability:
Performance:
Plug-n-Play. Connects with current
Fast Ethernet Cat. 5 cables.
All ports automatically negotiate
10/100/1000Mbps network speed. All
ports are Auto-MDIX; connection can
be made with either a straight through
or a crossover cable.
Cascade Gigabit Switches together to
create a Gigabit backbone.
Gigabit performance, 10 times faster
than the 100Mbps Fast Ethernet.
8 x 10/100/1000Mbps Copper Gigabit Ethernet
Ports
Full/Half duplex transfer mode for each port
(1000Mbps in full-duplex only)
Auto-MDIX on each port
Supports store and forward switching architecture
with non-blocking full wire-speed performance
Supports aging function and 802.3x flow control for
full-duplex mode and back pressure flow control for
half-duplex mode operation
Up to 8K unicast addresses entities per device
256KB packet buffer per device
Extensive front-panel diagnostic LEDs
5-year Warranty
TEG-S80TXD (03-07-2005)
TRENDnet
TRENDware, USA
What's Next in Networking
TEG-S40TXD:
4-Port 10/100/1000Mbps Gigabit Ethernet Switch ETH-800I
Rack Mount Kit
TEG-S80TXD:
8-Port 10/100/1000Mbps Copper Gigabit Switch
TEG-S224TX:
26-port 10/100/1000Mbps Copper Gigabit Switch
TEG-PCITX:
32-Bit PCI 10/100/1000Mbps Copper Gigabit Ethernet Card
TEG-PCITX2:
32/64-Bit PCI 10/100/1000Mbps Copper Gigabit Ethernet Card

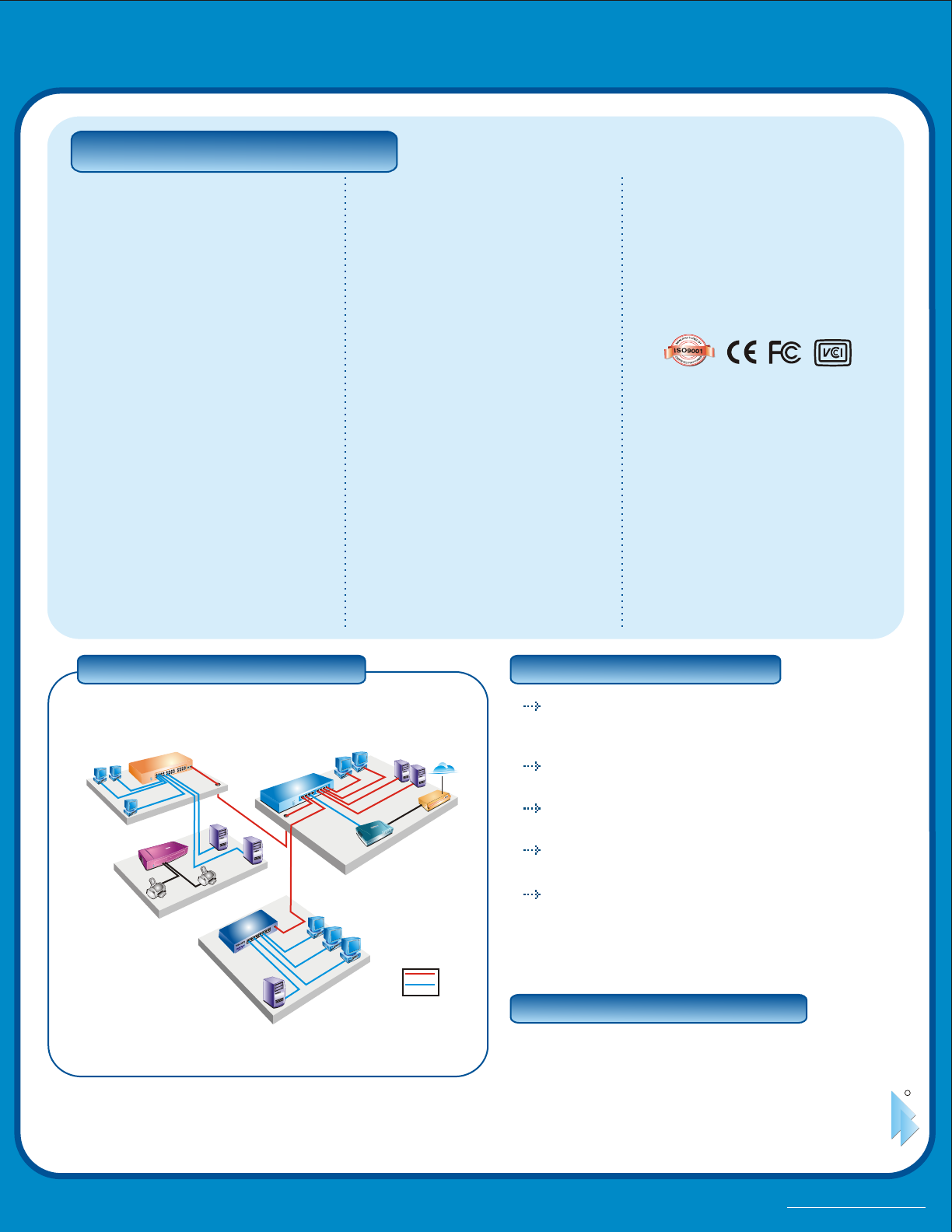

Specifications
Standards:
IEEE 802.3 10Base-T Ethernet, IEEE
802.3u 100Base-TX Fast Ethernet, IEEE
802.3ab 1000Base-T Gigabit Ethernet,
ANSI/IEEE 802.3 NWay Auto-Negotiation,
IEEE 802.3x Full-Duplex Flow Control
Data Transfer Rate:
Ethernet: 10Mbps (Half-Duplex), 20Mbps
(Full-Duplex),
Fast Ethernet: 100Mbps (Half-Duplex),
200Mbps (Full-Duplex),
Gigabit Ethernet: 2000Mbps (Full-Duplex)
Cabling:
Ethernet: Cat. 3,4,5, UTP/STP,
EIA.ITA-568 100 Ohm
Fast Ethernet: Cat. 5, UTP/STP,
EIA/TIA-568 100 Ohm
Gigabit Ethernet: Cat. 5, UTP/STP,
EIA/TIA-568 100 Ohm
Cable Length:
100 meters maximum
•
•
•
•
•
•
•
•
Protocol:
• CSMA/CD
Topology:
• Star
Data RAM Buffers:
• 256 Kbytes per device
Filtering Address Table:
• 8K entries per device
Diagnostic LEDs:
• Power, LINK/ACT, 100M, 1000M
Power Consumption:
• 100~240 VAC 50/60hz, Internal
Universal Power Supply, 22
Watts max
Dimensions:
• 280× 180 × 44 mm
(11“ x 7.1“ x 1.75“) (W x D x H)
Weight:
• 1.62 kg (3.57 lb)
Temperature:
• Operating: 0°C ~ 40°C (32° ~ 104°F)
• Storage: -10°C ~ 55°C (14° ~ 131°F)
Humidity:
• 5 % to 95 % RH non-condensing
Certifications:
• CE Class A, FCC Class A, VCCI-A
TRENDnet is a registered trademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
____________________
http://www.TRENDNET.com.
©
Copyright TRENDware International, Inc. 2005. All Rights Reserved.
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
Web:
Email: sales@trendware.com
www.TRENDNET.com
TRENDnet
TRENDware, USA
R
TEG-S80TXD
TEG-S80TXD
8-Port 10/100/1000Mbps Copper Gigabit Ethernet Switch
8-Port 10/100/1000Mbps Copper Gigabit Ethernet Switch
