TRENDnet User’s Guide
Cover Page
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Table of Contents
a
Thank you for purchasing your new TRENDnet Web
Smart Switch!
Please note: The scope of this user's guide encompasses multiple
products with varying features. Images, artwork, and other specificities
including port count, interfaces etc. may not be identical to the model
you purchased. Please consult the specific model specifications for your
unit for a full list of supported features.
Please ensure your switch’s firmware version is V2.10.010 or newer for
Layer 2+ management features. See the Firmware Upgrade section in
this document for additional information regarding the firmware upgrade
procedure.
Contents
Web Smart Switch Series Product Overview ..................................... i
TEG-082WS Overview ...................................................................................................... i
Package Contents .................................................................................................. i

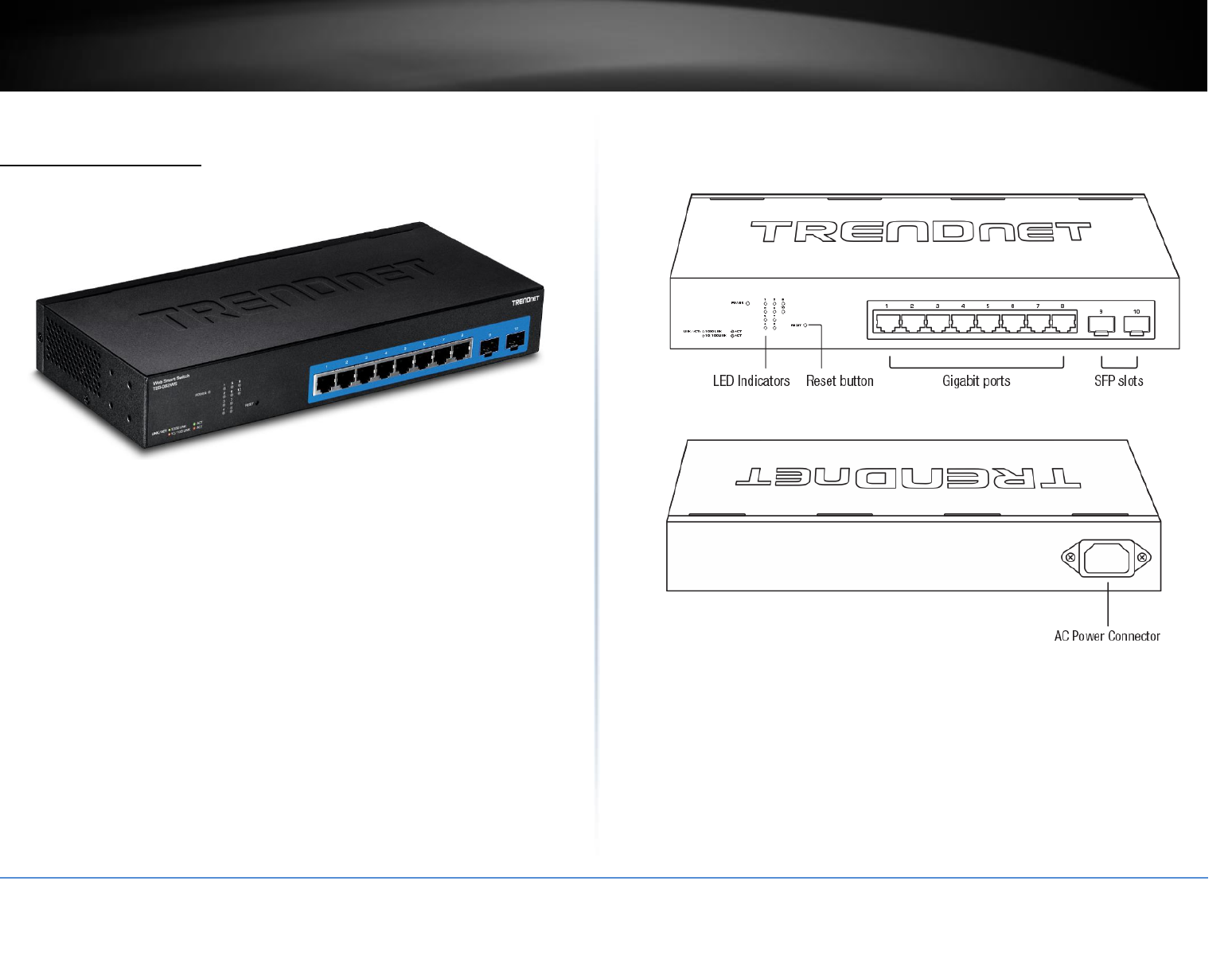

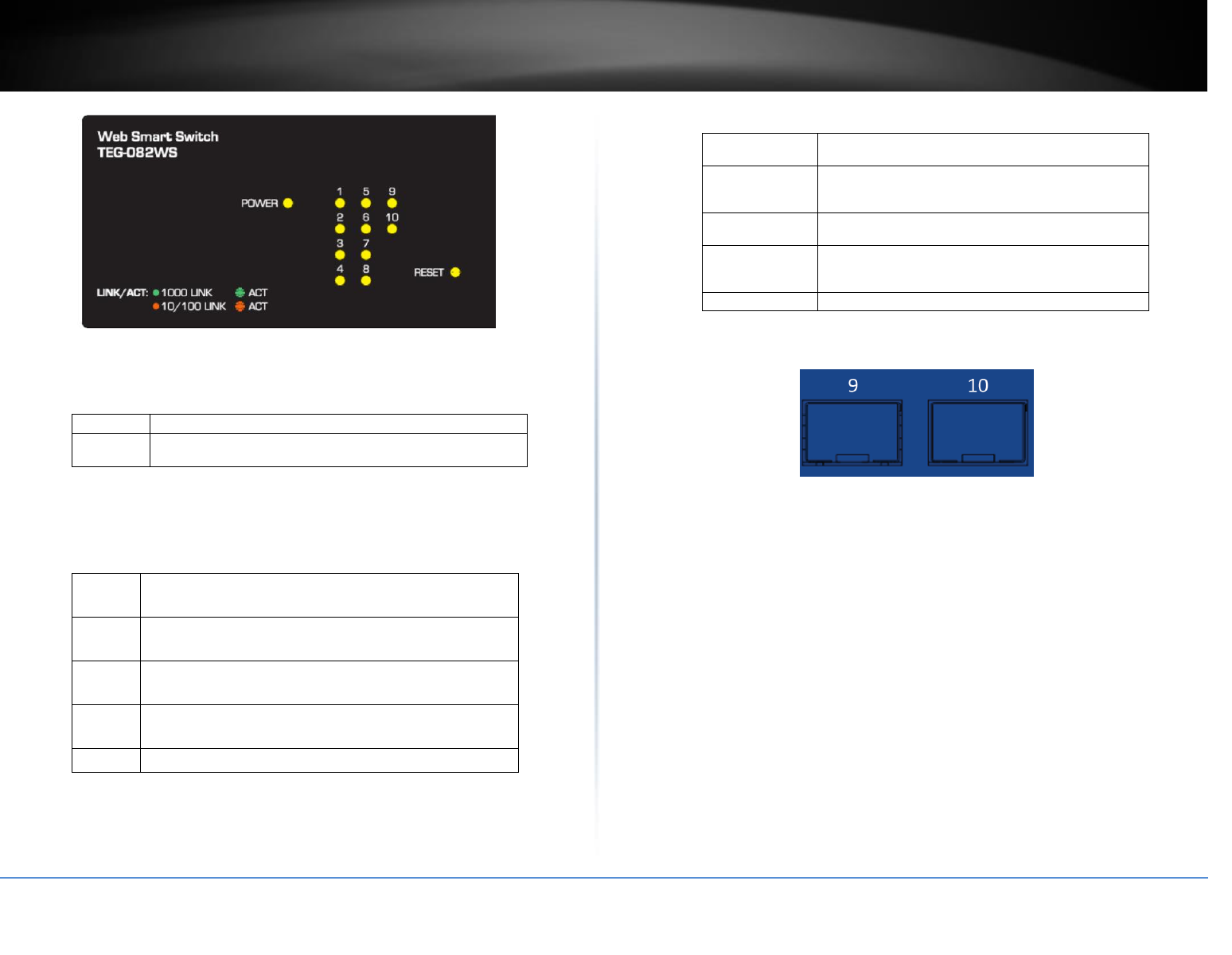

TEG-082WS Hardware Features ............................................................................ i
TEG-204WS Overview .................................................................................................... iii
Package Contents ................................................................................................ iii
TEG-204WS Hardware Features .......................................................................... iii

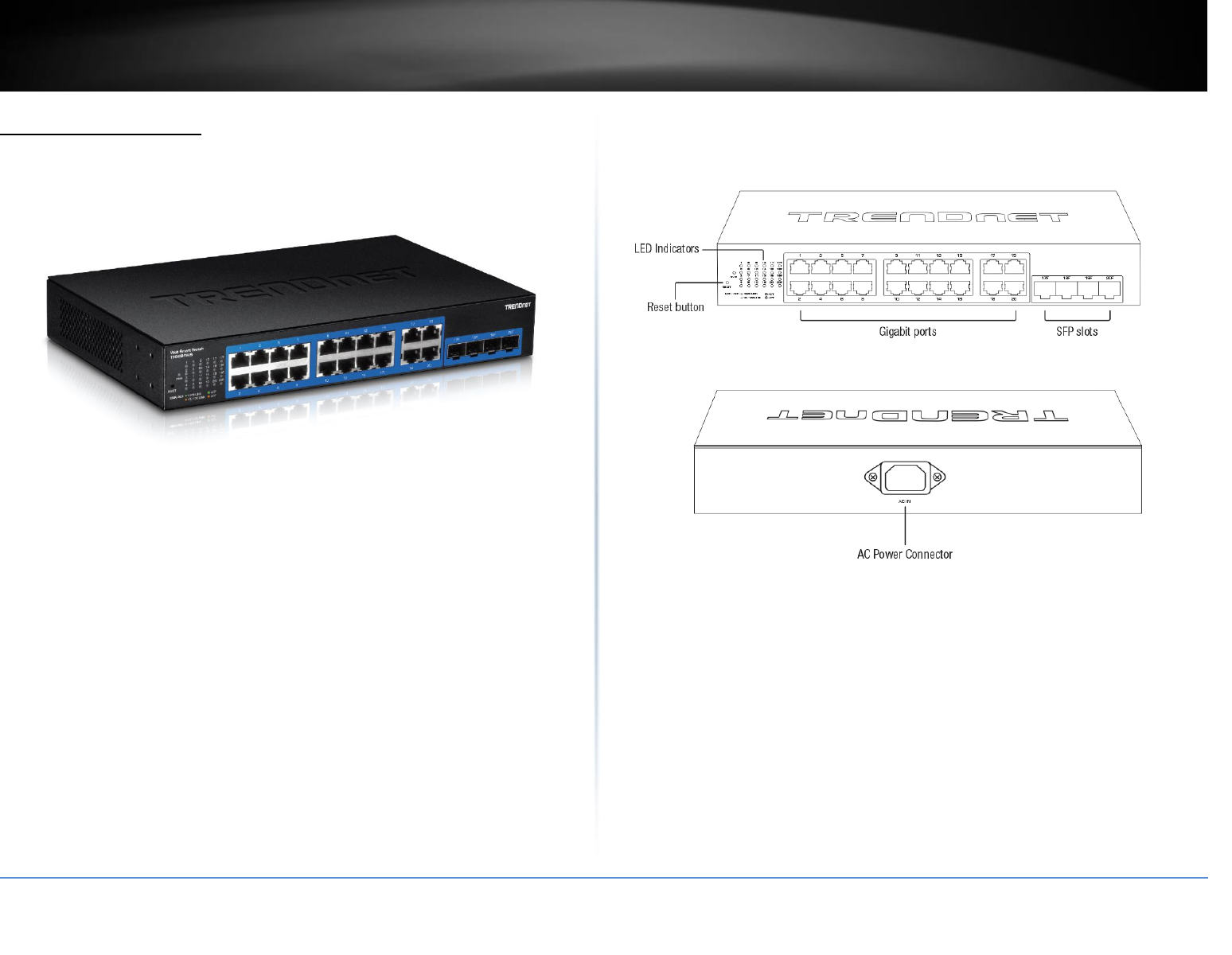

TEG-284WS Overview ..................................................................................................... v
Package Contents ................................................................................................. v
TEG-284WS Hardware Features ........................................................................... v
TEG-524WS Overview ................................................................................................... vii
Package Contents ............................................................................................... vii
TEG-524WS Hardware Features ......................................................................... vii
Switch Installation .......................................................................... 1
Desktop Hardware Installation ...................................................................................... 1
Rack Mount Hardware Installation ................................................................................ 1

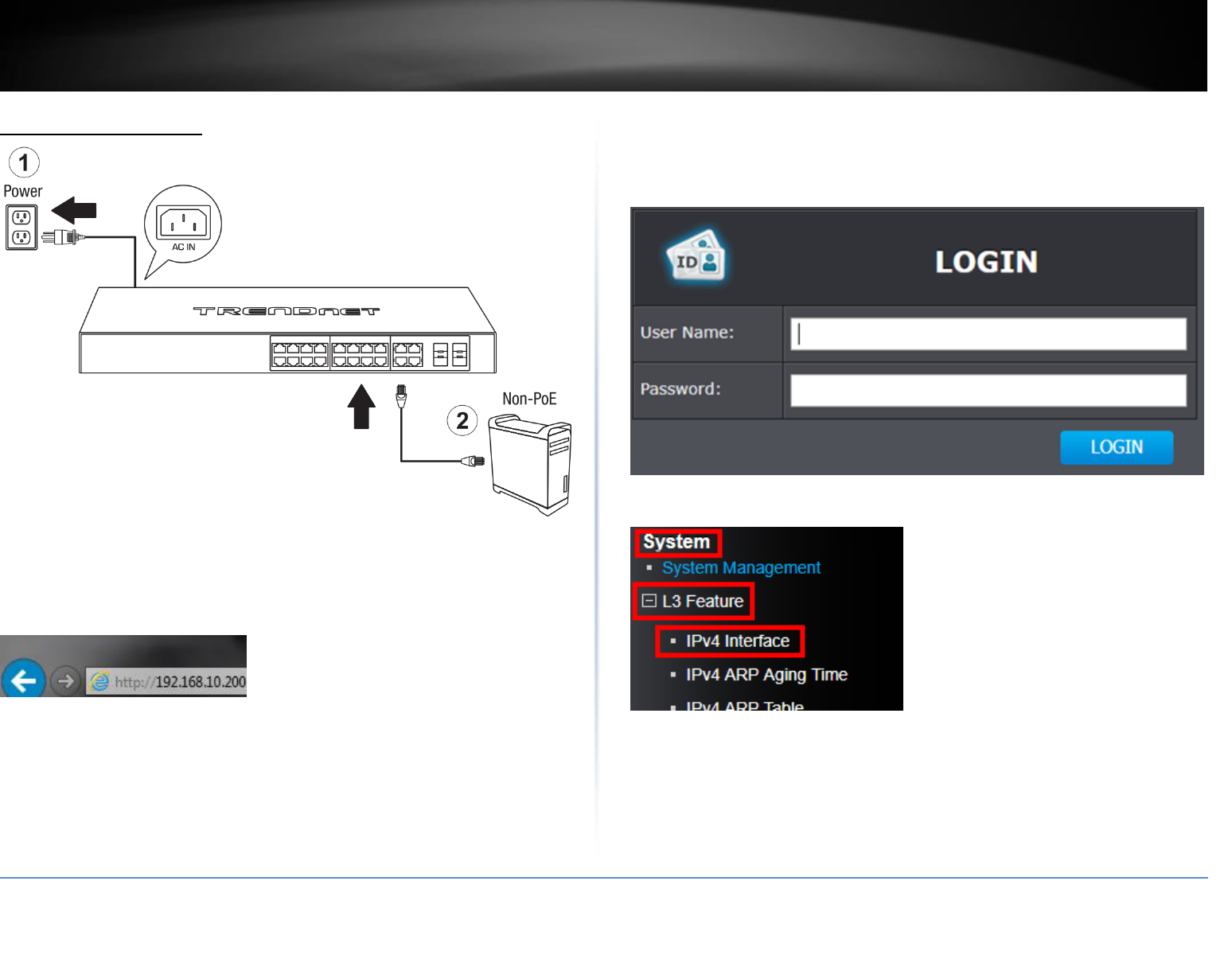

Basic IP Configuration .................................................................................................... 2
Connect additional devices to your switch .................................................................... 4
Accessing switch management interfaces ........................................ 5
Access your switch management page.......................................................................... 5
System Info .................................................................................................................... 5
View your switch status information ................................................................... 5
System ............................................................................................ 7
System Management ..................................................................................................... 7
Set your system information ............................................................................... 7
L3 Feature ...................................................................................................................... 8

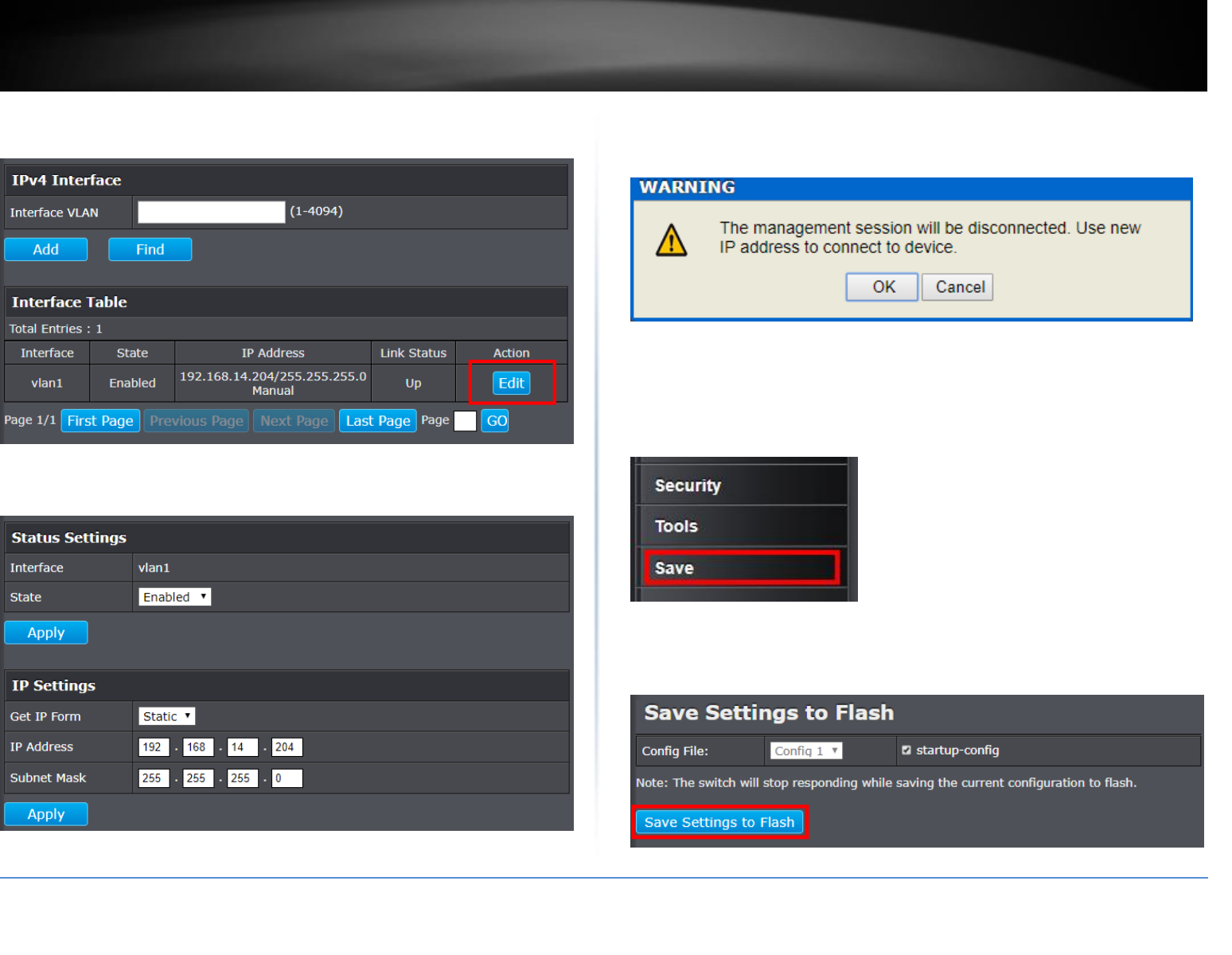

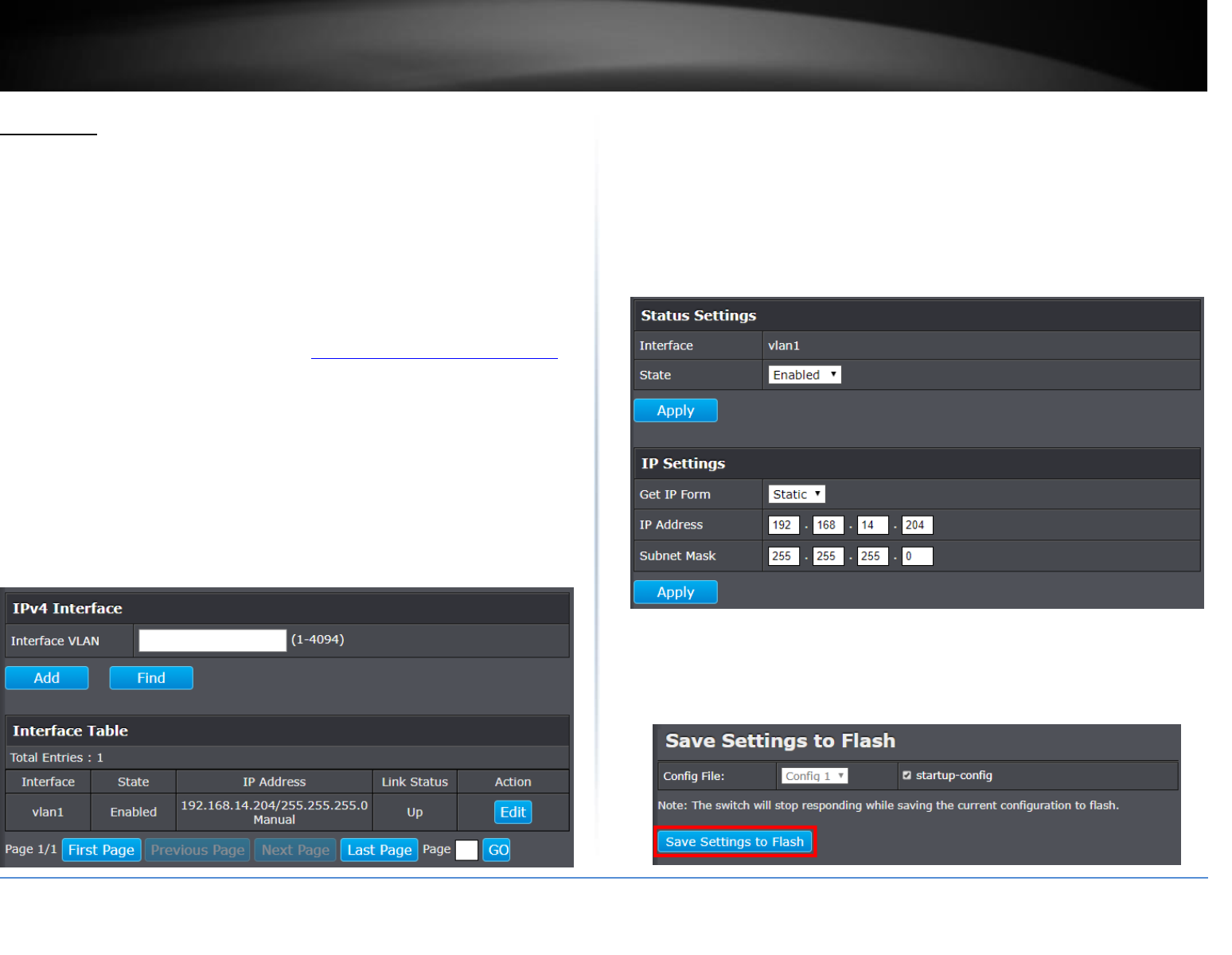

IPv4 Interface ....................................................................................................... 8
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Table of Contents
b
IPv4 ARP Aging Time ............................................................................................ 9
IPv4 Static ARP ..................................................................................................... 9
IPv4 Static/Default Route .................................................................................. 10

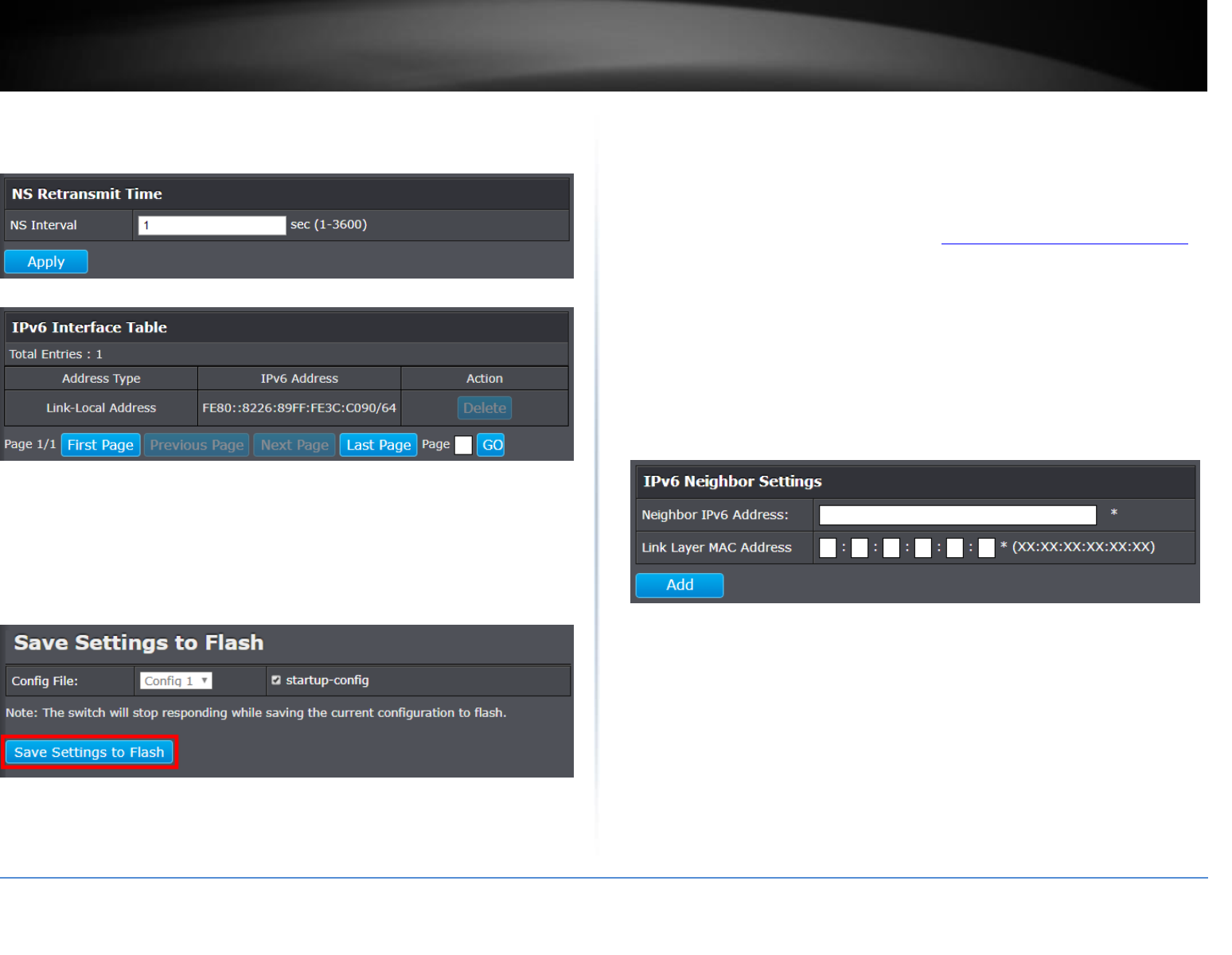

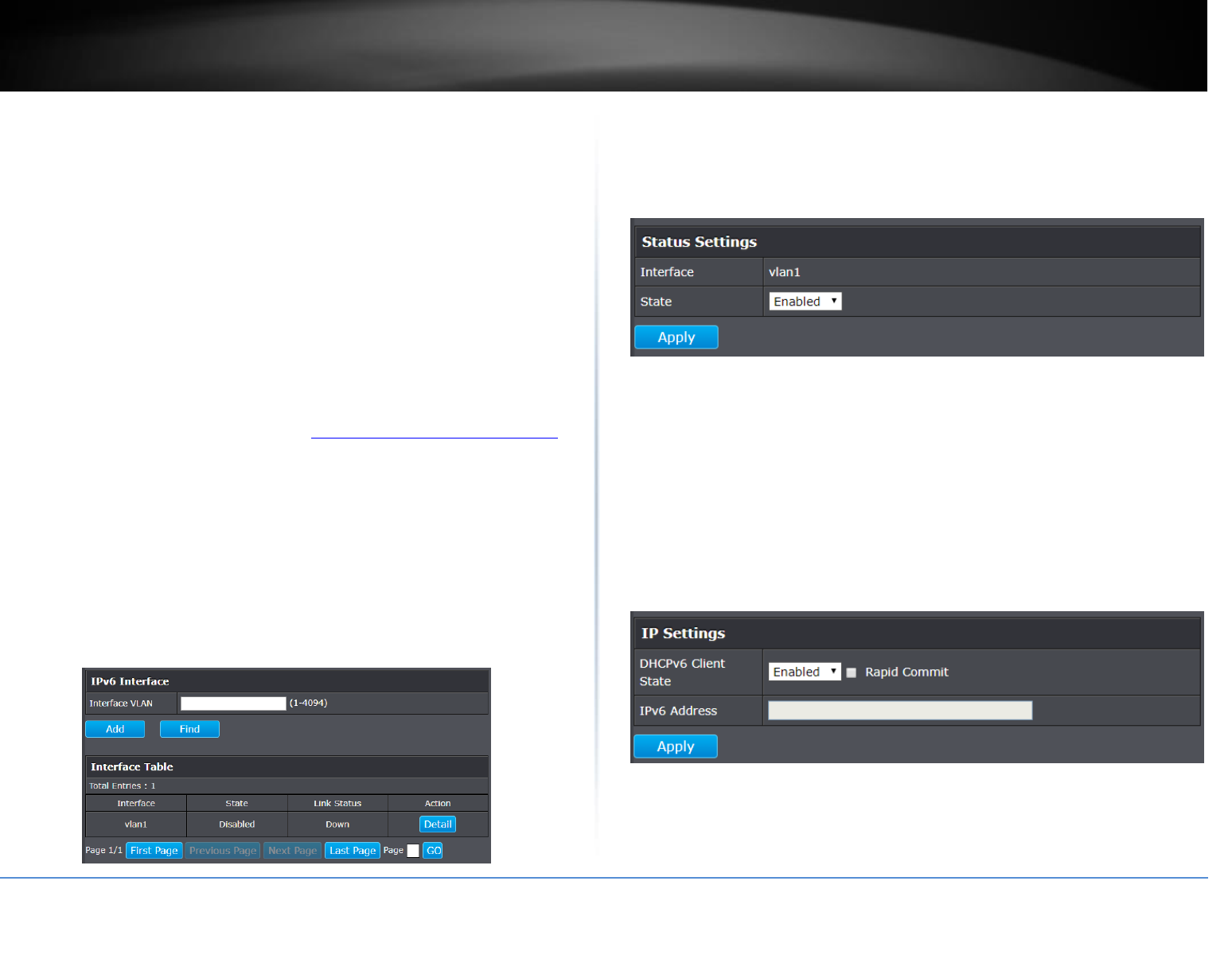

Set your IPv6 settings ........................................................................................ 11

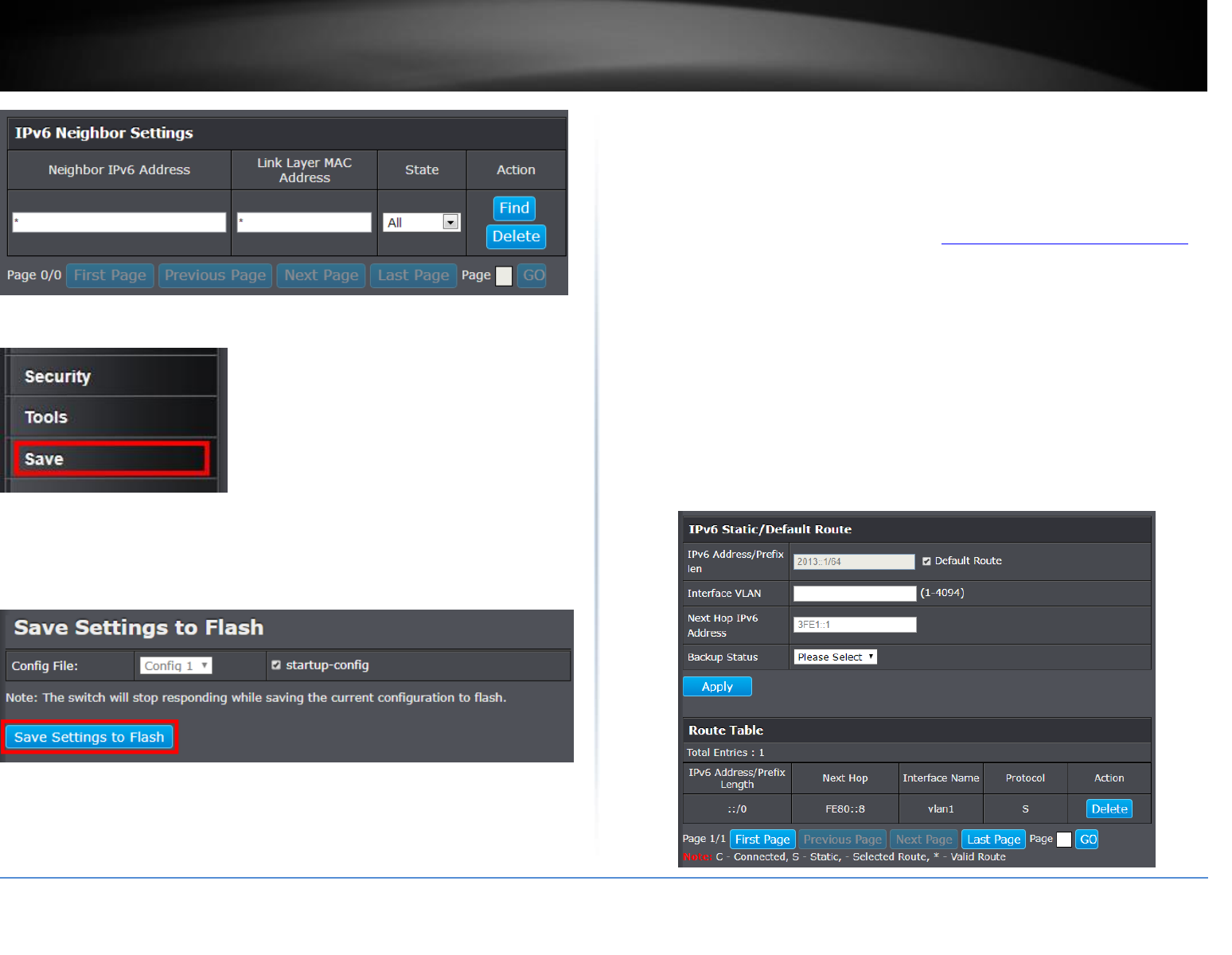

Add IPv6 neighbors ............................................................................................ 12
Configure IPv6 Routing Table ............................................................................ 13
DNS .............................................................................................................................. 14
Set your DNS server settings.............................................................................. 14
IP Access List ................................................................................................................ 15
Restrict access to switch management page ..................................................... 15
Administration ............................................................................................................. 16

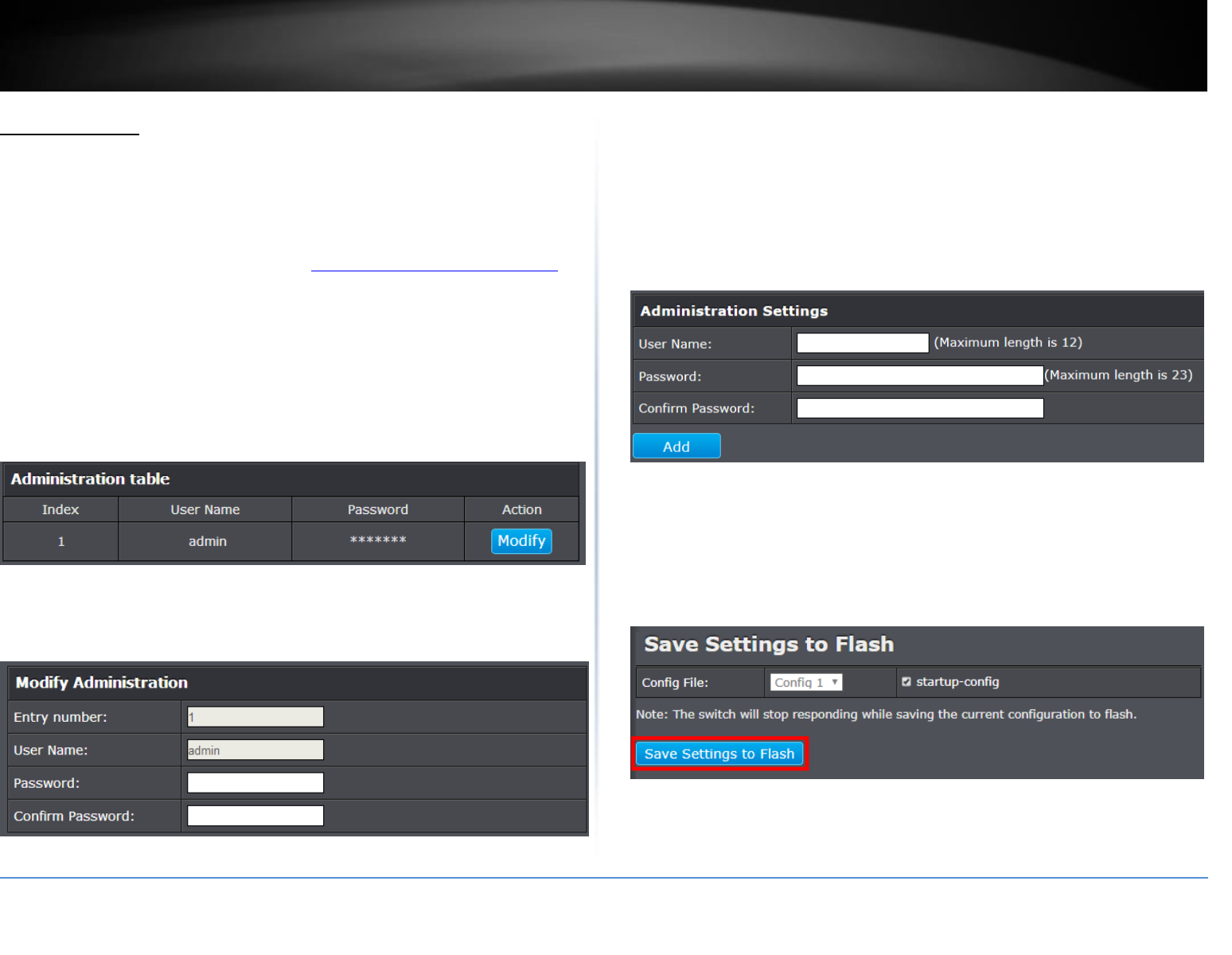

Change administrator password and add accounts........................................... 16
Timeout........................................................................................................................ 17

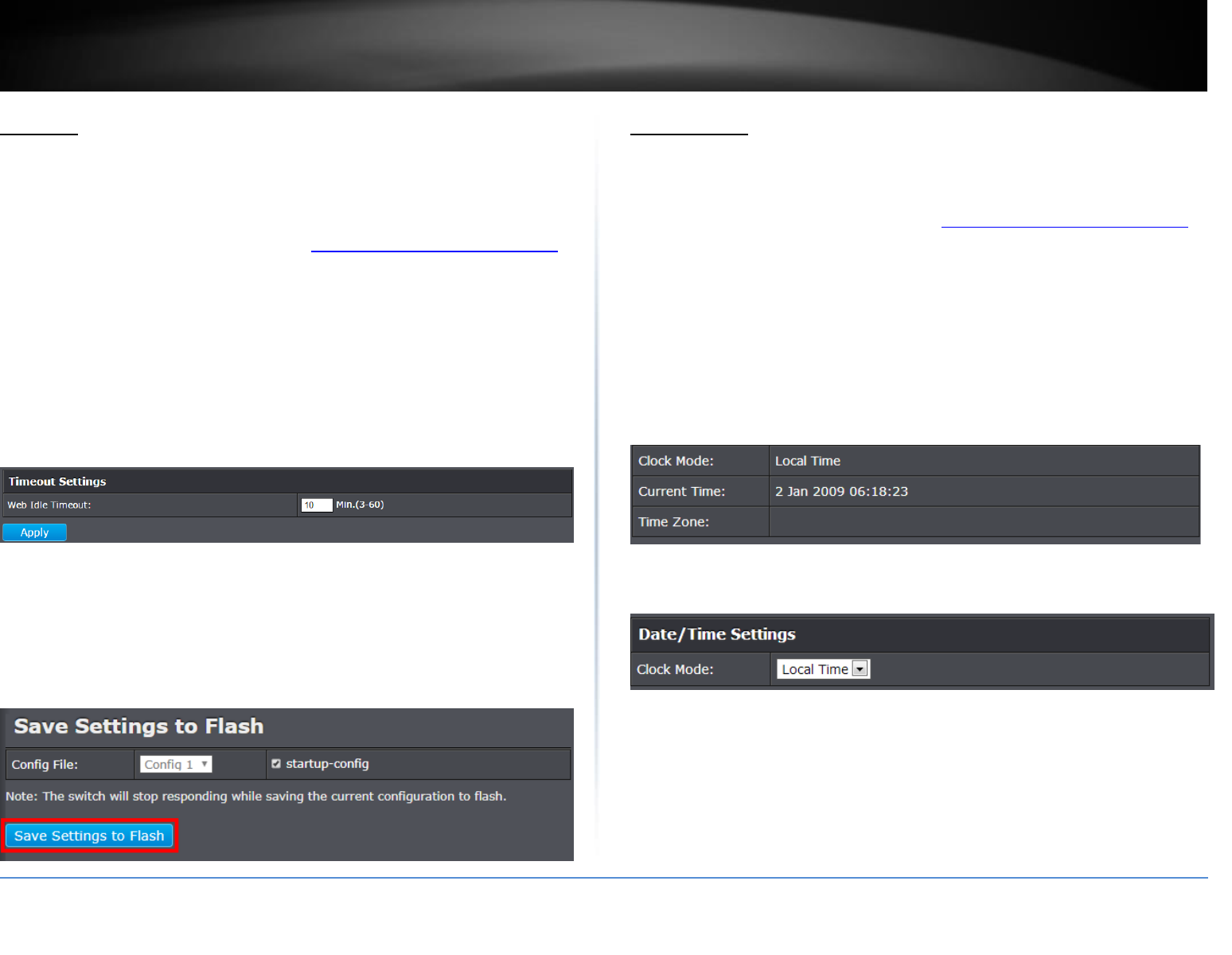

Change web idle login timeout settings ............................................................ 17
System Time ................................................................................................................ 17

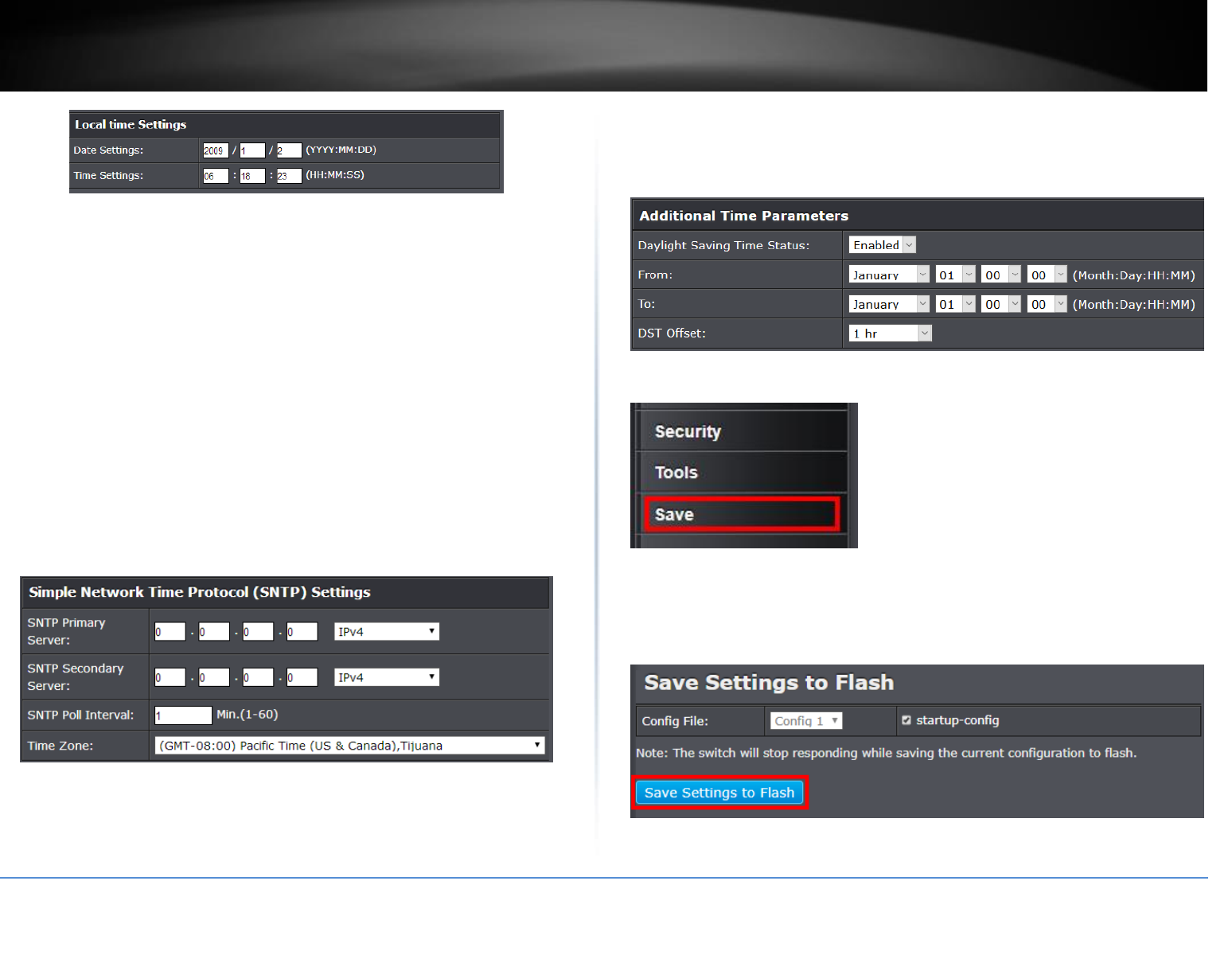

Set the switch date and time ............................................................................. 17
SSL ................................................................................................................................ 19
Enable HTTPS/SSL (Secure Socket Layer) management access ......................... 19
SSH ............................................................................................................................... 20
Enable SSH (Secure Shell) management access ................................................. 20
Telnet ........................................................................................................................... 21
Enable Telnet management access.................................................................... 21
DHCP Auto Configuration ............................................................................................ 22
Enable DHCP Auto Configuration....................................................................... 22

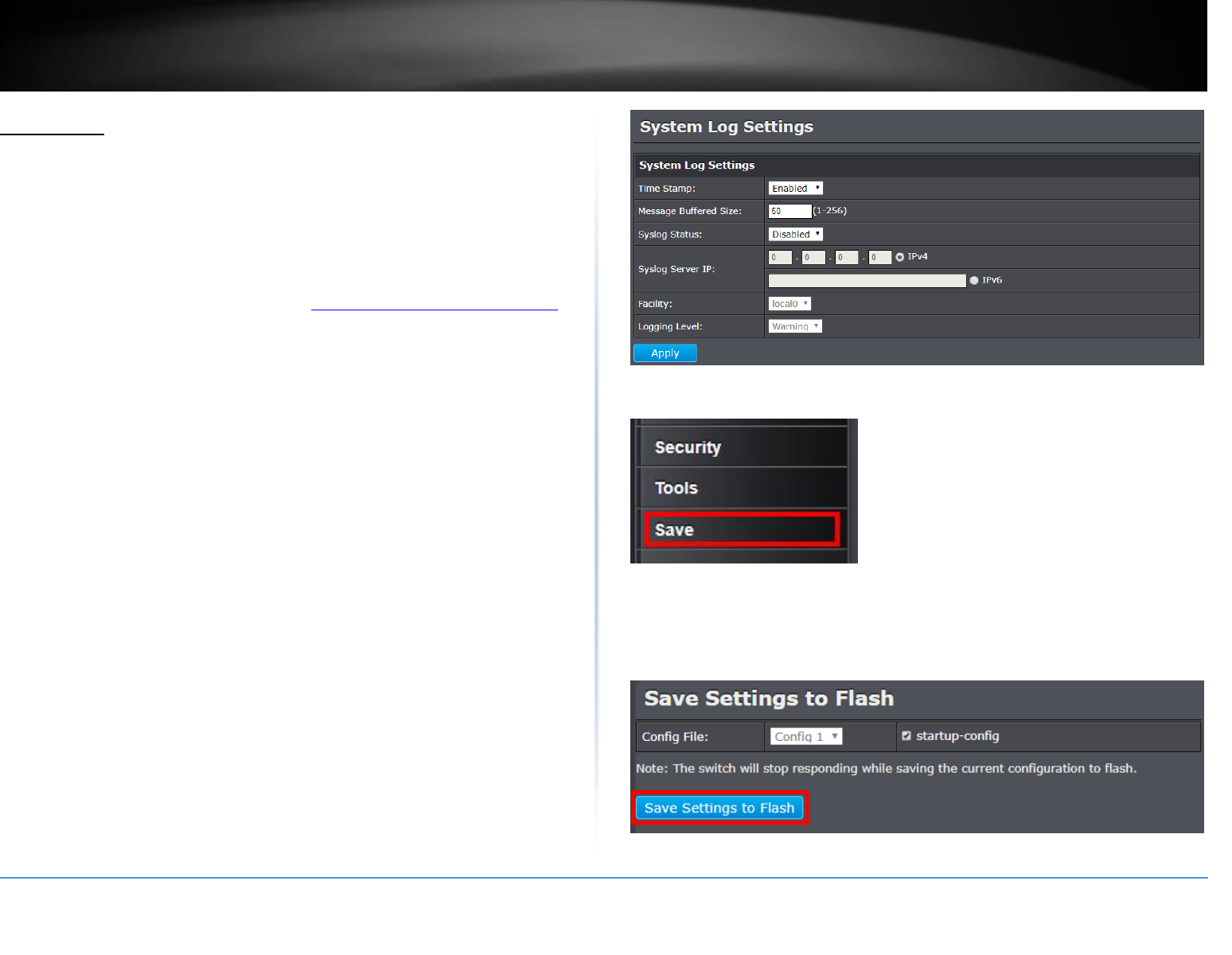

System Log ................................................................................................................... 23
View and setup your switch logging .................................................................. 23

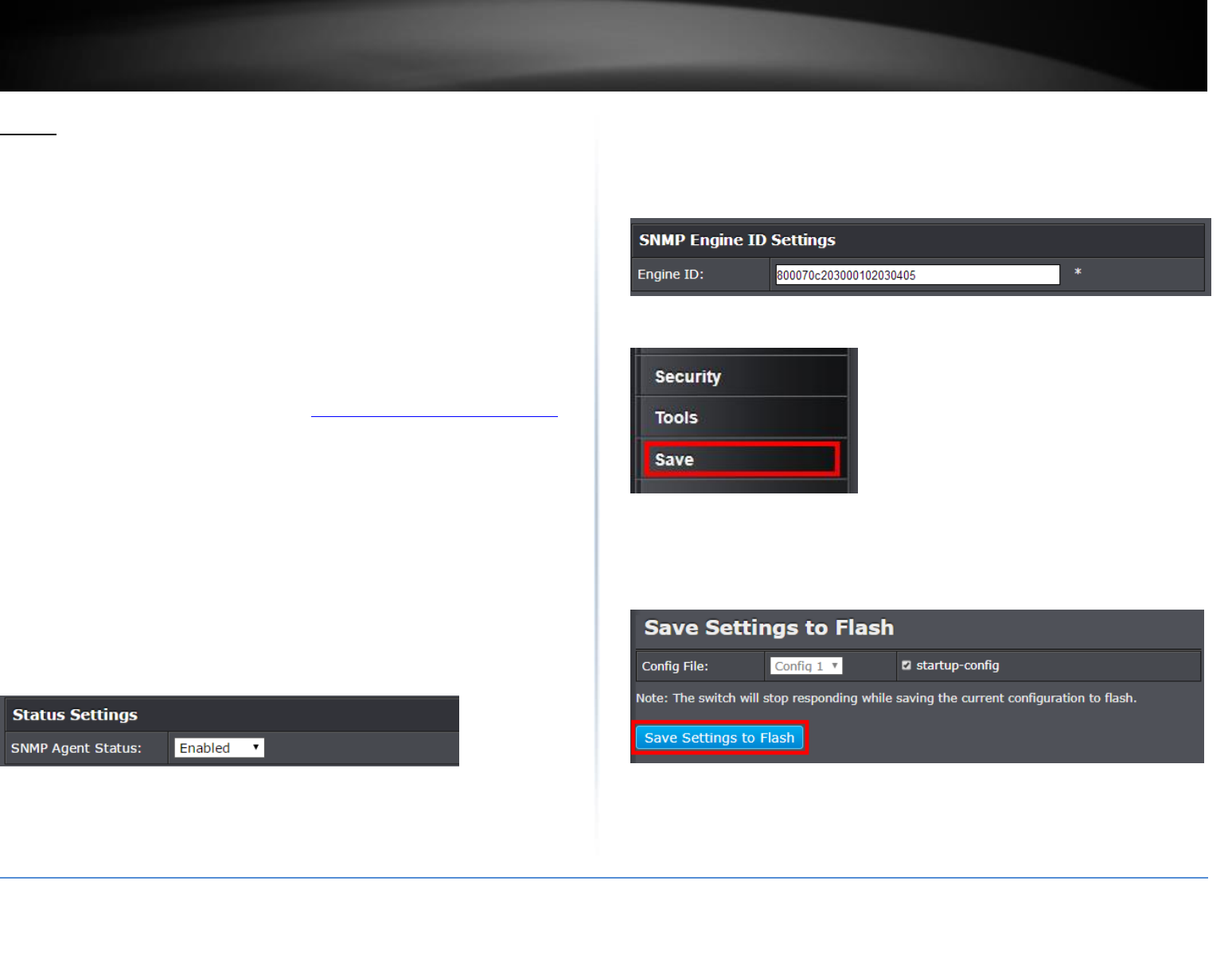

SNMP ........................................................................................................................... 24
Settings .............................................................................................................. 24

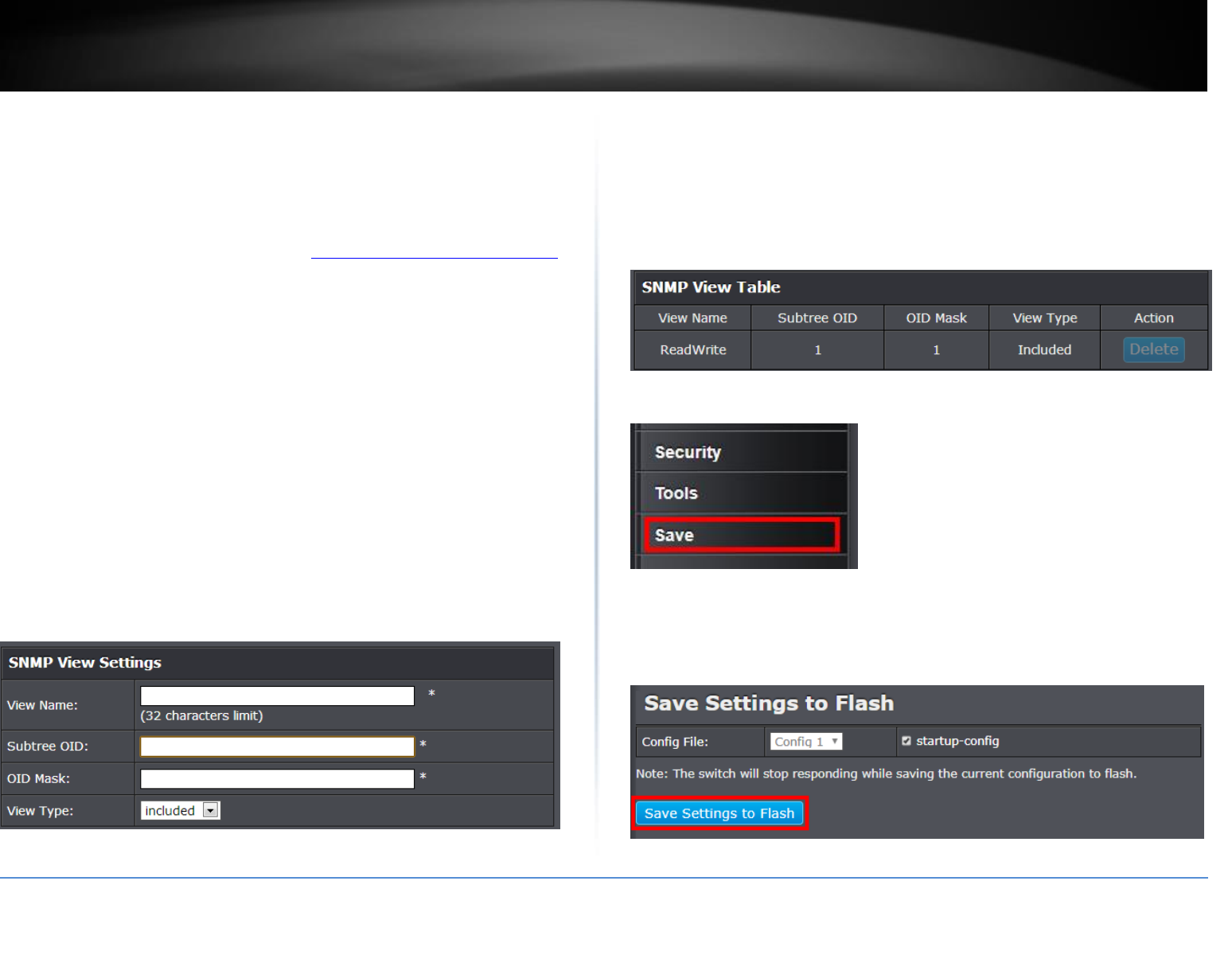

View ................................................................................................................... 25

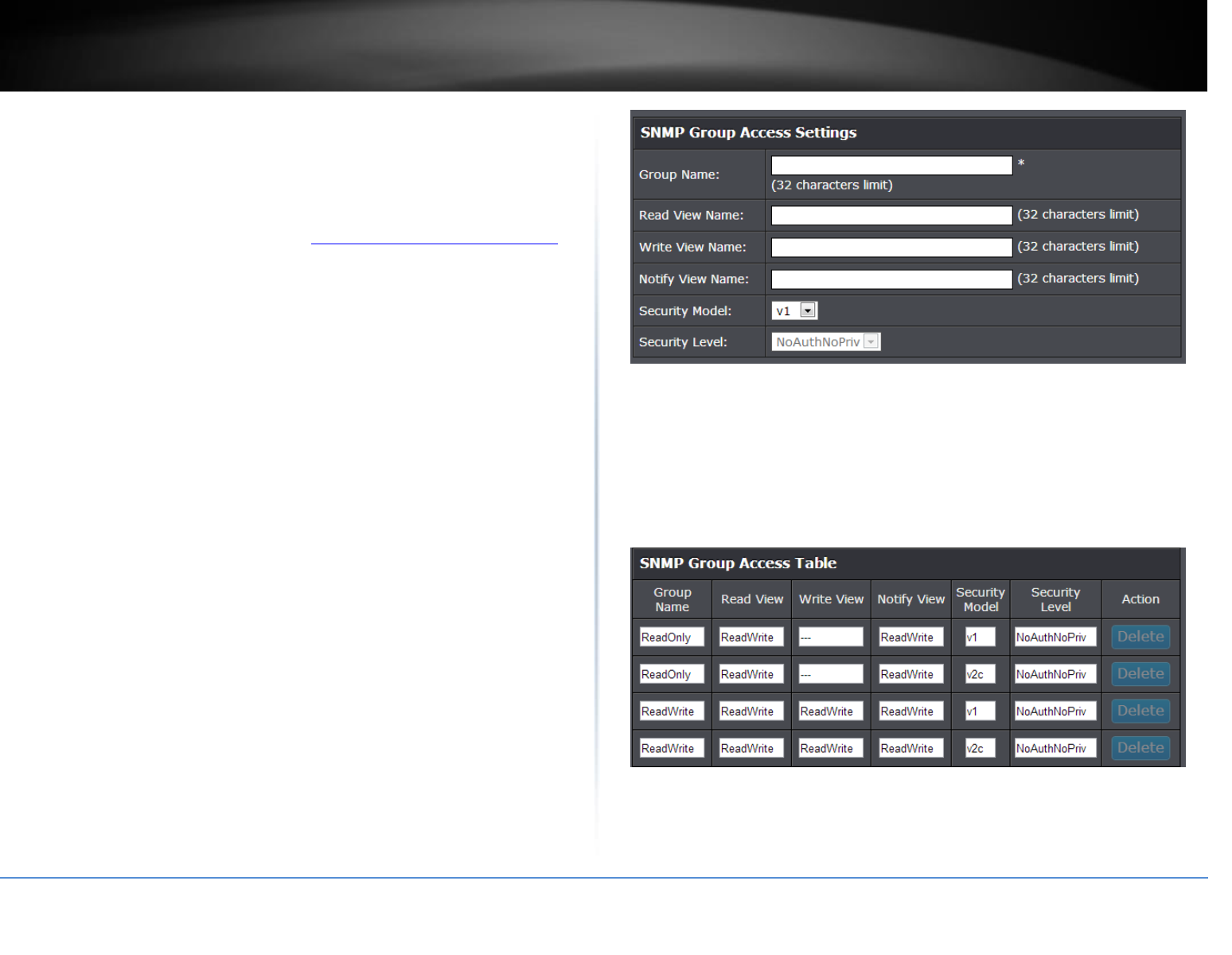

Group ................................................................................................................. 26

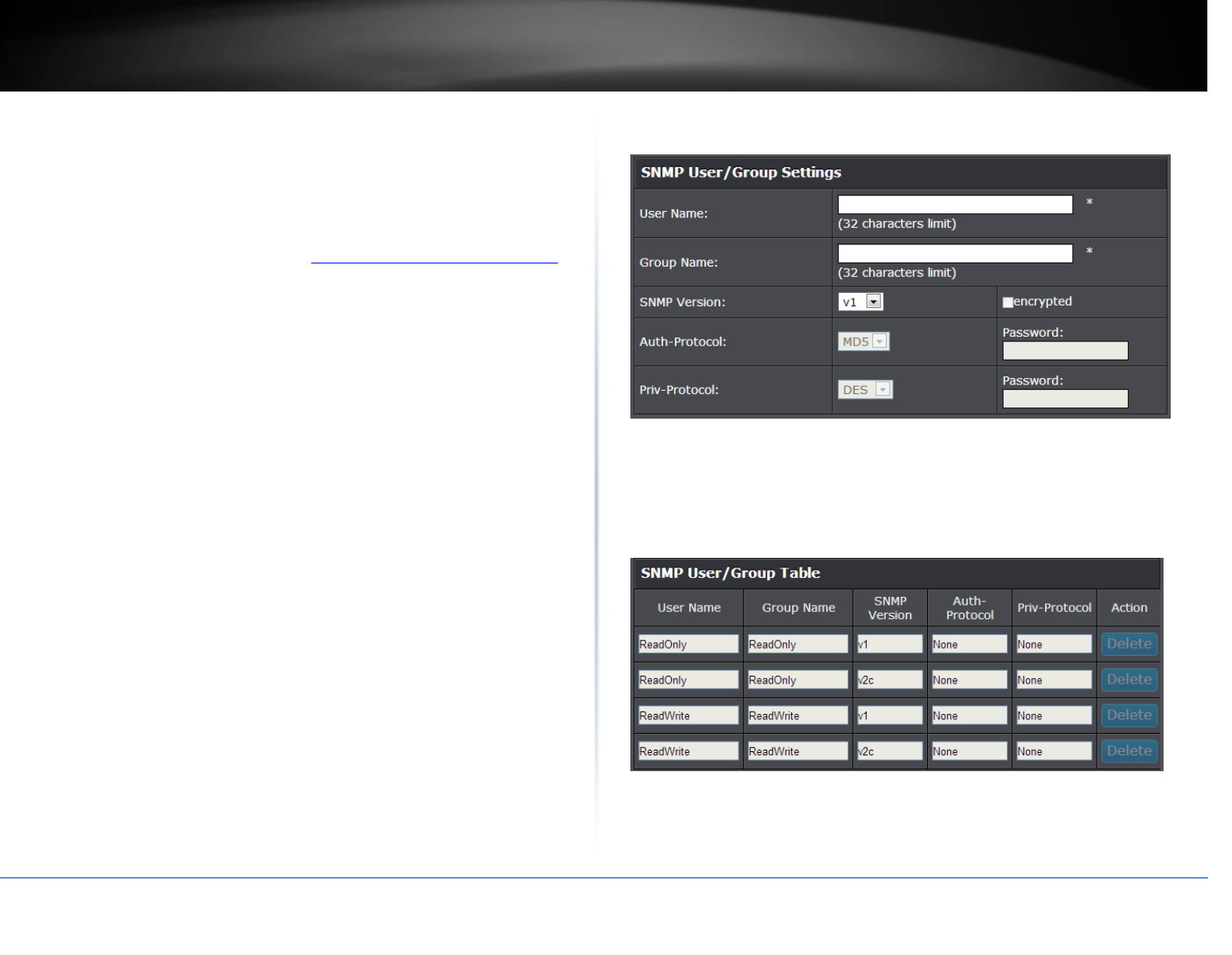

User ................................................................................................................... 27
Community ........................................................................................................ 28
Trap .................................................................................................................... 29

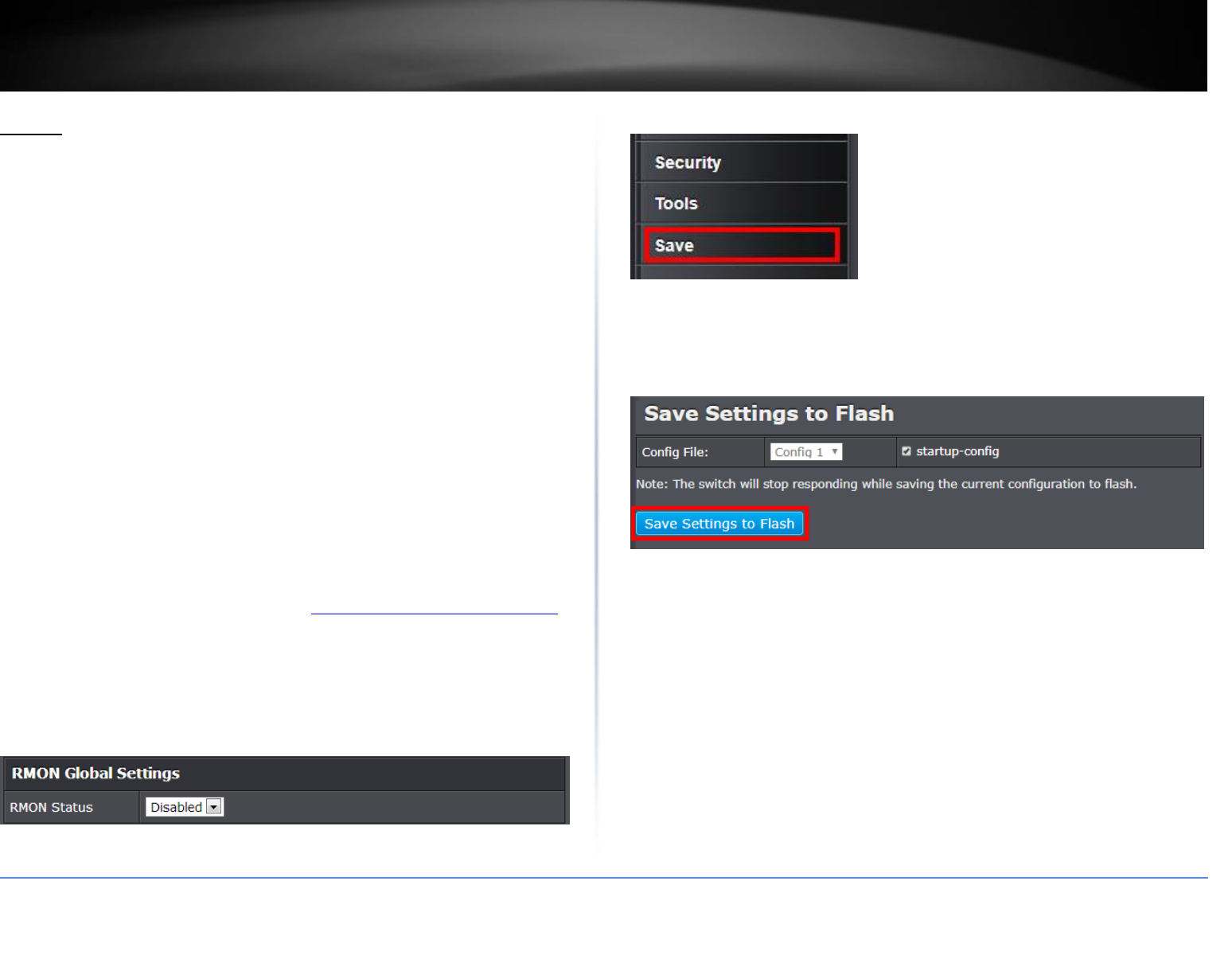

RMON .......................................................................................................................... 30
Settings .............................................................................................................. 30

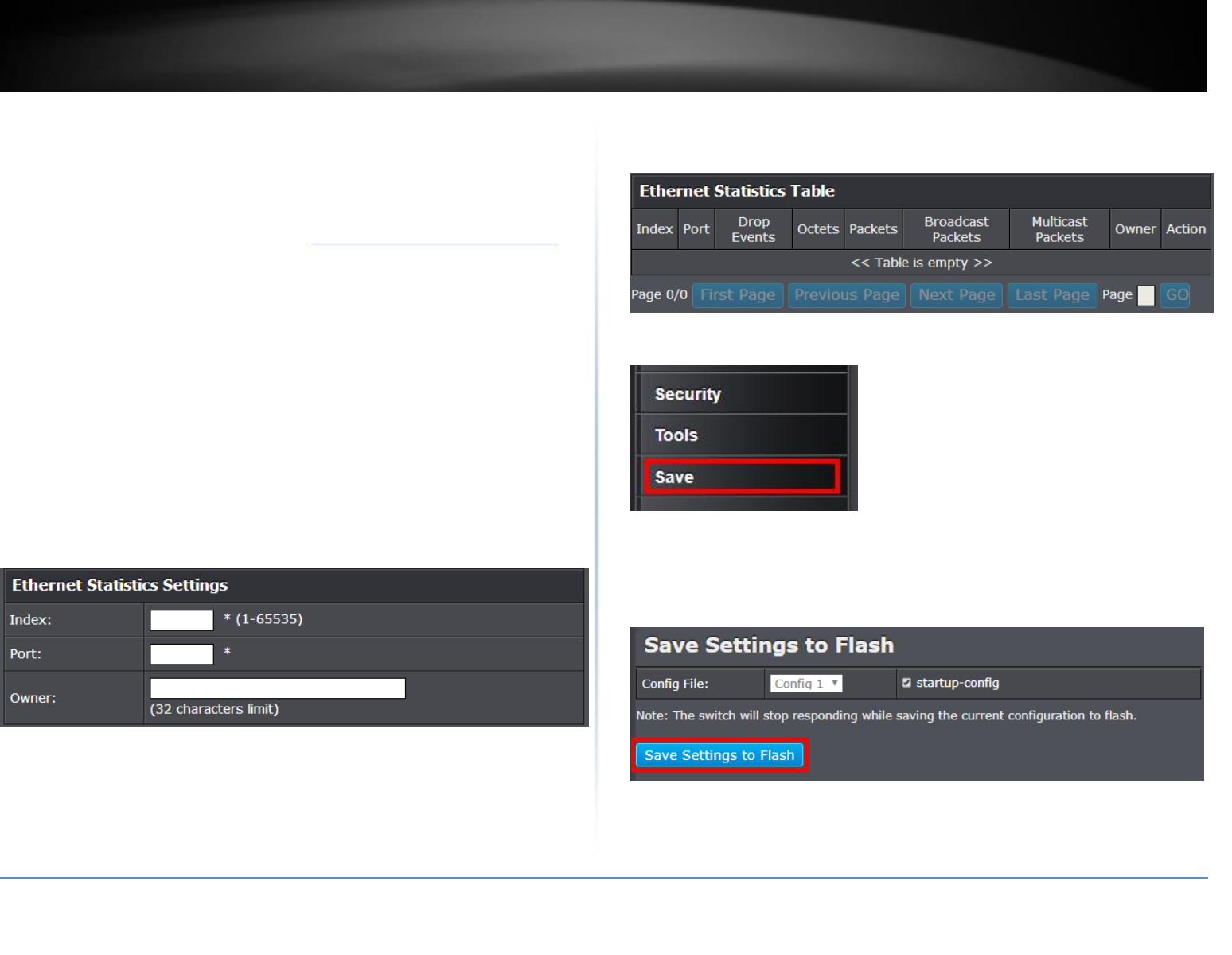

Statistics ............................................................................................................. 31

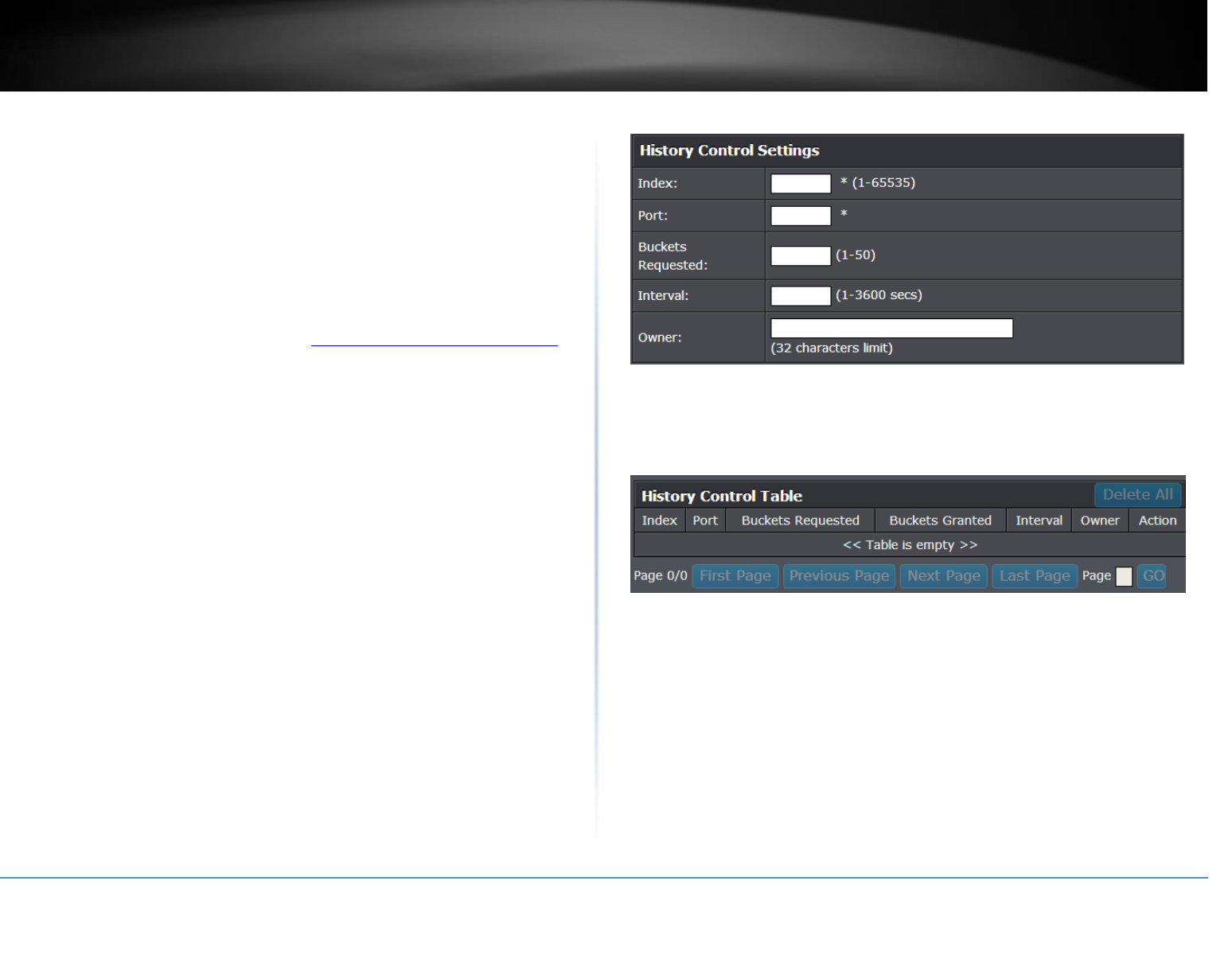

History ............................................................................................................... 32

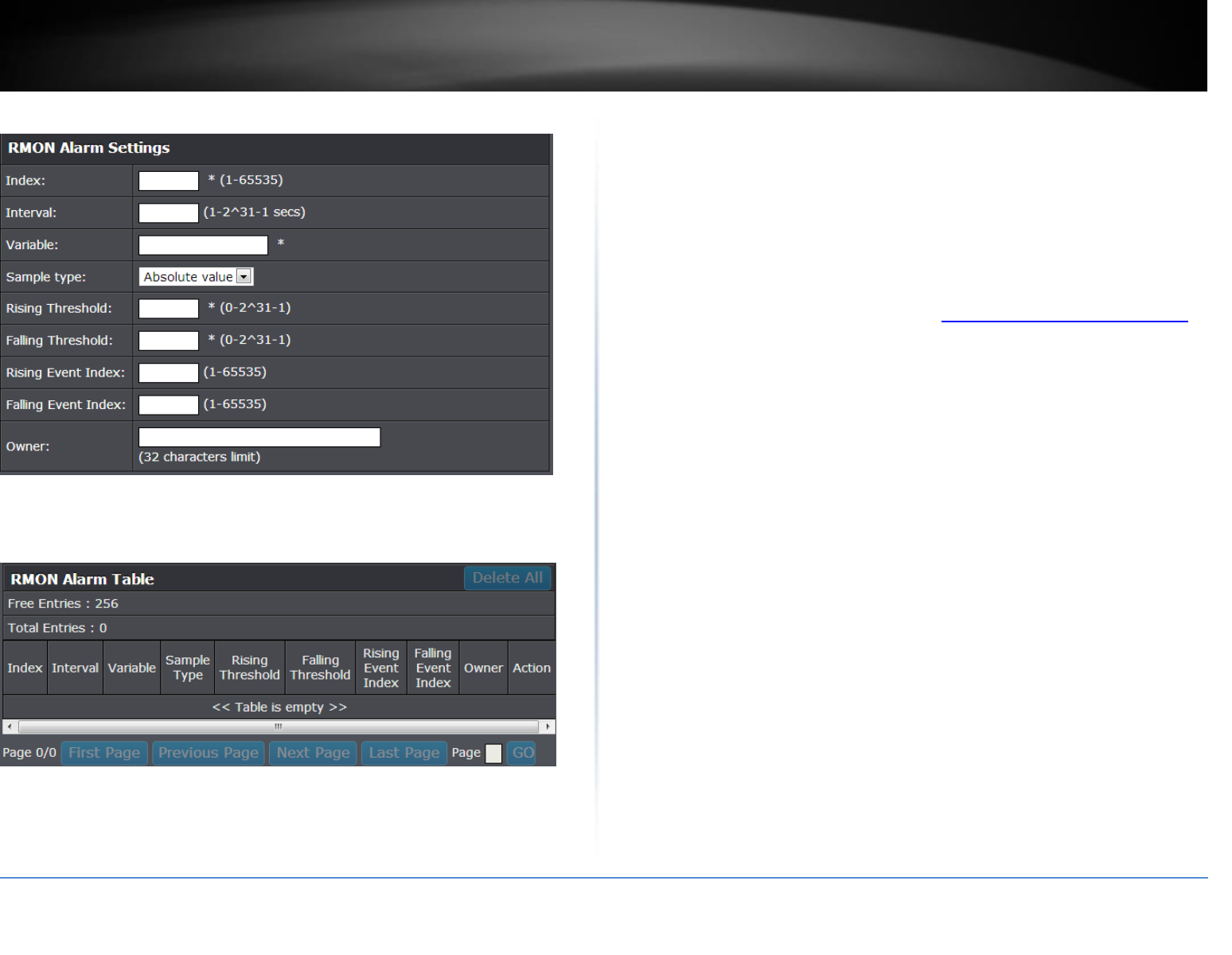

Alarms ................................................................................................................ 33
Events ................................................................................................................ 34
Statistics....................................................................................................................... 36

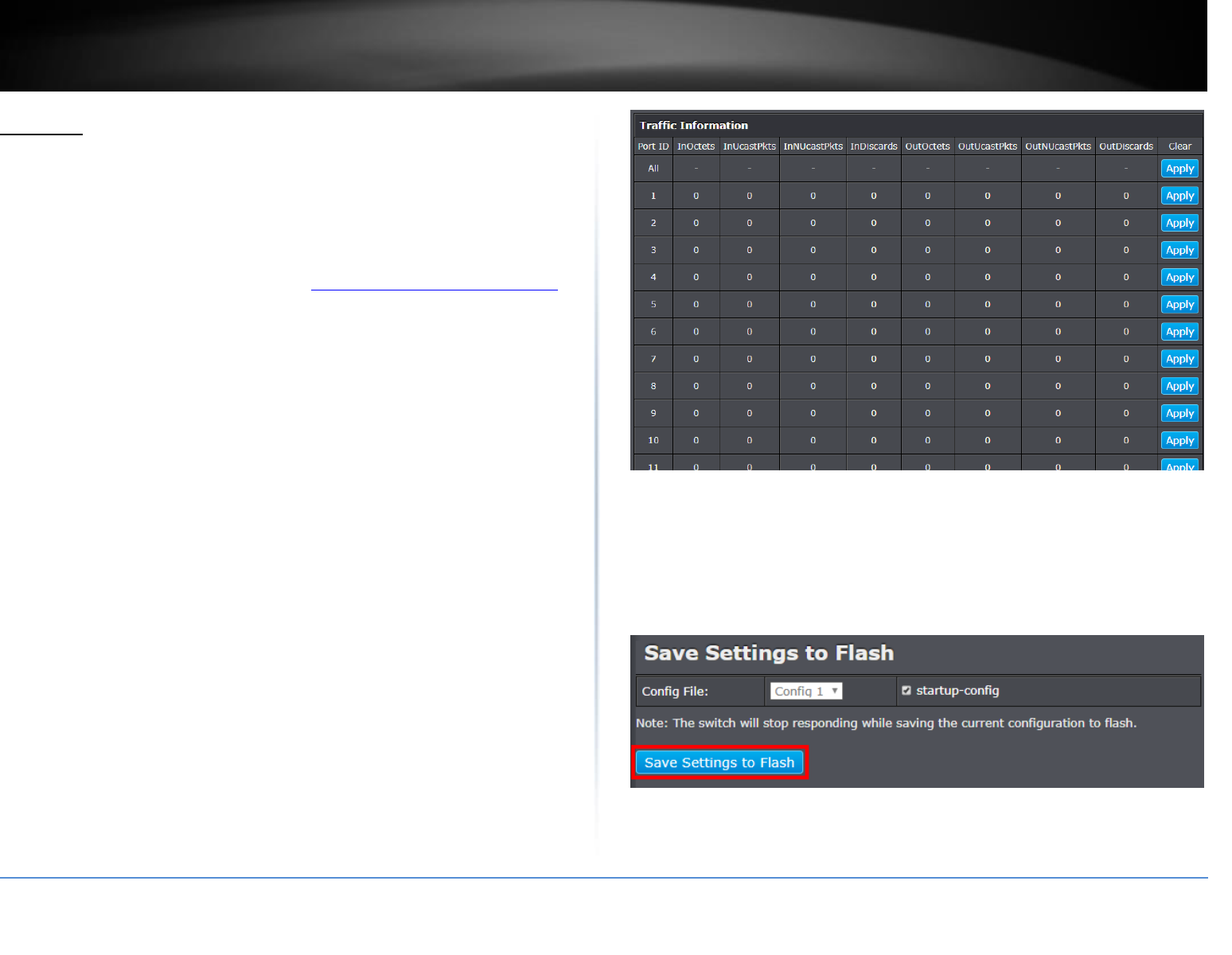

Traffic ................................................................................................................. 36
Error ................................................................................................................... 37

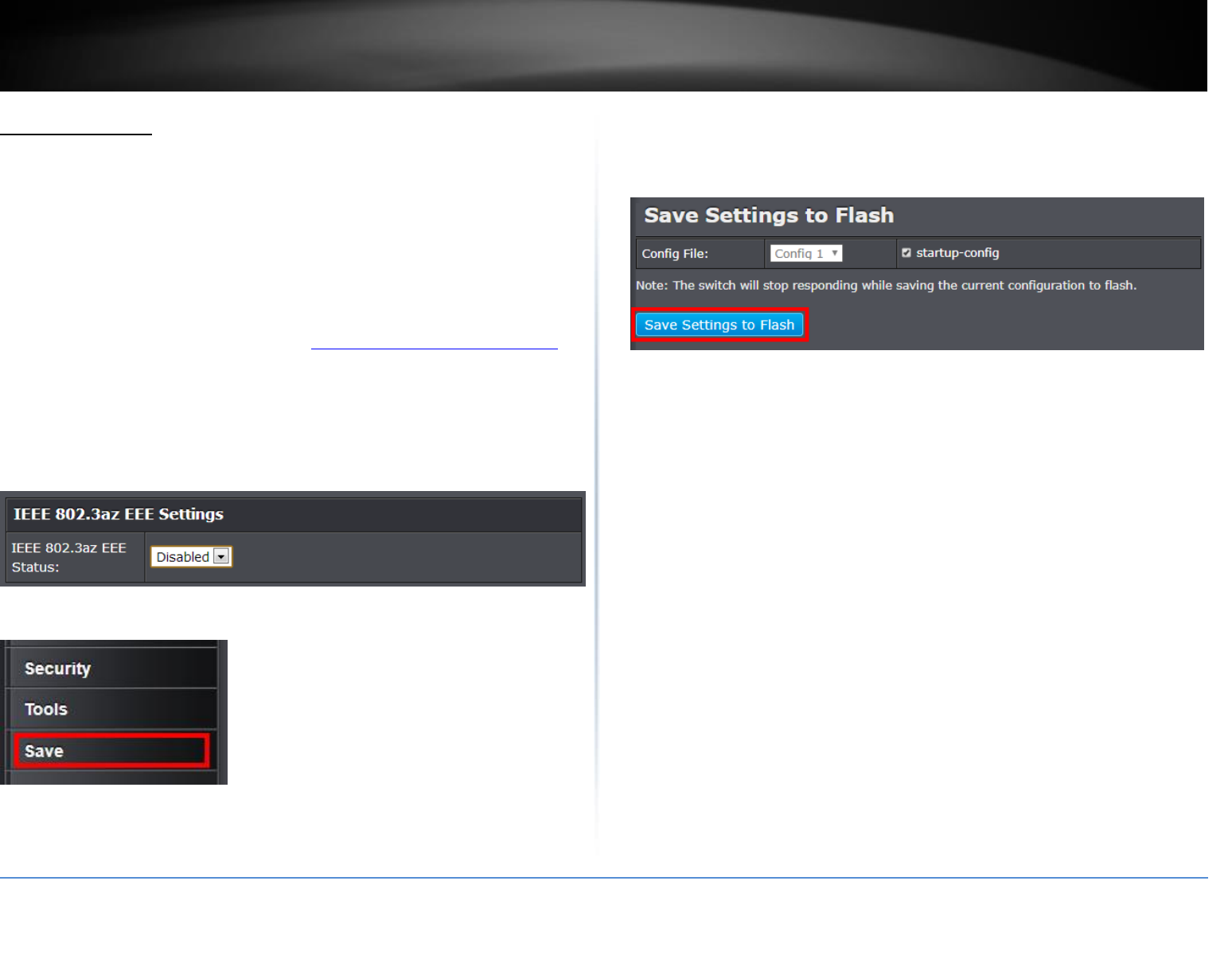

IEEE 802.3az EEE .......................................................................................................... 38
Enable IEEE 802.3az Power Saving Mode .......................................................... 38
Network ....................................................................................... 39

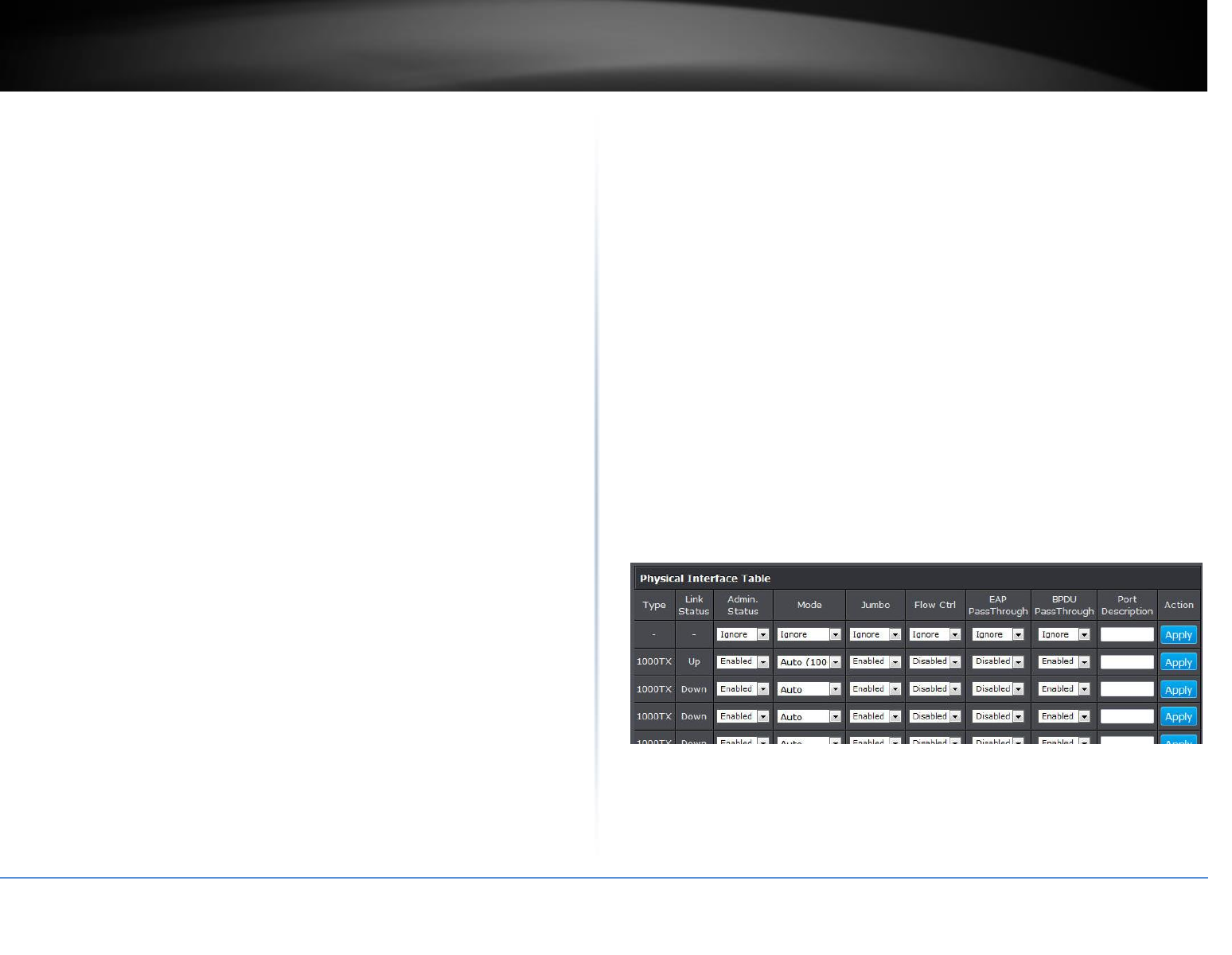

Physical Interface......................................................................................................... 39
Configure Physical Interfaces ............................................................................ 39
Spanning Tree .............................................................................................................. 41
Protocol ............................................................................................................. 41
Port .................................................................................................................... 42

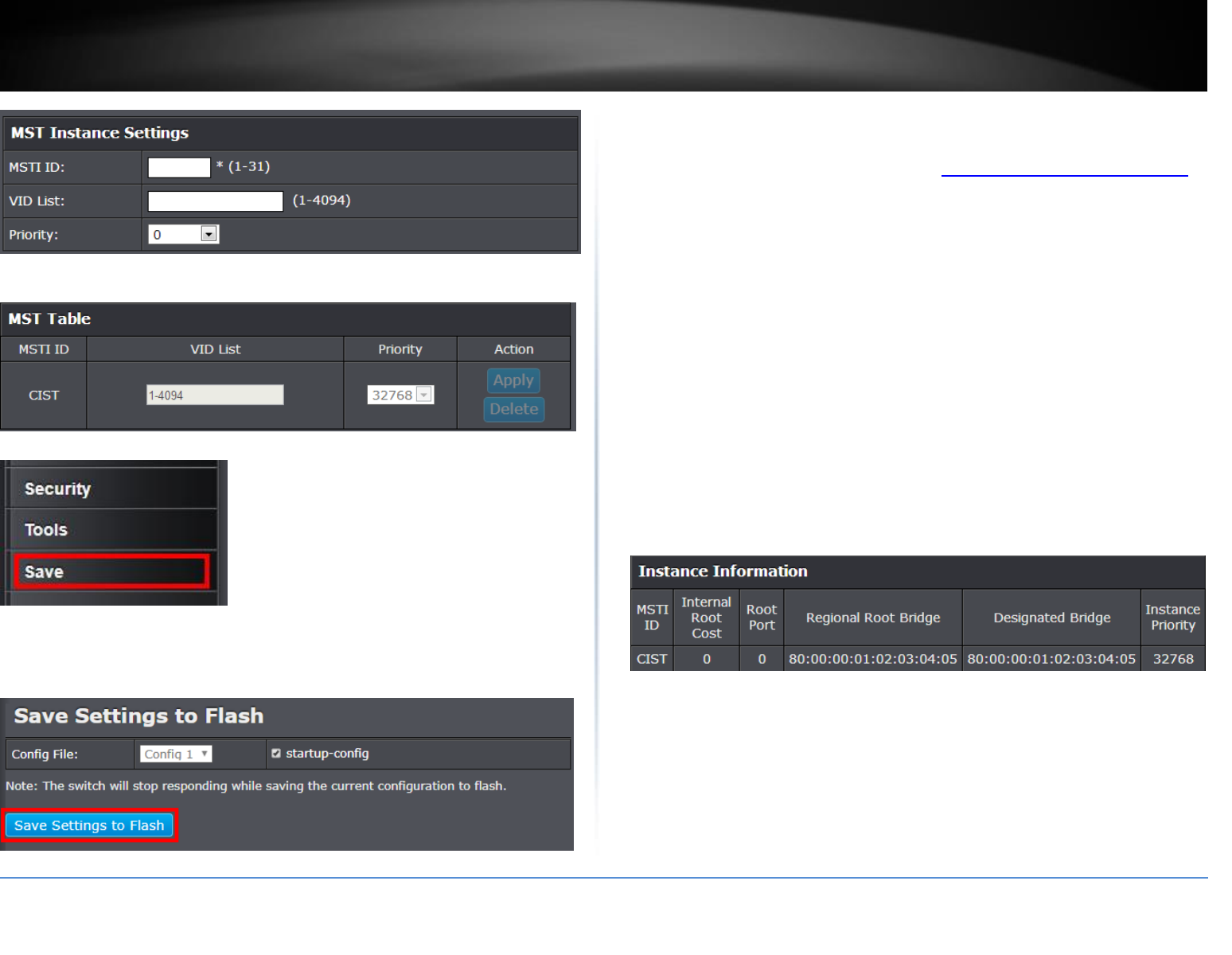

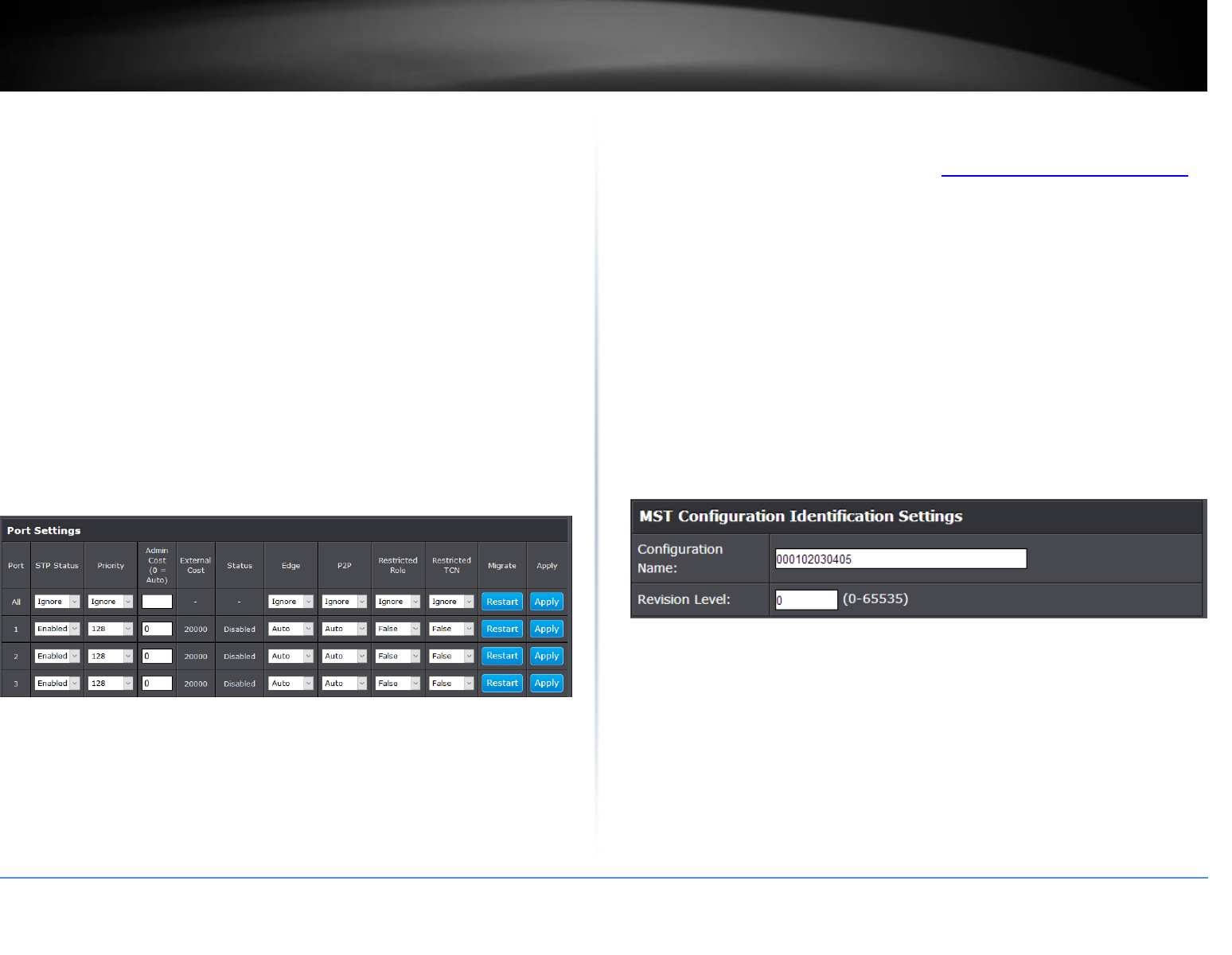

MST .................................................................................................................... 43
Instance ............................................................................................................. 44

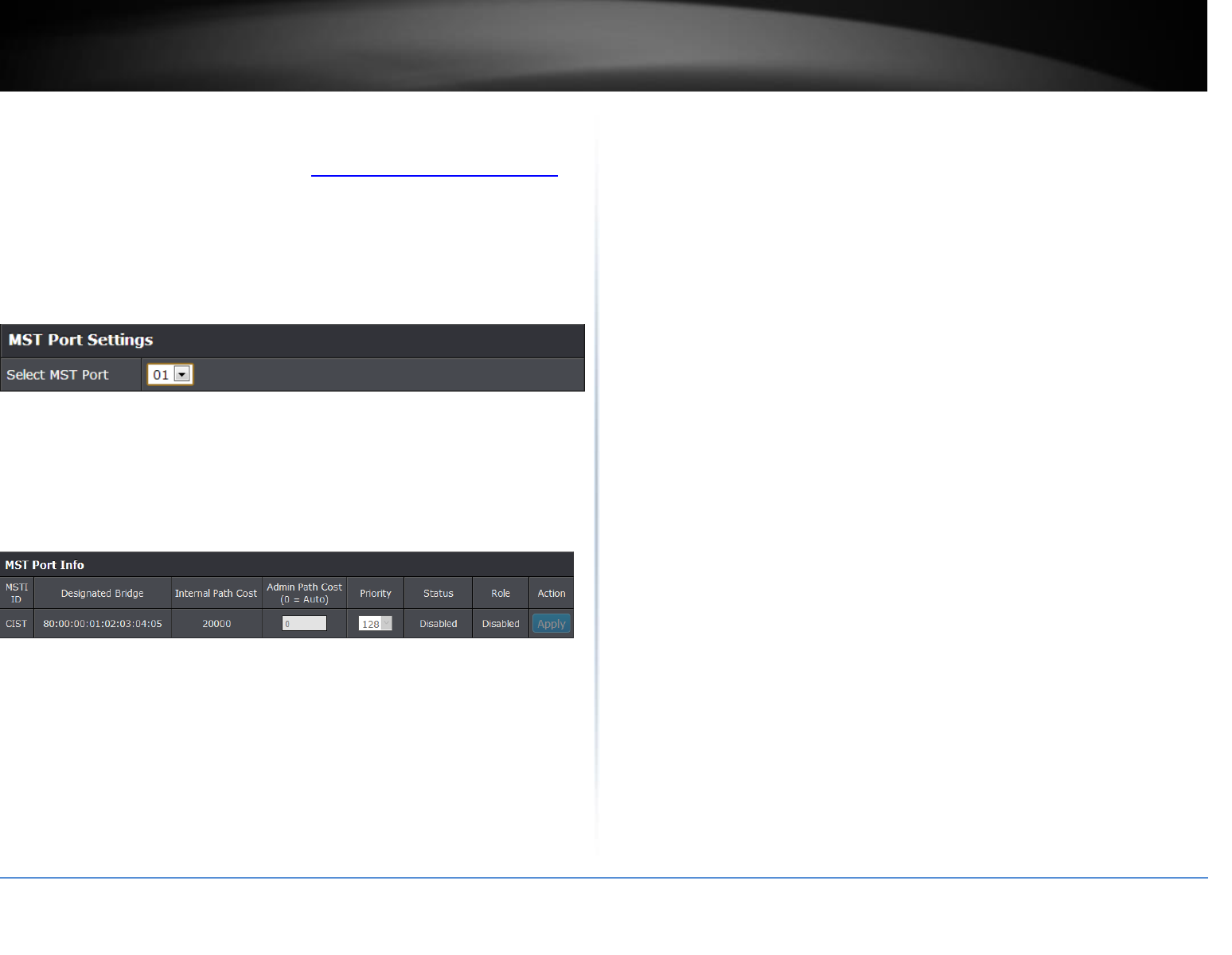

MST Port ............................................................................................................ 45

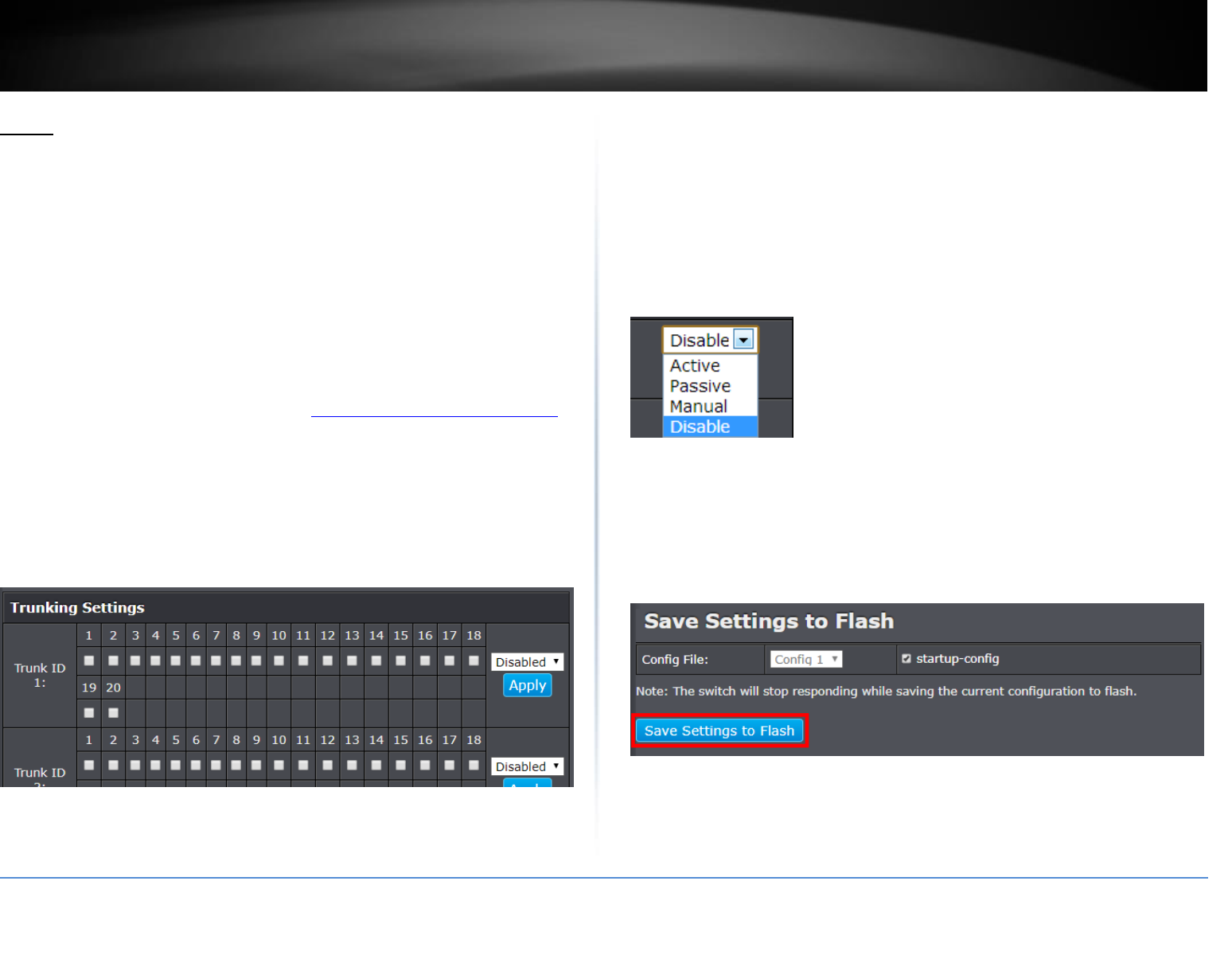

Trunk ............................................................................................................................ 46
Settings .............................................................................................................. 46
Status ................................................................................................................. 47

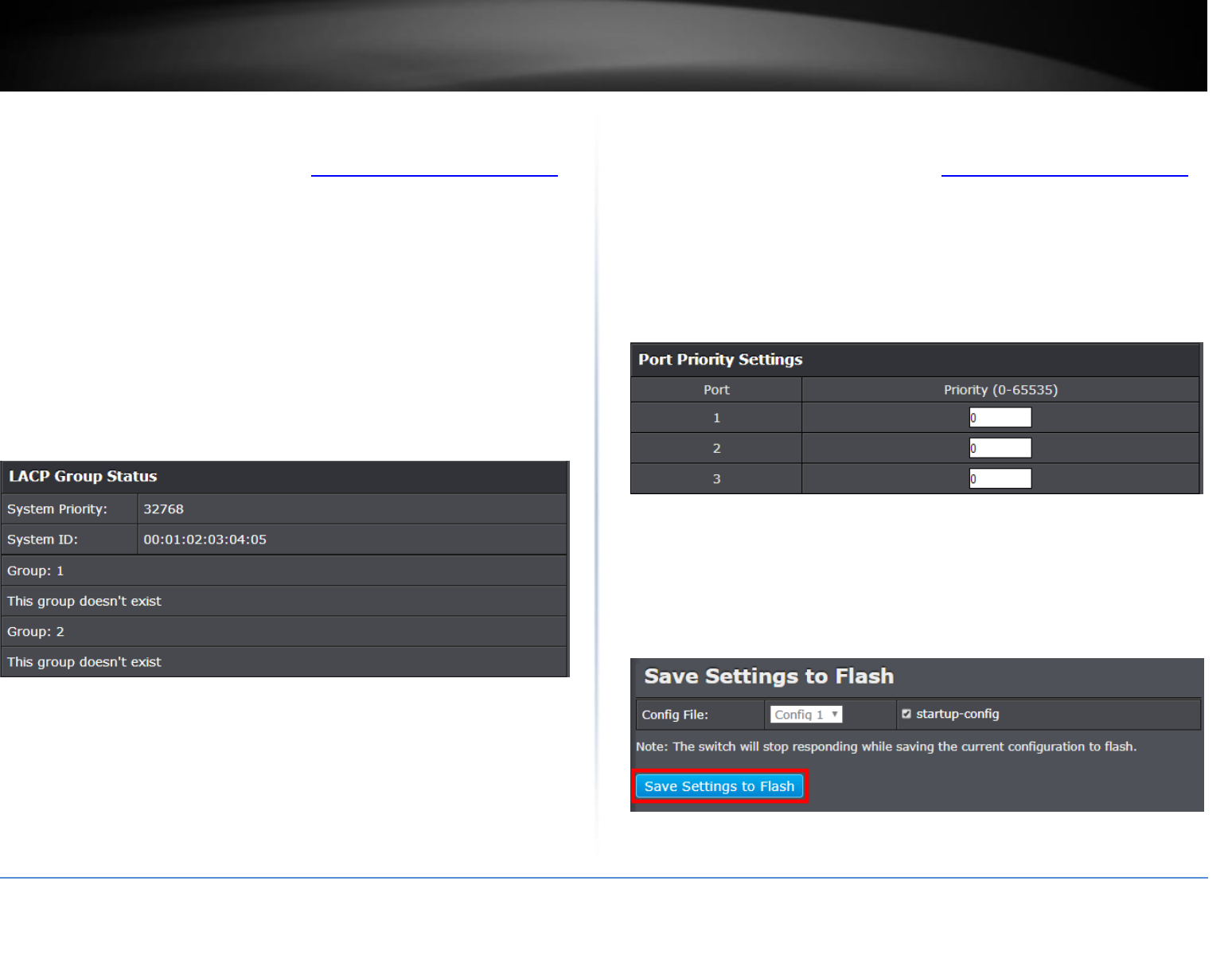

Port Priority ....................................................................................................... 47
Mirroring ..................................................................................................................... 48
Configure port mirror settings ........................................................................... 48

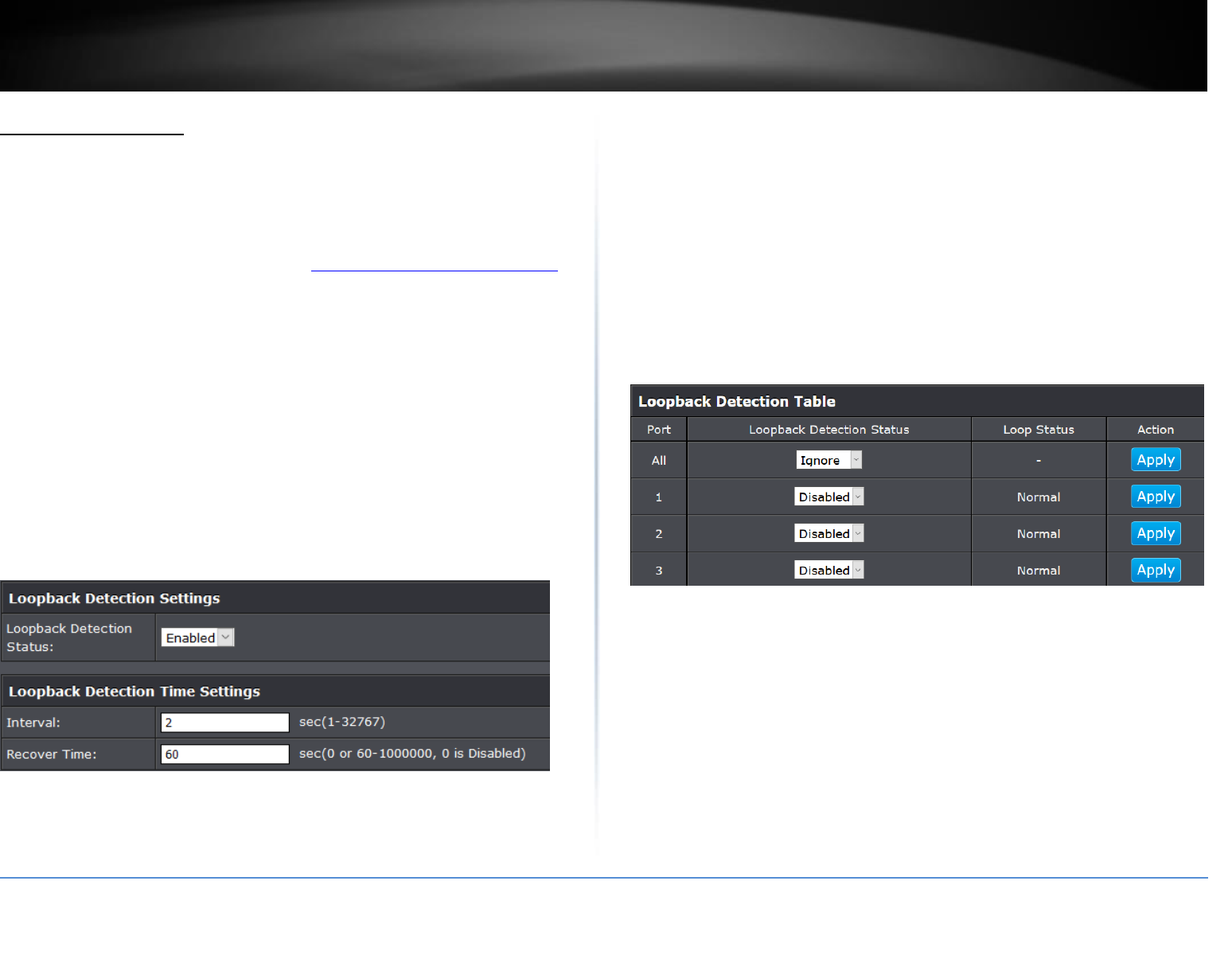

Loopback Detection ..................................................................................................... 49
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Table of Contents
c
Enable loopback detection ................................................................................ 49

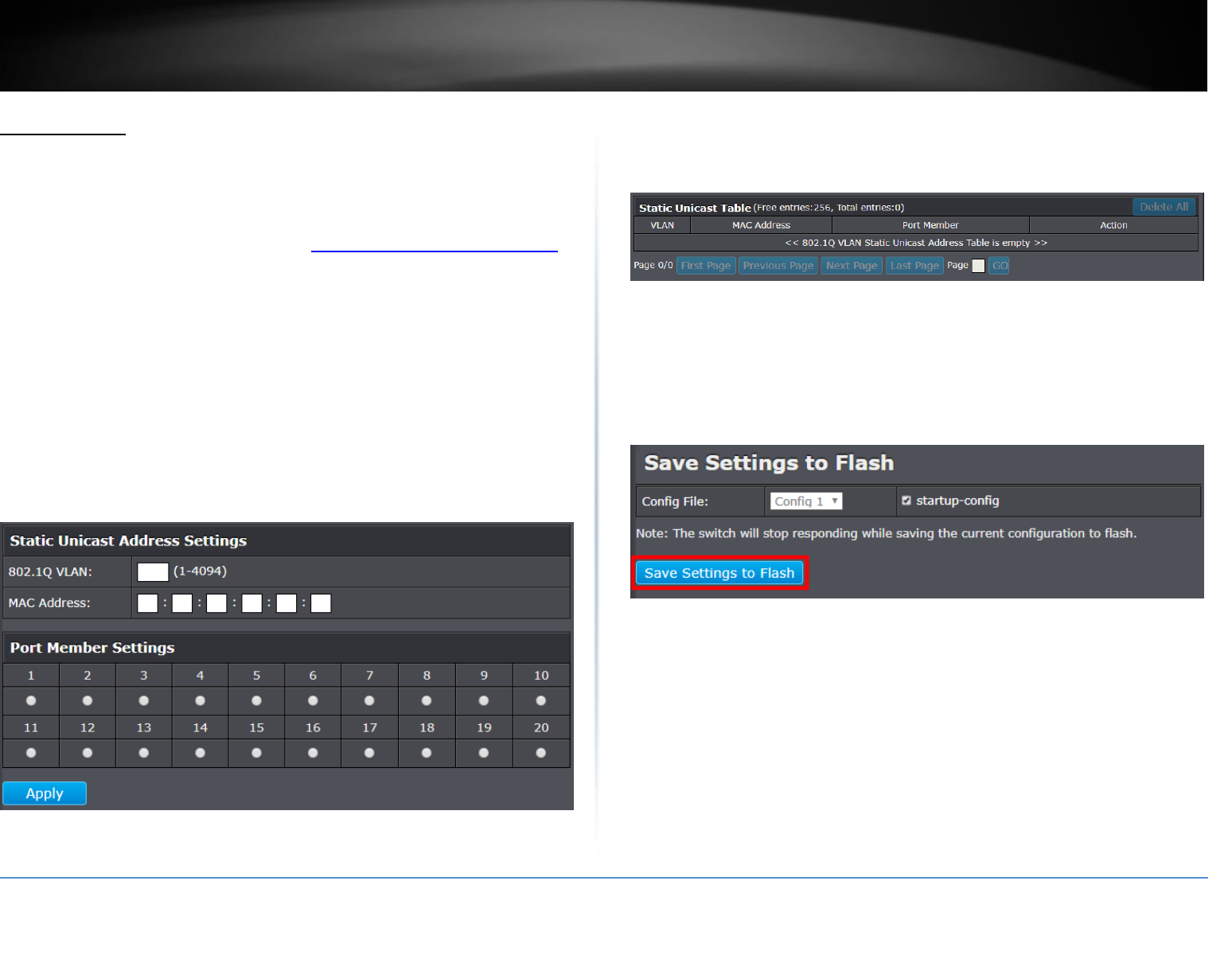

Static Unicast ............................................................................................................... 50
Add static unicast entries to the switch ............................................................. 50
Static Multicast ............................................................................................................ 51

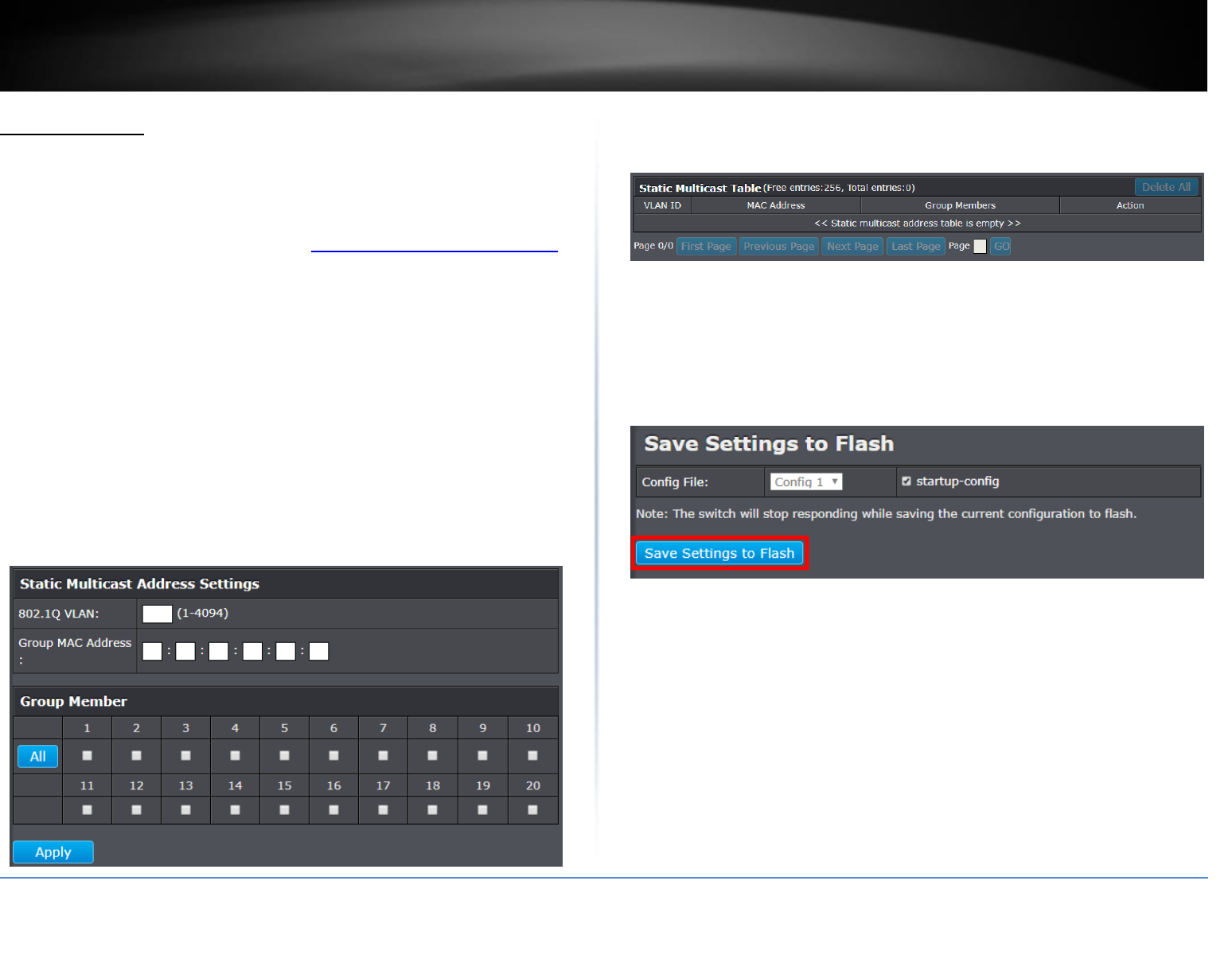

Add static multicast entries to the switch ......................................................... 51

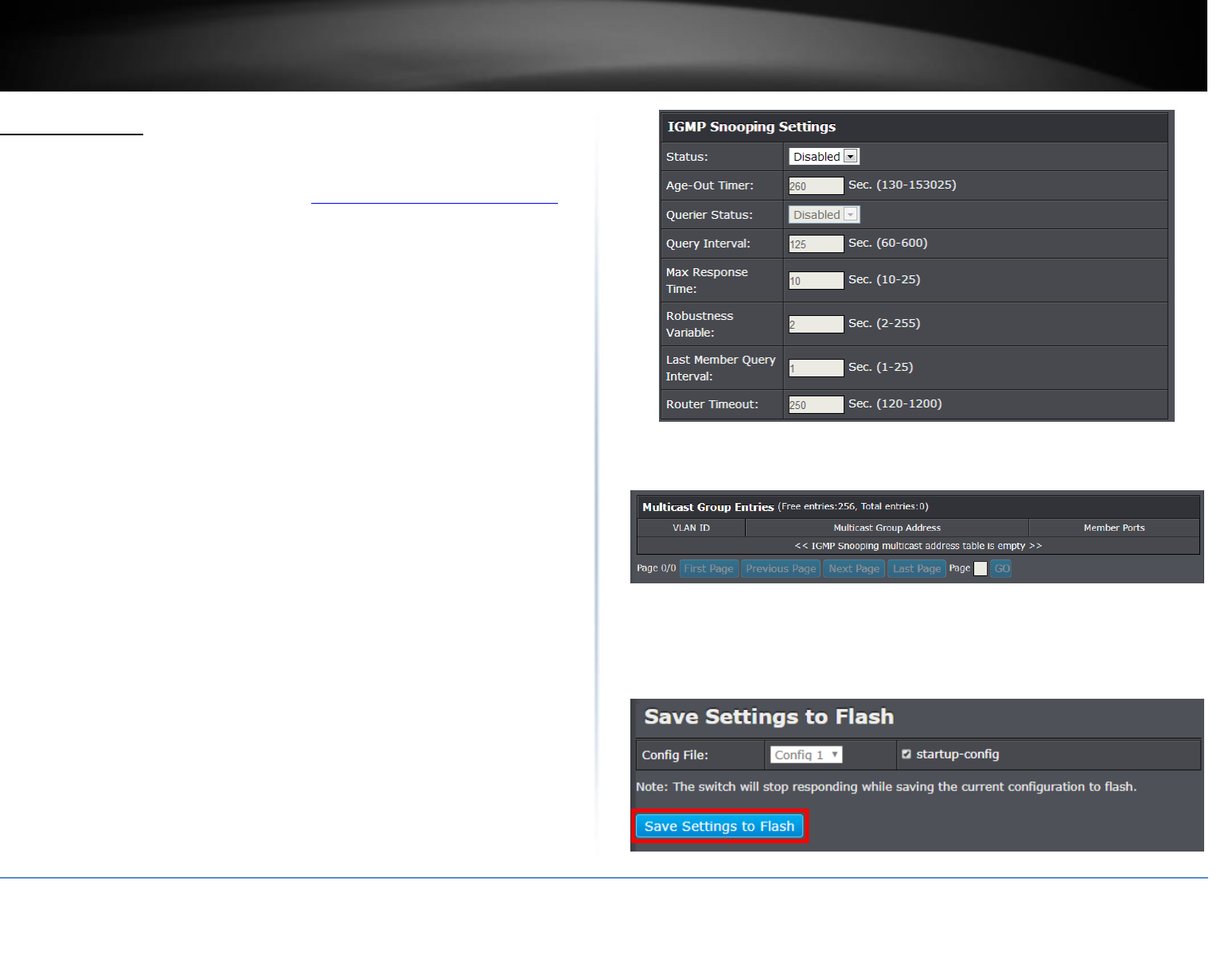

IGMP Snooping ............................................................................................................ 52
Settings .............................................................................................................. 52

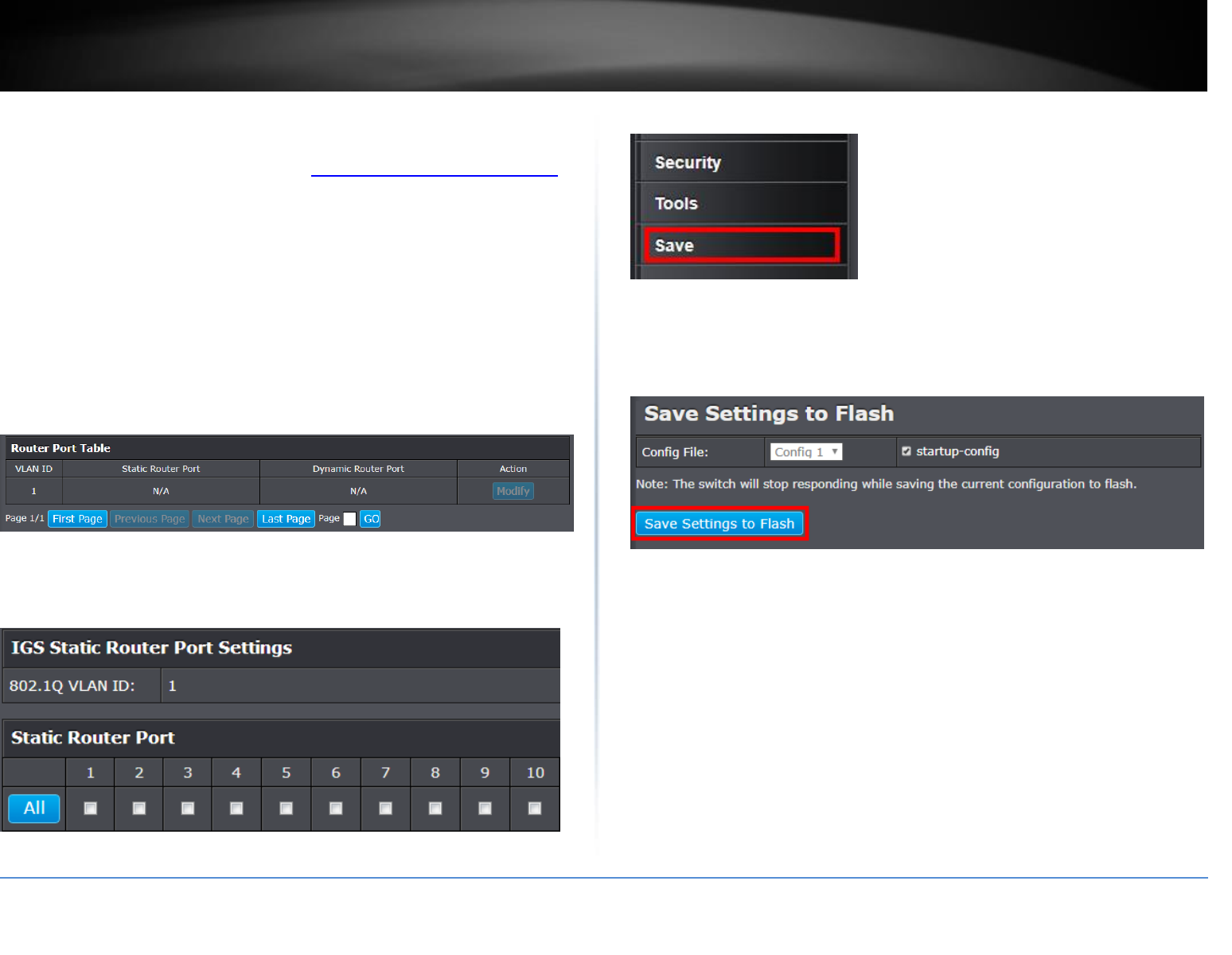

Router Ports ....................................................................................................... 53

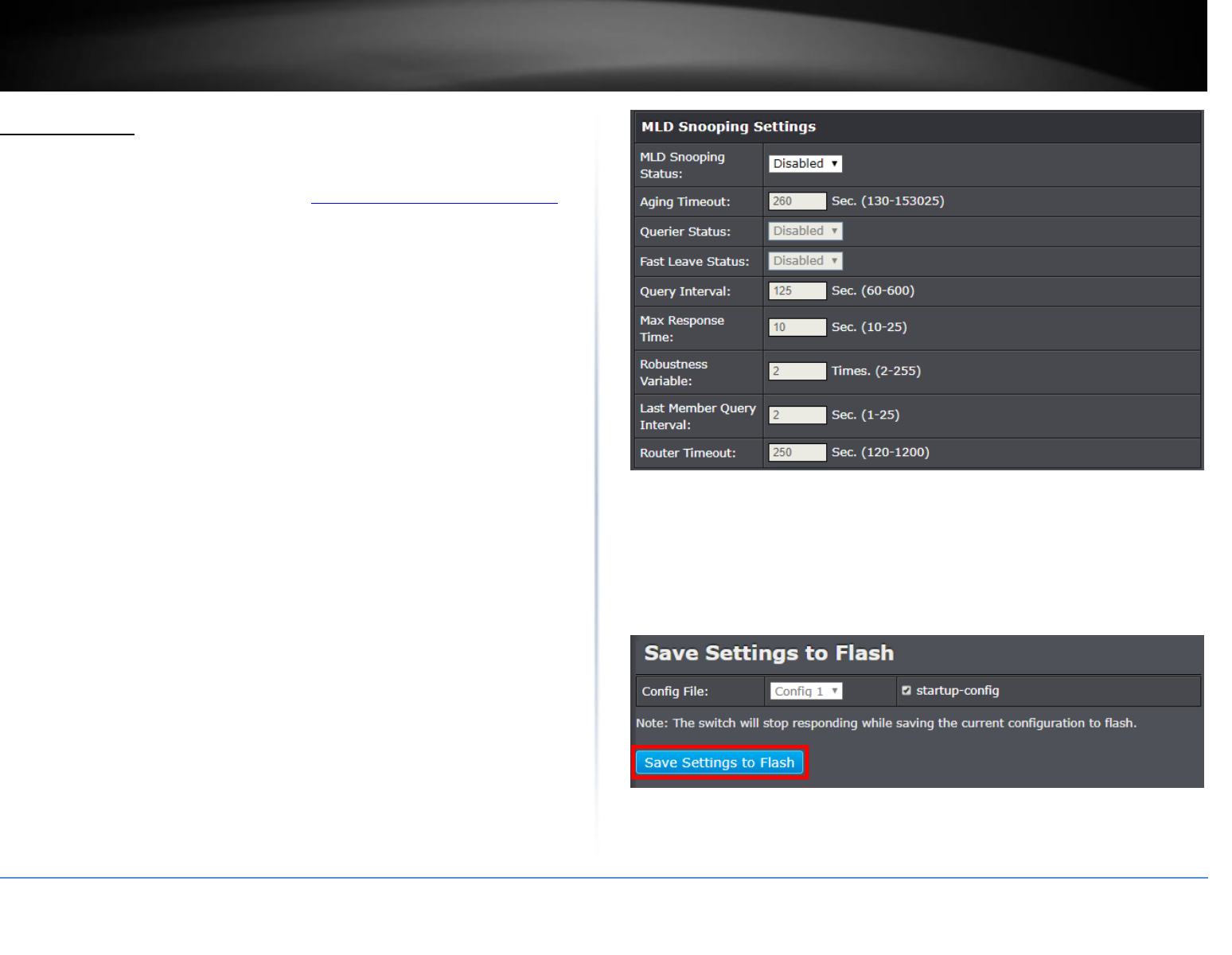

MLD Snooping .............................................................................................................. 54
Settings .............................................................................................................. 54
Router Port ........................................................................................................ 55
Multicast VLAN ............................................................................................................ 56
Multicast VLAN Settings ..................................................................................... 56
Multicast VLAN Table ......................................................................................... 56
Multicast VLAN Group Settings ......................................................................... 56
Multicast VLAN Access Settings ......................................................................... 57
Multicast Filtering ........................................................................................................ 58
Multicast Filtering .............................................................................................. 58
Bandwidth Control ....................................................................................................... 58
Storm Control .................................................................................................... 58

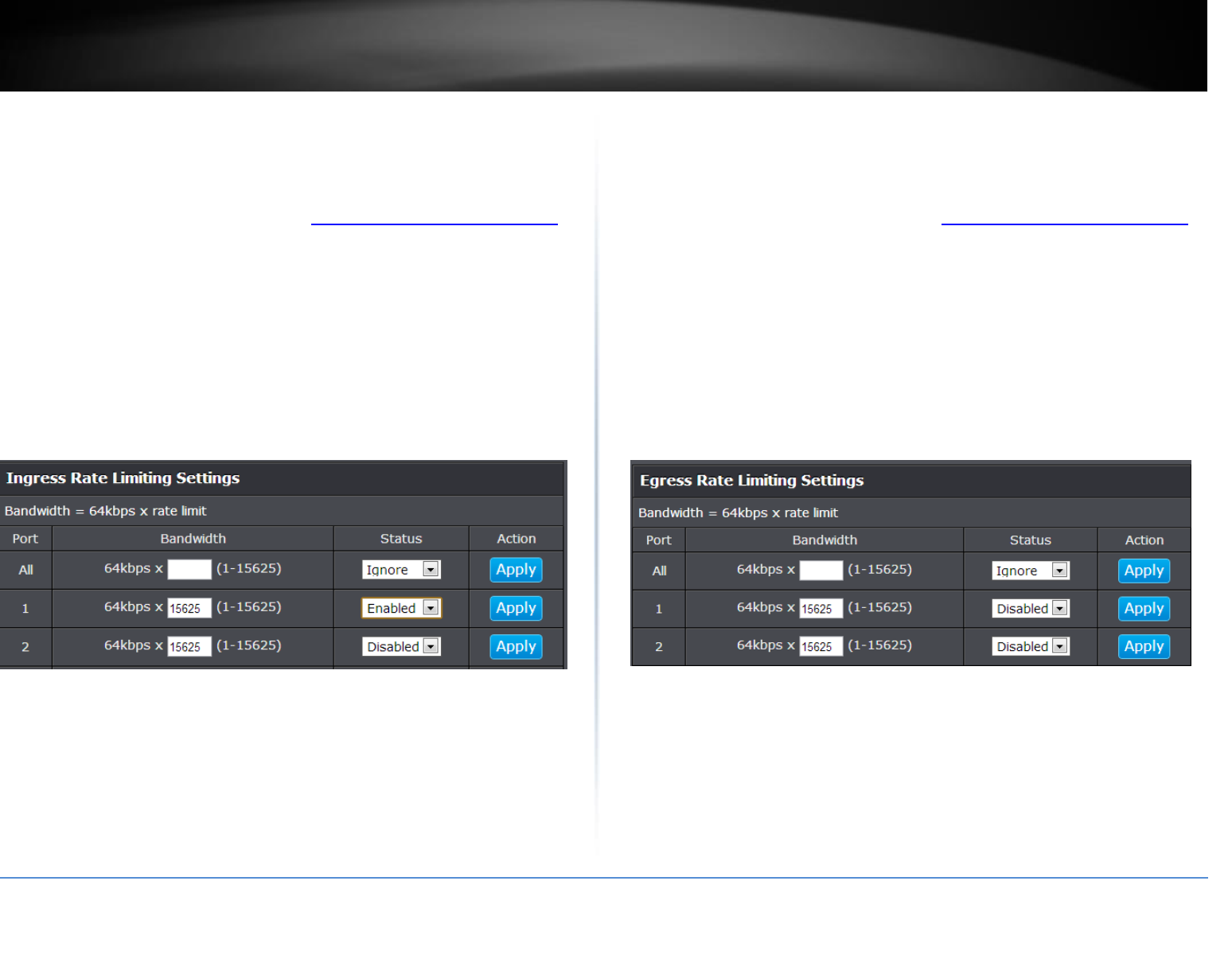

Ingress Rate Limiting .......................................................................................... 59
Egress Rate Limiting ........................................................................................... 59
VLAN ............................................................................................................................ 60

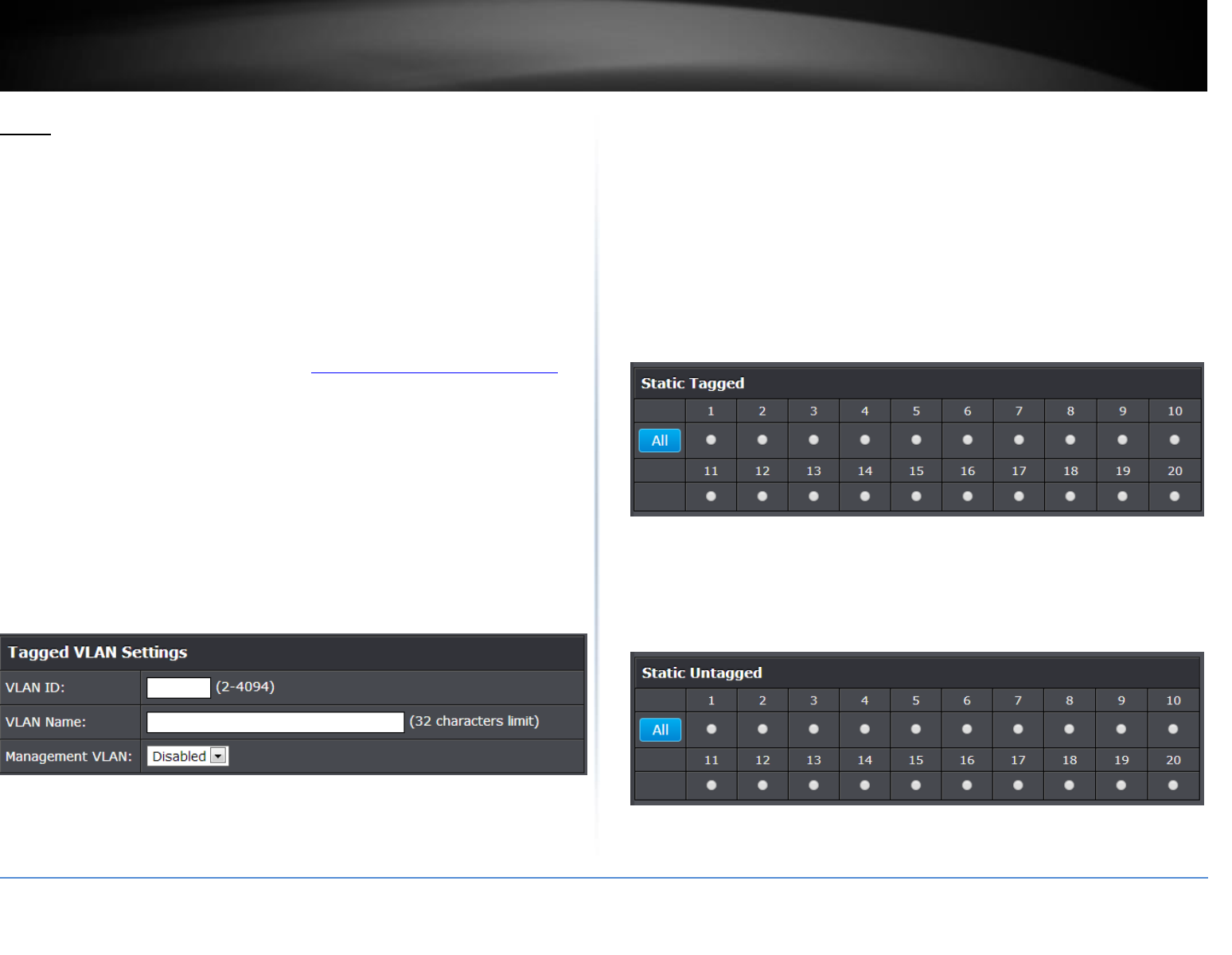

Tagged ............................................................................................................... 60
Port .................................................................................................................... 61

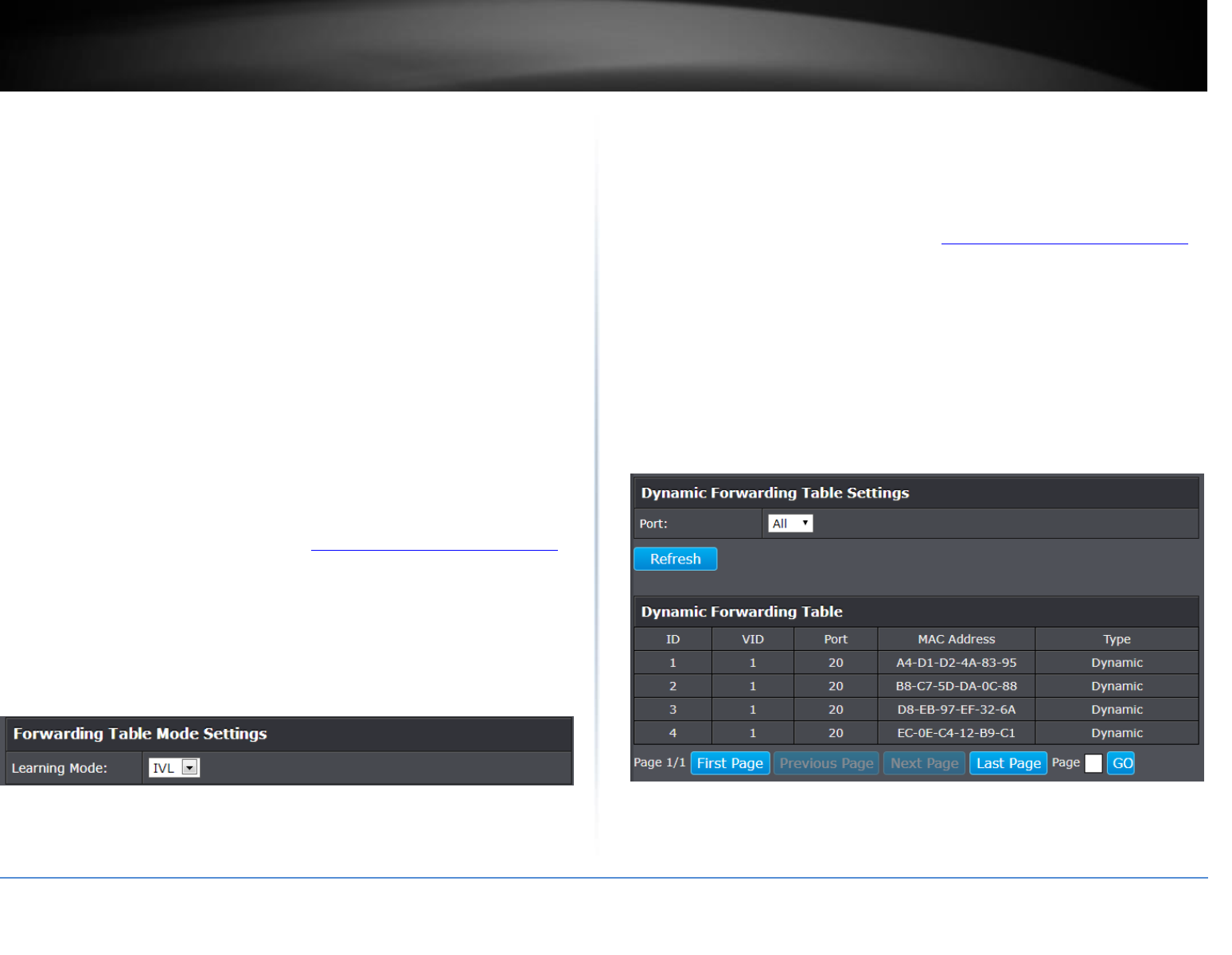

Forwarding ......................................................................................................... 62
Dynamic ............................................................................................................. 62
Private ................................................................................................................ 63
Current ............................................................................................................... 64
GVRP ............................................................................................................................ 64
GVRP Global Settings ......................................................................................... 64

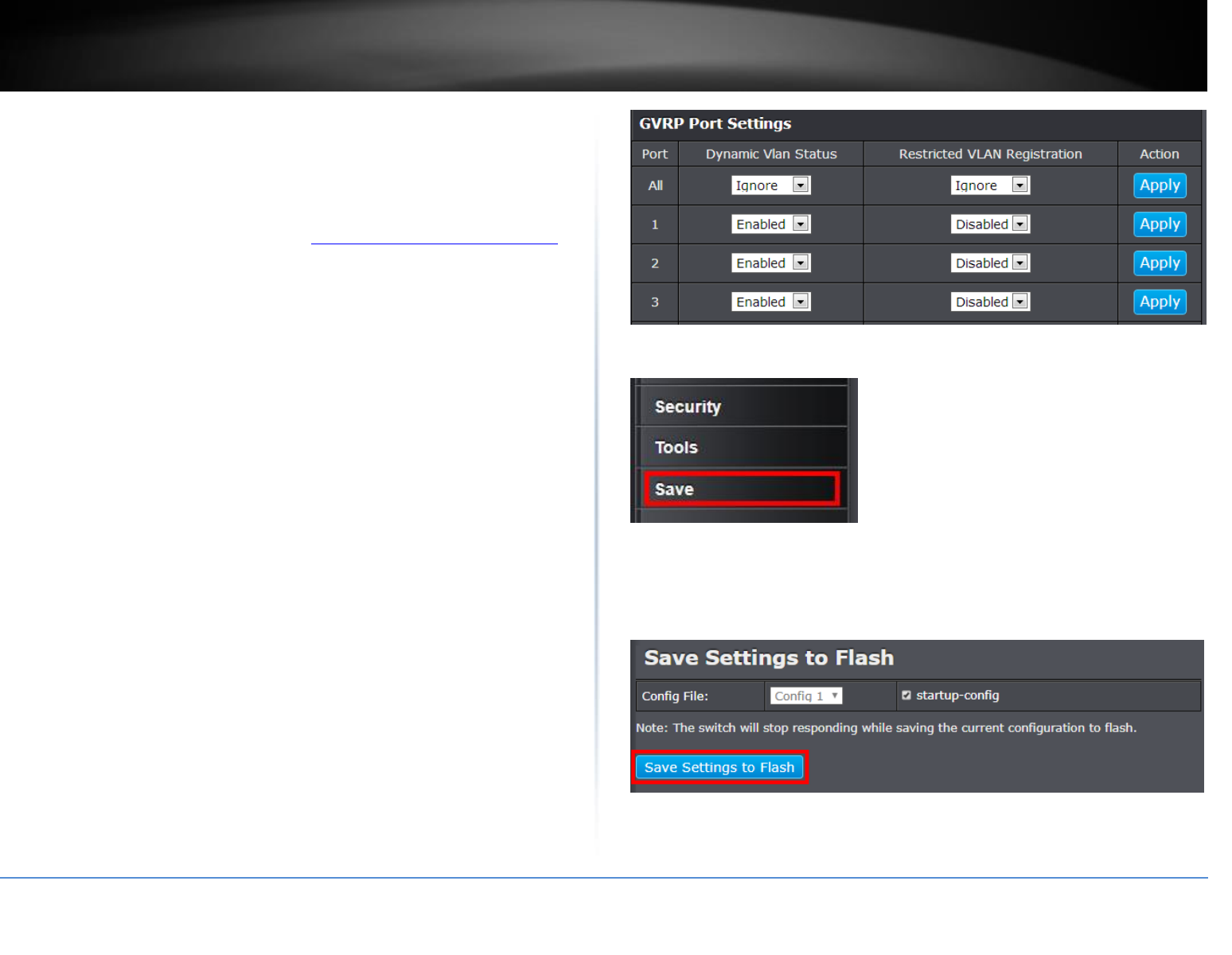

Port Settings ...................................................................................................... 65
Time Settings ..................................................................................................... 66

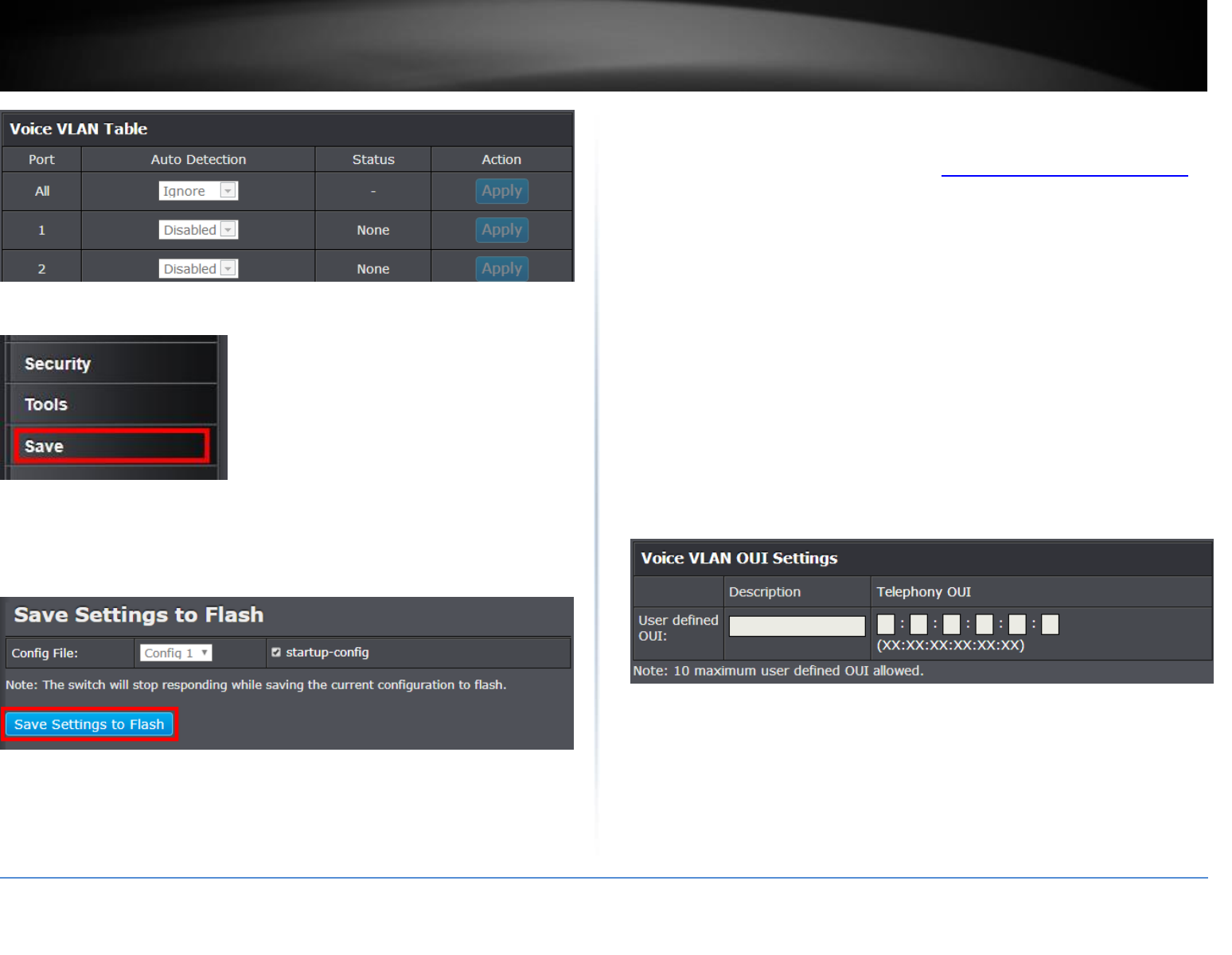

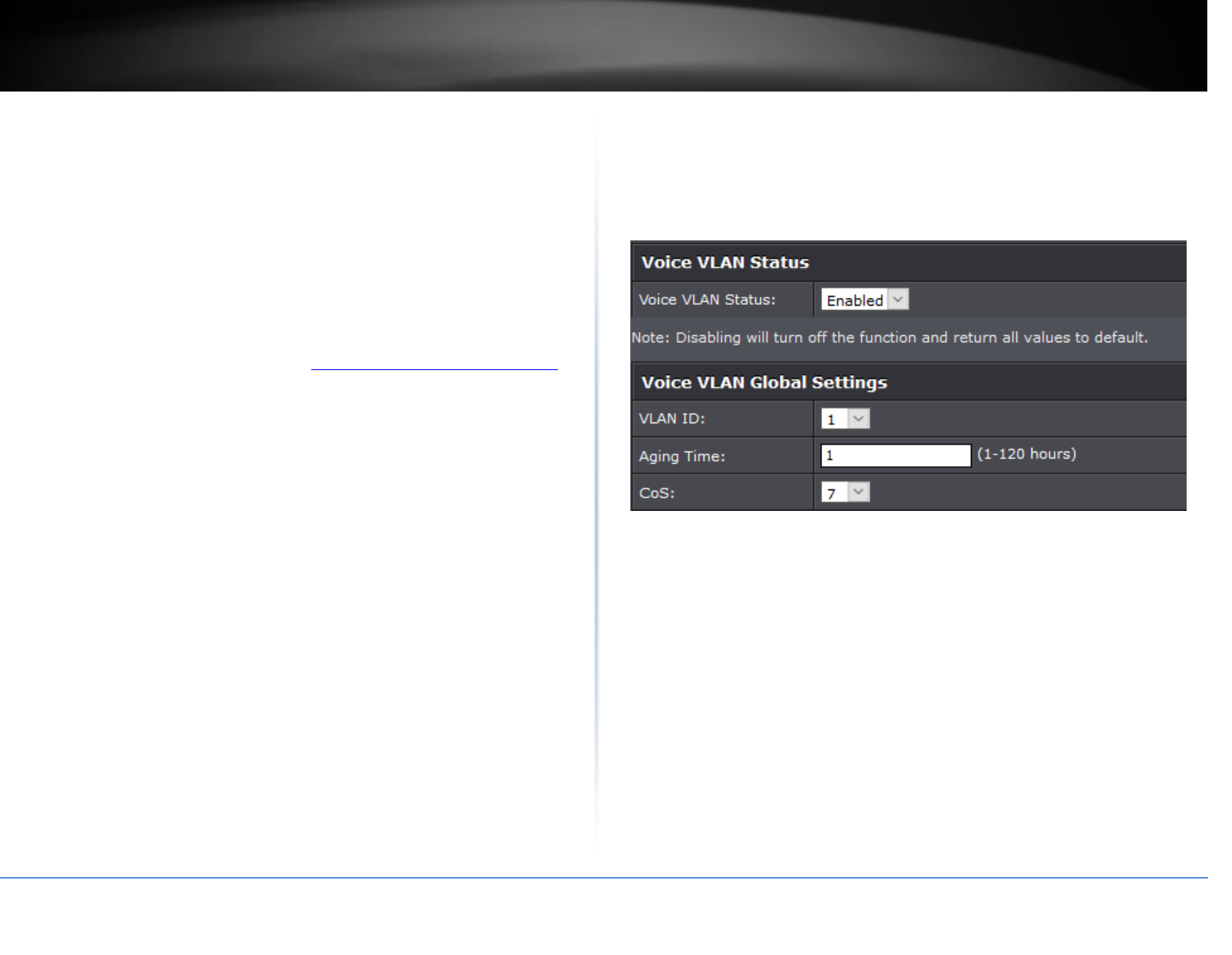

Voice VLAN .................................................................................................................. 67
Settings .............................................................................................................. 68
OUI ..................................................................................................................... 69

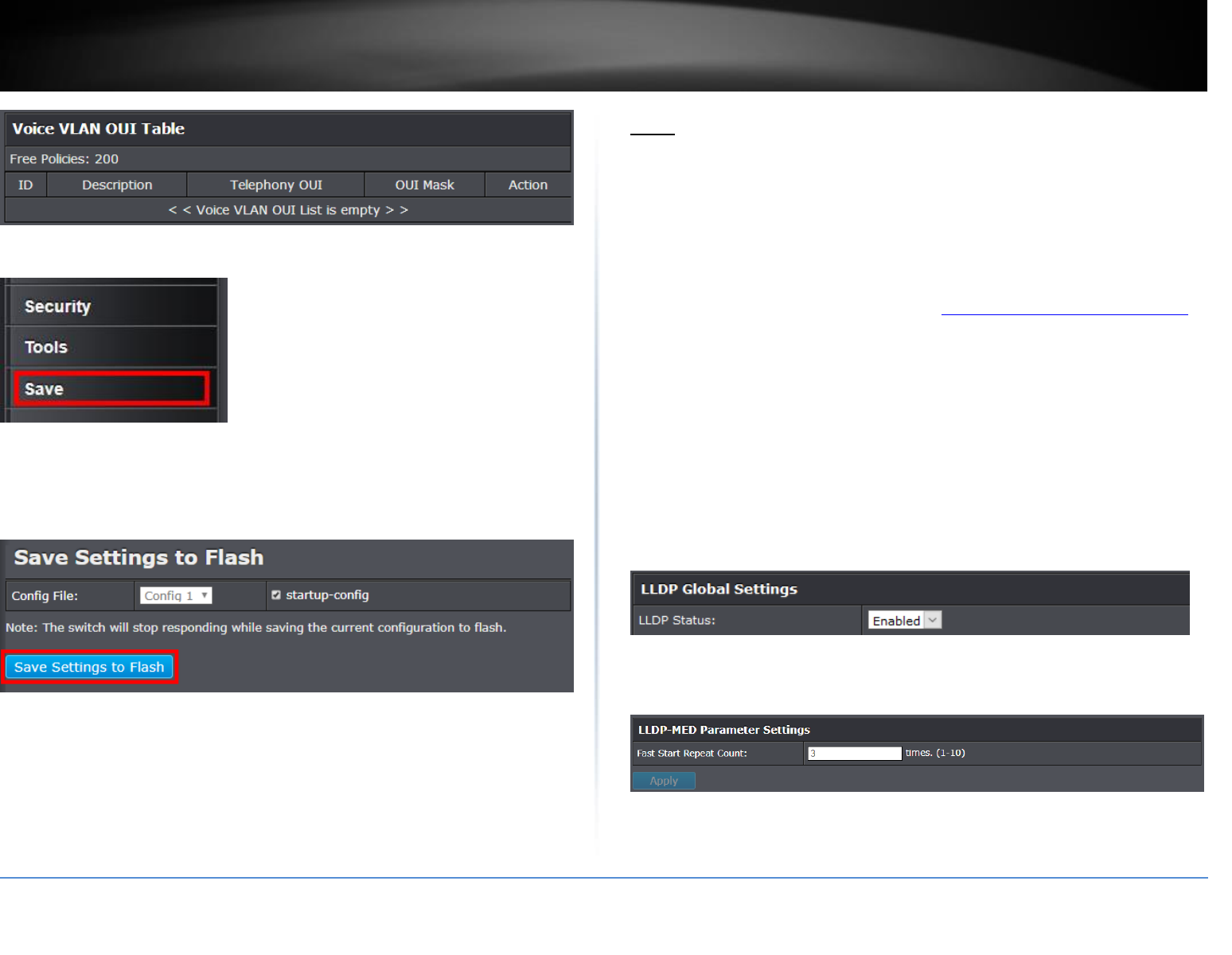

LLDP ............................................................................................................................. 70
Enable and configure LLDP ................................................................................ 70
Settings .............................................................................................................. 70
Basic TLVs Settings ............................................................................................. 72
Dot1 TLVs Settings ............................................................................................. 72
Dot3 TLVs Settings ............................................................................................. 72
MED Port Settings .............................................................................................. 73
LLDP Statistics Information ................................................................................ 73
LLDP Local Port Information .............................................................................. 73
Neighbor ............................................................................................................ 73
MAC VLAN ................................................................................................................... 74
MAC VLAN ......................................................................................................... 74
Protocol VLAN .............................................................................................................. 74
Protocol VLAN Profile ........................................................................................ 74
Protocol VLAN Profile Interface ......................................................................... 75
QoS (Quality of Service) ................................................................ 76

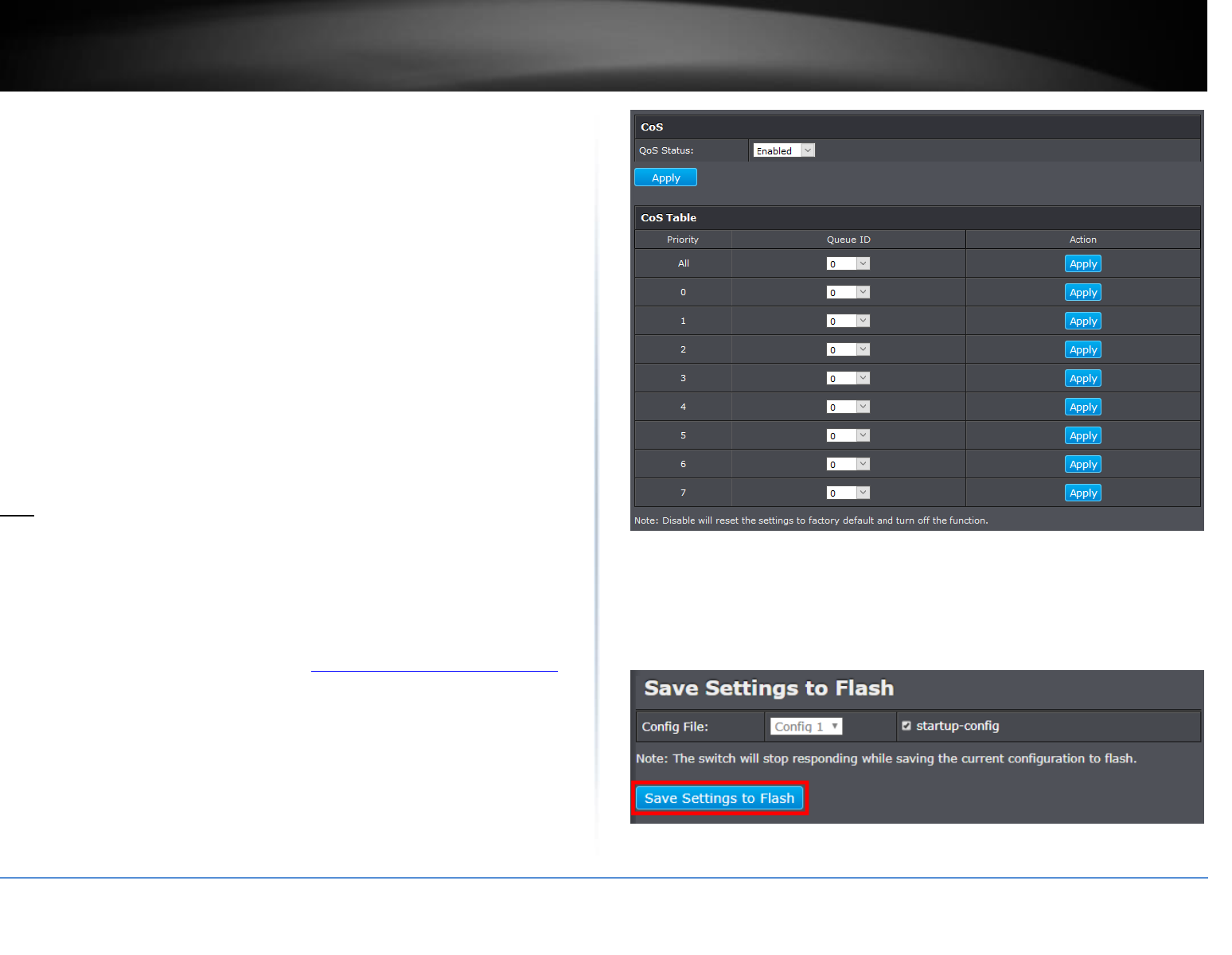

CoS ............................................................................................................................... 76
Set CoS priority settings ..................................................................................... 76
Port Priority ................................................................................................................. 77
Set Port Priority ................................................................................................. 77
DSCP ............................................................................................................................ 77
Set DSCP (Differentiated Services Code Point) Class Mapping settings ............ 77
Scheduling Algorithm .................................................................................................. 78

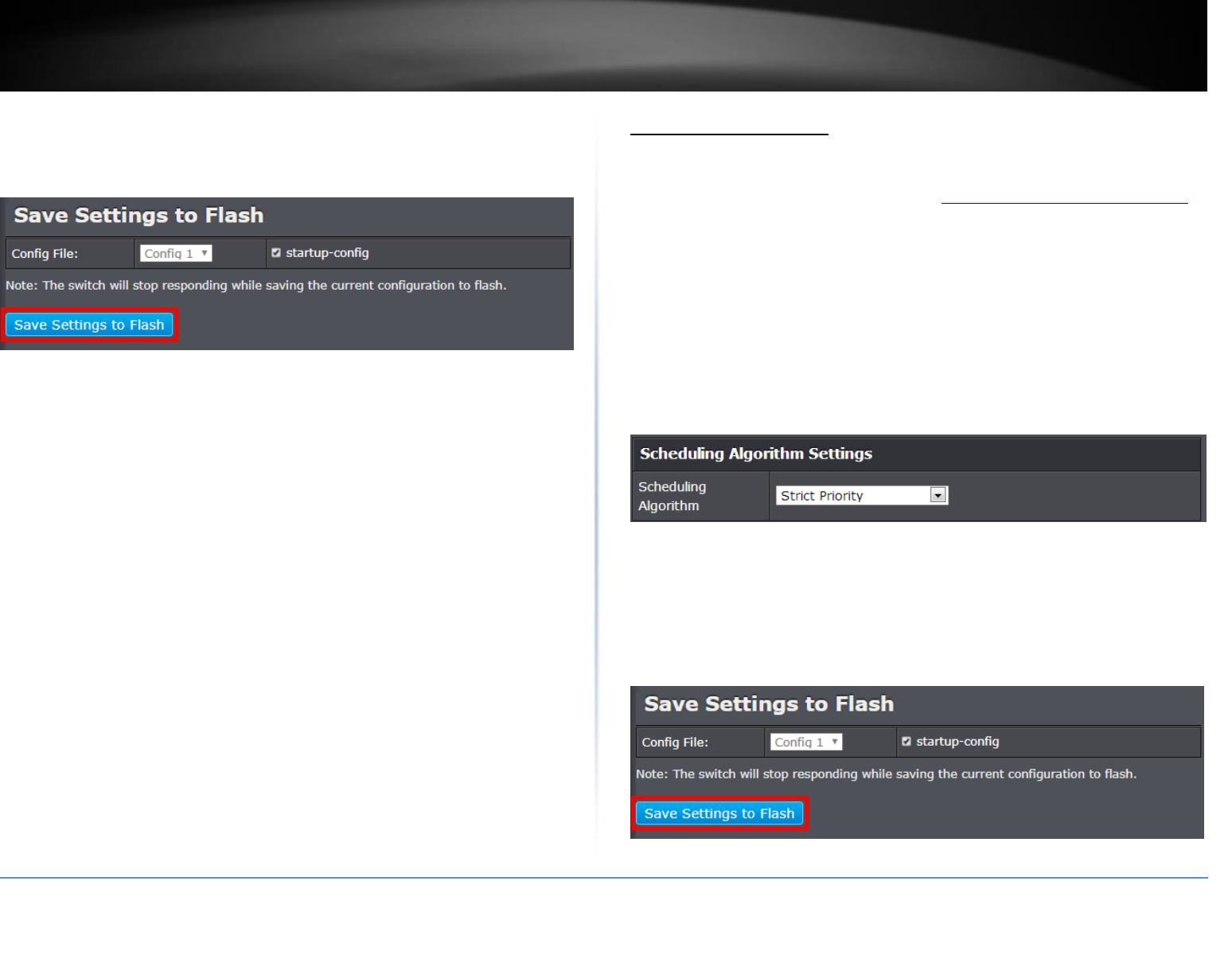

Set the Scheduling Algorithm ............................................................................ 78
IPv6 Traffic Class .......................................................................................................... 79

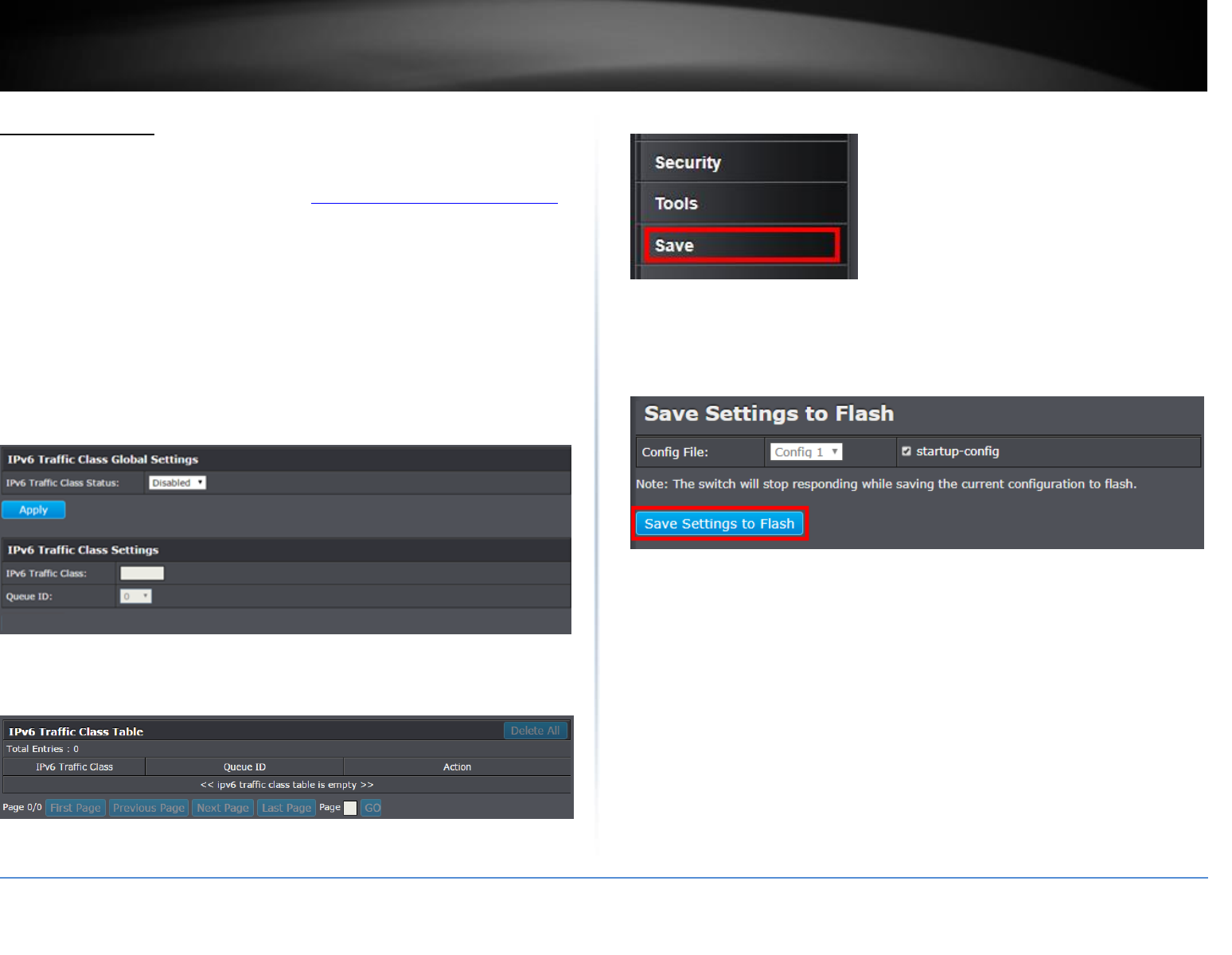

Configure the IPv6 Traffic Class Settings ........................................................... 79
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Table of Contents
d
Security ......................................................................................... 80
Port Access Control ...................................................................................................... 80

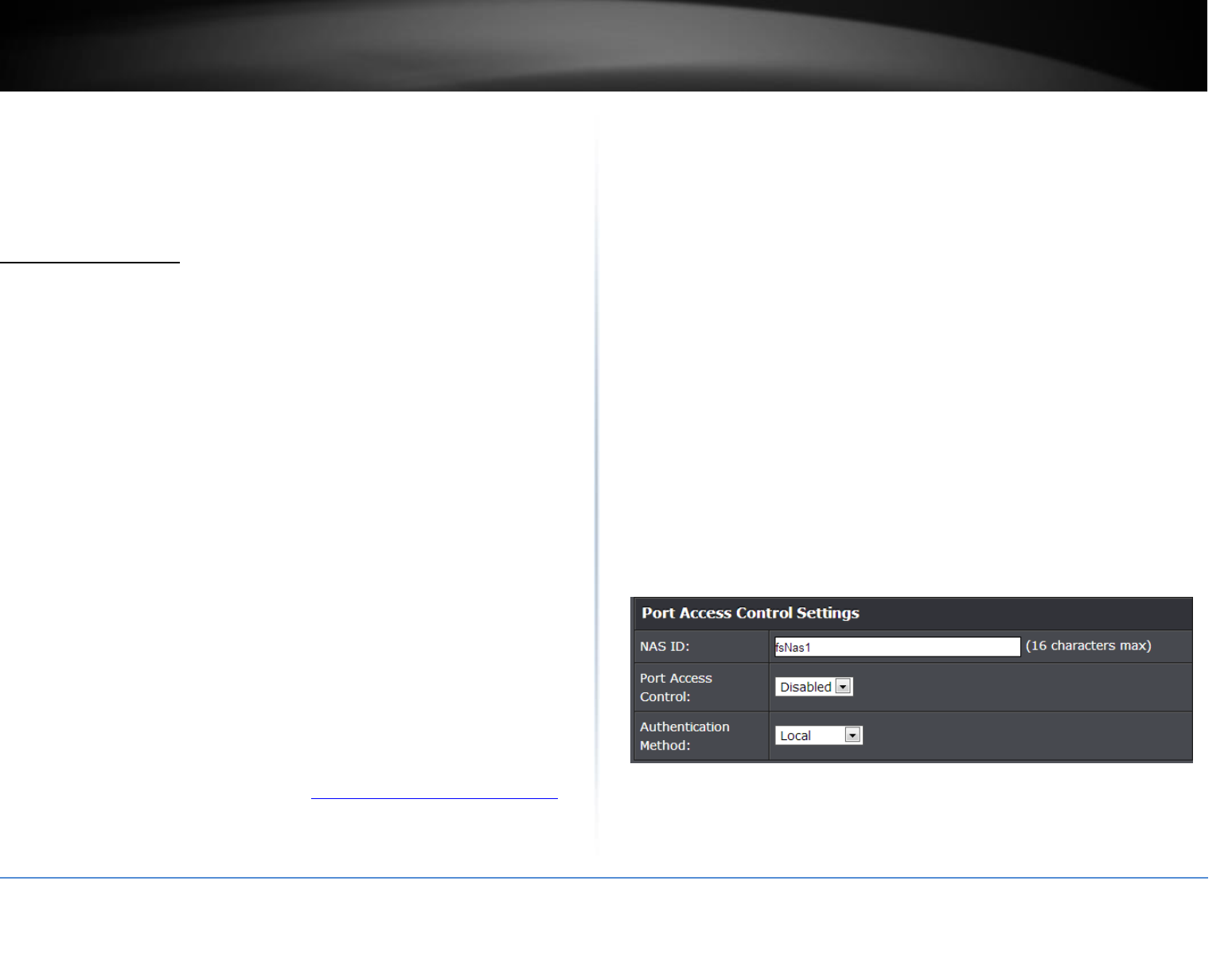

Configure Port Access Control ........................................................................... 80
Dial-in User .................................................................................................................. 81
Create Dial-In Users (Local Authentication Method) ......................................... 81
RADIUS ......................................................................................................................... 82

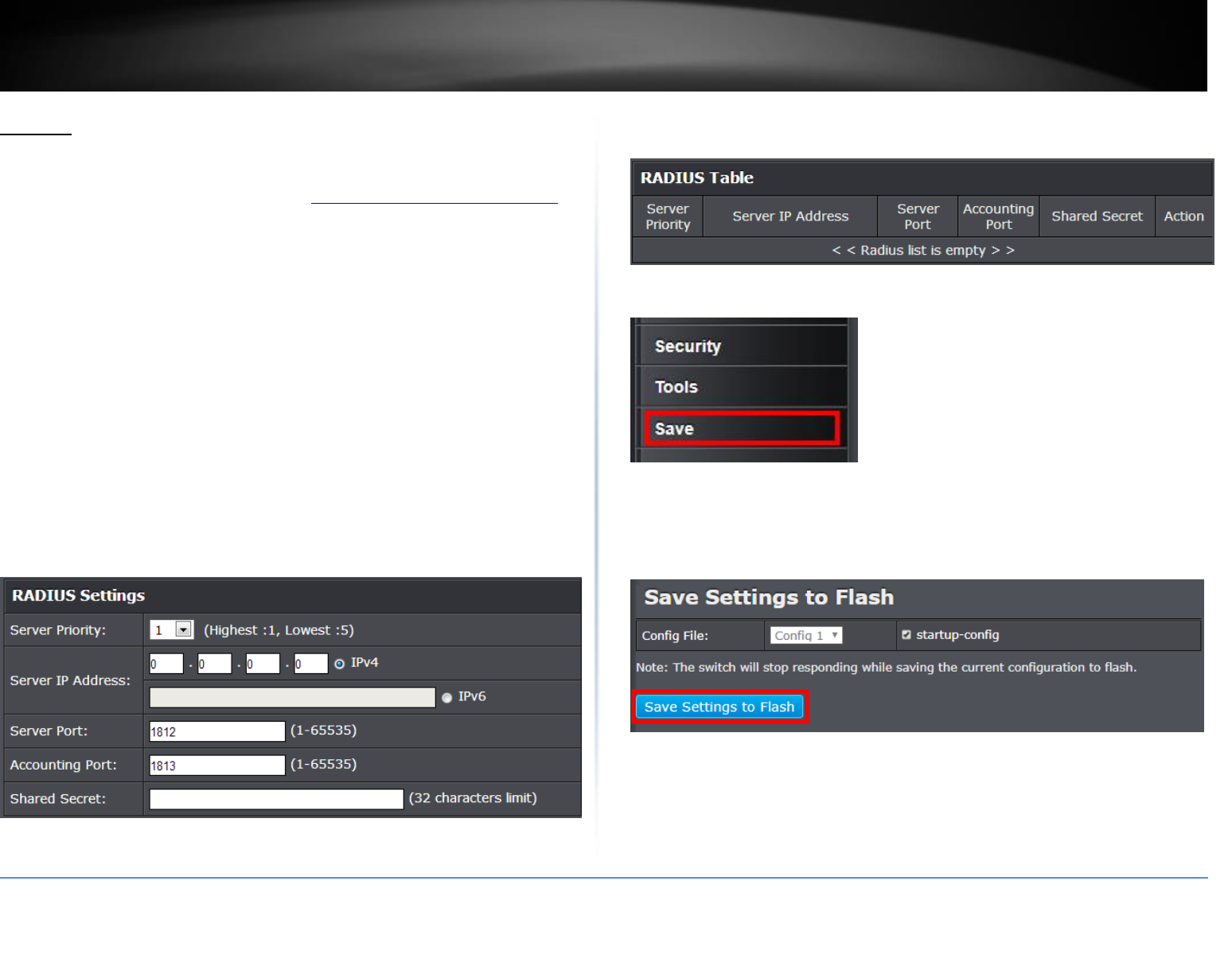

Add RADIUS Servers (RADIUS Authentication Method) .................................... 82

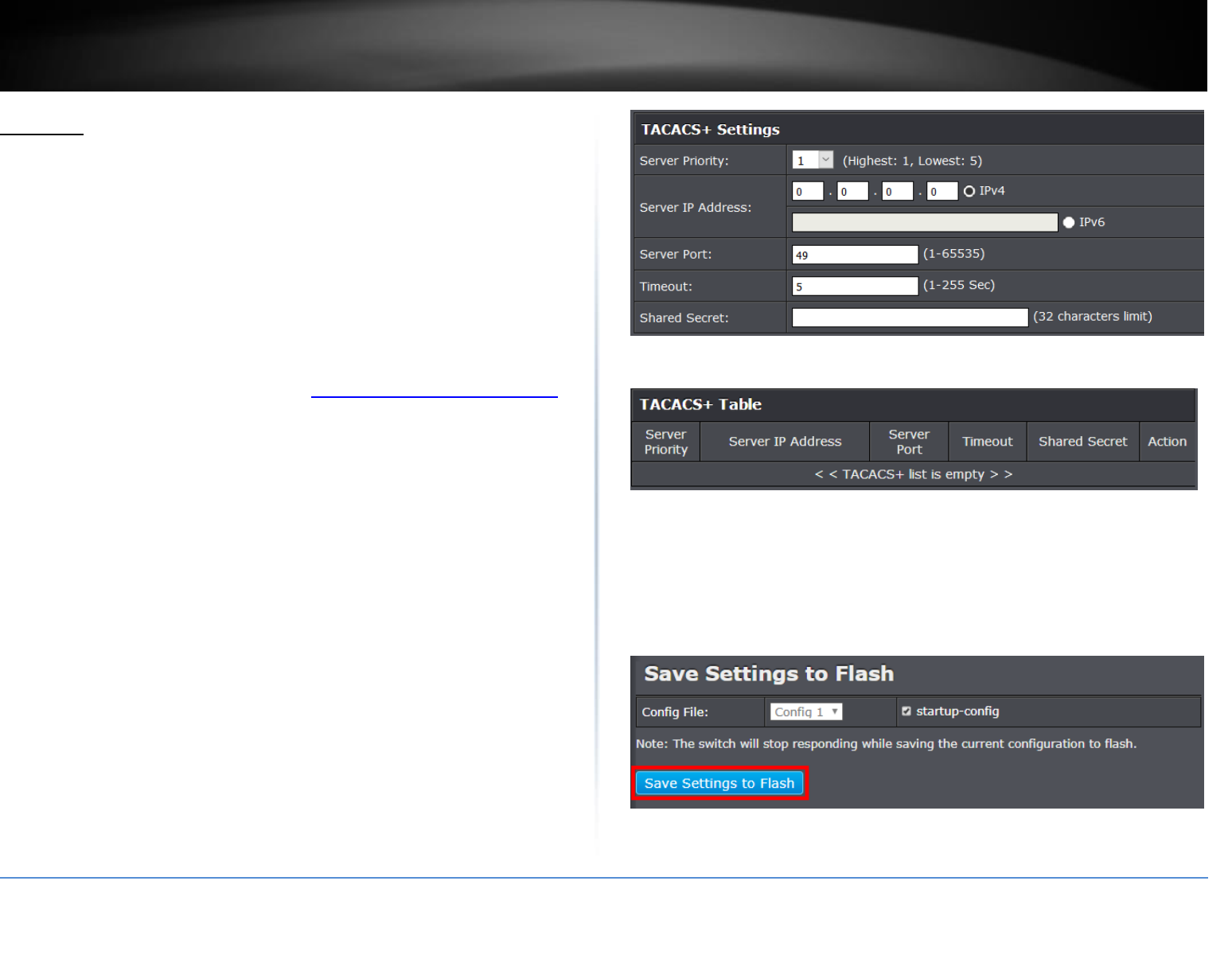

TACACS+ ...................................................................................................................... 83
Add TACACS+ Servers (TACACS+ Authentication Method) ................................ 83

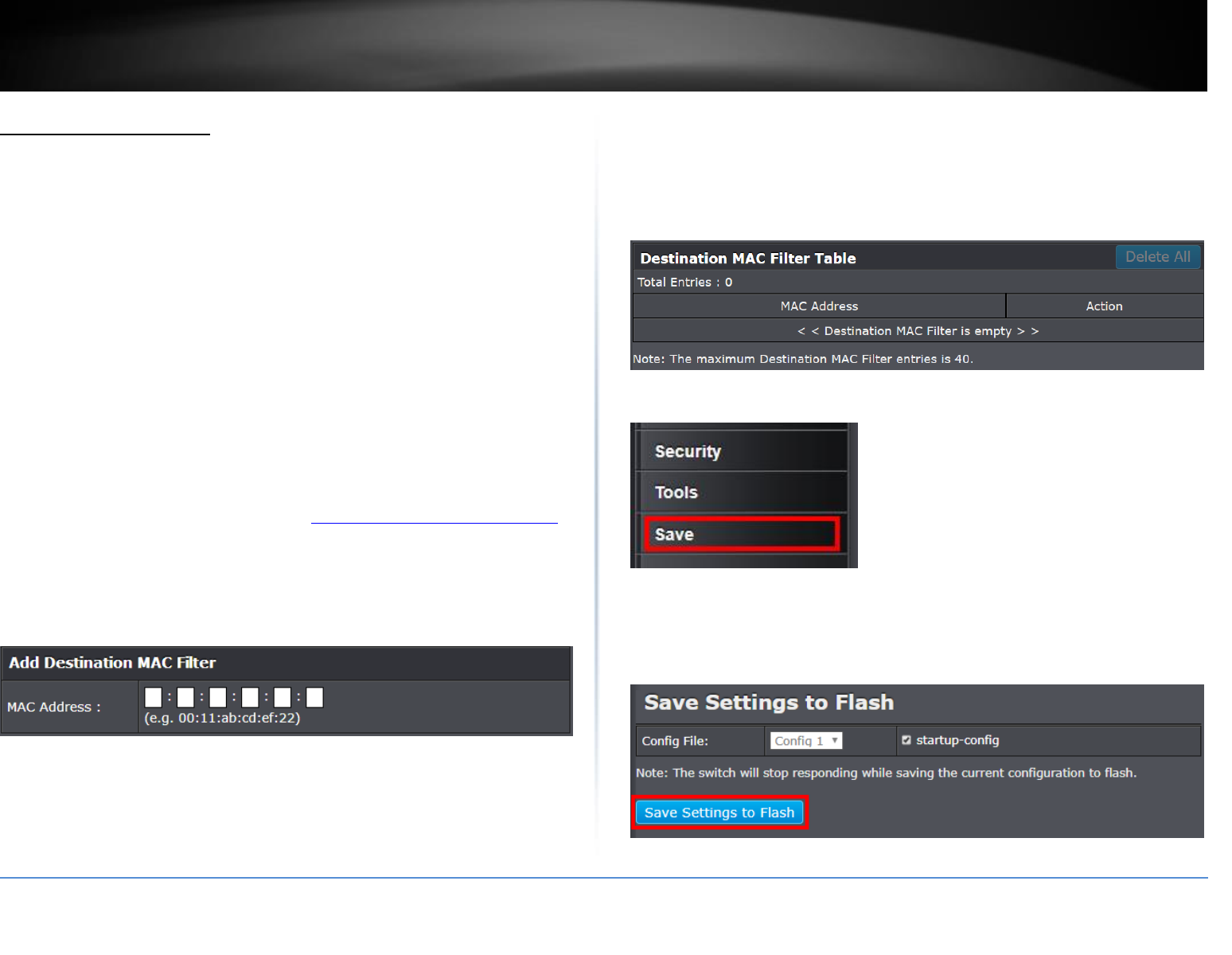

Destination MAC Filter ................................................................................................ 84
Destination MAC Filter ....................................................................................... 84
Denial of Service .......................................................................................................... 85

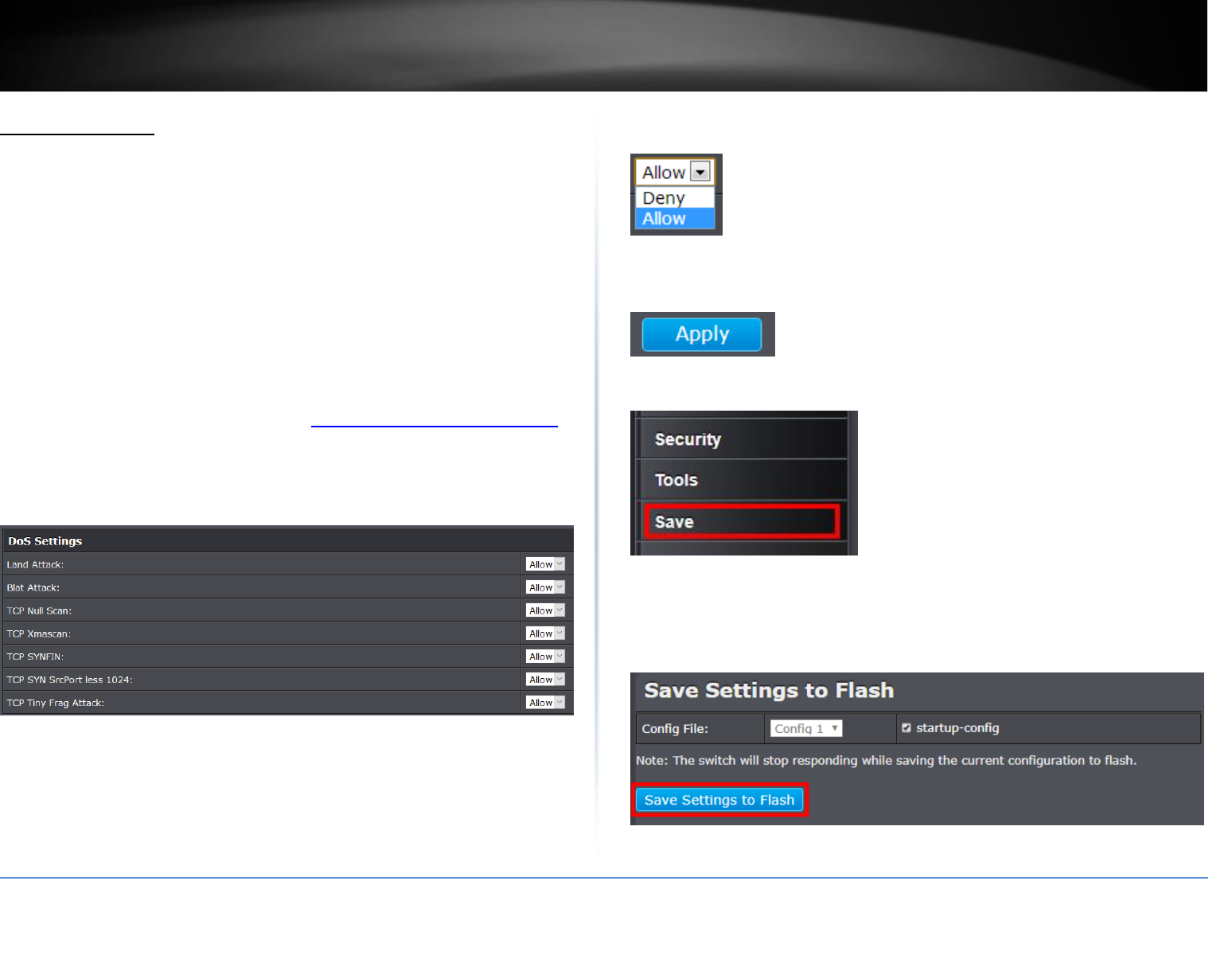

Denial of Service (DoS) ....................................................................................... 85

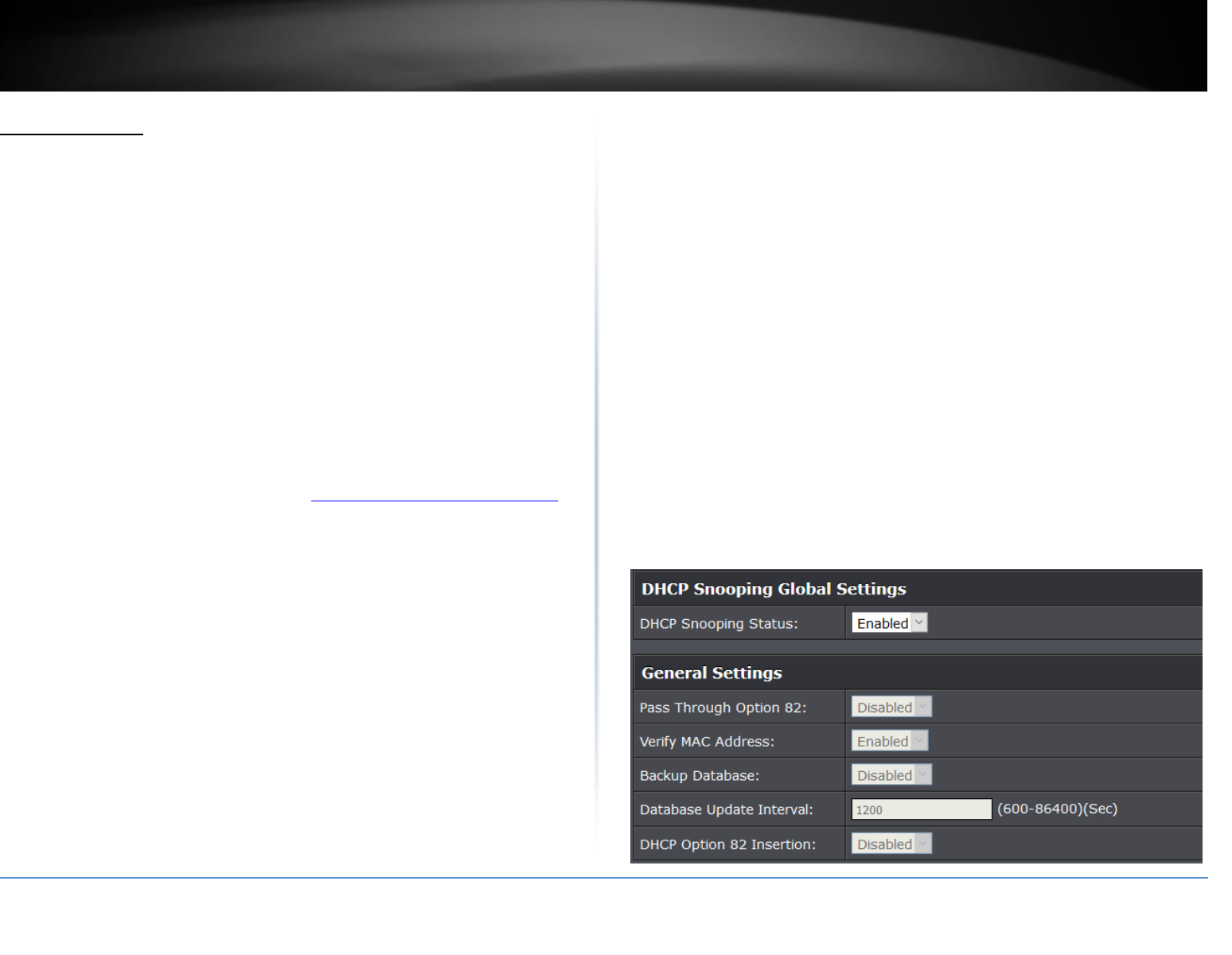

DHCP Snooping ............................................................................................................ 86
Settings .............................................................................................................. 86
VLAN .................................................................................................................. 87
Interfaces ........................................................................................................... 88
Binding ............................................................................................................... 89
Dynamic ARP Inspection .............................................................................................. 90
Settings .............................................................................................................. 90
ARP Inspection Validation .................................................................................. 90

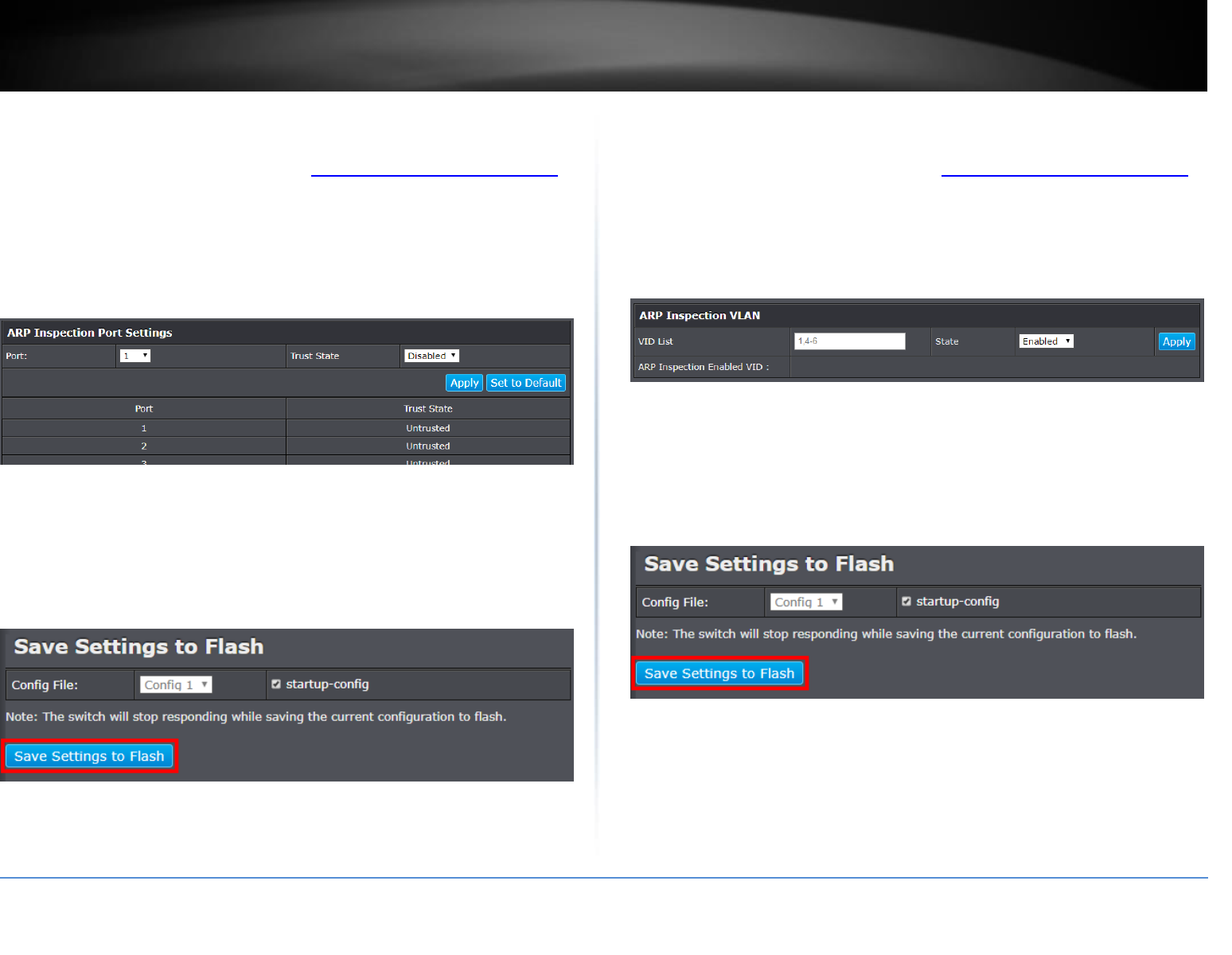

ARP Inspection Port Settings ............................................................................. 91
ARP Inspection VLAN ......................................................................................... 91

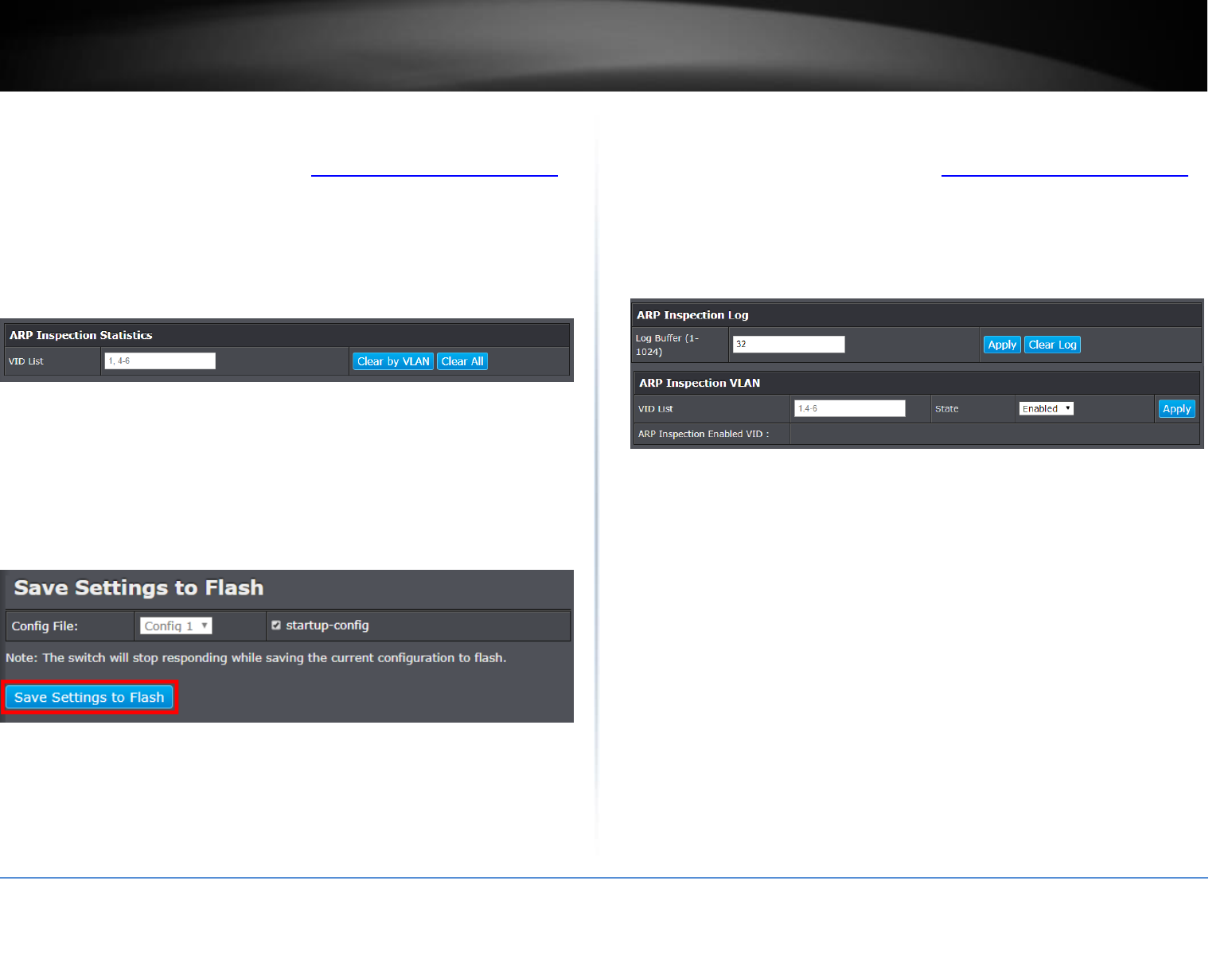

ARP Inspection Statistics .................................................................................... 92
ARP Inspection VLAN ......................................................................................... 92
ACL ............................................................................................................................... 93

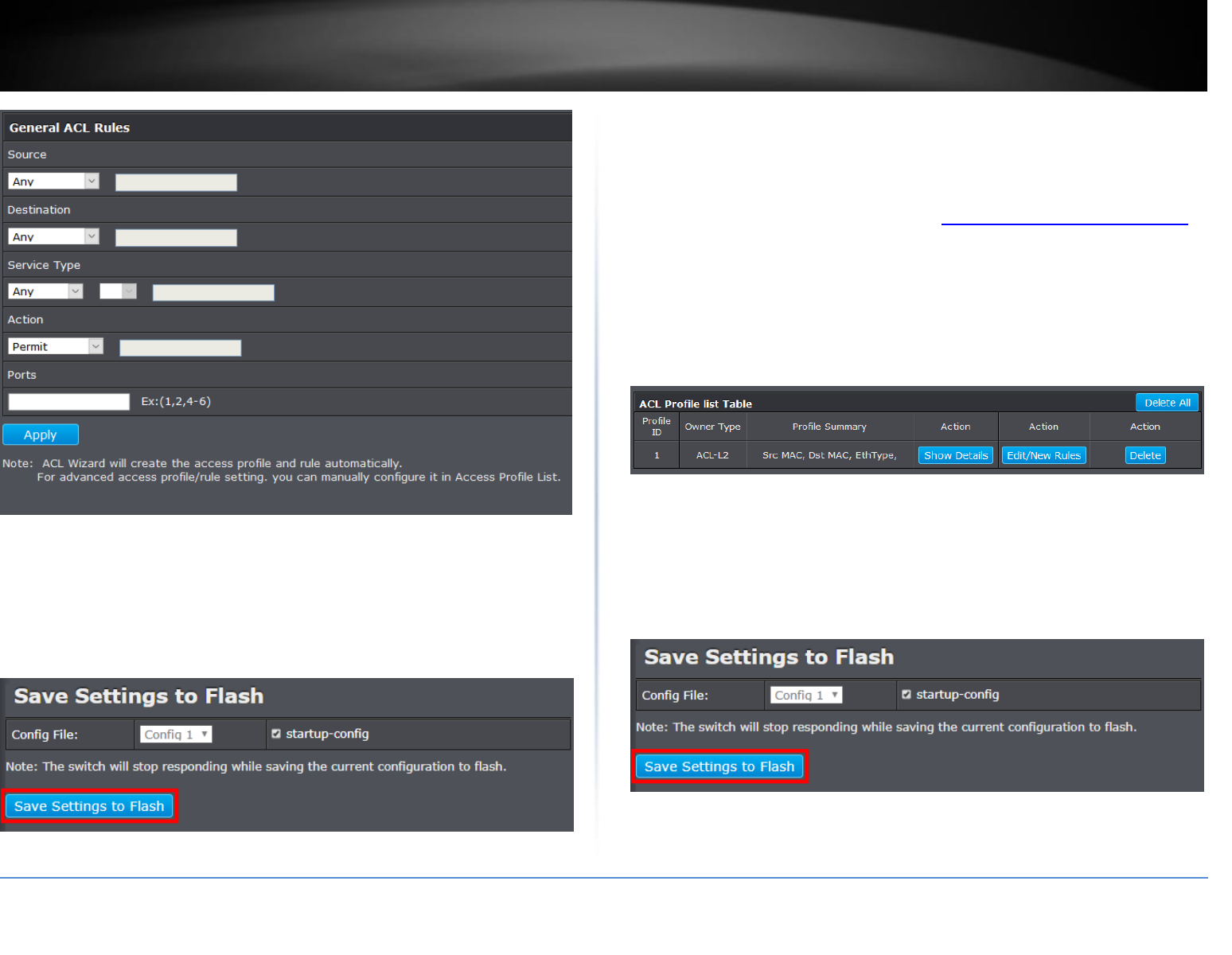

ACL Configuration Wizard .................................................................................. 93
Access Profile List ............................................................................................... 94
ACL Finder .......................................................................................................... 95
Tools ............................................................................................. 96
Firmware Upgrade ....................................................................................................... 96
Upgrade your switch’s firmware ....................................................................... 96

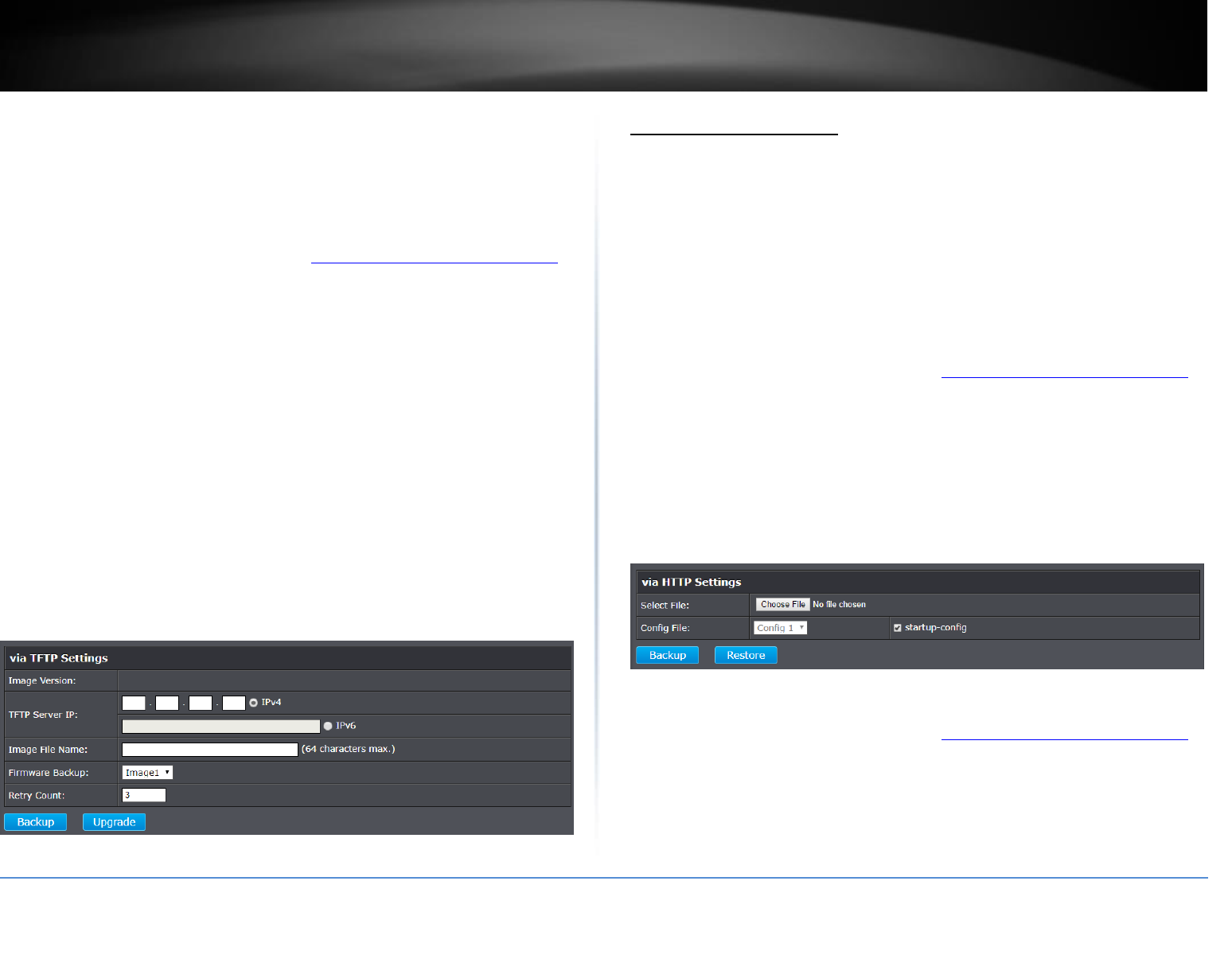

Firmware Upgrade via HTTP Settings ................................................................ 96
Firmware Upgrade via TFTP Settings ................................................................. 97
Config Backup Restore ................................................................................................. 97
Config Backup/Restore ...................................................................................... 97

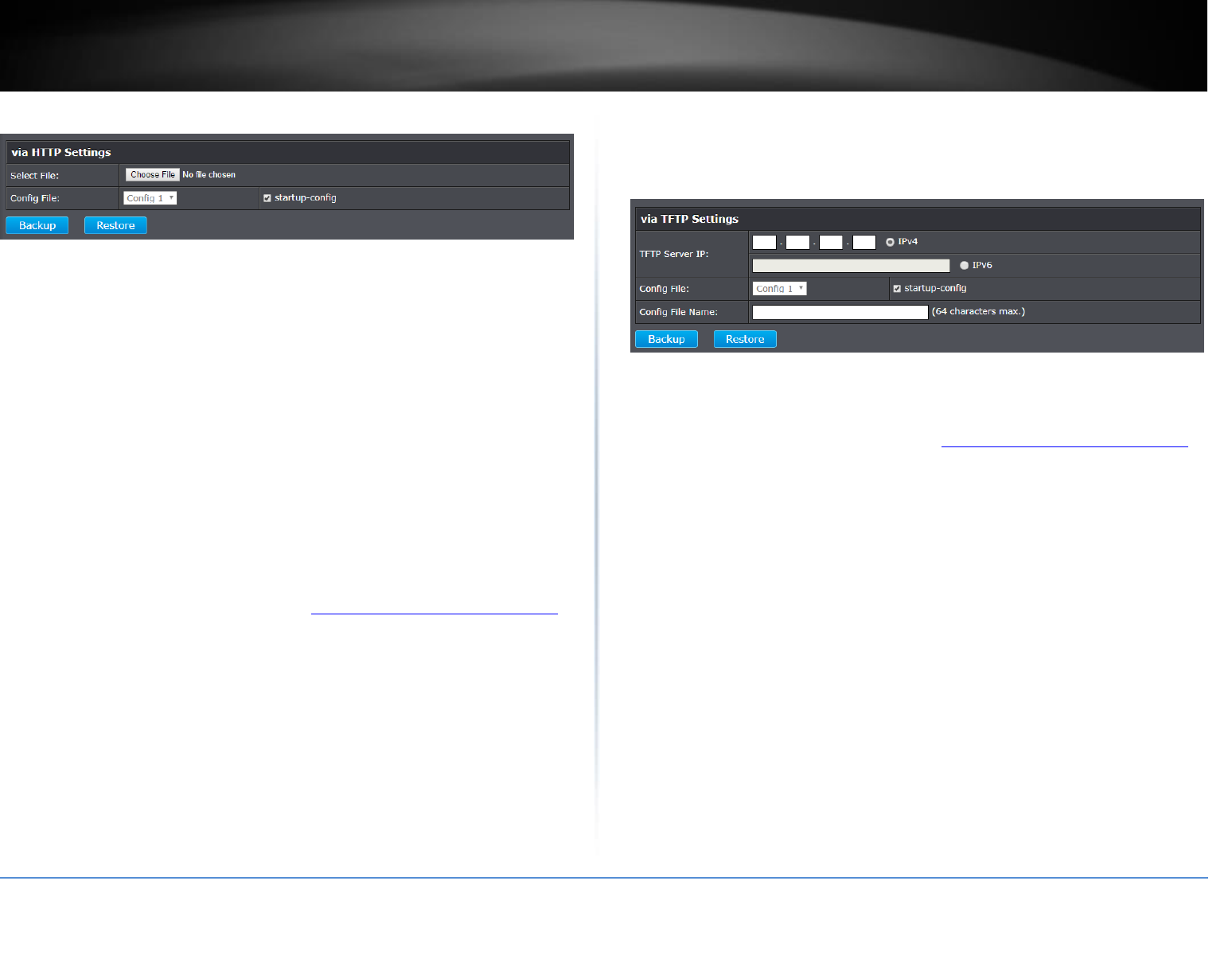

Backup/Restore via HTTP Settings ..................................................................... 97
Backup/Restore via TFTP Settings ..................................................................... 98
Diagnostics................................................................................................................... 99

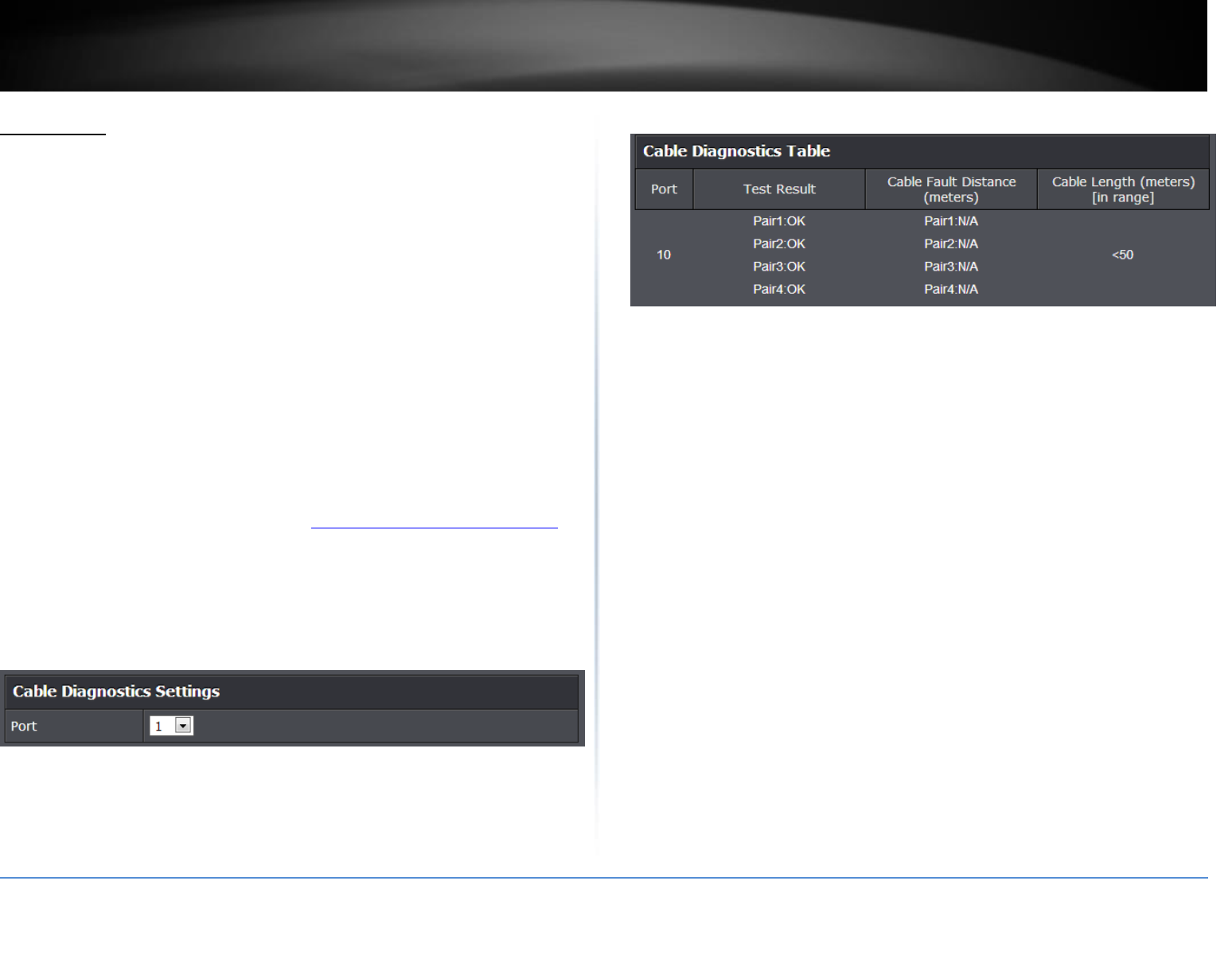

Cable Diagnostics Test ....................................................................................... 99
Reboot ....................................................................................................................... 100
Reboot/Reset to factory defaults .................................................................... 100
Ping ............................................................................................................................ 101
Network Connectivity Test (Ping Tool) ............................................................ 101
Using the Web Smart Switch Management Utility ....................... 102
System Requirements ................................................................................................ 102

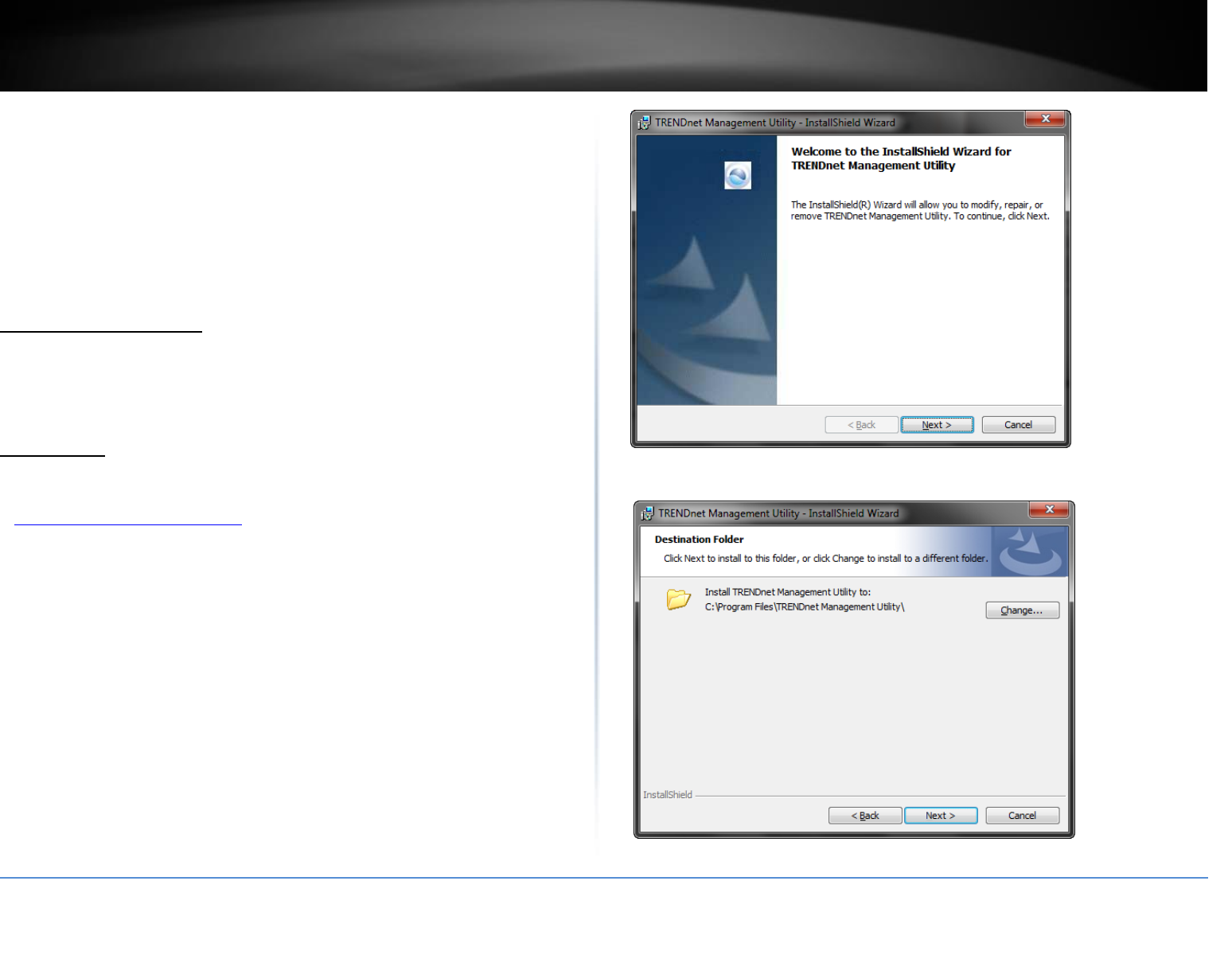

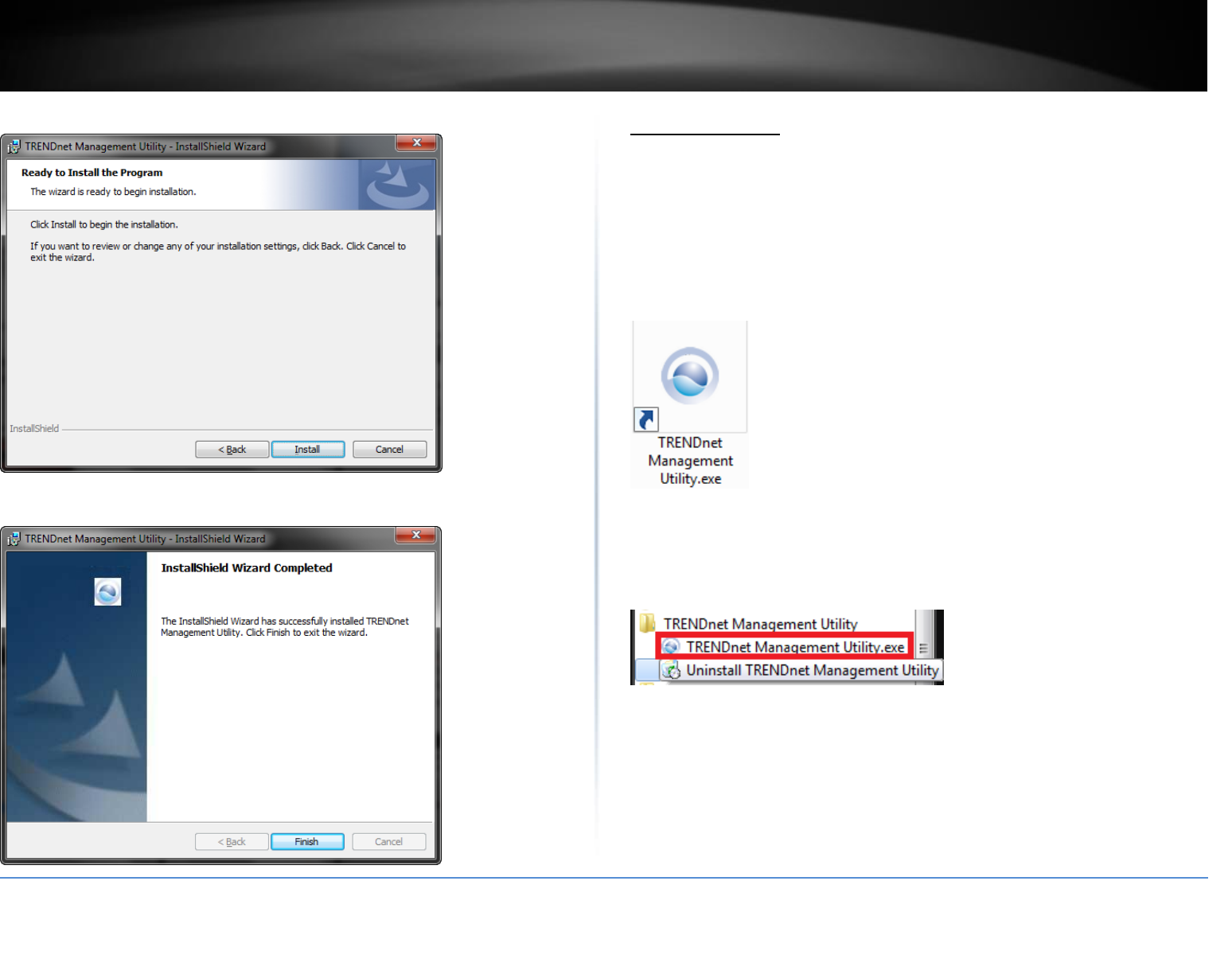

Installation ................................................................................................................. 102
Using the Utility ......................................................................................................... 103
Launching the Utility ........................................................................................ 103
Discovery List ................................................................................................... 104
Monitor List ..................................................................................................... 104
Device Setting .................................................................................................. 105
Main Menu Options ......................................................................................... 106
Hardware Features and Specifications ......................................... 107
Web Smart Switch Series Software & Technical Specifications ..... 109
Quick Installation GuideTroubleshooting ..................................... 111
Appendix .................................................................................... 112
© Copyright 2018 TRENDnet. All Rights Reserved.
i
TRENDnet User’s Guide
Web Smart Switch Series
Web Smart Switch Series Product Overview
TEG-082WS Overview
Package Contents
In addition to your switch, the package includes:
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
TEG-082WS Hardware Features
Front View
Rear View
Reset Button – Press and hold the button 1~5 seconds and release to
reboot the device. Pressing the button more than 6 seconds will reset
the switch to factory defaults. The ports LEDs will turn off to indicate
that the reset was initiated.
Gigabit Ethernet Ports (1-8) – Connect network devices.
SFP Slots (9-10) – Supports optional 1000BASE-SX/LX mini-GBIC modules
for uplink or downlink connections.
© Copyright 2018 TRENDnet. All Rights Reserved.
ii
TRENDnet User’s Guide
Web Smart Switch Series
Diagnostic LEDs
Power LED
On
:
When the Power LED is on, the device is receiving power.
Off
:
When the Power turns off, the power cord is not
connected or the device is not receiving power.
Gigabit Ethernet Port LEDs (1-8)
Link/Activity
Green
on
:
Amber
on
:
Green
Blinking
:
Amber
Blinking
:
Off
SFP Slots (9-10)
Link/Activity
Green on
:
When the SFP LED is on, the link established using
the SFP module is operating at 1Gbps speed.
Green blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1Gbps link established.
Amber on
When the SFP LED is on, the link established using
the SFP module is operating at 100Mbps speed.
Amber blinking
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
100Mbps link established.
Off
No link established.
© Copyright 2018 TRENDnet. All Rights Reserved.
iii
TRENDnet User’s Guide
Web Smart Switch Series
TEG-204WS Overview
Package Contents
In addition to your switch, the package includes:
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.
TEG-204WS Hardware Features
Front View
Rear View
Reset Button – Press and hold the button 1~5 seconds and release to
reboot the device. Pressing the button more than 6 seconds will reset
the switch to factory defaults. The ports LEDs will turn off to indicate
that the reset was initiated.
Gigabit Ethernet Ports (1-20) – Connect network devices. Ports 17-20
are shared with SFP slots 17F-20F and are disabled when SFP slots (17F-
20F) are in use.
SFP Slots (17F-20F) – Supports optional 1000BASE-SX/LX mini-GBIC
modules for uplink or downlink connections.
© Copyright 2018 TRENDnet. All Rights Reserved.
iv
TRENDnet User’s Guide
Web Smart Switch Series
Diagnostic LEDs
Power LED
On
:
When the Power LED is on, the device is receiving power.
Off
:
When the Power turns off, the power cord is not
connected or the device is not receiving power.
Gigabit Ethernet Port LEDs (1-20)
Link/Activity
Green
on
:
Amber
on
:
Green
Blinking
:
Amber
Blinking
:
Off
SFP Slots (17F-20F)
Link/Activity
Green on
:
When the SFP LED is on, the link established using
the SFP module is operating at 1Gbps speed.
Green blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1Gbps link established.
Amber on
When the SFP LED is on, the link established using
the SFP module is operating at 100Mbps speed.
Amber blinking
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
100Mbps link established.
Off
No link established.
© Copyright 2018 TRENDnet. All Rights Reserved.
v
TRENDnet User’s Guide
Web Smart Switch Series
TEG-284WS Overview
Package Contents
In addition to your switch, the package includes:
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.

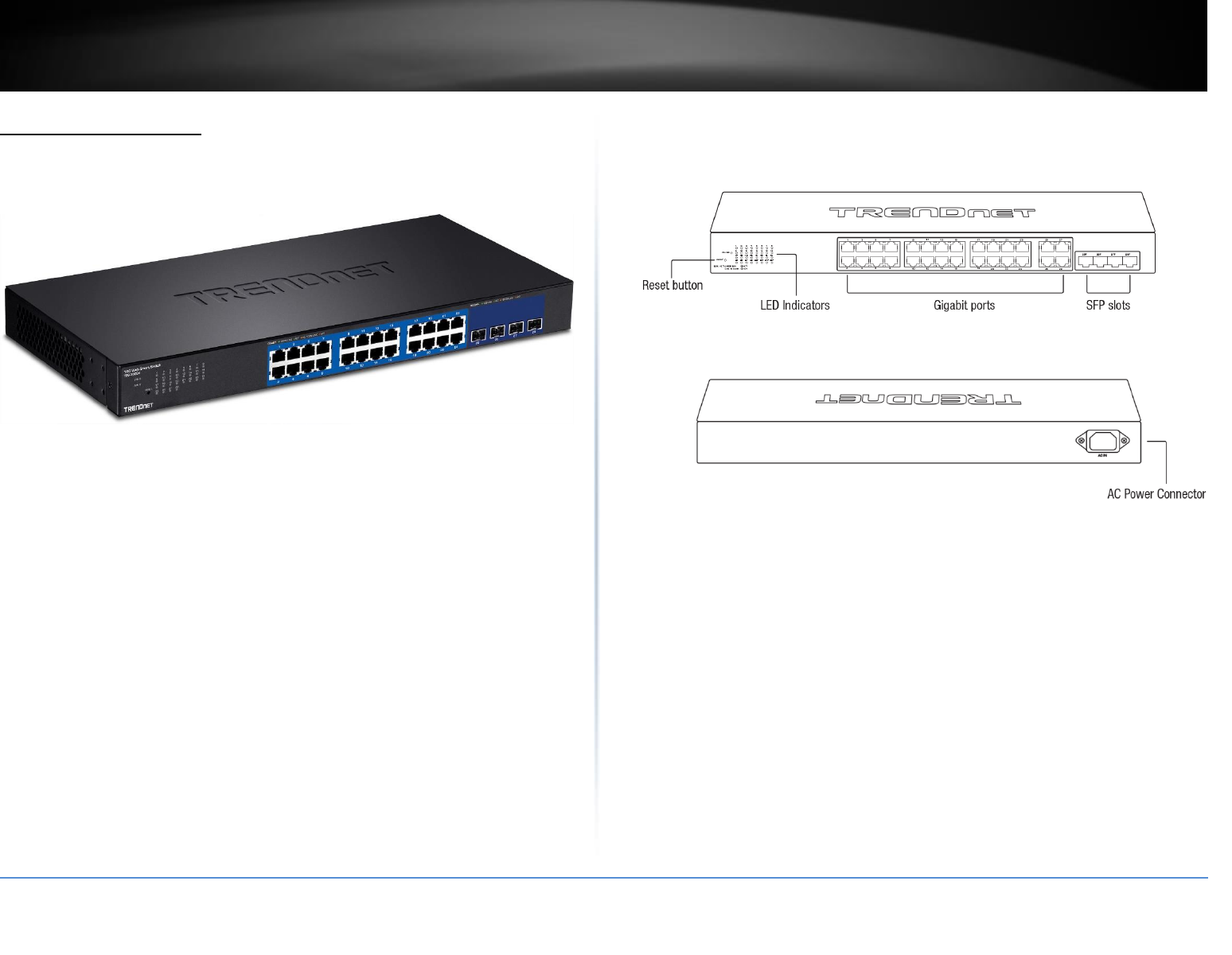

TEG-284WS Hardware Features
Front View
Rear View
Reset Button – Press and hold the button 1~5 seconds and release to
reboot the device. Pressing the button more than 6 seconds will reset
the switch to factory defaults. The ports LEDs will turn off to indicate
that the reset was initiated.
Gigabit Ethernet Ports (1-28) – Connect network devices. Ports 25-28
are shared with SFP slots 25F-28F and are disabled when SFP slots (25F-
28F) are in use.
SFP Slots (25F-27F) – Supports optional 1000BASE-SX/LX mini-GBIC
modules for uplink or downlink connections.
© Copyright 2018 TRENDnet. All Rights Reserved.
vi
TRENDnet User’s Guide
Web Smart Switch Series
Diagnostic LEDs
Power LED
On
:
When the Power LED is on, the device is receiving power.
Off
:
When the Power turns off, the power cord is not
connected or the device is not receiving power.
Gigabit Ethernet Port LEDs (1-28)
Link/Activity
Green
on
:
Amber
on
:
Green
Blinking
:
Amber
Blinking
:
Off
SFP Slots (25F-28F)
Link/Activity
Green on
:
When the SFP LED is on, the link established using
the SFP module is operating at 1Gbps speed.
Green blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1Gbps link established.
Amber on
When the SFP LED is on, the link established using
the SFP module is operating at 100Mbps speed.
Amber blinking
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
100Mbps link established.
Off
No link established.
© Copyright 2018 TRENDnet. All Rights Reserved.
vii
TRENDnet User’s Guide
Web Smart Switch Series
TEG-524WS Overview
Package Contents
In addition to your switch, the package includes:
Quick Installation Guide
CD-ROM (Utility & User’s Guide)
Power cord (1.8 m / 6 ft.)
Rack mount kit
If any package contents are missing or damaged, please contact the retail store, online
retailer, or reseller/distributor from which the product was purchased.

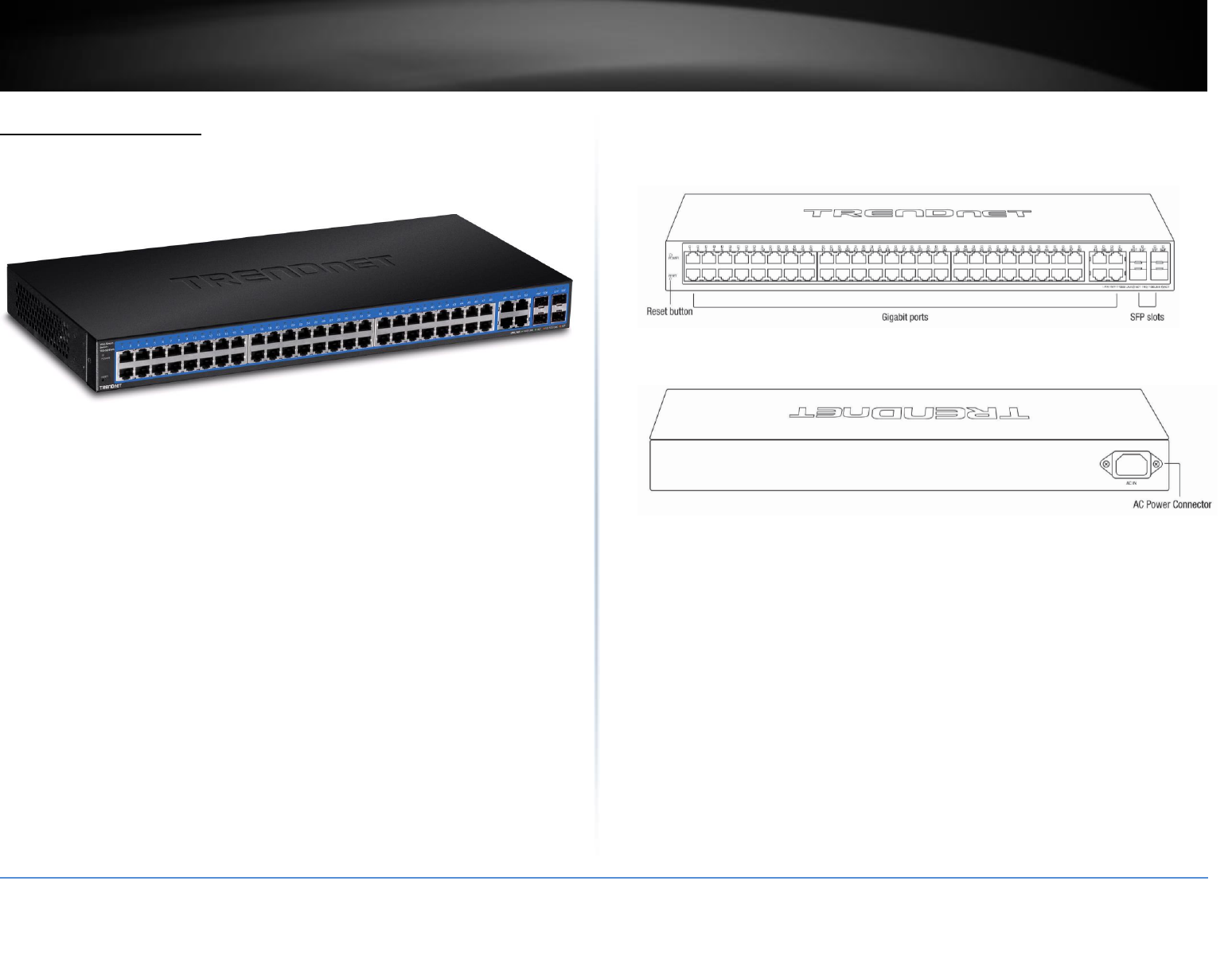

TEG-524WS Hardware Features
Front View
Rear View
Reset Button – Press and hold the button 1~5 seconds and release to
reboot the device. Pressing the button more than 6 seconds will reset
the switch to factory defaults. The ports LEDs will turn off to indicate
that the reset was initiated.
Gigabit Ethernet Ports (1-52) – Connect network devices. Ports 49-52
are shared with SFP slots 49F-52F and are disabled when SFP slots (49F-
52F) are in use.
SFP Slots (49F-52F) – Supports optional 1000BASE-SX/LX mini-GBIC
modules for uplink or downlink connections.
© Copyright 2018 TRENDnet. All Rights Reserved.
viii
TRENDnet User’s Guide
Web Smart Switch Series
Diagnostic LEDs
Power LED
On
:
When the Power LED is on, the device is receiving power.
Off
:
When the Power turns off, the power cord is not
connected or the device is not receiving power.
Gigabit Ethernet Port LEDs (1-52)
Link/Activity
Green
on
:
Amber
on
:
Green
Blinking
:
Amber
Blinking
:
Off
SFP Slots (49F-52F)
Link/Activity
Green on
:
When the SFP LED is on, the link established using
the SFP module is operating at 1Gbps speed.
Green blinking
:
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
1Gbps link established.
Amber on
When the SFP LED is on, the link established using
the SFP module is operating at 100Mbps speed.
Amber blinking
When the SFP LED is blinking, the port is
transmitting or receiving data on through the
100Mbps link established.
Off
No link established.
© Copyright 2018 TRENDnet. All Rights Reserved.
1
TRENDnet User’s Guide
Web Smart Switch Series
Switch Installation
Desktop Hardware Installation
The site where you install the hub stack may greatly affect its performance. When
installing, consider the following pointers:
Note: Your switch model may be different than the one shown in the example
illustrations.
Install the Switch in a fairly cool and dry place.
Install the Switch in a site free from strong electromagnetic field generators (such
as motors), vibration, dust, and direct exposure to sunlight.
Leave at least 10cm of space at the front and rear of the hub for ventilation.
Install the Switch on a sturdy, level surface that can support its weight, or in an
EIA standard-size equipment rack. For information on rack installation, see the
next section, Rack Mounting.
When installing the Switch on a level surface, attach the rubber feet to the
bottom of each device. The rubber feet cushion the hub and protect the hub
case from scratching.
Rack Mount Hardware Installation
The switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in
a wiring closet with other equipment. Attach the mounting brackets at the switch’s
front panel (one on each side), and secure them with the provided screws.
Note: The switch model may be different than the one shown in the example
illustrations.
Then, use screws provided with the equipment rack to mount each switch in the rack.
© Copyright 2018 TRENDnet. All Rights Reserved.
2
TRENDnet User’s Guide
Web Smart Switch Series
Basic IP Configuration
3. Assign a static IP address to your computer’s network adapter in the subnet of
192.168.10.x (e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.
4. Open your web browser, and type the IP address of the switch in the address bar, and
then press Enter. The default IP address is 192.168.10.200.
5. Enter the User Name and Password, and then click Login. By default:
User Name: admin
Password: admin
Note: User name and password are case sensitive.
6. Click System, L3 Feature, and then click IPv4 Interface.
© Copyright 2018 TRENDnet. All Rights Reserved.
3
TRENDnet User’s Guide
Web Smart Switch Series
7. Click on Edit for interface vlan1.
Note: All other functions of this page will be explained in detail in its respective section.
8. Configure the switch IP address settings to be within your network subnet, then click
Apply under the IP Settings.
9. When the confirmation message appears click OK.
Be sure to re-log back into the switch using the new IP address and save the
configuration to your flash.
NOTE: The configured settings are only applied to the switch’s temporary memory and
will be lost upon the next power-cycle. Please follow these next steps to save the
configurations to the switch’s NV-RAM to ensure the settings will remain throughout
power-cycles and reboots:

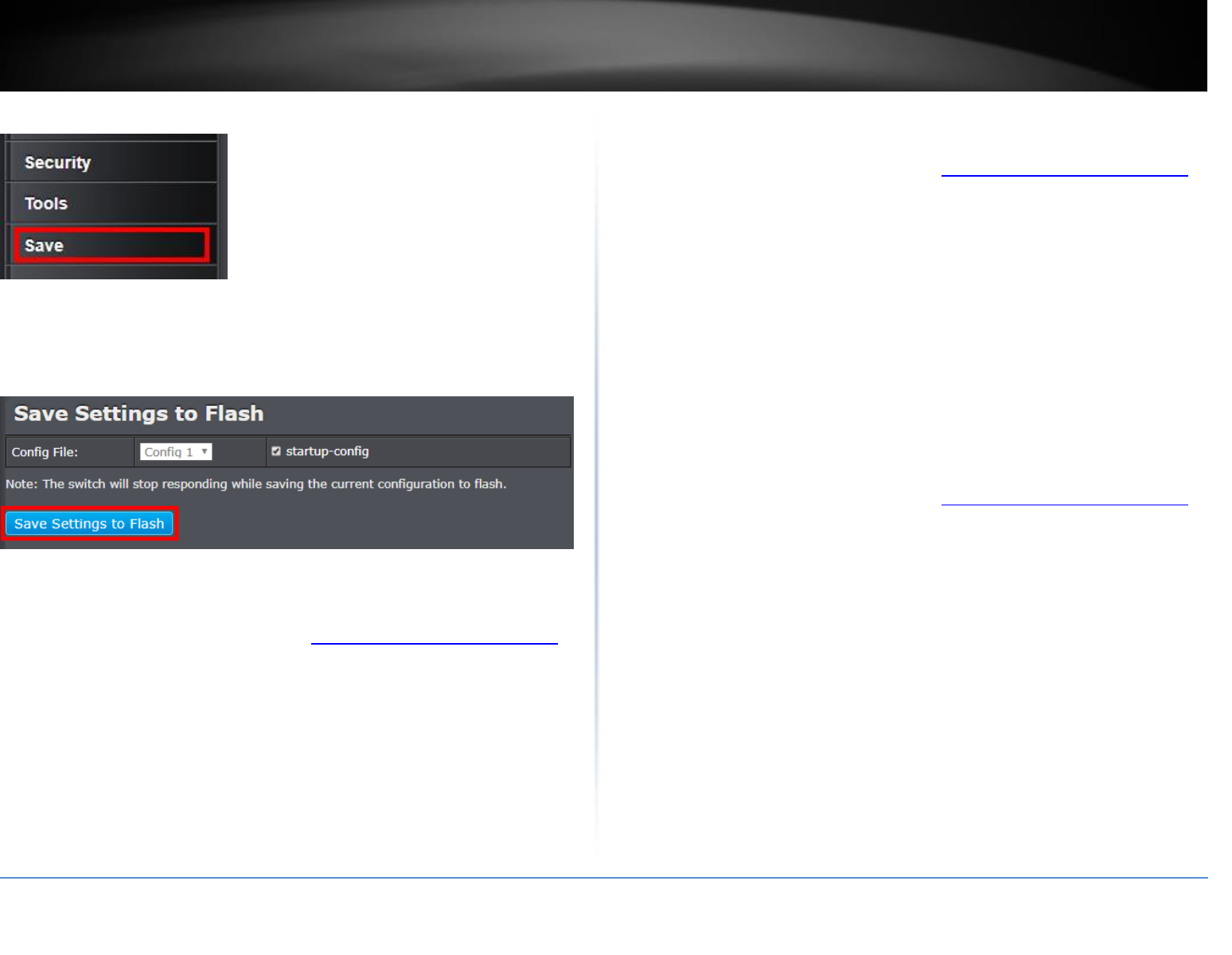

1. At the bottom of the left hand panel, click Save.
2. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
4
TRENDnet User’s Guide
Web Smart Switch Series

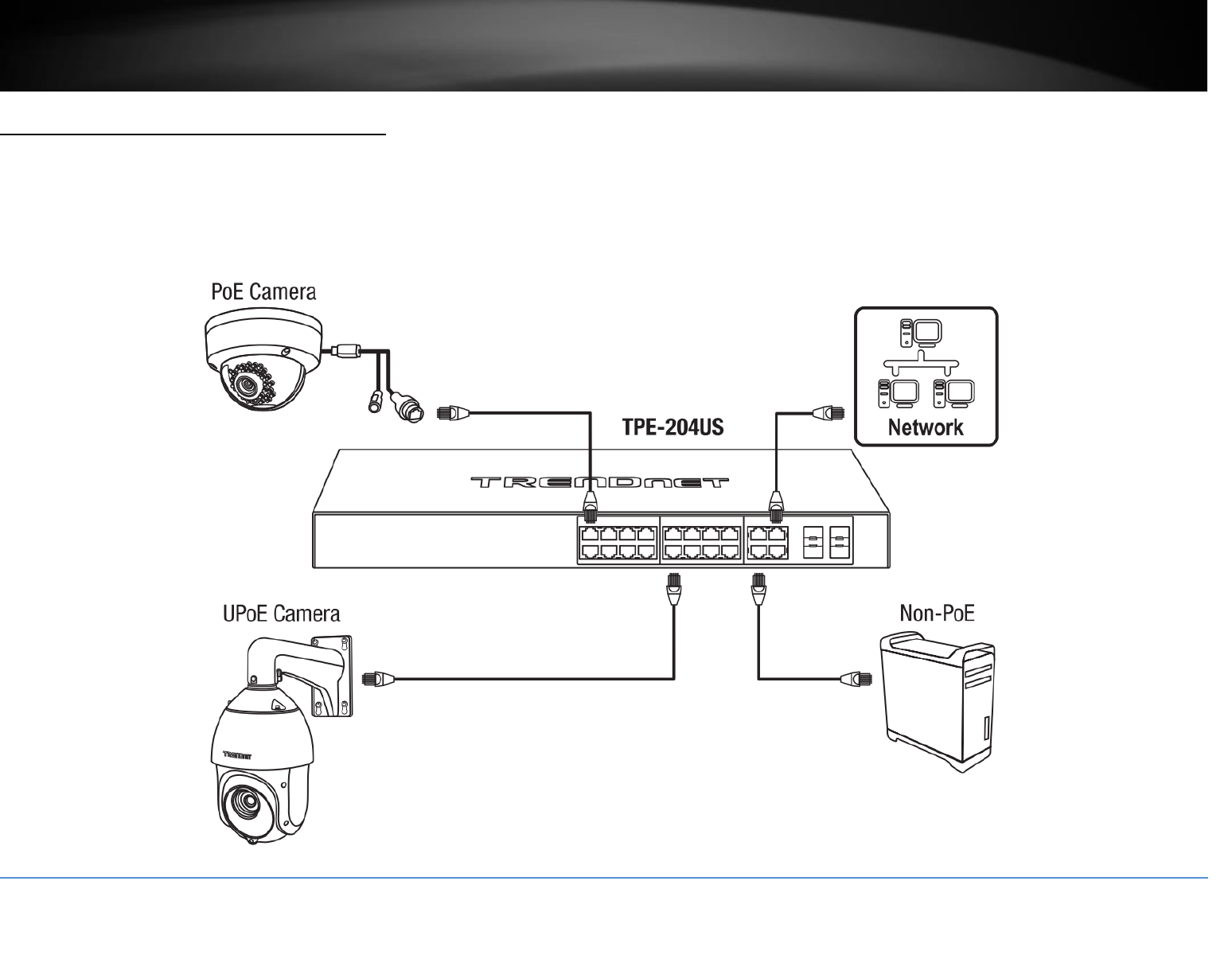

Connect additional devices to your switch
You can connect computers or other network devices to your switch using Ethernet cables to connect them to one of the available Gigabit Ethernet Ports, Gigabit Ethernet PoE Ports,
Gigabit Ethernet PoE+ Ports, Gigabit Ethernet UPoE Ports, or SFP Ports. Check the status of the LED indicators on the front panel of your switch to ensure the physical cable connection
from your computer or device. You can use either the Gigabit Ethernet ports or SFP connections as network uplinks. (SFP modules sold separately)
Note: If you encounter issues connecting to your network, there may be a problem with your computer or device network settings. Please ensure that your computer or device network
settings (also called TCP/IP settings) are configured properly within the network subnet your switch is connected.
Note: Your switch model may be different than the one shown in the example illustrations.
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Web Smart Switch Series
5
Accessing switch management interfaces
Access your switch management page
Note: Your switch default management IP address http://192.168.10.200 is accessed
through the use of your Internet web browser (e.g. Internet Explorer®, Firefox®,
Chrome™, Safari®, Opera™) and will be referenced frequently in this User’s Guide.
Throughout this user’s guide, the term Web Configuration will be used to reference
access from web management page.

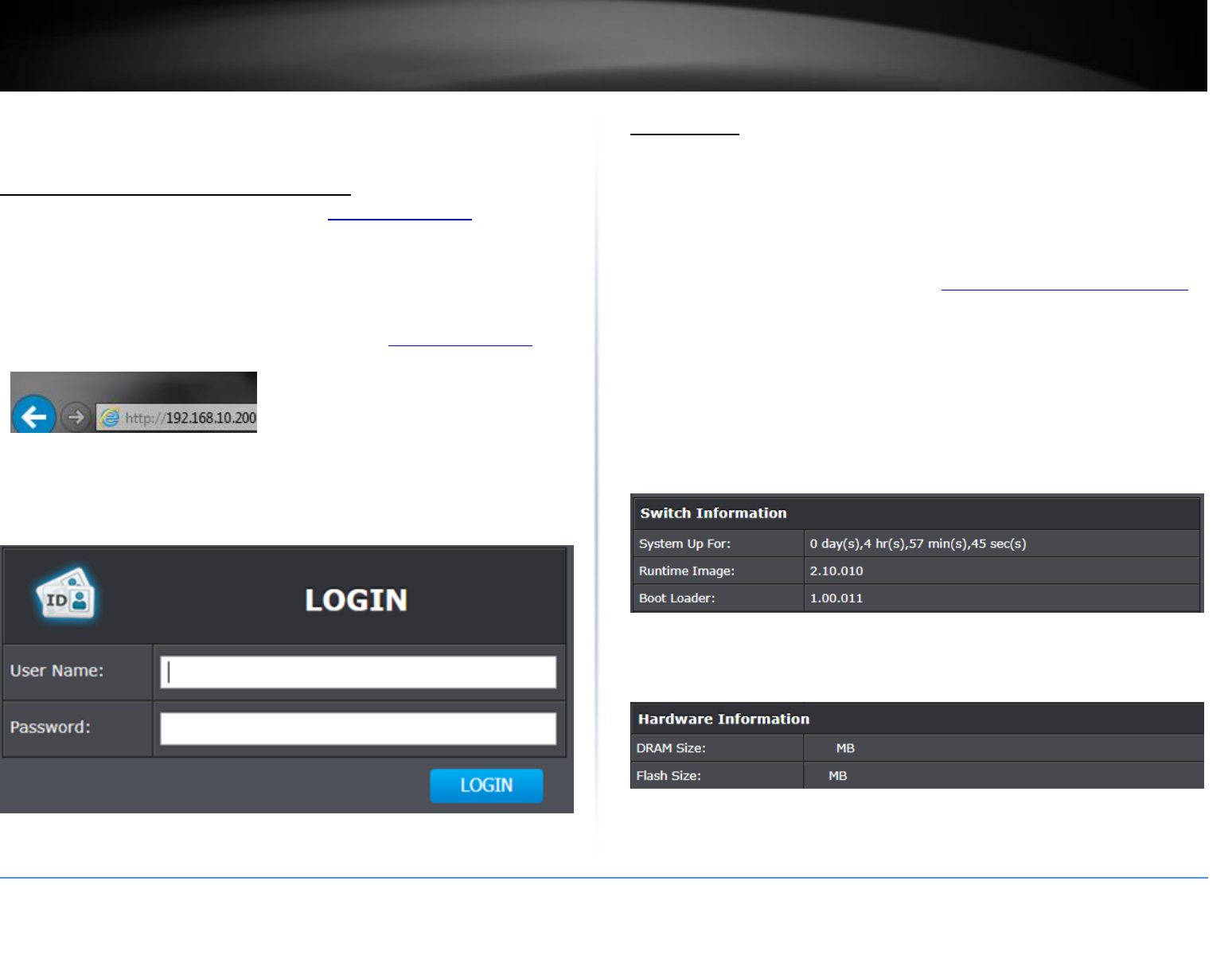

1. Open your web browser and go to its IP address (default: http://192.168.10.200).
Your switch will prompt you for a user name and password.
2. Enter the user name and password. By default:
User Name: admin
Password: admin
Note: User Name and Password are case sensitive.
System Info
View your switch status information
Switch Info
You may want to check the general system information of your switch such as firmware
version, boot loader information and system uptime. Other information includes H/W
version, RAM/Flash size, administration information, IPv4 and IPv6 information.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Switch Info.
Switch Information
System Up For – The duration your switch has been running continuously without
a restart/power cycle (hard or soft reboot) or reset.
Runtime Image: The current software or firmware version your switch is running.
Boot Loader – The current boot loader version your switch is running.
Hardware Information
DRAM Size: Displays your switch RAM memory size.
Flash Size: Displays your switch Flash memory size.
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Web Smart Switch Series
6
Administration Information
System Name – Displays the identifying system name of your switch. This
information can be modified under the System section.
System Location - Displays the identifying system location of your switch. This
information can be modified under the System section.
System Contact – Displays the identifying system contact or system administrator
of your switch. This information can be modified under the System section.
System MAC Address, IPv4 Information
MAC Address: Displays the switch system MAC address.
IP Address – Displays the current IPv4 address assigned to your switch.
Subnet Mask – Displays the current IPv4 subnet mask assigned to your switch.
Default Gateway – Displays the current gateway address assigned to your switch.
IPv6 Information
IPv6 Unicast Address / Prefix Length: Displays the current IPv6 address and
prefix assigned to your switch.
IPv6 Default Gateway: Displays the current IPv6 default gateway address
assigned to your switch.
Link Local Address / Prefix Length: Displays the current Link Local address and
prefix length assigned to your switch
Automatic Network Features
IPv4 DHCP Client Mode: Displays if your switch IPv4 address setting is set to
DHCP client.
IPv6 DHCP Client Mode: Displays if your switch IPv6 address setting is set to
DHCP client.
© Copyright 2018 TRENDnet. All Rights Reserved.
7
TRENDnet User’s Guide
Web Smart Switch Series
System
System Management
Set your system information
System > System Management
This section explains how to assign a name, location, and contact information for the
switch. This information helps in identifying each specific switch among other switches
in the same local area network. Entering this information is optional.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on System Management.
3. Review the settings. When you have completed making changes, click Apply to save
the settings.
System Description - Specifies the Switch model. You cannot change this
parameter.
System Object ID - Indicates the unique SNMP MIB object identifier that
identifies the switch model. You cannot change this parameter.
System Name - Specifies a name for the switch, the name is optional and may
contain up to 15 characters.
System Location - Specifies the location of the switch. The location is optional
and may contain up to 30 characters.
System Contact - Specifies the name of the network administrator responsible
for managing the switch. This contact name is optional and may contain up to
30 characters.
4. Click Apply.
5. At the bottom of the left hand panel, click Save.
6. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
8
TRENDnet User’s Guide
Web Smart Switch Series
L3 Feature
IPv4 Interface
System > L3 Feature > IPv4 Interface
This section allows you to change your switch IPv4 address settings and additionally
create and assign the aforementioned address to VLANs. Typically, the IP address
settings should be changed to match your existing network subnet in order to access the
switch management page on your network.
Default Switch IPv4 Address: 192.168.10.200
Default Switch IPv4 Subnet Mask: 255.255.255.0
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv4 Interface.
3. To create a new entry per VLAN, type the VLAN number you would like to create,
then click Add. To view a specific VLAN ID’s configuration, enter the VLAN ID into the
Interface VLAN field and then click Find.
4. To change the IPv4 IP address associated with a specific VLAN, click on Edit within the
lower table.
5. Review the settings. When you have completed making changes, click Apply to save
the settings.
Interface: Displays the VLAN that is currently being configured.
State: Select Enabled to enable this VLAN, and Disabled to disable this VLAN.
Get IP From: Select Static to statically assign an IP address and subnet mask,
select DHCP to automatically request one from your networks DHCP server.
o IP Address: Enter the new switch IP address you would like to
statically assign. (e.g. 192.168.200.200)
o Subnet Mask: Enter the new switch subnet mask. (e.g. 255.255.255.0)
6. At the bottom of the left hand panel, click Save.
7. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
9
TRENDnet User’s Guide
Web Smart Switch Series

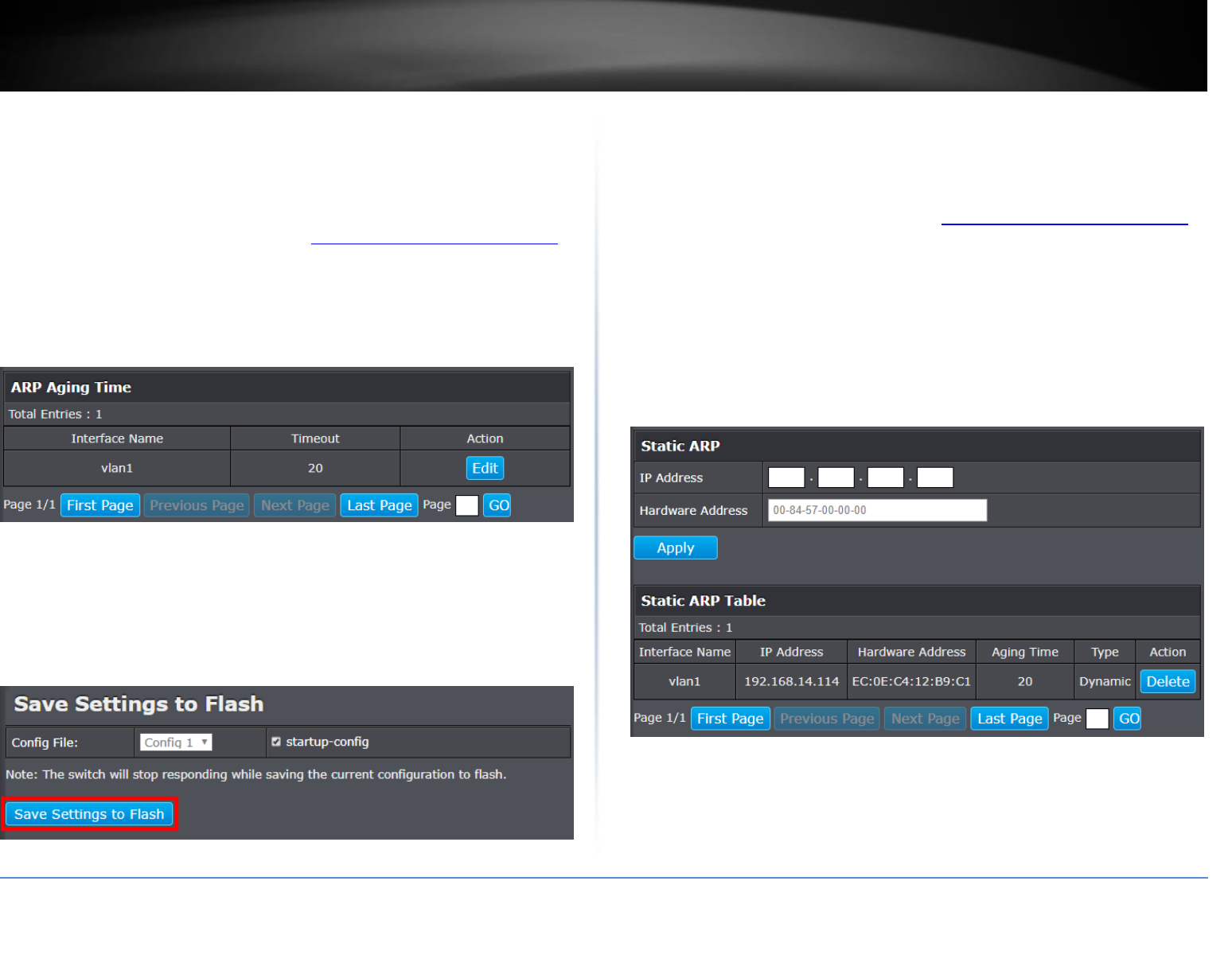

IPv4 ARP Aging Time
System > L3 Feature > IPv4 ARP Aging Time
This section allows you to set the timeout for the switch’s ARP Table per each
configured VLAN.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv4 ARP Aging Time.
3. Click on Edit to change the value, then click Apply.

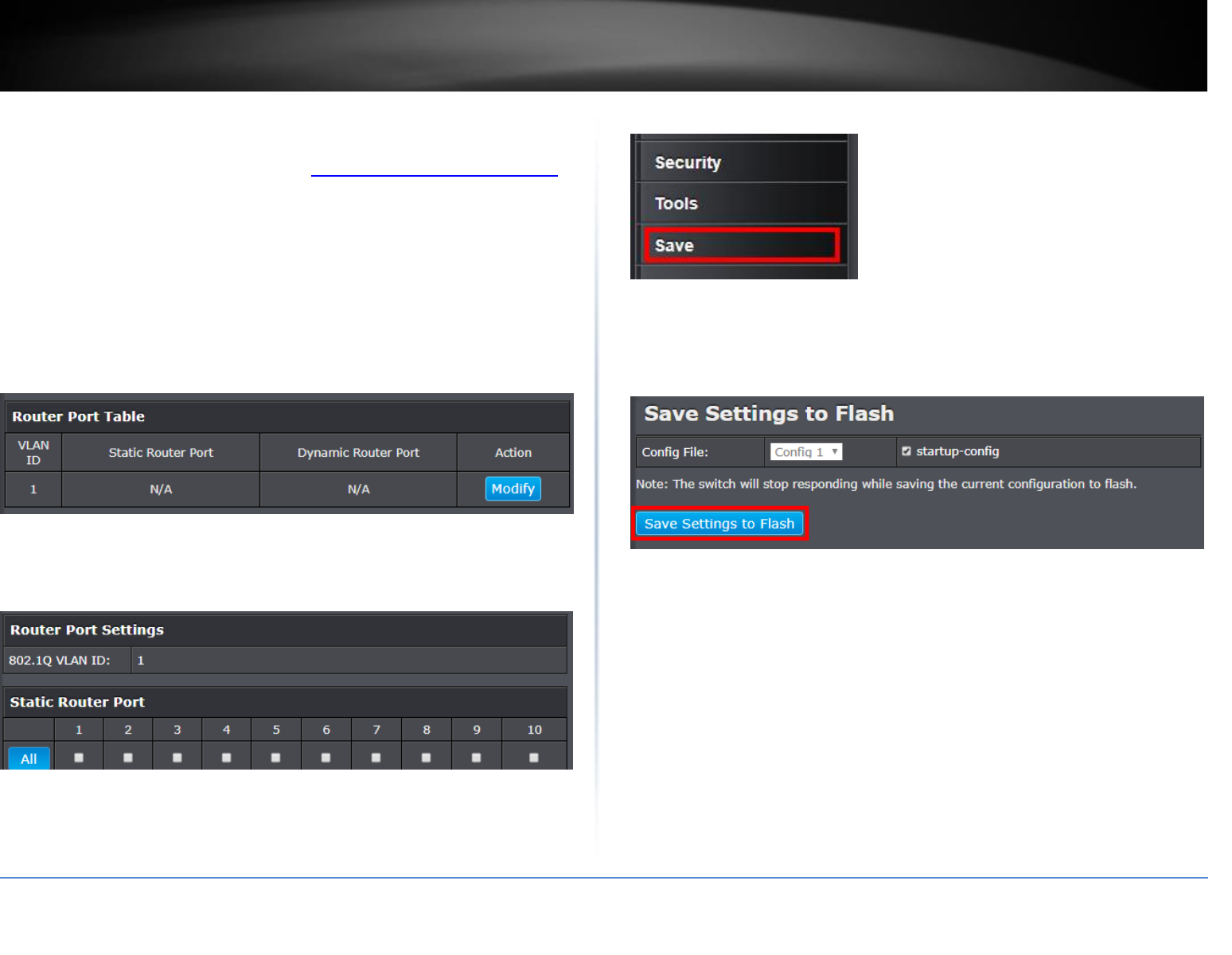

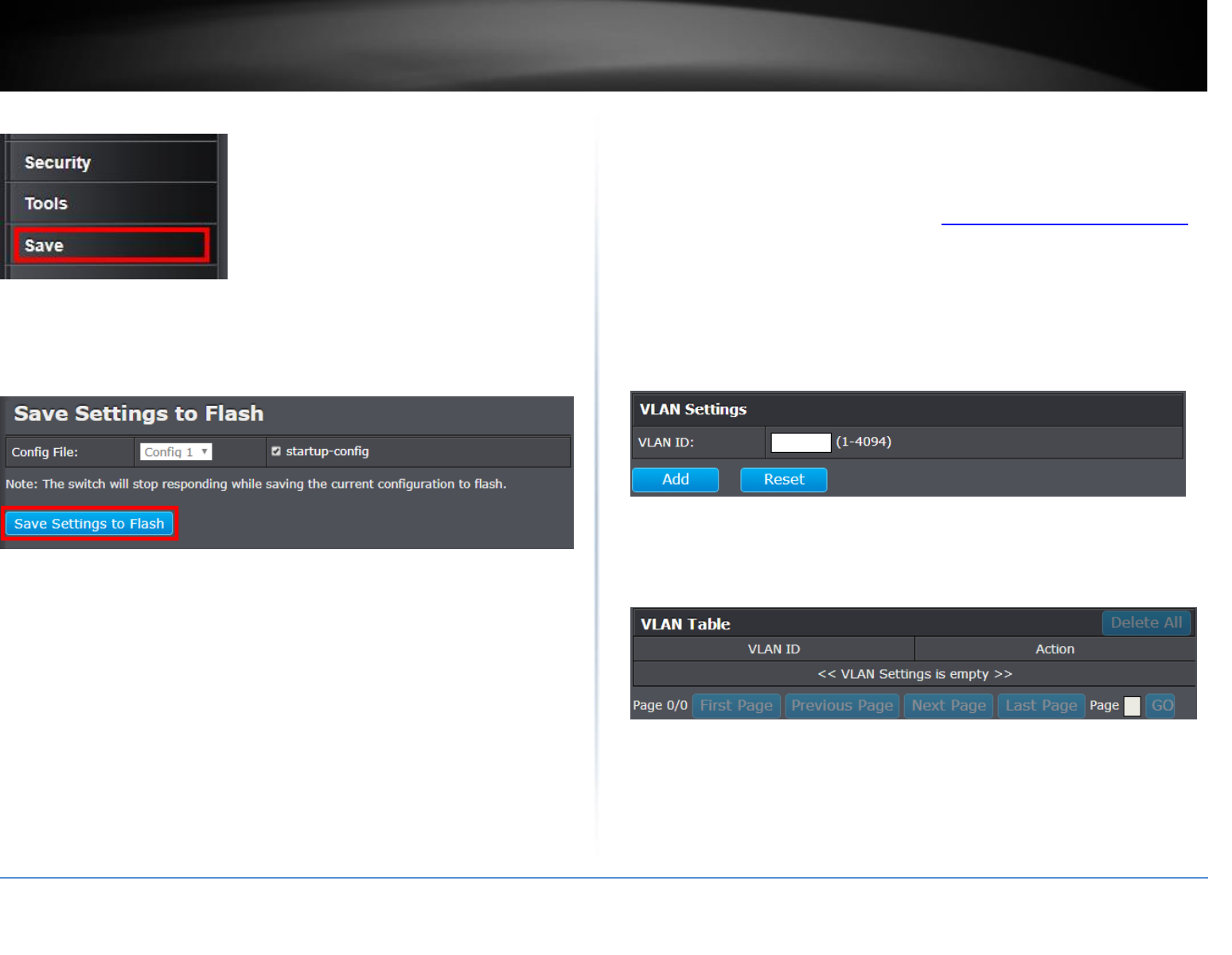

4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
IPv4 Static ARP
System > L3 Feature > IPv4 Static ARP
This section allows you to statically set ARP entries per each configured VLAN.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv4 Static ARP.
3. To add a static ARP entry, fill out the following fields and then press Apply. To delete
an entry, press Delete in the lower table.
IP Address: enter the IP address you would like to statically set to the ARP table.
Hardware Address: enter the MAC address that you would like to assign to the IP
entered above.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
10
TRENDnet User’s Guide
Web Smart Switch Series

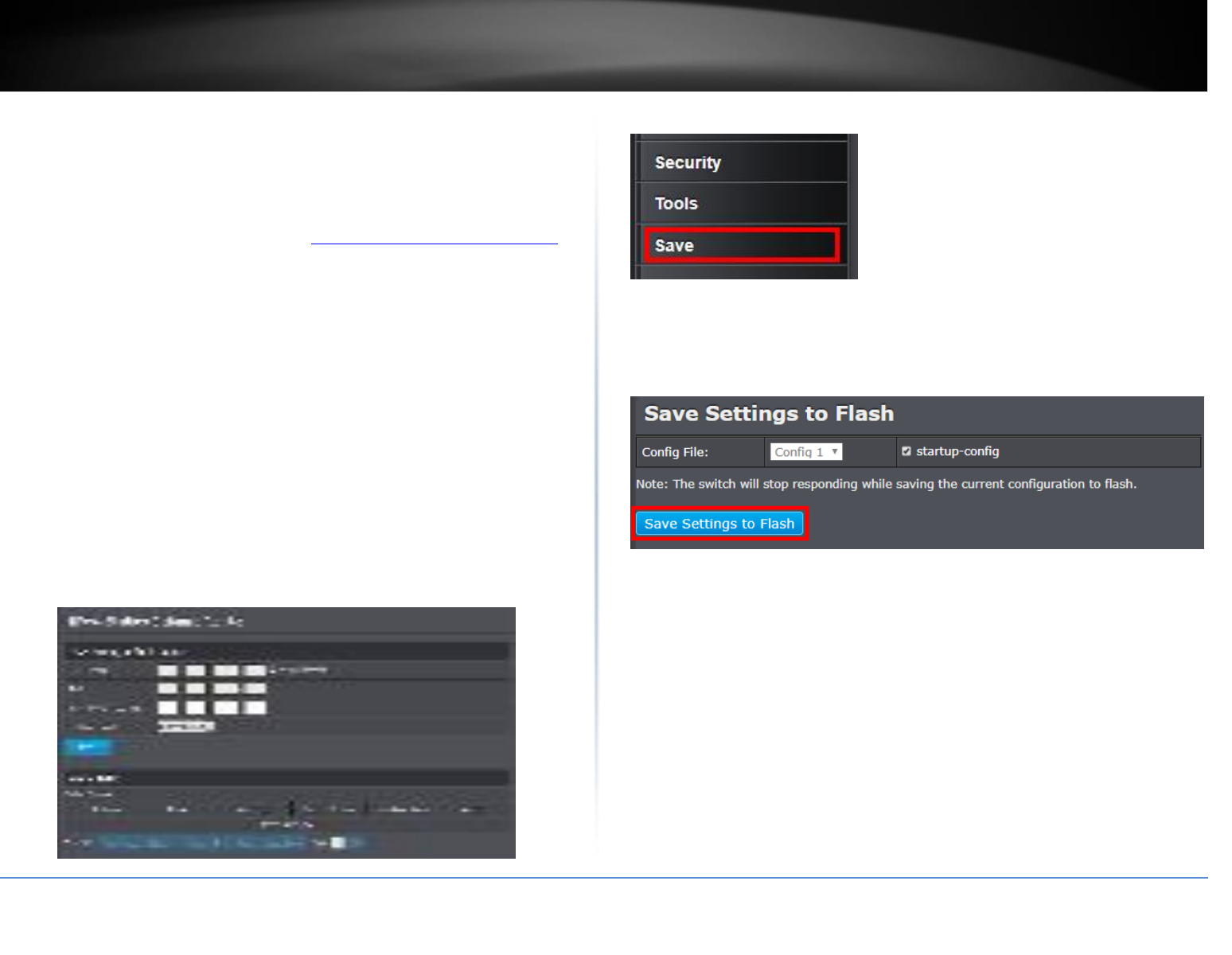

IPv4 Static/Default Route
System > L3 Feature > IPv4 Static/Default Route
This section allows you to set your switch’s IPv4 routing table default gateway IP
address, or specify a static route.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv4 Static/Default Route.
3. Review the settings. When you have completed making changes, click Apply to save
the settings, click Delete to delete the routing table entry.
Default Route: Check this box to apply this route as the default gateway and
enter the default gateway IP address in the Next Hop IP Address field. To specify a
static route, uncheck the box to specify the following:
o IP Address: Enter the IP address for this routing entry. (e.g.
192.168.200.200)
o Mask: Enter the subnet mask for this routing entry. (e.g.
255.255.255.0)
Next Hop IP Address: Enter the next hop for the routing entry. (e.g
192.168.20.200)
Backup Status: Specify if this routing entry is to be the Primary or Backup entry.
Note: If this assigning the default gateway IP address, select Primary.

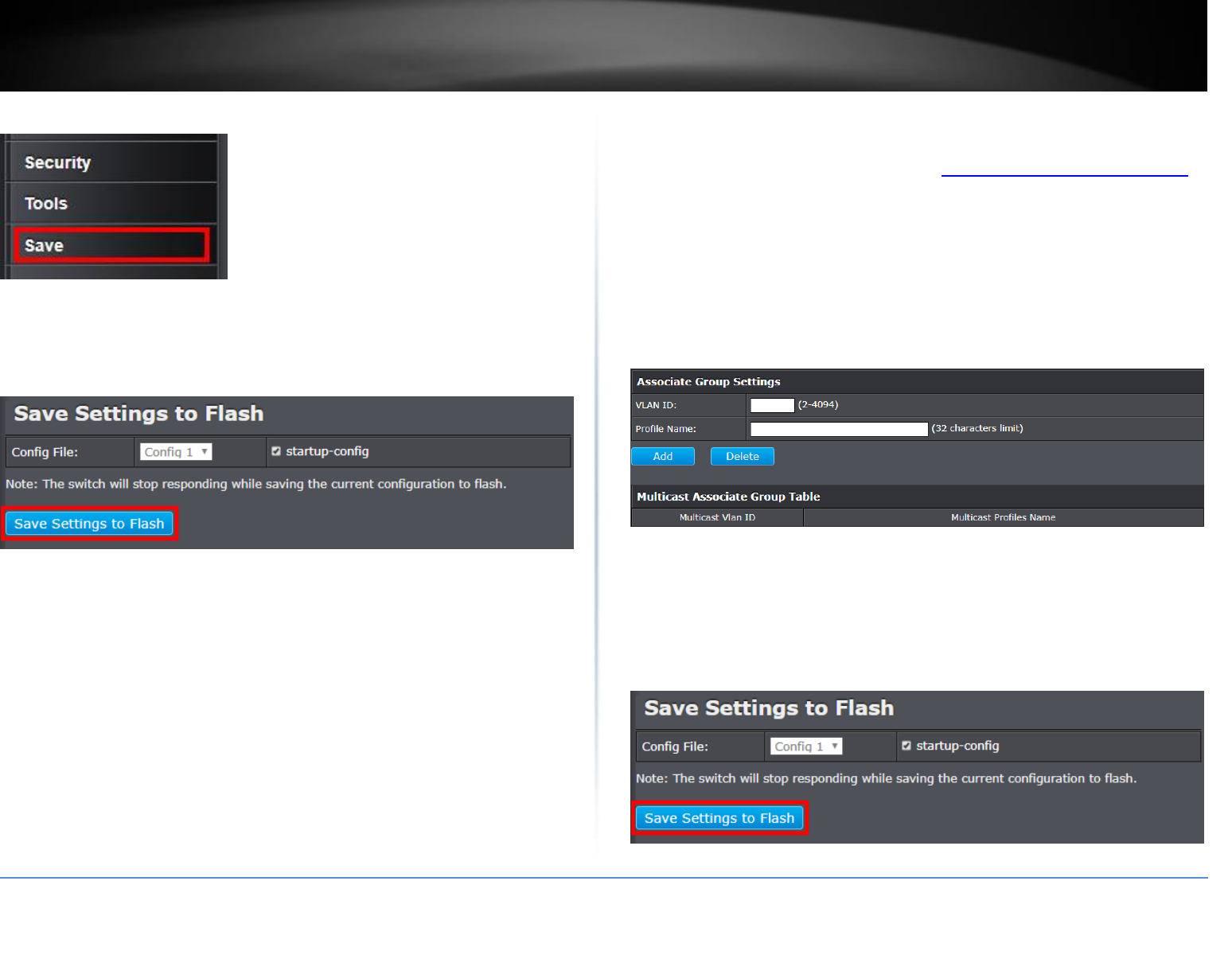

4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
11
TRENDnet User’s Guide
Web Smart Switch Series
Set your IPv6 settings
System > L3 Feature > IPv6 Interface
Internet Protocol version 6 (IPv6) is a new IP protocol designed to replace IP version 4
(IPv4). The IPv6 address protocol meets the current requirements of new applications
and the never ending growth of the Internet. The IPv6 address space makes more
addresses available but it must be approached with careful planning. Successful
deployment of IPv6 can be achieved with existing IPv4 infrastructures. With proper
planning and design, the transition between IP version 4 and 6 is possible today as well.
Use the IPv6 Interface page to configure the IPv6 network interface, which is the logical
interface used for in-band connectivity with the switch via all of the switch's front-panel
ports. The configuration parameters associated with the switch's network interface do
not affect the configuration of the front-panel ports through which traffic is switched or
routed.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv6 Interface.
3. To create a new entry per VLAN, type the VLAN number you would like to create,
then click Add. To view a specific VLAN ID’s configuration, enter the VLAN ID into the
Interface VLAN field and then click Find.
4. To change the IPv6 IP address associated with a specific VLAN, click on Detail within
the lower table.
5. Review the settings. When you have completed making changes, click Apply to save
the settings.
Interface: Displays the VLAN that is currently being configured.
State: Select Enabled to enable IPv6 on this VLAN, and Disabled to disable on
this VLAN.
DHCPv6 Client: Select Enabled to automatically obtain the IPv6 address from
the DHCP server on the network, select Disabled to manually specify an IPv6
Address.
Rapid Commit: You can configure the switch to support the DHCPv6 Rapid
Commit option (DHCPv6 option 14). The server and client then use a two-
message exchange (Solicit and Reply) to configure clients, rather than the
default four-message exchange (Solicit, Advertise, Request, and Reply). The
two-message exchange provides faster client configuration, and is beneficial in
environments in which networks are under a heavy load.
IPv6 Address: Enter the full IPv6 address you would like to specify for this
connection.
© Copyright 2018 TRENDnet. All Rights Reserved.
12
TRENDnet User’s Guide
Web Smart Switch Series
NS Retransmit Time: A constant that defines a nonzero number of seconds
between periodic reauthentication of the client. The field is 1~3600 seconds.
The default setting is 1 second.
Delete: Click Delete to delete this entry.
6. At the bottom of the left hand panel, click Save.
7. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Add IPv6 neighbors
System > L3 Feature > IPv6 Neighbor
This settings allows you to manually define IPv6 supported neighboring devices on your
network.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv6 Neighbor.
3. Review the settings. When you have completed making changes, click Apply to save
the settings.
Neighbor IPv6 Address: Specifies the neighbor IPv6 address.
Link Layer MAC Address: Specifies the link layer MAC address.
Click Add to save the entry to the list.
You can type in the specific address and click Find to find the entry to modify or
click Delete or delete the address. If the entries span multiple pages, you can
navigate page number in the Page field and click Go or you can click First,
Previous, Next, and Last Page to navigate the pages.
© Copyright 2018 TRENDnet. All Rights Reserved.
13
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Configure IPv6 Routing Table
System > L3 Feature > IPv6 Static/Default Route
This section allows you to set your switch’s IPv6 routing table default, or specify a static
route.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, L3 Feature, and then IPv6 Static/Default Route.
3. Review the settings. When you have completed making changes, click Apply to save
the settings, click Delete to delete the routing table entry.
Default Route: Check this box to apply this route as the default, uncheck the box
to specify the following:
o IPv6 Address/Prefix length: Enter the IP address for this routing entry.
Interface VLAN: Specify the VLAN ID to apply this route to.
Next Hop IPv6 Address: Enter the next hop for the routing entry.
Backup Status: Specify if this routing entry is to be the Primary or Backup entry.
© Copyright 2018 TRENDnet. All Rights Reserved.
14
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
DNS
Set your DNS server settings
System > DNS
This setting allows you to configure your IPv4/IPv6 DNS server settings for the purpose
or resolving hostnames. For example, when specifying your SNTP server time settings
via domain name, the switch will not be able to resolve the SNTP domain name specified
until you configure the switch DNS server setting.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on DNS.
3. Enter your DNS IPv4 Server address and/or DNS IPv6 Server address in the provided
fields then click Apply.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
15
TRENDnet User’s Guide
Web Smart Switch Series

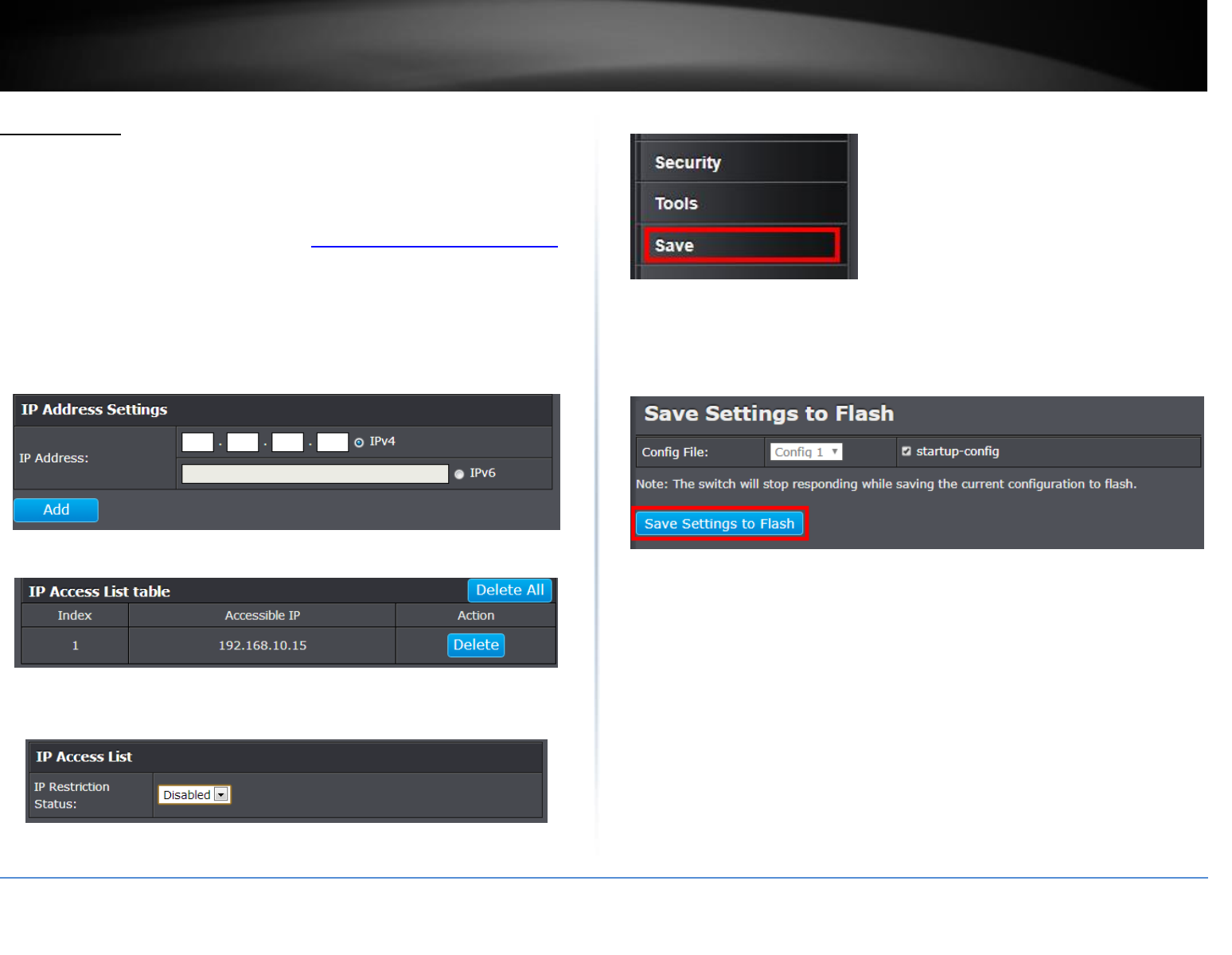

IP Access List
Restrict access to switch management page
System > IP Access List
This section allows you to define or restrict access to the switch management page to a
list of specific IP addresses.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on IP Access List.
3. Review the settings.
First, enter the IPv4 or IPv6 address to allow access and click Add for each entry.
For each entry, the access list will populate. You can click Delete next to the entry to
delete the entry or Delete All to delete all entries in the table.
When you have completed entering the IPv4 and IPv6 address entries, click the IP
Restriction Status drop-down list at the top and select Enabled, then click Apply.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
16
TRENDnet User’s Guide
Web Smart Switch Series
Administration
Change administrator password and add accounts
System > Administration
This section explains how to change the administrator password create additional
administrative user accounts for access to the switch management page.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on Administration.
3. Review the settings.
To change the administrator password, in the “admin” entry in the table, click on
Modify. Note: This default administrator account cannot be deleted.
In the Password field, enter the new password and enter the new password again the
Confirm Password field to verify. Then, click Apply.
Note: The password consists of up to 20 alphanumeric characters.
To create additional administrative user accounts:
User Name: Enter the user name of the new account.
Password: Enter the password for the new acocunt and enter the password
again the Confirm Password field to verify. Then, click Add to add to the table.
For additional user accounts, you will be provided the option to Modify or
Delete to remove the account.
Note: The password consists of up to 20 alphanumeric characters.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
17
TRENDnet User’s Guide
Web Smart Switch Series
Timeout
Change web idle login timeout settings
System > Timeout
This section explains how to modify the switch management page idle timeout settings.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on Timeout.
3. Review the settings. Click Apply to save changes.
Web Idle Timeout - Enter the idle period in minutes, when the switch will
automatically log out a user from the switch management page.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
System Time
Set the switch date and time
System > System Time
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on System Time.
3. Review the settings. Click Apply to save changes.
Clock Mode - Displays if system time and date is set manually Local Time or
obtained automatically from a network time server SNTP.
Current Time – Displays the current system time and date.
Time Zone – Displays the current system time zone.
Clock Mode: Select Local Time to manually configure your date and time
settings or select SNTP to configure your switch to automatically obtain
settings from a network time server.
o Local Time – Allows you to manually set the time settings. If selecting
this option, under Local Time Settings, manually enter your date and
time settings.
Date Settings – Enter your date settings (YYYY/MM/DD).
Time Settings – Enter your time settings (HH:MM:SS)
© Copyright 2018 TRENDnet. All Rights Reserved.
18
TRENDnet User’s Guide
Web Smart Switch Series
o SNTP – Allows you to configure your switch to pull time and date
settings automatically from a network time server. If selecting this
option, under Simple Network Time Protocol (SNTP) Settings, enter
your time server settings.
Note: Please note that in order for the switch to communicate to
Internet SNTP time servers, the switch must have valid IPv4/IPv6
address settings including a default gateway address for Internet
access. Additionally, if using a domain name, the switch must be
configured with valid DNS server settings in order to resolve
host/domain names.
SNTP Primary Server – Enter the primary network time server
IPv4 address, IPv6 address, or Domain Name.
SNTP Secondary Server – Enter the secondary network time
server IPv4 address, IPv6 address, or Domain Name.
SNTP Poll Interval – Enter the interval time when your switch
will update the time and date settings with the time server.
Time Zone – Click the drop-down list to select your time zone.
Additionally, you can set your Daylight Savings Time.
Additional Time Parameters – Allows you to configure additional Daylight
Saving Time parameters.
Daylight Savings Time Status: Click the drop-down list to
enable or disable Daylight Savings.
From: Set the daylight savings start date and time.
To: Set the daylight savings end date and time.
DST Offset: Click the drop-down list to set the time offset
based on respective time zone.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
19
TRENDnet User’s Guide
Web Smart Switch Series
SSL
Enable HTTPS/SSL (Secure Socket Layer) management access
System > SSL
By default, your switch management page can be accessed using standard web HTTP
protocol which is unsecure. Enabling HTTPS/SSL management access allows access to
the switch management page using secure encrypted communication which prevents
unauthorized users from intercepting user name and password credentials. Typically,
the switch is accessed within the local network only by system administrators which
does not necessarily require additional security. It is recommended to only enable this
feature, if allowing switch management access from other networks or over the
Internet.
Note: Once HTTPS/SSL management access is enabled, HTTP management access will be
disabled forcing all access to the switch management page using secure encryption
communication only.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on SSL.
3. Review the settings. Click Apply to save changes.
SSL Status:
o Enabled – Enables HTTPS/SSL management access and disables HTTP
unsecured mode.
o Disabled – Disabled HTTPS/SSL management access and enabled HTTP
unsecured mode. (Default setting).
If enabling SSL management access, you will need to access the switch management
page using HTTPS instead of HTTP. (e.g. https://192.168.10.200)
Click Continue, Proceed to this website, and accept the certificate if prompted.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
20
TRENDnet User’s Guide
Web Smart Switch Series

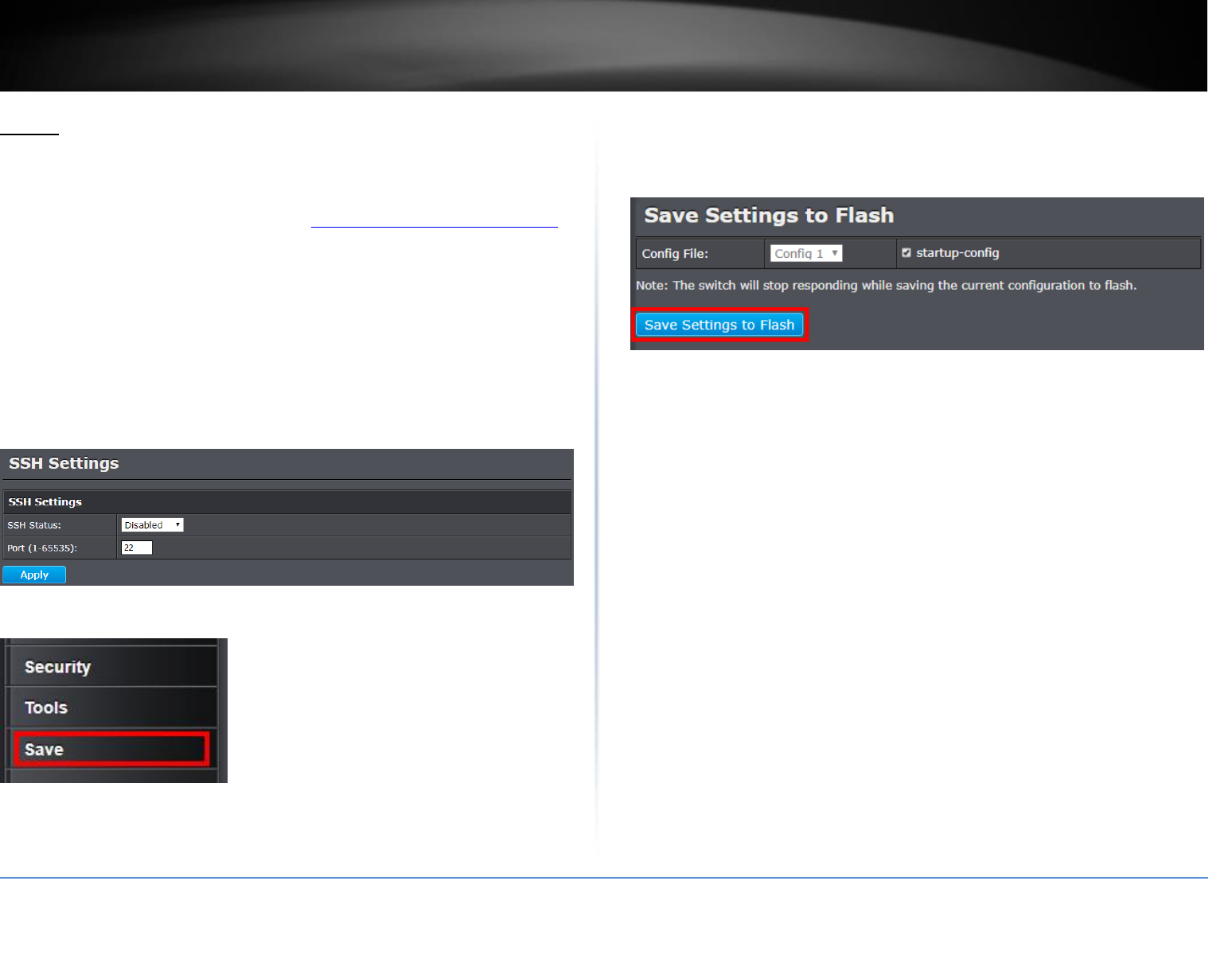

SSH
Enable SSH (Secure Shell) management access
System > SSH
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on SSH.
3. Review the settings. Click Apply to save changes.
SSH Status:
o Enabled – Enables SSH management access.
o Disabled – Disabled SSH management access.
Port: Set the port number to use for SSH management access
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
21
TRENDnet User’s Guide
Web Smart Switch Series
Telnet
Enable Telnet management access
System > Telnet
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on Telnet.
3. Review the settings. Click Apply to save changes.
Telnet Status:
o Enabled – Enables Telnet management access.
o Disabled – Disabled Telnet management access.
Port: Set the port number to use for Telnet management access
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
22
TRENDnet User’s Guide
Web Smart Switch Series
DHCP Auto Configuration
Enable DHCP Auto Configuration
System > DHCP Auto Configuration
If you need to automatically update the switch configuration files via a remote server,
the DHCP Auto Configuration feature is available for this purpose via the DHCP server.
Your IP address settings must enable the DHCP client so that this feature can operate
with your DHCP server.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on DHCP Auto Configuration.
3. Click the Auto Configuration State drop-down list and select Enabled. Click Apply to
save changes.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
23
TRENDnet User’s Guide
Web Smart Switch Series
System Log
View and setup your switch logging
System > System Log
The system log is designed to monitor the operation the switch by recording the event
messages it generates during normal operation. These events may provide vital
information about system activity that can help in the identification and solutions of
system problems.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, and click on System Log.
3. Review the settings. Click Apply to save changes.
Time Stamp
o Enable - Each event message recorded in the log will have a time
stamp.
o Disable - No time stamp will be included with the event messages.
Message Buffered Size - Enter the message buffer size. (Range: 1-200)
Syslog Status - Allows you to send device logging to an external log (Syslog)
server for troubleshooting or monitoring.
o Enable – Enable syslog and in the Syslog Server IP section, enter the
IPv4 or IPv6 address of the external syslog server to send logging.
o Disable – Disable syslog functionality.
Facility - Click the drop-down list and which facility to store the logging.
(Options: local0 – local7)
Note: You can define the facility to store logging on your external syslog server.
This helps to ensure you have separate logging sections for different devices.
Logging Level – Click the drop-down list to select what level of event messages
that will be logged.
1 Alert - Action must be taken immediately.
2 Critical - Critical conditions are displayed.
3 Warning - Warning conditions are displayed.
4 Info - Informational messages are displayed.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
24
TRENDnet User’s Guide
Web Smart Switch Series
SNMP
Settings
System > SNMP > Settings
You can manage a switch by viewing and configuring the management information base
(MIB) objects on the device with the Simple Network Management Program (SNMP).
This chapter describes how to configure SNMP. A Group Name, IP address of the switch
and at least one community string is the minimum required to manage the switch using
SNMP.
The SNMP Engine ID screen allows network managers to define the SNMP Engine ID or
to assign the default Engine ID to SNMP.
Note: If you disable the SNMP on the switch, the switch will not be manageable via
SNMP using MIBs.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on Settings.
3. Review the settings. Click Apply to save changes.
SNMP Agent Status: Click the drop-down list to one of the following options.
o Enabled - When you enable this parameter, the SNMP agent is active.
You can manage the switch with SNMP network management
software and the switch’s private MIB.
o Disabled - When you enable this parameter, the SNMP agent is
inactive.
Engine ID (10-64 Hex Characters) – Enter the local device Engine ID. The field
value is a hexadecimal string. Each byte in hexadecimal character strings is two
hexadecimal digits. The Engine ID must be defined before SNMP is enabled.
Reset to Default – Use the device-generated Engine ID (Reset to Default will
override any entry in the Engine ID field).
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
25
TRENDnet User’s Guide
Web Smart Switch Series
View
System > SNMP > View
The SNMP View table specifies the MIB object access criteria for each View Name. If the
View Name is not specified on this page, then it has access to all MIB objects. You can
specify specific areas of the MIB that can be accessed or denied based on the entries in
this table. You can create and delete entries in the View table.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on View.
3. Review the settings.
Creating SNMP View Table Entries
This procedure explains how to create entries in the SNMP View Table.
Enter the View Name. This entry must be pre-defined on the SNMP
User/Group page.
Enter the Subtree OID.
Enter “1” for the OID Mask.
Enter the View Type. Choose from the following options, and then click Add.
o Included: This selection allows the specified MIB object to be included
in the view.
o Excluded: This selection blocks the view of the specified MIB object.
Modifying SNMP View Table Entries
If you need to modify an entry in the View Table page, you must first delete the entry
and then re-enter it.
Deleting SNMP View Table Entries
In the Action column of the table, click Delete for the View table entry that you want to
remove.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
26
TRENDnet User’s Guide
Web Smart Switch Series
Group
System > SNMP > Group
The SNMP View Names are defined in the SNMP Group Access table and are based on
the User and Group Names
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on Group.
3. Review the settings.
Creating SNMP View Names
Before you can create an SNMP View name, you must define a Group Name using the
SNMP User/Group page.
Enter the Group Name. This entry must be pre-defined on the SNMP
User/Group page.
Enter the Read View Name. This name is an optional field. It can be up to 31
characters in length.
Enter the Write View Name. This name is an optional field. It can be up to 31
characters in length.
Enter the Notify View Name. This name is an optional field. It can be up to 31
characters in length.
From the Security Model pull-down menu, select v3.
Enter the Security Level from the pull-down menu. The selection options are:
o NoAuthNoPriv: This selection is the appropriate selection when no
Auth-Protocol or Priv-Protocol (no encryption) are selected on the
SNMP User/Group page.
o AuthNoPriv: Choose this selection when encryption has been enabled
but only the Auth-Protocol has a password assigned and the Priv-
Protocol has been selected as none on the SNMP User/Group page.
o AuthPriv: When the Auth-Protocol or Priv-Protocol have been
enabled, choose this selection.
Click the Add button.
Modifying SNMP View Names
If you need to modify an entry in the SNMP Group Access page, you must first delete the
entry and then re-enter it.
Deleting SNMP View Names
In the Action column of the table, click Delete for the View Name that you want to
remove.
Note: The views corresponding to the ReadOnly and ReadWrite Group Names are
default values and cannot be removed.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
27
TRENDnet User’s Guide
Web Smart Switch Series
User
System > SNMP > User
An SNMP User Name and Group Name definition is the basis for all the other SNMP
tables. You can create and delete View Names by following the procedures in the
following sections:
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on User.
3. Review the settings.
Creating SNMP User and Group Names
Note: There are no default User Names or Group Names defined for SNMP.
Type a new User Name. Enter a name up to 32 characters in length.
Type a new Group Name. Enter a name up to 32 characters in length.
From the SNMP Version pull down menu, select v3. The encryption check-box
becomes active.
o Check the encryption check-box. The Auth-Protocol, Priv-Protocol,
and associated password fields become active.
Select one of the following choices for the Auth-Protocol field:
o MD5 - The MD5 authentication protocol. SNMP Users are
authenticated with the MD5 authentication protocol after a message
is received.
o SHA - The SHA authentication protocol. Users are authenticated with
the SHA authentication protocol after a message is received.
Enter the password for the Auth-Protocol.
Select one of the following choices for the Priv-Protocol field:
o DES - Specifies DES encryption scrambles the SNMP data so that
outside observers are prevented from seeing the data content.
o none - Specifies no encryption is applied to SNMP data.
Click Add. The new User Name and Group Name are displayed on the SNMP
User/Group page.
Modifying SNMP User and Group Names
If you need to modify an entry in the SNMP User/Group page, you must first delete the
entry and then re-enter it.
Deleting SNMP User and Group Names
In the Action column of the table, click Delete for the User Name and Group Name that
you want to remove.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
28
TRENDnet User’s Guide
Web Smart Switch Series

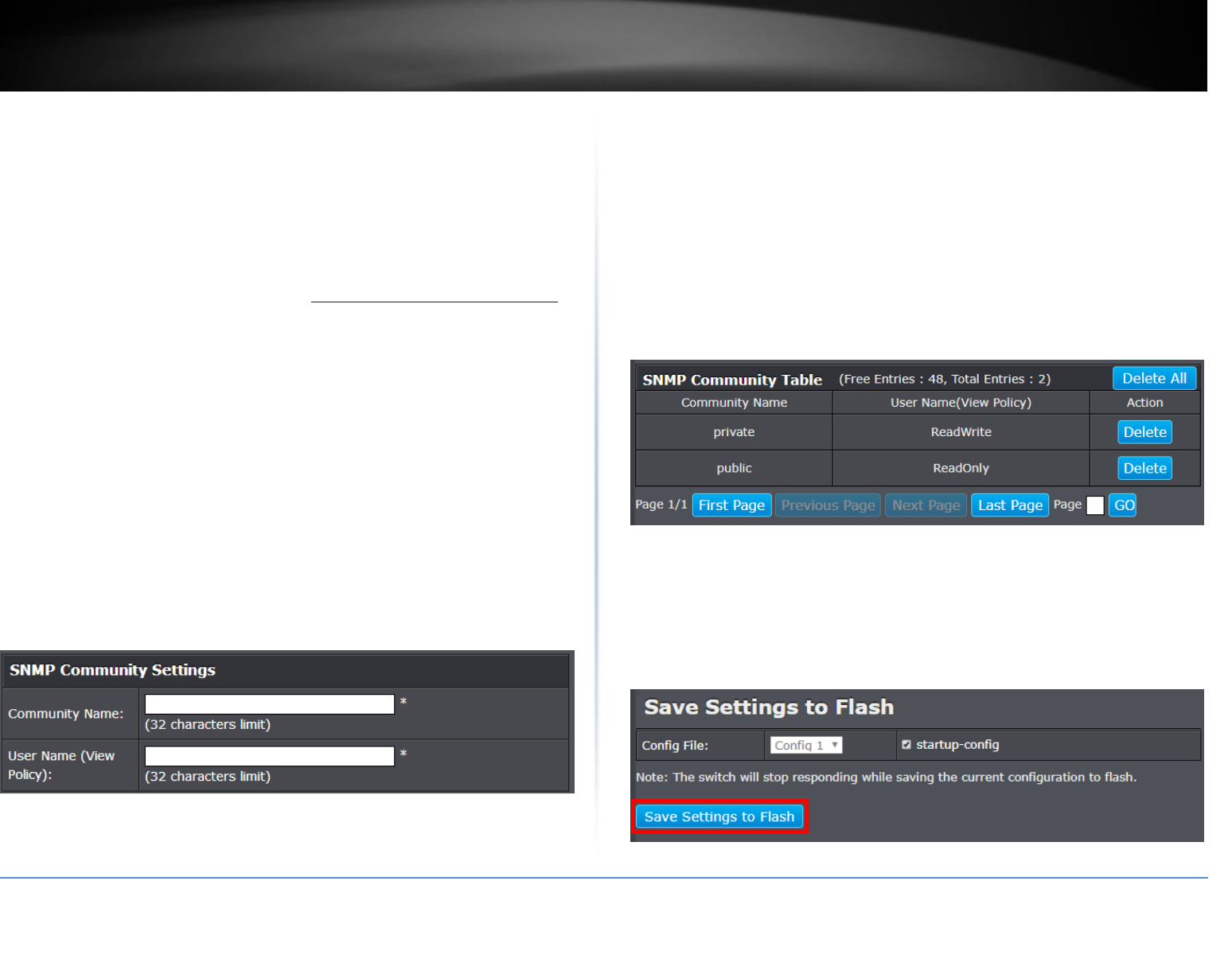

Community
System > SNMP > Community
A community string has attributes for controlling who can use the string and what the
string will allow a network management station to do on the switch. The Web
Management Utility does not provide any default community strings. You must first
define an SNMP User and Group Name on the SNMP User/Group page and then define a
Community Name on the SNMP Community Table page.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on Community.
3. Review the settings.
Create SNMP Community Settings
Enter a new Community Name. A name can be up to 32 characters in length.
Enter a User Name(View Policy) that has been previously defined. This name
must match one of the User Names displayed on the
Note: SNMP User/Group page. If you enter a user name that has not been pre-
defined on the SNMP User/Group page, the Community entry is displayed, but
the agent/manager communication fails.
Click Add. The values of the new Community Name and User Name are
displayed.
Modify SNMP Community Settings
If you need to modify a Community Table entry, you must first delete the entry by using
the procedure below and then re-enter it with the modification by creating a new
Community table entry.
Delete SNMP Community Settings
To delete a Community Name, click Delete next to the entry in the table that
you want to remove.
The deleted Community Name is no longer displayed in the Community table.
No confirmation message is displayed.
To delete all, click the Delete All button.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
29
TRENDnet User’s Guide
Web Smart Switch Series

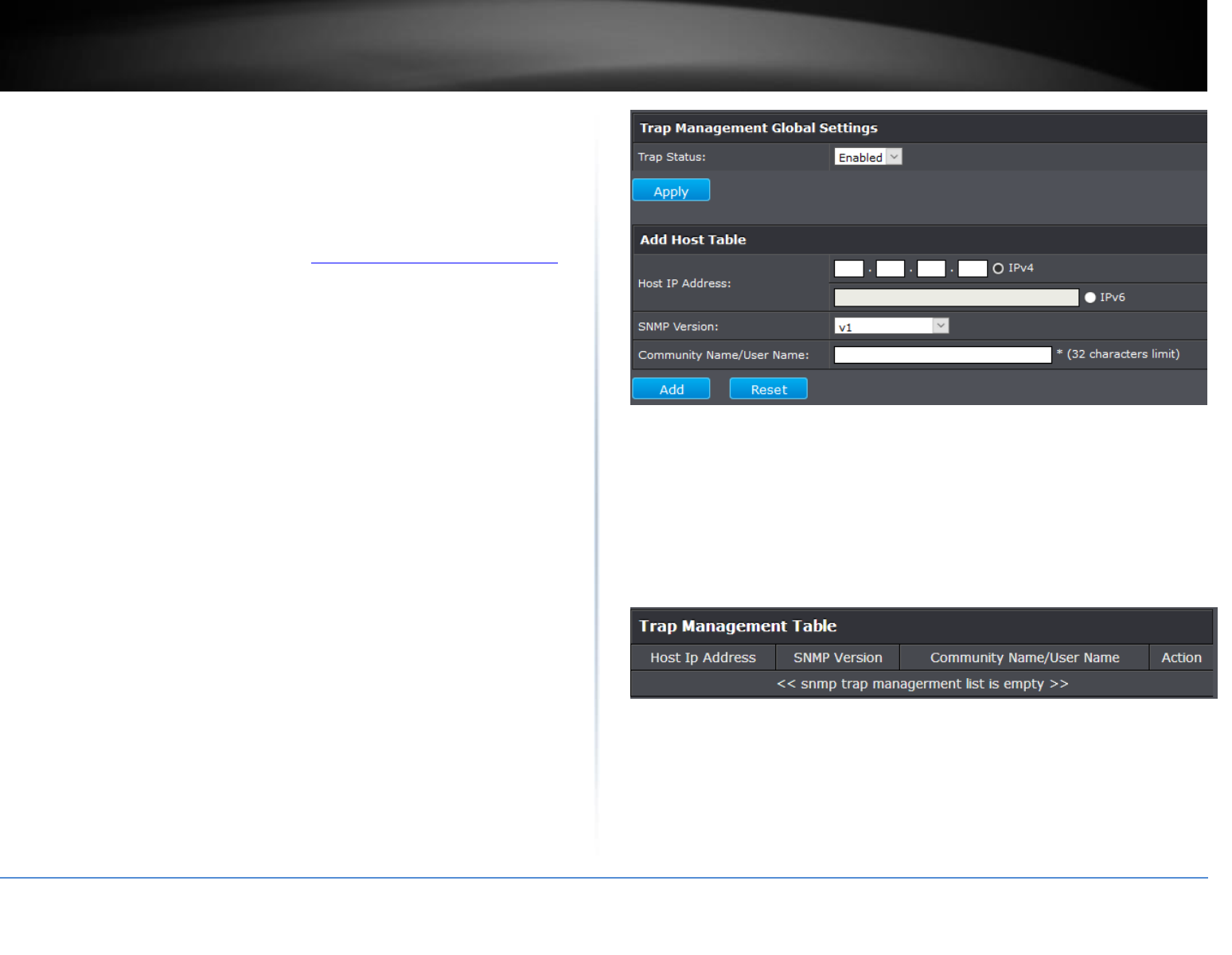

Trap
System > SNMP > Trap
A Host IP address is used to specify a management device that needs to receive SNMP
traps sent by the switch. This IP address is associated with the SNMP Version and a valid
Community Name in the Host table of the switch.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on SNMP, and click on Trap.
3. Review the settings.
Create Trap Host Table Entry
Use the following procedure to create a trap Host table entry:
Enable trap management by selecting the radio button next to Enabled at the
top of the page. By default, trap management is enabled.
Enter the Host IP Address for the management device that is to receive the
SNMP traps.
Enter the SNMP Version, either v1 or v2c, that is configured for the host
management device.
Enter a Community Name that you have defined previously in the SNMP
Community table. The Community Name must correlate with one of the
communities displayed on the SNMP Community Table page. If you enter a
Community Name that has not been pre-defined, the Trap Host entry is
displayed, but agent/manager communication fails.
Click Add. The new host is added to the table.
Modify a Trap Host Table Entry
If you need to modify an SNMP Trap entry, you must first delete the entry by using the
procedure below and then re-enter it with the modification by creating a new SNMP
trap.
Delete a Trap Host Table Entry
To delete an entry in the host table, click Delete next to the entry in the table that you
want to remove. The Host table entry is removed from the table. No confirmation
message is displayed.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
30
TRENDnet User’s Guide
Web Smart Switch Series
RMON
Settings
System > RMON > Settings
The RMON (Remote MONitoring) MIB is used with SNMP applications to monitor the
operations of network devices. The Switch supports the four RMON MIB groups listed
here:
Statistic group— This group is used to view port statistics remotely with SNMP
programs.
History group— This group is used to collect histories of port statistics to
identify traffic trends or patterns.
Event group— This group is used with alarms to define the actions of the
switch when packet statistic thresholds are crossed.
Alarm group—This group is used to create alarms that trigger event log
messages or SNMP traps when statistics thresholds are exceeded.
You can use your SNMP Network Management System (NMS) software and the RMON
section of the MIB tree to view the RMON statistics, history and alarms associated with
specific ports. Since RMON uses the SNMP agent for communicating with your NMS
software, the SNMP Agent must be enabled and the SNMP feature must be configured
on your switch. Since RMON works in conjunction with the SNMP agent, the SNMP
agent must be enabled for the RMON feature to be active.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on RMON and click on Settings.
3. Click the RMON Status drop-down list and select Enabled to enable RMON. Click
Apply to save settings.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
31
TRENDnet User’s Guide
Web Smart Switch Series
Statistics
System > RMON > Statistics
You can remotely view individual port statistics with RMON by using your SNMP NMS
software and the RMON portion of the MIB tree.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on RMON, and click on Statistics.
3. Review the settings.
Index: This parameter specifies the ID number of the new group. The range is 1
to 65535.
Port: This parameter specifies the port where you want to monitor the
statistical information of the Ethernet traffic.
Owner: This parameter is used to identify the person who created an entry. It is
primarily intended for switches that are managed by more than one person,
and is an optional field.
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry. If
the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
32
TRENDnet User’s Guide
Web Smart Switch Series
History
System > RMON > History
RMON histories are snapshots of port statistics. They are taken by the switch at
predefined intervals and can be used to identify trends or patterns in the numbers or
types of ingress packets on the ports on the switch. The snapshots can be viewed with
your SNMP NMS software with the history group of the RMON portion of the MIB tree.
A history group is divided into buckets. Each bucket stores one snapshot of statistics of a
port. A group can have from 1 to 50 buckets. The more buckets in a group, the more
snapshots it can store.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on RMON, and click on History.
3. Review the settings.
Index: This parameter specifies the ID number of the new group. The range is 1
to 65535.
Port: This parameter specifies the port where you want to monitor the
statistical information of the Ethernet traffic.
Buckets Requested: This parameter defines the number of snapshots of the
statistics for the port. Each bucket can store one snapshot of RMON statistics.
Different ports can have different numbers of buckets. The range is 1 to 50
buckets.
Interval: This parameter specifies how frequently the switch takes snapshots of
the port’s statistics. The range is 1 to 3600 seconds (1 hour). For example, if
you want the switch to take one snapshot every minute on a port, you specify
an interval of sixty seconds.
Owner: This parameter is used to identify the person who created an entry. It is
primarily intended for switches that are managed by more than one person,
and is an optional field.
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
33
TRENDnet User’s Guide
Web Smart Switch Series
Alarms
System > RMON > Alarms
RMON alarms are used to generate alert messages when packet activity on designated
ports rises above or falls below specified threshold values. The alert messages can take
the form of messages that are entered in the event log on the switch or traps that are
sent to your SNMP NMS software or both.
RMON alarms consist of two thresholds. There is a rising threshold and a falling
threshold. The alarm is triggered if the value of the monitored RMON statistic of the
designated port exceeds the rising threshold. The response of the switch is to enter a
message in the event log, send an SNMP trap, or both. The alarm is reset if the value of
the monitored statistic drops below the falling threshold.
The frequency with which the switch samples the thresholds of an alarm against the
actual RMON statistic is controlled by a time interval parameter. You can adjust this
interval for each alarm.
Here are the three components that comprise RMON alarms:
RMON statistics group: A port must have an RMON statistics group configured
if it is to have an alarm. When you create an alarm, you specify the port to
which it is to be assigned not by the port number, but rather by the ID number
of the port’s statistics group.
RMON event: An event specifies the action of the Switch when the ingress
packet activity on a port crosses a statistical threshold defined in an alarm. The
choices are to log a message in the event log of the Switch, send an SNMP trap
to an SNMP workstation, or both. Since there are only three possible actions
and since events can be used with more than one alarm, you probably will not
create more than three events.
Alarm: The last component is the alarm itself. It defines the port statistic to be
monitored and the rising and falling thresholds that trigger the switch to
perform an event. The thresholds of an alarm can have the same event or
different events. The switch supports up to eight alarms.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on RMON, and click on Alarm.
3. Review the settings.
Index: This parameter specifies the ID number of the new group. The range is 1
to 65535.
Interval: This parameter specifies the time (in seconds) over which the data is
sampled. Its range is 1 to 2147483647 seconds.
Variable: This parameter specifies the RMON MIB object that the event is
monitoring.
Sample type: This parameter defines the type of change that has to occur to
trigger the alarm on the monitored statistic. There are two choices from the
pull-down menu - Delta value and Absolute value. Delta value- setting
compares a threshold against the difference between the current and previous
values of the statistic. Absolute value- setting compares a threshold against the
current value of the statistic.
Rising Threshold: This parameter specifies a specific value or threshold level of
the monitored statistic. When the value of the monitored statistic becomes
greater than this threshold level, an alarm event is triggered. The parameter’s
range is 1 to 2147483647.
Falling Threshold: This parameter specifies a specific value or threshold level of
the monitored statistic. When the value of the monitored statistic becomes less
than this threshold level, an alarm event is triggered. The parameter’s range is
1 to 2147483647.
Rising Event Index: This parameter specifies the event index for the rising
threshold. Its range is 1 to 65535. This field is mandatory and must match an
Event Index that you previously entered in “Events”.
Falling Event Index: This parameter specifies the event index for the falling
threshold. Its range is 1 to 65535. This field is mandatory and must match an
Event Index that you previously entered in “Events”.
Owner: This parameter is used to identify the person who created an entry. It is
primarily intended for switches that are managed by more than one person,
and is an optional field.
© Copyright 2018 TRENDnet. All Rights Reserved.
34
TRENDnet User’s Guide
Web Smart Switch Series
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
5. At the bottom of the left hand panel, click Save.
6. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Events
System > RMON > Event
An event specifies the action of the switch when the ingress packet activity on a port
crosses a statistical threshold defined in an alarm. The choices are to log a message in
the event log of the switch, send an SNMP trap to an SNMP workstation, or both. Since
there are only three possible actions and since events can be used with more than one
alarm, you probably will not create more than three events - one for each of the three
actions.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on RMON, and click on Event.
3. Review the settings.
Index: This parameter specifies the ID number of the new group. The range is 1
to 65535.
Description: This parameter specifies a text description of the event that you
are configuring.
Type: This parameter specifies where to log the event when it occurs. The
choices are to log a message in the event log of the Switch, send an SNMP trap
to the SNMP NMS software, or both.
Community: This parameter specifies the community where you want to send
the SNMP trap.
Owner: This parameter is used to identify the person who created an entry. It is
primarily intended for switches that are managed by more than one person,
and is an optional field.
© Copyright 2018 TRENDnet. All Rights Reserved.
35
TRENDnet User’s Guide
Web Smart Switch Series
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
36
TRENDnet User’s Guide
Web Smart Switch Series
Statistics
Statistics provide important information for troubleshooting switch problems at the port
level. The Web Management Utility provides a two statistics charts, including Traffic
Information and Error Information.
Traffic
System > Statistics > Traffic
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on Statistics, and click on Traffic.
3. View the Traffic Information Statistics.
InOctets: Inbound Octets (Bytes/s), number of inbound octet bits in bytes per
second.
InUcastPkts: Inbound Unicast Packets (Pkts), number of inbound unicast packets
in packets per second.
InNUcastPkts: Inbound Non-unicast Packets (Pkts), number of inbound non-
unicast packets (such as broadcast and multicast packets) in packets per second.
InDiscards: Inbound Discards (Pkts), number of inbound discarded packets in
packets per second.
OutOctets: Outbound Octets (Bytes/s), rate of outbound octet bits in bytes per
second.
OutUcastPkts: Outbound Unicast Packets (Pkts), number of outbound unicast
packets in packets per second.
OutNUcastPkts: Outbound Non-unicast Packets (Pkts), number of outbound
non-unicast (such as broadcast and multicast packets) packets.
OutDiscards: Outbound Discards (Pkts), number of outbound discarded packets.
Apply: Click the Apply button to clear port specific Traffic information.
Refresh: Click the Refresh button to update table with newest traffic
information.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
37
TRENDnet User’s Guide
Web Smart Switch Series
Error
System > Statistic > Error
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on Statistics, and click on Error.
3. View the Error Information Statistics.
InErrors: Inbound Errors (Pkts), number of inbound errors in packets per second.
OutErrors: Outbound Errors (Pkts), number of outbound error packets.
DropEvents: Drop Events, number of packets dropped.
CRCAlignErrors: CRC and Align Errors, number of CRC and Align errors that have
occurred.
UndersizePkts: Undersize Packets (Pkts), number of undersized packets (less
than 64 octets) received.
OversizePkts: Oversize Packets (Pkts), number of oversized packets (over 2000
octets) received.
Fragments: Number of fragments (packets with less than 64 octets, excluding
framing bits, but including FCS octets) received.
Collisions: Number of collisions received. If Jumbo Frames are enabled, the
threshold of Jabber Frames is raised to the maximum size of Jumbo Frames.
Apply: Click the Apply button to clear port specific Traffic information.
Refresh: Click the Refresh button to update table with newest traffic
information.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
38
TRENDnet User’s Guide
Web Smart Switch Series
IEEE 802.3az EEE
Enable IEEE 802.3az Power Saving Mode
System > IEEE 802.3az EEE
The IEEE 802.3 EEE standard defines mechanisms and protocols intended to reduce the
energy consumption of network links during periods of low utilization, by transitioning
interfaces into a low-power state without interrupting the network connection. The
transmitted and received sides should be IEEE802.3az EEE compliance. By default, the
switch disabled the IEEE 802.3az EEE function. Users can enable this feature via the
IEEE802.3az EEE setting page.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools and click on IEEE 802.3az EEE.
3. Click the IEEE 802.3az EEE Status drop-down list and select Enabled to enable the
power saving feature and click Apply to save the settings.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
39
TRENDnet User’s Guide
Web Smart Switch Series
Network
Physical Interface
Configure Physical Interfaces
Network > Physical Interface
This section allows you to configure the physical port parameters such as speed, duplex,
flow control, and jumbo frames. This section also reports the current link status of each
port and negotiated speed/duplex. Additionally you will be able to set your BPDU ports
for Spanning Tree Configuration and EAP ports for 802.1x port-based authentication
configuration.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network and click on Physical Interface.
3. Review the settings. Click Apply to save changes.
Port - Specifies the port number. The All value indicates ports 1 through 10 on
the Switch. You cannot change this parameter. You can use the All row value in
the Port column to apply Admin Status, Mode, Jumbo, Flow Contrl, EAP, BPDU
settings to all ports at the same time.
Trunk - This parameter indicates the trunk group number. A number in this
column indicates that the port has been added to a trunk using static or
dynamic 802.3ad LACP link aggregation.
Type - This parameter indicates the port type. On the Switch, the port type is
1000TX for 10/100/1000Base-T twisted-pair ports (1-8) and 100FX or 1000TX
for the SFP ports (9-10) for fiber SFP type.
Link Status - This parameter indicates the status of the link between the port
and the end node connected to the port. The possible values are:
o Up -This parameter indicates a valid link exists between the port and
the end node.
o Down -This parameter indicates the port and the end node have not
established a valid link.
Admin. Status: This parameter indicates the operating status of the port. You
can use this parameter to enable or disable a port. You may want to disable a
port and prevent packets from being forwarded if a problem occurs with the
node or cable connected to the port. You can enable the port to resume
normal operation after the problem has been fixed. You can also disable an
unused port to secure it from unauthorized connections. The possible values
are:
o Ignore -This parameter applies to the All row only and indicates that
the Admin. Status field must be set individually for each port.
o Enabled - This parameter indicates the port is able to send and receive
Ethernet frames.
o Disabled - This parameter indicates the port is not able to send and
receive Ethernet frames.
Mode: This parameter indicates the speed and duplex mode settings for the
port. You can use this parameter to set the speed and duplex mode of a port.
The possible settings are:
o Ignore -This parameter indicates that the All setting does not apply to
the Mode field. In other words, each port is set individually.
o Auto -This parameter indicates the port is using Auto-Negotiation to
set the operating speed and duplex mode. The actual operating speed
and duplex mode of the port are displayed in parentheses (for
example, “1000/F” for 1000 Mbps full duplex mode) after a port
establishes a link with an end node.
o Auto (1000F) -This parameter indicates the port is configured for
1000Mbps operation in Auto-Negotiation mode.
o 1000/Full -This parameter indicates the port is configured for
1000Mbps operation in full-duplex mode.
o 100/Full -This parameter indicates the port is configured for 100Mbps
operation in full-duplex mode.
o 10/Full -This parameter indicates the port is configured for 10Mbps
operation in full-duplex mode.
© Copyright 2018 TRENDnet. All Rights Reserved.
40
TRENDnet User’s Guide
Web Smart Switch Series
o 100/Half -This parameter indicates the port is configured for 100Mbps
operation in half-duplex mode.
o 10/Half -This parameter indicates the port is configured for 10Mbps
operation in half-duplex mode.
Note: When selecting a Mode setting, the following points apply:
o When a twisted-pair port is set to Auto-Negotiation, the end node should
also be set to Auto-Negotiation to prevent a duplex mode mismatch.
o A switch port using Auto-Negotiation defaults to half-duplex if it detects
that the end node is not using Auto-Negotiation. This can result in a
mismatch if the end node is operating at a fixed duplex mode of full-duplex.
To avoid this problem when connecting an end node with a fixed duplex
mode of full-duplex to a switch port, disable Auto-Negotiation on the port
and set the port’s speed and duplex mode manually.
o The only valid setting for the SFP ports is Auto-Negotiation.
Jumbo: This parameter indicates whether or not jumbo frames can be accepted
by the switch. You may want to activate jumbo frames when your switch will
transmit video and audio files. The possible values are:
o Ignore -This parameter indicates that the All setting does not apply to
the Jumbo field. In other words, each port is set individually.
o Enabled -This parameter indicates the port is permitted to accept
jumbo frames.
o Disabled -This parameter indicates the port is not permitted to accept
jumbo frames.
Note: When QoS is enabled on a port, the Jumbo frame parameter cannot be
enabled.
Flow Ctrl: Flow Control, This parameter reflects the current flow control setting
on the port. The switch uses a special pause packet to notify the end node to
stop transmitting for a specified period of time. The possible values are:
o Ignore - This parameter indicates that the All setting does not apply to
the Flow Control field. In other words, each port is set individually.
o Enabled - This parameter indicates that the port is permitted to use
flow control.
o Disabled - This parameter indicates that the port is not permitted to
use flow control.
EAP: This parameter reflects the current Extensible Authentication Protocol
(EAP) setting on the port. The possible values are:
o Ignore - This parameter indicates that the All setting does not apply to
the EAP field. In other words, each port is set individually.
o Enabled - This parameter indicates that the port is able to send and
receive EAP packets.
o Disabled - This parameter indicates that the port is disabled and is not
able to send or receive EAP packets.
BPDU: This parameter reflects the current BPDU setting on the port. The
possible values are:
o Ignore - This parameter indicates that the All setting does not apply to
the BPDU field. In other words, each port is set individually.
o Enabled - This parameter indicates that the switch will pass BPDU
frames through the switch and broadcast them through all other
ports.
o Disabled - This parameter indicates that the switch will not pass BPDU
frames through the switch, With RSTP or STP enabled, the switch will
receive BPDU frames and process them according to the spanning tree
protocol.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
41
TRENDnet User’s Guide
Web Smart Switch Series

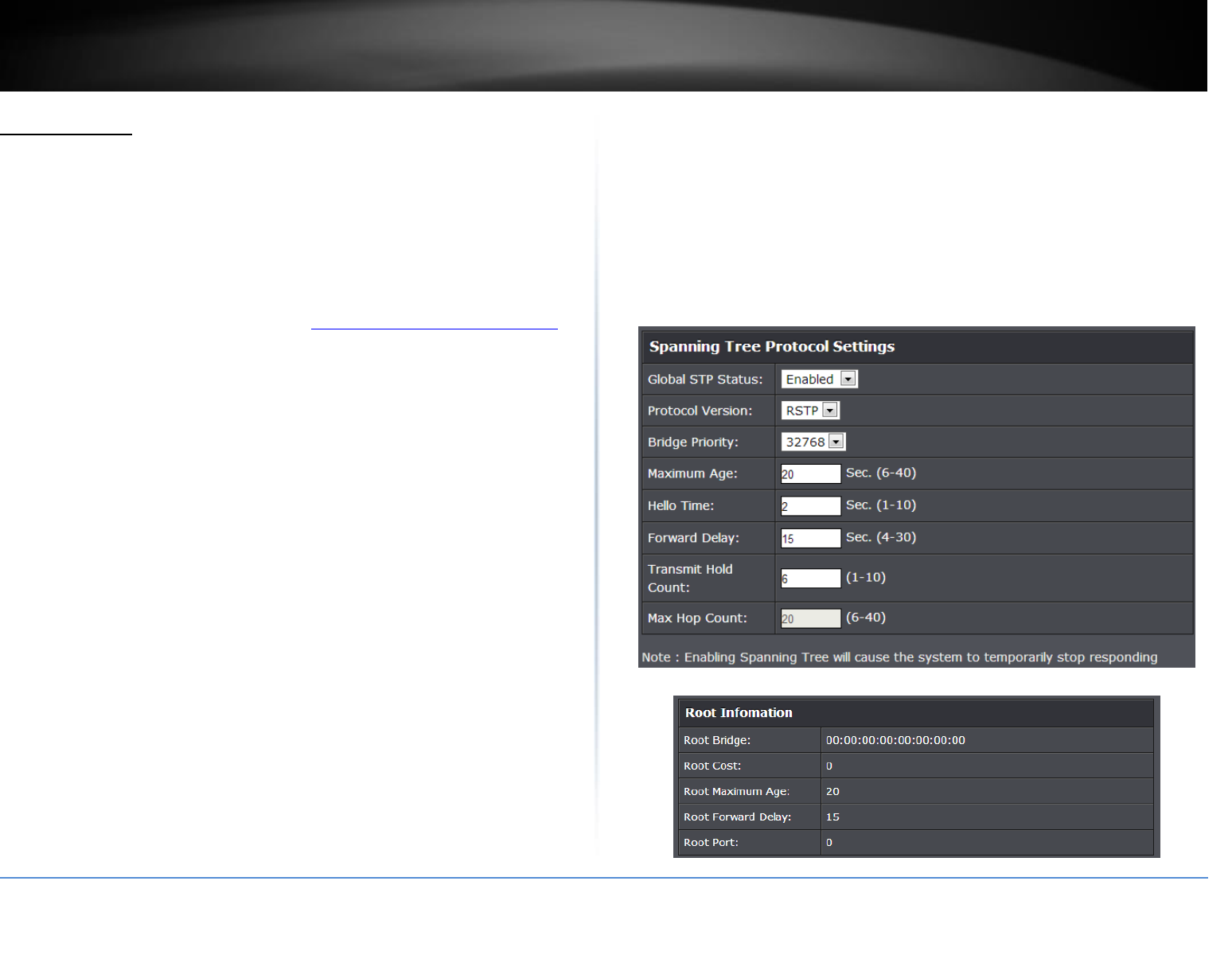

Spanning Tree
Protocol
Network > Spanning Tree > Protocol
Spanning Tree Protocol (STP) provides network topology for any arrangement of
bridges/switches. STP also provides a single path between end stations on a network,
eliminating loops. Loops occur when alternate routes exist between hosts. Loops in an
extended network can cause bridges to forward traffic indefinitely, resulting in
increased traffic and reducing network efficiency.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Spanning Tree, and click on Protocol.
3. Review the settings. Click Apply to save changes.
Global STP Status: Select the STP state on the device. The possible field values
are:
o Disable – Disables STP on the device. This is the default value.
o Enable – Enables STP on the device.
Protocol Version: Specifies the Spanning Tree Protocol (STP) mode to enable
on the switch. The possible field values are:
o STP – Enables STP 802.1d on the device.
o RSTP – Enables Rapid STP 802.1w on the device. This is the default
value.
o MSTP – Enables Multiple STP 802.1s on the device.
Bridge Priority: The Bridge Priority has a range 0 to 61440 in increments of
4096. To make this easier for you, the Web Management Utility divides the
range into increments. You specify the increment that represents the desired
bridge priority value.
Maximum Age: The Maximum Age defines the amount of time a port will wait
for STP/RSTP information. MSTP uses this parameter when interacting with
STP/RSTP domains on the boundary ports. Its range is 6 - 40 seconds
Hello Time: The Hello Time is frequency with which the root bridge sends out a
BPDU.
Forward Delay: The Forward Delay defines the time that the bridge spends in
the listening and learning states. Its range is 4 - 30 seconds.
Transmit Hold Count: The Transmit Hold Count specifies the maximum number
of BPDUs that the bridge can send per second. Its range is 1 - 10.
Max Hop Count: The Max Hop Count is a parameter set in a BPDU packet when
it originates. It is decremented by 1each time it is retransmitted by the next
bridge. When the Hop Count value reaches zero, the bridge drops the BPDU
packet. Its range is 6 - 40 hops.
In addition, this section also displays the spanning tree root information.
© Copyright 2018 TRENDnet. All Rights Reserved.
42
TRENDnet User’s Guide
Web Smart Switch Series
Port
Network > Spanning Tree > Port
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Spanning Tree, and click on Port.
3. Review the settings. For each entry, click Apply to save changes.
STP Status: Indicates if spanning tree protocol is active or not on the port.
Select one of the following choices from the pull-down menu:
o Enable - The spanning tree protocol is enabled on the port.
o Disabled - The spanning tree protocol is disabled on the port.
Note: BPDU passthrough must be disabled for all ports under Physical
interface for STP can be enabled.
Priority: Indicates the port priority. If two paths have the same port cost, the
bridges must select a preferred path. In some instances this can involve the use
of the port priority parameter which is used as a tie breaker when two paths
have the same cost.
The range for port priority is 0 to 240. As with bridge priority, this range is
broken into increments, in this case multiples of 16. To select a port priority for
a port, you enter the desired value. Table 1 lists the values that are valid.
Valid Port Priority Values
Step
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Port
Priority
0
16
32
48
64
80
96
112
128
144
160
176
192
208
224
240
Admin Cost (0 = Auto): The administratively assigned value for the contribution
of this port to the path cost of paths towards the spanning tree root. Writing a
value of '0' assigns the automatically calculated default Path Cost value to the
port. If the default Path Cost is being used, this object returns '0' when read.
External Cost: This defines a metric that indicates the relative cost of
forwarding packets to the specified port list. Port cost can be set automatically
or as a metric value. Define a value between 1 and 200000000 to determine
the external cost. The lower the number, the greater the probability the port
will be chosen to forward packets. The default port cost: 100Mbps port =
200000. Gigabit port = 20000.
Status – Displays the current port spanning tree status.
o Blocking - A blocking state does not allow network traffic to be sent or
received on a the port except for BPDU data. A port with a higher path
cost to the root bridge than another on the switch causes a switching
loop and is placed in the blocking state by the Spanning Tree
algorithm. The port’s state may change to the forwarding state if the
other links in use fail and the Spanning Tree algorithm determines the
port may transition to the forwarding state.
o Listening - This state occurs on a port during the convergence process.
The port in the listening state processes BPDUs and awaits new
information that would cause the port to return to the blocking state.
o Learning - While the port does not yet forward frames (packets), in
this state the port does learn source addresses from frames received
and adds them to the filtering (switching) database.
o Forwarding - A port that both receives and sends data. This indicates
normal operation. STP continues to monitor the port for incoming
BPDUs that indicate the port should return to the blocking state to
prevent a loop.
o Disabled - This state is not strictly part of STP. However, a network
administrator can manually disable a port.
Edge: Indicates if a port is connected to an edge device in the network topology
or not. Selecting the Forcetrue parameter designates the port as an edge port.
Edge ports cannot create loops, however an edge port can lose edge port
status if a topology change creates a potential for a loop. An edge port
normally should not receive BPDU packets. If a BPDU packet is received, it
automatically loses edge port status. Selecting the Forcefalse parameter
indicates that the port does not have edge port status. Selecting the Auto
parameter indicates that the port have edge port status or not have edge port
status automatically. The default setting for this parameter is Auto.
© Copyright 2018 TRENDnet. All Rights Reserved.
43
TRENDnet User’s Guide
Web Smart Switch Series
P2P: Choosing the Forcetrue parameter indicates a point-to-point (P2P) shared
link. P2P ports are similar to edge ports however they are restricted in that a
P2P port must operate in full-duplex.
Like edge ports, P2P ports transition to a forwarding state rapidly thus
benefiting from RSTP. A P2P value of Forcefalse indicates that the port cannot
have P2P status. Auto allows the port to have P2P status whenever possible
and operate as if the P2P status were true. If the port cannot maintain this
status, (for example if the port is forced to half-duplex operation) the P2P
status changes to operate as if the P2P value were Forcefalse.
The default setting for this parameter is Auto.
Restricted Role: Toggle between True and False to set the restricted role state
of the packet. If set to True, the port will never be selected to be the Root port.
The default value is False.
Restricted TCN: Toggle between True and False to set the restricted TCN of the
packet. Topology Change Notification (TCN) is a BPDU that a bridge sends out
to its root port to signal a topology change. If set to True, it stops the port from
propagating received TCN and to other ports. The default value is False.
Migrate: Indicates if the port is configured to accept RSTP and STP BPDUs.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
MST
Network > Spanning Tree > MST
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on Spanning Tree, and click on MST.
3. Review the settings. For each section, click Apply to save changes.
MST Configuration Identification Settings
Configuration Name: A configured name set on the switch to uniquely identify
the MSTI (Multiple Spanning Tree Instance). If a configuration name is not set,
this field shows the MAC address of the device running MSTP.
Revision Level (0-65535): This value, together with the configuration name,
and identical vlans mapped for STP instance IDs identifies the MST region
configured on the switch.
MST Instance Settings
MSTI ID (1 - 31): Displays the MSTI ID associated with the VID List. The possible
field range is 1-31.
VID List (1 - 4094): Displays the VID List. Click Add to add into MST Table below.
Priority: Enter the new priority in the Priority field. The user may set a priority
value between 0-61440.
© Copyright 2018 TRENDnet. All Rights Reserved.
44
TRENDnet User’s Guide
Web Smart Switch Series
MST Table: Make changes to the table entry, and click Apply modify or click
Delete to remove the ID entry.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Instance
Network > Spanning Tree > Instance
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on System, click on Spanning Tree, and click on Instance.
3. View your MSTP instance information.
MSTI ID – Specifies the instance to which the VLAN is assigned.
Internal Root Cost – Indicates cost of forwarding packets to specified ports
when an interface is selected within a STP instance.
Root Port – Indicates the selected instance’s root port.
Regional Root Bridge – Displays the ID of the Regional Internal Root Bridge.
Designated Bridge – Displays the ID of the bridge that connects the link or
shared LAN to the root.
Instance Priority – Specifies the selected spanning tree instance device priority.
The field range is 0-61440. The field default is 32768.
© Copyright 2018 TRENDnet. All Rights Reserved.
45
TRENDnet User’s Guide
Web Smart Switch Series
MST Port
Network > Spanning Tree > MST Port
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Spanning Tree, and click on MST Port.
3. Review the settings. For each entry, click Apply to save changes.
Select MST Port – Click the drop-down to select which MST port to configure.
MST Port Info - The MST Port Information page provides user to configure the
MSTP Interface settings.
o Admin Path Cost (0 = Auto) - This is the port cost used by MSTP when
calculating path cost to the root bridge.
o Priority - This is the port priority used by MSTP in calculating path
costs when two ports on the switch have the same port cost.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
46
TRENDnet User’s Guide
Web Smart Switch Series
Trunk
The trunking function enables the cascading of two or more ports for a combined larger
total bandwidth. Up to 8 trunk groups may be created, each supporting up to 8 ports. Add
a trunking Name and select the ports to be trunked together, and click Apply to activate
the selected trunking groups.
Important Note: Do not connect the cables of a port trunk to the ports on the switch
until you have configured the ports on both the switch and the end nodes. Connecting
the cables prior to configuring the ports can create loops in your network topology.
Loops can result in broadcast storms which can severely limited the effective bandwidth
of your network.
Settings
Network > Trunk > Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Trunk, and click on Settings.
3. Review the settings. For each trunk group, click Apply to save changes.
For each Trunk ID/Group, check the port numbers to add for each trunk group.
Click the drop-down list and select one of the following options.
Active - The specific aggregator will broadcast and respond to LACPDU (LACP
Data Unit) packets. This setting enables the dynamic LACP feature for the trunk.
Passive - The specific aggregator will not broadcast LACPDU packets, but it will
respond to them. This setting disables the LACP feature for the trunk
Manual - Enables static port trunking and disables the LACP feature for the
trunk. (Static link aggregation).
Disable - Disables the static port trunk and disables the LACP feature.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
47
TRENDnet User’s Guide
Web Smart Switch Series
Status
Network > Trunk > Status
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Trunk, and click on Status.
3. View your trunk group status information.
System Priority - Preassigned setting that cannot be modified. This value
applies to the switch.
System ID - MAC address value assigned to the individual switch. This value
cannot be modified.
Group: # The ID number of the trunk (link aggregation group).
Port Priority
Network > Trunk > Port Priority
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Trunk, and click on Port Priority.
3. Review the settings. Click Apply to save changes.
To assign a port higher priority within a trunk group, find the port number and in the
priority column, enter a priority value 0-65535 (65535 being the highest priority).
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
48
TRENDnet User’s Guide
Web Smart Switch Series
Mirroring
Configure port mirror settings
Network > Mirroring
Port mirroring allows you to monitor the ingress and egress traffic on a port by having
the traffic copied to another port where a computer or device can be set up to capture
the data for monitoring and troubleshooting purposes.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, and click on Mirroring.
3. Review the settings. Click Apply to save changes.
Status – Click the drop-down and list and select one of the following options:
o Enable - This parameter activates the Port Mirroring feature and the
rest of the configuration parameters become active on the page.
o Disable - This parameter de-activates the Port Mirroring feature and
the rest of the configuration parameters become inactive on the page.
Mirror Target Port – Click the drop-down and list and select the port to send
the copied ingress/egress packets/data. (e.g. Computer or device with packet
capture or data analysis program.)
Check the port to monitor or copy inormation from. (Source)
To copy data received on a specific port, check the port number(s) under the Ingress
Port section or you could click All to copy data received on all ports.
To copy data transmitted on specific port, check the port number under the Egress Port
section or you could click All to copy data transmitted on all ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
49
TRENDnet User’s Guide
Web Smart Switch Series
Loopback Detection
Enable loopback detection
Network > Loopback Detection
The loopback detection feature allows the switch to detect and prevent disruption from
loops that occur on uplink or downlink switches directly connected to your switch.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network and click on Loopback Detection.
3. Review the settings.
Loopback Detection Status – Select Enabled to enable the loopback detection
feature. Select Disabled to disabled the loopback detection feature.
Interval – Defines the interval your switch will check for loops.
Recover Time – Defines the time period when connectivity will be restored to a
port where a loop was previously detected and blocked.
Click Apply to save changes.
In the Loopback Detection table, select one of the Loopback Detection Status choices
from the pull down menu:
Ignore: This parameter indicates that the setting in the All row do not apply to the
Loopback Detection Status field. In other words, each port is set individually.
Enabled: This selection enables the Loopback Detection feature for each port.
This state must be enabled along with the Status field at the top of the page
before this feature can be active on the selected port.
Disabled: This selection disables the Loopback Detection feature on the
selected port.
Note: In the All row when you select Enable or Disable instead of Ignore, the
selection applies to all of the Switch ports.
Next to each entry modified, under the Action column, click Apply to save the changes.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
50
TRENDnet User’s Guide
Web Smart Switch Series
Static Unicast
Add static unicast entries to the switch
Network > Static Unicast
In this section, you can add static unicast entries to the switch configuration.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network and click on Static Unicast.
3. Review the settings.
802.1Q VLAN – Enter the VLAN ID where the MAC address will reside.
Note: By default, all switch ports are part of the default VLAN, VLAN ID 1.
MAC Address – Enter the MAC address of the device to add.
Port Member – Select the port where the MAC address will reside.
Click Apply to add the Static Unicast entry to the list.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all the entries in the list. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
51
TRENDnet User’s Guide
Web Smart Switch Series
Static Multicast
Add static multicast entries to the switch
Network > Static Multicast
In this section, you can add static multicast entries to the switch configuration.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network and click on Static Multicast.
3. Review the settings.
802.1Q VLAN – Enter the VLAN ID where the multicast group MAC address will
reside.
Note: By default, all switch ports are part of the default VLAN, VLAN ID 1.
MAC Address – Enter the multicast group MAC address.
Group Member – Check the port(s) where the MAC address will reside.
Note: You can click All to select all ports.
Click Apply to add the Static Multicast Group entry to the list.
In the list, you can click Modify to modify an entry or click Delete or delete the entry. If
the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
52
TRENDnet User’s Guide
Web Smart Switch Series
IGMP Snooping
Settings
Network > IGMP Snooping > Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on IGMP Snooping, and click on Settings.
3. Review the settings. Click Apply to save the settings.
Status – Click the drop-down list and select Enabled to enable the IGMP
snooping feature or Disabled to disable the feature.
Age-Out Timer – Enter the amount of time in seconds that you want your
switch to wait before it purges an inactive dynamic MAC address.
Querier Status – Click the drop-down list and select Enabled to enable the
Querier Status or Disabled to disable this feature.
Querier Interval – Enter the amount of time you want your switch to send
IGMP queries.
Max Response Time- Specifies the maximum time before sending a response
report.
Robustness Variable- Enter a variable for the expected packet loss on a subnet.
The robustness variable should be set to a larger value if higher packet loss is
expected.
Last Member Query Interval - Set the response time for group queries sent in
response to leave messages.
Router Timeout - Enter the maximum time duration without router messages
before the router timeout.
The table below displays the static multicast address groups defined in your switch for
reference and can be modified on under Bridge > Static Multicast or dynamically
updated with the active multicast address groups.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
53
TRENDnet User’s Guide
Web Smart Switch Series
Router Ports
Network > IGMP Snooping > Router Port
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on IGMP Snooping, and click on Router Port.
3. Review the settings. Click Apply to save the settings.
In the VLAN ID router port list, you can configure your Static and Dynamic Router ports.
IGMP Snooping Router Port configured manually is a Static Router Port, and a Dynamic
Router Port is dynamically configured by the Switch when a query control message is
received.
To modify an entry, click Modify to add statically add router ports.
Check the static router ports to add and click Apply to save the settings.
Note: You can click on All to add all ports. Clicking Restore will restore the static router
port settings to default.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
54
TRENDnet User’s Guide
Web Smart Switch Series
MLD Snooping
Settings
Network > MLD Snooping > Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on MLD Snooping, and click on Settings.
3. Review the settings. Click Apply to save the settings.
MLD Snooping Status – Click the drop-down list and select Enabled to enable
MLD snooping.
Aging Timeout – Enter the aging timeout in seconds.
Querier Status – Click the drop-down list and select Enabled to enable the
Querier Election or Disabled to disable this feature.
Fast Leave Status – Click the drop-down list and select Enabled to enable fast
leave or Disabled to disable this feature.
Query Interval – Enter the amount of time you want your switch to send
queries.
Max Response Time – Enter the maximum response time in seconds that client
can wait before responding to a query.
Robustness Variable – Enter the robustness value used to determine the
number of times to send a message.
Last Member Query Interval – Enter the interval between the last member
queries.
Router Timeout – Enter the amount of time before the router times out.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
55
TRENDnet User’s Guide
Web Smart Switch Series
Router Port
Network > MLD Snooping > Router Port
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on MLD Snooping, and click on Router Port.
3. Review the settings. Click Modify to change the settings. Click Apply to save the
settings.
VLAN ID – Shows the VLAN ID.
Static Router Port – Shows if/what the static router ports are.
Dynamic Router Port – Shows if/what the dynamic router ports are.
802.1Q VLAN ID – Shows the VLAN ID.
Static Router Port – Check the box below the port number to set the statically
set ports
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
56
TRENDnet User’s Guide
Web Smart Switch Series
Multicast VLAN
Multicast VLAN Settings
Network > Multicast VLAN > Multicast VLAN Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Multicast VLAN, and click on Multicast VLAN Settings.
3. Review the settings. Click Apply/Add to save the settings.
Multicast ipv4 state – Click the drop-down list and select Enabled to enable
ipv4 multicast.
Multicast ipv6 state – Click the drop-down list and select Enabled to enable
ipv6 multicast.
VLAN ID – Enter the VLAN ID you would like to assign.
VLAN Name – Enter the name for this VLAN.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Multicast VLAN Table
Network > Multicast VLAN > Multicast VLAN Table
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Multicast VLAN, and click on Multicast VLAN Table.
3. Review the settings.
Multicast VLAN Group Settings
Network > Multicast VLAN > Multicast VLAN Group Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Multicast VLAN, and click on Multicast VLAN Group
Settings.
3. Review the settings. Click Add to save the settings.
Profile Name – Enter the name you would like to assign.
IP Address Range – Enter the IP address range.
© Copyright 2018 TRENDnet. All Rights Reserved.
57
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Multicast VLAN Access Settings
Network > Multicast VLAN > Multicast VLAN Access Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Multicast VLAN, and click on Multicast VLAN Access
Settings.
3. Review the settings. Click Add to save the settings.
VLAN ID – Enter the VLAN ID you would like to assign.
Profile Name – Enter the name for this profile.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
58
TRENDnet User’s Guide
Web Smart Switch Series

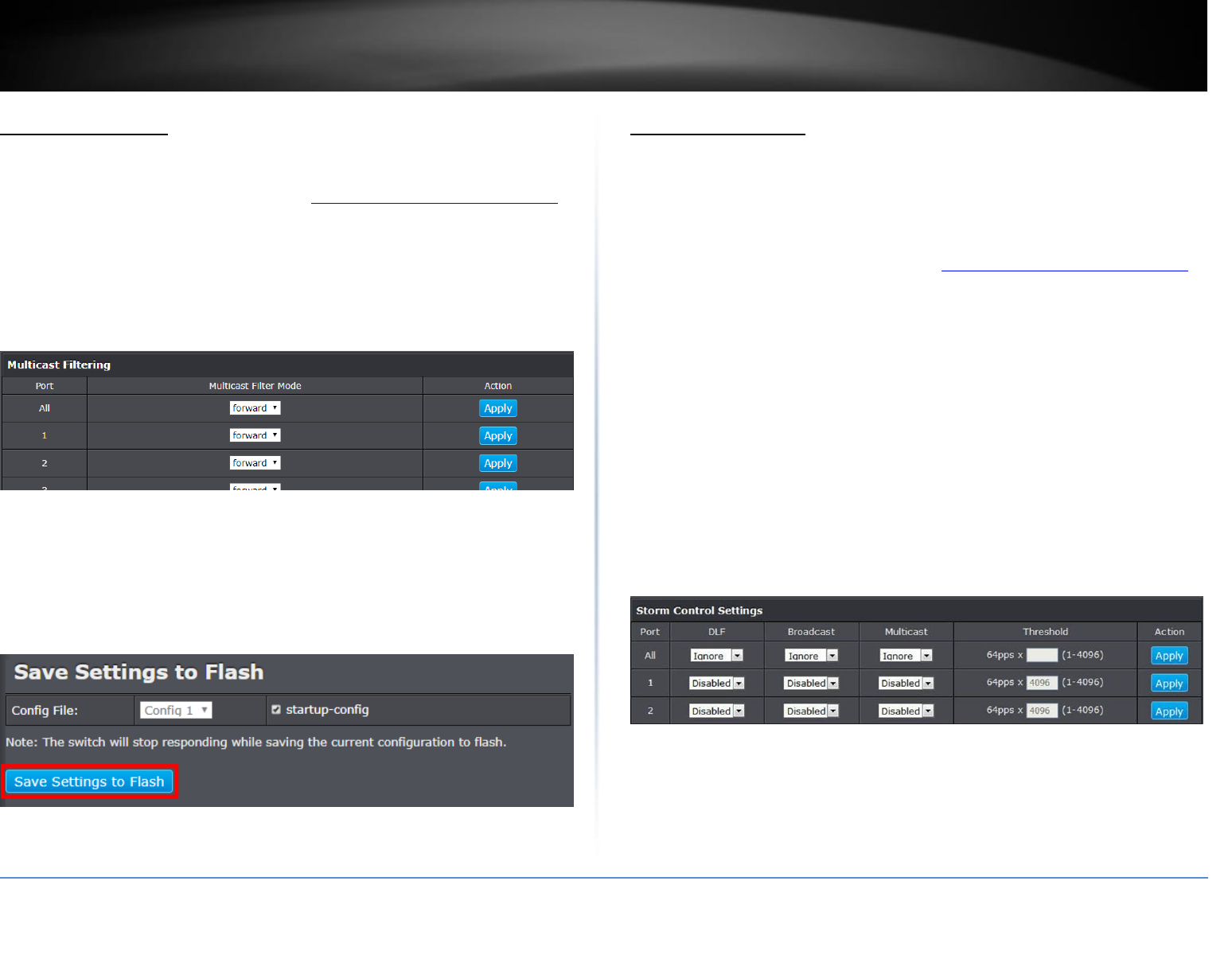

Multicast Filtering
Multicast Filtering
Network > Multicast VLAN > Multicast VLAN Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Multicast VLAN, and click on Multicast VLAN Settings.
3. Review the settings. Click Apply to save the settings.
Multicast Filter Mode –Select forward or filter multicast traffic on this port.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Bandwidth Control
Storm Control
Network > Bandwidth Control > Storm Control
This section allows you to configure the DLF (Destination Lookup Failure), broadcast,
and multicast storm settings for each switch port.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Bandwidth Control, and click on Storm Control.
3. Review the settings for each port. Click Apply to save the settings.
DLF (Destination Lookup Failure) – Click the drop-down list and select Enabled
to enable DLF storm control.
Broadcast – Click the drop-down list and select Enabled to enable broadcast
storm control.
Multicast – Click the drop-down list and select Enabled to enable multicast
storm control.
Threshold – Enter the pps (packets per second) threshold.
Note: Modifying settings in the row marked All, will apply the settings to all
ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
59
TRENDnet User’s Guide
Web Smart Switch Series
Ingress Rate Limiting
Network > Bandwidth Control > Ingress Rate Limiting
This section allows you to set the ingress (receive) rate for each switch port.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Bandwidth Control, and click on Ingress Rate Limiting.
3. Review the settings for each port. Click Apply to save the settings.
Bandwidth – Enter the ingress rate limit value.
Status – Click the drop-down list and select Enabled to enable ingress rate
limiting or select Disabled to disable ingress rate limiting.
Note: Modifying settings in the row marked All, will apply the settings to all
ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Egress Rate Limiting
Network > Bandwidth Control > Egress Rate Limiting
This section allows you to set the egress (transmit) rate for each switch port.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Bandwidth Control, and click on Egress Rate Limiting.
3. Review the settings for each port. Click Apply to save the settings.
Bandwidth – Enter the egress rate limit value.
Status – Click the drop-down list and select Enabled to enable egress rate
limiting or select Disabled to disable egress rate limiting.
Note: Modifying settings in the row marked All, will apply the settings to all
ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
60
TRENDnet User’s Guide
Web Smart Switch Series
VLAN
Tagged
Network > VLAN > Tagged
A VLAN is a group of ports that can be anywhere in the network, but communicate as
though they were in the same area.
VLANs can be easily organized to reflect department groups (such as R&D, Marketing),
usage groups (such as e-mail), or multicast groups (multimedia applications such as
video conferencing), and therefore help to simplify network management by allowing
users to move devices to a new VLAN without having to change any physical
connections.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on VLAN, and click on Tagged VLAN.
3. Review the settings.
VLAN ID – Enter the VLAN ID for the new VLAN.
VLAN Name – Enter the VLAN name.
Management VLAN – Click the drop-down list and select Enabled to allow
access to the switch management page through the new VLAN. If you want to
restrict management access through this VLAN, select Disabled.
Note: By default, the default VLAN VID 1 is set as the Management VLAN.
In the sections Static Tagged, Static Untagged, and Not Member, you can add the type
of VLAN ports to add to the new VLAN (Tagged or Untagged) and assign ports that are
not members (Forbidden) of the new VLAN.
Tagged/Untagged/Not Member VLAN Ports
On a port, the tag information within a frame is examined when it is received to
determine if the frame is qualified as a member of a specific tagged VLAN. If it is, it is
eligible to be switched to other member ports of the same VLAN. If it is determined that
the frame’s tag does not conform to the tagged VLAN, the frame is discarded.
Since these VLAN ports are VLAN aware and able to read VLAN VID tagged information
on a frame and forward to the appropriate VLAN, typically tagged VLAN ports are used
for uplink and downlink to other switches to carry and forward traffic for multiple VLANs
across multiple switches. Tagged VLAN ports can be included as members for multiple
VLANs. Computers and other edge devices are not typically connected to tagged VLAN
ports unless the network interface on these device can be enabled to be VLAN aware.
Select the tagged VLAN ports to add to the new VLAN.
Untagged VLAN ports are used to connect edge devices (VLAN unaware) such as
computers, laptops, and printers to a specified VLAN. It is required to modify the Port
VID settings accordingly for untagged VLAN ports under Bridge > VLAN > Port Settings.
(e.g. If the VID for the VLAN is 2, the PVID should also be set to 2)
Select the untagged VLAN ports to add to the new VLAN.
© Copyright 2018 TRENDnet. All Rights Reserved.
61
TRENDnet User’s Guide
Web Smart Switch Series
Select the not member ports to restrict from the new VLAN.
Click Apply to save the new VLAN to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry. If
the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
Note: The default VLAN VID1 cannot be removed.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Port
Network > VLAN > Port
In this section, you can modify the port VID settings, acceptable frame types, and
ingress filtering.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Bridge, click on VLAN, and click on Port Settings.
3. Review the settings for each port. Click Apply to save settings.
PVID – Enter the port VLAN ID. Note: Required for untagged VLAN ports.
Acceptable Frame Type – Click the drop-down list and select which type of
frames can be accepted.
o All – The port can accept all frame types.
o Tagged – The port can accept tagged frames only. Untagged frames
are discarded.
o Untagged & Priority Tagged – The port can accept untagged frames
and frames with tagged priority information only such as 802.1p.
Ingress Filtering –Click the drop-down list and select Enabled to enable ingress
filtering or Disabled to disable ingress filtering.
Note: Modifying settings in the row marked All, will apply the settings to all
ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
62
TRENDnet User’s Guide
Web Smart Switch Series
Forwarding
Network > VLAN > Forwarding
This section allows you to configure your switch to standard 802.1Q VLAN mode (IVL) or
Asymmetric VLAN mode (SVL). Asymmetric VLAN allows the configuration of
overlapping untagged VLAN ports in order to create VLAN groups. It is recommended to
use the standard 802.1Q VLAN mode when possible.
IVL – Independent VLAN Learning
SVL – Shared VLAN Learning (also known as asymmetric VLAN)
Please note the following when switching between forwarding table modes:
FDB (Forwarding Database) will be cleared.
Static Unicast Address entries will be cleared.
Static Multicast Address entries will be cleared.
802.1X authenticated records will be cleared.
IGMP Snooping multicast group addresses will be cleared
When using SVL mode, Voice VLAN will not be supported.
When using SVL mode, the VID field on 802.1Q-VLAN mode will be displayed as
"N/A".
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on VLAN, and click on Forwarding.
3. Click the learning mode drop-down list to select the forwarding table mode and click
Apply to save settings.
Note: The default mode is IVL.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Dynamic
Network > VLAN > Dynamic
This section allows you to view the VLAN forwarding table with dynamically generated
forwarding table entries as devices more devices are connected to your switch.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on VLAN, and click on Dynamic.
3. By default, forwarding entries for all ports are listed. You can click the Port drop-
down list to select a specific port to view only the forwarding entries for the selected
port.
If the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
63
TRENDnet User’s Guide
Web Smart Switch Series
Private
Network > VLAN > Private
The private VLAN feature allows you to create a more secure VLAN that is completely
isolated to its members and cannot communicate with other VLANs. A private VLAN
partitions the Layer 2 broadcast domain of a VLAN into subdomains, allowing you to
isolate the ports on the switch from each other. A subdomain consists of a primary
VLAN and one or more secondary VLANs. All VLANs in a private VLAN domain share the
same primary VLAN. The secondary VLAN ID differentiates one subdomain from
another. The secondary VLANs may either be isolated VLANs or community VLANs. A
host on an isolated VLAN can only communicate with the associated promiscuous port
in its primary VLAN. Hosts on community VLANs can communicate among themselves
and with their associated promiscuous port but not with ports in other community
VLANs.
The following guidelines apply when configuring private VLANs: The default VLAN 1
cannot be a private VLAN. The management VLAN 4095 cannot be a private VLAN. The
management port cannot be a member of a private VLAN.IGMP Snooping must be
disabled on isolated VLANs. Each secondary port's (isolated port and community ports)
PVID must match its corresponding secondary VLAN ID. Ports within a secondary VLAN
cannot be members of other VLANs. All VLANs that make up the private VLAN must
belong to the same Spanning Tree Group.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on VLAN, and click on Private.
3. To configure Private VLAN Settings, perform the following procedure:
Select Private VLAN status from the Status radio button choices that you want
to change.
o Enable: Enable Private VLAN settings.
o Disable: Disable Private VLAN settings.
Press Apply for changes to take effect.
Set the Source Port to one of the following choices from the pull-down menu:
All, 01 – 10
Click on the Forwarding Ports ratio button that applies to your configuration.
Click Apply.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
64
TRENDnet User’s Guide
Web Smart Switch Series
Current
Network > VLAN > Current
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on VLAN, and click on Current.
3. View the current VLAN database in the table.
If the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
GVRP
GVRP Global Settings
Network > GVRP > GVRP Global Settings
The GARP VLAN Registration Protocol (GVRP) allows network devices to share VLAN
information and to use the information to modify existing VLANs or create new VLANs,
automatically. This makes it easier to manage VLANs that span more than one switch.
Without GVRP, you have to manually configure your switches to ensure that the various
parts of the VLANs can communicate with each other across the different switches.
With GVRP, which is an application of the Generic Attribute Registration Protocol
(GARP), this is done for you automatically.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on GVRP, and click on GVRP Global Settings.
3. Click the GVRP Status drop-down list and select Enabled to activate GVRP or disabled
to deactivate GVRP. Click Apply to save the settings.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
65
TRENDnet User’s Guide
Web Smart Switch Series
Port Settings
Network > GVRP > Port Settings
This section will allow you to select which ports will have GVRP enabled or will be
restricted from using GVRP.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on GVRP and click on Port Settings.
3. Review the settings for each port. Click Apply to save the settings.
Port - This parameter displays the ports on the switch.
Dynamic Vlan Status - This parameter defines the GVRP status of the port.
From the Dynamic Vlan Status field, select one of the following choices from
the pull-down menu:
o Ignore - This parameter indicates that the setting in the All row does
not apply to the Dynamic Vlan Status field. In other words, each port
is set individually.
o Enable - The Dynamic Vlan is activated for the port row selected.
o Disable - The Dynamic Vlan is de-active for the port row selected.
Restricted VLAN Registration - This parameter controls if the VLAN registration
on the port is restricted or not.
o Ignore - This parameter indicates that the setting in the All row does
not apply to the Restricted VLAN Registration field. In other words,
each port is set individually.
o Enable - The Restricted VLAN Registration is active for the port row
selected.
o Disable - The Restricted VLAN Registration is de-active for the port row
selected.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
66
TRENDnet User’s Guide
Web Smart Switch Series
Time Settings
Network > GVRP > Time Settings
This section will allow you to define the GARP Join, Leave, and Leave All Time for each
port.
Note: The GARPLeaveTimer must be greater than (GARPJoinTimer x2 + 10) and the
GARPLeaveAllTimer must be greater than (GARPLeaveTimer + 10). The acceptable input
values are multiples of 10. If you try to enter a value that is not a multiple of 10, the
value is rounded down
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on GVRP and click on Time Settings.
3. Review the settings for each port. Click Apply to save the settings.
Port - This parameter displays the ports on the switch.
JoinTime - This parameter is the GARP Join Timer. Its range is 10 - 1073741810
milli-seconds.
LeaveTime - This parameter is the GARP Leave Timer. Its range is 30 -
2147483630 milli-seconds. This timer must be set in relation to the GVRP Join
Timer according to the following equation:
GARPLeaveTimer >= (GARPJoinTimer X 2) + 10
LeaveAllTime - This parameter is the GARP Leave All Timer. Its range is 40 -
2147483630 milli-seconds. This timer must be set in relation to the GVRP Leave
Timer according to the following equation:
GARPLeaveAllTimer > (GARPLeaveTimer + 10)
Note: To ensure compatibility between network devices, you need
to configure the same values for the GARP Join Timer, GARP Leave Timer, and GARP
Leave All Timer on all participating GVRP devices in your network.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
67
TRENDnet User’s Guide
Web Smart Switch Series
Voice VLAN
This chapter contains a description of the Switch’s Voice VLAN feature and the
procedures to create, modify, and delete a voice VLAN configuration.
The Voice VLAN feature is specifically designed to maintain high quality, uninterrupted
voice traffic through the switch. When talking on a voice over IP phone, a user expects
to have no interruptions in the conversation and excellent voice quality. The Voice VLAN
feature can be configured to meet these requirements.
CoS with Voice VLAN
The Voice VLAN CoS parameter maintains the voice quality between the ingress and
egress ports of the switch. CoS must be enabled for the Voice VLAN CoS priority to take
effect. The CoS priority level that you config is applied to voice traffic on all ports of the
voice VLAN. Normally, most (non-Voice) Ethernet traffic transverses the switch through
lower order egress queues. To avoid delays and interruptions in the voice data flow, the
CoS priority level assigned to the voice VLAN should be mapped to a higher order queue
and the scheduling algorithm should be set to Strict Priority. These settings ensure that
the voice data packets are processed before other types of data so that the voice quality
is maintained as the voice data passes through the switch.
Organization Unique Identifier (OUI)
Each IP phone manufacturer can be identified by one or more Organization Unique
Identifiers (OUIs). An OUI is three bytes long and is usually expressed in hexadecimal
format. It is imbedded into the first part of each MAC address of an Ethernet network
device. You can find the OUI of an IP phone in the first three complete bytes of its MAC
address.
Typically, you will find that all of the IP phones you are installing have the same OUI in
common. The switch identifies a voice data packet by comparing the OUI information in
the packet’s source MAC address with an OUI table that you configure when you initially
set up the voice VLAN. This is important when the Auto-Detection feature for a port and
is a dynamic voice VLAN port.
When you are configuring the voice VLAN parameters, you must enter the complete
MAC address of at least one of your IP phones. An “OUI Mask” is automatically
generated and applied by the Web Management Utility software to yield the
manufacturer’s OUI. If the OUI of the remaining phones from that manufacturer is the
same, then no other IP phone MAC addresses need to be entered into the configuration.
However, it is possible that you can find more than one OUI from the same
manufacturer among the IP phones you are installing. It is also possible that your IP
phones are from two or more different manufacturers in which case you will find
different OUIs for each manufacturer. If you identify more than one OUI among the IP
phones being installed, then one MAC address representing each individual OUI must be
configured in the voice VLAN. You can enter a total of 10 OUIs.
Dynamic Auto-Detection vs Static Ports
Prior to configuring the voice VLAN, you must configure a tagged VLAN which is the
basis for the voice VLAN configuration. The VLAN must be configured with one or more
tagged or untagged ports that will serve as the voice VLAN uplink/downlink. By default,
a tagged or untagged port is a static member of a tagged VLAN. The ports that you
choose to configure as dynamic Auto-Detection ports
must be connected directly to an IP phone. When you initially define the ports of a
tagged VLAN for your voice VLAN configuration, they must be configured as a “Not
Member” ports. The “Not Member” ports are eligible to dynamically join the voice VLAN
when voice data is detected with a predefined OUI in the source MAC address. The port
will leave the voice VLAN after a specified timeout period. This port behavior is
configured with the voice VLAN Auto-Detection feature.
For the Auto-Detection feature to function, your IP phone(s) must be capable of
generating 802.1Q packets with imbedded VLAN ID tags. You must manually configure
your IP phone(s) for the same VLAN ID as the switch’s voice VLAN ID. When voice data is
detected on one of the “Not Member” ports, the packets from the IP phone will contain
the voice VLAN ID so they are switched within the switch’s voice VLAN.
One or more ports in your voice VLAN must be configured as Static tagged or untagged
members. Static VLAN members are permanent member ports of the voice VLAN and
there is no dependency on the configuration of the devices connected to the ports.
These ports might be connected to other voice VLAN network nodes such as other
Ethernet switches, a telephone switch, or a DHCP server. The voice VLAN Auto-
Detection feature cannot be enabled on Static tagged or tagged ports.
Note: Any Static tagged members of the voice VLAN are required to have the port VLAN
ID (PVID) configured to be the same as the voice VLAN ID. This insures that all untagged
packets entering the port are switched within the voice VLAN as the voice data passes
through the switch.
If the IP phone(s) that you are installing cannot be configured with a VLAN ID, then the
switch ports should be configured as Static tagged ports within the voice VLAN.
© Copyright 2018 TRENDnet. All Rights Reserved.
68
TRENDnet User’s Guide
Web Smart Switch Series
Note: Link Layer Discovery Protocol for Media Endpoint Devices (LLDP- MED) is not
supported on the switch. Each IP phone that is VLAN aware should be manually
configured for the VLAN ID that matches your voice VLAN ID. Each of the voice VLAN
ports connected to an IP phone should be configured as “Not Member” ports of the
tagged VLAN.
Settings
Network > Voice VLAN > Settings
Note: Prior to configuring your voice VLAN, you must first configure a tagged VLAN. This
VLAN will be used as a basis for your voice VLAN.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Voice VLAN, and click on Settings.
3. Review the settings.
Use the following procedure to configure voice VLAN:
From the Voice VLAN field at the top of the page, select one of the following
radio button choices:
o Enable - The voice VLAN feature is active. The other parameter fields
in the voice VLAN Global Settings section become active and are
eligible for data to be entered.
o Disable - The voice VLAN feature is inactive. The other parameter
fields in the voice VLAN Global Settings section become inactive and
are greyed out so that data cannot be entered.
In the Voice VLAN Global Settings section, enter the configuration information
for the following parameters:
o VLAN ID - This parameter is the tagged VLAN ID that has been
configured in “Tagged VLAN Configuration”. It is a pull-down menu
showing the tagged VLAN IDs that have been defined.
o Aging Time - This parameter indicates the amount of time, in hours,
after the last IP phone's OUI was received on a port, after which this
port will be removed from the voice VLAN. The range is 1 to 120
hours.
o CoS - This parameter is CoS priority level assigned to the voice data
packets received on each voice VLAN port. For the COS priority to be
effective, QoS must be Enabled.
Click Apply to save the settings.
In the table at the bottom of the page, The voice VLAN Auto- Detection status
is defined. From the Auto-Detection column, select one of the port rows and
then one of the following choices from the pull-down menu:
o Ignore - This parameter indicates that the setting in the All row does
not apply to the Dynamic Vlan Status field. In other words, each port
is set individually.
o Enable - The voice VLAN Auto-Detection feature is activated for the
port row selected.
o Disable - The voice VLAN Auto-Detection feature is active for the port
row selected.
Note: The voice VLAN Auto-Detection feature can only be enabled on “Not Member”
ports of the voice VLAN. Member ports cannot have the voice VLAN Auto-Detection
feature enabled. The Status column displays Static for the member ports
© Copyright 2018 TRENDnet. All Rights Reserved.
69
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
OUI
Network > Voice VLAN > OUI
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, Voice VLAN, and click on OUI.
3. Review the settings.
Use the following procedure to configure voice VLAN OUIs:
Enter a text description that helps you identify the manufacturer’s OUI in the
User Defined OUI - Description field. This parameter can be up to 20 characters
in length.
Enter the MAC address in the User Defined OUI - Telephony OUI field of one of
the IP phones with the manufacturer's OUI.
Click Add. The new OUI entry is displayed in the table at the bottom of the
page.
Note: If you find more than one OUI among the IP phones you are installing,
enter one MAC address that represents each individual OUI. You can enter a
total of 10 OUIs.
Modify OUI Setting
To modify or delete an OUI, it must be first be deleted and then re-created.
Delete OUI Setting
To delete a specific OUI that had already been entered in the table at the bottom of the
page, click on Delete in the Action column of the table. The specific OUI will be deleted
from the table.
© Copyright 2018 TRENDnet. All Rights Reserved.
70
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
LLDP
Enable and configure LLDP
Link Layer Discovery Protocol (LLDP) allows Ethernet network devices, such as switches
and routers, to receive and transmit device-related information to directly connected
devices on the network and to store data that is learned about other devices.
Settings
Network > LLDP > Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on Settings.
3. Review the settings.
Enabling or Disabling LLDP
From the LLDP parameter, select one of the following radio button choices and
click Apply to save the settings.
Enable: The LLDP feature is active.
Disable: The LLDP feature is inactive.
LLDR-MED Parameter Settings:
Fast Start Repeat Count: Enter the number of tries to start.
Configure the LLDP Parameter Settings
© Copyright 2018 TRENDnet. All Rights Reserved.
71
TRENDnet User’s Guide
Web Smart Switch Series
Message TX Hold Multiplier: Sets the hold multiplier value. The hold time multiplier is
multiplied by the transmit interval to give the Time To Live (TTL) that the switch
advertises to the neighbors. The range is from 2 to 10.
Message TX Interval: Sets the transmit interval, which is the interval between regular
transmissions of LLDP advertisements. The range is from 5 to 32768 seconds.
LLDP Reinit Delay: Sets the reinitialization delay, which is the number of seconds that
must elapse after LLDP is disabled on a port before it can be reinitialized. The range is
from 1 to 10 seconds.
LLDP TX Delay: Sets the value of the transmission delay timer, which is the minimum
time interval between transmissions of LLDP advertisements due to a change in LLDP
local information. The range is from 1 to 8192 seconds.
Click Apply to save the settings.
View LLDP System Information
Chassis ID Subtype: This parameter describes the Chassis ID subtype which is
“macAddress”. You cannot change this parameter.
Chassis ID: This parameter lists the MAC Address of the switch.
You cannot change this parameter.
System Name: This parameter lists the System Name of the switch. You can
assign the system name.
System Description: This parameter lists the product name of the switch. You
cannot change this parameter
Set LLDP Port State
For each port, click the State drop-down list and choose from the following options.
Disabled: Indicates LLDP is disabled on the port. The port cannot receive or
transmit LLDP data packets.
RxTx: Indicates LLDP is enabled on the port. The port can receive and transmit
LLDP data packets.
RxOnly: Indicates LLDP is enabled on the port. The port can receive LLDP data
packets.
TxOnly: Indicates LLDP is enabled on the port. The port can transmit LLDP data
packets.
Note: You can select the row labeled ALL to apply settings to all ports.
Click Apply to save the settings.
© Copyright 2018 TRENDnet. All Rights Reserved.
72
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Basic TLVs Settings
Network > LLDP > Basic TLVs Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on Basic TLVs Settings.
3. Configure the basic TLVs settings. Click Apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Dot1 TLVs Settings
Network > LLDP > Dot1 TLVs Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on Dot1 TLVs Settings.
3. Configure the Dot1 TLVs settings. Click Apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Dot3 TLVs Settings
Network > LLDP > Dot1 TLVs Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on Dot3 TLVs Settings.
3. Configure the Dot1 TLVs settings. Click Apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
73
TRENDnet User’s Guide
Web Smart Switch Series

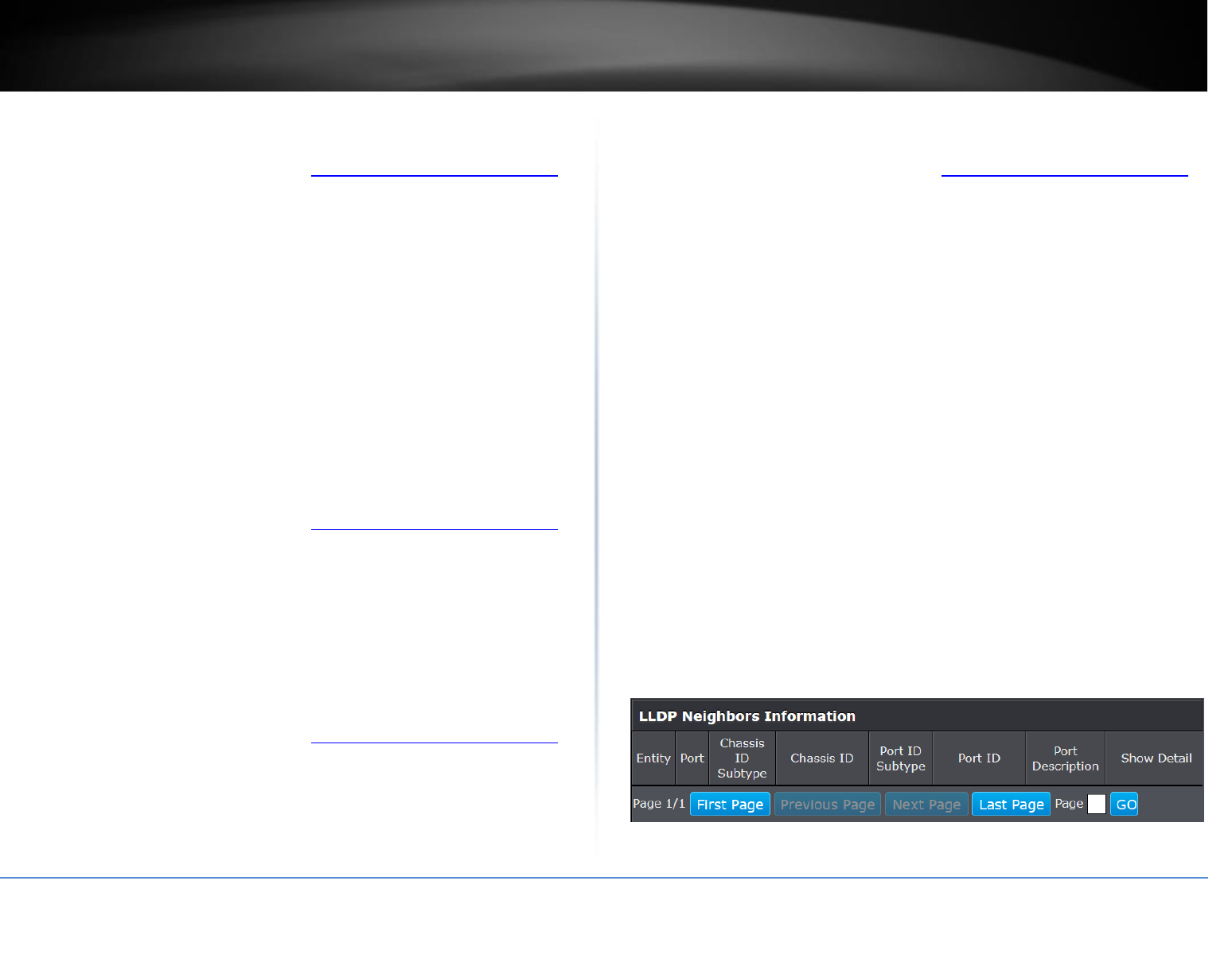

MED Port Settings
Network > LLDP > MED Port Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on MED Port Settings.
3. Configure the MED port settings. Click Apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
LLDP Statistics Information
Network > LLDP > LLDP Statistics Information
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on LLDP Statistics Information.
3. View the LLDP Statistics Information. Click Clear to clear the counters.
LLDP Local Port Information
Network > LLDP > LLDP Local Port Information
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on LLDP Local Port Information.
3. View the LLDP Local Port Information. Click Show Details to for additional info.
Neighbor
Network > LLDP > Neighbor
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on LLDP, and click on Neighbor.
3. View the LLDP neighbor information.
Entity: This parameter is a number assigned to the reporting neighbors in the
order that the LLDP information is received from them.
Port: This parameter specifies the switch port number where the LLDP
information was received.
Chassis ID Subtype: This parameter describes the Chassis ID subtype of the
neighboring network device which is reporting the LLDP information.
Chassis ID: This parameter is the neighboring device’s chassis ID.
Port ID Subtype: This parameter describes the Port ID subtype of the
neighboring network device’s port that is connected directly to the switch port.
Port ID: This parameter specifies the neighboring network device’s port
number from which the LLDP information was transmitted.
Port Description: This parameter describes the neighboring network device’s
port.
Show Detail: If you click on this button, a detailed report of the neighboring
network device will be displayed.
If the entries span multiple pages, you can navigate page number in the Page field and
click Go or you can click First, Previous, Next, and Last Page to navigate the pages.
© Copyright 2018 TRENDnet. All Rights Reserved.
74
TRENDnet User’s Guide
Web Smart Switch Series

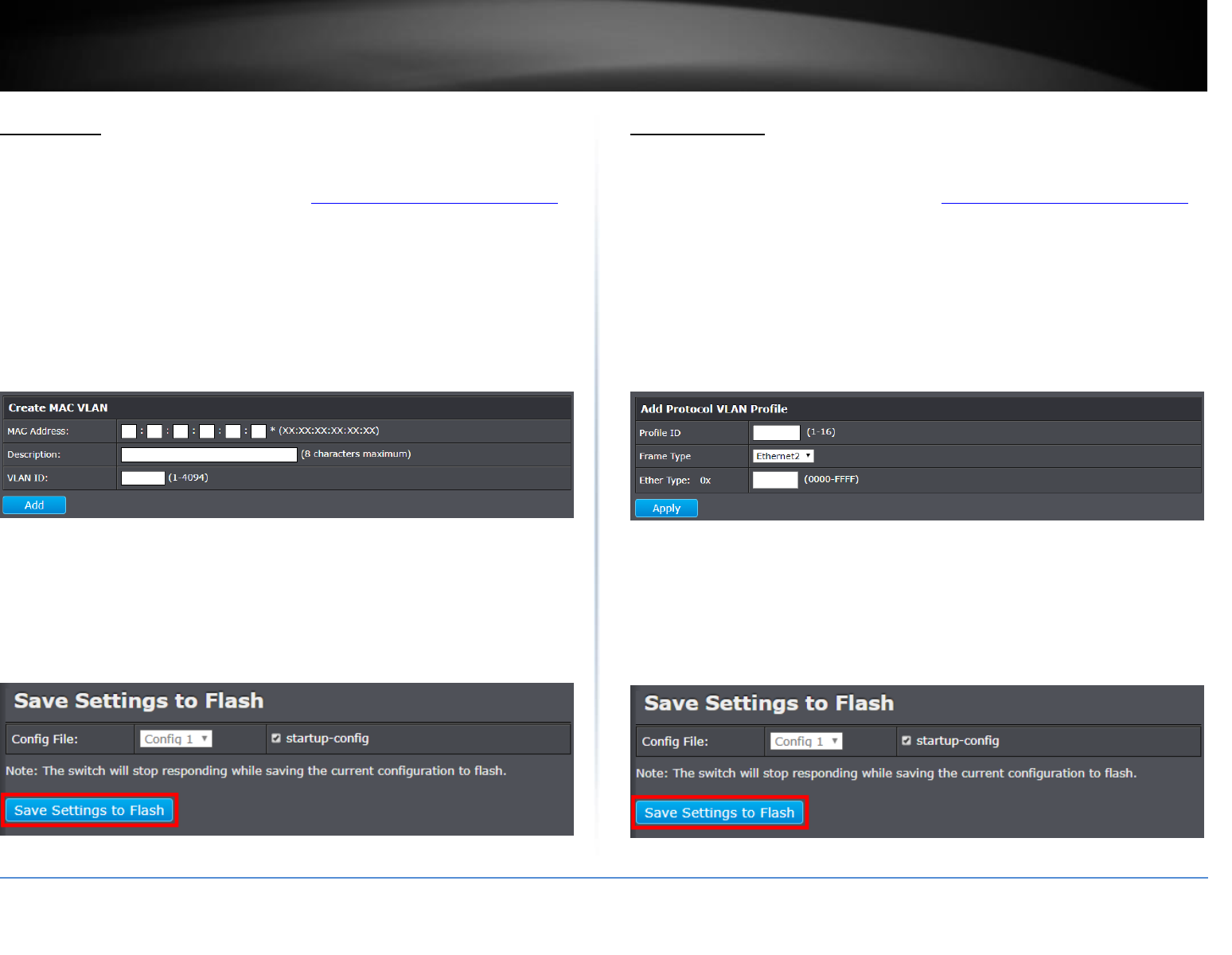

MAC VLAN
MAC VLAN
Network > MAC VLAN
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network and click on MAC VLAN.
3. Configure the MAC VLAN. Click Add to save.
MAC Address – Enter the MAC Address to add to the VLAN
Description – Enter a Description.
VLAN ID – Assign a VLAN ID
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Protocol VLAN
Protocol VLAN Profile
Network > Protocol VLAN > Protocol VLAN Profile
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Protocol VLAN, and click on Protocol VLAN Profile.
3. Configure the Protocol VLAN. Click Apply to save.
Profile ID – Enter the profile ID.
Frame Type – Select a frame type from the drop down.
Ether Type – Assign a Ether Type.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
75
TRENDnet User’s Guide
Web Smart Switch Series

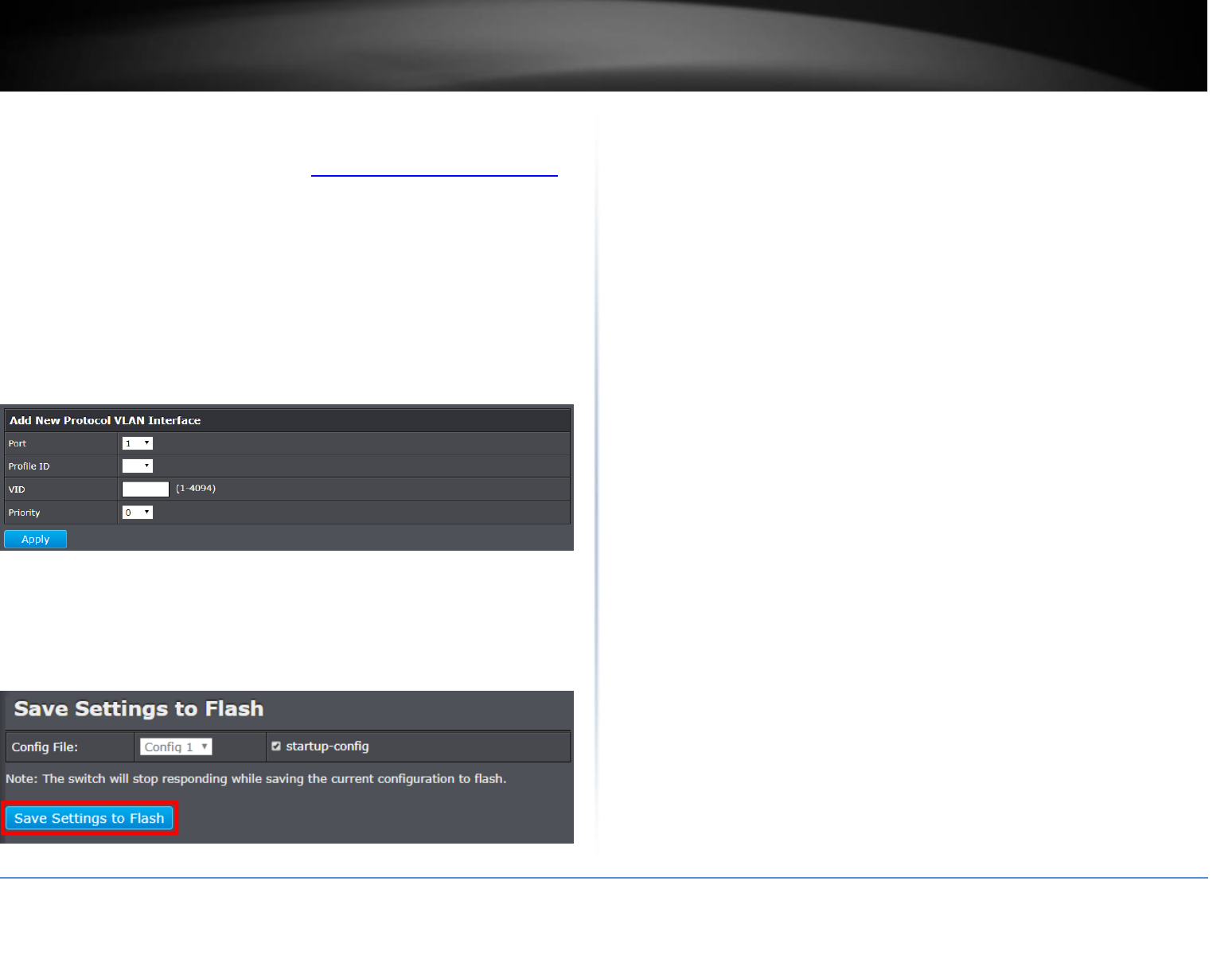

Protocol VLAN Profile Interface
Network > Protocol VLAN > Protocol VLAN Profile Interface
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Network, click on Protocol VLAN, and click on Protocol VLAN Profile
Interface.
3. Configure the new Protocol Interface. Click Apply to save.
Port – Select the port number from the dropdown.
Profile ID– Select the profile ID from the drop down.
VID – Assign a VID.
Priority – Select a priority level from the dropdown menu
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
76
TRENDnet User’s Guide
Web Smart Switch Series
QoS (Quality of Service)
When a port on an Ethernet switch becomes oversubscribed, its egress
queues contain more packets than the port can handle in a timely manner. In this
situation, the port may be forced to delay the transmission of some packets, resulting in
the delay of packets reaching their destinations. A port may be forced to delay
transmission of packets while it handles other traffic, and, in some situations, some
packets destined to be forwarded to an oversubscribed port from other switch ports
may be discarded.
Minor delays are often of no consequence to a network or its performance. But there
are applications, referred to as delay or time sensitive applications, which can be
impacted by packet delays. Voice transmission and video conferences are two examples.
If packets carrying data in either of these cases are delayed from reaching their
destination, the audio or video quality may suffer.
This is where Cost of Service (CoS) is of value. It allows you to manage the flow of traffic
through a switch by having the switch ports give higher priority to some packets, such as
delay sensitive traffic, over other packets. This is referred to as prioritizing traffic.
CoS
Set CoS priority settings
QoS > CoS
Note: Before mapping the CoS priorities and the egress queues, you must disable the
Jumbo frame parameter on each port. When Jumbo frames are enabled, COS cannot be
enabled.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on QoS and click on CoS.
3. In QoS Status, select Enabled and then click Apply.
For each Priority who’s Queue ID you want to change, click on the CoS Table
(1-7, Ignore) radio button that applies to your configuration.
4. Review the settings. Click Apply to save the settings.
5. At the bottom of the left hand panel, click Save.
6. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
77
TRENDnet User’s Guide
Web Smart Switch Series
Port Priority
Set Port Priority
QoS > Port Priority
The Port Priority values are assigned to an untagged frame at ingress for internal
processing in the switch. This procedure explains how to change the default mappings of
port priorities to the User Priority. This is set at the switch level. You cannot set this at
the per-port level. To change the port priority mappings, perform the following
procedure.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on QoS and click on Port Priority.
3. For each port whose priority you want to change, select a priority (0-7, Ignore) in the
User Priority column. Click Apply to save the settings.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
DSCP
Set DSCP (Differentiated Services Code Point) Class Mapping settings
QoS > DSCP
If you choose to use the DSCP tags in your Access Control policy configuration, each
DSCP value (0-63) that is relevant to your configuration needs to be mapped to one of
the four egress queues(Low, Medium, High, or Highest). The default queue for all DSCP
values is 0.To assign the queue mappings to the DSCP values, perform the following
procedure.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on QoS and click on DSCP.
3. For each DSCP In value that is relevant to your configuration, select a queue (Low,
Medium, High, or Highest) in the Queue column. Select Enabled in the DSCP Mapping
drop-down list. Click Apply to save the settings.
4. At the bottom of the left hand panel, click Save.
© Copyright 2018 TRENDnet. All Rights Reserved.
78
TRENDnet User’s Guide
Web Smart Switch Series
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Scheduling Algorithm
Set the Scheduling Algorithm
QoS > Scheduling Algorithm
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on QoS and click on Scheduling Algorithm.
3. Review the settings. Click Apply to save the settings.
Strict Priority - The port transmits all packets out of higher priority queues
before transmitting any from the lower priority queues.
WRR (Weighted RoundRobin) - The port transmits a set number of packets
from each queue, in a round robin fashion, so that each has a chance to
transmit traffic.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
79
TRENDnet User’s Guide
Web Smart Switch Series
IPv6 Traffic Class
Configure the IPv6 Traffic Class Settings
QoS > IPv6 Traffic Class
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on QoS and click on IPv6 Traffic Class Priority Settings.
3. Review the settings.
IPv6 Traffic Class Global Settings: Select Enable or Disable. Click Apply to save
the settings.
IPv6 Traffic Class (0-255): Specify the value of IPv6 class.
Queue ID (0-7): Defines the priority assigned to the port.
Click Add to add the traffic class setting entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
80
TRENDnet User’s Guide
Web Smart Switch Series
Security
This chapter contains information about the Port-based security features and the
procedures for setting this feature.
Port Access Control
Configure Port Access Control
Security > Port Access Control
This section contains information and configuration procedures for the
Port-based Access Control. Port-based Network Access Control (IEEE 802.1x) is used to
control who can send traffic through and receive traffic from a switch port. With this
feature, the switch does not allow an end node to send or receive traffic through a port
until the user of the node logs on by entering a user name and password.
This feature can prevent an unauthorized individual from connecting a computer to a
port or using an unattended workstation to access your network resources. Only those
users to whom you have assigned a user name and password are able to use the switch
to access the network.
This feature can be used with one of two authentication methods:
The RADIUS authentication protocol requires that a remote RADIUS server is
present on your network. The RADIUS server performs the authentication of
the user name and password combinations.
The Dial-in User (local) authentication method allows you to set up the
authentication parameters internally in the switch without an external server.
In this case, the user name and password combinations are entered in the
associated with an optional VLAN when they are defined. Based on these
entries, the authentication process is done locally by the Web Management
Utility using a standard EAPOL transaction.
Note: RADIUS with Extensible Authentication Protocol (EAP) extensions is the only
supported authentication server for this feature.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on Port Access Control.
3. Review the settings. Click Apply to save the settings.
Configure the following parameters as required:
NAS ID - This parameter assigns an 802.1x identifier to the switch that applies
to all ports. The NAS ID can be up to sixteen characters. Valid characters are 0
to 9, a to z, and A to Z. Spaces are allowed. Specifying an NAS ID is optional.
Port Access Control - This parameter enables or disables Port Access Control.
Select one of the following choices from the pulldown menu:
o Enable: The Port Access Control feature is activated.
o Disable: The Port Access Control feature is de-activated.
Authentication Method - This parameter indicates the authentication method
used by the switch. Select one of the following choices:
o RADIUS: This parameter configures port security for remote
authentication. After completing steps, you must configure the
“RADIUS Client” section.
o TACACS+: This parameter configures port security for terminal
authentication. After completing steps, you must configure the
“TACACS+ Settings” section.
o Local: This parameter configures port security for local authentication.
After completing steps, you must configure the parameters for “Dial-in
User— Local Authentication” section.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
81
TRENDnet User’s Guide
Web Smart Switch Series
Dial-in User
Create Dial-In Users (Local Authentication Method)
Security > Dial-in User
Dial-in User feature provides the local authentication server for port security when a
remote (RADIUS) server is not available.
The Dial-in User (local) authentication method allows you to set up 802.1x
authentication parameters internally in the Switch. In this case, the user name and
password combinations are entered with an optional VLAN when they are defined.
Based on these entries, the authentication process of a supplicant is done locally by the
Switch Management Utility using a standard EAPOL (EAP over LAN) transaction.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on Dial-In User.
3. Review the settings.
To create a dial-in user for local authentication, use the following procedure:
In the User Name field, type a name for the user.
In the Password field, type a password for the user.
In the Dynamic VLAN field, enter the VID of the VLAN which you will allow the
user to access. If you enter 0, this field will be ignored.
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
82
TRENDnet User’s Guide
Web Smart Switch Series
RADIUS
Add RADIUS Servers (RADIUS Authentication Method)
Security > RADIUS
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on RADIUS.
3. Review the settings.
Server Priority – Enter the RADIUS Server priority (Highest: 1, Lowest: 5).
Server IP Address –Select IPv4 or IPv6 and set the RADIUS server IP address
and enter the IP address of the RADIUS server you would like to add.
Server Port (1 - 65535) –Set the RADIUS authentic server(s) UDP port. The
default port is 1812.
Accounting Port (1 - 65535) –Set the RADIUS account server(s) UDP port. The
default port is 1813.
Shared Secret – Enter the default authentication and encryption key for RADIUS
communication between the device and the RADIUS server.
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
83
TRENDnet User’s Guide
Web Smart Switch Series
TACACS+
Add TACACS+ Servers (TACACS+ Authentication Method)
Security > TACACS+
Terminal Access Controller Access Control System (TACACS+) provides centralized
security user access validation. The system supports up-to 5 TACACS+ servers.
TACACS+ provides a centralized user management system, while still retaining
consistency with RADIUS and other authentication processes.
The TACACS+ protocol ensures network integrity through encrypted protocol exchanges
between the client and TACACS+ server. The user-assigned TACACS+ parameters are
applied to newly defined TACACS+ servers. If values are not defined, the system defaults
are applied to the new TACACS+ servers.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on TACACS+.
3. Review the settings.
Server Priority – Enter the TACACS+ Server priority (Highest: 1, Lowest: 5).
Server IP Address – Enter the TACACS+ Server IP address.
Server Port – Enter the port number via which the TACACS+ session occurs. The
default port is port 49.
Timeout – Enter the amount of time (in seconds) the device waits for an
answer from the TACACS+ server before retrying the query, or switching to the
next server. Possible field values are 1-255. The default value is 5.
Shared Secret – Enter the default authentication and encryption key for
TACACS+ communication between the device and the TACACS+ server.
Click Add to add the entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
84
TRENDnet User’s Guide
Web Smart Switch Series
Destination MAC Filter
Destination MAC Filter
Security > Destination MAC Filter
This section contains an explanation of the Destination MAC Filter feature as well a
procedure for configuring it. This section includes the following information:
The Destination MAC Filter feature prevents the switch from forwarding packets to a
specified device. On the Destination MAC Filter Page of the Web Management Utility
software, enter the MAC address of the device that you want to filter.
After the switch receives a packet, it examines the destination MAC address of the
packet. If the destination MAC address matches a MAC address set in the filter, the
software prevents the switch from forwarding it and drops the packet.
You may want to block access to a device within your organization. For instance, you
may not want users on the Sales group switch to have access to a server on the
Accounting group switch. You can enter the MAC address of the Accounting server as a
destination MAC address filter on the Sales group switch. When a packet destined for
the Accounting server is received by the Sales group switch, the switch drops the packet.
The Destination MAC Filter is a subset of the static MAC address.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on Destination MAC Filter.
3. Enter the MAC Address to add to the destination filter table. Click Add.
4. The MAC address will be added to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
85
TRENDnet User’s Guide
Web Smart Switch Series
Denial of Service
Denial of Service (DoS)
Security > Denial of Service
The switch has built-in DoS prevention features to restrict specific type of traffic
associated denial of service attacks on your network. By default, all of the DoS settings
are set to Allow, which allow any type of traffic to pass through the switch. Setting one
of the items to Deny will set the switch to check for traffic matching the selected item
and deny any traffic matching the rule. On the other hand, setting one of rules to Deny
may deny a specific type of traffic that may prevent traffic essential to running your
network such as devices in load balancing configuration using virtual IP addresses (Ex. If
ARP MAC SA Mismatch is set to Deny, it may cause devices in load balance configuration
using shared virtual IP addresses communication issues essential for network server
load balancing.) For additional security, you can set these rules to Deny as necessary.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security and click on Denial of Service.
3. Next to the DoS item/rule you would like to activate, click the drop-down menu on
the right hand side and select Deny.
4. Click Apply to save the settings.
Note: You can click “Reset to Default” to restore all DoS settings to Allow.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
86
TRENDnet User’s Guide
Web Smart Switch Series
DHCP Snooping
Settings
DHCP Snooping > Settings
Here is a summary of the rules to observe when you configure DHCP Snooping:
A trusted port is connected to one of the following:
o Directly to the legitimate trusted DHCP Server.
o A network device relaying DHCP messages to and from a trusted
server.
o Another trusted source such as a switch with DHCP Snooping enabled.
o Untrusted ports are connected to DHCP clients and to traffic that
originates outside of the local area network.
The VLANs to which the DHCP Snooping feature applies must be specified in
the DHCP Snooping VLAN Setting configuration.
Any static IP addresses on the network must be manually added to the Binding
Database.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on DHCP Snooping, and click on Settings.
3. Review the settings. Click Apply to save the settings.
DHCP Snooping - Select one of the following radio button choices:
o Enabled - This parameter activates the DHCP Snooping feature.
o Disabled - This parameter de-activates the DHCP Snooping
Pass Through Option 82 - Select one of the following choices from the pull-
down menu:
o Enable - Allows an Option 82 packet to be passed through the switch
without being altered.
o Disable - Blocks an Option 82 packet from passing through the switch.
Verify MAC Address - Select one of the following choices from the pull-down
menu:
o Enable - The MAC address of each ingress ARP packet is validated
when compared against the Binding Table entries. Invalid ARP packets
are discarded.
o Disable - The MAC address of each ingress ARP packet is not validated
against the Binding Table. All ARP packets are forwarded through the
switch without regard to the IP and MAC Address information in the
packet header.
Backup Database - select one of the following choices from the pull-down
menu:
o Enable - The Web Management Utility Software saves a backup copy
of the Binding Table to flash at a specified interval (Database Update
Interval) of time.
o Disable - The Web Management Utility Software does not save a
backup copy of the Binding Table to flash.
Database Update Interval - Enter the database update interval. The range of
this interval is 600 to 86400 seconds.
DHCP Option 82 Insertion - select one of the following choices from the pull-
down menu:
o Enable: The Web Management Utility software inserts the DHCP
Option 82 information into the DHCP packets.
o Disable: The Web Management Utility software does not insert the
DHCP Option 82 information into the DHCP packets.
© Copyright 2018 TRENDnet. All Rights Reserved.
87
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
VLAN
Security > DHCP Snooping > VLAN
In this section, you can define an existing VLAN to apply DHCP snooping.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on DHCP Snooping, and click on VLAN.
3. In the field, enter the existing VLAN ID to apply DHCP Snooping. Then click Add to add
the VLAN entry to the table.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
© Copyright 2018 TRENDnet. All Rights Reserved.
88
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Interfaces
Security > DHCP Snooping > Interfaces
This section allows you to set trusted port interfaces where DHCP servers can be
connected allows or denies DHCP server information to be received on those ports.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on DHCP Snooping, and click on Interfaces.
3. Next to each port, click the Trust drop-down list and select one of the following
options.
Disable: This parameter defines the port as untrusted for the DHCP Snooping
feature.
Enable: This parameter defines the port as trusted for the DHCP Snooping
feature.
Note: You can select the row labeled ALL to apply settings to all ports.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
89
TRENDnet User’s Guide
Web Smart Switch Series
Binding
Security > DHCP Snooping > Binding
The Binding Database displays learned and statically assigned MAC
Address and IP Address information for each host on the local area network.
Dynamically assigned IP addresses from the DHCP server will automatically populate the
table on the Binding Database page as they are assigned by the server. Statically
assigned IP addresses are entered manually by entering the host’s address information
and clicking on the Add button.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on DHCP Snooping, and click on Binding.
3. Review the settings. Click Add to add the database entry to the table.
MAC Address - Enter the host’s MAC Address.
IP Address - Enter the static IP Address assigned to the host.
VLAN - Enter the host’s VLAN ID.
Port - Enter the port number where the host is connected.
Type - Because the IP Address being entered is static, you must select Static.
Lease Time - Enter the time that IP address assignment is valid. The range is 10
to 4294967295 seconds.
In the list, you can click Modify to modify an entry or click Delete or delete the entry.
You can also click Delete All to delete all of the entries in the table. If the entries span
multiple pages, you can navigate page number in the Page field and click Go or you can
click First, Previous, Next, and Last Page to navigate the pages.
MAC Address: This parameter shows the host’s MAC Address.
VLAN ID: This parameter shows the host’s VLAN ID of which the DHCP client is
a member.
IP Address: This parameter is the IP Address assigned by the DHCP server to
the DHCP client.
Port: This parameter is the port number where the DHCP client is connected.
Type: This parameter indicates the following:
Learned-The host IP Address is dynamically assigned by the DHCP server.
Static- The host IP Address is statically assigned. See “Static IP Addresses” on
page 300 for more information.
Lease Time: This parameter is the time that IP address assignment by the DHCP
server is valid.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
90
TRENDnet User’s Guide
Web Smart Switch Series
Dynamic ARP Inspection
Settings
Security > Dynamic ARP Inspection > ARP Access List
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Access List.
3. Enter a name for the List. Click Apply to save the settings.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
ARP Inspection Validation
Security > Dynamic ARP Inspection > ARP Inspection Validation
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Inspection
Validation.
3. Review the settings. Click Apply/Add to save the settings.
Src-MAC – Select Enable from the drop down to enable ARP inspection
validation on source MAC.
Dst-MAC – Select Enable from the drop down to enable ARP inspection
validation on desitnation MAC.
IP - Select Enable from the drop down to enable ARP inspection validation on IP
ARP Access List Name - Enter a name for the list.
VID List – Enter a VID.
Static ACL – Select Yes from the drop down menu to set a static ACL
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
91
TRENDnet User’s Guide
Web Smart Switch Series
ARP Inspection Port Settings
Security > Dynamic ARP Inspection > ARP Inspection Port Settings
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Inspection Port
Settings.
3. Select the Port then its Trust State. Click apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
ARP Inspection VLAN
Security > Dynamic ARP Inspection > ARP Inspection VLAN
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Inspection VLAN
3. Select the VID List then its State. Click apply to save.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
92
TRENDnet User’s Guide
Web Smart Switch Series
ARP Inspection Statistics
Security > Dynamic ARP Inspection > ARP Inspection Statistics
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Inspection
Statistics
3. Select the VID List then click Clear.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
ARP Inspection VLAN
Security > Dynamic ARP Inspection > ARP Inspection VLAN
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on Dynamic ARP Inspection, and click on ARP Inspection VLAN
3. Select the Log Buffer then Apply to view.
© Copyright 2018 TRENDnet. All Rights Reserved.
93
TRENDnet User’s Guide
Web Smart Switch Series
ACL
Access Control configuration allows you to control different aspects of the Ethernet
traffic as it enters the switch ports and is process through the Switch. You can specify
what traffic is permitted or denied to flow through the switch by setting up specific filter
criteria at an ingress port. You can also manage the switching priority of Ethernet
packets. All of this is done by specifying policies that define the filtering and priority
behavior.
ACL Configuration Wizard
Security > ACL > ACL Configuration Wizard
The ACL Configuration Wizard page allows for simple configuration of ACL profiles and
rules.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on ACL, and click on ACL Configuration Wizard.
3. Review the settings. Click Apply to save the settings.
ACL Configuration Wizard
Create an ACL rule by selecting the appropriate fields.
Source- Defines the access packet origin.
o Any- Indicates ACL action will be taken on packets from any source.
o MAC Address – Indicates ACL action will be taken on packets from the
specified MAC address.
o IPv4 Address- Indicates ACL action will be taken on packets from the
specified IPv4 source address.
o IPv6 Address- Indicates ACL action will be taken on packets from the
specified IPv6 address.
Destination- Defines the access packet destination.
o Any- Indicates ACL action will be taken on packets to any destination.
o MAC Address – Indicates ACL action will be taken on packets to the
specified MAC address.
o IPv4 Address- Indicates ACL action will be taken on packets to the
specified IPv4 source address.
o IPv6 Address- Indicates ACL action will be taken on packets to the
specified IPv6 address.
Service Type- Defines the type of service.
o Any- Indicates the ACL action will be taken on packets of all types of
service.
o EtherType- Specifies EtherType packet filtering.
o ICMP All- Specifies ICMP packet filtering.
o IGMP- Specifies IGMP packet filtering.
o TCP All- Specifies TCP packet filtering.
o TCP Source Port- Matches packet to corresponding TCP Source Port.
o TCP Destination Port- Matches packet to corresponding TCP
Destination Port.
o UDP All- Specifies UDP packet filtering.
o UDP Source Port- Matches packet to the corresponding UDP Source
Port.
o UDP Destination Port- Matches packet to the corresponding UDP
Destination Port.
Action- Defines the ACL action linked to the rule criteria.
o Permit- This selection allows ingress packets that conform to the
specified ACL criteria.
o Deny- This selection drops ingress packets that conform to the
specified ACL criteria.
o Rate Limiting- Activates rate limiting if all ACL criteria are met.
o Replace DSCP- Enter a number in the Replaced-DSCP field within the
range of 0 to 63. This field indicates the DSCP level of interest. This
field is not mandatory and you may elect to leave it blank.
Ports- Defines the ports to be configured.
© Copyright 2018 TRENDnet. All Rights Reserved.
94
TRENDnet User’s Guide
Web Smart Switch Series
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
Access Profile List
Security > ACL > Access Profile List
The Access Profile List allows users to view the active ACL profiles.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click ACL, and click on Access Profile List.
In the list, you can click Show Details to view the ACL Profile details, click Edit/New
Rules to edit or create rule details, or delete the entry. You can also click Delete All to
delete all of the entries in the table.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
95
TRENDnet User’s Guide
Web Smart Switch Series
ACL Finder
Security > ACL > ACL Finder
Allows you to view current policies assigned to each port by Index or Sequence.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Security, click on ACL, and click on ACL Finder.
3. The ACL Finder contains the following fields.
Profile Type- Select the Profile type for the drop-down search bar
Profile ID- Defines the Profile ID for the drop-down search bar
Ports- Defines the port number search bar.
Profile ID- Indicates the Profile ID.
Access ID- Indicates the Access ID.
Profile Type- Indicates the profile type.
Summary- Displays the ACL rule summary.
Status- Displays the ACL rule status.
Action- Includes the Delete button for removing ACL rules.
4.View the active poicies by clicking on the Access ID number.
5. Modify existing ACL rules by editting established rule details.
4. At the bottom of the left hand panel, click Save.
5. Select the Config you would like to save the settings to, click Save Settings to Flash,
then click OK.
Note: This step saves all configuration changes to the NV-RAM to ensure that if the
switch is rebooted or power cycled, the configuration changes will still be applied.
© Copyright 2018 TRENDnet. All Rights Reserved.
96
TRENDnet User’s Guide
Web Smart Switch Series
Tools
Firmware Upgrade
Upgrade your switch’s firmware
Tools > Firmware Upgrade
TRENDnet may periodically release firmware upgrades that may add features or fix
problems associated with your TRENDnet switch model and version. To check if there is
a firmware upgrade available for your device, please check your TRENDnet model and
version using the link. http://www.trendnet.com/downloads/
In addition, it is also important to verify if the latest firmware version is newer than the
one your switch is currently running. To identify the firmware that is currently loaded on
your switch, log in to the switch, click on the System Info section or click on Tools and
click on Firmware Upgrade. The firmware used by the switch is listed as Runtime Image
or Image Version. If there is a newer version available, also review the release notes to
check if there were any new features you may want or if any problems were fixed that
you may have been experiencing.
1. If a firmware upgrade is available, download the firmware to your computer.
2. Unzip the file to a folder on your computer.
Please note the following:
Do not interrupt the firmware upgrade process. Do not turn off the device or
press the Reset button during the upgrade.
If you are upgrade the firmware using a laptop computer, ensure that the laptop
is connected to a power source or ensure that the battery is fully charged.
Disable sleep mode on your computer as this may interrupt the firmware upgrade
process.
Do not upgrade the firmware using a wireless connection, only using a wired
network connection.
Any interruptions during the firmware upgrade process may permanently
damage your switch.
Firmware Upgrade via HTTP Settings
Tools > Firmware Upgrade
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Firmware Upgrade.
3. Select the Image you would like to upgrade.
Depending on your web browser, in the via HTTP Settings section, click Browse or
Choose File.
4. Navigate to the folder on your computer where the unzipped firmware file (.hex) is
located and select it.
5. Click Apply. If prompted, click Yes or OK.
© Copyright 2018 TRENDnet. All Rights Reserved.
97
TRENDnet User’s Guide
Web Smart Switch Series
Firmware Upgrade via TFTP Settings
Tools > Firmware Upgrade
Note: Before using this method, you will require a TFTP server. There are third party
TFTP server applications available for this function. If you are not familiar with the TFTP
protocol, it is recommended to use the HTTP method.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Firmware Upgrade.
3. Make sure your TFTP server is running and note the IP address of your server and
firmware file name. The TFTP server should be in the same IP subnet as the switch.
Note: It is recommended to that the firmware file (.hex) is placed in your TFTP server
root directory.
5. Review the settings. Click Apply to start the firmware upgrade.
TFTP Server IP: Enter the IP address of your TFTP server.
Image File Name: Enter the firmware filename with extension. (.hex)
Retry Count: Defined the number of time to attempt to pull the firmware file
from the TFTP server.
6. Click Apply to start the firmware upgrade.
Config Backup Restore
Config Backup/Restore
Tools > Configuration > Backup/Restore
You may have added many customized settings to your switch and in the case that you
need to reset your switch to default, all your customized settings would be lost and
would require you to manually reconfigure all of your switch settings instead of simply
restoring from a backed up switch configuration file. The configuration will be backed up
or restored only to the currently used image.
Backup/Restore via HTTP Settings
To backup your switch configuration:
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Configuration and click on Backup/Restore, under via HTTP.
3. Click Backup to save the configuration file (config.bin) to your local hard drive.
Startup-config refers to the configuration that was used to startup this switch.
Note: If prompted, choose the location on your local hard drive. If you are not prompted,
the configuration file (config.bin) will be saved to your default downloads folder.
To restore your switch configuration:
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Configuration and click on Backup/Restore, under via HTTP.
© Copyright 2018 TRENDnet. All Rights Reserved.
98
TRENDnet User’s Guide
Web Smart Switch Series
3. Next to Select File, depending on your web browser, click on Browse or Choose File.
4. A separate file navigation window should open.
5. Select the switch configuration file to restore and click Restore. (Default Filename:
config.bin). If prompted, click Yes or OK.
6. Wait for the switch to restore settings.
Backup/Restore via TFTP Settings
Note: Before using this method, you will require a TFTP server. There are third party
TFTP server applications available for this function. If you are not familiar with the TFTP
protocol, it is recommended to use the HTTP method.
To backup your switch configuration:
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Configuration and click on Backup/Restore, under via TFTP.
3. Make sure your TFTP server is running and note the IP address of your server and
firmware file name. The TFTP server should be in the same IP subnet as the switch.
4. Review the settings. Click Backup to save the configuration file (config.bin) to your
local hard drive on your TFTP server root directory.
TFTP Server IP: Enter the IP address of your TFTP server.
Config File – Select the configuration. Startup-config refers to the configuration
that was used to startup this switch.
Config File Name: Enter the configuration file name for the backup. (Default:
config.bin)
To restore your switch configuration:
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools, click on Configuration and click on Backup/Restore, under via TFTP.
3. Make sure your TFTP server is running and note the IP address of your server and
configuration file name. The TFTP server should be in the same IP subnet as the switch.
Note: It is recommended to put the configuration file (config.bin) is placed in your TFTP
server root directory.
4. Review the settings. Click Restore to restore the switch configuration file (config.bin)
from your local hard drive from your TFTP server root directory.
TFTP Server IP: Enter the IP address of your TFTP server.
Config File – Select the configuration. Startup-config refers to the configuration
that was used to startup this switch.
Config File Name: Enter the configuration file name to restore. (Default:
config.bin)
5. Wait for the switch to restore settings.
© Copyright 2018 TRENDnet. All Rights Reserved.
99
TRENDnet User’s Guide
Web Smart Switch Series
Diagnostics
Cable Diagnostics Test
Tools > Diagnostics
The switch provides a basic cable diagnostic tool in the GUI for verifying the pairs in
copper cabling and estimated distance for troubleshooting purposes.
Note:
1. If the cable length displays N/A, it means that the cable length is Not
Available. The may be due to the port being unable to determine the estimated
cable length. If length is displayed as “N/A” it means the cable length is “Not
Available”. This is due to the port being unable to obtain cable length/either
because its link speed is 10M or 100M, or the cables used are broken and/or of
bad in quality.
2. The deviation of “Cable Fault Distance” is +/- 2 meters. No cable may be
displayed in the table when the cable is less than 2 meters in length.
3. The test also measures the cable fault and identifies the fault in length
according to the distance from the switch.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools and click on Cable Diagnostic.
3. Click on the Port drop-down list to select which port to run the cable diagnostic and
click Test Now to run the test.
The results will be displayed in the Cable Diagnostic Table below.
Test Results: Displays the diagnostic results for each pair in the cable. One of
the following cable status parameters is displayed:
o OK: There is no problem detected with the cable.
o Open in Cable: There is an open wire within the cable.
o Short in Cable: Two wires are shorted together within the cable.
o Cross talk in Cable: There is crosstalk detected between one pair
o of wires and another pair within the cable.
Cable Fault Distance: This parameter specifies the distance from the switch
port to the cable fault.
Cable Length: This parameter specifies the length of the cable connected to the
switch port.
© Copyright 2018 TRENDnet. All Rights Reserved.
100
TRENDnet User’s Guide
Web Smart Switch Series
Reboot
Reboot/Reset to factory defaults
Tools > Reboot
This section provides the procedures for rebooting or resetting the switch to factory
default settings.
To reboot your switch:
You may want to reboot your switch if you are encountering difficulties with your switch
and have attempted all other troubleshooting.
Note: You may want to save the settings to flash before reboot the switch under Save
Settings to Flash (menu) > Save Settings to Flash (button). If you have not saved your
current configuration settings to flash first, the configuration changes will be lost after a
reboot.
There are two methods that can be used to reboot your switch.
Hardware Method: Using a paper clip, on the front panel of the switch, push
and hold the Reset button between 1~5 seconds and release.
Software Method (Switch Management Page):
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools and click on Reboot.
3. Click the Reboot Type drop-down list and select Normal and click Apply to initiate a
reboot. Wait for the switch complete the rebooting process.
To reset your switch to factory defaults:
You may want to reset your switch to factory defaults if you are encountering difficulties
with your switch and have attempted all other troubleshooting. Before you reset your
switch to defaults, if possible, you should backup your switch configuration first, see
“Backup/Restore” on page 88.
There are two methods that can be used to reset your switch to factory defaults.
Hardware Method: Using a paper clip, on the front panel of the switch, push
and hold the Reset button more than 6 seconds and release. Located on the
front panel of your switch, see “Product Hardware Features” on page 2. Use
this method if you are encountering difficulties with accessing your switch
management page.
Software Method (Switch Management Page):
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools and click on Reboot.
3. Click the Reboot Type drop-down list and select from one of the following options
Factory Default: Resets all switch configuration settings to factory defaults
including the IP address.
Factory Default Except IP: Resets all switch configuration settings to factory
defaults and leaves the current IP address configuration.
The switch factory default settings are below.
Administrator User Name
admin
Administrator Password
admin
Switch IP Address
192.168.10.200
Switch Subnet Mask
255.255.255.0
© Copyright 2018 TRENDnet. All Rights Reserved.
101
TRENDnet User’s Guide
Web Smart Switch Series
Ping
Network Connectivity Test (Ping Tool)
Tools > Ping
This chapter provides the procedure to ping a node on your network from the switch.
This procedure is useful in determining whether an active link exists between the switch
and another network device.
The device you are pinging must be a member of the Default VLAN and within the same
local area network as your switch. In other words, the port on the switch through which
the node is communicating with the switch must be an untagged or tagged member of
the Default VLAN.
1. Log into your switch management page (see “Access your switch management page”
on page 5).
2. Click on Tools and click on Ping.
3. Review the settings. Click Start to start the network connectivity ping test. After the
ping test is activate, you can click Show Ping Results to check the ping test result.
Destination IP Address - The IP address of the node you want to ping in the
IPv4 or IPv6 format.
Timeout Value - Specifies the length of time, in seconds, the switch waits for a
response before assuming that a ping has failed.
Number of Ping Requests - Specifies the number of ping requests you want the
switch to perform.
© Copyright 2018 TRENDnet. All Rights Reserved.
102
TRENDnet User’s Guide
Web Smart Switch Series
Using the Web Smart Switch Management Utility
The Web Smart Management Utility allows you to do the following:
You can easily discover all TRENDnet web smart switches on your network
using the discover feature.
You can modify the IP address settings, change the admin password, and
upgrade firmware for multiple switches.
System Requirements
Operating System: Windows® 10 (32/64-bit), 8 (32/64-bit), Windows 7 (32/64-bit), Vista
(32/64-bit), or XP (32/64-bit)
Installation
1. Download the latest version of the utility by navigating to
http://www.trendnet.com/support and selecting the switch’s model number within
the Product Download drop-down list.
2. Extract the contents of the .zip file and run the .exe installer to install the utility.
3. At the Utility installation window, click Next.
4. At the Install Location installation window, click Next.
© Copyright 2018 TRENDnet. All Rights Reserved.
103
TRENDnet User’s Guide
Web Smart Switch Series
5. At the Installation, click Install.
6. In the Completion window, click Finish.
Using the Utility
Launching the Utility
Upon completing the software installation, a desktop shortcut is automatically created.
Double-click the icon to start the utility or open the utility if it is already running. Closing
the utility will exit the application. You can also click Exit at the bottom of the utility user
interface to exit the application.
You can also launch the utility from the Start Menu programs.
Start > Programs (or All Programs) > TRENDnet Management Utility > TRENDnet
Management Utility.exe
© Copyright 2018 TRENDnet. All Rights Reserved.
104
TRENDnet User’s Guide
Web Smart Switch Series
Discovery List
This is the list where you can discover all the Web management devices in your network.
By pressing the “Discovery” button, you can list all the Web Smart Management
switches in the discovery list.
Double click or press the “Add to monitor list” button to select a device from the
Discovery List to the Monitor List.
System word definitions in the Discovery List:
- MAC Address: Shows the device MAC Address.
- IP Address: Shows the current IP address of the device.
- Protocol version: Shows the version of the Utility protocol.
- Product Name: Shows the device product name.
- System Name: Shows the appointed device system name.
- IP Mode: Shows the DHCP status of the device.
- Location: Shows where the device is located.
- Subnet Mask: Shows the Subnet Mask set of the device.
- Gateway: Shows the Gateway set of the device.
- Group Interval:
Monitor List
All the Web Smart switches in the Monitor List can be monitored; you can also receive
the trap and show the status of the device.
System word definitions in the Monitor List:
- S: Shows the system symbol of the Web-Smart device, represent for device
system is not alive.
- IP Address: Shows the current IP address of the device.
- MAC Address: Shows the device MAC Address.
- Protocol version: Shows the version of the Utility protocol.
- Product Name: Shows the device product name.
- System Name: Shows the appointed device system name.
- IP Mode: Shows the DHCP status of the device.
- Location: Shows where the device is located.
- Subnet Mask: Shows the Subnet Mask set of the device.
- Gateway: Shows the Gateway set of the device.
- Group Interval:
- Add Item: To add a device to the Monitor List manually, enter the IP Address of
the device that you want to monitor.
- Delete Item: To delete the device in the Monitor List.
© Copyright 2018 TRENDnet. All Rights Reserved.
105
TRENDnet User’s Guide
Web Smart Switch Series
Device Setting
You can set the device by using the function key in the Device Setting Dialog box.
Configuration Setting: In this Configuration Setting, you can set the IP Address, Subnet
Mask, Gateway, Group Interval, System name, Location and IP Mode.
Select the device in the Discovery list or Monitor List and press this button, then the
Configuration Setting window will appear, after entering the data that you want to
change, you must enter the password and press the “Set” to process the data change
immediately. The default password of TRENDnet Web Smart Switches is “admin”.
Password Change: You can use this Password Change when you need to change the
password, fill in the password needed in the dialog box and press “Set” button to
proceed the password change immediately.
Firmware Upgrade: When the device has a new function, there will be a new firmware
to update the device, use this function to update.
Access Web: Double click the device in the Monitor List or select a device in the Monitor
List and press this “Web Access” button to access the device in Web browser.
DHCP Refresh: Press this “DHCP Refresh” button to refresh IP address of selected device
form DHCP server. (Only applies if Web Smart switch IP address settings are set to
DHCP).
© Copyright 2018 TRENDnet. All Rights Reserved.
106
TRENDnet User’s Guide
Web Smart Switch Series
Main Menu Options
In the “File TAB”, there are Monitor Save, Monitor Save As, Monitor Load and Exit.
- Monitor Save: To record the setting of the Monitor List to the default, when you
open the Web Management Utility next time, it will auto load the default
recorded setting.
- Monitor Save As: To record the setting of the Monitor List in appointed filename
and file path.
- Monitor Load: To manually load the setting file of the Monitor List.
- Exit: To exit the Web Management Utility.
In the “View TAB”, there are view log and clear log function, this function will help you
to show trap setting.
- View Log: To show the event of the Web Management Utility and the device.
- Clear Log: to clear the log.
In the “Option TAB”, there are Refresh Time and Group Interval
- Refresh Time: This function helps you to refresh the time of monitoring the
device. Choose 15 secs, 30 secs, 1 min, 2 min and 5 min to select the time of
monitoring.
- Group Interval: 120~1225
In the “Help TAB”, there is About function, it will show out the version of the Web
Management Utility.
© Copyright 2018 TRENDnet. All Rights Reserved.
107
TRENDnet User’s Guide
Web Smart Switch Series
Hardware Features and Specifications
TEG-082WS (2.0R)
TEG-204WS (1.0R)
TEG-284WS (1.0R)
TEG-524WS (1.0R)
Device Interface
LED Mode select button and LED indicators
8 x Gigabit ports
16 x Gigabit ports
24 x Gigabit ports
48 x Gigabit ports
2 x SFP slots
4 x Shared Gigabit ports (RJ-45/SFP)
Data Transfer Rate
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
Switch fabric
20 Gbps
40 Gbps
56 Gbps
104 Gbps
RAM buffer
4.1 Mbits
12 Mbits
MAC Address Table
8K entries
16K entries
Jumbo Frames
10 Kbytes
Forwarding
14.9Mpps (64-byte packet size)
29.8Mpps (64-byte packet size)
41.7Mpps (64-byte packet size)
77.4Mpps (64-byte packet size)
HOL Blocking Prevention
HOL Blocking Prevention supported on all models
Power Input
100 - 240V AC, 50/60 Hz, internal power supply
Power Consumption
7.1 Watts (max.)
14.6 Watts (max.)
17.3 Watts (max.)
34.9 Watts (max.)
Fan Quantity
Fanless
Noise Level
N/A (fanless)
MTBF
1,092,872 hours
835,519 hours
787,004 hours
400,158 hours
© Copyright 2018 TRENDnet. All Rights Reserved.
108
TRENDnet User’s Guide
Web Smart Switch Series
TEG-082WS (2.0R)
TEG-204WS (1.0R)
TEG-284WS (1.0R)
TEG-524WS (1.0R)
Operating Temperature
-5° – 50°C (23° - 122°F)
Operating Humidity
Max. 95% non-condensing
Dimensions
280 x 125.8 x 44 mm
(11 x 5 x 1.74 in.)
280 x 180 x 44 mm
(11 x 7 x 1.74 in.)
440 x 140 x 44mm
(17.4 x 5.51 x 1.74 in.)
440 x 210 x 44mm
(17.3 x 8.3 x 1.74 in.)
Rack mountable 1U height
Weight
0.98 kg (2.2 lbs.)
1.76 kg (3.88 lbs.)
2.15 kg (4.73 lbs.)
3.48 kg (7.67 lbs.)
Certifications
CE
FCC
UL
Warranty
Lifetime
Package Contents
In addition to the switch, the package contents include the following:
Quick Installation Guide
Rack mount kit
Power cord (1.8m/6 ft.)
© Copyright 2018 TRENDnet. All Rights Reserved.
109
TRENDnet User’s Guide
Web Smart Switch Series
Web Smart Switch Series Software & Technical Specifications
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3az
Management
CLI (Telnet / SSHv2) for basic
administration
HTTP/HTTPS (SSL v2/3 TLS) Web based
GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6
Static IP, DHCPv6, Auto configuration
Dual image and configuration
TC Root/Protect
MIB
IP Forward Table MIB RFC 1354
RMON MIB RFC 1271
IPv4 MIB RFC 1213
IPv6 MIB RFC 2465
GVRP MIB IEEE 802.1Q-VLAN
LA MIB IEEE 802.3ad
LLDP MIB IEEE 802.1ab
IGMP Snooping MIB RFC 2933
MLD Snooping MIB RFC 3019
Private VLAN MIB IEEE 802.1Q
DHCP Snooping MIB RFC 2026
QoS MIB RFC 4323
SNMP MIB RFC 3415
STP MIB RFC 4318
PNAC MIB IEEE 802.1x
VLAN MIB IEEE 802.1q
DNS MIB RFC 1611
ACL MIB
Bandwidth CTRL MIB
LBD MIB
Mirror MIB
IPv6 Neighbor MIB
SNTP MIB
Storm CTRL MIB
Statistics MIB
Tool MIB
Voice VLAN MIB
DoS MIB
Spanning Tree
IEEE 802.1D STP (Spanning Tree
protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree
protocol)
IEEE 802.1s MSTP (Multiple Spanning
Tree protocol)
Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code
Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority,
Weighted Round Robin (WRR)
VLAN
Multiple management VLAN assignment
Asymmetric VLAN
802.1Q Tagged VLAN
Dynamic GVRP
MAC-based VLAN
Protocol-based VLAN
Up to 256 VLAN groups, ID Range 1-
4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
© Copyright 2018 TRENDnet. All Rights Reserved.
110
TRENDnet User’s Guide
Web Smart Switch Series
Multicast
IGMP Snooping v1, v2, v3
MLD Snooping v1, v2
IGMP fast leave
MVR (Multicast VLAN Registration)
Static Multicast Address
Up to 256 multicast entries
Port Mirror
RX, TX, or Both
Many to one
Access Control
802.1X Port-Based Network Access
Control , RADIUS, TACACS+
Local Dial In User Authentication
DHCP Snooping (per VLAN)
Loopback Detection
Duplicated Address Detection
Trusted Host
Denial of Service (DoS)
IP MAC port binding
Dynamic ARP inspection
Block unknown multicast
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
IP Protocol 0-255
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
IPv6 Address (IPv6 only)
Layer 3 Features
IPv4 / IPv6 static routing
IP interfaces: Up to 6
Routing table entries: Up to 32 (IPv4 /
IPv6)
ARP table (up to 128 entries)
Inter-VLAN routing
Compatibility
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
© Copyright 2018 TRENDnet. All Rights Reserved.
111
TRENDnet User’s Guide
Web Smart Switch Series
Quick Installation GuideTroubleshooting
Q: I typed http://192.168.10.200 in my Internet Browser Address Bar, but an error
message says “The page cannot be displayed.” How can I access the switch
management page?
Answer:
1. Check your hardware settings again. See “Switch Installation” on page 8.
2. Make sure the Power and port Link/Activity and WLAN lights are lit.
3. Make sure your network adapter TCP/IP settings are set to Use the following IP
address or Static IP (see the steps below).
4. Make sure your computer is connected to one of the Ethernet switch ports.
5. Since the switch default IP address is 192.168.10.200, make sure there are no other
network devices assigned an IP address of 192.168.10.200
Windows 7/8.1/10
a. Go into the Control Panel, click Network and Sharing Center.
b. Click Change Adapter Settings, right-click the Local Area Connection icon.
c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).
d. Then click Use the following IP address, and make sure to assign your
network adapter an IP address in the subnet of 192.168.10.x. Click OK
Windows Vista
a. Go into the Control Panel, click Network and Internet.
b. Click Manage Network Connections, right-click the Local Area Connection
icon and click Properties.
c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.
d. Then click Use the following IP address, and make sure to assign your
network adapter an IP address in the subnet of 192.168.10.x. Click OK
Windows XP/2000
a. Go into the Control Panel, double-click the Network Connections icon
b. Right-click the Local Area Connection icon and the click Properties.
c. Click Internet Protocol (TCP/IP) and click Properties.
d. Then click Use the following IP address, and make sure to assign your
network adapter an IP address in the subnet of 192.168.10.x. Click OK
Note: If you are experiencing difficulties, please contact your computer or operating
system manufacturer for assistance.
Q: If my switch IP address is different than my network’s subnet, what should I do?
Answer:
You should still configure the switch first. After all the settings are applied, go to the
switch configuration page, click on System, click IPv4 Setup and change the IP address of
the switch to be within your network’s IP subnet. Click Apply, then click OK. Then click
Save Settings to Flash (menu) and click Save Settings to Flash to save the IP settings to
the NV-RAM.
Q: I changed the IP address of the switch, but I forgot it. How do I reset my switch?
Answer:
Using a paper clip, push and hold the reset button on the rear of the switch and release
after 6~10 seconds.
The default IP address of the switch is 192.168.10.200. The default user name and
password is “admin”.
© Copyright 2018 TRENDnet. All Rights Reserved.
112
TRENDnet User’s Guide
Web Smart Switch Series
Appendix
How to find your IP address?
Note: Please note that although the following procedures provided to follow for your
operating system on configuring your network settings can be used as general
guidelines, however, it is strongly recommended that you consult your computer or
operating system manufacturer directly for assistance on the proper procedure for
configuring network settings.
Command Prompt Method
Windows 2000/XP/Vista/7/8.1/10
1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run
dialog box.
2. In the dialog box, type cmd to bring up the command prompt.
3. In the command prompt, type ipconfig /all to display your IP address settings.
MAC OS X
1. Navigate to your Applications folder and open Utilities.
2. Double-click on Terminal to launch the command prompt.
3. In the command prompt, type ipconfig getifaddr <en0 or en1> to display the wired
or wireless IP address settings.
Note: en0 is typically the wired Ethernet and en1 is typically the wireless Airport
interface.
Graphical Method
MAC OS 10.6/10.5
1. From the Apple menu, select System Preferences.
2. In System Preferences, from the View menu, select Network.
3. In the Network preference window, click a network port (e.g., Ethernet, AirPort,
modem). If you are connected, you'll see your IP address settings under "Status:"
MAC OS 10.4
1. From the Apple menu, select Location, and then Network Preferences.
2. In the Network Preference window, next to "Show:", select Network Status. You'll see
your network status and your IP address settings displayed.
Note: If you are experiencing difficulties, please contact your computer or operating
system manufacturer for assistance.
How to configure your network settings to use a static IP address?
Note: Please note that although the following procedures provided to follow for your
operating system on configuring your network settings can be used as general
guidelines, however, it is strongly recommended that you consult your computer or
operating system manufacturer directly for assistance on the proper procedure for
configuring network settings.
Windows 7/8.1/10
a. Go into the Control Panel, click Network and Sharing Center.
b. Click Change Adapter Settings, right-click the Local Area Connection icon.
c. Then click Properties and click Internet Protocol Version 4 (TCP/IPv4).
d. Then click Use the following IP address, and assign your network adapter a
static IP address. Click OK
Windows Vista
a. Go into the Control Panel, click Network and Internet.
b. Click Manage Network Connections, right-click the Local Area Connection
icon and click Properties.
c. Click Internet Protocol Version (TCP/IPv4) and then click Properties.
d. Then click Use the following IP address, and assign your network adapter a
static IP address. Click OK
Windows XP/2000
a. Go into the Control Panel, double-click the Network Connections icon
b. Right-click the Local Area Connection icon and the click Properties.
c. Click Internet Protocol (TCP/IP) and click Properties.
d. Then click Use the following IP address, and assign your network adapter a
static IP address. Click OK
MAC OS 10.4/10.5/10.6
a. From the Apple, drop-down list, select System Preferences.
b. Click the Network icon.
c. From the Location drop-down list, select Automatic.
d. Select and view your Ethernet connection.
© Copyright 2018 TRENDnet. All Rights Reserved.
113
TRENDnet User’s Guide
Web Smart Switch Series
In MAC OS 10.4, from the Show drop-down list, select Built-in
Ethernet and select the TCP/IP tab.
In MAC OS 10.5/10.6, in the left column, select Ethernet.
e. Configure TCP/IP to use a static IP.
In MAC 10.4, from the Configure IPv4, drop-down list, select Manually
and assign your network adapter a static IP address. Then click the
Apply Now button.
In MAC 10.5/10.6, from the Configure drop-down list, select Manually
and assign your network adapter a static IP address . Then click the
Apply button.
f. Restart your computer.
Note: If you are experiencing difficulties, please contact your computer or operating
system manufacturer for assistance.
How to find your MAC address?
In Windows 2000/XP/Vista/7/8.1/10,
Your computer MAC addresses are also displayed in this window, however, you can type
getmac –v to display the MAC addresses only.
In MAC OS 10.4,
1. Apple Menu > System Preferences > Network
2. From the Show menu, select Built-in Ethernet.
3. On the Ethernet tab, the Ethernet ID is your MAC Address.
In MAC OS 10.5/10.6,
1. Apple Menu > System Preferences > Network
2. Select Ethernet from the list on the left.
3. Click the Advanced button.
3. On the Ethernet tab, the Ethernet ID is your MAC Address.
How do I use the ping tool to check for network device connectivity?
Windows 2000/XP/Vista/7/8.1/10
1. On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run
dialog box.
2. In the dialog box, type cmd to bring up the command prompt.
3. In the command prompt, type ping <ip_address> with the <ip_address> being the IP
address you want ping and check for connectivity.
Example: Usage of ping command and successful replies from device.
C:\Users>ping 192.168.10.100
Pinging 192.168.10.100 with 32 bytes of data:
Reply from 192.168.10.100: bytes=32 time<1ms TTL=64
Reply from 192.168.10.100: bytes=32 time<1ms TTL=64
Reply from 192.168.10.100: bytes=32 time<1ms TTL=64
Reply from 192.168.10.100: bytes=32 time<1ms TTL=64
Ping statistics for 192.168.10.100:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 0ms, Maximum = 0ms, Average = 0ms
MAC OS X
1. Navigate to your Applications folder and open Utilities.
2. Double-click on Terminal to launch the command prompt.
3. In the command prompt, type ping –c <#> <ip_address> with the <#> ping being the
number of time you want to ping and the <ip_address> being the IP address you want
ping and check for connectivity.
Example: ping –c 4 192.168.10.100
© Copyright 2018 TRENDnet. All Rights Reserved.
114
TRENDnet User’s Guide
Web Smart Switch Series
Federal Communication Commission Interference Statement
This device complies with Part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received; including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy, and if
it is not installed and used in accordance with the instruction manual, it may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at his own expense.
WARNING: Any changes or modifications to this product not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
RoHS
This product is RoHS compliant.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 2004/108/EC
and 2006/95/EC.
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
EN 55032:2015 (CISPR32:2015) (Class A)
EN 61000-3-2:2014
EN 61000-3-3: 2013
EN55024:2010 + A1:2015
AS/NZS CISPR 32:2015
Directives:
EMC Directive 2014/30/EU
RoHS Directive 2011/65/EU
WEEE Directive 2012/19/EU
REACH Regulation (EC) No. 1907/2006
Low Voltage Directive 2014/35/EU
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Limited Warranty
115
Limited Warranty
TRENDnet warrants only to the original purchaser of this product from a TRENDnet
authorized reseller or distributor that this product will be free from defects in material
and workmanship under normal use and service. This limited warranty is non-
transferable and does not apply to any purchaser who bought the product from a
reseller or distributor not authorized by TRENDnet, including but not limited to
purchases from Internet auction sites.
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under
normal use and service. Specific warranty periods are listed on each of the respective
product pages on the TRENDnet website.
AC/DC Power Adapter, Cooling Fan, and Power Supply carry a one-year
warranty.
Limited Lifetime Warranty
TRENDnet offers a limited lifetime warranty for all of its metal-enclosed network
switches that have been purchased in the United States/Canada on or after 1/1/2015.
Cooling fan and internal power supply carry a one-year warranty
To obtain an RMA, the ORIGINAL PURCHASER must show Proof of Purchase and return
the unit to the address provided. The customer is responsible for any shipping-related
costs that may occur. Replacement goods will be shipped back to the customer at
TRENDnet’s expense.
Upon receiving the RMA unit, TRENDnet may repair the unit using refurbished parts. In
the event that the RMA unit needs to be replaced, TRENDnet may replace it with a
refurbished product of the same or comparable model.
In the event that, after evaluation, TRENDnet cannot replace the defective product or
there is no comparable model available, we will refund the depreciated value of the
product.
If a product does not operate as warranted during the applicable warranty period,
TRENDnet shall reserve the right, at its expense, to repair or replace the defective
product or part and deliver an equivalent product or part to the customer. The
repair/replacement unit's warranty continues from the original date of purchase. All
products that are replaced become the property of TRENDnet. Replacement products
may be new or reconditioned. TRENDnet does not issue refunds or credit. Please
contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any software, firmware, information, or memory
data of customer contained in, stored on, or integrated with any products returned to
TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or attempt to
service the product by any unauthorized service center. This warranty is voided if (i) the
product has been modified or repaired by any unauthorized service center, (ii) the
product was subject to accident, abuse, or improper use, or (iii) the product was subject
to conditions more severe than those specified in the manual.
Warranty service may be obtained by contacting TRENDnet within the applicable
warranty period and providing a copy of the dated proof of the purchase. Upon proper
submission of required documentation, a Return Material Authorization (RMA) number
will be issued. An RMA number is required in order to initiate warranty service support
for all TRENDnet products. Products that are sent to TRENDnet for RMA service must
have the RMA number marked on the outside of return packages and sent to TRENDnet
prepaid, insured and packaged appropriately for safe shipment. International customers
© Copyright 2018 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
Limited Warranty
116
shipping from outside of the USA and Canada are responsible for any return shipping
and/or customs charges, including but not limited to, duty, tax, and other fees.
Refurbished product: Refurbished products carry a 90-day warranty after date of
purchase. Please retain the dated sales receipt with purchase price clearly visible as
evidence of the original purchaser's date of purchase. Replacement products may be
refurbished or contain refurbished materials. If TRENDnet, by its sole determination, is
unable to replace the defective product, we will offer a refund for the depreciated value
of the product.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS
WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S
OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE
EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR
IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, OR USE OF TRENDNET'S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND
EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST
OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT,
IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR
MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY
ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW, TRENDNET ALSO
EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL,
INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR
PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL
LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION,
MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY
OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND
OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY
FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL
OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of
California.
Some TRENDnet products include software code written by third party developers.
These codes are subject to the GNU General Public License ("GPL") or GNU Lesser
General Public License ("LGPL").
Visit http://www.trendnet.com/gpl or the support section on
http://www.trendnet.com and search for the desired TRENDnet product to access to
the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are
subject to the copyrights of the developers. TRENDnet does not provide technical
support for these codes. Please visit http://www.gnu.org/licenses/gpl.txt or
http://www.gnu.org/licenses/lgpl.txt for specific terms of each license.
PWP07172015v3 2019/08/08
