TTE Technology 32D100 LCD TV User Manual 70 32MS55 QSG9A
TTE Technology, Inc. LCD TV 70 32MS55 QSG9A
User Manual
Ready.
Set.
Go!
D-Series / D100
Model No. Serial No.
Purchase Date Dealer/Address/Phone
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualied service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the
product.
This symbol indicates that this product
incorporates double insulation between
hazardous main voltage and user accessible
parts. When servicing, use only identical
replacement parts.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
WARNING
To reduce the risk of re or electric shock,
donot expose this product to rain or
moisture. dripping or splashing. No
objects lled withThis product should
not be exposed to liquids, such as vases,
should be placed on the apparatus.
WARNING
The TV is unstable if it is not properly
attachedto the base or mounted to the
wall. Please follow the base or wall
mounting instructionsprovided in the
User’s Guide to ensure your safety.
Warning: The batteries shall not be exposed to excessive heat such as sunshine,
re or the like.
Important Information
Refer to the identication/rating label located on the back panel of your product for its
proper operating voltage.
Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of
the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which
provides guidelines for proper grounding and, in particular, species that the cable
ground should be connected to the grounding system of the building as close to the
point of cable entry as practical.
Important: This television is a table model and is designed to sit on a rm, at surface.
Don’t place the TV on soft carpeting or similar surface because the ventilation slots on
the bottom of the unit will be blocked, resulting in reduced lifetime from overheating.
To assure adequate ventilation for this product, maintain a spacing of 4 inches from
the top and side of the TV receiver and 2 inches from the rear of the TV receiver and
other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to
prevent the TV from being accidentally tipped over, pushed o, or pulled o. This
could cause personal injury and/or damage to the TV. Refer to the Important Safety
Instructions on the next page.
The Power button (followed by the power symbol) on this TV and your remote
control puts the TV into a very low-power standby mode but will not completely turn
the power o. In order to completely shut the power o, you will need to disconnect
the power cord from the outlet. The mains plug/appliance coupler is used to
completely turn o the device. If you prefer to completely turn o the device, you
should install the TV in a manner that allows you to disconnect the power
Product Registration
Please register your TCL TV purchase on-line at www.tclusa.com. It will make it easier
to contact you should it ever be necessary. Registration is not required for warranty
coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase.
Attach it here and record the serial and model numbers in case you need them. These
numbers are located on the product.
Warning: Changes or modications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Keep the apparatus at least 20cm far sway trom the human body.
To bring you better visual experience, please remove the energy guide label, it
available, trom TV tront panel and screen betore use.
Antenna/Cable 480i, 480p, 720p, l080i (NTSC, ATSC, and QAM formatal
Composite Video 480i, 576i
HDMI 480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz, 576i/p, 1080i/p/50Hz
Input Signat Compatibility
1
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other . A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong are
provided for your safety. If the provided plug does not t into your outlet, consult an
electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11.Only use attachments/accessories specied by the manufacturer.
12.Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13.Unplug this apparatus during lightning storms or when unused for long periods of
time.
14.Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped. ANSI/NFPA
15.If safety relevant, the following information should be included as far as applicable:-
minimum distances around the apparatus for sucient ventilation;- the ventilation
should not be inpeded by covering the ventilation openings with items, such as
newspapers, table-cloths, curtains, etc.;- no naked ame sources, such as lighted
candles, should be placed on the apparatus;- attention should be drawn to the
environmental aspects of battery disposal;- the use of apparatus in tropical and/or
moderate climates.

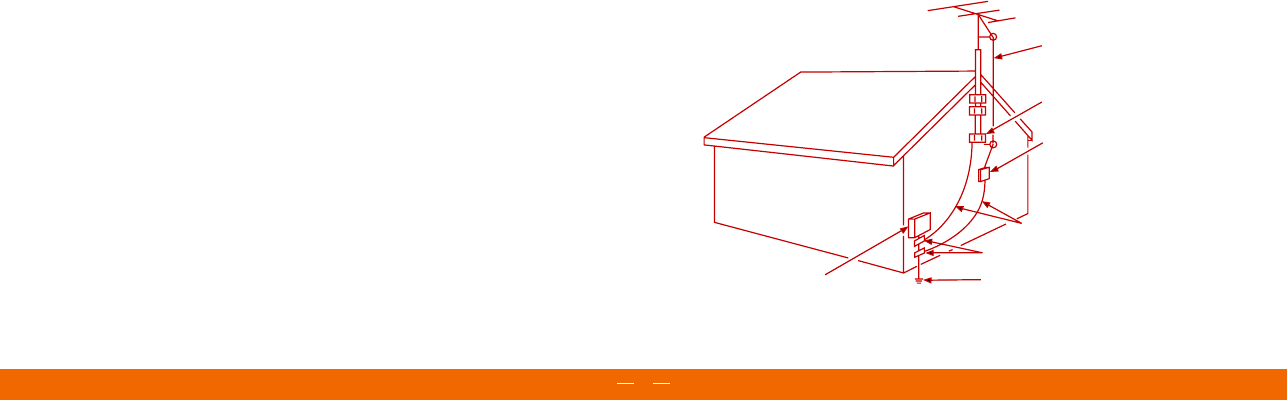

16.If an outside antenna or cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide some protection against
voltage surges and built-up static charges. Section 810 of the National Electrical
Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1)
provides information with respect to proper grounding of the mast and supporting
structure, grounding of the lead in wire to an antenna-discharge unit, size of ground-
ing conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode. See following example:
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART
250, PARTH)
2

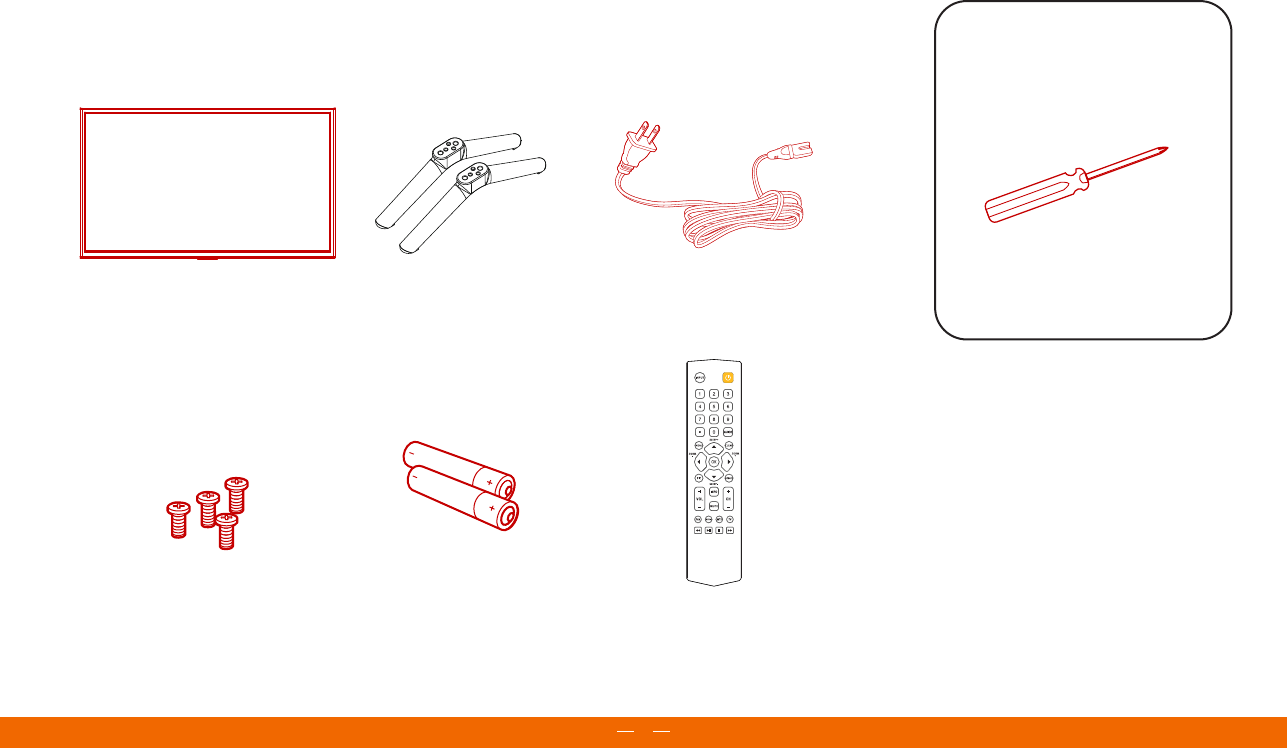

What’s included
TV standsTCL TV
2 x AA batteries
for remote
TV remote
What’s required
Phillips head screwdriver
4 x Phillips screws
(ST4X20mm for 32”)
(ST4X25mm for 40”)
(M5X35mm for 49”)
3
Power cable
(only for 49”)
Ready for the step-by-step? You’re only minutes away from TV bliss!
Remove your TV from the box
Be careful, it’s heavy!

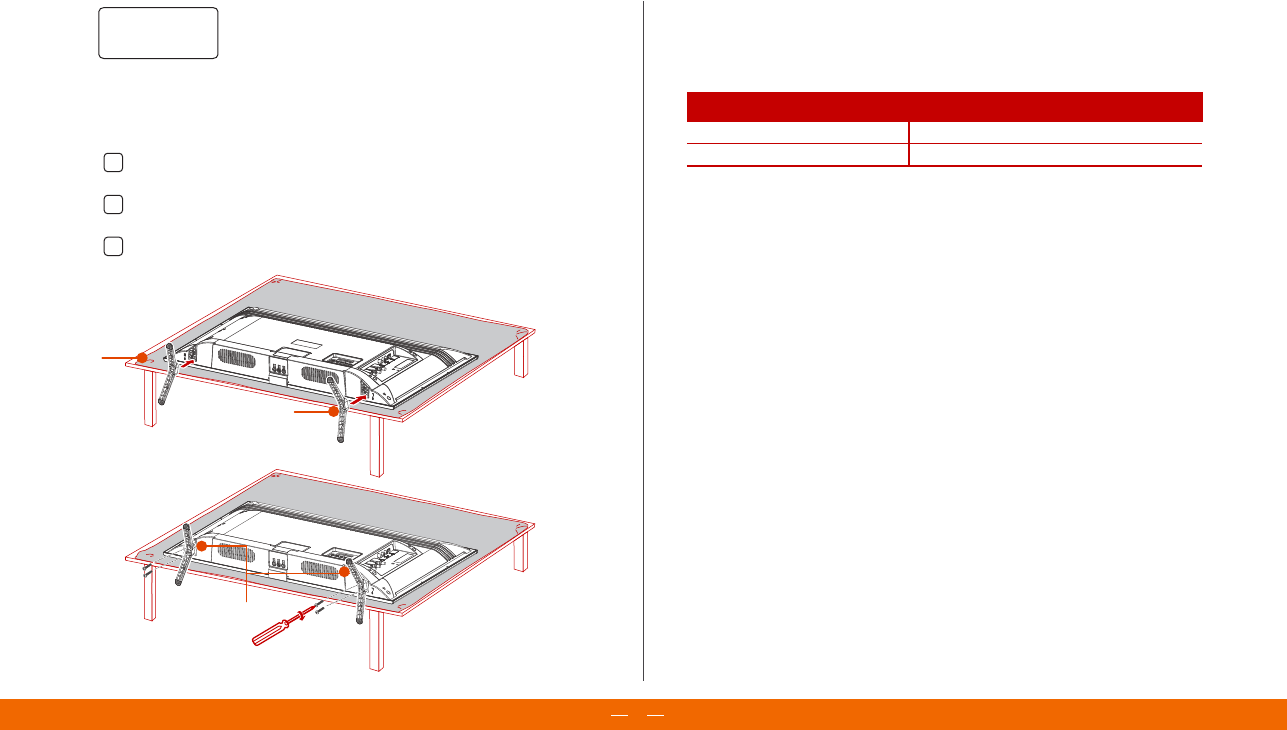

To use the stand
To prevent damage to the screen, carefully place your
TV on a soft, cushioned surface.
Put the column of the stands into the TV, align the stands
with the screw holes located on the TV.
Secure the stands to the TV with four (4) screws.
A
B
C
To mount on a wall
Models of 32” or 40” Purchase a VESA 100x100, M4x12 screw
If you are mounting your tv to the wall, don’t attach the stands.
To mount your TV to the wall, purchase a VESA wall mount
Models of 49”Purchase a VESA 200x200, M6x16 screw
The VESA number is the horizontal and vertical measurement of the mounting
holes. For example, 200X200 refers to the fact that the mounting measurements
are 200mm horizontally and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net
weight to avoid causing damage.
Warning:
Never place a television set in an unstable location. A television set may fall,
causing serious personal injury or death. Many injuries, particularly to children,
can be avoided by taking simpleprecautions such as:
- Using cabinets or stands recommended by the manufacturer of the television
set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting
furniture.
- Not placing the television set on tall furniture (for example, cupboards or
bookcases) without anchoring both the furniture and the television set to a
suitable support.
- Not placing the television set on cloth or other materials that may be located
between the television set and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the
television set or its controls.
If your existing television set is being retained and relocated, the same
Step 1 Set up your TV
4
Stand
A
B
C
(ST4 X 20mm for 32”)
(ST4 X 25mm for 40”)
(M5 X 35mm for 49”)
Screws
AB
POWER Turn TV on and o
INPUT Source selection
0-9 Numeric keys for Channel input
GUIDE The Electronic Programme Guide for
digital channels
For digital channel input
MENU Main menu
CLEAR Clear the screen and return to normal
viewing
OK Adjusts the menu controls
GOBACK Return to the previously viewed channel
PIC Selects picture mode
VOL+/- Volume adjusting
CH+/- Channel adjusting
INFO Channel information
MUTE Turn volume on and o
FAV Favorite channel&USB&sound mode&access to
TV mode
For playing music and photos
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
In this step, we’ll make sure all systems are GO!

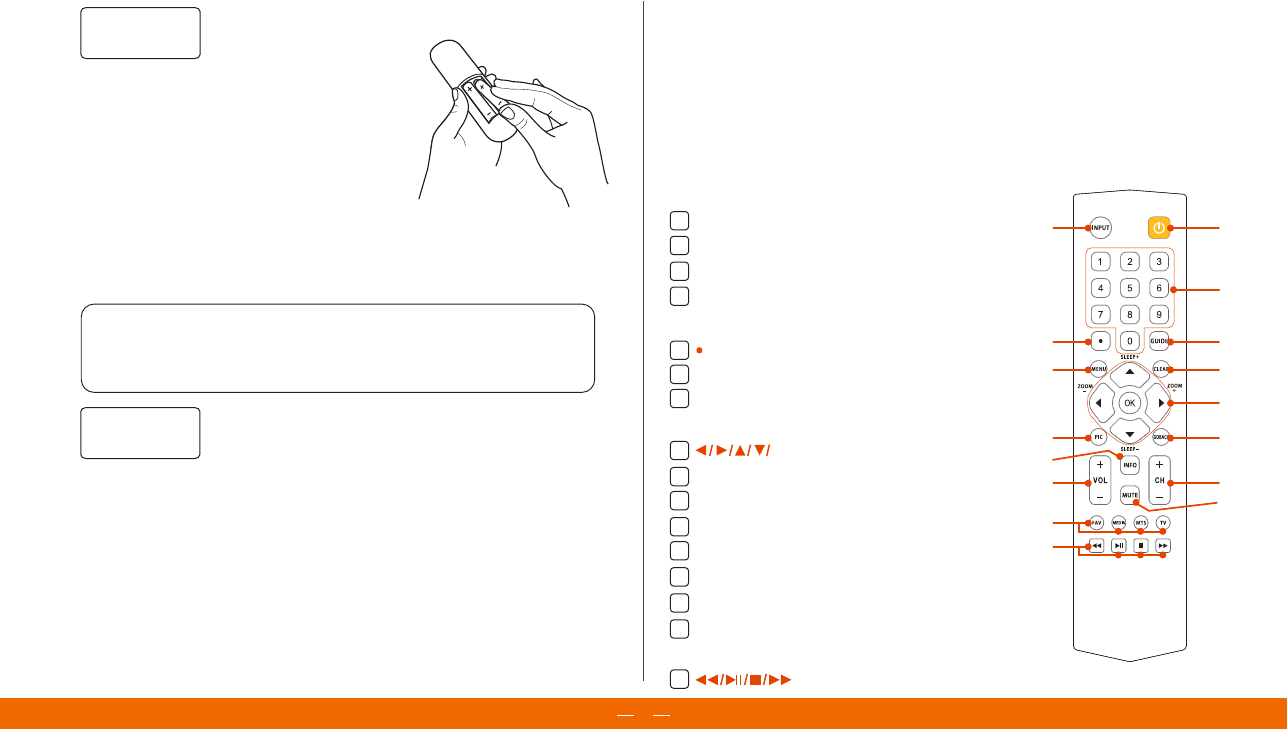

Power your TV remote by inserting the
included batteries.
Connect your power cable to the TV,
then plug it in to the wall outlet.
Connect other devices by refrencing port label and descriptions on
the bottom of page 5.
The TV remote should feel right at home in your hand. We designed it
to be incredibly intuitive for watching TV and navigating on-screen
menus. Plus,this one includes a headphone jack for the included in-ear
headphones!
First a couple of fun-facts about your Roku TV enhanced remote.
• It can hush your TV.When you plug headphones into the headphone jack, the
TV is automatically muted. Use the Volume UP and DOWN buttons on the side
of your remote to control the volume of your headphones to your liking.
• It can hush your TV.When you plug headphones into the headphone jack, the
TV is automatically muted. Use the Volume UP and DOWN buttons on the side
of your remote to control the volume of your headphones to your liking.
• Using your remotes voice search feature lets you search through the widest
selection of channels — by actor, title, or director
• Can’t find your remote? Press the left or right navigation button on the back
of the TV to bring up the Quick Menu. Highlight the Find Remote option and
the missing remote will make a sound
Here’s some buttons you should know about.
Set Up Tip! Always replace dead batteries with two brand-new batteries from the
same manufacturer. Never use damaged batteries.
If your remote gets warm/hot during use, discontinue use and contact customer
support immediately at www.TCLUSA.com/support.
C
DE
GF
H
IJ
M
L
N
K
O
P
Step 2 Power up
5
Your remote

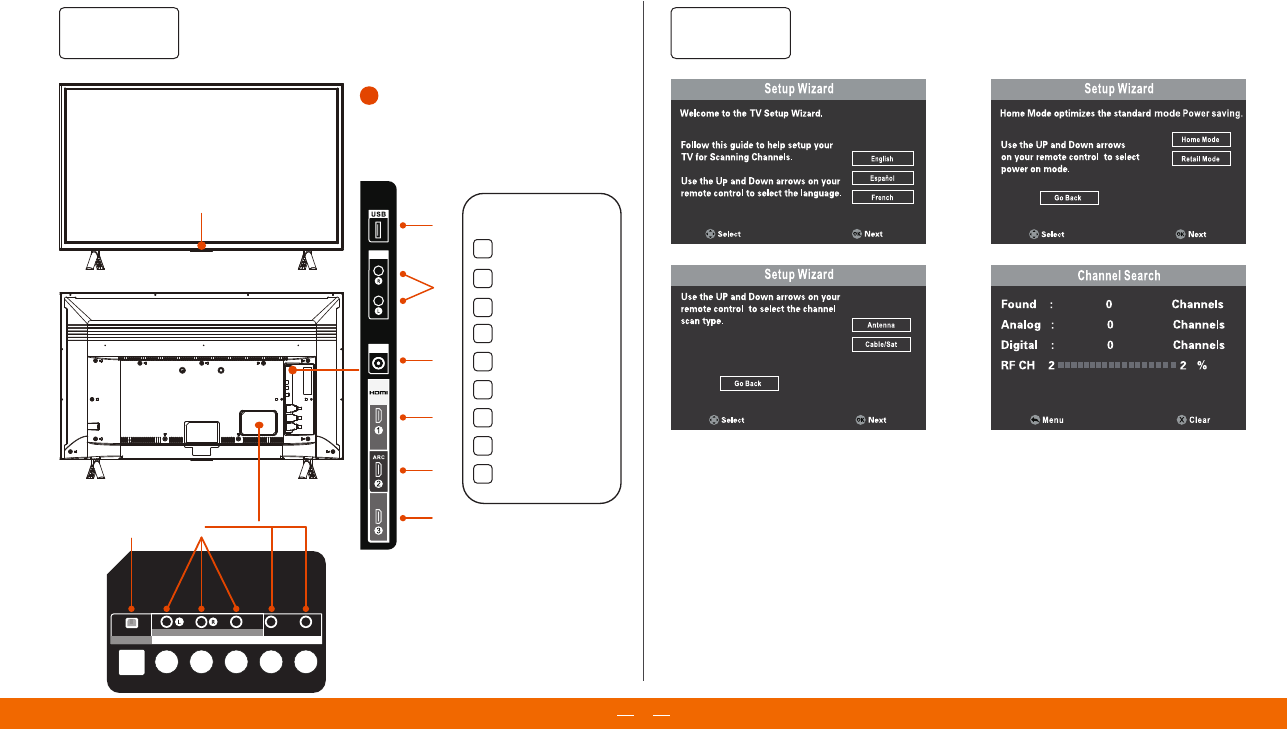

Step 3
OPTICAL
Y/V IDE O
PbPr
A/V IN
COMPONENT IN
AUDIO OUT
STATUS LIGHT Glows when the
TV is in standby, flashes when the
TV is busy, flashes once with each
button press of the remote control.
A
B
C
D
E
F
G
TV BACK
TV FRONT
H I
Step 4
KEY
A
AUD IO
OUT
CAB LE/
ANT
J
USB
AUDIO OUT
CABLE/ANTENNA
HDMI 1
HDMI 2(ARC)
HDMI 3
OPTICAL
A/V IN
COMPONENT IN
B
C
D
E
F
G
H
I
J
6
Get to know your TV Step 5 Initial Setup
TTE Technology, Inc. (“TTE”) Limited Warranty
All LCD/LED Models.
What your warranty covers: Defects in materials or workmanship to the original
owner of this TCL • Roku TV product when purchased as new from an Authorized Dealer
of TCL brand products in the United States and packaged with this warranty statement.
New LCD/LED Televisions (Non-Commercial Use)
For how long after your purchase:
One (1) year from date of purchase for parts and labor for non-commercial use.
New LCD/LED Televisions (Commercial Use)
For how long after your purchase:
Six (6) months from date of purchase for parts and labor for commercial use.
Commercial use includes, but is not limited to, the use of this product in a commer-
cial or business environment, the use of this product in an institution or for
institutional purposes, or other commercial purposes including rental purposes.
What we will do:
At TTE’s discretion, (1) pay an Authorized TCL Service Center for both labor charges
and parts to repair your television, or (2) replace your television with a new or
refurbished / remanufactured equivalent value product. The decision to repair or
replace will be made solely by TTE. See “How to get service”.
How to get service:
Call 1-877-300-8837.
Please have your original purchase receipt or proof of purchase (bill of sale or
receipted invoice), the unit’s date of purchase, place of purchase and model/serial
number ready. The model/serial number information can be found on the back of
your unit.
A representative will troubleshoot your problem over the telephone. If it is
determined that your unit requires service, the service location will be at the sole
discretion of TTE based upon the TTE Limited Warranty Statement.
At the sole discretion of TTE, television screen sizes 32” and smaller will either be
repaired at an Authorized TCL Service Center or directly exchanged for a new or
refurbished/remanufactured unit. At the sole discretion of TTE, television screen
sizes 33” through 55” or larger will either be repaired at an Authorized TCL Service
Center or repaired in-home.
If repaired at an Authorized TCL Service Center, TTE is not responsible for transporta-
tion costs to the Authorized TCL Service Center. However, TTE will pay for return
shipping. TTE will provide instructions for packaging and shipping the unit.
Proof of purchase in the form of a bill of sale or receipted invoice from an Authorized
Dealer which is evidence that the product is within the warranty period must be
presented to obtain warranty service.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE (1) SENDING ANY PRODUCT TO
AN AUTHORIZED TCL SERVICE CENTER, OR (2) OBTAINING ANY IN-HOME REPAIR/RE-
PLACEMENT/RENTAL SERVICES.
What your warranty does not cover:
Customer instruction. (Your Owner’s Manual describes how to install, adjust, and
operate your unit. Any additional information should be obtained from your
Authorized Dealer).
Installation and related adjustments, or damage resulting from installation.
Damage resulting from non-approved installation methods.Signal reception
problems not caused by your unit.
Damage from misuse, abuse, neglect, normal wear and tear, cosmetic damage,
mishandling, faulty installation, or power line surges.
Markings or images on the television’s panel resulting from viewing xed images
(includingbut not limited to certain 4:3 images on wide screen televisions, or data or
images in xedscreen locations from banners, video games, or certain broadcast
networks).Batteries.
A television that has been modied or incorporated into other products.
A unit purchased or serviced outside the USA.
A unit sold in “As-Is”, “Factory Reconditioned”, “Factory Re-Certied”, or
“Refurbished” condition or with faults.
Acts of nature or God, such as but not limited to earthquake or lightning damage.
Special, incidental or consequential damages.
Product Registration:
Please register your TCL • Roku TV purchase on-line at www.tclusa.com. It will make it
easier to contact you should it ever be necessary. Registration is not required for
warranty coverage.
7
TTE Technology, Inc. (“TTE”)
Limited Warranty
LIMITATION OF WARRANTY
THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS
PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY TTE TECHNOLOGY,
INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY
INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER. TTE TECHNOLOGY, INC. SHALL NOT BE LIABLE FOR
SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE
OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF WARRANTIES AND LIMITED
WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF CALIFORNIA. EXCEPT
TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS
LIMITED TO THE APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH
ABOVE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT
WWW.TCLUSA.COM TO VIEW THE MOST CURRENT VERSION.
How State Law relates to this warranty:
Some states do not allow the exclusion or limitation of incidental or consequential
damages, orlimitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you also may have other rights that
vary from state to state.
If you purchased your unit outside the United States or seek warranty
coverage outside the United States:
This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not
covered by this warranty. Costs of such service calls are the sole responsibility
of the purchaser.
Broadcasting system US System NTSC-M
ATSC standard (8VSB), QAM
Receiving Channels VHF2-13
UHF14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% to 80%,non-condensing
Storage Temperature -15°C to 45°C (5°F to 113°F)
Storage Humidity 10% to 90%,non-condensing
Television Specications
8
Legal Statement of TCL
Manufacturer of this TV set
Due to the various capabilities of products featuring the Smart TV - Services, as well as
limitations inthe available content, certain features, applications, and services may not be
available on all devicesor in all territories. Some features on Smart TV may also require
additional peripheral devices ormembership fees that are sold separately. Please visit our
website for more information on specic device information and content availability. The
services and availability of content through Smart TV are subject to change from time to
time without prior notice.
All content and services accessible through this device belong to third parties and are
protected bycopyright, patent, trademark and/or other intellectual property laws. Such
content and services are provided solely for your personal noncommercial use. You may
not use any content or services in a manner that has not been authorized by the content
owner or service provider. Without limiting the foregoing, unless expressly authorized by
the applicable content owner or service provider, you may not modify, copy, republish,
upload, post, transmit, translate, sell, create derivative works, exploit, or distribute in any
manner or medium any content or services displayed through this device.
You expressly acknowledge and agree that use of the device is at your sole risk and that
the entirerisk as to satisfactory quality, performance and accuracy is with you. The device
and all third party content and services are provided “as is” without warranty of any kind,
either express or implied. TCL expressly disclaims all warranties and conditions with
respect to the device and any content and services, either express or, implied, including
but not limited to, warranties of merchantability, of satisfactory quality, tness for a
particular purpose, of accuracy, of quiet enjoyment, and non-infringement of third party
rights. TCL does not guarantee the accuracy, validity, timeliness, legality, or complete-
ness of any content or service made available through this device and does not warrant
that the device, content or services will meet your requirements, or that operation of the
device or services will be uninterrupted or error-free. Under no circumstances, including
negligence, shall TCL be liable, whether in contract or tort, for any direct, indirect,
incidental, special or consequential damages, attorney fees, expenses, or any other
damages arising out of, or in connection with, any information contained in, or as a result
of the use of the device, or any content or service accessed by you or any third party, even
if advised of the possibility of such damages.
Third party services may be changed, suspended, removed, terminated or interrupted, or
accessmay be disabled at any time, without notice, and TCL makes no representation or
warranty that any content or service will remain available for any period of time. Content
and services are transmitted by third parties by means of networks and transmission
facilities over which TCL has no control. Without limiting the generality of this disclaimer,
TCL expressly disclaims any responsibility or liability for any change, interruption,
disabling, removal of or suspension of any content or service made available through
this device. TCL may impose limits on the use of or access to certain services or content,
in any case and without notice or liability. TCL is neither responsible nor liable for
customer service related to the content and services. Any question or request for service
relating to the content or services should be made directly to the respective content and
service providers.
9
Need more help?
www.TCLUSA.com/support
TTE Technology, Inc.
2455 Anselmo Drive, Suite 101, Corona, CA 92879
TCL and associated marks are trademarks of TCL S.A.used under license to TTE Corporation.
Part No.: 70-32MS55-QSG9A
This product incorporates HDMI technology.
HDMI, the HDMI logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are registered trademarks of Dolby Laboratories.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Please do not send any products to the California address listed in this manual or on the carton. This will only add delays in service for your product.
Figures and illustrations in this User’s Guide are provided for reference only and may dier from actual product appearance. Product design and specications may be changed without notice.
1-877-300-8837
