TTE Technology, Inc. LED TV 70 F6ST14 QSG1D
User Manual
Hi! Let’s get started.
3-Series
S321/S325/S327
DO NOT RETURN TO STORE
TCL SUPPORT:
www.tclusa.com/support
1-877-300-8837
contact us first
with any questions
WE ARE
READY TO
HELP
TAKE CARE WHEN
REMOVING THE TV
1
Caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts
inside. Refer servicing to qualified service personnel.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that this product incorporates
double insulation between hazardous main voltage
and user accessible parts. When servicing, use only
identical replacement parts.
WARNING
To reduce the risk of fire or electric shock, do
not expose this product to rain or moisture.
This product should not be exposed to dripping
or splashing. No objects filled with liquids, such
as vases, should be placed on the apparatus.
WARNING
The TV is unstable if it is not properly attached
to the base or mounted to the wall. Please
follow the base or wall mounting instructions
provided in the User’s Guide to ensure your
safety.
Warning: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
Model No.
Purchase Date
Serial No.
Dealer/Address/Phone
Important Information
Refer to the identification/rating label located on the back panel of your product for its proper operating
voltage.
Cable TV Installer:
This reminder is provided to call your attention to Article 820-40 of the National
Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper
grounding and, in particular, specifies that the cable ground should be connected to the grounding system
of the building as close to the point of cable entry as practical.
Important:
This television is a table model and is designed to sit on a firm, flat surface. Don’t place
the TV on soft carpeting or similar surface because the ventilation slots on the bottom of the unit will
be blocked, resulting in reduced lifetime from overheating. To assure adequate ventilation for this
product, maintain a spacing of 1 inch from the top and side of the TV receiver and 2 inches from the
rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from
being accidentally tipped over, pushed o, or pulled o. This could cause personal injury and/or damage
to the TV. Refer to the Important Safety Instructions on the next page.
The Power button on this TV and your remote control puts the TV into a very low-power standby
mode but will not completely turn the power o. In order to completely shut the power o, you will
need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used to
completely turn o the device. If you prefer to completely turn o the device, you should install the
TV in a manner that allows you to disconnect the power cord when desired.
Product Registration
Please register your TCL TV purchase on-line at www.tclusa.com. It will make it easier to contact you
should it ever be necessary. Registration is not required for warranty coverage.
Product Information
Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here
and record the serial and model numbers in case you need them. These numbers are located on the
product.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. Keep the apparatus at least 8
inches away from the human body.
For the best viewing experience, remove the energy guide label from the TV front panel or TV screen
before use.
Input Signal Compatibility
480i, 480p, 720p/60Hz, 1080i/60Hz, 1080p/60Hz, 576i/p, 1080i/p/50Hz
480i, 576i
480i, 480p, 720p, 1080i (NTSC, ATSC, and QAM formats)
HDMI
Composite Video
Antenna/Cable
2
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including
amplifiers) that produce heat.
9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
10. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information
before installing or operating the apparatus.
11. WARNING: The mains plug is used as disconnect device, the disconnect device shall remain readily
operable.
12. When not in use and during movement, please take care of the power cordset, e.g. tie up the power
cordset with cable tie or something like that. It shall be free from sharp edges and the like that can
cause abrasion of the power cordset. When put into use again, please make sure the power cordset
being not damaged, If any damages found, please look for the service person to replace the power
cordset specified
by the manufacturer or have the same characteristics as the original one.
13. No naked flame sources, such as lighted candles, should be placed on the apparatus.
14.
Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Only use attachments/accessories specified by the manufacturer.
16. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
17. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
18. For safe operation of the apparatus, observe these installation requirements:
Keep at least 2 inches of ventilation space between the rear cover of the apparatus and the wall.
Keep at least 1 inch of ventilation space between the apparatus and all other surfaces. Do not allow
any of the apparatus’ ventilation openings to be blocked by objects that might obstruct them, such
as; newspapers, curtains, table-cloths or any other objects. Do not expose the apparatus to any external
heat sources. Do not place any heat sources such as candles, lamps, etc. on the apparatus. Do not expose
the device to high levels of humidity or to any possible sources of moisture. When disposing of used
batteries
from the remote control, consult local regulations regarding proper disposal.
19. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system
is grounded so as to provide some protection against voltage surges and built-up static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code,
Part 1) provides information with respect to proper grounding of the mast and supporting structure,
grounding of the lead in wire to an antenna-discharge unit, size of grounding conductors, location of
antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
See following example:
ANTENNA LEAD IN WIRE
GROUND CLAMP
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND CLAMPS
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
ELECTRIC SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM (NEC ART
250, PARTH)
3
What’s in the box
TV stands AV Input cable adapter
(For 32S327/40S325/43S325/49S325)
Length: 120mm
2 x AAA batteries
for remote
TV remote
What you need
Phillips head
screwdriver
For additional support, please see User Manual at: www.TCLUSA.com/support
Key things to know: A paid subscription or other payments may be required for some streaming channels.
Channel availability subject to change and varies by country.
Make the most of your Smart TV
Router + Internet Connection
(needed for streaming)
TCL · Roku TV Power cable
4 x Stand screws
M5X25mm for models
of 49
ST4X20mm for models of 32
”
”
ST4X25mm for models of 40 /43
” ”
4
Step 1 Set up your TV
Ready for the step-by-step? You’re only minutes away from TV bliss!
the TV. Secure the stands to the TV with four (4) screws.
Put the column of the stands into the TV, align the stands with the screw holes located on
Remove your TV from the box
Be careful, it’s heavy!
To prevent damage to the screen, carefully place your TV on a soft, cushioned surface.
A
B
To use the stand
T
Warning:
o mount
on a wall
Never place a television set in an unstable location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly to children, can be avoided by taking simple
precautions such as:
- Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
-
Not placing the television set on tall furniture (for example, cupboards or bookcases) without
anchoring both the furniture and the television set to a suitable support.
-
Not placing the television set on cloth or other materials that may be located between the
television set and supporting furniture.
-
Educating children about the dangers of climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained and relocated, the same considerations as
above should be applied.
The VESA number is the horizontal and vertical measurement of the mounting holes. For
example, 200X200 refers to the fact that the mounting measurements are 200mm horizontally
and 200mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net weight to avoid
causing damage.
Models of 32” (32S327: 4 M4x8mm screws)Purchase a VESA 100x100
(32S321/32S325: 4 M4x10mm screws)
If you are mounting your TV to the wall, don’t attach the stands.
To mount your TV to the wall, purchase a VESA wall mount
Models of 40” or 43”Purchase a VESA 100x100 (4 M6x12mm screws)
Models of 49”Purchase a VESA 200x200 (4 M6x12mm screws)
Screws
(ST4X20mm for 32”)
(ST4X25mm for 40”/43”)
(M5X25mm for 49”)
Stand
B
A
Step 2
5
Power up
Grab your remote
Step 3
In this step, we’ll make sure all systems are GO!
Power your TV remote by inserting
the included batteries.
Connect your power cable to the TV,
then plug it in to the wall outlet.
and descriptions on the bottom of page 6.
Connect other devices by referencing port label
Power Tip!
batteries from the same manufacturer. Never use damaged batteries.a
If your remote gets warm/hot during use, discontinue use and contact
customer support immediately at www.TCLUSA.com/support.
The TV remote should feel right at home in your hand. We designed it to be
incredibly intuitive for watching TV and navigating on-screen menus.
POWER
BACK Return to previous screen
HOME Return to Roku Home screen
VOLUME Raise and lower volume
INSTANT REPLAY Replay the last few seconds.
OPTIONS View more options
RWD SCAN Rewind streaming video, scroll left one page
at a time
FWD SCAN Fast forward streaming video, scroll right one page
at a time
A
B
D
E
C
F
G
H
Here’s some buttons you should know about.
A
H
BC
D
E F
G
Tip! The button gives
you easy access to picture
settings, display options, and
more. Try it on every screen!
Always replace depleted batteries with two same brand-new
Insert batteries in the correct polarity
as indicated in the battery compartment.
Step 4
6
Get to know your TV
USB PORT Connect a USB device to access photos,
music and movies.
RESET BUTTON Press once to restart your TV.
Press and hold for factory reset, and careful, you will
lose all your settings!
D
E
HDMI ARC PORT Connect HDMI ARC (audio return
channel) capable audio devices like sound bars or
AV receivers.
G
3 HDMI
PORTS Highest quality audio/video connection.
Connect cable box, Blu-ray player, gaming console,
or other devices to your TV using HDMI cables.
F
ANTENNA/CABLE IN Connect an outdoor VHF/UHF
antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT) Connect an optical For 32S327/40S325/
43S325/49S325
For 32S321/32S325
cable to an external digital audio system.
Use the supplied adapter to connect to older devices
that use analog audio/video outputs. The supplied
adapter connects to the RCA cable (video - yellow
and audio - white and red) that you normally use to
connect to that device.
AV IN adapter AV Input (analog audio/video)
H
L
I
HEADPHONE OUT Connect headphones or other
external speakers.
K
AV IN If your device isn’t able to connect using HDMI®,
connect to your TV using standard red/white/yellow
cables.
J
IR RECEIVER
Receives signal from
the TV remote.
STATUS LIGHT
Glows when the
TV is in standby, flashes when
the TV is busy, flashes once with
each button press of the remote
control.
A
POWER PORT Connect your TV
C
to the power source with the
included power cable.
32S321/32S325
TV BACK
32S327/40S325/
43S325/49S325
TV BACK
POWER and OPTIONS BUTTON
B
Found on the bottom surface of
the TV for easy use.
TV FRONT
A
B
TV SIDE
E
D
F
G/F
H
I
K
L
CC
TV SIDE
L
K
D
H
G/F
E
F
J
OPTICAL
AUDIO
VIDEO
AV IN
RESET
USB
R
L
ARC
CABLE/
ANT
AUDIO
OUT
Step 5 Complete guided setup
It’s the final stretch-hurray!
Let’s Connect
Your TV will automatically detect wireless networks in your area. Have your network name and
password handy and follow the easy on-screen instructions.
Once you’re connected, your TV will automatically update with the latest software—plus you can
start streaming the entertainment you know and love. Unlike other TVs, your new TCL • Roku TV
automatically receives regular software updates in the background when it’s connected to the
internet. This allows it to give you a better and better experience.
If you aren’t ready to connect your TV to a wireless network, you can still use it as a regular TV.
And setup is done…congratulations!
Continue using the remote to personalize your Home screen and channel line-up, stream movies,
and so much more.
If you have an antenna or cable connected, just click the tuner tile to watch broadcast TV channels.
The fun has just begun!
Your Roku account:
Once connected, your TV will walk you through a guided setup,
Roku accounts are free, and while a valid credit card is recommended, it is not required. If you
choose to register with a credit card, you will be able to seamlessly rent movies, TV shows
and download apps without having to enter in your credit card information each time. A unique
PIN can be added to the account to prevent unauthorized purchases.
where you'll be prompted to create (or sign into) your free Roku account online at
roku.com/link. Your TV will generate a unique code that links your TV to your account.
IMPORTANT:
Make sure you type roku.com/link into the browser being careful not to misspell
or add extra characters. Typing this incorrectly may take you to fraudulent websites.
TCL SUPPORT:
www.tclusa.com/support
1-877-300-8837
contact us first with any questions
WE ARE READY TO HELP
7
8

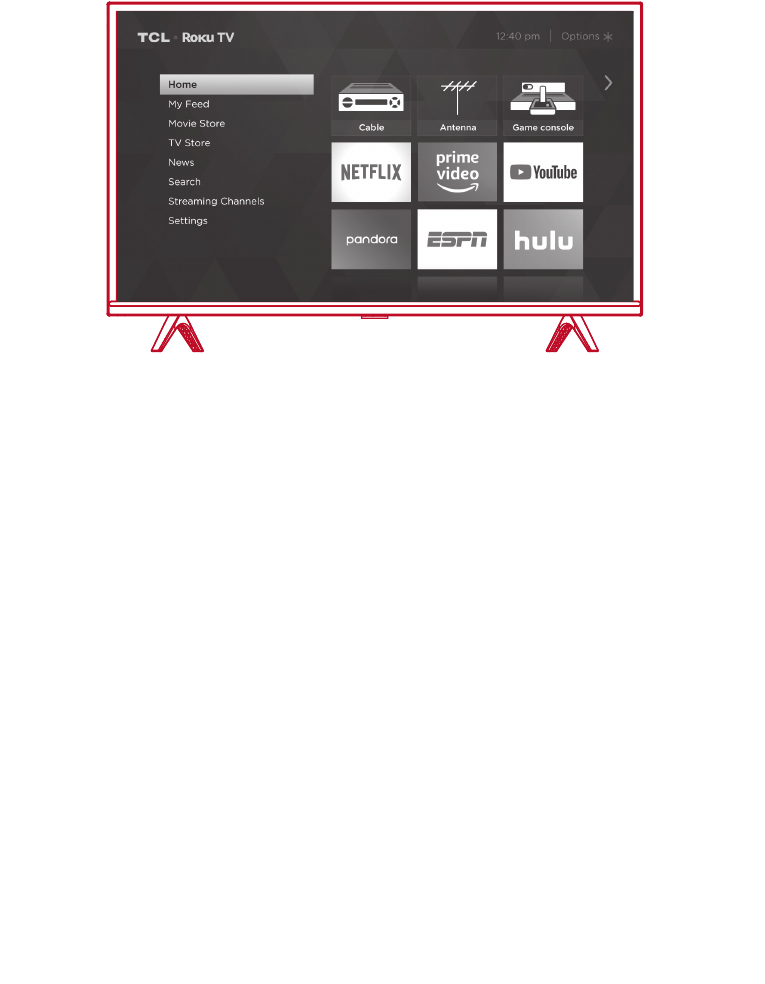

Roku TV menu may vary and subject to change.
Connecting brings out your TV’s full potential!
Access thousands of streaming channels*.
Make any night a movie night
Access more than 500,000 movies and TV
episodes across major streaming services like
Netflix, Hulu, Prime Video, VUDU, and more.
Choose from free, rental, and subscription
services.*
Stream sports on the big screen
Choose from over 140 sports channels like
WatchESPN, FOX Sports GO, NBA, NFL, MLB.TV,
WWE Network, CBS Sports, and more.
Explore your passions
In addition to popular streaming channels like HBO
NOW, SHOWTIME, PBS Kids, and FOX NOW, your
TCL • Roku TV also oers hundreds of streaming
channels to fuel your passions – including fitness,
cooking, religion, outdoors, international programming,
and much more.
Enjoy tons of free channels and free trials
Your TCL • Roku TV has hundreds of popular free
channels like Crackle, CBS News, PBS, Pluto TV, and
more. Plus, free trials** to popular subscription
services like HBO NOW, SHOWTIME, Netflix, Prime Video,
and Hulu.
*Subscription or other payment may be required to access certain channels. Content may not be available in all areas in which the TCL Roku TVs are sold and channel
availability is subject to change.
**Cancel before free trial ends to avoid subscription fees. Credit card may be required.
9
TCL North America Limited Warranty
All LCD/LED Models.
What your warranty covers: Defects in materials or workmanship to the original owner of this TCL
product when purchased as new from an Authorized Dealer of TCL brand products in the United States and
packaged with this warranty statement.
New LCD/LED Televisions (Non-Commercial Use)
For how long after your purchase:
One (1) year from date of purchase for parts and labor for non-commercial use.
New LCD/LED Televisions (Commercial Use)
For how long after your purchase:
Six (6) months from date of purchase for parts and labor for commercial use.
Commercial use includes, but is not limited to, the use of this product in a commercial or business environment,
the use of this product in an institution or for institutional purposes, or other commercial purposes including
rental purposes.
What we will do:
At TCL North America’s discretion, (1) pay an Authorized TCL Service Center for both labor charges and parts to
repair your television, or (2) replace your television with a new or refurbished / remanufactured equivalent value
product. The decision to repair or replace will be made solely by TCL North America. See “How to get service”.
How to get service:
Call 1-877-300-8837.
Please have your original purchase receipt or proof of purchase (bill of sale or receipted invoice), the unit’s
date of purchase, place of purchase and model/serial number ready. The model/serial number information
can be found on the back of your unit.
A representative will troubleshoot your problem over the telephone. If it is determined that your unit
requires service, the service location will be at the sole discretion of TCL North America based upon the
TCL North America Limited Warranty Statement.
At the sole discretion of TCL North America, television screen sizes 43” and smaller will either be repaired at an
Authorized TCL Service Centre or directly exchanged for a new or refurbished/remanufactured unit. At the sole
discretion of TCL North America, television screen sizes 44” through 55” or larger will either be repaired at an
Authorized TCL Service Center or repaired in-home.
If repaired at an Authorized TCL Service Center, a pre-paid shipping label will be provided and TCL North
America will pay for return shipping.
Proof of purchase in the form of a bill of sale or receipted invoice from an Authorized Dealer which is
evidence that the product is within the warranty period must be presented to obtain warranty service.
PRE-AUTHORIZATION MUST BE OBTAINED BEFORE (1) SENDING ANY PRODUCT TO AN AUTHORIZED
TCL SERVICE CENTER, OR (2) OBTAINING ANY IN-HOME REPAIR/REPLACEMENT/RENTAL SERVICES.
What your warranty does not cover:
Customer instruction. (Your Owner’s Manual describes how to install, adjust, and operate your unit. Any
additional information should be obtained from your Authorized Dealer).
Installation and related adjustments, or damage resulting from installation.
Damage resulting from non-approved installation methods.
Signal reception problems not caused by your unit.
Damage from misuse, abuse, neglect, normal wear and tear, cosmetic damage, mishandling, faulty installation,
or power line surges.
Markings or images on the television’s panel resulting from viewing fixed images (including but not limited
to certain 4:3 images on wide screen televisions, or data or images in fixed screen locations from banners,
video games, or certain broadcast networks).
A television that has been modified or incorporated into other products.
A unit purchased or serviced outside the USA.
A unit sold in “As-Is”, “Factory Reconditioned”, “Factory Re-Certified”, or “Refurbished” condition or with
faults.
Acts of nature or God, such as but not limited to earthquake or lightning damage.
Special, incidental or consequential damages.
Product Registration:
Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it
ever be necessary. Registration is not required for warranty coverage.
10
TCL North America Limited Warranty
THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. NO
VERBAL OR WRITTEN INFORMATION GIVEN BY TCL NORTH AMERICA, ITS AGENTS OR EMPLOYEES
SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE OR MODIFY THE SCOPE OF THIS WARRANTY.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF
THE CONSUMER. TCL NORTH AMERICA SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY
BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. THIS DISCLAIMER OF
WARRANTIES AND LIMITED WARRANTY ARE GOVERNED BY THE LAWS OF THE STATE OF
CALIFORNIA. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO
THE APPLICABLE WARRANTY AND WARRANTY PERIOD SET FORTH ABOVE. THIS WARRANTY IS
SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT
WWW.TCLUSA.COM
TO VIEW THE MOST
CURRENT VERSION.
LIMITATION OF WARRANTY
How State Law relates to this warranty:
Broadcasting & Operating Environment
Broadcasting system US System NTSC-M
ATSC standard (8VSB), QAM
Receiving Channels VHF2-13
UHF14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Operating Temperature 5°C to 35°C (41°F to 95°F)
Operating Humidity 20% to 80%, non-condensing
Storage Temperature -15°C to 45°C (5°F to 113°F)
Storage Humidity 10% to 90%, non-condensing
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you also may have other rights that vary from state to
state.
If you purchased your unit outside the United States or seek warranty coverage
outside the United States:
This warranty does not apply. Contact your dealer for warranty information.
Service calls which do not involve defective materials or workmanship are not
covered by this warranty. Costs of such service calls are the sole responsibility
of the purchaser.
11
Troubleshooting
Cannot connect to wireless network (Wi-Fi)
•
Select the correct wireless network name and verify
the password entered (case sensitive).
•
Relocate the router from objects that interfere with
performance (cordless phones, baby monitors, etc.).
• Reboot the router by disconnecting the power for
more than 2 minutes and reconnect.
What is the remote code for programming
my Universal or Cable/Satellite box remote
control ?
•
Please visit www.tclusa.com/support/remotecodes
My picture is too small
(black bars on the side)
•
Play your movie/video and press the (*)
asterisk button.
• Select Picture Size, select the picture size of
your preference.
How to install the Remote Control
Mobile App ?
•
Download the Roku app to your phone or tablet
through Google Play or iTunes.
•
Simply search for “Roku App” and choose the
Roku app by Roku Inc.
•
Follow the onscreen prompts and you’re on
your way!
The free Roku app allows you to use your mobile
device as a full functioning remote control with
voice search & keypad.
Problems connecting my cable/satellite
box or antenna through a coax cable
•
For best performance, use the HDMI connection.
If not available, then:
How do I turn the Text-to-Speech (TTS)
audio guide on or off?
•
Press “*” key on the remote controller four times to
turn the audio guide on or o.
Select “Settings” at home screen
Select “Accessibility”
Select “Audio Guide” and turn it on or o
http://tclusa.helpjuice.com/23507-roku-tv/210747-
how-do-i-turn-the-audio-guide-on-or-o
•
Make sure the cable connections to the TV and your
device are securely fastened.
•
Select cable/satellite box or antenna TV input.
•
Select “start finding channels” and follow the on-screen
instructions to perform a full channel scan.
Having trouble completing the guided setup? Don’t worry, it’s usually an easy fix.
Or
1.
2.
3.
*
1-877-300-8837
Need more help?
www.TCLUSA.com/support
Part No.: 70-F6ST14-QSG1D
Copyright © 2018 by Roku, Inc. and TCL. All rights reserved. Roku TV,
and the Roku logo are owned by Roku, Inc. TCL and the TCL Logo are
owned by TCL Corporation and under license to TCL North America.
Other brand and product names are the trademarks or registered
trademarks of their respective owners.
TTE Technology, Inc. (dba TCL North America)
1860 Compton Ave, Corona, CA 92881, USA
ELECTRONICS RECYCLING INFORMATION FOR CONSUMERS
TCL strives to provide a high level of service to our customers and in the communities we serve, and
recommends that consumers always look for a recycling or reuse alternative to throwing away televisions and
other electronics. We encourage customers to recycle end-of-life electronic devices using one of the many
convenient methods available today. In many states TCL has programs in place to enable consumers to
drop-o and recycle televisions free of charge. For information on electronics recycling in all 50 states, including
drop-o locations, please visit the “Electronics Recycling” area of the TCL USA website at www.tclusa.com.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
FCC Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Battery Caution & Disposal Information
1. For best results, use alkaline type batteries.
2. Install only new batteries of the same type in your product.
3.
Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten
the life of the batteries or cause batteries to leak.
4. Do not mix old and new batteries.
5. Do not use Rechargeable (Nickel Cadmium or Nickel Metal Hydride) batteries.
6. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium or Nickel Metal Hydride)
batteries.
7.
8. Batteries should be recycled or disposed of as per state and local guidelines.
Do not dispose of batteries in fire.
This product incorporates HDMI technology.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo
are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the
United States and other countries.
