TTE Technology LE32M4S9 LCD TV User Manual 72 HITACH X0832
TTE Technology, Inc. LCD TV 72 HITACH X0832
User Manual
LE32M4S9
32” Class (31.51” Diagonal)
Serial No.
Model:
Thank you for purchasing this Hitachi product.
Please read these instructions carefully.
For additional assistance please call Toll Free
800.HITACHI (800.448.2244)
or visit our website at www.hitachi.us/tv.
Keep this Owner’s Guide for future reference.
Record the model name and serial number of your LCD
Television for future reference.This information is located
on the back of the television.
TABLE OF CONTENTS
2-6 IMPORTANT SAFETY INSTRUCTIONS
7 HOW TO ATTACH / REMOVE THE STAND
8-12 FIRST TIME USE
14-18 TV OPERATION
19-21 RECEPTION DISTURBANCES
22 SPECIFICATIONS
24 LIMITED WARRANTY
CONGRATULATIONS
LED LCD HDTV
OWNER’S GUIDE
OG_M4S9_03182016
EN 2
The lightning ash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product's enclosure that may be of sucient magnitude to
constitute a risk of electric shock.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY FROM THIS PRODUCT AT
ALL TIMES.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS TELEVISION’S AC PLUG WITH AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE
LEAD NOTICE
This product contains lead. Dispose of this product in accordance with applicable environmental laws. For product recycling and disposal
information, contact your local government agency or www.eRecycle.org (in California), the Electronic Industries Alliance at www.
ecyclingcentral.com (in the U.S.) or the Electronic Product Stewardship Canada at www.epsc.ca (in Canada).
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a
safety connection to electrical earth.
Location of the required Marking
The rating sheet and the safety caution are on
the rear of the unit.
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2)This device must accept any interference received, including interference that
may cause undesired operation.
For questions regarding this declaration, contact: Hitachi America, Ltd.
2420 Fenton Street, Suite 200
Chula Vista, CA 91914-3556
ATTN: Customer Relations

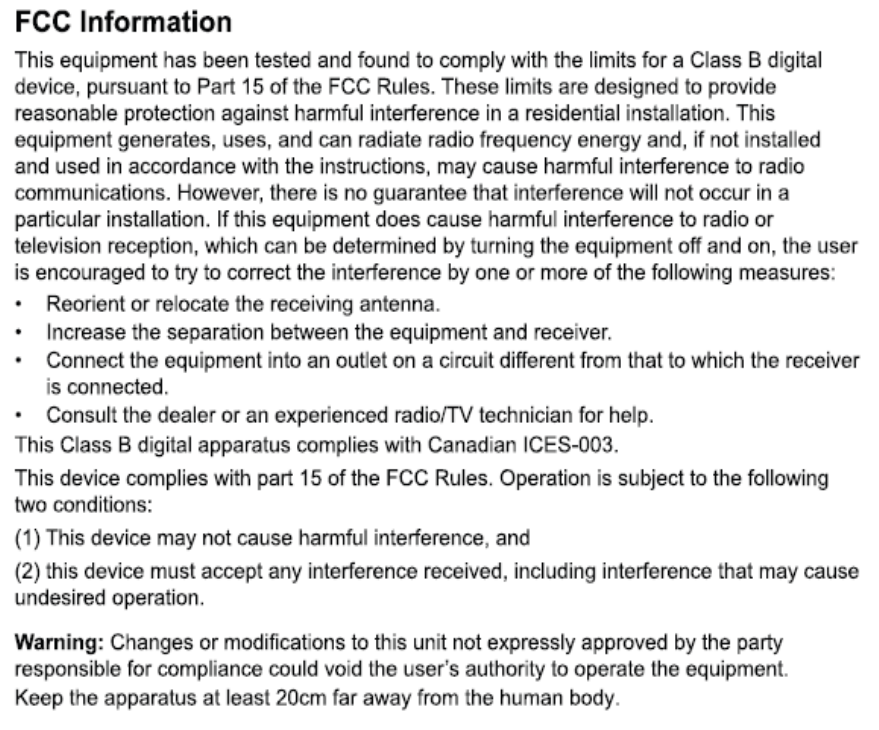

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modications not expressly approved by the party responsible for compliance with the FCC Rules could void
the user’s authority to operate this equipment.
This Television receiver will display television closed captioning, ( or ), in accordance with FCC rules.
3 EN
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
15) Apparatus should not be exposed to dripping or splashing, and objects lled with liquids, such as vases, should not
be placed on the apparatus.
16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.
17) Do not overload wall outlets and extension cords, as this can result in a risk of re or electric shock.
18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts
that could result in re or electric shock. Never spill or spray any type
of liquid into the unit.
19) If an outside antenna or cable system is connected to the unit, be sure
the antenna or cable system is grounded to provide some protection
against voltage surges and built-up static charges, Section 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with
respect to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection
to grounding electrodes, and requirements for the grounding
electrode.
20) When replacement parts are required, be sure the service technician uses replacement parts specied by the
manufacturer or those that have the same characteristics as the original part.
Unauthorized substitutions may result in re, electric shock or other hazards.
21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to
determine that the unit is in proper operating condition.
22) When you connect the product to other equipment, turn o the power and unplug all of the equipment from the wall
outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other
equipment carefully and follow the instructions when making any connections.
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA
LEAD IN WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND
CLAMP
ELECTRIC SERVICE
EQUIPMENT
NEC-NATIONAL
ELECTRICAL CODE
S2898A
EXAMPLE OF ANTENNA GROUNDING AS PER THE
NATIONAL ELECTRICAL CODE
IMPORTANT SAFETY INSTRUCTIONS
EN 4
23) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating
and re.
24) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
25) This apparatus shall be connected to a mains socket outlet with a protective earthing connection.
26) The mains plug is used as the disconnect and shall remain readily operable.
Power source
This television is designed to operate on 120 volts 60 Hz, AC current. Insert the power cord into a 120 volts 60 Hz outlet.
To prevent electric shock, do not use the television’s (AC) plug with an extension cord, receptacle, or other outlet unless the blades
can be fully inserted to prevent blade exposure.
Never connect the television to 50 Hz, direct current, or anything other than the specied voltage.
Warning
To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
Caution
Never remove the back cover of the television as this can expose you to very high voltages and other hazards. If the television does
not operate properly, unplug the television and call your authorized dealer or service center.
Adjust only those controls that are covered in the instructions, as improper changes or modications not expressly approved by
Hitachi could void the user’s warranty.
IMPORTANT SAFETY INSTRUCTIONS (continued)
CONDENSATION
Moisture will form in the operating section of the unit if the unit is brought from cool surroundings into a warm room or if the temperature
of the room rises suddenly. When this happens, unit's performance will be impaired. To prevent this, let the unit stand in its new
surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually.
Condensation may also form during the summer if the unit is exposed to the breeze from an air conditioner. In such cases, change the
location of the unit.
HOW TO HANDLE THE LCD PANEL
• Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.
• If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inammation.
If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your
skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.
Possible Adverse Eects on LCD Panel: If a xed (non-moving) pattern remains on the LCD Panel for long periods of time, the image
can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT
COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or
images:
• Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.
• Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black
bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right
sides of screen).
The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for
these symptoms.
• LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be
missing picture elements or have luminous spots.
This is not a sign of a malfunction.
• Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this
unit may cause interference.
• Eect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.
5 EN

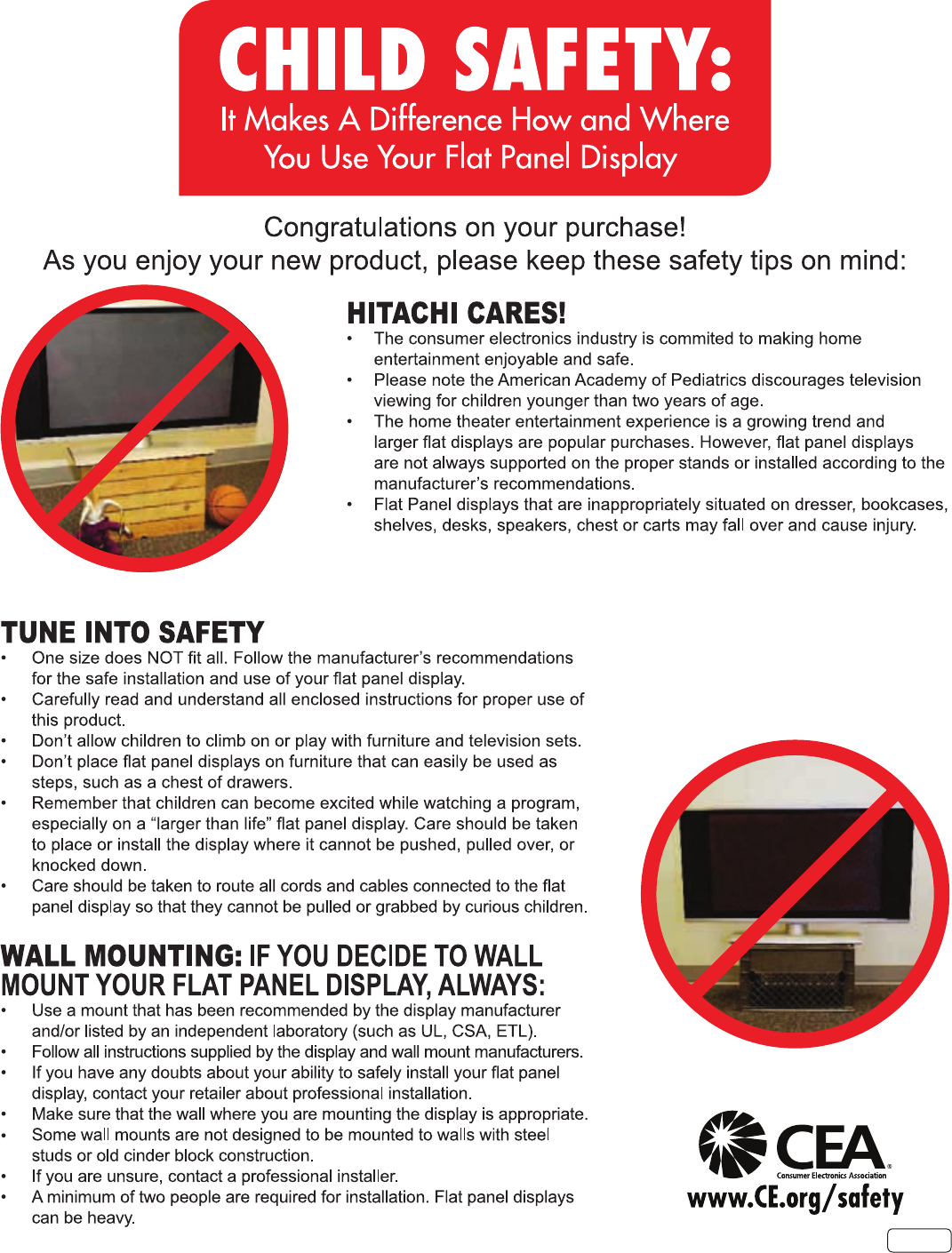

CHILD SAFETY NOTICE
EN 6
The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block
ventilation holes, or set up near radiators. Do not place in direct sunlight. When placing on a shelf leave 4 inches (10 cm) free space
around the entire unit.
Notes when mounting the TV on a wall
If the unit is to be mounted on the wall, contact the retailer where you purchased the TV for advice, and have the equipment professional-
ly installed. Incomplete or improper installation may cause injury to you, and/or damage to the TV.
The screws ISO M4 thread type should be used. The insertion length must be within 11- 12.5mm.
If the insertion length is less than 11mm, the weight can not be maintained.
If the insertion length is more than 12.5mm, a space is created between the Wall Mount Bracket and the Television.
(Insertion Length) = (Screw Length) - (Washers Thickness) - (Mounting Bracket Thickness)
Securing to a Wall
1 Use metallic wire, screw and clamp (not provided) on the rear of the TV as shown below.
2 Keep the TV 4 inches away from the wall, except when mounted using the wall mount bracket, and secure to the wall as shown below:
Wire
Clamp
Screw
Wire
4 inches
NOTICE FOR TV CABINET
If the unit is placed on a cabinet smaller than the length of the unit, it could result in instability and the unit may tumble over, making a risk
of personal, possibly fatal injury. Also, this would seriously damage the product. Accordingly, Hitachi accepts no responsibility or liability
for any injuries or property damage resulting from the improper installation.
NO !!YES !!
SAFETY PRECAUTIONS
4 inches
4 inches
Y(VIDEO)
4 inches
4 inches
Y(VIDEO)
4 inches
4 inches
Y(VIDEO)
7 EN
How to attach the stand
NOTE:
• Assure the AC cord is not connected to an AC outlet.
• Before beginning this process, make sure that you have a clean, safe, and cushioned space to work at to avoid any damage to the
unit.
• Do not touch or press the LCD screen, the glass might break under pressure.
1 Carefully place the TV screen face-down on a clean, cushioned surface.
2 Insert and secure the stands (R and L) with 2 screws (supplied) each side as shown in Figure 1.
• Be sure to follow the above instructions. Insucient tightening or incorrect installation of the stand will not support your TV correctly,
and could result in damage or injury from tip-over.
Figure 1
Stands
L
R
Screws
Screws
How to remove the stand
When you transport this product, remove the stand and pack it at against the back of the unit in the carton. To remove the stand,
perform the above steps in reverse order.
When you mount the TV on the wall, remove both stands (R and L).
To disconnect the stand remove the screws from the bottom of TV.
Stands
L
R
EN 8
Contents
Chapter 1: Introduction
Precautions ........................................................................................................................................................................... 2
IMPORTANT SAFETY INSTRUCTIONS ............................................................................................................................... 3
CHILD SAFETY NOTICE ...................................................................................................................................................... 5
SAFETY PRECAUTIONS ..................................................................................................................................................... 6
How to attach the stand ....................................................................................................................................................... 7
How to remove the stand ..................................................................................................................................................... 7
Location of controls ............................................................................................................................................................... 9
Remote Control Functions .................................................................................................................................................. 10
Important Note .................................................................................................................................................................... 11
Network Connection ........................................................................................................................................................... 11
Battery Precautions ............................................................................................................................................................ 12
Connection Power ............................................................................................................................................................... 12
Antenna connections .......................................................................................................................................................... 13
Cable TV connections ......................................................................................................................................................... 13
Chapter 2: TV Operation
Menu Display ...................................................................................................................................................................... 14
Initial Setup ......................................................................................................................................................................... 14
Source ................................................................................................................................................................................ 14
Menu Operation .................................................................................................................................................................. 15
Channel setup..................................................................................................................................................................... 15
Video Menu ........................................................................................................................................................................ 15
Audio Menu ........................................................................................................................................................................ 16
Time Setup ......................................................................................................................................................................... 16
Setup Menu ........................................................................................................................................................................ 16
Lock Menu .......................................................................................................................................................................... 17
Multimedia .......................................................................................................................................................................... 17
Featured APPs .................................................................................................................................................................... 18
Chapter 3: Addition Information
Problem & Solutions ........................................................................................................................................................... 19
Reception disturbances ...................................................................................................................................................... 20
Troubleshooting .................................................................................................................................................................. 21
Specications ..................................................................................................................................................................... 22
LIMITED WARRANTY ........................................................................................................................................................ 24
9 EN
Chapter 1 Introduction
LAN
Digital
Audio Out
HDMI
1/2/3
AIR/CABLE
LAN (RJ45)
This input can be used to connect to an external modem or network
access equipment.
Digital Audio Out
This output can be used to connect a compatible digital audio receiver.
HDMI1/HDMI2/HDMI3
The HDMI inputs receives digital audio and video from an HDMI
device.
USB
This input can be used to connect a USB device.
AIR/CABLE IN
This input is used to connect to an external antenna (AIR) or to a cable
(CABLE) output.
AV IN
The AV IN inputs can be used to connect a range of equipment,
including video recorder, camcorders, satellite receivers, DVD players,
or game consoles.
AUDIO OUT
Use an RCA audio cable to connect your TV to a compatible audio
receiver.
Inputs / Outputs
TV Control Keys
The TV control keys (located at the rear, right side of the TV) are multi-function
buttons that help navigate or operate the TV without a remote control.
1. / POWER / OK / Return button
A. Press to power ON the TV from Standby mode.
B. When the TV is ON:
1. Press to display the NAV (navigation) OSD (On-screen Display).
2. Press to select OK.
3. Press and hold for more than 2 secounds to RETURN or exit.
2.
A. Press to change the channel.
B. Press to up / down in NAV OSD.
3.
A. Press to change the volume level.
B. Press to left / right in NAV OSD.
EN 10
Remote control
4
Press to turn the TV’s power on/o.
(MUTE) Reduces the TV’s volumes to its minimum level. Press
again to restore the volume.
Select “Air” or “Cable”.
Press to set Closed Caption to “CC O”, “CC On Mute” or “CC On”.
Press to change the audio language.
(Numeric buttons) Use to enter channel numbers, letters, or
symbols.
Use to enter a digital channel with a sub-channel. Enter the main
channel, then press the dot ( ), enter the sub-channel, and then
press OK to conrm your entry.
Return to the previous channel in TV mode.
Calls the input source selection menu.
Press to call the main menu OSD or press to return to the previous
menu.
(Cursor Up/Down/Left/Right buttons) Use to navigate and select
menu functions.
Press to call the ASPECT selection OSD.
Press to conrm or select functions for the On-Screen menu.
Press to exit the On-Screen menu.
Press to display information about the TV status.
(Volume UP/DOWN) Increase or decrease the TV’s volume.
Press to change the channel of the TV.
Press to call the Smart TV homepage.
Press to go to the YouTube homepage.
Press to go to the NETFLIX homepage.
Color
buttons (Red / Green / Yellow / Blue) Special function buttons.
Press to call the Picture Mode on-screen display menu.
Press to call the Sound Mode on-screen display menu.
Repeatedly press to set the sleep timer from 10 to 90 minuets. To
cancel the sleep timer, press SLEEP until “O” appears.
Press to display the electric program guide.
FREEZE Freeze On/O.
Press to go to the browser’s homepage.
Press to access the Favorite Channel list.
Press to go to the Multimedia page.
(Previous) Press to select the previous chapter
(Stop) Press to stop viewing.
(Play/Pause) Press to start, pause or resume viewing.
(Next) Press to select the next chapter.
11 EN
Important Note
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Internet features require an active internet connection and may require a content subscription or Pay-Per-View fee.
Netix is a registered trademark of Netix, Inc.. Netix is available in certain countries and requires a paid subscription. More information
at www.Netix.com
Opera, Opera Software, Opera Devices, and the “O” logo are trademarks of Opera Software ASA.
YouTube™ is a trademark of Google Inc.
Picasa™ is a trademark of Google Inc.
Twitter is a registered trademark of Twitter, Inc.
Facebook is a trademark of Facebook.
Connected TV Apps Powered by TCL.
All other trademarks are the property of their respective owners.
Network Connection
To access the Internet from this TV, you must separately subscribe to high speed broadband Internet service with your
Internet Service Provider.
Your TV is internet-ready and can be connected to your home network in two ways:
• Wired, using the LAN (RJ45) input located on the back of the TV.
• Wireless, using a router capable of broadcasting a high-speed wireless signal.
Caution:
This wireless appliance complies with FCC radiation limits set forth for an uncontrolled environment.
Install and operate with a minimum of 8 inches between it and your body.
Connecting to a wired network
To connect to a wired network:
1. Ensure you have:
• An Ethernet cable long enough to reach your TV.
• A router or modem with an available Ethernet port.
• A high speed internet connection.
2. Connect your Ethernet cable to the router or modem and to the
LAN port on the back of the TV.
3. Use the Network menu to congure the TV.
INTERNET
Connecting to a wireless network
To connect to a wireless network:
1. Ensure you have:
• A router broadcasting a high-speed wireless signal.
• A high-speed internet connection.
2. Use the Network menu to congure the TV.
EN 12

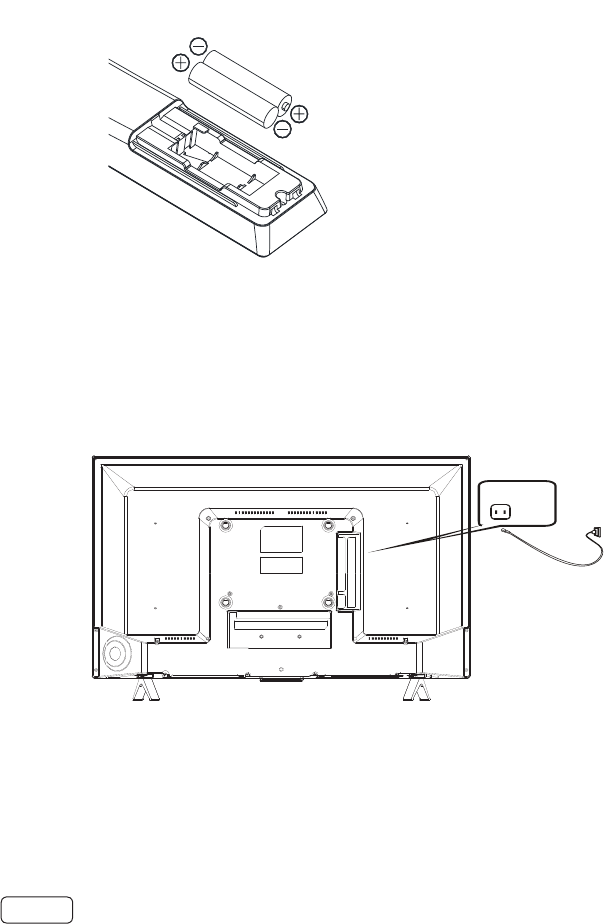

HOW TO INSTALL BATTERIES
1. Open the battery compartment cover.
2. Install two “AAA” batteries (supplied).
3. Replace the battery compartment cover.
Before using the remote control, batteries must rst be installed.
Use two “AAA” size batteries. The batteries may last approximately one year depending on how much the remote control is used. For best
performance, it is recommended that batteries should be replaced on a yearly basis or when the remote operation becomes erratic. Do
not mix old and new batteries or batteries of dierent types.
WARNING: The batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, re or the like.
BATTERY PRECAUTIONS
These precautions should be followed when using batteries.
• Use only the size and type of batteries specied.
• Be sure to follow the correct polarity when installing the batteries as indicated in the battery compartment. Reversed batteries may
cause damage to the device.
• Do not mix dierent types of batteries together (e.g. Alkaline, Carbon-zinc or Rechargeable) or old batteries with fresh ones.
• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.
• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture. (Follow battery manufacturer’s
directions.)
• Please use caution when inserting batteries to avoid battery damage. If the spring terminal in the remote control remains in contact
with a side of a damaged battery it can cause a short circuit. Never use damaged batteries as they can become very hot and are
dangerous.
CONNECTING POWER
First connect the AC cord to the television, then connect the other end to an AC outlet
13 EN
Antenna connections
If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you
are using a Cable TV service, see Cable TV connections.
Combination VHF/UHF Antenna (Single 75 ohm cable)
Connect the 75 ohm cable from the combination VHF/UHF antenna to the Antenna
Jack.
75 ohm
Coaxial
Cable
Antenna
Jack
Cable TV connections
For basic Cable TV service not requiring a Converter/Descrambler box, connect the
75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV.
For subscribers to scrambled Cable TV service
If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial
Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler
box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler
box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.
For subscribers to unscrambled Cable TV service with scrambled premium channels
If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/
Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics
supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any non-scrambled channels
on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and
use the Converter/Descrambler box to tune scrambled channels.
This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some
cable companies oer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal
viewing requires the use of a descrambler device which is generally provided by the Cable TV company.
For subscribers to basic Cable TV service
Incoming 75 ohm Cable TV Cable 75 ohm Cable to TV
Antenna
Jack
Converter/
Descrambler
Splitter B
A
Incoming
75 ohm
Cable TV
Cable A/B Switch 75 ohm Cable to TV
Converter/
Descrambler Antenna
Jack
75 ohm
Coaxial Cable
Antenna
Jack
75 ohm
Coaxial Cable
Antenna
Jack
75 ohm
Coaxial Cable
Antenna
Jack
EN 14
Chapter 2 TV Operation

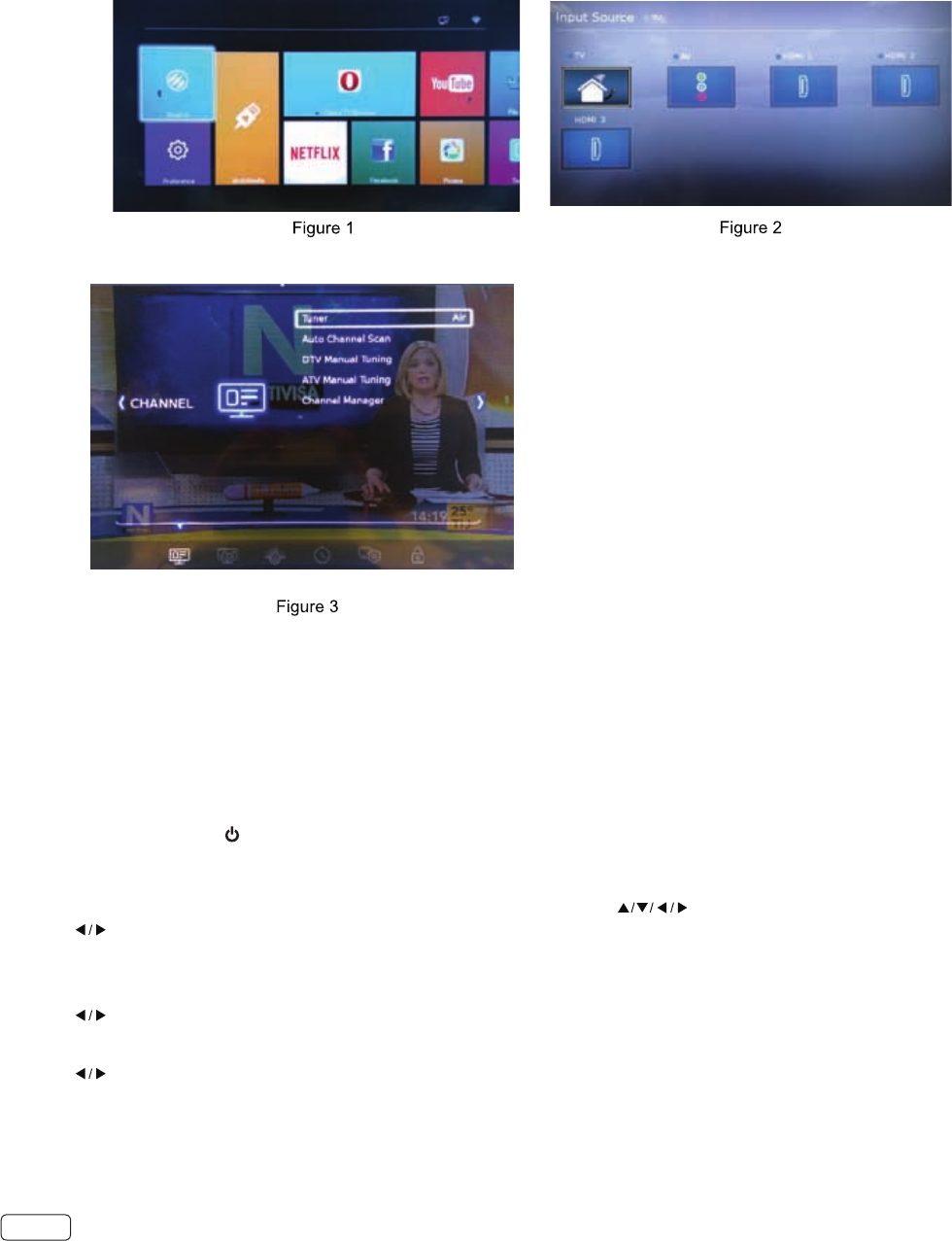

Menu Display
Figures and illustrations below are provided for reference only and may dier from actual product appearance.
Archivos
Initial Setup
The Setup Wizard appears the rst time you turn on the
TV, and assists you to specify the Air/Cable setting, and
program your channels automatically.
IMPORTANT: Make sure you are connected to an antenna
or cable TV system.
1. To turn on the TV, press . (It may take approx. 10
seconds for a picture to appear on screen.) The Initial
Setup Wizard begins.
2. Press to select your language, then select go to
next step to conrm your “Time Zone” and “Daylight
Saving” setting. Then “Go to next step”.
3. Press to select “Air” or “Cable” then select “Go to
next step”.
4. Press to select Scan and then select “Go to
next step” to start the channel search function. All
available TV channels will be stored. This operation
takes a few minutes. Auto Channel Scan will begin.
After the scan is completed, a TV channel will appear
on the screen.
Source
Includes TV, AV, HDMI1, HDMI2 and HDMI3 (see Figure
2). Press to select the input source, then press OK
to conrm your choice.
• Depending on the reception condition, it may take up
to 30 minutes to complete scanning channels. Please
allow the process to complete without interruption.
Note: During the setup, you can follow the navigation
help available at the bottom of the screen.
15 EN
Menu Operation
The main menu contains six submenus, which are
CHANNEL, VIDEO, AUDIO, TIME, SETUP and LOCK(
see Figure 3).
CHANNEL
Press MENU to display the main menu and select
CHANNEL, then press OK to conrm. The Channels
options are as follows:
Tuner
Press OK to select Air or Cable.
Auto Channel Scan
1. Select CHANNEL > Auto Channel Scan and press
OK to enter.
2. Press to select Scan all channels, Digital
channels only, or Analog channels only, then press
OK to start the channel scan.
3. The serach process may take a few minutes. During
the process, you can press MENU or EXIT to stop the
channel scan.
4. After the channel scan, channels are arranged in a
preset order.
Note: The default password is “0000”. If you have
set the password to a personal setting and
have forgotten it, you can use “7777”, which is
the master password to override the existing
password.
DTV Manual Tuning
This feature allows you to scan and add digital channels
manually (by channel number).
1. Select CHANNEL > DTV Manual Tuning and then press
OK to enter.
2. Press to select a channel number.
3. Press OK to start the channel scan, if the channel is
found it will automatically be added to the channel list
in the Channel Manager.
4. Press MENU to return or EXIT to close the menu.
ATV Manual Tuning
This feature allows you scan and add analog channels
manually (by channel number).
1. Select CHANNEL > ATV Manual Tuning, then press OK
to enter.
2. Press to select a channel number.
Note: Use the Fine-Tune function to ne tune the channel
if the picture is not clear.
3. Press the RED button on the remote control to save
the channel to the channel list.
4. Press MENU to return or press EXIT to close the menu.
Channel Manager
1. Select CHANNEL > Channel Manager and press OK to
enter.
2. Press to select a channel. Press FAV on the remote
control to set or delete the selected channel as a
favourite channel.
3. Press the RED button on the remote control to save
the channel to the channel list in the Channel Manager.
4. Press MENU to return or press EXIT to close the menu.
VIDEO
The Video menu allows you to adjust the picture settings
according to your preference. Press MENU and select
VIDEO, then press OK to conrm. The Video options are
as follows:
Picture Mode
Press OK to enter the Picture Mode menu. Then press
to select your desired picture mode (Dynamic, Standard,
Movie, or Custom).
Color Temperature
Use this feature to adjust the color temperature of the
picture. Press OK to enter the menu and then press
to select:
Cool: For a less intense color with more blue.
Standard: For a more natural color.
Warm: For a more warm color with more red.
Aspect Ratio
Press OK to enter the Aspect Ratio menu. Press to
select a desired aspect ratio (Auto, Normal, Wide, and
Full).
Note: Depending on the signal source, some aspect
ratios may not be available.
Noise Reduction
The Noise Reduction function automatically reduces
conspicuous noise in the picture without degrading picture
quality. Set Noise Reduction to O if you see individual
blocks in the picture.
MPEG Noise Reduction
The MPEG NR (Noise Reduction) function automatically
reduces block noise in the picture without degrading picture
quality.
Dynamic Contrast
Use this feature to change the black level automatically
according to the brightness of an image. The black level will
become dark in a dark scene.
EN 16
AUDIO
Press MENU and select AUDIO, then press OK to conrm.
The AUDIO options are as follows:
Sound Mode
Press OK to enter the Sound Mode menu. Then press
to select your desired Sound mode (Standard, News,
Movie, Sports, or Custom).
Balance
Use this feature to adjust the left and right sound channel
volume.
Perfect Volume
Volume level is adjusted automatically to lower volume of
loud scenes and to raise volume of quieter scenes. (O /
On)
Digital Output
Press OK to toggle between Auto and PCM.
Audio Language
Choose from the list of languages available for the program
you’re watching. The language chosen becomes your
preferred language for all digital channels until you turn the
TV o. If the language chosen is not being broadcasted
with a program, the TV plays the default language for the
program.
Note: The Default Audio Language option is only for
available digital channels.
MTS/SAP
The multi-channel TV sound (MTS) feature provides high-
delity stereo sound. MTS also can transmit a second audio
program (SAP) containing a second language or other
audio information. Press to select MONO, STEREO,
or SAP.
TIME
This menu allows you to set the Time, Sleep Timer, Time
Zone, Daylight Savings setting, and Auto TV O setting.
Time Mode
When the feature is set to Auto, this feature allows the TV to
get the date and time automatically from a digital channel.
When the feature is set to Manual, you will need to set the
date and time yourself.
Note: When set to Auto the Date and Time options will
not be available.
Clock
Select Time and press OK to enter the menu. Press
to select and set Date, Month, Year, Hour, and Minute. After
setting the date and time press MENU to save your settings
and return to previous menu.
Sleep Timer
Use to select O, 10Min, 20Min, 30Min, 60Min and
90Min.
SETUP
Press MENU to display the main menu and select SETUP.
Then press OK to conrm. The Setup option are as follows:
Menu Language
Press OK to enter the Menu Language menu and use
to choose English or Español.
TV Location
Press OK to enter the TV Location menu and use to
choose Home or Store.
Closed Captions
Many programs are encoded with closed captioning
information, which allows you to display the audio portion of
a program as text on the TV screen.
Note: Closed captioning is not available on all channels
at all times. Only specic programs are encoded
with closed captioning information.
CC Mode: Press OK to enter the Closed Captions menu
and use to choose CC O, CC On, or CC on Mute.
CC O: No captioning information displayed.
CC On: Captioning information is on and will be
displayed if available.
CC on Mute: Displays captioning information, when
available when the TV’s sound is muted.
Analog Captions: Select the analog captions service
type.
Digital Captions: Select the digital captions service type.
Reset
Press OK to select Reset. Then use the numeric
buttons on the remote control to enter the password
which will unlock the reset menu. Use cursor left, on
the remote control, to select Yes to restore all settings
to the factory defaults. User cursor right, on the remote
control, to select No and return to the previous menu.
Note: The default password is “0000”. If you have
set the password to a personal setting and
have forgotten it, you can use “7777”, which is
the master password to override the existing
password.
Time Zone
Use to select the local zone (Newfoundland, Atlantic,
Eastern...).
Daylight Saving
Press OK to toggle between On, O and Auto.
Auto TV O
The TV will automatically switch to standby according to the
settings you set. Options include O, Once, and Daily at a
time set by the user.
17 EN
Network
Your TV supports both Wired and Wireless connections
to access the Internet.
Wired
Conguration: Press to select between Manual or
Auto.
Manual: In Manual mode, you will need to enter your
IP Address, Subnet Mask, Default Gateway, and DNS
settings.
Auto: In Auto mode, your TV will automatically detect
and set the IP Address, Subnet Mask, Default Gateway,
and DNS settings. Note: The LAN/Ethernet cable must
be connected to the TV’s LAN port.
MAC Address: Press OK to display the MAC address of
the TV set.
Wireless
Press OK to enter the Wirelss menu and use to tune
wireless On or O.
Base Station: Press OK to display the available
wireless connections. It may take a few seconds for the
TV to complete its search for availble Wi-Fi connections.
For some Wi-Fi connections you may need to input the
Wi-Fi connection’s password. Select Password and
press OK, then press cursor right on the remote control
to display the keyboard OSD and enter the password.
MAC Address: Press OK to display the MAC address of
the TV set.
HDMI-CEC
This feature enables the TV to turn on/o or
automatically go to standby when connected to a HDMI
CEC enabled device.
Software Update
Press Menu to display the main menu, and select
Setup > Software Update: Use on the remote
control and select USB Update or Network Update.
Software Version: Press OK to display the current
software version of your TV.
USB Update: Use this feature to update your TV’s
software using a USB disk. The software upgrade
version must be copied to a USB disk prior to doing the
update.
Note: Do not POWER O when updating.
: Avoid any operations with your remote control
when SW updating.
: Please be patient for the software update to
nish before proceeding.
Netix Setting Use this feature and choose Netix
Deactivation to deactivate the TV from the current Netix
account.
LOCK
This menu allows you to change the user password and
enable and set the Parental Control settings.
Lock
Press OK to select Locks. Then use the numeric buttons on
the remote control to enter the password which will unlock
the Locks menu.
Note: The default password is “0000”. If you have set the
password to a personal setting and have forgotten
it, you can use “7777”, which is the master
password to override the existing password.
Parental Control: Press OK to select On or O.
Change Password: This option allows you to change
the password. Press OK and use the numeric buttons
to enter the old password, and then your new password.
Re-enter the new password to conrm.
US Rating: Press OK to select TV or Movie.
Canada Rating: Press OK to select Canada English or
Canada French.
Region 5: Press OK to set the Region 5 table in your TV.
Reset Region 5: Press OK and select YES to reset the
Region 5 table or No to return to the previous menu.
Multimedia (USB)
To use the Multimedia feature, install a USB storage
device, containing the multimedia content, into the USB
input of the TV.
My Picture:
1. Select Multimedia > My Picture and press OK to
conrm. Select a disk, and then press to browse
the picture thumbnails, and press OK to conrm.
2. To switch to the previous or next picture during the
slideshow press on the remote control.
3. Press MENU to show the control menu. Press
to select buttons on the control menu, and press OK
to conrm. The control menu includes Play/Pause,
Previous, Next, Rotate, Zoom, Picture, Mode and .
4. To exit and return to the previous menu, press on
the control menu.
EN 18
Featured APPs
Opera TV Browser: Opera TV browser is a TV browser
specially developed by Opera for smart TVs. After clicking
the icon to enter the browser home page, you can input a
URL to browse a web page. You can also add your favourite
websites on the home page.
Netix: With Netix, you can instantly stream thousands
of your favourite TV shows and movies right to your TV set.
Facebook: TV client of Facebook social networking
application. After clicking the icon and entering the
application, users can browser contents and communicate
online via the TV.
YouTube: The world’s largest video sharing site. After you
click the icon and enter the site, you can view a variety of
videos.
Picasa: Picasa is a software for you to search, edit and
manage photos.
File Share: By connecting the TV and a device (computer,
smart phone, tablet, etc.) to the same local network, you
can enjoy the music, videos and pictures shared by the
device on the TV.
Twitter: Twitter is a social networking site and micro-
blogging tool. Via TV Twitter client, you can interact with
friends by posting, updating blogs and following other
blogs.
Opera TV Store: A one-stop shop for optimized web apps
that viewers want to use.
Wireless Display: Mirror compatible smartphone, tablet,
or computer displays to the TV through your Wi-Fi network.
Note: Please see page 11 for important note about
APPs.
19 EN
Chapter 3 Addition Information
Problem & Solutions
1. Failed to connect to network
- Check if your TV is connected to the network.
- Power O and On your TV.
- Consult your internet service provider to conrm
if access of your router is supported. Refer to the
operation manual of your router, and activate its DHCP
function after linking the network to your TV.
- Make sure your TV is connected to the router. Check
the router function using your PC. Check to conrm the
name of the router is correct in the TV menu.
2. Videos do not play smoothly.
- Online videos:
a. Examine your network bandwidth, which need to
be over 1Mbps for online videos, and 2Mbps for
high denition movies and video programs. We
recommend a 2M (or higher) network bandwidth
and network service provided by a major network
operator.
b. Local peak hour of internet may aect the
bandwidth.
c. Check if several computer work together on
the same network at your house, with certain
computers downloading, or seeing an online video.
d. Make sure your TV is connected to the router. If the
router is connected and powered on, try to change
to a router and network line, and use your PC to test
the connection.
3. USB hard drives are not recognized when multiple
hard drives are connected.
- We recommend inserting only one hard disk, at a time
use a low power consumption mobile hard disk.
4. There are no distinct changes of TV interface after
SW updating.
- Most software updates do not change the on-screen
display.
5. What should I do if the TV lost power during the SW
update process?
- SW Update using a USB: Do not remove the USB from
the TV. Leave it inserted and restart your TV to continue
the SW update.
SW update using the network: Restart your TV and
check if it is functioning correctly.
6. No USB device detected after accessing
Multimedia with a USB device connected
- Your USB device may be damaged or not compatible.
EN 20
Reception disturbances
IGNITION NOISE:
Black spots or horizontal streaks may appear, picture may utter or drift. Usually caused by interference
from automobile ignition systems, neon lamps, electrical drills, and other electrical appliances.
GHOSTS:
Ghosts are caused by the television signal following two paths. One is the direct path and the other
is reected from tall buildings, hills or some other objects. Changing the direction or position of the
antenna may improve reception. Ghosting may also be caused by defects in the antenna system such
as unshielded leads or connecting several sets to the same antenna without using multiple antenna
couplers.
SNOW:
If your receiver is located in the fringe area of a television station where the signal is weak, your
picture may be marred by the appearance of small dots. When the signal is extremely weak, it may be
necessary to install a special antenna to improve the picture.
RADIO FREQUENCY INTERFERENCE:
The interference produces moving ripples or diagonal streaks, and in some cases, causes loss of
contrast in the picture.
• Keep the television away from Radio.
• Adjust Radio antennas in order for the television not to receive interference.
• The antenna cable of Radio should be kept away from the television.
• Use a coaxial cable for antenna.
• You can check if this television inuences Radio receivers by turning o all other equipment other
than the television. If you nd a problem receiving Radio when using the television, check the
instructions mentioned above.
BLOCK NOISE or FREEZE (DIGITAL INPUT):
Fuzzy blocks may appear in some area or the whole area of the screen. This is usually caused by
interference from automobile ignition systems, neon lamps, electrical drills, ghosting of the image and
lost or weak receiving signals.
NOTE:
• The TV set can generate sound distortion in external devices such as a radio. Please separate radio equipment from the TV set to a
considerable distance.
21 EN
SYMPTOMS POSSIBLE SOLUTIONS
Digital
broadcasting
screen
problem.
• Check digital signal strength.
No CATV
reception.
• Check all Cable TV connections.
• Set Source menu option to the Cable mode.
• Station or Cable TV system problems, try
another station.
Horizontal
or diagonal
bars on
screen.
• Check antenna connections, adjust or re-
direct antenna.
• Check for sources of possible interference.
No reception
above
channel 13.
• Make sure the appropriate Source (Air or
Cable) has been selected.
• If using antenna, check UHF antenna
connections.
No Remote
operation.
• Batteries are weak, dead or inserted incorrectly.
• Remote is out of range, move closer to TV
(within 15 feet).
• Make sure Remote is aimed at sensor.
• Conrm there are no obstructions between the
Remote and the TV.
• Make sure the power cord is plugged in.
TV shuts o. • Sleep Timer is set.
• Power interrupted.
Closed
Caption is
not activated.
• TV station experiencing problems or program
tuned is not closed captioned. Try another
channel.
• Check Cable TV connection or VHF/UHF
antenna, reposition or rotate antenna.
• Set Closed Caption Decoder in the menu.
TV is not
shown in your
language.
• Select proper language in the menu options.
Use the following checklist for troubleshooting if you have problems with your TV. Consult your local dealer or service outlet if problems
persist. Be sure all connections are properly made when using with other units.
SYMPTOMS POSSIBLE SOLUTIONS
TV does not
operate.
• Make sure the power cord is plugged in.
• Try another AC outlet.
• Power is o, check fuse or circuit breaker.
• Unplug unit for an hour, then plug it back in.
Poor sound
or no sound.
• Station or Cable TV experiencing problems,
tune to another station.
• Check sound adjustments (Volume or Mute).
• Check for sources of possible interference.
• Check for audio language setting.
Poor picture
or no picture.
• Station or Cable TV experiencing problems,
tune to another station.
• Make sure channels are set into memory.
• Check antenna or Cable TV connections,
adjust antenna.
• Check for sources of possible interference.
• Check picture control adjustments.
Poor
reception on
some
channels.
• Station or Cable TV experiencing problems,
tune to another station.
• Make sure channels are set into memory.
• Station is weak, adjust antenna to receive
desired station.
• Check for sources of possible interference.
Poor color or
no color.
• Station or Cable TV experiencing problems,
tune to another station.
• Make sure channels are set into memory.
• Check picture control adjustments.
• Check antenna or Cable TV connections,
adjust antenna.
• Check for sources of possible interference.
wobbles or
drifts.
• Station or Cable TV experiencing problems,
tune to another station.
• Make sure channels are set into memory.
• Cable TV company is scrambling signal.
• Adjust antenna.
If the problem cannot be solved with the suggested procedures, contact 800.HITACHI
(800.448.2244). For your safety, never try to repair the product yourself.
Troubleshooting
EN 22
• Designs and specications are subject to change without notice.
• For information on our other products, please visit our website at www.hitachi.us
Specications
Model LE32M4S9
Panel size
32” class / 31.51” Diagonal (800.4 mm)
Display method Transmission TFT color LCD panel
Number of Pixels 1366 (H) × 768 (V)
Broadcasting system US system M
ATSC standard (8VSB), QAM
Receiving channels VHF 2-13
UHF 14-69
CATV 14-36 (A)-(W)
37-59 (AA)-(WW)
60-85 (AAA)-(ZZZ)
86-94 (86)-(94)
95-99 (A-5)-(A-1)
100-135 (100)-(135)
01 (4A)
Tuner type Frequency synthesized
Inputs Video: 1.0 V (p-p),75 ohms
Audio: 2Vrms Max.
HDMI: HDMI compliant (type A connector)
HDCP compliant
E-EDID compliant
Suggested scan rates: 480i, 480p, 720p, 1080i, 1080p
HDMI Audio: 2-channel PCM
32/44.1/48 kHz sampling frequency
16/20/24 bits per sample
Antenna: VHF/UHF In 75 ohms coaxial
LAN 10BASE-T/100BASE-TX
Wi-Fi Frequency 2.4GHz ~ 2.5GHz
Type 802.11b/g/n
Security Type WPA2
Outputs Audio: 0.2 V (p-p), 75 ohms terminated
Digital audio: 0.2 V (p-p), 75 ohms terminated
Speakers Integrated speakers (Bottom side)
Audio output power 5.0W + 5.0W (THD 7%)
Power supply AC 110 ~ 240V, 60Hz
Power consumption Operation: 45W
Standby: ≤0.5W
Weight 4.8kg (10.6 lbs)
Dimensions Width: 736.0mm (29 ”), Height: 474.0mm (18-3/4”), Depth:179.0 mm (7 1/16”)
Operating temperature 5˚C - 40˚C
Operating humidity Less than 80% RH
Accessories Remote control
AC code
Batteries (AAA) × 2
Stand x 2 (R, L), Stand Screws x 4
Owner’s Guide
Quick Start Guide
23 EN
800.HITACHI
(800.448.2244)
Monday ~ Friday
9:00 am - 6:00 pm EST
www.hitachi.us/tv
HITACHI AMERICA, LTD., DIGITAL MEDIA DIVISION
HITACHI has made every effort to assure you enjoy trouble free operation from your Hitachi
product. Should you require service assistance with OPERATIONAL, HOOK UP, TECHNICAL
ASSISTANCE OR WARRANTY SERVICE SUPPORT, please contact one of our knowledgeable
Customer Service Advocates at 800.HITACHI (800.448.2244).
Please be prepared to submit proof of purchase and/or delivery receipts to your 800.HITACHI
Customer Service Representative. Warranty coverage will be provided in accordance with the
provisions of your Limited Warranty (see the Limited Warranty page in this operating guide).
Pour de plus amples renseignements sur le service durant la periode couverte par la garantie,
sur le fonctionnement ou pour de l'assistance techniquie communiquez avec:
Au Canada: 800.HITACHI (800.448.2244)
Lundi ~ Vendredi 9:00 am - 6:00 pm HNE
Hitachi America, Ltd., Digital Media Division
Customer Service Support
P.O. Box 99652
Troy, MI 48099
customerservice.ce@hal.hitachi.com
EN 24
Congratulations on your purchase of a new Hitachi display product.
LIMITED WARRANTY:
Hitachi America Ltd., warrants this product in accordance with the terms and conditions applicable to the products identified below:
Conditions of Hitachi Limited Warranty: This Hitachi display product (the “Product”) is warranted to be free from defects in materials and
workmanship beginning on the date of purchase by the original owner and continuing for the duration of the applicable time periods specified below.
If the Product is found to be defective, Hitachi will repair or replace (at Hitachi’s option) defective parts at no charge, subject to the conditions of this
Limited Warranty. If the original owner rejects, refuses or otherwise does not accept Hitachi’s offer to repair or replace such defective parts under
this Limited Warranty, this Limited Warranty shall be void and of no further force or effect. This Limited Warranty extends to the original owner
only and is not transferable, and such owner must provide a dated sales receipt for the Product to qualify for parts or service under this Limited
Warranty. The original owner must notify Hitachi of a defect claim by calling 800-HITACHI during the applicable Limited Warranty period for
this Limited Warranty to be effective. This Limited Warranty is valid only in the U.S.A., Canada and Puerto Rico.
Hitachi Product: LCD Flat Panel Televisions PARTS : The Limited Warranty period for parts is 1 year from the date of original purchase. During the
Limited Warranty period for parts, Hitachi will replace defective parts with new or rebuilt parts (at Hitachi’s option) at no charge for such parts. Any
replacement part will be warranted for the remainder of the original warranty period applicable to the part replaced. LABOR : The Limited Warranty
period for labor is 1 year from the date of original purchase. During the Limited Warranty period for labor, Hitachi will repair or replace (at Hitachi’s
option) defective parts without charge for labor. SERVICE LOCATION : In-home warranty service, which includes either in-home repair or free
pick-up and delivery (at Hitachi’s option), applies to all Hitachi products except: (i) 43-inch and smaller LCD Flat Panel Televisions; (ii) Products
located outside the U.S.A., Canada or Puerto Rico; (iii) Products located more than seventy-five (75) driving miles from Hitachi’s nearest Authorized
Service Facility. If the foregoing clauses (i), (ii), (iii) apply, then the Product owner will be responsible for bringing/delivering the Product to a
Hitachi Authorized Service Facility and, following warranty service, retrieving the Product from such Authorized Service Facility.
IMPORTANT: Before using or installing your Product, please complete this form and attach your sales receipt and retain them for your records.
This will help facilitate proper warranty coverage.
MODEL NO. SERIAL NO.
DEALER NAME DATE OF PURCHASE
DEALER ADDRESS
CITY STATE / PROVINCE
Warranty Limitations. THIS HITACHI LIMITED WARRANTY DOES NOT COVER: A. Any Product that has been modified or repaired in a
manner not previously authorized by Hitachi in writing. B. Any Product, whose serial number has been removed, altered, replaced, defaced or
rendered illegible. C. Any defect, malfunction, or failure caused by or resulting from improper or unauthorized service, maintenance or repair. D.
Damage resulting from abuse, misuse, mishandling, neglect or damage caused by exposure to hostile operating environments such as areas
containing dust and/ or smoke. E. Damage caused by power surges, accidents, natural disasters or any other events or circumstances outside Hitachi’s
control. F. Any Product used in any manner inconsistent with the acceptable set-up, usage, safety or installation configurations identified in the
Product’s Operating Guide. G. Any Product used for purposes or applications, or subjected to operating conditions, other than those identified as
acceptable in the Product’s Operating Guide. H. Product repairs (including any product whose case has been opened), or part replacements
provided or installed, by any person other than an Authorized Hitachi Service Facility Representative. I. Improper uncrating, set-up or installation
or any misadjustments caused by user-operated controls. J. Any labor or costs associated with removing the Product from a custom cabinet or other
specialized product installation that impedes direct and immediate removal of the Product from the owner’s premises (must be arranged and paid
by the owner). K. Product cabinets, cabinet parts, knobs, batteries, accessories, or any third party's branded hardware or peripheral devices, including
any software incorporated therein, whether or not included within the Product's original packaging. L. Product screens that have been cleaned by any
method other than as specified in the Product’s Operating Guide. M. Normal usage, degraded brightness caused by backlight aging and/or cell
defects or ordinary wear and tear, including, without limitation, scratches or marks on the Product’s screen, cabinet or the appearance of bright or dark
screen pixels. N. Any Product returned for service that is damaged due to improper packaging, mishandling or shipping. (IMPORTANT: When
shipping any Product to a Hitachi Authorized Service Facility, Product owner must package it securely in the original shipping container or its
equivalent to prevent damage. The Product must be returned with the shipping charges prepaid and proof of purchases included in the shipping
container. Failure to properly package such product during such shipment will void all warranties.) O. Any Product purchased or serviced outside
the U.S.A., Canada and Puerto Rico. P. Any Product that has been used for commercial purposes.
NO PERSON, AGENT, DISTRIBUTOR, DEALER, SERVICE FACILITY, OR COMPANY IS AUTHORIZED TO CHANGE, MODIFY OR AMEND THE TERMS
OF THIS LIMITED WARRANTY IN ANY MANNER WHATSOEVER. EXCEPT AS PROVIDED IN THIS LIMITED WARRANTY, HITACHI MAKES NO
EXPRESS WARRANTY REGARDING THIS HITACHI PRODUCT. FURTHER, ALL IMPLIED WARRANTIES RELATING TO ANY PORTION OF THIS
PRODUCT, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION
SPECIFIED UNDER THIS LIMITED WARRANTY. HITACHI SHALL NOT BE LIABLE TO THE PURCHASER OR TO ANY OTHER PERSON FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFIT OR PRODUCT RESULTING FROM ANY DEFECT IN, OR MALFUNCTION OR
FAILURE OF, THIS HITACHI PRODUCT. BECAUSE SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS
LIMITED WARRANTY CONFERS SPECIFIC LEGAL RIGHTS, INCLUDING CERTAIN OTHER RIGHTS THAT MAY VARY DEPENDING ON YOUR
JURISDICTION. THIS LIMITED WARRANTY SHALL BE GOVERNED BY AND CONSTRUED IN ACCORDANCE WITH THE LAWS OF THE
JURISDICATION OF THE PRODUCT OWNER’S RESIDENCE.
25 EN
LIMITED WARRANTY
This Limited Warranty offered by Hitachi America, Ltd., Digital Media Division (“Hitachi”) and implemented
through Warranty Support LATAM, SA de CV, warrants this Product against failure due to manufacturing
defects and covers parts, components, and labor for a period of 12 months from the original date of purchase
under the following conditions:
HOUSEHOLD
This Limited Warranty is the only guarantee for this Product, and covers residential use only.
COVERAGE
At the discretion of Hitachi, Hitachi will repair, replace, or refund the purchase price of the Product should the
Product fail due to a manufacturing defect during the 12 month period following the date of original purchase.
Any repairs performed under this Limited Warranty may be completed using either new or refurbished parts.
After the warranty period expires, Hitachi assumes no responsibility for any costs incurred for repairs.
For customer service and to validate this warranty call the toll-free phone number:
01-800-288-2600
TO OBTAIN WARRANTY SERVICE
To obtain warranty service, you must first call our customer service center at 01-800-288-2600 for information
on how to obtain warranty service. If the Product qualifies for in-warranty repairs, the product shall be
repaired within a period not exceeding thirty (30 days). Hitachi reserves the right to choose the means to
provide Service. Hitachi requires that you provide this Limited Warranty sealed by the establishment that sold
you the Product along with the original invoice, or a copy of the original invoice.
THIS LIMITED WARRANTY NOT VALID IF:
1. The Product has been used under conditions other than normal or when used for commercial
purposes.
2. The Product has not been operated in accordance with the instruction manual that accompanies it.
3. The Product has been altered or repaired by persons not authorized by Hitachi.
4. The Product has physical damage caused by the consumer or by natural disasters.
5. The Product has been damaged by an electrical surge.
6. The Product has been improperly installed.
Unless otherwise provided for by law, this Limited Warranty sets forth the complete expression of the Limited
Warranty provided on this Product by Hitachi.
Model:__________________ Product:________________
Brand : HITACHI_________ Serial No. :______________
Purchase Date :_____________
Warranty Support LATAM, S.A. de C.V., Calle Nubes #412, Colonia Jardines del Moral, Leon, GTO C.P. 37160.
TEL. (55) 4774-1310.
Seal
