General Mobile Radio Service (GMRS)
Model : GMRS602
.
:
Owner’s Manual
MODE
VOX
S
LOHI
128-7027
2 of 28
THIS PAGE LEFT BLANK INTENTIONALLY
2
128-7027
3 of 28
CAUTION
SAFETY INFORMATION
Your wireless hand-held portable transceiver contains a low power
transmitter. When the PTT button is pushed (or the VOX mode is enabled)
it sends out radio frequency (RF) signals. The device is authorized to operate
at a duty factor not to exceed 50%. In August 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guidelines
with safety levels for hand-held wireless devices.
Important: To maintain compliance with the FCC’ s RF exposure guidelines
hold the transmitter at least 1 inch (2.5 centimeters) from your
face and speak in a normal voice, with the antenna pointed up
and away. If you wear the handset on your body while using the
headset accessory, use only the Audiovox supplied carry clip
for this product and ensure that the antenna is at least 1 inch
(2.5 centimeters) from your body when transmitting. Use only
the supplied antenna. Do not use your transceiver with a
damaged antenna. Unauthorized antennas, modifications, or
attachments could damage the transmitter and may violate
FCC regulations.
Performance:
Your transceiver will only achieve its maximum operating range when
communicating with other transceivers across open and flat areas or
between elevated points. Normally occurring environmental factors such
as buildings, trees, terrain and weather, or interference from other radio or
electrical equipment, may have adverse effects on the transceiver’s effective
range. These are not indicative of a fault condition.
Avoid placing the GMRS602 radio transceiver for prolonged periods of
time in direct sunlight or temperatures below -4°F(-20°C) or above
140°F (60°C).
Place the rubber cover on jacks when not in use.
3
128-7027
4 of 28
WARNINGS:
Battery Care
Never attempt to charge alkaline or dry cell batteries, as batteries may
burst causing personal injury and damage to the product. If rechargeable
batteries are used, such as Nickel Metal Hydride (NiMH), use only Audiovox-
approved rechargeable batteries. Use of the optional Audiovox charger
with other brands of batteries is not recommended, as battery charging
times will vary with different brands. Refer to the Manufacturer’s instructions
for charging other brands of batteries.
Battery Disposal
In general, if handled improperly, batteries pose a risk of fire or burns. Do
not disassemble, crush, puncture, short external contacts, or dispose of
the batteries in fire or water. Dispose of the batteries in a environmentally
safe manner and recycle whenever possible.
FCC WARNING
Replacement or substitution of transistors, diodes or other parts of a unique
nature, with parts other than those recommended by the manufacturer,
may cause a violation of the technical regulations of Part 15 of FCC Rules.
GMRS LICENSE:
USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC
GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS
NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE
TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS
FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND
SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:
HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.
4
128-7027
5 of 28
5

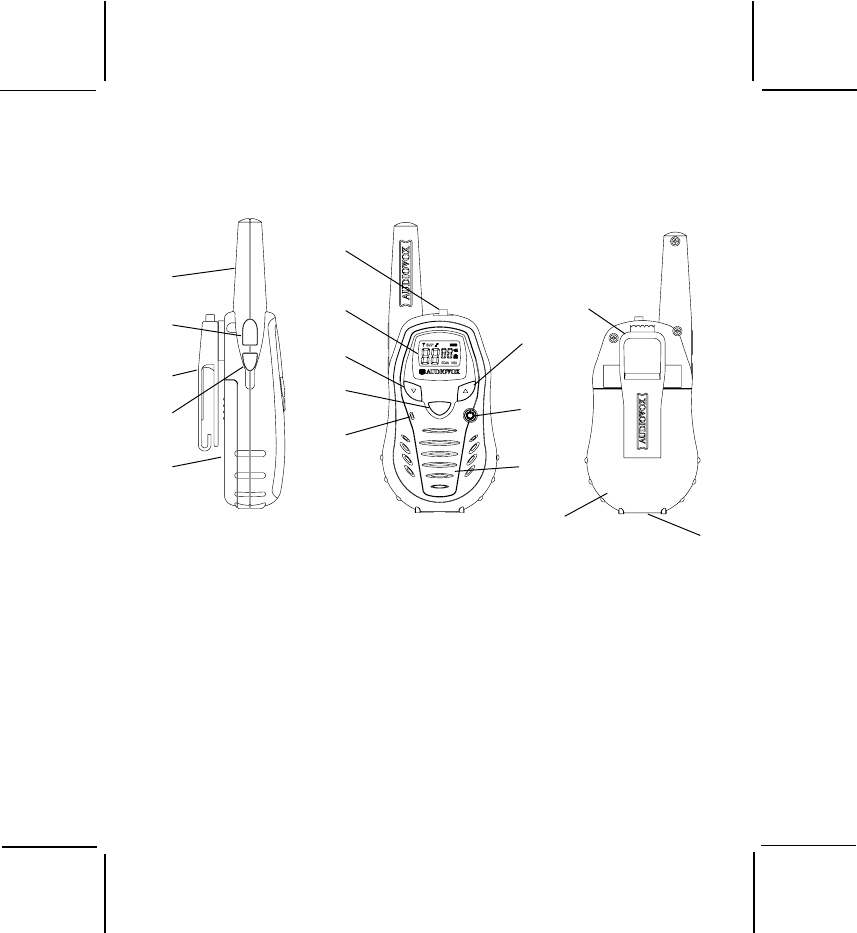

1. Battery Cover
2. Monitor (M) Button
3. Detachable Carry Clip
4. Push-To-Talk (PTT) and Func-
tion Confirmation Button
5. Antenna
6. External Speaker (SP)/
Microphone (MIC)/CHG Jack
7. Built-in Speaker
Model GMRS602 (FCC License Required)
8. Liquid Crystal Display (LCD)
9. Built-in Microphone
10. Up Channel/Volume Button
11. Down Channel/Volume
Button
12. MODE Button
13. Power On/Off and SCAN
Button
14. Battery Charging Contacts
3
5
4
1
2
12
11
13
3
(REF)
14
7
1
(REF)
10
9
6
8
PTT
M
MODE
VOX
S
LOHI
128-7027
6 of 28
6

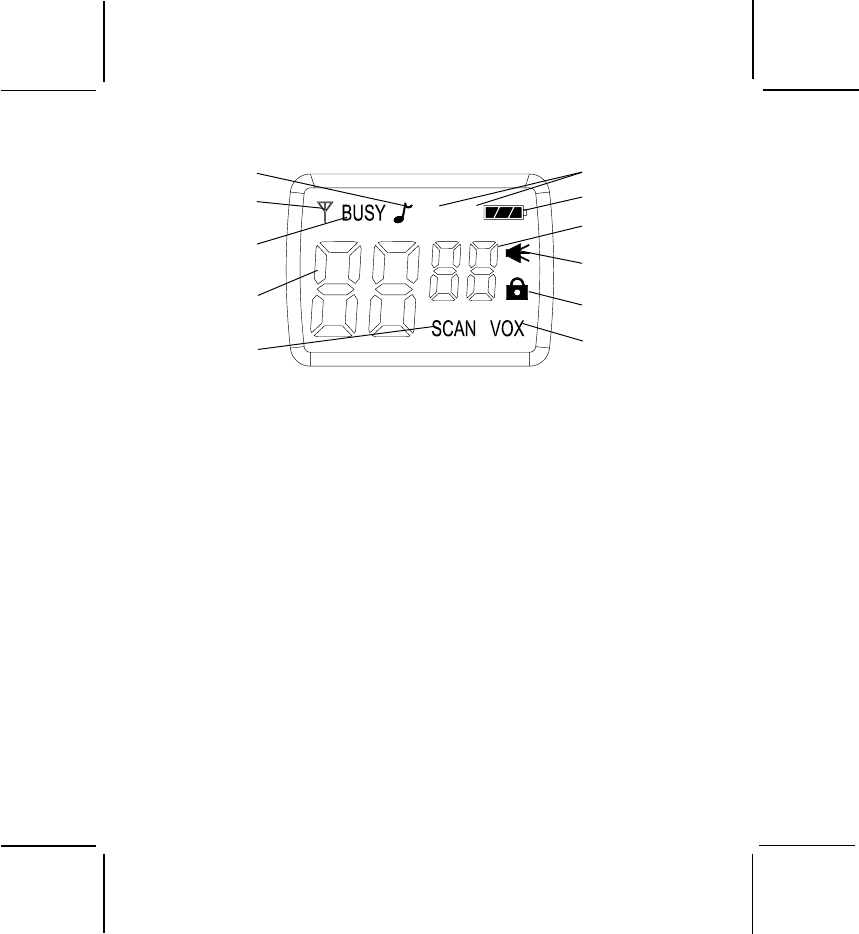

Model GMRS602 DISPLAY
1. Roger Beep Tone Indicator: This icon appears when the Roger Beep
tone is on, and disapppears when the tone is not in use.
2. Transmit Indicator: Icon appears when the unit is in the transmit
mode (PTT button activated or VOX mode active).
3. Busy Indicator: This icon appears when the unit is receiving a
transmission.
4. Large Segment Display: Indicates the channel number in use between
1 and 22.
5. Scan Indicator: This function allows the user to scan a chanel every
0.5 second to search for a valid signal.
6. HI/LO Indicators: Appropriate icon appears when the transmit power
is set to desired output power.
7. Battery Level Indicator: Icon indicates the battery charge level.
8.Small Segment Display: Indicates the CTCSS tone code (1-38)
function is active for the main channel in use.
9. Monitor Indicator: This function is not used.
10.Key Lock Indicator: This function is not used.
11. Voice Activated Transmission (VOX) Indicator: This function allows
hands-free conversation. The icon appears when the VOX mode is
activated.
9
10
11
7
8
1
2
4
3
5
6
LOHI
128-7027
7 of 28
7
Equipment and Accessories Supplied
1. Radio (2) GMRS602
2. Owner’s Manual (1) 128-7027
3. Earbud with Remote PTT Button GMRSBHST8
Optional Equipment and Accessories
1. Rechargeable Batteries NiMH, P/N GMRS6BAT
2. Dual Desk-Top Charger GMRS6DS
3. AC Wall Adapter GMRS6AC
4. Vehicle Cigarette Lighter Adapter GMRS6CG
5. Leather Carrying Case GMRS6LC
Powering the transceiver:
Your GMRS602 radio transceiver operates on four AAA Alkaline batteries.
Alkaline batteries will provide slightly better performance than rechargeable
batteries (purchased separately). Only Audiovox approved rechargeable
batteries should be recharged in the radio transceiver using the optional
charging accessories. This will ensure optimum performance for the
GMRS602. Battery charging time is typically 16 - 20 hours. Use of the
optional Audiovox charging equipment with other brands of rechargeable
batteries is not recommended as battery charging times will vary. Refer to
the manufacturer’s instructions for charging other brands of batteries.
Batteries
There are three methods of powering the GMRS602:
1. Alkaline Batteries.
WARNING: Do not attempt to recharge Alkaline batteries.
2. Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH
batteries and Charging Adapter NOT included). Use only Audiovox
approved rechargeable batteries and charging equipment
NOTE: To extend battery life, avoid overcharging the batteries.
128-7027
8 of 28
8
3. Various Brands of Rechargeable Batteries - Use of the Audiovox
charger(s) with other brands of rechargeable batteries is not
recommended, as battery charging times will vary with different
brands of batteries. Refer to the manufacturer’s instructions for
charging other brands of batteries.

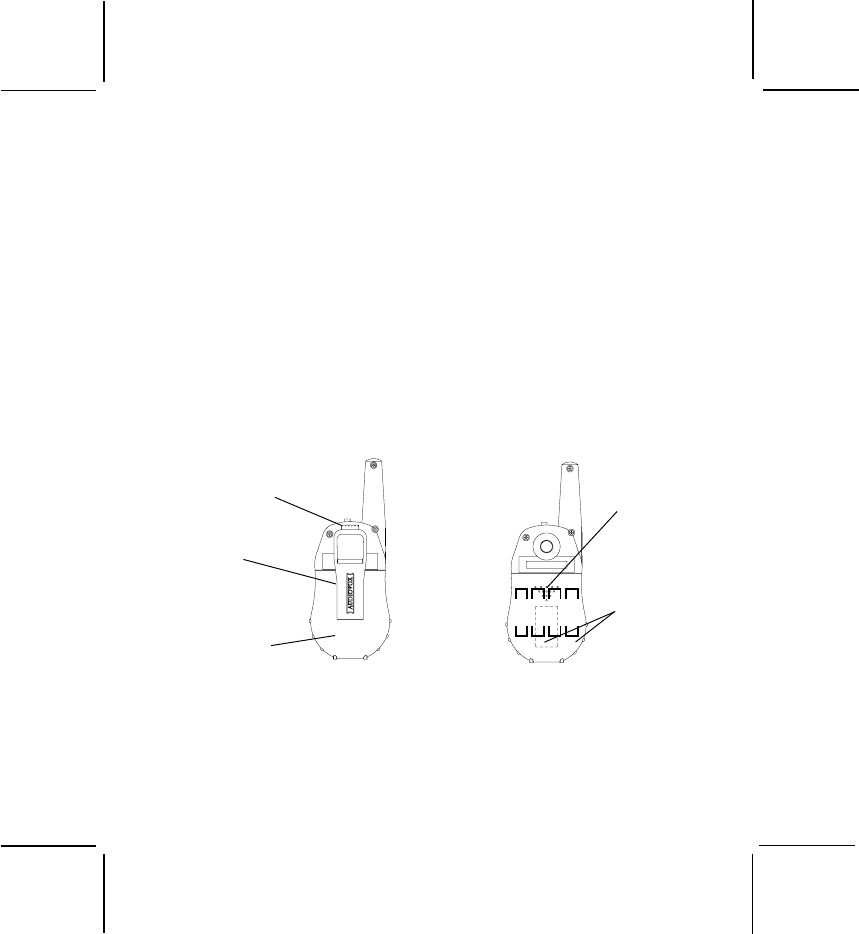

Installing the batteries:
Battery installation is made more convenient when the carry clip is either
rotated left or right to the horizontal position, or is removed. Simply rotate
the clip in either direction to the horizontal position. Be careful not to use
excessive force. To remove the clip, press down on the release tab
and pull the clip straight out from the radio body. Next, press down with the
thumb at the embossed arrow, slide the battery cover down and lift it away
from the compartment. Insert four AAA batteries (alternate positive ends (+)
toward the top of the transceiver, starting left-to-right.
2. Then lift cover at
bottom to open.
Remove cover.
3. Insert four AAA batteries
(positive (+) end toward
the top begining at left
side and alternating
positive terminals as
shown).
1. Using thumb,
press down on
battery cover at
arrow and slide
cover down.
CLIP
RELEASE
TAB
BATTERY
COVER
CARRY
CLIP
COVER
ARROW
POSITIVE
TERMINALS
+ +
+ +
128-7027
9 of 28
9
The following guidelines will improve performance and provide longer
operating times for the GMRS602:
1. Do not mix old and new batteries.
2. The use of alkaline-type batteries is recommended to provide the
longest operating time.
3. Do not mix alkaline, standard (carbon-zinc) or rechargeable
batteries.
4. If the unit is not to be used for an extended period of time, remove the
batteries. Old or leaking batteries can cause damage to the unit and
will void the warranty.
GMRS602 OPERATIONAL MODES
GMRS/FRS
(MODE)
POWER
SELECT
CTCSS
SELECT
CHANNEL
SELECT
ROGER
BEEP
(1-22)
(oF, 01-38)
(GMRS channels only)
(on or oF)
128-7027
10 of 28
10
NOTE: To differentiate between operating modes, look for HI or LO
indication below the battery power level indicator when in GMRS
mode.Refer to the appropriate section of this manual for de-
tailed operating instructions for each mode. Channels 1 through
7 are shared GMRS/FRS. Channels 8 through 14 are FRS only,
and channels 15 through 22 are GMRS only.
Controls:
Power On-Off/SCAN Button (13)
Press and hold the PWR on/off button for at least 2 seconds. You will hear
a confirming melody to indicate the unit is on. To turn the unit off, press and
hold the button for at least 2 seconds.
Adjusting the Volume (11, 10)
With the unit powered on, press the Up Channel/Volume button ( ) to
increase volume and the Down Channel/Volume button ( ) to decrease
volume. The display will indicate the current volume level (UL) followed by
the number (0-7). As volume is increased upward, the unit will beep at
each step, and vice-versa. When the minimum and maximum volume
settings are reached, a unique tone will sound.
128-7027
11 of 28
11
Monitor/Display Backlight Button (2)
This button is used to to check activity on the current frequency before
transmitting. Check activity by pressing the Monitor (M) Button longer
than 2 seconds; the icon will apppear on the display and you will hear
static if frequency is clear.
Do not transmit if you hear conversation.
Hold down the Monitor Button again longer than 2 seconds and the
icon will disapppear from the display.
The monitor function will temporarily bypass the squelch setting and play
all signals on a given channel. This feature is useful when communicating
with other parties at extreme range.
By pressing the monitor button momentarily, the LCD backlight is turned
on; the LCD backlight will turn off automatically in about 5 seconds, unless
the monitor button is pressed momentarily once again.
Push To Talk (PTT) Button (4)
Pressing and holding this button will allow you to speak to any transceiver
that is set to the same channel and privacy code setting as yours. Hold the
transceiver approximately 1 to 2 inches from your face as you speak into
the built in microphone (9). After you have finished speaking, release the
PTT Button to allow reception of incoming signals. It is not possible to
transmit and receive at the same time. Whenever the button is pressed,
the transmit signal icon (
) will appear in the upper left corner of the
display. Releasing the button allows the unit to revert to standby mode.
When receiving an incoming signal, the icon will appear.
The PTT Button can also be used as a two-way call ringer. Pressing the
button twice quickly will call another party on the same channel. The transmit
icon ( ) will be displayed for 3 seconds and then disappear.
128-7027
12 of 28
12
Up Channel/Volume Button (10)
In the standby mode, pressing this button will increment the listening
volume. When in function edit mode this button will be used to adjust the
unit’s settings.
Down Channel/Volume Button (11)
In the standby mode, pressing this button will decrement the listening
volume. When in function edit mode this button will be used to adjust the
unit’s settings.
MODE Button (12)
This button is used to select various feature settings in the GMRS and FRS
modes.
External Speaker (SPK)/ Microphone (MIC)/CHG Jack (6)
This jack accepts both the supplied Audiovox earbud/microphone connector
and the wall charging adapter. For optional equipment and accessories for
the GMRS602, refer to page 7 and/or visit the Audiovox web site at
www.audiovox.com.
Scan Button (13)
With the unit in standby mode, press the Power On/Off Button momentarily
to enable or disable the scan function; SCAN will appear on the display.
128-7027
13 of 28
13
Operating Modes and Features
GRMS/FRS Operation:
- Press and hold the Power On/Off button for 2 seconds to turn on
power.
- Press the MODE button so the Channel number flashes.
- Select the desired channel with the Up (10) and Down (11) Buttons.
When receiving a call, the icon appears to indicate an incoming
call.
- Press and hold the PTT button (4) to transmit, then speak into the
microphone clearly and slowly. The Transmit icon (
) appears
on the display while the button is pressed.
- Release PTT Button (4) to receive.
- Communication can only be accomplished when the channel and
CTCSS tone frequency of at least two parties are the same.
- The CTCSS subcode (01-38) will be displayed on the LCD panel if the
CTCSS tone frequency function is enabled (not oF).
Channel Selection
In order to communicate with other GMRS/FRS units, both the transmit-
ting and receiving party must be on the same frequency.
The GMRS602 has 22 channels (frequencies) indicated by the large
digits on the LCD display panel. Channels 1 through 7 are the shared
GMRS/FRS channels. Channels 8-14 are FRS only channels, while chan-
nels 15-22 are assigned GMRS only channels. If an FRS only channel (8-
14) has been selected, the HI or LO icon will not be displayed on the LCD
panel; otherwise, for channels 1-7 (GMRS/FRS) and 15-22 (GMRS only)
128-7027
14 of 28
14
the HI or LO icon will be displayed. Communication with Audiovox GMRS/
FRS and compatible units is possible on these 22 channels. Before trans-
mitting on the selected channel, press the Monitor (M) Button (2) to check
the activity on that channel. If there is activity on the selected channel,
change to another channel that is clear.
To change the channel:
- From GMRS/FRS standby mode, press the MODE button (12) once;
the channel number flashes.
- Press the Up Button (10) briefly to move to the next higher main chan-
nel number.
- Press the Down Button (11) briefly to move to the next lower main
channel number.
- Press the PTT button momentarily to confirm selection.
CTCSS Mode (Sub-Channel) Selection
The Coded Tone Controlled Squelch System (CTCSS) has 38 Sub-Frequencies.
This feature allows you to utilize the coded squelch tones (01-38) within a
main channel and enables you to communicate with another party on the
same main channel using the same subcode. (This filters out unwanted
transmissions from the same main channel). Since there are 38 CTCSS
Sub-channels for each main channel, a different subcode may be se-
lected for each of the 22 channels.
To change the CTCSS Sub-channel:
- From GMRS/FRS standby mode, press the MODE Button twice; a flash-
ing oF or sub-channel number is displayed.
- Press the Up or Down button to select the desired sub-channel for
use (01-38 ).
- Press the PTT button to confirm selection.
The CTCSS mode can be turned off by selecting the oF icon as the setting.
128-7027
15 of 28
15
NOTE: To communicate with other GMRS/FRS units, they must be
switched to the same channel and CTCSS subcode. To commu-
nicate with other GMRS units that do not have subcodes, switch
your unit to the same channel with the subcode set to oF.
The CTCSS subcodes do not prevent others from hearing your
transmission. This will only allow you to ignore all traffic on a
given channel not using the same subcode.
Transmit Power Selection Mode (GMRS Channels Only)
This feature permits selection of the transmitting power level to high
or low when using channels 1-7 and 15-22. Using low power, the unit
will have a lower transmit range, but battery life will be increased.
NOTE: You will find that for the majority of your needs, the low-power
setting will provide adequate communications on all channels;
there should seldom be any need to use high power, except in
situations where you need absolute maximum range. Using low
power will greatly extend battery life. We suggest you experi-
ment with switching between low and high power.
To access the transmitter power selection function:
- From GMRS standby mode, press the MODE Button 3 times until the
Po indication appears flashing on the display with a steady HI or LO
indication.
- Press the Up or Down button to toggle between the High and Low se-
lections.
- Press the PTT button to confirm selection.
The display will indicate the current setting in standby mode.
128-7027
16 of 28
16
Roger Beep Tone
The Roger Beep is a tone which is automatically transmitted whenever the
PTT button is released and the tone is enabled. This tone alerts the
receiving party that the transmission has been terminated intentionally.
To enable and disable the Roger Beep tone:
- From GMRS standby mode, press the MODE Button 4 times (in FRS
mode, 3 times) until the flashing Roger Beep icon ( ) appears with
On or oF.
- Press the Up or Down Button to select the tone on or off as desired.
- When enabled, the tone icon (
) appears steady on the display.
- Press the PTT button momentarily to confirm selection.
VOX Selection Mode
This option enables you to have hands-free conversation. When using the
internal microphone/speaker or external microphone/headset (purchased
separately), your voice or the signal is detected and the radio transmits
and receives automatically. Your voice or nearby sound is detected and
the radio transmits without the need to press the PTT button.
To set the radio for VOX operation:
- From GMRS/FRS standby mode, press and hold the MODE button
for 3 seconds, or until the VOX icon appears on the display.
- To terminate VOX operation, press and hold the MODE button for at
least 3 seconds; the VOX indication will disappear.
Button Beep (Key Tone)
This feature allows the transceiver to sound a confirmation tone whenever
the following keys are pressed: Power On/Off/SCAN Button, Up/Down But-
tons and MODE Button. This feature is always on.
128-7027
17 of 28
17
Call Ringer Selection Mode
The transceiver provides a transmit call ring melody at the receiving unit to
alert you to an incoming call.
To activate the call ringer melody:
- From GMRS/FRS standby mode, press the PTT button twice in quick
succession; a call ring melody will sound at the receiving unit to alert
the user to an incoming transmission, provided that unit is equipped
with this capability and is set to the same channel.
Channel Scan Operation
This feature allows you to monitor all channels automatically for valid
signals. While scanning, you can transmit and receive. When a signal is
received, the scan is interrupted and will return to scan mode approxi-
mately 5 seconds after reception is terminated.
NOTE: While the SCAN mode is active, the MODE button is inopera-
tive. In addition, the scan mode will reduce the overall battery life
since the battery save function is overridden.
To enable the channel scan mode:
- From GMRS/FRS standby mode, momentarily press the Power On/Off
Button; SCAN will appear on the LCD display.
- The radio will automatically display each channel (1-22) in ascending
order to find an active main channel.
- When the unit doesn’t find any signals and you want to transmit, press
the PTT Button to return to primary channel operation. The transceiver
will automatically resume scanning approximately 15 seconds after
the communication is completed.
- If there is no activity and you want to leave the scan mode, press the
Power On/Off button momentarily and the unit will return to normal op-
eration; the SCAN icon will disappear from the LCD display.
128-7027
18 of 28
18
Battery Alert
When the battery icon ( ) blinks steadily on the LCD panel, recharge
the unit or install fresh batteries.
NOTES FOR GOOD COMMUNICATION
1 . The GMRS602 22 channels are shared on a ‘take turns’ basis.
This means other groups may be talking on any of the channels.
A common code of ethics/courtesy is to switch to another vacant
channel and not to attempt to talk over someone who is already using
the channel you first selected.
2. The GMRS602 has been designed to maximize performance
and improve transmission range in the field. To avoid interference,
it is recommended that you do not use the units closer than 5 feet
apart.
3. For best transmission results, always keep your mouth about 2-3
inches from the microphone (9) and speak slowly in a normal voice.
4. To increase battery life, use the SCAN feature sparingly. This
feature will reduce operating time considerably.
128-7027
19 of 28
Warning
•Do not operate the transceiver unless you are licensed to do so.
•Remove the batteries from the transceiver if it is not expected to be used
for long periods. This will eliminate the possibility of chemicals leaking
from the batteries and corroding the transceiver.
•Avoid exposing the transceiver to water or extremes of temperature.
•Do not use this device in or near a mining facility, which uses remotely
triggered explosives or in areas labeled “Blasting Area”. Premature or
accidental detonation may result.
•Do not attempt to modify or in any way increase the output of this
transceiver. Its output is designed to meet the legal limits set by the FCC.
•Do not use this device or change its batteries in potentially explosive
atmospheres as sparks in such areas could result in an explosion.
•Turn your transceiver off wherever posted notices restrict the use of radios
or cellular telephones. Facilities such as hospitals may use equipment
that is sensitive to RF energy.
•Turn your transceiver off on board aircraft when requested to do so.
•Do not place your radio in front of a vehicle’s air-bag. If the air-bag
deploys, it could propel the transceiver like a projectile causing bodily
injury.
19
128-7027
20 of 28
20
Troubleshooting
Weak or no Weak batteries Charge or replace batteries
signal received Channel and privacy Adjust the transceiver’s
code not set the same settings to match those
as target transceiver settings of the target
transceiver
Volume level too low Increase volume level
PTT Button inadvertently Release PTT Button
depressed
Excessive radio interference Change to a different
on a particular channel channel
Obstruction of radio signal Avoid operating in or near
large buildings or vehicles
Unit beeps, but Batteries extremely Charge or replace batteries
will not function discharged
when turned on
Reception of CTCSS privacy mode Turn on the CTCSS privacy
unwanted signals not on mode and set code number to
match the setting of the
target transceiver.
Interference from Turn the devices off or move
electronic devices such farther away from them.
as computers or TVs
Problem Possible cause Correction
No transmission Weak batteries Charge or replace batteries
while pressing Incorrect battery polarity Install the batteries
the PTT Button following the directions in
paragraph Installing the
Batteries.
128-7027
21 of 28
General
Frequency Range:
Channels 1 through 7 are
shared with FRS radios. Refer to frequency chart on page 23.
Channels 8 through 14 are
FRS only. Refer to frequency chart on page 23.
Channels 15 through 22 are
GMRS only. Refer to frequency chart on page 23.
Channel Spacing 12.5kHz
Privacy Codes 38 for each main channel
Dimensions (W x H x D) 2.25” W x 3.68” H x 1.125” D
(Without Antenna) (56.0 mm x 93.7 mm x 28.5 mm)
Power Supply
Power Source Alkaline Batteries, AAA (4), 6 VDC
Ni-MH rechargeable, AAA (4),
4.8 VDC, 650 mAh
Operating Time 30 hours Low Power
(Transmit: Receive: Standby) 14 hours High Power
(5: 5: 90 ratio)
(Based on alkaline batteries)
Receiver
Useable Sensitivity >-119 dBm
Maximum Audio Output Power > 0.3 Watt maximum (8 Ohm )
Modulation Distortion < 5% (1 kHz 70%)
Transmitter
RF Output Power 0.8 Watts maximum (high power)
0.4 Watt maximum (low power)
Maximum Deviation +/- 2.5 kHz
Modulation Distortion < 5% (1 kHz 70%)
21
Technical Specifications:
128-7027
22 of 28
22
THIS PAGE LEFT BLANK INTENTIONALLY
128-7027
23 of 28
23
NOTE: Channels 1 through 7 are shared with FRS radios.
Channels 8 through 14 are FRS only.
Channels 15 through 22 are GMRS only.
This transceiver complies with FCC regulations for use in the United
States of America. Use in other countries may be prohibited or restricted
by local regulation. Please check with the local regulating agency be-
fore using this device outside the United States of America.
Main Channel Frequencies:
EPYT/LENNAHC)zHM(QERFEPYT/LENNAHC)zHM(QERF
SRF/SRMG15265.264SRF215266.764
SRF/SRMG25785.264SRF315786.764
SRF/SRMG35216.264SRF415217.764
SRF/SRMG45736.264SRMG510055.264
SRF/SRMG55266.264SRMG610575.264
SRF/SRMG65786.264SRMG710006.264
SRF/SRMG75217.264SRMG810526.264
SRF85265.764SRMG910056.264
SRF95785.764SRMG020576.264
SRF015216.764SRMG120007.264
SRF115736.764SRMG220527.264
128-7027
24 of 28
WHEN USING RADIOS PRODUCED BY OTHER MANUFACTURERS,
COMPARE CHANNEL FREQUENCIES FOR COMPATIBILITY.
NOTE
CHANNELCROSS REFERENCE
FOR 15 CHANNEL GMRS/FRS
RADIO TO 22 CHANNEL
GMRS/FRS RADIO
CHANNEL CROSS REFERENCE
FOR 14 CHANNEL FRS
RADIO TO 22 CHANNEL
GMRS/FRS RADIO
LENNAHC41 SRF LENNAHC22 SRMG/SRF
11
22
33
44
55
66
77
88
99
0101
1111
2121
3131
4141
51
61
71
81
91
02
12
22
CHANNELS NOT
AVAILABLE
CHANNELS NOT AVAILABLE
LENNAHC51 SRMG LENNAHC22 SRMG/SRF
11
22
33
44
55
66
77
8
9
01
11
21
31
41
1151
861
2171
981
3191
0102
4112
5122
CHANNELS NOT AVAILABLE
CHANNELCROSS REFERENCE FOR 14 AND 15 CHANNEL GMRS/FRS
RADIO TO 22 CHANNEL GMRS/FRS RADIO
24
128-7027
25 of 28
Continuous Tone Coded Squelch System Tone
Frequencies (in Hz)
CTCSS Freq. Hz CTCSS Freq. Hz
1 67.0 20 131.8
2 71.9 21 136.5
3 74.4 22 141.3
4 77.0 23 146.2
5 79.7 24 151.4
6 82.5 25 156.7
7 85.4 26 162.2
8 88.5 27 167.9
9 91.5 28 173.8
10 94.8 29 179.9
11 97.4 30 186.2
12 100.0 31 192.8
13 103.5 32 203.5
14 107.2 33 210.7
15 110.9 34 218.1
16 114.8 35 225.7
17 118.8 36 233.6
18 123.0 37 241.8
19 127.3 38 250.3
* oF = No Tone
25
128-7027
26 of 28
90 DAY LIMITED WARRANTY
AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788
1-800-290-6650
128-5385B
Applies to Audiovox Family Radio and General Mobile Service Products.
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this
product that should this product or any part thereof, under normal use and conditions, be proven
defective in material or workmanship within 90 days from the date of original purchase, such
defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option)
without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered
with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),
transportation prepaid, to the warranty center at the address shown below.
The Company disclaims liability for communications range of this product.
This Warranty does not apply to any product or part thereof which, in the opinion of the
Company, has suffered or been damaged through alteration, improper installation, mishan-
dling, misuse, neglect, accident, or by removal or defacement of the factory serial number/
bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT,
SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE
LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH
OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF
ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER
WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with
the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damage so the above limitations or exclusions may
not apply to you. This Warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
26
128-7027
27 of 28
THIS PAGE LEFT BLANK INTENTIONALLY
27
128-7027
28 of 28
© 2004 Audiovox Electronics Corp., Hauppauge, NY 11788
128-7027
Printed in China
[RF EXPOSURE STATEMENT : PDHGMRS602 / TTI TECH CO., LTD.]
- CAUTION! -
IMPORTANT SAFETY INFORMATION
Your wireless hand-held portable transceiver contains a radio frequency
transmitter. When the PTT button is pushed, the transmitter sends out RF
signals. The device is authorized to operate at a transmit duty factor not
exceeding 50% using Ni-Mh / alkaline “AAA” size batteries to comply with
Federal Communications Commissions (FCC) RF exposure safety level
guidelines for hand-held wireless devices.
For body-worn operation, this device has been tested for SAR (Specific
Absorption Rate) and meets the FCC RF exposure guidelines when used with
the accessories supplied or designated for this device by the manufacturer.
Use of other accessories may not ensure compliance with FCC RF exposure
guidelines. Use the manufacturer-supplied antenna only. Unauthorized
antennas, modifications, or attachments could damage the transmitter and may
violate FCC regulations. To maintain compliance with the FCC’s RF exposure
guidelines, hold the transceiver at least 1 inch (2.5 centimeters) from your face
and speak in a normal voice, with the antenna pointed up and away.
GMRS License :
Use of GRMS radios within the United States requires a FCC GMRS license.
An individual of 18 years of age or older, who is not a representative of a foreign
government is eligible to apply for a GMRS system license. You will need two
forms from the FCC - FCC FORM 159 and FCC Form 605 Main Form and
Schedule F.
You can find the forms online at http://www.fcc.gov/formpage.html or call 1-800-
418-3676.
