General Mobile Radio Service (GMRS)

Model : GMRS7001CH

Owner’s Manual

Customer Service

1-800-290-6650

Released: JAN-27-04

G M R S9010CH

128-0000

2 of 25

CAUTION

SAFETY INFORMATION

Your wireless hand-held portable transceiver contains a low power

transmitter. When the PTT button is pushed (or the VOX mode is enabled)

it sends out radio frequency (RF) signals. The device is authorized to operate

at a duty factor not to exceed 50%. In August 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines

with safety levels for hand-held wireless devices.

Important: To maintain compliance with the FCC’ s RF exposure guidelines

hold the transmitter at least 1 inch (2.5 centimeters) from your

face and speak in a normal voice, with the antenna pointed up

and away. If you wear the handset on your body while using the

headset accessory, use only the Audiovox supplied carry clip

for this product and ensure that the antenna is at least 1 inch

(2.5 centimeters) from your body when transmitting. Use only

the supplied antenna. Do not use your transceiver with a

damaged antenna. Unauthorized antennas, modifications, or

attachments could damage the transmitter and may violate

FCC regulations.

Performance:

Your transceiver will only achieve its maximum operating range when

communicating with other transceivers across open and flat areas or

between elevated points. Normally occurring environmental factors such

as buildings, trees, terrain and weather, or interference from other radio or

electrical equipment, may have adverse effects on the transceiver’s effective

range. These are not indicative of a fault condition.

Avoid placing the GMRS9010CH radio transceiver for prolonged periods

of time in direct sunlight or temperatures below -4°F(-20°C) or above

140°F (60°C).

Place the rubber cover on jacks when not in use.

128-0000

3 of 25

WARNINGS:

Battery Care

Never attempt to charge alkaline or dry cell batteries, as batteries may

burst causing personal injury and damage to the product. If rechargeable

batteries are used, such as Nickel Metal Hydride (NiMH), use only the

supplied Audiovox-approved rechargeable batteries. Use of the Audiovox

charger (also supplied) with other brands of batteries is not recommended,

as battery charging times will vary with different brands. Refer to the

Manufacturer’s instructions for charging other brands of batteries.

Battery Disposal

In general, if handled improperly, batteries pose a risk of fire or burns. Do

not disassemble, crush, puncture, short external contacts, or dispose of

the batteries in fire or water. Dispose of the batteries in a environmentally

safe manner and recycle whenever possible.

FCC WARNING

Replacement or substitution of transistors, diodes or other parts of a unique

nature, with parts other than those recommended by the manufacturer,

may cause a violation of the technical regulations of Part 15 of FCC Rules.

GMRS LICENSE:

USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC

GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS

NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE

TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS

FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND

SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:

HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.

128-0000

4 of 25

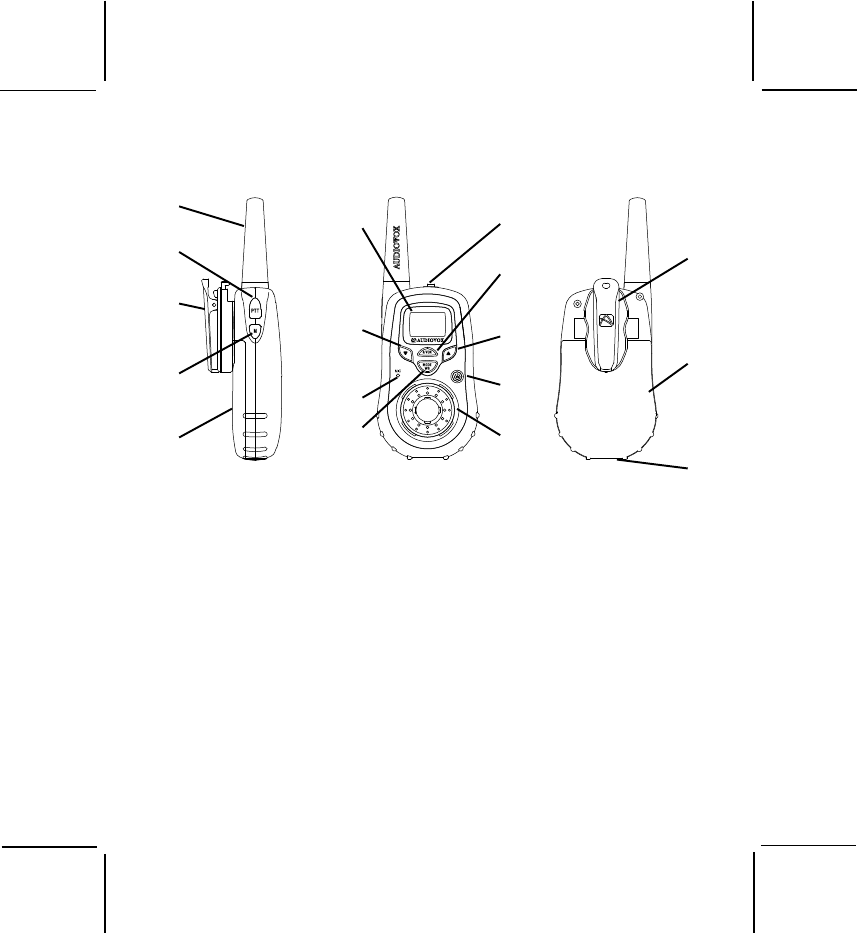

1. Battery Door

2. Monitor/Backlight Button

3. Detachable Carry Clip

4. Push-To-Talk (PTT) Button

5. Antenna

6. External Speaker(SPK)/Micro-

phone (MIC)/Charge (CHG)

Jack

7. Built-in Speaker

8. Liquid Crystal Display (LCD)

Model GMRS9010CH (FCC License Required)

9. Built-in Microphone

10. Up Channel/Volume Button

11. Down Channel/Volume

Button

12. MODE/Weather Button

13. Power On/Off & Keylock

Button

14. SCAN/VOX Button

15. Battery Charging Contacts

(R E F )

128-0000

5 of 25

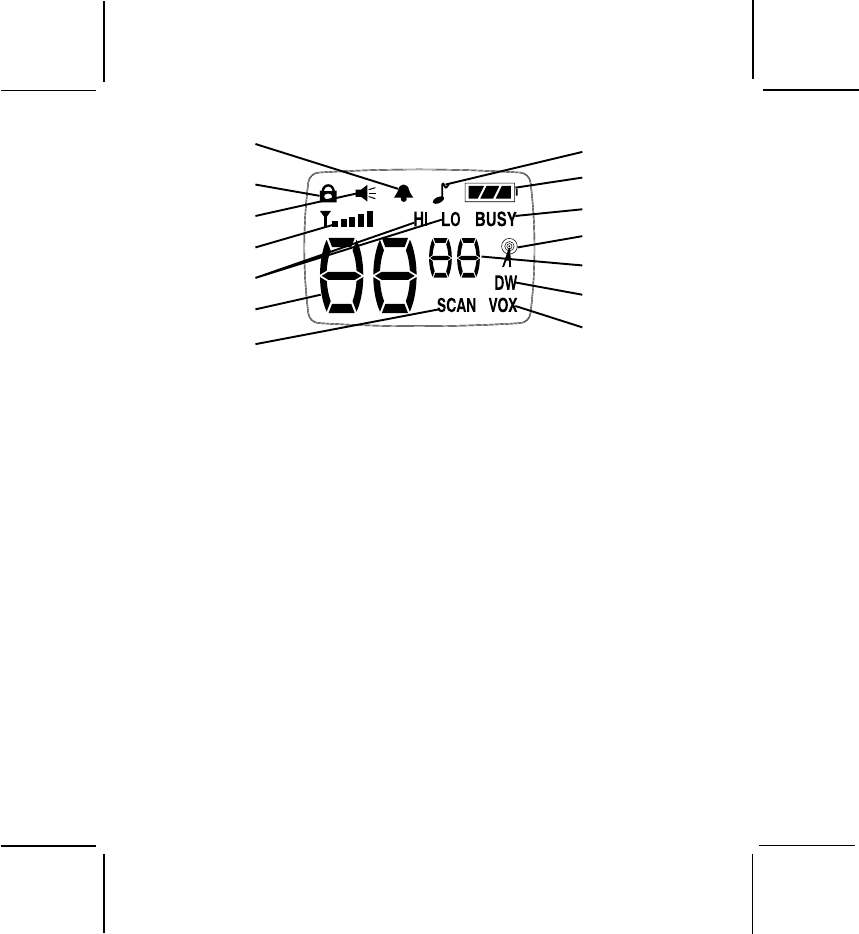

Model GMRS9010CH DISPLAY

1. Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

2.Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down, SCAN and MODE.

3. Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

4. Signal Strength Indicator: Icon appears when a signal is being

transmitted. The icon consists of five bars to indicate transmit signal

power level.

5. HI/LO Indicators: Power level indicator appears when the transmit

power is set to desired output power on the GMRS channels.

6. Large Segment Display: Indicates the channel number in use.

7. Scan Indicator: This function allows the user to scan a channel

every .5 second to search for a valid signal.

8. RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

9. Battery Level Indicator: Icon indicates the battery charge level.

10.Signal Receive Indicator: BUSY icon appears when a signal is being

received.

11. Weather Mode Indicator: Icon will be on steady when in the weather

band mode. When in the GMRS/FRS mode, the icon will blink when

the alert is active.

128-0000

6 of 25

12.Small Segment Display: Displays the CTCSS tone option for each

main channel from 01-38.

13.Dual Watch Mode Indicator: Indicator appears when dual watch

mode is active.

14.Voice Activated Transmission (VOX) Indicator: This function

allows hands free conversation. The indicator appears when the

VOX mode is activated.

Equipment and Accessories Supplied

1. Radio (1) GMRS9010

2. Owner’s Manual (1) 128-0000

2. AC Wall Adapter (1) GMRS8000CH

3. Rechargeable (NiMH) Batteries (5) GMRS9010BAT

Optional Equipment and Accessories

1. Desktop charger GMRS9010DS

2. AC Adaptor for Desktop charger GMRS9010CH

Powering the transceiver:

Your GMRS9010CH radio transceiver operates on five AAA Alkaline batteries.

Alkaline batteries will provide slightly better performance than rechargeable

batteries (supplied). Only Audiovox approved rechargeable batteries should

be recharged in the radio transceiver using the supplied AC Wall Adapter

and/or optional Desktop Charger. This will ensure optimum performance

for the GMRS9010CH. Battery charging time is typically 16-20 hours. Use

of the Audiovox charging equipment with other brands of rechargeable

batteries is not recommended as battery charging times will vary. Refer to

the manufacturer’s instructions for charging other brands of batteries.

Batteries

There are three methods of powering the GMRS9010CH:

1. Alkaline Batteries.

WARNING: Do not attempt to recharge Alkaline batteries.

2.Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH

batteries and AC Wall Adapter included). Use only Audiovox

128-0000

7 of 25

2. Slide the cover

down and then lift

cover at bottom to

open.Remove

cover.

3. Insert five AAA batteries

(positive (+) end toward

right side begining at top

and alternating positive

terminals as shown).

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down to

open.

approved rechargeable batteries and charging equipment when

charging batteries internal to the unit.

NOTE: To extend battery life, avoid overcharging the batteries.

3. Various Brands of Rechargeable Batteries - Use of the

supplied Audiovox AC Wall Adapter with other brands of recharge

able batteries is not recommended, as battery charging times will

vary with different brands of batteries. Refer to the manufacturer’s

instructions for charging other brands of batteries.

Installing the batteries:

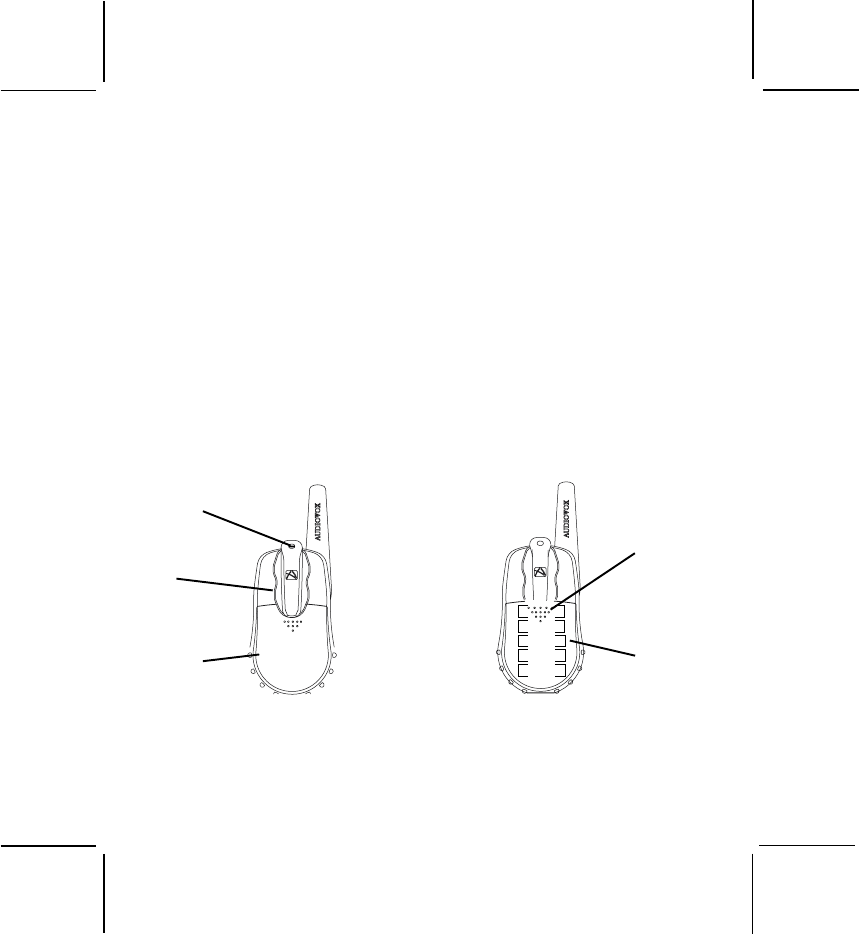

Battery installation is made more convenient when the carry clip is

removed. To do this, release the spring latch securing the clip to radio

and slide the clip downward and away from the radio body. Next, press

down with the thumb at the embossed arrow, slide the battery cover down

and lift off the battery cover. Insert five AAA batteries (alternate

positive ends (+) toward the right side of the transceiver (starting top-to-

bottom).

RELEASE

BUTTON

BATTERY

COVER

BELT

CLIP

COVER

ARROW

POSITIVE

TERMINALS

128-0000

8 of 25

The following guidelines will improve performance and provide longer

operating times for the GMRS9010CH:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the

longest operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable

batteries.

4. If the unit is not to be used for an extended period of time, remove the

batteries. Old or leaking batteries can cause damage to the unit and

will void the warranty.

NOTE:

Only

Audiovox

approved rechargeable

batteries (P/N : GMRS9010BAT)

can be recharged in the radio

transceiver.

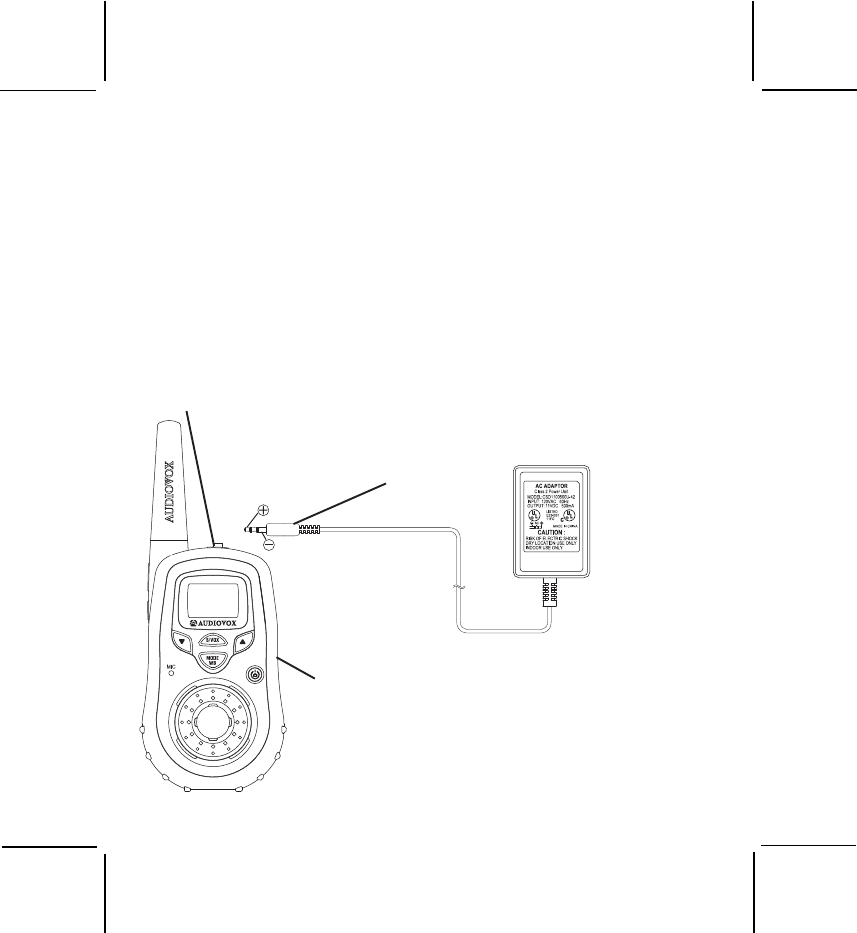

MIC/CHG/SPK

JACK AC WALL ADAPTER/CHARGING

TRANSFORMER MODEL:

GMRS8000CH

ADAPTER

POWER

PLUG

GMRS9010CH

INPUT:110VAC

OUTPUT:11VDC,300mA

128-0000

9 of 25

Controls:

Power On/Off/Keylock (13) Button

Press and hold the power on/off button ( ) for at least 2 seconds. You will

hear a confirming melody to indicate the unit is on. To turn the unit off, press

and hold the button for at least 2 seconds. When the unit is on and the

button is pressed for less than 2 seconds, the keylock icon (

) will

appear to disable the MODE, SCAN and channel up/down buttons.

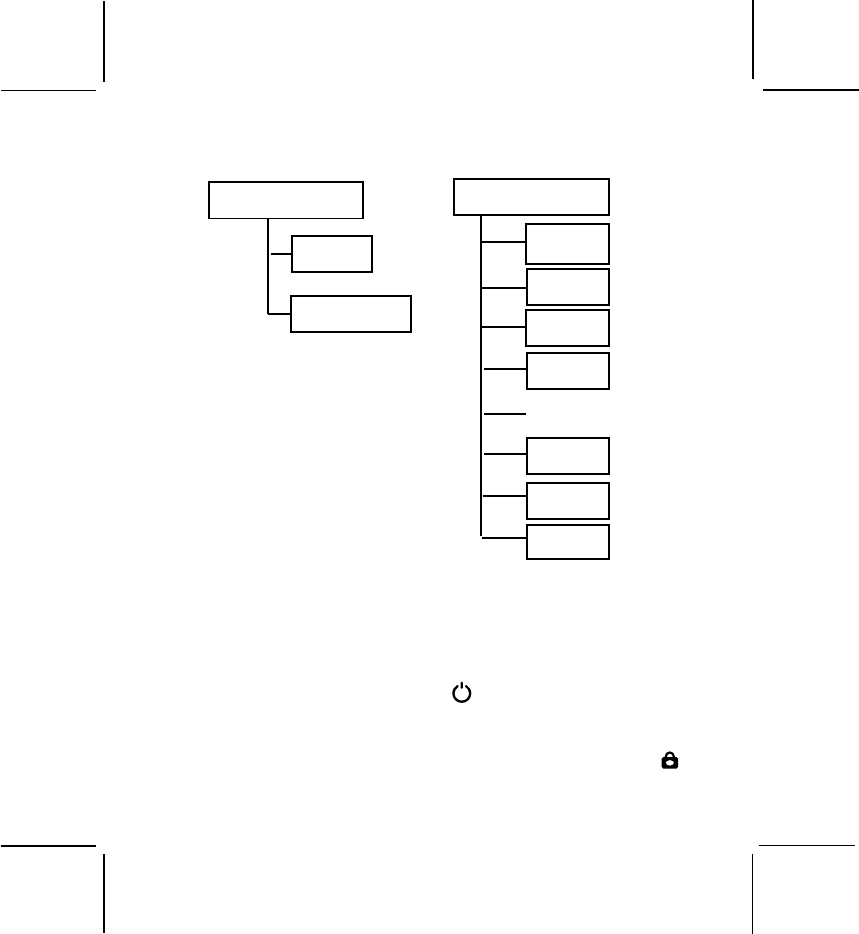

GMRS9010CH OPERATIONAL MODES

WEATHER BAND

SELECT

CHANNEL

SELECT

ROGER

BEEP

BUTTON

BEEP

DUAL

WATCH

VOX LEVEL

SELECT

CALL

SELECT

POWER

SELECT (GMRS Channels

Only)

GMRS/FRS BAND

CTCSS

SELECT

CHANNEL

SELECT

NOTE: To switch between GMRS/FRS

and Weather Band modes,

press and hold the Mode button

for 2 seconds. Refer to the

appropriate section of this

manual for detailed operating

instructions for each mode.

128-0000

10 of 25

Adjusting the Volume (10, 11)

With the unit powered on, press the Up Channel/Volume button ( ) to

increase volume and the Down Channel/Volume button ( ) to decrease

volume. The display will indicate the current volume level between 1 and 7

by the small number in the icon ( UL 5 ).

Monitor/Display Backlight Button (2)

This button is used to check activity on the current frequency before

transmitting. Check activity by pressing the Monitor (M) Button longer

than 2 seconds; the icon will apppear on the display and you will

hear static if frequency is clear.

Do not transmit if you hear conversation.

Hold down the Monitor Button again longer than 2 seconds and the

icon will disapppear from the display.

The monitor function will temporarily bypass the squelch setting and play

all signals on a given channel. This feature is useful when communicating

with other parties at extreme range.

By pressing the monitor button momentarily, the LCD backlight is turned

on accompanied by a beep tone; the LCD backlight will turn off automatically

in about 5 seconds, or when the monitor button is pressed momentarily

once again.

Push To Talk (PTT) Button (4)

Pressing and holding this button will allow you to speak to any transceiver

that is set to the same channel and privacy code setting as yours. Hold the

transceiver approximately 1 to 2 inches from your face as you speak into

the built in microphone (9). After you have finished speaking, release thePTT

Button to allow reception of incoming signals. It is not possible to transmit

and receive at the same time. The Transmit Signal Level indicator

( ) will display the relative strength of the transmitted signal.

When receiving an incoming signal, the BUSY icon will appear in the upper

right quadrant of the display. The PTT button can also be used as a two-

way call ringer. Pressing the button twice quickly will call another party on

the same channel.

128-0000

11 of 25

Up Channel/Volume Button (10)

In the standby mode, pressing this button will increase the listening volume.

When in function edit mode this button will be used to adjust the unit’s

settings.

Down Channel/Volume Button (11)

In the standby mode, pressing this button will decrease the listening

volume. When in function edit mode this button will be used to adjust the

unit’s settings.

Mode Button (12)

This button is used to select the various feature settings in the GMRS/FRS

or Weather band modes. Holding the MODE button longer than 2 seconds

will toggle between the GMRS/FRS and Weather band modes.

External Speaker (SPK)/Microphone (MIC)/(CHG) Jack (6)

This jack accepts an Audiovox headset/microphone connector, or the

optional Charging Adapter connector. For optional equipment and

accessories for the GMRS9010CH visit the Audiovox web site at

www.audiovox.com.

Scan/VOX Button (14)

Press this Button momentarily to enable or disable the scan mode. Press

and hold the button for more than 2 seconds to enable or disable the VOX

mode; the VOX icon will appear in the bottom left corner of the display when

enabled.

Operating Modes and Features

GMRS Operation:

- From GMRS/FRS standby mode, press and hold the ( ) button for

2 seconds to turn on power.

- Press the MODE button so the Channel number flashes.

- Select the desired channel with the Up (10) and Down (11) Buttons.

When receiving a call, the BUSY icon appears to indicate the incom-

ing signal.

128-0000

12 of 25

- Press and hold the PTT button (4) to transmit, then speak into the

microphone clearly and slowly. The Transmit Signal Level indicator

( ) will display the relative strength of the transmitted

signal.

- Release PTT Button (4) to receive.

- Communication can only be accomplished when the channel and

CTCSS tone frequency of at least two parties are the same.

- The CTCSS small segment display will appear next to the main

frequency channel on the display if the CTCSS tone frequency

function is enabled.

Channel Selection

In order to communicate with other GMRS units, both transmitting and

receiving party must be on the same frequency. The GMRS9010CH has 22

channels (frequencies) indicated by the large digits on the LCD display

panel. Channels 1 through 7 are the shared GMRS/FRS channels.

Channels 8-14 are FRS only channels, while channels 15-22 are as-

signed GMRS only channels. If an FRS only channel (8-14) has been

selected, the HI or LO indicator will not be displayed on the LCD panel;

otherwise, for channels 1-7 (GMRS/FRS) and 15-22 (GMRS only), the

HI or LO indicator will be displayed. Communication with Audiovox FRS

and compatible units is possible on the shared and FRS only channels.

Before transmitting on the selected channel, press the Monitor (M) Button

(2) to check the activity on that channel. If there is activity on the selected

channel, change to another channel that is clear.

To change the channel:

- From GMRS/FRS standby mode, press the MODE button (12) once

or until the channel number flashes.

- Press the Up Button (10) briefly to move to the next higher main

channel number.

- Press the Down Button (11) briefly to move to the next lower main

channel number.

- Press the PTT button momentarily to confirm selection.

128-0000

13 of 25

CTCSS Mode (Sub-Channel) Selection

The Coded Tone Controlled Squelch System (CTCSS) provides 38 Sub-Fre-

quencies. This feature allows you to utilize the coded squelch tones (01–

38) within a main channel, and enables you to communicate with another

party on the same main channel using the same subcode. (This filters out

unwanted transmissions without the same coded squelch tone). There

are 38 CTCSS Sub-channels for each main channel. A different

subcode may be selected for each of the 22 channels.

To change the CTCSS Sub-channel:

- From GMRS/FRS standby mode, press the MODE Button twice; a

flashing oF or sub-channel number is displayed. If oF is displayed,

press the Up or Down button to enable the CTCSS mode.

- Then press the Up or Down button to select the desired sub-channel

for use (01-38).

- Press the PTT button momentarily to confirm selection.

The CTCSS mode can be turned off by selecting the oF icon as the setting.

NOTE: To communicate with other GMRS/FRS units, they must be

switched to the same channel and CTCSS subcode. To commu-

nicate with other GMRS/FRS units that do not have subcodes,

switch your unit to the same channel with the subcode set to oF.

The CTCSS subcodes do not prevent others from hearing your

transmission. This will only allow you to ignore all traffic on a

given channel not using the same subcode.

Transmit Power Selection Mode

This feature permits selection of the transmitting power level to high

or low. When operating on FRS only channels (8-15), no power selec-

tion is possible or is displayed. Using low power, the unit will have a

lower transmit range, but battery life will be increased.

To access the transmitter power selection function:

- From GMRS/FRS standby mode (shared channels 1-7 or GMRS only

channel (15-22) selected), press the MODE Button three times until

the Po HI or Lo indication appears with a flashing PO indication

on the display.

128-0000

14 of 25

- Press the Up or Down button to toggle between the High and Low se-

lections.

- Press the PTT button momentarily to confirm selection.

VOX Sensitivity Level Selection

This selection enables you to set the sensitivity level to compensate for

ambient noise in your immediate area. A VOX sensitivity of 3 is the most

sensitive, and should be used in a relatively quiet surrounding. A VOX

sensitivity of 1 is the least sensitive and should be used in a noisy sur-

rounding.

To set the VOX sensitivity level:

- Press the MODE button 4 times until the VO icon appears on the dis-

play accompanied by the flashing VOX icon and the numeral 1, 2 or 3.

- Press the Up or Down button to select the 1-3 VOX level sensitivity.

- Press the PTT button momentarily to confirm the VOX selection.

- The VOX icon will disappear from the display unless VOX mode is

enabled.

Dual Watch Mode

This feature allows you to monitor two channels at the same time. While in

dual watch mode, the unit will continuously monitor both the primary and

dual watch channel. Received signals will be played for 5 seconds, then

the unit will resume scanning the two channels. Pressing the PTT button

during a received transmission will set the unit to transmit on the same

channel. Pressing the PTT button when no signal is received will set the

unit to transmit on the primary channel.

To set the Dual Watch Mode:

- From GMRS/FRS standby mode, press the MODE button 5 times; DW

appears flashing on the display. If the dual watch mode is off, the oF

icon will also appear flashing.

- To enable the dual watch mode, press the Up or Down button; the dual

watch channel number will flash and start to increase or decrease as

the Up or Down button is pressed.

128-0000

15 of 25

- To select a subcode for the dual watch channel, press the MODE

button while the selected dual watch channel is flashing. Then use the

Up and Down buttons to select the desired CTCSS subcode

- Press the PTT button momentarily to confirm selection of the dual

watch channel. The display will now alternate between the primary

channel and the dual watch channel just selected.

NOTE: Pressing the PTT button during dual watch mode, will trans-

mit on the primary channel and suspend dual watch opera-

tion for 20 seconds. Dual watch mode will then resume.

- Momentarily press the SCAN button to exit the dual watch mode.

Key Tone

This feature allows the transceiver to sound a confirmation tone whenever

the following keys are pressed: Monitor (M) Button, Up/Down Buttons, MODE

Button or SCAN Button.

To turn the key tones on or off:

- From GMRS/FRS standby mode, press the MODE Button 6 times until

the Bell ( ) icon flashes, and on or oF appears on the display.

- Press the Up or Down Button to toggle the key tone feature On or Off.

- Press the PTT button momentarily to confirm selection.

When the key tone feature is on, the Bell icon appears steady on the

display, and the beep tones sound in response to button activation.

Roger Beep Tone

The Roger Beep is a tone which is automatically transmitted whenever the

PTT button is released. This tone alerts the receiving party that the trans-

mission has been terminated intentionally.

To enable and disable the Roger Beep tone:

- From GMRS/FRS standby mode (shared channels 1-7 or GMRS only

channel (15-22) selected), press the MODE Button 7 times until the

flashing Roger Beep icon ( ) and on or oF appears on the display.

- Press the Up or Down Button to select the tone on or off as desired.

- When enabled, the tone icon (

) appears steady on the display.

- Press the PTT button momentarily to confirm selection.

128-0000

16 of 25

Call Ringer Selection Mode

The transceiver provides 3 user-selectable call ringer melodies to alert

you to an incoming call.

To select your favorite call ringer melody:

- From GMRS/FRS standby mode (shared channels 1-7 or GMRS only

channel (15-22) selected), press the MODE Button 8 times. From

FRS standby mode (channels 8-15), press the MODE Button 7 times.

CA will appear on the display, together with a flashing number

between 01 and 03, and an appropriate call ring.

- Press the Up or Down Button to preview and hear the 3 available call

melodies.

- Press the PTT button momentarily to confirm selection.

Channel Scan Operation

This feature allows you to monitor all channels automatically for valid

signals. While scanning, you can transmit and receive. When a signal is

received, the scan is interrupted and will return to scan mode 5 seconds

after reception is terminated.

NOTE: While the scan function is active, the MODE button will be

inoperative. The scan mode will reduce the overall battery life

since the battery save function is overridden.

To enable the channel scan mode:

- From GMRS/FRS standby mode, momentarily press the SCAN But

ton; (SCAN) will appear on the LCD display.

- The radio will display each channel (1-22) in ascending order as the

scan mode operates to find an active main channel.

- If the unit doesn’t find any signals and you want to transmit, press the

PTT button to return to home channel operation. The transceiver will

automatically resume scanning approximately 5 seconds after the

communication is completed.

- If there is no activity and you want to leave the scan mode, press the

SCAN button momentarily and the unit will return to normal operation;

(SCAN) icon will disappear from the LCD display.

128-0000

17 of 25

Auto Key Lock Selection Mode

This feature prevents accidental channel change to the preferred settings

of the unit. The Auto Key Lock function temporarily disables the MODE, Up/

Down and SCAN Buttons.

To access the Auto Key Lock selection menu:

- From GMRS/FRS standby mode, press and hold the Power Button for

2 seconds to enable the Auto Key function; the unit will beep once and

the lock ( ) icon appears on the display.

- The Power, PTT, and Monitor Buttons are not effected.

- To unlock the Auto Key function, press and hold the Power button for

2 seconds; the unit beeps once and the lock icon ( ) disappears

from the display.

NOTE: If the unit is turned off while Key Lock is on, the Key Lock

mode will still be in effect when the unit is turned on again.

VOX Enable Operation

This option enables you to have hands-free conversation. Your voice or

nearby sound is detected and the radio transmits without the need to

press the PTT button.

To enable VOX operation:

- From GMRS/FRS standby mode, press the SCAN button for 3 sec-

onds or until the VOX icon appears steady on the display.

- Press the PTT button momentarily to confirm VOX enable mode.

- To disable the VOX mode, press the SCAN button for 3 seconds or

until the VOX icon disappears from the display.

Weather Band Operation

Channel Selection

This feature provides access to 10 channels within the weather band (7

NOAA channels and 3 Canadian marine channels). To select a weather

channel, the unit must be in the weather channel mode. Press and hold

the MODE button for at least 2 seconds; the weather alert icon (

) will

appear, together with a channel number in the band. Momentarily press

the MODE button (12) once; the channel number flashes.

128-0000

18 of 25

To change the channel:

- Press the Up Button (10) briefly to move to the next higher

main channel number.

- Press the Down Button (11) briefly to move to the next lower main

channel number.

NOTE: When the weather band operation mode is entered, the trans-

ceiver will bypass the squelch setting and open the channel.

Weather Alert Mode

The weather alert mode notifies the user of unusual weather situations

when the radio is operating in the GMRS/FRS mode.

To access the weather alert function:

- From Weather Band standby mode, press the MODE button once to

access the weather channels as instructed above, and use the Up

or Down Button to select the desired channel.

- Momentarily press the MODE button again to access the weather alert

function; the weather icon (

) and AL on or oF appear flashing on

the display.

- Use the Up or Down buttons to enable (on)/disable (oF) the alert

function. The weather icon will stop blinking on the display in the

GMRS mode when the alert is disabled.

- Press the PTT Button to confirm your selection.

- Press and hold the MODE button for at least 2 seconds to exit the

weather function.

NOTE: When the unit is the GMRS/FRS or Weather Band mode, if a

weather alert signal is received, the unit will generate a warn-

ing tone.

Battery Alert

When the battery icon is empty ( ) and flashing on the display, re-

charge unit or install fresh batteries.

128-0000

19 of 25

NOTES FOR GOOD COMMUNICATION

1 . The GMRS9010CH 22 channels are shared on a ‘take turns’ basis.

This means other groups may be talking on any of the channels.

A common code of ethics/courtesy is to switch to another vacant

channel and not to attempt to talk over someone who is already using

the channel you first selected.

2. The GMRS9010CH has been designed to maximize performance

and improve transmission range in the field. To avoid interference,

it is recommended that you do not use the units closer than 5 feet

apart.

3. For best transmission results, always keep your mouth about 2-3

inches from the microphone (9) and speak slowly in a normal voice.

4. To increase battery life, avoid features such as Scan and Dual

Watch. These features will reduce operating time considerably.

Warning

•Do not operate the transceiver unless you are licensed to do so.

•Remove the batteries from the transceiver if it is not expected to be used

for long periods. This will eliminate the possibility of chemicals leaking

from the batteries and corroding the transceiver.

•Avoid exposing the transceiver to water or extremes of temperature.

•Do not use this device in or near a mining facility, which uses remotely

triggered explosives or in areas labeled “Blasting Area”. Premature or

accidental detonation may result.

•Do not attempt to modify or in any way increase the output of this

transceiver. Its output is designed to meet the legal limits set by the FCC.

•Do not use this device or change its batteries in potentially explosive

atmospheres as sparks in such areas could result in an explosion.

•Turn your transceiver off wherever posted notices restrict the use of radios

or cellular telephones. Facilities such as hospitals may use equipment

that is sensitive to RF energy. 19

128-6753

20 of 25

Troubleshooting

Weak or no Weak batteries Charge or replace batteries

signal received Channel and privacy Adjust the transceiver’s

code not set the same settings to match those

as target transceiver settings of the target

transceiver

Volume level too low Increase volume level

PTT Button inadvertently Release PTT Button

pressed

Excessive radio interference Change to a different

on a particular channel channel

Obstruction of radio signal Avoid operating in or near

large buildings or vehicles

Unit beeps, but Batteries extremely Charge or replace batteries

will not function discharged

when turned on

Reception of CTCSS privacy mode Turn on the CTCSS privacy

unwanted signals not on mode and set code number to

match the setting of the

target transceiver.

Interference from Turn the devices off or move

electronic devices such farther away from them.

as computers or TVs

Problem Possible cause Correction

No transmission Weak batteries Charge or replace batteries

while pressing Incorrect battery polarity Install the batteries

the PTT Button following the directions in

paragraph Installing the

Batteries.

•Turn your transceiver off on board aircraft when requested to do so.

•Do not place your radio in front of a vehicle’s air-bag. If the air-bag de-

ploys, it could propel the transceiver like a projectile causing bodily injury.

128-0000

21 of 25

General

Frequency Range:

Channels 1-7 (Shared with

FRS Radios) Refer to frequency chart on next page

Channels 8-14 (FRS only) Refer to frequency chart on next page

Channels 15-22 (GMRS only) Refer to frequency chart on next page

Channel Spacing 12.5 kHz

Privacy Codes 38 for each main channel

Weather Band (7 Channels) 162.4000 - 162.5500MHz

Canadian Marine (3 Channels) 161.6500, 161.7750, 163.2750MHz

Dimensions (W x H x D) 2.40 in x 4.02 in x 1.14 in

(Without Antenna) 61.0 mm x 102 mm x 29 mm

Power Supply

Power Source Alkaline Batteries, AAA (5), 7.5 VDC

Ni-MH rechargeable, AAA (5),

6.0 VDC, 750 mAh

Operating Time: 30 Hours Low Power

(Transmit: Receive: Standby 9.5 Hours High Power

(5:5:90 Ratio) (Based on

alkaline batteries)

Receiver

Useable Sensitivity >-119 dBm

Maximum Audio Output Power > 0.3 Watt maximum (8 Ohm )

Modulation Distortion < 5% (1 kHz 70%)

Transmitter

RF Output Power 3.2 Watts max.(High Power) @6.0VDC

0.5 Watts max.(Low Power) @6.0VDC

Maximum Deviation <+/- 2.5 kHz

Modulation Distortion < 5% (1 kHz 70%)

Tecec

ecec

echnical Specifhnical Specif

hnical Specifhnical Specif

hnical Specificaica

icaica

ications:tions:

tions:tions:

tions:

128-000

22 of 25

This transceiver complies with FCC regulations for use in the United

States of America. Use in other countries may be prohibited or restricted

by local regulation. Please check with the local regulating agency be-

fore using this device outside the United States of America.

NOTE: Channels 1 through 7 are shared with FRS radios.

Channels 8 through 14 are FRS only.

Channels 15 through 22 are GMRS only.

Main Channel Frequencies:

EPYT/LENNAHC)zHM(QERFEPYT/LENNAHC)zHM(QERF

SRF/SRMG15265.264SRF215266.764

SRF/SRMG25785.264SRF315786.764

SRF/SRMG35216.264SRF415217.764

SRF/SRMG45736.264SRMG510055.264

SRF/SRMG55266.264SRMG610575.264

SRF/SRMG65786.264SRMG710006.264

SRF/SRMG75217.264SRMG810526.264

SRF85265.764SRMG910056.264

SRF95785.764SRMG020576.264

SRF015216.764SRMG120007.264

SRF115736.764SRMG220527.264

128-0000

23 of 25

* oF = No Tone

Continuous Tone Coded Squelch System Tone Frequencies (in Hz)

CTCSS Freq. Hz CTCSS Freq. Hz

1 67.0 20 131.8

2 71.9 21 136.5

3 74.4 22 141.3

4 77.0 23 146.2

5 79.7 24 151.4

6 82.5 25 156.7

7 85.4 26 162.2

8 88.5 27 167.9

9 91.5 28 173.8

10 94.8 29 179.9

11 97.4 30 186.2

12 100.0 31 192.8

13 103.5 32 203.5

14 107.2 33 210.7

15 110.9 34 218.1

16 114.8 35 225.7

17 118.8 36 233.6

18 123.0 37 241.8

19 127.3 38 250.3

1 162.550 6 162.500

2 162.400 7 162.525

3 162.475 8*161.650

4 162.425 9*161.775

5 162.450 10*163.275

*Canadian Marine

Channel Freq. MHz Channel Freq. MHz

Weather Channel Frequencies:

128-0000

24 of 25

90 DAY LIMITED WARRANTY

AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788

1-800-290-6650

128-5385A

Applies to Audiovox Family Radio and General Mobile Service Products.

AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this

product that should this product or any part thereof, under normal use and conditions, be proven

defective in material or workmanship within 90 days from the date of original purchase, such

defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option)

without charge for parts and repair labor.

To obtain repair or replacement within the terms of this Warranty, the product is to be delivered

with proof of warranty coverage (e.g. dated bill of sale), specification of defect(s),

transportation prepaid, to the warranty center at the address shown below.

The Company disclaims liability for communications range of this product.

This Warranty does not apply to any product or part thereof which, in the opinion of the

Company, has suffered or been damaged through alteration, improper installation, mishan-

dling, misuse, neglect, accident, or by removal or defacement of the factory serial number/

bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY

IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT,

SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY

PURCHASER FOR THE PRODUCT.

This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED

WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE

LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH

OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MER-

CHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF

ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER

WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is

authorized to assume for the Company any liability other than expressed herein in connection with

the sale of this product.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion

or limitation of incidental or consequential damage so the above limitations or exclusions may

not apply to you. This Warranty gives you specific legal rights and you may also have other

rights which vary from state to state.

128-0000

25 of 25

128-0000

TTI Tech GMRS9010 FRS/GMRS COMBINATION User Manual 1286753 p65

TTI Tech Co., Ltd. FRS/GMRS COMBINATION 1286753 p65

revised users manual

Navigation menu

Namespaces

Views

Navigation
