TVS Electronics MSP250 Printer User Manual OUTER
TVS Electronics Limited Printer OUTER
users manual
FORWARD MICROFEED REVERSE MICROFEED
PAPER PARK
MENU
MODE
COPY
MODE
Single Sheet
Insertion
6
6

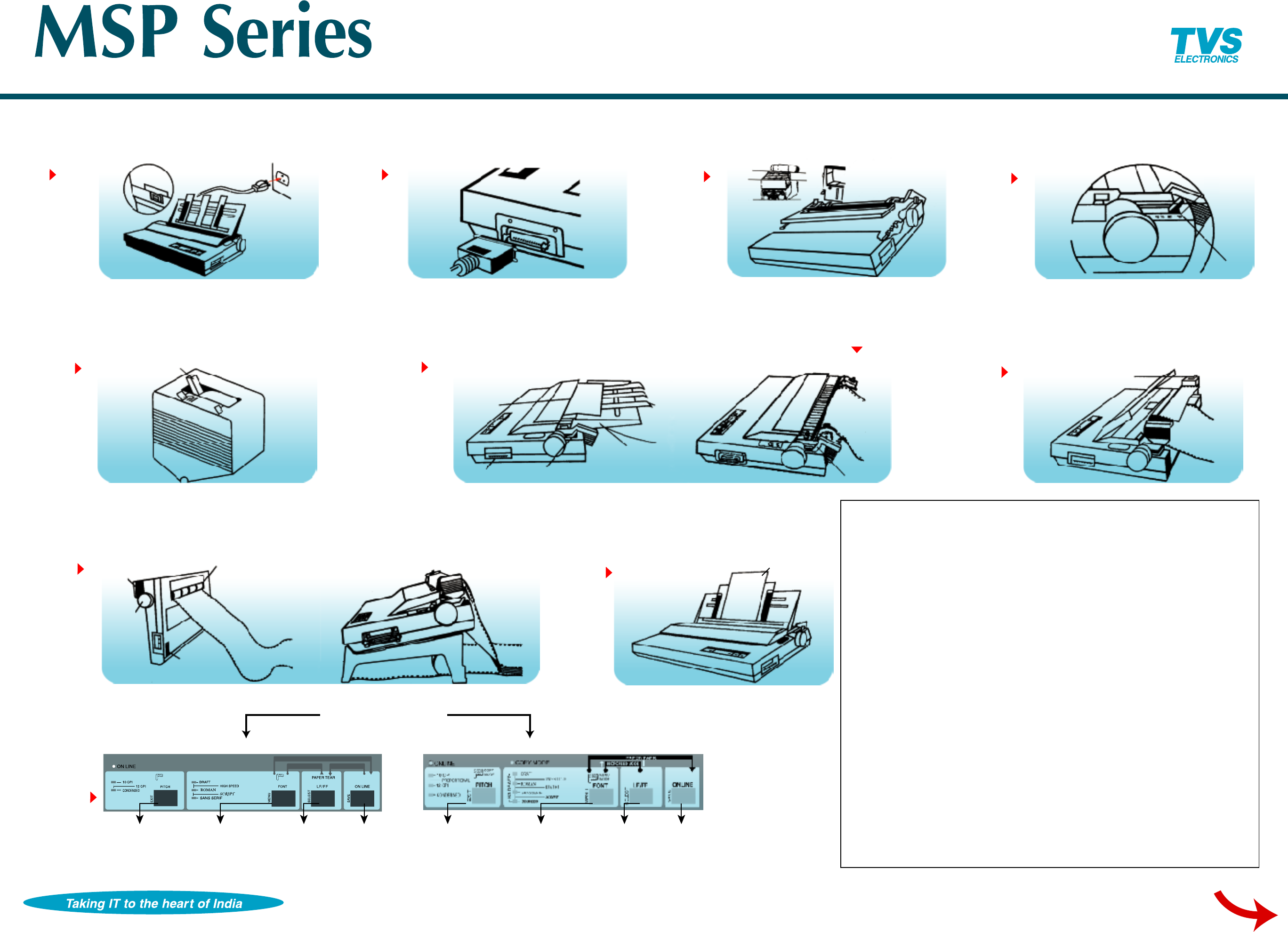

Selecting and Loading paper
Paper Select Lever for Continuous feed
Installing the Printer Ribbon
1
1Installing your Printer
Power Switch Location Connection Parallel Interface Cable
Components in your printer
2
23
34
4
Paper Insertion Bottom Feed
(Pull Tractor Option)
8
8
Printing Continuous Paper
with Tractor Unit in Pull Position
7
7
Tractor Select Lever
5
5
Printing in Single Sheets
9
9
10
10 Control Panel
MSP 9 wire printer Operating the control panel
ONLINE light glows,
the printer is in
Normal Operation
Mode.
OFFLINE will pause
printing.
LF moves one
line forward.
FF moves one
page forward.
FONT to
select a
style of the
character.
PITCH to
select the
size of the
character
MSP 24 wire printer Operating the control panel
ONLINE light glows,
the printer is in
Normal Operation
Mode.
OFFLINE will pause
printing.
LF moves one
line forward.
FF moves one
page forward.
FONT to
select a
style of the
character.
PITCH to
select the
size of the
character
Mail back your warranty registration card today
Select Lever
Printing Continuous Stationery
in Push Tractor Mode
Select Lever
Insertion
Platen
Parallel
Interface
Inserting Continuous
Paper in Push Tractor
Helpful Hints
• Use Normal Density MSP Ribbons for 9 wire Printers. Use of improper ribbon may
damage the print head and invalidate the warranty.
• Use only High Density MSP Ribbons for 24 wire Printers. Use of improper ribbon may
damage the print head and invalidate the warranty.
• If you are replacing a ribbon be sure the printer of OFF and the print head has cooled.
• Carefully read the instructions for correct ribbon placements. Improper placement can
cause smudged printing and may jam the ribbon.
• ONLINE is the printer's normal operating mode. When the printer is ONLINE, it can
receive data from your computer and print. When the printer is OFFLINE, it stops
printing and responds only to control-panel instructions, such as moving the paper.
• To completely cancel the print job, first cancel the job in your software application.
Then clear the data from the printer buffer.
• Because of advanced paper-handling features it is seldom necessary to turn the paper
feed knob. More frequently turning the paper feed knob causes misalingment. Use the
Control panel instead.
• Paper tear off, top-of-form adjustment and paper parking are not available when using
tractor in PULL mode.
• Do not rotate the PLATEN KNOB when the printer is in power ON condion.
• The top margin is usually set by your software. You may not need to change the top-of-
form setting very often.
• For serial interface connection you need to install an optional serial interface board.
Please contact your nearest TVS-E dealer. Serial interface cable comes with a board.
• If the printer is used heavily or in a dusty environment consult TVS-E service centre for
advice on periodic cleaning and lubrication.
www.tvs-e.com
Quick Reference Guide
Federal Communications Commission (FCC) Requirements, Part 15
This equipment has been tested and found to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and
receiver.
---Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV
technician for help.
NOTE
THIS MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
