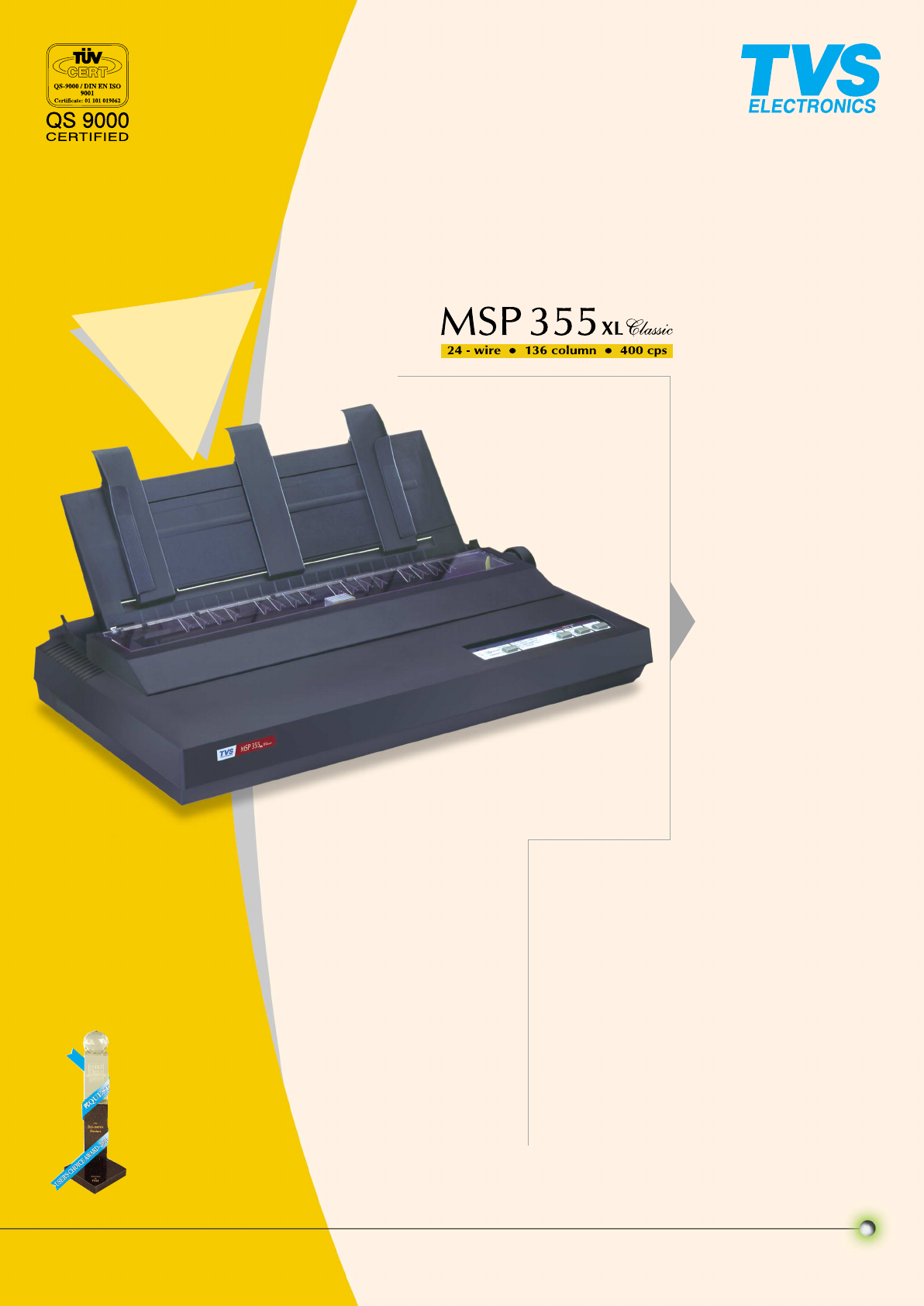

TVS Electronics MSP355XLC PRINTER User Manual USERS MANUAL

TVS Electronics Limited PRINTER USERS MANUAL

USERS MANUAL

Indias largest manufacturer of Peripherals l Dot Matrix Printers l UPS Systems l Keyboards
Superior
Printing
Quality for
your Business
Warranty
2
2
Year
(Including Print Head)
uSuperior Printing Speed - 432cps
uLong Print Head Life - 200 Million Characters
uWide Input Buffer - 100 KB
uDual Interface - Parallel & Serial with Auto
Sensing
uConvertible Push & Pull Tractor
uFlexible Paper Handling - Top, Rear & Bottom
Visit us at www.tvs-e.com
TVS Electronics Limited
34, Developed Plots, South Phase, Industrial Estate, Guindy, Chennai - 600 032. Ph: (44)2325506 / 09 Fax: (44)2327577
Branch Offices: n Ahmedabad: Ph: (79)7412325 / 35 / 37 E-mail: bm.subramanian@esa.tvse.co.in n Bangalore: Ph: (80)6566172 / 6568156
E-mail: kh.hema@esa.tvse.co.in n Bhopal: Ph: (755)275988 E-mail: vnj.vivek@esa.tvse.co.in n Chandigarh: Ph: (172)605581
E-mail: rr.rajagopalan@esa.tvse.co.in n Chennai: Ph: (44)8526290 / 8526469 E-mail: ct.chandrashekar@esa.tvse.co.in
n Hyderabad: Ph: (40)7816667 / 7845144 E-mail: pgr.gopalrao@esa.tvse.co.in n Kochi: Ph: (484)355433 / 360462 / 3 / 4
E-mail: rr.ramesh@esa.tvse.co.in n Kolkata: Ph: (33)4769611-14 E-mail: ak.barua@esa.tvse.co.in n Lucknow: Ph: (522)285614 / 282042
E-mail: ak.rai@esa.tvse.co.in n Mumbai: Ph: (22)7912766-70 / 7668496 / 7668498 E-mail: ad.ashokdesikan@esa.tvse.co.in
n New Delhi: Ph: (11)4603367-69 / 4603714 E-mail: kbh.harish@esa.tvse.co.in n Pune: Ph : (20)5674508 / 5675364 E-mail: rj.jaishankar@esa.tvse.co.in
Product Specifications
Print Method Serial Impact Dot Matrix
Print Direction Bi-directional Logic Seeking
Print Head - Type 24 - Wire
Print Width 136 Column
Print Head Life 200 Million Characters
Print Speed
Character Pitch (cpi) 10 12 15
High Speed Draft (cps) 400
Draft (cps) 300 360 375
Letter Quality (cps) 83 100 125
Resident Printer Fonts
Draft Draft, High Speed Draft
Letter Quality Roman, Sans Serif, Courier,
Prestige, Script, Script-C,
Orator, OCR-B, Orator-S
Letter Quality Scalable Fonts Roman & Sans Serif
(8 to 40 points)
Fast LQ* Prestige
Paper Handling
Paper Path-Standard Top, Rear and Bottom
Continuous-Tractor Feed-Standard Convertible Push & Pull
Paper Size
Continuous Form Width 4 - 16
Cutsheets Width 7.2 - 16.1
Paper Thickness (max) - Tractor feed 0.3 mm
Paper Thickness (max) - Friction feed 0.3 mm
Copy Capability 1+3 with Carbon
Consumables - Ribbon
Fabric-Ink Type High Density (Mobius Loop)
Fabric Life 3 Million Characters
1 kg = 2.2lbs; 1 inch = 2.54 cms.
Input Buffer (Kilo Bytes) 100 KB
Reliability-MTBF (Power On Hours) 6,000 POH
Acoustics - Noise Level 55 dB(A)
Emulation ESC P/2,
IBM Proprinter XL24e
Interface
Standard IEEE-P1284A Parallel
& RS-232 C Serial
(Auto Interface Switching)
Electrical Specifications
Operating Voltage 150 VAC ~ 270 VAC
Mains Frequency 47 - 63 Hz
Power (Standby) 12 W
Environmental - Operating Conditions
Temperature +5 to +45oC
Relative Humidity 10% to 80%
Physical Dimensions
Size (WxDxH) mm 608 x 379 x 147
Weight (Kg) 7
Ordering Information
SKU / FRU No. Description
1355MS09 MSP 355 xl Classic
Standard Configuration CD-ROM
Quick Reference Guide
Insertion Plate
Convertible Push/Pull
Tractor
Black Ribbon Cartridge
Parallel Interface Cable
Power Cord
Consumables
3M011058 High Density Black Ribbon
Note: All specifications are at standard operating
conditions and are subject to change without notice.
Dealer / Channel Partner / Contact:
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE
CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
