User manual
QIVENTBK-AT

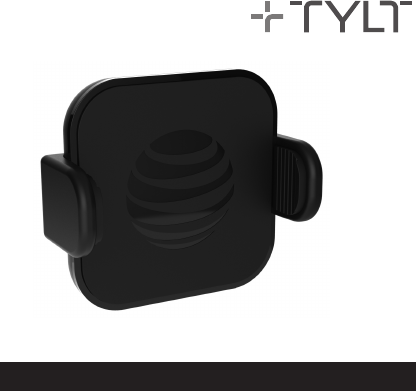

Fast Wireless Charging Car Vent
User Manual

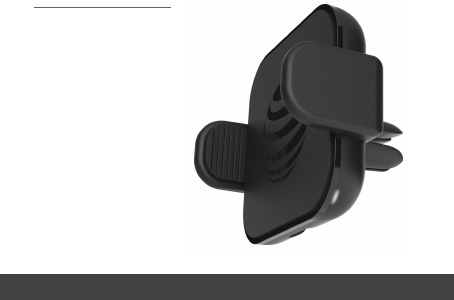

Features:
■ Featuring Qi fast charging specification
■ Spring-loaded arms enable one handed operation and securely
grip phones up to 6.2” screen size.
■ 180°rotation air vent
■ LED light to indicate the charging status
■ Over current, overvoltage, and overheating protections
QIVENTBK-AT | Fast Wireless Charging Car Vent
Specifications:
■ Input: Fast charging DC 9V 1.8A/ Standard charging DC 5V 2A
■ Wireless Charging Output: 5W/ 7.5W/ 9W
■ Wireless Distance: ≦6mm
■ Efficiceny: ≧≒71%
■ Dimension: 78 x 68.2 x 60 mm
■ Weight: 75g
How to set up the Air Vent Car Mount
1. Connect the power cable to the car holder. If needed, connect
the extension cable.
2. Plug the power supply into the car's cigarette lighter socket.
3. A simple push of one gripper arm holds and locks your device
in place and charging starts immediately.
QIVENTBK-AT | Fast Wireless Charging Car Vent

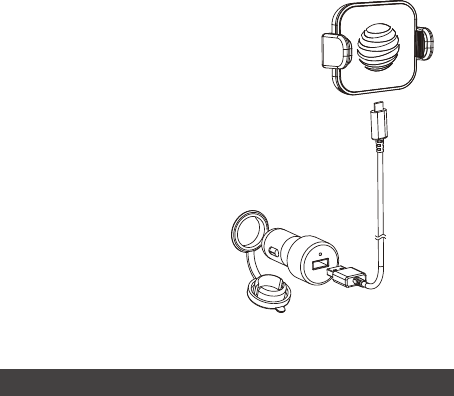

Insert a micro-USB cable for
connecting to your vehicleʼs
12V power outlet
＊Strongly recommed using a
Q.C 3.0 power source for the
best results.
12V
QIVENTBK-AT | Fast Wireless Charging Car Vent
QIVENTBK-AT | Fast Wireless Charging Car Vent

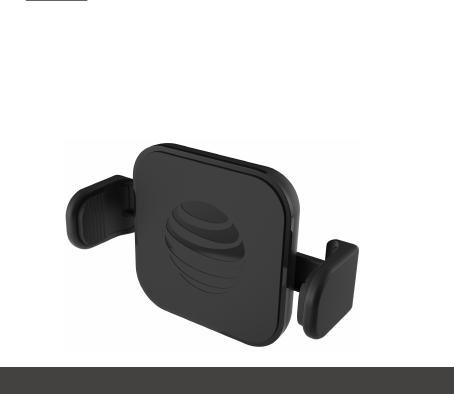

LED indicator lights:
No light - standby
Blue flashing - connecting
Blue light - charging
The blue LED illuminates continually during
wireless charging and flashes to indicate a
charging problem or insufficient current to
the vent mount.

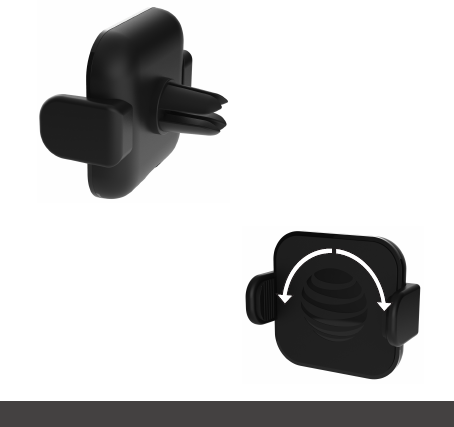

EASILY MOUNTS ON AIR
VENT:
The wireless charger car
mount attaches easily to the
blades of your AC vent and
it's fully adjustable to fit any
type of car vents.
180° ROTATION:
QIVENTBK-AT comes with air
vent mount and it provides
flexible choice of viewing your
phone while driving. The 180
degree rotating ball joint on
both mounts enables flexible
viewing angles while driving.
180°
QIVENTBK-AT | Fast Wireless Charging Car Vent
FCC Statement:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
Standard accessories:
Wireless charger
Air vent craws
User manual
USB cable
QC car charger
QIVENTBK-AT | Fast Wireless Charging Car Vent
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician
for help.
QIVENTBK-AT | Fast Wireless Charging Car Vent
QIVENTBK-AT | Fast Wireless Charging Car Vent
Caution: Any changes or modifications not expressly approved
by the party responsiblefor compliance could void the user's
authority to operate the equipment.
