TYSON BIORESEARCH HS100B Blood Glucose Monitoring System User Manual HS100 B Manual FDA AF004 0068000N 180522

TYSON BIORESEARCH, INC. Blood Glucose Monitoring System HS100 B Manual FDA AF004 0068000N 180522

TysonBio HS100-B- UserMan

User ManualHS100-B Blood Glucose Monitoring System

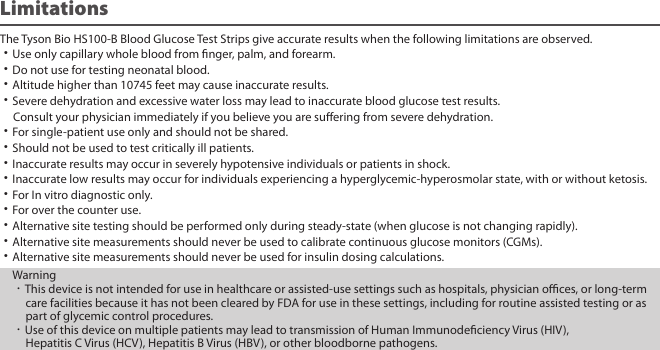

Limitations The Tyson Bio HS100-B Blood Glucose Test Strips give accurate results when the following limitations are observed.˙Use only capillary whole blood from nger, palm, and forearm.˙Do not use for testing neonatal blood.˙Altitude higher than 10745 feet may cause inaccurate results.˙Severe dehydration and excessive water loss may lead to inaccurate blood glucose test results. Consult your physician immediately if you believe you are suering from severe dehydration.˙For single-patient use only and should not be shared.˙Should not be used to test critically ill patients.˙Inaccurate results may occur in severely hypotensive individuals or patients in shock.˙Inaccurate low results may occur for individuals experiencing a hyperglycemic-hyperosmolar state, with or without ketosis.˙For In vitro diagnostic only.˙For over the counter use.˙Alternative site testing should be performed only during steady-state (when glucose is not changing rapidly).˙Alternative site measurements should never be used to calibrate continuous glucose monitors (CGMs).˙Alternative site measurements should never be used for insulin dosing calculations.Warning•This device is not intended for use in healthcare or assisted-use settings such as hospitals, physician oces, or long-term care facilities because it has not been cleared by FDA for use in these settings, including for routine assisted testing or as part of glycemic control procedures.•Use of this device on multiple patients may lead to transmission of Human Immunodeciency Virus (HIV), Hepatitis C Virus (HCV), Hepatitis B Virus (HBV), or other bloodborne pathogens.

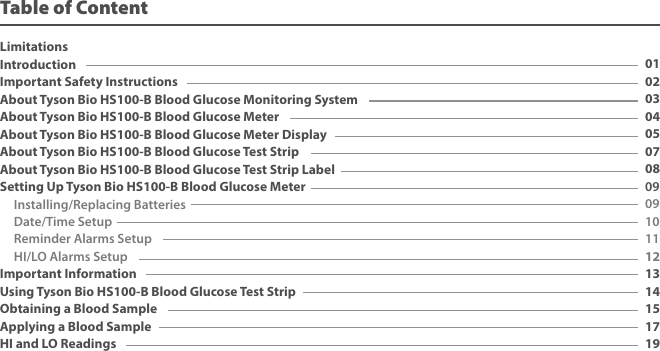

Table of ContentLimitationsIntroduction Important Safety InstructionsAbout Tyson Bio HS100-B Blood Glucose Monitoring SystemAbout Tyson Bio HS100-B Blood Glucose MeterAbout Tyson Bio HS100-B Blood Glucose Meter DisplayAbout Tyson Bio HS100-B Blood Glucose Test StripAbout Tyson Bio HS100-B Blood Glucose Test Strip LabelSetting Up Tyson Bio HS100-B Blood Glucose Meter Installing/Replacing Batteries Date/Time Setup Reminder Alarms Setup HI/LO Alarms SetupImportant InformationUsing Tyson Bio HS100-B Blood Glucose Test StripObtaining a Blood SampleApplying a Blood SampleHI and LO Readings0102030405070809091011121314151719

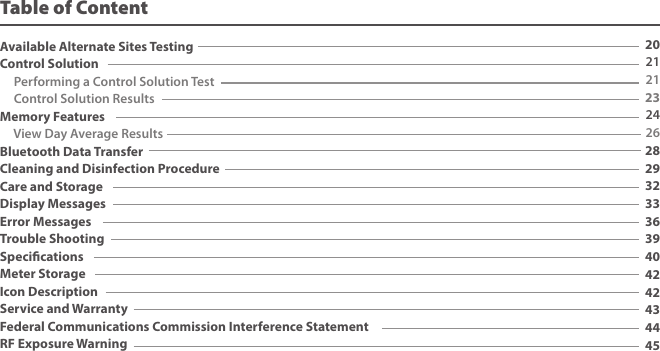

202121232426282932333639404242434445Available Alternate Sites TestingControl Solution Performing a Control Solution Test Control Solution ResultsMemory Features View Day Average ResultsBluetooth Data TransferCleaning and Disinfection ProcedureCare and StorageDisplay MessagesError MessagesTrouble ShootingSpecicationsMeter StorageIcon DescriptionService and WarrantyFederal Communications Commission Interference StatementRF Exposure WarningTable of Content

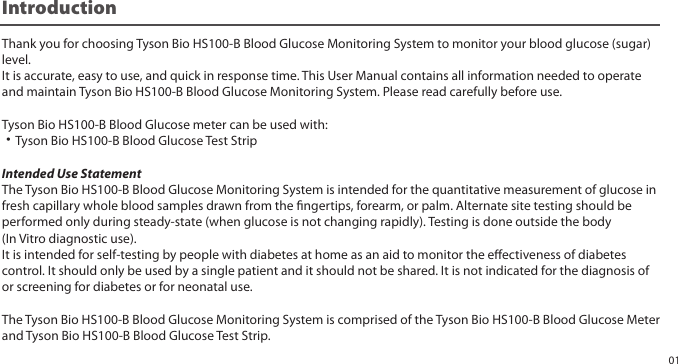

Introduction Thank you for choosing Tyson Bio HS100-B Blood Glucose Monitoring System to monitor your blood glucose (sugar) level. It is accurate, easy to use, and quick in response time. This User Manual contains all information needed to operate and maintain Tyson Bio HS100-B Blood Glucose Monitoring System. Please read carefully before use.Tyson Bio HS100-B Blood Glucose meter can be used with:˙Tyson Bio HS100-B Blood Glucose Test StripIntended Use StatementThe Tyson Bio HS100-B Blood Glucose Monitoring System is intended for the quantitative measurement of glucose in fresh capillary whole blood samples drawn from the ngertips, forearm, or palm. Alternate site testing should be performed only during steady-state (when glucose is not changing rapidly). Testing is done outside the body(In Vitro diagnostic use).It is intended for self-testing by people with diabetes at home as an aid to monitor the eectiveness of diabetes control. It should only be used by a single patient and it should not be shared. It is not indicated for the diagnosis of or screening for diabetes or for neonatal use.The Tyson Bio HS100-B Blood Glucose Monitoring System is comprised of the Tyson Bio HS100-B Blood Glucose Meter and Tyson Bio HS100-B Blood Glucose Test Strip.01

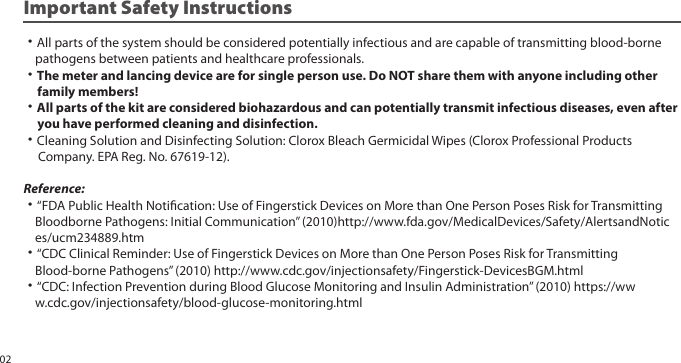

Important Safety Instructions˙All parts of the system should be considered potentially infectious and are capable of transmitting blood-borne pathogens between patients and healthcare professionals. ˙The meter and lancing device are for single person use. Do NOT share them with anyone including other family members!˙All parts of the kit are considered biohazardous and can potentially transmit infectious diseases, even after you have performed cleaning and disinfection. ˙Cleaning Solution and Disinfecting Solution: Clorox Bleach Germicidal Wipes (Clorox Professional Products Company. EPA Reg. No. 67619-12). Reference:˙“FDA Public Health Notication: Use of Fingerstick Devices on More than One Person Poses Risk for Transmitting Bloodborne Pathogens: Initial Communication” (2010)http://www.fda.gov/MedicalDevices/Safety/AlertsandNotic es/ucm234889.htm ˙“CDC Clinical Reminder: Use of Fingerstick Devices on More than One Person Poses Risk for Transmitting Blood-borne Pathogens” (2010) http://www.cdc.gov/injectionsafety/Fingerstick-DevicesBGM.html ˙“CDC: Infection Prevention during Blood Glucose Monitoring and Insulin Administration” (2010) https://ww w.cdc.gov/injectionsafety/blood-glucose-monitoring.html 02

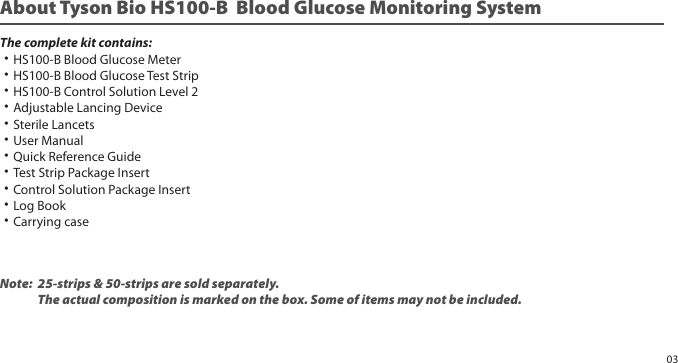

About Tyson Bio HS100-B Blood Glucose Monitoring SystemNote: 25-strips & 50-strips are sold separately. The actual composition is marked on the box. Some of items may not be included.The complete kit contains:˙HS100-B Blood Glucose Meter˙HS100-B Blood Glucose Test Strip˙HS100-B Control Solution Level 2˙Adjustable Lancing Device˙Sterile Lancets˙User Manual˙Quick Reference Guide˙Test Strip Package Insert˙Control Solution Package Insert˙Log Book˙Carrying case03

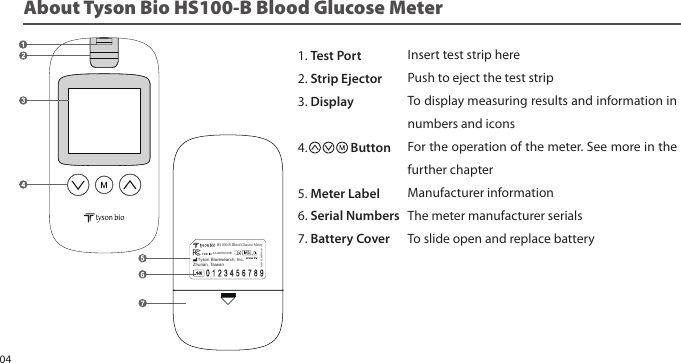

About Tyson Bio HS100-B Blood Glucose Meter 1. Test Port 2. Strip Ejector 3. Display 4. Button 5. Meter Label 6. Serial Numbers 7. Battery Cover Insert test strip herePush to eject the test stripTo display measuring results and information in numbers and icons For the operation of the meter. See more in the further chapterManufacturer informationThe meter manufacturer serialsTo slide open and replace batteryAL001-0239000N (01) Tyson Bioresearch, Inc. Zhunan, TaiwanBlood Glucose MeterHS100-B 2AJZ6HS100B04

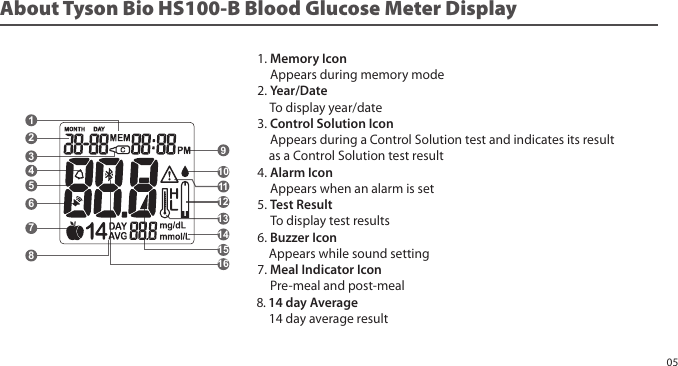

About Tyson Bio HS100-B Blood Glucose Meter Display 1. Memory Icon Appears during memory mode 2. Year/Date To display year/date 3. Control Solution Icon Appears during a Control Solution test and indicates its result as a Control Solution test result 4. Alarm Icon Appears when an alarm is set 5. Test Result To display test results 6. Buzzer Icon Appears while sound setting 7. Meal Indicator Icon Pre-meal and post-meal 8. 14 day Average 14 day average result1823456714151613121110905

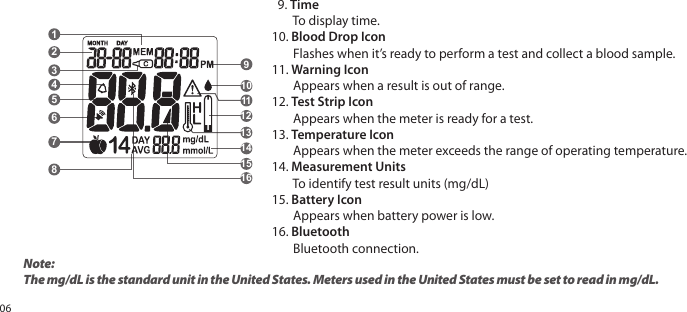

Note: The mg/dL is the standard unit in the United States. Meters used in the United States must be set to read in mg/dL. 9. Time To display time.10. Blood Drop Icon Flashes when it’s ready to perform a test and collect a blood sample.11. Warning Icon Appears when a result is out of range.12. Test Strip Icon Appears when the meter is ready for a test.13. Temperature Icon Appears when the meter exceeds the range of operating temperature.14. Measurement Units To identify test result units (mg/dL)15. Battery Icon Appears when battery power is low.16. Bluetooth Bluetooth connection. 1823456714151613121110906

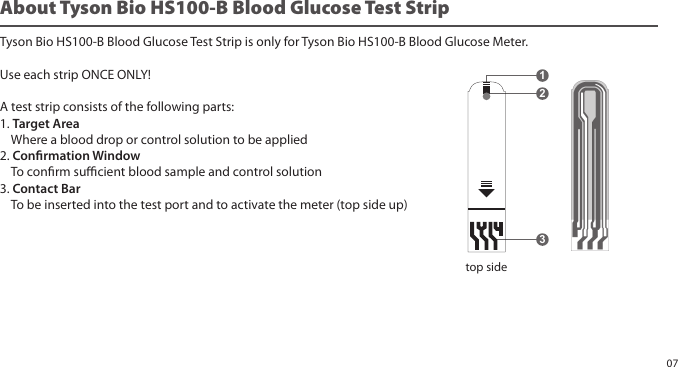

About Tyson Bio HS100-B Blood Glucose Test Strip 123top sideTyson Bio HS100-B Blood Glucose Test Strip is only for Tyson Bio HS100-B Blood Glucose Meter.Use each strip ONCE ONLY! A test strip consists of the following parts:1. Target Area Where a blood drop or control solution to be applied2. Conrmation Window To conrm sucient blood sample and control solution3. Contact Bar To be inserted into the test port and to activate the meter (top side up)07
About Tyson Bio HS100-B Blood Glucose Test Strip LabelTest Strip Vial Label Test Strip VialBlood Glucose Test StripsHS100-BStore at 39 ~ 86°F(4 ~ 30°C), 10~90% RH.Do not refrigerate. Do not store test strips outside this vial. Re-cap immediately. WARNING: Always close cap tightly.For testing of glucose in capillary whole blood.Use within 6 months after first opening.Do not use past the expiration date.Use Tyson Bio HS100-B meter only !AL001-0237000N (01) Rev. date: 04/2018Test Strips Tyson Bioresearch, Inc.5F., No. 16, 18, 20, 22, Kedong 3rd Rd., Zhunan Township, Miaoli County 35053, TaiwanTel: +886-37-585998Customer ServiceU.S.A. +1-800-948-3894Date opened:_____/_____/_____Control Solution Range2018-12-25Blood Glucose Test StripsHS100-BStore at 39 ~ 86°F(4 ~ 30°C), 10~90% RH.Do not refrigerate. Do not store test strips outside this vial. Re-cap immediately. WARNING: Always close cap tightly.For testing of glucose in capillary whole blood.Use within 6 months after first opening.Do not use past the expiration date.Use Tyson Bio HS100-B meter only !Test Strips Tyson Bioresearch, Inc.5F., No. 16, 18, 20, 22, Kedong 3rd Rd., Zhunan Township, Miaoli County 35053, TaiwanTel: +886-37-585998Customer ServiceU.S.A. +1-800-948-3894Control Solution Range2018-12-2508

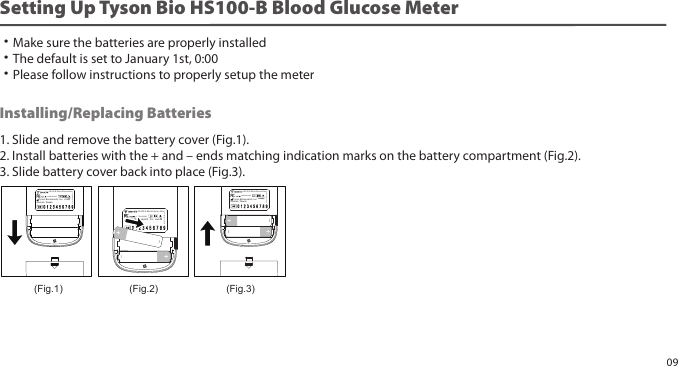

(Fig.2)(Fig.1) (Fig.3)Installing/Replacing Batteries1. Slide and remove the battery cover (Fig.1).2. Install batteries with the + and – ends matching indication marks on the battery compartment (Fig.2).3. Slide battery cover back into place (Fig.3).Setting Up Tyson Bio HS100-B Blood Glucose Meter ˙Make sure the batteries are properly installed˙The default is set to January 1st, 0:00˙Please follow instructions to properly setup the meterAL001-0239000N (01) Tyson Bioresearch, Inc. Zhunan, TaiwanBlood Glucose MeterHS100-B 2AJZ6HS100BBlood Glucose Test StripsUse within 6 months after first opening.Do not use past the expiration date.Use Tyson Bio HS100-B meter only !AL001-0237000N (01) Rev. date: 04/2018Date opened:_____/_____/_____Control Solution RangeAL001-0239000N (01) Tyson Bioresearch, Inc. Zhunan, TaiwanBlood Glucose MeterHS100-B 2AJZ6HS100BAL001-0239000N (01) Tyson Bioresearch, Inc. Zhunan, TaiwanBlood Glucose MeterHS100-B 2AJZ6HS100B09

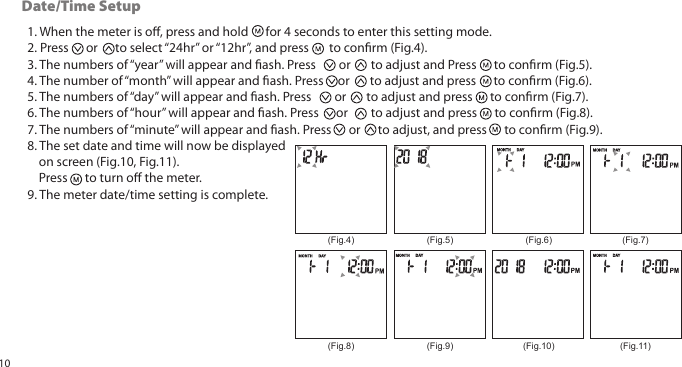

1. When the meter is o, press and hold for 4 seconds to enter this setting mode. 2. Press or to select “24hr” or “12hr”, and press to conrm (Fig.4). 3. The numbers of “year” will appear and ash. Press or to adjust and Press to conrm (Fig.5). 4. The number of “month” will appear and ash. Press or to adjust and press to conrm (Fig.6). 5. The numbers of “day” will appear and ash. Press or to adjust and press to conrm (Fig.7). 6. The numbers of “hour” will appear and ash. Press or to adjust and press to conrm (Fig.8). 7. The numbers of “minute” will appear and ash. Press or to adjust, and press to conrm (Fig.9). 8. The set date and time will now be displayed on screen (Fig.10, Fig.11). Press to turn o the meter. 9. The meter date/time setting is complete.Date/Time Setup(Fig.4) (Fig.5) (Fig.6) (Fig.7)(Fig.8) (Fig.9) (Fig.10) (Fig.11)10

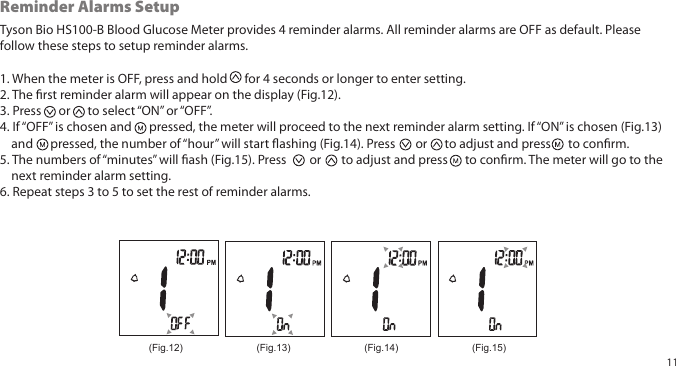

Tyson Bio HS100-B Blood Glucose Meter provides 4 reminder alarms. All reminder alarms are OFF as default. Please follow these steps to setup reminder alarms.1. When the meter is OFF, press and hold for 4 seconds or longer to enter setting.2. The rst reminder alarm will appear on the display (Fig.12).3. Press or to select “ON” or “OFF”.4. If “OFF” is chosen and pressed, the meter will proceed to the next reminder alarm setting. If “ON” is chosen (Fig.13) and pressed, the number of “hour” will start ashing (Fig.14). Press or to adjust and press to conrm.5. The numbers of “minutes” will ash (Fig.15). Press or to adjust and press to conrm. The meter will go to the next reminder alarm setting.6. Repeat steps 3 to 5 to set the rest of reminder alarms.Reminder Alarms Setup(Fig.12) (Fig.13) (Fig.14) (Fig.15)11

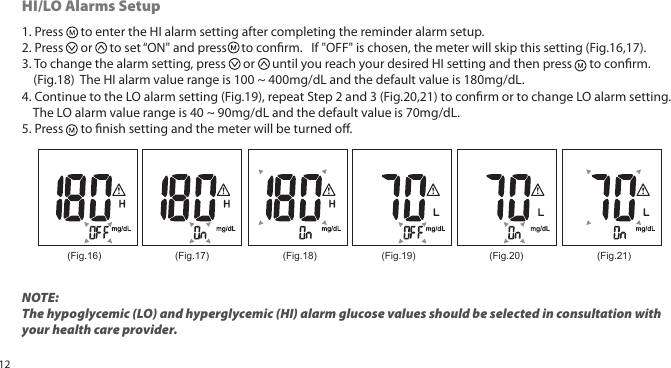

NOTE: The hypoglycemic (LO) and hyperglycemic (HI) alarm glucose values should be selected in consultation with your health care provider.HI/LO Alarms Setup1. Press to enter the HI alarm setting after completing the reminder alarm setup.2. Press or to set “ON" and press to conrm. If "OFF" is chosen, the meter will skip this setting (Fig.16,17).3. To change the alarm setting, press or until you reach your desired HI setting and then press to conrm. (Fig.18) The HI alarm value range is 100 ~ 400mg/dL and the default value is 180mg/dL.4. Continue to the LO alarm setting (Fig.19), repeat Step 2 and 3 (Fig.20,21) to conrm or to change LO alarm setting. The LO alarm value range is 40 ~ 90mg/dL and the default value is 70mg/dL.5. Press to nish setting and the meter will be turned o.(Fig.16) (Fig.17) (Fig.18) (Fig.19) (Fig.20) (Fig.21)12
Important InformationBefore Testing˙Always keep test strips in the original vial. The vial contains drying agents to protect the test strips from moisture.˙Tightly close the vial cap immediately after removing a test strip.˙Use each strip immediately after removing it from the vial.˙Use each test strip ONCE ONLY.˙Do not use the test strips or Control Solution beyond the expiration date printed on the package. This may cause inaccurate results.˙Do not use the test strips or Control Solution if the package is damaged.˙Store your test strips and the Control Solutions between 39°F ~ 86°F (4°C ~ 30°C) Temperature beyond this range can damage test strips and lead to inaccurate results.˙Any change of medications based on the Tyson Bio HS100-B Blood Glucose Monitoring System results without advices of a doctor is NOT RECOMMENDED.˙The lancing device is intended only for single user and should NOT be shared.˙Users should wash hands thoroughly with soap and water after handing the meter, lancing device, or test strips.˙Only Tyson Bio HS100-B Blood Glucose Test Strip and Control Solution can be used with the Tyson Bio HS100-B Blood Glucose Meter.˙For accurate results, testing must be done within the operating temperature range (50°F ~ 104°F/10°C ~ 40°C). If the meter is moved to an area appropriate conditions from where is out of operating temperature range, place the meter for 30 minutes before conducting the testing. 13

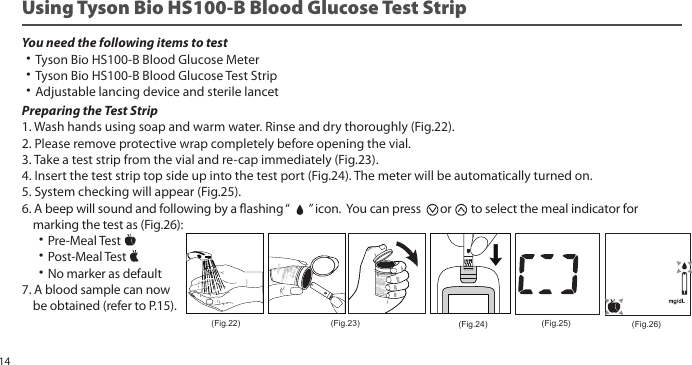

Preparing the Test Strip1. Wash hands using soap and warm water. Rinse and dry thoroughly (Fig.22).2. Please remove protective wrap completely before opening the vial.3. Take a test strip from the vial and re-cap immediately (Fig.23).4. Insert the test strip top side up into the test port (Fig.24). The meter will be automatically turned on.5. System checking will appear (Fig.25).6. A beep will sound and following by a ashing “ ” icon. You can press or to select the meal indicator for marking the test as (Fig.26): ˙Pre-Meal Test ˙Post-Meal Test ˙No marker as default7. A blood sample can now be obtained (refer to P.15).Using Tyson Bio HS100-B Blood Glucose Test Strip(Fig.25)(Fig.24)(Fig.22) (Fig.23) (Fig.26)You need the following items to test˙Tyson Bio HS100-B Blood Glucose Meter˙Tyson Bio HS100-B Blood Glucose Test Strip˙Adjustable lancing device and sterile lancet14

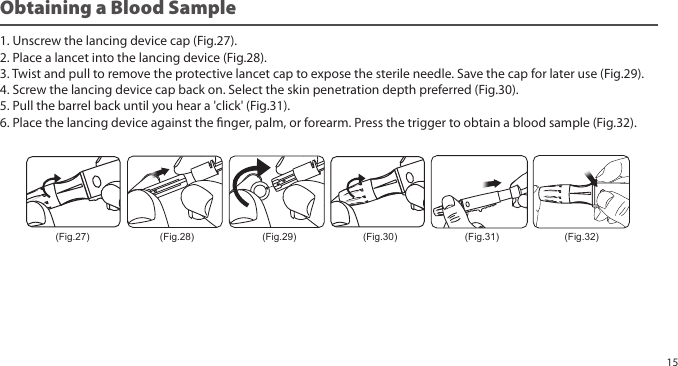

Obtaining a Blood Sample1. Unscrew the lancing device cap (Fig.27).2. Place a lancet into the lancing device (Fig.28).3. Twist and pull to remove the protective lancet cap to expose the sterile needle. Save the cap for later use (Fig.29).4. Screw the lancing device cap back on. Select the skin penetration depth preferred (Fig.30).5. Pull the barrel back until you hear a 'click' (Fig.31).6. Place the lancing device against the nger, palm, or forearm. Press the trigger to obtain a blood sample (Fig.32).(Fig.27) (Fig.28) (Fig.29) (Fig.30) (Fig.31) (Fig.32)15

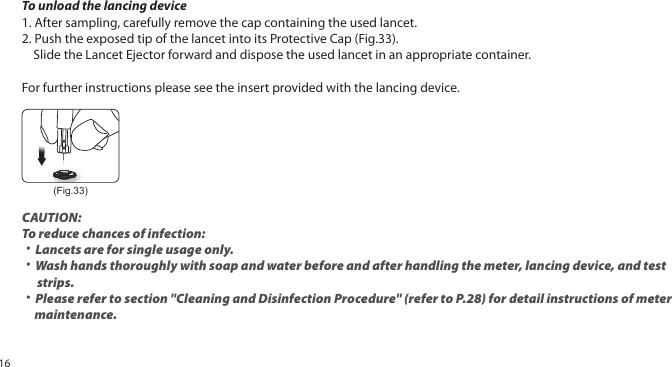

To unload the lancing device1. After sampling, carefully remove the cap containing the used lancet.2. Push the exposed tip of the lancet into its Protective Cap (Fig.33). Slide the Lancet Ejector forward and dispose the used lancet in an appropriate container.For further instructions please see the insert provided with the lancing device.CAUTION:To reduce chances of infection:˙Lancets are for single usage only.˙Wash hands thoroughly with soap and water before and after handling the meter, lancing device, and test strips.˙Please refer to section "Cleaning and Disinfection Procedure" (refer to P.28) for detail instructions of meter maintenance.(Fig.33)16
Applying a Blood SampleSAMPLE MAY BE OBTAINED FROM FINGER, PLAM, OR FOREARM1. Introduce the tip of the test strip to the drop of blood. Blood sample will be automatically drawn into the test strip (Fig.34). Discard the rst drop of blood sample to prevent contamination.2. Hold the tip of the test strip touching the blood drop until the meter beeps.3. The meter will start to countdown as soon as the blood has completely lled the conrmation window of the test strip If applying an insucient blood sample, the error code (E-7) will appear on the display (Fig35).4. The test result will appear on the display in 5 seconds (Fig.36). All results will be automatically stored into the meter memory (Fig.37).5. The meter will automatically turn o after 2 minutes.6. After completing the test, push the strip ejector (Fig.38) or use a tissue paper to remove the test strip. (Fig.34)SucientBloodInsucientblood(Fig.35) (Fig.36) (Fig.37) (Fig.38)17

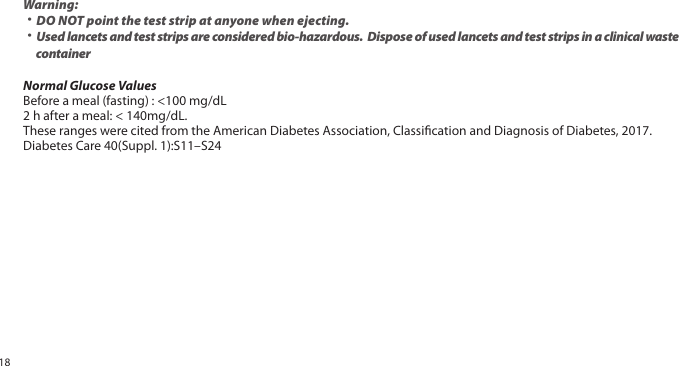

Warning: ˙DO NOT point the test strip at anyone when ejecting.˙Used lancets and test strips are considered bio-hazardous. Dispose of used lancets and test strips in a clinical waste containerNormal Glucose ValuesBefore a meal (fasting) : <100 mg/dL2 h after a meal: < 140mg/dL.These ranges were cited from the American Diabetes Association, Classication and Diagnosis of Diabetes, 2017.Diabetes Care 40(Suppl. 1):S11–S2418

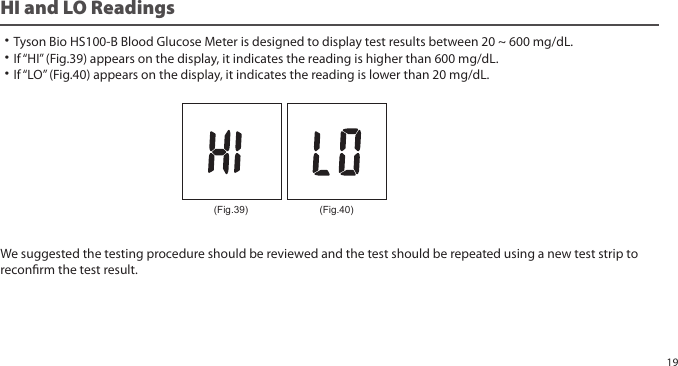

HI and LO Readings ˙Tyson Bio HS100-B Blood Glucose Meter is designed to display test results between 20 ~ 600 mg/dL.˙If “HI” (Fig.39) appears on the display, it indicates the reading is higher than 600 mg/dL.˙If “LO” (Fig.40) appears on the display, it indicates the reading is lower than 20 mg/dL.We suggested the testing procedure should be reviewed and the test should be repeated using a new test strip to reconrm the test result.(Fig.39) (Fig.40)19

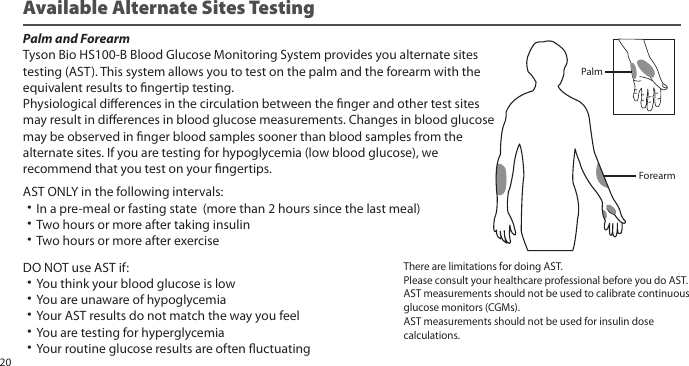

Available Alternate Sites TestingPalm and ForearmTyson Bio HS100-B Blood Glucose Monitoring System provides you alternate sitestesting (AST). This system allows you to test on the palm and the forearm with theequivalent results to ngertip testing.Physiological dierences in the circulation between the nger and other test sitesmay result in dierences in blood glucose measurements. Changes in blood glucosemay be observed in nger blood samples sooner than blood samples from thealternate sites. If you are testing for hypoglycemia (low blood glucose), werecommend that you test on your ngertips.There are limitations for doing AST.Please consult your healthcare professional before you do AST.AST measurements should not be used to calibrate continuous glucose monitors (CGMs).AST measurements should not be used for insulin dose calculations.ForearmPalmAST ONLY in the following intervals:˙In a pre-meal or fasting state (more than 2 hours since the last meal)˙Two hours or more after taking insulin˙Two hours or more after exerciseDO NOT use AST if:˙You think your blood glucose is low˙You are unaware of hypoglycemia˙Your AST results do not match the way you feel˙You are testing for hyperglycemia˙Your routine glucose results are often uctuating20
Control Solution(Fig.41)The Control Solution is to ensure that Tyson Bio HS100-B Blood Glucose Monitoring System is working properly and you are performing a test correctly.When to Perform a Control Solution Test1. Be sure of the Control Solution is at a room temperature between 59°F ~ 95°F (15°C ~ 35°C) before testing. Control solution that is not at room temperature when tested may cause out of range results.2. Insert a Tyson Bio HS100-B Blood Glucose Test Strip, top side up, contact bar end rst, into the test port. The meter will be automatically turned ON (Fig.41).3. A beep will sound and the system checking will appear followed by a ashing “ ” icon (Fig.42).Performing a Control Solution Test1. You use the meter for the rst time.2. You use a new vial of test strips.3. You suspect that the meter or test strips are not working properly.4. Your test results are not consistent with how you feel.5. You think your test result is not accurate.6. You damage your meter.7. An advice from your healthcare professional.Note: Please read the Control Solution package insert for more detail information.(Fig.42)21

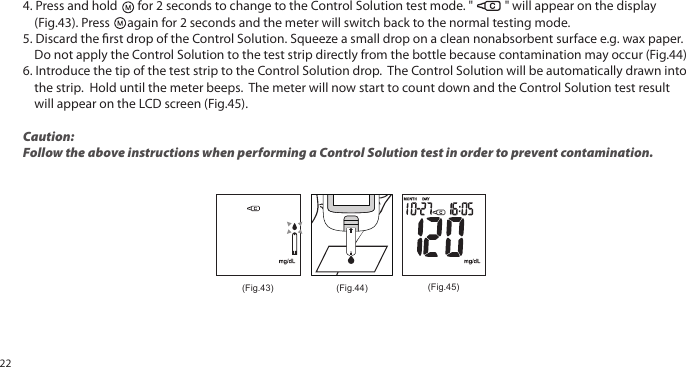

4. Press and hold for 2 seconds to change to the Control Solution test mode. " " will appear on the display (Fig.43). Press again for 2 seconds and the meter will switch back to the normal testing mode.5. Discard the rst drop of the Control Solution. Squeeze a small drop on a clean nonabsorbent surface e.g. wax paper. Do not apply the Control Solution to the test strip directly from the bottle because contamination may occur (Fig.44)6. Introduce the tip of the test strip to the Control Solution drop. The Control Solution will be automatically drawn into the strip. Hold until the meter beeps. The meter will now start to count down and the Control Solution test result will appear on the LCD screen (Fig.45).Caution: Follow the above instructions when performing a Control Solution test in order to prevent contamination.(Fig.45)(Fig.43) (Fig.44)22

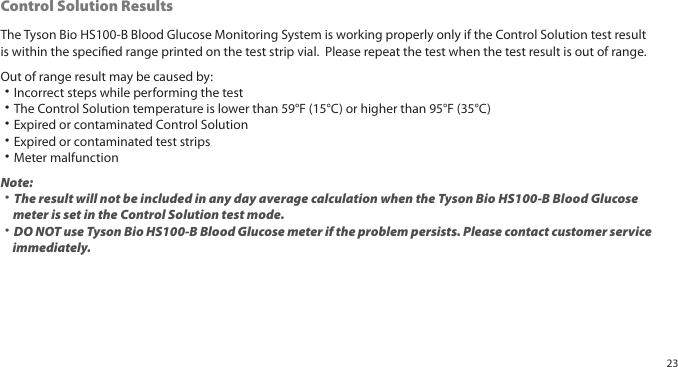

The Tyson Bio HS100-B Blood Glucose Monitoring System is working properly only if the Control Solution test result is within the specied range printed on the test strip vial. Please repeat the test when the test result is out of range.Out of range result may be caused by:˙Incorrect steps while performing the test˙The Control Solution temperature is lower than 59°F (15°C) or higher than 95°F (35°C)˙Expired or contaminated Control Solution˙Expired or contaminated test strips˙Meter malfunctionNote: ˙The result will not be included in any day average calculation when the Tyson Bio HS100-B Blood Glucose meter is set in the Control Solution test mode.˙DO NOT use Tyson Bio HS100-B Blood Glucose meter if the problem persists. Please contact customer service immediately.Control Solution Results23
How to view results stored in the memory1. When the meter is o, press button to turn on the meter. The Data and Time will be shown on (At the left-upper corner. Firstly the year is shown for 1 second, and then Month-Day will be shown on in the same area).2. Press to view previous results. “MEM” icon will be displayed on the top center area. Initially, the “year” will be display on the top left corner (Fig.46). After 1 second “month-day” will then be displayed on the top left corner and “time” will be displayed on the top right corner (Fig.47). The most recent memory results will be displayed rst.3. You can press or to scroll forwards and backwards through the results.4. Press button to exit the stored test results or the meter will be shut o automatically after 2 minutes without any action.Memory Features (Fig.46) (Fig.47)24

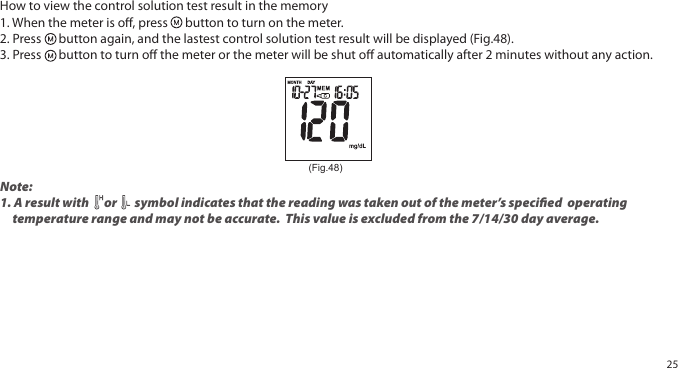

Note:1. A result with or symbol indicates that the reading was taken out of the meter’s specified operating temperature range and may not be accurate. This value is excluded from the 7/14/30 day average.(Fig.48)How to view the control solution test result in the memory1. When the meter is o, press button to turn on the meter.2. Press button again, and the lastest control solution test result will be displayed (Fig.48).3. Press button to turn o the meter or the meter will be shut o automatically after 2 minutes without any action. 25

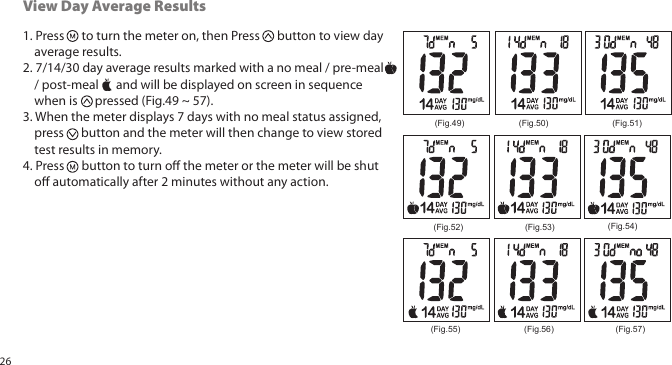

1. Press to turn the meter on, then Press button to view day average results.2. 7/14/30 day average results marked with a no meal / pre-meal / post-meal and will be displayed on screen in sequence when is pressed (Fig.49 ~ 57).3. When the meter displays 7 days with no meal status assigned, press button and the meter will then change to view stored test results in memory.4. Press button to turn o the meter or the meter will be shut o automatically after 2 minutes without any action.View Day Average Results(Fig.55) (Fig.56) (Fig.57)(Fig.50) (Fig.51)(Fig.49)(Fig.52) (Fig.53) (Fig.54)26
1. day average2. meal ag (no meal / pre-meal / post-meal )3. The number used for day average4. The average calculated based on day average (upper left), number of results (upper right), meal ag (lower left).5. The average calculated from all 14 day test results Note:1. The consecutive 7/14/30 day average is calculated from the test results obtained during the last consecutive 7/14/30 day periods.2345127
(Fig.58) (Fig.59) (Fig.60)Bluetooth Data TransferTranfer Memory Data 1. Press to turn on the meter (Fig.58). 2. When the meter is switched ON, hold for 4 seconds to enter Bluetooth mode. will appear and ash on the meter when meter is not connected with a mobile device (Fig.59).3. Turn Bluetooth on your mobile device, and BLE tool APP (with Blood Glucose Test) on.4. Select the device shown (ex.Tysonbio-BGM) in APP list and click “Connect” . stops blinking when the meter & mobile device is connected.5. Press the button on APP to transfer data. The meter will display while data are being transferred (Fig.60).28

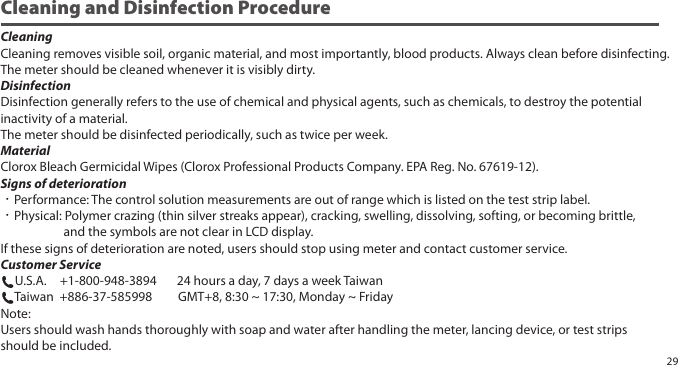

CleaningCleaning removes visible soil, organic material, and most importantly, blood products. Always clean before disinfecting.The meter should be cleaned whenever it is visibly dirty.DisinfectionDisinfection generally refers to the use of chemical and physical agents, such as chemicals, to destroy the potentialinactivity of a material.The meter should be disinfected periodically, such as twice per week.MaterialClorox Bleach Germicidal Wipes (Clorox Professional Products Company. EPA Reg. No. 67619-12). Signs of deterioration•Performance: The control solution measurements are out of range which is listed on the test strip label.•Physical: Polymer crazing (thin silver streaks appear), cracking, swelling, dissolving, softing, or becoming brittle, and the symbols are not clear in LCD display.If these signs of deterioration are noted, users should stop using meter and contact customer service.Customer Service U.S.A. +1-800-948-3894 24 hours a day, 7 days a week Taiwan Taiwan +886-37-585998 GMT+8, 8:30 ~ 17:30, Monday ~ FridayNote:Users should wash hands thoroughly with soap and water after handling the meter, lancing device, or test stripsshould be included.Cleaning and Disinfection Procedure29

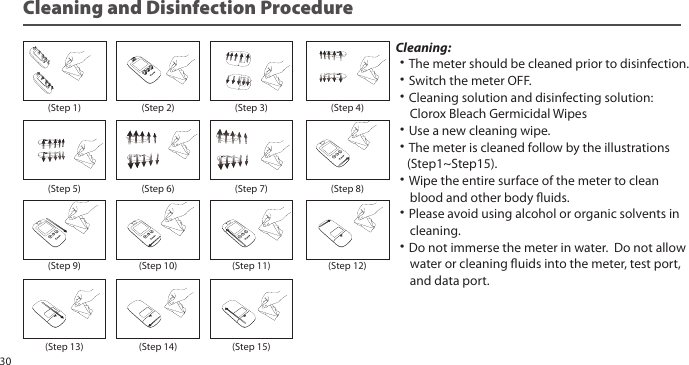

Cleaning and Disinfection ProcedureCleaning:˙The meter should be cleaned prior to disinfection.˙Switch the meter OFF.˙Cleaning solution and disinfecting solution: Clorox Bleach Germicidal Wipes˙Use a new cleaning wipe.˙The meter is cleaned follow by the illustrations (Step1~Step15).˙Wipe the entire surface of the meter to clean blood and other body uids.˙Please avoid using alcohol or organic solvents in cleaning.˙Do not immerse the meter in water. Do not allow water or cleaning uids into the meter, test port, and data port.(Step 1) (Step 2) (Step 3) (Step 4)(Step 5) (Step 6) (Step 7) (Step 8)(Step 9) (Step 10) (Step 11) (Step 12)(Step 13) (Step 14) (Step 15)30
Disinfection:˙ Cleaning solution and disinfecting solution: Clorox Bleach Germicidal Wipes˙ Use a new disinfection wipe.˙ The meter is cleaned follow by the illustrations (Step1~Step15).˙ Wipe the entire surface of the meter to remove bloodborne pathogens.˙ Dispose of the used wipe in a trash bin.˙ Allow exteriors to remain wet for the 1 minute contact time.˙ Wipe surface using a towel and allow to air dry.Cleaning and Disinfection Procedure(Step 1) (Step 2) (Step 3) (Step 4)(Step 5) (Step 6) (Step 7) (Step 8)(Step 9) (Step 10) (Step 11) (Step 12)(Step 13) (Step 14) (Step 15)31

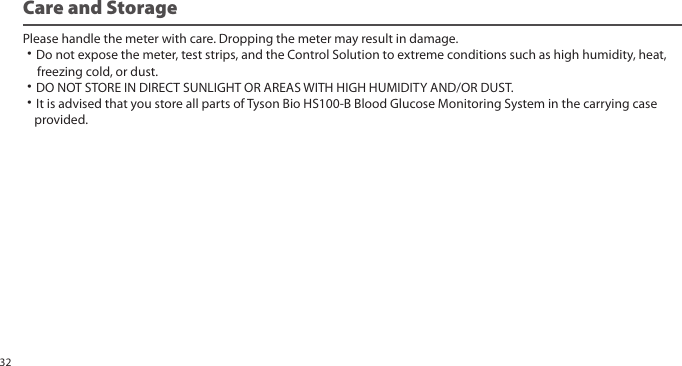

Care and StoragePlease handle the meter with care. Dropping the meter may result in damage.˙Do not expose the meter, test strips, and the Control Solution to extreme conditions such as high humidity, heat, freezing cold, or dust.˙DO NOT STORE IN DIRECT SUNLIGHT OR AREAS WITH HIGH HUMIDITY AND/OR DUST.˙It is advised that you store all parts of Tyson Bio HS100-B Blood Glucose Monitoring System in the carrying case provided.32

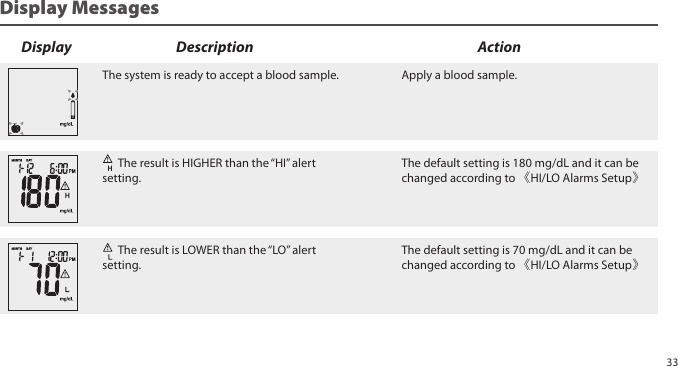

Display MessagesDisplay Description ActionThe system is ready to accept a blood sample. Apply a blood sample. The result is HIGHER than the “HI” alert setting.The default setting is 180 mg/dL and it can be changed according to 《HI/LO Alarms Setup》The default setting is 70 mg/dL and it can be changed according to 《HI/LO Alarms Setup》 The result is LOWER than the “LO” alert setting.33

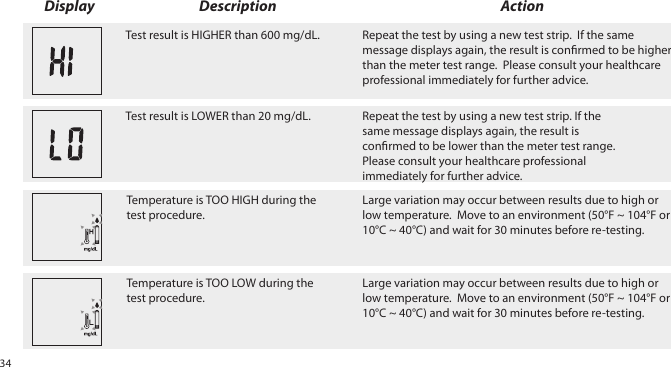

Display Description ActionTest result is HIGHER than 600 mg/dL. Repeat the test by using a new test strip. If the same message displays again, the result is conrmed to be higher than the meter test range. Please consult your healthcare professional immediately for further advice.Test result is LOWER than 20 mg/dL. Repeat the test by using a new test strip. If thesame message displays again, the result isconrmed to be lower than the meter test range.Please consult your healthcare professionalimmediately for further advice.Temperature is TOO HIGH during the test procedure.Large variation may occur between results due to high or low temperature. Move to an environment (50°F ~ 104°F or 10°C ~ 40°C) and wait for 30 minutes before re-testing.Temperature is TOO LOW during the test procedure.Large variation may occur between results due to high or low temperature. Move to an environment (50°F ~ 104°F or 10°C ~ 40°C) and wait for 30 minutes before re-testing.34

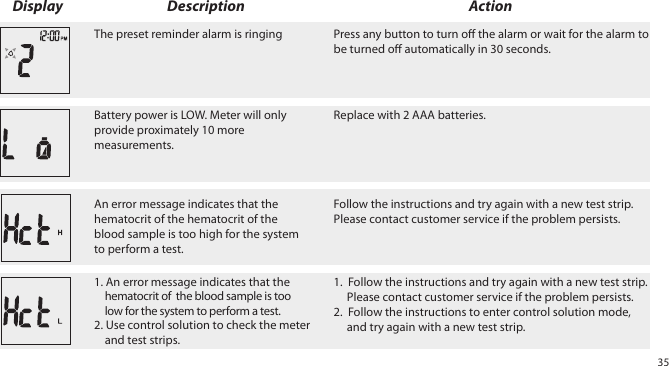

Display Description ActionThe preset reminder alarm is ringing Press any button to turn o the alarm or wait for the alarm to be turned o automatically in 30 seconds.Battery power is LOW. Meter will only provide proximately 10 more measurements.Replace with 2 AAA batteries.1. An error message indicates that the hematocrit of the blood sample is too low for the system to perform a test.2. Use control solution to check the meter and test strips.1. Follow the instructions and try again with a new test strip. Please contact customer service if the problem persists.2. Follow the instructions to enter control solution mode, and try again with a new test strip.An error message indicates that the hematocrit of the hematocrit of the blood sample is too high for the system to perform a test.Follow the instructions and try again with a new test strip. Please contact customer service if the problem persists.35

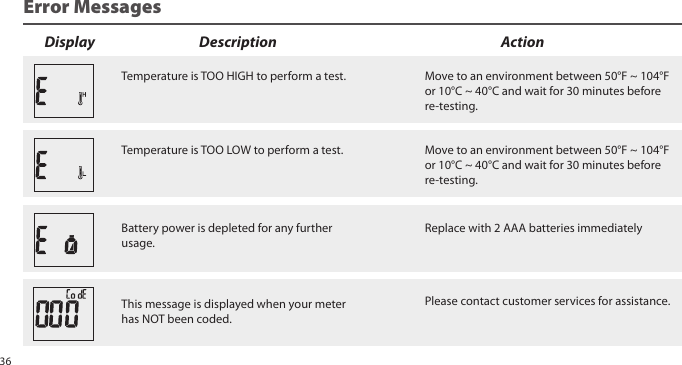

Error MessagesDisplay Description ActionTemperature is TOO HIGH to perform a test. Move to an environment between 50°F ~ 104°F or 10°C ~ 40°C and wait for 30 minutes before re-testing.Temperature is TOO LOW to perform a test. Move to an environment between 50°F ~ 104°For 10°C ~ 40°C and wait for 30 minutes beforere-testing.Battery power is depleted for any further usage.Replace with 2 AAA batteries immediatelyThis message is displayed when your meter has NOT been coded.Please contact customer services for assistance.36

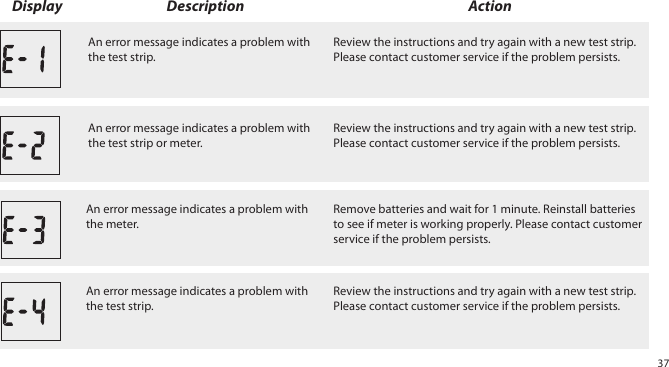

Display Description ActionAn error message indicates a problem with the test strip or meter.Review the instructions and try again with a new test strip.Please contact customer service if the problem persists.An error message indicates a problem with the test strip.Review the instructions and try again with a new test strip.Please contact customer service if the problem persists.An error message indicates a problem with the meter.Remove batteries and wait for 1 minute. Reinstall batteries to see if meter is working properly. Please contact customerservice if the problem persists.An error message indicates a problem with the test strip.Review the instructions and try again with a new test strip.Please contact customer service if the problem persists.37

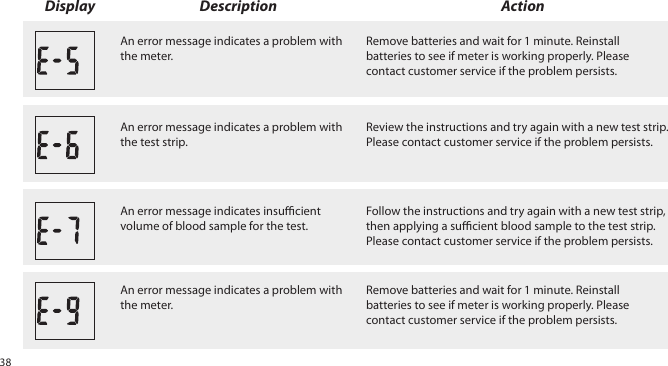

Display Description ActionAn error message indicates a problem with the meter.Remove batteries and wait for 1 minute. Reinstallbatteries to see if meter is working properly. Pleasecontact customer service if the problem persists.An error message indicates a problem with the test strip.Review the instructions and try again with a new test strip.Please contact customer service if the problem persists.An error message indicates a problem with the meter.Remove batteries and wait for 1 minute. Reinstallbatteries to see if meter is working properly. Pleasecontact customer service if the problem persists.An error message indicates insucientvolume of blood sample for the test.Follow the instructions and try again with a new test strip,then applying a sucient blood sample to the test strip.Please contact customer service if the problem persists.38

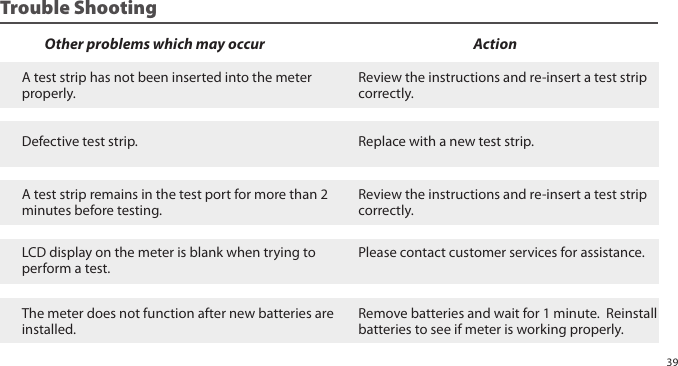

Other problems which may occur ActionTrouble ShootingA test strip has not been inserted into the meter properly.Review the instructions and re-insert a test strip correctly.Defective test strip. Replace with a new test strip.A test strip remains in the test port for more than 2 minutes before testing.Review the instructions and re-insert a test strip correctly.LCD display on the meter is blank when trying to perform a test.Please contact customer services for assistance.The meter does not function after new batteries are installed.Remove batteries and wait for 1 minute. Reinstall batteries to see if meter is working properly.39

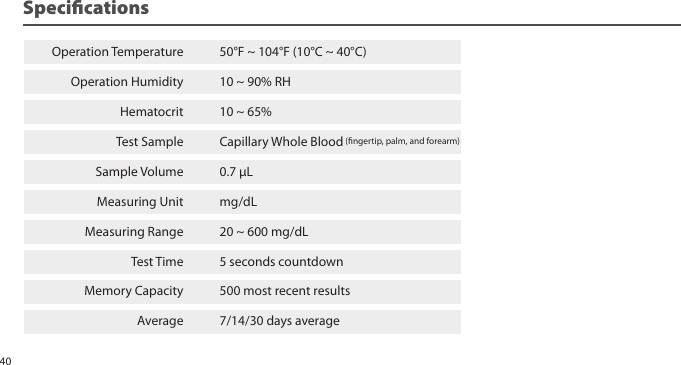

SpecificationsOperation Temperature 50°F ~ 104°F (10°C ~ 40°C)Operation Humidity 10 ~ 90% RHHematocrit 10 ~ 65%Test Sample Capillary Whole Blood (ngertip, palm, and forearm)Sample Volume 0.7 µLMeasuring Unit mg/dLMeasuring Range 20 ~ 600 mg/dLTest Time 5 seconds countdownMemory Capacity 500 most recent resultsAverage 7/14/30 days average40

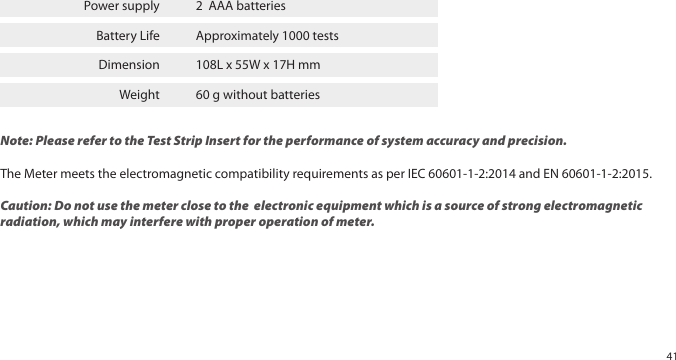

Power supply 2 AAA batteriesBattery Life Approximately 1000 testsDimension 108L x 55W x 17H mmWeight 60 g without batteriesNote: Please refer to the Test Strip Insert for the performance of system accuracy and precision.The Meter meets the electromagnetic compatibility requirements as per IEC 60601-1-2:2014 and EN 60601-1-2:2015. Caution: Do not use the meter close to the electronic equipment which is a source of strong electromagnetic radiation, which may interfere with proper operation of meter.41
Meter Storage˙Transport and store at temperature -4°F ~ 122 °F (-20°C ~ 50°C), less than 90% RH.˙Precision instrument, do not drop or crush when being transported.Icon DescriptionTemperature limitationBatch codeUse byDo not reuseSerial NumberManufacturerIn vitro diagnostic medical deviceConsult instructions for useSucient forCatalogue numberControlCaution42

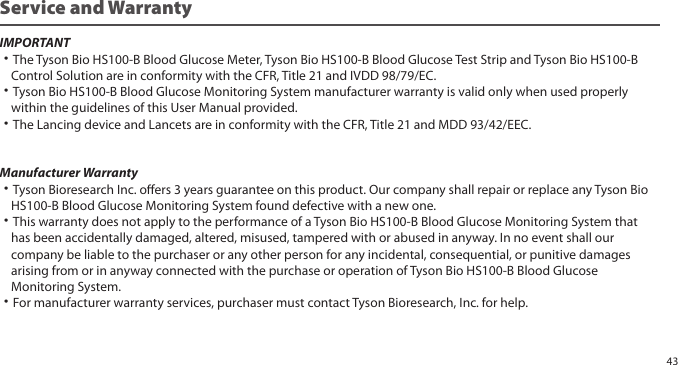

Service and WarrantyIMPORTANT˙The Tyson Bio HS100-B Blood Glucose Meter, Tyson Bio HS100-B Blood Glucose Test Strip and Tyson Bio HS100-B Control Solution are in conformity with the CFR, Title 21 and IVDD 98/79/EC.˙Tyson Bio HS100-B Blood Glucose Monitoring System manufacturer warranty is valid only when used properly within the guidelines of this User Manual provided.˙The Lancing device and Lancets are in conformity with the CFR, Title 21 and MDD 93/42/EEC.Manufacturer Warranty˙Tyson Bioresearch Inc. oers 3 years guarantee on this product. Our company shall repair or replace any Tyson Bio HS100-B Blood Glucose Monitoring System found defective with a new one.˙This warranty does not apply to the performance of a Tyson Bio HS100-B Blood Glucose Monitoring System that has been accidentally damaged, altered, misused, tampered with or abused in anyway. In no event shall our company be liable to the purchaser or any other person for any incidental, consequential, or punitive damages arising from or in anyway connected with the purchase or operation of Tyson Bio HS100-B Blood Glucose Monitoring System.˙For manufacturer warranty services, purchaser must contact Tyson Bioresearch, Inc. for help.43

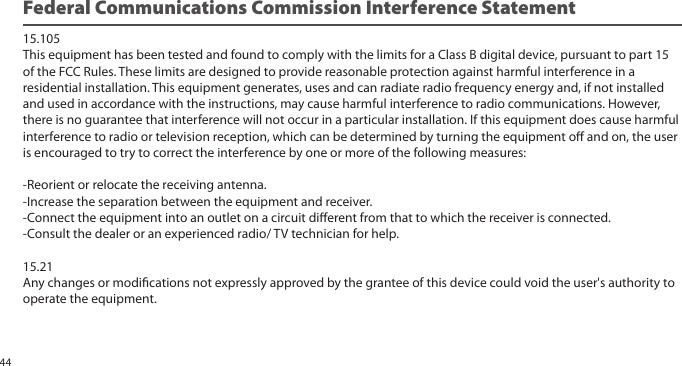

Federal Communications Commission Interference Statement15.105This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.-Consult the dealer or an experienced radio/ TV technician for help.15.21Any changes or modications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.44
The equipment complies with FCC RF exposure limits set forth for an uncontrolled environment.The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.15.19This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may cause undesired operation.RF Exposure Warning 45

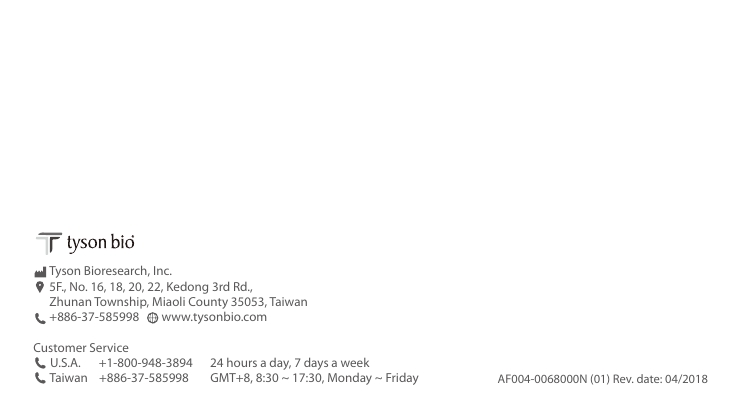

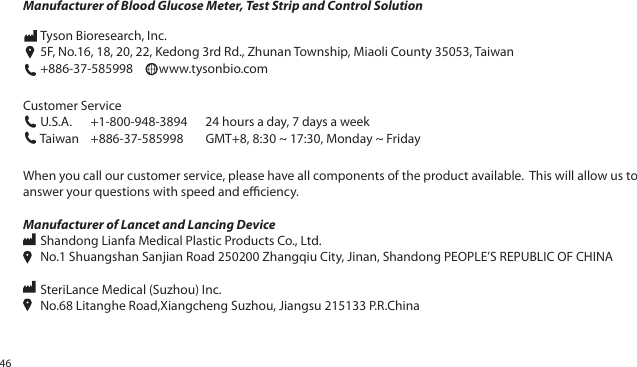

Manufacturer of Blood Glucose Meter, Test Strip and Control SolutionWhen you call our customer service, please have all components of the product available. This will allow us to answer your questions with speed and eciency.Manufacturer of Lancet and Lancing Device Shandong Lianfa Medical Plastic Products Co., Ltd. No.1 Shuangshan Sanjian Road 250200 Zhangqiu City, Jinan, Shandong PEOPLE’S REPUBLIC OF CHINA SteriLance Medical (Suzhou) Inc. No.68 Litanghe Road,Xiangcheng Suzhou, Jiangsu 215133 P.R.ChinaCustomer Service U.S.A. +1-800-948-3894 24 hours a day, 7 days a week Taiwan +886-37-585998 GMT+8, 8:30 ~ 17:30, Monday ~ FridayTyson Bioresearch, Inc.5F, No.16, 18, 20, 22, Kedong 3rd Rd., Zhunan Township, Miaoli County 35053, Taiwan+886-37-585998 www.tysonbio.com46
AF004-0068000N (01) Rev. date: 04/2018Customer Service U.S.A. +1-800-948-3894 24 hours a day, 7 days a week Taiwan +886-37-585998 GMT+8, 8:30 ~ 17:30, Monday ~ FridayTyson Bioresearch, Inc.5F., No. 16, 18, 20, 22, Kedong 3rd Rd., Zhunan Township, Miaoli County 35053, Taiwan+886-37-585998 www.tysonbio.com
