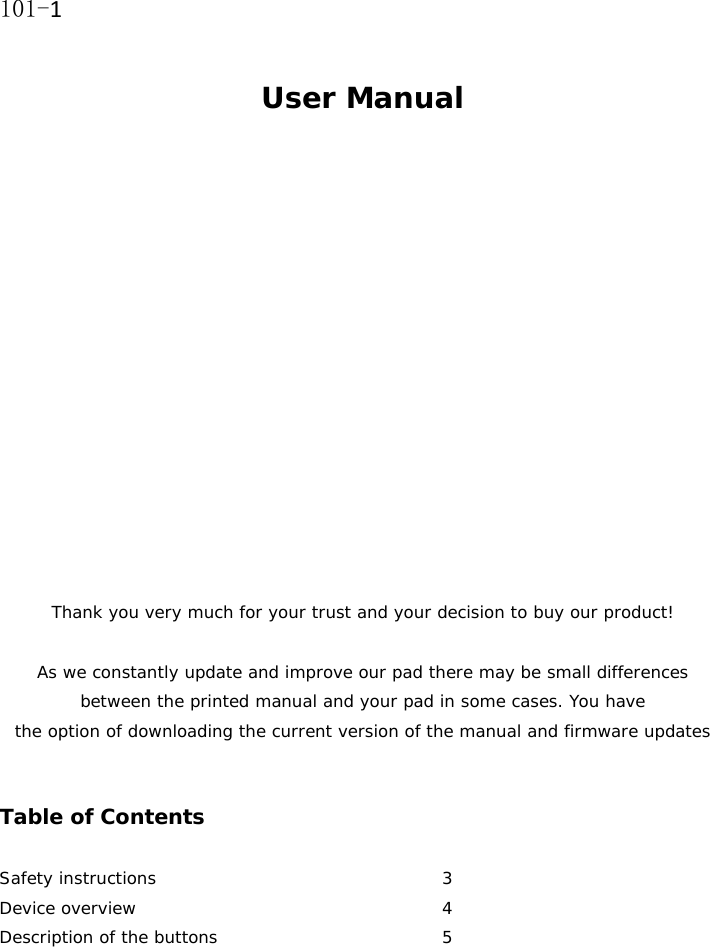

101-1 User Manual Thank you very much for your trust and your decision to buy our product! As we constantly update and improve our pad there may be small differences between the printed manual and your pad in some cases. You have the option of downloading the current version of the manual and firmware updates Table of Contents Safety instructions 3 Device overview 4 Description of the buttons 5
101-2Language settings 6 Power monitoring and charging the batteries 7 Screen lock 7 Connecting with computer and data transfer 7 Functions of the buttons on the user interface 8 Programme menu 10 System settings 13 1. Wireless & Networks 13 2. Sound settings 15 2. Sound settings 16 3. Display settings 16 4. Location & safety 16 5. Application 16 6. Accounts & synchr. 16 7. Data protection 16 8. Memory 17 9. Language & keyboard 17 10. Date & time 17 11. Telephone info 17 Internet 18 Open Source Code & GNU General Public License 19 Technical Data 20 FCC Statement 21

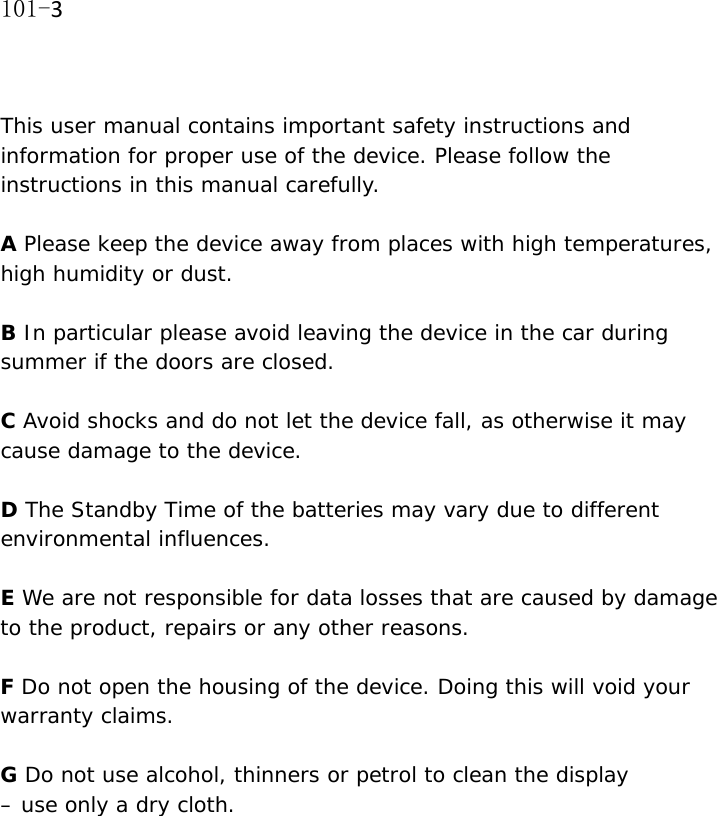

101-3 This user manual contains important safety instructions and information for proper use of the device. Please follow the instructions in this manual carefully. A Please keep the device away from places with high temperatures, high humidity or dust. B In particular please avoid leaving the device in the car during summer if the doors are closed. C Avoid shocks and do not let the device fall, as otherwise it may cause damage to the device. D The Standby Time of the batteries may vary due to different environmental influences. E We are not responsible for data losses that are caused by damage to the product, repairs or any other reasons. F Do not open the housing of the device. Doing this will void your warranty claims. G Do not use alcohol, thinners or petrol to clean the display – use only a dry cloth.
101-4 Device overview 1. Power button 9. Volume- Button 2. Earphone 10. Menu Button USB Port 3. MIC Volume+ Button 11. Rear Camera 4. Micro SD/SDHC Card Slot 12. Speakers 5. DC-in 13. Front Camera 6. USB/ OTG 7. HDMI PORT 8. Volume+ Button
101-5 Description of the buttons Volume Buttons: Here you can increase or reduce the volume. Power Button: Press the button for two seconds to switch on or switch off the device. Press the button briefly to activate or end the Standby-Mode. Reset: Press the button for seven seconds to restart the device. ESC Button: To go back to the previous menu Menu Button: To open the context menu
101-6 Language setting English as a default language. To change the language setting, please do the following: - Press on the programme menu symbol on the right side of the screen. - Select ‘Settings’ . - Scroll to the end of the list. - Select ‘Language & keyboard’. - Select ‘Select language’. - Type your preferred language. - Press the ‘Home’ button to return to the home screen.
101-7 Power monitoring and charging the batteries The battery charge symbol in on the status bar indicates the charging status of the batteries. If the power goes down, the device shuts itself off automatically. If less power is shown, use the power adapter or a computer via USB to charge the device. The charging time for the battery is approximately six hours. Screen lock If the device is not used for specified time or the ‘Power’ button is pressed briefly, the screen is switched off and display lock is activated. By pressing the ‘Power’ button briefly the screen will be reactivated. For locking the screen press the ‘Lock’ button in the specified direction. Connecting to the computer and data transfer 101 is equipped with a High-Speed USB2.0 Interface. After you connect the device to a computer, it appears in the status display .Pull the status bar down and press ‘USB Connection’ to activate the USB Memory. When using the device for data transfer, you cannot access the Micro SD/TF Card from 97D!

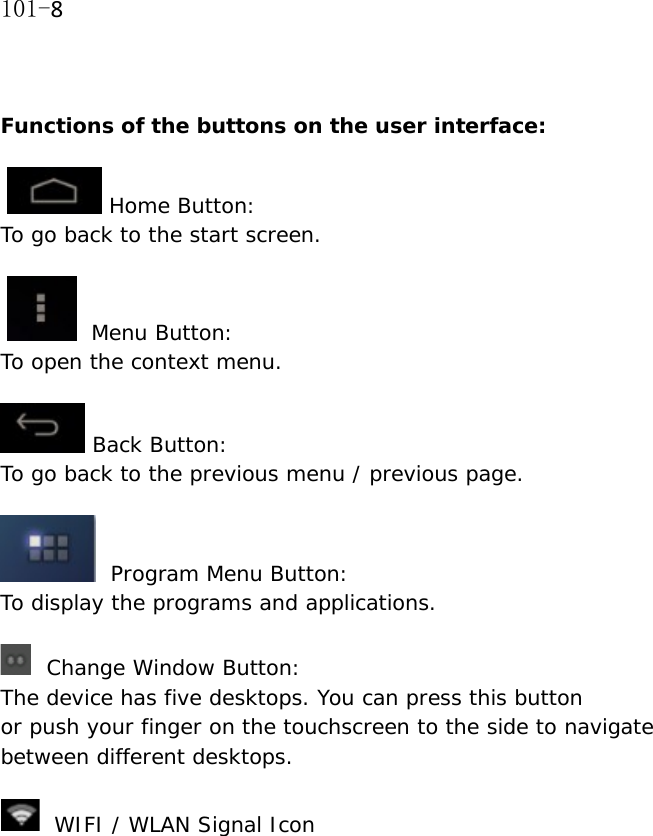

101-8 Functions of the buttons on the user interface: Home Button: To go back to the start screen. Menu Button: To open the context menu. Back Button: To go back to the previous menu / previous page. Program Menu Button: To display the programs and applications. Change Window Button: The device has five desktops. You can press this button or push your finger on the touchscreen to the side to navigate between different desktops. WIFI / WLAN Signal Icon 
101-9 System instructions: Pull the status bar down to view messages about new e-mails, downloaded documents, USB Connection Status or other information. Program menu
101-10 ApkInstaller: Program for installing and uninstalling Apps that were not downloaded from the Android Market. Market: Load Apps (programs) from the Android Market. You can download and install apps, games and other applications. Many are free. Explorer: Open the Explorer to access Micro SD TF Cards, USB sticks and other storage media. The Explorer is a practical manager for documents and all types of data. Internet browser Camera E-mail: Program for retrieving, processing and sending e-mails. G-mail: Program for retrieving, processing and sending e-mails through Google account. Google Maps: Program for the display of maps or satellite images – Route planner.
101-11 Skype: Program to chat with other Skype users or to make telephone calls via Internet. Twitter: Application for Microblogging – Facilitates the display of public diaries or create a public diary of your own. Facebook: Program for using the social network site Facebook. Calendar: Managing schedules – can be synchronised automatically with a Google account. Pocket Calculator Time: Time display and setting alarm functions. Settings: Changing the basic settings of EasyPad. Sound Recorder: Dictation Device Function.
101-12 Video Player Gallery: Manage and display images and videos – also enables synchronisation with Picasa web albums. Shelves: A program for reading and managing e-books. Angry Birds Rio: Game of skill Fruit Ninja: Game of skill System settings
101-13 Touch the icon for the settings to open the system settings menu: 1. Wireless & Networks Touch ‘Wireless & Networks’. WLAN: Touch => to switch on the WLAN function. The device automatically searches for available WLAN networks. WLAN Settings: Select your network here. If needed you will be requested to enter your WLAN password: 
101-14 Advanced WLAN / Wi-Fi settings: Touch in the menu for WLAN / Wi-Fi Settings, the menu for advanced settings will open up automatically. In the menu for the advanced settings you can view the current status, the IP address and other device information. 
101-15 2,Bluetooth setting Touch ‘Bluetooth’. Bluetooth: Touch => to switch on the Bluetooth function. The device automatically searches for available bluetooth device. Bluetooth match Settings: Select your Bluetooth device. If needed you will be requested to enter your pair password:
101-163. Sound settings The ‘Sound’ settings contain the volume control, and selection of notification sounds, system sounds, signal tones for Micro SD/TF Cards and USB signal tone. 4. Display settings Includes brightness, automatic screen rotation (G-sensor), animations and display timeout time, Switch off display after： 15 seconds, 30 seconds, 1 minute, 2 minutes, 10 minutes or 30 minutes are available. For example, if you select 30 seconds, the display will be switched after 30 seconds of inactivity and screen lock is activated. Press the ‘Power’ button to reactivate the Display. Push the ‘Lock’ button up to lift the screen lock. 5. Location & safety Here you can activate the automatic recognition of the location. You can also set security passwords which will prevent unauthorised access to your EasyPad. 6. Application Here you can manage your apps and define if apps from sources other than the Android Market are allowed to be installed. 7. Accounts & synchr. General synchronisation settings: 1. Background data 2. Automatic synchronisation Account management: Management of user accounts

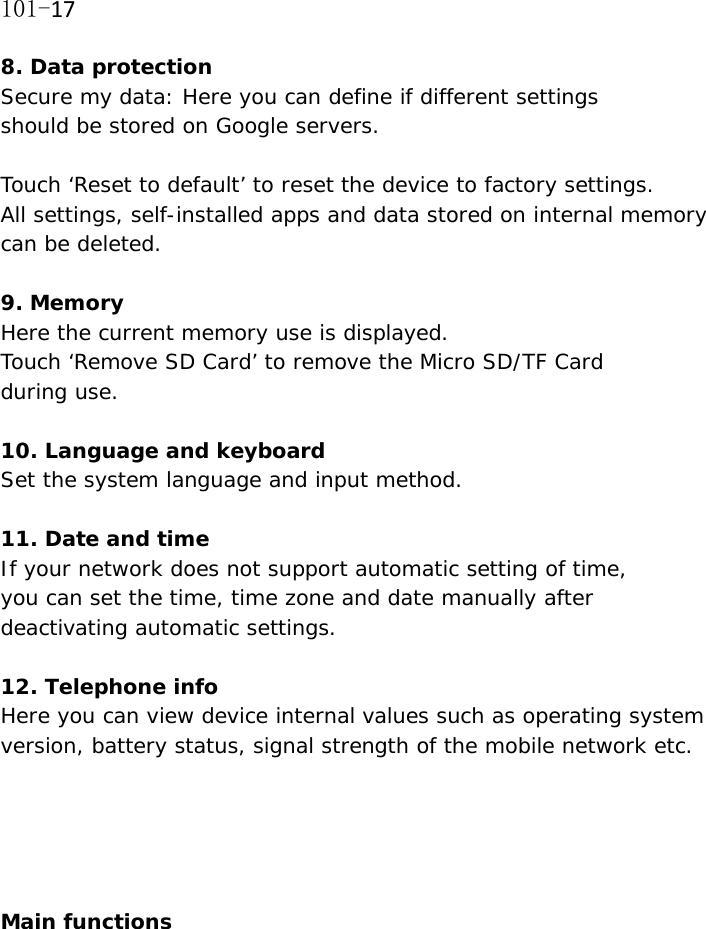

101-178. Data protection Secure my data: Here you can define if different settings should be stored on Google servers. Touch ‘Reset to default’ to reset the device to factory settings. All settings, self-installed apps and data stored on internal memory can be deleted. 9. Memory Here the current memory use is displayed. Touch ‘Remove SD Card’ to remove the Micro SD/TF Card during use. 10. Language and keyboard Set the system language and input method. 11. Date and time If your network does not support automatic setting of time, you can set the time, time zone and date manually after deactivating automatic settings. 12. Telephone info Here you can view device internal values such as operating system version, battery status, signal strength of the mobile network etc. Main functions
101-18Internet Touch Icon to surf the net. Google is the default start page. Touch the input field to display the keyboard: Touch after entering a website address to open the website. Note: The Android keyboard has few options for settings such as: keyboard language, numbers and icons etc. The Internet browser can open four websites simultaneously; Touch and the menu will be displayed as follows:

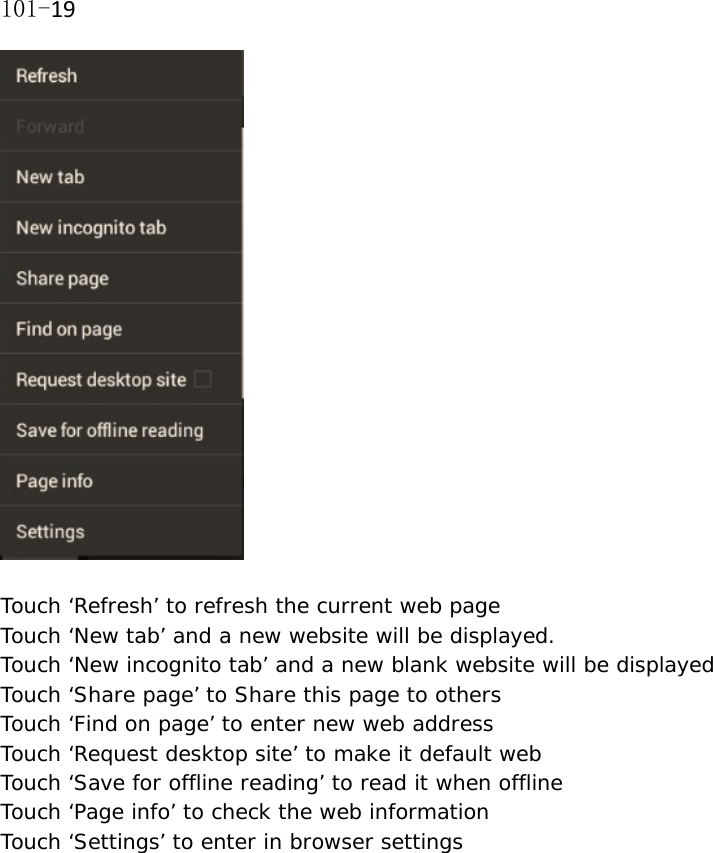

101-19 Touch ‘Refresh’ to refresh the current web page Touch ‘New tab’ and a new website will be displayed. Touch ‘New incognito tab’ and a new blank website will be displayed Touch ‘Share page’ to Share this page to others Touch ‘Find on page’ to enter new web address Touch ‘Request desktop site’ to make it default web Touch ‘Save for offline reading’ to read it when offline Touch ‘Page info’ to check the web information Touch ‘Settings’ to enter in browser settings 
101-20Technical Data Screen size 10.1 inch Tablet-PC CPU Rockchip rk3066 dual-core 1.5 GHz Operating System Android 4.0 – Ice Cream Sandwich RAM 1GB DDR3 Internal Memory 16GB NAND FlashS Memory Expansion Micro SD/SDHC up to 32GB Display 16:9 Capacitive 10-point Multi-Touch-Display Resolution 1280 x 800 Pixel Camera Front 2.0MP,Back 2.0MP Battery 8000MAH, 5V, 2A rechargeable Li-ion Battery MIC Yes Internet & Skype Phone-Function WIFI 802.11b/g/n (high sensitivity) Bluetooth Build in I/O ports 1x DC In, 1x headphone, 1x TF Card-Slot, 1x USB 2.0, host/ OTG,1 HDMI Video-Formats H.264, VP8, RV, WMV, AVS, H.263, MPEG4 etc 1080P, YouTube, 720P, HTML5, Flash 11 Office Word / Excel / PDF / PPT, Microsoft Wordpad, Microsoft SpreadExcel The software is not on the device and must be downloaded by the user. Images JPG, BMP, PNG etc. 

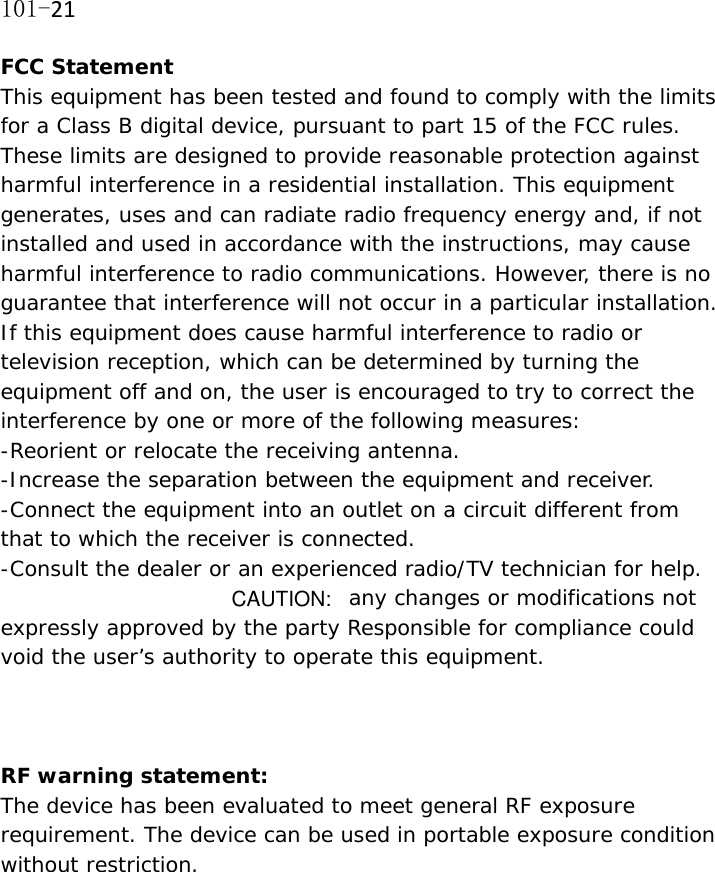

101-21FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. any changes or modifications not expressly approved by the party Responsible for compliance could void the user’s authority to operate this equipment. RF warning statement: The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. CAUTION:
