Tagsys TRPRGMSTATN Tag Reader User Manual TR PS1 Textile Rental Programming Station
Tagsys S.A. Tag Reader TR PS1 Textile Rental Programming Station
Tagsys >
Users Manual
TR-PS1 Textile Rental Programming
Station
User's Guide
Revision 1.0
TAGSYS
May 2003
TR-PS1 Textile Rental Programming Station User's Guide
Publishing Information
Disclaimer and Limitation of Liability
All information herein is either public information or is the property of and owned solely by TAGSYS who shall have and
keep the sole right to file patent applications or any other kind of intellectual property protection in connection with such
information.
Nothing herein shall be construed as implying or granting to you any rights, by license, grant or otherwise, under any
intellectual and/or industrial property rights of or concerning any of TAGSYS’ information.
This document can be used for informational, non-commercial, internal and personal use only provided that:
the copyright notice below, the confidentiality and proprietary legend and this full warning notice appear in all copies.
this document shall not be posted on any network computer or broadcast in any media and no modification of any
part of this document shall be made.
Use for any other purpose is expressly prohibited and may result in severe civil and criminal liabilities.
The information contained in this document is provided “AS IS” without any warranty of any kind. Unless otherwise
expressly agreed in writing, TAGSYS makes no warranty as to the value or accuracy of information contained herein.
The document could include technical inaccuracies or typographical errors. Changes are periodically added to the
information herein. Furthermore, TAGSYS reserves the right to make any change or improvement in the specifications
data, information, and the like described herein, at any time.
Therefore TAGSYS assumes no liability and is not responsible for customer applications or product or software, which
include TAGSYS products.
TAGSYS HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH REGARD TO THE INFORMATION
CONTAINED HEREIN, INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE AND NON-INFRINGEMENT. IN NO EVENT SHALL TAGSYS BE LIABLE, WHETHER
IN CONTRACT, TORT OR OTHERWISE, FOR ANY INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OR ANY
DAMAGES WHATSOEVER INCLUDING BUT NOT LIMITED TO DAMAGES RESULTING FROM LOSS OF USE,
DATA, PROFITS, REVENUES, OR CUSTOMERS, ARISING OUT OF OR IN CONNECTION WITH THE USE OR
PERFORMANCE OF INFORMATION CONTAINED IN THIS DOCUMENT.
TAGSYS does not and shall not warrant that this product/system/equipment will be resistant to all possible attacks, and
shall not incur, and disclaims, any liability in this respect. Even if each product is compliant with current security
standards in force on the date of their design, security mechanisms' resistance necessarily evolves according to the
state-of-the-art in security and notably under the emergence of new attacks. Under no circumstances shall TAGSYS be
held liable for any third party actions, and in particular in case of any successful attack against systems or equipment
incorporating TAGSYS products.
TAGSYS disclaims any liability with respect to security for direct, indirect, incidental or consequential damages that result
from any use of its products. It is further stressed that independent testing and verification by the person using the
product is particularly encouraged, especially in any application in which defective, incorrect, or insecure functioning
could result in damage to persons or property, denial of service, or loss of privacy.
© 2000-2003 TAGSYS. All rights reserved.
Microsoft, Visual C++, Windows, and Windows NT are either registered trademarks or trademarks of Microsoft
Corporation in the U.S.A. and/or other countries.
Printed in France.
TAGSYS – 180 Chemin de St Lambert, 13821 LA PENNE SUR HUVEAUNE, France.
Tel: +33 (0)4.91.27.57.00 / Fax: +33 (0)4.91.27.57.01
Document Reference: 10879A0
2/30 Revision 1.0 May 2003
Read This First
Read This First
Welcome to the TAGSYS Textile Rental (TR) Programming Station system. This user's guide is
designed to help you get up and running quickly using this high-quality Radio Frequency
Identification (RFID) system. It describes all you need to know about how to install and use the
TAGSYS system and its associated applications.
It provides a step-by-step guide for the following procedures:
Identifying your system’s features
Viewing and entering data
Using your system
After you become familiar with the basic functions of your system, you can use the rest of this
handbook as a reference for less common tasks, for maintaining your system, and also as a
source of information if you have problems operating your system.
This user’s guide is designed for all TAGSYS partners and for TAGSYS Expert Network customers
implementing a low-cost and high-performance RFID solution.
This document does not assume any previous knowledge of Radio Frequency Identification (RFID)
technology.
Conventions
Symbol Meaning
CAUTION: A note that advises users that a specific action could result in the loss of data or
damage the hardware.
WARNING: A note that advises users that a specific action may result in physical harm.
A note that provides additional information that helps the user perform a task or obtain the
best performance from the product.
Abbreviations and Acronyms
AFI Application Family Identifier
AON All Or None
API Application Programming Interface
ASK Amplitude Shift Keying
CPU Central Processing Unit
CRC Cyclic Redundancy Check
DLL Dynamic-Link Library
DPU Digital Processing Unit
DSFID Data Storage Format Identifier
DSP Digital Signal Processor
May 2003 Revision 1.0 3/30
TR-PS1 Textile Rental Programming Station User's Guide
EAS Electronic Article Surveillance
ETX End of Text
HPI Host Port Interface
I/O Input/Output
IFD Interface Device
LED Light Emitting Diode
LSb Least Significant Bit
LSB Least Significant Byte
MSb Most Significant Bit
MSB Most Significant Byte
OS Operating System
PC Personal Computer
PCB Printed Circuit Board
RAM Random Access Memory
RF Radio Frequency
RFID Radio Frequency IDentification
RFU Reserved for Future Use
RPU Radio Processing Unit
RTC Real Time Clock
SAM Security Access Module
STX Start of Text
TTF Tag Talks First
TTL Transistor-Transistor Logic
TTY TeleTYpe
UID Unique Identifier
Glossary
Anti-Collision Tag capability making it readable while other tags are present in the RF field.
Antenna An aerial that receives and/or transmits radio frequency signals. Aerials are
manufactured in a variety of forms, shapes and sizes.
Baud A unit of measure of data transmission speed representing the number of signal changes per
second.
BNC Connector Cylindrical metal connector with a copper core that is located at the tip of a
coaxial cable, and is used to connect cables together. It attaches by pushing and twisting the outer
cylinder on to two locking pins.
Coupler See Reader.
Data Storage Format Identifier Identifies the structure of the data stored in the smart label.
Digital Signal Processor This part of the Radio Processing Unit (RPU) performs real-time smart
label decoding and manages the Medio L200 configuration.
4/30 Revision 1.0 May 2003
Read This First
Dynamic-Link Library Executable routines that are stored as separate files with DLL extensions
and executed only when needed by the program.
Host Port Interface Interface used to access the DSP memory.
IEC Connector Three-pin connector used on sockets that carry mains electricity to the computer.
All PCs use a male IEC connector and mains lead with a female IEC connector.
Interrogation Pulse A signal transmitted by the coupler to activate the smart label’s transponder.
Monitoring Port Parallel Port granting access to the HPI. It communicates directly with the Radio
Processing Unit
Multi-Read See Anti-Collision
Nibble Half a byte (4 bits)
Packaged Reader A reader in its casing.
Phase Shift Difference of phase between the 13.56 MHz field emitted by two antennas. This
feature is dedicated to rotating field applications and three-dimensional volume smart label
detection.
Protocol A set of rules governing a particular function, such as the flow of data/information in a
communication system (communication between a smart label and a reader or a reader and a PC
or host computer).
Radio Frequency Identification System (RFID) An automatic identification and data capture
system comprising one or more readers and one or more smart labels in which data transfer is
achieved by means of suitable modulated inductive or radiating electromagnetic carriers.
Radio Processing Unit This unit controls the main features of the Medio L200, such as the RF
channels, the multiplexer and the smart label decoding.
Reader Electronic system for the communication between smart labels and host computers.
Reader Talks First Chip protocol for exchanges between the reader and the chip, whereby the
chip waits for a command from the reader to which it responds.
RS-232 Electronic Industries Association (EIA) standard for serial interfaces between computers
and peripherals that defines the function, the electrical characteristics and the timing of signals.
RS-485 Electronic Industries Association (EIA) standard for multipoint, differential data
transmission. It allows multiple nodes to communicate bi-directionally over 1 or 2 twisted pairs.
Smart Label Small, flexible tag from the 13.56 MHz TAGSYS product line. A smart label is made
of a chip connected to an etched antenna.
Tag See Smart Label.
Tag Talks First Chip protocol for exchanges between the reader and the chip, whereby the tag
sends information continuously, without waiting for a specific command from the reader.
Transceiver A combined transmitter and receiver.
Transponder A combined receiver/transmitter that automatically transmits a signal when a ‘trigger’
is received by it. The trigger is often a pulse, called an interrogation pulse.
May 2003 Revision 1.0 5/30
TR-PS1 Textile Rental Programming Station User's Guide
If you need assistance
Please contact your nearest TAGSYS sales representative or the TAGSYS welcome desk at:
Telephone: +33 (0) 4 91 27 57 00
Fax: +33 (0) 4 91 27 57 01
E-Mail: info@tagsys.net
Contact for Comments
We welcome your feedback to help us provide high quality documentation.
For technical comments, please contact our welcome desk:
Telephone: +33 (0) 4 91 27 57 00
Fax: +33 (0) 4 91 27 57 01
E-Mail: info@tagsys.net
Please remember to quote the Document Reference Number 10879A0, your job title and your
company.
Quality Issues
TAGSYS implements stringent quality controls at all stages of its manufacturing process. However,
should you find a defect with this product, please notify your customer service representative using
the dedicated Product Return Form.
Telephone: +33 (0) 4 91 27 57 36
Fax: +33 (0) 4 91 27 57 02
6/30 Revision 1.0 May 2003
Read This First
Table of Contents
Publishing Information 2
Disclaimer and Limitation of Liability 2
Read This First 3
Conventions 3
Abbreviations and Acronyms 3
Glossary 4
If you need assistance 6
Contact for Comments 6
Quality Issues 6
1 For Your Safety 9
1.1 General Use 9
1.2 Care and Maintenance 9
1.3 Important Safety Information 9
1.3.1 Operating Environment 9
1.3.2 Electronic Devices 10
2 Certification 11
2.1 Occupational Health and Safety Notices 11
2.2 Regulatory Notices 11
2.2.1 In Europe (CE and RTTE Directives) 11
2.2.2 In USA (FCC Directive) 12
2.2.3 In Canada 12
3 Overview 13
3.1 TR-PS1 Programming Station 13
3.2 Delivery Kit 14
4 Installation 15
4.1 Standard Installation 15
4.2 Active Area 16
5 Operation 17
5.1 Smart Labels 17
5.1.1 Chip Types 17
5.1.2 Encapsulation 17
5.2 Reading 17
5.3 Firmware 18
6 How to Improve Performance 19
6.1 Verification of L-PS1 Performance 19
6.2 Tuning Procedure 21
6.3 Upgrading the Firmware 22
7 Maintenance 25
7.1 Servicing the TR-PS1 Programming Station 25
8 Technical Data 26
8.1 Mechanical Characteristics 26
8.2 Electrical Characteristics 27
8.3 Typical Performance 27
May 2003 Revision 1.0 7/30
For Your Safety
1 For Your Safety
1.1 General Use
The TR-PS1 Textile Rental Programming Station system is designed to be rugged and reliable and
to provide years of trouble-free service. Please observe the following general tips:
Take care not to scratch the device. Keep the device clean. When working with the device,
use only TAGSYS-approved accessories.
This device is not waterproof and should not be exposed to rain or moisture. Under extreme
conditions, water may enter the circuitry.
Take care not to drop the device or subject it to any strong impact.
Protect the device from extreme temperatures. For example, do not leave the device in
front of a window on a hot day, and keep it away from heaters and other heat sources.
Do not store or use the device in any location that is extremely dusty, damp, or wet.
Use a soft, damp cloth to clean the device. If the surface of the device becomes soiled,
clean it with a soft cloth moistened with a diluted window-cleaning solution.
1.2 Care and Maintenance
This device is a product of superior design and should be handled with care. The suggestions
below will further increase the lifetime of this device.
Keep the device and all parts and accessories out of the reach of small children.
Keep the device dry. Precipitation, humidity and liquids contain minerals that will corrode
electronic circuits.
Do not use or store the device in dusty, dirty areas. Its moving parts can be damaged.
Do not store in hot areas. High temperatures can shorten the life of electronic devices,
damage batteries and warp or melt certain plastics.
Do not store in cold areas. When the device warms up (to its normal temperature), moisture
can form inside the device, which may damage electronic circuit boards.
Do not attempt to open the device. Non-professional handling of the device may damage it.
Handle the device with care. Shocks may break internal circuit boards.
Do not clean the device with harsh chemicals, cleaning solvents or strong detergents.
Gently wipe the device with a soft cloth slightly dampened in a mild soap-and-water
solution.
Do not paint the device. Paint may clog the device’s moving parts and prevent proper
operation. Paint with metallic contents may limit device performance.
1.3 Important Safety Information
1.3.1 Operating Environment
Follow all special regulations that are applicable in any area and always switch off the device
whenever its use is prohibited, or when it may cause interference or danger.
May 2003 Revision 1.0 9/30
TR-PS1 Textile Rental Programming Station User's Guide
When connecting the device or any accessory to another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible products.
As with all RF equipment, users are advised that the equipment should only be used in its normal
operating position.
1.3.2 Electronic Devices
Most modern electronic equipment is shielded from radio-frequency (RF) signals. However, other
electronic equipment may not be shielded against the RF signals from your device.
Medical Devices
Operation of radio transmitting equipment, including RFID devices, may interfere with the
functionality of inadequately protected medical devices. Consult a physician or the manufacturer of
the medical device to determine if they are adequately shielded from external RF energy or if you
have any questions.
10/30 Revision 1.0 May 2003
Certification
2 Certification
2.1 Occupational Health and Safety Notices
TAGSYS Products have been designed not to exceed the limits given in the European Standard
EN 50364 “Limitation of human exposure to electromagnetic fields from devices used in Electronic
Article Surveillance (EAS), Radio Frequency Identification (RFID) and similar applications” in
conjunction with the European Standard EN 50357 describing how to evaluate the exposure level.
It is the responsibility of the TAGSYS Partner to install the TR-PS1 Textile Rental Programming
Station as described in TAGSYS Documentation and with the appropriate antennas.
Modification of any TAGSYS System is prohibited without the written consent of TAGSYS.
Unauthorized modifications may void the conformity of the equipment to safety standards and will
void the TAGSYS warranty.
An RF fields survey has been carried out on all TAGSYS System components, in accordance with
AS/NZS 2771.1: Radio Frequency Radiation, Part 1. According to this standard the maximum
allowable RF exposure levels (non-occupational) at 3 kHz to 300 GHz are 200 µW/cm2.
2.2 Regulatory Notices
An RFID system typically composed of an RF emission device such as the TR-PS1 Textile Rental
Programming Station is subject to national regulations that may differ by country.
One important item to consider is the maximum permissible magnetic field intensity at a distance of
10 meters from the antenna that must not exceed 42 dBµA/m in Europe and 38 dBµA/m in US.
The TR-PS1 Textile Rental Programming Station meets these limits.
It is the responsibility of the TAGSYS Partner to install the TR-PS1 Textile Rental
Programming Station as described in this User’s Guide or in TAGSYS Documentation.
2.2.1 In Europe (CE and RTTE Directives)
The TR-PS1 Textile Rental Programming Station complies (CE Declaration of Conformity granted)
with the European EMC directive.
The TR-PS1 Textile Rental Programming Station complies with the requirements of the
Telecommunication Terminal Equipment Act (FTEG) and the RTTE Directive 1995/5/EC.
It is the responsibility of the TAGSYS Reseller to install the TR-PS1 Textile Rental Programming
Station as described in this User's Guide or TAGSYS Documentation.
Any modification of the TR-PS1 Textile Rental Programming Station is prohibited without the
written consent of TAGSYS. Unauthorized modifications may void the conformity of the equipment
to CE and RTTE Directives and will void the TAGSYS warranty.
If a TR-PS1 Textile Rental Programming Station is further integrated in a different product, it is
the responsibility of the manufacturer of this complementary product to obtain the required
approvals for this product.
May 2003 Revision 1.0 11/30
TR-PS1 Textile Rental Programming Station User's Guide
2.2.2 In USA (FCC Directive)
The TR-PS1 Textile Rental Programming Station has been designed to comply with Part 15 of the
FCC Rules. Furthermore typical configurations based on a Medio S002 have been successfully
tested with Part 15 of the FCC rules (FCC ID Number Pending).
TR-PS1 Textile Rental Programming Station
WARNING TO USERS IN THE UNITED STATES
FEDERAL COMMUNCIATIONS COMMISSION (FCC) RADIO
INTERFERENCE STATEMENT 47 CFR Section 15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and if not installed and used in accordance with the instructions
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
▪ Reorient or relocate the receiving antenna.
▪ Increase the separation between the equipment and receiver.
▪ Connect the equipment into an outlet on a circuit different to that to which the receiver is
connected.
▪ Consult the dealer or an experienced radio/TV technician for help.
NO UNAUTHORIZED MODIFICATIONS
47 CFR Section 15.21
CAUTION: This equipment may not be modified, altered, or changed in any way without signed
written permission from TAGSYS SA. Unauthorized modification may void the equipment
authorization from the FCC and will void the TAGSYS warranty.
ANTENNA REQUIREMENT
47 CFR Section 15.203
CAUTION: This equipment must be professionally installed. The installer shall be responsible for
ensuring that the proper antenna is employed so that the limits in this part are not exceeded. Non-
professional installation or installation of the equipment with an improper antenna may void the
equipment authorization from the FCC and will void the TAGSYS warranty.
Operation is subject to the following two conditions: (1) The system devices may not cause harmful
interference, and (2) The library system devices must accept any interference received, including
interference that may cause undesired operation.
2.2.3 In Canada
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
12/30 Revision 1.0 May 2003
Overview
3 Overview
3.1 TR-PS1 Programming Station
The Textile Rental Programming Station (TR-PS1) is a low-profile smart tags reader unit that
includes the electronics required to read smart tags through its built-in antenna (Figure 1).
Specifically designed for use in Textile Rental applications the TR-PS1 can work with most smart
tags and will be compliant with the future ISO18000 standard.
The TR-PS1 Programming Station is factory-calibrated to offer an optimum performance on the
surface of the desk or table far from metal pieces.
The TR-PS1 has a built-in serial interface in compliance with RS-232C specifications. The RS-232
cable supplied with the TR-PS1 is used to communicate with a personal computer. The TR-PS1 is
supplied power through a jumper to be plugged to the mouse or keyboard connector of the
personal computer connected to the TR-PS1 RS-232 connector (Figure 3).
Figure 1: TR-PS1 Antenna
May 2003 Revision 1.0 13/30
TR-PS1 Textile Rental Programming Station User's Guide
3.2 Delivery Kit
When shipped, the TR-PS1 Textile Rental Programming Station contains the following items:
Table 1: Contents of the Delivery Kit
Quantity Description
1 TR-PS1 Textile Rental Programming Station with its serial cable and power supply cable
1 Copy of this document
1 Welcome Letter / Product Return Form
1
CD-ROM which includes:
Electronic copy of this document

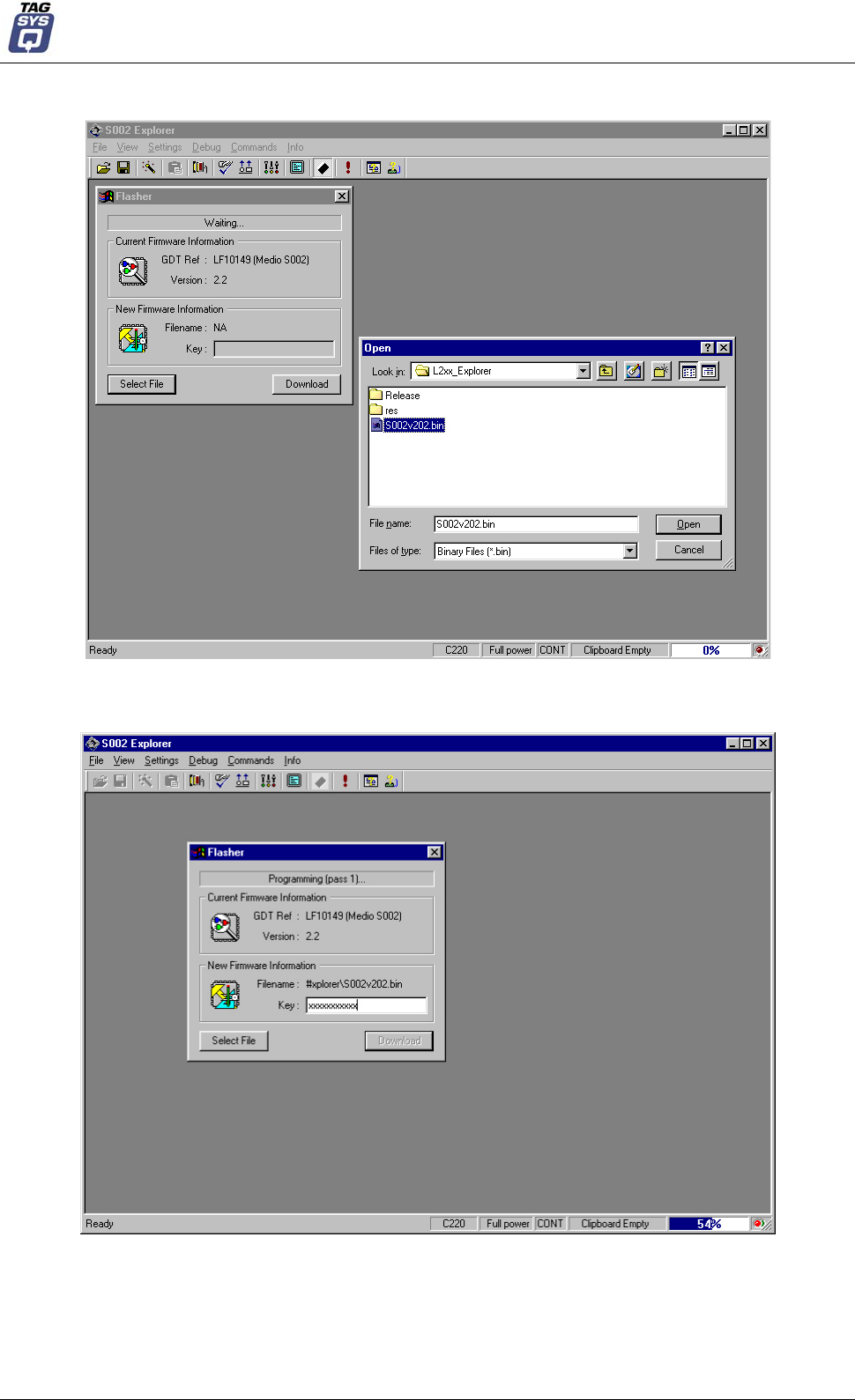

TR-PS1 Textile Rental Programming Station monitoring and firmware loading software
(S002 Explorer)
14/30 Revision 1.0 May 2003
Installation
4 Installation
4.1 Standard Installation
The Textile Rental Programming Station (TR-PS1) has been designed for indoor use:
On wooden or composite desks (not too close to metallic parts)
In proximity with other TR-PS1 Programming Stations
Note that the sides of the TR-PS1 are slanted. This ergonomic feature was designed in order to be
able to slide items on/off the active face; saving time and effort.
1. Place the TR-PS1 Programming Station on the desk with the active face facing upwards
(Figure 2).

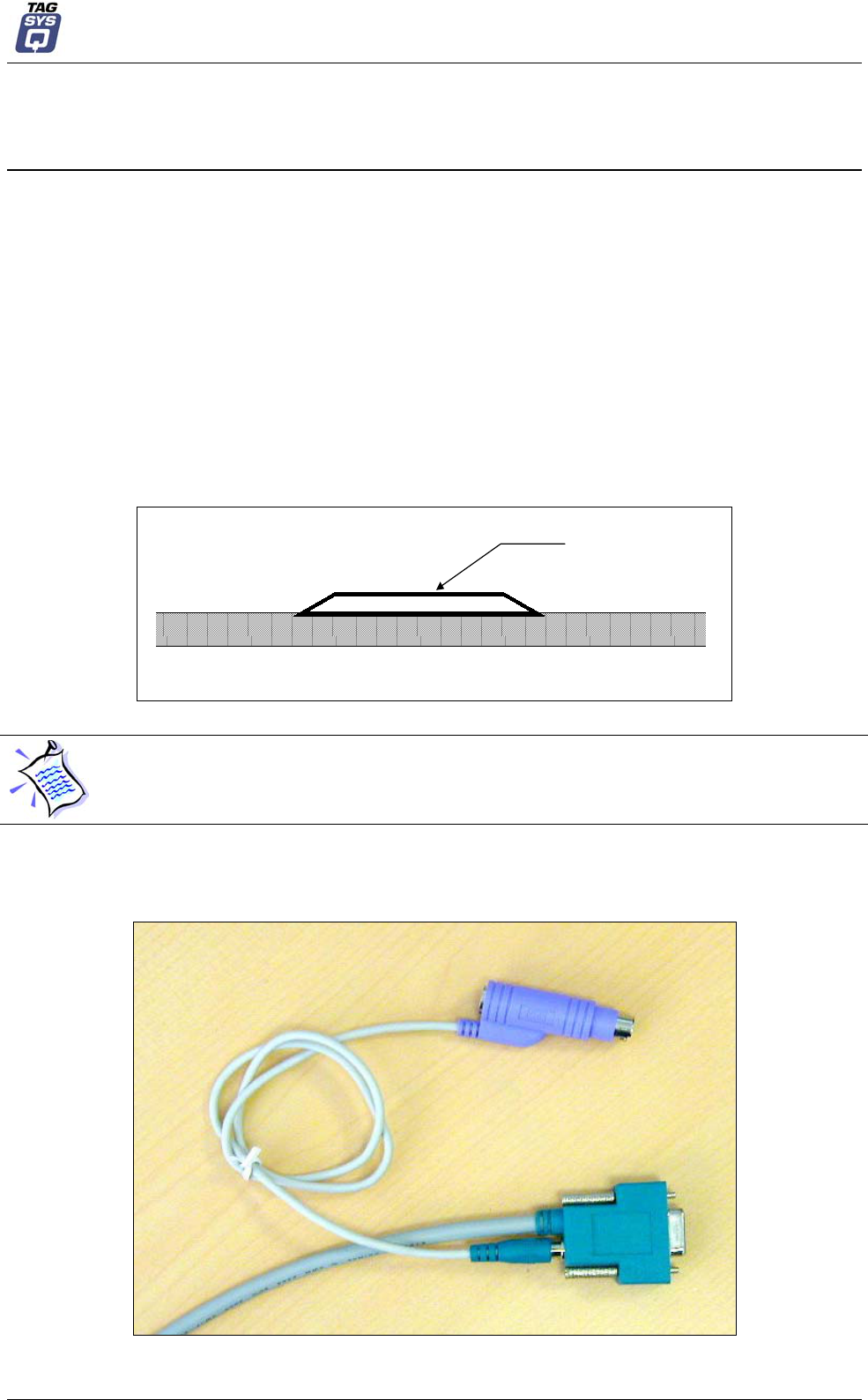

Figure 2: TR PS-1 Desktop Placement
Active face
For optimum performance, always ensure that any metallic or conductive parts are located at
20 cm from the TR-PS1 Textile Rental Programming Station.
2. Connect the serial connector of the TR-PS1 Programming Station to any serial port of the host
PC.
Figure 3: Connecting the TR-PS1 Textile Rental Programming Station to the Host PC
May 2003 Revision 1.0 15/30
TR-PS1 Textile Rental Programming Station User's Guide
3. Connect the male jack of the jumper cable to the female jack of the TR-PS1 Programming
Station serial connector as shown in Figure 3. This PS/2 jumper connection is used to supply
power to the TR-PS1 Programming Station.
4. Connect the jumper cable to the PS/2 port of the host PC and connect the peripheral connector
(mouse or keyboard) to the other end.
In certain cases, you may wish to supply power to the TR-PS1 Programming Station using an
external power supply.
To do so, connect a standard AC/DC 5V power supply with a male jack connector with the positive
polarity on the center connector to the power supply jack of the TR-PS1 Programming Station Sub-

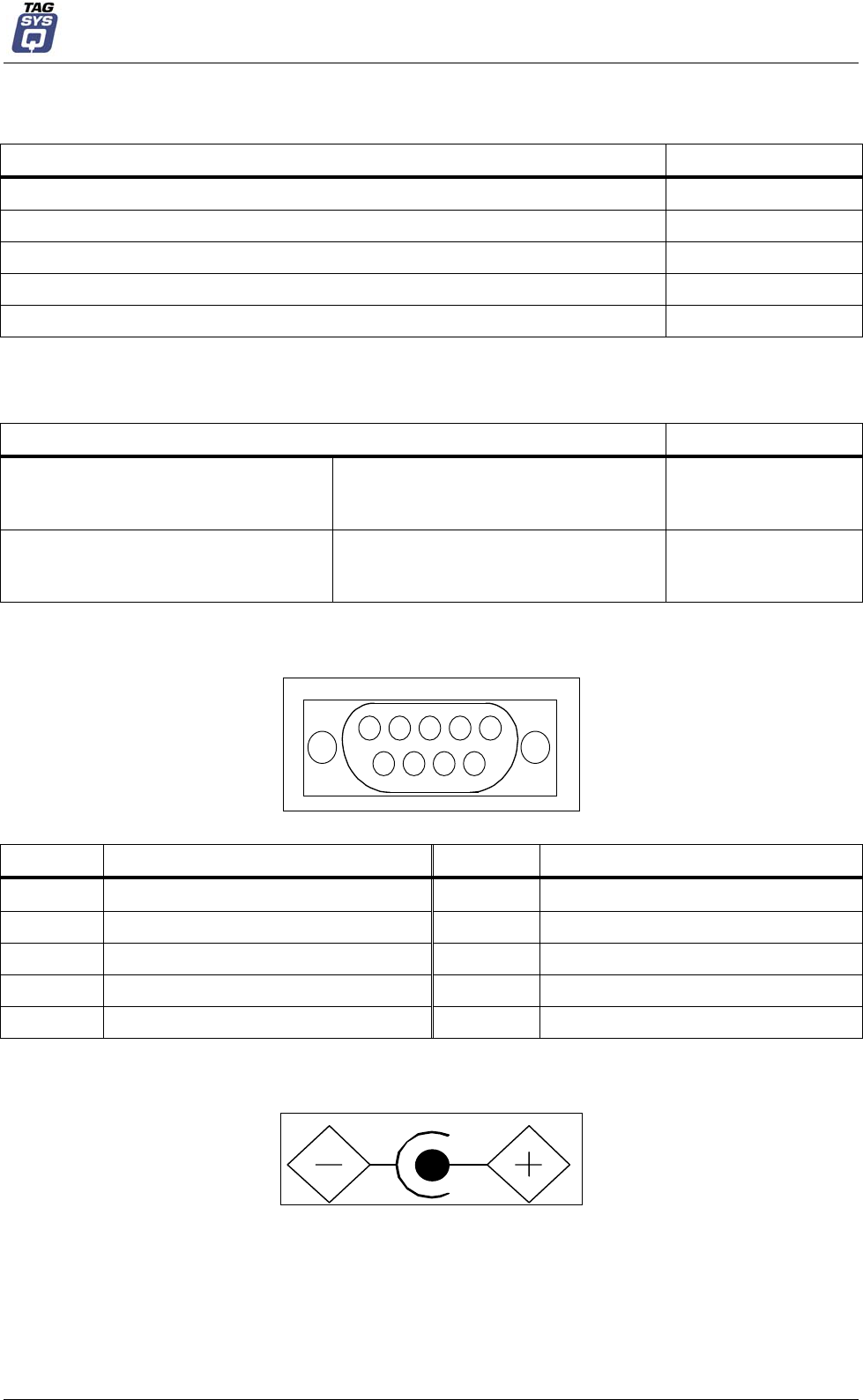

D9 serial connector (Figure 16).
If you use an external power supply to power on the TR-PS1, make sure that:
its voltage is within the rated range of 5 VDC ± 10% at 500 mA.
its wiring is compatible with the one indicated in Figure 16 of this guide.
it is not connected to another device.
4.2 Active Area
Due to the magnetic field radiated by the antenna of the TR-PS1 Programming Station, a
protective area must be maintained around the active area of the device to prevent unwanted
reading of smart tags. The TR-PS1 has been specifically designed to minimize this area.
All tagged items and any blank smart tags must be kept outside of this active area that extends 15
mm. (3/5 in.) around the TR-PS1 unit (Figure 4).

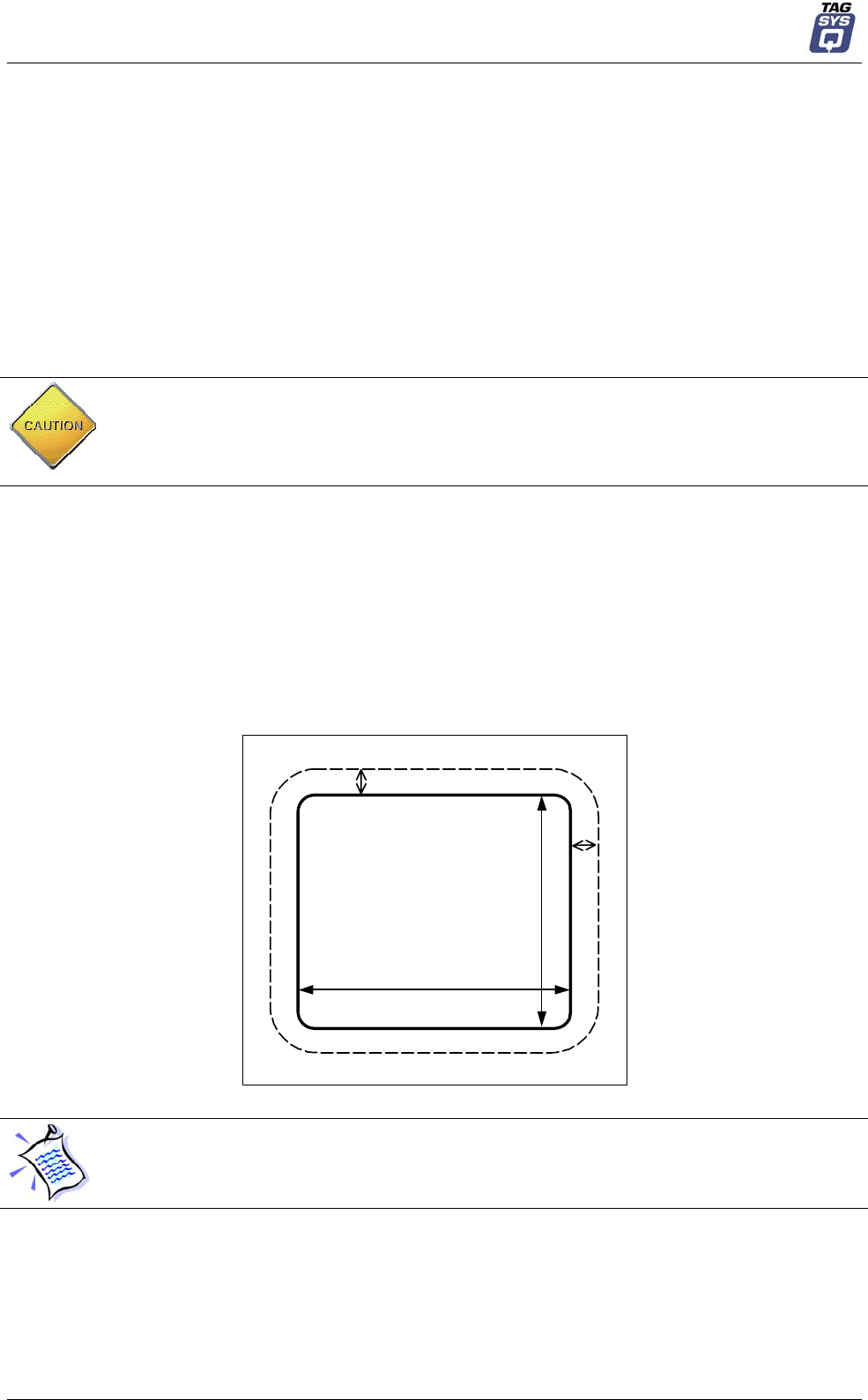

Figure 4: Active Area in Standard Installation
TR-PS1
Programming
Station
216 mm.
8½ in.
255 mm.
10 in.
15 mm. (3/5 in.)
15 mm. (3/5 in.)
The active area of the TR-PS1 when used for other applications may be more limited. Please
refer to your TAGSYS technical consultant for more information.
16/30 Revision 1.0 May 2003
Operation
5 Operation
5.1 Smart Labels
The TR-PS1 Programming Station is capable of reading most types of smart labels. Smart labels
must be encapsulated in a highly resistant plastic casing when used in Textile Rental applications.
5.1.1 Chip Types
There are three major types of smart labels used in Textile Rental applications. Each type of label
has its own special features as described in Table 2.
Table 2: Smart Label Types
Features Ario™ 10SL Ario™ 20SL Ario™ 70TL
Read Distance 45 mm. (1¾ in.) 40 mm. (1½ in.) 60 mm. (2⅓ in.)
Memory 64-bit ROM 73-bit EEPROM 64-bit ROM and
384-bit EEPROM
5.1.2 Encapsulation
Electronic chips must be protected when used in Textile Rental applications. For protection against
harsh chemicals and washing/drying conditions, chips are encapsulated in a highly resistant plastic
casing able to withstand the mechanical and environmental requirements of such applications.
There are two types of encapsulation processes:
• TL: Polyphenlyene Sulfide (PPS)
• SL: Polyethylene Therephtalate (PET)
5.2 Reading
The primary use of the Textile Rental Programming Station (TR-PS1) is to read tags of garment to
access to the laundry database.
Once the TR-PS1 Programming Station is connected to the host PC and the programming
interface software is installed, the reading is easy and straightforward.
Place the item with the tag on the TR-PS1, making sure that the tag attached to the item is as
close as possible to the active face of the antenna surface.
Once read the tag serial number is sent to the host PC.
Only one item at a time should be placed on the antenna surface or within the active area when
reading. This is to prevent unwanted items from being incorrectly programmed in the database.
Any attempt to use the TR-PS1 Programming Station with more than one item at a time may
lead to programming the same data in the different items data present on the Programming
Station or within the active area.
May 2003 Revision 1.0 17/30
TR-PS1 Textile Rental Programming Station User's Guide
5.3 Firmware
The firmware stored inside the TR-PS1 Programming Station is designed for use as a Standalone
system.
When the smart label enters the 13.56-RF field, the TR-PS1 reads its serial number and sends it to
the host PC via the RS communication link in ASCII format.
When set in Continuous mode, the TR-PS1 sends the smart label data each time the smart label is
read.
For example, when an Ario™ 20 label is read, its locked, 10-character ID number is sent to the
host PC. I-CODE® and read-only Ario™ 10 labels both have a 16-character ID number.
After the label ID number is read, the frame sends a TagSN\0D\0A value.
Communication parameters are 9600 bauds, 8 bits/char, 1 stop bit, and no parity.
18/30 Revision 1.0 May 2003
How to Improve Performance
6 How to Improve Performance
In certain cases when the Textile Rental Programming Station (TR-PS1) is installed in a highly
metallic environment, its reading performance can be significantly reduced.
In this event, it is strongly recommended changing the location of the TR-PS1 Textile Rental
Programming Station.
6.1 Verification of L-PS1 Performance
The S002 Explorer software tool is used to verify the reading performance of the TR-PS1
Programming Station.
Procedure:
1. Install the S002 Explorer software tool on your PC. (Compatible with Windows® 9x, NT®,
2000 and XP operating systems.)
2. Connect the TR-PS1 Programming Station to the serial port of your PC and connect the
power supply.
3. Run the S002 Explorer software tool.
4. If the TR-PS1 Programming Station is not detected (error message), adjust the
communication settings for the TR-PS1 Programming Station.
a. In the Settings menu, open Communication Settings and select the communication
port that is connected to the TR-PS1 Programming Station.

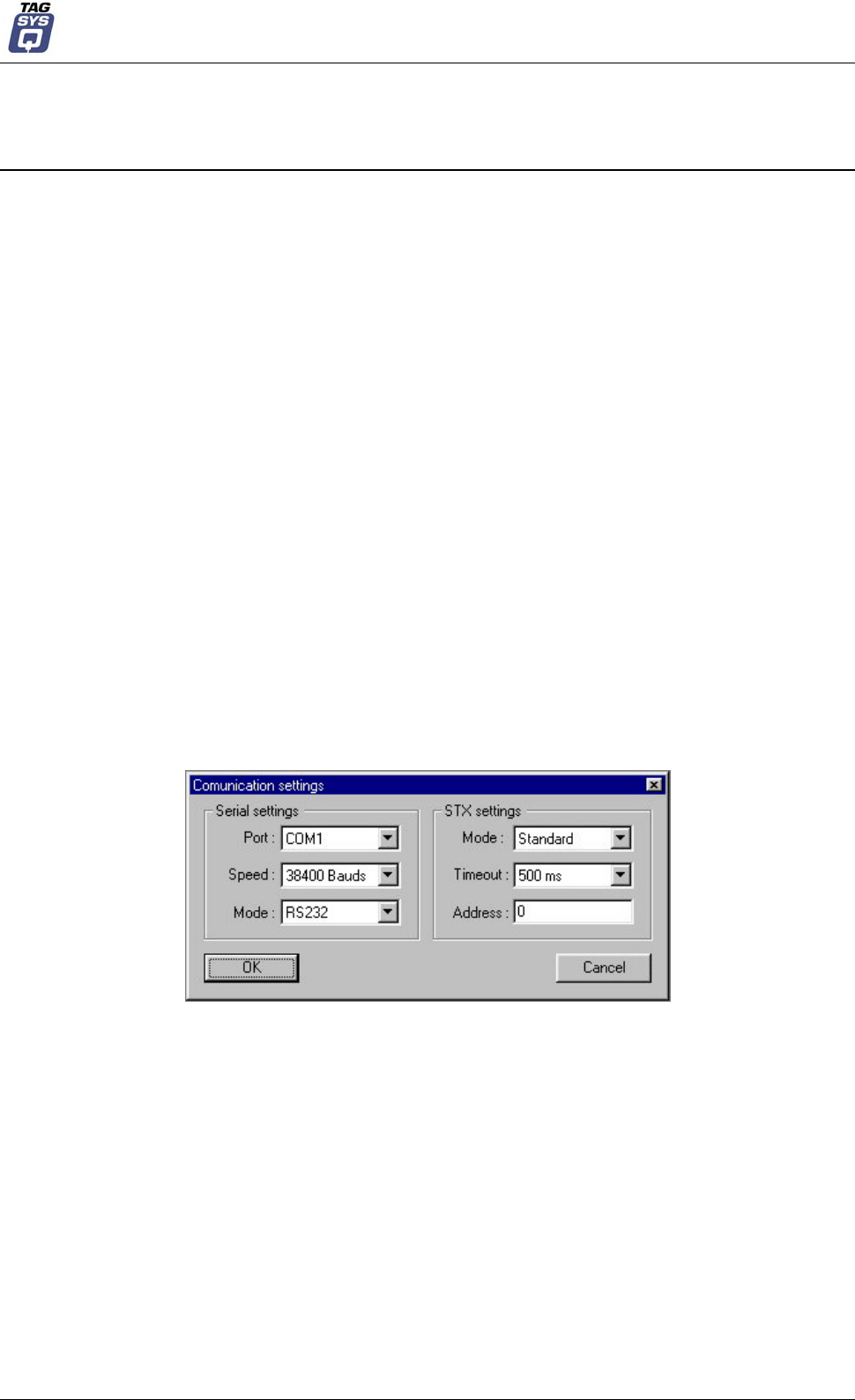

Figure 5: Adjusting Communication Settings
5. In the Settings menu, select General Reader Settings and set the following parameters as
listed below.
a. Place a book with a Folio 20 smart label on the TR-PS1 Programming Station
antenna.
b. Set the Output Power selection to Full.
c. Select the Read Continuously button in the Default Read Parameters.
d. Click on Detect in the Default Read Parameters.
e. The 'C220 is now the default tag type' message is displayed.
May 2003 Revision 1.0 19/30
TR-PS1 Textile Rental Programming Station User's Guide

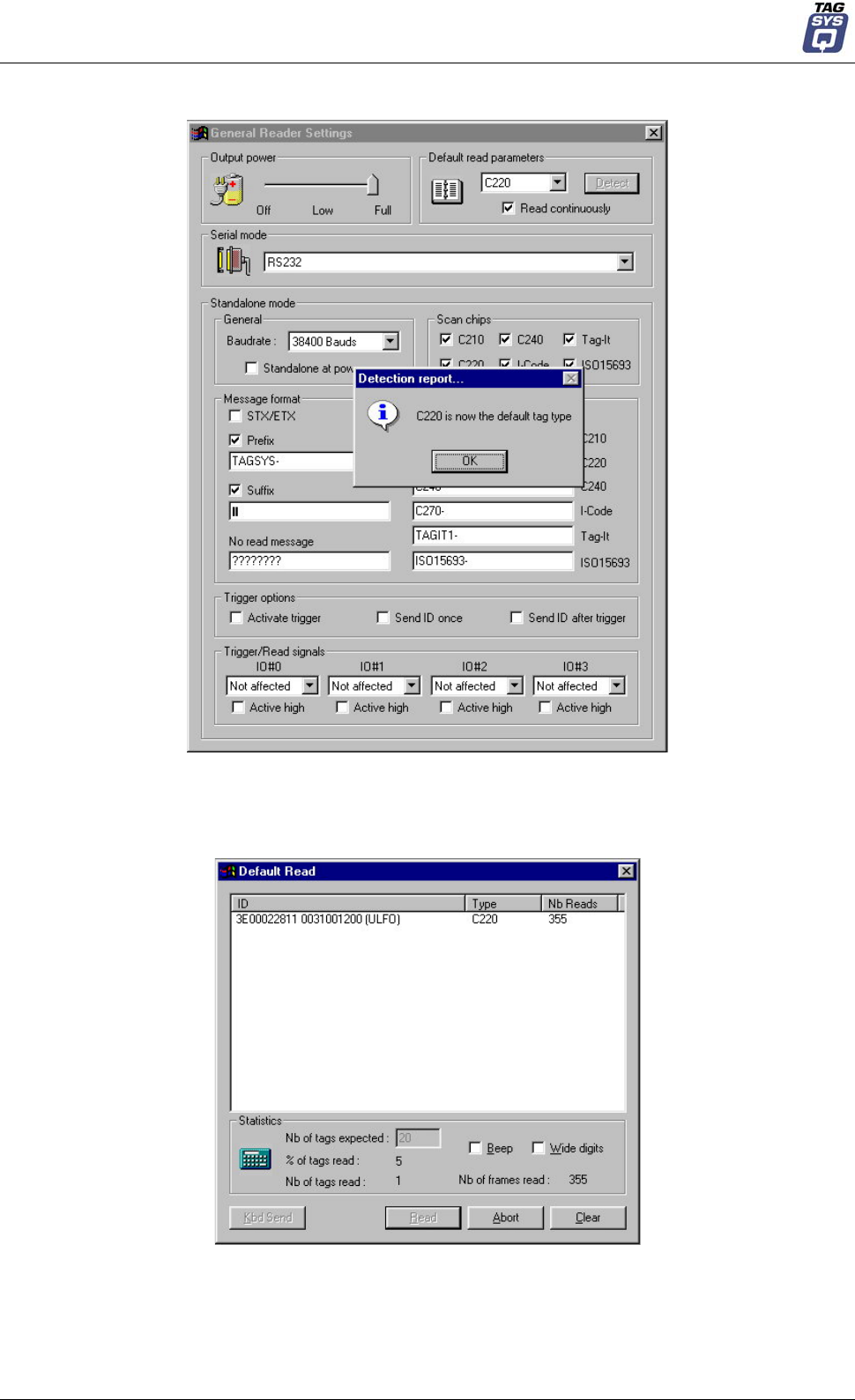

Figure 6: General Reader Settings
6. In the Commands menu, click C220 and select Default Read.
7. In the Default Read dialog box, click Read.
Figure 7: Default Read Window
8. Using a ruler, measure the distance in which the antenna is able to read a Folio 20 smart
label. If this distance is less than 100 mm., you should verify the tuning of the antenna.
20/30 Revision 1.0 May 2003
How to Improve Performance
6.2 Tuning Procedure
The TR-PS1 Programming Station antenna must be re-tuned only by an approved TAGSYS
integrator or by a TAGSYS technical consultant. Any attempt by a non-qualified third-party to re-
tune the antenna will void the product’s warranty.
1. Unscrew the four screws on the sides of the TR-PS1 Programming Station and remove the
antenna cover.
2. Remove the jumper on Test Points 1 and 2.
3. Connect the 2-pin connector of the TAGSYS Tuning Kit to Test Points 3 and 2.

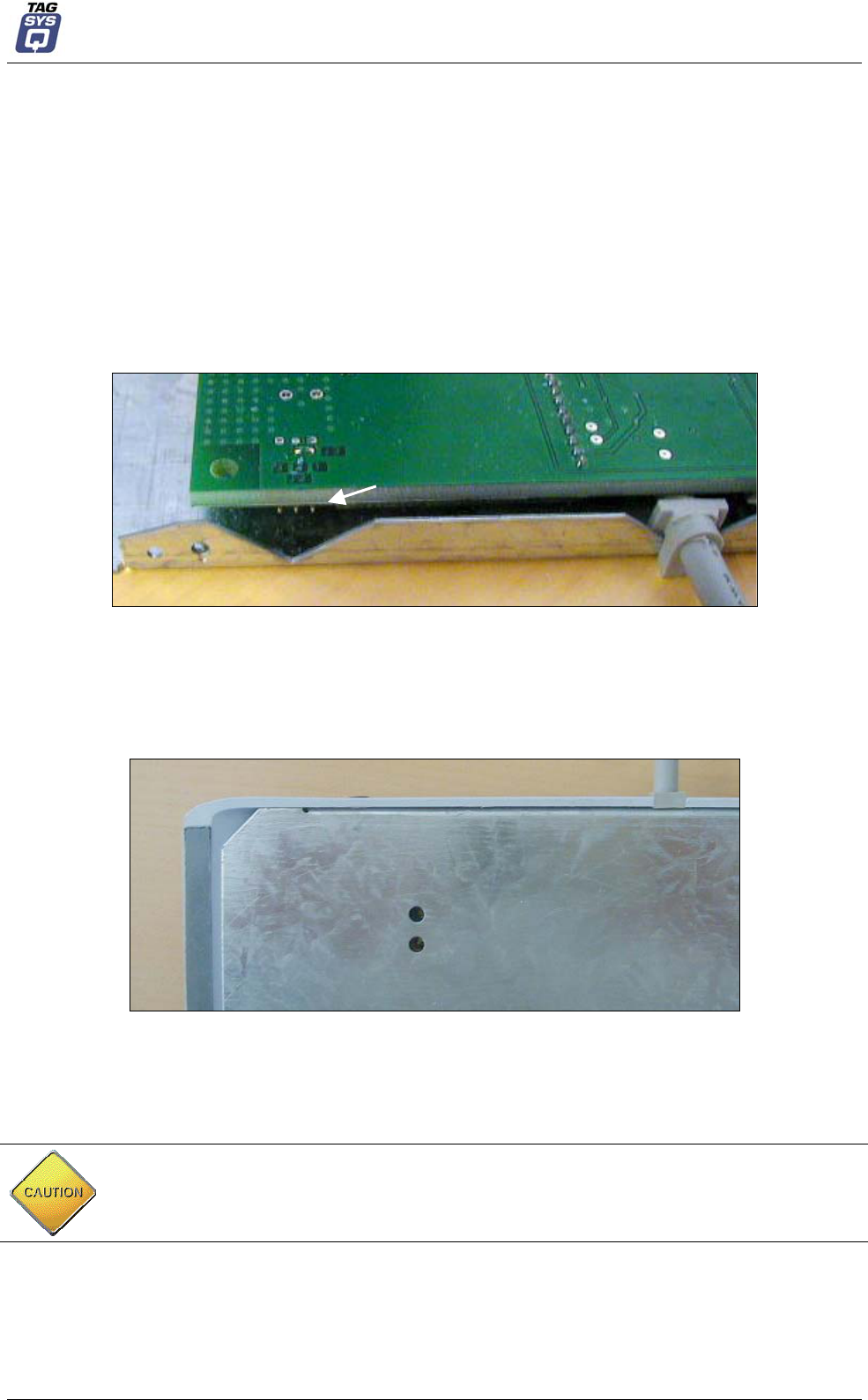

Figure 8: Antenna Connectors for Tuning Procedure
Test Points
For detailed tuning procedures, a helpful guide is available. Refer to the TAGSYS Antenna Tuning
User’s Guide.
The two tuning capacitors of the antenna of the TR-PS1 Programming Station antenna are
accessible from the bottom of the TR-PS1 (Figure 9).
Figure 9: Position of the Tuning Capacitors on the TR Programming Station
When re-tuning the antenna, handle the tuning capacitors with care. Any re-tuning of the antenna
by an approved TAGSYS integrator will damage the plastic label but will not void the warranty of
the TR-PS1 Programming Station provided that the tuning procedure defined in the antenna tuning
kit has been followed.
When re-tuning the antenna, make sure that the TR-PS1 Programming Station is not
connected to the PC.
May 2003 Revision 1.0 21/30
TR-PS1 Textile Rental Programming Station User's Guide
6.3 Upgrading the Firmware
The TR-PS1 Textile Rental Programming Station has the capability to have firmware upgrades.
This feature allows you to protect your investment by upgrading your TR-PS1 Programming Station
when an enhanced chip-decoding algorithm or new chip drivers become available.
Upgrading the Firmware of the TR-PS1 Programming Station is a straightforward operation.
1. Install the S002 Explorer software tool on your PC. (Compatible with Windows® 9x, NT®,
2000 and XP operating systems.)
2. Connect the TR-PS1 Programming Station to the serial port of your PC and the power
supply connected.
3. Run the S002 Explorer software tool.
4. If the TR-PS1 Programming Station is not detected (error message), adjust the
communication settings for the TR-PS1 Programming Station.
a. In the Settings menu, open Communication Settings and select the communication
port that is connected to the TR-PS1 Programming Station.

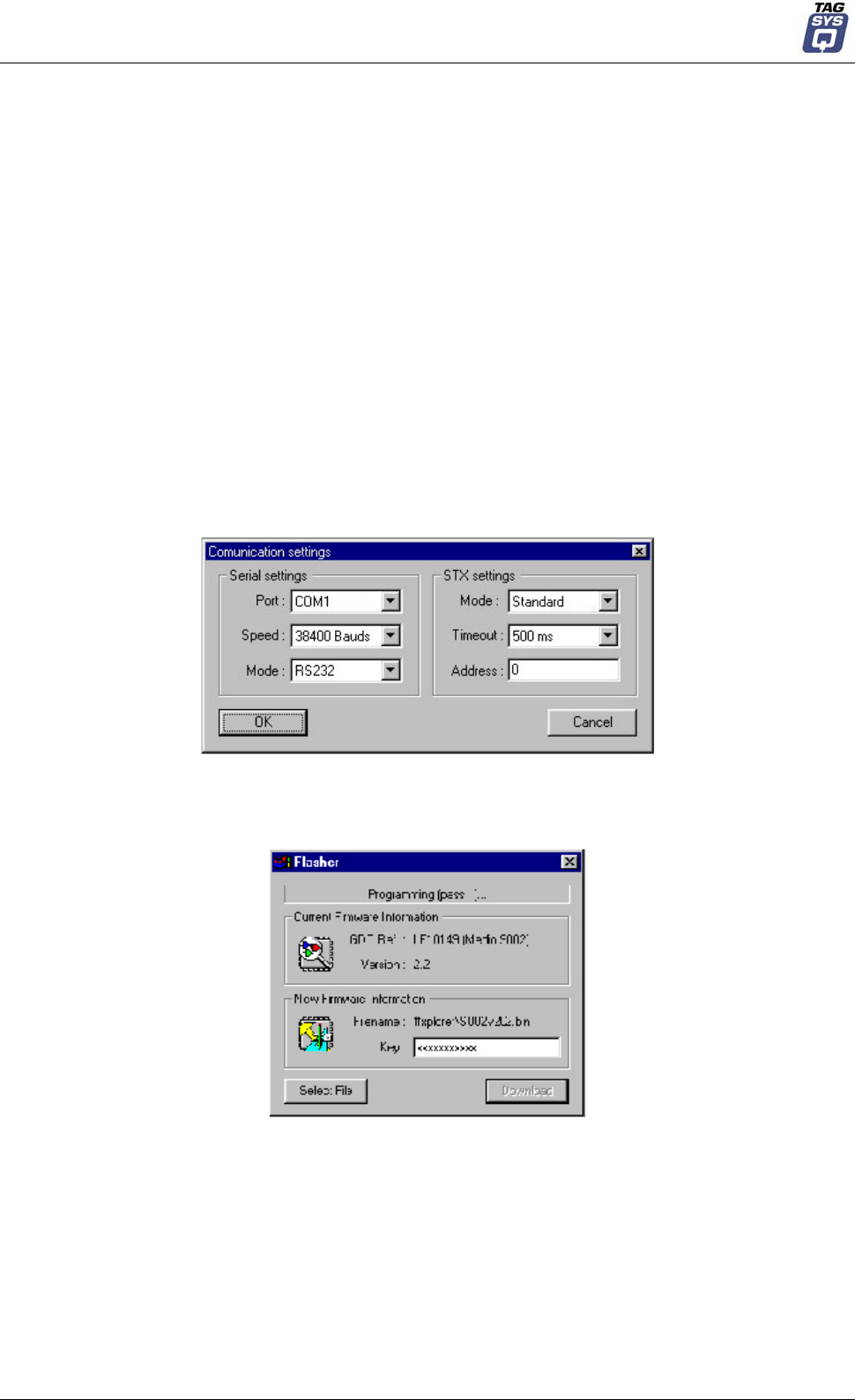

Figure 10: Adjusting Communication Settings
5. In the Info menu, select About S002 Explorer and enter the access key provided with the
firmware upgrade and click Enter.
Figure 11: Entering the Firmware Key
6. In the File menu, select Upgrade Firmware.
a. In the Flasher window, click Select File.
b. Select the BIN file supplied with the firmware upgrade.
c. Enter the firmware key provided with the BIN file.
d. Click Download.
22/30 Revision 1.0 May 2003
How to Improve Performance
Figure 12: Upgrade Firmware Window
7. The Download procedure may take several minutes. A progress bar is displayed.
Figure 13: Entering Firmware Key
8. If the new firmware has been successfully downloaded, a message is displayed. If the final
dialog box at the end of the procedure contains an error message, reload the original
firmware supplied with the TR-PS1 Programming Station and contact your approved
TAGSYS representative.
May 2003 Revision 1.0 23/30
TR-PS1 Textile Rental Programming Station User's Guide
9. Click OK to reset the TR-PS1 Programming Station.
Always use Firmware upgrades supplied by TAGSYS. If you have any doubt on the origin of
the firmware you intend to download; contact your TAGSYS approved reseller. Any attempt to
download a Firmware supplied by a third party may lead to permanent damages to the
TR-PS1 Programming Station.
Never interrupt the Firmware upgrade procedure while the firmware is being downloaded. This
may lead to permanent damages to the TR-PS1 Programming Station.
24/30 Revision 1.0 May 2003
Maintenance
7 Maintenance
7.1 Servicing the TR-PS1 Programming Station
The TR-PS1 Programming Station contains no operator serviceable parts and must only be
serviced by qualified personnel.
No regular servicing is required, except for keeping the unit clean.
It is recommended that an approved TAGSYS technical representative inspect the TR-PS1
Programming Station at least once per year.
May 2003 Revision 1.0 25/30
TR-PS1 Textile Rental Programming Station User's Guide
8 Technical Data
8.1 Mechanical Characteristics
Description Value
Housing Plastic ABS UL 94-V0
Weight 1 kg (2.2 lbs.)
Dimensions 255 x 216 x 20 mm (10 x 8½ x ¾ in.)
Color Pantone P536 blue
Protection Class IP 21
Operating Temperature 0°C to 55°C (32 °F to 131 °F)
Storage Temperature -25°C to +60°C (-130 °F to 140 °F)
Figure 14: Mechanical Dimensions (in millimeters) (Bottom View)
26/30 Revision 1.0 May 2003
Technical Data
8.2 Electrical Characteristics
Description Value
RF Power 0.25 W
Operating Frequency 13.56 MHz
Power consumption 165 mA under 5V
Communication specification RS-232
Communication speed 9600 bit/s
8.3 Typical Performance
Description Value
Reading
C210
C220
C270
50 mm.
Writing
C210
C220
C270
??? mm.
Figure 15: RS-232 Serial Link Connector Diagram
12345
6 7 8 9
Connector Description Connector Description
1 Carrier Detect 6 DSR
2 Rx 7 RTS
3 Tx 8 CTS
4 DTR 9 Ring Indicator
5 GND
Figure 16: Power Connection Wiring
External diameter( - polarity): 5.45 mm.
Internal diameter (+ polarity): 2.1 mm.
May 2003 Revision 1.0 27/30
TR-PS1 Textile Rental Programming Station User's Guide
9 Warranty Conditions
9.1 Warranty
TAGSYS warrants that this Product shall comply with the functional specifications set forth herein
for a period of one year from the date of delivery to the Buyer.
This warranty is valid for the original Buyer of the Product and is not assignable or transferable to
any other party.
TAGSYS cannot be responsible in any way for, and disclaims any liability in connection with the
operation or performance of:
any product in which the Product is incorporated;
any equipment not supplied by TAGSYS which is attached to or used in connection with the
Product; or
the Product with any equipment
This warranty does only cover the Product to the exclusion of any such other equipment.
Optimal operation and performance of the Product are obtained by using TAGSYS’ readers, by
applying TAGSYS installation guidelines and by having your installation reviewed by a TAGSYS’
technical consultant.
TAGSYS warranty does not cover the installation, maintenance or service of the Product and is
strictly limited to the replacement of Products considered as defective by TAGSYS and returned
according to the return procedure defined below; in such case, TAGSYS will, at TAGSYS’ option,
either replace every defective Product by one new Product or refund the purchase price paid by
Buyer to TAGSYS for the defective Product.
9.2 Warranty Exclusions
Defects or damages resulting from storage of the Product under conditions which do not
comply with TAGSYS specifications or normal usage
Defects or damages resulting from use of the Product in abnormal conditions (abnormal
conditions being defined as any conditions exceeding the ones stated in the product
specifications).
Defects or damages from misuse, accident or neglect.
Defects from improper testing, operation, maintenance or installation.
Defects from alteration, modification except modifications or adjustments specifically described
in this Product reference guide, adjustment or repair, or any attempt to do any of the foregoing,
by anyone other than TAGSYS.
Any action on Product that prevents TAGSYS from performing an inspection and test of the
Product in case of a warranty claim.
Tampering with or abuse of the Product.
Any use or incorporation by the Buyer or a third party of TAGSYS' Product into life saving or life
support devices or systems, or any related products, TAGSYS expressly excludes any liability
for such use.
28/30 Revision 1.0 May 2003
Warranty Conditions
9.2.1 General Provisions
This warranty sets forth the full extent of TAGSYS responsibility regarding the Product.
In any event, TAGSYS warranty is strictly limited to (at TAGSYS’ sole option) the replacement or
refund of the Products purchase price to TAGSYS, of Products considered as defective by
TAGSYS.
The remedy provided above is in lieu and to the exclusion of all other remedies, obligations or
liabilities on the part of TAGSYS for damages, whether in contract, tort or otherwise, and including
but not limited to, damages for any defects in the Products or for any injury, damage, or loss
resulting from such defects or from any work done in connection therewith or for consequential
loss, whether based upon lost goodwill, lost resale profits, impairment of other goods or arising
from claims by third parties or otherwise.
TAGSYS disclaims any explicit warranty not provided herein and any implied warranty, guaranty or
representation as to performance, quality and absence of hidden defects, and any remedy for
breach of contract, which but for this provision, might arise by implication, operation of law, custom
of trade or course of dealing, including implied warranties of merchantability and fitness for a
particular purpose.
9.2.2 How to Return Defective Products
The Buyer shall notify TAGSYS of the defects within 15 working days after the defects are
discovered.
Defective Products must be returned to TAGSYS after assignment by a TAGSYS Quality
Department representative of an RMA (Return Material Authorization) number. No Products shall
be returned without their proof of purchase and without the acceptance number relating to the
return procedure.
All Products shall be returned with a report from the Buyer stating the complete details of the
alleged defect.
Call +33 4 91 27 57 36 for return authorization and shipping address.
If returned Products prove to be non-defective, a charge will be applied to cover TAGSYS’ analysis
cost and shipping costs.
If the warranty does not apply for returned Products (due to age, or application of a warranty
exclusion clause), a quote for replacement will be issued, and no replacement will be granted until
a valid purchase order is received. If no purchase order is received within 30 days after the date of
TAGSYS quote, TAGSYS will return the products and charge the analysis cost and shipping costs.
All replaced Products shall become the property of TAGSYS.
The Product Return Form is included on the following page. This form should accompany any
product you need to return to TAGSYS for analysis in the event of a problem.
May 2003 Revision 1.0 29/30
TR-PS1 Textile Rental Programming Station User's Guide
TAGSYS Product Return Form
Customer Profile:
Company:……………………………………………
Address:…………………………………...…...……
……………………………………………………….
City & State:……………...……………………….
Zip Code:……………………………………………
Country:……………………………………………..
Contact Name:………………………………………
Contact e-mail: ………………………………………
Contact Phone:……………………………………
Contact Fax:………………………………………..
Order identification:
Product Name:……………………………………..
Order Number (OEF):.……………………………
Invoice Number:……………………………...……
Return Quantity: …………………………………
Reason for return:
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
…………………………….………………………………………………………………………………………
To inform TAGSYS of this return, please email it to:
valerie.guenegan@tagsys.net and to catherine.thouvenin@tagsys.net
Address to ship the product with this document attached:
TAGSYS
180, chemin de Saint Lambert
13821 la Penne sur Huveaune
FRANCE
To inform TAGSYS of this return, please also fax it to your Customer Service Representative
+33 (0) 4 91 27 57 01
Return Procedure:
The product returned will go through stringent quality controls.
A final analysis report will be sent to you as soon as possible.
Please contact the quality representative for further details
+33 (0) 4 91 27 57 36
30/30 Revision 1.0 May 2003
