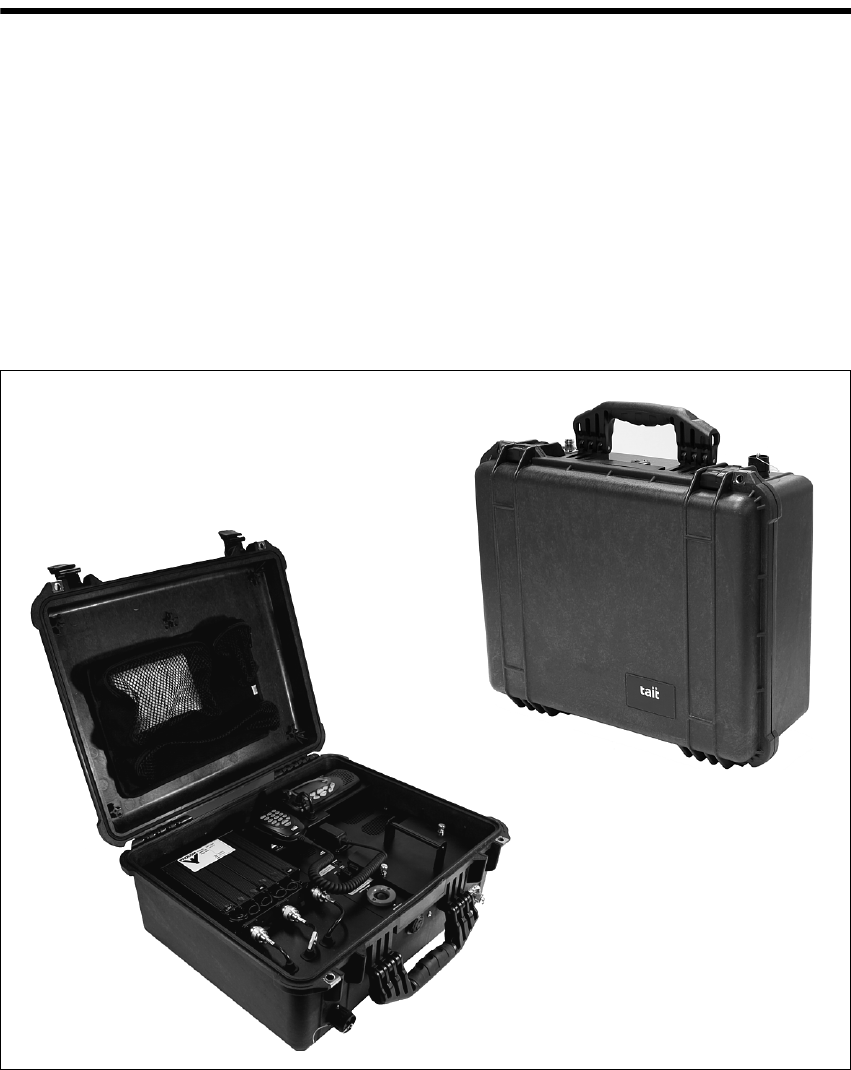

TB7304 Transportable
Mobile Repeater
User’s Guide
MBD-00004 · Issue 1· March 2019
2Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
Contact Information
Tait Communications
Corporate Head Office
Tait International Limited
P.O. Box 1645
Christchurch
New Zealand
For the address and telephone number of regional
offices, refer to our website: www.taitradio.com
Copyright and Trademarks
All information contained in this document is the
property of Tait International Limited. All rights
reserved. This document may not, in whole or in part,
be copied, photocopied, reproduced, translated, stored,
or reduced to any electronic medium or machine-
readable form, without prior written permission from
Tait International Limited.
The word TAIT and the TAIT logo are trademarks of
Tait International Limited.
All trade names referenced are the service mark,
trademark or registered trademark of the respective
manufacturers.
Disclaimer
There are no warranties extended or granted by this
document. Tait International Limited accepts no
responsibility for damage arising from use of the
information contained in the document or of the
equipment and software it describes. It is the
responsibility of the user to ensure that use of such
information, equipment and software complies with the
laws, rules and regulations of the applicable
jurisdictions.
Inquiries and Comments
If you have any enquiries regarding this document, or
any comments, suggestions and notifications of errors,
please contact your regional Tait office.
Updates of Manual and Equipment
In the interests of improving the performance,
reliability or servicing of the equipment, Tait
International Limited reserves the right to update the
equipment or this document or both without
prior notice.
Intellectual Property Rights
This product may be protected by one or more patents
or designs of Tait International Limited together with
their international equivalents, pending patent or
design applications, and registered trade marks:
NZ409837, NZ409838, NZ415277, NZ415278,
NZ530819, NZ534475, NZ547713, NZ577009,
NZ579051, NZ579364, NZ586889, NZ610563,
NZ615954, NZ700387, NZ708662, NZ710766,
NZ711325 , NZ726313, NZ593887, AU2015215962,
AU339127, AU339391, AU2016259281,
AU2016902579, EU000915475-0001, EU000915475-
0002, GB2532863, US14/834609 Div. no 1, US15/
346518 Div.no 2, US15/350332, US15/387026 Div.,
US20150085799, US20160044572, US20160057051,
US640974, US640977, US698339, US702666,
US7758996, US8902804, US9107231, US9504034,
US9559967.
Environmental Responsibilities
Tait International Limited is an
environmentally responsible company
which supports waste minimization,
material recovery and restrictions in the
use of hazardous materials.
The European Union’s Waste Electrical and Electronic
Equipment (WEEE) Directive requires that this
product be disposed of separately from the general
waste stream when its service life is over. For more
information about how to dispose of your unwanted
Tait product, visit the Tait WEEE website at
www.taitradio.com/weee. Please be environmentally
responsible and dispose through the original supplier,
or contact Tait International Limited.
Tait International Limited also complies with the
Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS)
Directive in the European Union.
In China, we comply with the Measures for
Administration of the Pollution Control of Electronic
Information Products. We will comply with
environmental requirements in other markets as they
are introduced.
Transportable Mobile Repeater User’s Guide 3
© Copyright Tait International Limited March 2019
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1 General Safety and Compliance Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Personal Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Explosive Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
High Temperatures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LED Safety (EN60825-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Proximity to RF Transmissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Equipment Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation and Servicing Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preventing Damage to the PA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
ESD Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Environmental Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Dust and Dirt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Distress Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compliance Standards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Unauthorized Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Health, Safety and Electromagnetic Compatibility in Europe . . . . . . . . . . . . . . . . . . 10
Device and Network Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
3 Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Select Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
LED Indication Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Repeater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

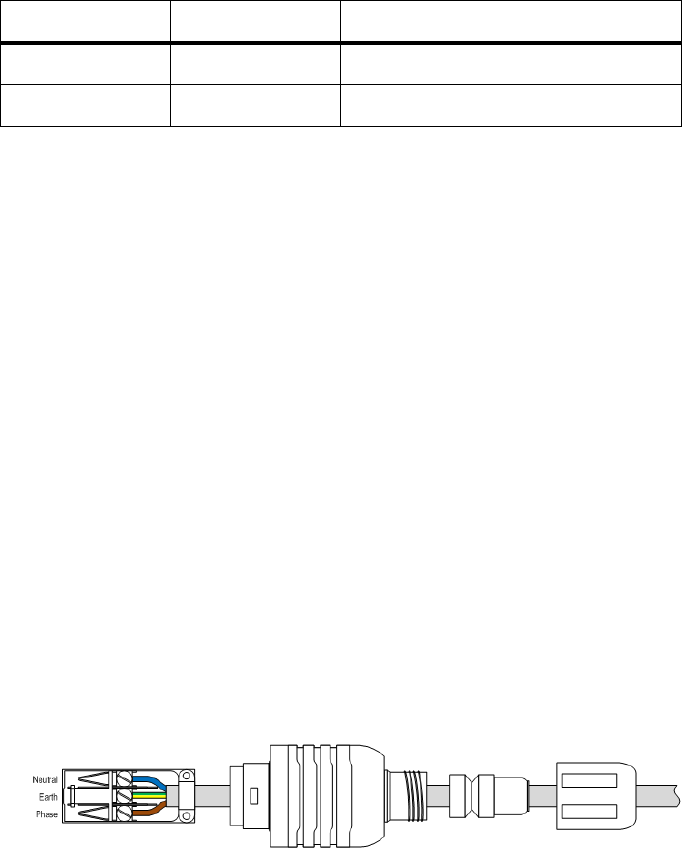

Mains Socket Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Draft
4Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
Preface
Scope of Manual
This user’s guide provides information on the TB7304 Transportable
Mobile Repeater (TMR).For full details on the operation of the repeater
itself, refer to MBD-00001-xx TB7300 Installation and Operation Manual.
Document Conventions
Please follow exactly any instruction that appears in the text as an ‘alert’.
An alert provides necessary safety information as well as instruction in the
proper use of the product. This manual uses the following types of alert:
Warning This alert is used when there is a hazardous situation
which, if not avoided, could result in death or serious injury.
Caution This alert is used when there is a hazardous situation which,
if not avoided, could result in minor or moderate injury.
Notice This alert is used to highlight information that is required to
ensure procedures are performed correctly. Incorrectly performed pro-
cedures could result in equipment damage or malfunction.
This icon is used to draw your attention to information that may
improve your understanding of the equipment or procedure.
Draft
Transportable Mobile Repeater User’s Guide 5
© Copyright Tait International Limited March 2019
Associated Documentation
The following documentation is also available for your Tait product, which
can be accessed from the Tait Technical Support website
(http://support.taitradio.com):
■Safety and Compliance Information—supplied with each radio. (The
same information is included in this user’s guide.)
■MBD-00001-xx TB7300 Installation and Operation Manual
Publication Record
Issue Publication date Description
01 March 2019 First release.
Draft
6 General Safety and Compliance Information Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
1 General Safety and Compliance
Information
This chapter provides general information on safety precautions for
operating the transportable repeater.
1.1 Personal Safety
1.1.1 Explosive Environments
Warning Do not operate the equipment near electrical blasting
caps or in an explosive atmosphere. Operating the equipment in
these environments is a definite safety hazard.
1.1.2 High Temperatures
Take care when handling a repeater which has been operating recently.
Under extreme operating conditions (+140°F [+60°C] ambient air
temperature) or high duty cycles, the external surfaces of the base station
can reach temperatures of up to +176°F (+80°C).
1.1.3 LED Safety (EN60825-1)
This equipment contains Class 1 LED Products.
Transportable Mobile Repeater User’s Guide General Safety and Compliance Information 7
© Copyright Tait International Limited March 2019
1.1.4 Proximity to RF Transmissions
To comply with the RF Field Limits for Devices Used by the General
Public for (Uncontrolled Environment)a, a safe separation distance of at
least 12 feet (3.6 metres) from the antenna system should be maintained.
This figure is calculated for a typical installation, employing one 50W
base station transmitter. Other configurations, including installations at
multi-transmitter sites, must be installed so that they comply with the
relevant RF exposure standards.
a. Reference Standards
Health Canada’s Safety Code 6: Limits of Human Exposure to
Radiofrequency Electromagnetic Energy in the Frequency Range from
3kHz to 300GHz
USA Federal Communications Commission OET bulletin 65
(47CFR 1.1310)
IEEE C95.1 2005: Standard for Safety Levels with Respect to Human
Exposure to Radio Frequency Electromagnetic Fields, 3kHz to
300GHz
Draft
8 General Safety and Compliance Information Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
1.2 Equipment Safety
1.2.1 Installation and Servicing Personnel
The equipment should be installed and serviced only by qualified
personnel.
1.2.2 Preventing Damage to the PA
The repeater has been designed to operate safely under a wide range of
antenna loading conditions. Transmitting into a low VSWR will maximize
the power delivered to the antenna.
Notice Do not remove the load from the TB7304 while it is transmit-
ting.
Load transients (switching or removing the load) can damage the PA output
stage. See MBD-00001-xx TB7300 Installation and Operation Manual for
recommendations.
1.2.3 ESD Precautions
Notice This equipment contains devices which are susceptible to
damage from static charges. You must handle these devices carefully
and according to the procedures described in the manufacturers’ data
books.
We recommend you purchase an antistatic bench kit from a reputable
manufacturer and install and test it according to the manufacturer’s
instructions. Figure 1.1 shows a typical antistatic bench set-up.
You can obtain further information on antistatic precautions and the
dangers of electrostatic discharge (ESD) from standards such as ANSI/
ESD S20.20-1999 or BS EN 100015-4 1994.

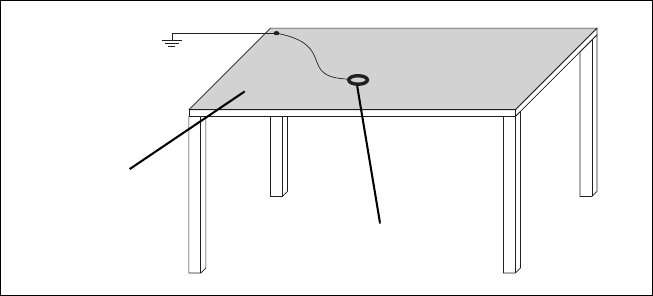

Figure 1.1 Typical antistatic bench set-up
common point ground
(building ground or
mains ground)
conductive wrist strap
dissipative rubber
bench mat
Transportable Mobile Repeater User’s Guide General Safety and Compliance Information 9
© Copyright Tait International Limited March 2019
1.3 Environmental Conditions
1.3.1 Operating Temperature Range
The operating temperature range of the equipment is –22°F to +140°F
(–30°C to +60°C) ambient temperature. Ambient temperature is defined as
the temperature of the air at the intake to the cooling fans.
1.3.2 Humidity
The humidity should not exceed 95% relative humidity through the
specified operating temperature range.
1.3.3 Dust and Dirt
For uncontrolled environments, the level of airborne particulates must not
exceed 100µg/m3.
1.4 Regulatory Information
1.4.1 Distress Frequencies
The 406 to 406.1MHz frequency range is reserved worldwide for use by
Distress Beacons. Do not program transmitters to operate in this frequency
range.
1.4.2 Compliance Standards
This equipment has been tested and approved to various national and
international standards. Refer to the latest issue of the Specifications
Manual for a complete list of these standards.
1.4.3 Unauthorized Modifications
Any modifications you make to this equipment which are not authorized by
Tait may invalidate your compliance authority’s approval to operate the
equipment.
The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such
modifications could void the user’s authority to operate the equipment.
Draft
10 General Safety and Compliance Information Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
1.4.4 Health, Safety and Electromagnetic Compatibility in Europe
In the European Community, radio and telecommunications equipment is
regulated by Directive 2014/53/EU. The requirements of this directive
include protection of health and safety of users, as well as electromagnetic
compatibility.
Intended Purpose
of Product
This product is a radio transceiver. It is intended for radio communications
in the Private Mobile Radio (PMR) or Public Access Mobile Radio
(PAMR) services, to be used in all member states of the European Union
(EU) and states within the European Economic Area (EEA). This product
can be programmed to transmit on frequencies that are not harmonized
throughout the EU/EEA, and will require a license to operate in each
member state.
Declaration of
Conformity
You can download the formal Declaration of Conformity from https://
www.taitradio.com/our-resources/compliance#European.
1.5 Device and Network Security
If this radio network equipment is used for mission-critical applications, it
is important to be able to ensure security and continuity of operation. For
IP-network-connected equipment, it is also important to ensure that this
equipment is not a means of compromising other equipment in the network.
All network elements should be physically secured, where possible. This
includes the use of locked cabinets and locked rooms. Seals on connectors
can also provide a visual indication of unauthorized tampering.
Tait recommends that all network and audio connectors should be sealed
with the stick-on type of seal. The seal should reveal if any of the
connectors have been unplugged, or if any unauthorized equipment has
been plugged in.
The seals should be difficult to remove without breaking, and should bridge
between the cable and equipment side (plug and socket) of the connection.
Seals should cover any unused network or audio sockets. This includes the
Ethernet connector on any adaptor front panels, any spare switch ports, and
the console port on the router and switch.
The seals should be difficult to reproduce. A sticker initialed or signed by
the technician should satisfy this.
Seals must be replaced if they need to be disturbed during maintenance.
Draft
Transportable Mobile Repeater User’s Guide Introduction 11
© Copyright Tait International Limited March 2019
1Introduction
The Transportable Mobile Repeater (TMR) is a complete transportable
radio solution in a rugged case. It consists of:
■a TB7300 repackaged into a rugged pelican case with an internal AC
supply
■an internal 12v SLA battery
■a charge circuit and switching circuits for external DC supply.
Notice TMR was designed to be waterproof, but do not operate it in
the rain with the lid open.
An N-type antenna connector on the outside of the case enables a sturdy
external antenna connection. An Amphenol screw-lock connector for the
DC input is also located on the outside of the case.
Four LEDs are present to indicate the status of the repeater. Two further
LEDs are located on the outside front of the case to indicate the status of
the battery while charging.
Draft
12 Basic Operation Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
2 Basic Operation
2.1 Battery Select Switch
Warning When shipping and charging the transportable, set the
battery select switch to External DC/Battery Isolate to comply with
safety regulations.
The battery select switch is protected with a raised red surround to avoid
accidental switching on when the lid is closed.
Warning Risk of missing calls! Switching between Internal Bat-
tery and External DC/Battery Isolate will likely cause the trans-
portable to restart!
When the switch is set to Internal Battery, the transportable runs from the
internal battery (or mains supply if connected).
When the switch is set to External DC/Battery Isolate, the internal battery
is disconnected from all circuitry in the transportable. In this situation, all
the circuits in the transportable,including the repeater, can only run from an
external DC supply. When connected to a mains lead, the charger circuitry
is automatically switched on and connected to the internal battery.
2.2 Battery Power
With a fully-charged battery, an operating regime of 10% transmit at 15W,
and 90% standby time will keep the transportable running for approx. 8
hours (with a new battery).
2.3 Battery Charging
Warning Risk of fire! The lid must be open when charging. The
VRLA battery may vent when charged at a current greater than
3A. This does not occur during normal charging.
The transportable will shut itself down when the internal battery voltage
drops too low. When that level of discharge has been reached, it will take
up to 12 hours to recharge the battery using an AC mains connection. When
Draft
Transportable Mobile Repeater User’s Guide Basic Operation 13
© Copyright Tait International Limited March 2019
charging, press the recessed button located at the left of the Charge LED to
turn charging off and on.
A DC input cable is supplied with the transportable for connection to
external DC Supplies between 10 and 36 VDC.
Notice When the transportable is not in use, always switch the bat-
tery select switch to External DC/Battery Isolate.
2.4 LED Indication Details
2.4.1 Repeater
a. after the four power-up sequences
2.4.2 Status
This LED is only lit when an AC supply is connected.
2.4.3 Charge
This LED is only lit when an AC supply is connected.
LED Indication Details
Repeater Power green repeater power is on
All LEDs/Alarm flashing power up sequence is in progress
Alarm on repeater is in offline mode
Alarm flashingaan alarm condition needs to be cleared
Receive orange receiver is receiving
Transmit orange transmitter is keyed
LED Indication Details
Status green battery is fully charged or above 20%
charged
Status red, flashing battery is low
Status off battery has been disconnected due to
low voltage
Draft
14 Basic Operation Transportable Mobile Repeater User’s Guide
© Copyright Tait International Limited March 2019
2.5 Antenna
The transportable is a 15W Repeater that requires a remote mounted
antenna with a suitable ground plane. This antenna and internal duplexer
must be tuned to the frequency of the Repeater. The transportable has an N-
type antenna connector.
Caution Risk of harm from RF radiation! While the Repeater is oper-
ating (transmitting), you must ensure that there is always a distance of
0.9m between people and the antenna. This is the minimum safe dis-
tance.
2.6 Mains Socket Wiring
The repeater is shipped with a Schurter waterproof AC Mains socket this
will need to be wired by an electrician or electrically registered person.
Schurter Mains Socket wiring
LED Indication Details
Charge red battery is being charged
Charge off battery is fully charged
