UnifyVehicle

System Manual

MNE-00032-01 · Issue 1 · September 2017

2UnifyVehicle System Manual

Contact Information

Tait Communications

Corporate Head Office

Tait Limited

P.O. Box 1645

Christchurch

New Zealand

For the address and telephone number of regional

offices, refer to our website: www.taitradio.com

All information contained in this document is the

This document may not, in whole or in part, be copied,

photocopied, reproduced, translated, stored, or reduced

to any electronic medium or machine-readable form,

without prior written permission from Tait Limited.

The word TAIT and the TAIT logo are trademarks of

Tait Limited.

All trade names referenced are the service mark,

trademark or registered trademark of the respective

manufacturers.

Disclaimer

There are no warranties extended or granted by this

document. Tait Limited accepts no responsibility for

damage arising from use of the information contained

in the document or of the equipment and software it

describes. It is the responsibility of the user to ensure

that use of such information, equipment and software

complies with the laws, rules and regulations of the

applicable jurisdictions.

Enquiries and Comments

If you have any enquiries regarding this document, or

any comments, suggestions and notifications of errors,

please contact your regional Tait office.

Updates of Manual and Equipment

In the interests of improving the performance,

reliability or servicing of the equipment, Tait Limited

reserves the right to update the equipment or this

document or both without prior notice.

Intellectual Property Rights

This product may be protected by one or more patents

or designs of Tait Limited together with their

international equivalents, pending patent or design

applications, and registered trade marks: NZ 409837,

NZ 409838, NZ 415277, NZ 415278, NZ 530819,

NZ 534475, NZ 547713, NZ 577009, NZ 579051,

NZ 579364, NZ 586889, NZ 610563, NZ 615954,

NZ 700387, NZ 708662, NZ 710766, NZ 711325 ,

NZ 726313, NZ593887, AU 2015215962, AU 339127,

AU 339391, AU2016259281, AU2016902579,

EU 000915475-0001, EU 000915475-0002,

GB 2532863, US 14/834609 Div. no 1, US 15/346518

Div.no 2, US 15/350332, US 15/387026 Div.,

US 20150085799, US 20160044572, US 20160057051,

US 640974, US 640977, US 698339, US 702666,

US 7758996, US 8902804, US 9107231, US 9504034,

US 9559967.

The AMBE+2™ voice coding Technology embodied

in this product is protected by intellectual property

rights including patent rights, copyrights and trade

secrets of Digital Voice Systems, Inc. This voice

coding Technology is licensed solely for use within this

Communications Equipment. The user of this

Technology is explicitly prohibited from attempting to

decompile, reverse engineer, or disassemble the Object

Code, or in any other way convert the Object Code into

a human-readable form.

Environmental Responsibilities

Tait Limited is an environmentally

responsible company which supports

waste minimization, material recovery and

restrictions in the use of hazardous

materials.

The European Union’s Waste Electrical and Electronic

Equipment (WEEE) Directive requires that this

product be disposed of separately from the general

waste stream when its service life is over. For more

information about how to dispose of your unwanted

Tait product, visit the Tait WEEE website at

www.taitradio.com/weee. Please be environmentally

responsible and dispose through the original supplier,

or contact Tait Limited.

Tait Limited also complies with the Restriction of the

Use of Certain Hazardous Substances in Electrical and

Electronic Equipment (RoHS) Directive in the

European Union.

In China, we comply with the Measures for

Administration of the Pollution Control of Electronic

Information Products. We will comply with

environmental requirements in other markets as they

are introduced.

UnifyVehicle System Manual 3

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Scope of Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Associated Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Publication Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1 Introducing UnifyVehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.1 UnifyVehicle Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1.1 Upgrade Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.1.2 External Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2 UnifyVehicle Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.3 UnifyVehicle Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2 Audio Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.1 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.2 Accessing Stored Audio Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2.3 Deleting Stored Audio Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3 UnifyVehicle Remote Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.1 Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.2 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3.3 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4 WIFI OTAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1 WIFI OTAP Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2 Configuring WIFI OTAP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Tait Software License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4 Preface UnifyVehicle System Manual

Preface

Scope of Manual

This manual describes the UnifyVehicle applications platform and the

modules that are available.

Alerts

Please follow exactly any instruction that appears in the text as an ‘alert’.

An alert provides necessary safety information as well as instruction in the

proper use of the product. This manual uses the following types of alert:

This alert is used to warn about the risk of data loss or corruption.

This alert is used to highlight significant information that may be

required to ensure procedures are performed correctly, or draw your

attention to ways of doing things that can improve your efficiency or

effectiveness.

Associated Documentation

UnifyVehicle Remote User’s Guide (MNE-00022-XX)

UnifyVehicle Remote Online Help

UnifyVehicle Web Application Online Help

UnifyVehicle - Connecting for the First Time (402-00103-XX)

UnifyVehicle Upgrade Kits Installation Instructions (402-00104-XX)

Technical notes are published from time to time to describe applications for

Tait products, to provide technical details not included in manuals, and to

offer solutions for any problems that arise. Look for new or updated

technical notes on the Tait technical support web site.

Publication Record

Issue Publication Date Description

1 September 2017 Release 1.0

UnifyVehicle System Manual Introducing UnifyVehicle 5

1 Introducing UnifyVehicle

Tait UnifyVehicle provides an application platform that extends and

augments the functionality of the DMR TM9300 and P25 TM9400 series

mobile radios.

UnifyVehicle provides:

■a Linux Open Embedded operation system, with an ARM Cortex A8

processor (600MHz), 1GB Flash memory, 512MB DDR3 RAM, and an

SD slot for upgradeable memory.

■WiFi capability: 2.4GHz/5GHz, IEEE 802.11b/g/n (maximum rate of

20Mb/s in the UnifyVehicle configuration)

■Ethernet connectivity (10/100BaseT Ethernet)

■Internal WiFi antenna option: suitable for in-vehicle, or short range

operation only. Typical range of 4-10m around vehicle.

■External WiFi antenna option: two compliant antennas available (WiFi

antenna and integrated multi-function antenna). Typical ranges:

■Clear line-of-sight to vehicle: 60-100m

■Obscured from vehicle be vegetation: 40-60m

■Inside building, vehicle located directly outside: 20-30m

■DMR Tier 3 and P25 Trunked LMR network compatibility

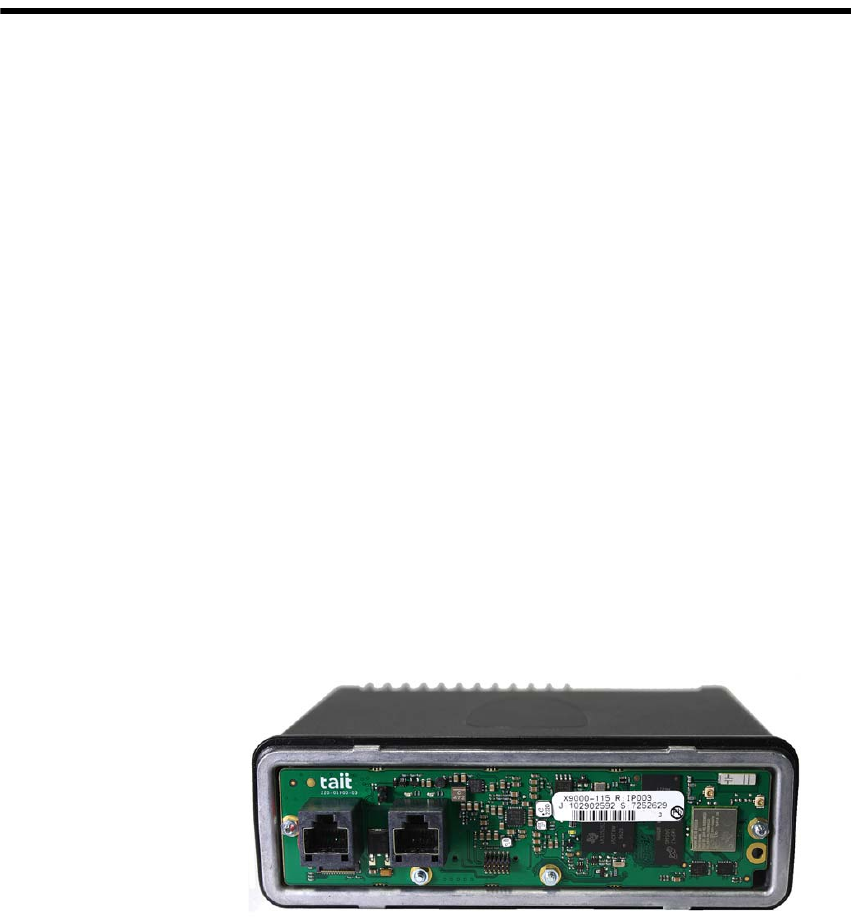

Figure 1.1 UnifyVehicle 1.0 board fitted onto a TM9355 torso

UnifyVehicle comes factory fitted onto Tait DMR Tier 3 TM9300 and

TM9400 series mobile radios, or can be retro-fitted to existing, compatible

mobile radios. UnifyVehicle can be used with remote, or hand-held control

heads.

6 Introducing UnifyVehicle UnifyVehicle System Manual

1.1 UnifyVehicle Hardware

UnifyVehicle can be ordered factory fitted to a TM9300 or TM9400 mobile

radio with a remote, or hand-held control head. Factory fitted UnifyVehicle

radios are shipped with compatible firmware, and configured with the

required UnifyVehicle specific settings.

1.1.1 Upgrade Kits

UnifyVehicle upgrade, or “retro-fit” kits, upgrade a compatible TM9300 or

TM9400 mobile radio to a UnifyVehicle mobile radio. The table below

shows the upgrade kits currently available.

UnifyVehicle only supports remote control head and hand-held control

head installations. UnifyVehicle retro-fit kits can upgrade mobile radios

installed with local control heads, however the end result will be a

remote control head installation.

Table 1.1 UnifyVehicle Upgrade Kits

For information on retro-fitting UnifyVehicle to existing, comptaible

mobile radios, refer to the UnifyVehicle Upgrade Kits Installation

Instructions (402-00104-XX).

1.1.2 External Antennas

External WiFi antennas are available for compatible UnifyVehicle boards

(R1.1 and later). These external antenna provide increased range and

coverage.

Operational range and coverage are dependent the mounting location,

connecting mobile device specification, and physical barriers between

the external antenna and the connecting mobile device.

Single WiFi

Antenna This antenna is suitable in situations where only the WiFi

capability of UnifyVehicle is required, and will increase

the WiFi range around the vehicle. This antenna should be

installed high on the vehicle, with a modest ground plane.

This antenna operates in both the 2.4GHz and 5GHz bands.

Upgrade Kit No. Upgrades Radio

Installed With.. Anetnna PBA Version

T02-00024-0201 Remote control head Internal AAAA

T02-00024-0202 Remote control head External ABAA

T02-00024-0203 Local control head Internal AAAA

T02-00024-0204 Local control head External ABAA

UnifyVehicle System Manual Introducing UnifyVehicle 7

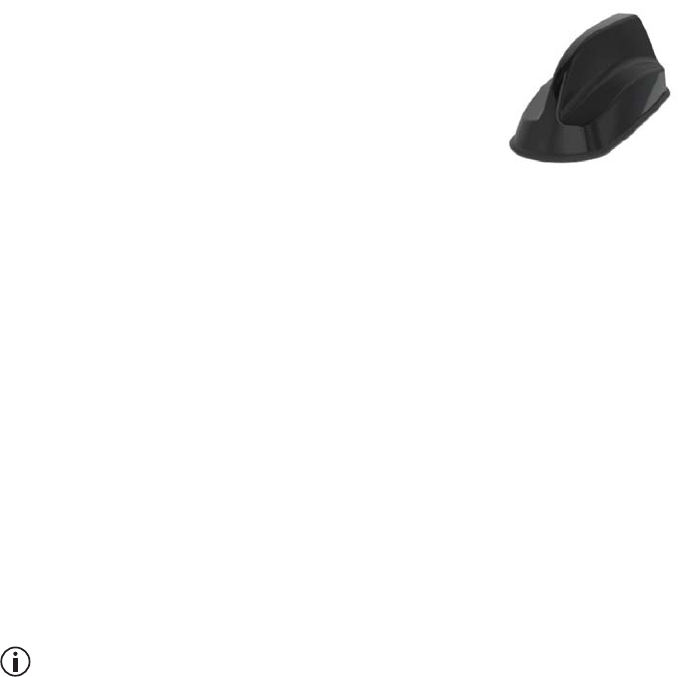

Multi-Function

Antenna The shark fin style multi-function antenna is suitable

for public safety (covert/overt), industrial and

transport applications where an effective, compact

and robust antenna is required. This antenna contains

a 2.4GHz WiFi antenna, a 5GHz WiFi antenna and

two cellular module antenna connections.

1.2 UnifyVehicle Configuration

UnifyVehicle Web

Application UnifyVehicle is configured using a web based application that is accessed

by connecting UnifyVehicle to either a cabled or WLAN network and

navigating via web browser, to an address specific to the UnifyVehicle

installation.

There are two levels of access for the UnifyVehicle Web application:

■Administrator access: an Administrator user has full control of the

Unify Vehicle Unit. They can upgrade firmware, configure all

interfaces, download logs and audio recordings, trigger a factory reset

or format the optional SD card. This user is intended to only be used for

UnifyVehicle configuration.

Adminstrators do not have secure FTP (SFTP) or ssh access.

■Audit access: allows access to UnifyVehicle via the secure FTP

protocol. This allows an audit user to view the logs and audio files

captured by the audio recorder. Audit access does not allow the deletion

of any files, the configuration of UnifyVehicle settings, or acess to the

Web application UI.

Refer to the UnifyVehicle Web Application Help for further details on how

to configure UnifyVehicle.

Mobile Radio

Configuration If you are retro-fitting UnifyVehicle to an existing mobile radio, some radio

configuration will be required. Refer to the UnifyVehicle Upgrade Kits

Installation Instructions (402-00104-XX) for further details.

1.3 UnifyVehicle Modules

A number of modules or ‘resident applications’ are available for

UnifyVehicle. The modules currently available are:

■UnifyVehicle Voice Recorder

■UnifyVehicle Remote application

■WiFi OTAP

8 Audio Recorder UnifyVehicle System Manual

2 Audio Recorder

UnifyVehicle has an on-board audio recorder that when enabled, records all

audio that is transmitted from or received by the mobile radio. Continuous

audio streams (i.e trunked radio call) are saved as a single *.wav file, while

simplex audio will result in a separate *.wav file for each piece of audio

transmitted or receieved. Files will be time-stamped when a time source is

available, and will also have a unique ID that guarantees the files be in

sequential order, even if an accurate time-stamp is unavailable. Call details,

are saved in an associated text file, in *.JSON format.

Recorded audio can be accessed via secure FTP using audit access

credentials, or can be downloaded from the UnifyVehicle Web Application.

The UnifyVehicle audio recorder can only be enabled if optional storage

has been installed. Over 200 hours of recorded audio can be stored on the

optional 32GB SD card. Once capacity is reached, the oldest files will be

overwritten.

The audio recorder is not available for analog.

Refer to the UnifyVehicle Web Application Online Help for details on

how configure and operate the UnifyVehicle Audio Recorder.

2.1 Configuration

The audio recorder can be enabled or disabled via the UnifyVehicle Web

application. No further configuration is required.

2.2 Accessing Stored Audio Files

Audio files and call meta-data can be accessed via secure FTP, using the

audit access credentials. Alternatively, the Administrator can download the

last 20 recordings directly from the UnifyVehicle Web Application.

Files accessed through secure FTP are read only, ensuring that all data

remains intact and unaltered.

Refer to the UnifyVehicle Web Application Help for details on how to

configure the audit access credentials, and secure FTP access.

UnifyVehicle System Manual Audio Recorder 9

2.3 Deleting Stored Audio Files

The only way to delete data captured by the audio recorder from the

optional storage, is to format the optional storage card. This action can only

be completed by the Administrator.

Refer to the UnifyVehicle Web Application Online Help for further details.

10 UnifyVehicle Remote Application UnifyVehicle System Manual

3 UnifyVehicle Remote Application

The UnifyVehicle Remote application allows

users to connect their Android™ smartphone

(Android version 4.0.3 and later) to

UnifyVehicle mobile radio via WLAN. Once

connected, the application enables users to

make and receive group and emergency calls,

and receive individual calls using their

Android phone, over the radio network. This

allows users to maintain LMR

communications when outside of, and away

from the vehicle.

Audio transmitted by the application will be

captured by the UnifyVehicle audio recorder,

if it is enabled.

3.1 Installation

The UnifyVehicle Remote application is available for download from the

Google Play™ store.

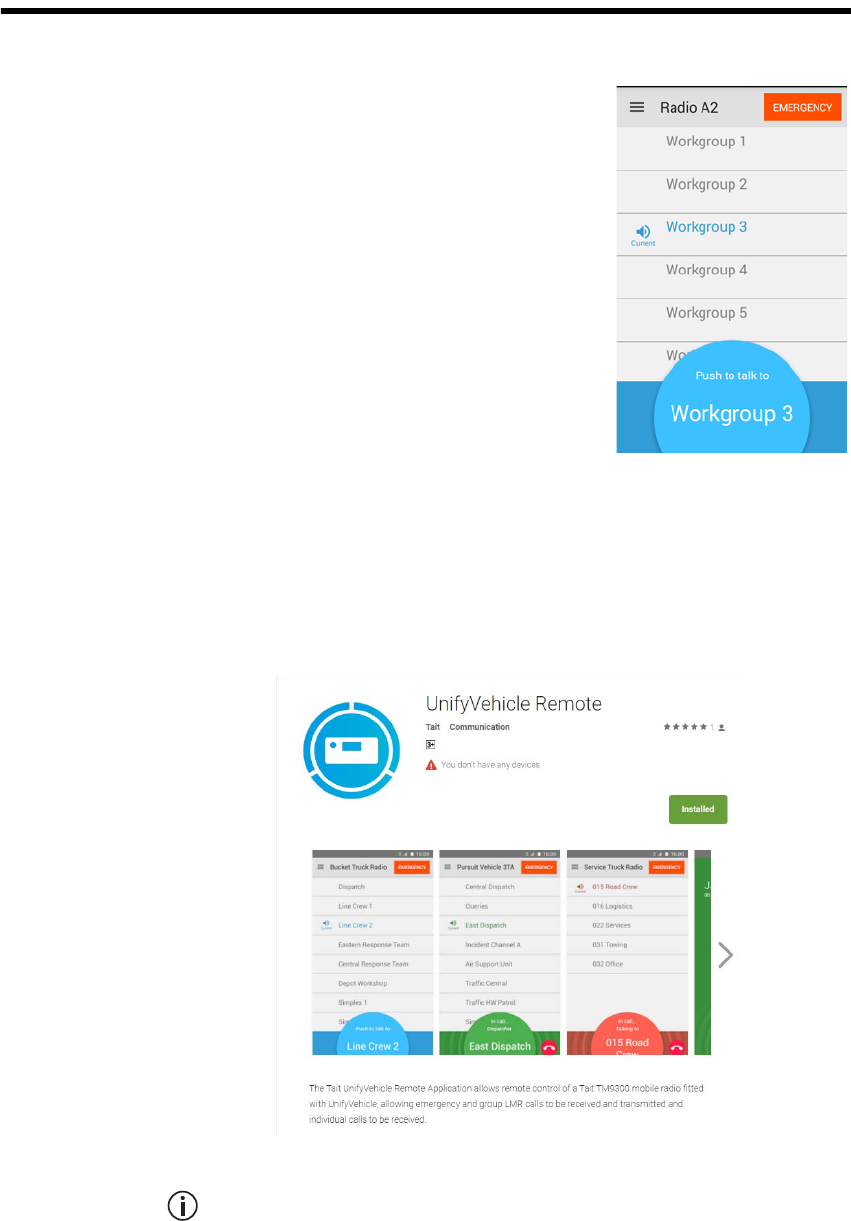

Figure 3.1 UnifyVehicle Google Play Store page

An internet connection is required to access the Google Play store.

UnifyVehicle System Manual UnifyVehicle Remote Application 11

UnifyVehicle Remote currently supports the following Android devices

and versions:

■Samsung J5 - Android 6.0

■Sonim XP7700 - Android 4.4

3.2 Configuration

The UnifyVehicle Remote application requires the Android device running

the application to have Wi-Fi enabled. The UnifyVehicle installation that

the Android device connects to, must also have its RTP Gateway enabled

for UnifyVehicle Remote to work.

Refer to the UnifyVehicle Remote User’s Guide (MNE-00022-XX) and the

UnifyVehicle Web application Help for further details on how to configure

UnifyVehicle and the UnifyVehicle Remote application.

3.3 Operation

The UnifyVehicle Remote application makes use of the touchscreen

capability of the Android device. The application features an on screen

‘push-and-hold’ PTT button, with all other features able to be selected or

activated by tapping the screen.

Currently, a single Android phone can be connected to a UnifyVehicle

mobile radio. This connection is made by selecting the radio from a list in

the UnifyVehicle Remote application.

Once connected, the application provides the following LMR radio

functionality on the user’s smartphone:

Make and receive

group calls Group calls can be made by selecting a group

and holding down the PTT to begin the call.

When making or recieving calls, the PTT

button will display the current state of the

application.

Individual calls Individual calls from other radios can be received, but not made by the

application.

Emergency Calls Users can activate an emergency using the application. Once activated, the

behavior of the application is determined by the configuration of the

UnifyVehicle mobile radio that you are connected to.

12 WIFI OTAP UnifyVehicle System Manual

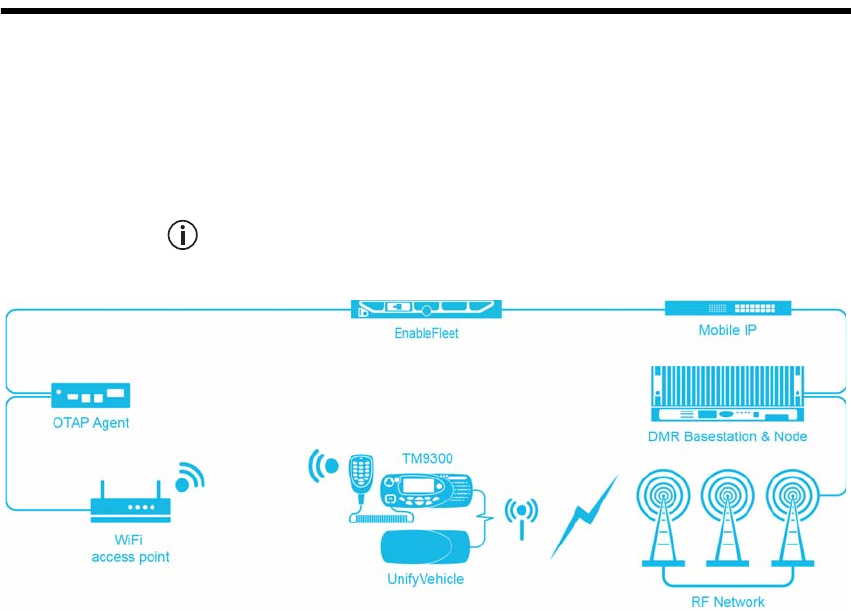

4 WIFI OTAP

UnifyVehicle’s WiFi capability can be used in conjunction with

EnableFleet, to provide OTAP updates over WiFi. WiFi OTAP provides a

fast and effective way of updating the configuration or firmware of the

mobile radio, with no impact on the LMR network.

WiFi OTAP cannot be used to upgrade the UnifyVehicle component of

the mobile radio, or its applications..

4.1 WIFI OTAP Considerations

There are a number scenarios that should be considered with regard to

configuring an EnableFleet system for WiFi OTAP.

WiFi OTAP can be used in conjunction with OTAP over the LMR network,

however using a dual-agent setup with an OTAP Agent dedicated to WiFi

OTAP is highly recommended.

Refer to the “OTAP over WiFi” tecnical note (TN-2634) for further details.

4.2 Configuring WIFI OTAP

Both UnifyVehicle mobile radios and EnableFleet need to be configured

correctly to allow WiFi OTAP.

Refer to the “OTAP over WiFi” tecnical note (TN-2634) for details on how

to configure your UnifyVehicle mobile radio and EnableFleet OTAP

Agent, for WiFi OTAP.

UnifyVehicle System Manual Tait Software License Agreement 13

Tait Software License Agreement

This Software License Agreement ("Agree-

ment") is between you (“Licensee”) and Tait

Limited (“Tait").

By using any of the Software items embedded

and pre-loaded in the related Tait Designated

Product, included on CD, downloaded from the

Tait website, or provided in any other form, you

agree to be bound by the terms of this Agree-

ment. If you do not agree to the terms of this

Agreement, do not install or use any of the Soft-

ware. If you install or use any of the Software,

that will be deemed to be acceptance of the terms

of this Agreement.

For good and valuable consideration, the parties

agree as follows:

Section 1 DEFINITIONS

“Confidential Information”

means all or any

information supplied to or received by Licensee

from Tait, whether before or after installation or

use and whether directly or indirectly pertaining

to the Software and Documentation supplied by

Tait, including without limitation all information

relating to the Designated Products, hardware,

software; copyright, design registrations, trade-

marks; operations, processes, and related busi-

ness affairs of Tait; and including any other

goods or property supplied by Tait to Licensee

pursuant to the terms of this Agreement.

“Designated Products”

means products pro-

vided by Tait to Licensee with which or for which

the Software and Documentation is licensed for

use.

“Documentation”

means product and software

documentation that specifies technical and per-

formance features and capabilities; user, opera-

tion, and training manuals for the Software; and

all physical or electronic media upon which such

information is provided.

“Executable Code”

means Software in a form

that can be run in a computer and typically refers

to machine language, which is comprised of

native instructions the computer carries out in

hardware. Executable code may also refer to pro-

grams written in interpreted languages that

require additional software to actually execute.

“Intellectual Property Rights”

and

“Intellec-

tual Property”

mean the following or their sub-

stantial equivalents or counterparts, recognized

by or through action before any governmental

authority in any jurisdiction throughout the

world and including, but not limited to all rights

in patents, patent applications, inventions, copy-

rights, trademarks, trade secrets, trade names,

and other proprietary rights in or relating to the

Software and Documentation; including any

adaptations, corrections, de-compilations, disas-

semblies, emulations, enhancements fixes, mod-

ifications, translations and updates to or deriva-

tive works from, the Software or Documentation,

whether made by Tait or another party, or any

improvements that result from Tait processes or,

provision of information services.

“Licensee”

means any individual or entity that

has accepted the terms of this License.

“Open Source Software”

means software with

freely obtainable source code and license for

modification, or permission for free distribution.

“Open Source Software License”

means the

terms or conditions under which the Open Source

Software is licensed.

“Person”

means any individual, partnership,

corporation, association, joint stock company,

trust, joint venture, limited liability company,

governmental authority, sole proprietorship, or

other form of legal entity recognized by a gov-

ernmental authority.

“Security Vulnerability”

means any flaw or

weakness in system security procedures, design,

implementation, or internal controls that if exer-

cised (accidentally triggered or intentionally

exploited) could result in a security breach such

that data is compromised, manipulated, or stolen,

or a system is damaged.

“Software”

(i) means proprietary software in

executable code format, and adaptations, transla-

tions, de-compilations, disassemblies, emula-

tions, or derivative works of such software; (ii)

means any modifications, enhancements, new

versions and new releases of the software pro-

vided by Tait; and (iii) may contain one or more

items of software owned by a third-party sup-

plier. The term "Software" does not include any

third-party software provided under separate

license or not licensable under the terms of this

Agreement.

“Source Code”

means software expressed in

human readable language necessary for under-

standing, maintaining, modifying, correcting,

and enhancing any software referred to in this

Agreement and includes all states of that soft-

ware prior to its compilation into an executable

programme.

“Tait”

means Tait Limited and includes its Affil-

iates.

Section 2 SCOPE

This Agreement contains the terms and condi-

tions of the license Tait is providing to Licensee,

and of Licensee’s use of the Software and Docu-

mentation. Tait and Licensee enter into this

Agreement in connection with Tait delivery of

certain proprietary Software and/or products

containing embedded or pre-loaded proprietary

Software.

Section 3 GRANT OF LICENSE

3.1. Subject to the provisions of this Agreement

and the payment of applicable license fees, Tait

grants to Licensee a personal, limited, non-trans-

ferable (except as permitted in Section 7), and

non-exclusive license to use the Software in exe-

cutable code form, and the Documentation,

14 Tait Software License Agreement UnifyVehicle System Manual

solely in connection with Licensee's use of the

Designated Products for the useful life of the

Designated Products. This Agreement does not

grant any rights to source code.

3.2. If the Software licensed under this Agree-

ment contains or is derived from Open Source

Software, the terms and conditions governing the

use of such Open Source Software are in the

Open Source Software Licenses of the copyright

owner and not in this Agreement. If there is a

conflict between the terms and conditions of this

Agreement and the terms and conditions of the

any applicable Open Source Software Licenses,

the terms and conditions of the Open Source

Software Licenses will take precedence. For

information about Open Source Components

contained in Tait products and the related Open

Source licenses, see:

http://support.taitradio.com/go/opensource

Section 4 LIMITATIONS ON USE

4.1. Licensee may use the Software only for

Licensee's internal business purposes and only in

accordance with the Documentation. Any other

use of the Software is strictly prohibited. Without

limiting the general nature of these restrictions,

Licensee will not make the Software available

for use by third parties on a "time sharing,"

"application service provider," "service bureau"

basis, or for any other similar commercial rental

or sharing arrangement.

4.2. Licensee will not, and will not directly or

indirectly allow or enable any third party to: (i)

reverse engineer, disassemble, extract compo-

nents, decompile, reprogram, or otherwise

reduce the Software or any portion thereof to a

human perceptible form or otherwise attempt to

recreate the source code; (ii) modify, adapt, cre-

ate derivative works of, or merge the Software;

(iii) copy, reproduce, distribute, lend, or lease the

Software or Documentation to any third party;

(iv) grant any sublicense or other rights in the

Software or Documentation to any third party;

(v) take any action that would cause the Software

or Documentation to be placed in the public

domain; (vi) remove, or in any way alter or

obscure any copyright notice or other notice of

Tait or third-party licensor’s proprietary rights;

(vii) provide, copy, transmit, disclose, divulge or

make the Software or Documentation available

to, or permit the use of the Software by, any third

party or on any machine except as expressly

authorized by this Agreement; or (viii) use, or

permit the use of, the Software in a manner that

would result in the production of a copy of the

Software by any means whatsoever other than

what is permitted in this Agreement. Licensee

may make one copy of the Software to be used

solely for archival, back-up, or disaster recovery

purposes; provided that Licensee may not oper-

ate that copy of the Software at the same time as

the original Software is being operated. Licensee

may make as many copies of the Documentation

as it may reasonably require for the internal use

of the Software.

4.3. Unless otherwise authorized by Tait in writ-

ing, Licensee will not, and will not enable or

allow any third party to: (i) install a copy of the

Software on more than one unit of a Designated

Product; or (ii) copy or transfer Software

installed on one unit of a Designated Product to

any other device. Licensee may temporarily

transfer Software installed on a Designated Prod-

uct to another device if the Designated Product is

inoperable or malfunctioning. Temporary trans-

fer of the Software to another device must be dis-

continued when the original Designated Product

is returned to operation and the Software must be

removed from the other device.

4.4. Licensee will maintain, during the term of

this Agreement and for a period of two years

thereafter, accurate records relating to this

license grant to verify compliance with this

Agreement. Tait, or a third party nominated by

Tait, may inspect Licensee’s premises, books and

records, upon reasonable prior notice to

Licensee, during Licensee’s normal business

hours and subject to Licensee's facility and secu-

rity regulations. Tait is responsible for the pay-

ment of all expenses and costs of the inspection,

provided that Licensee shall indemnify Tait for

all costs (including audit costs and legal costs on

a solicitor client basis) if Licensee has breached

the terms of this Agreement. Any information

obtained by Tait during the course of the inspec-

tion will be kept in strict confidence by Tait and

used solely for the purpose of verifying

Licensee's compliance with the terms of this

Agreement.

Section 5 OWNERSHIP AND TITLE

Tait, its licensors, and its suppliers retain all of

their Intellectual Property Rights in and to the

Software and Documentation, in any form. No

rights are granted to Licensee under this Agree-

ment by implication, estoppel or otherwise,

except for those rights which are expressly

granted to Licensee in this Agreement. All Intel-

lectual Property developed, originated, or pre-

pared by Tait in connection with providing the

Software, Designated Products, Documentation,

or related services, remains vested exclusively in

Tait, and Licensee will not have any shared

development or other Intellectual Property

Rights.

Section 6 LIMITED WARRANTY;

DISCLAIMER OF WARRANTY

6.1. The commencement date and the term of the

Software warranty will be a period of one (1)

year from Tait shipment of the Software. If

Licensee is not in breach of any obligations under

this Agreement, Tait warrants that the unmodi-

fied Software, when used properly and in accor-

dance with the Documentation and this Agree-

ment, will be free from a reproducible defect that

eliminates the functionality or successful opera-

tion of a feature critical to the primary function-

ality or successful operation of the Software.

Whether a defect has occurred will be deter-

mined solely by Tait. Tait does not warrant that

Licensee’s use of the Software or the Designated

Products will be uninterrupted, error-free, com-

pletely free of Security Vulnerabilities, or that the

Software or the Designated Products will meet

Licensee’s particular requirements. Tait makes

UnifyVehicle System Manual Tait Software License Agreement 15

no representations or warranties with respect to

any third-party software included in the Soft-

ware.

6.2 Tait sole obligation to Licensee, and

Licensee’s exclusive remedy under this warranty,

is to use reasonable efforts to remedy any mate-

rial Software defect covered by this warranty.

These efforts will involve either replacing the

media or attempting to correct significant,

demonstrable program or documentation errors

or Security Vulnerabilities. If Tait cannot correct

the defect within a reasonable time, then at Tait

option, Tait will replace the defective Software

with functionally equivalent Software, license to

Licensee substitute Software which will accom-

plish the same objective, or terminate the license

and refund Licensee’s paid license fee. If Tait

investigation of the perceived defect reveals that

no such defect in fact exists, Tait may recover its

costs in respect of such investigation from

Licensee.

6.3. Tait disclaims any and all other warranties

relating to the Software or Documentation other

than the express warranties set forth in this Sec-

tion 6. Warranties in Section 6 are in lieu of all

other warranties whether express or implied, oral

or written, and including without limitation any

and all implied warranties of condition, title,

non-infringement, merchantability, or fitness for

a particular purpose or use by Licensee (whether

Tait knows, has reason to know, has been advised

of, or is otherwise aware of any such purpose or

use), whether arising by law, by reason of custom

or usage of trade, or by course of dealing. In addi-

tion, Tait disclaims any warranty to any person

other than Licensee with respect to the Software

or Documentation.

Section 7 TRANSFERS

7.1. Licensee will not transfer the Software or

Documentation to any third party without spe-

cific prior written consent from Tait. Tait may

withhold such consent or at its own discretion

make the consent conditional upon the transferee

paying applicable license fees and agreeing to be

bound by this Agreement.

7.2. In the case of a value-added reseller or dis-

tributor of Tait Designated Products, the consent

referred to in Section 7.1 may be contained in a

Tait Reseller or Tait Distributor Agreement.

7.3. If the Designated Products are Tait vehicle-

mounted mobile products or hand-carried porta-

ble radio products and Licensee transfers owner-

ship of the Tait mobile or portable radio products

to a third party, Licensee may assign its right to

use the Software which is embedded in or fur-

nished for use with the radio products and the

related Documentation; provided that Licensee

transfers all copies of the Software and Docu-

mentation to the transferee.

7.4. For the avoidance of any doubt, Section 7.3

excludes TaitNet Infrastructure, or the products

listed at any time under network products at:

http://www.taitradio.com.

7.5. If Licensee, as a contractor or subcontractor

(integrator), is purchasing Tait Designated Prod-

ucts and licensing Software not for its own inter-

nal use but for end use only by a Customer, the

Licensee may transfer such Software, but only if

a) Licensee transfers all copies of such Software

and the related Documentation to the transferee

and b) Licensee has first obtained from its Cus-

tomer (and, if Licensee is acting as a subcontrac-

tor, from the interim transferee(s) and from the

ultimate end user sub license) an enforceable

sublicense agreement that prohibits any other

transfer and that contains restrictions substan-

tially identical to the terms set forth in this Soft-

ware License Agreement. Except as stated in the

foregoing, Licensee and any transferee(s) autho-

rised by this Section may not otherwise transfer

or make available any Tait Software to any third

party nor permit any party to do so. Licensee

will, on request, make available evidence reason-

ably satisfactory to Tait demonstrating compli-

ance with all the foregoing.

Section 8 TERM AND TERMINATION

8.1. Licensee’s right to use the Software and

Documentation will commence when the Desig-

nated Products are supplied by Tait to Licensee

and will continue for the life of the Designated

Products with which or for which the Software

and Documentation are supplied, unless

Licensee breaches this Agreement, in which case

this Agreement and Licensee's right to use the

Software and Documentation may be terminated

immediately upon notice by Tait.

8.2. Within thirty (30) days after termination of

this Agreement, Licensee must certify in writing

to Tait that all copies of the Software have been

removed or deleted from the Designated Prod-

ucts and that all copies of the Software and Doc-

umentation have been returned to Tait or

destroyed by Licensee and are no longer in use

by Licensee.

8.3. Licensee acknowledges that Tait made a

considerable investment of resources in the

development, marketing, and distribution of the

Software and Documentation and that Licensee's

breach of this Agreement will result in irrepara-

ble harm to Tait for which monetary damages

would be inadequate. If Licensee breaches this

Agreement, Tait may terminate this Agreement

and be entitled to all available remedies at law or

in equity including immediate injunctive relief

and repossession of all non-embedded Software

and associated Documentation. Licensee shall

pay all Tait costs (on an indemnity basis) for the

enforcement of the terms of this Agreement.

Section 9 CONFIDENTIALITY

Licensee acknowledges that the Software and

Documentation contain proprietary and Confi-

dential Information valuable to Tait and are Tait

trade secrets, and Licensee agrees to respect the

confidentiality of the information contained in

the Software and Documentation.

Section 10 LIMITATION OF LIABILITY

10.1. In no circumstances shall Tait be under any

liability to Licensee, or any other person whatso-

ever, whether in Tort (including negligence),

Contract (except as expressly provided in this

Agreement), Equity, under any Statute, or other-

wise at law for any losses or damages whether

general, special, exemplary, punitive, direct,

16 Tait Software License Agreement UnifyVehicle System Manual

indirect, or consequential arising out of or in con-

nection with any use or inability of using the

Software.

10.2. Licensee’s sole remedy against Tait will be

limited to breach of contract and Tait sole and

total liability for any such claim shall be limited

at the option of Tait to the repair or replacement

of the Software or the refund of the purchase

price of the Software.

Section 11 GENERAL

11.1. COPYRIGHT NOTICES. The existence of

a copyright notice on the Software will not be

construed as an admission or presumption of

publication of the Software or public disclosure

of any trade secrets associated with the Software.

11.2. COMPLIANCE WITH LAWS. Licensee

acknowledges that the Software may be subject

to the laws and regulations of the jurisdiction

covering the supply of the Designated Products

and will comply with all applicable laws and reg-

ulations, including export laws and regulations,

of that country.

11.3. ASSIGNMENTS AND SUBCONTRACT-

ING. Tait may assign its rights or subcontract its

obligations under this Agreement, or encumber

or sell its rights in any Software, without prior

notice to, or consent of, Licensee.

11.4. GOVERNING LAW. This Agreement shall

be subject to and construed in accordance with

New Zealand law and disputes between the par-

ties concerning the provisions hereof shall be

determined by the New Zealand Courts of Law.

Provided however Tait may at its election bring

proceedings for breach of the terms hereof or for

the enforcement of any judgment in relation to a

breach of the terms hereof in any jurisdiction Tait

considers fit for the purpose of ensuring compli-

ance with the terms hereof or obtaining relief for

breach of the terms hereof.

11.5. THIRD-PARTY BENEFICIARIES. This

Agreement is entered into solely for the benefit

of Tait and Licensee. No third party has the right

to make any claim or assert any right under this

Agreement, and no third party is deemed a bene-

ficiary of this Agreement. Notwithstanding the

foregoing, any licensor or supplier of third-party

software included in the Software will be a direct

and intended third-party beneficiary of this

Agreement.

11.6. SURVIVAL. Sections 4, 5, 6.3, 7, 8, 9, 10,

and 11 survive the termination of this Agree-

ment.

11.7. ORDER OF PRECEDENCE. In the event

of inconsistencies between this Agreement and

any other Agreement between the parties, the

parties agree that, with respect to the specific

subject matter of this Agreement, this Agreement

prevails.

11.8. SECURITY. Tait uses reasonable means in

the design and writing of its own Software and

the acquisition of third-party Software in order to

limit Security Vulnerabilities. While no software

can be guaranteed to be free from Security Vul-

nerabilities, if a Security Vulnerability is discov-

ered, Tait will take the steps specified in Section

6 of this Agreement.

11.9. EXPORT. Licensee will not transfer,

directly or indirectly, any Designated Product,

Documentation or Software furnished hereunder

or the direct product of such Documentation or

Software to any country for which New Zealand

or any other applicable country requires an

export license or other governmental approval

without first obtaining such license or approval.

11.10. SEVERABILITY. In the event that any

part or parts of this Agreement shall be held ille-

gal or null and void by any court or administra-

tive body of competent jurisdiction, such deter-

mination shall not affect the remaining terms

which shall remain in full force and effect as if

such part or parts held to be illegal or void had

not been included in this Agreement. Tait may

replace the invalid or unenforceable provision

with a valid and enforceable provision that

achieves the original intent and economic effect

of this Agreement.

11.11. CONSUMER GUARANTEES. Licensee

acknowledges that the licenses supplied in terms

of this agreement are supplied to Licensee in

business, and that the guarantees and other provi-

sions of prevailing consumer protection legisla-

tion shall not apply.

11.12. WHOLE AGREEMENT. Licensee

acknowledges that it has read this Agreement,

understands it and agrees to be bound by its terms

and conditions. Licensee also agrees that, subject

only to the express terms of any other agreement

between Tait and Licensee to the contrary, this is

the complete and exclusive statement of the

Agreement between it and Tait in relation to the

Software. This Agreement supersedes any pro-

posal or prior agreement, oral or written, and any

other communications between Licensee and

Tait relating to the Software and the Designated

Products.

Tait TMBM1A Digital Transmission System User Manual UnifyVehicle Remote User s Guide

Tait Limited Digital Transmission System UnifyVehicle Remote User s Guide

Exhibit D Users Manual per 2 1033 b3

Navigation menu

Namespaces

Views

Navigation
