USER MANUAL
ENG OWNER’S MANUAL
Keep these instructions for future reference
as they contain important information. x-c-v-b,n-m
638A507-01
A507OCTSPINNR638A507-01 2005.06.15, 14:52Page 3 Adobe PageMaker 6.5/PPC
2
q
w
qq
qq
q
ww
ww
w
ee
ee
e
qq
qq
q
ww
ww
wee
ee
e
AB ED
C
qq
qq
q
ww
ww
w
rr
rr
r
tt
tt
t
yy
yy
y
ENG
OWNER’S MANUAL
Keep these instructions for future reference
as they contain important information. x-c-v-b,n-m
638A507-01
A507OCTSPINNR638A507-01 2005.06.15, 16:07Page 2 Adobe PageMaker 6.5/PPC
3
q
wqq
qq
qww
ww
w
ee
ee
e
qq
qq
qww
ww
wee
ee
e
A507OCTSPINNR638A507-01 2005.06.15, 16:07Page 3 Adobe PageMaker 6.5/PPC
4
ww
ww
w
qq
qq
q
ee
ee
err
rr
r
yy
yy
y
tt
tt
t
ii
ii
i
uu
uu
u
A507OCTSPINNR638A507-01 2005.06.15, 16:08Page 4 Adobe PageMaker 6.5/PPC
5
qw
er
qq
qq
qee
ee
e
A507OCTSPINNR638A507-01 2005.06.15, 16:08Page 5 Adobe PageMaker 6.5/PPC
ENG
6
Please check the headings I - V with the
diagrams in pages 2, 3, 4, 5.

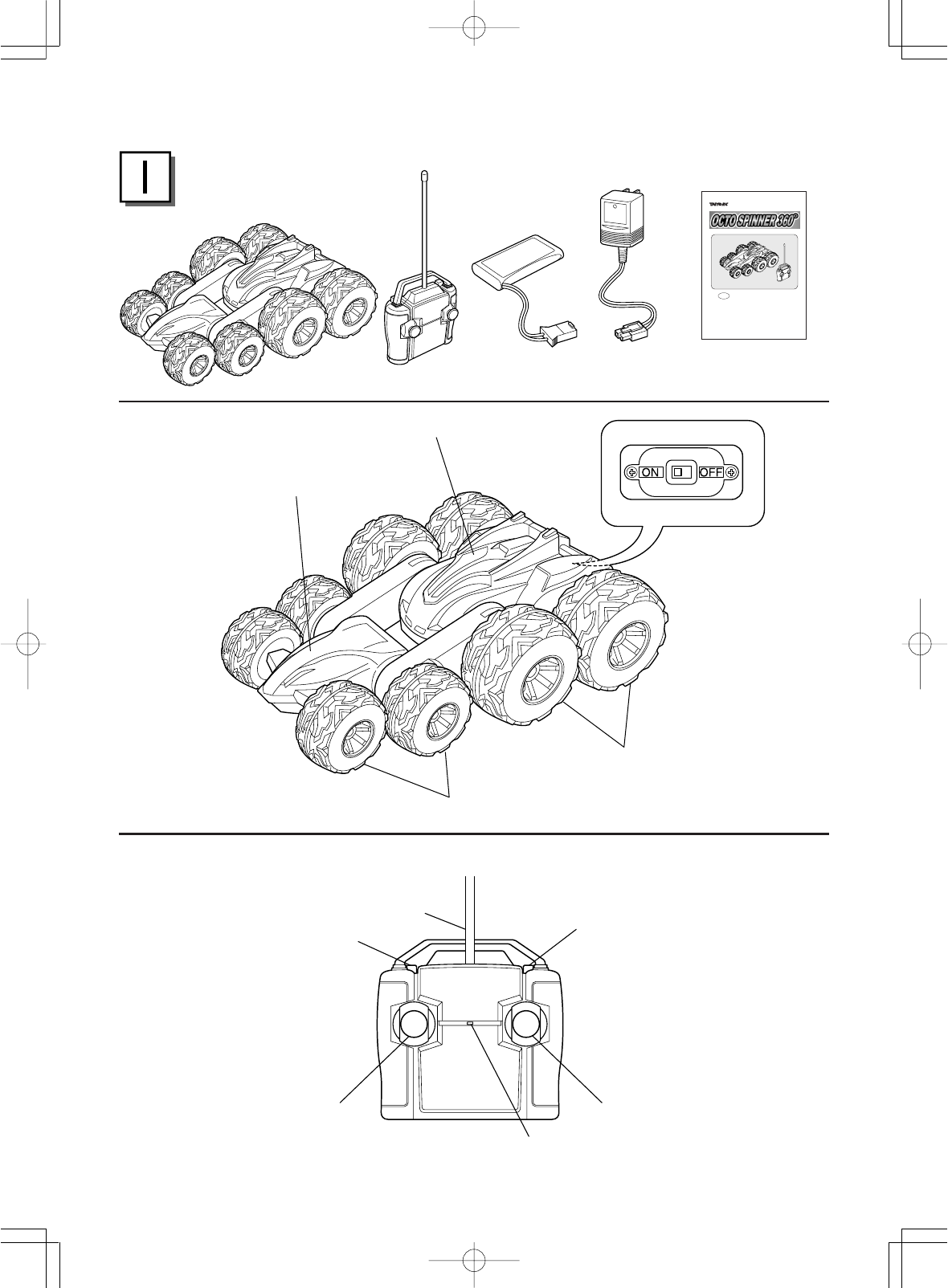

I. CONTENTS & FEATURES
This kit includes:
A. Octo Spinner 360°
B. Transmitter
C. 9.6V battery pack
D. Battery charger
E. Manual
qOcto Spinner 360°
(Side View)
qBody
wWheel
eOn/Off Switch
wTransmitter
qTransmitter Antenna
wControl Stick for Left Side Wheel
eControl Stick for Right Side Wheel
rUp Button
tDown Button
yPower Indicator
There is no on/off switch on Transmitter.
Moving the sticks turns it on automati-
cally.

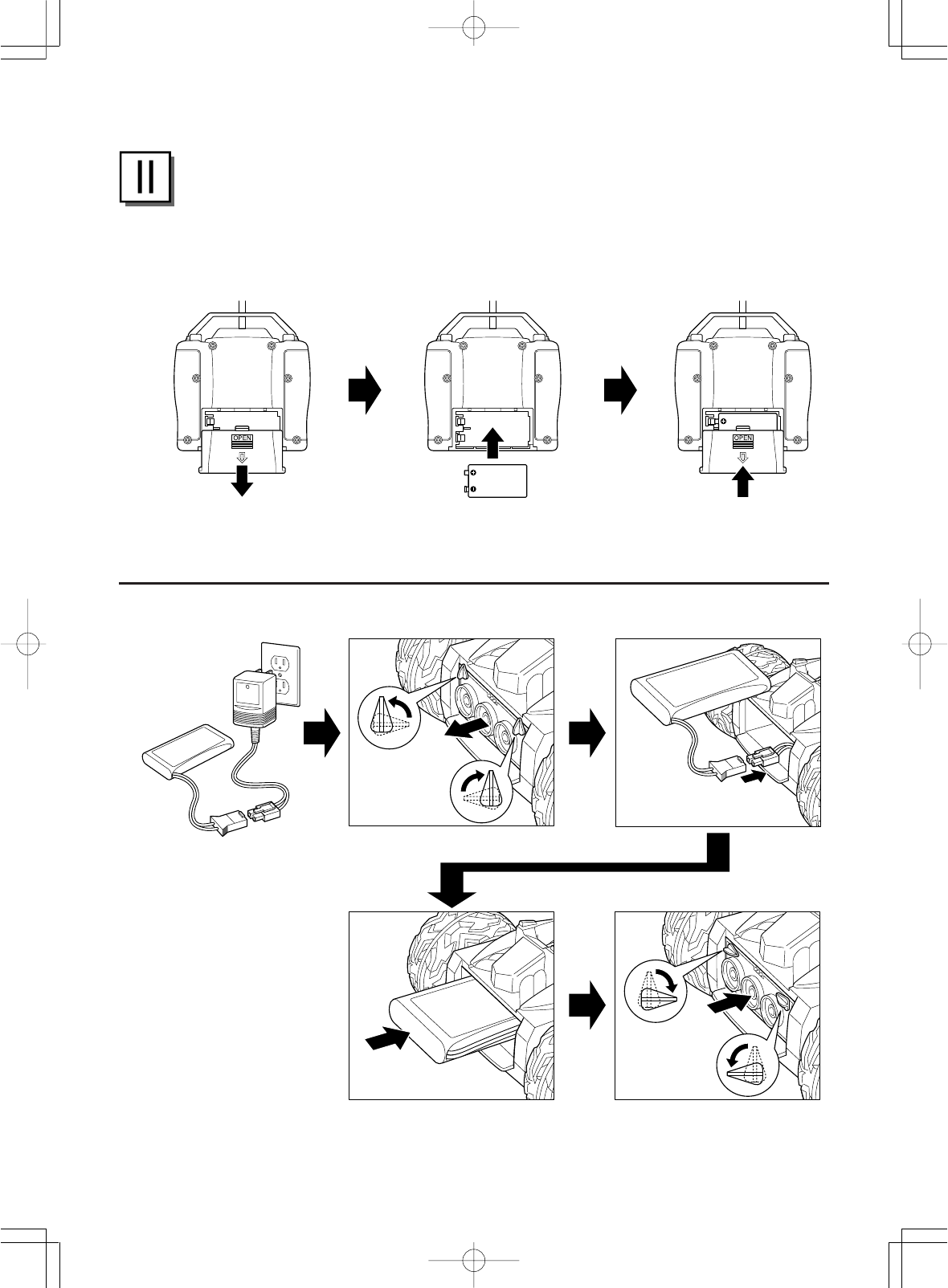

II. BATTERY INSTALLATION
qTransmitter
To remove, reverse the installation pro-
cedure
qSlide open the battery door in the direc-
tion as shown in the figure, while lightly
pressing its center.
wInsert a 9V (006P) battery with the polari-
ty (+/-) as shown on the bottom of battery
compartment.
eReplace battery door, following the remov-
al procedure in reverse.
w Octo Spinner 360°
This product should be used with adult
supervision.
Fully charge 9.6V battery pack in advance of
your use
qTurn the latches on vehicle battery door to
unlock and open.
wInsert 9.6V battery pack into battery com-
partment with correct polarity (+/-).
eClose battery door, turn the latches to lock.

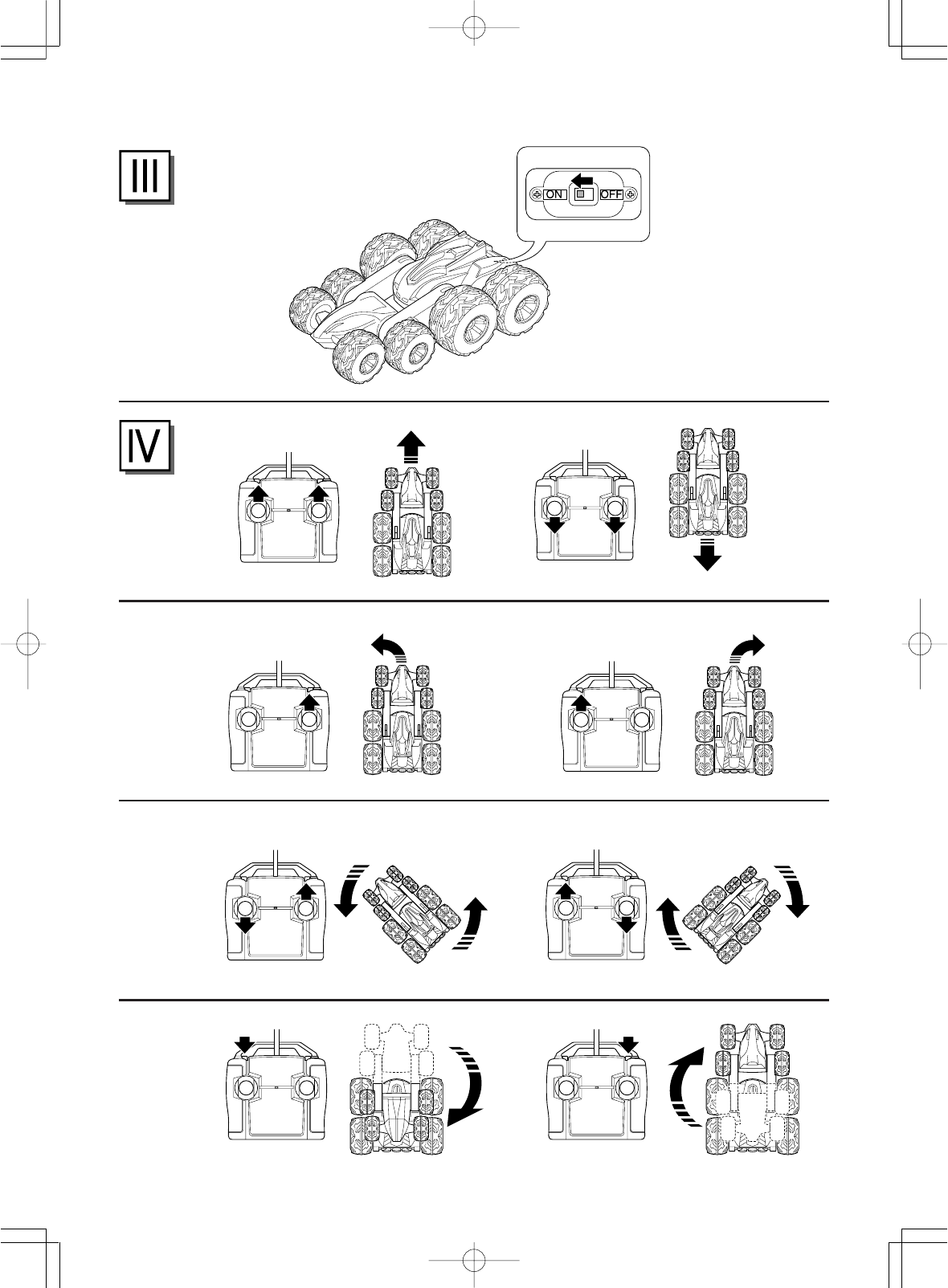

III. BEFORE OPERATION
Turn vehicle power on.
On/Off Switch is on the rear of the vehi-
cle.
IV. THROTTLE CONTROLS
qFORWARD (Push both sticks forward.)
wREVERSE THRUST (Pull both sticks
back.)
eLEFT TURN (FORWARD) (Push right
stick forward.)
rRIGHT TURN (FORWARD) (Push left
stick forward.)
tLEFT SPIN (At the same time, pull left stick
back and push right stick forward.)
yRIGHT SPIN (At the same time, pull right
stick back and push left stick forward.)
uFolding (Press the Up button.)
iUnfolding (Press the Down button.)

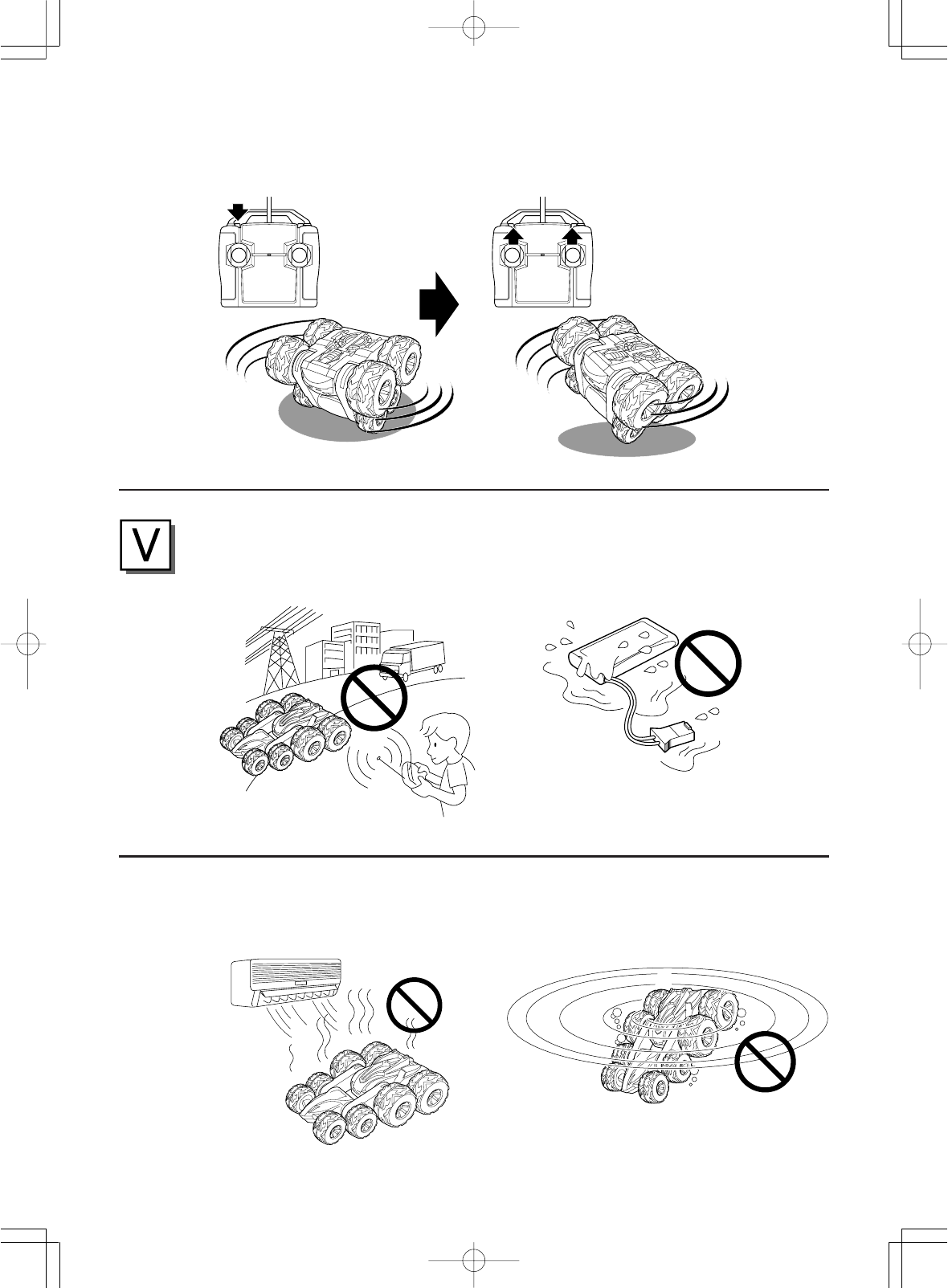

ONE-WHEEL SPINNING
The vehicle spins on either of its front wheels
like a top.
q Push the Up button to fold the vehicle's
body.
w The vehicle starts spinning (i.e., spin turn-
ing) with the small-wheel side down.
e When the vehicle is spinning, push both
sticks of the transmitter forward (both sides
forward) at the same time.
r The vehicle starts one-wheel spinning.
V. CAUTIONS DURING PLAYING
WITH VEHICLE
qDo not drive your vehicle on streets or in a
crowded place.
wWhen 9.6V battery pack gets wet, dry com-
pletely to store.
eDo not store the vehicle in a place near a
heater or like where temperature rises.
After use, remove the batteries from trans-
mitter and vehicle to store.
rThis vehicle is not water-proofed. Immers-
ing it into water may lead to a malfunc-
tion. Dry vehicle well after operating on
water.
BATTERY SAFETY INFORMATION
Batteries may leak fluids that can cause a
chemical burn injury or ruin your toy (prod-
uct). To avoid battery leakage:
• Insert batteries as indicated inside the bat-
tery compartment.
• Remove batteries during long periods of
non-use. Always remove exhausted batter-
ies from the toy (product). Dispose batter-
ies safely.
• Do not dispose the batteries in a fire. They
may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equiva-
lent type, as recommended.
• Do not charge non-rechargeable batteries.
• If removable, rechargeable batteries are
used in the Octo Spinner 360° and/or trans-
mitter, they are only to be charged under
adult supervision.
IMPORTANT INFORMATION
• DO NOT RECHARGE THE BATTERY IF IT
FEELS HOT. ALLOW IT TO COOL BE-
FORE RECHARGING.
• NOT ATTEMPT TO USE OR CHARGE THE
BATTERY IF IT SHOWS SIGNS OF LEAK-
AGE OR CORROSION.
• DO NOT DISASSEMBLE THE BATTERY.
• IF THE OCTO SPINNER 360° BATTERY
AND TRANSMITTER ARE WET, THOR-
OUGHLY DRY BEFORE USING OR
CHARGING.
• REGULARLY EXAMINE ALL WIRES AND
CONNECTORS. IN THE EVENT OF DAM-
AGE, DO NOT USE.
Important:
• If driving time becomes shorter or wheels
do not turn with full power, the capacity of
the 9.6V battery pack are insufficient. (Pow-
er LED light becomes dimmer as batteries
wear.) It is the tell-tale sign you need to re-
place the 9.6V battery pack.
• Be sure to recharge the Octo Spinner 360°
just before driving it. If you do not play with
the Octo Spinner 360° immediately after re-
charging, the charge is drained and the Octo
Spinner 360° cannot drive.
• When the battery temperature gets too high,
the circuit shuts off automatically to protect
the receiver circuit and the battery in the
•Octo Spinner 360°. In such a case, wait until
A507OCTSPINNR638A507-01 2005.06.15, 16:08Page 6 Adobe PageMaker 6.5/PPC
ENG
7
TROUBLESHOOTING GUIDE
Make sure the vehicle power is on.
Make sure the batteries in transmitter
and vehicle have sufficient charge.
Check if the batteries in transmitter
and vehicle are inserted with correct
polarity.
Check if the distance between trans-
mitter and vehicle will not exceed
more than 65’/20m.
Two or more vehicles of the same fre-
quency will interference with each oth-
er. In such a case, move to another
place or try after a while.
NOTE:
The manufacturer is not responsible
for any radio or TV interference
caused by unauthorized modifications
to this equipment. Such modifications
could void the user's authority to op-
erate the equipment.
the battery cools down before recharging
or playing with the Octo Spinner 360°.
•If the rechargeable battery is repeatedly
charged without being sufficiently dis-
charged first, the capacity will gradually de-
crease (memory effect of battery). This is a
characteristic of rechargeable batteries. Be
sure to start recharging after operating the
vehicle until they nearly stop.
VI. SAFETY INFORMATION
Adults, this toy is recommended for children
8 years of age and older. To ensure that the
child's play is both safe and fun, please re-
view the operating instructions and these
general safety rules with the child.
•Keep fingers, hair and loose clothing away
from the wheels while the Octo Spinner 360°
is switched ON.
•Adult supervision is recommended when the
Octo Spinner 360° is being operated.
•To avoid accidental operation, remove the
removable battery when not in use.
•If the Octo Spinner 360° and/or transmitter
get wet, discontinue to use until they are
completely dry.
Thoroughly wipe off all moisture and allow
them to air-dry completely before use.
•DO NOT drive in the street! Make sure you
have plenty of open space in all directions
(please see Section V).
•Regularly inspect the antenna for cracks or
breaks. Do NOT bend the transmitter an-
tenna. DO NOT use the transmitter if the
antenna is broken.
A507OCTSPINNR638A507-01 2005.06.15, 16:08Page 7 Adobe PageMaker 6.5/PPC
TAIYO R/C 90 DAYS LIMITED WARRANTY : This product is thoroughly tested and inspected before shipment and is guaranteed to be free from factory defects in material and workmanship for a period of 90 days from the
date of purchase. Taiyo Toys Inc. will repair or replace any defective part or unit free of charge during this period. This warranty is valid provided the product has been operated in accordance with the instructions and proof
of purchase is furnished. This warranty does not apply to worn or defective batteries, or to items which have been damaged or abused by the consumer. This warranty gives you specific legal rights and is in addition to and
does not diminish your statutory or other legal rights. IMPORTANT: Please return your product in its original package and keep a record of what you return.
