Taizhou Heystar Electronic Technology HS-ZSD RF Remote Controller User Manual
Taizhou Heystar Electronic Technology Co., Ltd RF Remote Controller
User Manual
HS-ZSD14-RF01 instruction book
1、Features
.Complete UHF transmitter
.Frequency range 433.920MHz
.Data eates to 10kbps ASK
.Output power to 10dBm
.Low external part count
.Low voltage operation (down to 1.8V)
.Operate with crystals or ceramic resonators
.Power down modes and wake-up functions to reduce power consumption
2、Product specifications:
1. Size: 85 * 40 * 7 mm,
2. Working voltage: DC 3V
3. The maximum working current: 20 mA
4. Remote control frequency: 433.920 M/remote control distance of 20 meters
5. Encoding: fixed yards
3、Product application:
The HS - ZSD14 - RF01 applicable to control LED light bar. After light boxes,
billboards, LED light source control, equipped with wireless remote control... And
so on.
4、Electrical Characteristics
Specifications apply for VDD =3.0V, TA=25
℃
, FreqREFOSC=13.650MHz,EN=VDD.Bold
Values indicate-40
℃
to 85
℃
unless otherwise noted.1kbps data rate 50% duty
cycle.RL 50
ohm load (matched)
。
5、Function, mode and operating instructions
1, the remote control as shown in the figure below, key distribution and function;
SPEED
MODE
ON/OFF

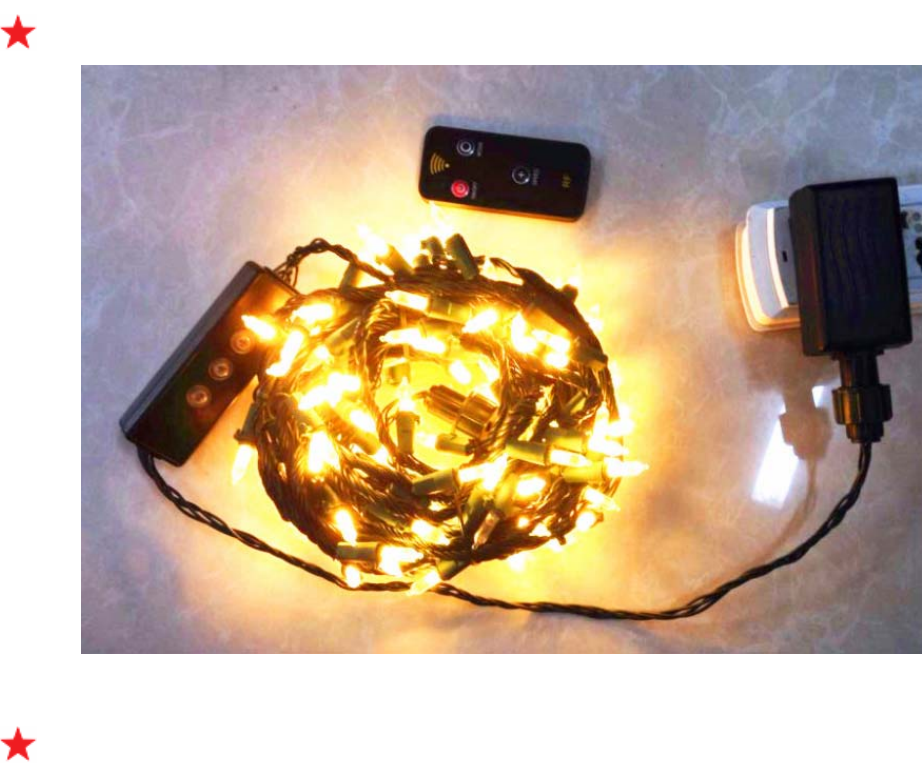

6、Connection diagram：
7、FCC Statement
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions (1)this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation
