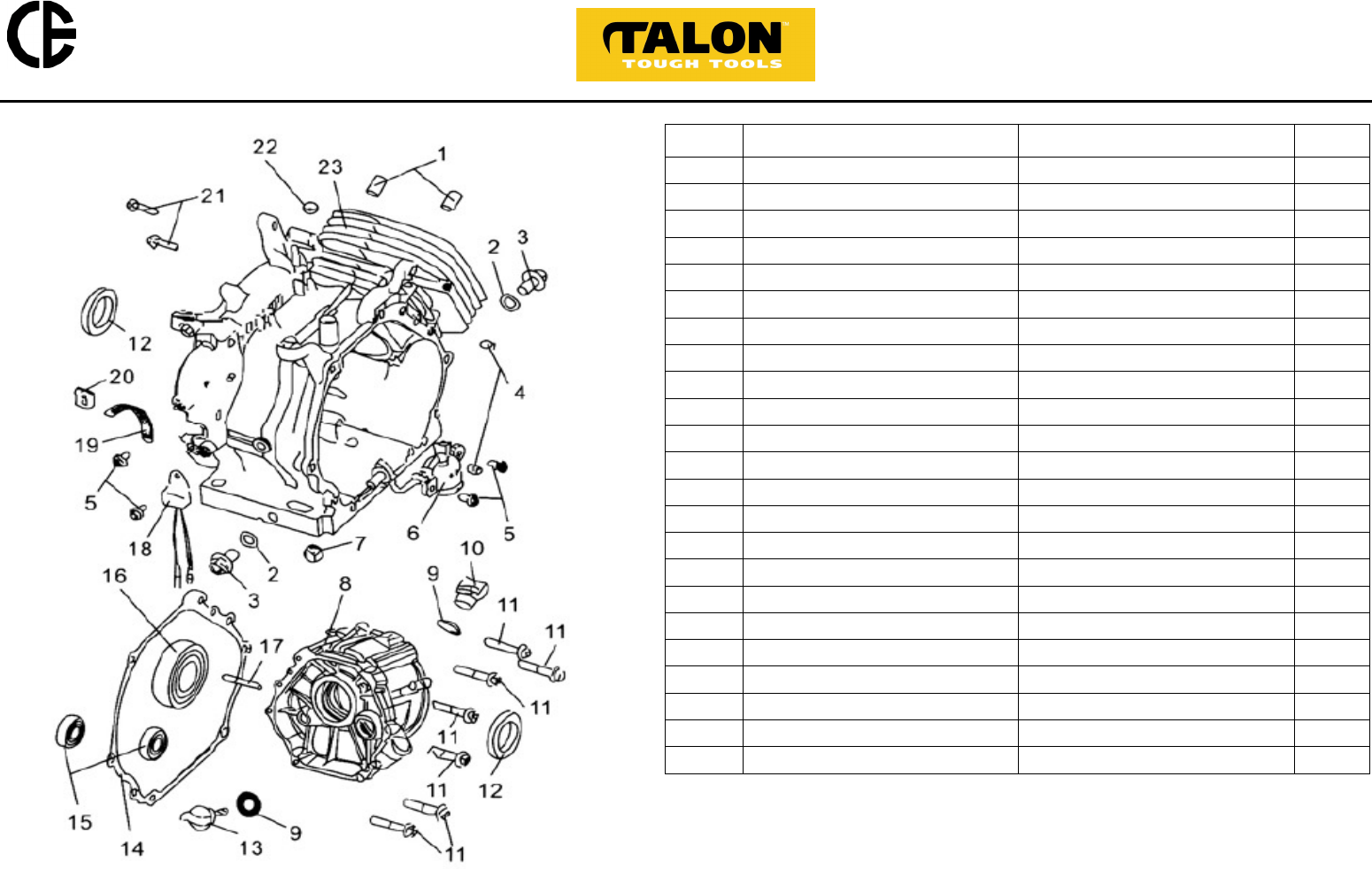

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 1 of 20

# PART # DESCRIPTION QTY

1 TL182QDP.01-11 Pin, Head 2

2 TL157.5-10 Gasket, Oil Plug 2

3 TL157.5-9 Bolt, Drain 2

4 TL150FMG.5-8 Dowel Pin 2

5 TLGB5787-M6X12 Bolt M6 x M12 (GB5787-86) 4

6 TL182QDP.01.04 Sensor Assy, Fuel Level 1

7 157-1-6-13 Nut 1

8 TL182QDP.01-01 Cover, Crankcase 1

9 TL168QDJ.01-05 Seal Washer 2

10 TL168QDJ.01-03 Plug, Oil 1

11 TLGB5787-M8X40 Bolt M8 x M40 (GB5787-86) 7

12 TL182QDP.01.01 Oil Seal 52 x 34 x 8 2

13 TL168QDJ.01-04 Oil Level Dipstick 1

14 TL182QDP.01-03 Gasket, Crankcase 1

15 TLGB/T27694 Bearing 6202, 15 x 35 x 11 2

16 TLGB/T276-94 Bearing 6207 35x 72 x 17 1

17 TL182QDP.01-10 Pin 1

18 TL182QDP.01-05 Electronic Switch 1

19 TL182QDP.01-09 Clip, Cord 1

20 TL182QDP.01-08 Rubber Seal Gasket 1

21 TLGB5787-M6X25 Bolt M6 x M25 (GB5787-86) 2

22 TL182QDP.01-03 Oil Seal 1

23 TL188FPH.01.01 Crankcase Assembly 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 2 of 20

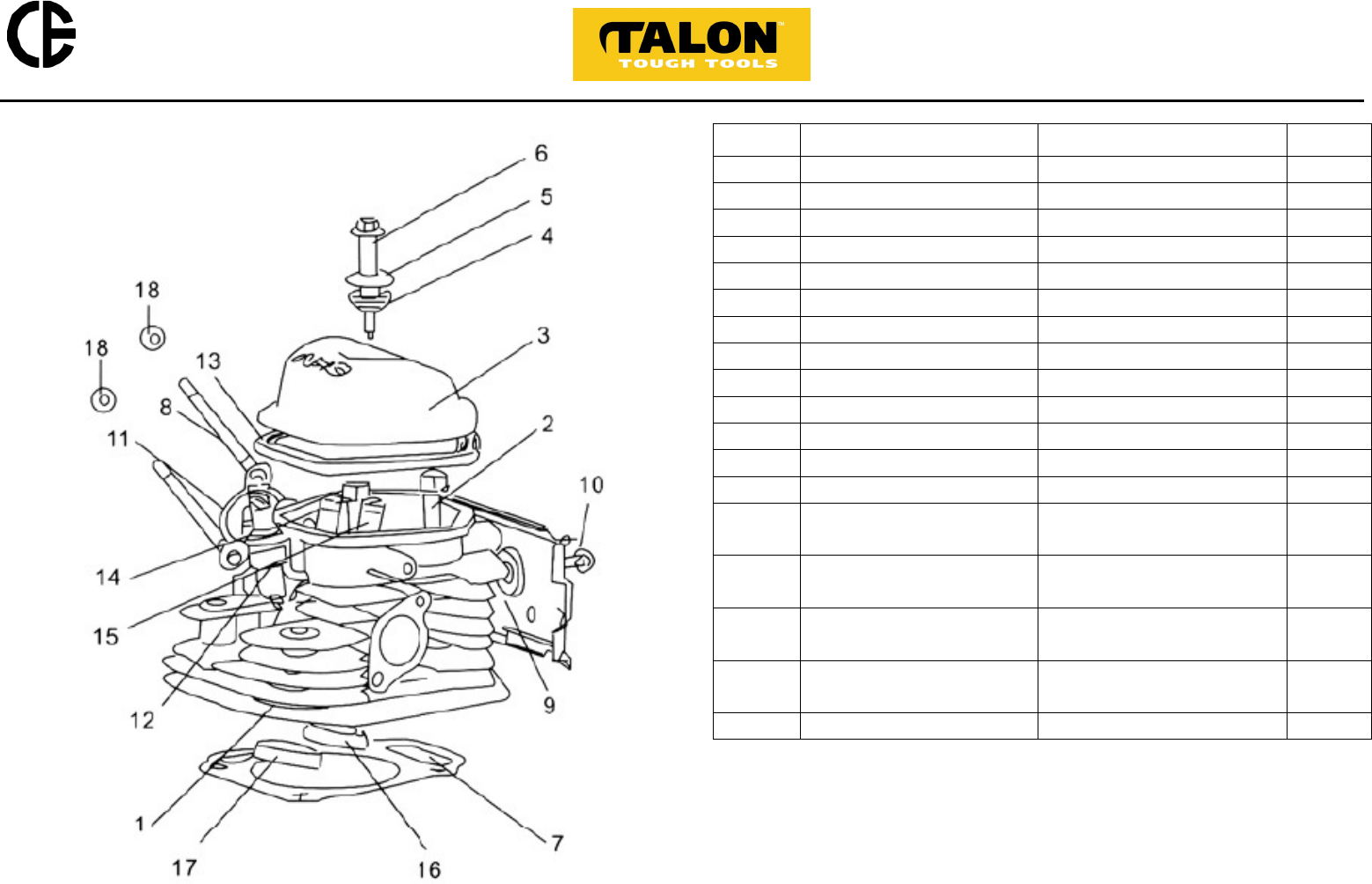

# PART # DESCRIPTION QTY

1 TL188FPP.02.01 Cylinder Head Assembly 1

2 TL182QDP.02-01 Bolt, Cylinder Head 4

3 TL182QDP.02.02 Cylinder Head Cover 1

4 TL182QDP.02-03 Spacer, Seal 1

5 TL182QDP.02-04 Clamp 1

6 TL182QDP.02-02 Bolt 1

7 TL188FPH.02.02 Gasket, Cylinder Head 1

8 TL182QDP.02-05 Bolt, Intake Pipe 2

9 TL182QDP.02-06 Cowling 1

10 TLGB5787-M6X12 Bolt M6x12 (GB5787-88) 1

11 TL182QDP.02-07 Spacer, Intake Pipe 1

12 TL182QDP.02.04 Spark Plug 1

13 TL182QDP.020202 Washer (.02.02-02) 1

14 TL182QDP.020105 Canal, Intake Valve

(.02.01-05) 1

15 TL182QDP.020103 Canal, Exhaust Valve

(.02.01-03) 1

16 TL182QDP.020104 Ring, Exhaust Valve

(.02.01-04) 1

17 TL182QDP.020104 Ring, Intake Valve (.02.01-

04) 1

18 TLGB/T6177-M6 Nut M6 (GB/T6177-2000) 2

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 3 of 20

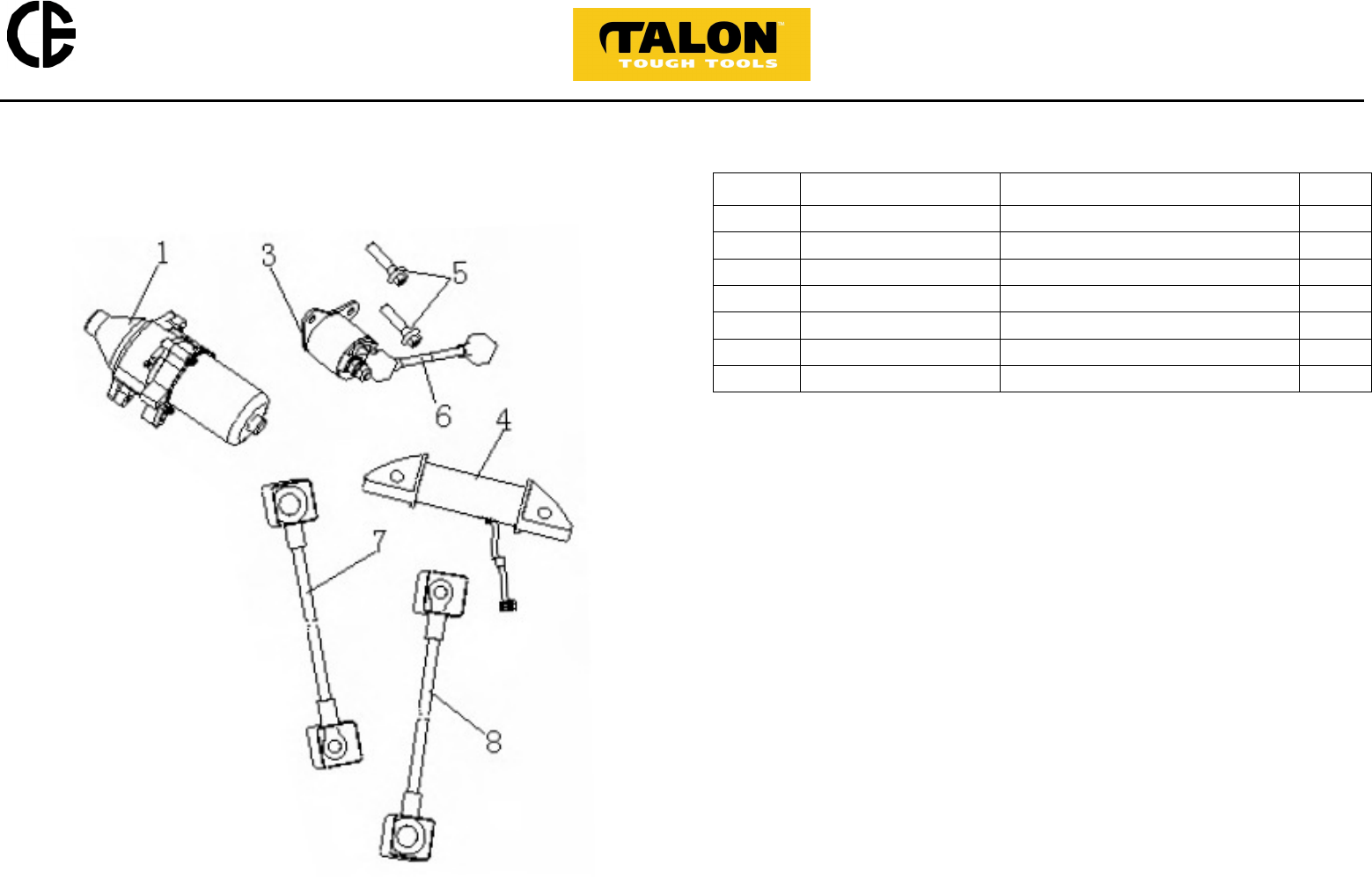

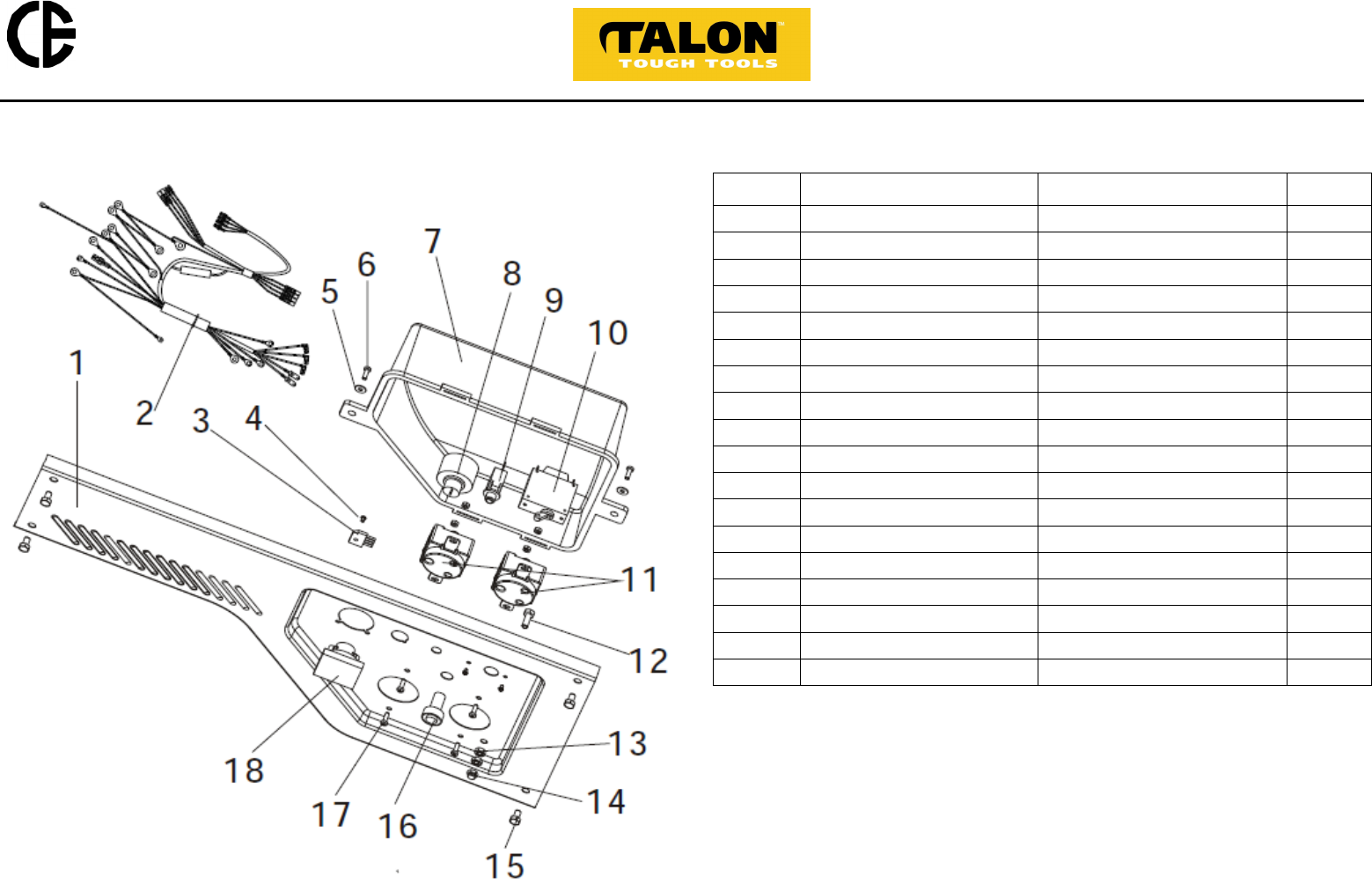

# PART # DESCRIPTION QTY

1 TL182FPH-30301 Starter Motor (-3.03.01) 1

3 TL188FPH.06.02 Relay Component 1

4 TL182FPH-30202 Charge Wind Component

(-3.02.02)

1

5 TLGB5787-M5X12 Bolt M5x12 (GB/T5787-1986) 1

6 TL188FPH.060201 Relay Wire (.06.02.01) 1

7 TL188FPH.060301 Red Wire (.06.03.01) 1

8 TL188FPH.060302 Black Wire (.06.03.02) 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 4 of 20

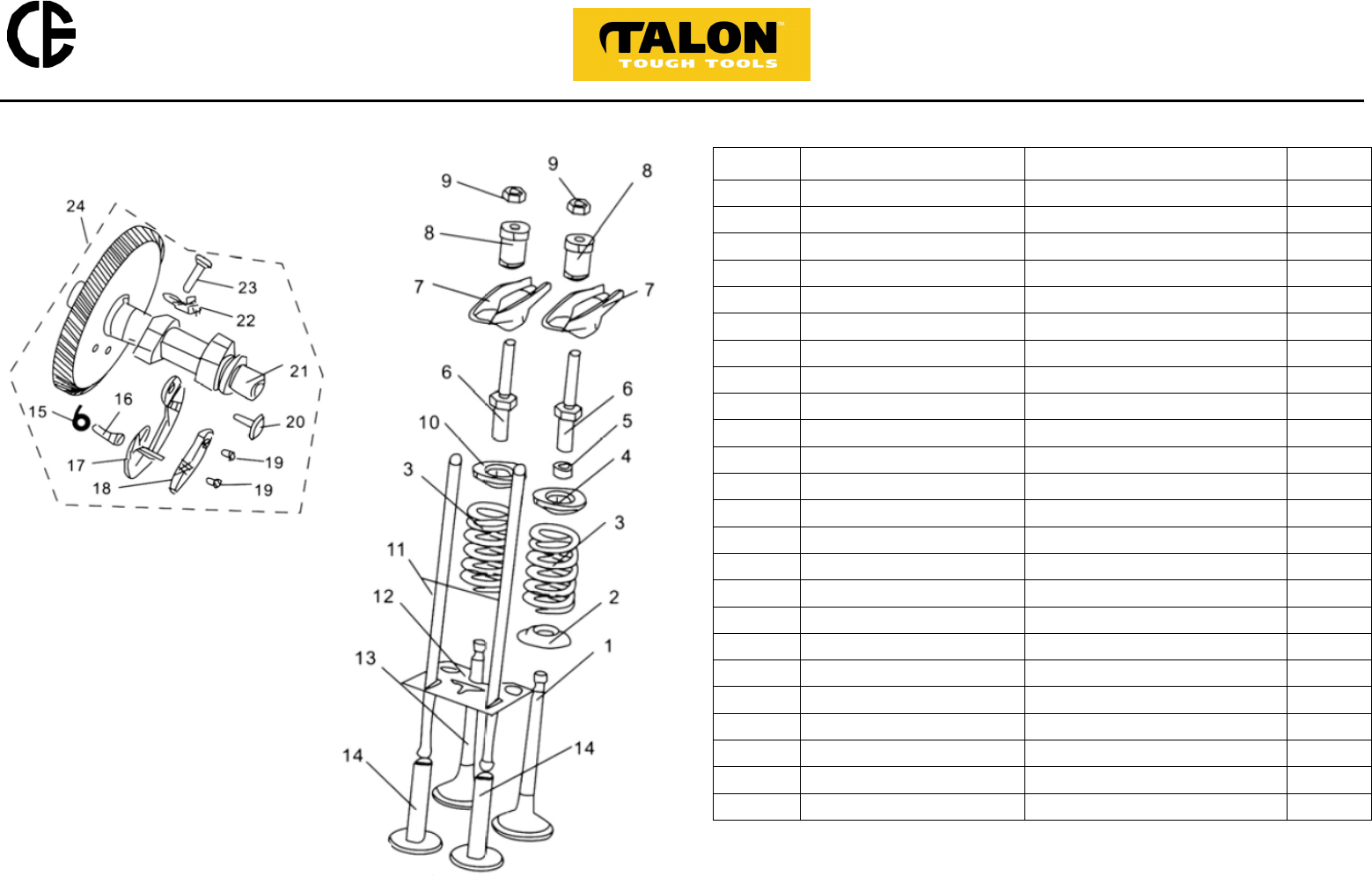

# PART # DESCRIPTION QTY

1 TL182QDP.03-12 Exhaust Valve 1

2 TL182QDP.03-11 Lower Retainer 1

3 TL182QDP.03-05 Valve Spring 2

4 TL182QDP.03-08 Exh. Valve Spring Retainer 1

5 TL182QDP.03-09 Valve Rotator 1

6 TL182QDP.03-04 Pivot Bolt 2

7 TL182QDP.03-06 Valve Rocker Arm 2

8 TL182QDP.03-07 Rocker Arm Pivot 2

9 TL182QDP.03-11 Pivot Adjusting Nut 2

10 TL182QDP.03-10 Int. Valve Spring Retainer 1

11 TL182QDP.03.02 Push Rod 2

12 TL182QDP.03-03 Push Rod Guide Plate 1

13 TL182QDP.03-13 Intake Valve 1

14 TL182QDP.03-01 Valve Lifter 2

15 TL182QDP.030106 Spring (.03.01-06) 1

16 TL182QDP.030102 Pin (1) (.03.01-02) 1

17 TL182QDP.03.0111 Fly Clump (1)

(.03.01.01-01)

1

18 TL182QDP.030112 Pin (5) (.03.01.01-02) 1

19 TL182QDP.030113 Pin (2) (.03.01.01-03) 2

20 TL182QDP.030103 Camshaft (.03.01-03) 1

21 TL188FPH.030101 Camshaft (.03.01-01) 1

22 TL182QDP.030104 Decompress Clump

(.03.01-04)

1

23 TL182QDP.030105 Pin (3) (.03.01-05) 1

24 TL188FPH.03.01 Camshaft Assembly 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 5 of 20

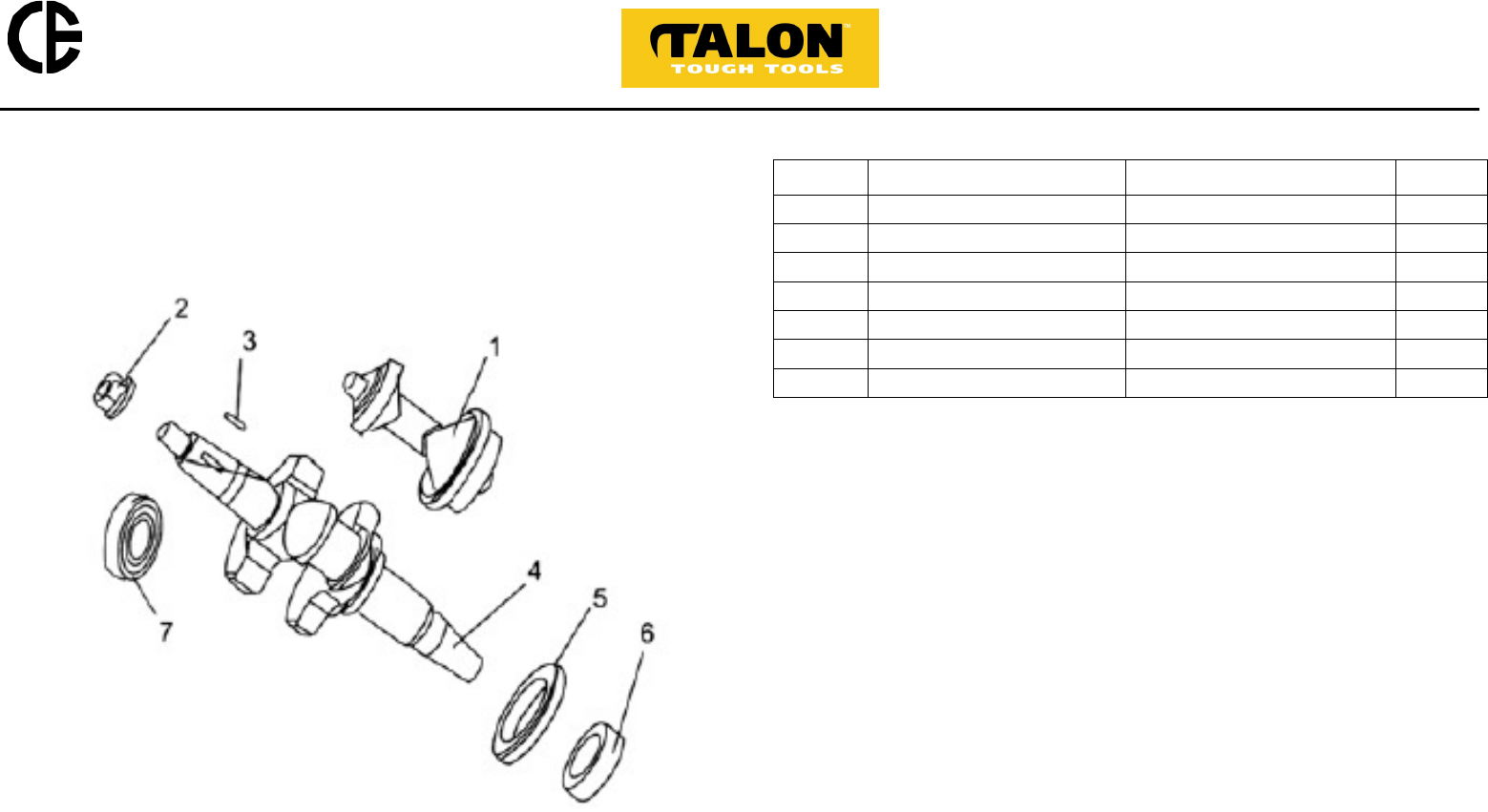

# PART # DESCRIPTION QTY

1 TL182QDP.04-01 Weight 1

2 TL182QDP.04-02 Nut 1

3 TL182QDP.04-03 Woodruff Key 1

4 TL182QDP.04-04 Crankshaft 1

5 TL182QDP.04-05 Crankshaft Gear (1) 1

6 TL182QDP.04-06 Crankshaft Gear (2) 1

7 TLGB/T276-6207 Bearing (6207)

(GB/T276-94)

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 6 of 20

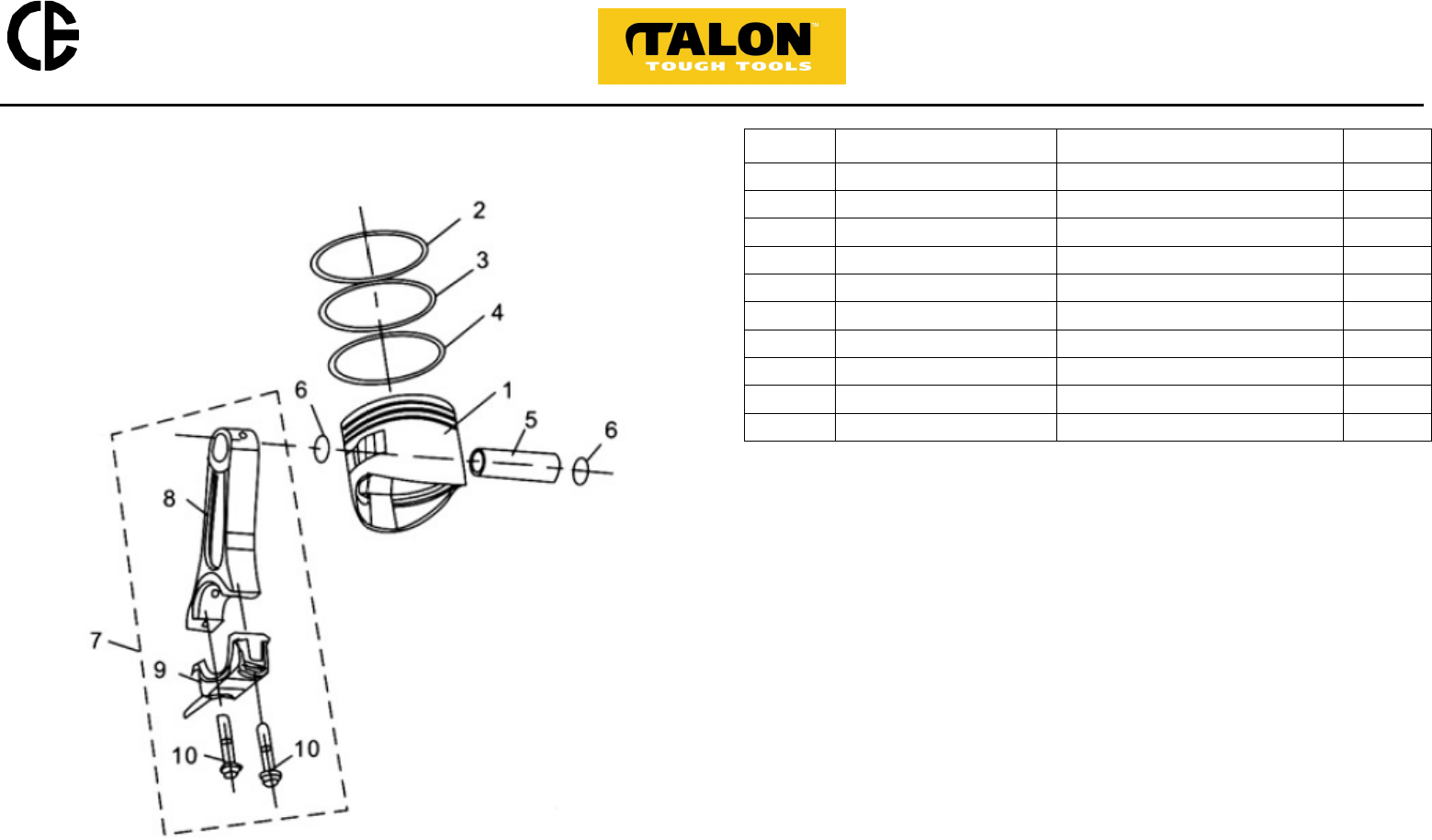

# PART # DESCRIPTION QTY

1 TL188FPH.04-01 Piston 1

2 TL188FPH.0402 Ring 1

st

1

3 TL188FPH.04-03 Ring 2

nd

1

4 TL188FPH.04.01 Ring Set Oil 1

5 TL188FPH.04-04 Pin 1

6 TL182QDP.05-05 Circlip 2

7 TL182QDP.05.02 Connecting Rod Assembly 1

8 TL182QDP.050201 Connecting Rod (.05-02-01) 1

9 TL182QDP.050202 Connecting Rod Cap

(.05-02-02)

1

10 TL182QDP.050203 Connecting Rod Bolt

(.05-02-03)

2

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 7 of 20

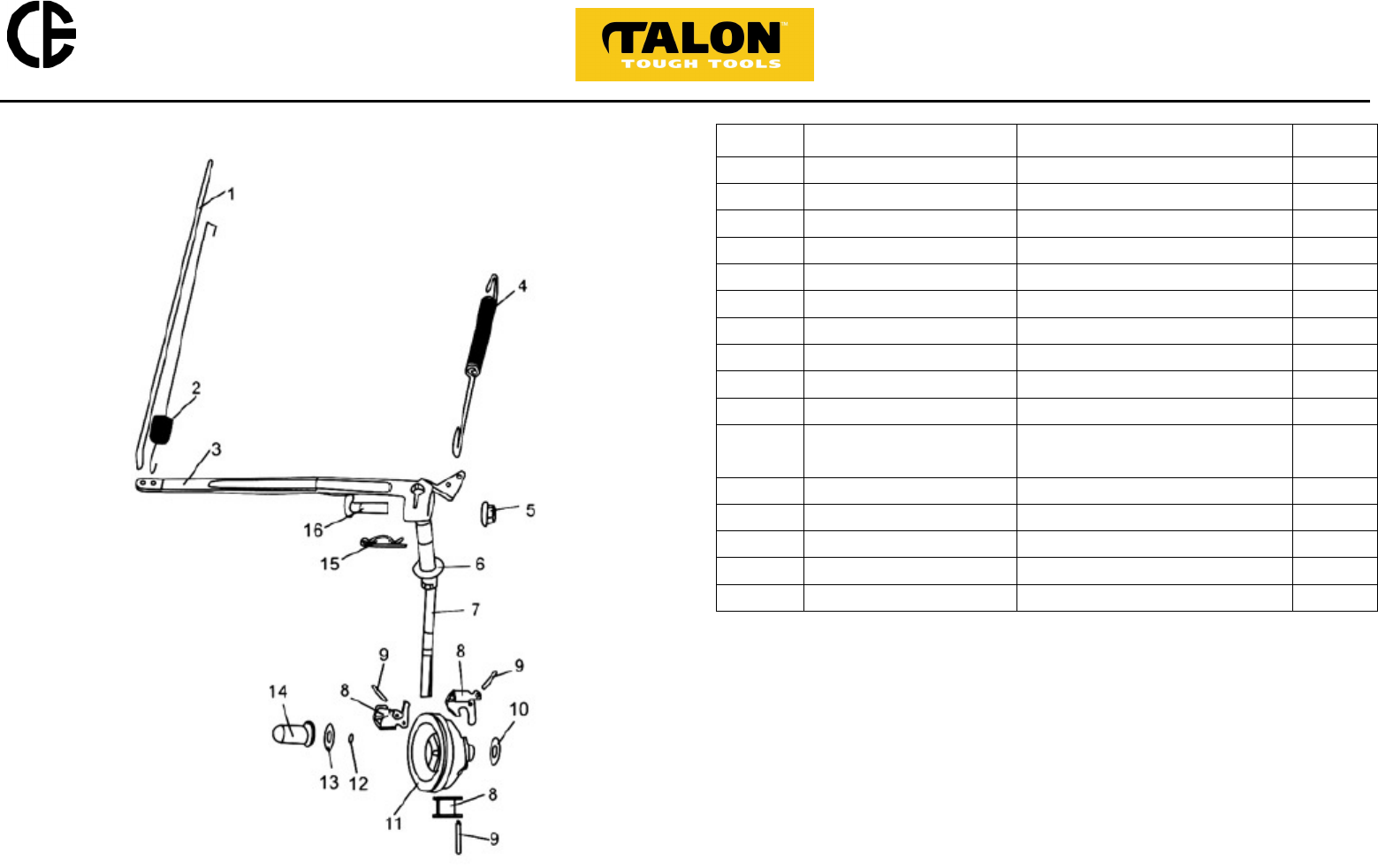

# PART # DESCRIPTION QTY

1 TL182QDP.06-09 Pull Pole, steel wire 1

2 TL182QDP.06-10 Pull spring, little 1

3 TL182QDP.06-01 Pull pole, timing implement 1

4 TL182QDP.06-08 Pull Spring, big 1

5 TLGB6177-2000 Nut M6 1

6 TL182QDP.06-05 Washer I 1

7 TL182QDP.06-04 Fork 1

8 TL182QDP.060103 Governor weight (.06-01-03) 3

9 TL182QDP.060102

Governor weight pin (.06-01-02)

3

10 TL166QDK.06.07 Washer III 1

11 TL182QDP.060101 Centrifugal Timing

implement

(.06.01-01)

1

12 TL166QDK.01-02 Clip 1

13 TL182QDP.06-07 Washer II 1

14 TL182QDP.06-06 Handspike Cover 1

15 TL182QDP.06-02 Clip 1

16 TL182QDP.06-03 Bolt, Square Toes 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 8 of 20

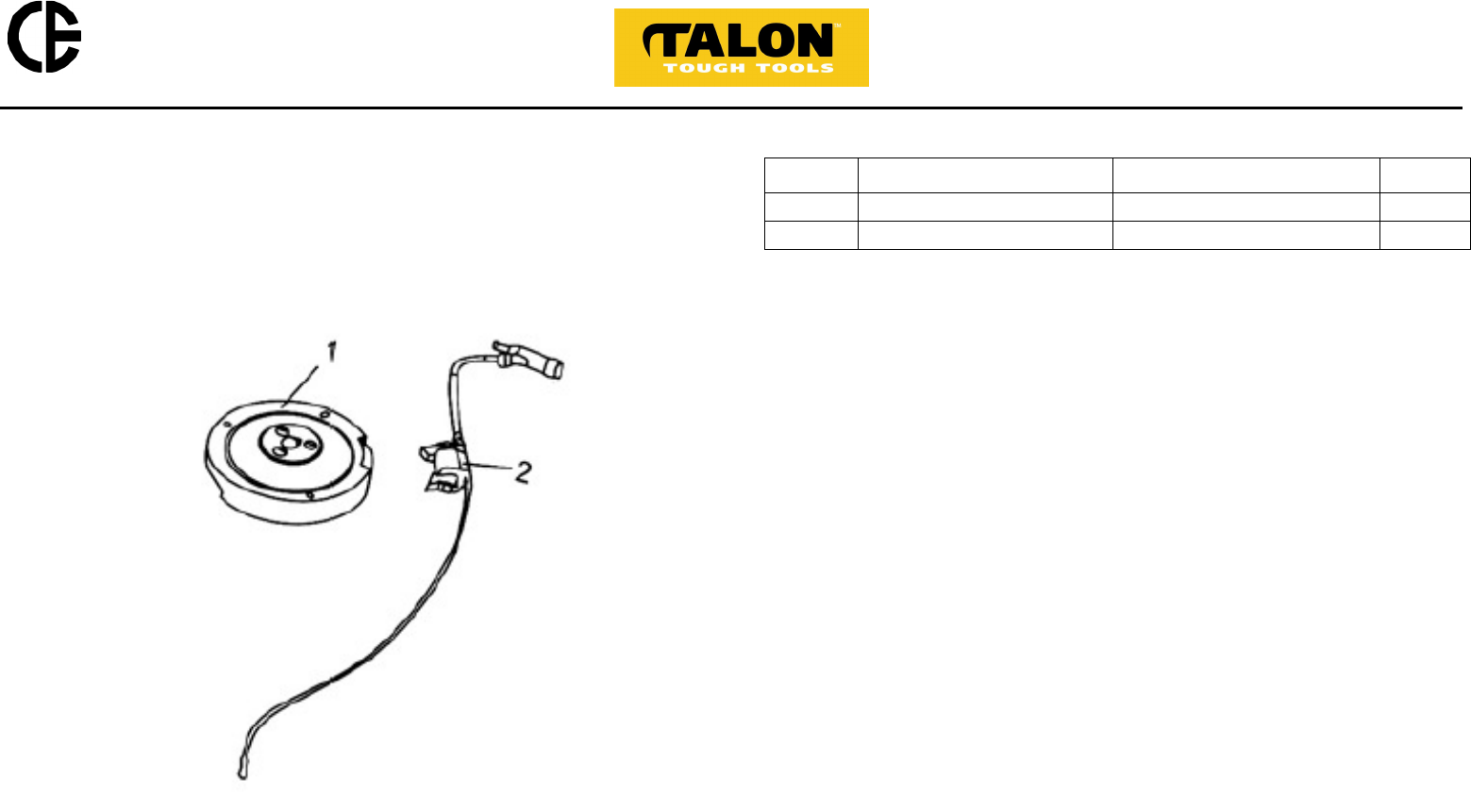

# PART # DESCRIPTION QTY

1 TL182FPH-30201 Rotor Assembly (-3.02.01) 1

2 TL182QDP.07.01 High Voltage Wrap 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 9 of 20

# PART # DESCRIPTION QTY

1 TL182QDP.080110 Handle (.08.01-10) 1

2 TL182QDP.080111 Pull Rope (.08.01-11) 1

3 TL182QDP.080109 Clockwork Spring

(.08.01-09)

1

4 TL182QDP.080103 Rotary Table (.08.01-03) 2

5 TL182QDP.080105 Spring, Return (.08.01-05) 1

6 TL182QDP.080107 Screw (.08.01-07) 5

7 TLGB5789-86 Bolt M6x12 1

8 TL182QDP.08-01 Starter Canister 1

9 TL182QDP.08-02 Fan Wheel 1

10 TL182QDP.08011 Cowling Assy, cylinder

(.08.01-01)

1

11 TL182QDP.080108 Guide Pan (.08.01-08) 2

12 TL182QDP.080104 Clump (.08.01-04) 1

13 TL182QDP.080106 Press Reed (.08.01-06) 1

14 TL182QDP.080102 Washer (.08.01-02) 1

15 TL182QDP.080101 Starter Cover Assy

(.08.01.01)

3

16 TLGB5789-86 Bolt 1

17 TL168FJH-30801 Switch (-3.08.01) 1

18 TL182QDP.08.01 Starter Assy 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 10 of 20

# PART # DESCRIPTION QTY

1 TL182QDP.09 Base Assembly 1

2 TL168QDJ.050102 Spring (.05.01-02) 1

3 TLGB818-M5X35 Screw M5x35

(GB818-2000)

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 11 of 20

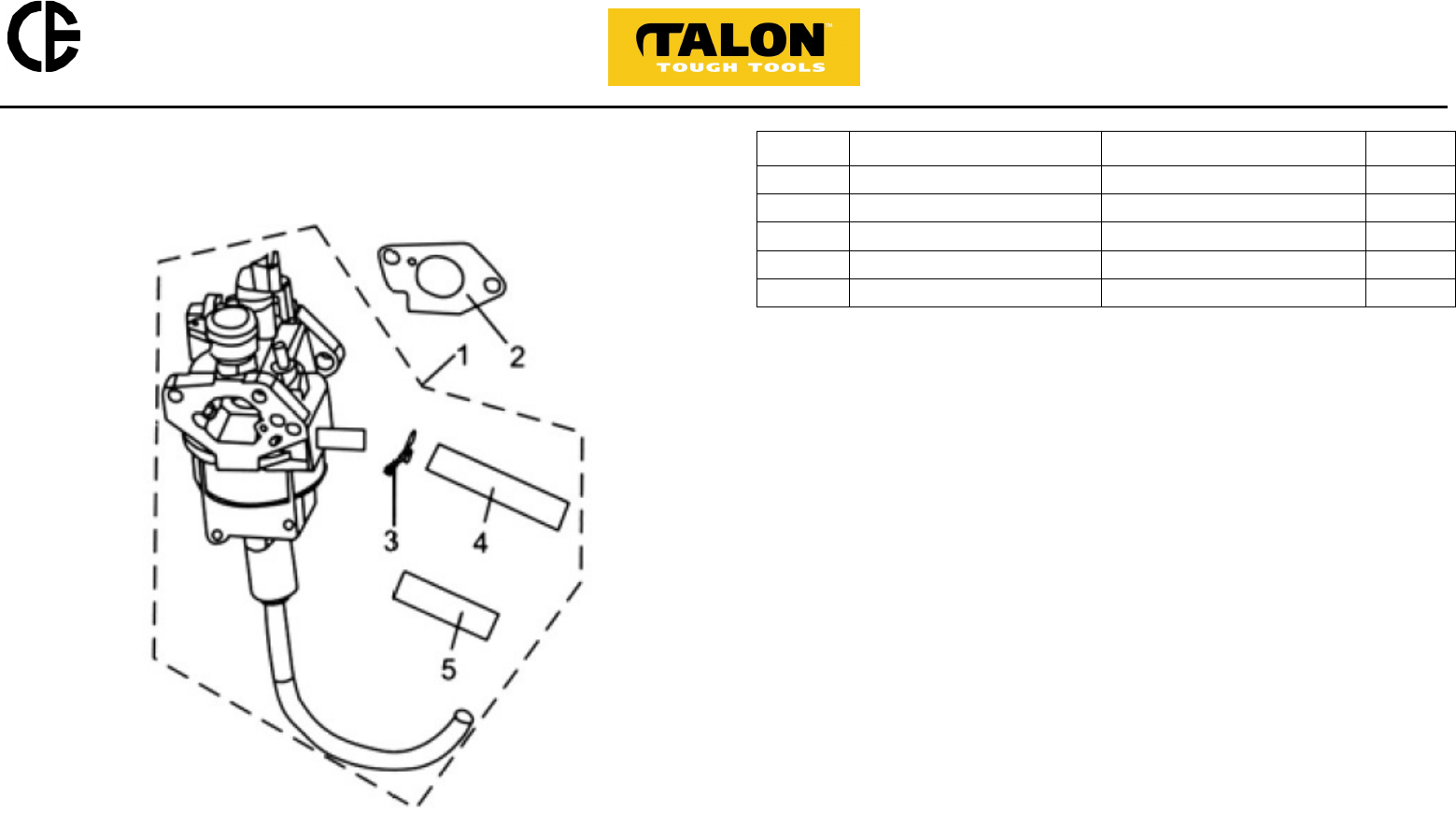

# PART # DESCRIPTION QTY

1 TL188FPH.05.01 Carburettor Assy 1

2 TL188FPH.05-01 Carburettor packing 1

3 TL153FM-0000041 Clip 1

4 TL182QDP.10-02 Hose 4.5x 8.5x190 1

5 TL182QDP.10-03 Hose 9x 12x150 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

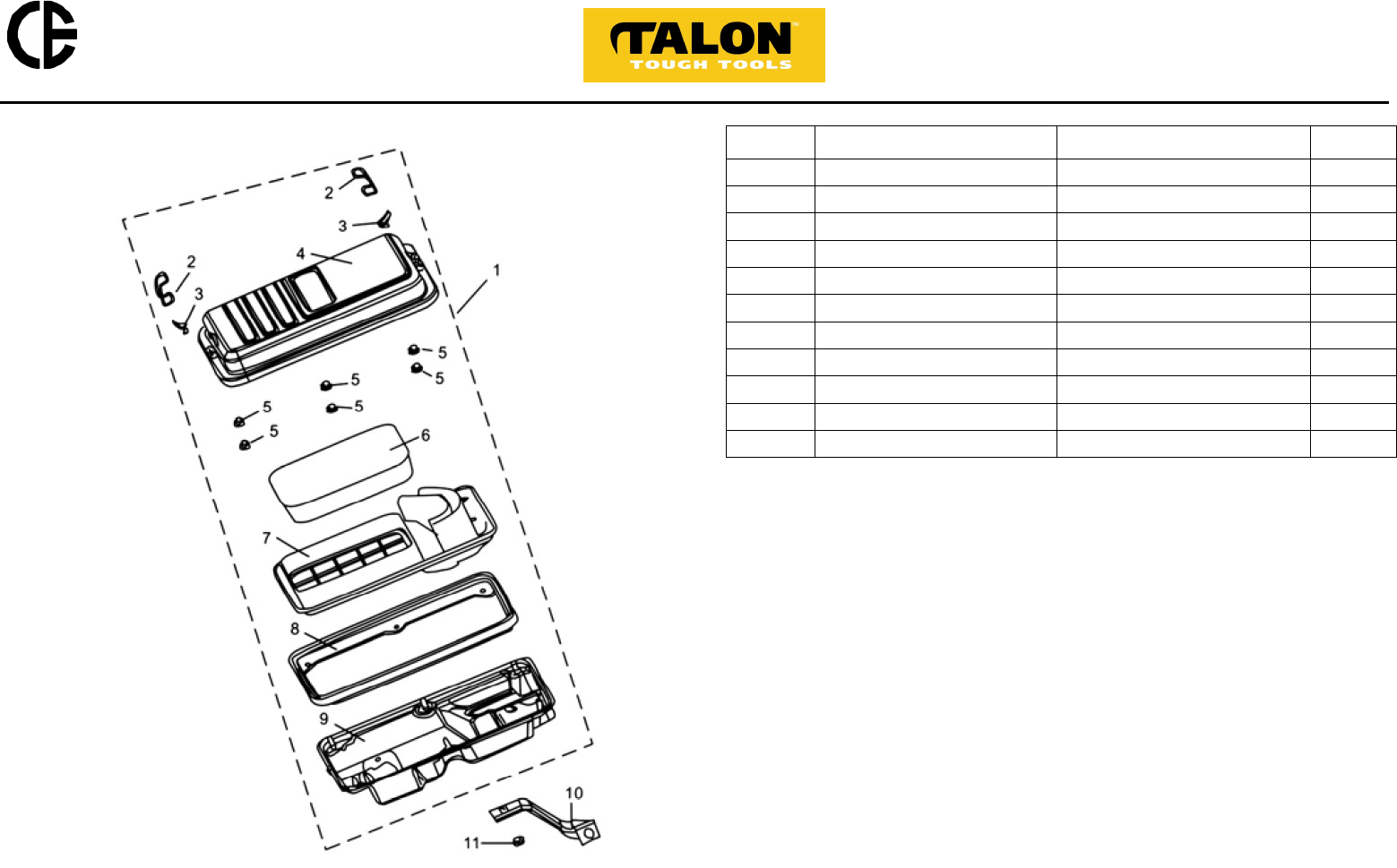

Page 12 of 20

# PART # DESCRIPTION QTY

1 TL182QDP.11 Air Cleaner Assy 1

2 TL182QDP.11-6 Clip, Securing 2

3 TL182QDP.11-7 Clip, Securing 2

4 TL182QDP./11-8 Air Cleaner Cover 1

5 TLGB6177-2000 NUT M5 6

6 TL182QDP.11-9 Core, Filtrate 1

7 TL182QDP.11-3 Hole Board 1

8 TL182QDP.11-4 Seal Gasket, 1

9 TL182QDP.11-5 Below Shell, Air Cleaner 1

10 TL182QDP.11-2 Air Cleaner 1

11 TLGB6177-M6 NUT M6 (GB6177-2000) 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

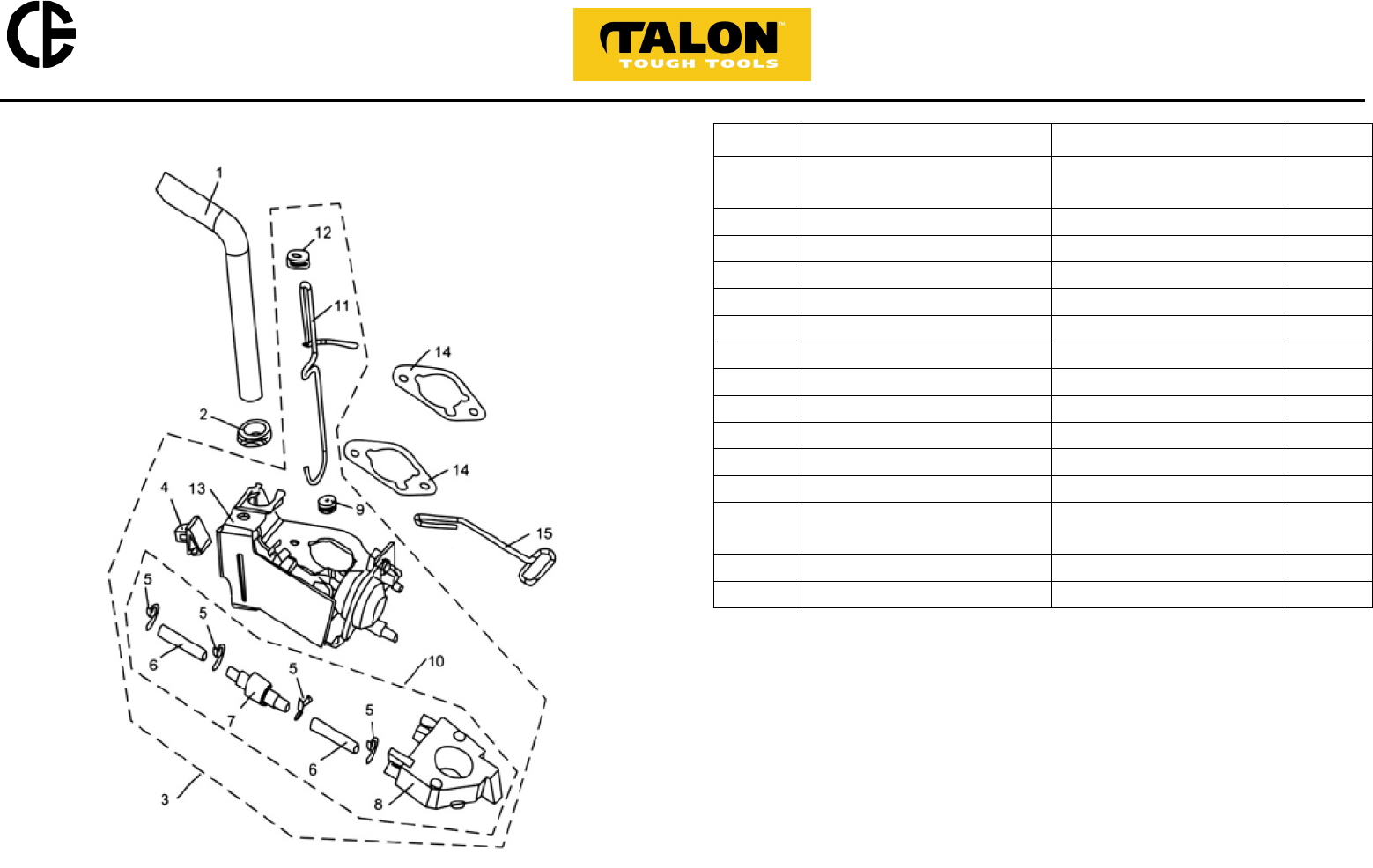

Page 13 of 20

# PART # DESCRIPTION QTY

1 TL182QDP.020203 Tube, Breather (.02.02-

03) 1

2 TL182QDP.020204 Rubber Seal (.02.02-04) 1

3 TL182QDP.10.02 Carburettor Assy 1

4 TL182QDP.100203 Clip (.10.02-03) 1

5 TL182QDP.10021 Clip (.10.02.01-01) 4

6 TL182QDP.100212 Hose 4x 8x135

(.10.02.01-02)

2

7 TL182QDP.100211 Valve (.10.02.01.01) 1

8 TL182QDP.02-08 Washer 1

9 TL182QDP.100204 Rubber Seal (.10.02-04) 1

10 TL182QDP.100201 Valve Assy (.10.02.01) 1

11 TL182QDP.1002 Choke Valve Link

(.10.02-01)

1

12 TL182QDP.10022 Rubber Seal (.10.02-02) 1

13 TL182QDP.100202 Carburettor Body

(.10.02.02) 1

14 TL182QDP.11-1 Carburettor Gasket 2

15 TL182FPH-20701 Choke Arm (-2.07-01) 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 14 of 20

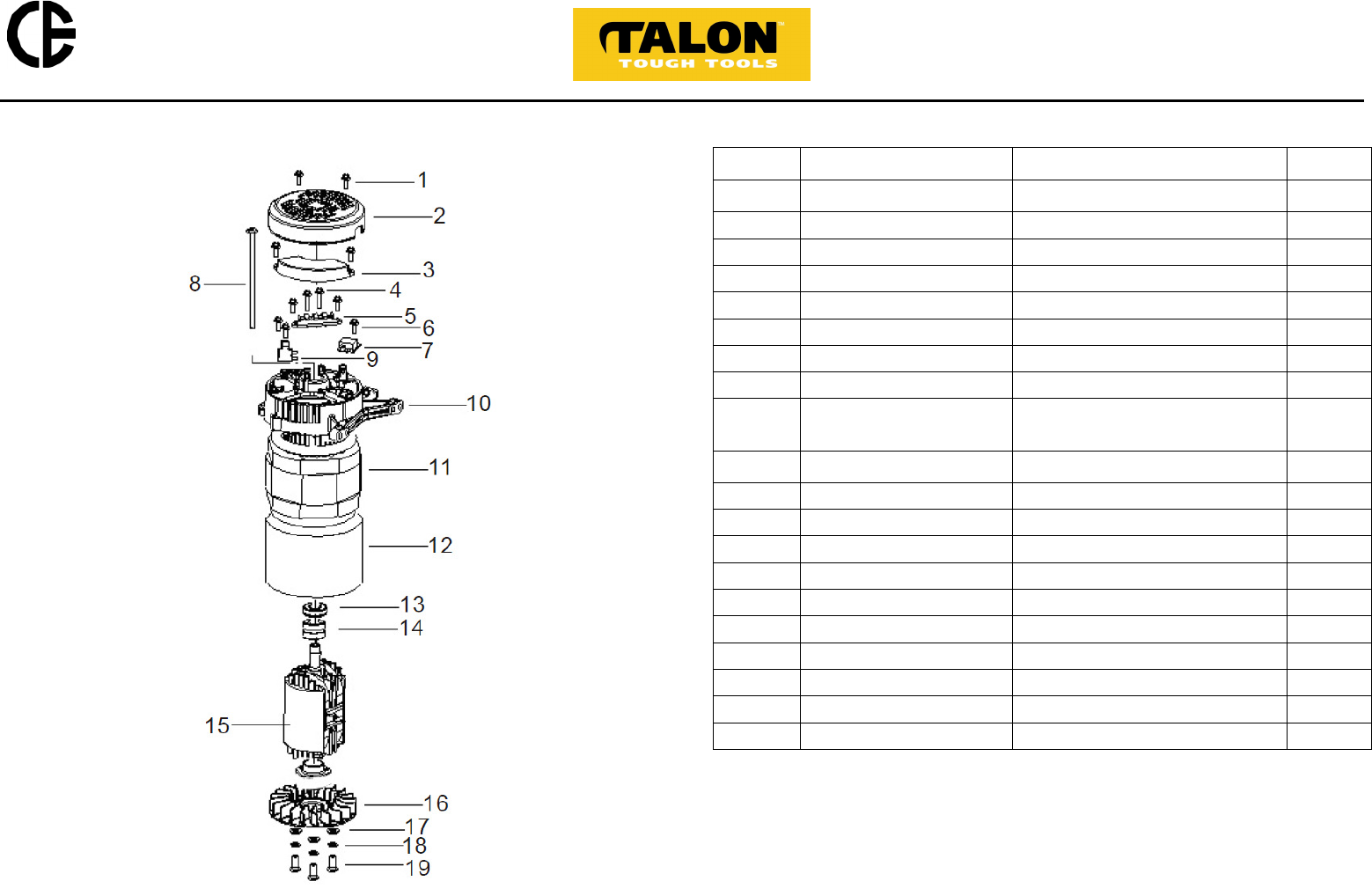

# PART # DESCRIPTION QTY

TL7200.03 Alternator Assy

1 TLGB5787-M5X12 Bolt M5*12 (GB/T5787-86) 7

2 TL6500.03-04 Right Cover 1

3 TL6000.03.04 AVR 1

4 TLGB5789-M5X20 Bolt M5*20 (GB/T5789-86) 2

5 TL6500.03-03 Connector 1

6 TLGB5789-M5X12 Bolt M5*12 (GB/T5789-86) 1

7 TL6500.03.03 Rectifier 1

8 TLGB5789M10X260 Bolt M10*260*1.25

(GB/T5789-86) 1

9 TL6000.03.01 Brush Equipment 1

10 TL6000.03-02 Motor Shell 1

11 TL7200.03.01 Rotor Assy 1

12 TL7500B.02-01 Motor cover 1

13 TL6000.03.03.01 BEARING, needle 1

14 TL6000.03.03-06 Carbon Brush Ring 1

15 TL7200.03.03 Stator 1

16 TL6000.03.03-01 Impeller 1

17 TLGB/T95-2002 Washer 3

18 TLGB/T93-87 Spring Washer 3

19 TLGB/T818-M5X12 Bolt M5*12

(GB/T818-2000)

3

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 15 of 20

# PART # DESCRIPTION QTY

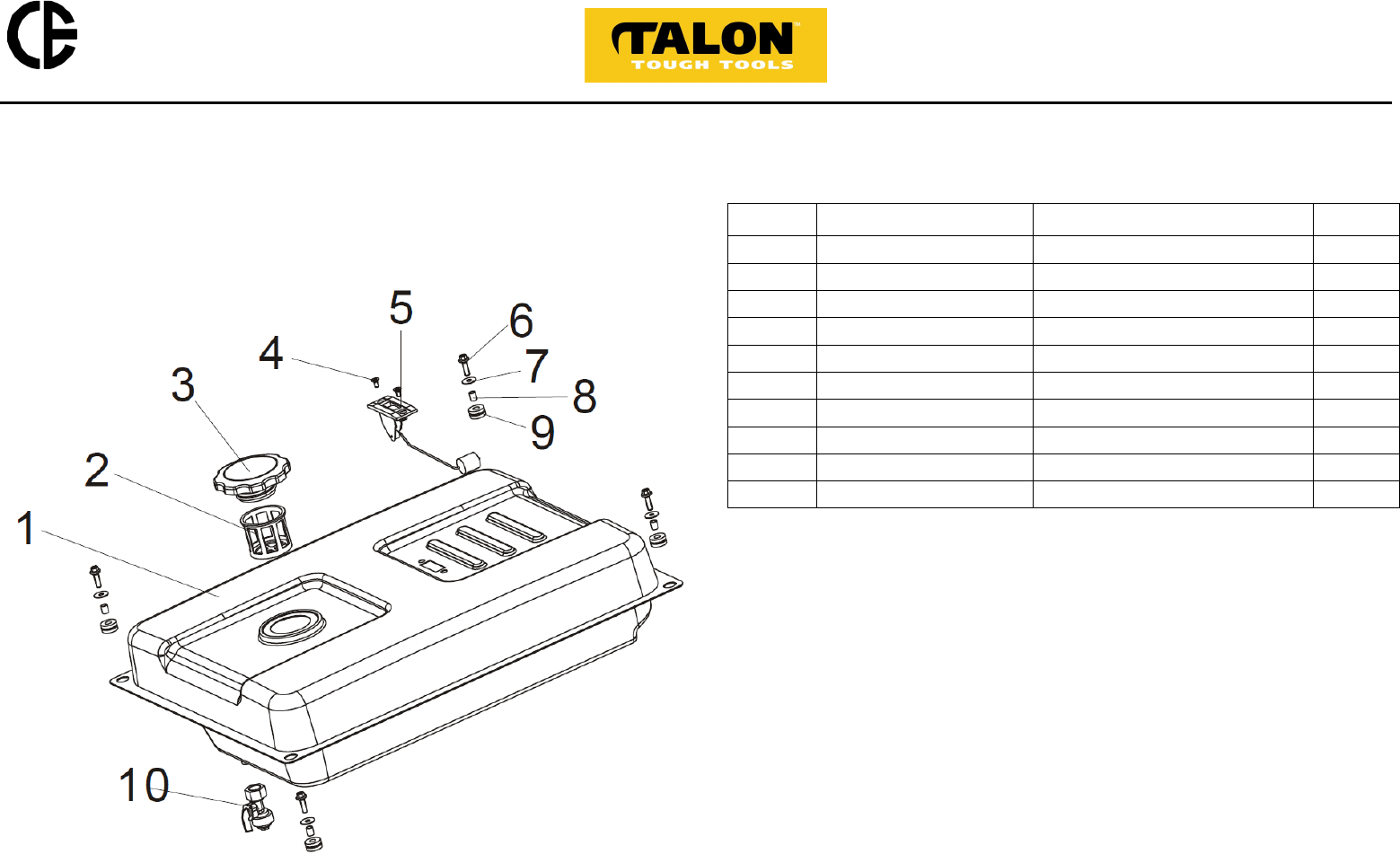

1 TL6800.01.01 Fuel Tank Comp 1

2 TL950.13-02 Filtering Net 1

3 TL6000.01.04 Fuel Tank Cap 1

4 TLGB/T819-M5X10 Screw M5*10

(GB/T819.1-2000)

2

5 TL6000.01.03 Sender Unit 1

6 TLGB5789-M6X20 Bolt M6*20 (GB/T5789-86) 4

7 TLGB/T96.2-2002 Washer 4

8 TL2600.01-02 Fuel Tank Rubber Hose 4

9 TL2600.01-01 Fuel Tank Rubber 4

10 TL6500.01.02 Fuel Valve 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 16 of 20

# PART # DESCRIPTION QTY

1 TL7500DE.02.01E Panel (KE) 1

2 TL7500DE.02.02E Cable (KE) 1

3 TL6500D.01.04 Rectifier Assy. 4A 1

4 TLGB/T818-M3X12 Screw M3*12

(GB/T818-2000)

1

5 TLGB/T95-D4 Washer D4 (-200) 2

6 TLGB/T818-M4X12 Screw M4*12

(-2000)

6

7 TL6600D.02-01 Bottom Shell (KE) 1

8 TL6500B.01.02 Engine Switch 1

9 TL6500B.01.03 Circuit Protector 3A 1

10 TL7500B.01.01 Circuit Breaker 23A 1

11 TL7500DE.02.03 Socket (South Africa) (KE) 2

12 TLGB6170-M6X16 Bolt M6*16

(-2000)

1

13 TLGB/T6170-M6 Nut M6 (-2000) 2

14 TLGB/T923-M6 Nut M6 (-88) 1

15 TLGB/T5789-M6X8 Bolt M6*8 (-86) 4

16 TL3000L.02.06 Lamp (GFH) 1

17 TLGB6177.1-M4 Nut M4 (-2000) 4

18 TL2600.02.05 Voltmeter 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 17 of 20

# PART # DESCRIPTION QTY

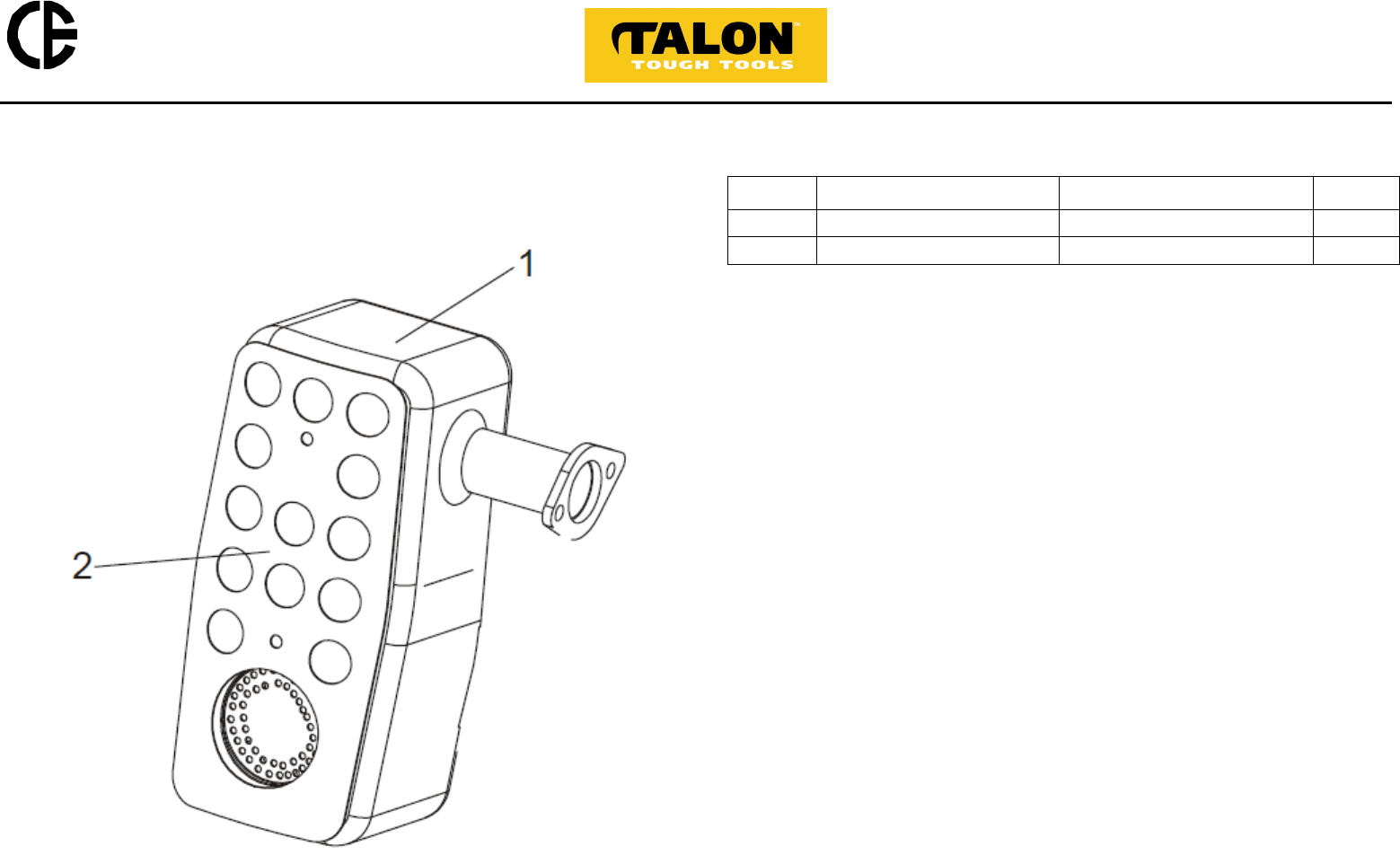

1 TL6500.07.01 Muffler 1

2 TL6800.05-01 Muffler Cover 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 18 of 20

# PART # DESCRIPTION QTY

1 TL7500DE.06.01 Frame Jointing Assy (KE) 1

2 TL6000.08.03 Frame Mounting Rubbers 2

3 TL6000.08.02 Engine Mounting Bracket 2

4 TLGB6177.1-M8 Nut M8 (-2000) 4

5 TLGB6177M10X125 Nut M10*1.25

(GB/T6177.1-2000)

4

6 TLGB5789-M6X10 Bolt M6*10 8

7 TL6600D.06 Frame Cover (KE) 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 19 of 20

# PART # DESCRIPTION QTY

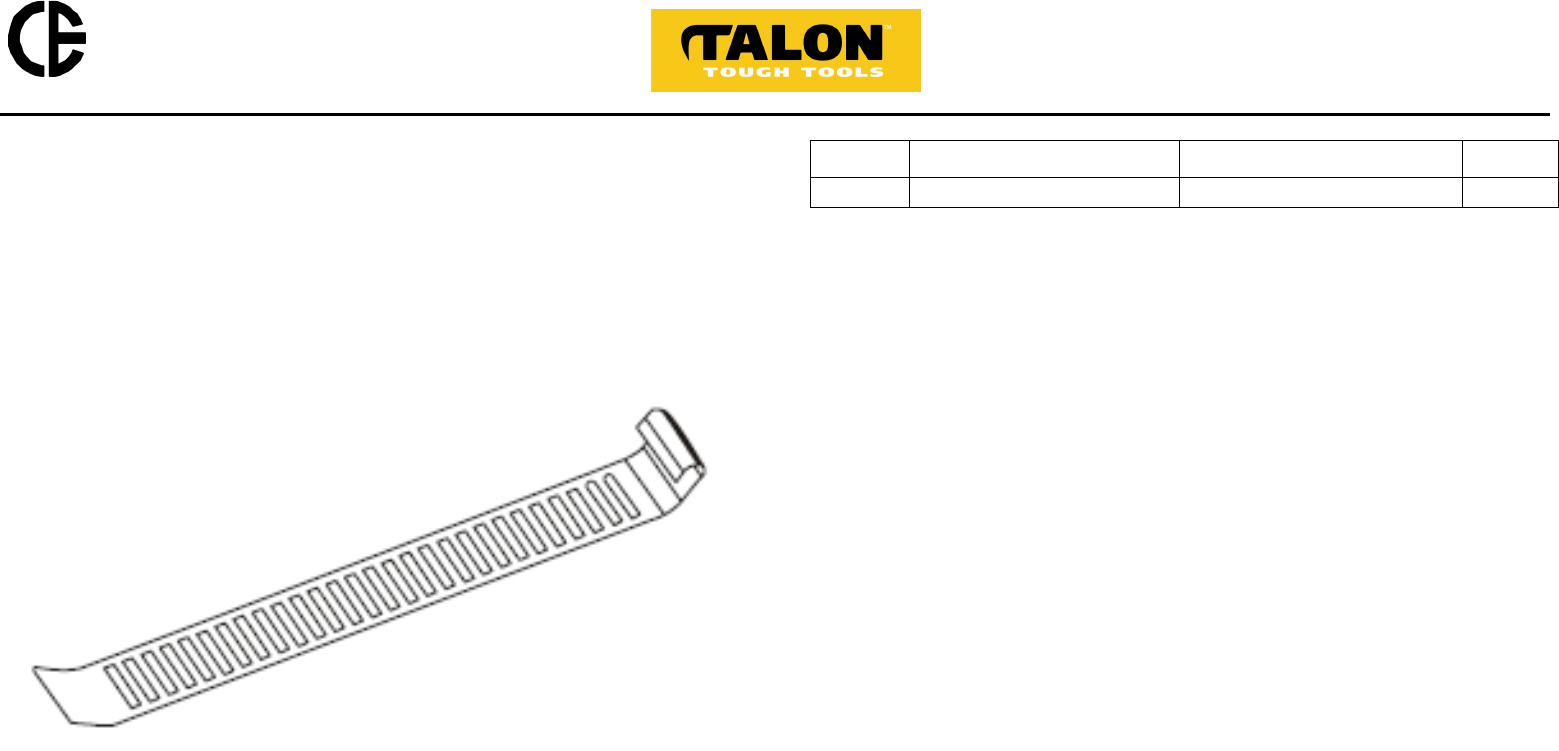

1 TL6500.03-05 Motor Shield 1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL6500 OUTPUT 6,5 kVA 13,0hp

PRODUCT Talon Petrol Generator

Page 20 of 20

# PART # DESCRIPTION QTY

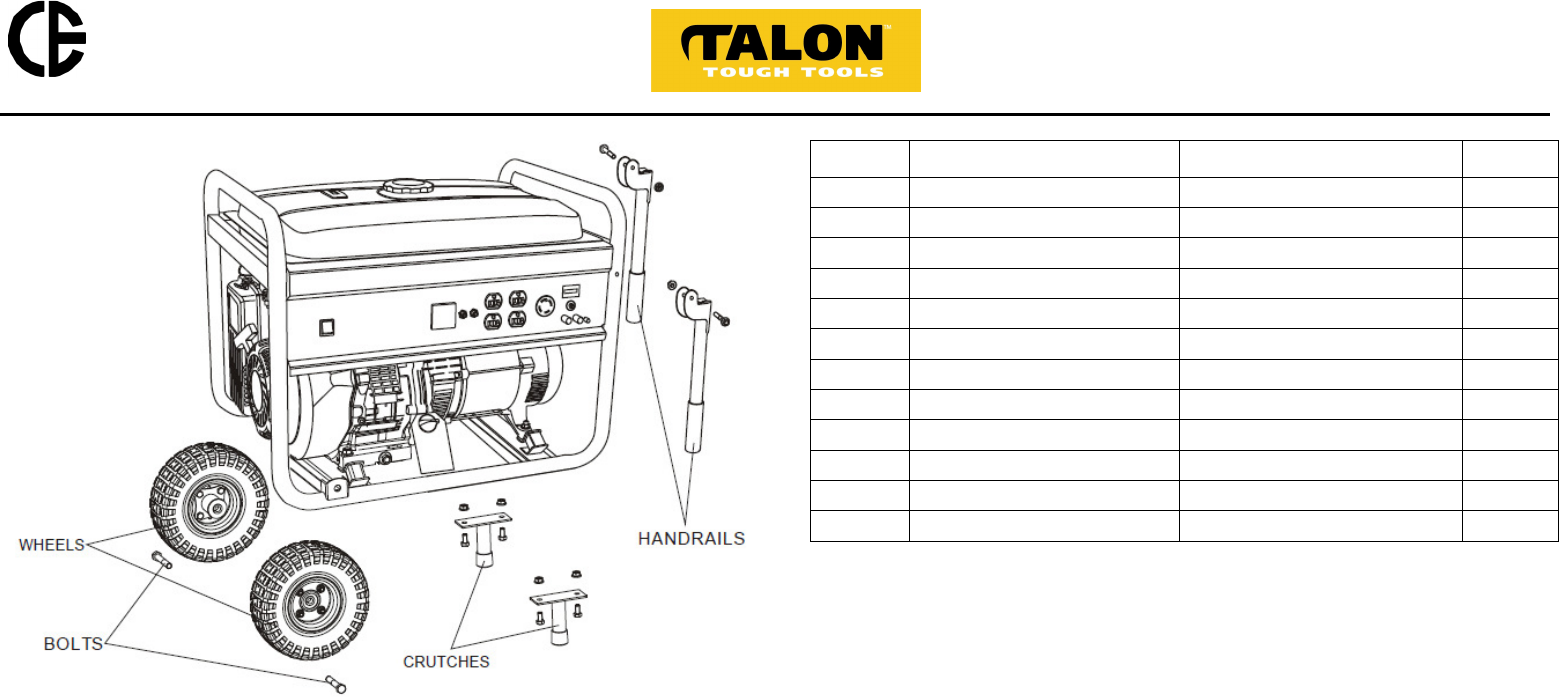

1 TL8800DXE.04-02 Wheel Axle Bolt (PR) 2

2 TL6500D.04.02A Wheel 2

3 TLGB/T6177.1-M6 Nut M6 (-2000) 2

4 TLGB5789-M6X40 Bolt M6*40 2

5 TL6500D.04-01A Handrail 2

6 TL6500-04-02 Handrail Sleeve 2

7 GB/T6177.1-M8 Nut M8 (-2000) 4

8 TLGB5780-M8X16 Bolt M8*16 (-2000) 4

9 TL6500D.04-03A Crutch 2

10 TL6800.06 Crutch Jacket 2

11 TLFGG700MA.08 Owner’s Manual 1

12 TL6000.10.01 Saddlebag 1
