Talon Tools Tl52P Parts List WEB Master Illustrated Petrol Chainsaw

: Talon-Tools Talon-Tools-Tl52P-Parts-List-804952 talon-tools-tl52p-parts-list-804952 talon-tools pdf

Open the PDF directly: View PDF .
Page Count: 14

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 1 of 14

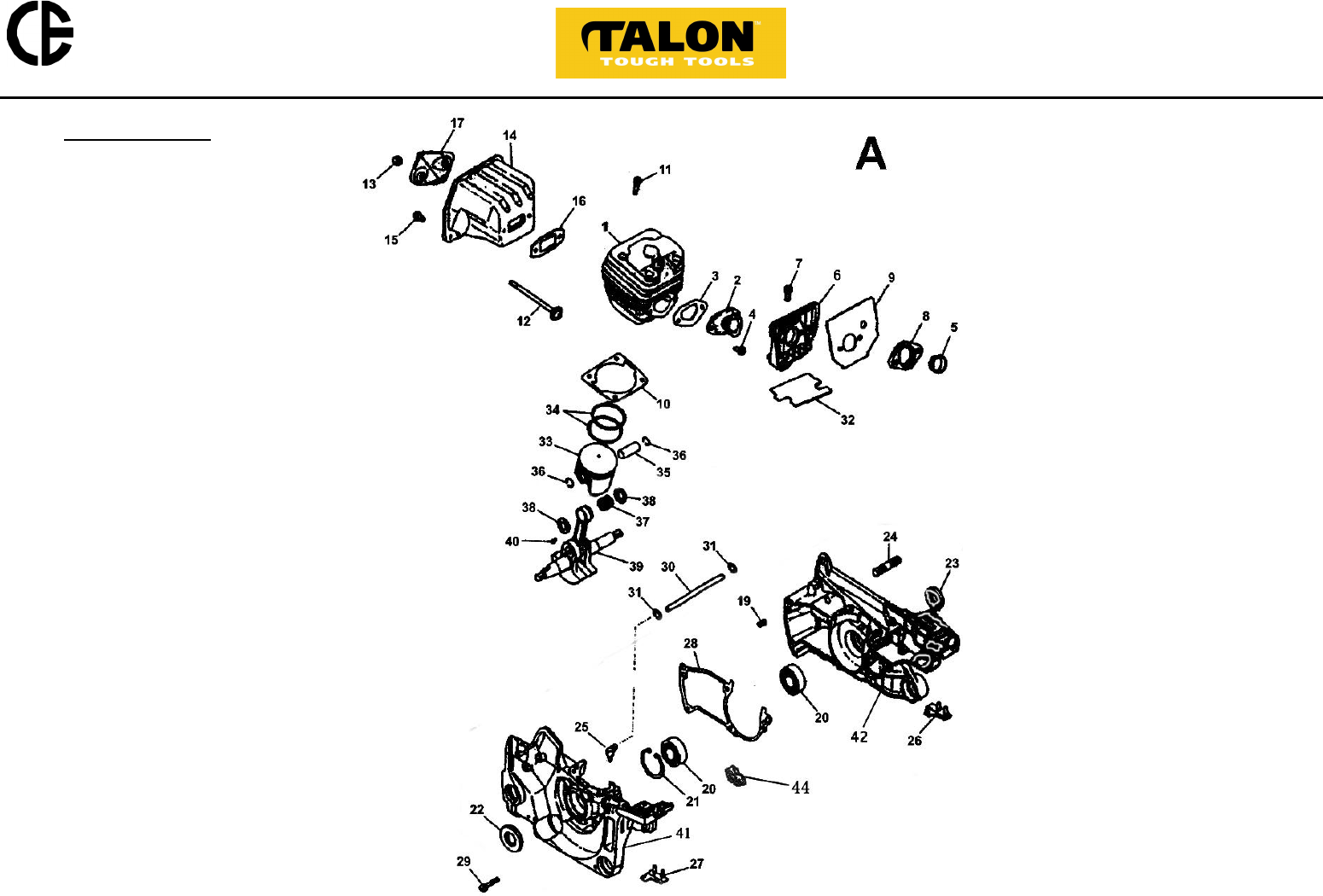

A.

ENGINE ASSEMBLY

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 2 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-5200.1-6

Cylinder

1

23

TL52-B15301528050

Seal 15*28*4.5

1

2

TL52-4500.3.1

Inlet pipe

1

24

TL52-4500.1-5

Bolt

2

3

TL52-4500.3-1

Gasket

1

25

TL52-4500.1.2

Elbow

1

4

TL52-GB 70.1

Screw M5*10

2

26

TL52-4500.1-20

Stopper L

1

5

TL52-4500.3-5

Guide

1

27

TL52-4500.1-21

Stopper R

1

6

TL52-4500.3.2

Bracket

1

28

TL52-4500.1-3

Gasket

1

7

TL52-GB70.1

Screw M5*14

2

29

TL52-GB70.1

Screw M5*25

5

8

TL52-4500.3-4

Spacer

1

30

TL52-4500.1-15

Pipe

1

9

TL52-4500.3-2

Gasket

1

31

TL52-4500.1-14

Clip

2

10

TL52-4500.1-7

Gasket

1

32

TL52-4500.3-3

Mat

1

11

TL52-GB 70.1

Bolt M5*20

4

33

TL52-5200.2-6

Piston

1

12

TL52-4500.6-3

Bolt

2

34

TL52-5200.2-8

Ring

2

13

TL52-GB/T6177

Nut M5

2

35

TL52-5200.2-5

Pin

1

14

TL52-4500.6.1

Muffler

1

36

TL52-4500.2-7

Snap ring

2

15

TL52-GB 70.1

Screw M*10

2

37

TL52-GB 290

Bearing K11*15*12.5

1

16

TL52-4500.6-1

Gasket

1

38

TL52-4500.2-9

Washer

2

17

TL52-4500.6-2

Cover

1

39

TL52-4500.2.1

Crankshaft comp.

1

19

TL52-4500.1-3

PIN

2

40

TL52-4500.2-10

Key

1

20

TL52-GB/T276

Bearing

2

41

TL52-4500.1-1

Crankcase Left

1

21

TL52-GB893.1

Snap ring

1

42

TL52-4500.1-2

Crankcase Right

1

22

TL52-B15301535050

Seal 15*35*4.5

1

44

TL52-4500.1-26

Guide-LH

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 3 of 14

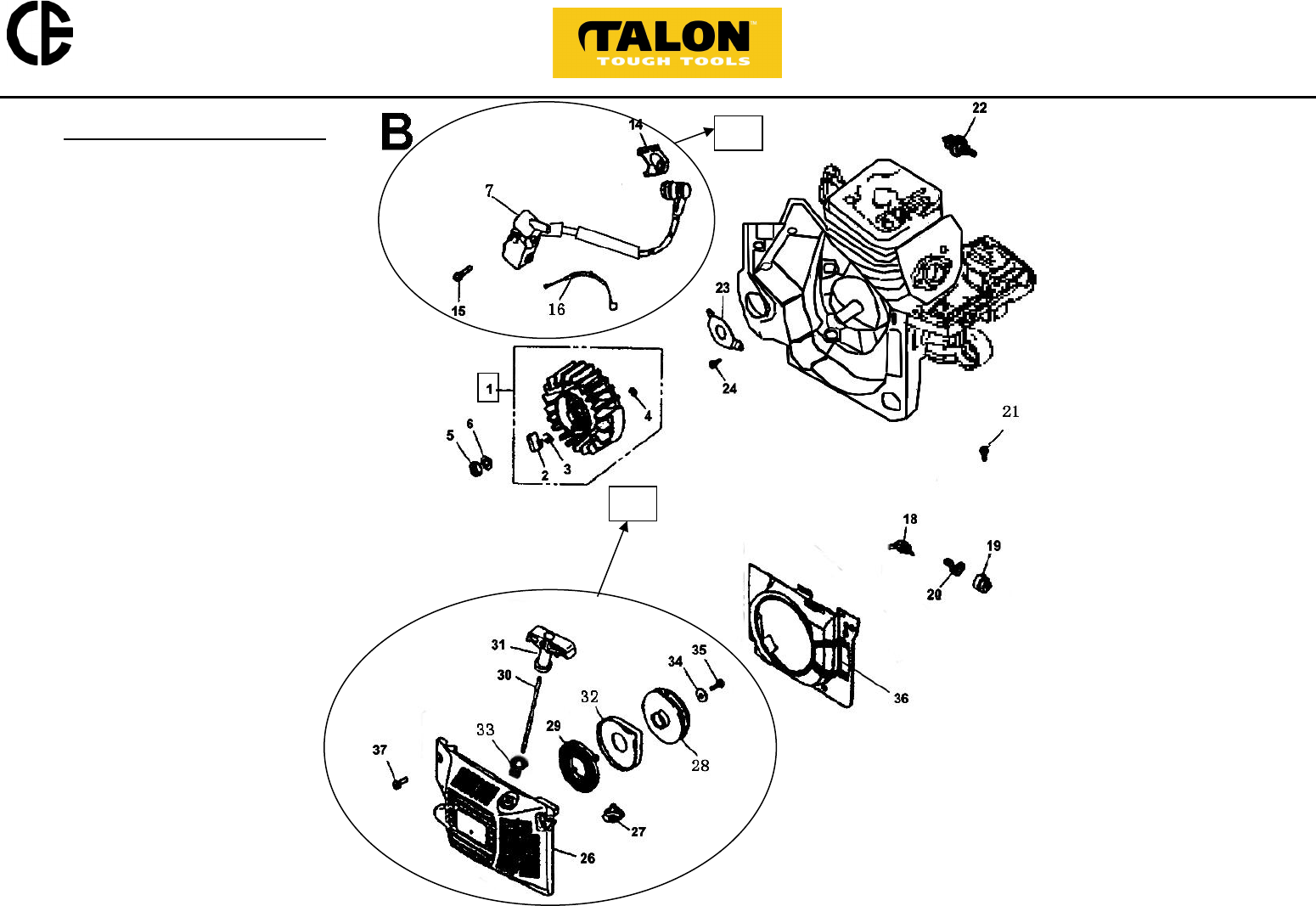

B.

IGNITION COIL & RECOIL STARTER

38

40

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 4 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.5.1

Rotor Assy

1

26

TL52-4500.7-1

Case

1

2

TL52-4500.5.1-1

Ratchet

2

27

TL52-4500.7-11

Guide

1

3

TL52-4500.5.1-2

Spring

2

28

TL52-4500.7-3

Reel

1

4

TL52-4500.5.1-3

Ring

2

29

TL52-4500.7-2

Spring

1

5

TL52-GB/T6177

Nut M8*1

1

30

TL52-4500.7-4

Rope

1

6

TL52-GB/T95

Washer 8

1

31

TL52-4500.7-5

Knob

1

7

TL52-4500.5.2.1

Coil Assy

1

32

TL52-4500.7-8

Cover

1

14

TL52-4500.9-4

Grommet

1

33

TL52-4500.7-6

Guide

1

15

TL52-GB70.1

Screw M5*18

2

34

TL52-GB/T95

Washer 5

1

16

TL52-4500.5.3.2

Cord

1

35

TL52-GB70.1

Screw M5*14

1

18

TL52-4500.5.3

Switch

1

36

TL52-4500.7-7

Cover

1

19

TL52-4500.5-1

Cober

1

37

TL52-GB70.1

Screw M5*14

4

20

TL52-4500.5.3-1

Plate

1

38

TL52-4500.5.2

Coil Assembly

1

21

TL52-GB70.1

Screw M5*10

1

39

TL52-4500.7.1

Spring Complete

1

22

TL52-4500.1-8

Spark Plug

1

40

TL52-4500.7

Starter Assembly

1

23

TL52-4500.1-23

Plate

1

35

TL52-GB70.1

Screw M5*14

1

24

TL52-GB70.1

Screw M4*5

2

36

TL52-4500.7-7

Cover

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 5 of 14

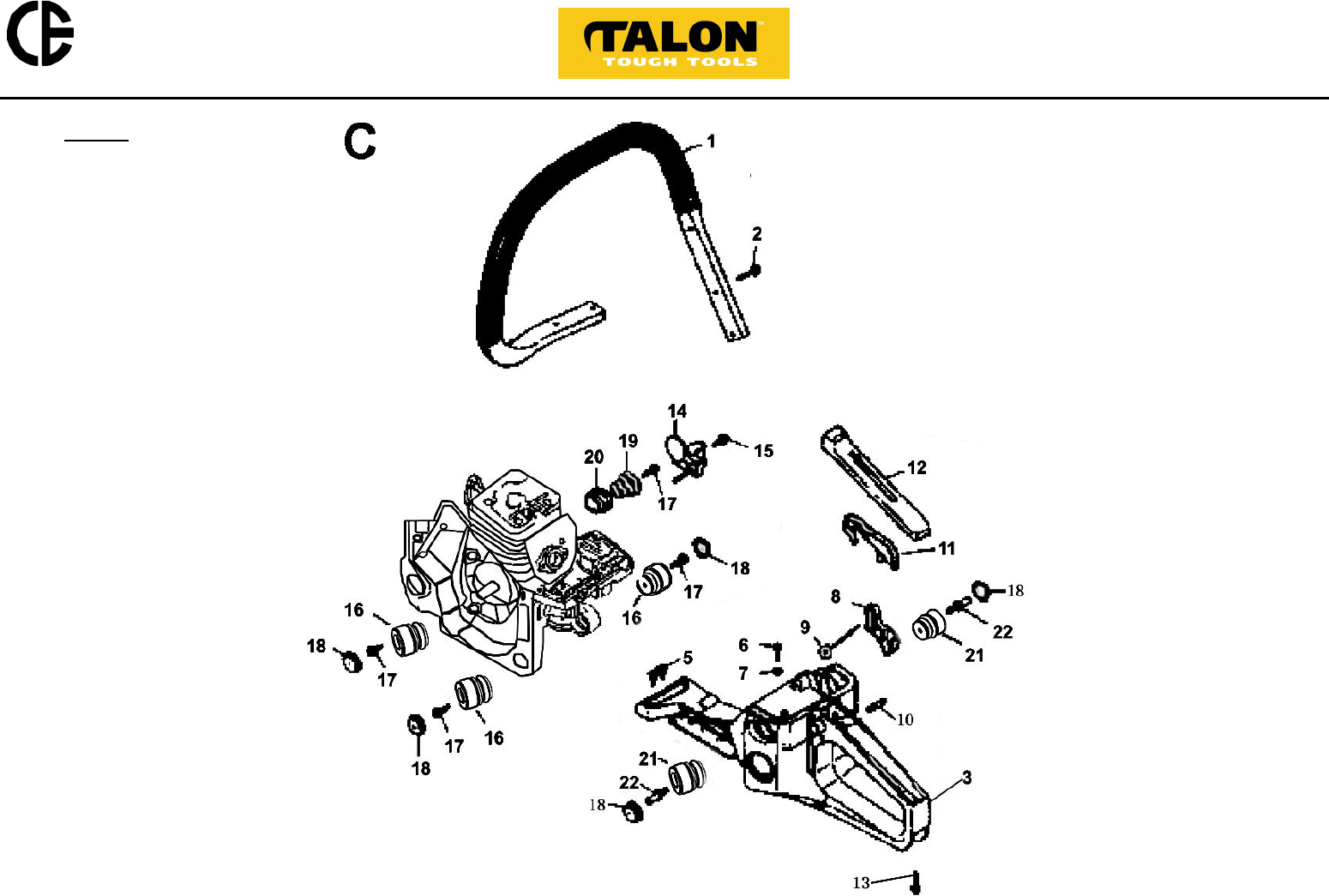

C. HANDLE

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 6 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.9.3

Left Handle Comp

1

12

TL52-4500.8-10

Cover

1

2

TL52-GB/T845

Screw ST4.8*16F

4

13

TL52-GB/T845

Screw ST4.8*16F

1

3

TL52-4500.8.1

Right Handle Assy

1

14

TL52-4500.1-10

Chain Catcher

1

5

TL52-4500.8-12

Damper-A

1

15

TL52-GB70.1

Screw M5*14

1

6

TL52-GB/T845

Screw ST4.8*16F

1

16

TL52-4500.1.4

Damper

3

7

TL52-4500.8-19

Gasket

1

17

TL52-GB/T845

Screw ST4.8*16F

4

8

TL52-4500.8-7

Lever

1

18

TL52-4500.1-22

Cap

5

9

TL52-4500.8-8

Spring

1

19

TL52-4500.1-24

Spring

1

10

TL52-4500.8-9

Spring Pin

1

20

TL52-4500.1-25

Spacer

1

11

TL52-4500.8-6

Arm

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 7 of 14

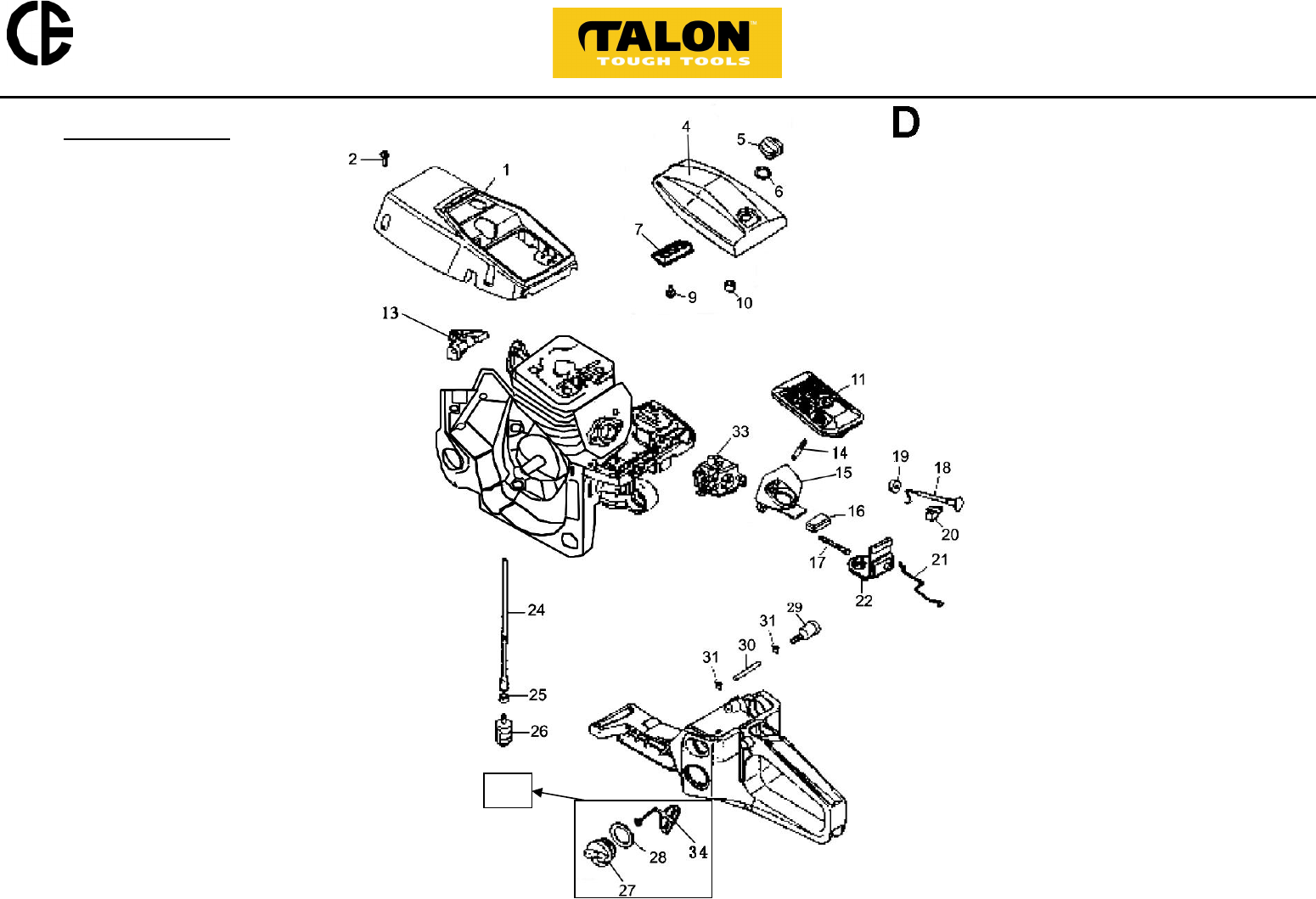

D. FUEL SUPPLY SYSTEM

35

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 8 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.9-1

Cylinder Cover

1

19

TL52-4500.4-4

Grommet

1

2

TL52-GB/T70.1

Screw M5*14

5

20

TL52-4500.4-5

Guide-1

1

4

TL52-4500.9-2

Cleaner Cover

1

21

TL52-4500.8-11

Throttle R

1

5

TL52-4500.9.2

Knob

1

22

TL52-4500.8-17

Grommet

1

6

TL52-4500.9-3

Gasket

1

24

TL52-4500.8-1

Pipe

1

7

TL52-4500.9-7

Cleaner Comp

1

25

TL52-4500.8-2

Collar

1

9

TL52-GB/T845

Screw ST12*6.5F

1

26

TL52-4500.8.2

Filter Assy

1

10

TL52-4500.9-6

Grommet

1

27

TL52-4500.8.4-2

Tank Cap

1

11

TL52-4500.9.1

Cleaner Comp

1

28

TL52-4500.8-13

Gasket

1

13

TL52-4500.9-5

Guide-1

1

29

TL52-4500.8.3

Breather Assy

1

14

TL52-4500.4-2

Bolt AM5*35

1

30

TL52-4500.8.3-1

Pipe

1

15

TL52-4500.4-1

Manifold

1

31

TL52-4500.8-18

Clip

2

16

TL52-4500.4-3

Supporter

1

33

TL52-4500.4.1

Carburettor ASSY

1

17

TL52-GB/T70.1

Screw M5*50

2

34

TL52-4500.8.4-1

Hanger Loop

1

18

TL52-4500.4.2

Choke Rod

1

35

TL52-4500.8.4

Tank Cap Assy

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 9 of 14

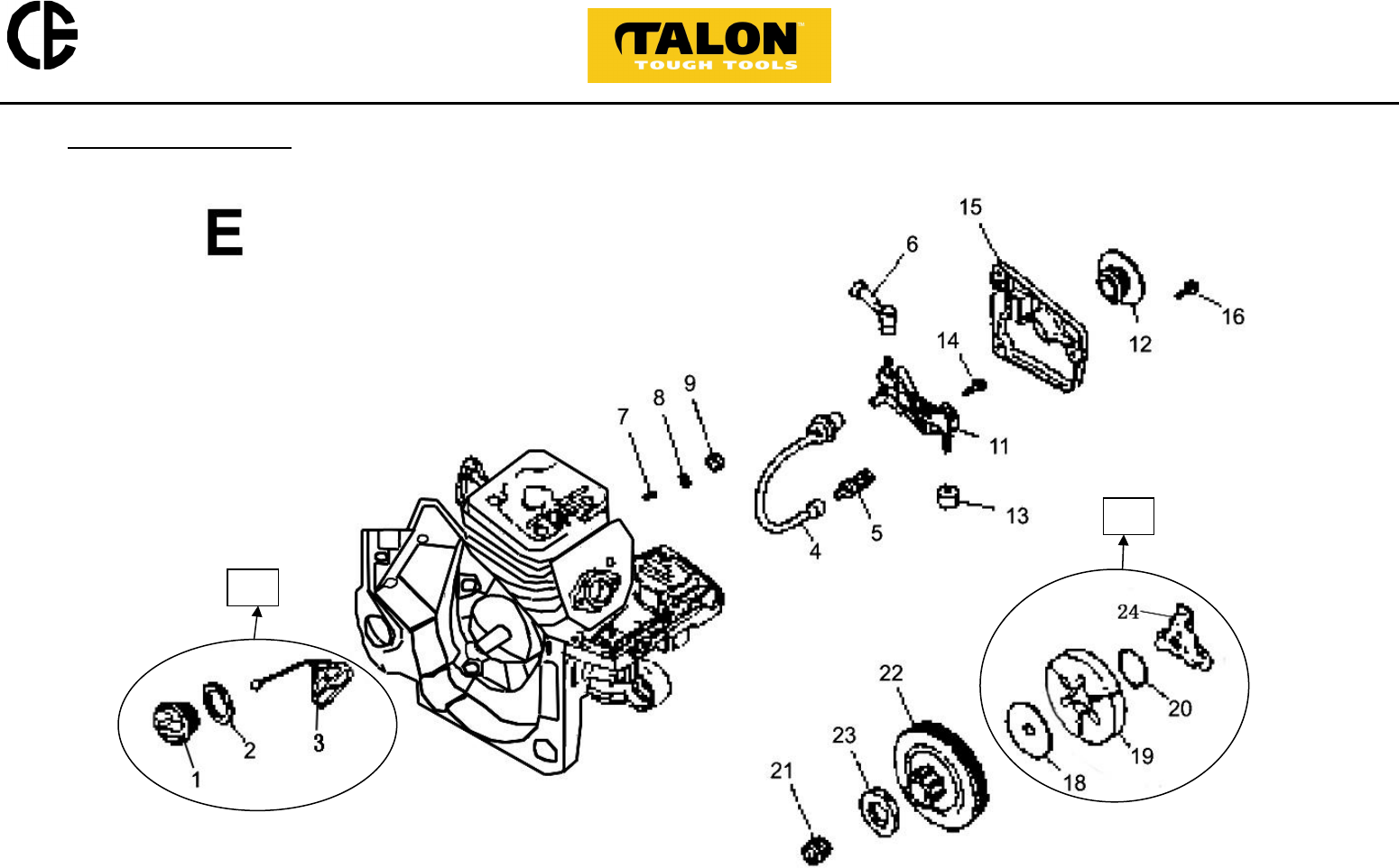

E. LUBRICATION AND CLUTCH

25

26

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 10 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.1.5-2

Cap

1

14

TL52-GB70.1

Screw M4*14

2

2

TL52-4500.1-17

Gasket

1

15

TL52-4500.10-2

Cover

1

3

TL52-4500.1.5-1

Hanger Loop

1

16

TL52-GB70.1

Screw M4*10

3

4

TL52-4500.1-11

Pipe

1

18

TL52-4500.11-5

Plate

1

5

TL52-4500.1.1

Filter

1

19

TL52-4500.11-2

Clutch Fly-Ball

3

6

TL52-4500.10-6

Pipe

1

20

TL52-4500.11-4

Spring

1

7

TL52-4500.1-12

Valve

1

21

TL52-GB290

Bearing K12*15*15

1

8

TL52-4500.1-13

Seal

1

22

TL52-4500.11-1

Drum

1

9

TL52-4500.1-14

Clip

1

23

TL52-4500.11-6

Rim .325-7

1

11

TL52-4500.10.1

Oil Pump Set

1

24

TL52-4500.11-3

Bracket

1

12

TL52-4500.10-1

Gear

1

25

TL52-4500.1.5

Cap Assembly

1

13

TL52-4500.10-5

Seal

1

26

TL52-4500.11.1

Clutch Assembly

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 11 of 14

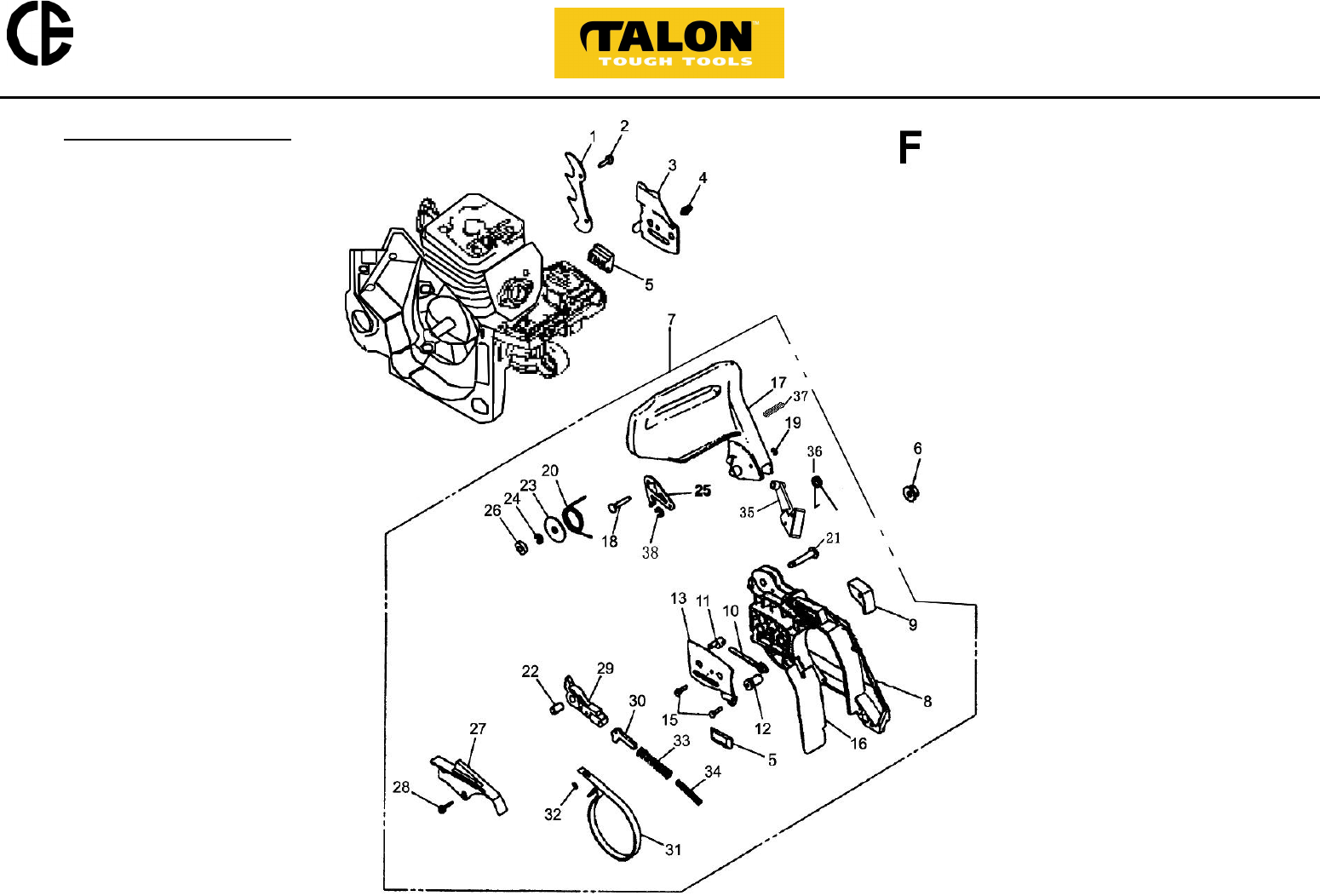

F. BAR MOUNT & CHAIN BRAKE

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 12 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.1-19

Bumper

1

21

TL52-4500.12-22

Pin

1

2

TL52-GB70.1

Screw M5*10

2

22

TL52-4500.12-14

Spacer

1

3

TL52-4500.10-4

Plate

1

23

TL52-GB/T95

Washer 6

1

4

TL52-GB70.1

Screw M4*6

1

24

TL52-GB/T896

Ring 4

1

5

TL52-4500.1-9

Guide

2

25

TL52-4500.12-21

Plate

1

6

GB/T6177.1

Nut M8

2

26

TL52-4500.12-24

Spacer

1

7

TL52-4500.12.1

Chain Cover Assy

1

27

TL52-4500.12-3

Cover

1

8

TL52-4500.12-1

Cover

1

28

TL52-GB/T845

Screw ST4.2*9.5F

3

9

TL52-4500.12-28

Stopper

1

29

TL52-4500.12.2

Brake Lever Comp

1

10

TL52-4500.12-11

Screw

1

30

TL52-4500.12-15

Arm

1

11

TL52-4500.12-12

Nut

1

31

TL52-4500.12-6

Band

1

12

TL52-4500.12-13

Gear

1

32

TL52-4500.12-18

Roller

1

13

TL52-4500.12-4

Plate

1

33

TL52-4500.12-17

Spring

1

15

TL52-GB/T845

Screw ST4.2*6.5F

2

34

TL52-4500.12-16

Spring

1

16

TL52-4500.12-9

Protector

1

35

TL52-4500.12-25

Weight

1

17

TL52-4500.12-2

Guard

1

36

TL52-4500.12-26

Spring

1

18

TL52-4500.12-23

Pin

1

37

TL52-4500.12-27

Pin

1

19

TL52-GB/T896

Ring 3

1

38

TL52-GB/T896

Ring 3.5

1

20

TL52-4500.12-5

Spring

1

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 13 of 14

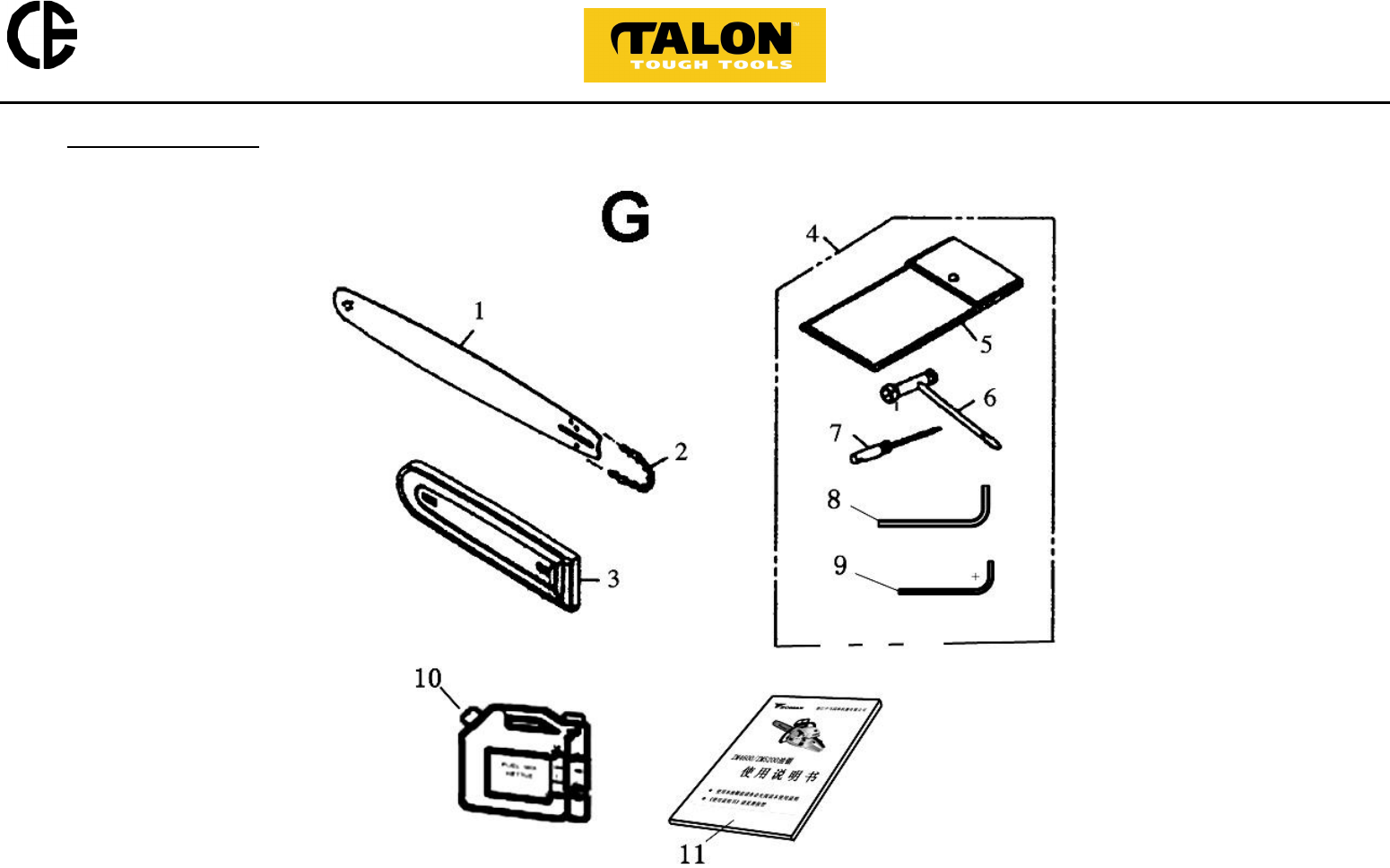

G. GUIDE BAR & TOOL SET

Est. 1979

CREATIVE EQUIPMENT CC

18 Main Road, Fishers Hill, Germiston, 1401

Tel: 011 828 5085 Fax: 011-828-5085

crequip@global.co.za www.creativelp.co.za

ILLUSTRATED PARTS LIST

MODEL TL52P OUTPUT 52cc

PRODUCT Talon 2 stroke 52cm³ Petrol Chainsaw with 450mm Bar

Page 14 of 14

# PART # DESCRIPTION QTY

# PART # DESCRIPTION QTY

1

TL52-4500.13.2

Bar 18" .325/.058

1

7

TL52-3800.13.33

Screw Driver

1

2

TL52-4500.13.1

Chain

1

8

TL52-4500.13.34

Wrench S4

1

3

TL52-4500.13-1

Protector

1

9

TL52-4500.13.35

Wrench S3

1

4

TL52-4500.13.3

Tool Set

1

10

TL52-3800.13.5

Pot, Proportioning

1

5

TL52-3800.13.31

Bag

1

11

TL52-5200.13-11

Manual

1

6

TL52-3800.13.32

Wrench

1
