Tantalus Systems ACXX10 ELECTRICAL SMART METER RF MODULE User Manual TC1210 User Man

Tantalus Systems Corp ELECTRICAL SMART METER RF MODULE TC1210 User Man

User Manual

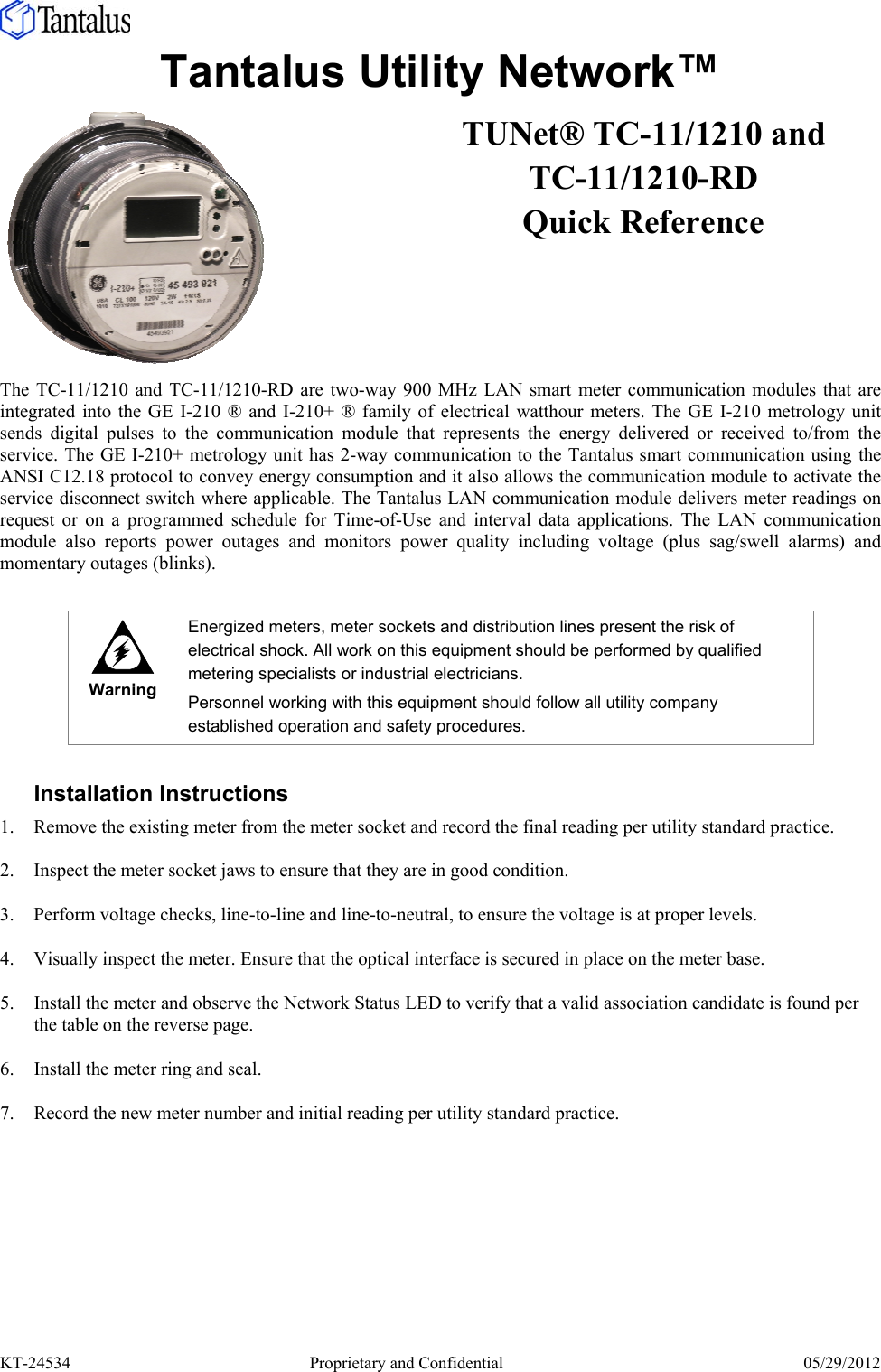

KT-24534 Proprietary and Confidential 05/29/2012 Tantalus Utility Network™ The TC-11/1210 and TC-11/1210-RD are two-way 900 MHz LAN smart meter communication modules that are integrated into the GE I-210 ® and I-210+ ® family of electrical watthour meters. The GE I-210 metrology unit sends digital pulses to the communication module that represents the energy delivered or received to/from the service. The GE I-210+ metrology unit has 2-way communication to the Tantalus smart communication using the ANSI C12.18 protocol to convey energy consumption and it also allows the communication module to activate the service disconnect switch where applicable. The Tantalus LAN communication module delivers meter readings on request or on a programmed schedule for Time-of-Use and interval data applications. The LAN communication module also reports power outages and monitors power quality including voltage (plus sag/swell alarms) and momentary outages (blinks). Warning Energized meters, meter sockets and distribution lines present the risk of electrical shock. All work on this equipment should be performed by qualified metering specialists or industrial electricians. Personnel working with this equipment should follow all utility company established operation and safety procedures. Installation Instructions 1. Remove the existing meter from the meter socket and record the final reading per utility standard practice. 2. Inspect the meter socket jaws to ensure that they are in good condition. 3. Perform voltage checks, line-to-line and line-to-neutral, to ensure the voltage is at proper levels. 4. Visually inspect the meter. Ensure that the optical interface is secured in place on the meter base. 5. Install the meter and observe the Network Status LED to verify that a valid association candidate is found per the table on the reverse page. 6. Install the meter ring and seal. 7. Record the new meter number and initial reading per utility standard practice. TUNet® TC-11/1210 and TC-11/1210-RD Quick Reference

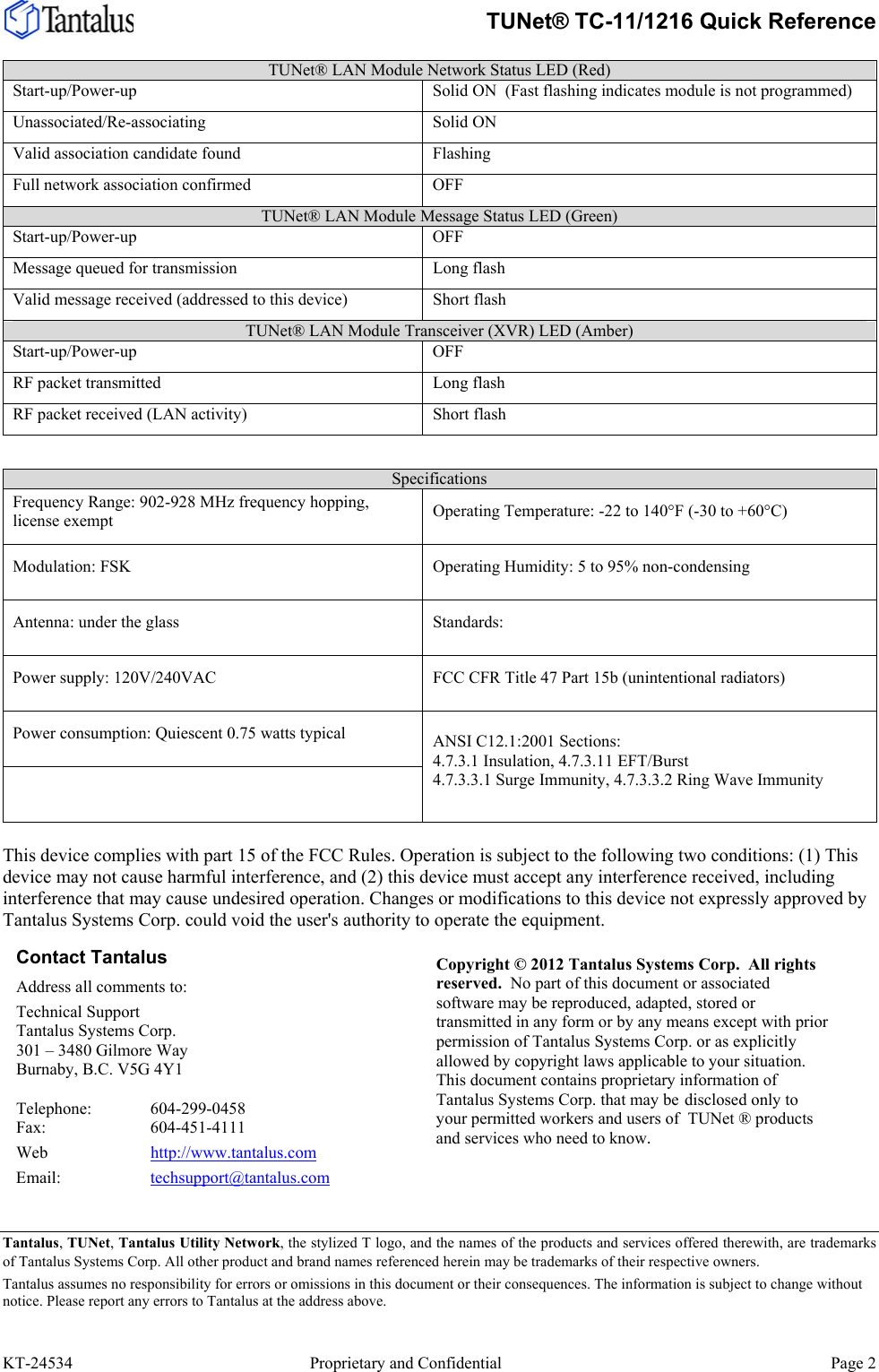

TUNet® TC-11/1216 Quick Reference KT-24534 Proprietary and Confidential Page 2 TUNet® LAN Module Network Status LED (Red) Start-up/Power-up Solid ON (Fast flashing indicates module is not programmed) Unassociated/Re-associating Solid ON Valid association candidate found Flashing Full network association confirmed OFF TUNet® LAN Module Message Status LED (Green) Start-up/Power-up OFF Message queued for transmission Long flash Valid message received (addressed to this device) Short flash TUNet® LAN Module Transceiver (XVR) LED (Amber) Start-up/Power-up OFF RF packet transmitted Long flash RF packet received (LAN activity) Short flash Specifications Frequency Range: 902-928 MHz frequency hopping, license exempt Operating Temperature: -22 to 140°F (-30 to +60°C) Modulation: FSK Operating Humidity: 5 to 95% non-condensing Antenna: under the glass Standards: Power supply: 120V/240VAC FCC CFR Title 47 Part 15b (unintentional radiators) Power consumption: Quiescent 0.75 watts typical ANSI C12.1:2001 Sections: 4.7.3.1 Insulation, 4.7.3.11 EFT/Burst 4.7.3.3.1 Surge Immunity, 4.7.3.3.2 Ring Wave Immunity This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this device not expressly approved by Tantalus Systems Corp. could void the user's authority to operate the equipment. Tantalus, TUNet, Tantalus Utility Network, the stylized T logo, and the names of the products and services offered therewith, are trademarks of Tantalus Systems Corp. All other product and brand names referenced herein may be trademarks of their respective owners. Tantalus assumes no responsibility for errors or omissions in this document or their consequences. The information is subject to change without notice. Please report any errors to Tantalus at the address above. Contact Tantalus Address all comments to: Technical Support Tantalus Systems Corp. 301 – 3480 Gilmore Way Burnaby, B.C. V5G 4Y1 Telephone: 604-299-0458 Fax: 604-451-4111 Web http://www.tantalus.com Email: techsupport@tantalus.com Copyright © 2012 Tantalus Systems Corp. All rights reserved. No part of this document or associated software may be reproduced, adapted, stored or transmitted in any form or by any means except with prior permission of Tantalus Systems Corp. or as explicitly allowed by copyright laws applicable to your situation. This document contains proprietary information of Tantalus Systems Corp. that may be disclosed only to your permitted workers and users of TUNet ® products and services who need to know.
