User Manual

BluetoothTM USB Dongle

Product User’s Guide

May 2005

Printed in Taiwan

Application Setup & User’s Guide

Trademark(s) ™ and Registered Trademark(s) ®

The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc. USA and licensed to the

company.

Microsoft, Windows, Outlook are registered trademarks of Microsoft Corporation.

Other brand and product names may be registered trademarks or trademarks of their respective

holders.

BTW is Copyright Widcomm, Inc. and the BTW software is licensed to the company

Winroute Lite is Copyright Tiny Software, Inc.

TABLE OF CONTENTS

INTRODUCTION............................................................................................................. 5

The Bluetooth Technology.......................................................................................................................5

What is BTW............................................................................................................................................5

What’s in the box.....................................................................................................................................5

What’s new in BTW4.0 ............................................................................................................................6

Bluetooth Tray.........................................................................................................................................6

My Bluetooth Places................................................................................................................................6

Icons used for Bluetooth devices and services.........................................................................................7

GETTING STARTED .................................................................................................... 11

My Bluetooth Places..............................................................................................................................11

Finding Bluetooth devices .....................................................................................................................11

Finding services.....................................................................................................................................11

Setting up a connection..........................................................................................................................12

Determining a connection status ...........................................................................................................13

Send to another Bluetooth device ..........................................................................................................14

CLIENT APPLICATIONS ............................................................................................ 16

About Client and Server ........................................................................................................................16

Human Interface Device........................................................................................................................16

Printer ...................................................................................................................................................17

Audio Gateway ......................................................................................................................................17

Headset..................................................................................................................................................18

Bluetooth Serial Port.............................................................................................................................18

Dial-up Networking ...............................................................................................................................19

Fax.........................................................................................................................................................20

File Transfer..........................................................................................................................................20

Image .....................................................................................................................................................22

PIM Exchange ......................................................................................................................................23

PIM Synchronization .............................................................................................................................24

Network Access......................................................................................................................................24

BLUETOOTH SERVICE .............................................................................................. 27

Common Configuration Settings............................................................................................................27

Notifications ..........................................................................................................................................27

Audio Gateway ......................................................................................................................................28

Bluetooth Image Transfer......................................................................................................................29

Bluetooth Serial Port.............................................................................................................................29

Dial-up Networking Service ..................................................................................................................30

Fax Service ............................................................................................................................................30

File Transfer Service .............................................................................................................................30

Headset Service .....................................................................................................................................31

Network Access......................................................................................................................................32

PIM Item Transfer .................................................................................................................................34

PIM Synchronization .............................................................................................................................36

CONFIGURATION PANEL ......................................................................................... 37

General Tab...........................................................................................................................................37

Accessibility Tab....................................................................................................................................37

Discovery Tab........................................................................................................................................38

Local Services Tab.................................................................................................................................40

Hardware Tab .......................................................................................................................................44

SECURITY...................................................................................................................... 46

Introduction ...........................................................................................................................................46

Authentication........................................................................................................................................46

Authorization .........................................................................................................................................46

Bluetooth Device Identity ......................................................................................................................47

Encryption .............................................................................................................................................47

Link Key.................................................................................................................................................47

Pairing Devices .....................................................................................................................................47

Passkey ..................................................................................................................................................48

Secure Connection.................................................................................................................................48

Security Request Dialog Box .................................................................................................................48

TROUBLESHOOTING ................................................................................................. 50

TECHNICAL SUPPORT............................................................................................... 52

LIMITED HARDWARE WARRANTY....................................................................... 53

DECLARATION OF CONFORMITY......................................................................... 54

INTRODUCTION

The Bluetooth Technology

Bluetooth is a worldwide standard for the wireless exchange of data between two compatible

devices. It utilizes short-distance radio link technology and replaces the traditional cable

connections to enable wireless connections between desktop and laptop computers, cellular

phones, scanners, digital cameras, printers, and other devices. You can now transfer files

between two computers, dial up to the Internet using the host computer’s modem or a cell phone,

or even share a network connection without literally attaching your cables to a device. To put it

simply, Bluetooth unplugs all your cables and lets you forget about cable clutter for a change.

What is BTW

BTW is the solution for the seamless integration of Bluetooth technology into personal computers

that the company has created. It provides you with the means to locate other Bluetooth-enabled

devices in the immediate vicinity, allowing you to make use of the services that the remote

devices offer. These services, which range from gaining access to the Internet to sending a fax

transmission, make mobile computing so much more convenient than ever before.

Installation of the Bluetooth USB dongle is easy. This user’s guide will guide you through the

process of making wireless connection between your devices.

For an overview of the features added in this version, please refer to the section What’s New on

page 6. To see an updated version of the Bluetooth software, please check out our Website.

BTW supports:

 Windows 98SE (Second Edition)

 Windows Me (Millennium Edition)

 Windows 2000

 Windows XP Professional

 Windows XP Home Edition

What’s in the box

Check if the following items are included in the package. If there are any items missing, please

contact your dealer.

 Quick Installation Guide

 Bluetooth USB Dongle

 CD-ROM (includes Quick Installation Guide, Product User’s Guide,

Application Setup Guide, Bluetooth software for Windows, and

Acrobat Reader)

 USB Extension Cable (optional)

What’s new in BTW4.0

1. Advanced Audio Distribution Profile (A2DP)

2. Hands-Free Profile (HFP)

3. Basic Imaging Profile (BIP)

4. Bluetooth 1.2 support

5. Extended HID handling

Bluetooth Tray

After installing the software, you would find a shortcut icon to My Bluetooth Places on your

desktop. However, there is another icon that you will see after successful installation of the

software.

Normally located on the lower right-hand corner of your computer screen, the Windows system

tray will now have an additional icon. This is the Bluetooth Tray.

The Bluetooth Tray provides quick access to numerous Bluetooth operations. In this section, we

will discuss the many uses of this icon. From this tray, you can:

 Have access to My Bluetooth Places: double-click the Bluetooth tray icon.

 Have access to the Bluetooth Setup Wizard: The wizard will help you

. Configure how this computer accesses a service on another Bluetooth device

. Locate remote Bluetooth devices.

. Configure the way that this computer provides services to remote Bluetooth devices.

. Set the name and type of this Bluetooth device, e.g., “Mary’s PC” on desktop.

 Have access to the Bluetooth Configuration Panel: right-click the Bluetooth tray

icon. Select Advanced Configuration.

 Have Quick Connect option: right-click the Bluetooth icon, select Quick Connect,

and then select the type of service to which you wish to connect.

 Start/Stop Bluetooth on this computer.

My Bluetooth Places

My Bluetooth Places is part of Windows Explorer. There are multiple ways to access My

Bluetooth Places:

 In the Windows system tray,

 Right-click the Bluetooth icon and select Explore My Bluetooth Places

 Double-click the Bluetooth icon

 On the desktop, double-click the Bluetooth icon

 Open Windows Explorer and select My Bluetooth Places in the Folder panel or from

the Address shortcut menu.

Icons used for Bluetooth devices and services

Before we move on to the next chapter about the various Bluetooth devices and services, it is

important to get familiar first with the icons that you will see and know what they mean.

Each Bluetooth icon changes its color to provide at-a-glance feedback about the status of a

device or service. In the next few tables below, you will find both device and service icons in

different colors, depending on which Windows platform you are using.

Here, we divide the icon types into two – one for Windows XP, and the other for Windows 98SE /

ME / 2000.

Device icons for Windows XP

Bluetooth icons provide at-a-glance feedback about a device or service’s status by

changing appearance.

The Bluetooth icon in the Windows system tray provides feedback about Bluetooth

status.

Bluetooth Icon Indicates Bluetooth Status

Status Icon

Description

Paired

Enable

Blue with White

Disabled

Blue with Red

Connected

Blue with Green

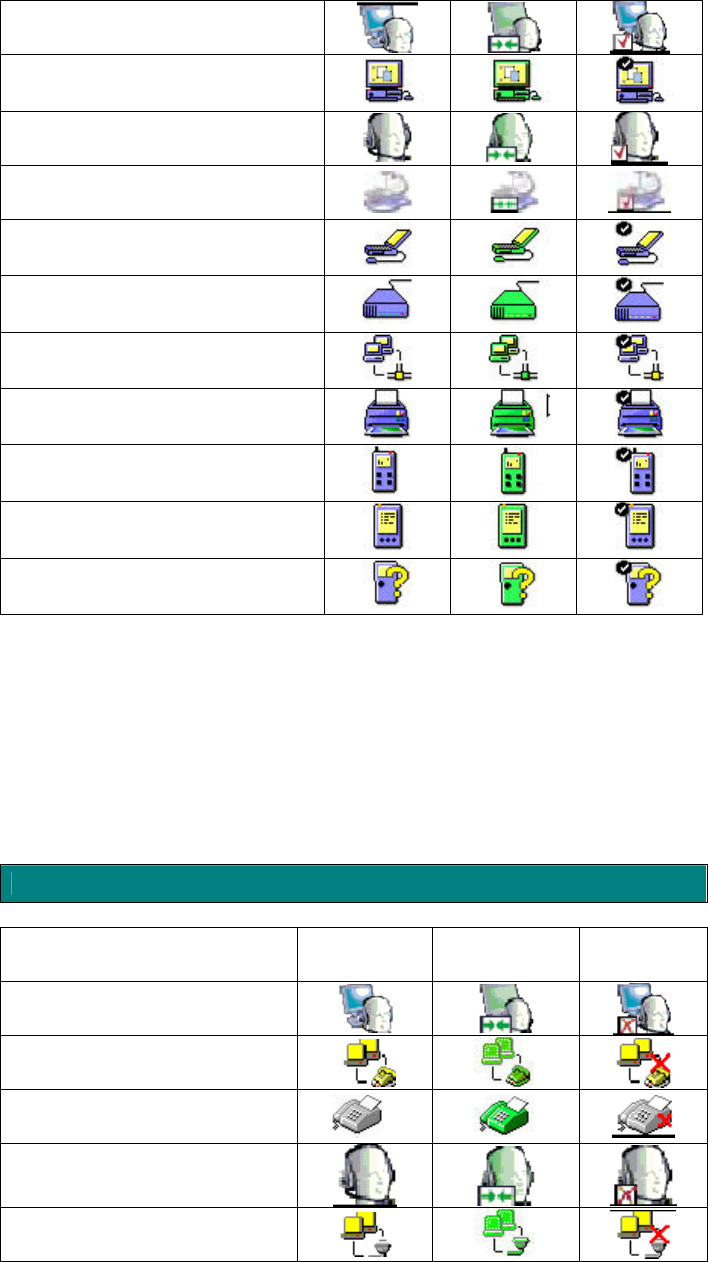

Device Icon Types

Device Type Normal Connected Paired

Audio Gateway

Desktop Computer

Headset

Human Interface Device

Laptop Computer

Modem

Network Access Point

Personal Digital Assistant (PDA)

Printer

Cellular Telephone

Unknown Devices

Service icons for Windows XP

Service icons are gray or yellow in color (or gray with yellow accents) in their “normal”

state. When in their “connected” state, the primary color of the icon changes to green.

Service Icon Types

Service Name Normal Connected Unavailable

Audio Gateway

Dial-up Networking

Fax

Headset

Network Access

PIM Item Transfer

PIM Synchronization

Public Folder

Bluetooth Serial Port

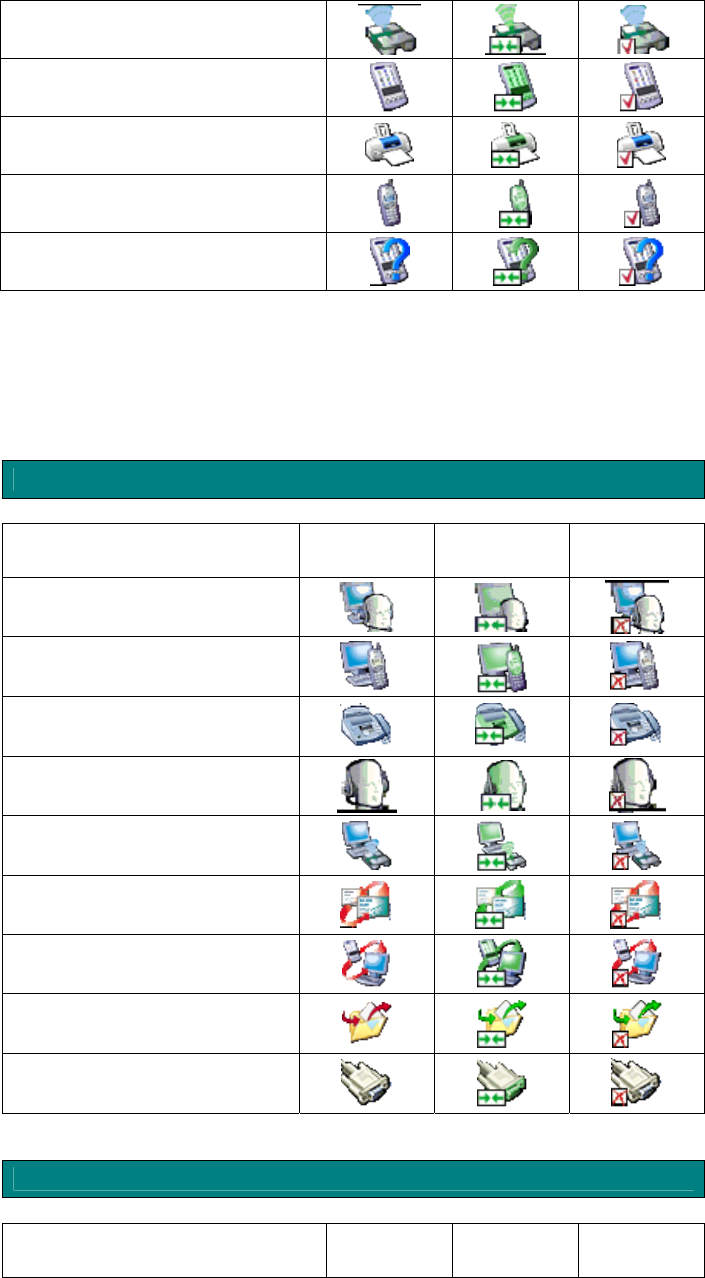

Device icons for Windows 98SE / ME / 2000

Device Icon Types

Device Type Normal Connected Paired

Audio Gateway

Desktop Computer

Headset

Human Interface Device

Laptop Computer

Modem

Network Accept Point

Printer

Cellular Telephone

Personal Digital Assistant (PDA)

Unknown Devices

Service icons for Windows 98SE / ME / 2000

SERVICE ICONS ARE GRAY OR YELLOW IN COLOR (OR GRAY WITH

YELLOW ACCENTS) IN THEIR “NORMAL” STATE. WHEN IN THE

“CONNECTED” STATE, THE PRIMARY COLOR OF THE ICON CHANGES

TO GREEN.

Service Icon Types

Service Name Normal Connected Not

Available

Audio Gateway

Dial-up Networking

Fax

Headset

Network Access

PIM Item Transfer

PIM Synchronization

Public Folder (File Transfer)

Bluetooth Serial Port

GETTING STARTED

My Bluetooth Places

After you have successfully installed the Bluetooth software, you will see

an icon on your desktop and an icon on Window System Tray. These

are two shortcuts to My Bluetooth Places.

To start Bluetooth: Right-Click the icon on Window System Tray and select Start

The Bluetooth icon is blue in color with a white insert when Bluetooth is running.

To stop Bluetooth: Right-Click the icon on Window System Tray and select Stop.

The Bluetooth icon is blue in color with a red insert when Bluetooth is stopped.

Finding Bluetooth devices

You are now ready to search for available Bluetooth devices that are within connection range.

There are two ways to do this:

1. From your desktop, right-click My Bluetooth Places icon. First select Open, and

then select Entire Bluetooth Neighborhood.

Or,

2. Double-click My Bluetooth Places. Then double-click Entire Bluetooth

Neighborhood.

You may also let BTW automatically search for devices for you. To do so, simply configure the

settings in the Discovery Panel. For details, see Configuration Panel on the following.

However, to be certain that the displayed list of devices in the neighborhood is current, it is

recommended that you perform a manual search. This is mainly because mobile devices may go

beyond the connection range in between automatic updates.

If you still couldn’t find some devices that are within connection range, there are two possibilities:

 Your device is configured to report only specific types or classes of devices. (To

change this, modify your device’s configuration in the Discovery tab of the Bluetooth

Configuration Panel.)

 The remote (or unlisted) device is in the non-discoverable mode. (To change this,

modify the remote device’s configuration in the Accessibility tab of the Bluetooth

Configuration Panel.)

Finding services

After discovering the devices you can have access to, you may perform Service Discovery. Each

available device that you have discovered in the Bluetooth Neighborhood provides you with

several services.

To find out what these services are, simply do either of the following:

 Double-click a device in the Bluetooth Neighborhood, OR

 Right-click a device and select Discover Available Services.

The services that BTW supports are as follows:

Bluetooth Serial Port establishes a wireless connection between two Bluetooth

devices. The serial connection can be used by applications as though there is a serial

cable between the devices.

Dial-up Networking allows you to use a modem on another Bluetooth device to

connect to the Internet and send/receive e-mail.

Fax allows you to send a fax transmission through another Bluetooth device.

File Transfer (Public Folder) allows you to perform file system operations on another

Bluetooth device such as browse, drag-and-drop, open, print, cut/copy, paste, delete,

rename, etc.

Headset allows a Bluetooth headset to be used as the audio input/output mechanism

for another Bluetooth device, such as a computer or cell phone.

PIM Item Transfer allows you to exchange Personal Information Manager (PIM) data

such as business cards, calendar items, e-mail messages, and notes.

PIM Synchronization allows you to synchronize Personal Information Manager (PIM)

data between two Bluetooth devices.

Network Access allows you to gain access to the Internet using another Bluetooth

device’s Local Area Network (LAN) connection.

Audio Gateway allows the microphone/speakers on Bluetooth device (typically a

computer) to be used as the audio input/output mechanism for a remote Bluetooth

device, such as a cell phone.

Note: Not all Bluetooth devices provide all of these services. For instance, network gateways

only displays the Network Access service to let you have access to the Local Area Network

(LAN) connection.

Setting up a connection

Now that you know how to discover available devices and their services, you are now ready to

make a Bluetooth connection with another device.

Setting up a new connection is fast and easy, you have these choices:

Create a connection from the Bluetooth Icon in the System Tray

In the Windows system tray, right-click the Bluetooth icon, select Quick Connect and then the

Bluetooth service that you wish to use.

If this computer has created a connection to the desired type of service in the past, the options on

the shortcut menu are:

1. The name(s) of any devices(s) with which prior connections to this type of service

have been established. Select a name from the list to re-establish connection.

2. Other devices… Select this option to search for additional devices that potentially

provide the desired service, select a device from the list and then click Connect.

If this computer has never created a connection to this type of service, the only option on the

shortcut menu is “Find Devices…” Select this option to search for devices that potentially

provide the desired service, select a device from the list and then click Connect.

Using the Bluetooth Setup Wizard

To start the Bluetooth Setup Wizard, you have 3 ways,

Start the Wizard by right-clicking the Bluetooth icon in the Windows system tray and

select Bluetooth Setup Wizard.

Or,

In Windows Explorer, with My Bluetooth Places selected, from the Bluetooth menu, select

Bluetooth Setup Wizard.

Or,

Right-click the Bluetooth Icon on Desktop and select Bluetooth Setup Wizard.

Follow the wizard’s on-screen instructions.

Create a connection from Entire Bluetooth Neighborhood

In Windows Explorer,

1. In the Folders panel, select Entire Bluetooth Neighborhood, right-click a device name

and select “Connect to … “

Or,

2. In the Folders panel, expand Entire Bluetooth Neighborhood, select a device, and

then, in the right panel, right-click a service provided by that device and select

“Connect to …”

Determining a connection status

The Bluetooth Connection Status dialog box displays information about the status of a connection.

It is also where you disconnect an active connection.

To display the Connection Status dialog box:

1. Open My Bluetooth Places and select My Device.

2. Right-click a service name and then select Status from the pop-up menu.

The Connection Status dialog box opens and provides the following information:

 Status: tells you whether you are Connected or Disconnected.

 Device Name: the name of the device to which your computer is connected.

 Duration: the length of time this connection has been established, displayed in

hours, minutes, and seconds. Depending on the service, the connection may time

out (automatically disconnect) after a specific period of inactivity.

 Activity: the number of bytes sent and received over the connection.

 Signal Strength: a variable scale that ranges from Too Weak through Good to Too

Strong.

Also in the dialog box you will find three ‘control’ buttons:

 Properties: click this button to display the Bluetooth Properties dialog box for the

connection.

 Disconnect: click this button to end your current connection.

 Close: click this button to close the Bluetooth Connection Status dialog box.

Send to another Bluetooth device

This feature is used to send information to another Bluetooth device. Data types include:

 Files for Windows Explorer

 Documents for Microsoft Office applications, including:

 Word

 Excel

 Access

 PowerPoint

 Microsoft Outlook items, including:

 Contacts

 Appointments

 Tasks

 Messages

 Notes

To use Send to other Bluetooth device

1 In the application:

1.1 Windows Explorer – select one or more files to be transferred.

1.2 Microsoft Office – only the document in the active window can be transferred.

1.3 Microsoft Outlook – select one or more items to be transferred.

2 From the application’s File menu, select Send To, and then select Bluetooth from the

shortcut menu.

3 Select a device from the shortcut menu to send the data

Select Other…, choose a device from the list and then click OK to send the data.

CLIENT APPLICATIONS

About Client and Server

Before we start discussing about what each of the services does, let us briefly tell you a bit about

Client and Server since we will be mentioning a lot of these two in this chapter.

In order for two Bluetooth devices to exchange data, they must establish a connection. However,

before a connection is established, one device must request a connection with the other. This is

the Client.

The second device that accepts or rejects the connection is then known as the Server. Many

Bluetooth devices can act as both client and server.

Human Interface Device

The Human Interface Device (HID) Application allows this computer to wireless use one or more

remote Bluetooth HIDs as input/output devices.

For example, the HID Application allows this computer to use a Bluetooth keyboard and a

Bluetooth mouse.

Create a Bluetooth HID connection:

Note: Some HIDs have multiple modes. Before establishing a connection, be sure the HID is in

the desired mode. For example, in the case of an HID that can function as both mouse and a

laser printer, be sure the mode switch is set to “Mouse” before attempting to connect.

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-

up menu to see an updated list.

4. Double-click HID devices, such as Keyboard or Mouse to make connection.

5. Once an HID connection is established, that connection will persist. If the computer is

shut down, when the computer is turned on again the connection will re-establish

automatically.

Note: HIDs usually have a button, which is sometimes difficult to find, that must be pressed

before other Bluetooth devices can locate the HID. Even after the button is pressed, the HID can

only be discovered for a limited time, and then the button must be pressed again. The time period

can be as short as 30 seconds or as long as 180 seconds. Read the document that accompanies

the HID before you attempt to connect to the devices.

Close an HID connection:

Under normal circumstances, there is no reason to close an HID connection; once established

the connection is maintained automatically, even during the power off and power on processes.

If, for some reason, the connection must be closed: from My Bluetooth Places, right-click the

service name and select Disconnect.

The connection’s “persistence” is broken when HID connection is closed manually by operator.

If you want to use HID device again, you need to re-establish by manually.

Printer

The Bluetooth Printer allows this computer to use a Bluetooth printer.

Once a Bluetooth printer has been properly installed, it can be used from this computer in the

same way as any other printer would be.

Create a Bluetooth Printer connection at first time:

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-up

menu to see an updated list.

4. Double-click Printer you want to make a Bluetooth connection.

5. Once a Bluetooth Printer connection is established at first time, that might need you

install the printer driver. Push OK button to start the printer driver installation.

6. When the wizard asks you to select a printer and model, select the printer and

model on the list. If your printer is not in the list of options, click Have Disk… , insert

the driver disk or CD for the printer, and then navigate to the driver and directory

that contains the driver initiation file (.inf) for the printer.

7. To complete the installation, follow the on-screen instructions.

8. After install printer driver, you can use this Bluetooth Printer as other printer you have.

Delete a printer:

1. Click Start button on windows working tray.

2. Click Settings

3. Click Printers

4. Right-click on the printer you want to delete and select delete

Audio Gateway

The Audio Gateway service allows a remote Bluetooth device to use this computer’s microphone

and speaker’s the remote device’s audio input and output devices.

For example, if this computer has voice recognition capabilities, a Bluetooth headset might be

used as the audio input device.

Connection is initiated from the client. To establish a Bluetooth Audio Gateway connection:

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-up

menu to see an updated list.

4. Right-click the server that will provide the Audio Gateway service and then select

Discover Available Services to display an updated list of services.

5. Double-click Audio Gateway.

6. Open Volume Control on windows tray to adjust the volume you want.

Client must have a sound card, microphone, and speakers installed.

The Bluetooth radio on both on server and client must support audio.

Headset

The Headset application allows client (this computer) to use a Bluetooth headset (or any other

device that offers the Bluetooth headset service) as the audio input and output device for server.

To create a headset connection:

1. Make sure the headset already on PAIRING mode.

2. On the Client, open My Bluetooth Places by double-clicking the

icon on your desktop.

3. Select Enter Bluetooth Neighborhood.

4. Right-click anywhere except on a device name and select

Refresh from the pop-up menu to see an updated list.

5. Right-click the server that will provide the Headset service and

then select Discover Available Services to display an updated

list of services.

6. Double-click Headset.

Server must have a sound card, microphone, and speakers installed.

The Bluetooth radio on both on server and server must support audio.

Bluetooth Serial Port

The Bluetooth Serial Port service allows two Bluetooth devices to establish a wireless connection

through a virtual communications port and then use that connection as if it were a hardwired

serial cable between those devices.

Connection is initiated from the client. To establish a Bluetooth serial port connection:

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Entire Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-up

menu. This updates your current list of available devices.

4. Right-click the server (the receiver of your request) with which you want to establish a

connection. Select Discover Available Services from the pop-up menu to display an

updated list of available services.

5. Double-click Bluetooth Serial Port. A dialog box appears, containing the

communications port number assigned to this connection by the client. The

application that will use this connection must be configured to send data to this port.

To determine the communications port that the service will use:

1. On the Server, open My Bluetooth Places by double-clicking the

icon on your desktop.

2. Right-click My Device and select Properties from the pop-up menu.

3. In the Bluetooth Configuration Panel, select the Local Services tab.

Double-click the Bluetooth Serial Port service to display its Service Properties

dialog box. The Service Properties dialog box displays the communications port that

the connection is using.

To close a Bluetooth serial port connection:

1. On the Client, open My Bluetooth Places by double-clicking the icon on

your desktop.

2. Select the device that is providing the Bluetooth Serial Port service.

3. Right-click Bluetooth Serial Port and then select Disconnect

Bluetooth Serial Port from the pop-up menu.

Another method to close the connection is from the Server. However, this is not recommended:

1. On the Server, open My Bluetooth Places by double-clicking the

icon on your desktop.

2. Select My Device.

3. Right-click Bluetooth Serial Port and then select Stop to close

the service. The service must be re-started before it will be

available to remote devices.

Note: To restart connection, right-click Bluetooth Serial Port and select

Start from the pop-up menu.

Dial-up Networking

The Dial-up Networking service allows a Bluetooth client to use a modem that is physically

connected a different Bluetooth device (acting as the server). Once a wireless connection is

established between the two devices, the client can use the server’s modem as if it were a local

device on the client.

Connection is initiated from the Client. To establish a Dial-up Networking session:

1. On the Client, open My Bluetooth Places by double-clicking the

icon on your desktop.

2. Select Entire Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and then select

Refresh from the pop-up menu for an updated list.

4. Right-click the server that will provide the Dial-up Networking

Service and select Discover Available Services from the pop-up

menu to display an updated list of available services.

5. In My Bluetooth Places, double-click Dial-up Networking.

6. The Connect To dialog box opens, prompting you to fill in your

user name, password, and the phone number to be dialed.

7. Click the Dial button. Selecting the Save password checkbox will

let you connect to the same number in the future without having

to type in all the connecting information.

You can now open a Web browser and connect to the Internet as if the modem was attached to

your computer.

To close a Dial-up Networking connection:

1. On the Client, open My Bluetooth Places by double-clicking the

icon on your desktop.

2. Select the device that is providing the Dial-up Networking service.

3. Right-click Dial-up Networking and then select Disconnect Dial-

up Networking from the pop-up menu.

Fax

The Fax service allows a Bluetooth client to perform a wireless fax transmission using a device

that is physically attached to a Bluetooth server.

Connection is initiated from the Client. To send a fax:

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-up

menu to see an updated list.

4. Right-click the server that will provide the Fax service and then select Discover

Available Services to display an updated list of services.

5. Double-click Fax.

Once the fax connection is established, you need to open or create the document to be faxed and

use the Print or Send to Fax Recipient option available in most applications. The Fax

connection automatically closes when the transmission is complete.

File Transfer

The File Transfer service allows a Bluetooth device to perform file operations on the default File

Transfer directory – and all the folders and files that it contains – of another Bluetooth device.

To perform a folder or file operation:

1. On the device from which the File Transfer service will be used,

open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Entire Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and then select

Refresh from the pop-up menu to see an updated list.

4. Right-click the device that you want to transfer files to and then

select Discover Available Services to display an updated list of

available services.

5. Click the plus (+) sign right next to Public Folder to expand that

folder. If there are subfolders, click all the plus (+) signs until you

see all the files under the subfolders.

Types of File Transfer operations

There are various types of file operations that you can perform. With My Bluetooth Places opened,

right-click a folder and select an option from the pop-up menu. A dialog box appears, its title

varies depending on the operation being carried out. In the dialog box that is displayed, you will

see the current operation indicated at the bottom of the box.

The types of operations that can be accomplished are:

 Open: there are two items you may open:

Files: are opened in the application associated with them. −

−

Folders: are expanded to show their file contents.

 Print: sends the selected Server file to the Client’s default printer.

 Send to:

3.5” Floppy Drive: copies the selected item(s) from the server to the client’s 3.5”

floppy drive.

My Shared Folder: copies the selected item(s) from the server to the default

File Transfer folder on the client.

 Cut: copies a folder and its contents, or individually selected files in a folder, to the

Windows clipboard. When the clipboard contents are pasted to a new location, the

originally selected file(s) on the server are deleted.

 Copy: copies a folder and its contents, or individually selected files in a folder, to the

Windows clipboard.

 Delete: removes selected file(s) and/or folder(s) on the server.

 Rename: allows you to change an empty folder’s name.

 Properties: displays the file or folder’s properties in a dialog box.

Other options may appear, depending on the content in which the menu appears:

 Update: refreshes the contents of a folder.

 New Folder: creates a new folder on the server.

 Abort FTP Operation: cancels an ongoing File Transfer operation.


The Bluetooth Imaging application allows this computer to send images to remote devices that

provide the Bluetooth imaging service.

Possible uses include the transfer of images to a Bluetooth camera, camera/phone, or any other

device that offers the Bluetooth Imaging service.

The supported image formats are:

 BMP

 GIF

 PNG

 JPG

Image Format Conversion

Some devices, particularly battery-powered devices such as phones and cameras, may only be

able to accept images in one format and at a single fixed resolution. In that case, the image is

converted to the required format and resolution before it is transferred to the remote device.

Create an Imaging Connection

Imaging application connections are created automatically on an as-needed basis.

To send an image to the remote imaging device:

 In Entire Bluetooth Neighborhood, drag and drop the image file

onto the destination’s device icon.

 In Windows Explorer, right-click an image file and, from the

shortcut menu, select Copy. Then, in Entire Bluetooth

Neighborhood, right-click the destination device, and, from the

shortcut menu, select Paste.

 If a shortcut to the remote device’s imaging service exists in My

Bluetooth Places, drag and drop, or, copy and paste, to that

shortcut.

Close an Imaging Connection

Imaging connections close automatically when the image transfer is complete.

To abort the image transfer, click Cancel in the transfer dialog box.

Configure

The Bluetooth Configuration Panel > Client Applications > Imaging > General tab provides

options to configure:

 The application name - to change it, highlight the existing name

and enter the new name.

 Secure connection - to enable secure connection, select the

option box. To disable secure connection, clear the option box.

Remote Camera Operation

Remote operation of the Bluetooth imaging device, such as the ability to trip a camera’s shutter or

browse the images on a device, may be possible, depending on the functions supported by the

remote device.

There are three prerequisites:

 This computer must be running under the Windows XP operating

system.

 The remote imaging device must support the action. See the

remote imaging device’s documentation for information about the

remote functions the device supports.

 The remote imaging device must be installed on this computer

(see below).

Install an Imaging Device

Note: Only Windows XP can install an imaging device; previous operating systems do not have

native support for this option.

Perform a search for devices and then, from Entire Bluetooth Neighborhood, right-click a

Bluetooth imaging device, and select Add Camera from the shortcut menu.

Windows installs the camera and adds it to the Cameras and Scanners section of My Computer.

Uninstall an Imaging Device

In Entire Bluetooth Neighborhood, right-click an installed Imaging device and then select Delete

Camera from the shortcut menu.

PIM Exchange

The Information Exchange service provides a way to send and receive Microsoft Outlook items to

and from another Bluetooth device, such as a Personal Digital Assistant (PDA) or notebook

computer.

The supported Outlook items are:

 Business cards (*.vcf and *.vcd)

 Calendar entries (*.vcs)

 Notes (*.vnt)

 Messages (*.vmg)

There are three types of operations:

 Send – sends an object to another device.

 Receive – requests an object from another device.

 Exchange – sends a client object and receives a server object.

You can set the default location of your business card and the location where you received items

from the Bluetooth Configuration Panel.

To send, receive, or exchange an object:

1. On the Client, open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Right-click the Inbox icon of the remote device and then select an option from the

pop-up menu.

Notes:

Business cards are sent, received, or exchanged without further intervention.

To send calendar items, notes, and messages, go to the folder that contains the item you want to

send out. Then select the item and click Open.

PIM Synchronization

The PIM Synchronization service is used to match information between a Bluetooth client and a

Bluetooth server. A perfect example would be a Personal Information Manager (PIM) database.

BTW supports synchronization with devices that support IrMC v1.1 and exchange the v2.1 vCard

format.

If Information Synchronization is used for the first time with a new application, it may take a few

minutes to synchronize the database. This is how it works – it merges data from both devices,

deletes duplicate entries, and then copies the updated database to both devices.

Following the first attempt, subsequent uses of Information Synchronization for the same

application will be much faster – only the changes that have been made since the devices were

last synchronized will be exchanged.

Microsoft Outlook is the only Personal Information Manager that this release of BTW supports.

Outlook permits duplicate entries, so all duplicates may not be exchanged in the synchronization

process. The only thing synchronized would be Outlook’s default contacts folder. Items in the

subfolders will not be synchronized. This means that if you have moved items from the default

folder to a subfolder, they will seem to be deleted after the next synchronization.

To apply PIM Synchronization:

1. On the client, open My Bluetooth Places by double-clicking the icon on your

computer.

2. Select Entire Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and then select Refresh from the

pop-up menu to see an updated list.

4. Right-click the server that you want to synchronize with and then select Discover

Available Services to display an updated list of available services.

5. Double-click PIM Synchronization. A dialog box appears, displaying the

synchronization progress. Once the process is complete, the connection

automatically closes.

Network Access

The Network Access service allows a Bluetooth client to use a Local Area Network (LAN)

connection that is physically attached to a Bluetooth server.

Possible network access servers include:

 Bluetooth-enabled computers that have a hardwired Ethernet connection

 Stand-alone Bluetooth Network Access Points

The Bluetooth server must be specifically configured to provide Network Access service.

However, after a Bluetooth device is configured as a Network Access server, it cannot act as a

Network Access client without being re-configured.

In the next sections to follow, we will discuss about how to set up Network Access in different

Windows platforms.

Windows 2000, Server-side Setup

1. From the Windows Control Panel, select Network and Dial-up Connections.

2. Right-click the Local Area Connection icon and select Properties. The Local Area

Connection Properties dialog box opens.

3. Click the Sharing tab. Select Enable Internet Connection Sharing.

4. Click OK.

5. Click Yes to enable Internet connection sharing.

Windows XP, Server-side Setup

1. Have your Windows XP compact disc handy. You may need it during the setup

process.

2. From the Windows Control Panel, select Network Connections.

3. Right-click the Local Area Connection icon and then select Properties.

The Local Area Connection Properties dialog box opens.

4. Click the Advanced tab. Select Enable Internet Connection Sharing to allow

network users to connect, control, or disable this Internet connection.

5. Select Allow other network users to connect through this computer’s Internet

connection.

6. Click OK.

Windows 98SE & Windows ME, Server-side Setup

Internet Protocol routing software is required on Windows 98SE and Windows ME servers. A

downloadable trial version of WinRoute Lite is available on the Tiny Software, Inc. Website –

http://www.tinysoftware.com/

To configure the server:

1. From the Windows Control Panel, double-click the Network icon.

2. Click the Configuration tab. Select TCP/IP -> Bluetooth LAN Access Server

Driver (scroll down if necessary).

3. Click Properties and select the IP Address tab.

4. Select Specify an IP address.

5. Enter an IP address (suggested value – 192.168.1.1) and a Subnet Mask

(suggested value – 255.255.255.0).

6. Click OK in both dialog boxes.

7. Click Yes to restart the computer.

To configure the routing software:

1. In the Windows system tray, right-click the WinRoute icon and select

Administration.

2. Click the Settings tab. Select 2nd network adapter.

3. From the Network adapter drop-down list, select any adapter other than the USB

Dongle.

4. Click the Settings button.

5. Click the DHCP tab. From the Adapter drop-down list, select the Bluetooth

Windows 9x Adapter.

6. Select Enable DHCP Server.

7. Type in the client IP address range fields:

From: 210 −

− To: 240

8. Click OK and then minimize (do not close) the WinRoute Administration configuration

panel.

BLUETOOTH SERVICE

Common Configuration Settings

These properties can be set individually for each Bluetooth service:

 Service Name - the default name of each service can be changed.

 Secure Connection - requires that remote devices provide proof of

identity and that all data be encrypted.

 Startup Automatically - starts the service automatically when Bluetooth is

started.

 Notifications - provides visual and/or audio notification that a remote

device is attempting to connect (or has connected) to a service on this

computer.

Notifications

There are three types of notification:

 Authentication request, also called a PIN code request - this notification

is displayed automatically in a balloon over the Notification area, at the

far right of the taskbar if a Personal Identification Code is required before

a connection can proceed. An audio file can also be associated with the

notification.

 Authorization request, also called a connection request - this type of

notification can be visual, audio, or both. It notifies you of attempts to

access a Bluetooth service on this computer; the connection will not

proceed until you click the balloon that is displayed over the Notification

area, at the far right of the taskbar. If the notification balloon is ignored,

the connection request will time out and fail.

 Notification only - this type of notification does not affect access in any

way; it is solely for information purposes to let you know that a

connection has been established.

Example: Both Authentication and Authorization request notifications are controlled by whether

Secure Connection is enabled for an individual service. An example of how notifications might

work when a remote device attempts to access a service on this computer, if all notifications are

enabled:

 Authentication - a balloon notification (audio optional) prompts you for a

PIN code. If the PIN code does not match the code entered on the

remote device, the connection will not be allowed. After the remote

device has been authenticated this notification will not appear again,

unless the paired relationship is broken. If the paired relationship is

broken, the devices must re-pair.

 Authorization - a balloon notification is displayed and/or a sound file

provides audio notification that a remote device is attempting to access a

Bluetooth service on this computer. Click the balloon to proceed. A dialog

box prompts you to enable the connection only once, or to allow this

device to use the service every time.

 After a connection has been authorized, an additional visual and/or audio

notification may be displayed (if enabled). This notification is for

information only to inform the operator that a connection has been

established.

Note: After two devices are paired, the authentication notification will no longer be displayed when

a connection is attempted. If Always allow… is enabled during the authorization process, the

authorization notification will not be displayed on future connection attempts. Connection

notification only happens if it has been enabled on the Notifications tab of the individual service

being accessed.

Service Access Notification

Notifications lets you associate a sound (Windows *.wav file) and/or a visual indication with

access attempts by remote devices.

A different notification sound can be associated with each local Bluetooth service.

Associate a Sound with Service Access

From the Bluetooth Configuration Panel, Local Services tab:

1. Double-click a service name and then select the Notifications tab.

2. Select the options you want; both visual and sound notifications may be selected for

a single event.

3. Choose a sound; click the Browse button and navigate to the sound file (*.wav) to

be used for notification. To preview the sound file, click the play button.

4. Click OK to close the service's property dialog box.

Audio Gateway

The Bluetooth Audio Gateway service enables the computer to use the microphone and speakers

on a remote Bluetooth device as the input and output devices for the computer.

For example, if this computer has voice recognition capabilities, a Bluetooth headset might be

used as the audio input device.

Hardware Requirements

 The Bluetooth hardware on this computer and on the remote device must

support audio.

 The remote device handles both audio input and output for this computer;

therefore, this computer does not require a sound card, microphone, or

speakers.

Configure the Audio Gateway Service

From the Notification area, at the far right of the taskbar, right-click the Bluetooth icon, select

Advanced Configuration > Local Services, and then double-click the Audio Gateway service.

Set the common configuration properties of the service, and then click OK.

Bluetooth Image Transfer

The Bluetooth image transfer service allows this computer to accept images from remote devices

that support Bluetooth image transfer.

The supported image formats are:

 BMP

 GIF

 PNG

 JPG

Received images are stored in the Bluetooth exchange folder.

Configure the Bluetooth Imaging Service

From the Windows system tray, right-click the Bluetooth icon, select Advanced Configuration >

Local Services, and then double-click the Bluetooth Imaging service.

Set the common configuration properties of the service, and then click OK.

Bluetooth Serial Port

The Bluetooth Serial Port service enables a remote Bluetooth device to establish a wireless serial

connection with this computer. The wireless serial connection may be used by applications as

though a physical serial cable connected the devices.

To establish a Bluetooth Serial Port connection:

 The connection must be initiated from the remote device by the Bluetooth

Serial Port application.

Determine the communications port being used by this computer for the Bluetooth Serial Port:

 In the Notification area, at the far right of the taskbar, right-click the

Bluetooth icon, select Advanced Configuration, and then select the Local

Services tab. The COM port assigned to this service is the last item in

the Bluetooth Serial Port service row. Configure the application on this

computer that will use this service to send its data to this COM.

Add or Delete a Bluetooth Serial Port

The Bluetooth Serial Port service has one pre-configured Bluetooth Serial Port, but additional

Bluetooth Serial Ports can be added as needed.

To add a port:

1. From the Bluetooth Configuration Panel, Local Services tab, click Add Serial

Service.

2. In the properties dialog box, modify the properties.

 Enter a unique name (fewer than 99 alphanumeric characters).

 Select secure connection.

 Select Startup Automatically.

 From the COM Port shortcut menu select a communications port that

is not assigned to any otherservice.

3. Click OK.

To remove a Bluetooth Serial Port:

 From the Bluetooth Configuration Panel, Local Services tab, select the

port to be removed and then clickDelete.

Note: The Delete button is only available when a Bluetooth Serial Port is selected.

Dial-up Networking Service

The Bluetooth Dial-up Networking service makes it possible for a remote Bluetooth device to use

a modem that is physically connected to this computer. The remote device can then access the

Internet or log on to a remote network.

Configure the Dial-up Networking Service

From the Notification area, at the far right of the taskbar, right-click the Bluetooth icon, select

Advanced Configuration > Local Services, and then double-click the Dial-up Networking service.

 Select the physical modem to be used from the Modems - shortcut menu.

 Set the common configuration properties of the service, and then click

OK.

Fax Service

The Fax service allows a remote Bluetooth device to send a Fax via a modem that is physically

attached to this computer.

Configure the Fax Service

From the Notification area, at the far right of the taskbar, right-click the Bluetooth icon, select

Advanced Configuration > Local Services, and then double-click the Fax service.

 Select the physical modem to be used from the Modems - shortcut menu.

 Set the common configuration properties of the service, and then click

OK.

File Transfer Service

The File Transfer service allows this computer to perform file operations on the Bluetooth

exchange folder (and the folders and files it contains) of a remote device.

To Use the File Transfer Service

1. Right-click the Bluetooth icon and select Explore My Bluetooth Places.

2. Configure Windows Explorer so that the Folders pane is visible (View > Explorer

Bar > Folders).

3. In the Folders pane, select Entire Bluetooth Neighborhood.

4. On the menu bar, select Bluetooth > Search For Devices.

5. In the Folders pane, expand Entire Bluetooth Neighborhood to show the devices in

the vicinity.

6. Select a device and expand that branch to view the Bluetooth exchange folder of

the remote device.

Note: If Public Folder is not available, the remote device is not configured to allow remote file

operations.

Use drag-and-drop to copy any file or folder contained in the Public Folder of the remote device to

a folder on this computer.

You can also drag-and-drop files or folders from this computer to the Public Folder (and its sub-

folders) of the remote device.

Other file operations - right-click a file or folder in the remote device’s Public Folder for a context

sensitive menu. All potential menu options may not be available at all times.

Potential menu options include:

 Open - opens the selected file on this computer, using the default

application for this type of file.

 Print - sends the selected file to this computer’s default printer.

 Send To

 3 ½ floppy (A) - sends the selected file to the 3 ½ inch floppy drive on

this computer

 Public Folder on My Device - sends the selected file to the Public

Folder on this computer.

 Rename - applies only to empty folders; file names and the names of

folders that contain objects cannot be changed using this technique.

 Cut, Copy, Paste, Delete, Refresh, View & New - standard Windows

functions.

Headset Service

The Bluetooth Headset Service allows this computer to provide audio input/output for remote

Bluetooth devices.

Example: if the remote device is a Bluetooth telephone, this computer’s microphone and speakers

can be used as speakerphone input and output for that device.

Hardware Requirements

 This computer must have a sound card, microphone, and speakers

installed.

 The Bluetooth hardware on this computer and on the remote device must

support audio.

Configure the Headset Service

 From the Notification area, at the far right of the taskbar, right-click the

Bluetooth icon, select Advanced Configuration > Local Services, and

then double-click the Headset service.

 Set the common configuration properties of the service, and then click

OK.

Usage Example with a Bluetooth Telephone

From the Bluetooth phone, search for devices that offer the Headset Service, select the Headset

Service on this computer, and then select Connect.

Note: Individual Bluetooth phone manufacturers may use different terminology to describe the

Headset Service, but the word audio and/or headset should be in the description - refer to the

documentation included with the Bluetooth phone for assistance.

If the Headset Service has Secure Connection enabled, a PIN code and Authorization will be

required to complete the connection.

When the phone successfully connects to the Headset Service:

 In the Notification area, at the far right of the taskbar, the Bluetooth icon

will be a blue field with a green insert (if another Bluetooth connection

existed before this connection was established, the icon would have

already been this color).

 A notification balloon will appear briefly above the Bluetooth icon with a

message similar to:

Bluetooth Connection Successful

Bluetooth device My Bluetooth Cell Phone is connected to the Headset

service on this computer

The Headset Service now monitors the phone and displays a notification balloon over the

Bluetooth icon in the Notification area, at the far right of the taskbar when an incoming call is

detected. Click the balloon to acknowledge the notification, and then, in the Incoming Call dialog

box, click the Accept button to accept the call.

The audio signal from the phone is re-routed to the audio output device (speakers or earphones)

on the computer, and the microphone on the computer provides the audio input for the phone. To

reject the incoming call, when the Incoming Call dialog box is displayed, click the Reject button.

Network Access

The Bluetooth Network Access service enables a remote Bluetooth device to access a Local Area

Network that is physically attached to this computer or allows a remote device to become part of

an ad hoc network provided by this computer.

After this computer has been configured to provide the Network Access service to other Bluetooth

devices, it will not be able to use the Bluetooth Network Access service provided by another

Bluetooth device without being re-configured. In other words, this computer cannot be both a

Bluetooth Network Access server and a Bluetooth Network Access client at the same time.

Setup for Windows 98SE & Windows Me

Note: Internet Protocol routing software is required on Windows 98SE and Windows Me servers.

Install and configure the routing software as instructed by the software's manufacturer before you

configure the computer as a Network Access server.

Configure the server:

1. From Windows Control Panel, double-click the Network icon.

2. On the Configuration tab, select TCP/IP-> Bluetooth LAN Access Server Driver

(scroll down if necessary).

3. Click Properties and select the IP Address tab.

 Select Specify an IP address

 Enter an IP Address (suggested value - 192.168.1.1)

 Enter a Subnet Mask (suggested value - 255.255.255.0)

4. Click OK to close each dialog box, and then click Yes to restart the computer.

Setup for Windows 2000 and Windows XP

If Internet Connection sharing was previously enabled (before BTW was installed) it must be

disabled and then re-enabled before the Bluetooth network adapter can use it.

Configure for Internet/LAN:

Before you begin, verify that the:

 Bluetooth software is installed and enabled

 Bluetooth device is turned on

 Server has access to the Local Area Network (LAN). If the LAN provides

Internet access, the connection can be verified by using the server’s

browser to connect to the Internet through the LAN.

1. Configure Bluetooth - right-click the Bluetooth icon in the notification area, select

Advanced Configuration, and then

 From the Local Services tab, select Network Access, and then click

Properties.

 From the General tab, in the Select the type of service drop-down list,

select Allow other devices to access the Internet/LAN via this computer,

and then in the Connection Sharing section, select Configure

Connection Sharing to display

- Windows XP - the Network Connections window

- Windows 2000 - the Network and Dial-up Connections window

2. Configure Windows

 Right-click Local Area Connection, select Properties, and then

- Windows XP - from the Advanced tab, in the Internet Connection Sharing

section, select Allow other network users to connect through this computer’s

Internet connection. Then select Bluetooth Connection in the Home Networking

drop-down list, if available. (The Home Networking drop-down list is not

available on all versions of Windows XP.)

- Windows 2000 - from the Sharing tab, in the Internet Connection Sharing

section, select Enable Internet Connection Sharing for this connection.

 Click OK to close the window.

3. Click OK in the Bluetooth Properties window to complete the configuration process.

Note: If a firewall is in use, additional steps may be required before the browser can access the

Internet. Contact your information technology department to determine if a firewall is in use or for

assistance in configuring the Local Area Network settings for your proxy server.

Verify the Server Setup

From a different Bluetooth computer:

1. Find the server - from My Bluetooth Places, in Entire Bluetooth Neighborhood, right-

click in an empty area, and then select Refresh from the shortcut menu.

2. Display the services - right-click the server and select Discover Available Services

from the shortcut menu.

3. Connect to the server - double-click the Network Access service and follow the on-

screen instructions.

4. Open a browser and connect to the Internet to verify the connection.

PIM Item Transfer

The PIM Item Transfer service allows Personal Information Manager items to be transferred

between this computer and a remote Bluetooth device.

Four data types are supported:

 Business Cards

 Calendar Items

 Email Messages

 Notes

Each data type can be saved in any of the supported and installed PIMs.

Note: PIMs that are not installed on this computer will not appear in the shortcut menus.

When the PIM that is associated with an individual data type is changed on the PIM Item Transfer

page, that data type is also changed for the PIM Synchronization service.

Configure

In addition to the configuration options common to all Bluetooth services, this service also has

settings that determine:

How business card requests are handled. The options are:

 Never send my business card - ignore the request

 Choose a business card as needed - when prompted, select a business

card to be sent to the requester.

 Always send the same business card - when a request is received,

always send the same business card. When this option is selected, a

dialog box prompts you to select an installed Personal Information

Manager (if more than one is installed on this computer) and an existing

business card.

 Previously sent business cards - after a card is selected using the

Always send the same business card option, that card will be added to

the shortcut menu as an option.

Note: Previously sent business card additions to the menu are limited to ten,

after which the oldest contact will be replaced.

 Where to store inbound data items, on an individual basis. Options

include (not all options apply to all items):

 Do Not Accept.

 Any of the installed PIMs on this computer.

 Save to Folder.

 The Bluetooth exchange folder location - the directory on this computer

where inbound items that are not to be saved in a PIM will be kept.

Note: This is also the folder where the File Transfer service stores inbound

items. If this folder is reconfigured here, it will also be reconfigured in that

service automatically.

 Whether to send/receive attachments with email.

Close a PIM Item Transfer Connection

PIM Item Transfer connections close automatically when the data transfer is complete.

Default Business Card Selection

When the Always send the same business card option is selected, a dialog box prompts you to

select a default business card.

The first time the dialog box is displayed it provides a way to choose the Personal Information

Manager that stores the default business card. Click the down-arrow in the PIM shortcut menu

and select the PIM to be used.

On subsequent appearances of this dialog box, the PIM selection option is not available.

Change the Selected PIM

On the PIM Item Transfer properties page, Received items section, there is a Business Cards

shortcut menu. When a PIM was selected during initial setup the selected item in this menu was

set to the same PIM. To change the PIM used for the default business card, open this shortcut

menu and select a new PIM.

Note: A new default business card must be selected from the database of the newly selected PIM.

Choose a Default Business Card

1. In the Select a Bluetooth Business Card dialog box that is displayed when Always

send the same business card is selected, select the card.

Note: Move your mouse over a selected business card to display additional information

about that contact.

2. Click OK to choose a selected business card and return to the PIM Item Transfer

Properties page. The chosen contact is now displayed and selected in the Business

card requests shortcut menu.

Note: In addition to the default menu options, the shortcut menu can hold up to ten

contact names. If the Always send the same business card option is selected again, and

a different contact is chosen, the properties page will display both contacts in the

shortcut menu.

PIM Synchronization

The PIM Synchronization service can be used by a remote device to synchronize its Personal

Information Manager (PIM) database with the PIM database of this computer.

Four data types are supported:

 Business cards

 Calendar items

 Email messages

 Notes

Whether an individual item is accepted and where it is stored, after it is accepted, is configured in

the PIM Item Transfer service. If that service is not configured to store a particular data type in

Outlook, then that data type cannot be synchronized.

Microsoft Outlook permits duplicate entries, so all duplicates may not be exchanged in the

synchronization process.

Note: Data types that will be synchronized must be saved in the PIM database (this is configured

in the PIM Item Transfer service); otherwise, that data type will not be available for selection (it

will be dimmed) in the PIM Synchronization configuration settings.

Note: Only Outlook’s default contacts folder is synchronized. Items in sub-folders are not

synchronized. Items that are moved from the default folder to a sub-folder will not be displayed

the next time synchronization takes place.

CONFIGURATION PANEL

The Bluetooth Configuration Panel provides access to various settings including Bluetooth

services, hardware, security, and events notification. In this chapter, we will thoroughly discuss

each of the tabs in the Configuration Panel.

There are two ways to open the Bluetooth Configuration Panel. Use either one of the following:

 Click the Start menu, go to Settings and select Control Panel.

From the Windows Control Panel, select Bluetooth Configuration.

 Right-click the Bluetooth Tray icon on the Windows system tray.

Select Advanced Configuration.

General Tab

The settings on the General tab of the Bluetooth Configuration Panel determine information that

is displayed to remote devices.

Identity section:

 Computer name: enter a unique name to identify your computer to other Bluetooth

devices in the vicinity; this field cannot be left blank.

 Computer type: select either Desktop or Laptop from the drop-down menu to help

identify your device type when other Bluetooth devices search for your computer.

Accessibility Tab

The Accessibility tab in the Bluetooth Configuration Panel lets you specify which remote devices

can have access to your computer, which remote devices have access, and whether an audio

warning is played when a Personal Identification Number (PIN code) is required.

Allow other devices to discover this computer:

To allow your computer to be discovered by other devices, simply select Let other Bluetooth

devices discover this computer. This will allow remote Bluetooth devices to find and report

your computer. However, this option will not be available if you have selected Allow no devices

to connect.

Control the types of devices that are allowed to connect to this computer:

You can also control the types of devices that are allowed to connect to your computer. The

Allow drop-down menu gives you the following options:

 All devices: All remote devices are permitted to connect to your computer.

Connections are subject to additional security restrictions, such as authentication and

authorization, that may be required by the individual services provided by this

computer.

 No devices: No remote devices will be permitted to initiate a connection with your

computer. However, your computer can still initiate a connection with other remote

Bluetooth devices.

 Only paired devices: Only devices that have been paired with your computer are

allowed to connect to it.

 Only devices listed below: Only the listed devices are allowed to connect to your

computer (see the next section, Adding and deleting devices for details).

Choose an audio notification file:

You can also choose an audio notification file when Secure Connection is enabled for any of the

Bluetooth Services on this computer and PIN code is required before that service can be

accessed. To chose a notification sound that will play when a remote device attempts to access a

service that requires a secure connection, click Select audio file.. and select the sound (*.wav)

file to be played.

Limited access to this computer to specific remote devices:

You can limit access to this computer to specific remote devices

From the Bluetooth Configuration Panel, Accessibility tab, in the Allow shortcut menu, select

“Only devices listed below”.

Add a device to the list:

1. Click Add Device

2. In the Devices with access… dialog box select the desired device(s) and click OK.

Note: Multiple devices may be selected using SHIFT + click and/or CTRL + click.

Delete a device from the list

In the list of devices allowed to access this computer, select the device to be removed

from the list, and then click Delete.

Discovery Tab

The Discovery tab lets you specify whether your computer will do an automatic search for other

Bluetooth devices or not, how often it searches for them, and what type of devices it discovers.

Periodic Search for Devices:

If you prefer to have your computer perform a periodic search for other Bluetooth devices, simply

select the Look for other Bluetooth devices option. Make sure you enter the number of minutes

(choose between 1 and 60) as this represents how often you want BTW to search for devices.

Note: When My Bluetooth Place is first opened it performs and initial automatic search for devices

even if “Look for other Bluetooth devices” is not enable.

Determine the devices that will be report:

Also in this tab, you can specify the devices that you want your computer to report. BTW can

screen out devices that you do not find necessary to access. You can choose between the

following by selecting one from the drop-down list:

 Report all Bluetooth devices, OR

 Report only selected Bluetooth devices (see Discovery, Adding specific devices and

Deleting specific devices for details.)

 Select the desired option from the drop-down list.

Discover Specific Devices:

You can specify BTW to report only specific devices, specific class(es) of device(s), or specific

type(s) of device(s) within a class. The discovered devices can be mixed-and-matched – you can

discover one or more specific devices, classes of devices, and types of devices within a class at

the same time.

To have BTW report only specific devices:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon

on the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Discovery tab.

3. Select Report only selected Bluetooth devices from the drop-down list.

4. Click the Add Device button. The Discoverable devices dialog box opens.

5. Select the device you want discovered and click OK.

Notes:

Multiple devices can be selected at the same time by holding the SHIFT or CTRL key

down as you select the devices.

The device(s) that you want to add to the list must be within radio range. Devices that

are not within radio range will NOT appear in the list of devices.

To report only a specific class of device:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon on

the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Discovery tab.

3. Select Report only selected Bluetooth devices from the drop-down list.

4. Click the Add Device button. The Discoverable devices dialog box opens.

5. Select Allow this computer to discover specific devices or types of devices

within a class.

6. From the Class drop-down list, select a class of devices to be discovered.

7. Click OK.

To report only a specific type of device within a class:

1. Follow steps 1 to 6 in the previous procedure (To report only a specific class of

device).

2. From the Type drop-down list, select the specific type of device to be reported.

3. Click OK.

To remove a device from the list of devices to be discovered:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon on

the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Discovery tab.

3. Select the device you want to remove.

4. Click the Delete button.

Note: If you have not selected the Report only selected Bluetooth devices option,

the Delete button will not be available.

To temporarily override the discovery of specific devices:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon on

the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Discovery tab.

3. Select Report all Bluetooth devices. The specifically (and previously) selected

devices will be discovered along with all other devices.

Notes:

To re-enable specific device discovery, re-select Report only selected Bluetooth

devices.

When all devices are deleted, an error message will appear if Report all Bluetooth

devices is not selected.

Temporarily override the discovery of specific devices:

In the Bluetooth Configuration Panel, from the Discovery tab, select “Report all Bluetooth

devices”. The specifically selected devices will be discovered along with all other devices.

To re-enable specific device discovery re-select “Report only selected Bluetooth devices.”

Local Services Tab

The Local Services tab allows you to change the settings of all the services that your computer

has made available to other remote devices. Each service can be configured individually to

change its security, name, and other settings.

The Local Services tab also provides you with the option of adding and deleting user-defined

serial services. We will discuss the details on how to do that later in this section.

The following are the names of the local services that BTW provide: (Please note that names of

all the services will be displayed even though the server may not be able to support all of them.)

 Audio Gateway

 Headset

 PIM Synchronization

 Fax

 File Transfer

 PIM Item Transfer

 Dial-up Networking

 Network Access

 Bluetooth Serial Port

Common Configuration Setting:

We mentioned earlier that you could change the settings of each service individually. However, all

of the local services will have common settings and Notification settings for all of the following:

These properties can be set individually for each Bluetooth services:

For General:

 Service name: User can change service name on text box.

 Startup Automatically: User can define service startup Automatically when

Bluetooth is started.

 Security Connection: User can define service with security connection or not on

check box.

For Notification:

 Notifications: provides visual and/or audio notification that a remote device is

attempting to connect (or has connected) to a service on this computer.

There are three types of notification:

 Authentication request, also called a PIN code request:

This notification appears automatically in a balloon over the Windows system tray if

a Personal Identification Code is required before a connection can proceed. An

audio file can also be associated with the notification.

 Authorization request, also called a connection request:

This type of notification can be visual, audio, or both. It notifies you of attempts to

access a Bluetooth service on this computer; the connection will not proceed until

you click the balloon that appears over the Windows system tray. If the notification

balloon is ignored, the connection request will time out and fail.

 Notification only:

This type of notification does not effect access in ay way; it solely for information

purposes to let you know that a connection has been established.

The Notifications lets you associate sound (in the form of Windows *.wav file) and/or a visual

indication with access attempts by remote devices.

A different notification sound can be associated with each local Bluetooth service, depending on

security settings, including such cases:

 When a PIN code is required

 When a remote device attempts to access:

files on this computer (in Windows XP only) −

−

a Bluetooth port

the Dial-up network service

the LAN Access service

the Fax service

 When a remote device attempts to send:

information items

synchronization information

To associate a sound with a Bluetooth event:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon

on the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Local Service tab.

3. Double click a service name and select the Notifications tab.

4. In the Sound section, click the Browse button and look for the sound file (*.wav)

that you want to use for notification.

5. To hear a preview of the sound, click Play.

Note: To hear the sound, the Notify checkbox must be selected. Otherwise, the

sound file will not play even if it has been assigned.

6. Click OK.

Settings that are additional to all of the local services

While each of the local service includes all of the above common settings, some services have an

additional setting that is only available to it and will not be found elsewhere:

 Network Access: has additional setting for the network adapter and connection

sharing.

 Dial-up Networking: has an additional setting for selecting the modem that the

service will be using.

 Fax: has an additional setting for selecting the modem that the service will be using.

 Bluetooth Serial Port: has an additional setting for selecting the communications

port that the service will be using.

 File Transfer: has additional setting for exchange folder location and the setting

about security for files and folders.

 PIM Synchronization: has additional setting for synchronization object define, such

as Business Cards, Calendar Item, Email and Notes.

 PIM Item Transfer: has additional setting for transfer and receive items defined,

such as Business Cards, Calendar Item, Email and Notes.

Adding a user-defined Bluetooth Serial Port

Most applications that use a serial connection may also use wireless Bluetooth Serial port service

to transfer data. The Bluetooth Serial Port replaces all physical cables, thus reducing clutter.

When using BTW, you will have one pre-configured Bluetooth Serial Port. However, you can

always add another when needed. Similarly, you may remove it any time.

To add a Bluetooth Serial Port:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon on

the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Local Services tab.

3. Click the Add Serial Service button.

4. In the Service Properties dialog box that appears, modify these:

 Enter a unique name (less than 99 alphanumeric characters).

 Select the appropriate security settings.

 Select Startup if you want the service to start automatically when BTW

initializes.

 From the COM Port drop-down list, select a communications port that is not

assigned to any other service.

5. Click OK.

Removing a user-defined Bluetooth Serial Port

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon

on the Windows system tray. Select Advanced Configuration. The Bluetooth

Configuration Panel is displayed.

2. Click the Local Services tab.

3. Select the port you want to remove.

4. Click Delete.

Note: The Delete button is only available when the Bluetooth Serial Port service or a

user-defined serial port service is selected.

Changing a local service’s properties

Earlier, we discussed about the five property settings that each of the local services would have.

Here, we’ll show you how to change a local service’s properties and what the options are.

To change a local service’s properties:

1. Open the Bluetooth Configuration Panel by right-clicking the Bluetooth Tray icon on

the Windows system tray. Select Advanced Configuration from the submenu. The

Bluetooth Configuration Panel is displayed.

2. Click the Local Services tab.

3. Double-click the service name.

4. Select the appropriate boxes or leave them cleared, depending on what you want

BTW to do.

 Startup Automatically: enabled by default. When enabled, it starts the service

when BTW initializes. If Startup is disabled, you can still start the service

manually.

Note: To start the service manually at a later time, simply right-click the service

and select Start from the pop-up menu.

 Security Connection: enabled by default. When enabled, it using service with

security connection. It requires confirmation by the server operator before a

remote device is allowed to connect to this service. See the detail information

for security type below.

 Service Name: enter a service name (no more than 99 alphanumeric

characters) in this field. In most cases, a service name is supplied by default.

However, in environments where there is more than one device of the same

type or one device provides more than one service of the same type (this is

only possible with the Bluetooth Serial Port service), the service name can be

customized.

5. Click OK.

To stop a local service, simply right-click the service and select Stop from the pop-up menu.

Stopped services are no longer available for use by clients.

You may also see a summary of information about each local service from Windows Explorer. To

do this, open your Windows Explorer. With Local Device selected, click the View menu, then

select Details. You will find the following basic information:

 Service: the name of the service

 Startup: tells you whether it’s automatic or manual.

 Status:

Started (COM#) – the service is running and ready to use COM# −

−

Not Started – the service is not running (not available to clients)

Connected (COM#) – the service is in use, the local port is COM#

Connected – the service is in use.

 Device name if connected:

Empty field – the service is not connected.

A device name and Bluetooth Device Address – identifies the

device that is using the service.

At times you need to interrupt a connection from the server side. To do this, simply right-click the

local service and then select Stop from the pop-up menu. To restart the service later, right-click

the local service and then select Start.

Hardware Tab

The Hardware tab provides basic information about the Bluetooth hardware installed in this

computer. In some cases, it allows you to have access to the Advanced Settings dialog box. In

this tab, you will see the following sections:

Devices:

 Name: the name of the device, e.g., Bluetooth Device.

 Type: the type of device you have, e.g., USB.

Device Properties:

 Manufacturer: the name of the company that made the device you selected in the

Devices section of this dialog box.

 Firmware Revision: the manufacturer’s firmware version number.

 Device Status: indicates if the device is operating properly or if there is a problem

or conflict.

 Device Address: displays the Bluetooth Device Address (BDA or BD_Addr)

programmed into this device when it was manufactured.

 HCI Version: the version number of the Bluetooth Specification that the Host

Controller Interface (HCI) complies with.

 HCI Revision: the revision number of the Bluetooth Specification that the Host

Controller Interface (HCI) complies with.

 LMP Version: the version number of the Bluetooth Specification that the Link

Manager Protocol (LMP) complies with.

 LMP Revision: the revision number of the Bluetooth Specification that the Link

Manager Protocol (LMP) complies with.

 LMP Sub Version: the sub-version number of the Bluetooth Specification that the

Link Manager Protocol (LMP) complies with.

Click Cancel to save the changes – the changes will be applied the next time you restart your

Bluetooth device.

SECURITY

Introduction

Each service that the server provides can be configured to require the Secure Connection

setting, that means of,

 Authorization: the server operator must acknowledge all connection attempts

before a connection is established.

 Authentication: the server requires a Personal Identification Number code (PIN,

also referred to as a “passkey”) or a Link Key before a connection is established.

 Encryption: all data sent between the Bluetooth client and Bluetooth server is

encrypted. The encryption key is based on the Authentication Link Key. Encryption

requires that Authentication be enabled.

The Secure Connection is enabled by default.

Authentication

Authentication is used to verify identity. It requires a passkey or Link Key from the remote device.

When a remote device attempts access to a unit, a visual and/or audio warning notifies the local

operator of the invitation.

The local operator can open a dialog box that provides:

1. The user-friendly name of the device attempting access.

2. A place for the local operator to enter a Bluetooth passkey.

The operator of the remote system must then enter the identical passkey. If no passkey is

supplied or if the notification is ignored after a preset timeout, access will be denied. In cases

wherein devices are paired, those devices automatically exchange a Link Key and authentication

is carried out without operator intervention.

Authorization

Authorization is yes-or-no security. When a remote device attempts to connect, a visual and/or

audio warning alerts the server operator.

The server operator then responds by clicking the Bluetooth Tray icon in the Windows system

tray to open a dialog box that displays:

1. The user-friendly name of the device attempting to connect.

2. The local service to which the remote device is attempting to connect.

The server operator may grant or deny access to the service by clicking an on-screen button. If

the server operator ignores the Authorization notification after a preset timeout, access will be

denied.

Bluetooth Device Identity

Every Bluetooth device has a unique Bluetooth Device Address (BDA) assigned to it during the

manufacturing process. This address cannot be changed.

The BDA is usually displayed in hexadecimal format; 00:D0:B7:03:2E:9F is a valid BDA. Each

Bluetooth device also has a configurable, user-friendly name to help distinguish it from other

devices.

The user-friendly name may be up to 99 alphanumeric characters in length and may contain

spaces. My Personal Computer is a valid user-friendly name.

Encryption

Encrypting translates data into an unreadable format using a secret key or password. Decrypting

the data requires the same key or password that was used to encrypt it.

Encryption in BTW is based on the same passkey or Link Key that is used for Authentication. If

Authentication is not enabled, the key will not be available and encryption will not take place.

Link Key

A Link Key is a unique, internally generated access code. Link Keys are generated automatically

when devices are paired or when authentication is enabled.

Link Keys are created by combining the following three items:

 The Passkey

 The Bluetooth Device Address

 An internally generated random number

After a link key is generated, manual entry of the passkey is not require.

Pairing Devices

Pairing devices establishes a rather permanent relationship between two devices. It creates a

permanent security link between the two and enables easy access to all the available services

without having to enter access information every time a connection is attempted. Paired devices

share a unique Link Key that they exchange when they are establishing the connection. Moreover,

the mate of a pair will always appear in My Bluetooth Places even if the mate is disconnected or

is beyond connection range.

Paired devices remain paired even in the following scenario:

 One of the devices is not powered up.

 A service connection is interrupted or the service stopped.

 One or both devices have been rebooted.

When Secure Connection is enabling, devices will pair automatically the first time they connect (a

passkey must be successfully exchange)

To pair devices before attempting a connection:

1. Open My Bluetooth Places by double-clicking the icon on your desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh from the pop-up

menu to see an updated list.

4. Right-click the device you want to make a pair. And select Pair Device from the

shortcut menu.

5. Enter PIM Code for the devices request.

6. After pair, you will see a pair icon on the device you made.

To break a paired device relationship:

1. Open My Bluetooth Places by double-clicking the icon on your

desktop.

2. Select Enter Bluetooth Neighborhood.

3. Right-click anywhere except on a device name and select Refresh

from the pop-up menu to see an updated list.

4. Right-click the device you want to make a pair. And select Unpair

Device from the shortcut menu.

Passkey

A Passkey is a password that is made up of 16 or less characters. Passkeys are also referred to

as PIN codes, or Personal Identification Numbers. Passkey will be required if the Secure

Connection option is enabled for a Bluetooth service or application.

Secure Connection

A passkey or link key is required each time a connection is attempted.

All data exchanged over the Bluetooth connection is encrypted.

Depending on other configuration options, authorization may also be required.

Security Request Dialog Box

Depending on your security settings, you may see a Bluetooth Authorization or Bluetooth

Passkey Request dialog box when a connection is attempted. But this is only if you have either

Authorization or Authentication enabled.

The method of notification depends on the version of your Windows:

 Windows 2000, Windows ME, and Windows XP – a bubble message is displayed

over the Bluetooth Tray icon in the Windows system tray.

 Windows 98SE – the BTW icon in the Windows system tray blinks.

Regardless of the version of your Windows, click the Bluetooth Tray icon in the Windows system

tray and then follow the on-screen instructions. The instructions vary, depending on the security

configuration of the system. If the security notification is ignored after a preset timeout, the

connection request will fail.

In the Security Request dialog box, you will see the following:

 Device Name: displays the user-friendly name of the device that is attempting to

connect.

 Request to access: displays the service that the remote device is trying to access.

 OK: grants permission to establish connection.

 Cancel: connection is denied.

 Advanced: please see next section for details.

 A checkbox that, when enabled, grants or authorizes the connecting device access

to all of the available services.

TROUBLESHOOTING

Below you will find the most frequently asked questions that we get from our customers.

Q: What is a valid Bluetooth Device Address (BDA) and where can I find it? Can I change

the BDA?

A: Every Bluetooth device has a unique 48-bit Bluetooth Device Address, or BDA. This address

cannot be changed by the end-user. A device’s BDA is usually displayed in hexadecimal format.

Therefore, if you see a BDA with 00:D0:B7:03:2E:9F, that is a valid BDA. You may find your

device’s BDA in the Hardware tab of your Configuration Panel.

Q: I get an “X” mark on my Service icon. What does that mean?

A: Icons for Services that are not available will have a red “X” mark. Services may be unavailable

because the necessary hardware (such as the modem for Dial-up Networking) is not installed.

Q: Windows can’t seem to detect my USB dongle device. What do I do?

A: First, go to your Control Panel and select System. Then select Device Manager to see if the

USB dongle is enabled. If it’s not, simply unplug the USB dongle off its port and then plug it back

in. If after doing this, Windows still cannot detect your device, unplug the USB dongle and re-

install its software.

Q: How do I use my USB dongle in such applications as wireless printing, active

synchronization with PDA, dial-up networking, network access, and file transfer?

A: Details to these can be found in the Application Setup Guide, which is included in the USB

dongle installation CD.

Q: Why can’t I connect to a paired device?

A: Paired devices are always displayed in My Bluetooth Places even if the remote device is out

of connection range or is turned off. If you can’t connect to a paired device, verify that the remote

member of the pair is within radio range and powered up before you attempt to connect again.

Q: I can’t discover services on an unpaired remote device. What is the problem?

A: The remote device may not be powered up or may be out of range. To correct this problem,

first verify that the remote device is turned on. If it is, make sure that the remote device is in

‘Connectable’ mode and have provide services which you want. Open the Bluetooth

Configuration Panel and select Accessibility tab. Also perform a Search for Devices to

determine if the device is within range.

Q: The Dial-up Networking service does not start. Is this a problem?

A: The Dial-up Networking service will never start unless a properly configured modem is

attached to the server. (Please refer to the Application Setup Guide for details). What you can do:

 Verify that the modem is usable as a local device from the server.

 On the server, in the Bluetooth Configuration Panel, click the Local Services tab,

and then double-click the Dial-up Networking service.

 Click the down arrow in the Modem field. Select the Startup checkbox and then

select the modem that will be used to dial up.

 Click OK.

 Click OK to close the Bluetooth Configuration Panel.

Q: How do I determine the Bluetooth Device Address (BDA) of my hardware device and

the version number of both the Bluetooth Specification and the Link Manager Protocol

(LMP)?

A: Open the Bluetooth Configuration Panel and click the Hardware tab. Then you could see the

Device Address. There you will see the BDA of the selected Bluetooth device and the version

number of both the Host Controller Interface and the Link Manager Protocol.

Q: How do I test a Network Access connection?

A: If the client is hardwired to the LAN, simply unplug the hardwired connection to ensure that

the test checks the wireless connection rather than the hardwired connection. If the server has

access to the Internet, open a browser on the client device(after connecting to Server’s network

access service) and connect to the World Wide Web. You may also Ping the server from the DOS

prompt.

Q: Why do I get an “Unknown Port” message when I attempt to use a Bluetooth Serial Port?

A: The unknown Port error message usually means that an attempt was made to connect to a

port that was in use. Additional Bluetooth Serial Ports can be added if they are required.

Q: What can I do when uninstalling BTW cannot be completed, due to reasons such as

electricity stops?

A: Using CD-Rom to re-install the BTW, and then remove the driver.

Q: What can I do when functions don’t run normally?

A: Un-plug and plug the dongle, or re-start PC.

Q: How to turn off warning message during installation under Window XP?

A: Perform the following before BTW installation, to turn off warnings during installation of BTW.

Start Menu->My Computer->View System Information (Properties)->Hardware->Driver Signing-

>Ignore. After installation, the previous setting may be restored if desired.

TECHNICAL SUPPORT

If you are still experiencing problems after reading this Product User’s Guide and the

Troubleshooting section, you may contact your local dealer for technical support.

LIMITED HARDWARE WARRANTY

Subject to the provisions described below, this product is protected for one (1) year against defects in material and workmanship.

If the product fails to perform as described above within the warranted period, it will be repaired or replaced with the same or

functionally equivalent product by the company, at its discretion, free of charge provided you: (1) have, within thirty (30) days of the

original date of purchase, completed and returned the Registration Card which accompanied the products when shipped, or go to

support page to register on line, (2) return the failed product to designated repair facility with shipping charge prepaid, and (3) provide

us with proof of the original date of purchase. Repaired or replacement products will be returned to you with shipping charges prepaid.

Replacement products may be refurbished or contain refurbished materials. If our company by its sole determination, is unable to

repair or replace the defective product, it will refund the depreciated purchase price of the product.

This warranty does not apply if, in the judgment of the company, the product fails due to damage from shipment, handling, storage,

accident, abuse or misuse, or if it has been used or maintained in a manner not conforming to product manual instructions, has been

modified in any way, or has had any serial number removed or defected. Repair by anyone other than the company or an approved

agent will void this warranty. The maximum liability of the company under this warranty is limited to the purchase rice of the product

covered by the warranty.

Prior to returning any defective product, the end customer or the reseller from whom the end customer original purchased the product

must obtain a Return Materials Authorization (RMA) number from the company. All defective products should be returned to the

company with shipping charges prepaid.

Except as specifically provided in this statement or as required by law, the warranties and remedies stated above

are exclusive and in lieu of all others, oral or written, express or implied. Any and all other warranties, including

implied warranties of merchantability, fitness for a particular purpose and non-infringement of third party rights

are expressly excluded. The company shall not under any circumstances be liable to any person for any special,

incidental, indirect or consequential damages, including without or revenues or costs of replacement goods,

even if the company is informed in advance of the possibility of such damages.

DECLARATION OF CONFORMITY

Important Information

Bluetooth products must be installed and used in

strict accordance with the manufacturer’s instructions

as described in the user documentation that comes with

the product. The device complies with the following

radio frequency and safety standards.

Federal Communications Commission

(FCC) Compliance Notice

Radio Frequency Notice

Changes or modifications to this unit not expressly

approved by the party responsible for compliance could

void the user authority to operate the equipment.

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1.This device may not cause harmful interference.

2.This device must accept any interference received,

including interference that may cause undesired

operation.

The users manual or instruction manual for an

intentional or unintentional radiator shall caution the

user that changes or modifications not expressly

approved by the party responsible for compliance could

void the user’s authority to operate the equipment

Note: This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is

no guarantee that interference will not occur in a

particular installation. If this equipment does not cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

(1) Reorient or relocate the receiving antenna, (2)

Increase the separation between the equipment and

receiver, (3) Connect the equipment into an outlet on a

circuit different from that to which the receiver is

connected, (4) Consult the dealer or an experienced

radio/TV technician for help.

Interference Notice

Bluetooth products are a radio device that

might cause interference with other non-

Bluetooth devices (for instance, devices

using wireless LAN). 802.11b technology

might cause degradation on the performance

of Bluetooth devices.

CAUTION:

This Transmitter must not be co-located or operating

in conjunction with any other antenna or transmitter.

Department of Communications-Canada

Canadian Compliance Statement

This Class B Digital apparatus meets all the

requirements of the Canadian Interference Causing

Equipment Regulations.

Cet appareil numerique de la classe B respect les

exigencies du Reglement sur le material broilleur du

Canada.

This device complies with Class B Limits of Industry of

Canada. Operation is subject to the following two

conditions: 1) this device may not cause harmful

interference, and 2) this device must accept any

interference received, including interference that may

cause undesired operation. This device is certified to

the requirements of RSS-139-1 and RSS-210 for 2.4

GHz spread spectrum devices. The use of this device in

a system operating ether partially or completely

outdoors may require the user to obtain a license for

the system according to the Canadian regulations. For

further information, contact local Industry Canada office.

EN 55 022 Statement: CE Warning

This is to certify that the Model BT303x series are

shielded against the generation of radio interference in

accordance with the application of Council Directive

89/336/EEC, Article 4a. Conformity is declared by the

application of EN55 022 Class B. This is a Class B

product. In a domestic environment, this product may

cause radio interference, in which case the user may be

required to take adequate measures.

CE Declaration of Conformity

For the following equipment: Product Name: Bluetooth

USB Dongle Model Name: BT303x series

Is herewith confirmed to comply with the requirements

set out in the Council Directive on the Approximation of

the Laws of the Member States relating to 1999/5/EC

R&TTE Directive. For the evaluation regarding the

Directives, the following standards were applied: ETSI

Targus 000002 USB Bluetooth 2.0 EDR Dongle Class 2 User Manual Bluetooth USB Dongle Product User s Guide

Targus Group International, Inc. USB Bluetooth 2.0 EDR Dongle Class 2 Bluetooth USB Dongle Product User s Guide

User Manual

Navigation menu

Namespaces

Views

Navigation
