User Guide
Targus Presentation Remote
2
Introduction
Thank you for your purchase of the Targus Presentation Remote. This
cordless remote offers true plug-n-play capability with no need for
software drivers, whilst the long range 2.4 GHz technology allows for
effective presentations up to 50 feet (15 m).
System Requirements
Hardware
• USB port
Operating System
• Microsoft Windows® 2000
• Microsoft Windows® XP
• Microsoft Windows Vista®
• Microsoft Windows 7®
• Mac OS® X 10.4 or later
Contents
• Targus Presentation Remote
• Mini USB receiver
• 1 x AAA battery
• User guide
Targus Presentation Remote
3
Setting Up Your Remote
Installing the Batteries
Press the battery cover release button to open the battery cover and
carefully lift the cover as shown.
Battery
Cover
Insert the supplied batteries, making sure the positive (+) and negative
(-) ends of the batteries match the polarity indicators inside the battery
compartment.
Spare battery compartment
Battery cover
release button
Targus Presentation Remote
4
NOTE: THE SPARE BATTERY COMPARTMENT CAN BE USED TO STORE A BACK-UP BATTERY
(NOT INCLUDED) FOR EMERGENCY POWER.
Remove the mini USB receiver stored inside the center compartment.
Slide the battery cover back into position until it “clicks” firmly into place.
Targus Presentation Remote
5

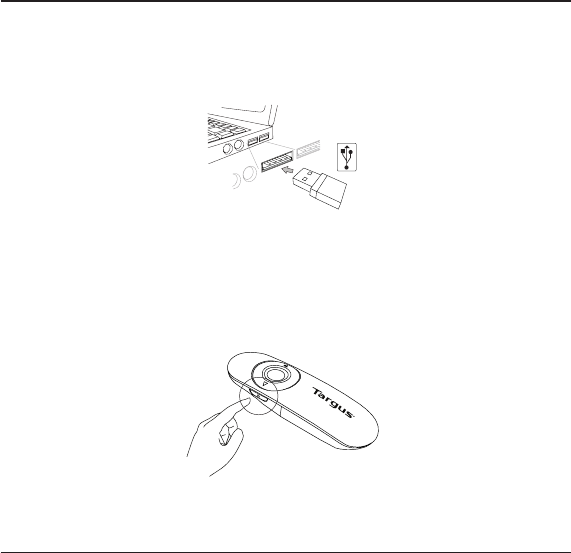

Synchronizing Your Remote
This remote is a plug-n-play device. It will automatically operate when the
USB receiver is connected to the computer. Plug the mini USB receiver
into any available USB port on your computer.
Turn on the remote by pressing and holding the on/off power button for 3 seconds.
Targus Presentation Remote
6
On Press and hold for 3 seconds to turn on the remote.
LED ring will turn green.
Off Press and hold for 3 seconds to turn off the remote.
LED ring will shut off.
Using your Remote
Power Button
Previous Slide
Next Slide
LED Ring
Targus Presentation Remote
7

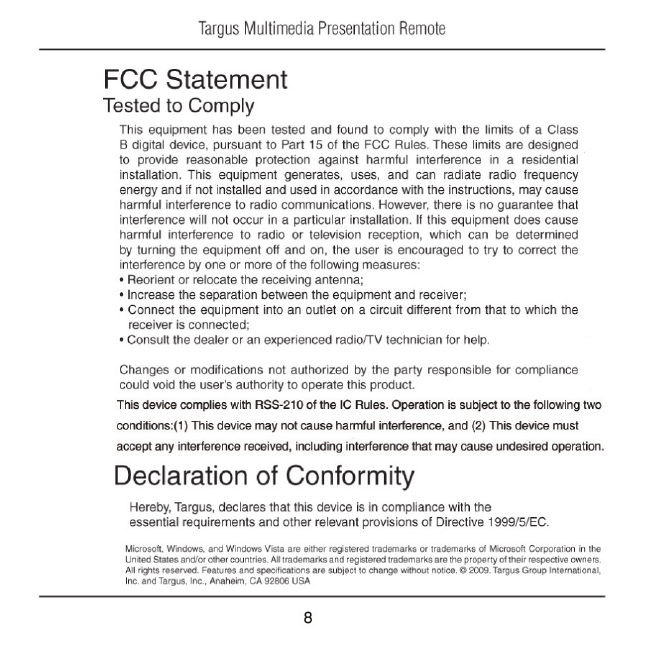

Regulatory Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Technical Support
For technical questions, please visit:
US Internet: www.targus.com/support.asp
Australia Internet: www.targus.com/au
Email: infoaust@targus.com
Telephone: 1800-641-645
New Zealand Telephone: 0800-633-222
Product Registration
Targus recommends that you register your Targus accessory shortly after purchasing
it. Go to:
http://www.targus.com/registration.asp
You will need to provide your full name, email address, country of residence and
product information.
Warranty
Targus warrants this product to be free from defects in materials and workmanship
for one year. If your Targus accessory is found to be defective within that time, we will
promptly repair or replace it. This warranty does not cover accidental damage, wear
and tear, or consequential or incidental loss. Under no conditions is Targus liable for
loss of, or damage to devices; nor loss of, or damage to, programs, records, or data;
nor any consequential or incidental damages, even if Targus has been informed of
their possibility. This warranty does not affect your statutory rights.
410-1682-001A / AMP18US
1 YEAR LIMITED WARRANTY: We pride ourselves
on the quality of our products. For complete warranty
details and a list of our worldwide offices, please visit
www.targus.com. Features and specifications are sub-
ject to change without notice. All trademarks and reg-
istered trademarks are the property of their respective
owners. All rights reserved. ©2009 Manufactured or
imported by Targus Group International, Inc. (for U.S.
sales: 1211 North Miller Street, Anaheim, CA 92806
USA) whose Australian sales representative is Targus
Australia Pty. Ltd., 117-119 Bowden Street, Meadow-
bank, NSW 2114 Australia
N2953
