User Guide
LASER
PRESENTATION REMOTE
1 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our
products. For complete warranty details and a list of our worldwide oces,
please visit www.targus.com. Features and specications are subject to
change without notice. Microsoft, Windows, Windows Vista, PowerPoint and
Windows Media Player are registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries. Mac, Keynote and
iTunes are all registered trademarks of Apple Inc., registered in the U.S. and
other countries. All trademarks and registered trademarks are the property
of their respective owners. ©2013 Targus Group International, Inc.
410-2789-001A / AMP22US
Model: AMP22
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
410-2789-001A_AMP22US_031313_CA cert usage.indd 2-1 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
2 3
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
Introduction
Thank you for your purchase of the Targus Multimedia Presentation Remote. This cordless
remote also offers true plug and play capability with no need for software drivers, while
the long-range 2.4 GHz technology allows for effective presentations up to 50 feet (15 m).
Contents
• Targus Laser Presentation Remote
• Mini USB Receiver
• 1 x AAA Battery
• User Guide
System Requirements
Hardware
• USB port
Operating System
• Microsoft Windows
®
XP
• Microsoft Windows Vista
®
• Microsoft Windows
®
7
• Microsoft Windows
®
8
• Mac OS
®
X 10.4 to 10.8
Setting Up Your Remote
Installing the Battery
Press and slide to remove the battery cover for battery installation.
Insert the supplied battery, making sure the positive (+) and negative (-) end of the battery
match the polarity indicators inside the battery compartment.
Slide to open
410-2789-001A_AMP22US_031313_CA cert usage.indd 2-3 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
4 5
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
Remove the mini USB receiver stored inside the center compartment.
Slide the battery cover back into position until it “clicks” firmly into place.
This remote is a plug and play device. It will automatically operate when the USB receiver
is connected to the computer. Plug the mini USB receiver into any available USB port on
your computer.
Turn on the remote by pressing and holding the On/Off power button for 3 seconds.
410-2789-001A_AMP22US_031313_CA cert usage.indd 4-5 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
6 7
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
Keys and Functions
This device can function as a presenter or a wireless mouse by using the mode switch (12).
Using the Device — Presenter Mode
1Power button
Press and hold for 3 seconds to turn on the remote.
LED will turn green.
Press and hold for 3 seconds to turn o the remote.
LED will shut o.
2Slide show Start-press once to start, Stop-press once to stop
3Blank screen button The screen will become blank/dark.
4Page Forward/Next slide Press once to go to next slide.
5Page Backward/Previous slide Press once to go back one slide.
6Laser pointer Laser light is emitted from the opening.
7Laser Button Press and hold to activate the green laser pointer.
8KeyLock button
Press once to enable KeyLock function.
- Disables all keys except the laser, page forward/ next slide
and page backward/previous slide buttons.
- LED will turn Red.
Press once to exit the KeyLock function.
- LED will return to Green.
9LED LED will blink red when low battery
10 Volume up button Press to increase the volume.
11 Volume down button Press to decrease the volume.
12 Presenter and Mouse mode Switch Presenter and Mouse mode Switch
410-2789-001A_AMP22US_031313_CA cert usage.indd 6-7 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
8 9
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
Using the Device — Mouse Mode
4Right mouse click Right mouse click.
5Left mouse click Left mouse click.
7Joystick Pressing the joystick resembles left mouse click.
Moves the mouse cursor.
8KeyLock button Disabled in mouse mode.
9LED LED will blink red when low battery
10 Volume up button Press to increase the volume.
11 Volume down button Press to decrease the volume.
12 Presenter and Mouse mode Switch Presenter and Mouse mode Switch
Safety Measures
• To avoid possible eye damage, never point the remote’s laser at people, especially their
faces, or look directly into the remote’s laser beam.
• Avoid pointing the remote’s laser beam at a mirror or other highly-reflective surface.
• Keep the remote away from young children.
• Never view the remote’s laser beam using telescopic devices, such as a microscope or
binoculars.
• Any attempt to disassemble, adjust or repair the remote may result in exposure to laser
light or other safety hazards.
Troubleshooting
What do I do if the response time of the remote is slow or it intermittently stops working?
• Make sure that the remote is within 50 feet (15 m) of the mini USB receiver and computer.
• Increase the distance between the remote’s receiver and the base units of other wireless
devices.
• Turn off any wireless devices and their base units that are near the remote’s receiver.
• Replace the battery.
Technical Support
For technical questions, please visit:
US Internet: www.targus.com/support.asp
Australia Internet: www.targus.com/au
Email: infoaust@targus.com
Telephone: 1800-641-645
New Zealand Telephone: 0800-633-222
Product Registration
Targus recommends that you register your Targus accessory shortly after purchasing it. Go to:
http://www.targus.com/registration.asp
You will need to provide your full name, email address, country of residence and product
information.
One Year Warranty
1. Targus warrants to the original purchaser that its products are free from defects in materials
and workmanship for one year. This warranty is limited to defects, materials and workmanship. 2.
The benefits to the consumer given by the warranty are in addition to other rights and remedies
of the consumer under law in relation to the goods to which the warranty relates. 3. The warranty
is given by (i) Targus Australia, (ii) Targus Australia’s business address is: 117-119 Bowden
Street, Meadowbank, NSW 2114 Australia, (iii) Targus Australia’s telephone number is 1800 641
645, Email: infoaust@targus.com (iv) To make a warranty claim for goods purchased in New
Zealand, the telephone number is: 0800 633 222, or the goods may be returned to the supplier
in New Zealand. 4. What the purchaser must do to entitle the purchaser to claim warranty:- (i)
The purchaser must call the telephone number for Australia or New Zealand set out above, (ii)
The purchaser must provide the purchaser’s name, daytime contact number, business hours
delivery address, the Targus model number on the product, date and place of purchase with
receipt for purchase if required, and describe the fault condition. 5. What Targus must do:-
410-2789-001A_AMP22US_031313_CA cert usage.indd 8-9 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
10 11
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut
(i) Targus will provide the purchaser with store return information or a return authorisation so
that the purchaser may return the product for warranty inspection, (ii) If after inspection Targus
finds the product is defective in materials or workmanship, Targus shall replace (or repair) the
defective product at the discretion of Targus and ship the product from Targus warehouse at its
expense within three business days (Monday to Friday excluding public holidays) of receiving
the returned goods. If the product is no longer available Targus reserves the right to replace
with the nearest corresponding product of no lesser quality, (iii) Targus will bear the cost of
return delivery to the purchaser regardless of the inspection test result. The purchaser must
bear the cost of the delivery to Targus. There is no charge for inspection. 6. Our goods come
with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled
to a replacement or refund for a major failure and for compensation for any other reasonable
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure does not amount to a major failure. 7.
Please note: (i) Features and specifications of all Targus products are subject to change without
notification, (ii) In some instances: Goods presented for repair may be replaced by refurbished
goods of the same type rather than being repaired. Refurbished parts may be used to repair
the goods, (iii) If goods accepted for repair retain user-generated data: During the process of
repair some or all of your stored data may be lost. Please ensure that you have saved this data
elsewhere prior to repair.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be
used in portable exposure condition without restriction.
FCC Statement
Tested to Comply
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
410-2789-001A_AMP22US_031313_CA cert usage.indd 10-11 14/3/13 9:58 AM
Targus Laser Presentation Remote Targus Laser Presentation Remote
12 13
folding line
Folded Size: 4.5” x 4.5” Color: Grayscale for UG Diecut

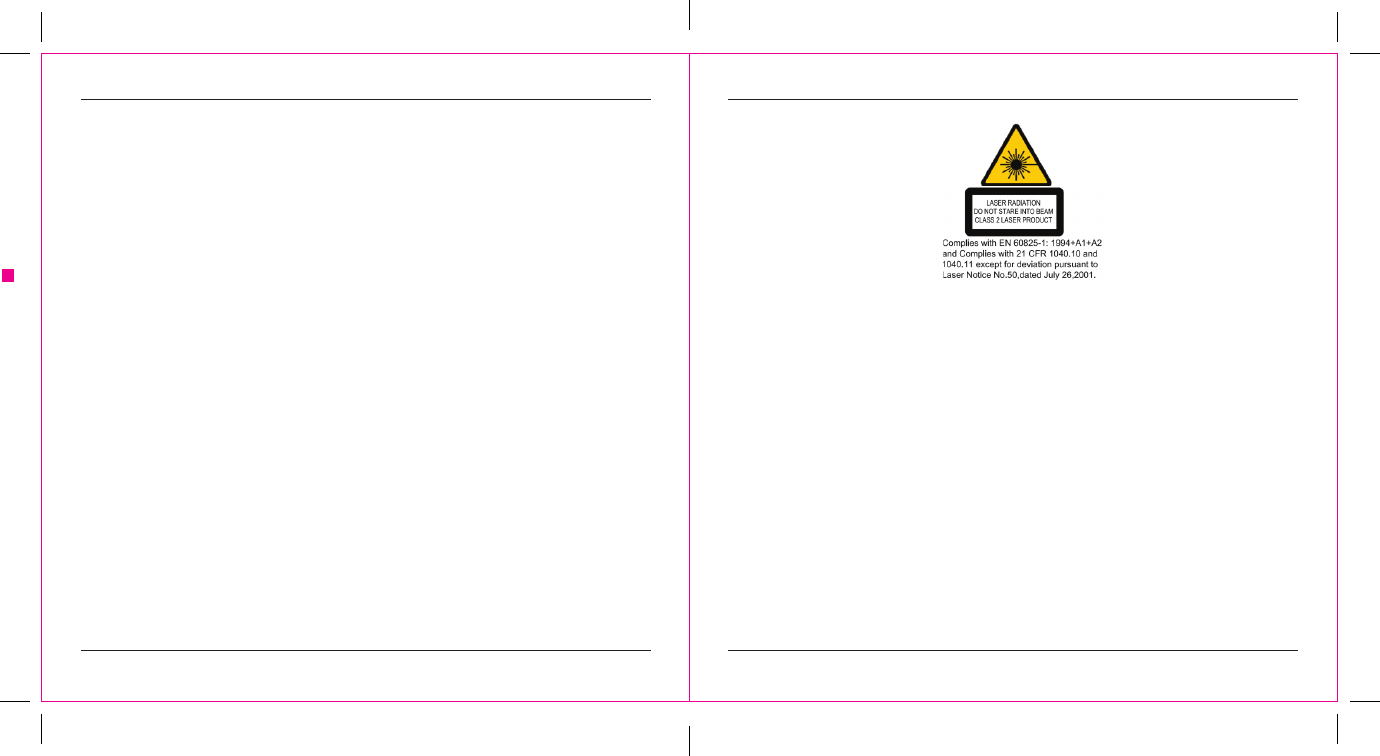

AVOID EXPOSURE — HAZARDOUS ELECTROMAGNETIC RADIATION EMITTED FROM THIS
APERTURE.
LASER RADIATION. DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS. CLASS 2 LASER PRODUCT.
NEVER POINT A LASER BEAM INTO A PERSON’S EYES OR VIEW A LASER BEAM DIRECTLY,
AS PROLONGED EXPOSURE CAN BE HAZARDOUS TO THE EYES. MOMENTARY EXPOSURE
FROM A LASER POINTER, SUCH AS AN INADVERTENT SWEEP OF THE LIGHT ACROSS A
PERSON’S EYES, MAY CAUSE TEMPORARY FLASH BLINDNESS SIMILAR TO THE EFFECT OF A
CAMERA FLASH BULB. ALTHOUGH THIS CONDITION IS TEMPORARY, IT CAN BECOME MORE
DANGEROUS IF THE EXPOSED PERSON IS ENGAGED IN A VISION-CRITICAL ACTIVITY SUCH
AS DRIVING.
CAUTION: ANY CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
THIS DEVICE AND ITS ANTENNA(S) MUST NOT BE CO-LOCATED OR OPERATING IN
CONJUNCTION WITH ANY OTHER ANTENNA OR TRANSMITTER. YOUR DEVICE CONTAINS
A LOW POWER TRANSMITTER. WHEN DEVICE IS TRANSMITTED IT SENDS OUT RADIO
FREQUENCY (RF) SIGNAL. NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO
OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.”
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil nedoit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.”
Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/
or other countries. All trademarks and registered trademarks are the property of their respective owners. All rights reserved. Features and
specifications are subject to change without notice. © 2013. Targus Group International, Inc. and Targus, Inc., Anaheim, CA 92806 USA
410-2789-001A_AMP22US_031313_CA cert usage.indd 12-13 14/3/13 9:58 AM
