Tatung ROS1000A ROS Video DMA User Manual 005 01004 Userman

Tatung Company ROS Video DMA 005 01004 Userman

(005-01004) Userman

ROS 1000 (005-01004)
2© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
3
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
Actual product may vary from depictions in this guide.
OPS-DOC-GEN-SUB-700040-22
Contents
Setup Hardware ............................................................................. 4
Standard DVD / Satellite Composite vDMA Setup ............................ 8
High Denition Component vDMA Setup ......................................... 9
High Denition HDMI vDMA Setup .................................................. 10
RHC LED Description ....................................................................... 11
vDMA LED Description .................................................................... 12
Universal Remote Description ........................................................ 13
Safety and Notices ......................................................................... 14
Warranty ....................................................................................... Back
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
PRODEA SYSTEMS CONFIDENTIAL INFORMATION AND TRADE SECRETS
4© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
5
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
SETUP HARDWARE
What is a
router?
A router
manages and
connects
your home
networked
computers and
devices via Wi-
Fi or Ethernet.
What is a
modem?
A modem
connects your
home to the
Internet services
provided by your
Internet Service
Provider (ISP).
IMPORTANT! If you have a modem - router
combination, you need to turn on bridge mode.
ROS Home
Center
ROS Set Top
Box
Component
Cables
ROS Home Center
AC Adapter
Remote
(with batteries) Ethernet
Cable
Composite
Cables
Working high-speed Internet connection•
Television•
Activation code • you received from your ROS service
provider.
At least the following ROS hardware:•
Component
Dongle
ROS Set Top Box
AC Adapter
1. Before you begin, make sure you have
following equipment.
Specications
RHC Supply voltage: ........................................................................ 115/230 V.C.A. ±10%
RHC Frequency: ............................................................................... 50/60 Hz
RHC Current consumption: ............................................................... 3.33 A
vDMA Supply voltage: ..................................................................... 115/230 V.C.A. ±10%
vDMA Frequency: ............................................................................ 50/60 Hz
vDMA Current consumption: ............................................................ 2.1 A
6© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
7
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.

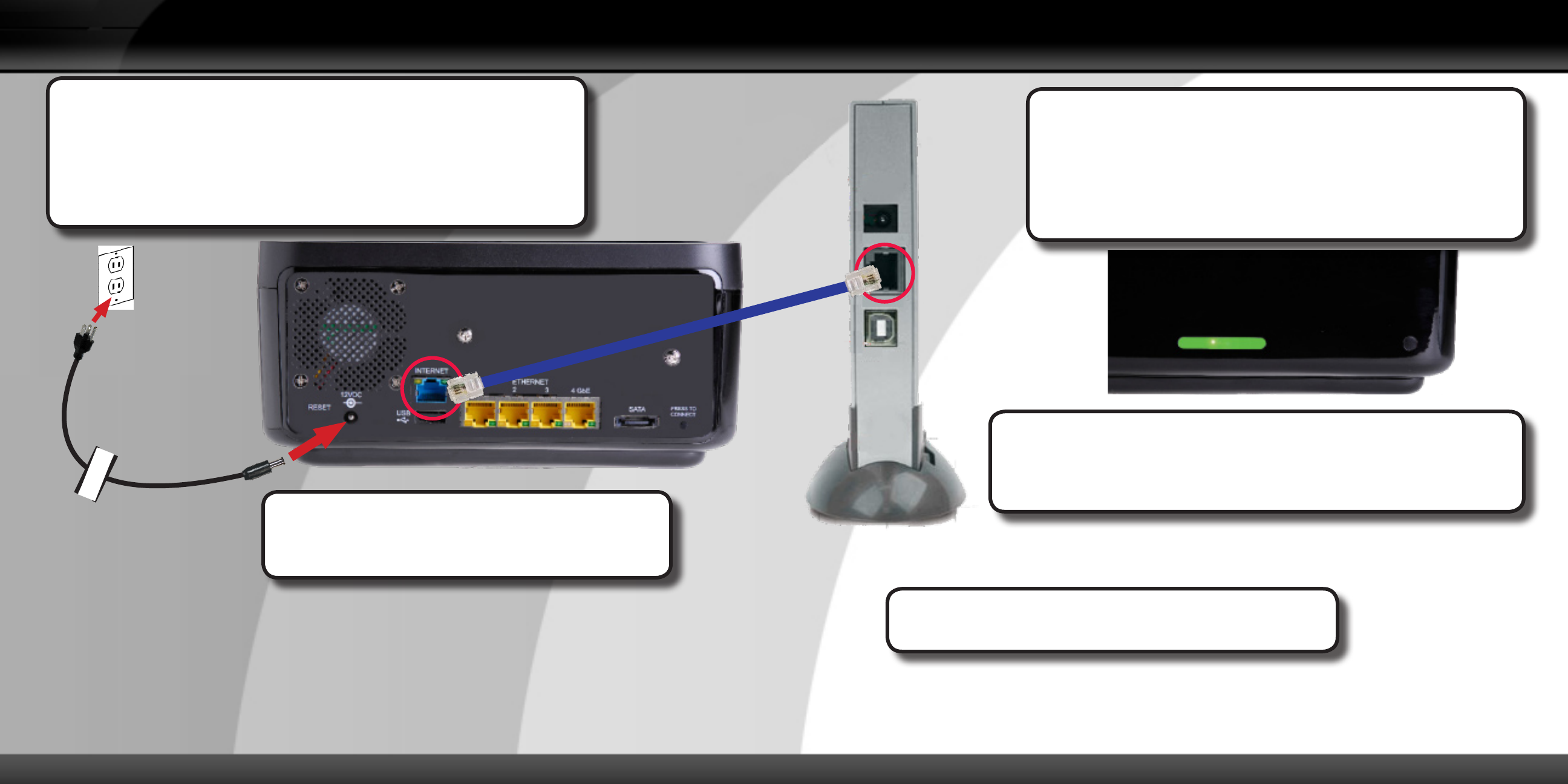

2. Place for your ROS Home Center
(ROS2000) next to your Internet modem
(preferred location). Unplug power from
your modem.
4. Plug your ROS Home Center
into an electric outlet.
SETUP HARDWARE
Install your
equipment in a
clean, indoor
environment where
the temperature is
between 32 and 104
degrees Fahrenheit
(no attics or garages).
Internet
modem
Ethernet
port
5. Using another Ethernet cable, connect
your PC to the RHC.
3. Connect your ROS Home Center
with your modem using the provided
blue Ethernet cable and then supply
power to your modem.
6. Set up your vDMA (ROS1000).
IMPORTANT! Power the ROS Home Center
(ROS2000) only with the included AC adapter:
Hipro model HP-02040D43 LF, 12VDC
operating at 3.33 amps.
8© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
9
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
Back of
TV
For Standard DVD or Cable / Satellite Boxes
Composite Cables
For High Dention DVD and Cable / Satellite Boxes
Component Cables
Standard Denition
Cable Box or DVD
Player
High
Denition
Cable Box
or DVD
Player
Back of TV
B
A
B
A
Dongle
Dongle
Component
Cable
Component
Cable
Composite
Cable
Composite
Cable S/PDIF
Cable
S/PDIF
Cable
Composite
Audio
Cables
Back of TV
Composite
Audio
Cables
Connect your high denition devices to the ROS Set Top Box and the ROS Video Set Top Box
to your TV using the supplied component video dongles and cables for video. Use either
composite or S/PDIF (optical) cables for audio (A or B).
If your television or devices support only standard denition, complete the following
steps to connect the ROS Set Top Box to your television using composite A/V cables.
If your television supports high denition, see the following pages for installation
instructions.
10 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
11
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
Back of TV
When using the HDMI-to-DVI
adapter to connect to your
TV’s DVI port, you will need
to use separate audio cables
(either S/PDIF or composite
cables).
Plug in the ROS Set Top Box into
an electric outlet.
HDMI Cables
High Denition
Cable Box or DVD
Player
OR
For High Dention DVD and Cable / Satellite Boxes
HDMI
Cable
HDMI
Cable HDMI to DVI
Cable
Connect your high denition devices to the ROS Set Top Box, and then the ROS Set Top Box to your
TV using HDMI cables.
RHC LED DESCRIPTION
RHC LED Description
Color Description
Red When rst powered on, the LED is
red during start up. If the LED is red
after activation, check your Ethernet
cabling.
Amber (blinking) Indicates that the RHC is attempting
activation.
Amber Indicates activation failed.
Green (blinking) Indicates the RHC is activating.
Green Indicates the RHC is activated and you
can reach the Internet.
IMPORTANT! Power the vDMA (ROS1000) only with
the included AC adapter Universal Microelectronics
model UP0251P-12PA 12VDC at 2.1 amps.
12 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
13
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
vDMA LED DESCRIPTION
vDMA LED Description
Color Description
Red The vDMA LED is red during start up;
if it remains red, there is a service
connectivity issue.
Amber (ashing) vDMA is connected to the RHC but
there is a service problem.
Amber Attempting Wi-Fi Protected Setup
(WPS).
Green (ashing) vDMA is connecting to the RHC.
Green vDMA is connected to the RHC and
service is available. To Replace the Battery: Open the
battery compartment cover on the
back, insert 2 AA batteries matching
the + and - polarity symbols inside and
replace cover.
NOTES:
When the battery voltage is low, the
feedback LED will blink 5 times.
Dispose of batteries properly.
Favorites -
Quickly find your
favorite music,
movies, pictures
and more.
Help - Get
answers to your
questions -- fast!
Media
Find new music
and movies.
Widgets
Access weather
and more.
ROS
Click to access
your ROS Video
DMA menu.
ROS
Click to access
your ROS Home
Center.
Universal Remote Description
14 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
15
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
SAFETY AND NOTICES
Important Safety Information
Read and follow these instructions to use your products and services safely.
Read and keep these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not use this apparatus near water.•
Clean only with dry cloth.•
Keep all devices, cabling, and accessories away from children.•
Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus (including •
ampliers)thatproduceheat.
Protect the power cord from being touched, walked on or pinched, particularly at plugs and at the point where •
they exit from the apparatus.
Only use supported devices and accessories with your service.•
Unplug this apparatus during lightning storms or when unused for long periods of time.•
Referallservicingtoqualiedservicepersonnel.Servicingisrequiredwhentheapparatushasbeendamaged•
in any way, such as damage to the power-supply cord or plug, liquid has been spilled or objects have fallen
into any of the devices, a device has been outdoors / exposed to rain or moisture, does not operate normally,
or has been dropped.
Donotplacenakedamesources,suchaslightedcandles,onornearthedevices.•
These devices do not have on/off switches. To disconnect the devices from power, you must disconnect the •
power cord. Make sure the power cord is always easily accessible but out of reach of children.
The devices and all accessories included with this device are for indoor use only.•
Do not move the devices if another device such as a TV, computer, or other electronic device is connected to •
it.
Donotexposethedevicetodrippingorsplashinganddonotplaceanyobjectlledwithliquidonornearany•
of the devices.
OtherimportantInformationsuchasmodelnumber,electricalrating,andotherclassicationsislocatedonthe•
bottom of the devices.
FCC Regulatory Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
Consult your service provider, retailer, or an experienced technician for help.
If you cannot eliminate the interference, the FCC requires that you stop using your phone. Changes or modifications not expressly approved may
cause interference and void the user’s authority to operate the equipment.
Product product name
Model ROS 1000, ROS 2000
Responsible Party
Prodea Systems, Inc.
6101 West Plano Parkway
Suite 210
Plano, Texas 75093
Phone 214.278.1850
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment complies with Part 68 of the FCC Rules and the requirements adopted by ACTA. On the back of this equipment is a label that
contains a product identifier in the format US:AAAEQ##TXXXX. If requested, this information must be provided to your telephone company.
A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules
and requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a
compatible modular jack that is also compliant. See installation instructions for details.
The REN is used to determine the number of devices that may connect to a telephone line. Excessive RENs on a telephone line may result in the
devices not ringing in response to an incoming call. In most but not all areas, the sum of the RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as determined by the total RENs, contact your local telephone company. For product approved
after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ##
are the REN without the decimal point (e.q., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label.
If your DIGITAL VIDEO RECORDER causes harm to the telephone network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary.
16 © COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
17
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
SAFETY AND NOTICES
The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance in order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this unit, for repair or warranty information, please contact customer service at the address and phone listed below.
Ifthe equipment is causing harm to the network, the telephone company may request that you disconnect the equipment until the problem is
resolved.
DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.
We recommend the installation of an AC surge arrester in the AC outlet to which this equipment is connected. Telephone companies report that
electrical surges, typically lighting transients, are very destructive to customer terminal equipment connected to AC power sources.
Wireless Radio Use
These devices are restricted to indoor use due to its operation in the 2.4 to 5 GHz frequency range to reduce the potential for harmful interference
to co-channel Mobile Satellite systems.
Exposure to Radio Frequency Energy
The radiated output power of these devices is below the FCC radio frequency exposure limits; however, these devices should be operated with a
minimum distance of at least 20 cm between its antennas and a person’s body, and the antennas used with these transmitters must not be co-
located or operated with any other antenna or transmitter subject to the conditions of the FCC Grant.
PÓLIZA DE GARANTÍA
[address of representative company in Mexico]
[representative company in Mexico] garantiza este producto por el término de un año o noventa días en todas sus partes y mano de obra contra
cualquier defecto de fabricación y funcionamiento a partir de la fecha de entrega al consumidor
CONDICIONES
I. Para hacer efectiva esta garantía no podrán exigirse mayores requisitos que la presentación de esta póliza junto con el producto en cualquier
tienda de [address of representative company in Mexico], donde también se podrán encontrar partes, componentes, consumibles y accesorios.
II. La empresa se compromete a reparar el producto así como las piezas y componentes defectuosos del mismo, sin ningún cargo al consumidor,
los gastos del flete del producto que se deriven de su cumplimiento serán cubiertos por [address of representative company in Mexico]
III. El tiempo de reparación en ningún caso deberá ser mayor de 30 días a partir de la recepción del producto en cualquier sitio en donde se pueda
hacer efectiva la garantía.
IV. Esta garantía no es válida en los siguientes casos:
a) Cuando el producto ha sido utilizado en condiciones distintas a las normales.
b) Cuando el producto no ha sido operado siguiendo las indicaciones del instructivo proporcionado.
c) Cuando el producto ha sido alterado o reparado por personas no autorizadas por [representative company in Mexico]
V. En caso de que la presente garantía se extraviara, el consumidor puede recurrir a su proveedor para que se le expida otra póliza de garantía,
previa presentación de la nota de compra o factura.
NOTA: Los aparatos eléctrico-domésticos tienen un año de garantía y los de baterías 30 días.
ESTE PRODUCTO FUE FABRICADO EN CHINA PARA [address and telephone of representative company in Mexico]
Producto:
Marca:
No. de catálogo:
No. de serie:
No. de factura:
SELLO DE LA SUCURSAL FECHA DE ENTREGA
[address of representative company in Mexico] garantiza este producto por el término de un año o noventa días en todas sus partes y mano de
obra contra cualquier defecto de fabricación y funcionamiento a partir de la fecha de entrega al consumidor.
6101 West Plano Parkway • Plano, TX 75093 • ProdeaSystems.com • 214.278.1850
© COPYRIGHT 2006-2008 PRODEA SYSTEMS, INC. ALL RIGHTS RESERVED.
WARRANTY
This product is warranted by Prodea Systems against manufacturing defects
in material and workmanship under normal use for ninety (90) days from the
date of purchase from authorized Prodea Systems retailers.
For complete warranty details and exclusions, see www.prodeasystems.com.

Navigation menu
