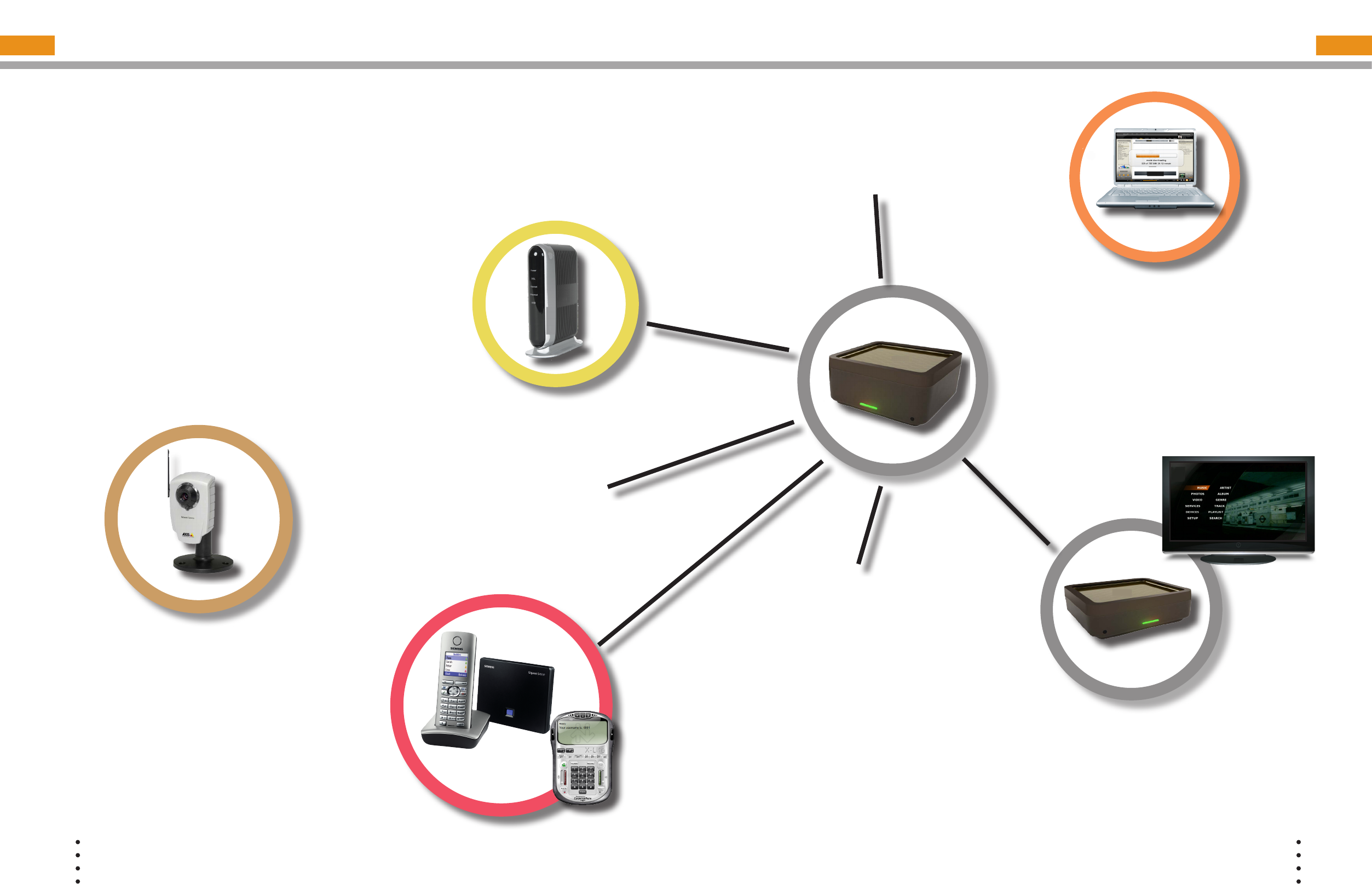

Set up your Home Center. The brains of your ROSsm

services, the Home Center, is a router, manages your

voice and media services, and contains a hard drive to

store your les. Your Home Center connects all of your

devices to your home network and the Internet. For

more about installing your hardware, see the installation

posters that came with your equipment.

Set up home monitoring netcam.

The ROSsm service is compatible with

the Axis 207 W network cameras

(netcams), and the list continues to

grow. See the install sheet that came

with your equipment.

GETTING STARTED

Setup voice service for phone and PC

application. Your ROSsm comes with a

robust, fully featured voice service. See the

phone installation sheet that came with your

equipment and page 14 for information on

setting up the X-Lite PC voice application.

Power through simplicity. Designed to make it easy to stay connected, ROSsm brings it

all together – from Internet TV & RadioTime radio, viewing pictures and video, playing

personal music, to sharing your digital stuff with your friends and family. ROSsm brings

peace of mind as well, allowing you access to your media, les, home monitoring

features, and wireless camera feeds from any PC connected to the Internet using the

same security most banks use.

Setup your Wireless network. The Home

Center provides Wi-Fi access to the Internet

for your computers and other network

enabled devices. See the Reference Sheet

that came with your service equipment for

your Wi-Fi network name and password.

Install your TV Extender. Your TV Extender,

is a fully featured high denition media

delivery system allowing you to access

Video on Demand movies, YouTube videos,

RadioTime Internet radio, your personal

media, and more from your TV. See the

installation posters that came with your

equipment.

Install the Sharing Manager. Your

ROSsm service includes a Windows

PC application, Sharing Manager, so

you can easily integrate your personal

media (movies, music, and photos) with

your ROSsm service. See page 10 for

Sharing Manager installation and setup

information.

Important: Install your equipment in a clean, well-ventilated,

indoor environment. Do not install your equipment in your attic

or garage unless they are fully air conditioned. We strongly

recommend that you use a surge protector with your service

equipment.

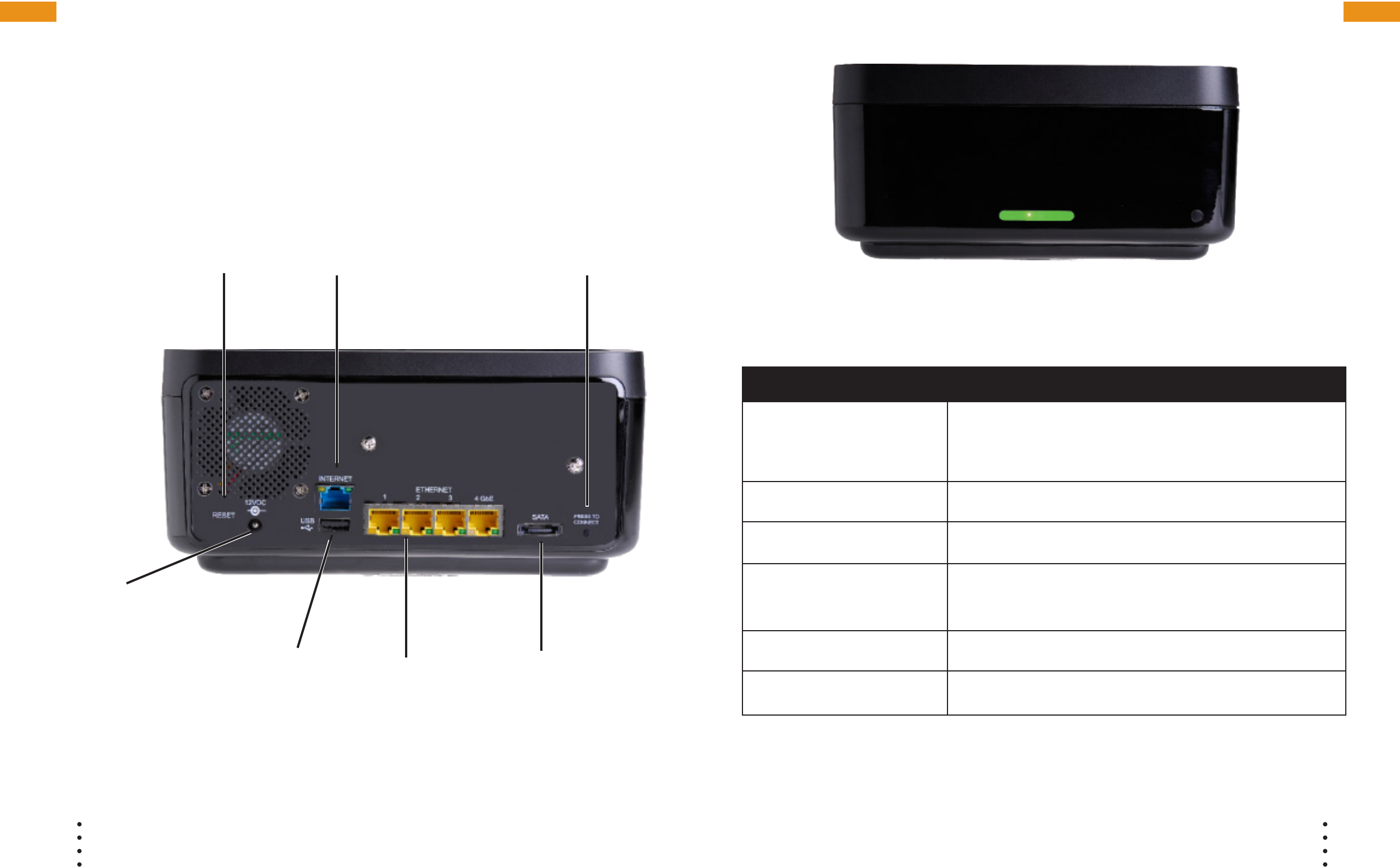

HOME CENTER DESCRIPTION

Power port

Plug the

included

AC power

cord into an

outlet.

ETHERNET ports

Plug your network

enabled computers

and devices into any

port 1 through 4. Port

4 supports Gigabit

Ethernet.

USB port

Connect a supported

USB device. For a

list of supported

devices, see the

customer portal.

eSATA

Connect

an eSATA

hard drive

for external

storage.

RESET

Press for 5 seconds to

restart and 20 seconds

to reset to factory

settings.

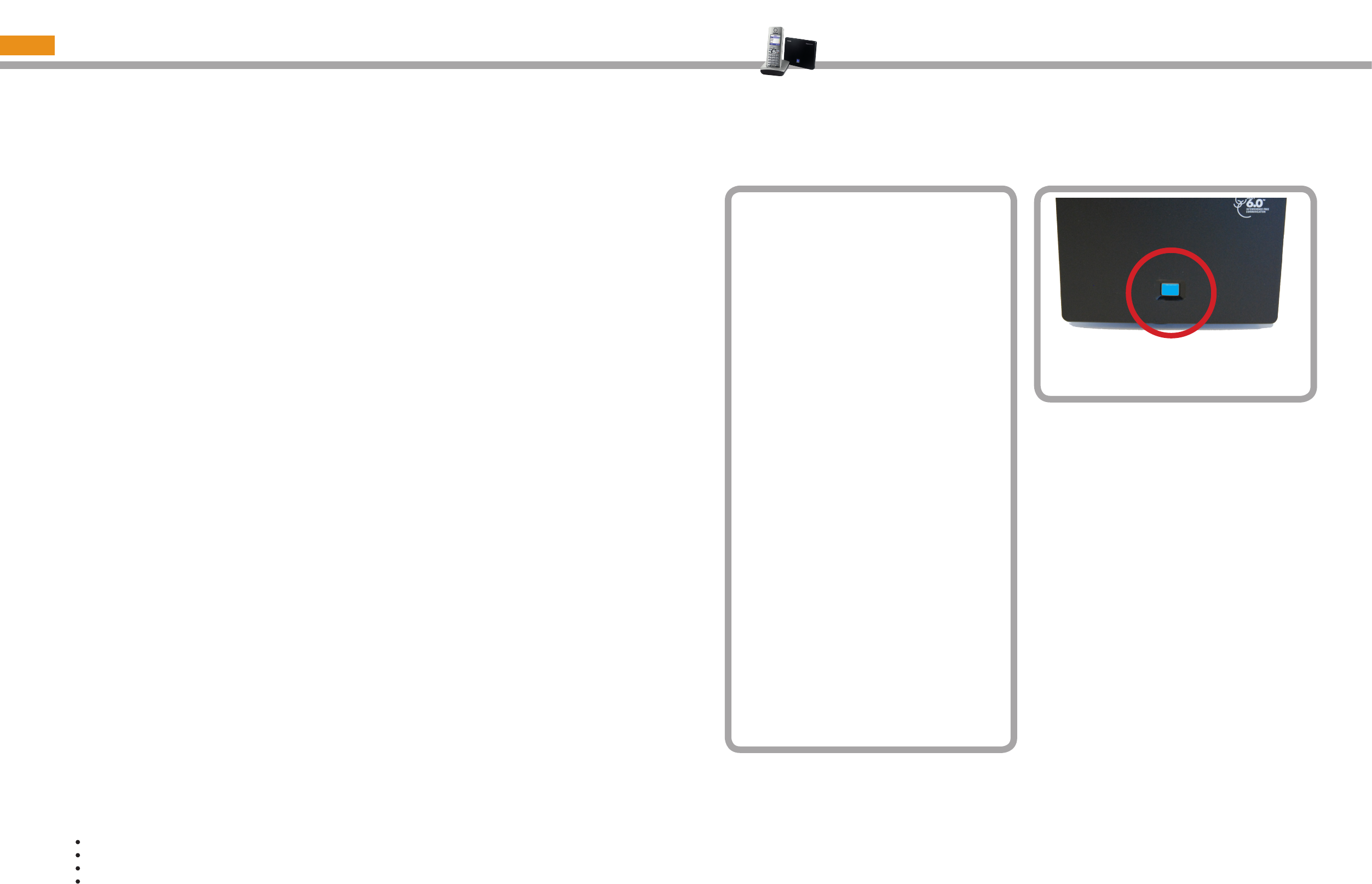

PRESS TO CONNECT

Press to connect your

Home Center via wireless

protected setup (WPS) to

the TV Extender or other

WPS enabled devices.

INTERNET port

Plug in Internet

connection from

service (modem).

HOME CENTER LED DESCRIPTION

What is the Home Center? The brains of your ROSsm services, the ROSsm

Home Center, or Home Center, is a router, manages your voice and media

services, and contains a hard drive to store your les. Your Home Center

connects all of your devices to your home network and the Internet, both

wirelessly and using Ethernet cabling, delivering your ROSsm services and

home media to all connected and enabled computers and devices.

The Home Center and TV Extender have status indication lights

to let you know at a glance the status of your service during set

up, activation, and usage.

LED Color Description

Red (solid) When rst powered on, the LED is red during

startup. If the LED is red after activation, check

your Ethernet cabling.

Red (ashing) Indicates there is no Internet connection.

Amber (ashing) Indicates that the Home Center is attempting

activation.

Amber (solid) Indicates service activation failed or that the Press

to Connect button was pressed.

Green (ashing) Indicates the Home Center is activating.

Green (solid) Indicates the Home Center is activated and

operational.

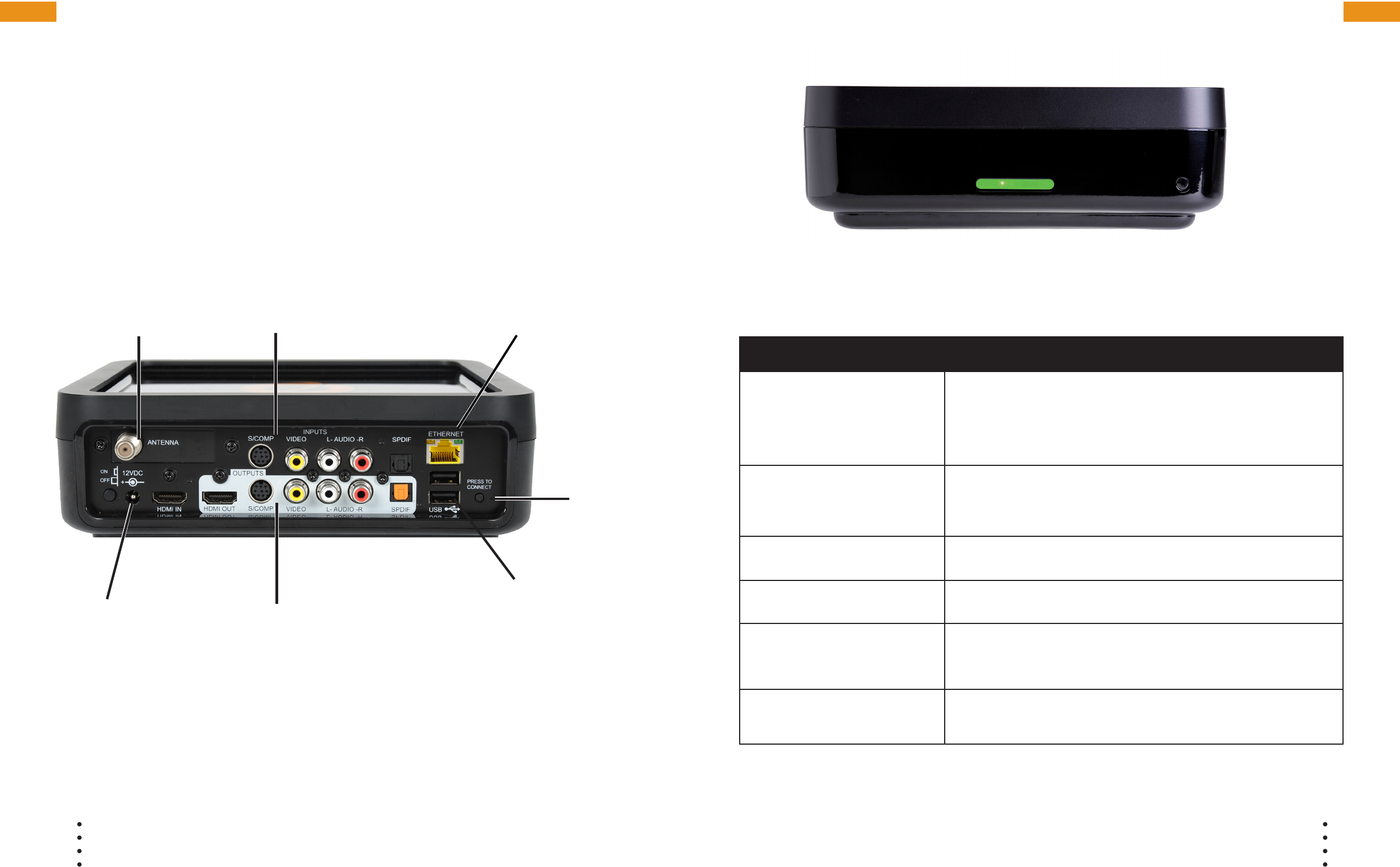

TV EXTENDER DESCRIPTION TV EXTENDER LED DESCRIPTION

What is the TV Extender? The ROSsm Digital Media Adapter, or TV

Extender, is a fully featured high denition media delivery system providing

the TV interface for all ROSsm services and features. Designed to be video

set top box (STB) independent, the ROSsm service displays on your TV

on top of your current cable or satellite programming. The TV Extender

supports HDMI and analog video inputs including a wide range of High

Denition video resolutions: 480, 720, and 1080.

The Home Center and TV Extender have status indication lights to let you

know at a glance the status of your service during set up, activation, and

usage. Note that the TV Extender lights ash when you press the remote

buttons.

OUTPUTS

Connect to a TV or A/V receiver

to pass through audio / video

programming from your DVD

players, VCRs, gaming consoles,

and / or satellite / cable boxes

and the TV Extender.

INPUTS

Connect DVD players, VCRs,

gaming consoles, and / or

satellite / cable boxes.

Ethernet port

Connect to your

network using

Ethernet cable.

Power port

Plug the

included AC

power cord

into the ROSsm

TV Extender.

PRESS TO

CONNECT

Press to

set up a

connection

between

your Home

Center and

TV Extender.

USB

Currently not

available. Do

not plug in USB

devices or cables.

Antenna

Currently not

supported.

Do not plug in

coaxial cables.

LED Color Description

Red (solid) The TV Extender LED is red during start up; if it

remains red, there is a service connectivity issue.

Amber (ashing) TV Extender is connected to the Home Center, but

there is a service problem.

Amber (solid) Attempting Wi-Fi Protected Setup (WPS).

Green (ashing) TV Extender is connecting to the Home Center.

Green (solid) TV Extender is connected to the Home Center and

service is available.

Green (quick ashing) Ready to press Press to Connect button on TV

Extender and Home Center to connect for service.

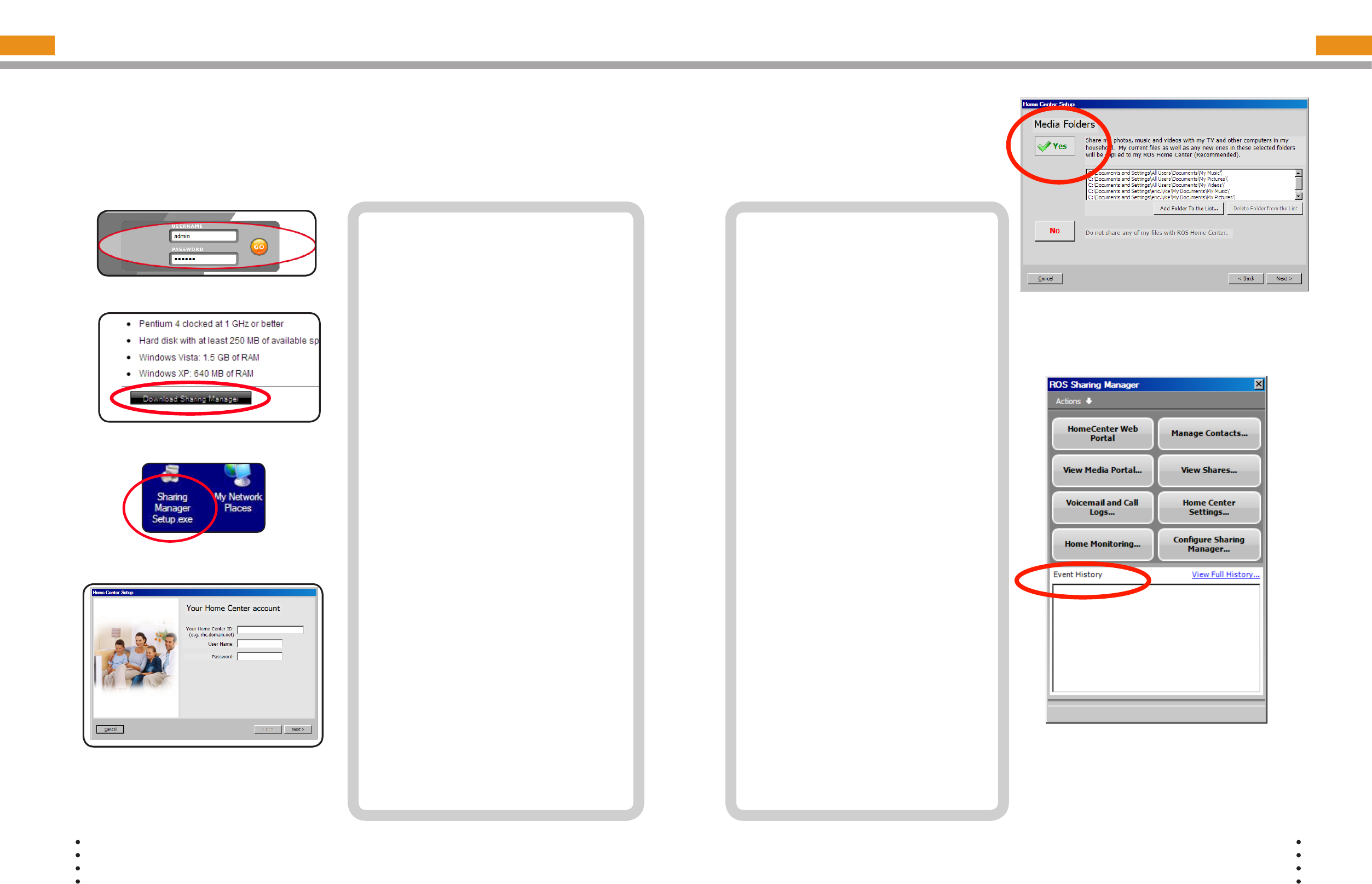

INSTALL SHARING MANAGER

To take advantage of your Home Center media features including playing your music and

viewing photos from your TV, you must rst install the Sharing Manager application on

your PC. The Sharing Manager automatically adds media to your Home Center

so you can access media from anywhere in and out of your home using your TV Extender,

PC, or other compatible device. Complete the following to install the Sharing Manager on

your PC:

SHM Figure 2: Sharing

Manager download.

SHM Figure 4: Installation

SHM Figure 3: Installer

1 From your computer and connected

directly to your ROSsm home network

or LAN (not logged remotely), open

an Internet browser and log into the

Home Center web interface at http://

yourname.yourservice.com (SHM

Figure 1).

2 In Settings > Applications, click

the Download Sharing Manager

Application link at the bottom left

corner of the page (SHM Figure 2).

3 In the File Download - Security

Warning dialog box, click Save.

4 In the Save As window, browse

to Desktop and click Save. The

Download Complete dialog box

displays.

5 Click Close. The Sharing Manager

installer icon is now on your desktop

(SHM Figure 3).

6 Run the Sharing Manager setup

wizard by double-clicking the

SharingManagerSetup.exe icon. If

you receive a security warning dialog

box, click Run. The Sharing Manager

setup wizard opens (SHM Figure 4).

7 Enter your Home Center ID listed on

your Welcome Letter in the following

format yourname.yourservice.com

with admin and ros for your user name

and password.

8 Select the folders you’d like the

Sharing Manager to watch. Whenever

you place media les that the Sharing

Manager recognizes in these folders,

it will automatically add them to

the Home Center so that you can

access them from your TV using a

TV Extender or with other supported

devices. Note that if you delete media

from your computer it will also be

deleted from the Home Center.

9 Once you’ve completed the wizard

and you are logged in, the ROSsm

Sharing Manager will open (SHM

Figure 6). You can see your media

les copied to the Home Center in

the Event History eld as it happens.

You can access other features of the

Home Center using the buttons in the

Sharing Manager window.

NOTE: Depending on how many les you

have, it may take several minutes for

the les to be copied to your Home

Center.

SHM Figure 5: Select your

watched folders

SHM Figure 1: ROSsm Login

SHM Figure 6: Log into

the Sharing Manager

IMPORTANT: By default your wireless is enabled to 802.11 b/g, WPA-2 - AES+TKIP.

Your Wi-Fi network name is the last 6 digits of your MAC address and the key is the serial number

of your Home Center. See the Reference Card for more information on your default settings.

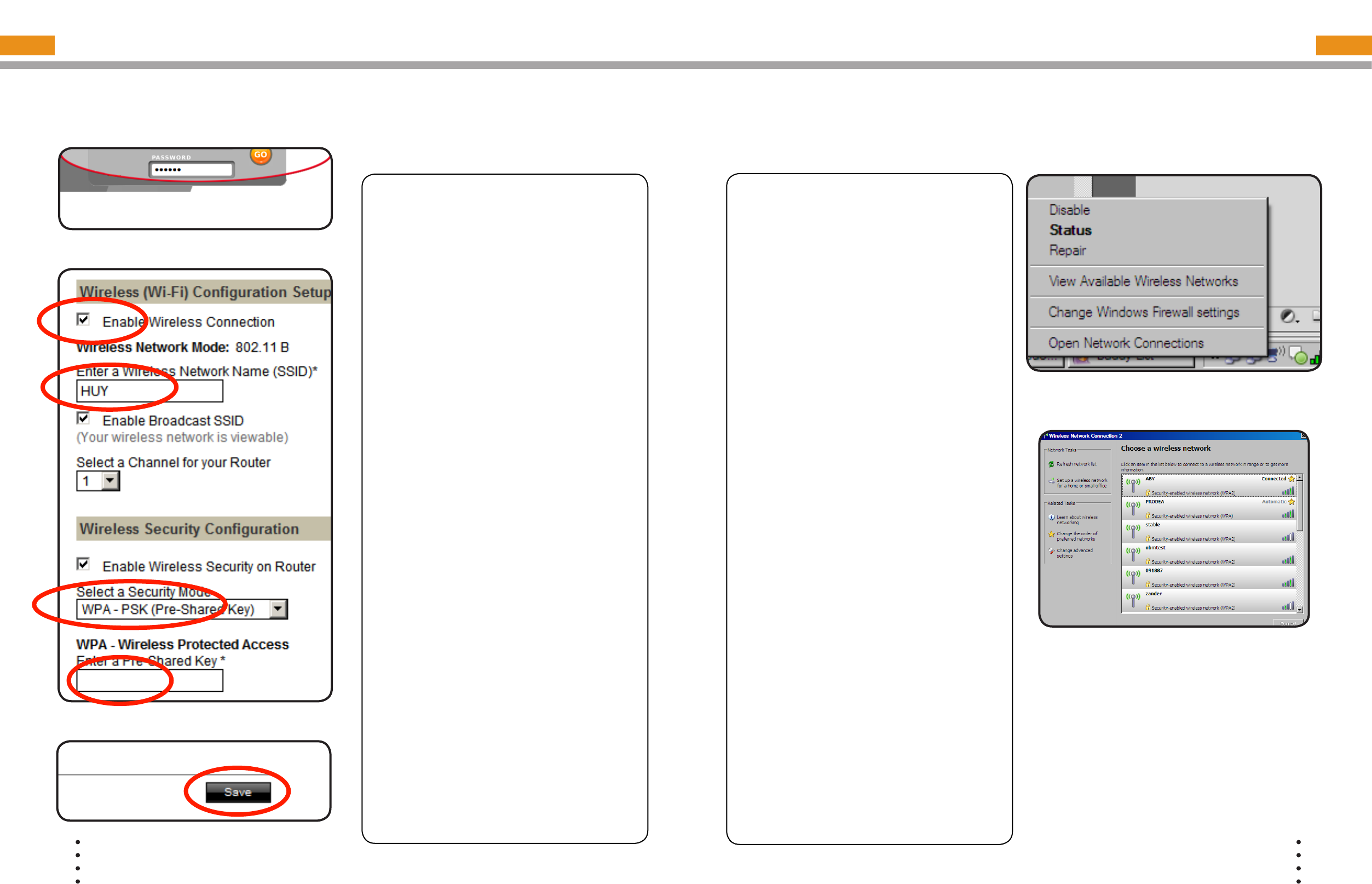

Wi-Fi Figure 1: ROSsm Login

Wi-Fi Figure 2: Wireless Settings Fields

Wi-Fi Figure 3: Click Save

(OPTIONAL) CONFIGURE WIRELESS (Wi-Fi) ACCESS YOUR Wi-Fi NETWORK

Your wireless (Wi-Fi) network is already congured. Complete the following to connect to

your new wireless (Wi-Fi) network.

NOTE: Only make changes if instructed

while activating your ROSsm service or by

your service provider.

1 On your PC, right-click the wireless icon

in your system try (Wi-Fi gure 1) and

select View Available Networks.

2 Select the wirless network listed on your

Reference Card (Wi-Fi gure 2).

3 Enter the password listed on your

reference card. You are now connected

to the Home Center wireless network.

NOTE: Only change your default wireless

information if you know what you are doing

or are instructed by technical support as any

changes to your network may affect your

service.

1 On your computer, log into the ROSsm

(Wi-Fi Figure 1) and select SETTINGS

> NETWORK > WIRELESS

2 Check the Enable Wireless

Connection check box (Wi-Fi Figure

2).

3 In the Enter Wireless Network Name

(SSID) eld, enter a wireless network

name. Use a simple name containing

no personal information or special

characters, for example, “BILL” (Wi-Fi

Figure 2).

4 If you have a current security setting

such as WEP, WPA PSK, or WPA2 PSK,

select it. Otherwise, select a security

mode from the Select a Security

Mode drop-down list (Wi-Fi Figure 2).

5 Enter a password containing at least

nine characters and at least one

number, for example “sparekey1”. Use

a password that is easy to remember,

but not easily guessed by others (Wi-Fi

Figure 2).

6 Click Save. The ROSsm wireless service

is enabled (Wi-Fi Figure 3).

TIP: If you already have a wireless network,

use your current network name and security

setting (WPA or WEP) and the same

password for an easier transition to ROSsm

routing services.

Wi-Fi gure 1

Wi-Fi gure 2

CONFIGURE HOME MONITORING

With the Home Monitoring feature, you can view live netcams of your home and property

from any location with Internet access. You can securely monitor your cameras while

watching TV, while at work, or from an Internet café using your PC or your mobile phone.

You can also schedule notications and video or still shots to be sent to your phone or

email account.

HM Figure 2: Set your

monitoring mode.

NOTE: You must be a Home Monitoring

subscriber to use this feature and have

netcam(s) setup and congured.

In order to activate and change your home

monitoring notication settings including

phone numbers and email accounts to

receive video and still images, complete the

following:

1 Log into the Home Center and click

Monitoring > Settings. (HM Figure 1).

2 In the System tab, set your Home

Monitoring Mode, either Away or Home

and select the cameras to be monitored

under each mode, and then click Save.

(HM Figure 3).

3 In the Passcode tab, set your 4 digit

numeric passcode and click Save (HM

Figure 4).

4 In the Phone Access tab, click Phone/

SMS/MMS and enter your phone

information and notication settings.

5 Click Email and enter in the email

account to receive notications.

6 Click Save.

7 To view Home Monitoring events, log into

the Home Center and click Monitoring >

Events.

8 In Events, you can scroll to view activity,

used the calendar to select a day, or

enter a search term to nd a specic

event (HM Figure 5).

NOTE: In order to view Home Monitoring

events on your phone, your phone must

have a web browser and an Internet

connection.

HM Figure 1: ROSsm Login

HM Figure 5: View Events

HM Figure 3: Select Monitoring

Mode

HM Figure 4: Set your passcode

Your ROSsm service must be activated

and your computer connected to

your home Home Center network to

complete the following conguration.

1 On your PC, download the X-Lite client

from http://www.counterpath.com/

xlite_download.html for Windows,

accepting all the defaults, and install

on your PC. The application window

appears.

2 Log into the Home Center web interface

with your user name and password

(Softphone Figure 1).

3 In the top navigation bar, click Settings

> Voice Service, click Phone Lines

4 Click Add Extension. (Softphone Figure

2) The Phone Setup-Add Extension

window appears (Softphone Figure 3).

5 Note the extension number, the domain,

and the password listed. You will need

to enter this information into the X-Lite

soft phone settings.

SET UP X-LITE SOFT PHONE

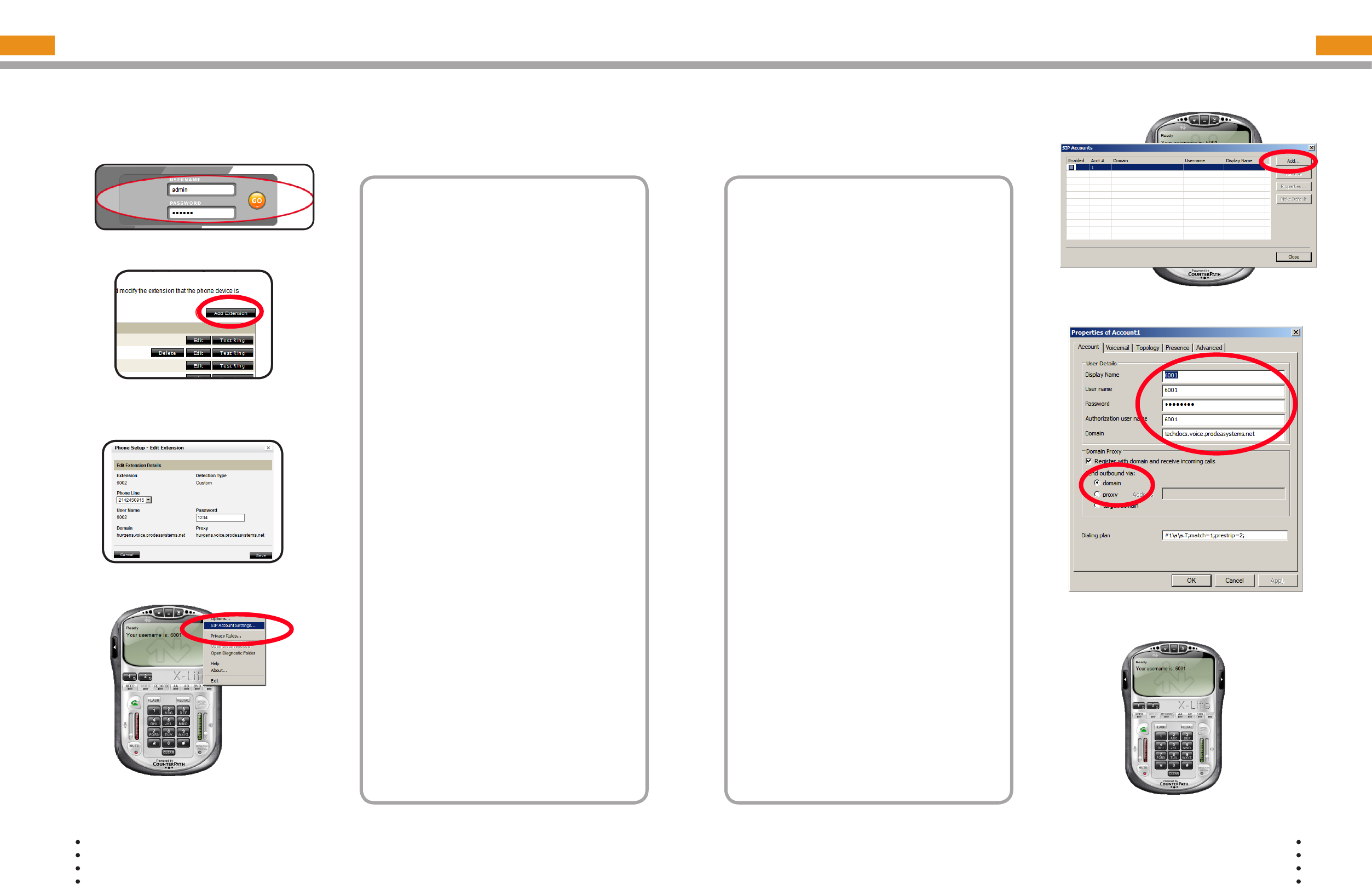

Softphone Figure 2: Add Extension

Softphone Figure 3: Edit Extension

Softphone Figure 7:

X-Lite Softphone

Softphone Figure 4: Congure

X-Lite

6 Right click on the X-Lite softphone and

select SIP Account Settings (Softphone

Figure 4) and click Add... (Softphone

Figure 5).

7 Enter the following: 1) extension number

in the Display name, User name, and

Authorization user name elds, for

example 6002; 2) the automatically

generated password listed on the Home

Center web page in the Password

eld; 3) domain in the Domain eld, for

example yourname.voice.yourservice.

com; 4) under Domain Proxy, select

domain (Softphone Figure 6).

9 Click Apply then OK. Click Close in the

SIP Accounts window. Your extension

number and “Ready” displays on

the X-Lite application when setup is

complete (Softphone Figure 7).

Softphone Figure 6: X-Lite

Conguration

Softphone Figure 5: X-Lite

Properties

Use your voice services from your PC, whether in your home or on the road. All you need is

a computer with an Internet connection and a microphone and speaker or headset.

Softphone Figure 1: ROSsm Login

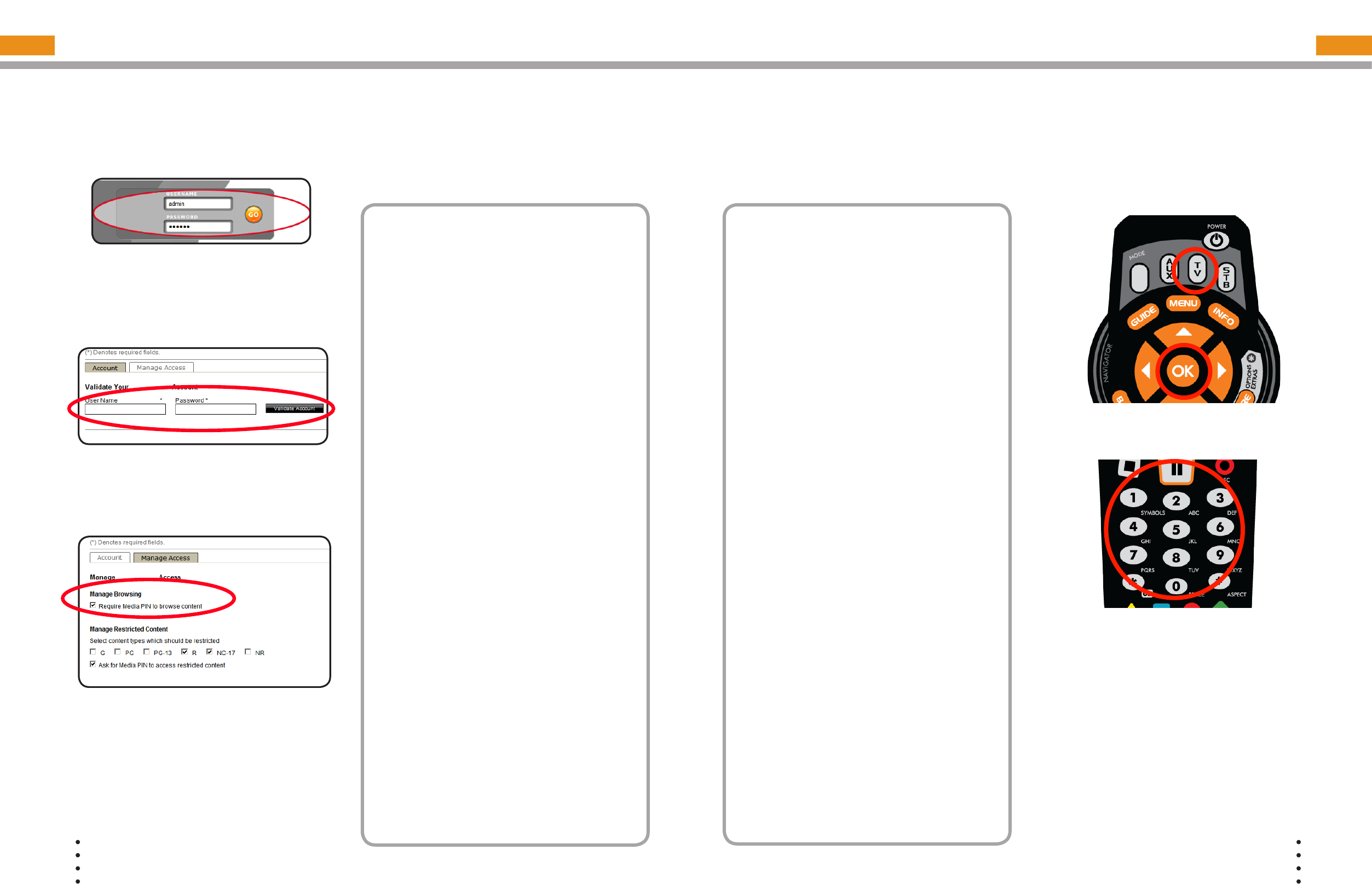

CONFIGURE MEDIA SERVICES

You can access RadioTime and YouTube without entering account information, but to see

your favorites and saved channels, you will need to enter your account information. Once

your account is created, complete the following procedure to validate and save your account

information (user name and password) on the Home Center.

Media Figure 2: Media Account

Media Figure 3: Media Pin

NOTE: If you change your user name

and password on the services web site,

you must make account changes on the

Home Center as well.

1 On your PC, log into the Home Center

(Media Figure 1).

2 Select a media service.

3 Enter your service user name and

password and click SAVE. The account

information is validated. If the user name

and password entered on the Home

Center do not match those that on the

service’s web site, an error message

displays. Re-enter the user name and

password and click Validate Account

again.

4 Follow the same procedure for each

media service as needed. Note that

if you log into any of your services

web sites and change your user name

or password, you must re-enter this

information on the Home Center.

5 By default the media access pin to

restrict content is disabled. To enable

the media access PIN, select the

Manage Access tab and check the

Require Media PIN to browse content

check box (Media Figure 3).

6 To change the 4 digit media pin used to

control access to media services, click

Media Pin and enter four numbers.

7 Click Save (Media Figure 4).

Media Figure 1: ROSsm Login

CONFIGURE TV Extender REMOTE WITH CODES

1 Refer to the Remote Control Codes

starting in the back of this document

and nd your TV or device code (for

newer televisions, start at the end of the

list of codes for your brand and work

backwards). If more than one code is

available, use the rst 4-digit code listed.

If your device is newer, use the last code

listed and work backward through the

list.

2 Turn on your TV or device that you want

to use with the TV Extender remote. For

this procedure, we will use TV as an

example but this same process will work

with any supported device.

3 On the remote, press and hold the TV

button and the OK button (Remote

Figure 1).

4 Release both buttons. All four MODE

buttons (ROSsm, AUX, TV, and STB)

blink twice

5 Enter the 4-digit code for your TV. The

TV button blinks three times (Remote

Figure 2).

6 To make sure that this is the correct

code, point the remote at your TV and

press the Power button. If the TV turns

off, you have successfully programmed

the remote. If the TV does not turn off,

repeat this procedure using the next

code listed for your TV. If you can turn

the TV on and off, but some of the

remote buttons do not operate the TV

as you would expect, try using the next

code listed for your TV.

NOTE: For more information about your

remote, see the back of this Install Guide.

Your ROSsm TV Extender remote is automatically programmed to operate the TV Extender.

You can program this remote to operate up to three additional devices like a DVD player,

cable or satellite receiver, or television. This procedure describes how to program the

remote control by entering a specic code for your device. The following steps describe

how to program the remote for a TV, using the TV button. For other devices such as a cable

or satellite receiver or DVD player, follow the same steps, but use the STB or AUX button

instead of the TV button.

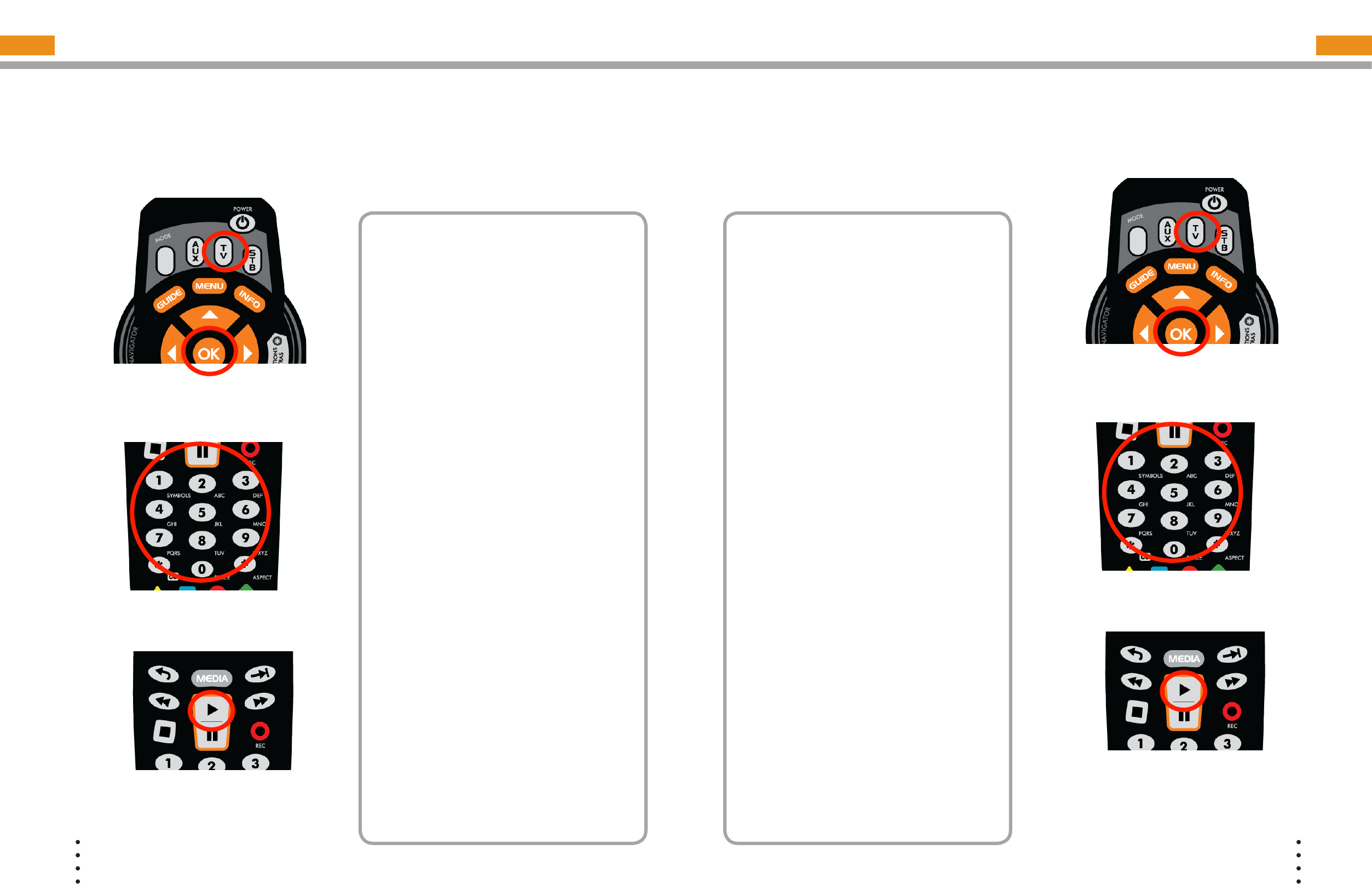

Remote Figure 1: Select the

device and OK buttons

Remote Figure 2: Code Entry

To reset your remote:

Press and hold the ROSsm key. While

holding down the ROSsm key, press OK.

Release both keys. The device keys blink

twice. Press 9 - 0 - 0. The ROSsm key

blinks three times to indicate that the reset

was successful.

CONFIGURE TV Extender REMOTE WITHOUT A CODE

1 Turn on your TV or device. For this

procedure, we will use TV as an

example but this process works with

any supported device. Follow the same

steps, but use the STB or AUX button

instead of the TV button.

2 On the remote, press and hold the TV

button and the OK button (Remote

Figure 3).

3 Release both buttons. All four MODE

buttons (ROSsm, AUX, TV, and STB)

blink twice.

4 Enter the numbers 9-2-2 (Remote Figure

4).

5 Point the remote at the TV.

6 Press and hold the PLAY button. The

device button lights up every time a new

code is tried. The TV or device turns off

when you have found the right code.

The remote tries the most common

codes rst. If the TV or device goes off

but you didn’t release the Play button

fast enough to catch the code, press

Rewind to go back to the previous

code. When you have tried all the codes

stored in the remote, the entire remote

ashes twice and returns to normal

operation. You can exit the program at

any time by pressing EXIT.

You can program this remote to operate up to three additional devices such as a

DVD player, cable or satellite receiver, or television. This procedure describes how

to program the remote control by searching through all of the stored codes for your

device’s code.

Remote Figure 3: Press the

device and OK buttons

Remote Figure 4:

Enter 9-2-2

Remote Figure 5:

Press and hold Play

TV Extender REMOTE OVERRIDE INSTRUCTIONS

1 Using your ROSsm remote control, press

and hold the ROSsm and OK buttons.

2 Release both the ROSsm and OK

buttons. The buttons blink twice.

3 Enter the setup code for the function

reassignment (see below). The ROSsm

button blinks twice.

• Volume reassignment code: 9 – 5

– 5. By default the volume control

passes through to your television,

so when you press the volume

button the volume is lowered at your

television. Use this assignment code

to congure another device to control

the volume.

• Channel reassignment code: 9 – 6 –

6. By default the channel control is

passed through to the television. Use

this assignment code to congure

another device to control the

channels.

• Power reassignment code: 9 – 7 –

7. You can set the Power button to

turn on and off one or more devices

simultaneously.

4 Press the device button (ROSsm, TV,

STB and AUX) that you want to control

the function.

Complete the following process to change the default remote control settings for volume,

channel, and / or power functions so that these functions will always be controlled by

specic devices.

Remote Figure 3: Press the

device and OK buttons

Remote Figure 4:

Enter 9-2-2

Remote Figure 5:

Click Play

NOTE: To reset your remote to factory

settings, press and hold the ROSsm key.

While holding it down, press OK. Release

both keys. The device keys blink twice.

Press 9 - 0 - 0. The ROSsm key blinks

three times to indicate that the reset was

successful.

Question Answer

I am trying to activate

the Home Center, but

the WAN page appears.

What do I need to do?

The WAN page appears when the Home Center cannot

automatically connect to the Internet. This can happen for any of

the following reasons:

• Your broadband modem is not connected to the Internet or

the Home Center is not connected to your modem. Check

the connection status on your modem. Check the connection

between the Home Center and the modem and verify that the

Ethernet cable is plugged in securely.

• You need to congure PPPoE or a static IP address.

• You have another router in your network. Remove the router and

try the activation procedure again.

• You need to enable MAC cloning.

• Your IP address is automatically assigned through DHCP, but

DHCP is not working correctly.

The WAN page appears,

and I need to congure a

static IP. What do I need

to do?

1 On the WAN page, select Static IP from the Internet Connection

Type drop-down list box.

2 Enter the information provided by your ISP, and click Save.

3 Verify the IP address information. If the IP Address is blank,

click Refresh.

The WAN page appears,

and I need to congure

PPPoE. What do I need

to do?

The WAN page appears when the Home Center cannot

automatically connect to your service.

1 On the WAN page, select PPPoE from the Internet Connection

Type drop-down list box.

2 Enter the user name and password provided by your ISP, and

click Save.

3 Check the IP Address eld. If an IP Address appears, wait for

the Web browser page to update. If the IP Address is blank, click

Reset.

The TV Extender LED

changes to solid red

and/or error information

is displayed on the TV

screen. What do I need to

do?

There are several scenarios that you can check for or remedy:

• The WPS process may have timed out before both Press

to Connect (WPS) buttons were pressed. Once you press

the WPS button on the TV Extender, you have two minutes

to press the WPS button on the Home Center.

• The wireless signal between the TV Extender and Home

Center may be too weak for wireless communications. Try

moving the TV Extender and Home Center to allow more

reliable communications, or use a wired technology such

as Ethernet or HomePlug adapters.

• To try wireless setup again, or to connect through Ethernet

or HomePlug adapters, restart the TV Extender by

pressing the ON/OFF button on the back.

SERVICE FAQ

Question Answer

The LED on the front of the

Home Center is off. What do I

need to check?

On the Home Center, verify that all of the cables are plugged

in securely. Make sure that the power adapter is plugged into a

working electrical outlet. When the Home Center is plugged in,

the LED quickly ashes several colors and then changes to solid

red. This indicates that the Home Center is starting up.

I entered the activation code

or PIN, but the message

INVALID ACTIVATION CODE

or ACTIVATION CODE or PIN

ERROR appears. What do I do?

Verify the information you received from your service provider

and enter the activation code again. If you know you are using

the correct activation code, then login to the web portal to verify

your account status.

The WAN page indicates that

I need to remove my current

router or to set my current router

to bridge mode. What do I need

to do?

If you have a modem-router combination, you must turn on bridge

mode before installing the Home Center. This makes the modem-

router function as a modem only, so that the Home Center can

perform all router functions. For information about turning on

bridge mode, review the documentation provided with your router.

All of my devices display as

unusable in the Device list

(Settings > Network and Devices

> Devices). What do I do?

If a device is not working then delete the device from the list

and power it down (unplug and plug it back in). Then perform

any necessary conguration steps. Or delete all of the devices

from the Device list and then power down the Home Center and

power it back up (unplug and plug it back in). A device that has

been disconnected may still display in the Device list, but there is

nothing that you need to do.

I can see a device in the

Settings > Network and Devices

> Devices list but it has a “No”

under “Usable” and it isn’t

working. What do I do?

Delete the device from the list and power it down (unplug and

plug it back in). Then perform any necessary conguration steps.

My Wi-Fi enabled device cannot

connect to the network.

Check the following:

• A 2.4 GHz device such as a phone or microwave may be

interfering with your Internet enabled device.

• Wi-Fi settings may not be supported

• Environmental interference

Slow Internet connection Your new service requires Internet bandwidth for many of its

features. If there is heavy service usage, from movie downloads,

etc. and if you have a low broadband speed connection (<1MB),

your Internet may be slowed. You can wait until bandwidth is

available or request faster Internet service from your ISP.

NOTE: For more information on troubleshooting your Internet connection, see your Internet

service provider documentation.

DEVICE FAQ

Question Answer

My device shows up in

the Settings > Network

and Device > Devices

list but has a “No” in

the “Usable” column.

The LED on my Home

Center is green.

Disconnect the device from the Home Center and delete the

device from the device list. Then reconnect the device to the

Home Center.

My voice calls

experience a lot of

interference.

If the sound on your phone receives a lot of interference, try the

following.

• Check the connections on your equipment.

• If you have a cordless phone, try changing your phone’s

channel to regain service.

• Stay away from anything that may be causing interference,

such as a microwave oven.

Voice quality poor Try walking closer to the basestation or make sure there

is no environmental interference. If the issue persists, try

recalling the number. If applicable, try changing your phone’s

channel.

Question Answer

I plugged in all of my

devices but I don’t see

any in the Device list.

Reboot the Home Center by powering it down and powering

it back up.

My device shows up in

the Settings > Network

and Device > Devices

list but has a “No” in

the “Usable” column.

The LED on my Home

Center is green.

If in the Settings > Network and Device > Devices list your

device does not display or “No” is listed in the “Usable”

column; or you did not receive a test ring (for voice services).

Power down the device. Delete it from the Devices list in the

list. Power up the device The device should show up in the

Device list with a “Yes” in the “Usable” column.

Wi-Fi Protected Setup

(WPS) is not working.

What can I check?

To use WPS, your wireless network security mode must be

set to WPA or WPA2. WPS does not work if your wireless

security mode is WEP.

My voice calls

experience a lot of

interference.

If the sound on your phone receives a lot of interference.

If you have a cordless phone, try changing your phone’s

channel to regain service.

I did not receive a test

ring.

If you have a 2.4 GHz phone, it is possible that the Home

Center Wi-Fi will interfere with the phone service. In this

case, try changing your phone’s channel to regain service.

I plugged in all of my

devices but I don’t see

any in the Device list.

Reboot the Home Center by powering it down and powering

it back up.

REMOTE CODES

2002, 2017, 2123

KLH ..................................................................

2046, 2048

LG ....................................................................

2017, 2036, 2075, 2099, 2105, 2122, 2256,

2363

LXI ....................................................................

2003, 2006, 2013, 2014, 2017, 2118, 2123,

2133, 2136

Magnavox.........................................................

2002, 2006, 2017, 2039, 2053, 2103, 2110,

2123, 2124, 2136, 2164, 2172, 2212, 2216,

2303, 2322

Marantz ............................................................

2002, 2006, 2038, 2074, 2097, 2123, 2136,

2363

Matsui...............................................................

2363, 2364

Matsushita ........................................................

2020, 2028

Maxent .............................................................

2116

Memorex ..........................................................

2012, 2013, 2017, 2022, 2119, 2122, 2123,

2133, 2220, 2219, 2302, 2306

MGA .................................................................

2002, 2012, 2017,2122, 2123, 2305

Mitsubishi .........................................................

2010, 2012, 2017, 2064, 2080, 2101, 2122,

2123, 2191, 2205, 2222, 2224, 2277, 2283,

2326, 2363

Montgomery Ward ............................................

2119

Motorola ...........................................................

2010, 2121, 2145

NEC..................................................................

2002, 2017, 2025, 2083, 2115, 2121, 2122,

2123

Nikko ................................................................

2002, 2009, 2017,2123, 2127

Optimus ............................................................

2013, 2015, 2020, 2028, 2147, 2302

Orion ................................................................

2019, 2022, 2111, 2129, 2149, 2204, 2308,

2363

Panasonic ........................................................

2004, 2020, 2028, 2108, 2121, 2135, 2136,

2154, 2156, 2166, 2173, 2177, 2179, 2181,

2184, 2195, 2200, 2206, 2218, 2223, 2225,

2226, 2235, 2242, 2245, 2259, 2262, 2284,

2292, 2297, 2299, 2302, 2313, 2319, 2320,

2321, 2327, 2363

Penney .............................................................

2002, 2003, 2004, 2007, 2014, 2017, 2106,

2305, 2306

Philco ...............................................................

2002, 2006, 2121, 2122, 2123, 2124, 2126,

2136, 2220, 2363

Philips...............................................................

2006, 2035, 2097, 2110, 2121, 2124, 2126,

2136, 2158, 2161, 2176, 2183, 2187, 2199,

2209, 2227, 2231, 2316, 2339, 2362, 2363,

2364, 2365

Philips Magnavox .............................................

2158, 2164, 2183, 2187, 2209, 2339

Pioneer .............................................................

2015, 2031, 2079, 2123, 2147, 2221, 2228,

2267, 2273, 2286, 2363

Polaroid ............................................................

2046, 2078, 2251, 2366

Pulsar ...............................................................

2001, 2017, 2142

Quasar .............................................................

2004, 2020, 2028, 2121, 2135, 2302, 2313

RadioShack ......................................................

2002, 2003, 2013, 2017, 2018, 2133, 2303,

2363

RadioShack/Realistic .......................................

2017, 2118, 2123, 2126, 2130, 2133, 2139,

2143, 2144

Radiola .............................................................

2362, 2363, 2364, 2365

RCA ..................................................................

2003, 2008, 2017, 2031, 2091, 2096, 2100,

2106, 2109, 2112, 2118, 2121, 2122, 2123,

2152, 2163, 2198, 2202, 2232, 2237, 2288,

2291, 2305, 2315, 2317, 2326

Realistic............................................................

2002, 2013, 2017, 2018, 2133

Runco ...............................................................

001, 2002, 2025, 2026, 2142

Sampo ..............................................................

2002, 2017, 2116, 2123, 2143, 2144

Samsung ..........................................................

2002, 2007, 2017, 2037, 2047, 2055, 2057,

TV Remote Codes

If you have an older or less common TV not

listed here, try the general TV code 2363.

Admiral .............................................................

2010, 2022, 2119, 2145

Advent ..............................................................

2045, 2051, 2058, 2059, 2067

Aiwa .................................................................

2300

Akai ..................................................................

2002, 2007, 2030, 2037, 2055, 2120,2289,

2323, 2351, 2352, 2363, 2364

Apex .................................................................

2159, 2230, 2296

Apex Digital ......................................................

2014, 2043, 2046, 2048, 2082, 2290

Audiovox ..........................................................

2009, 2018, 2021, 2027, 2053, 2081, 2130

Bell & Howell ....................................................

2013, 2119, 2133

Centurion..........................................................

2125, 2363

Citizen ..............................................................

2002, 2007, 2009, 2017, 2123, 2124, 2127,

2130, 2140, 2143, 2307

Colortyme .........................................................

2017, 2123

Crosley .............................................................

2006

Curtis Mathes ...................................................

2002, 2003, 2006,2007, 2010,2011,2013,

2015, 2017,2021, 2023, 2037, 2096, 2106,

2118, 2123, 2133, 2140, 2143

Daewoo ............................................................

2009, 2021, 2027, 2029, 2030, 2114, 2122,

2123, 2127, 2143, 2197, 2214, 2263, 2307,

2363

Denon...............................................................

2011, 2090

Emerson ...........................................................

2013, 2016, 2017, 2018, 2019, 2022, 2027,

2123, 2126, 2128, 2129, 2130, 2131, 2133,

2143, 2149, 2293, 2307, 2308, 2322, 2363

Epson ...............................................................

2062, 2066, 2255

Fisher ...............................................................

2013, 2132, 2133

Fujitsu...............................................................

2032, 2054, 2073, 2131, 2269, 2270, 2272

Funai ................................................................

2016, 2018, 2130,2131, 2303

Gateway ...........................................................

2116, 2117

GE ....................................................................

2003, 2004, 2017, 2021, 2096, 2106, 2109,

2118, 2121, 2123, 2134, 2135, 2155, 2305,

2312, 2326

Goldstar............................................................

2002, 2017, 2122, 2123, 2126, 2143,

2144,2306, 2363

Haier.................................................................

2090

Harley Davidson ...............................................

2303

Harman/Kardon ................................................

2006

Hello Kitty .........................................................

2021

Hewlett Packard ...............................................

2357

Hitachi ..............................................................

2011, 2017, 2123, 2126, 2157, 2162, 2287,

2303, 2363

Hyundai ...........................................................

2071

Innity ...............................................................

2006, 2136

InFocus ............................................................

2237, 2358, 2359

Insignia .............................................................

2016

JBL ...................................................................

2006, 2136

JC Penney........................................................

2017, 2118, 2122, 2123, 2124, 2134, 2135,

2140, 2143, 2144

Jensen..............................................................

2017, 2045, 2058, 2059, 2123

JVC ..................................................................

2005, 2042, 2102, 2126, 2135, 2137, 2186,

2210, 2211, 2215, 2246, 2281, 2282

Kenwood ..........................................................

For newer televisions, start at the end of the list of codes for your brand and work

backwards. Additional codes for all supported devices are listed in the online help.

2092, 2122, 2123, 2126, 2140, 2143, 2144,

2174, 2208, 2240, 2241, 2247, 2248, 2258,

2266, 2279, 2309, 2363, 2364

Sansui ..............................................................

2022, 2149, 2165, 2204, 2289, 2303, 2308,

2363

Sanyo ...............................................................

2013, 2017, 2052, 2088, 2132, 2133, 2305

Scott .................................................................

2017, 2018, 2019, 2123, 2126, 2129, 2130,

2131, 2354

Sears ................................................................

2003, 2006, 2013, 2014, 2016, 2017, 2118,

2123, 2131, 2132, 2133, 2137, 2148, 2303,

2306

Sharp................................................................

2010, 2017, 2024, 2033, 2034, 2072, 2123,

2126, 2139, 2143, 2145, 2189, 2234, 2238,

2244, 2249, 2253, 2310, 2326

Sony .................................................................

2000, 2063, 2094, 2120,2167, 2185, 2193,

2217, 2229, 2236, 2239, 2254, 2260, 2261,

2265, 2285, 2303

Soundesign ......................................................

2017, 2018, 2123, 2124, 2130, 2131

Sylvania............................................................

2002, 2006, 2016, 2017, 2123, 2124, 2136,

2160, 2209, 2213, 2219, 2250, 2271, 2293,

2298, 2301, 2314, 2322, 2325, 2333, 2339,

2340, 2341, 2349, 2350

Symphonic .......................................................

2016, 2018, 2128, 2130, 2148, 2180, 2303

Tandy................................................................

2010, 2145

Tatung ..............................................................

2117, 2121, 2363

Technics ...........................................................

2004, 2020, 2135

Toshiba .............................................................

2007, 2013, 2014, 2028, 2061, 2069, 2095,

2098, 2104, 2105, 2107, 2113, 2115, 2133,

2140, 2141, 2168, 2169, 2170, 2171, 2175,

2178, 2182, 2188, 2190, 2194, 2196, 2201,

2203, 2207, 2257, 2275, 2276, 2278, 2280,

2289, 2294, 2295, 2311, 2318, 2324

Viewsonic .........................................................

2076, 2077, 2084, 2116, 2252, 2264, 2374

Vizio .................................................................

2077, 2084, 2117, 2368, 2369, 2374

Wards ..............................................................

2002, 2006, 2017, 2079, 2098, 2118, 2119,

2122, 2123, 2128, 2131, 2134, 2136, 2139

Westinghouse ..................................................

2000, 2021, 2084, 2087, 2374

White Westinghouse ........................................

2022, 2027, 2363

Yamaha ............................................................

2002, 2017, 2049, 2062, 2065, 2122, 2123

Zenith ...............................................................

2001, 2009, 2017, 2022, 2105, 2119,

2142, 2151, 2153, 2192, 2233, 2268,

2274, 2303, 2308

Codes for Satellite

and Cable Box

Alphastar ..........................................................

1027

Chaparral .........................................................

1023

DIRECTV .........................................................

1006, 1007, 1008, 1010, 1011, 1014, 1020,

1021, 1022, 1029, 1031, 1032, 1035, 1036,

1038, 1039, 1040, 1041, 1042, 1045, 1046,

1049, 1050, 1051, 1052, 1055, 1056, 1057,

1059, 1061, 1062, 1064, 1065

Dish Network ....................................................

1002, 1003, 1004,1005, 1009, 1012, 1034,

1037, 1054

Dishpro .............................................................

1012, 1034, 1037

Echostar ...........................................................

1009, 1012, 1034, 1037, 1044, 1054

GE ....................................................................

1035, 1064

Hitachi ..............................................................

1038

Hughes .............................................................

1006, 1007, 014,1020, 1036, 1045, 1046,

1056

JVC ..................................................................

1009, 1034, 1037, 1054

LG ....................................................................

1019, 1032, 1063

Magnavox.........................................................

1029

Memorex ..........................................................

1029

Mitsubishi .........................................................

1036, 1046, 1072

Motorola ...........................................................

1013, 1030

Panasonic ........................................................

1071

Philips...............................................................

1006, 1007, 1014, 1029,1036, 1038, 1052

Pioneer .............................................................

1007

Primestar ..........................................................

1026

Proscan ............................................................

1011, 1035, 1055, 1070

RadioShack ......................................................

1030

RCA ..................................................................

1010, 1014, 1015, 1022, 1031, 1035, 1047,

1048, 1049, 1050, 1051, 1053, 1069, 1070,

1073

Realistic............................................................

1025

Samsung ..........................................................

1007, 1014, 1043, 1057, 1060

Sharp................................................................

1074

Sony .................................................................

1008, 1016, 1017, 1039, 1058, 1059

STS ..................................................................

1028

Tivo ..................................................................

1007, 1014

Toshiba .............................................................

1036, 1038, 1061

Zenith ...............................................................

1018, 1040, 1062

Codes for STB

ABC ..................................................................

1075, 1076, 1077, 1084, 1097, 1098, 1115,

1122, 1123, 1130, 1135

Adelphia ...........................................................

1128

AT&T ................................................................

1111

Bell South .........................................................

1104

Citizen ..............................................................

1137

Comcast ...........................................................

1102, 1107, 1113

COX .................................................................

1108

GE ....................................................................

1075, 1076

Gemini ..............................................................

1087, 1099

Goldstar............................................................

1138, 1139

Hitachi ..............................................................

1076

Jasco ................................................................

1099

Magnavox.........................................................

1089

Memorex ..........................................................

1090, 1098

Motorola ...........................................................

1100, 1102, 1105, 1108, 1109, 1111, 1113

Movie Time .......................................................

1091, 1137

NEC..................................................................

1078

Pace .................................................................

1114, 1115, 1116, 1117, 1118, 1119, 1122,

1123, 1125

Panasonic ........................................................

1094, 1096, 1098

Philips...............................................................

1082, 1083, 1089

Pioneer .............................................................

1092, 1114, 1119, 1125, 1126, 1139

Pulsar ...............................................................

1098, 1137

Quasar .............................................................

1098

RadioShack ......................................................

1099, 1103

RCA ..................................................................

1079, 1096

Realistic............................................................

1081

Recoton ............................................................

1101

Samsung ..........................................................

1137, 1138, 1139

Scientic Atlanta ...............................................

1084, 1111, 1114, 1115, 1119, 1120, 1121,

1122, 1123, 1124, 1125, 1126, 1127, 1128,

1130, 1131, 1132, 1133, 1134, 1135, 1136

Sony .................................................................

1106

Time Warner .....................................................

1110

Toshiba .............................................................

1098

Tristar ...............................................................

1103

United Cable ....................................................

1097

Universal ..........................................................

1080, 1081

View Star ..........................................................

1085, 1089, 1091

Zenith ...............................................................

1095, 1098, 1104

Codes for AUX - DVD

Accurian ...........................................................

3084

Advent ..............................................................

3094

Aiwa .................................................................

3018, 3235, 3269

Akai ..................................................................

3025, 3052, 3257, 3326, 3327

Alpine ...............................................................

3208

Apex .................................................................

3104, 3121, 3130, 3217, 3262

Apex Digital ......................................................

3023, 3028, 3032, 3036, 3037, 3038, 3044,

3053, 3054, 3060, 3062, 3065, 3258

Audiovox ..........................................................

3035, 3148, 3216, 3234, 3294

Blaupunkt .........................................................

3028, 3149

BOSE ...............................................................

3282

Coby .................................................................

3095, 3096, 3291

Curtis Mathes ...................................................

3064, 3138

Daewoo ............................................................

3034, 3049, 3073, 3074, 3134

Denon...............................................................

3000, 3017, 3106, 3116, 3160, 3164, 3186,

3190

Disney ..............................................................

3024, 3080

Fisher ...............................................................

3022

Funai ................................................................

3024, 3079, 3241

Gateway ...........................................................

3071, 3222

GE ....................................................................

3003, 3028, 3126, 3196

Go Video ..........................................................

3029, 3030, 3033, 3049, 3058, 3063, 3071,

3091, 3215, 3222, 3236, 3246, 3248

Goldstar............................................................

3029

Grundig ............................................................

3007

Harman/Kardon ................................................

3026, 3192

Hitachi ..............................................................

3011, 3021, 3075, 3136, 3193, 3205, 3215

Insignia .............................................................

3079

JBL ...................................................................

3026, 3292

Jensen..............................................................

3096

JVC ..................................................................

3009, 3013, 3048, 3072, 3113, 3122, 3135,

3140, 3166, 3177, 3197, 3201, 3207, 3230,

3231, 3232, 3233, 3247, 3255, 3300, 3301,

3302, 3304, 3306

Kawasaki ..........................................................

3035

Kenwood ..........................................................

3000, 3006, 3106, 3116, 3195, 3202, 3210,

3211

KLH ..................................................................

3028, 3035, 3054, 3069

Konka ...............................................................

3101, 3310, 3311, 3312, 3313, 3314, 3315,

3316

Koss .................................................................

3020, 3100, 3150, 3289

LG ....................................................................

3012, 3029, 3049, 3163, 3229, 3329

Magnavox.........................................................

3001, 3007, 3019, 3024, 3042, 3079, 3145,

3181

Marantz ............................................................

3007, 3175

Memorex ..........................................................

3025, 3080, 3139

Microsoft...........................................................

3003

Mitsubishi .........................................................

3002, 3089, 3128, 3154, 3161, 3185

Onkyo ...............................................................

3001, 3014, 3158, 3293, 3298

Oritron ..............................................................

3020, 3100

Panasonic ........................................................

3000, 3001, 3027, 3083, 3087, 3088, 3092,

3106, 3107, 3116, 3144, 3147, 3170, 3171,

3173, 3182, 3198, 3218, 3221, 3251, 3259,

3264, 3266, 3267, 3268, 3273, 3274, 3277,

3283, 3284, 3287, 3290, 3334, 3335, 3336

Philips...............................................................

3001, 3007, 3019, 3024, 3046, 3077, 3078,

3082, 3124, 3145, 3153, 3156, 3162, 3167,

3179, 3187, 3189, 3199, 3219, 3223, 3241,

3253, 3271, 3333

Pioneer .............................................................

3004, 3010, 3016, 3115, 3137, 3142, 3159,

3168, 3176, 3194, 3225, 3281, 3297, 3330

Polaroid ............................................................

3054, 3062

Polk Audio ........................................................

3007

Presidian ..........................................................

3024, 3241

Proscan ............................................................

3003, 3119, 3180

RCA ..................................................................

3003, 3010, 3028, 3035, 3043, 3055, 3068,

3108, 3119, 3120, 3126, 3180, 3191, 3226,

3238, 3240, 3245, 3263

Sampo ..............................................................

3031

Samsung ..........................................................

3000, 3011, 3030, 3041, 3052, 3058, 3063,

3110, 3117, 3133, 3141, 3178, 3184, 3204,

3249, 3299, 3322, 3331

Sansui ..............................................................

3025, 3257

Sanyo ...............................................................

3022, 3025

Sharp................................................................

3015, 3024, 3031, 3076, 3123, 3131, 3256,

3276

Sony .................................................................

3005, 3047, 3057, 3085, 3090, 3105, 3109,

3111, 3112, 3114, 3129, 3151, 3152, 3165,

3213, 3220, 3242, 3244, 3279, 3280, 3285,

3286, 3307, 3332

Sylvania............................................................

3024, 3042, 3079, 3139, 3241, 3254, 3265,

3270, 3275, 3278, 3317, 3318, 3319, 3320,

3321, 3323, 3324, 3325

Symphonic .......................................................

3024, 3042, 3241

Teac..................................................................

3035

Technics ...........................................................

3000, 3027, 3116

Toshiba .............................................................

3001, 3025, 3059, 3070, 3103, 3118, 3125,

3127, 3132, 3143, 3155, 3169, 3174, 3224,

3227, 3228, 3237, 3239, 3243, 3252, 3257,

3260, 3261, 3272, 3295

Vizio .................................................................

3337

Xbox .................................................................

3003

Yamaha ............................................................

3000, 3007, 3008, 3106, 3172, 3188, 3200,

3203, 3206, 3209, 3214, 3296, 3303

Zenith ...............................................................

3001, 3012, 3029, 3049, 3103, 3146, 3163,

3183

Codes for AUX -

Amplier

BOSE ...............................................................

6006

Curtis Mathes ...................................................

6003

Denon...............................................................

6010

GE ....................................................................

6001

Harman/Kardon ................................................

6008

JBL ...................................................................

6013

JVC ..................................................................

6004

Marantz ............................................................

6008, 6011

Optimus ............................................................

6003

Philips...............................................................

6008

Pioneer .............................................................

6000, 6003

Polk Audio ........................................................

6008

RCA ..................................................................

6003

Sony .................................................................

6007

Soundesign ......................................................

6001

Wards ...............................................................

6000, 6001

Yamaha ............................................................

6002, 6005, 6009, 60123

Codes for AUX - REC

Aiwa .................................................................

7002, 7006, 7043, 7046, 7064, 7088,

7089, 7090, 7091, 7101, 7110, 7143,

7152, 7184

Apex Digital ......................................................

7048

Audiotronic .......................................................

7018

Audiovox ..........................................................

7044, 7219

BOSE ...............................................................

7009, 7019, 7020, 7073, 7207

Carver ..............................................................

7006, 7018, 7110

Coby .................................................................

7216

Denon...............................................................

7038, 7076, 7107, 7135, 7136, 7148, 7153,

7154, 7162, 7164, 7169, 7171, 7172, 7173,

7177, 7187

Emerson ...........................................................

7077

Fisher ...............................................................

7070

GE ....................................................................

7109

Harman/Kardon ................................................

7001, 7006, 7012, 7031, 7032, 7100, 7110,

7168

Hitachi ..............................................................

7070

Integra ..............................................................

7003, 7030, 7036

JBL ...................................................................

7001, 7032, 7100, 7217

JVC ..................................................................

7040, 7051, 7092, 7132, 7141, 7157, 7165,

7174, 7180, 7181, 7182, 7195, 7203, 7204

Kenwood ..........................................................

7034, 7060, 7061, 7093, 7120, 7123, 7129,

7131, 7147, 7159

KLH ..................................................................

7044, 7047

Koss .................................................................

7039, 7214

LG ....................................................................

7028

Magnavox.........................................................

7006, 7007, 7018,7024, 7054, 7110

Marantz ............................................................

7006, 7018, 7024, 7027, 7110, 7193

Mitsubishi .........................................................

7045, 7176

Nakamichi ........................................................

7112, 7113

Onkyo ...............................................................

7003, 7011, 7030, 7036, 7056, 7102, 7124,

7133, 7139, 7142, 7158, 7175, 7178, 7179,

7185, 7218

Optimus ............................................................

7007, 7010, 7013, 7015, 7108

Oritron ..............................................................

7039

Panasonic ........................................................

7026, 7033, 7035, 7055, 7057, 7063, 7068,

7069, 7103, 7104, 7140, 7155, 7170, 7189,

7194, 7197, 7198, 7199, 7200, 7202, 7208,

7209, 7210, 7211, 7212, 7215

Philips...............................................................

7006, 7018, 7023, 7024, 7110, 7167, 7214

Pioneer .............................................................

7000, 7004, 7007, 7008, 7013, 7042, 7081,

7082, 7099, 7118, 7119, 7126, 7127, 7149,

7150, 7151, 7160, 7161, 7188, 7206

Polaroid ............................................................

7079

Polk Audio ........................................................

7006, 7027, 7192

RCA ..................................................................

7007, 7013, 7015, 7021, 7044, 7053, 7083,

7094, 7109, 7213

RCA & Dimensia ..............................................

7084, 7085, 7086, 7087, 7109

Samsung ..........................................................

7029, 7052, 7186, 7220

Sansui ..............................................................

7006, 7110

Sanyo ...............................................................

7050, 7070

Sherwood .........................................................

7016, 7106, 7190

Sony .................................................................

7014, 7022, 7049, 7058, 7065, 7066, 7067,

7071, 7080, 7095, 7096, 7105, 7114, 7115,

7116, 7117, 7122, 7125, 7130, 7144, 7145,

7146, 7156, 7183, 7196, 7201, 7205

Soundesign ......................................................

7010

Teac..................................................................

7015, 7044

Technics ...........................................................

7033, 7055, 7103, 7104, 7134, 7138, 7140

Wards ...............................................................

7000, 7006, 7099, 7110

Yamaha ............................................................

7003, 7005, 7017, 7025, 7037, 7041, 7074,

7075, 7078, 7097, 7098, 7099, 7121, 7128,

7163, 7166, 7221

Zenith ...............................................................

7028

Codes for AUX - VCR

Admiral .............................................................

5008

Aiwa .................................................................

5000, 5004, 5043

Akai ..................................................................

5036, 5139

Alienware .........................................................

5033

Apex Digital ......................................................

5092

Audio Dynamics ...............................................

5037

Audiovox ..........................................................

5004, 5040

Bell & Howell ....................................................

5038

Canon...............................................................

5003, 5041

Citizen ..............................................................

5004, 5030, 5039, 5040, 5121

Colortyme .........................................................

5037

Craig.................................................................

5004, 5007, 5039, 5040

Curtis Mathes ...................................................

5003, 5009, 5011, 5024, 5035, 5037, 5039,

5041

Daewoo ............................................................

5006, 5030, 5043, 5070, 5121

Dell ...................................................................

5033

Dimensia ..........................................................

5035

DIRECTV .........................................................

5018

Emerex .............................................................

5001

Emerson ...........................................................

5000, 5004, 5012, 5030, 5031, 5040, 5041,

5043, 5095, 5121, 5122, 5138

Fisher ...............................................................

5007, 5038, 5076

Fuji ...................................................................

5002, 5003, 5036, 5041

Funai ................................................................

5000, 5043, 5047, 5095, 5117

Garrard .............................................................

5000, 5043

Gateway ...........................................................

5033

GE ....................................................................

5003, 5009, 5019, 5024, 5025, 5035, 5039,

5041, 5119, 5126, 5144

Go Video ..........................................................

5085, 5088, 5093, 5101,5103

Goldstar............................................................

5004, 5029,5037, 5040,5120

Harley Davidson ...............................................

5000, 5043, 5117

Harman/Kardon ................................................

5010, 5037

Hewlett Packard ...............................................

5033

Hitachi ..............................................................

5000, 5117

HP ....................................................................

5033

Hughes Network Systems ................................

5018

JC Penney........................................................

5037, 5038, 5039, 5040, 5041

JCL ...................................................................

5041

JVC ..................................................................

5037, 5038, 5057, 5063, 5067, 5068,

5080, 5081, 5082, 5083, 5102, 5112, 5113

KEC ..................................................................

5004

Kenwood ..........................................................

5037, 5038

Kodak ...............................................................

5003, 5004, 5040, 5041

LG ....................................................................

5040, 5079

Linksys .............................................................

5033

Lloyd’s ..............................................................

5000, 5043, 5117

LXI ....................................................................

5004, 5040

Magnavox.........................................................

5000, 5003, 5005, 5010, 5032, 5041, 5064,

5074, 5117, 5132, 5138

Marantz ............................................................

5003, 5010, 5037, 5038, 5041

Matsushita ........................................................

5003, 5011, 5041

Media Center PC..............................................

5033

Memorex ..........................................................

5000, 5003, 5004, 5005, 5007, 5008, 5011,

5029, 5038, 5039, 5040, 5041, 5043, 5046,

5077, 5084, 5120

MGA .................................................................

5119

Microsoft...........................................................

5033

Mitsubishi .........................................................

5019, 5053, 5071, 5144

Motorola ...........................................................

5003, 5008, 5041

NEC..................................................................

5037, 5038

Nikko ................................................................

5004, 5040

Olympus ...........................................................

5003, 5041

Optimus ............................................................

5004, 5008, 5011, 5026, 5040

Orion ................................................................

5012, 5031, 5046, 5122

Panasonic ........................................................

5003, 5011, 5013, 5015, 5024, 5026,

5041,5048,5052, 5058, 5066, 5073, 5094,

5106, 5116, 5127, 5128, 5129, 5135, 5136,

5141, 5142, 5145, 5147, 5148

Penney .............................................................

5003, 5004, 5024, 5029, 5119, 5120

Philco ...............................................................

5003, 5041

Philips...............................................................

5003, 5010, 5016, 5018, 5041, 5055, 5095,

5110, 5132, 5133

Philips Magnavox .............................................

5055, 5064

Polaroid ............................................................

5092

Polk Audio ........................................................

5010

Presidian ..........................................................

5095

Proscan ............................................................

5009, 5025, 5035, 5075

Pulsar ...............................................................

5005

Quasar .............................................................

5003, 5011, 5024, 5041, 5128, 5137

RadioShack ......................................................

5000, 5007, 5040, 5117

RCA ..................................................................

5009, 5019, 5021, 5024, 5025, 5035, 5039,

5041, 5059, 5087, 5100, 5119, 5131, 5144,

5149

Realistic............................................................

5000, 5003, 5004, 5007, 5008, 5038, 5039,

5040, 5041, 5043

Samsung ..........................................................

5006, 5018, 5023, 5039, 5042, 5085, 5089,

5093, 5099, 5104, 5123

Sansui ..............................................................

5000, 5031, 5046, 5084, 5117, 5122

Sanyo ...............................................................

5007, 5038, 5039, 5076, 5119

Scott .................................................................

5006, 5012

Sears ................................................................

5000, 5003, 5004, 5007, 5029, 5038, 5040,

5041, 5117, 5120

Sharp................................................................

5008, 5019, 5049, 5056, 5065, 5115,

5124, 5144

Sony .................................................................

5000, 5001, 5002, 5003, 5017, 5028, 5033,

5036, 5044, 5050, 5051, 5054, 5069, 5090,

5091, 5096, 5098, 5107, 5111, 5117

Sylvania............................................................

5000, 5003, 5010, 5032, 5041, 5043, 5095,

5130, 5138, 5143, 5146

Symphonic .......................................................

5000, 5043, 5047, 5095, 5117

Systemax .........................................................

5033

Tandy................................................................

5038

Teac..................................................................

5000, 5043

Technics ...........................................................

5003, 5011, 5041

Teknika .............................................................

5000, 5003, 5004, 5040, 5041, 5043

Thomas ............................................................

5000, 5117

Tivo ..................................................................

5016, 5017, 5018, 5034

Toshiba .............................................................

5006, 5020, 5022, 5027, 5033, 5034, 5061,

5062, 5086, 5097, 5108, 109, 5114, 5125,

5134, 5140

Totevision .........................................................

5004, 5039, 5040

Viewsonic .........................................................

5033

Wards ...............................................................

5000, 5003, 5007, 5008, 5009, 5010, 5039,

5040, 5041, 5043

White Westinghouse ........................................

5047

Yamaha ............................................................

5037, 5038

Zenith ...............................................................

5000, 5002, 5005, 5031, 5036, 5045, .............

5060, 5072, 5117, 5122

Codes for AUX - PVR

Alienware .........................................................

4007

Dell ...................................................................

4007

DigiFusion ........................................................

4032

DIRECTV .........................................................

4004, 4009, 4010, 4011, 4012, 4013, ............

4018, 4019, 4023, 4027

Dish Network ....................................................

4016, 4017

Dishpro .............................................................

4016

Echostar ...........................................................

4016, 4017

Expressvu ........................................................

4016

Gateway ...........................................................

4007

GO....................................................................

4016

Hewlett Packard (HP).......................................

4007

Quasar .............................................................

5003, 5011, 5024, 5041, 5128, 5137

Hughes .............................................................

4004, 4009, 4010, 4011, 4012, 4013, 4023,

4027

JVC ..................................................................

4016, 4017, 4027

Linksys .............................................................

4007

Media Center PC..............................................

4007

Microsoft...........................................................

4007

Panasonic ........................................................

4001, 4031

Philips...............................................................

4002, 4004, 4013,4021, 4023, 4027, 4029

Pioneer .............................................................

4033

Proscan ............................................................

4018

RCA ..................................................................

4005, 4018, 4019, 4027

ReplayTV .........................................................

4000, 4001, 4020, 4030

Samsung ..........................................................

4004

Sony .................................................................

4003, 4007, 4014,4015, 4022, 4024, 4025,

4028

Tivo ..................................................................

4002, 4003, 4004,4008, 4009, 4010, 4011,

4012, 4014, 4015, 4021, 4022, 4024, 4025,

4026,4027

Toshiba .............................................................

4006, 4007, 4008

Viewsonic .........................................................

4007

Voodoo .............................................................

4007

1 Make sure your handset is fully charged

(6 hours), your basestation has power

and is connected to the Home Center

with an Ethernet cable. See the Voice

installation sheet that came with your

service equipment.

2 On the handset, press Menu > Handset

> Register.

3 Enter passcode 0000 Do not change the

passcode. It must be 0000 to work with

your ROSsm voice service.

4 Select OK.

5 Press and hold the blue button on the

basestation for 5 seconds (Voice Figure

1). Repeat pressing the blue button

if it doesn’t work the rst time. The

Home Center will need to provision the

handset in its device database. You will

receive a test ring on the phone that the

handset is connected to the basestation

and another one after 1 or 2 minutes to

let you know that the Home Center has

provisioned it for voice service as an

extension.

Please enjoy your new voice services.

The voice system is precongured so you can set up your SIP phone out of the box. Only

complete the following instructions if you received new handsets or need to reset your handsets

and connect them to the basestation, complete the following instructions.

PAIR PHONE HANDSET TO BASESTATION

Voice Figure 1:

SIP Phone Base Station

FCC Regulatory Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult your service provider, retailer, or an experienced technician for help.

If you cannot eliminate the interference, the FCC requires that you stop using your phone. Changes or

modications not expressly approved may cause interference and void the user’s authority to operate the

equipment.

Product Product Name

Model ROSsm 1000, ROSsm 2000

Responsible Party Prodea Systems, Inc.

6101 West Plano Parkway

Suite 210

Plano, Texas 75093

Phone 214.278.1850

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) This device must accept any interference received,

including interference that may cause undesired operation.

This equipment complies with Part 68 of the FCC Rules and the requirements adopted by ACTA. On the back

of this equipment is a label that contains a product identier in the format US:AAAEQ##TXXXX. If requested,

this information must be provided to your telephone company.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply

with the applicable FCC Part 68 rules and requirements adopted by ACTA. A compliant telephone cord and

modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is

also compliant. See installation instructions for details.

The REN is used to determine the number of devices that may connect to a telephone line. Excessive RENs

on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all

areas, the sum of the RENs should not exceed ve (5.0). To be certain of the number of devices that may

be connected to a line, as determined by the total RENs, contact your local telephone company. For product

approved after July 23, 2001, the REN for this product is part of the product identier that has the format

US:AAAEQ##TXXXX. The digits represented by ## are the REN without the decimal point (e.q., 03 is a REN

of 0.3). For earlier products, the REN is separately shown on the label.

If your DIGITAL VIDEO RECORDER causes harm to the telephone network, the telephone company will

notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t

practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of

your right to le a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could

affect the proper functioning of your equipment. If they do, you will be notied in advance in order for you to

make necessary modications to maintain uninterrupted service.

If trouble is experienced with this unit, for repair or warranty information, please contact customer service at

the address and phone listed below. Ifthe equipment is causing harm to the network, the telephone company

may request that you disconnect the equipment until the problem is resolved.

DO NOT DISASSEMBLE THIS EQUIPMENT. It does not contain any user serviceable components.

We recommend the installation of an AC surge arrester in the AC outlet to which this equipment is connected.

Telephone companies report that electrical surges, typically lighting transients, are very destructive to

customer terminal equipment connected to AC power sources.

Wireless Radio Use

These devices are restricted to indoor use due to its operation in the 2.4 to 5 GHz frequency range

to reduce the potential for harmful interference to co-channel Mobile Satellite systems.

Exposure to Radio Frequency Energy

The radiated output power of these devices is below the FCC radio frequency exposure limits; however, these

devices should be operated with a minimum distance of at least 20 cm between its antennas and a person’s

body, and the antennas used with these transmitters must not be co-located or operated with any other

antenna or transmitter subject to the conditions of the FCC Grant.

6101 West Plano Parkway • Plano, TX 75093 • ProdeaSystems.com • 214.278.1850

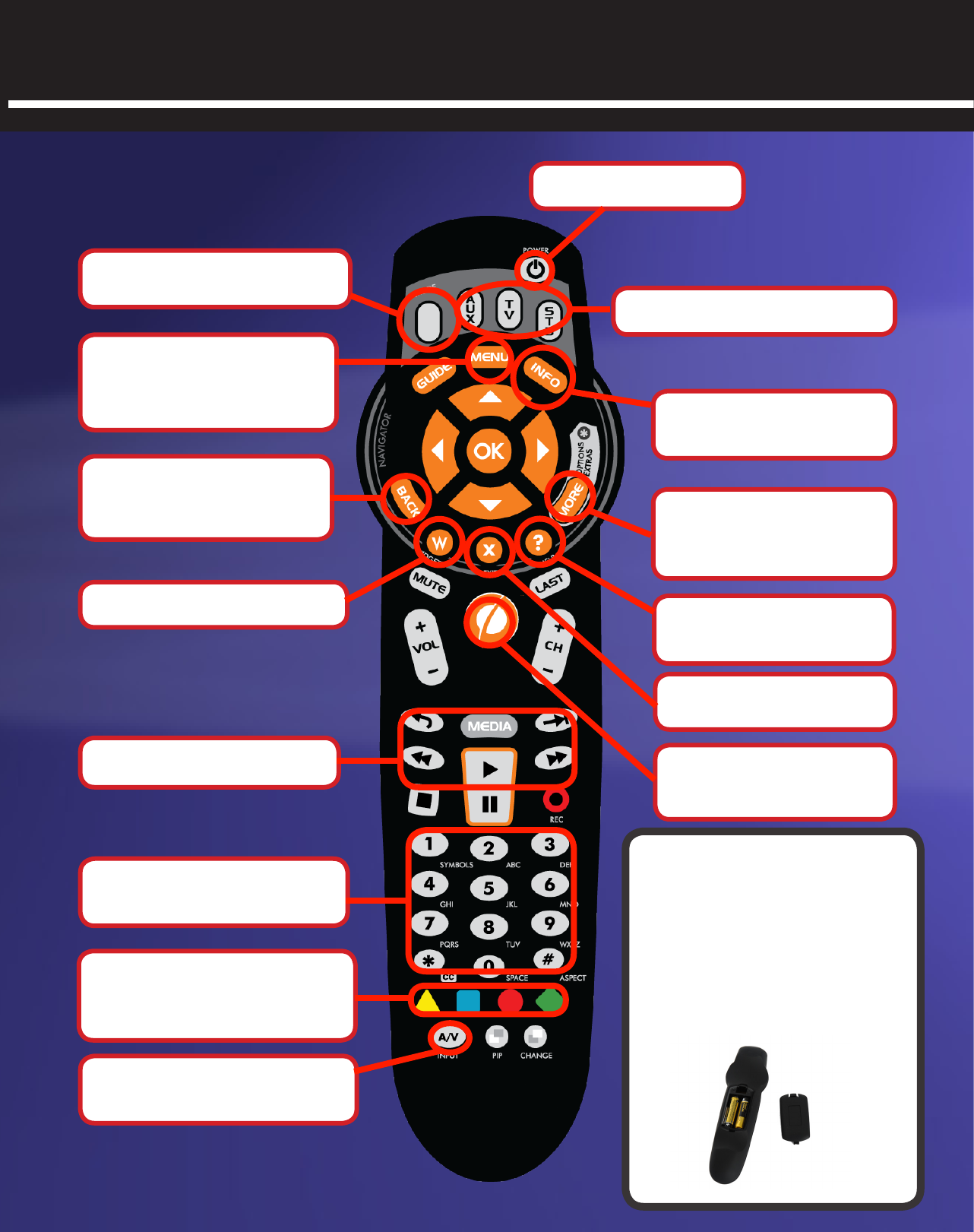

To Replace the Battery: Open the

battery compartment cover on

the back, insert 2 AA batteries,

matching the + and - polarity

symbols inside and replace

cover.

NOTE: When the battery voltage

is low, the feedback LED will

blink 5 times.

UNIVERSAL REMOTE CONTROL

Switch off device.

Display information

about media.

Display options,

including Delete

Station and Sharing.

Exit ROSsm menu to TV.

Go into ROSsm mode.

Display ROSsm menu

with TV feed from other

sources in background.

Return to previous

screen and exit ROSsm.

Display widgets

Select audio/video inputs

(must be congured).

Control media feedback.

Display remote help

menu.

Control other devices.

Enter text

like a cell phone.

Display ROSsm menu

without overlay.

Selection buttons to

conrm changes and

other actions.

Tatung ROS2000A ROS Home Center User Manual Reference Guide PRD

Tatung Company ROS Home Center Reference Guide PRD

Contents

Reference Guide PRD

Navigation menu

Namespaces

Views

Navigation
