Tatung STB2200 DIGITAL SET BOX TOP User Manual USERS MANUAL

Tatung Company DIGITAL SET BOX TOP USERS MANUAL

USERS MANUAL

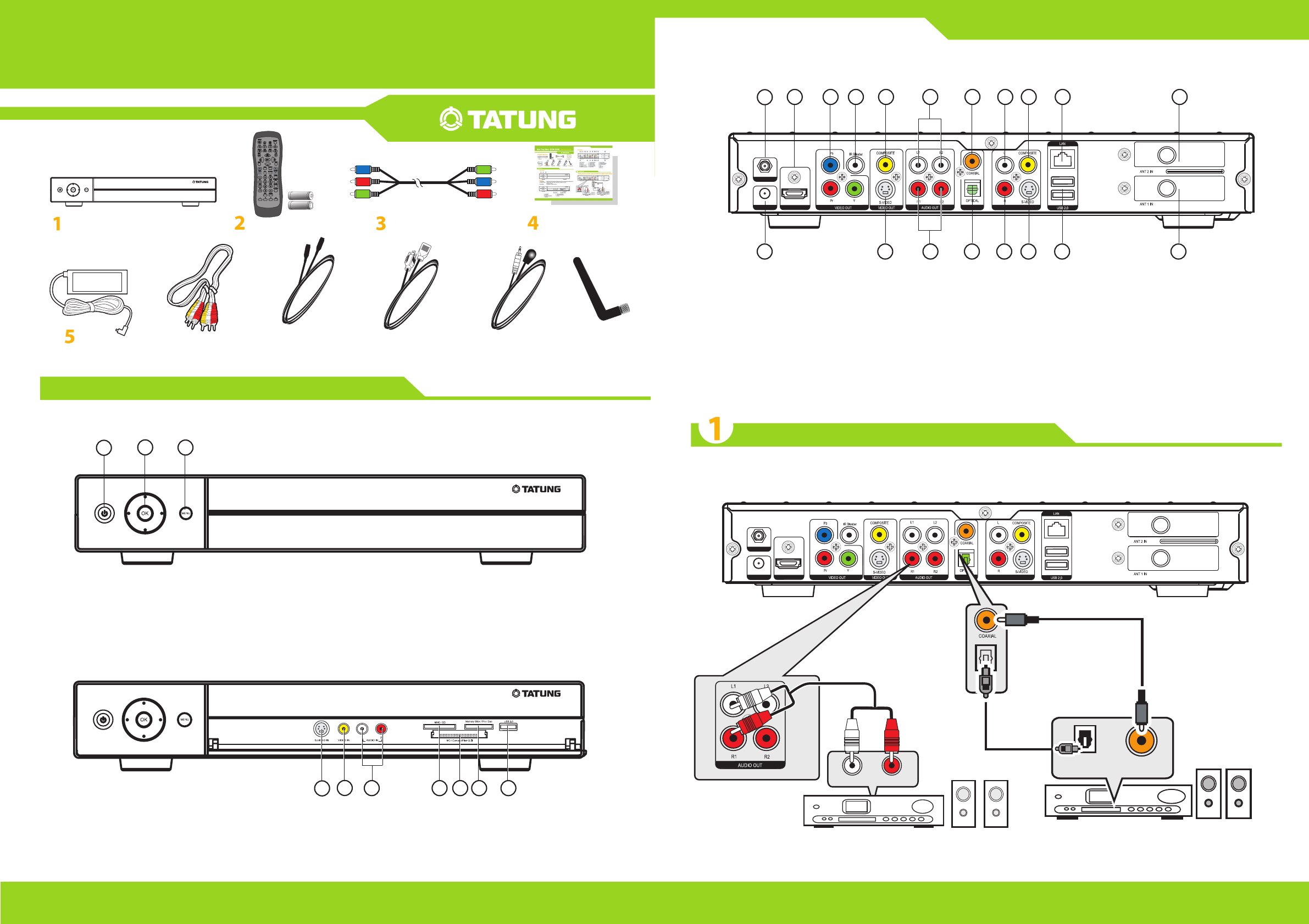

Set Top Box Set-Up-Guide Rear Panel
Features
Unpack the box
Front Panel
1 Power Button :Press Power Red / Blue light illuminates when STB is on and sending a signal to the TV.
2 Navigation Button :Press Up, Down, Left, Right to access and navigate menu items.
Press OK to confirm.
3 Menu Button :Press Button to display the menu.
Indicators
Set Top Box Remote Control
Adapter
Set-Up-Guide
Component Cable
Audio/Video Cable S-Video Cable
6
AAA
AAA
1 WIFI Antenna
2 DC IN 12V
3 HDMI OUT
4 Componert(VIDEO OUT)
5 IR Blaster
6 COMPOSTIE(VIDEO OUT)
4 S-VIDEO IN 8 MD/CompactFlash I/II
5 VIDEO IN 9 Memory Stick/Pro/Duo
6 AUDIO IN(Fornt Left Right ) 10 USB 2.0
7 MMC/SD
7 S-VIDEO(VIDEO OUT)
8 AUDIO OUT(Left)
9 AUDIO OUT(Right)
10 COAXIAL(SPDIF OUT)
11 OPTICAL(SPDIF OUT)
12 AUDIO IN(Left)
13 AUDIO IN(Right)
14 COMPOSTIE(VIDEO IN)
15 S-VIDEO(VIDEO IN)
16 LAN
17 USB 2.0x2
18 ANT 1 IN
19 ANT 2 IN
7
Power Cord
8
Antenna Cable
9
IR Blaster Cable
10
STB-2200
123
Audio Out
Analog Audio Out (Audio Cable) & S/PDIF Out (Digital Optical Cable)
456 7 8 9 10
1
2 7 9 11 13 15 17 18
3 4 5 6 8 12 14 16 19
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
10
OPTICAL
Audio Cable
Amplifier
LRAudio
Digital Optical
Cable
Amplifier
Optical Fiber
Connector COAXIAL
Digital Coaxial
Cable
Connecting Analog AV

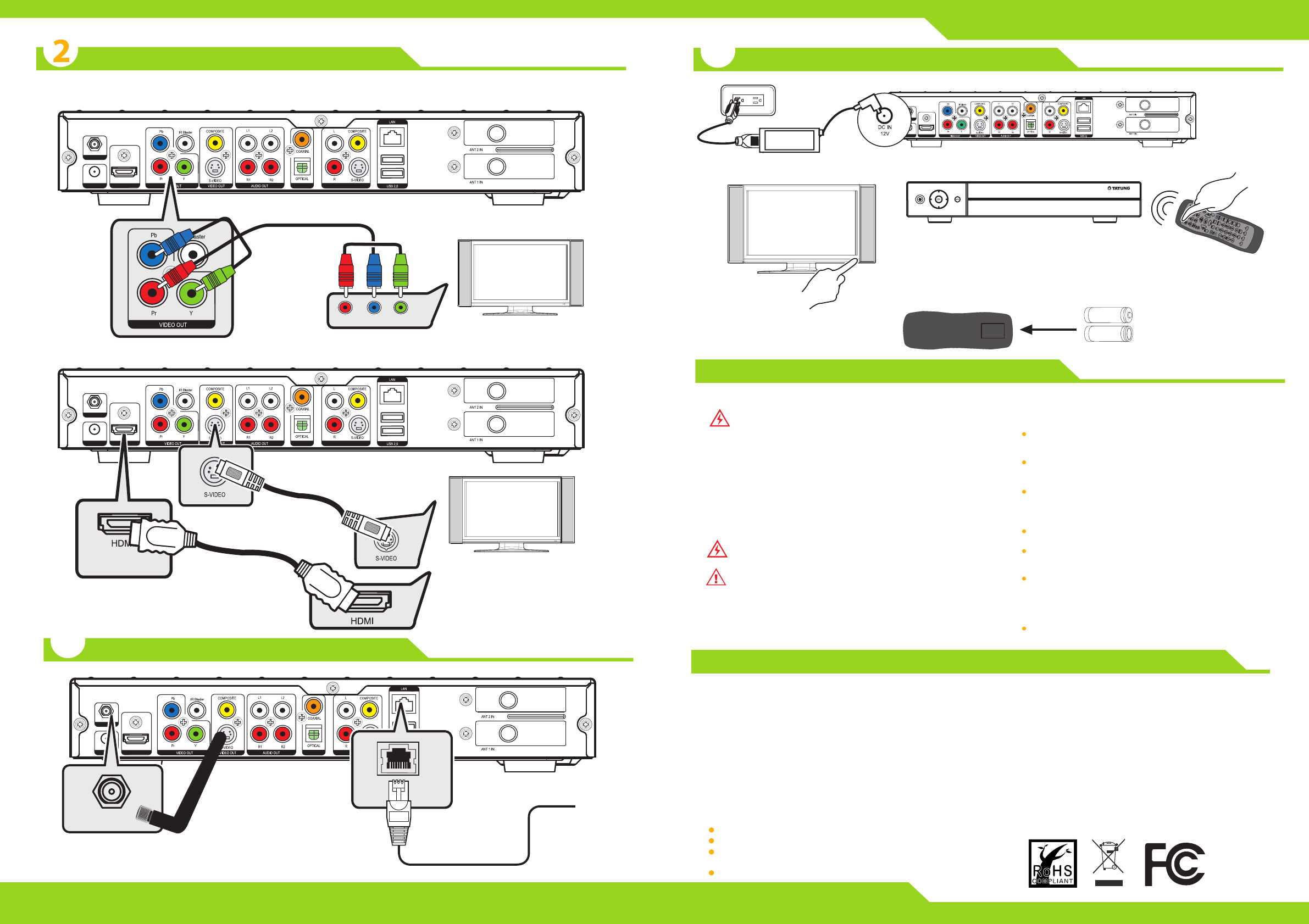

Connecting Analog AV & Connecting Digital AV (HDMI)
AAA
AAA
Remote Control
bottom side of view
Video Out
oror
Note:
Make sure the TV indicator is on before you start to use STB.
If not, turn on TV first and then turn on STB.
The POWER button on the TV remote puts the STB in and out of standby state.
HDMI Cable
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
TV/VCR/DVR/MCPC/PVR
Pr Pb Y
Y/Pb/Pr Cable
TV/VCR/DVR/MCPC/PVR
S-Video Cable
VIDEO DEVICE
4
23
Installing Batteries
Plug in Power Cord and Turn Power On
1
AC Power Safety Warnings
The power supply is pre-set for the country/region in which you
purchased DSTB (Digital Set Top Box). If you move to another
country/region, please make sure you check its voltage requirements
before plugging DSTB into an AC power outlet.
Install the DSTB near an AC outlet. The AC power cord is DSTB's main
AC disconnecting device and must be easily accessible at all times.
For your safety, the power cord provided with your system has a
grounded plug. Always use the power cord with a properly grounded
wall outlet to avoid the risk of electrical shock.
Before you getting started, please read the important safety information below.
Safety Information
Conventions used in this manual
WARNING: Information to prevent injury to yourself when trying
to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
Electrical Safety
To prevent electrical shock hazard, disconnect the power
cable from the electrical outlet before relocating the
system.
DO NOT OPEN THE CHASSIS ANY TIME.
Operation Safety
Before using the product, make sure all cables are correctly
connected and the power cables are not damaged. If you
detect any damage, contact your Service Provider
immediately.
To avoid short circuits, keep paper clips, screws, and
staples away from connectors, slots, sockets and circuitry.
Avoid dust, humidity, and temperature extremes. Do not
place the product in any area where it may become wet.
Place the product on a stable surface.
Slots and openings are provided for ventilation; to ensure
reliable operation of the product and to protect it from
overheating. These openings must not be blocked or
covered. This product should never be placed near or over
a radiator or heat register.
Antenna coaxial screen must be probably earthed.
oror
WIFI
DC-IN 12V HDMI OUT SPDIF OUT AUDIO & VIDEO IN
3
Ethernet LAN cable
to Router or ADSL
Local Area Network (LAN)
WIFI
Digital signals are received with
the antenna cable connection.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by
the grantee of this device could void the user's authority to
operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your
body.
Federal Communication Commission Interference Statement
