1. Unpacking
Carefully unpack the ordering terminal and its included accessories. At the first, please confirm
whether there are any discrepancies or problems.
Package contents
(1) Ordering terminal
(2) Battery pack
(3) Shoulder belt
(4) Number seal(1 to 6)
(5) Warranty sheet
(6) PL booklet
(7) Software license agreement
2. Powering the terminal

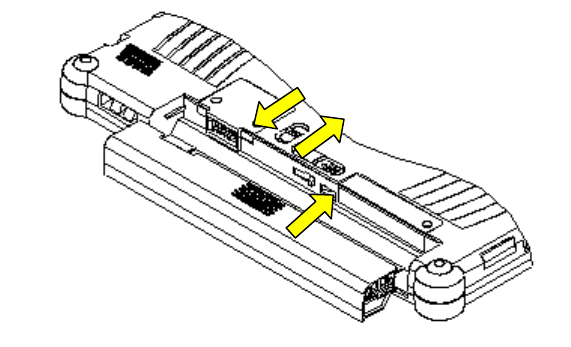

2.1 Changing the battery pack
Setting
(1) Release the battery lock.
(2) Slide the battery pack into the compartment.
(3) Set the battery lock.
(1)
(2)
(3)
Removing
(1) Turn the system off (Refer 2.2).
(2) Release the battery lock.
(3) Slide the battery release lever to the left.
(4) Pull the battery pack out of the compartment.
2.2 Power ON/OFF
Press the power switch for a short time to turn the terminal on after the battery is set. Execute a
shout down command prepared in the application to turn the terminal off.
(3)
(4)
(2)

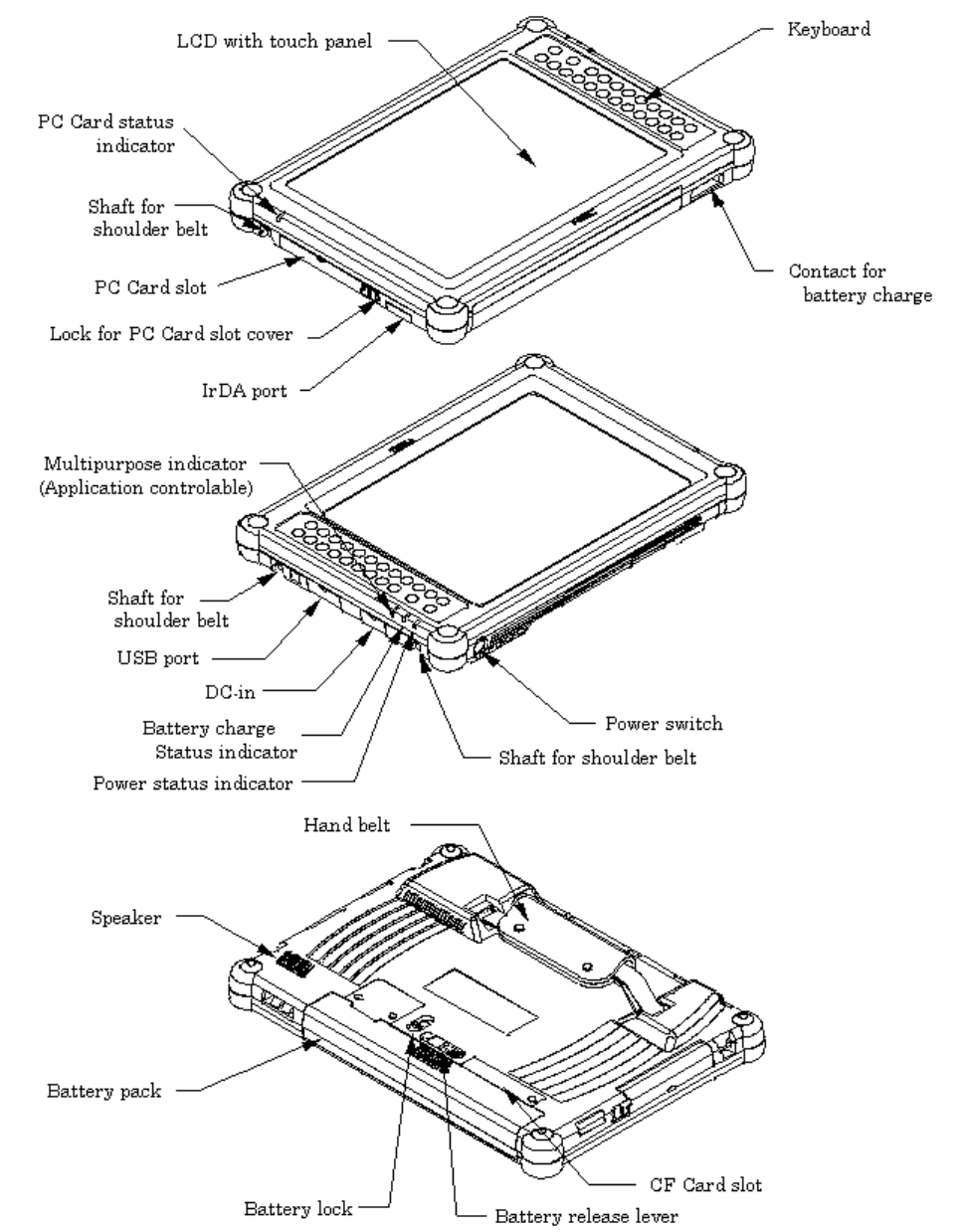

3. OVER VIEW
3.1 Indicators
Indicator Color Description
Green System power on and battery fully charged
Orange System power on and battery power is low.
Power status
Red System power on and battery power is critically low.
Green Battery charge has complete.
Orange Battery in charge.
Battery charge
status
Red Error (ex. not equip battery pack).
PC Card status Orange PC Card is accessible.
3.2 Key assignment
Print Key name Print Key name
取消 ESC 確認 Y
0 0 1 1
2 2
3 3
登録
(次) Enter
4 4
戻る Left CTRL
5 5 6 6
7 7 8 8
9 9
前頁 ↑
機能 1 F8 次頁 ↓
機能 2 F7 左頁 ←
機能 3 F9 右頁 →
ボタン移動 終了 N
3. SPECIFICATIONS
S1577-11
(Wireless LAN model) S1577-01
(Standard Model)
CPU Geode™ SC3200 266MHz
RAM 128MB SDRAM
Display 10.4" TFT LCD, SVGA(800x600), 16bit color
Touch panel Analog resistance film
Keyboard 23 Keys(numeric key + function key)
Storage 256MB Compact Flash
Wireless LAN IEEE802.11b -------
PC Card slot TypeII x 1(complied to PCMCIA2.1)
RS-232C 1
USB USB1.1 x 1
I/O interface
Infrared IrDA1.1 x 1
Audio Internal speaker(monaural)
Main battery Re-chargeable Lithium-Ion(11.1V, 2000mAh)
Battery life about 2 hours about 2.5 hours
Charge time 2.5 hours
Sub battery Re-chargeable Ni-MH
Battery life about 30 minutes
Charge time 40 hours
AC adapter(option) INPUT : AC 100-240V, 84-120VA, 50-60Hz
OUTPUT : DC16V, 2.5A
Temperature Operation : 5 - 35degrees, Storage : -10 - 60degrees
Conditions Humidity Operation : 35 - 85%, Storage : 35 - 85%
Dimension 297 x 210 x 29(max 40) mm
Weight about 1.35Kg about 1.3Kg
Operating system Microsoft® Windows®98
Pre-installed software IE5.5 sp2, MS Java VM,
Outlook Express IE5.5 sp2,
Outlook Express
