OPERATOR’S
MANUAL
Model 142
Soft Serve Freezer
Original Operating Instructions
039709- M
3/00 (Original Publication)
(Updated 7/18/14)
Complete this page for quick reference when service is required:
Taylor Distributor:
Address:
Phone:
Service:
Parts:
Date of Installation:
Information found on the data label:
Model Number:
Serial Number:
Electrical Specs: Voltage Cycle
Phase
Maximum Fuse Size: A
Minimum Wire Ampacity: A
E2000 Carrier Commercial Refrigeration, Inc.
039709- M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work may be
a violation of Copyright Law of the United States of America and other countries, could result in the awarding of Statutory
Damages of up to $250,000 (17 USC 504) for infringement, and may result in further civil and criminal penalties. All
rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072
Table of Contents Model 142
Table of Contents
Section 1 To the Installer 1............................................
Installer Safety 1........................................................
Site Preparation 1.......................................................
Air Cooled Units 1.......................................................
Electrical Connections 2.................................................
Electrical Hook- up Installation
For 60 Cycle, 1 PH, Supplied With Cord and Plug 3.........................
Refrigerant 3...........................................................
Section 2 To the Operator 4...........................................
Section 3 Safety 5....................................................
Section 4 Operator Parts Identification 7...............................
Section 5 Important: To the Operator 8.................................
Symbol Definitions 8....................................................
Power Switch 8.........................................................
Indicator Light - MIX LOW 8.............................................
Standby Switch 9.......................................................
Reset Mechanism 9.....................................................
Temperature Adjustments 9..............................................
Feed Tube 9...........................................................
Section 6 Operating Procedures 10.....................................
Assembly 10............................................................
Sanitizing 13............................................................
Priming 15..............................................................
Standby 16..............................................................
Closing Procedure 16....................................................
Draining Product From the Freezing Cylinder 17.............................
Rinsing 17..............................................................
Table of Contents Model 142
Table of Contents - Page 2
Cleaning 17.............................................................
Disassembly 17..........................................................
Brush Cleaning 18.......................................................
Section 7 Important: Operator Checklist 19..............................
During Cleaning and Sanitizing: 19.........................................
Troubleshooting Bacterial Count: 19........................................
Regular Maintenance Checks: 19..........................................
Winter Storage 20........................................................
Section 8 Troubleshooting Guide 21....................................
Section 9 Parts Replacement Schedule 23...............................
Section 10 Limited Warranty on Equipment 24............................
Section 11 Limited Warranty on Parts 26.................................
Section 12 Parts List 29.................................................
Wiring Diagram 37.......................................................
Note: Continuing research results in steady improvements; therefore, information
in this manual is subject to change without notice.
Note: Only instructions originating from the factory or its authorized translation
representative(s) are considered to be the original set of instructions.
E2000 Carrier Commercial Refrigeration, Inc. (Original Publication)
(Updated July, 2014)
039709- M
Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work
may be a violation of Copyright Law of the United States of America and other countries, could result in the
awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further
civil and criminal penalties. All rights reserved.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072
1
Model 142 To the Installer
131122
Section 1 To the Installer
The following information has been included in the
manual as safety and regulatory guidelines. For
complete installation instructions, please see the
Installation Checklist.
Installer Safety
In all areas of the world, equipment should be
installed in accordance with existing local codes.
Please contact your local authorities if you have any
questions.
Care should be taken to ensure that all basic safety
practices are followed during the installation and
servicing activities related to the installation and
service of Taylor equipment.
SOnly authorized Taylor service personnel
should perform installation and repairs on the
equipment.
SAuthorized service personnel should consult
OSHA Standard 29CFRI910.147 or the
applicable code of the local area for the
industry standards on lockout/tagout
procedures before beginning any installation
or repairs.
SAuthorized service personnel must ensure
that the proper PPE is available and worn
when required during installation and service.
SAuthorized service personnel must remove all
metal jewelry, rings, and watches before
working on electrical equipment.
The main power supply(s) to the freezer must
be disconnected prior to performing any repairs.
Failure to follow this instruction may result in personal
injury or death from electrical shock or hazardous
moving parts as well as poor performance or damage
to the equipment.
Note:Allrepairsmustbeperformedbyan
authorized Taylor Service Technician.
This unit has many sharp edges that can
cause severe injuries.
Site Preparation
Review the area where the unit will be installed before
uncrating the unit. Make sure all possible hazards to
the user or the equipment have been addressed.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of
70_-75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of
104_(40_C) at reduced capacities.
This unit must NOT be installed in an area
where a water jet or hose can be used. NEVER use a
water jet or hose to rinse or clean the unit. Failure to
follow this instruction may result in electrocution.
This unit must be installed on a level surface
to avoid the hazard of tipping. Extreme care should be
taken in moving this equipment for any reason. Two or
more persons are required to safely move this unit.
Failure to comply may result in personal injury or
equipment damage.
Uncrate the unit and inspect it for damage. Report any
damage to your Taylor Distributor.
This piece of equipment is made in the USA and has
USA sizes of hardware. All metric conversions are
approximate and vary in size.
Air Cooled Units
DO NOT obstruct air intake and discharge openings:
Air cooled units require a minimum of 6” (152 mm) of
clearance on both sides and 4” (102 mm) of clearance
on the bottom of the freezer. To prevent warm exhaust
from recirculating, place the rear of the unit against the
wall. This will allow adequate air flow across the
condenser.
2Model 142To the Installer
101111
Electrical Connections
In the United States, this equipment is intended to be
installed in accordance with the National Electrical
Code (NEC), ANSI/NFPA 70-1987. The purpose of the
NEC code is the practical safeguarding of persons and
property from hazards arising from the use of
electricity. This code contains provisions considered
necessary for safety. In all other areas of the world,
equipment should be installed in accordance with the
existing local codes. Please contact your local
authorities.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Each unit requires one power supply for each data
label on the unit. Check the data label(s) on the freezer
for branch circuit overcurrent protection or fuse, circuit
ampacity, and other electrical specifications. Refer to
the wiring diagram provided inside of the electrical box
for proper power connections.
CAUTION: THIS EQUIPMENT MUST BE
PROPERLY GROUNDED! FAILURE TO DO SO
CAN RESULT IN SEVERE PERSONAL INJURY
FROM ELECTRICAL SHOCK!
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected, not used for long periods, or
during initial installation, shall have protective
devices such as a GFI to protect against the
leakage of current, installed by authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable, not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.
3
Model 142 To the Installer
130809
Electrical Hook- up Installation
For 60 Cycle, 1 PH, Supplied With Cord and Plug
This equipment is supplied with a 3- wire cord and
grounding type plug for connection to a single phase,
60 cycle, branch circuit supply. This unit must be
plugged into a properly grounded receptacle. The cord
and plug provided for 115/60/1 and 208- 230/60/1 is 15
amp.; therefore the wall outlet must also be 15 amp.
Check the data label located on the rear of the freezer
for electrical specifications.
IMPORTANT: In order to secure the compressor and
to minimize vibration during shipment, two shipping
bolts have been added to the base pan of the unit.
Before installation, these bolts must be removed.
Permanent wiring may be used if local codes require
it. Instructions for conversion to permanent wiring are
as follows:
IMPORTANT: This procedure must be
performed by a qualified electrician.
1. Be sure the freezer is electrically disconnected.
2. Remove the appropriate panel and locate the
control box at the back of the freezer.
3. Remove the factory- installed cord and strain
relief bushing.
4. Route incoming permanent wiring through 7/8”
(22 mm) hole in base pan.
5. Connect two power supply leads, attach ground
(earth) wire to the grounding lug inside the
electrical box.
6. Be sure unit is properly grounded before
applying power.
FOLLOW YOUR LOCAL ELECTRICAL CODES!
Refrigerant
In consideration of our environment, Taylor
uses only earth friendly HFC refrigerants. The HFC
refrigerant used in this unit is R404A. This refrigerant
is generally considered non-toxic and non-flammable,
with an Ozone Depleting Potential (ODP) of zero (0).
However, any gas under pressure is potentially
hazardous and must be handled with caution. NEVER
fill any refrigerant cylinder completely with liquid.
Filling the cylinder to approximately 80% will allow for
normal expansion.
Use only R404A refrigerant that conforms to
the AHRI standard 700 specification. The use of any
other refrigerant may expose users and operators to
unexpected safety hazards.
Refrigerant liquid sprayed onto the skin may
cause serious damage to tissue. Keep eyes and skin
protected. If refrigerant burns should occur, flush
immediately with cold water. If burns are severe, apply
ice packs and contact a physician immediately.
Taylor reminds technicians to be cautious of
government laws regarding refrigerant recovery,
recycling, and reclaiming systems. If you have any
questions regarding these laws, please contact the
factory Service Department.
WARNING: R404A refrigerant used in
conjunction with polyolester oils is extremely moisture
absorbent. When opening a refrigeration system, the
maximum time the system is open must not exceed 15
minutes. Cap all open tubing to prevent humid air or
water from being absorbed by the oil.
4Model 142To the Operator
131122
Section 2 To the Operator
Your freezer has been carefully engineered and
manufactured to give you dependable operation. If the
Taylor Model 142 is properly operated and cared for,
it will produce a consistent, quality product. Like all
mechanical products, this machine will require
cleaning and maintenance. A minimum amount of care
is necessary if the operating procedures outlined in
this manual are followed closely.
This Operator’s Manual should be read
before operating or performing any maintenance on
your equipment.
Your Taylor freezer will NOT eventually compensate
and correct for any errors during the set- up or filling
operations. Thus, the initial assembly and priming
procedures are of extreme importance. It is important
that the personnel responsible for the equipment’s
operation study this manual in order to be properly
trained.
In the event you should require technical assistance,
please contact your local authorized Taylor Distributor.
Note: Your Taylor warranty is valid only if the parts are
authorized Taylor parts, purchased from the local
authorized Taylor Distributor, and only if all required
service work is provided by an authorized Taylor
service technician. Taylor reserves the right to deny
warranty claims on units or parts if non- Taylor
approved parts or incorrect refrigerant were installed
in the unit, system modifications were performed
beyond factory recommendations, or it is determined
that the failure was caused by abuse, misuse, neglect,
or failure to follow all operating instructions. For full
details of your Taylor Warranty, please see the Limited
Warranty section in this manual.
Note: Constant research results in steady
improvements; therefore, information in this
manual is subject to change without notice.
If the crossed out wheeled bin symbol is
affixed to this product, it signifies that this product is
compliant with the EU Directive as well as other similar
legislation in effect after August 13, 2005. Therefore,
it must be collected separately after its use is
completed, and cannot be disposed as unsorted
municipal waste. The user is responsible for returning
the product to the appropriate collection facility, as
specified by your local code.
For additional information regarding applicable local
laws, please contact the municipal facility and/or local
distributor.
Compressor Warranty Disclaimer
The refrigeration compressor(s) on this unit are
warranted for the term stated in the Limited Warranty
section in this manual. However, due to the Montreal
Protocol and the U.S. Clean Air Act Amendments of
1990, many new refrigerants are being tested and
developed, thus seeking their way into the service
industry. Some of these new refrigerants are being
advertised as drop- in replacements for numerous
applications. It should be noted that in the event of
ordinary service to this unit’s refrigeration system,
only the refrigerant specified on the affixed data
label should be used. The unauthorized use of
alternate refrigerants will void your Taylor compressor
warranty. It is the unit owner’s responsibility to make
this fact known to any technician he employs.
It should also be noted that Taylor does not warrant the
refrigerant used in its equipment. For example, if the
refrigerant is lost during the course of ordinary service
to this machine, Taylor has no obligation to either
supply or provide its replacement either at billable or
unbillable terms. Taylor does have the obligation to
recommend a suitable replacement if the original
refrigerant is banned, obsoleted, or no longer available
during the five year warranty of the compressor.
Taylor will continue to monitor the industry and test
new alternates as they are being developed. Should a
new alternate prove, through our testing, that it would
be accepted as a drop- in replacement, then the above
disclaimer would become null and void. To find out the
current status of an alternate refrigerant as it relates to
your compressor warranty, call the local Taylor
Distributor or the Taylor Factory. Be prepared to
provide the Model/Serial Number of the unit in
question.
5
Model 142 Safety
130211
Section 3 Safety
We, at Taylor Company, are concerned about the
safety of the operator when he or she comes in contact
with the freezer and its parts. Taylor has gone to
extreme efforts to design and manufacture built- in
safety features to protect both you and the service
technician. As an example, warning labels have been
attached to the freezer to further point out safety
precautions to the operator.
IMPORTANT - Failure to adhere to the
following safety precautions may result in severe
personal injury or death. Failure to comply with
these warnings may damage the machine and its
components. Component damage will result in
part replacement expense and service repair
expense.
DO NOT operate the freezer without reading
this Operator Manual. Failure to follow this instruction
may result in equipment damage, poor freezer
performance, health hazards, or personal injury.
This appliance is to be used only by trained
personnel. It is not intended for use by children or
people with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge,
unless given supervision or instruction concerning the
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that
they do not play with the appliance.
This unit is provided with an equipotential
grounding lug that is to be properly attached to the rear
of the frame by the authorized installer. The installation
location is marked by the equipotential bonding
symbol (5021 of IEC 60417-1) on both the removable
panel and the equipment’s frame.
DO NOT use a water jet to clean or rinse the
freezer. Failure to follow these instructions may result
in serious electrical shock.
SDO NOT operate the freezer unless it is
properly grounded.
SDO NOT operate the freezer with larger fuses
than specified on the freezer data label.
SAll repairs must be performed by an
authorized Taylor service technician.
SThe main power supplies to the machine must
be disconnected prior to performing any
repairs.
SFor Cord Connected Units: Only Taylor
authorized service technicians or licensed
electricians may install a plug or replacement
cord on these units.
SStationary appliances which are not equipped
with a power cord and a plug or another device
to disconnect the appliance from the power
source must have an all-pole disconnecting
device with a contact gap of at least 3 mm
installed in the external installation.
SAppliances that are permanently connected to
fixed wiring and for which leakage currents
may exceed 10 mA, particularly when
disconnected, not used for long periods, or
during initial installation, shall have protective
devices such as a GFI to protect against the
leakage of current, installed by authorized
personnel to the local codes.
SSupply cords used with this unit shall be
oil-resistant, sheathed flexible cable, not
lighter than ordinary polychloroprene or other
equivalent synthetic elastomer-sheathed cord
(Code designation 60245 IEC 57) installed
with the proper cord anchorage to relieve
conductors from strain, including twisting, at
the terminals and protect the insulation of the
conductors from abrasion.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualified person, in order to
avoid a hazard.
Failure to follow these instructions may result in
electrocution. Contact your local authorized Taylor
Distributor for service.
6Model 142Safety
130211
SDO NOT allow untrained personnel to operate
this machine.
SDO NOT operate the freezer unless all service
panels and access doors are restrained with
screws.
SDO NOT remove any internal operating parts
(examples: freezer door, beater, scraper
blades, etc.) unless all control switches are in
the OFF position.
Failure to follow these instructions may result in severe
personal injury to fingers or hands from hazardous
moving parts.
This unit has many sharp edges that can
cause severe injuries.
SDO NOT put objects or fingers in the door
spout. This may contaminate the product and
cause severe personal injury from blade
contact.
SUSE EXTREME CAUTION when removing
the beater asssembly. The scraper blades are
very sharp.
This unit must be placed on a level surface.
Failure to comply may result in personal injury or
equipment damage.
Access to the service area of the unit is
restricted to persons having knowledge and practical
experience with the appliance, in particular as far as
safety and hygiene are concerned.
Cleaning and sanitizing schedules are
governed by your state or local regulatory agencies
and must be followed accordingly. Please refer to the
cleaning section of this manual for the proper
procedure to clean this unit.
This unit is designed to maintain product
temperature under 41_F(5_C). Any product being
added to this machine must be below 41_F(5_C).
Failure to follow this instruction may result in health
hazards and poor freezer performance.
DO NOT obstruct air intake and discharge openings:
6” (152 mm) minimum air space on sides and rear, and
4” (102 mm) minimum on bottom. Failure to follow this
instruction may cause poor freezer performance and
damage to the machine.
For Indoor Use Only: This unit is designed to operate
indoors, under normal ambient temperatures of 70_-
75_F(21_-24_C). The freezer has successfully
performed in high ambient temperatures of 104_F
(40_C) at reduced capacities.
DO NOT run the unit without product. Failure to
follow this instruction can result in damage to the
unit.
NOISE LEVEL: Airborne noise emission does not
exceed 78 dB(A) when measured at a distance of 1.0
meter from the surface of the machine and at a height
of 1.6 meters from the floor.
7
Model 142 Operator Parts Identification
140407
Section 4 Operator Parts Identification
ITEM DESCRIPTION PART NO.
1COVER A.-HOPPER X49633
2FLOAT A.- MIX LEVEL X39690
3TUBE-FEED-.166HOLE-SS 035819
4SHIELD-SPLASH-PLASTIC 039444
5PAN A.- WHITE FRONT DRIP X43474
6SEAL-U-CUP 080534
7BEATER A. X24689
8BEARING-FRONT 023262
9O- RING-2- 3/4 OD X .139W 019998
ITEM DESCRIPTION PART NO.
10 BEARING-GUIDE 014496
11 DOOR A.-PARTIAL-1 SPOUT X38959- SER
12 CAP- DESIGN 1.010”ID-6 PT 014218
13 NUT-STUD 034829
14 ARM- VALVE LIFTER 024761
15 HANDLE- DRAW 024762
16 O- RING-3/4 OD X .103W 015835
17 O- RING-7/8 OD X .103W 014402
18 VALVE-DRAW 024763
8Model 142Important: To the Operator
Section 5 Important: To the Operator
Figure 1
ITEM DESCRIPTION
1Power Switch
2Indicator Light - MIX LOW
3Standby Switch
Symbol Definitions
To better communicate in the International arena, the
words on many of our operator switches and buttons
have symbols to indicate their functions. Your Taylor
equipment is designed with these International
symbols.
The following chart identifies the symbol definitions
used on the operator switches.
=ON/AUTO
=OFF
= WASH
Power Switch
The center position is the OFF position. The left
position is WASH which activates the beater motor
only. The right position is the AUTO position, which
activates the beater motor and the refrigeration.
Indicator Light - MIX LOW
A mix level indicating light is located on the front of the
machine. When the light is on, it indicates that the mix
hopper has a low supply of mix. The hopper should be
refilled immediately. Always maintain at least 2” (5.1
cm.) of mix in the hopper. If mix is not added to the
hopper, the freezing cylinder may freeze. This will
cause damage to the beater assembly and to the
freezer door.
9
Model 142 Important: To the Operator
130702
Standby Switch
This push button switch determines which mode of
operation the freezing cylinder is operating in. If the
center button of this switch is in the “OUT” position and
it is not illuminated, the unit will operate in the normal
product dispensing mode when the toggle switch is
placed in the AUTO position.
If the center button of the standby switch is in the “IN”
position and is illuminated, the machine will operate in
the STANDBY mode when the toggle switch is placed
in the AUTO position.
Reset Mechanism
Should an overload condition occur, the freezer will
automatically shut down. To properly reset the freezer,
place the toggle switch in the OFF position. Wait two
or three minutes; then press the reset button located
in the side panel. Place the toggle switch in the WASH
position and observe the freezer’s performance; return
the toggle switch to the AUTO position.
Temperature Adjustments
Temperature adjustments should be performed only
by an authorized Taylor Service Representative.
Feed Tube
The feed tube meters a combination of mix and air into
the freezing cylinder. If mix is not added to the hopper,
the freezing cylinder may freeze. This will cause
damage to the beater assembly and to the freezer
door. Depending upon the product being run, you may
wish to contact your local authorized Taylor Distributor
to make a slight adjustment in the feed tube.
One end of the feed tube has a metering hole in the
side and the other end does not.

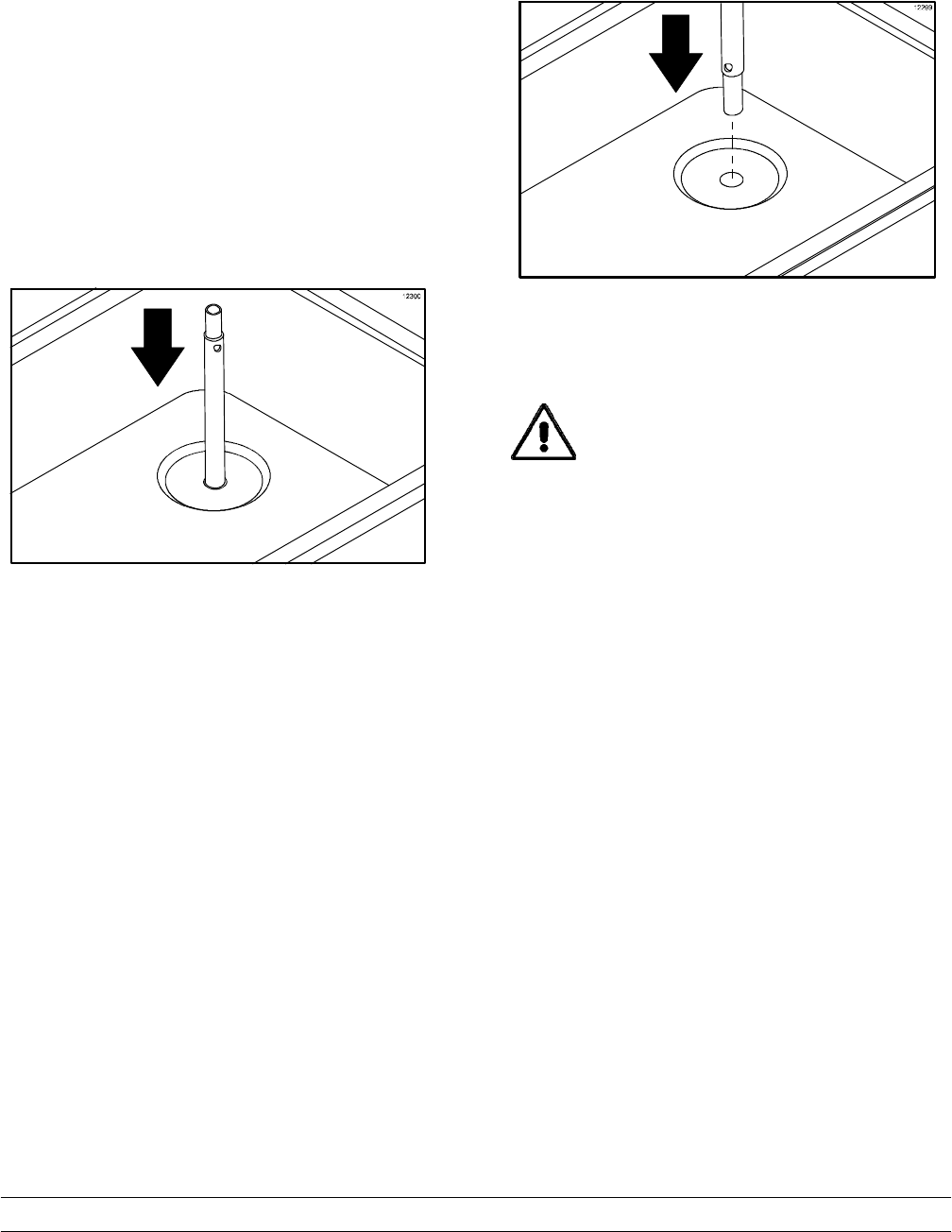

Figure 2
When the unit is operating in the AUTO mode, the
metering hole should be placed in the downward
position.
Figure 3
When the unit is placed in the STANDBY mode, the
feed tube is inverted so the end without the metering
hole is placed in the downward position.
Figure 4
Note: Make sure the level of mix is below the
metering hole in the side of the feed tube. Failure
to follow this instruction may result in lower product
quality when normal operation is resumed.
10 Model 142Operating Procedures
120501
Section 6 Operating Procedures
The Model 142 has a 1.5 quart (1.4 liter) capacity
freezing cylinder. The mix flows from the hopper to the
freezing cylinder through a feed tube. The mix flow is
controlled by gravity.
We begin our instructions at the point where we enter
the store in the morning and find the parts
disassembled and laid out to air dry from the previous
night’s cleaning.
These opening procedures will show you how to
assemble these parts into the freezer, sanitize them
and prime the freezer with fresh mix in preparation to
serve your first portion.
If you are disassembling the machine for the first time
or need information to get to the starting point in our
instructions, turn to page 17 “Disassembly”, and start
there.
Assembly
Note: Use an approved food grade lubricant
(example: Taylor Lube) when lubricating parts.

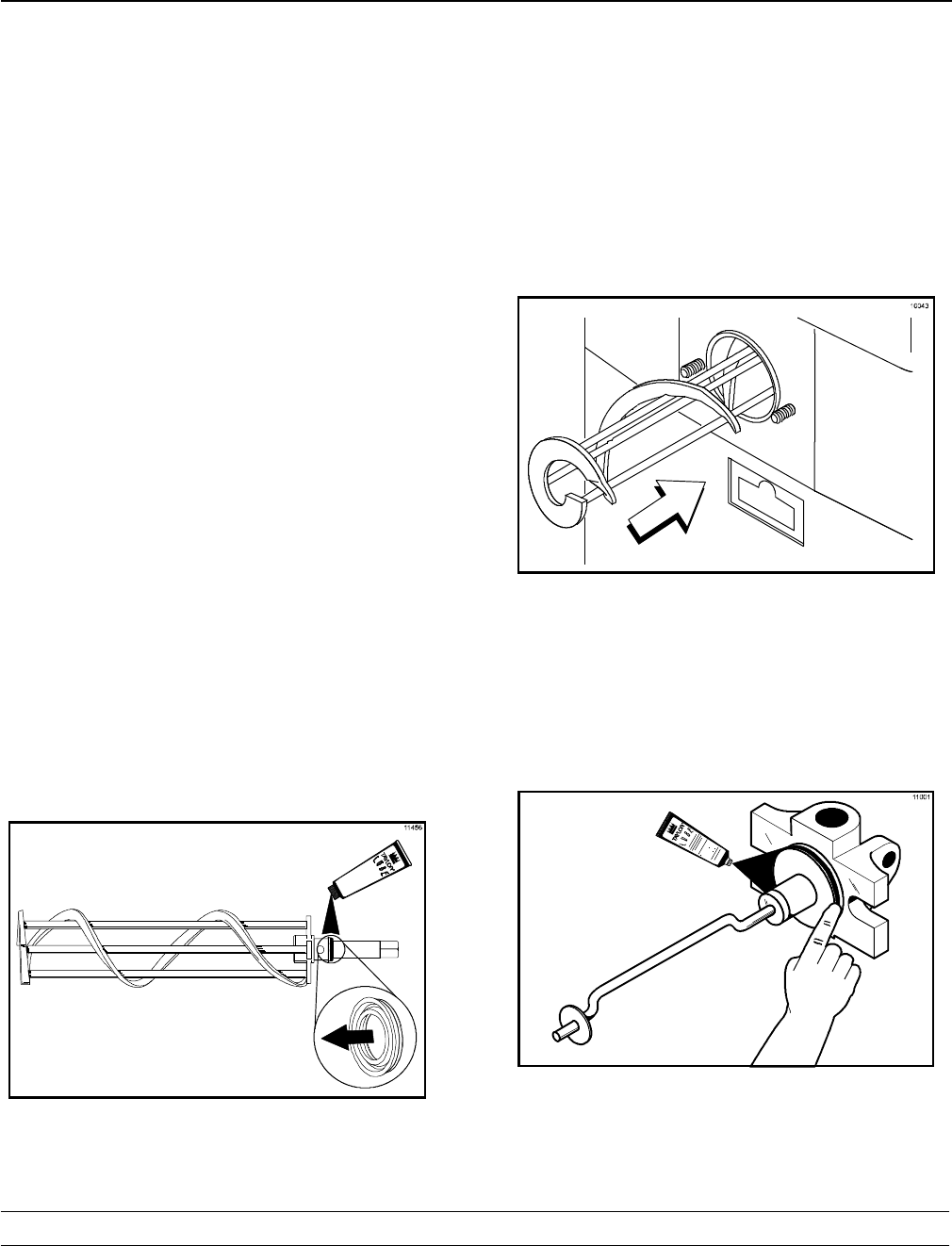

Step 1
Lubricate the groove on the beater drive shaft. With the
opening of the cup seal facing away from the hex end,
slide the seal into the groove. Apply an even coat of
lubricant to the seal and the shaft. Do not
lubricate the hex end of the beater drive shaft.
Figure 5
Step 2
Insert the beater assembly and allow the drive shaft to
travel through the rear shell bearing at the back of the
freezing cylinder, and engage the hex end of the drive
shaft firmly into the female socket. When installed
properly, the beater will not protrude beyond the front
of the freezing cylinder.
Figure 6
Step 3
Place the large o- ring into the groove on the back of
the freezer door and lubricate with Taylor Lube.
Figure 7
11
Model 142 Operating Procedures
120501
Step 4
Slide the front bearing over the baffle rod so the
flanged edge is against the door. Place the white
plastic guide bearing on the end of the baffle rod. Do
not lubricate the front bearing or guide bearing.
Figure 8
Step 5
Insert the handscrews into the slots in the freezer door.
With both hands holding the sides of the freezer door,
insert the baffle rod into the center of the beater
assembly. The white guide bearing must fit securely in
the hole of the drive shaft.
Step 6
Finger- tighten the handscrews, making sure they are
tightened equally and that the door is snug. Do not
over- tighten the handscrews.
Figure 9
IMPORTANT! Handscrew and door damage can
result if the handscrews are over- tightened or if
one handscrew is tightened more than the other.
Step 7
Install the draw valve. Slide the two o- rings into the
grooves on the draw valve and lubricate with Taylor
Lube.
Figure 10
Lubricate the inside of the door spout from the bottom.
Insert the draw valve into the freezer door from the
bottom.
Figure 11
12 Model 142Operating Procedures
Note: The draw valve is installed correctly when the
slotted opening in the draw valve is visible through the
“window” of the freezer door.
Figure 12
Step 8
Install the draw valve handle. Insert the valve lifter
arm through the slotted opening in the draw valve and
align the other end with the cross holes of the freezer
door. Note: The valve lifter arm may be aligned with
the left or the right cross hole. The draw valve handle
will be placed through the opposite cross hole of the
valve lifter arm.
Figure 13
Slide the o- ring into the groove on the draw valve
handle and lubricate with Taylor Lube.
Figure 14
Insert the draw valve handle through the opposite
cross hole and into the opening of the valve lifter arm.
Note: The draw valve handle can be assembled at
varied vertical positions. Choose an angle which is
comfortable for you, making sure the draw valve is
completely raised when the draw valve handle is
completely down.
Figure 15
13
Model 142 Operating Procedures
090421
The illustration below shows the draw valve
assembled on the left side.
Figure 16
Step 9
Snap the design cap over the bottom of the freezer
door spout.
Figure 17
Step 10
Lay the feed tube and mix level float in the bottom of
the mix hopper.
Sanitizing
Step 1
Prepare a pail of an approved 100 PPM sanitizing solu-
tion (examples: 2- 1/2 gal. [9.5 liters] of Kay- 5Ror
2 gal. [7.6 liters] of Stera- SheenR). USE WARM WA-
TER AND FOLLOW THE MANUFACTURER’S SPE-
CIFICATIONS.

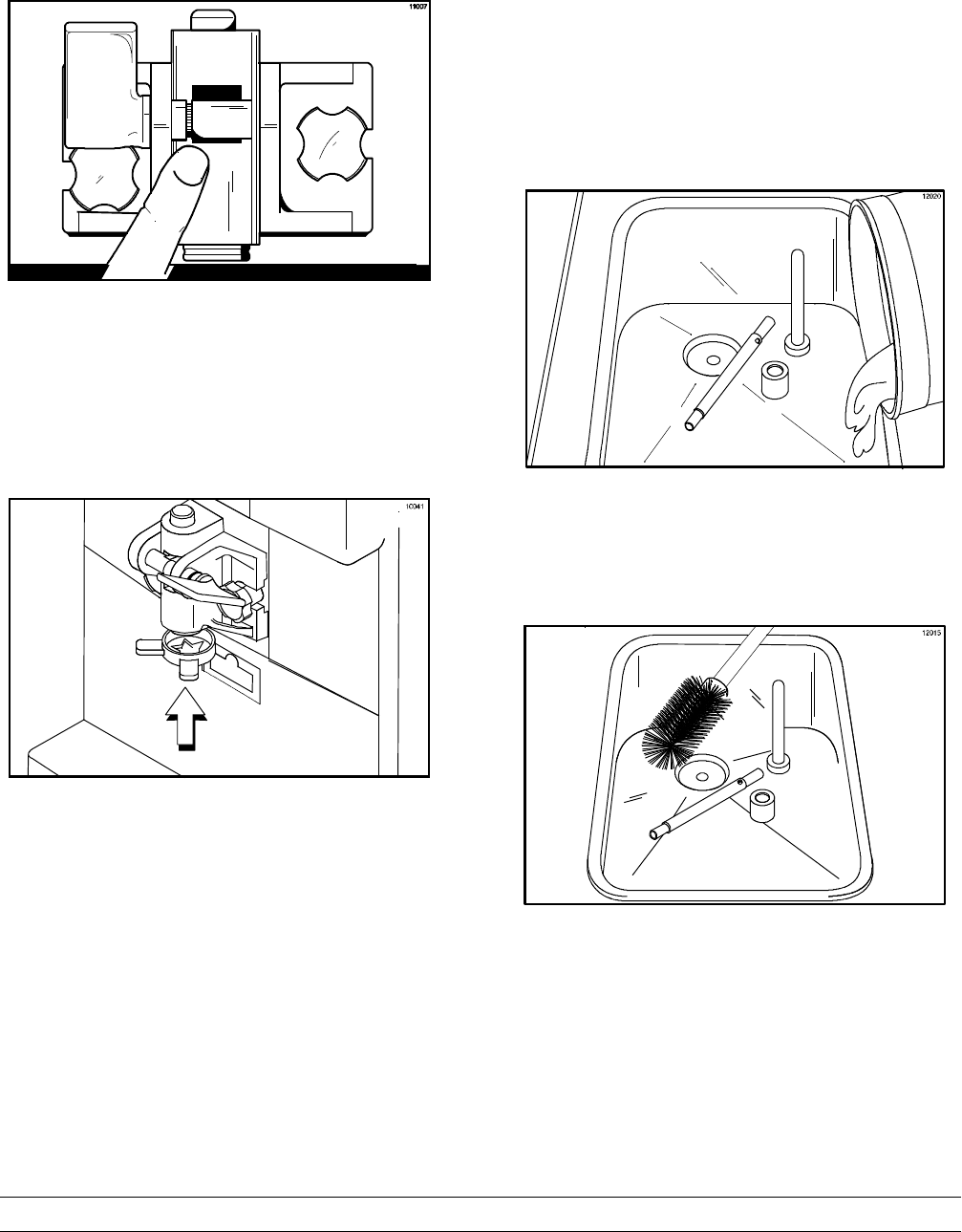

Step 2
Pour the sanitizing solution into the hopper and allow
it to flow into the freezing cylinder.
Figure 18
Step 3

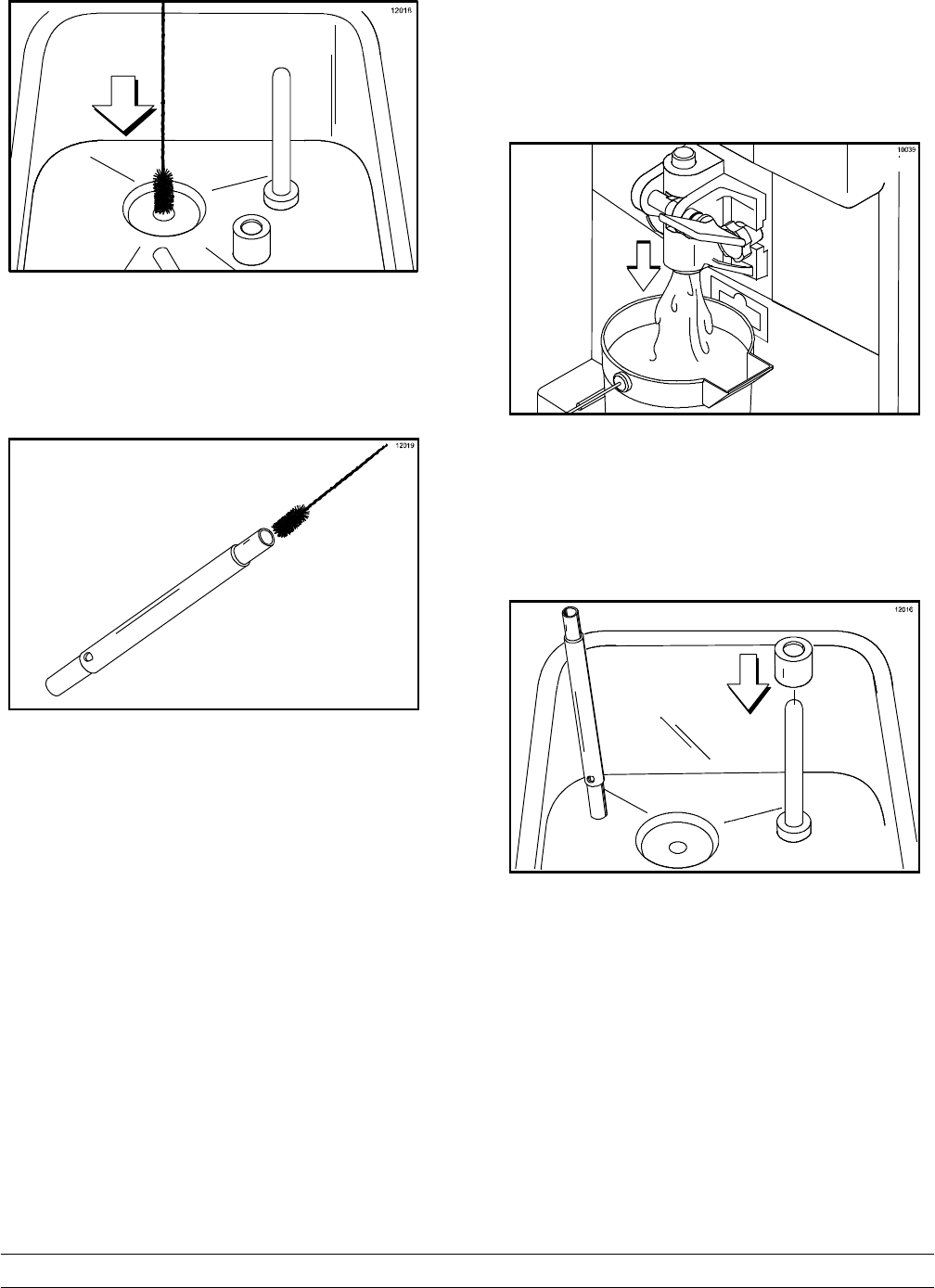

While the solution is flowing into the freezing cylinder,
brush- clean the mix hopper, mix level float stem, mix
level float, mix inlet hole, and air tube.
Figure 19
14 Model 142Operating Procedures
Figure 20
Figure 21
Step 4
Place the toggle switch in the WASH position. This will
cause the sanitizing solution in the freezing cylinder to
be agitated. Allow to agitate for five minutes.
Step 5
Place an empty pail beneath the door spout and open
the draw valve. Draw off all the sanitizing solution.
When the sanitizer stops flowing from the door spout,
close the draw valve and place the toggle switch in the
OFF position.
Figure 22
Step 6
Remove the feed tube from the hopper. (Be sure your
hands are sanitized.)
Step 7
Place the mix level float on the mix level float stem.
Figure 23
15
Model 142 Operating Procedures
Priming
Prime the machine as close as possible to the time of
first product draw.
Step 1
With a pail beneath the door spout, open the draw
valve. Fill the mix hopper with FRESH mix and allow
it to flow into the freezing cylinder. This will force out
any remaining sanitizing solution. When full strength
mix is flowing from the door spout, close the draw
valve.
Note: Use only fresh mix when priming the freezer.
Figure 24
Step 2
When the mix has stopped bubbling down into the
freezing cylinder, install the feed tube in the mix inlet
hole.
Figure 25
Step 3
Place the toggle switch in the AUTO position. When
the unit cycles off, the product will be ready to serve.
Step 4
Place the mix hopper cover in position.
Figure 26
Step 5
Install the splash shield under the freezer door.
Figure 27
Step 6
Slide the rear drip pan into the hole in the front panel.
Figure 28
16 Model 142Operating Procedures
Standby
This unit is equipped with a STANDBY feature. If
product is not dispensed for long periods of time (i.e.;
early morning hours), the STANDBY feature will
maintain the hopper and freezing cylinder product at
safe temperatures and prevent product breakdown.
To use the Standby feature, perform the following
steps:
Note: Be sure your hands are clean and sanitized
before performing the following steps.
Step 1
Verify that the hopper is adequately filled with mix and
invert the feed tube.
Figure 29
Step 2
Place the power switch in the AUTO position, and
press the STANDBY button. The button will light,
indicating that the unit is operating as a refrigerator for
product in the hopper and freezing cylinder.
Step 3
To remove the unit from the STANDBY mode, place
the power switch in the AUTO position, and press the
standby button. The light will extinguish, indicating that
the unit has resumed the normal operating mode.
Step 4
When the unit cycles off, remove the hopper cover,
and place the feed tube in its original position.
Figure 30
Step 5
Replace the hopper cover.
IMPORTANT: The STANDBY mode must
not be used in lieu of daily disassembly, cleaning,
and sanitizing.
Closing Procedure
To disassemble the freezer, the following items will be
needed:
STwo cleaning pails
SSanitized stainless steel rerun can with lid
SNecessary brushes (provided with freezer)
SCleaner
SSingle service towels
17
Model 142 Operating Procedures
140718
Draining Product From the
Freezing Cylinder
Step 1
Place the toggle switch in the OFF position as far
ahead of cleaning time as possible to allow frozen
product to soften for easier cleaning.
Step 2
Lift the hopper cover, remove the feed tube and the mix
level float. Take these parts to the sink for cleaning.
Step 3
If local health codes permit the use of rerun,place
a sanitized, NSF approved stainless steel rerun
container beneath the door spout. Place the toggle
switch in the WASH position and open the draw valve.
When all the product stops flowing from the door
spout, close the draw valve. Place the toggle switch in
the OFF position. Place a sanitized lid on the rerun
container and place it in the walk- in cooler.
(Note: For additional information regarding the proper
use of rerun, see item 5 on page 19.)
Note: If local health codes DO NOT permit the use
of rerun, the product must be discarded. Follow the
instructions in the previous step, except drain the
product into a pail and properly discard the mix.
ALWAYS FOLLOW LOCAL HEALTH CODES.
Rinsing
Step 1
Pour one gallon (3.8 liters) of cool, clean water into the
mix hopper. With the brushes provided, scrub the mix
hopper, mix level float stem and mix inlet hole.
Step 2
With a pail beneath the door spout, place the toggle
switch in the WASH position and open the draw valve.
Drain all the rinse water from the freezing cylinder.
When the rinse water stops flowing from the door
spout, close the draw valve and place the toggle switch
in the OFF position.
Repeat this procedure until the rinse water being
drawn from the freezing cylinder is clear.
Cleaning
Step 1
Prepare a pail of an approved 100 PPM cleaning solu-
tion (examples: 2- 1/2 gal. [9.5 liters] of Kay- 5Ror
2 gal. [7.6 liters] of Stera- SheenR). USE WARM WA-
TER AND FOLLOW THE MANUFACTURER’S SPE-
CIFICATIONS.
Step 2
Pour the cleaning solution into the mix hopper and
allow it to flow into the freezing cylinder.
Step 3
While the solution is flowing into the freezing cylinder,
brush clean the mix hopper, mix level float stem and
mix inlet hole.
Step 4
Place the toggle switch in the WASH position. This will
cause the cleaning solution in the freezing cylinder to
be agitated.
Step 5
Place an empty pail beneath the door spout and open
the draw valve. Draw off all the cleaning solution.
When the solution stops flowing from the door spout,
close the draw valve and place the toggle switch in the
OFF position.
Disassembly
Step 1
MAKE SURE THE TOGGLE SWITCH IS IN
THE “OFF” POSITION TO ELIMINATE THE
CHANCE OF MOVING PARTS.
Step 2
Remove the handscrews and freezer door. Remove
the beater assembly from the freezing cylinder and
take these parts to the sink for cleaning.
Step 3
Remove the splash shield from the freezer and take to
the sink for cleaning.
Step 4
Remove the rear drip pan from the front panel. Take it
to the sink for cleaning.
Note: If the drip pan is filled with an excessive amount
of mix, this is an indication that the drive shaft o- ring
of the beater assembly should be replaced or
lubricated properly.
18 Model 142Operating Procedures
120529
Brush Cleaning
Step 1
Prepare a sink with an approved cleaning solution (ex-
amples: Kay- 5Ror Stera- SheenR). USE WARM
WATER AND FOLLOW THE MANUFACTURER’S
SPECIFICATIONS. (IMPORTANT: Follow the label
directions. A STRONG solution can cause parts dam-
age. A MILD solution will not provide adequate clean-
ing.) Make sure all brushes provided with the freezer
are available for brush cleaning.
Step 2
Remove the cup seal from the drive shaft of the beater
assembly.
Step 3
From the freezer door, remove the design cap, draw
valve handle, valve lifter arm, and draw valve. Remove
all o- rings.
Note: To remove o- rings, use a towel to grasp the
o- ring. Apply pressure in an upward direction until the
o- ring pops out of its groove. With the other hand,
push the top of the o- ring forward, and it will roll out of
the groove and can be easily removed. If there is more
than one o- ring to be removed, always remove the
rear o- ring first. This will allow the o- ring to slide over
the forward rings without falling into the open grooves.
Step 4
Remove the large o- ring, the front bearing, and the
guide bearing from the back of the freezer door.
Step 5
Thoroughly brush clean all disassembled parts in the
cleaning solution, making sure all lubricant and mix film
is removed. Take particular care to brush clean the
draw valve core in the freezer door. Place all the
cleaned parts on a clean, dry surface to air dry
overnight.
Step 6

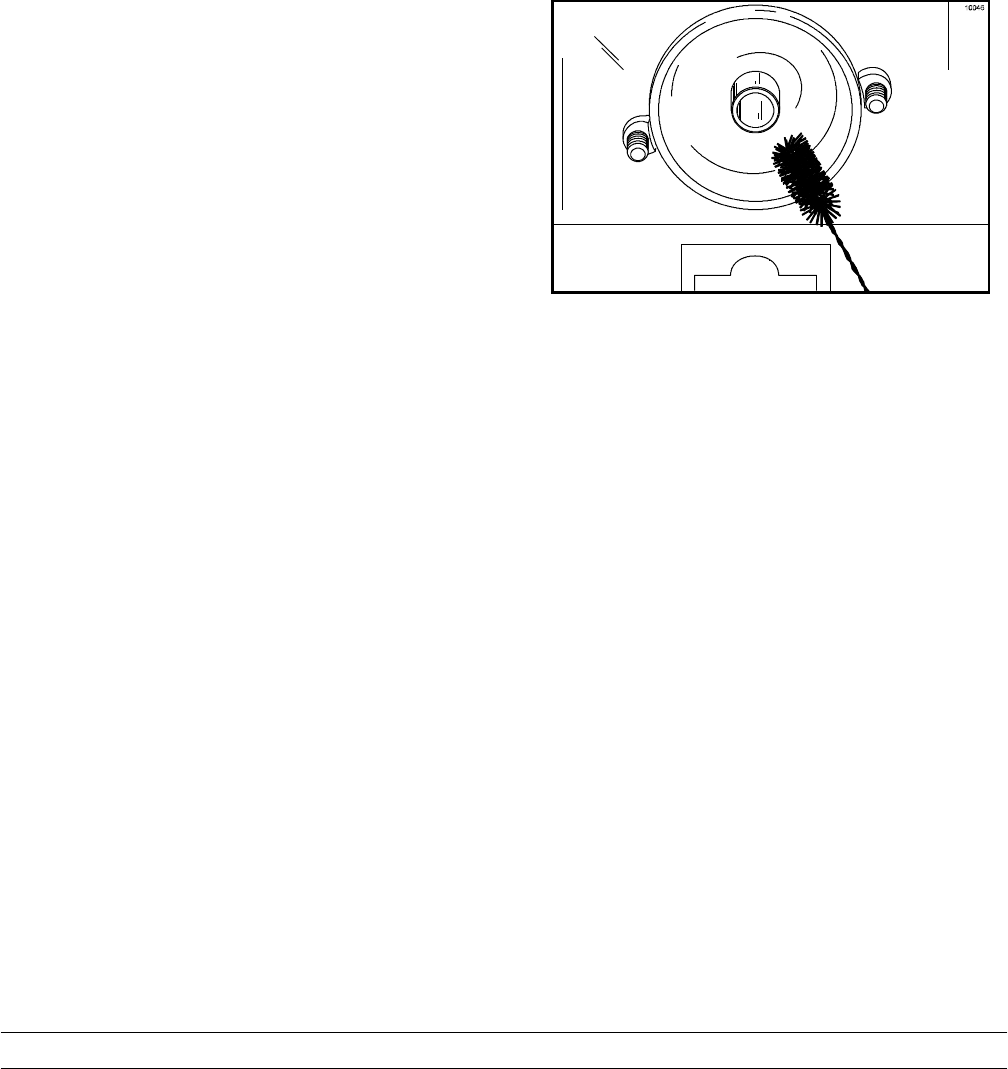

Return to the freezer with a small amount of cleaning
solution. With the black bristle brush, brush clean the
rear shell bearing at the back of the freezing cylinder.
Figure 31
Step 7
Clean all exterior surfaces of the freezer.
19
Model 142 Important: Operator Checklist
080110
Section 7 Important: Operator Checklist
During Cleaning and Sanitizing:
Cleaning and sanitizing schedules are governed
by federal, state, or local regulatory agencies, and
must be followed accordingly. If the unit has a
“Standby mode”, it must not be used in lieu of
proper cleaning and sanitizing procedures and
frequencies set forth by the ruling health
authority. The following check points should be
stressed during the cleaning and sanitizing
operations.
CLEANING AND SANITIZING MUST BE
PERFORMED DAILY.
ALWAYS FOLLOW LOCAL HEALTH CODES.
Troubleshooting Bacterial Count:
j1. Thoroughly clean and sanitize machine
regularly, including complete disassembly and
brush cleaning.
j2. Use all brushes supplied for thorough cleaning.
The brushes are specially designed to reach all
mix passageways.
j3. Use the smaller white bristle brush to clean the
mix inlet hole which extends from the mix
hopper down to the rear of the freezing cylinder.
j4. Use the black bristle brush to thoroughly clean
the rear shell bearing located at the rear of the
freezing cylinder. Be sure to have a generous
amount of cleaning solution on the brush.
j5. IF LOCAL HEALTH CODES PERMIT THE
USE OF RERUN, make sure the mix rerun is
stored in a sanitized, covered stainless steel
container and used the following day. DO NOT
prime the machine with rerun. When using
rerun, skim off the foam and discard; then mix
the rerun with fresh mix in a ratio of 50/50 during
the day’s operation.
j6. On a designated day of the week, run the mix as
low as feasible and discard after closing. This
will break the rerun cycle and reduce the
possibility of high bacteria counts.
j7. Properly prepare the cleaning and sanitizing
solutions. Read and follow label directions
carefully. Too strong of a solution may damage
the parts and too weak of a solution will not do
an adequate job of cleaning or sanitizing.
j8. Temperature of mix in mix hopper and walk- in
cooler should be below 40_F. (4. 4_C.).
Regular Maintenance Checks:
j1. Check the rear shell bearing for signs of wear
(excessive mix leakage in rear drip pan). Verify
that it has been cleaned properly.
j2. Using a screwdriver and cloth towel, keep the
rear shell bearing and the female hex drive
socket clean and free of lubricant and mix
deposits.
j3. Dispose of o- rings and seals if they are worn,
torn, or fit too loosely. Replace these o- rings
with new ones.
j4. Follow all lubricating procedures as outlined in
“Assembly”.
j5. Check the condenser for accumulation of dirt
and lint. A dirty condenser will reduce the
efficiency and capacity of the machine.
Condensers should be cleaned monthly with a
soft brush.
Note: For machines equipped with an air filter,
it will be necessary to vacuum clean the filters
on a monthly schedule.
Never use screwdrivers or other metal
probes to clean between the fins.
20 Model 142Important: Operator Checklist
Winter Storage
If the place of business is to be closed during the winter
months, it is important to protect the freezer by
following certain precautions, particularly if the
building is subject to freezing conditions.
Disconnect the freezer from the main power source to
prevent possible electrical damage.
Your local Taylor Distributor can perform this service
for you.
Wrap detachable parts of the freezer such as beater,
blades, drive shaft, and freezer door, and place in a
protected dry place. Rubber trim parts and gaskets
can be protected by wrapping with moisture- proof
paper. All parts should be thoroughly cleaned of dried
mix or lubrication accumulations which attract mice
and other vermin.
21
Model 142 Troubleshooting Guide
Section 8 Troubleshooting Guide
PROBLEM PROBABLE CAUSE REMEDY PAGE
REF.
1. No product being
dispensed.
a. Toggle switch in OFF
position.
a. Place toggle switch in the
AUTO position.
15
b. Inadequate level of mix in
mix hopper.
b. Fill mix hopper with mix. 15
c. Beater motor overloaded. c. Place the toggle switch in
the OFF position. Allow
the motor to cool. Reset
beater motor. Place the
toggle switch in the AUTO
position.
8
d. Unit unplugged at wall
receptacle.
d. Plug in power cord. ---
e. Tripped circuit breaker or
blown fuse.
e. Place the circuit breaker in
the ON position or replace
fuse.
---
f. Freezer door was
assembled incorrectly.
f. See “Operating
Procedures” for proper
installation.
10
g. Product is being drawn off
far in excess of freezer’s
capacity.
g. Stop drawing product and
allow unit to recover.
---
h. Feed tube incorrectly
installed.
h. Install feed tube according
to instructions in this
manual.
16
2. Machine will not operate in
the AUTO position.
a. Unit unplugged. a. Plug in power cord. ---
b. Circuit breaker tripped or
fuse blown.
b. Place the circuit breaker in
the ON position or replace
fuse.
---
c. Beater motor overloaded,
causing a loss of power to
the toggle switch.
c. Place the toggle switch in
the OFF position. Allow
the motor to cool. Reset
beater motor. Place toggle
switch in the AUTO
position.
8
3. Product is too stiff. a. The temperature control is
set too cold.
a. Call service technician. ---
22 Model 142Troubleshooting Guide
PROBLEM PROBABLE CAUSE REMEDY PAGE
REF.
4. Product is too soft. a. The temperature control is
set too warm.
a. Call service technician. ---
b. The feed tube is not
installed.
b. Install the feed tube in mix
inlet hole at bottom of the
mix hopper. (The metering
hole should be at the
bottom of the tube.)
15/ 16
c. Out- drawing the freezer’s
capacity.
c. Two 4 oz. (113.4 gram)
servings in one minute.
---
5. The freezing cylinder walls
are scored.
a. Operating freezer without
front bearing on freezer
door.
a. Install front bearing on
freezer door.
11
b. Rear bearing unit is out of
alignment.
b. Contact service
technician.
---
6. Excessive leakage in rear
drip pan.
a. Worn or defective o- ring
on beater drive shaft.
a. Replace every 3 months. 23
b. Worn rear shell bearing. b. Contact service
technician.
---
c. Incorrect lubricant. c. Use food grade lubricant
(example: Taylor Lube).
10
d. Inadequate lubrication of
beater drive shaft.
d. Lubricate properly. 10
7. Draw valve leaking. a. Incorrect lubricant. a. Use food grade lubricant
(example: Taylor Lube).
11
b. Worn or defective o- rings
on draw valve.
b. Replace every 3 months. 23
c. Inadequate lubrication of
draw valve.
c. Lubricate properly. 11
8. Product not feeding into
freezing cylinder.
a. Inadequate level of mix in
mix hopper.
a. Fill mix hopper with mix. 15
b. Mix inlet hole frozen up. b. Call service technician. ---
c. Feed tube incorrectly
installed.
c. Place feed hole at the
bottom.
15
9. Unit goes out on overload
excessively.
a. Too many appliances
plugged into the circuit.
a. A separate 15 amp.
circuit is needed for the
freezer to operate
properly.
---
b. Extension cord placed
between power cord and
wall receptacle.
b. If extension cord is used,
it must match the power
cord
in size of wire ampacity.
---
23
Model 142 Parts Replacement Schedule
120430
Section 9 Parts Replacement Schedule
PART DESCRIPTION EVERY 3
MONTHS
EVERY 6
MONTHS
ANNUALLY QUANTITIES TO
BE REPLACED
Beater Drive Shaft Cup Seal X 1
Freezer Door O- Ring X 1
Freezer Door Front Bearing X 1
Freezer Door Guide Bearing X 1
Draw Valve O- Ring X 2
Draw Valve Handle O- Ring X 1
Black Bristle Brush, 1” x 2” Inspect &
Replace if
Necessary
Minimum 1
Double Ended Brush Inspect &
Replace if
Necessary
Minimum 1
White Bristle Brush, 3” x 7” Inspect &
Replace if
Necessary
Minimum 1
24 Model 142Limited Warranty on Equipment
131122
Section 10 Limited Warranty on Equipment
TAYLOR COMPANY LIMITED WARRANTY ON FREEZERS
Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited
warranty on new Taylor-branded freezer equipment available from Taylor to the market generally (the “Product”)
to the original purchaser only.
LIMITED WARRANTY
Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and
service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to
defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency,
will provide a new or re- manufactured part, at Taylor’s option, to replace the failed defective part at no charge for
the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty for
a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed
below and on the reverse (if any) of this document.
Product Part Limited Warranty Period
Soft Serve
Frozen Yogurt
Shakes
Smoothies
Frozen Beverage
Batch Desserts
Insulated shell assembly Five (5) years
Refrigeration compressor
(except service valve)
Five (5) years
Beater motors Two (2) years
Beater drive gear Two (2) years
Printed circuit boards and
Softech controls beginning
with serial number H8024200
Two (2) years
Parts not otherwise listed in
this table or excluded below
One (1) year
LIMITED WARRANTY CONDITIONS
1. If the date of original installation of the Product cannot be verified, then the limited warranty period begins
ninety (90) days from the date of Product manufacture (as indicated by the Product serial number). Proof of
purchase may be required at time of service.
2. This limited warranty is valid only if the Product is installed and all required service work on the Product is
performed by an authorized Taylor distributor or service agency, and only if genuine, new Taylor parts are
used.
3. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in
the Taylor Operator’s Manual.
4. Defective parts must be returned to the authorized Taylor distributor or service agency for credit.
5. The use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.
LIMITED WARRANTY EXCEPTIONS
This limited warranty does not cover:
1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of
defective parts, replacement parts, or new Products.
2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning
of condensers.
25
Model 142 Limited Warranty on Equipment
3. Replacement of wear items designated as Class “000” parts in the Taylor Operator’s Manual.
4. External hoses, electrical power supplies, and machine grounding.
5. Parts not supplied or designated by Taylor, or damages resulting from their use.
6. Return trips or waiting time required because a service technician is prevented from beginning warranty
service work promptly upon arrival.
7. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,
unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including
but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning
supplies.
8. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake
or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,
accident or condition beyond the reasonable control of Taylor; operation above or below the electrical or
water supply specification of the Product; or components repaired or altered in any way so as, in the
judgment of the Manufacturer, to adversely affect performance, or normal wear or deterioration.
9. Any Product purchased over the Internet.
10. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the
inadequacy or interruption of electrical service.
11. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever.
12. Damages resulting from the use of any refrigerant other than that specified on the Product’s data label will
void this limited warranty.
13. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.
14. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential
damages, so this limitation may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from
jurisdiction to jurisdiction.
LIMITATION OF WARRANTY
THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS
AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER’S SOLE
REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE
COMPONENTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL
OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,
PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS
WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED
BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.
LEGAL REMEDIES
The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or
complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other
correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or
remedies.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072, U.S.A.
26 Model 142Limited Warranty on Parts
131122
Section 11 Limited Warranty on Parts
TAYLOR COMPANY LIMITED WARRANTY ON TAYLOR GENUINE PARTS
Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited
warranty on new Taylor genuine replacement components and parts available from Taylor to the market generally
(the “Parts”) to the original purchaser only.
LIMITED WARRANTY
Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service
as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails
due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service
agency, will provide a new or re- manufactured Part, at Taylor’s option, to replace the failed defective Part at no
charge for the Part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited
warranty for a Part failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions
listed below and on the reverse (if any) of this document.
Part’s Warranty Class Code or Part Limited Warranty Period
Class 103 Parts¹Three (3) months
Class 212 Parts²Twelve (12) months
Class 512 Parts Twelve (12) months
Class 000 Parts No warranty
Taylor Part #072454 (Motor- 24VDC *C832/C842*) Four (4) years
LIMITED WARRANTY CONDITIONS
1. If the date of original installation of the Part cannot be otherwise verified, proof of purchase may be required
at time of service.
2. This limited warranty is valid only if the Part is installed and all required service work in connection with the
Part is performed by an authorized Taylor distributor or service agency.
3. The limited warranty applies only to Parts remaining in use by their original owner at their original installation
location in the unit of original installation.
4. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in
the Taylor Operator’s Manual.
5. Defective Parts must be returned to the authorized Taylor distributor or service agency for credit.
6. This warranty is not intended to shorten the length of any warranty coverage provided pursuant to a separate
Taylor Limited Warranty on freezer or grill equipment.
7. The use of any refrigerant other than that specified for the unit in which the Part is installed will void this
limited warranty.
1, 2 Except that Taylor Part #032129SER2 (Compressor-Air-230V SERV) and Taylor Part #075506SER1
(Compressor-Air-115V 60HZ) shall have a limited warranty period of twelve (12) months when used in Taylor
freezer equipment and a limited warranty period of two (2) years when used in Taylor grill equipment.
27
Model 142 Limited Warranty on Parts
LIMITED WARRANTY EXCEPTIONS
This limited warranty does not cover:
1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of
defective Parts, replacement Parts, or new Parts.
2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning
of condensers or carbon and grease buildup.
3. Required service, whether cleaning or general repairs, to return the cooking surface assemblies, including
the upper platen and lower plate, to an operational condition to achieve proper cooking or allow proper
assembly of release sheets and clips as a result of grease build-up on the cooking surfaces, including but
not limited to the platen and plate, sides of the shroud or top of the shroud.
4. Replacement of cooking surfaces, including the upper platen and lower plate, due to pitting or corrosion (or
in the case of the upper platen, due to loss of plating) as a result of damage due to the impact of spatulas or
other small wares used during the cooking process or as a result of the use of cleaners, cleaning materials
or cleaning processes not approved for use by Taylor.
5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any
release sheets and clips for the Product’s upper platen assembly.
6. External hoses, electrical power supplies, and machine grounding.
7. Parts not supplied or designated by Taylor, or damages resulting from their use.
8. Return trips or waiting time required because a service technician is prevented from beginning warranty
service work promptly upon arrival.
9. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,
unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including
but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning
supplies.
10. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake
or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,
accident or condition beyond the reasonable control of Taylor; operation above or below the gas, electrical or
water supply specification of the unit in which a part is installed; or Parts or the units in which they are
installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or
normal wear or deterioration.
11. Any Part purchased over the Internet.
12. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the
inadequacy or interruption of electrical service.
13. Electricity, gas or other fuel costs, or increases in electricity or fuel costs from any reason whatsoever.
14. Damages resulting from the use of any refrigerant other than that specified for the unit in which the Part is
installed will void this limited warranty.
15. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.
16. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY
NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential
damages, so this limitation may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from
jurisdiction to jurisdiction.
28 Model 142Limited Warranty on Parts
LIMITATION OF WARRANTY
THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS
AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER’S SOLE
REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE
PARTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR
INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,
PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS
WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED
BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.
LEGAL REMEDIES
The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or
complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other
correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.
Taylor Company
a division of Carrier Commercial Refrigeration, Inc.
750 N. Blackhawk Blvd.
Rockton, IL 61072, U.S.A.
Section 12 Parts List
29
+ Available Separately
Model 142 Parts List
014212H000 - 115V 60HZ 1PH -014227H000 - 208-230V 60HZ 1PH - A/C-TECUMSEH-(R404A)
DESCRIPTION PART
NUMBER 142
QTY. WARR.
CLASS REMARKS
BEARING-FRONT 023262 4000
BEARING-GUIDE 014496 4000
BEARING-REAR SHELL 023648 1000
+COLLAR-REAR BEARING 025564 1000
+NUT-REAR BEARING 023647 1000
+TAB-BEARING LOCK 025027 1000
BEARING-UNIT REAR 024764 1103
BEATER A. X24689 1103
+SEAL-U-CUP 080534 000 S/N M2085459 & UP REPLACES 021278
BELT-HTD PITCH LENGTH 565MM 041585 1000 COGGED - IDLER PULLEY TO BEARING UNIT
BELT-V-4L370 004227 1000 LARGE PULLEY TO BEATER MOTOR
BLOCK-TERMINAL 5 POLE 024329 10103
BRUSH-DOUBLE ENDED-PUMP&FEED TUBE 013072 4000
BRUSH-MIX PUMP BODY-3"X7"WHITE 023316 4000
BRUSH-REAR BRG 1IN.DX2IN.LGX14 013071 4000
BUSHING-SNAP 11/16 ID X 7/8OD 010548 1000 S/N K9087267 & PRIOR
CAP-DESIGN-1.010"ID-6 POINT 014218 1000
COMPRESSOR AKA9462ZXA-AK1 049302-12 1512 115V 60HZ 1PH
+CAPACITOR-RUN 25UF/370VAC 023739 1103 115V 60HZ 1PH
+CAPACITOR-START 72-88UF/2 039557-27 1103 115V 60HZ 1PH
+RELAY-START-COMPRESSOR 045432-12 1103 115V 60HZ 1PH
+GROMMET-COMPRESSOR MOUNT-AE- 039919 4000
+SLEEVE-MOUNTING-COMP-AE 039920 4000
COMPRESSOR AKA9462ZXD-AK1 049302-27 1512 208-230V 60HZ 1PH - J6012926 & UP
+CAPACITOR-RUN 15UF/370V 027087 1103 208-230V 60HZ 1PH
+CAPACITOR-START 72-88UF/3 039567 1103 208-230V 60HZ 1PH
+RELAY-START-COMPRESSOR 048150 1103 208-230V 60HZ 1PH
+GROMMET-COMPRESSOR MOUNT-AE- 039919 4000
+SLEEVE-MOUNTING-COMP-AE 039920 4000
CONDENSER-AC-12LX16HX2.5T3ROW 048935 1103
CORD-POWER 085093 1103 115V 60HZ 1PH
+ Available Separately
30
Parts List Model 142
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
CORD-POWER-250V-15A-95"L 042936-27 1103 208-230V 60HZ 1PH
COVER A.-HOPPER X49633 1103
DECAL-CLEAN INST.-HOPPER 019029 1000
DECAL-MAG-FLAVOR PADS 039713 1000
DECAL-MAG-FROZEN YOGURT 039717 1000
DECAL-MAG-SOFT SERVE 039714 1000
DECAL-TROUBLESHOOTING 038374 1000
DIAGRAM-WIRING *142* 049264 1000 115V 60HZ 1PH / 208-230V 60HZ 1PH
DOOR-1 SPOUT-4" LONG X38959-SER 1103
+O-RING-2-3/4 OD X .139W 019998 1000
+ARM-VALVE LIFTER 024761 1103
+HANDLE-DRAW 024762 1103
+O-RING-3/4 OD X .103W 015835 1000
+VALVE-DRAW 024763 1103
+O-RING-7/8 OD X .103W 014402 2000
DRYER-FILTER 1/4 X 1/4 SOLDER 048878 2000
DVD-OPS TRAIN VIDEO*TAYLOR 037665-DVD 1000
EYELET-RESET BUTTON 013739 1000 K9087268 & UP REPLACES 010548 BUSHING
FLOAT A.-MIX LEVEL X39690 1103
GUIDE A.-DRIP PAN X43491 1103
HARNESS-WIRE-UPPER-HI VOLT 043581 1103 INCLUDES 039534 TOGGLE SWITCH
HARNESS-WIRE-142-LOWER-STANDBY 049005 1103
KIT A.-TUNE UP X25802 4000
BEARING-FRONT 023262 4000
BEARING-GUIDE 014496 4000
CAP-DESIGN-1.010"ID-6 POINT 014218 4000
O-RING-2-3/4 OD X .139W 019998 4000
O-RING-3/4 OD X .103W 015835 4000
O-RING-7/8 OD X .103W 014402 8000
SEAL-U-CUP 080534 1000 S/N M2085459 & UP REPLACES 021278
TOOL- 0-RING REMOVAL 048260-WHT 4000
LABEL-CAUTION-GRD-CIR BRK 039992 1000
LABEL-DOOR-MOVE PART 032749 1000
31
+ Available Separately
Model 142 Parts List
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
LABEL-SW-WASH/OFF/AUTO-SYMBOL 014502 1000
LABEL-WARN-CONDENSER-SHARP 059287 1000
LABEL-WARN-COVER 051433 4000
LEG-4"-3/8-16 STUD-PLASTIC 024755 4103
LIGHT-MIX LOW-AMBER ROUND-24V 039708 1103 MIX LOW
LUBRICANT-TAYLOR 4 OZ. 047518 1000
MAN-OPER 142 039709-M 1000
MOTOR-1/2HP 60HZ 115V 172 039563-12 1212 115V 60HZ 1PH
MOTOR-1/2HP 60HZ 230V 172 039563-27 1212 208-230V 60HZ 1PH
MOTOR-FAN 50 WATT W/GROUND 029770-12 1103 115V 60HZ 1PH
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
MOTOR-FAN 50 WATT W/GROUNDWI 029770-27 1103 208-230V 60HZ 1PH
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
NUT-STUD 034829 2103 HANDSCREW
PAN A.-WHITE FRONT DRIP X43474 1103 J0125321/UP (REPLACES 039635)
PANEL-FRONT-PLASTIC 042933 1103
PANEL-REAR *142*STANDBY 049001 1103
PANEL-SIDE *142* RIGHT 048879 1103
PANEL-SIDE *142*LEFT 048999 1103
PCB A.-STANDBY CONTROL-HOPPER X44803SER1 1212 115V 60HZ 1PH
PCB A.-STANDBY CONTROL-HOPPER X44803SER2 1212 208-230V 60HZ 1PH
PLATE A.-MOUNTING DECAL X39629 1103 DEC PLATE
PROBE-THERMISTOR-BARREL-2% TOL 038061-BLK 2103 M0114154 - REPLACED 039470-BLK
PULLEY-10"OD W/TIMING GEAR*142 046194 1103 INCLUDES IDLER PULLEY AND BOLT
+BOLT-IDLER-1/2 X 20 039620 1103 AVAILABLE FOR SERVICE
+NUT-SHAFT JACK 039616 1103
+WASHER-PULLEY IDLER 039615 1103
PULLEY-AK17X 5/8 031076 1103 BEATER MOTOR
PULLEY-HTD 72 TOOTH 5MM PITCH 041095 1103 BEARING UNIT 115 / 208-230 / 240 50HZ
RELAY-3 POLE-25 AMP 067460-12 1103 115V 60HZ 1PH
RELAY-3 POLE-25 AMP 067460-27 1103 208-230V 60HZ 1PH
SANITIZER-STERA SHEEN-GREEN 055492 1000
SENSOR A.-MIX LEVEL X39688 1103
+ Available Separately
32
Parts List Model 142
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
SHELL A.-INSULATED *142*HOOD X49175-SER 1512
STUD-NOSE CONE *142* 042168 2103
SHIELD-SPLASH-PLASTIC 039444 1103
SHROUD-FAN *142* 048877 1103
SWITCH A.-DRAW *142* X43577-SER 1103
ACTUATOR-SWITCH-PLASTIC 035609 1103
BEARING-SWITCH 029244 2000
BRACKET-DRAW SWITCH 041063 1103
E-RING-1/4 IN-ZD 034962 1000
NUT-PUSH ON-1/2DIA. SHAFT 039735 2000
ROD-SWITCH-SQUARE *142* 039617 1103
SCREW-4-40X5/8 SLTD ROUND 027219 2000
SPRING-COMP.720X.063X2.00 023664 1103
SWITCH-ACTUATOR 035609 1103
SWITCH-LEVER-SPDT-15A-125-250V 027214 1103
SWITCH-PRESSURE 440 PSI-SOLDER 048230 1103
SWITCH-STAND BY SPST-LIGHTED 043279 1103
+BULB-LIGHT 14V 142 043279-1 1000
SWITCH-TOGGLE 039534 1103 POWER SWITCH (043581 HARNESS-WIRE)
TIMER-DELAY ON MAKE 2 SEC 030667-12 1103 115V 60HZ 1PH
TUBE-CAPILLARY .049 X 7FT 049172 1103
TUBE-FEED-150-DANFOSS-.166HOLE 035819 1103
VALVE-ACCESS 1/4FL X 1/4SOLDER 044404 1103 SUCTION LINE
VALVE-ACCESS 1/4FL X 3/8SDR-90 044455 1103 MAIN COMPRESSOR
VALVE-ACCESS-1/4 MFLX1/4 S-90 047016 1103 COMPRESSOR HIGH SIDE
VALVE-EPR 1/4S 022665 1103 SUCTION LINE
VALVE-EXP-THERMO-1/4S X 1/4FPT 051578 1103 REPLACES 018217-1
+BOOT-EXPANSION VALVE 027137 1000
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-12 1103 115V 60HZ 1PH - SUCTION LINE
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-27 1103 208-230V 60HZ 1PH
VALVE-SOLENOID 7/64ORF X 1/4S 043449-12 2103 115V 60HZ 1PH - LIQUID LINE
VALVE-SOLENOID 7/64ORF X 1/4S 043449-27 2102 208-230V 60HZ 1PH
33
+ Available Separately
Model 142 Parts List
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
014212H879 - CANADA - 115V 60HZ 1PH -
A/C-TECUMSEH-(R404A)
MAN-OPER-COND 142 ROMANCE 039709RM 1000
CARD-CHECKOUT FREEZER FRENCH 033941-F 1000
LABEL-ATTN SVC ENG-FRENCH 015068-FG 1000
LABEL-CAUTION-GRD-FRENCH 032164-FG 1000
LABEL-DOOR-MOVE PART-FRENCH 032749-FG 1000
LABEL-WARN-COVER-FRENCH 051433-F 3000
014240HW00 - 220-240V 50HZ 1PH -
A/C-TECUMSEH-(R404A) - ROHS COMPLIANT
BELT-V-4L380 007098 1000
COMPRESSOR - TECUMSEH 049302-40 1512
+CAPACITOR-RUN 027087 1212
+CAPACITOR-START 039567 1212
+RELAY-START-COMPRESSOR 041064 2212
CONTROL-STANDBY-HOPPER-ROHS X65831-SER 1212
CORD A.-POWER *142* X66720-40 1103
DIAGRAM-WIRING *142* 049264-40 1000
MOTOR-BEATER 039563-34 1212
MOTOR-FAN 50 WATT W/GROUND 029770-27 1103
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
PANEL-SIDE *142* LEFT 50HZ 049003 1103
PULLEY-AK20X5/8 041162 1103
RELAY-3 POLE-25 AMP 067460-27 1103
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-27 1103
VALVE-SOLENOID 7/64ORF X 1/4S 043449-27 2102
+ Available Separately
34
Parts List Model 142
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
014240HW65 - 220-240V 50HZ 1PH -
A/C-TECUMSEH-(R404A) - ROHS COMPLIANT
FRANCE
BELT-V-4L380 007098 1000
CARD-CHECKOUT FREEZER FRENCH 033941-F 1000
COMPRESSOR - TECUMSEH 049302-40 1512
+CAPACITOR-RUN 027087 1212
+CAPACITOR-START 039567 1212
+RELAY-START-COMPRESSOR 041064 2212
CONTROL-STANDBY-HOPPER-ROHS X65831-SER 1212
CORD A.-POWER *142* X66720-40 1103
DECAL-INST-CLN HPR-FRENCH 019029-F 1000
DECAL-TROUBLESHOOT-FRENCH 038374-F 1000
DIAGRAM-WIRING *142* 049264-40 1000
LABEL-ATTN SVC ENG-FRENCH 015068-FG 1000
LABEL-CAUTION-GRD-CORD 032165 000
LABEL-DOOR-MOVE PART-FREN 032749-FG 1000
LABEL-WARN-COVER-FRENCH 051433-F 4000
MAN-OPER-COND 142 ROMANCE 039709RM 1000
MOTOR-BEATER 039563-34 1212
MOTOR-FAN 50 WATT W/GROUND 029770-27 1103
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
PANEL-SIDE *142* LEFT 50HZ 049003 1103
PULLEY-AK20X5/8 041162 1103
RELAY-3 POLE-25 AMP 067460-27 1103
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-27 1103
VALVE-SOLENOID 7/64ORF X 1/4S 043449-27 2102
35
+ Available Separately
Model 142 Parts List
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
014240HW70 - 220-240V 50HZ 1PH -
A/C-TECUMSEH-(R404A) - ROHS COMPLIANT
*GERMANY*
BELT-V-4L380 007098 1000
CARD-CHECKOUT FREEZER GERMAN 033941-G 1000
COMPRESSOR - TECUMSEH 049302-40 1512
+CAPACITOR-RUN 027087 1212
+CAPACITOR-START 039567 1212
+RELAY-START-COMPRESSOR 041064 2212
CONTROL-STANDBY-HOPPER-ROHS X65831-SER 1212
CORD A.-POWER *142* X66720-40 1103
DECAL-INST-CLN HPR-GERMAN 019029-G 1000
DECAL-TROUBLESHOOT-GERMAN 038374-G 1000
DIAGRAM-WIRING *142* 049264-40 1000
LABEL-ATTN SVC ENG-FRENCH 015068-FG 1000
LABEL-DOOR-MOVE PART-FRENCH 032749-FG 1000
LABEL-WARN-COVER-GERMAN 051433-G 4000
MAN-OPER-COND 142 ROMANCE 039709RM 1000
MOTOR-BEATER 039563-34 1212
MOTOR-FAN 50 WATT W/GROUND 029770-27 1103
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
PANEL-SIDE *142* LEFT 50HZ 049003 1103
PULLEY-AK20X5/8 041162 1103
RELAY-3 POLE-25 AMP 067460-27 1103
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-27 1103
VALVE-SOLENOID 7/64ORF X 1/4S 043449-27 2102
+ Available Separately
36
Parts List Model 142
DESCRIPTION REMARKSWARR.
CLASS
142
QTY.
PART
NUMBER
014240HW50 - 220-240V 50HZ 1PH -
A/C-TECUMSEH-(R404A) - ROHS COMPLIANT
*NEW ZEALAND*
BELT-V-4L380 007098 1000
COMPRESSOR - TECUMSEH 049302-40 1512
+CAPACITOR-RUN 027087 1212
+CAPACITOR-START 039567 1212
+RELAY-START-COMPRESSOR 041064 2212
CONTROL-STANDBY-HOPPER-ROHS X65831-SER 1212
CORD A.-POWER *142* X66720-40 1103
DECAL-NEW ZEALAND-WIRE 041467 1000
DIAGRAM-WIRING *142* 049264-40 1000
MAN-OPER-COND 142 ROMANCE 039709RM 1000
MOTOR-BEATER 039563-34 1212
MOTOR-FAN 50 WATT W/GROUND 029770-27 1103
+FAN-5 BLADE 12" PUSH 22DEG CCW 049009 1103
PANEL-SIDE *142* LEFT 50HZ 049003 1103
PULLEY-AK20X5/8 041162 1103
RELAY-3 POLE-25 AMP 067460-27 1103
VALVE-SOLENOID 1/2ORF X 1/2ODF 043681-27 1103
VALVE-SOLENOID 7/64ORF X 1/4S 043449-27 2102
142
049264
11/21/13
RED/WHT
COMPRESSOR START
TIME DEALY-2SEC
DOM
INPUT
(115 V ONLY)
LOAD
RED/WHT
GRN/YEL GRN/YEL
GRN/YEL
STDBY
SWITCH
BARREL
SUCTION
SOLENOID
HOPPER
THERMISTOR
BARREL
THERMISTOR
MIX LOW
UNREG
LIGHT
SWITCH
COM
1
LAMP-
N.O
2
COM 2
LAMP+
N.C.
1
- -
+ +
BLK
YEL
ALARM
L2
L1
BEATER
HOPPER
CPRSR
BARREL
BLK
YEL
HOPPER
COM
N.C.
ALARM
(OPTIONAL)
+
PURPLE W/WHT
STR
WHT
RED (REF)
GREY WHT/PURP
WHT/BLU
BLUE/WHT
WHT/GRY
HOPPER
SOLENOID
BARREL
LIQUID
SOLENOID
-
1
25
R
M
M
T1 T2 T3
C
S
L1 L2 L3
A1 A2
AUTO
WASH
C
POWER
SWITCH
NO
NC
C
DRAW
SWITCH
BLU
L1
L1
BLK
BRN
START
CAPACITOR RUN
CAPACITOR
RED
BLUE
WHT
RED
FLOAT
SWITCH
MIX
LOW
LIGHT
WHT
RED W/BLK
STR
BTR MOTOR
W/MANUAL RESET
BLK
BLK
YEL
NEUTRAL/L2
CONDENSOR
FAN
COMPRESSOR
O.L.
FOR TECUMSEH COMPRESSOR CONNECTION ONLY
GROUND FRAME SECURELY
BLK BLK
COMPRESSOR
LINE
O.L.
M.W.
BLU
GRN W/YEL STR
GRN W/YEL STR
H.P.SWITCH
BLU
BLK W/WHT
STR
4
BLK
PURPLE
FOR LEESON BEATER MOTOR
CONNECTION ONLY
RED 2
4
1
C.W. ROTATION FACING
LEAD END
BLUE
WHT
2
4 3
1
B A
KLB
YEL
YEL
ORN
BLK
(REF)
BRN/WHT
RED/WHT
BLK
RED
BLK
WHT/BRN
(SEE FIG. 1)
L2 OR N 208/230V 60HZ
WIRE COLORS - BASED ON INCOMING POWER
BLUE 2
4
1
REGAL BELOIT CONNECTIONS
CW ROTATION FACING
LEAD END
RED
WHT
(SEE FIG. 1)
BLK
WHT
115 VOLTS, 60HZ
L1 N
BLK
BLK
208/230 VOLTS, 60HZ
(DOMESTIC)
L1 L2
BRN
BLU
208/230 VOLTS, 60HZ
(INTERNATIONAL)
L1 L2 OR N
EQUIPOTENTIAL
GROUND
NOTE:
1) THE EQUIPOTENTIAL GROUND IS ONLY REQUIRED FOR INTERNATIONAL UNITS.
FIG. 1:
