OPERATOR’S

MANUAL

Model C707

Soft Serve Freezer

Original Operating Instructions

059060- M

May, 2003 (Original Publication)

(Updated 7/17/14)

Complete this page for quick reference when service is required:

Taylor Distributor:

Address:

Phone:

Service:

Parts:

Date of Installation:

Information found on the data label:

Model Number:

Serial Number:

Electrical Specs: Voltage Cycle

Phase

Maximum Fuse Size: A

Minimum Wire Ampacity: A

E2003 Carrier Commercial Refrigeration, Inc.

059060- M

Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work

may be a violation of Copyright Law of the United States of America and other countries, could result in the

awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further

civil and criminal penalties.

All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072

Table of Contents Model C707

Table of Contents

Section 1 To the Installer 1............................................

Section 2 To the Operator 4...........................................

Section 3 Safety 5....................................................

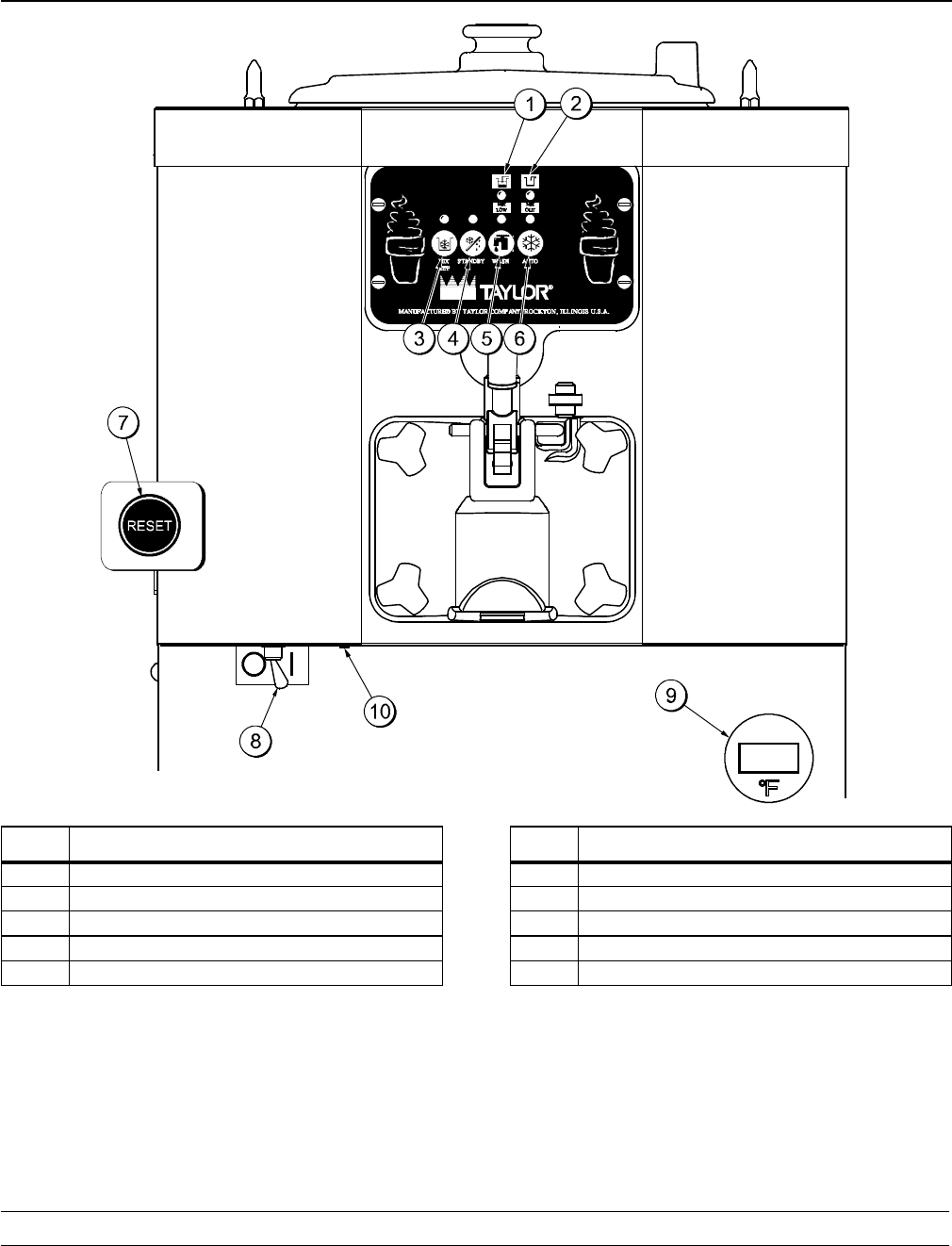

Section 4 Operator Parts Identification 7...............................

Model C707 7..........................................................

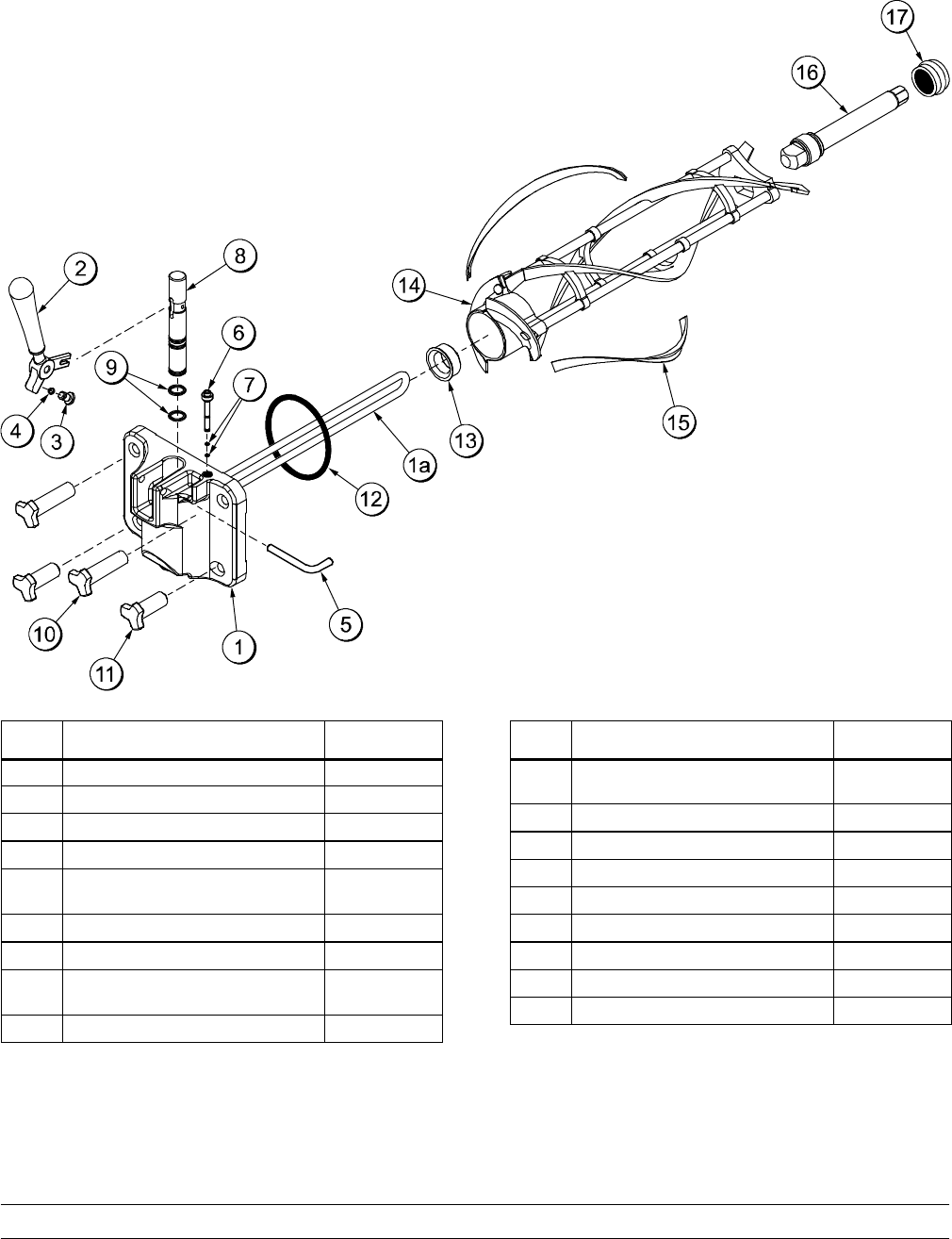

Model C707 Single Spout Door and Beater Assembly 8......................

Brushes 9..............................................................

Section 5 Important: To the Operator 10.................................

Symbol Definitions 11....................................................

Power Switch 11.........................................................

Indicator Lights 11.......................................................

MIX REF Key 11.........................................................

STANDBY Key 11........................................................

WASH Key 12...........................................................

AUTO Key 12...........................................................

Beater Motor Reset Button 12.............................................

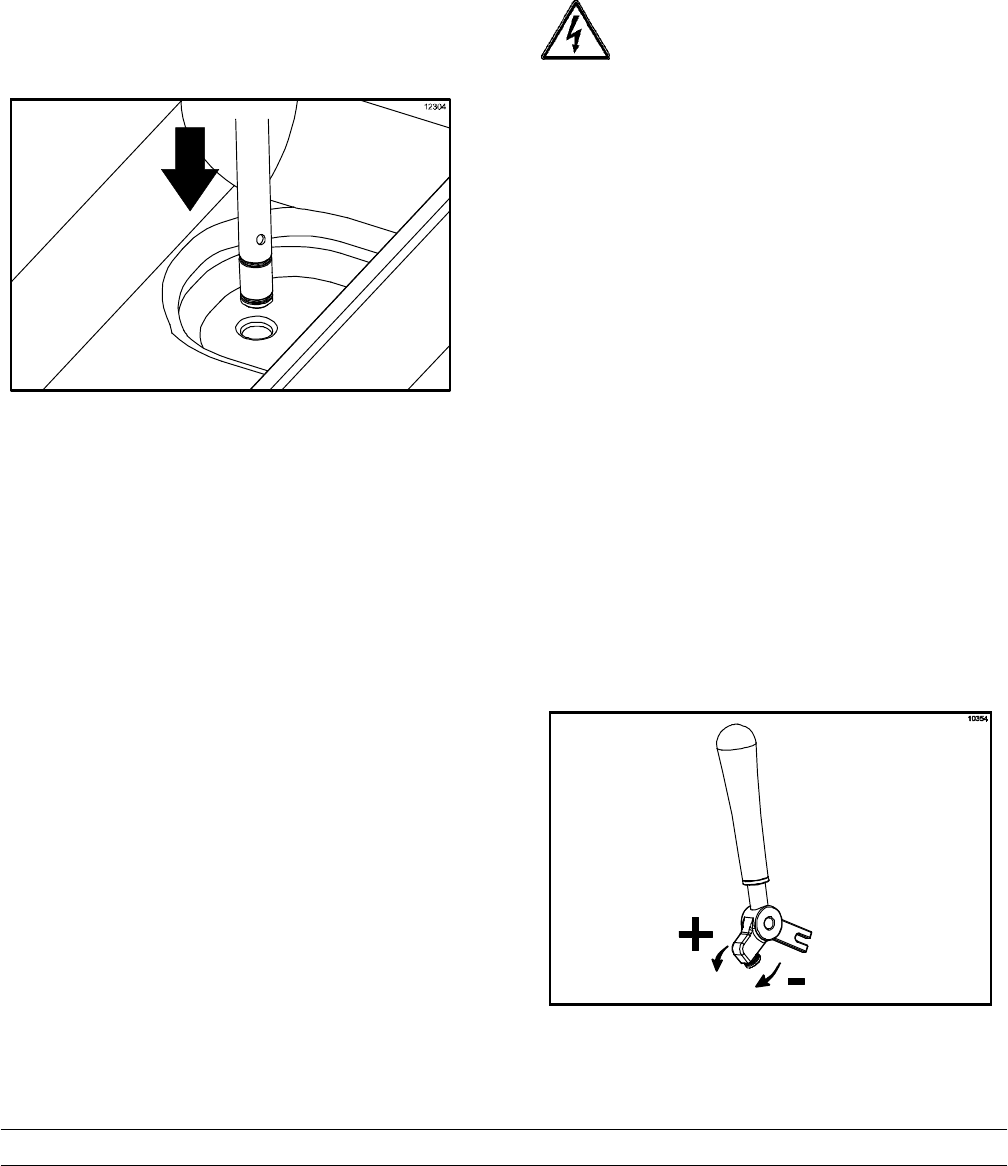

Adjustable Draw Handle 12...............................................

Feed Tube Assembly 13..................................................

Section 6 Operating Procedures 14.....................................

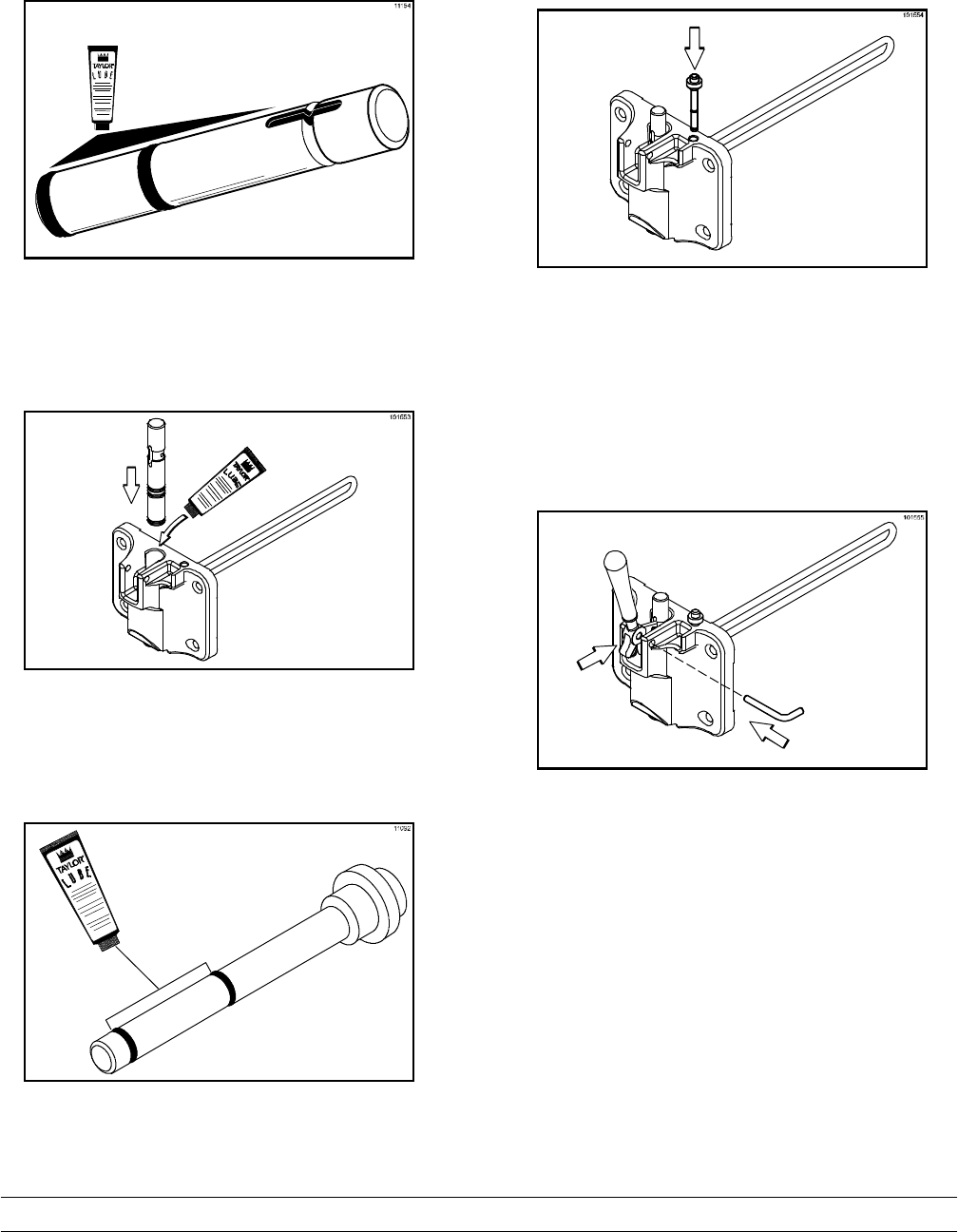

Assembly 14............................................................

Sanitizing 18............................................................

Priming 20..............................................................

Closing Procedure 20....................................................

Draining Product From the Freezing Cylinder 21.............................

Rinsing 21..............................................................

Cleaning 21.............................................................

Disassembly 22..........................................................

Brush Cleaning 22.......................................................

Model C707 Table of Contents

Table of Contents - Page 2

Section 7 Important: Operator Checklist 23..............................

During Cleaning and Sanitizing 23.........................................

Troubleshooting Bacterial Count 23........................................

Regular Maintenance Checks 23...........................................

Winter Storage 24........................................................

Section 8 Troubleshooting Guide 25....................................

Section 9 Parts Replacement Schedule 27...............................

Section 10 Limited Warranty on Equipment 28............................

Section 11 Limited Warranty on Parts 30.................................

Section 12 Parts List 33.................................................

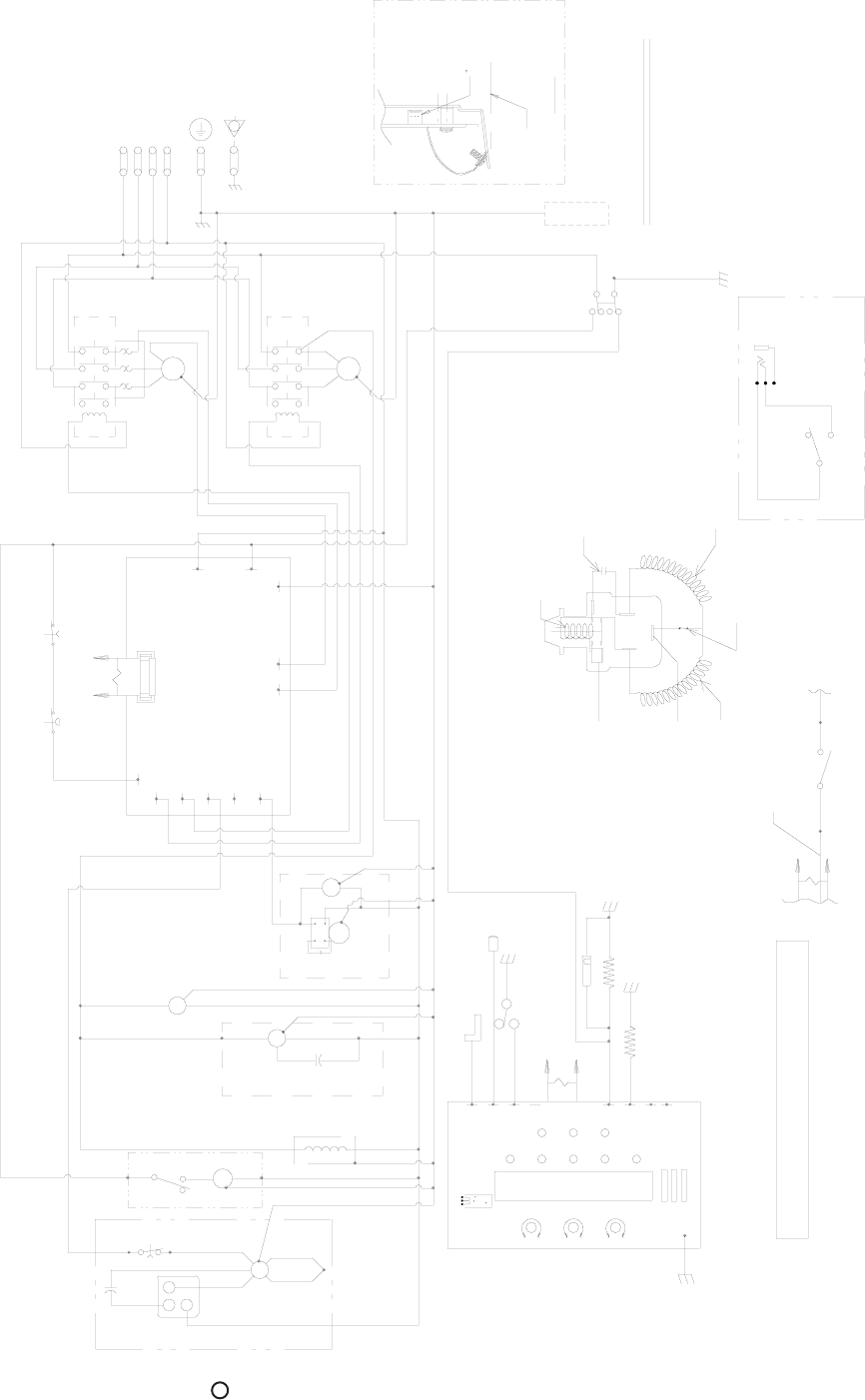

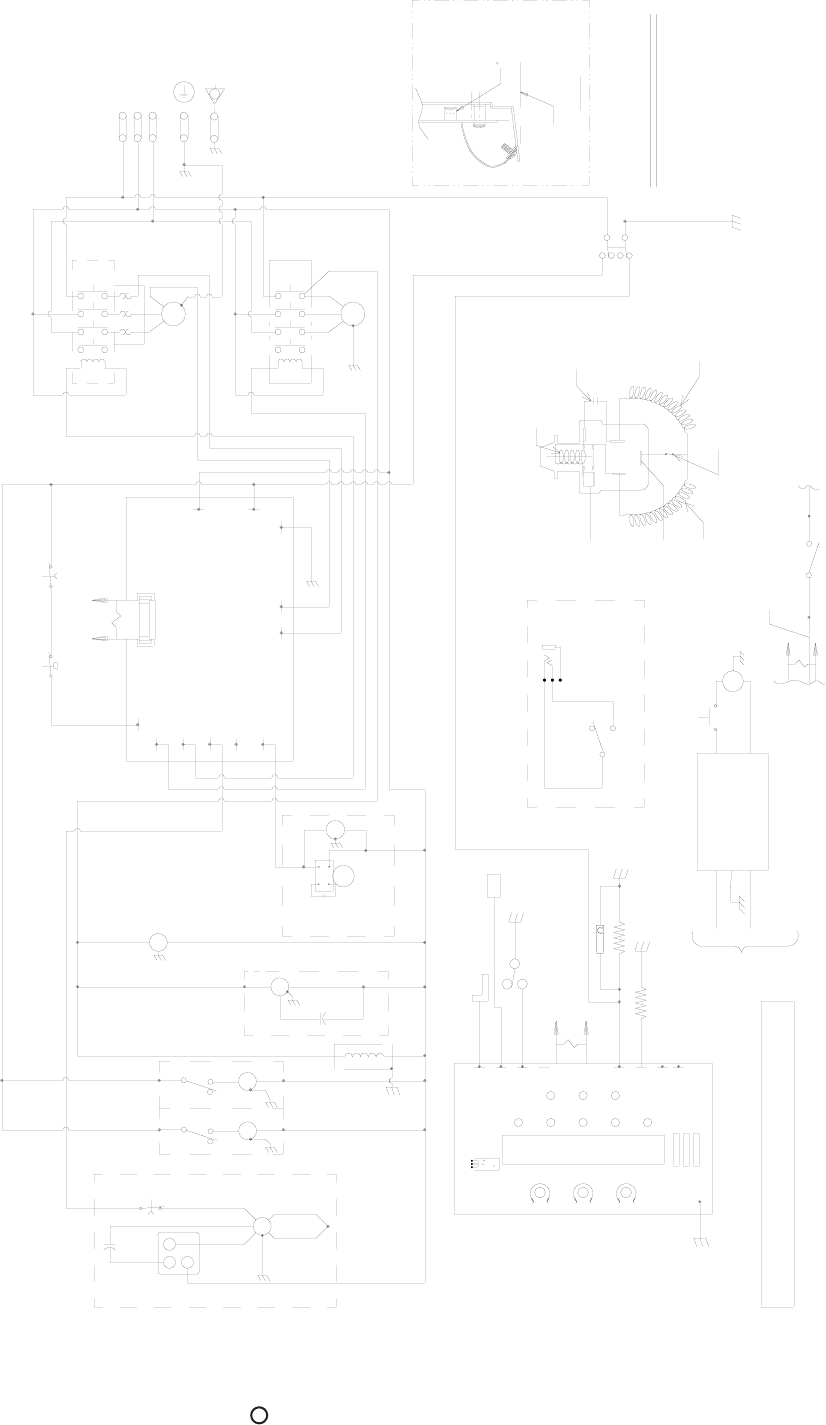

Wiring Diagrams 42......................................................

Note: Continuing research results in steady improvements; therefore, information

in this manual is subject to change without notice.

Note: Only instructions originating from the factory or its authorized translation

representative(s) are considered to be the original set of instructions.

E2003 Carrier Commercial Refrigeration, Inc. (Original Publication)

(Updated July, 2014)

059060- M

Any unauthorized reproduction, disclosure, or distribution of copies by any person of any portion of this work

may be a violation of Copyright Law of the United States of America and other countries, could result in the

awarding of Statutory Damages of up to $250,000 (17 USC 504) for infringement, and may result in further

civil and criminal penalties.

All rights reserved.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072

1

Model C707 To the Installer

131122

Section 1 To the Installer

The following information has been included in the

manual as safety and regulatory guidelines. For

complete installation instructions, please see the

Installation Checklist.

Installer Safety

In all areas of the world, equipment should be

installed in accordance with existing local codes.

Please contact your local authorities if you have any

questions.

Care should be taken to ensure that all basic safety

practices are followed during the installation and

servicing activities related to the installation and

service of Taylor equipment.

SOnly authorized Taylor service personnel

should perform installation and repairs on

the equipment.

SAuthorized service personnel should consult

OSHA Standard 29CFRI910.147 or the

applicable code of the local area for the

industry standards on lockout/tagout

procedures before beginning any installation

or repairs.

SAuthorized service personnel must ensure

that the proper PPE is available and worn

when required during installation and

service.

SAuthorized service personnel must remove

all metal jewelry, rings, and watches before

working on electrical equipment.

The main power supply(s) to the freezer must

be disconnected prior to performing any repairs.

Failure to follow this instruction may result in personal

injury or death from electrical shock or hazardous

moving parts as well as poor performance or damage

to the equipment.

Note:Allrepairsmustbeperformedbyan

authorized Taylor Service Technician.

This unit has many sharp edges that can

cause severe injuries.

Site Preparation

Review the area where the unit will be installed before

uncrating the unit. Make sure all possible hazards to

the user or equipment have been addressed.

Air Cooled Units

DO NOT obstruct air intake and discharge openings:

The Model C707 air cooled unit requires a minimum of

6” (152 mm) of clearance on both sides and 0” in the

rear of the unit. This will allow for adequate air flow

across the condenser(s). Failure to allow adequate

clearance can reduce the refrigeration capacity of the

freezer and possibly cause permanent damage to the

compressor.

For Indoor Use Only: This unit is designed to operate

indoors, under normal ambient temperatures of

70_-75_F(21_-24_C). The freezer has successfully

performed in high ambient temperatures of

104_(40_C) at reduced capacities.

This unit must NOT be installed in an area

where a water jet or hose can be used. NEVER use a

water jet or hose to rinse or clean the unit. Failure to

follow this instruction may result in electrocution.

This unit must be installed on a level surface

to avoid the hazard of tipping. Extreme care should be

taken in moving this equipment for any reason. Two or

more persons are required to safely move this unit.

Failure to comply may result in personal injury or

equipment damage.

Uncrate the unit and inspect it for damage. Report any

damage to your Taylor Distributor.

This piece of equipment is made in the USA and has

USA sizes of hardware. All metric conversions are

approximate and vary in size.

2Model C707To the Installer

Water Connections

(Water Cooled Units Only)

An adequate cold water supply must be provided with

a hand shut- off valve. On the underside rear of the

base pan, two 3/8” I.P.S. water connections for inlet

and outlet have been provided for easy hook- up. 1/2”

inside diameter water lines should be connected to the

machine. (Flexible lines are recommended, if local

codes permit.) Depending on local water conditions, it

may be advisable to install a water strainer to prevent

foreign substances from clogging the automatic water

valve. There will be only one water “in” and one water

“out” connection. DO NOT install a hand shut- off valve

on the water “out” line! Water should always flow in this

order: first, through the automatic water valve; second,

through the condenser; and third, through the outlet

fitting to an opentrapdrain.

A back flow prevention device is required

on the incoming water connection side. Please

refer to the applicable National, State, and local codes

for determining the proper configuration.

Electrical Connections

In the United States, this equipment is intended to be

installed in accordance with the National Electrical

Code (NEC), ANSI/NFPA 70-1987. The purpose of the

NEC code is the practical safeguarding of persons and

property from hazards arising from the use of

electricity. This code contains provisions considered

necessary for safety. In all other areas of the world,

equipment should be installed in accordance with the

existing local codes. Please contact your local

authorities.

FOLLOW YOUR LOCAL ELECTRICAL CODES!

Each unit requires one power supply for each data

label on the unit. Check the data label(s) on the freezer

for branch circuit overcurrent protection or fuse, circuit

ampacity, and other electrical specifications. Refer to

the wiring diagram provided inside of the electrical box

for proper power connections.

CAUTION: THIS EQUIPMENT MUST BE

PROPERLY GROUNDED! FAILURE TO DO SO

CAN RESULT IN SEVERE PERSONAL INJURY

FROM ELECTRICAL SHOCK!

DO NOT operate this freezer with larger fuses

than specified on the unit data label. Failure to follow

this instruction may result in electrocution or damage

to the machine.

This unit is provided with an equipotential

grounding lug that is to be properly attached to the rear

of the frame by the authorized installer. The installation

location is marked by the equipotential bonding

symbol (5021 of IEC 60417-1) on both the removable

panel and the equipment’s frame.

Stationary appliances which are not equipped

with a power cord and a plug or another device to

disconnect the appliance from the power source must

have an all-pole disconnecting device with a contact

gap of at least 3 mm installed in the external

installation.

3

Model C707 To the Installer

131021

Appliances that are permanently connected to

fixed wiring and for which leakage currents may

exceed 10 mA, particularly when disconnected or not

used for long periods, or during initial installation, shall

have protective devices such as a GFI, to protect

against the leakage of current, installed by the

authorized personnel to the local codes.

Supply cords used with this unit shall be

oil-resistant, sheathed flexible cable not lighter than

ordinary polychloroprene or other equivalent synthetic

elastomer-sheathed cord (Code designation 60245

IEC 57) installed with the proper cord anchorage to

relieve conductors from strain, including twisting, at

the terminals and protect the insulation of the

conductors from abrasion.

If the supply cord is damaged, it must be replaced by

the manufacturer, its service agent, or similarly

qualified person, in order to avoid a hazard.

Beater Rotation

Beater rotation must be clockwise as viewed

looking into the freezing cylinder.

Note: The following procedures should be

performed by a trained service technician.

To correct the rotation on a three- phase unit,

interchange any two incoming power supply lines at

freezer main terminal block only.

To correct rotation on a single- phase unit, change the

leads inside the beater motor. (Follow the diagram

printedonthemotor.)

Electrical connections are made directly to the

terminal block provided in the main control box.

Refrigerant

In consideration of our environment, Taylor

uses only earth friendly HFC refrigerants. The HFC

refrigerant used in this unit is R404A. This refrigerant

is generally considered non-toxic and non-flammable,

with an Ozone Depleting Potential (ODP) of zero (0).

However, any gas under pressure is potentially

hazardous and must be handled with caution.

NEVER fill any refrigerant cylinder completely with

liquid. Filling the cylinder to approximately 80% will

allow for normal expansion.

Use only R404A refrigerant that conforms to

the AHRI standard 700 specification. The use of any

other refrigerant may expose users and operators to

unexpected safety hazards.

Refrigerant liquid sprayed onto the skin may

cause serious damage to tissue. Keep eyes and skin

protected. If refrigerant burns should occur, flush

immediately with cold water. If burns are severe, apply

ice packs and contact a physician immediately.

Taylor reminds technicians to be cautious of

government laws regarding refrigerant recovery,

recycling, and reclaiming systems. If you have any

questions regarding these laws, please contact the

factory Service Department.

WARNING: R404A refrigerant used in

conjunction with polyolester oils is extremely moisture

absorbent. When opening a refrigeration system, the

maximum time the system is open must not exceed 15

minutes. Cap all open tubing to prevent humid air or

water from being absorbed by the oil.

4Model C707To the Operator

131122

Section 2 To the Operator

The Model C707 has been carefully engineered and

manufactured to give you dependable operation.

This unit, when properly operated and cared for, will

produce a consistent quality product. Like all

mechanical products, it will require cleaning and

maintenance. A minimum amount of care and

attention is necessary if the operating procedures

outlined in this manual are followed closely.

This Operator’s Manual should be read before

operating or performing any maintenance on your

equipment.

Your Taylor freezer will NOT eventually compensate

for and correct any errors during the set- up or filling

operations. Thus, the initial assembly and priming

procedures are of extreme importance. It is strongly

recommended that personnel responsible for the

equipment’s operation, both assembly and

disassembly, go through these procedures together in

order to be properly trained and to make sure that no

confusion exists.

In the event you should require technical assistance,

please contact your local authorized Taylor Distributor.

Note: Your Taylor warranty is valid only if the parts are

authorized Taylor parts, purchased from the local

authorized Taylor Distributor, and only if all required

service work is provided by an authorized Taylor

service technician. Taylor reserves the right to deny

warranty claims on units or parts if non- Taylor

approved parts or incorrect refrigerant were installed

in the unit, system modifications were performed

beyond factory recommendations, or it is determined

that the failure was caused by abuse, misuse, neglect,

or failure to follow all operating instructions. For full

details of your Taylor Warranty, please see the Limited

Warranty section in this manual.

If the crossed out wheeled bin symbol is

affixed to this product, it signifies that this product is

compliant with the EU Directive as well as other similar

legislation in effect after August 13, 2005. Therefore,

it must be collected separately after its use is

completed, and cannot be disposed as unsorted

municipal waste.

The user is responsible for returning the product to the

appropriate collection facility, as specified by your local

code. For additional information regarding applicable

local laws, please contact the municipal facility and/or

local distributor.

Compressor Warranty Disclaimer

The refrigeration compressor(s) on this unit are

warranted for the term stated in the Limited Warranty

section in this manual. However, due to the Montreal

Protocol and the U.S. Clean Air Act Amendments of

1990, many new refrigerants are being tested and

developed, thus seeking their way into the service

industry. Some of these new refrigerants are being

advertised as drop- in replacements for numerous

applications. It should be noted that in the event of

ordinary service to this unit’s refrigeration system,

only the refrigerant specified on the affixed data

label should be used. The unauthorized use of

alternate refrigerants will void your Taylor compressor

warranty. It is the unit owner’s responsibility to make

this fact known to any technician he employs.

It should also be noted that Taylor does not warrant the

refrigerant used in its equipment. For example, if the

refrigerant is lost during the course of ordinary service

to this machine, Taylor has no obligation to either

supply or provide its replacement either at billable or

unbillable terms. Taylor does have the obligation to

recommend a suitable replacement if the original

refrigerant is banned, obsoleted, or no longer available

during the five year warranty of the compressor.

Taylor will continue to monitor the industry and test

new alternates as they are being developed. Should a

new alternate prove, through our testing, that it would

be accepted as a drop- in replacement, then the above

disclaimer would become null and void. To find out the

current status of an alternate refrigerant as it relates to

your compressor warranty, call the local Taylor

Distributor or the Taylor Factory. Be prepared to

provide the Model/Serial Number of the unit in

question.

5

Model C707 Safety

130304

Section 3 Safety

We, at Taylor Company, are concerned about the

safety of the operator when he or she comes in contact

with the freezer and its parts. Taylor has gone to

extreme efforts to design and manufacture built- in

safety features to protect both you and the service

technician. As an example, warning labels have been

attached to the freezer to further point out safety

precautions to the operator.

IMPORTANT - Failure to adhere to the

following safety precautions may result in severe

personal injury or death. Failure to comply with

these warnings may damage the machine and its

components. Component damage will result in

part replacement expense and service repair

expense.

DO NOT operate the freezer without reading

this Operator Manual. Failure to follow this instruction

may result in equipment damage, poor freezer

performance, health hazards, or personal injury.

This appliance is to be used only by trained

personnel. It is not intended for use by children or

people with reduced physical, sensory, or mental

capabilities, or lack of experience and knowledge,

unless given supervision or instruction concerning the

use of the appliance by a person responsible for their

safety. Children should be supervised to ensure that

they do not play with the appliance.

This unit is provided with an equipotential

grounding lug that is to be properly attached to the rear

of the frame by the authorized installer. The installation

location is marked by the equipotential bonding

symbol (5021 of IEC 60417-1) on both the removable

panel and the equipment’s frame.

DO NOT use a water jet to clean or rinse the

freezer. Failure to follow these instructions may result

in serious electrical shock.

SDO NOT operate the freezer unless it is

properly grounded.

SDO NOT operate the freezer with larger

fuses than specified on the freezer data

label.

SAll repairs must be performed by an

authorized Taylor service technician.

SThe main power supplies to the machine

must be disconnected prior to performing

any repairs.

SFor Cord Connected Units: Only Taylor

authorized service technicians or licensed

electricians may install a plug or

replacement cord on these units.

SStationary appliances which are not

equipped with a power cord and a plug or

another device to disconnect the appliance

from the power source must have an all-pole

disconnecting device with a contact gap of

at least 3 mm installed in the external

installation.

SAppliances that are permanently connected

to fixed wiring and for which leakage

currents may exceed 10 mA, particularly

when disconnected or not used for long

periods, or during initial installation, shall

have protective devices such as a GFI, to

protect against the leakage of current,

installed by the authorized personnel to the

local codes.

SSupply cords used with this unit shall be

oil-resistant, sheathed flexible cable not

lighter than ordinary polychloroprene or

other equivalent synthetic elastomer-

sheathed cord (Code designation 60245 IEC

57) installed with the proper cord anchorage

to relieve conductors from strain, including

twisting, at the terminals and protect the

insulation of the conductors from abrasion.

If the supply cord is damaged, it must be

replaced by the manufacturer, its service

agent, or similarly qualified person, in order

to avoid a hazard.

Failure to follow these instructions may result in

electrocution. Contact your local authorized Taylor

Distributor for service.

6Model C707Safety

130304

SDO NOT allow untrained personnel to

operate this machine.

SDO NOT operate the freezer unless all

service panels and access doors are

restrained with screws.

SDO NOT remove any internal operating

parts (examples: freezer door, beater,

scraper blades, etc.) unless all control

switches are in the OFF position.

Failure to follow these instructions may result in severe

personal injury to fingers or hands from hazardous

moving parts.

This unit has many sharp edges that can

cause severe injuries.

SDO NOT put objects or fingers in the door

spout. This may contaminate the product

and cause severe personal injury from blade

contact.

SUSE EXTREME CAUTION when removing

the beater asssembly. The scraper blades

are very sharp.

SCAUTION- SHARP EDGES: Two people

are required to handle the cup/cone

dispenser. Protective gloves must be worn

and the mounting holes must NOT be used

to lift or hold the dispenser. Failure to follow

this instruction can result in personal injury

to fingers or equipment damage.

Access to the service area of the unit is

restricted to persons having knowledge and practical

experience with the appliance, in particular as far as

safety and hygiene are concerned.

This freezer must be placed on a level

surface. Failure to comply may result in personal injury

or equipment damage.

Cleaning and sanitizing schedules are

governed by your state or local regulatory agencies

and must be followed accordingly. Please refer to the

cleaning section of this manual for the proper

procedure to clean this unit.

This machine is designed to maintain product

temperature under 41_F(5_C). Any product being

added to this machine must be below 41_F(5_C).

Failure to follow this instruction may result in health

hazards and poor freezer performance.

DO NOT obstruct air intake and discharge openings:

The Model C707 air cooled unit requires a minimum of

6” (152 mm) of clearance on both sides and 0” in the

rear of the unit. This will allow for adequate air flow

across the condenser(s). Failure to allow adequate

clearance can reduce the refrigeration capacity of the

freezer and possibly cause permanent damage to the

compressor.

For Indoor Use Only: This unit is designed to operate

indoors, under normal ambient temperatures of 70_-

75_F(21_-24_C). The freezer has successfully

performed in high ambient temperatures of

104_(40_C) at reduced capacities.

DO NOT run the machine without product. Failure to

follow this instruction can result in damage to the

machine.

NOISE LEVEL: Airborne noise emission does not

exceed 78 dB(A) when measured at a distance of 1.0

meter from the surface of the machine and at a height

of 1.6 meters from the floor.

7

Model C707 Operator Parts Identification

140618

Section 4 Operator Parts Identification

Model C707

ITEM DESCRIPTION PART NO.

1KIT A.- COVER- HOPPER X65368

2PAN- DRIP 11- 5/8 LONG 027503

3PIN- RETAINING- HOPPER CVR 043934

4PANEL- SIDE- LEFT 066722- SP3

5STUD- NOSE CONE 055987

6SHIELD- SPLASH 049203

7TRAY- DRIP 056858

8PANEL- FRONT- LOWER 058942

9PANEL A.- FRONT- UPPER X58950

ITEM DESCRIPTION PART NO.

10 PANEL A.- SIDE- RIGHT X64151

11 PANEL- REAR 056077- SP1

12 ORIFICE 022465- 100

13 O- RING- 3/8 OD X .070 W

(100 TO BAG)

016137

14 TUBE A.- FEED- SS- 5/32 DIA X29429- 2

15 O- RING- .643 OD X .077 W

(50 TO BAG)

018572

16 GUARD- FAN 028534- 1

17 DUCT A. (OPTIONAL) X56241

8Model C707Operator Parts Identification

140618

Model C707 Single Spout Door and Beater Assembly

ITEM DESCRIPTION PART NO.

1DOOR A.- W/BAFFLE X56071- SER

1a BAFFLE A.- LONG 4 IN X50882

2HANDLE A.- DRAW- WELDED X56246

3SCREW- ADJUSTMENT 056332

4O- RING- 1/4 OD X .070W 50

DUROMETER (25 TO BAG)

015872

5PIN- HANDLE- SS 055819

6PLUG- PRIME 028805

7O- RING- 3/8 OD X .070W

(100 TO BAG)

016137

8VALVE A.- DRAW X56072

ITEM DESCRIPTION PART NO.

9O- RING- 7/8 OD X .103W

(100 TO BAG)

014402

10 NUT- STUD- LONG 058765

11 NUT- STUD 058764

12 GASKET- DOOR HT 4”- DBL 048926

13 BEARING- FRONT 050216

14 BEATER A.- 3.4QT X31761

15 BLADE- SCRAPER- PLASTIC 035174

16 SHAFT- BEATER 056078

17 SEAL- DRIVE SHAFT 032560

9

Model C707 Operator Parts Identification

110915

Brushes

ITEM DESCRIPTION PART NO.

1BLACK BRISTLE BRUSH 013071

2DOUBLE END BRUSH 013072

3WHITE BRISTLE BRUSH

(1” x 2”)

013073

4WHITE BRISTLE BRUSH

(3” x 7”)

023316

ITEM DESCRIPTION PART NO.

5BRUSH- END- DOOR SPOUT

SS

039719

6BRUSH- SET LVB 050103

7BRUSH- PUMP SPOUT 054068

10 Model C707Important: To the Operator

140618

Section 5 Important: To the Operator

ITEM DESCRIPTION

1MIX LOW INDICATOR LIGHT

2MIX OUT INDICATOR LIGHT

3MIX REFRIGERATION KEY

4STANDBY KEY

5WASH KEY

ITEM DESCRIPTION

6AUTO KEY

7RESET BUTTON - BEATER MOTOR

8POWER SWITCH (TOGGLE)

9HOPPER TEMPERATURE INDICATOR

10 FLAVOR BURST JACK

11

Model C707 Important: To the Operator

130709

Symbol Definitions

To better communicate in the International arena,

symbols have replaced words on many of our operator

switches, function, and fault indicators. Your Taylor

equipment is designed with these International

symbols.

The following chart identifies the symbol definitions.

=OFF

=ON

=MIXLOW

= MIX OUT

=MIXREF

= STANDBY

= WASH

=AUTO

Power Switch

When placed in the ON position, the power switch

allows SOFTECH control panel operation.

Indicator Lights

When the MIX LOW light begins to flash, it indicates

that the mix tank has a low supply of mix and should

be refilled as soon as possible. When the MIX OUT

light begins to flash, it indicates that the mix tank has

been almost completely exhausted and has an

insufficient supply of mix to operate the freezer. At this

time, the STANDBY and AUTO modes are locked out

and the freezer shuts down. To initiate the refrigeration

system, add mix to the tank and press the AUTO key.

The freezer will automatically begin operation.

MIX REF Key

When the MIX REF key is pressed, the light comes on

indicating the mix hopper refrigeration system is

operating. The MIX REF function cannot be cancelled

unless the AUTO or STANDBY modes are cancelled

first.

STANDBY Key

The Separate Hopper Refrigeration System (SHR)

and the Cylinder Temperature Retention System

(CTR) are standard features. The SHR incorporates

the use of a separate small refrigeration system to

maintain the mix in the hopper below 40_(4.4_C) to

assure bacteria control. The CTR works with the SHR

to maintain a good quality product. During long “No

Sale” periods, it is necessary to warm the product in

the freezing cylinder to approximately 35_Fto40_F

(1.7_Cto4.4_C) to prevent overbeating and product

breakdown.

To activate the SHR and CTR, press the STANDBY

key. Remove the air orifice and place the feed tube

(end without the hole) into the mix inlet hole.

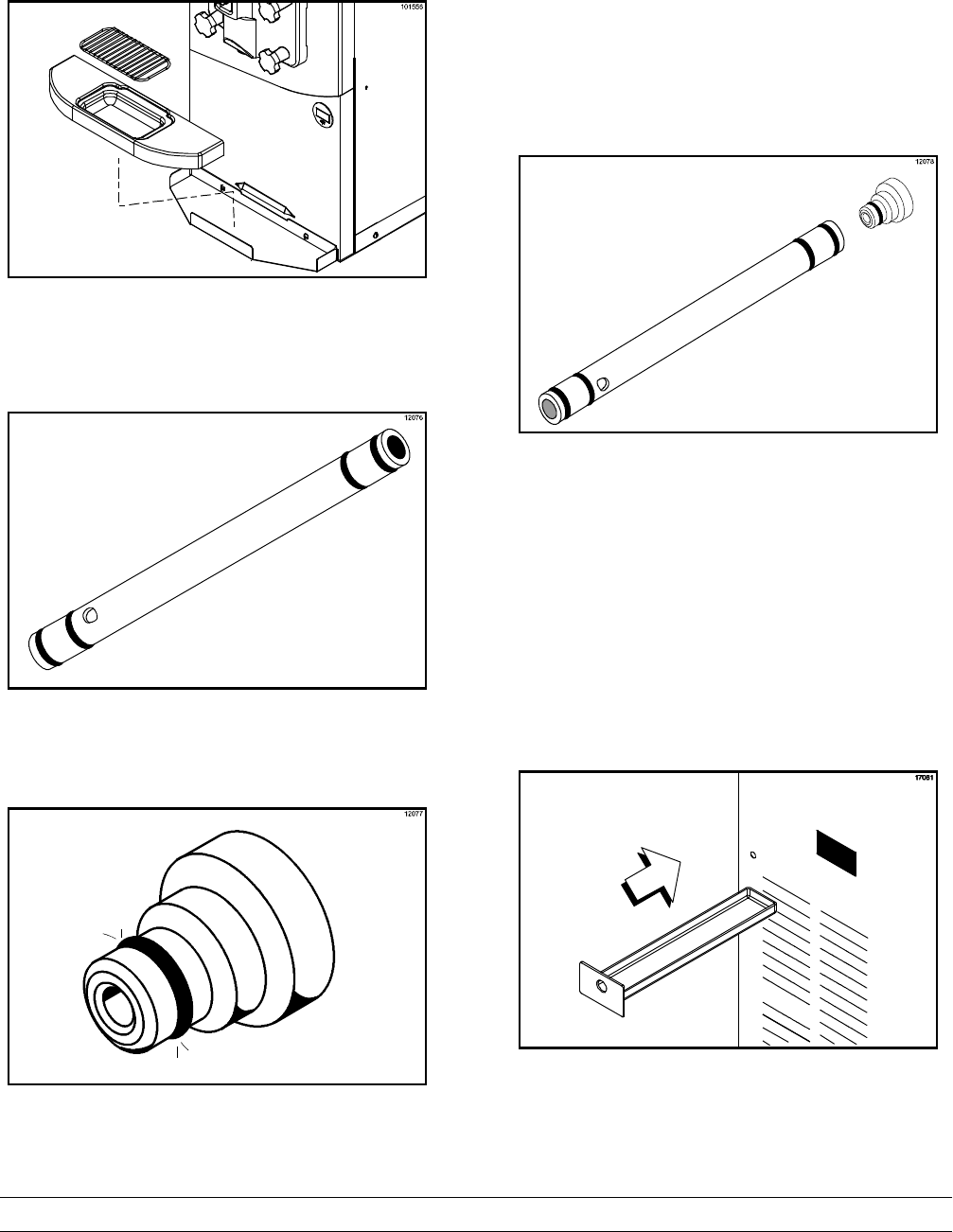

Figure 1

IMPORTANT: Make sure the level of mix in the

hopper is below the mix delivery hole in the feed

tube. Failure to follow this instruction may result in

lower product quality when normal operation is

resumed.

12 Model C707Important: To the Operator

130709

When the STANDBY key is pressed, the light comes

on, indicating the CTR (Cylinder Temperature

Retention System) has been activated. In the

STANDBY mode, the WASH and AUTO functions are

automatically cancelled. The MIX REF function is

automatically locked in to maintain the mix in the

hopper.

To resume normal operation, press the AUTO key.

When the unit cycles off, the product in the freezing

cylinder will be at serving viscosity. At this time, place

the feed tube (end with the hole) into the mix inlet

hole and install the air orifice.

Figure 2

WASH Key

When the WASH key is pressed, the light comes on.

This indicates beater motor operation. The STANDBY

or AUTO modes must be cancelled first to activate the

WASH mode.

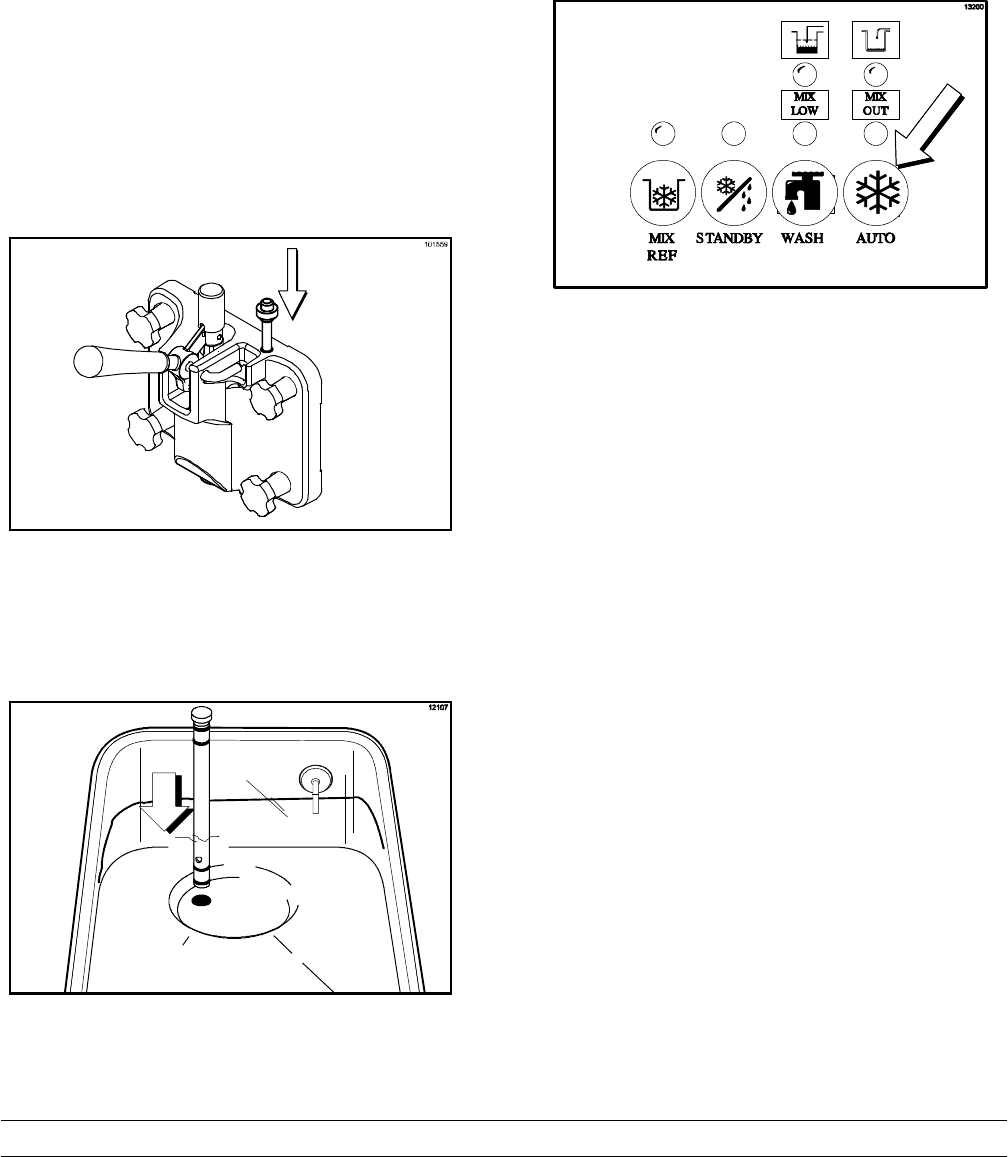

AUTO Key

When the AUTO key is pressed, the light comes on.

This indicates that the main refrigeration system has

been activated. In the AUTO mode, the WASH or

STANDBY functions are automatically cancelled. The

MIX REF function is automatically locked in to

maintain the mix in the mix hopper.

Note: An indicating light and an audible tone will

sound whenever a mode of operation has been

pressed. To cancel any function, press the key again.

The light and mode of operation will shut off.

Beater Motor Reset Button

The reset button is located on the left side of the unit.

The reset protects the beater motor from an overload

condition. If an overload occurs, the reset mechanism

will trip. To properly reset the freezer, press the AUTO

key to cancel the cycle. Turn the power switch to the

OFF position. Press the reset button firmly.

Do not use metal objects to press the reset

button. Failure to follow this instruction may

result in electrocution.

Turn the power switch to the ON position. Press the

WASH key and observe the freezer’s performance.

Open the side access panel. Make sure the beater

motor is turning the drive shaft in a clockwise direction

(from the operator end) without binding.

If the beater motor is turning properly, press the WASH

key to cancel the cycle. Press the AUTO key to resume

normal operation. If the freezer shuts down again,

contact a service technician.

Adjustable Draw Handle

The Model C707 features an adjustable draw handle

to provide the best portion control. The draw handle

should be adjusted to provide a flow rate of 5 to 7- 1/2

oz. of product per 10 seconds. To INCREASE the flow

rate, turn the screw CLOCKWISE. Turn the screw

COUNTER- CLOCKWISE to DECREASE the flow

rate.

Figure 3

13

Model C707 Important: To the Operator

130709

Feed Tube Assembly

The feed tube assembly serves two purposes. One

end of the tube has a hole and the other end does not.

Figure 4

ITEM DESCRIPTION PART NO.

1ORIFICE 022465- 100

2O- RING- 3/8 OD X .070 W 016137

3TUBE A.- FEED- SS 5/32 HOLE X29429- 2

4O- RING- .643 OD X .077 W 018572

1. Normal Operation

During normal operation, the end of the feed tube

with the hole is placed into the mix inlet hole.

Every time the draw handle is raised, new mix and

air from the hopper flow into the freezing cylinder.

This keeps the freezing cylinder properly loaded

and maintains overrun.

Figure 5

2. Long “No Sale” Periods

During long “No Sale” periods, the unit can be

placed into the Standby mode. This maintains

product temperatures below 40_F(4.4_C) in both

the hopper and the freezing cylinder, and helps

prevent overbeating and product breakdown.

To place the unit into the Standby mode, press the

STANDBY key. Remove the air orifice. Lubricate

the o- rings located on the end of the feed tube

without the hole. Place that end of the tube into

the mix inlet hole. This will prevent any mix from

entering the freezing cylinder.

Figure 6

IMPORTANT: Make sure the level of mix in the

hopper is below the mix delivery hole in the

feed tube. Failure to follow this instruction may

result in lower product quality when normal

operation is resumed.

Note: The air orifice is used to meter a certain

amount of air into the freezing cylinder. The air

orifice maintains overrun and allows enough mix

to enter the freezing cylinder after a draw.

14 Model C707Operating Procedures

Section 6 Operating Procedures

The C707 unit stores mix in a hopper. It has a 3.4 quart

(3.2 liter) capacity freezing cylinder and a 20 quart

(18.9 liter) mix hopper. This unit uses a feed tube to

allow mix to flow into the freezing cylinder.

We begin our instructions at the point where we enter

the store in the morning and find the parts

disassembled and laid out to air dry from the previous

night’s cleaning.

These opening procedures will show you how to

assemble these parts into the freezer, sanitize them,

and prime the freezer with fresh mix in preparation to

serve your first portion.

If you are disassembling the machine for the first time

or need information to get to this starting point in our

instructions, turn to page 22, “Disassembly”, and start

there.

Assembly

Note: When lubricating parts, use an approved food

grade lubricant (example: Taylor Lube).

MAKE SURE POWER SWITCH IS IN THE

“OFF” POSITION! Failure to follow this instruction

may result in severe personal injury from hazardous

moving parts.

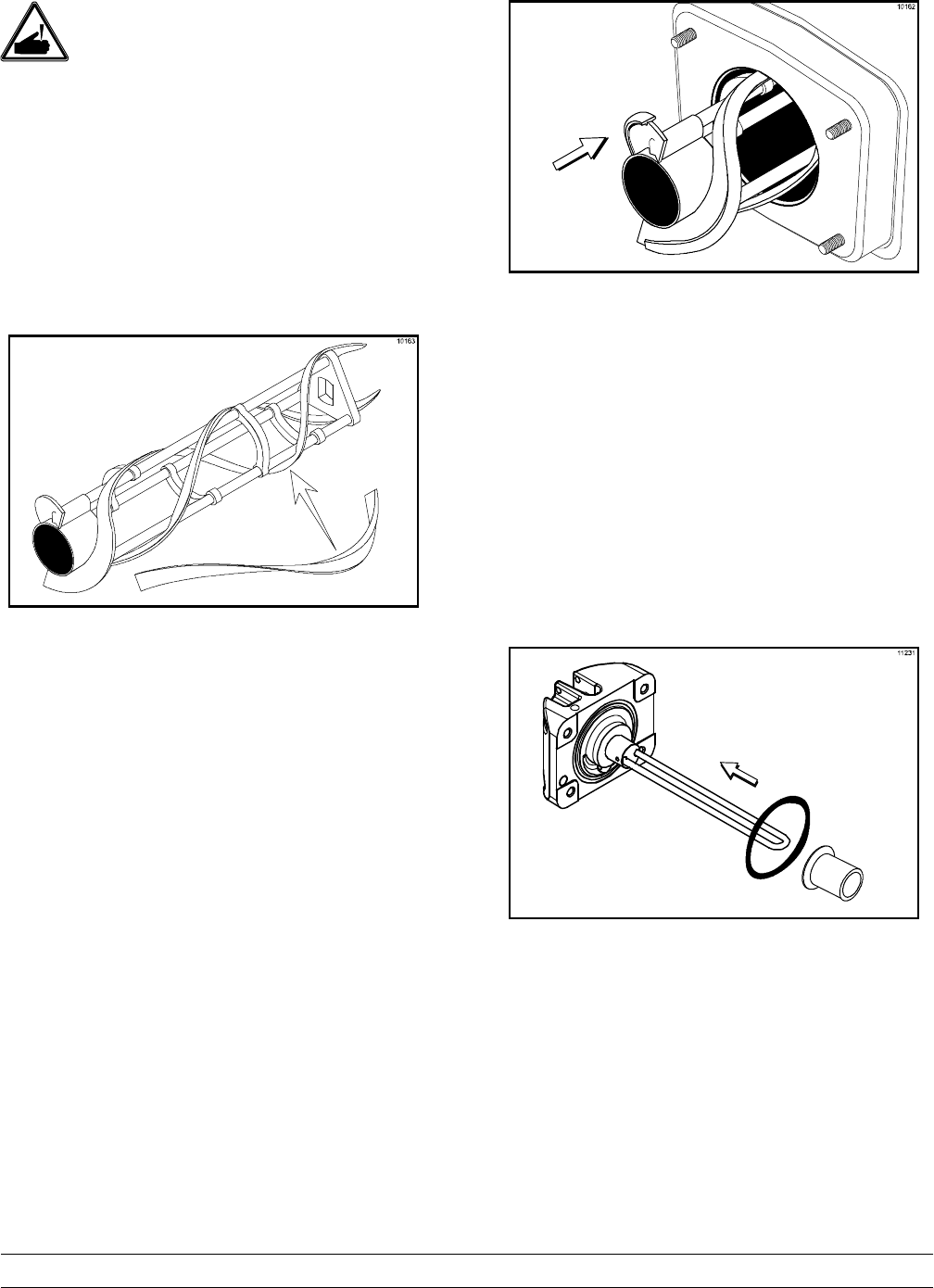

Step 1

Install the drive shaft. Lubricate the groove and shaft

portion that comes in contact with the bearing on the

beater drive shaft. Slide the seal over the shaft and

groove until it snaps into place. DO NOT lubricate the

hex end of the drive shaft.

Fill the inside portion of the seal with 1/4” more

lubricant and lubricate the flat side of the seal that fits

onto the rear shell bearing.

Figure 7

Insert the drive shaft into the freezing cylinder, hex end

first, and into the rear shell bearing until the seal fits

securely over the rear shell bearing. Engage the hex

end firmly into the drive coupling. Be sure the drive

shaft fits into the drive coupling without binding.

Figure 8

15

Model C707 Operating Procedures

USE EXTREME CAUTION when handling

the beater assembly. The scraper blades are very

sharp and may cause injury.

Step 2

Install the beater assembly.

If the blades are in good condition, take one of the

scraper blades and slip it under the hook at the front

of the beater. Wrap the blade around the beater,

following the helix and pushing the blade down onto

the helix as you wrap. At the back end of the beater,

slip the blade under the hook.

Figure 9

Repeat this step for the second scraper blade.

Holding the beater securely, slide the beater into the

freezing cylinder about one- third of the way in.

Looking into the freezing cylinder, align the hole at the

rear of the beater with the flats on the end of the drive

shaft.

Slide the beater the remainder of the way into the

freezing cylinder and over the end of the drive shaft.

The beater should fit snugly but not so tightly that the

beater cannot be turned slightly to engage the drive

shaft.

Figure 10

Make sure the beater assembly is in position over the

drive shaft. Turn the beater slightly to be certain that

the beater is properly seated. When in position, the

beater will not protrude beyond the front of the freezing

cylinder.

Step 3

Assemble the freezer door. Place the large rubber

gasket into the groove on the back side of the freezer

door.

Slide the white plastic front bearing over the baffle rod

onto the bearing hub making certain that the flanged

end of the bearing is resting against the freezer door.

Do not lubricate the gasket or the front bearing.

Figure 11

16 Model C707Operating Procedures

140618

Step 4

Install the draw valve. Slide the two o- rings into the

grooves on the draw valve, and lubricate.

Figure 12

Lubricate the inside of the freezer door spout, top and

bottom, and insert the draw valve from the top until the

draw valve is at the bottom.

Figure 13

Slide the two o- rings into the grooves on the prime

plug. Apply an even coat of Taylor Lube to the o- rings

and shaft.

Figure 14

Insert the prime plug into the hole in the top of the

freezer door, and push down.

Figure 15

Step 5

Install the adjustable draw handle. Slide the fork over

the bar in the slot of the draw valve. Secure with pivot

pin.

Figure 16

Note: This unit features an adjustable draw handle to

provide the best portion control. The draw handle can

be adjusted for different flow rates. See page 12 for

more information on adjusting this handle.

Step 6

Install the freezer door. Insert the baffle rod through

the opening in the beater and seat the door flush with

the freezing cylinder. With the door seated on the

freezer studs, install the handscrews. Tighten equally

in a crisscross pattern to insure the door is snug.

17

Model C707 Operating Procedures

140618

Step 7

Install the front drip tray and the splash shield under

the door spout.

Figure 17

Step 8

Slide two o- rings on one end of the feed tube. Slide

two o- rings on the other end of the feed tube.

Figure 18

Slide the small o- ring into the groove of the air orifice.

Do not lubricate the o- ring.

Figure 19

Note: Make sure the hole in the air orifice is clean and

is not clogged. If the hole in the air orifice should

become clogged, use soap and hot water to clear the

hole. Do not enlarge the hole in the air orifice.

Install the air orifice into the hole in the top of the feed

tube (in the end without the small hole on the side).

Figure 20

Step 9

Lay the feed tube (with the air orifice installed) and the

hopper gasket in the bottom of the mix hopper for

sanitizing.

Step 10

Slide the rear drip pan into the hole in the side panel.

Figure 21

18 Model C707Operating Procedures

080715

Sanitizing

Step 1

Prepare an approved 100 PPM sanitizing solution

(examples: 2- 1/2 gal. [9.5 liters] of Kay- 5Ror 2

gal. [7.6 liters] of Stera- SheenR). USE WARM WA-

TER AND FOLLOW THE MANUFACTURER’S

SPECIFICATIONS.

Step 2

Pour the sanitizing solution over all the parts in the

bottom of the mix hopper and allow it to flow into the

freezing cylinder.

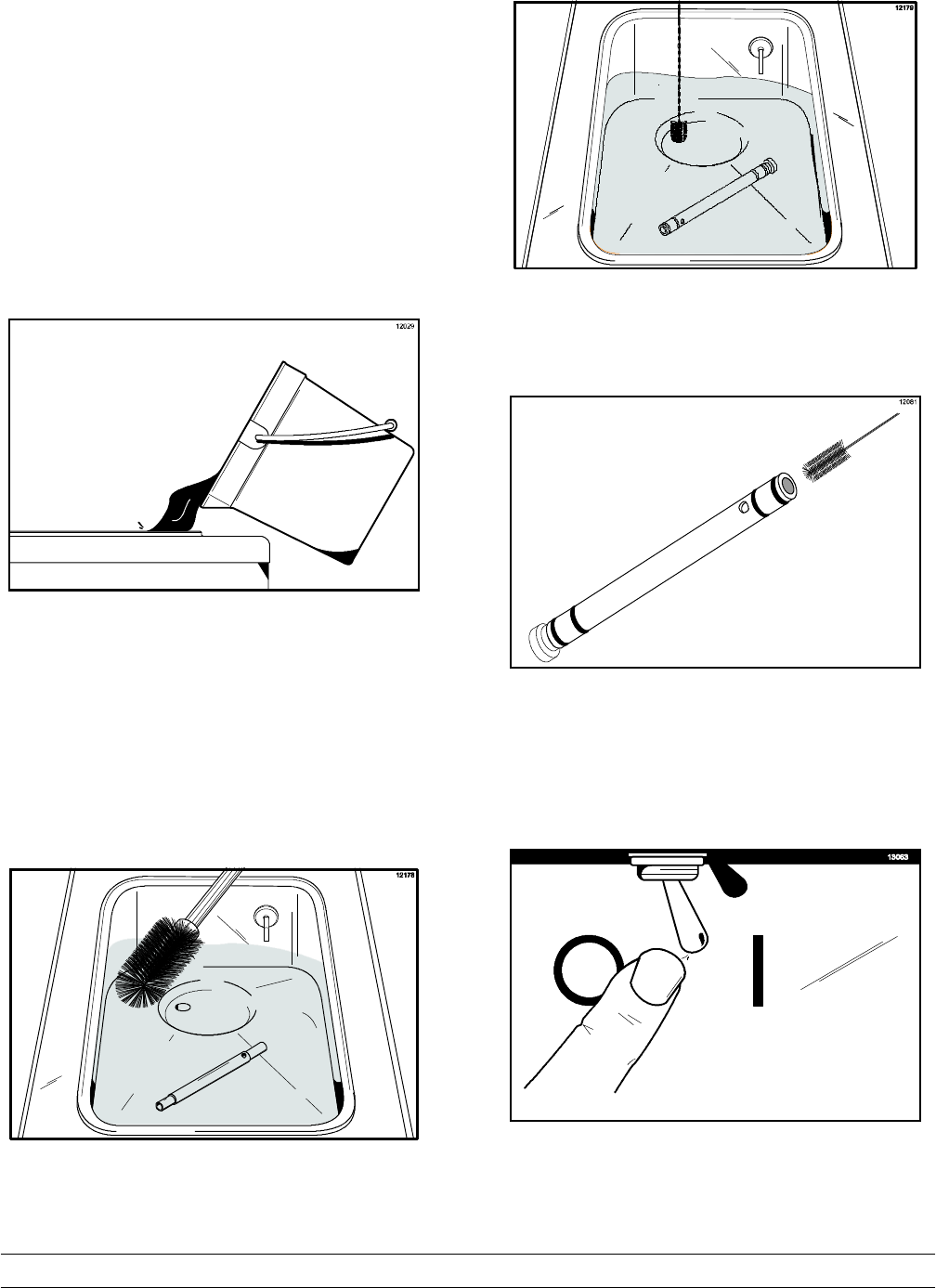

Figure 22

Note: You have just sanitized the mix hopper and

parts; therefore, be sure your hands are clean and

sanitized before going on in these instructions.

Step 3

While the solution is flowing into the freezing cylinder,

take particular care to brush- clean the mix level

sensing probe on the front wall and the bottom of the

hopper, the mix hopper, and the feed tube.

Figure 23

Figure 24

Figure 25

Step 4

Place the power switch in the ON position.

Figure 26

19

Model C707 Operating Procedures

140618

Step 5

Press the WASH key. This will cause the sanitizing

solution in the freezing cylinder to agitate. Allow it to

agitate for five minutes.

Figure 27

Step 6

With an empty pail beneath the door spout, raise the

prime plug.

Figure 28

Step 7

When a steady stream of sanitizing solution is flowing

from the prime plug opening in the bottom of the

freezer door, pull the draw handle down. Draw off all of

the sanitizing solution.

Figure 29

Step 8

Once the sanitizer stops flowing from the door spout,

raise the draw handle. Press the WASH key, cancelling

the beater motor operation.

Figure 30

Note: Be sure your hands are clean and sanitized

before continuing these instructions.

Step 9

Lubricate the mix feed tube o- rings located on the end

of the tube with the small hole on the side. Stand the

mix feed tube in the corner of the mix hopper.

Figure 31

20 Model C707Operating Procedures

140618

Priming

Step 1

Place an empty pail beneath the door spout and lower

the draw handle. Be sure the prime plug is still in the

UP position. Pour two gallons (7.6 liters) of fresh mix

into the hopper and allow it to flow into the freezing

cylinder. This will force out any remaining sanitizing

solution. When full strength mix is flowing from the

door spout, raise the draw handle.

Note: Use only fresh mix when priming the

freezer.

Step 2

Once a steady stream of mix starts to flow from the

prime plug opening in the bottom of the freezer door,

push down the prime plug.

Figure 32

Step 3

When the mix stops bubbling down into the freezing

cylinder, insert the mix feed tube.

Figure 33

Step 4

Install the mix feed tube (the end with the hole) with the

air orifice installed into the mix inlet hole in the mix

hopper.

Step 5

Press the AUTO key. When the unit cycles off, the

product will be at serving viscosity.

Figure 34

Step 6

Fill the hopper with fresh mix. As the mix level comes

in contact with the mix level sensing probe on the front

wall of the hopper, the MIX LOW light will shut off.

Note: The MIX REF light will come on, indicating the

mix refrigeration system is maintaining mix in the mix

hopper.

Step 7

Place the mix hopper cover in position.

Closing Procedure

To disassemble your unit, the following items will be

needed:

STwo cleaning pails

SSanitized stainless steel rerun can with lid

SNecessary brushes (provided with freezer)

SCleaner

SSingle service towels

21

Model C707 Operating Procedures

140717

Draining Product From the

Freezing Cylinder

Step 1

Press the AUTO key, cancelling compressor and

beater motor operation.

Press the MIX REF key, cancelling the mix hopper

refrigeration system.

Step 2

Remove the hopper cover and take it to the sink for

cleaning.

Step 3

If local health codes permit the use of rerun,place

a sanitized, NSF approved stainless steel rerun

container beneath the door spout. Press the WASH

key and lower the draw handle. Drain the remaining

product from the freezing cylinder and mix hopper.

When the flow of product stops, press the WASH key

and raise the draw handle. Place the sanitized lid on

the rerun container and place it in the walk- in cooler.

Note: If local health codes DO NOT permit the use

of rerun, the product must be discarded. Drain the

product into a pail and properly discard it.

Step 4

Remove the assembled mix feed tube and take it to the

sink for further disassembly and cleaning.

ALWAYS FOLLOW LOCAL HEALTH CODES.

Rinsing

Step 1

Pour two gallons (7.6 liters) of cool clean water into the

mix hopper. With the brushes provided, scrub the mix

hopper, the mix inlet hole and the mix level sensing

probe.

Step 2

With a pail beneath the door spout, raise the prime plug

and press the WASH key.

Step 3

When a steady stream of rinse water is flowing from

the prime plug opening in the bottom of the freezer

door, lower the draw handle. Drain all the rinse water

from the freezing cylinder. When the water stops

flowing from the door spout, raise the draw handle and

press the WASH key cancelling the WASH mode.

Repeat this procedure until the rinse water being

drawn from the freezing cylinder is clear.

Cleaning

Step 1

Prepare an approved 100 PPM cleaning solution

(examples: 2- 1/2 gal. [9.5 liters] of Kay- 5Ror 2

gal. [7.6 liters] of Stera- SheenR). USE WARM

WATER AND FOLLOW THE MANUFACTURER’S

SPECIFICATIONS.

Step 2

Push down the prime plug. Pour the cleaning solution

into the mix hopper.

Step 3

While the solution is flowing into the freezing cylinder,

brush clean the mix hopper, mix level sensing probes

and the mix inlet hole.

Step 4

Press the WASH key. This will cause the cleaning

solution in the freezing cylinder to be agitated.

Step 5

Place an empty pail beneath the door spout and raise

the prime plug.

Step 6

When a steady stream of cleaning solution is flowing

from the prime plug opening in the bottom of the

freezer door, lower the draw handle. Draw off all of the

solution.

Step 7

Once the cleaning solution stops flowing from the door

spout, raise the draw handle and press the WASH key,

cancelling the WASH mode.

22 Model C707Operating Procedures

110915

Disassembly

Step 1

Be sure the power switch is in the OFF position.

Make sure no lights are lit on the control panel.

Step 2

Remove the handscrews, freezer door, beater, beater,

scraper blades, and drive shaft from the freezing

cylinder. Take these parts to the sink for cleaning.

Step 3

Remove the feed tube, the front drip tray and the

splash shield.

Brush Cleaning

Make sure all brushes provided with the freezer are

available for brush cleaning.

Step 1

Prepare a sink with an approved cleaning solution

(examples: Kay- 5Ror Stera- SheenR). USE WARM

WATER AND FOLLOW THE MANUFACTURER’S

SPECIFICATIONS. If another approved cleaner is

used, dilute according to label instructions.

IMPORTANT: Follow label directions, as too

STRONG of a solution can cause parts damage, while

too MILD of a solution will not provide adequate

cleaning. Make sure all brushes provided with the

freezer are available for brush cleaning.

Step 2

Remove the seal from the drive shaft.

Step 3

From the freezer door remove the gasket, front

bearing, pivot pin, adjustable draw handle, draw valve,

and prime plug. Remove all o- rings.

Note: To remove the o- rings, use a single service

towel to grasp the o- ring. Apply pressure in an upward

direction until the o- ring pops out of its groove. With

the other hand, push the top of the o- ring forward and

it will roll out of the groove and can be easily removed.

If there is more than one o- ring to be removed, always

remove the rear o- ring first. This will allow the o- ring

to slide over the forward rings without falling into the

open grooves.

Step 4

Return to the freezer with a small amount of cleaning

solution. With the black bristle brush, brush clean the

rear shell bearing at the back of the freezing cylinder.

Brush clean the drive hub opening in the rear wall of the

mix hopper.

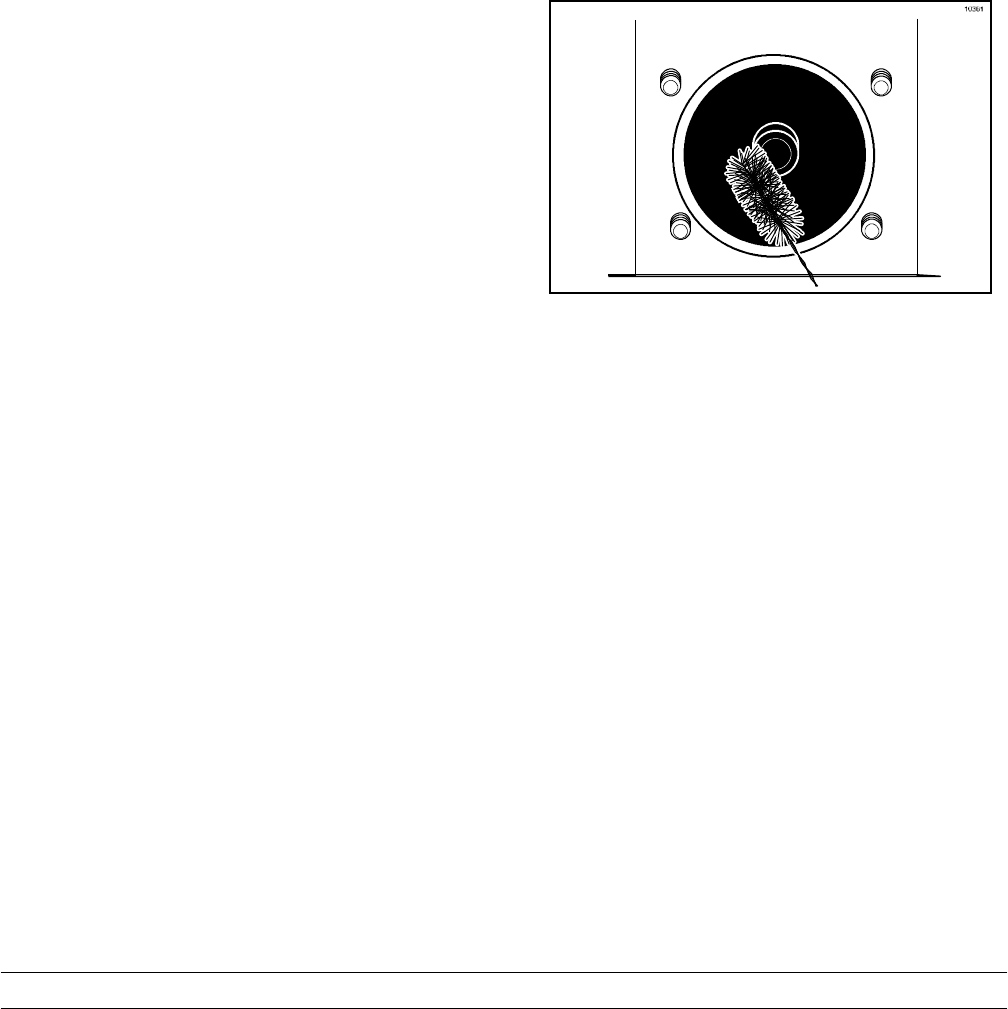

Figure 35

Step 5

Remove the rear drip pan from the side panel and take

it to the sink for cleaning.

Note: If the drip pan is filled with an excessive amount

of mix, refer to the Troubleshooting Guide.

Step 6

Thoroughly brush clean all disassembled parts in the

cleaning solution, making sure all lubricant and mix film

is removed. Take particular care to brush clean the

hole for the draw valve in the freezer door. Place all

cleaned parts on a clean, dry surface to air dry

overnight.

Step 7

Wipe clean all exterior surfaces of the freezer.

23

Model C707 Important: Operator Checklist

080401

Section 7 Important: Operator Checklist

During Cleaning and Sanitizing

ALWAYS FOLLOW LOCAL HEALTH CODES.

Cleaning and sanitizing schedules are governed

by federal, state, or local regulatory agencies,

and must be followed accordingly. If the unit

has a “Standby mode”, it must not be used in

lieu of proper cleaning and sanitizing

procedures and frequencies set forth by the

ruling health authority. The following check

points should be stressed during the cleaning

and sanitizing operations.

CLEANING AND SANITIZING MUST BE

PERFORMED DAILY.

Troubleshooting Bacterial Count

j1. Thoroughly clean and sanitize machine

regularly, including complete disassembly and

brush cleaning.

j2. Use all brushes supplied for thorough cleaning.

The brushes are specially designed to reach all

mix passageways.

j3. Use the white bristle brush to clean the mix inlet

hole which extends from the mix hopper down

to the rear of the freezing cylinder.

j4. Use the black bristle brush to thoroughly clean

the rear shell bearing located at the rear of the

freezing cylinder. Be sure to have a generous

amount of cleaning solution on the brush.

j5. IF LOCAL HEALTH CODES PERMIT THE

USE OF RERUN, make sure the mix rerun is

stored in a sanitized, covered stainless steel

container and used the following day. DO NOT

prime the machine with rerun. When using

rerun, skim off the foam and discard. Mix the

rerun with fresh mix in a ratio of 50/50 during the

days operation.

j6. On a designated day of the week, run the mix as

low as feasible and discard it after closing. This

will break the rerun cycle and reduce the

possibility of high bacteria and coliform counts.

j7. Properly prepare the cleaning and sanitizing

solutions. Read and follow label directions

carefully. Too strong of a solution may damage

the parts and too weak of a solution will not do

an adequate job of cleaning or sanitizing.

j8. The temperature of the mix in the mix hopper

and walk- in cooler should be below 40_F

(4.4_C).

Regular Maintenance Checks

j1. Replace scraper blades that are nicked or

damaged. Before installing the beater

assembly, be certain that scraper blades are

properly attached to the helix.

j2. Check the rear shell bearing for signs of wear

(excessive mix leakage in rear drip pan) and be

certain it is properly cleaned.

j3. Using a screwdriver and cloth towel, keep the

rear shell bearing and the female hex drive

socket clean and free of lubricant and mix

deposits.

j4. Dispose of o- rings and seals if they are worn,

torn, or fit too loosely, and replace with new

ones.

j5. Follow all lubricating procedures as outlined in

“Assembly”.

24 Model C707Important: Operator Checklist

080401

j6. If your machine is air cooled, check the

condensers for accumulation of dirt and lint.

Dirty condensers will reduce the efficiency and

capacity of the machine. Condensers should be

cleaned monthly with a soft brush. Never use

screwdrivers or other metal probes to clean

between the fins.

Note: For machines equipped with an air filter,

it will be necessary to vacuum clean the filters

on a monthly schedule.

Caution: Always disconnect

electrical power prior to cleaning the

condenser. Failure to follow this instruction may

result in electrocution.

j7. If your machine is equipped with an auxiliary

refrigeration system, check the auxiliary

condenser for accumulation of dirt and lint. Dirty

condensers will reduce the refrigeration

capacity of the mix hopper. Condensers must

be cleaned monthly with a soft brush. Never

use screwdrivers or other metal probes to clean

between the fins.

Caution: Always disconnect

electrical power prior to cleaning the

condenser. Failure to follow this instruction

may result in electrocution.

j8. If your machine is water cooled, check the water

lines for kinks or leaks. Kinks can occur when

the machine is moved back and forth for

cleaning or maintenance purposes.

Deteriorated or cracked water lines should be

replaced only by an authorized Taylor

distributor.

Winter Storage

If the place of business is to be closed during the winter

months, it is important to protect the freezer by

following certain precautions, particularly if the

building is subject to freezing conditions.

Disconnect the freezer from the main power source to

prevent possible electrical damage.

On water cooled freezers, disconnect the water

supply. Relieve pressure on the spring in the water

valve. Use air pressure on the outlet side to blow out

any water remaining in the condenser. This is

extremely important. Failure to follow this procedure

may cause severe and costly damage to the

refrigeration system.

Your local Taylor Distributor can perform this winter

storage service for you.

Wrap detachable parts of the freezer such as beater,

blades, drive shaft, and freezer door, and place them

in a protected dry place. Rubber trim parts and gaskets

can be protected by wrapping them with

moisture- proof paper. All parts should be thoroughly

cleaned of dried mix or lubrication which attract mice

and other vermin.

25

Model C707 Troubleshooting Guide

Section 8 Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

1. No product is being

dispensed with draw valve

open and the machine in

the AUTO mode.

a. Freeze- up in mix inlet

hole.

a. Call service technician to

adjust the mix hopper

temperature.

---

b. Beater motor out on reset. b. Reset the freezer. 12

c. The beater is rotating

counterclockwise from the

operator end.

c. Contact service technician

to correct rotation to

clockwise from operator

end.

---

d. The circuit breaker is off

or the fuse is blown.

d. Turn the breaker on, or

replace the fuse.

---

e. There is inadequate mix in

the mix hopper.

e. Fill the mix hopper with

mix.

20

2. The product is too stiff. a. The viscosity needs

adjustment.

a. Contact service

technician.

---

3. The product is too soft. a. Viscosity needs

adjustment.

a. Contact service

technician.

---

b. Not enough air space

around unit. (Air cooled

units)

b. Allow for adequate air flow

across the condenser.

1/ 6

c. Worn scraper blades. c. Replace regularly. 27

d. Dirty condenser (A/C) d. Clean monthly. 24

e. Mix is out of date. e. Use only fresh mix. ---

f. Loss of water. (W/C) f. Locate cause of water

loss and correct.

24

4. The mix in the mix hopper

is too cold.

a. The temperature is out of

adjustment.

a. Call service technician to

adjust the mix hopper

temperature.

---

5. The mix in the mix hopper

is too warm.

a. The temperature is out of

adjustment.

a. Call service technician to

adjust the mix hopper

temperature.

---

b. The mix hopper cover is

not in position.

b. Place the cover in

position.

20

c. The MIX REF light is not

lit.

c. Press the MIX REF key. 11

26 Model C707Troubleshooting Guide

PROBLEM PROBABLE CAUSE REMEDY PAGE

REF.

6. The drive shaft is stuck in

the drive coupling.

a. Rounded corners of drive

shaft, coupling, or both.

a. Call service technician to

correct cause, and to

replace the necessary

components. Do not

lubricate the hex end of

the drive shaft.

---

b. Mix and lubricant collected

in the drive coupling.

b. Brush clean the rear shell

bearing area regularly.

22

7. The freezing cylinder walls

are scored.

a. The beater assembly is

bent.

a. Call service technician to

repair or replace the

beater and to correct the

cause of insufficient mix in

the freezing cylinder.

---

b. The front bearing is

missing or worn on the

freezer door.

b. Install or replace the front

bearing.

15

8. Excessive mix leakage

into the rear drip pan.

a. Missing or worn drive

shaft seal on drive shaft.

a. Install or replace regularly. 14 / 27

b. The rear shell bearing is

worn.

b. Call service technician to

replace rear shell bearing.

---

9. Excessive mix leakage

from door spout.

a. Missing or worn draw

valve o- rings.

a. Install or replace regularly. 16 / 27

b. Inadequate lubrication of

draw valve o- rings.

b. Lubricate properly. 16

c. Wrong type of lubricant is

being used (example:

petroleum base lubricant).

c. Use the proper lubricant

(example: Taylor Lube).

14

10. No freezer operation after

pressing the AUTO key.

a. Unit is unplugged. a. Plug into wall receptacle. ---

b. The circuit breaker is off

or the fuse is blown.

b. Turn the breaker on, or

replace the fuse.

---

c. The beater motor is out on

reset.

c. Reset the freezer. 12

11. Product is not feeding into

the freezing cylinder.

a. Inadequate level of mix in

the mix hopper.

a. Fill the mix hopper with

mix.

20

b. The mix inlet hole is

frozen up.

b. The mix hopper

temperature needs

adjustment. Call service

technician.

---

27

Model C707 Parts Replacement Schedule

110915

Section 9 Parts Replacement Schedule

PART DESCRIPTION EVERY

3MONTHS

EVERY

6MONTHS

ANNUALLY

Drive Shaft Seal X

Scraper Blade X

Freezer Door Gasket X

Front Bearing X

Draw Valve O- Ring X

Prime Plug O- Ring X

Feed Tube O- Ring X

Air Orifice O- Ring X

White Bristle Brush, 3” x 7” Inspect & Replace

if Necessary

Minimum

White Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Minimum

Black Bristle Brush, 1” x 2” Inspect & Replace

if Necessary

Minimum

Double- Ended Brush Inspect & Replace

if Necessary

Minimum

White Bristle Brush, 1/2” x 1/2” Inspect & Replace

if Necessary

Minimum

White Bristle Brush, 3/16” x 1” Inspect & Replace

if Necessary

Minimum

White Bristle Brush, 3” x 1/2” Inspect & Replace

if Necessary

Minimum

28 Model C707Limited Warranty on Equipment

131122

Section 10 Limited Warranty on Equipment

TAYLOR COMPANY LIMITED WARRANTY ON FREEZERS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited

warranty on new Taylor-branded freezer equipment available from Taylor to the market generally (the “Product”)

to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Product against failure due to defect in materials or workmanship under normal use and

service as follows. All warranty periods begin on the date of original Product installation. If a part fails due to

defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service agency,

will provide a new or re- manufactured part, at Taylor’s option, to replace the failed defective part at no charge for

the part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited warranty for

a Product failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions listed

below and on the reverse (if any) of this document.

Product Part Limited Warranty Period

Soft Serve

Frozen Yogurt

Shakes

Smoothies

Frozen Beverage

Batch Desserts

Insulated shell assembly Five (5) years

Refrigeration compressor

(except service valve)

Five (5) years

Beater motors Two (2) years

Beater drive gear Two (2) years

Printed circuit boards and

Softech controls beginning

with serial number H8024200

Two (2) years

Parts not otherwise listed in

this table or excluded below

One (1) year

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Product cannot be verified, then the limited warranty period begins

ninety (90) days from the date of Product manufacture (as indicated by the Product serial number). Proof of

purchase may be required at time of service.

2. This limited warranty is valid only if the Product is installed and all required service work on the Product is

performed by an authorized Taylor distributor or service agency, and only if genuine, new Taylor parts are

used.

3. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in

the Taylor Operator’s Manual.

4. Defective parts must be returned to the authorized Taylor distributor or service agency for credit.

5. The use of any refrigerant other than that specified on the Product’s data label will void this limited warranty.

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not cover:

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of

defective parts, replacement parts, or new Products.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning

of condensers.

29

Model C707 Limited Warranty on Equipment

3. Replacement of wear items designated as Class “000” parts in the Taylor Operator’s Manual.

4. External hoses, electrical power supplies, and machine grounding.

5. Parts not supplied or designated by Taylor, or damages resulting from their use.

6. Return trips or waiting time required because a service technician is prevented from beginning warranty

service work promptly upon arrival.

7. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,

unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including

but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning

supplies.

8. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake

or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,

accident or condition beyond the reasonable control of Taylor; operation above or below the electrical or

water supply specification of the Product; or components repaired or altered in any way so as, in the

judgment of the Manufacturer, to adversely affect performance, or normal wear or deterioration.

9. Any Product purchased over the Internet.

10. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the

inadequacy or interruption of electrical service.

11. Electricity or fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

12. Damages resulting from the use of any refrigerant other than that specified on the Product’s data label will

void this limited warranty.

13. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

14. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY

NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential

damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from

jurisdiction to jurisdiction.

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS

AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER’S SOLE

REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE

COMPONENTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL

OR INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,

PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS

WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED

BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or

complaint with the Product, stating the defect or complaint and a specific request for repair, replacement, or other

correction of the Product under warranty, mailed at least thirty (30) days before pursuing any legal rights or

remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, U.S.A.

30 Model C707Limited Warranty on Parts

131122

Section 11 Limited Warranty on Parts

TAYLOR COMPANY LIMITED WARRANTY ON TAYLOR GENUINE PARTS

Taylor Company, a division of Carrier Commercial Refrigeration, Inc. (“Taylor”) is pleased to provide this limited

warranty on new Taylor genuine replacement components and parts available from Taylor to the market generally

(the “Parts”) to the original purchaser only.

LIMITED WARRANTY

Taylor warrants the Parts against failure due to defect in materials or workmanship under normal use and service

as follows. All warranty periods begin on the date of original installation of the Part in the Taylor unit. If a Part fails

due to defect during the applicable warranty period, Taylor, through an authorized Taylor distributor or service

agency, will provide a new or re- manufactured Part, at Taylor’s option, to replace the failed defective Part at no

charge for the Part. Except as otherwise stated herein, these are Taylor’s exclusive obligations under this limited

warranty for a Part failure. This limited warranty is subject to all provisions, conditions, limitations and exclusions

listed below and on the reverse (if any) of this document.

Part’s Warranty Class Code or Part Limited Warranty Period

Class 103 Parts¹Three (3) months

Class 212 Parts²Twelve (12) months

Class 512 Parts Twelve (12) months

Class 000 Parts No warranty

Taylor Part #072454 (Motor- 24VDC *C832/C842*) Four (4) years

LIMITED WARRANTY CONDITIONS

1. If the date of original installation of the Part cannot be otherwise verified, proof of purchase may be required

at time of service.

2. This limited warranty is valid only if the Part is installed and all required service work in connection with the

Part is performed by an authorized Taylor distributor or service agency.

3. The limited warranty applies only to Parts remaining in use by their original owner at their original installation

location in the unit of original installation.

4. Installation, use, care, and maintenance must be normal and in accordance with all instructions contained in

the Taylor Operator’s Manual.

5. Defective Parts must be returned to the authorized Taylor distributor or service agency for credit.

6. This warranty is not intended to shorten the length of any warranty coverage provided pursuant to a separate

Taylor Limited Warranty on freezer or grill equipment.

7. The use of any refrigerant other than that specified for the unit in which the Part is installed will void this

limited warranty.

1, 2 Except that Taylor Part #032129SER2 (Compressor-Air-230V SERV) and Taylor Part #075506SER1

(Compressor-Air-115V 60HZ) shall have a limited warranty period of twelve (12) months when used in Taylor

freezer equipment and a limited warranty period of two (2) years when used in Taylor grill equipment.

31

Model C707 Limited Warranty on Parts

LIMITED WARRANTY EXCEPTIONS

This limited warranty does not cover:

1. Labor or other costs incurred for diagnosing, repairing, removing, installing, shipping, servicing or handling of

defective Parts, replacement Parts, or new Parts.

2. Normal maintenance, cleaning and lubrication as outlined in the Taylor Operator’s Manual, including cleaning

of condensers or carbon and grease buildup.

3. Required service, whether cleaning or general repairs, to return the cooking surface assemblies, including

the upper platen and lower plate, to an operational condition to achieve proper cooking or allow proper

assembly of release sheets and clips as a result of grease build-up on the cooking surfaces, including but

not limited to the platen and plate, sides of the shroud or top of the shroud.

4. Replacement of cooking surfaces, including the upper platen and lower plate, due to pitting or corrosion (or

in the case of the upper platen, due to loss of plating) as a result of damage due to the impact of spatulas or

other small wares used during the cooking process or as a result of the use of cleaners, cleaning materials

or cleaning processes not approved for use by Taylor.

5. Replacement of wear items designated as Class “000” Parts in the Taylor Operator’s Manual, as well as any

release sheets and clips for the Product’s upper platen assembly.

6. External hoses, electrical power supplies, and machine grounding.

7. Parts not supplied or designated by Taylor, or damages resulting from their use.

8. Return trips or waiting time required because a service technician is prevented from beginning warranty

service work promptly upon arrival.

9. Failure, damage or repairs due to faulty installation, misapplication, abuse, no or improper servicing,

unauthorized alteration or improper operation or use as indicated in the Taylor Operator’s Manual, including

but not limited to the failure to use proper assembly and cleaning techniques, tools, or approved cleaning

supplies.

10. Failure, damage or repairs due to theft, vandalism, wind, rain, flood, high water, water, lightning, earthquake

or any other natural disaster, fire, corrosive environments, insect or rodent infestation, or other casualty,

accident or condition beyond the reasonable control of Taylor; operation above or below the gas, electrical or

water supply specification of the unit in which a part is installed; or Parts or the units in which they are

installed repaired or altered in any way so as, in the judgment of Taylor, to adversely affect performance, or

normal wear or deterioration.

11. Any Part purchased over the Internet.

12. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or damages due to the

inadequacy or interruption of electrical service.

13. Electricity, gas or other fuel costs, or increases in electricity or fuel costs from any reason whatsoever.

14. Damages resulting from the use of any refrigerant other than that specified for the unit in which the Part is

installed will void this limited warranty.

15. Any cost to replace, refill or dispose of refrigerant, including the cost of refrigerant.

16. ANY SPECIAL, INDIRECT OR CONSEQUENTIAL PROPERTY OR COMMERCIAL DAMAGE OF ANY

NATURE WHATSOEVER. Some jurisdictions do not allow the exclusion of incidental or consequential

damages, so this limitation may not apply to you.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from

jurisdiction to jurisdiction.

32 Model C707Limited Warranty on Parts

LIMITATION OF WARRANTY

THIS LIMITED WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS

AND/OR REMEDIES UNDER THE LAW, INCLUDING ANY IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THE ORIGINAL OWNER’S SOLE

REMEDY WITH RESPECT TO ANY PRODUCTS SHALL BE REPAIR OR REPLACEMENT OF DEFECTIVE

PARTS UNDER THE TERMS OF THIS LIMITED WARRANTY. ALL RIGHTS TO CONSEQUENTIAL OR

INCIDENTAL DAMAGES (INCLUDING CLAIMS FOR LOST SALES, LOST PROFITS, PRODUCT LOSS,

PROPERTY DAMAGES OR SERVICE EXPENSES) ARE EXPRESSLY EXCLUDED. THE EXPRESS

WARRANTIES MADE IN THIS LIMITED WARRANTY MAY NOT BE ALTERED, ENLARGED, OR CHANGED

BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHATSOEVER.

LEGAL REMEDIES

The owner must notify Taylor in writing, by certified or registered letter to the following address, of any defect or

complaint with the Part, stating the defect or complaint and a specific request for repair, replacement, or other

correction of the Part under warranty, mailed at least thirty (30) days before pursuing any legal rights or remedies.

Taylor Company

a division of Carrier Commercial Refrigeration, Inc.

750 N. Blackhawk Blvd.

Rockton, IL 61072, U.S.A.

Section 12 Parts List

33

+ Available Separately

Model C707 Parts List

140630

DESCRIPTION PART

NUMBER

C707

QTY.

WARR.

CLASS

REMARKS

ACCUMULATOR- COPPER 2”DIA 10” 047062 1103 RECEIVER REFRIGERANT

BEARING- FRONT 050216 1000

BEARING- REAR SHELL *NICK.PLATE 031324 1000

+GUIDE- DRIP SEAL 028992 1000

+NUT- BRASS BEARING 028991 1000

+O- RING- 1/2OD X .070W 024278 2000

+WASHER- BEARING LOCK 012864 1000

BEATER A.- 3.4QT- HELICORE X31761 1103

+BLADE- SCRAPER- PLASTIC 17L 035174 2000

BELT- AX41 023876 2000 208- 230V 60HZ 1PH - 208- 230V 60HZ 3PH

BLOCK- TERMINAL 2P- L1,L2 039422 1103 208- 230V 60HZ 1PH

BLOCK- TERMINAL 3P- L1,L2,L3 039423 1103 208- 230V 60HZ 3PH

BOARD- LOGIC- GEN 2.11 SD/CHM/DF X69571SER2 1212 S/N M3125282 & UP - REPLACES X69570SER2 &

X36641SER2 U/D 233

+SWITCH- MEMBRANE- 5 POSITION 043217 1000

BOARD- POWER- GEN 1 & 2 X69574- SER 1212 REPLACES X32326- SER - M2044528

FUSE- .063A- 250V- 5X20MM- SLO BLO 051272 1000

BRUSH- REAR BRG 1IN.DX2IN.LGX14 013071 1000

BRUSH- DOUBLE ENDED- PUMP&FEED T 013072 1000

BRUSH- DRAW VALVE 1”ODX2”X17”L 013073 1000

BRUSH- END- DOOR- SPOUT- SS- HT 039719 1000

BRUSH- MIX PUMP BODY- 3”X7”WHITE 023316 1000

BRUSH- SET LVB 050103 1000

BRUSH- PUMP SPOUT *MC13* 054068 1000

CABLE- RIBBON- PWR/RELAY 069558- 60 1103 REPLACES 056295

COMPRESSOR L64A113BBCA 048259- 27E 1512 208- 230V 60HZ 1PH - BRISTOL K7026650 & UP - REPLACES

047519- 27F

+CAPACITOR- START 189- 227UF/330V 033044- 1 1103

+CAPACITOR- RUN 25UF/440V 037431 1103

+RELAY- START- COMPRESSOR 062363 1103

+GROMMET- COMPRESSOR MOUNT- AH 039923 4000

+SLEEVE- MOUNTING- COMP.- AH 039924 4000

+ Available Separately

34

Parts List Model C707

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

COMPRESSOR AHA2490ZXD- AH556EF 047519- 27F 1512 N/A USE 048259- 27E - 208- 230V 60HZ 1PH - TECUMSEH

K7015617 & PRIOR

+CAPACITOR- RUN- 35UF/440V 048132 1103

+CAPACITOR- START- 130- 156UF/330V 036048 1103

+RELAY- START- COMPRESSOR 036047 1103

COMPRESSOR L63A113DBLA 048259- 33 1512 208- 230V 60HZ 3PH S/N K7026650 - BRISTOL REPLACES

047519- 33F

COMPRESSOR AHA2490ZXF- AH556RF 047519- 33F 1512 N/A USE 048259- 33 - 208- 230V 60HZ 3PH S/N K7015617 &

PRIOR - TECUMSEH

COMPRESSOR PL35G 055187- 27 1512 SHR

+RELAY- START- COMPRESSOR 055358 1103

+CAPACITOR- START 60UF- 220/275 047703 1103

CONDENSER- AC- 15LX14HX2.59T- 3RW 046558 1103 MAIN REFRIGERATION

CONDENSER- AC- 7X6X1.25- 2 ROW 027155 1103 SHR

COUPLING- DRIVE 3/4 HEX X 1- 7/8 012721 1103

COVER- HOPPER COMPLETE (Black) 1103 SEE KIT X65368- SP KIT A.- COVER- GIOOER*SINGL -

K2010000/up using Black Cover U/D 167

+PIN- RETAINING- HOPPER COVER 043934 4103 U/D 167

DECAL- DEC- TAYLOR C707 057312 1000

DECAL- INST- CLN HPR 019029 1000

DECAL- TROUBLESHOOT 038374 1000

DIAGRAM- WIRING *C706*C707* 064288- 27 1000 208- 230V 60HZ 1PH S/N K7026650 & UP - BRISTOL -

REPLACED 056352- 27

DIAGRAM- WIRING *C706*C707* 064288- 33 1000 208- 230V 60HZ 3PH S/N K7026650 & UP - BRISTOL -

REPLACED 056352- 33

DIAGRAM- WIRING *C706*C707* 056352- 27 1000 N/A SEE 064288- 27 - 208- 230V 60HZ 1PH S/N K7015617 &

PRIOR - TECUMSEH

DIAGRAM- WIRING *C706*C707* 056352- 33 1000 N/A SEE 056352- 33 - 208- 230V 60HZ 3PH S/N K7015617 &

PRIOR - TESUMSEH

DOOR A.- W/BAFFLE *C706* X56071- SER 1103

+HANDLE A.- DRAW- WELDED *C706* X56246 1103

+SCREW- ADJUSTMENT- 5/16- 24 *602* 056332 1103

+O- RING- 1/4 OD X .070W 50 DURO 015872 1000

+GASKET- DOOR HT 4” 048926 1000

+PIN- HANDLE- SS *C602* 055819 1103

35

+ Available Separately

Model C707 Parts List

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

+PLUG- PRIME 028805 1103

+O- RING- 3/8 OD X .070W 016137 2000

+VALVE A.- DRAW *C706* X56072 1103

+O- RING- 7/8 OD X .103W 014402 3000

DRYER- CAP. TUBE .021 ID X 9FT 055522 1000

DRYER- FILTER- HP62- 3/8 X 1/4S 048901 1000

GASKET- BASE PAN *C706* 056058 1000

GEAR A.*REDUCER 4.21:1 021286- SER 1212

GUARD- FAN 028534- 1 1103 SHR

GUIDEA.-DRIPPAN X28863 1103 REAR SHELL BEARING - LONG

HARNESS- WIRE *C706*BEATER MTR 056328- 27G 1103 208- 230V 60HZ 1PH

HARNESS- WIRE *C706*BEATER MTR 056328- 33G 1103 208- 230V 60HZ 3PH

JACK A.- FLAVORBURST *C706* X56353 1103

KIT A.- COVER- HOPPER*SINGLE*BLK X65368- SP 1103

KIT A.- MOTOR- FAN X62253- 27 1103 AUX - FAN MOTOR KIT

+GUARD- FAN 028534- 1 1103 SHR

+SHROUD- DANFOSS 027386 1103 SHR

KIT A.- PROBE- THERMISTOR IP68 X82397- SER 2103 REPLACES ALL THERMISTOR PROBES S/N C706 M4065407

C707 M4053851 & UP

KIT A.- TUNE UP *1SPOUT* X49463- 58 1000

BEARING- FRONT 050216 1000

GASKET- DOOR HT 4”- DOUBLE 048926 1000

O- RING- 1/4 OD X .070W 50 DURO 015872 1000

O- RING- 3/8 OD X .070W 016137 2000

O- RING- 7/8 OD X .103W 014402 3000

SEAL- DRIVE SHAFT 032560 1000

TOOL- O- RING REMOVAL- FREEZER 048260- WHT 1000

KIT- MOUNTING- COMPRESSOR 047704 1000

LABEL- CAUTION- GRD- PERM- ENG/SP 032164 1000

LABEL- DOOR- MOVE PART 032749 1000

LABEL- SW- POWER- OFF/ON- SYMBOLS 052632 1000

LABEL- WARN- COVER 051433 4000 OUTSIDE PANELS

LABEL- 3PH MTR PROT/1PH C- 025949 1000 208- 230V 60HZ 3PH

+ Available Separately

36

Parts List Model C707

140717

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

LUBRICANT- TAYLOR 4 OZ. 047518 1000

LUG- GROUNDING 4- 14GA WIRE 017667 1000 ADDED 4/9/2014

MAN- OPER C707 059060- M 1000

MOTOR- 1.5 HP 021522- 27 1212 208- 230V 60HZ 1PH

MOTOR- 1.5 HP 021522- 33 1212 208- 230V 60HZ 3PH

MOTOR A.- FAN 92 WATT 1630 RP 064003- 27 1103 S/N K7026650 & UP - BRISTOL - MAIN CONDENSER

+BOOT- CAPACITOR- INSUL 1.75” D 062452 1000

+CAPACITOR- RUN 2UF 450 VAC 064004 1103

MOTOR- FAN 80 WATT 1550 RPM CW 051744- 27 1103 208- 230V 60HZ 1PH - S/N K7015617 & PRIOR - TECUMSEH

+BOOT- CAPACITOR INSULATING 031314 1000

+FAN- 5 BLADE 12”PUSH 32DEG CCW 047279 1103

+CAPACITOR- RUN- 4UF- 440V 051785 1103

MOTOR- FAN 95.3 CFM 2700 RPM *USE X62253- 27 KIT - AUX SYSTEM

NUT- STUD- BLACK 2.563 LONG 058764 2103 K3060000/up

NUT- STUD- BLACK 3.250 LONG 058765 2103 K3060000/up

ORIFICE 022465- 100 1103

+O- RING- 3/8 OD X .070W 016137 1000

PAIL - 10 QT. 013163 1000

PAN- DRIP 11- 5/8 LONG 027503 1103 SIDE PANEL

PANEL A.- FRONT- UPPER *C706* X58950 1103

PANEL- FRONT- LOWER *C706* 058942 1103

PANEL A.- SIDE- RIGHTC706/C707AC X64151 1103 STANDARD

PANEL A.- SIDE- RIGHT *C706*TAD X81369- SER 1OPTIONAL TOP AIR DISCHARGE- S/N M2091803 & UP -

INCREASED DEPTH FROM X65441- SER INTERCHANGABLE

PANEL A.- SIDE- RIGHT *C706*TAD X65441- SER 1103 OPTIONAL TOP AIR DISCHARGE

PANEL- SIDE- LEFT 066722- SP3 1103 S/N K9051354 & UP

PANEL- REAR *C707* 056077- SP1 1103

PANEL A.- SIDE- RIGHT *C706* X65441- SER *103 TOP AIR DISCHARGE- HI CAP

PLUG- DRIP PAN HOLE 029595 1103

PROBEA.-MIX*SQUARE* X30922 1103 MIX LOW

+DISC- PROBE *SQ HOLE* 030965 1103

+SPACER- PROBE *SQ HOLE* 030966 1103

PROBEA.-MIXOUT-SQUAREHOLE X41348 1103 MIX OUT

37

+ Available Separately

Model C707 Parts List

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

+SPACER- PROBE- ROUND HOLE- 5/8DIA 041347 1103

+SPACER- PROBE- SQUARE HOLE- 7/8 041346 1103

KIT A.- PROBE- THERMISTOR IP68 X82397- SER 2103 REPLACES X31602

PROBE A.- THERMISTOR X31602 1103 N/A USE X82397- SER KIT A.- PROBE- THERMISTOR IP68 -

BARREL

PROBE A.- THERMISTOR/RESISTOR X50717 1103 HOPPER

PULLEY- 2AK22 X .625- .6265 016403 1103 208- 230V 60HZ 1PH - 60HZ BEATER MOTOR

PULLEY- 2AK74- 5/8 027822 1103 GEAR

RECEPTACLE A.- QUICK CONNECT X33321 1103 DRAW SWITCH

RELAY- 3 POLE- 20A- 208/240 50/60 066795- 33 1103 REPLACES 012725- 33

SANITIZER- STERA SHEEN - GREEN 055492 1000 100/2OZ. PACKETS/CS

SHAFT- BEATER *C706* 056078 1103

+SEAL- DRIVE SHAFT 032560 1000

SHELF- TRAY- DRIP *C706* 056076 1103

SHELL A.- INSULATED *C707* X64133- SER 1512

+STUD- NOSE CONE *C602* 055987 4103

SHIELD- SPLASH *RD30* 049203 1103

SHROUD- DANFOSS 027386 1103 SHR

SHROUD A.- COND. *C706/C707*AC* X64127 1103 REPLACES 056050 1/25/2013 MAIN CONDENSER

STARTER- 1 PHASE 6.3 TO 10 AMP 066794- 27K 1103 208- 230 V 60HZ 1PH - REPLACES 041950- 27K

STARTER- 3 PHASE 4 TO 6.5 AMP 066794- 33J 1103 208- 230V 60HZ 3PH - REPLACES 041950- 33J

SWITCH A.- DRAW *C706* X56147 1103

ARM A.- DRAW *C706* X56253 1103

E- RING 3/16 .335 O.D. 049178 1000

PIN- PIVOT 015478 1103

SPRING- RETURN- LEFT- SELF CLOSE 041660 1103

SPRING- RETURN- RIGHT- SELF CLOSE 041661 1103

SWITCH- LEVER- SPDT- 10A- 125- 250V 028889 2103

SWITCH- PRESSURE 440 PSI- SOLDER 048230 1103 S/N K7026650 & UP - BRISTOL

SWITCH- PRESSURE 405 PSI- SOLDER 052663 1103 S/N K7015187 & PRIOR - TECUMSEH

SWITCH- REED*DOOR INTERLOCK*68” 056771 1103

SWITCH- TOGGLE- DPDT*VDE APPROVD 054809 1103 S/N M0043973 & UP

SWITCH- TOGGLE- DPDT*ON- NONE- ON 024295 1103

+ Available Separately

38

Parts List Model C707

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

THERMOMETER- DIGITAL *C706* 056239 1103

TOOL- O- RING REMOVAL- FREEZER 048260- WHT 1000

TRAY- DRIP- SOFT SERVE *C706* 056858 1103

TRIM- CORNER- REAR- LEFT *C706* 056964 1103

TRIM- CORNER- REAR- RIGHT *C706* 056965 1103

TUBE A.- FEED- SS- 5/32 HOLE DIA X29429- 2 1103

+O- RING- .643 OD X .077W 018572 4000

VALVE- ACCESS 1/4FL X 1/4SOLDER 044404 1103

VALVE- ACCESS- 1/4 MFLX1/4 S- 90 047016 1103 SHR

VALVE- ACCESS- 1/4MFL X 3/8ODSDR 053565 2103 TECUMSEH K7015187 & PRIOR

VALVE- EPR 1/4S 022665 1103

VALVE- EXP- AUTO- 1/4S X1/4 FPT 046365 1103

+BOOT- EXPANSION VALVE 050900 1000

WASHER- PLASTIC PIVOT 013808 4000

WATER COOLED

CONDENSER- WC- SPIRAL 11- 1/2 O 049309 1103

COUPLING- 3/8 NPT BLACK PIPE 010878 1103

CLAMP- HOSE- ADJ 7/16 X 25/32 010031 4000

MOTOR A.- FAN *C706* WC X56435SER1 1103

MOTOR- FAN- 25W 230V 015184- 27 1103

BRACKET- FAN *453/750* 038641 1103

+FAN- 5 BLADE 10 ” PUSH 013043 1103

PANEL- REAR *C707/9* WC 056077- SP4 1103

PANEL- SIDE- RIGHT *C706/C707* 064148 1103

VALVE A.- WATER *C706/C707*WC X64146 1103

ADAPTOR- 3/8MP X 1/2 BARB- BR 011021 2103

BRACKET A.- FITTING*C706/C707 X64145 1103

CLAMP- HOSE- ADJ 7/16 X 25/32 010031 2103

HOSE- RUBBER 1/2”ID X 7/8”OD 020901- 21 1000 R50200 HOSE- RUBBER 1/2 ID X 7/8 OD

HOSE- RUBBER 1/2”ID X 7/8”OD 020901- 22 1000

NIPPLE- 3/8 X 3- 1/2 GALV 016768 1103

SWITCH- PRESSURE 350 PSI- S 048231 1103

39

+ Available Separately

Model C707 Parts List

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

VALVE- WATER 3/8 REG/HEAD PRESS 046686 1103

50HZ - C70639TFAD/C70639TFAD - 200V 50/60 3,C70640FW00 - 220- 240 50 1, C70658FW00 - 380- 415 50 3, C70763F000 - 460V 60HZ 3PH

BELT- AX42 023877 2000 200V 50/60HZ 3PH - 220- 240V 50HZ 1PH - 220/380V 60HZ

3PH- 4 WIRE - 380- 415V 50HZ 3N~ 460V 60HZ 3PH

BLOCK- TERMINAL 2P L1,N 039421 1103 220- 240V 50HZ 1PH

BLOCK- TERMINAL 4 POLE GREEN 080967 1103 200V 50/60HZ 3PH - 220- 240V 50HZ 1PH - 380- 415V 50HZ

3N~ REPLACES 024156

BLOCK- TERMINAL 3 POLE GREEN 080968 1103 200V 50/60HZ 3PH - 220- 240V 50HZ 1PH - 380- 415V 50HZ

3N~ REPLACES 024156

PLATE- END TERMINAL BLOCK 080969 2103 200V 50/60HZ 3PH - 220- 240V 50HZ 1PH - 380- 415V 50HZ

3N~ REPLACES 024156

BLOCK- TERMINAL 4P L1,L2,L 039424 1103 220/380V 60HZ 3PH- 4 WIRE - 380- 415V 50HZ 3N~

BLOCK- TERMINAL 3P L1,L2,L 039423 1103 200V 50/60HZ 3PH - 460V 60HZ 3PH

BRACKET- RELAY- START- COMP* 069030 1103 220/240V 50HZ 1PH

COMPRESSOR L63A113DBLA 048259- 33 1512 200V 50/60HZ 3PH

COMPRESSOR L63A113BBKA 048259- 40 1512 220- 240V 50HZ 1PH, BRISTOL C706- 40, S/N K8102144 & UP

+CAPACITOR- RUN 25UF/370VAC 023739 1103

+CAPACITOR- START 161- 193UF/25 031790 1103

+RELAY- START- COMPRESSOR 038146 1103

COMPRESSOR FH2511Z 054476- 40 1512 220- 240V 50HZ 1PH - TECUMSEH C706- 40

+CAPACITOR- RUN- 25 UF/440V 037431 1103

+CAPACITOR- START- 145- 175UF/330V 054824 1103

+RELAY- START- COMPRESSOR 054823- 40 1103

COMPRESSOR L63A113DBEA 048259- 58 1512 380- 415V 50HZ 3N~ C706- 58

+VALVE- ACCESS 1/4FLX5/16SDR- 90 053027 103

DIAGRAM- WIRING 064288- 39 1000 200V 50/60HZ 3PH

DIAGRAM- WIRING *C706*C707* 064288- 40 1000 220- 240V 50HZ 1PH

DIAGRAM- WIRING *C706*C707* 064288- 58 1000 380- 415V 50HZ 3N~

DIAGRAM- WIRING *C706*C707* 064288- 60 1000 220/380V 60HZ 3PH- 4 WIRE

DIAGRAM- WIRING *C706*C707* 064288- 63 1000 460V 60HZ 3PH

FUSE- 4 AMP- 600 VOLT 051194 1000 460V 60HZ 3PH

+HOLDER- FUSE 600 VOLT PANEL M 051195 1103 460V 60HZ 3PH

HARNESS- WIRE *C706*BEATER MTR 056328- 33G 1103 200V 50/60 3PH / 220/380V 60HZ 3PH- 4 WIRE / 380- 415V

50HZ 3N~ / 460V 60HZ 3PH

+ Available Separately

40

Parts List Model C707

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

HARNESS- WIRE- SOL- LIQ C706/C707 064155- G 1103 200V 50/60 3PH / 220- 240V 50HZ 1PH / 380- 415V 50HZ 3N~

LABEL- CK MTR ROTATE- CW- EN 020090 1000 380- 415V 50HZ 3N~ / 460V 60HZ 3PH

LABEL- 3PH MTR PROT/1PH C- 025949 1000 380- 415 50HZ 3

MOTOR- 1.5 HP 021522- 33 1212 200V 50/60HZ 3PH / 460V 60HZ 3PH

MOTOR- 1.5 HP CAPS@10&2 O’CLOCK 021522- 34 1212 220- 240V 50HZ 1PH

MOTOR- 1.5 HP 021522- 35 1212 380- 415V 50HZ 3N~

PANEL A.- SIDE- RIGHT *C706* X65441- SER 1103 200V 50/60HZ 3PH

PULLEY- 2AK27 X .625- .6265 011545 1103 220- 240V 50HZ 1PH / 380- 415V 50HZ 3N~

RELAY- SPST- 30 A- 240 V 032607- 27 1103 460V 60HZ 3PH

STARTER- 1 PHASE 6.3 TO 10 AMP 066794- 27K 1103 220- 240V 50HZ 1PH

STARTER- 3 PHASE 2.5 TO 4 AMP 066794- 33H 1103 220/380V 60HZ 3PH- 4 WIRE / 380- 415V 50HZ 3N~ / 460V

60HZ 3PH

STARTER- 3 PHASE 4 TO 6.5 066794- 33J 1103 200V 50/60HZ 3PH

BK SPINNER - TOP AIR DISCHARGE

208- 230V 60HZ 1PH

DECAL- DEC- BURGER KING- C707 057312- BK 1000

PANEL A.- FRONT- UPPER *C706* X58950- SP3 1103

PANEL A.- SIDE- RIGHT *C706* X65441- SER 1103

SPINNER A.- PANEL *C706*SIDE X62383- 27 1103

DISC- SPINNER 013359 1103

SCREW- SPINNER DISC 013360 1000

MOTOR- SPINNER MODEL 22- 230 020101- 27 1103

+KIT A.- REPLACEMENT- BRUSH- MOTOR X66712 103

CFA SPINNER

BOX A.- SPIN’R MTR MT COMPLETE X65686- SP 2103

HARNESS- WIRE *C707* SPINNER 065676- SP 2103

BUSHING- SPLIT .500ID X .625O 072207 2000

COLLAR- HOLDING .730DX.109 SL 019481 5103

COVER- CONTROL BOX *706* 064111- SP1 1103

DIAGRAM- WIRING *C706*C707* 06428833CF 1000 208- 230V 60HZ 3PH - 3 WIRE

PANEL A.- FRONT- UPPER *C706* X58950- SP2 1103

PANEL- SIDE- LEFT *C706* 066722- SP5 1103 REPLACES 056082- SP5

41

+ Available Separately

Model C707 Parts List

DESCRIPTION REMARKSWARR.

CLASS

C707

QTY.

PART

NUMBER

PLATE A.- BACKING- SPINNER BOX X65688 2103

BOX A.- SPIN’R MTR MT COMPLETE X65686- SP2 2103 CFA OPTION

HOPPER AGITATOR C70633F420 -

C70733F420

BLADE A.- AGITATOR X56591 1103

CAPACITOR- MOTOR- AGITATOR 057525 1103

DIAGRAM- WIRING 06428833HA 1000

HOUSING A.- AGITATOR X56586- 03 1103

CAP- AGITATOR HOUSING 080827 1103 REPLACES 056589

MAGNET A.- AGITATOR- INNER 066937 1103

MOTOR- AGITATOR- 24VAC 50/60 H 050535- 03 1103

LABEL- SWITCH- AGIT.OFF/ON- 067719 1000

PANEL A.- FRONT- UPPER X58950- SP4 1103

SHELL A.- INSULATED X67690 1512

SWITCH A.- AGITATOR X67696 1103

TRANS.- 120/208/240V PRI 2 051660 1103

Model C707

064288-27

06/14

Taylor Company

2014 Carrier Commercial Refrigeration, Inc.

c

BLK

FIG. 1

GRA/WHT

GRN/YEL

MIX PUMP MOTOR

RESET SWITCH

13

1

2

5

4

C

S

R

LINE

RELAY RUN

CAP.

START CAP.

COMPRESSOR

TERMINAL

COVER

ABOVE ELECTRICAL DIAGRAM SHOWS WIRING NECESSARY

TO HOOK UP A COMPRESSOR USING A START AND RUN

CAPACITOR (CSR) WITH A RELAY.

MIX REF. SYSTEM

M

COMP.

FAN

BRN

11

13

10

14

START

CAP.

START

RELAY

(DANFOSS MODEL PL35G)

(SEE FIG. 1)

L1

L2

WINDING PROTECTOR

(INTERNAL)

MAIN WINDING START WINDING

START RELAY

(055358)

START CAPACITOR

(047703)

COMPRESSOR WIRING

(MODEL PL35G W/HST)

11

10

13

12

14

1

2

3

4

T8

T1

T7

T4

T5

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

LEESON BEATER MOTOR WIRING

STEPS:

1) DISCONNECT WIRE T7 FROM TERMINAL 3

2) SPLICE BLUE WIRE AS SHOWN

1

2

4

6

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

MAGNETEK BEATER MOTOR WIRING

STEPS:

1) REMOVE BROWN JUMPER FROM BETWEEN TERMINAL #1 TO TERMINAL #5

2) MOVE BLUE INTERNAL (FROM MOTOR MAIN WINDING)

FROM TERMINAL #5 TO TERMINAL #1.

NOTE: FOR CCWLE - BLUE INTERNAL ON #1, YELLOW INTERNAL ON #6

BLUE INTERNAL

3

5

ORANGE INTERNAL

RED INTERNAL

YELLOW INTERNAL

BLACK INTERNAL

BLUE

BLUE

T3 L3

USE T3 AND L3 WHEN

CP CONTACTS ARE NOT AVAILABLE

T3 L3

USE T3 AND L3 WHEN

CP CONTACTS ARE NOT AVAILABLE

NO

NC

DRAW

SWITCH

C0M

PANEL

JACK

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

A

A

NO

DOOR INTERLOCK

SWITCH

C0M

WIRE #11 OF

RIBBON CABLE

BLK BLK

MIX

OUT

MODEL C706

GRN/YEL

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

GE/RBC BEATER MOTOR WIRING

NOTE: FOR CCWLE - BLUE INTERNAL ON #1,YELLOW INTERNAL ON #2

BLUE

T3 L3

USE T3 AND L3 WHEN CP

CONTACTS ARE NOT AVAILABLE

J12 OR PURPLE INTERNAL

T1 OR BLUE INTERNAL

T8 OR RED INTERNAL

J9 OR BLACK INTERNAL A

14

5

T4 OR YELLOW INTERNAL

2

FIG. 3

FIG. 2

SEE FIG. 2

SEE

FIG. 3

GRA/WHT BLK

GRA/WHT WHT

BARREL LIQUID

SOLENOID

GROUND FRAME SECURELY

NOTE:

1. STATIC ELECTRICITY MAY CAUSE DAMAGE

TO SOLID STATE COMPONENTS. ELIMINATE

STATIC ELECTRICITY BY TOUCHING GROUNDED

UNIT BEFORE HANDLING SOLID STATE COM-

PONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE CON-

NECTED TO PIN 1 AT EACH END.

240K

DRAW SWITCH

BLK

BLK BLK/WHT

BTR GND

L2L1

OL

COMP BTR PUMP FAN MIX

M

WHT

BLK

CABINET FAN

(WATER COOLED ONLY)

MIX

LOW MIX

OUT

MIX STANDBY

MAX

MIN

MAX

MIN

MAX

MIN

MFG DATE

MIX LOW MIX OUT

MIX STANDBY WASH AUTO PUMP

DRAW PUMP

SOFTECH CONTROL

TAYLOR CO.

42002

MIX 1 BRL

PROBE

SET POINT

S.S.VISCOSITY

SHAKE TEMP.

FAN MIX 2

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SHK

SWITCH INTERVAL

78TIME

OFF

OFF

ON

ON

OFF

ON

OFF

ON

16

14

11

5

PRP

RED/BLK

BRN BLK

BLK

WHT

BLK

WHT

WHT

A

A

GRN/YEL

POWER / RELAY BOARD

MIX HOPPER

TEMP.

STBY TEMP.

C

NC

NO

A1 A2

COMP.

RELAY

COMP

AA

L1 L2

13 14

T3

T2

T1

L3

L2

L1

A A

POWER

SWITCH

DPDT

WHT

BLK/WHT

BLK

RED/WHT

WHT

BLK

BLKWHT

WHT

BLK

BLK

BLK

BLK

ORN

RED/WHT

ORN/WHT

WHT

HIGH PRESS.

CUTOUT BEATER MOTOR

OVERLOAD SWITCH

WHT

M

MIX PUMP

MOTOR

BLU

ORN

RED

PRP

BLK

BRN

2 4

3

WHT

ORN/WHT

RELAY PUMP

MOTOR

M

WHT

WHT

BLU

BRN

CONDENSER FAN

(AIR COOLED)

MIX

PROBE

L1 T1

L2 T2

13 14

A1 A2

BTR.

RELAY

BTR.

MTR.

BLK

BLK

BLKWHT

ORN

CP CP

BLU

BLU

BLU

96 95

M

PANEL SPINNER

OPTIONAL

BLK

GRN/YEL

BLK

BLK WHT

BLK/WHT

BLK/WHT

NO

4.5

=2

JMPR

13

REF. LINE

2 DIFFERENTAL (NO SHUNT)

FIG. 4

(SEE FIG.4)

GRN/YEL

GRN/YEL

(SEE FIG.5)

BLK

BLK

208/230 VOLTS, 60HZ

(DOMESTIC)

L1 L2

208/230 VOLTS, 60HZ

(INTERNATIONAL)

L1 L2 OR N

WIRE COLORS - BASED ON INCOMING POWER

FIG. 5

BLK

BLK

EQUIPOTENTIAL

GROUND

Model C707

064288-33

06/14

Taylor Company

2014 Carrier Commercial Refrigeration, Inc.

c

240K

GROUND FRAME SECURELY

NOTE:

1. STATIC ELECTRICITY MAY CAUSE DAMAGE

TO SOLID STATE COMPONENTS. ELIMINATE

STATIC ELECTRICITY BY TOUCHING GROUNDED

UNIT BEFORE HANDLING SOLID STATE COM-

PONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE CON-

NECTED TO PIN 1 AT EACH END.

BLK/WHT

BLK/WHT

WHT

WHT

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

PANEL

JACK

C0M

DRAW

SWITCH NC

NO

GRN/YEL

LINE

SPINNER MOTOR WIRING

FIG. # 2

LINE FILTER

LOAD

LINE

WHT

BLK

BLK

BLK

BLK BLK

M

(SEE FIG.2)

(SEE FIG.2)

BLK BLK

GRN/YEL

BLK

2ND PANEL SPINNER

OPTIONAL

M

BLK BLK

GRN/YEL

BLK

PANEL SPINNER

OPTIONAL

M

14

12 13

10

11

COMPRESSOR WIRING

(MODEL PL35G W/HST)

START CAPACITOR

(047703)

START RELAY

(055358)

START WINDING

MAIN WINDING

WINDING PROTECTOR

(INTERNAL)

L2

L1

(DANFOSS MODEL PL35G)

(SEE FIG.1)

RELAY

START

CAP.

START 14

10

13

11 FAN

COMP.

M

MIX REF. SYSTEM

OUT

MIX

MIX PUMP MOTOR

RESET SWITCH

GRN/YEL

GRA/WHT

(WATER COOLED ONLY)

FIGURE 1

BLK

BLK

BLK

BLK

BLKBLK

BLK

BLK

BLK

BLK

FIGURE 1

(WATER COOLED ONLY)

GRA/WHT

GRN/YEL

MIX PUMP MOTOR

RESET SWITCH

MIX

OUT

MIX REF. SYSTEM

M

COMP.

FAN

11

13

10

14

START

CAP.

START

RELAY

(DANFOSS MODEL PL35G)

(SEE FIG.1)

L1

L2

WINDING PROTECTOR

(INTERNAL)

MAIN WINDING START WINDING

START RELAY

(055358)

START CAPACITOR

(047703)

COMPRESSOR WIRING

(MODEL PL35G W/HST)

11

10

13

12

14

M

PANEL SPINNER

OPTIONAL

BLK

GRN/YEL

BLK

BLK

M

2ND PANEL SPINNER

OPTIONAL

BLK

GRN/YEL

BLK

BLK

(SEE FIG.2)

(SEE FIG.2)

M

BLK

BLK

BLK BLK

BLK

WHT

LINE

LOAD

LINE FILTER

SPINNER MOTOR WIRING

FIG. # 2

LINE

GRN/YEL

NO

NC

DRAW

SWITCH

C0M

PANEL

JACK

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

WHT

WHT

BLK/WHT

BLK/WHT

BARREL LIQUID

SOLENOID

BLU

WHT

GRY/WHT

BLK

GROUND FRAME SECURELY

NOTE:

1. STATIC ELECTRICITY MAY CAUSE DAMAGE

TO SOLID STATE COMPONENTS. ELIMINATE

STATIC ELECTRICITY BY TOUCHING GROUNDED

UNIT BEFORE HANDLING SOLID STATE COM-

PONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE CON-

NECTED TO PIN 1 AT EACH END.

240K

A

A

NO

DOOR INTERLOCK

SWITCH

C0M

WIRE #11 OF

RIBBON CABLE

BLK BLK

DRAW SWITCH

BLK

BLK BLK/WHT

BTR

GND

L2L1

OL

COMP BTR PUMP FAN MIX

M

WHT

BLK

CABINET FAN

MIX

LOW

MIX

OUT

MIX STANDBY

MAX

MIN

MAX

MIN

MAX

MIN

MFG DATE

MIX LOW MIX OUT

MIX STANDBY WASH AUTO PUMP

DRAW PUMP

SOFTECH CONTROL

TAYLOR CO.

42002

MIX 1 BRL

PROBE

SET POINT

S.S.VISCOSITY

SHAKE TEMP.

FAN MIX 2

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SHK

SWITCH INTERVAL

78 TIME

OFF

OFF

ON

ON

OFF ON

OFF

ON

16

14

11

5

PRP

RED/BLK

BRN BLK

BLK

WHT

BLK

WHT

WHT

A

A

GRN/YEL

POWER / RELAY BOARD

MIX HOPPER

TEMP.

STBY TEMP.

C

NC

NO

L1 T1

L2 T2

L3 T3

13 14

A1 A2

BTR.

RELAY

BTR.

MTR.

A1 A2

COMP.

RELAY

COMP

95

96

PROBE

MIX

BLK

BLK

BLK

L3

ORN

(AIR COOLED)

CONDENSER FAN

MODEL C706

BRN

GRA/WHT WHT

WHT

M

MOTOR

RELAY PUMP

ORN/WHT

WHT

3

4

2

BRN

BLK

PRP

RED ORN

BLU

MOTOR

MIX PUMP

M

WHT

OVERLOAD SWITCH

BEATER MOTOR

CUTOUT

HIGH PRESS.

WHT

BRN

RED/WHT

ORN

BLK

BLK

WHT

BLK

BLK

BLK

BLK

WHT

GRN/YEL

BLK

BLK

WHT BLK

BLK

WHITE

RED/WHT

BLK

BLK/WHT

WHT

DPDT

SWITCH

POWER

AA

L1

L2

L3

T1

T2

T3

1413

L2

L1

A A

RELAY

COMP.

A2A1

MTR.

BTR.

RELAY

BTR.

A2A1

1413

T3L3

T2L2

T1L1

NO

NC

C

STBY TEMP. TEMP.

MIX HOPPER

POWER / RELAY BOARD

GRN/YEL

A

A

WHT

WHT BLK

WHT BLK

BLK

BRN

RED/BLK

PRP

5

11

14

16

ON

OFF

ON

OFF

ON

ON OFF

OFF

TIME8

7

SWITCH INTERVAL

SHK

8-INTERVAL

7-INTERVAL

6-STBY DIS

5-FAN 2

4-BTR 10

3-BTR 5

2-COMP 10

1-COMP 5

UP = OFF

DIP SWITCH

FAN MIX 2

SHAKE TEMP.

S.S.VISCOSITY

SET POINT

PROBE

BRL

MIX 1

42002

TAYLOR CO.

SOFTECH CONTROL

PUMP

DRAW

PUMPAUTO

WASH

STANDBY

MIX

MIX OUT

MIX LOW

MFG DATE

MIN MAX MIN MAX MIN MAX

STANDBY

MIX

OUT

MIX

LOW

MIX

CABINET FAN

BLK WHT

M

MIXFANPUMPBTRCOMP

OL

L1 L2

GND

BTR

BLK/WHTBLK BLK

DRAW SWITCH

AA

L1 L2

13 14

T3

T2

T1

L3

L2

L1

A A

POWER

SWITCH

DPDT

WHT

BLK/WHT

BLK

RED/WHT

WHITE

BLK

BLK

WHT

BLK

BLK

GRN/YEL

WHT

BLK

BLK

BLK

BLK

WHT

BLK

BLK

ORN

RED/WHT

BRN

ORN/WHT

WHT

HIGH PRESS.

CUTOUT BEATER MOTOR

OVERLOAD SWITCH

WHT

M

MIX PUMP

MOTOR

BLU

ORN

RED

PRP

BLK

BRN

24

3

WHT

ORN/WHT

RELAY PUMP

MOTOR

M

WHT

WHT

GRA/WHT

BRN

MODEL C706

CONDENSER FAN

(AIR COOLED)

ORN

L3

BLK

BLK

BLK

MIX

PROBE

96 95

UNDER PRIMARY SINGLE PHASING CONDITIONS

COMPRESSOR AND BEATER MOTOR PROTECTEDCOMPRESSOR AND BEATER MOTOR PROTECTED

UNDER PRIMARY SINGLE PHASING CONDITIONS

REF. LINE

2 DIFFERENTAL

(NO SHUNT)

FIG. 3

NO

4.5

=2

JMPR

13

(SEE FIG.3)

GRN/YEL

EQUIPOTENTIAL

GROUND

GRN/YEL

GRN/YEL

Model C707

064288-40

06/14

Taylor Company

2014 Carrier Commercial Refrigeration, Inc.

c

BLK

FIG. 1

GRA/WHT

CONTROL

ENCLOSURE(S)

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

MIX PUMP MOTOR

RESET SWITCH

13

MIX REF. SYSTEM

M

COMP.

FAN

BRN

11

13

10

14

START

CAP.

START

RELAY

(DANFOSS MODEL PL35G)

(SEE FIG. 1)

L1

L2

WINDING PROTECTOR

(INTERNAL)

MAIN WINDING START WINDING

START RELAY

(055358)

START CAPACITOR

(047703)

COMPRESSOR WIRING

(MODEL PL35G W/HST)

11

10

13

12

14

1

2

3

4

T8

T1

T7

T4

T5

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

LEESON BEATER MOTOR WIRING

STEPS:

1) DISCONNECT WIRE T7 FROM TERMINAL 3

2) SPLICE BLUE WIRE AS SHOWN

1

2

4

6

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

MAGNETEK BEATER MOTOR WIRING

STEPS:

1) REMOVE BROWN JUMPER FROM BETWEEN TERMINAL #1 TO TERMINAL #5

2) MOVE BLUE INTERNAL (FROM MOTOR MAIN WINDING)

FROM TERMINAL #5 TO TERMINAL #1.

NOTE: FOR CCWLE - BLUE INTERNAL ON #1, YELLOW INTERNAL ON #6

BLUE INTERNAL

3

5

ORANGE INTERNAL

RED INTERNAL

YELLOW INTERNAL

BLACK INTERNAL

BLUE

BLUE

T3 L3

USE T3 AND L3 WHEN

CP CONTACTS ARE NOT AVAILABLE

T3 L3

USE T3 AND L3 WHEN

CP CONTACTS ARE NOT AVAILABLE

NO

NC

DRAW

SWITCH

C0M

PANEL

JACK

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

MIX

OUT

MODEL C706

BLACK

BLUE

BLACK

T1

CP

T2

L1

CP

L2

BEATER MOTOR

CONTACTOR

GE/RBC BEATER MOTOR WIRING

NOTE: FOR CCWLE - BLUE INTERNAL ON #1,YELLOW INTERNAL ON #2

BLUE

T3 L3

USE T3 AND L3 WHEN CP

CONTACTS ARE NOT AVAILABLE

J12 OR PURPLE INTERNAL

T1 OR BLUE INTERNAL

T8 OR RED INTERNAL

J9 OR BLACK INTERNAL A

14

5

T4 OR YELLOW INTERNAL

2

FIG. 3

SEE FIG. 2

SEE

FIG. 3

BARREL LIQUID

SOLENOID

GRA/WHT

GRA/WHT

BLK

WHT

GRN/YEL

GROUND FRAME SECURELY

NOTE:

1. STATIC ELECTRICITY MAY CAUSE DAMAGE

TO SOLID STATE COMPONENTS. ELIMINATE

STATIC ELECTRICITY BY TOUCHING GROUNDED

UNIT BEFORE HANDLING SOLID STATE COM-

PONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE CON-

NECTED TO PIN 1 AT EACH END.

240K

A

A

NO

DOOR INTERLOCK

SWITCH

C0M

WIRE #11 OF

RIBBON CABLE

BLK BLK

DRAW SWITCH

BLK

BLK BLK/WHT

BTR GND

L2L1

OL

COMP BTR PUMP FAN MIX

M

WHT

BLK

CABINET FAN

(WATER COOLED ONLY)

MIX

LOW MIX

OUT

MIX STANDBY

MAX

MIN

MAX

MIN

MAX

MIN

MFG DATE

MIX LOW MIX OUT

MIX STANDBY WASH AUTO PUMP

DRAW PUMP

SOFTECH CONTROL

TAYLOR CO.

42002

MIX 1 BRL

PROBE

SET POINT

S.S.VISCOSITY

SHAKE TEMP.

FAN MIX 2

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SHK

SWITCH INTERVAL

7 8 TIME

OFF

OFF

ON

ON

OFF

ON

OFF

ON

16

14

11

5

PRP

RED/BLK

BRN BLK

BLK

WHT

BLK

WHT

WHT

A

A

GRN/YEL

POWER / RELAY BOARD

MIX HOPPER

TEMP.

STBY TEMP.

C

NC

NO

A1 A2

COMP.

RELAY

COMP

AA

L1 N

13 14

T3

T2

T1

L3

L2

L1

A A

POWER

SWITCH

DPDT

WHT

BLK/WHT

BLK

RED/WHT

WHT

BLK

WHTWHT

GRN/YEL

WHT

WHT

BLK

BLK

BLK

ORN

RED/WHT

ORN/WHT

WHT

HIGH PRESS.

CUTOUT BEATER MOTOR

OVERLOAD SWITCH

WHT

M

MIX PUMP

MOTOR

BLU

ORN

RED

PRP

BLK

BRN

2 4

3

WHT

ORN/WHT

RELAY PUMP

MOTOR

M

WHT

WHT

BLU

BRN

CONDENSER FAN

(AIR COOLED)

GRN/YEL

MIX

PROBE

L1 T1

L2 T2

13 14

A1 A2

BTR.

RELAY

BTR.

MTR.

BLK

BLK

WHTWHT

ORN

CP CP

BLU

BLU

BLU

96 95

M

PANEL SPINNER

OPTIONAL

BLK

GRN/YEL

BLK

BLK WHT

BLK/WHT

BLK/WHT

BLK/WHT

1

2

5

4

C

S

R

LINE

RELAY RUN

CAP.

START CAP.

COMPRESSOR

TERMINAL

COVER

ABOVE ELECTRICAL DIAGRAM SHOWS WIRING NECESSARY

TO HOOK UP A COMPRESSOR USING A START AND RUN

CAPACITOR (CSR) WITH A RELAY.

FIG. 2

REF. LINE

2 DIFFERENTAL (NO SHUNT)

FIG. 4

NO

4.5

=2

JMPR

13

(SEE FIG.4)

EQUIPOTENTIAL

GROUND

Model C707

064288-58

06/14

Taylor Company

2014 Carrier Commercial Refrigeration, Inc.

c

FIGURE 1

GRA/WHT

CONTROL

ENCLOSURE(S)

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

GRN/YEL

MIX PUMP MOTOR

RESET SWITCH

13

MIX REF. SYSTEM

M

COMP.

FAN

11

13

10

14

START

CAP.

START

RELAY

(DANFOSS MODEL PL35G)

(SEE FIG. 1)

L1

L2

WINDING PROTECTOR

(INTERNAL)

MAIN WINDING START WINDING

START RELAY

(055358)

START CAPACITOR

(047703)

COMPRESSOR WIRING

(MODEL PL35G)

11

10

13

12

14

NO

NC

DRAW

SWITCH

C0M

PANEL

JACK

ADDITIONAL DRAW SWITCH

FOR FLAVORBURST

A

A

NO

DOOR INTERLOCK

SWITCH

C0M

WIRE #11 OF

RIBBON CABLE

BLK BLK

RED/BLK

MIX

OUT

GRA/WHT BLK

BARREL LIQUID

SOLENOID

GRA/WHT WHT

GRN/YEL

GROUND FRAME SECURELY

NOTE:

1. STATIC ELECTRICITY MAY CAUSE DAMAGE

TO SOLID STATE COMPONENTS. ELIMINATE

STATIC ELECTRICITY BY TOUCHING GROUNDED

UNIT BEFORE HANDLING SOLID STATE COM-

PONENTS.

2. RED WIRE ON RIBBON CABLES MUST BE CON-

NECTED TO PIN 1 AT EACH END.

240K

DRAW SWITCH

BLK

BLK BLK/WHT

BTR GND

L2L1

OL

COMP BTR PUMP FAN MIX

MWHT

BLK

CABINET FAN

(WATER COOLED ONLY)

MIX

LOW

MIX

OUT

MIX STANDBY

MAX

MIN

MAX

MIN

MAX

MIN

MFG DATE

MIX LOW MIX OUT

MIX STANDBY WASH AUTO PUMP

DRAW PUMP

SOFTECH CONTROL

TAYLOR CO.

42002

MIX 1 BRL

PROBE

SET POINT

S.S.VISCOSITY

SHAKE TEMP.

FAN MIX 2

DIP SWITCH

UP = OFF

1-COMP 5

2-COMP 10

3-BTR 5

4-BTR 10

5-FAN 2

6-STBY DIS

7-INTERVAL

8-INTERVAL

SHK

SWITCH INTERVAL

78 TIME

OFF

OFF

ON

ON

OFF

ON

OFF

ON

16

14

11

5

PRP

BRN BLK

BLK

WHT

BLK

WHT

WHT

A

A

GRN/YEL

POWER / RELAY BOARD

MIX HOPPER

TEMP.

STBY TEMP.

C

NC

NO

L1 T1

L2 T2

L3 T3

13 14

A1 A2

BTR.

RELAY

BTR.

MTR.

A1 A2

COMP.

RELAY

COMP

AA

L1 L2

13 14

T3

T2

T1

L3

L2

L1

A A

POWER

SWITCH

DPDT

WHT

BLK/WHT

BLK

RED/WHT

WHT

BLK

BLK

WHT

BLK

BLK

GRN/YEL

WHT

BLK

BLK

BLK

BLK

WHT

BLK

BLK

ORN

RED/WHT

BRN

ORN/WHT

WHT

HIGH PRESS.

CUTOUT BEATER MOTOR

OVERLOAD SWITCH

WHT

M

MIX PUMP

MOTOR

BLU

ORN

RED

PRP

BLK

BRN 2 4

3

WHT

ORN/WHT

RELAY PUMP

MOTOR

M

WHT

WHT

BLU

BRN

MODEL C706

BLACK

CONDENSER FAN

(AIR COOLED)

MODEL C706/C707

ORN

L3

BLK

BLK

BLK

GRN/YEL

N

WHT

MIX

PROBE

96 95

COMPRESSOR AND BEATER MOTOR PROTECTED

UNDER PRIMARY SINGLE PHASING CONDITIONS

PANEL SPINNER

OPTIONAL

BLK

GRN/YEL

BLK

BLK WHT

BLK/WHT

BLK/WHT

BLK/WHT

M

REF. LINE

2 DIFFERENTAL

(NO SHUNT)

FIG. 2

NO

4.5

=2

JMPR

13

(SEE FIG,2)

EQUIPOTENTIAL

GROUND
