Description
This is a DOCSIS cable gateway device including the following functionalities:
DOCSIS 3.1 Cable Modem
PacketCable 2.0 eDVA
2 port Gigabit Ethernet switch with advanced routing capability
802.11n WiFi interface at 2.4GHz
802.11ac WiFi interface at 5GHz
Zigbee radio interface
Bluetooth Smart radio interface
Thread radio interface
2 FXS ports
Internal PSU
eMTA supporting PacketCable 2.0
IPv4/IPv6 router
Remote management capabilities (SNMP, TR069, HNAP)

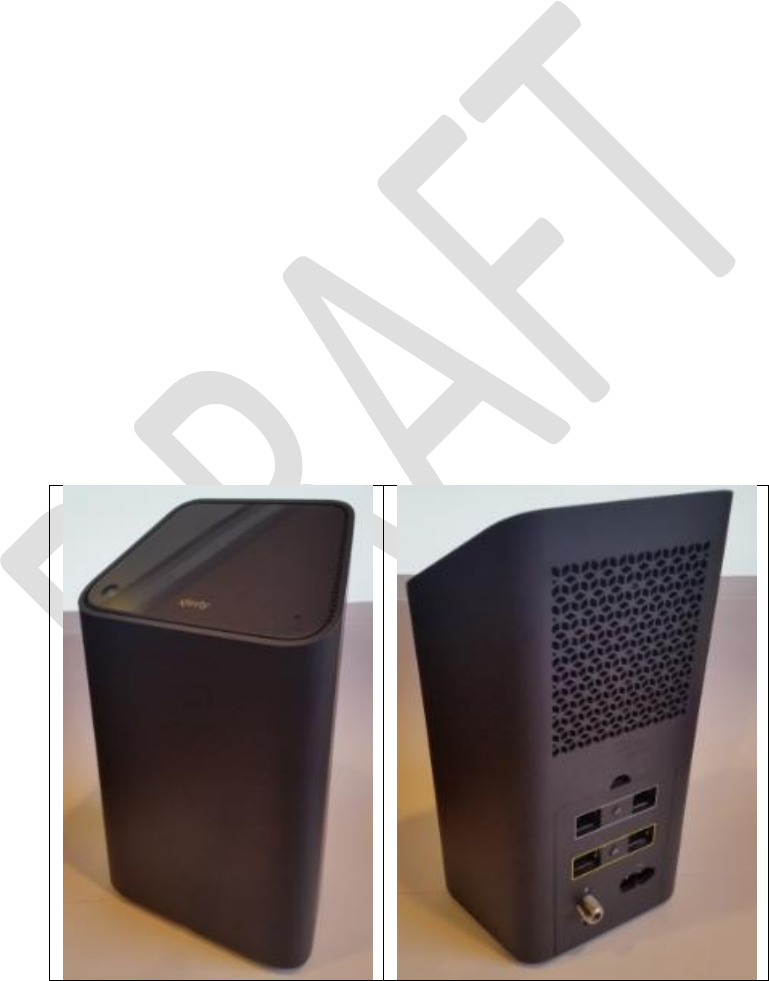

External Photos
Features
High speed DOCSIS 3.1 interface
o Supports Gigabit internet connectivity
High speed wireless interface
o Supports whole-home coverage with state-of-the-art radio technology
Voice performance
o PacketCable 2.0 compliant and equipped with basic and extended CLASS features such
as caller ID and call-waiting
Advanced Security
o The integrated firewall provides Stateful Packet Inspection (SPI), and an integrated
Intrusion Detection and Prevention System (IDS) engine monitors a wide range of attack
patterns, and logs potential security breaches to a local cache or remote server. To
secure data exchange between the gateways and the cable operators’ servers, BPI+
communications privacy is used.
WPS
o With Wi-Fi Protected Setup (WPS) users can easily connect to the wireless network by
simply pushing a button or entering a PIN code. It allows home users to easily connect
to a secure network without any complex configuration and eliminates the need to
remember or store their security information in an unsafe way.
Easy to Use
o This is an easy-to-use/easy-to-install gateway. For convenience of the end user, the
easy-to-access multi-colored LEDs provide a clear indication of start-up sequence and
connectivity status. Multiple integrated web pages allow direct access to the status and
settings, including privacy and security information.
Technical Specifications
Cable Certifications
Data
Voice
CMTS interoperability
DOCSIS 3.1
PacketCable 2.0
Hardware Specifications
WAN Interface 1 RF F-type
LAN interface 2-port wired
ethernet RJ45,
WiFi IEEE
802.11
2.4/5GHz,
MoCA
Interfaces other WPS button,
reset button
Power supply 120-240VAC
50-60Hz
Operating Temperature 0 to 40 degC
Operating humidity 20-90% non-
condensing
Storage temperature -20-70 degC
Receiver Specifications
Downstream modulation
QAM, OFDM
Downstream Frequency Range
54-1002 MHz
Input signal level range
-15 / +15dBmV
Input impedance 75 ohm
Transmitter Specifications
Upstream Modulation QPSK, QAM,
OFDM
Upstream Frequency Range
5-42 MHz
Output Impedance 75 ohm
Wireless Specifications
WiFi IEEE 802.11a/b/g/n/ac
WiFi Protected Setup
