QUICK INSTALLATION GUIDE
MediaAccess TC8717T
1
1 GETTING STARTED
Check the box contents
Your box should contain the following items:
This Quick Installation Guide
One Safety Instructions and Regulatory Notices booklet
One MediaAccess Gateway (TC8717T)
One power cord
One Ethernet cable (RJ-45)
When one or more of these items are missing, contact your service provider.
Before you start
Carefully read the Safety Instructions and Regulatory Notices included in the box before continuing with the
installation of the MediaAccess Gateway.
Setup procedure
To setup your home network and Internet connection you have to complete the following steps:
1Connect the MediaAccess Gateway to the MoCA/Cable network.
For more information, see “2.1 Connect the MediaAccess Gateway to the MoCA/Cable network” on page 2.
2Power on the MediaAccess Gateway.
For more information, see “2.2 Power on the MediaAccess Gateway” on page 2.
3Connect your network devices to the MediaAccess Gateway.
The MediaAccess Gateway offers the following options to connect your network devices:
Wireless connection
For more information, see “2.3.1 Automatic configuration” on page 3.
Wired connection using an Ethernet cable.
For more information, see “2.4 Connect your wired (Ethernet) devices to the MediaAccess Gateway” on
page 4
4Connect your telephones to the MediaAccess Gateway.
For more information, see “2.5 Connect a telephone to the MediaAccess Gateway” on page 5.
5Optionally, you can further configure the MediaAccess Gateway to your needs (for example, change the
wireless settings). For more information, see “2.6 Configure the MediaAccess Gateway to your needs
(optional)” on page 5.
More information
For more detailed information about your MediaAccess Gateway, download the MediaAccess Gateway user
guide from the support pages of your service provider.
2
2 SETUP
2.1 Connect the MediaAccess Gateway to the MoCA/Cable network
Proceed as follows:

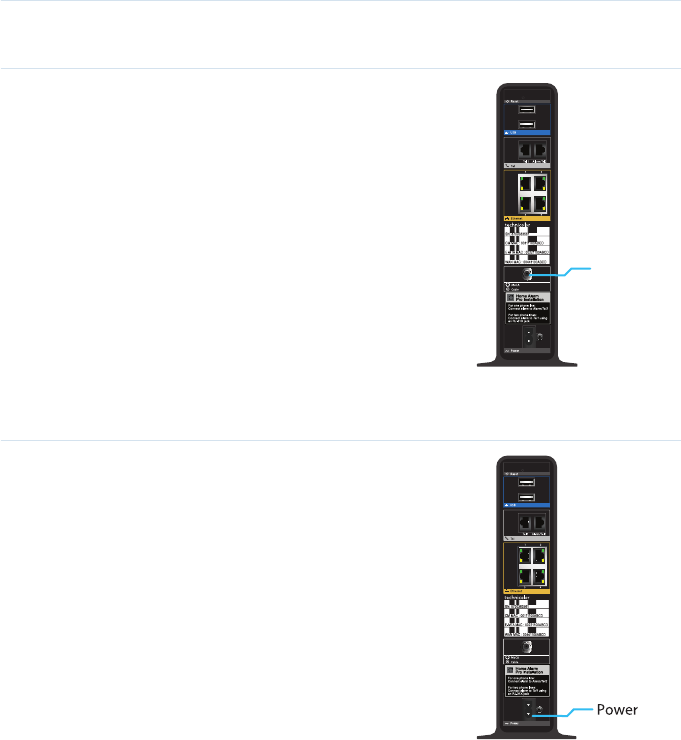

1Make sure that one end of the coaxial cable is correctly connected to
your cable splitter or coaxial wall jack.
2Connect the other end of the coaxial cable to the MoCA/Cable port
of the MediaAccess Gateway. The MoCA/Cable port connects you
both to your service provider’s broadband network and the MoCA
devices in your home cable network.
2.2 Power on the MediaAccess Gateway
Proceed as follows:
1Take the power cord that is included with your MediaAccess Gateway.
2Connect the small end of the power cord to the Power port on the
back of the MediaAccess Gateway.
3Plug the other end of the power cord into an electrical outlet.
4Wait at least two minutes to allow the MediaAccess Gateway to
complete the startup phase.
MoCA/Cable
3
*DSL37278370*
DSL37278370
2.3 Connect your wireless devices to the MediaAccess Gateway
If you prefer to make a wired connection to your MediaAccess Gateway, proceed with “2.4 Connect your
wired (Ethernet) devices to the MediaAccess Gateway” on page 4.
The MediaAccess Gateway access points
The MediaAccess Gateway has two access points that allows you to connect wireless devices to your home
network:
The 2.4 GHz access point allows you to connect IEEE802.11n/g/b wireless clients and offers the best
range. This makes it ideally suited for normal Internet access (for example, surfing, e-mail, etc.).
The 5 GHz access point allows you to connect IEEE802.11ac/n/g/b wireless clients and offers superior
transfer rates and less sensitivity to interference. This makes it ideally suited for streaming and
broadcasting media (for example, for set-top boxes).
Procedure
To connect your device:
Automatically (via WPS), proceed with “2.3.1 Automatic configuration” on page 3.
By manually entering the settings, proceed with “2.3.2 Manual configuration” on page 4.
2.3.1 Automatic configuration
WPS
Wi-Fi Protected Setup (WPS) allows you to add new wireless devices to your network in a swift and easy way,
without the need to enter all of your wireless settings (network name, encryption, etc.).
You can use this method if your wireless device supports WPS. Check the documentation of your wireless
device for this.
Procedure
Proceed as follows:

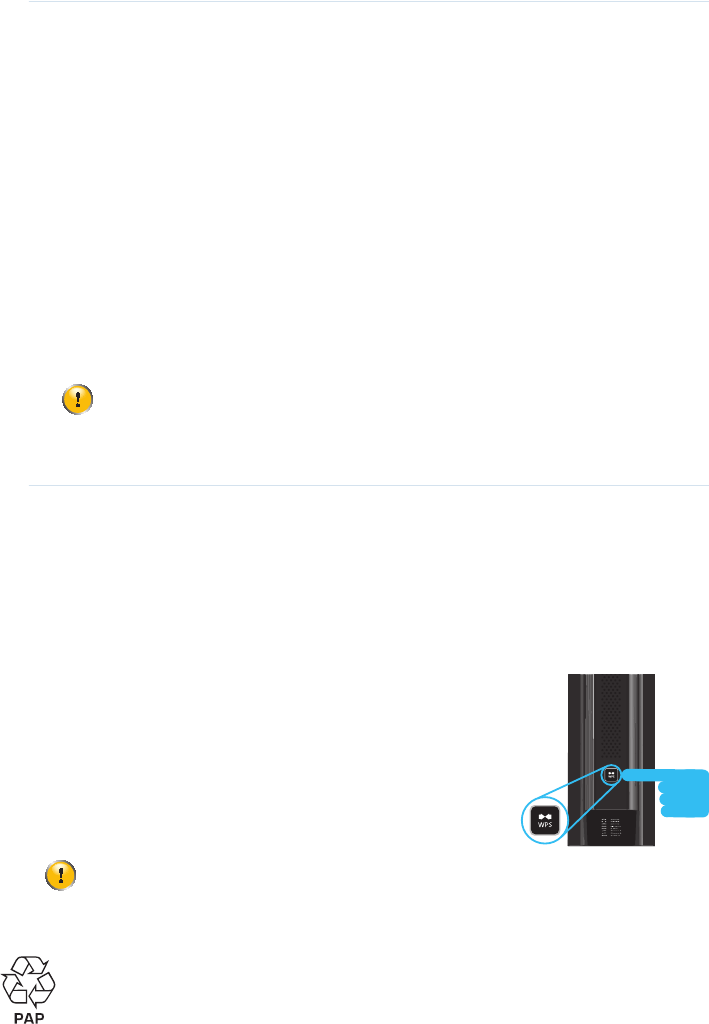

1On the top of the MediaAccess Gateway, press and hold the WPS
button for at least 5 seconds and then release it.
2The WPS button LED starts blinking. This indicates that the
MediaAccess Gateway is now searching for wireless clients that are in
registration mode. You now have two minutes to start WPS on your
wireless client.
3Start WPS on your wireless client.
If you want to connect your wireless client to the 5 GHz access point, make sure that your wireless
client supports 5 GHz connections.
If you first need to select an access point, choose one of the access points printed on the bottom of
your MediaAccess Gateway.
For more information, see “2.3.2 Manual configuration” on page 4.
4
4The MediaAccess Gateway is now exchanging the security settings.
5After some time your wireless client prompts you that it is now connected to the MediaAccess Gateway.
You are now connected to the MediaAccess Gateway network.
Troubleshooting
If you are having trouble connecting your wireless client via WPS, this may be caused by one of the following
reasons:
WPS cannot be correctly executed:
Configure your wireless manually. For more information, see “2.3.2 Manual configuration” on page 4.
Your wireless client is out of range. The following actions may help you to improve the range of your
MediaAccess Gateway:
Reorient either of the MediaAccess Gateway side panels to the center of your house. This will direct the
wireless signal to the center of your house.
Move your wireless client closer to your MediaAccess Gateway.
Use a wireless repeater to extend the range of your wireless network.
Another device is interfering on the selected wireless channel:
Change the wireless channel of your MediaAccess Gateway. For more information, download the user
guide from your operator’s website.
2.3.2 Manual configuration

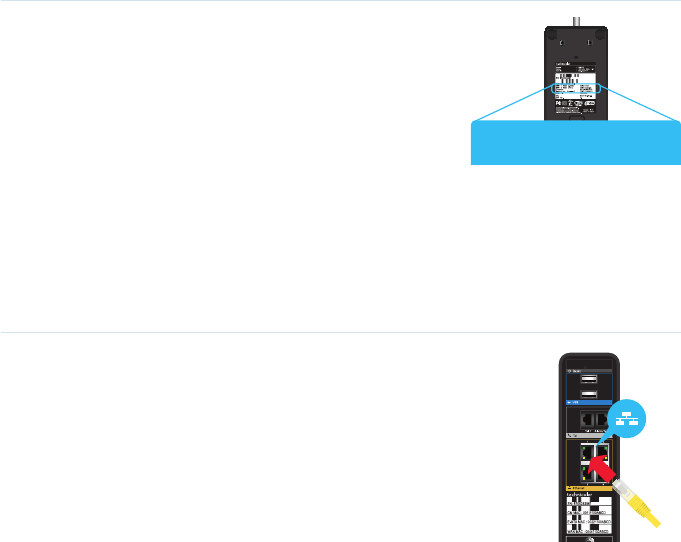

If you want to connect a computer using a wireless connection,
configure the wireless client on your computer with the wireless
settings printed on the bottom of your MediaAccess Gateway.
For the network name, two values are available:
SSID 1 Name (2.4GHz) is the network name of the 2.4 GHz
access point.
SSID 2 Name (5GHz) is the network name for the 5 GHz access
point.
The other values are common for both access points.
If your wireless client prompts you to select an encryption type, select WPA2-PSK (AES).
2.4 Connect your wired (Ethernet) devices to the
MediaAccess Gateway
If you want to connect a computer using a wired (Ethernet) connection:
1Take the Ethernet cable out of the box. This is the cable with the yellow
connectors.
2Connect one end of the Ethernet cable to one of the yellow Ethernet ports on
the back of your MediaAccess Gateway.
3Connect the other end of the Ethernet cable to your computer.
SSID 1 Name (2.4GHz) : ***************
SSID 2 Name (5Ghz) : ***************
Network Key (Password) : ***************
5
2.5 Connect a telephone to the MediaAccess Gateway
This section is intended for single line customers only. If you have a two line setup or
a setup involving a home alarm, please contact your service provider. In this case the
setup must be done by qualified technicians.

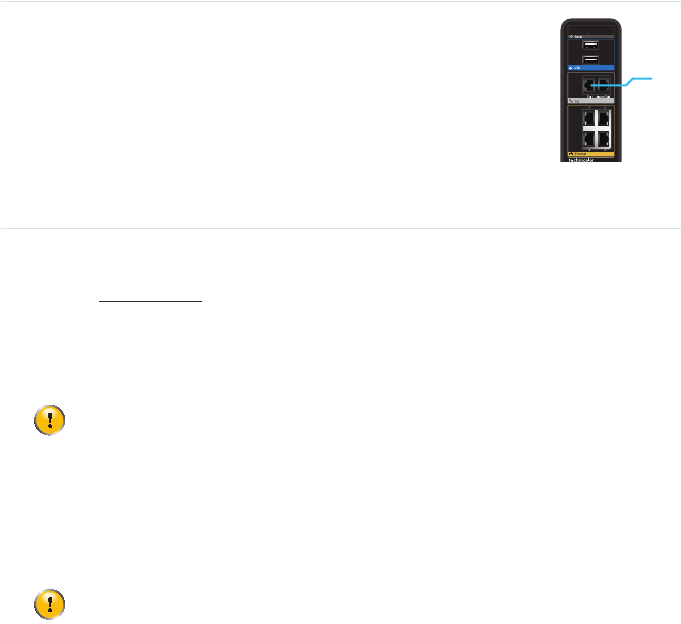

If you want to connect a telephone (or a DECT base station) to the
MediaAccess Gateway, connect the telephone’s cable to the Te l 1 port on the back
panel of the MediaAccess Gateway.
2.6 Configure the MediaAccess Gateway to your needs (optional)
If you want to make additional changes to the default settings (for example, you want to change the wireless
security settings) of the MediaAccess Gateway, proceed as follows:
1Browse to http://192.168.0.1.
2The MediaAccess Gateway admin tool appears. The admin tool allows you to configure your
MediaAccess Gateway using your web browser.
3The login page appears. In the Username box, type admin. In the Password box, type password.
Click Login. The Gateway > At a Glance page appears.
4To change other settings, use the menu on the left to go to the setting of your choice and make the
necessary changes.
Restore the factory default settings
If at some point you can no longer connect to the MediaAccess Gateway or you want to make a fresh install,
it may be useful to restore to factory defaults.
Proceed as follows:
1Make sure that the MediaAccess Gateway is turned on.
2Use a pen or an unfolded paperclip to push the recessed Reset button on the back panel of the
Technicolor Gateway for at least 15 seconds and then release it.
3The MediaAccess Gateway restarts.
Tel1
We strongly recommend you to change the default password. To do this, click Change
Password in the upper-right corner of the page, complete the fields and click Save.
A reset to factory default settings deletes all configuration changes you made.
