MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
Features at a Glance
■Integrated 2.5/1.25Gbps GPON port
■4 GE LAN ports
■Dual band concurrent Wi-Fi interfaces:
IEEE 802.11n 2.4 GHz (2x2) with high power (optional)
IEEE 802.11ac 5 GHz (3x3)
■CATV port for downstream RF video overlay video (optional)
■2 FXS ports for phone or fax
■2 USB 2.0 master ports for hard disk, printer, 3Gadapter, …
■Seamless media sharing (UPnP A/V™ and DLNA®)
■Future-proof full service platform supporting:
Qeo communication framework and apps
OSGi execution environment
■Extensive remote management
■Non-service-aecting platform software upgrades
(dual bank memory)
■IPv4 & IPv6 enabled
■Designed according to the latest ECO standards
RoHS
COMPLIANT
AV
On the Edge with Gigabit Speeds
The Technicolor TG1700(d)ac is a high-speed Gigabit Passive Optical
Network (GPON) triple-play gateway taking advantage of the latest
developments in Fiber To The Home (FTTH), while at the same time
guaranteeing the highest quality of service. With this gateway, operators
can provide their customers a seamless experience of broadcast television,
interactive video and very high speed data and telephony services.
Next-Gen Wireless Technology
for Next-Gen Speeds
The TG1700(d)ac is one of the first dual band concurrent Wi-Fi ultra
broadband gateways to feature the next-generation IEEE802.11ac wireless
standard for the 5 GHz band. With its optimized antenna configuration,
this enhanced wireless solution enables even higher throughput and better
coverage over the much less crowded 5GHz radio, for real-time content
delivery. Simultaneously, it guarantees uninterrupted transmission of data
services over IEEE802.11n using the 2.4GHz band.
MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
OLT Agnostic GPON Gateway
Built upon our extensive experience in DSL gateway development and
deployment, the TG1700(d)ac interoperates seamlessly with dierent
Optical Line Terminations (OLTs) in the field. By keeping a flexible software
track on the TG1700(d)ac, we can detect the OLT and reconfigure the
gateway dynamically to ensure full compatibility between both. As such,
there is no need for any firmware upgrades or restart in order to be able to
cover deployments with multiple OLTs, even if from dierent vendors.
Moreover, the TG1700(d)ac supports standard G.984.4 OMCI features
and implements some proprietary vendor specific Management
Information Base (MIB), Managed Entities (MEs) and Alarms (MAs).
Furthermore, the device can be maintained and upgraded using the
TR-069 protocol.

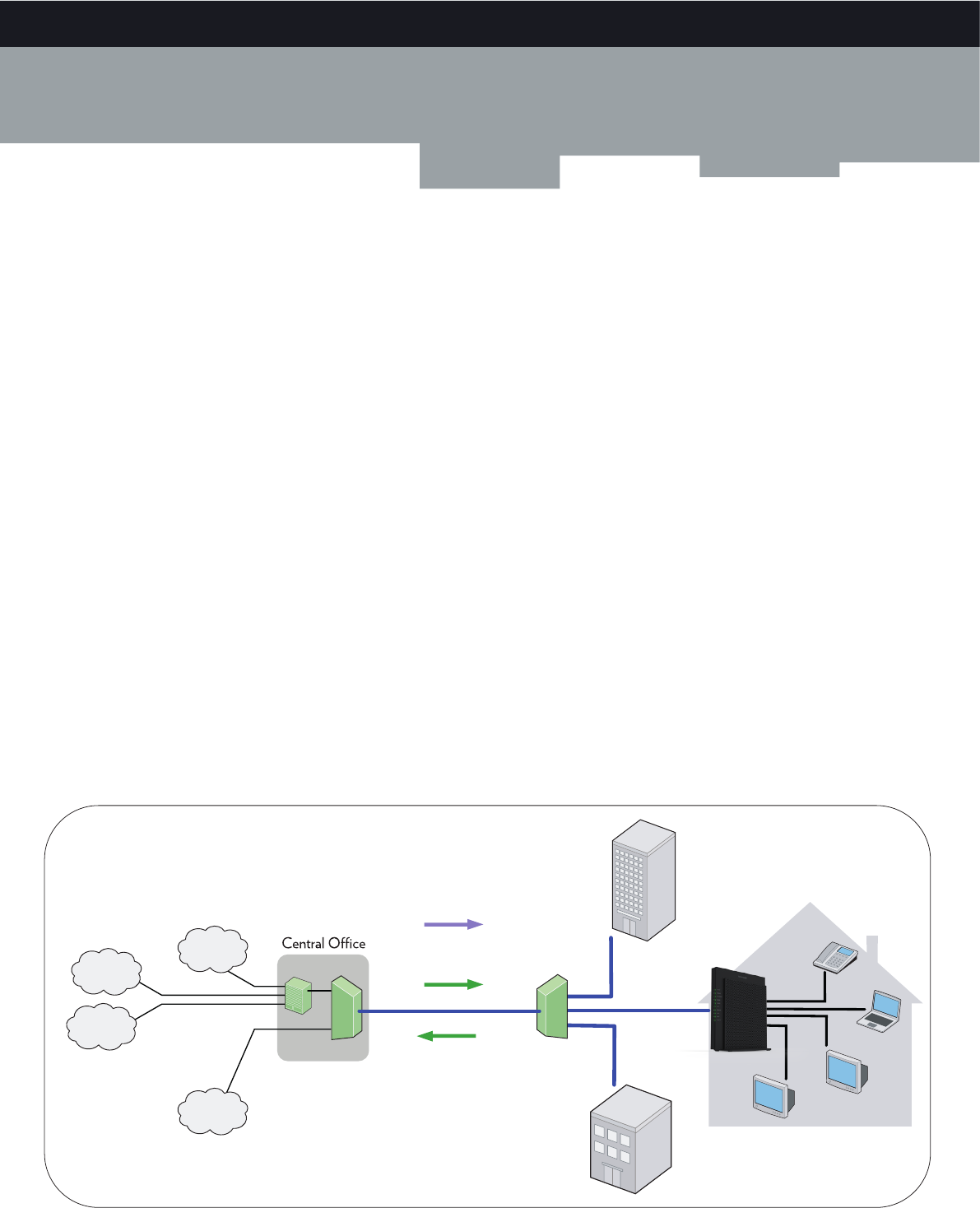

Data
IP Video
Voice
CATV
Splitter
ONT
ONT
ONT
2.488 Gbps
1550 nm
(1490 nm)
Downstream
Upstream
1.244 Gbps
(1310 nm)
Voice
Data
IP Video
Analog Video (optional)
GPON
OLT WDM
(1550 nm)
TG1700(d)ac
RF overlay
High Speed Network Connectivity
By integrating the ONT in the gateway and by using an integrated GPON
interface, the TG1700(d)ac can reach lightning fast speeds, allowing
operators to respond to the increasing end-user demand for higher
bandwidths.
To benefit from these extreme WAN speeds the gateway implements
a Gigabit Ethernet (GE) router, providing very high speed connectivity
between LAN devices and the network. It also includes a dual band
concurrent Wi-Fi base station with IEEE 802.11n and IEEE 802.11ac
capabilities to stream data, including rich media content, anywhere in the
home.
The integration of the GPON ONT in a service gateway guarantees a lower
installation and operation cost. Thanks to its innovative mechanical solution,
the installation becomes as easy as any other fixed line service gateway
installation.
On top of this high-speed down- and upload, the TG1700(d)ac has an
optional downstream RF Video overlay connection. It enables Network
Service Providers (NSPs) to use their existing fiber infrastructure to get a
TV signal to the home without the need for deploying additional coax. This
results in substantial cost savings and a first-class robust quality of service,
ensuring linear television channel distribution to the home, without impacting
video on demand and other interactive services.
MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
IPv6 Enabled
With the approaching IPv4 address pool depletion, our products need to
be ready for IPv6. Technicolor is a frontrunner in the introduction of IPv6
on its devices, with the TG1700(d)ac being enabled for multiple IPv6 field
scenarios. Internet Protocol version 6 is the next generation of Internet
technologies aiming to eectively support the ever-expanding Internet
usage and functionality, and also to address security concerns that exist in
an IPv4 environment.
Technicolor aims to introduce IPv6 as smoothly as possible in customer
networks. By providing in-depth knowledge of the networking stack, we
guide our customers in their transition from IPv4 to IPv6.
Voice over IP
The TG1700(d)ac oers VoIP functions for residential and business users.
POTS phone connectors are provided to accommodate regular phones and
faxes. Once the gateway is registered with a VoIP service, regular phone
calls can be conducted over the Internet with all the benefits of IP telephony.
On top of a wide range of advanced voice services like caller ID, CLIR,
call waiting, call forwarding, three-way conference and message waiting
notification, the TG1700(d)ac is completely interoperable with the main IMS
cores in the market.
Media Sharing
The TG1700(d)ac acts as a fully compliant DLNA 1.5 Digital Media Server
(DMS) and enables distribution of all content from any device to any device
in the home. You can stream music, data, pictures and video from your
gateway to devices connected to your wired or wireless home network.
In addition, the TG1700(d)ac supports hot plugging of USB hard disk drives,
allowing you to simply plug and play devices without the need to switch the
gateway o first.
ECO
Technicolor is committed to oer its customers sustainable products and
implements a set of ECO features to reach the best possible environmental
performance. In addition to carefully selected plastics and packaging
to minimize the ecological footprint, the TG1700(d)ac benefits from a
unique combination of hardware and software features that reduce power
consumption substantially.
Professional Services
To reinforce our extensive portfolio of digital home solutions, Technicolor has
a dedicated Professional Services team to make sure that every deployment
is a success, from initial provisioning and integration to operations, upgrades,
ongoing support and beyond.
Our wide array of services spans the entire customer project lifecycle,
encompassing:
■Expert consulting
■Seamless system integration
■Warranty on all our products
■Qualified technical support and maintenance
■Ecient repair, refurbishment and recycling
Flexible & Future-Proof Software Stack
The TG1700(d)ac is enriched with Technicolor Homeware, a reliable and
managed middleware for gateways that speaks Qeo (www.i-speak-qeo.
com) to open up the connected home and deliver an unlimited spectrum of
value added services and applications.
Featuring a platform agnostic architecture, Technicolor Homeware is a
fully portable solution that ensures the fastest time to market. Moreover,
its modularity and enhanced life cycle management make it easy to add or
remove components to or from a software release, while enabling second &
third party development.
Leveraging open source, Technicolor Homeware embraces dierent
execution environments and supports current and emerging trends,
transforming the gateway into a full-blown app platform.
“I speak Qeo”
The TG1700(d)ac has been developed to run Qeo, Technicolor’s open,
agile and distributed communication framework that addresses the issue
of disparate ecosystems used for device interaction. With Qeo, you can
seamlessly bridge all your connected devices, applications and over-the-top
cloud solutions, regardless of brand or ecosystem. As a universal software
language, it lets you create totally new use cases for the connected life and
the “Internet of Things” (IoT).
Qeo also includes tools to monitor and manage all Qeo enabled devices,
helping you keep operational costs under control.
To learn more about Qeo, visit: www.i-speak-qeo.com
Technical Specifications
MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
Hardware Specifications
■Interfaces WAN 1 GPON port (SC/APC)
■Interfaces LAN 4-port autosensing 10/100/1000 Base-T
auto-MDI/MDI-X Ethernet LAN switch
1 CAT-RF port (optional)
2 FXS POTS ports
2 USB 2.0 master ports
IEEE802.11n 2.4GHz on-board
IEEE 802.11ac 5.0GHz on-board
■Interfaces other Powerbutton
Infobutton
WPSbutton
Wi-Fi on/o button
Resetbutton
■Dimensions 228.5 x 182.5 x 39.5mm (9.0 x 7.2 x 1.6in)
■AC Voltage 100 - 240VAC (switched mode power supply)
■Temperature 0° - 40°C (32° - 104°F)
■Humidity 20% to 80%
GPON Interface Specifications
■Standards ITU-T G984.1
ITU-T G984.2
ITU-T G984.3
ITU-T G984.4
ITU-T G.988
■Fiber type ITU-T G.652
■Up to 8 T-CONTs and 32 GEM ports
■Upstream and downstream FEC
■Downstream AES encryption
■Downstream rate 2.488 Gb/s
■Upstream rate 1.244 Gb/s
■Upstream wavelength 1260 - 1360 nm
■Downstream wavelength 1480 - 1500 nm
■Connector type SC-APC
■Attenuation range Class B+ (28 dB optical budget)
■Maximum dierential range
20 km
■GPON Dying Gasp
CATV-RF Interface Specifications (optional)
■Band 42 - 870 MHz
■Downstream wavelength 1550 - 1560 nm
■Average received optical power (OMI = 3.4% / carrier)
-7 to 1 dBm
■Output power of CATV-RF channel
14.5 to 22 dBmV (550 MHz)
■CSO distortion -55 dBc (maximum)
■CTB distortion -59 dBc (maximum)
■Carrier / Noise Ratio (CNR)
52 dB (typical)
Wireless Specifications
■Full dual band concurrent Wi-Fi access points, Wi-Fi certified®
2.4GHz(2x2) IEEE802.11n AP
5.0GHz(3x3) IEEE802.11ac AP
with IEEE802.11ac compliant transmit
beamforming
■Wi-Fi 2.4GHz power Standard: Up to 20dBm (100mW EIRP)
High Power (optional): Up to 24dBm (250mW EIRP)
■Wi-Fi Protected Setup (WPS™)
■Wi-Fi security levels WPA2™-Enterprise / WPA™-Enterprise
WPA2™-Personal / WPA™-Personal
WEP™
■Wi-Fi Multimedia (WMM®)
■Up to 4 BSSIDs (virtual AP) support per radio interface
■RX/TX switched diversity
■2x2 MIMO 2.4GHz Wi-Fi features
SGi
STBC
20/40MHz coexistence
■3x3 MIMO 5.0GHz Wi-Fi features
SGi
STBC
20/40/80MHz mode
■Dynamic rates switching for optimal wireless rates
■Manual/auto radio channel selection
Management
■Customizable user-friendly GUI via HTTP and HTTPS
■Web services API for remote access
(portal, management, diagnostics, applications, ...)
■TR-069 CPE WAN Management Protocol (CWMP)
TR-098 Internet Gateway Device Management
TR-181i2 Device:2 data model
TR-157a3 Life Cycle Management (LCM)
TR-143 network throughput performance tests
and statistical monitoring
TR-104 voice service provisioning and configuration
TR-111 home network device management
TR-140 storage service provisioning
■ONT Management and Control Interface (OMCI) management
■Zero-touch autoprovisioning
Technical Specifications
MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
Services
■Support of Qeo communication framework and apps, including access to real time
diagnostics
■Life Cycle Management (LCM)
for developing advanced services support
■Open architecture for 3rd party application and UI development
■3G mobile fall-back WAN connection (through 3G USB adapter)
■Parental control URL- and (optional) content-based website filtering
Time-based access control
■Printer sharing
■Content sharing Samba file server
UPnP A/V™ media server and control point
DLNA® DMS
Metadata support
Remote HDD file access
■HDD file systems FAT32, NTFS, EXT2, EXT3, HFS+
Security
■Stateful Packet Inspection Firewall (SPIF)
■Customizable firewall security levels
■Intrusion detection and prevention (DoS, SYN Flood, Ping of Death, Fraggle,
LAND, Teardrop, etc.)
■DeMilitarized Zone (DMZ)
■Multilevel access policy
■Security and service segregation per SSID
Networking
■Symmetrical NAT with application helpers (ALGs)
■Game and application sharing NAT port maps
■DHCP conditional serving & relay, DNS server & relay
■IGMPv3 proxy (Fastleave)
■IGMP snooping (full routed)
■DHCP spoofing
■IEEE802.1q VLAN bridging, multiple bridge instances
■Multicast to unicast translation on Wi-Fi interfaces
IPv6 Networking
■IPv4 / IPv6 dual IP stack
■Supported models: PPP(oE) – IPoE
■Transitioning 6rd/6to4/6in4
DSLite
■Stateful connection tracking / stateful inspection firewall
■DHCPv6 Stateful/stateless DHCPv6 client
Stateless DHCPv6 server
Relay
Prefix Delegation
■DNS v4/v6 Proxy
■ULA
■ICMPv6
■IPv6 Quality of Service
■MLDv1/v2
Quality of Service
■GPON QoS
■IP QoS Flexible classification (ALG aided)
IPrate limiting (two-rate remarking/dropping)
DSCP (re)marking
TCPACK optimization
Dynamic link fragmentation
Per service class connection/resource reservation
■Ethernet QoS Priority or C-VLAN/S-VLAN tagging
Switch port queuing and scheduling
■Wireless QoS WMM (BE, BK, VI, VO access categories)
queuing and scheduling
TECHNICOLOR WORLDWIDE HEADQUARTERS
1, rue Jeanne d’Arc
92443 Issy-les-Moulineaux France
Tel: +33 (0)1 41 86 50 00 - Fax: +33 (0)1 41 86 58 59
www.technicolor.com
SALES CONTACT
For more information please get in touch with your usual
sales representative or use the following email:
EMEASalescontact@technicolor.com
APACSalescontact@technicolor.com
NAMSalescontact@technicolor.com
LATAMSalescontact@technicolor.com
© Copyright 2014 Technicolor. All rights reserved.
Photos and specifications are subject to change without
notice. All trade names referenced are service marks,
trademarks, or registered trademarks of their respective
companies.
DMS-DAT-20131031-0000 v1.0
DS-262-v01-1402
Technical Specifications
MediaAccess TG1700(d)ac
Smart Wireless .11ac
Integrated GPON Gateway
with Voice
TG1700(d)ac back panel
Telephony
■Voice technologies Voice over IP (VoIP)
■Voice signalling SIP
■Voice codecs G.711, G.726, G.729
Wideband G.722.2 (optional)
T.38
■Echo cancellation G.168 compliant
■Comfort Noise Generator (CNG)
■Voice Activity Detection (VAD)
■Flexible telephone number per FXS handset
including common numbers
■Supplementary and advanced services
Caller ID
Call waiting (on call basis)
Call forwarding (no answer/busy/unconditional)
Call transferring
Call hold, call return
Calling Line Identification Presentation (CLIP)
Calling Line Identification Restriction (CLIR)
Calling Name Identification Presentation (CNIP)
Calling Name Identification Restriction (CNIR)
Fax transparency / V.92 transparency
3-way conference
Message Waiting Indicator (MWI)
Warm line
Call completion to busy subscriber
Abbreviated number
Anonymous Call Rejection (ACR)
Distinctive ringing
Support for secondary outbound proxy
DNS NAPTR, DNS SRV
■Interoperable with main market softswitches
Environmental Features
■Wi-Fi on/o function
■LED on/o function
Content of the Box
■Smart Wireless .11ac Integrated GPON Gateway with Voice
■Ethernet cable (RJ-45)
■Power supply unit
■Quick Setup leaflet(s) (optional)
■Safety Instructions & Regulatory Information booklet (optional)
TECHNICOLOR
1-5 rue Jeanne d’Arc
92130 Issy-les-Moulineaux
France
www.technicolor.com
*DSL3687400B*
DSL3687400B
Copyright 2016 Technicolor. All rights reserved.
All tradenames referenced are service marks, trademarks, or registered trademarks of their
respective companies. Specifications subject to change without notice.
DMS-SAF-20101221-0001 v3.0.
SAFETY INSTRUCTIONS AND REGULATORY NOTICES
BEFORE YOU START INSTALLATION OF
OR USE THIS PRODUCT, CAREFULLY
READ THESE INSTRUCTIONS
Applicability
These Safety Instructions and Regulatory Notices
apply to:
• Technicolor xDSL Modems & Gateways
Directive
Unless express and prior approval by Technicolor
in writing, you may not:
• Disassemble, de-compile, reverse engineer,
trace or otherwise analyze the equipment, its
content, operation, or functionality, or otherwise
attempt to derive source code (or the
underlying ideas, algorithms, structure or
organization) from the equipment, or from any
other information provided by Technicolor,
except to the extent that this restriction is
expressly prohibited by local law;
• Copy, rent, loan, re-sell, sub-license, or
otherwise transfer or distribute the equipment
to others;
• Modify, adapt or create a derivative work of the
equipment;
• Remove from any copies of the equipment any
product identification, copyright or other
notices;
• Disseminate performance information or
analysis (including, without limitation,
benchmarks) from any source relating to the
equipment.
Such acts not expressly approved by Technicolor
will result in the loss of product warranty and may
invalidate the user's authority to operate this
equipment. Technicolor disclaims all responsibility
in the event of use that does not comply with the
present instructions.
Open Source Software notification
This product may contain certain open source
software modules which are subject to Open
Source Software license terms. A list of the Open
Source Software used by or provided under this
product release and their corresponding Licenses
and version number are available on Technicolor's
website at the following address:
www.technicolor.com/en/hi/minisites/open-
software or at another address as Technicolor may
provide from time to time.
If and where applicable, depending on the terms
of the applicable Open Source Software licenses,
the source codes of the Open Source Software
are available for free on Technicolor's website at
the following address: www.technicolor.com/en/
hi/minisites/open-software.
For avoidance of doubt, Open Source Software is
only licensed by the original owner of the Open
Source Software under the terms set forth in the
designated Open Source License.
Safety instructions
!
When using this product, always follow
the basic safety precautions to reduce the
risk of fire, electric shock and injury to
persons, including the following:
• Always install the product as described
in the documentation that is included
with your product.
• Avoid using this product during an
electrical storm. There may be a
remote risk of electric shock from
lightning.
• Do not use this product to report a gas
leak in the vicinity of the leak.
!
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
Climatic conditions
This product:
• Is intended for in-house stationary use; the
maximum ambient temperature must not
exceed 40 °C (104 °F); the relative humidity
must be between 20% and 80%.
• Must not be mounted in a location exposed to
direct or excessive solar and/or heat radiation.
• Must not be exposed to heat trap conditions
and must not be subjected to water or
condensation.
• Must be installed in a Pollution Degree 2
environment (environment where there is no
pollution or only dry, nonconductive pollution).
Ventilation and positioning
• Do not block or cover any ventilation openings;
never stand it on soft furnishings or carpets.
• Never push objects through the openings in
this product.
• Leave 7 to 10 cm (3 to 4 inches) around the
product to ensure that proper ventilation gets
to it.
• Do not install the product near any heat sources
such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
• Do not put anything on it which might spill or
drip into it (for example, lighted candles or
containers of liquids). Do not expose it to
dripping or splashing, rain or moisture. If a liquid
enters inside the product, or if the product has
been exposed to rain or moisture, unplug it
immediately and contact the Customer
Service.
Cleaning
Unplug this product from the wall socket and
computer before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
Water and moisture
Do not use this product near water, for example
near a bathtub, washbowl, kitchen sink, laundry
tub, in a wet basement or near a swimming pool.
Transition of the product from a cold environment
to a hot one may cause condensation on some of
its internal parts. Allow it to dry by itself before re-
starting the product.
Electrical powering
The powering of the product must adhere to the
power specifications indicated on the marking
labels.
In case this product is powered by a power supply
unit:
• This power supply unit must be Class II and a
Limited Power Source in accordance with the
requirements of IEC60950-1/EN60950-1,
Clause 2.5 and rated as indicated on the label
on your product. It must be tested and
approved to national, or local standards.
•For US and Canada: This product is intended to
be supplied by a UL listed Direct Plug-in Power
Unit marked "Class 2" and rated as indicated on
the label on your product.
Only use the power supply unit that is supplied
with this product. The use of other types of
supplies is prohibited. If you are not sure of the
type of power supply needed, consult the
product's user documentation or contact your
local product dealer.
Accessibility
The plug on the power supply cord or power
supply unit serves as disconnect device. Be sure
that the mains supply socket outlet you use is
easily accessible and located as close to the
product as possible.
Overloading
Do not overload mains supply socket outlets and
extension power cords as this increases the risk of
fire or electric shock.
Telephone cable
Connect the telecommunication line cord only in
the PSTN, FXO, DSL or Line port of the product.
Never plug the telecommunication line cord in
another receptacle of the product.
Follow the installation instructions in the
sequence as outlined in the installation guide.
Servicing
To reduce the risk of electric shock, do not
disassemble this product. None of its internal
parts are user-replaceable; therefore, there is no
reason to access the interior. Opening or
removing covers may expose you to dangerous
voltages. Incorrect reassembly could cause
electric shock if the appliance is subsequently
used.
If service or repair work is required, take it to a
qualified service dealer.
Damage requiring service
Unplug this product from the mains supply socket
outlet and refer servicing to qualified service
personnel under the following conditions:
• When the power supply, power cord or its plug
are damaged.
!
CAUTION
To reduce the risk of fire, use only No 26
AWG wire size or larger
telecommunication line cord.
• When the attached cords are damaged or
frayed.
• If liquid has been spilled into the product.
• If the product has been exposed to rain or
water.
• If the product does not operate normally.
• If the product has been dropped or damaged in
any way.
• There are noticeable signs of overheating.
• If the product exhibits a distinct change in
performance.
Immediately disconnect the product if you notice
it giving off a smell of burning or smoke. Under no
circumstances must you open the equipment
yourself; you run the risk of electrocution.
Protect the product when moving it
Always disconnect the power source when
moving the product or connecting or
disconnecting cables.
Interface classifications (upon applicability)
The external interfaces of the product are
classified as follows:
• DSL, Line: TNV circuit, subjected to
overvoltages (TNV-3)
• Phone, FXS: TNV circuit, not subjected to
overvoltages (TNV-2)
• PSTN, FXO: TNV circuit, subjected to
overvoltages (TNV-3)
• All other interface ports (e.g. Ethernet, USB,
etc.), including the low voltage power input
from the AC mains power supply: SELV
circuits.
Regulatory information
You must install and use this device in strict
accordance with the manufacturer's instructions
as described in the user documentation that is
included with your product.
Before you start installation or use of this product,
carefully read the contents of this document for
device specific constraints or rules that may apply
in the country where you want to use this product.
In some situations or environments, the use of
wireless devices may be restricted by the
proprietor of the building or responsible
representatives of the organization.
If you are uncertain of the policy that applies on
the use of wireless equipment in a specific
organization or environment (e.g. airports), you
are encouraged to ask for authorization to use this
device prior to turning on the equipment.
Technicolor is not responsible for any radio or
television interference caused by unauthorized
modification of the device, or the substitution or
attachment of connecting cables and equipment
other than specified by Technicolor. The
correction of interference caused by such
unauthorized modification, substitution or
attachment will be the responsibility of the user.
Technicolor and its authorized resellers or
distributors are not liable for any damage or
violation of government regulations that may
arise from failing to comply with these guidelines.
North-America - Canada
Notification of Canadian Radio Frequency
Interference Statement
This Class B digital apparatus complies with
Canadian ICES-003.
This product meets the applicable Innovation,
Science and Economic Development Canada
technical specifications.
NOTICE: The Ringer Equivalence Number
(REN) for this terminal equipment is 0.1. The
REN is an indication of the maximum number of
devices allowed to be connected to a telephone
interface. The termination on an interface may
consist of any combination of devices subject
only to the requirement that the sum of the RENs
of all the devices does not exceed 5.
Canada - Industry Canada (IC)
In case this product is equipped with a wireless
transceiver, this device complies with Industry
Canada’s licence-exempt RSSs. Operation is
subject to the following two conditions: (1) This
device may not cause interference; and (2) This
device must accept any interference, including
interference that may cause undesired operation
of the device.
Canada - Radiation exposure statement
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20 cm
(8 inches) between the radiator and your body.
!
WARNING
• The Phone, FXS port will be classified
as a TNV-3 circuit when connected
internally to the PSTN, FXO port, for
example, when the device is powered
off.
• If the product is equipped with a USB
interface (slave and/or master) or any
type of connector with metallic
shielding, then it is not allowed to
connect the Phone, FXS port with the
PSTN, FXO or the DSL, Line port by
any means, for example with an
external telephone cable.
Restricted frequency bands
In case this product is equipped with a wireless
transceiver operating in the 2.4 GHz band, it may
only use channels 1 to 11 (2412 to 2462 MHz) on
Canada territory.
In case this product is equipped with a wireless
transceiver operating in the 5 GHz band, it is for
indoor use only.
The availability of some specific channels and/or
operational frequency bands are country
dependent and are firmware programmed at the
factory to match the intended destination. The
firmware setting is not accessible by the end user.
North-America - United States of America
Federal Communications Commission (FCC)
radio frequency interference statement
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment
and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to
operate this equipment.
Responsible Party: Technicolor, 101W. 103rd St.,
Indianapolis, IN 46290 USA, 317-587-5466.
This equipment complies with Part 68 of the FCC
Rules.
The customer information required for Telephone
Terminal Equipment ("TTE") approved for
connection to the Public Switched Telephone
Network ("PSTN"), pursuant to 47 CFR
§68.218(b)(1) can be found at
www.technicolor.com.
RF exposure statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. End users must follow the specific
operating instructions for satisfying RF exposure
compliance. To maintain compliance with FCC
RF exposure compliance requirements, please
follow operation instruction as documented in the
product documentation.
When the product is equipped with a wireless
interface, then it becomes a mobile or fixed
mounted modular transmitter and must have a
separation distance of at least 20 cm (8 inches)
between the antenna and the body of the user or
nearby persons. In practice, this means that the
user or nearby persons must have a distance of at
least 20 cm (8 inches) from the product and must
not lean on the product in case it is wall-mounted.
With a separation distance of 20 cm (8 inches) or
more, the M(aximum) P(ermissible) E(xposure)
limits are well above the potential this wireless
interface is capable to produce.
This transmitter must not be co-located or
operating in conjunction with any other antenna
or transmitter.
Restricted frequency bands
In case this product is equipped with a wireless
transceiver operating in the 2.4 GHz band, it may
only use channels 1 to 11 (2412 to 2462 MHz) on
U.S.A. territory.
In case this product is equipped with a wireless
transceiver operating in the 5 GHz band, it meets
all the other requirements specified in Part 15E,
Section 15.407 of the FCC Rules.
The availability of some specific channels and/or
operational frequency bands are country
dependent and are firmware programmed at the
factory to match the intended destination. The
firmware setting is not accessible by the end user.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
TECHNICOLOR
1-5 rue Jeanne d’Arc
92130 Issy-les-Moulineaux
France
www.technicolor.com
Copyright 2016 Technicolor. Tous droits réservés.
Tous les noms de marque désignent des marques de service, des marques commerciales ou
des marques déposées des sociétés auxquelles elles appartiennent. Les spécifications
peuvent être modifiées sans préavis. DMS-SAF-20101221-0001 v3.0.
CONSIGNES DE SÉCURITÉ ET INFORMATIONS
RÉGLEMENTAIRES
AVANT D’INSTALLER OU D’UTILISER LE
PRODUIT, LISEZ ATTENTIVEMENT CES
INSTRUCTIONS
Applicabilité
Ces Consignes de sécurité et informations
réglementaires sont applicables à :
• Technicolor xDSL Modems & Gateways
Consignes à respecter
Sauf accord écrit explicite et préalable de
Technicolor, vous ne pouvez pas :
• démonter, décompiler, décomposer, examiner
ou analyser de quelque manière que ce soit
l'appareil, son contenu, son fonctionnement ou
ses fonctionnalités, ni tenter de copier le code
source (ou les concepts sous-jacents, les
algorithmes, la structure ou l'organisation) de
l'appareil, ou de toute autre information fournie
par Technicolor, sauf si cette restriction est
expressément interdite par la législation locale;
• copier, louer, prêter, revendre, mettre sous
licence, ni transférer ou distribuer l'appareil à
des tiers;
• modifier, adapter ou créer un dérivé de
l'appareil;
• retirer de l'appareil l'identification du produit,
les droits d'auteur ou toute autre notification;
• diffuser des informations ou analyses relatives
aux performances de l'appareil (y compris et
sans restriction, les tests de performance)
quelle que soit la source d'information.
Ces actes, réalisés sans l'accord explicite de
Technicolor, entraînent la perte de la garantie du
produit et enlèvent à l'utilisateur le droit
d'employer l'équipement. Technicolor rejette
toute responsabilité en cas d'utilisation de
l'équipement non conforme aux présentes
instructions.
Notice relative aux Logiciels Libres
Ce produit logiciel peut contenir des éléments
(modules ou bibliothèques logiciels) publiés sous
licence « Logiciels libres » (« open source »). Ces
composants logiciels peuvent être modifiés dans
les prochaines versions logicielles.
Vous trouverez la liste des logiciels libres
embarqués dans ce produit logiciel, ainsi que leur
licence et version sur le site Technicolor à l’adresse
suivante : http://www.technicolor.com/en/hi/
minisites/open-software, ou à toute autre adresse
URL que Technicolor pourrait fournir dans le
futur.
En fonction des termes et conditions d’utilisation
applicables à ces éléments logiciels (les licences
de logiciel libre en cause), le code source de ces
modules ou bibliothèques logiciels seront mis à
disposition sur le site de Technicolor, à l’adresse
suivante : http://www.technicolor.com/en/hi/
minisites/open-software, ou à toute autre adresse
URL que Technicolor pourrait fournir dans le
futur.
En tout état de cause, les logiciels libres sont
licenciés directement par l’auteur original de ces
composants logiciels, dans les termes de la
licence de logiciel libre correspondante.
Consignes de sécurité
Conditions climatiques
Ce produit :
• Est conçu pour une utilisation fixe dans un
bureau à une température ambiante maximale
de 40 °C (104 °F); l'humidité relative doit être
comprise entre 20% et 80%.
!
Afin d’éviter tout risque d’incendie, de
choc électrique et de blessure corporelle,
il convient d’utiliser le produit
conformément aux mesures de sécurité
de base, parmi lesquelles les suivantes :
• Respectez toujours les instructions
d’installation détaillées dans la
documentation accompagnant le
produit.
• Évitez de connecter ou d'utiliser ce
produit en cas d'orage.La foudre peut
provoquer un faible risque de choc
électrique.
• N’utilisez pas le produit pour signaler
une fuite de gaz à proximité de cette
fuite.
!
• Lisez ces instructions.
• Conservez ces instructions.
• Respectez tous les avertissements.
• Suivez toutes les instructions.
• Ne doit pas être installé dans un endroit exposé
au rayonnement direct et excessif du soleil et/
ou à des radiations de chaleur.
• Ne doit pas être mis dans des conditions
d'accumulation de chaleur et ne doit pas être
soumis à l'humidité ou la condensation.
• Doit être installé dans un environnement
présentant un degré de pollution 2
(environnement exempt de pollution ou avec
une pollution sèche, non conductrice).
Ventilation et positionnement
• Ne pas obstruer les ouvertures de ventilation;
ne jamais se tenir sur des tissus d'ameublement
et les tapis.
• Ne jamais pousser des objets dans les
ouvertures de ce produit.
• Laisser 7 à 10 cm (3 à 4 pouces) autour du
produit afin d'assurer une bonne ventilation.
• Ne pas installer le produit à proximité de
sources de chaleur telles que des radiateurs,
poêles ou autres appareils (y compris les
amplificateurs) qui produisent de la chaleur.
• Ne mettez rien sur lui qui pourrait renverser ou
goutte à goutte dans le (par exemple, des
bougies ou des contenants de liquides
allumée). Ne pas l'exposer à des gouttes ou des
éclaboussures, de la pluie ou de l'humidité. Si
un liquide pénètre à l'intérieur du produit, ou si
le produit a été exposé à la pluie ou à l'humidité,
débranchez-le immédiatement et contactez le
service après-vente.
Nettoyage
Débranchez l'appareil de la prise murale et de
l'ordinateur avant de le nettoyer. N'utilisez pas de
détergents liquides ou d'aérosols. Nettoyez-le
avec un chiffon humide.
Eau et humidité
N'utilisez pas ce produit à proximité d'une arrivée
d'eau, par exemple près d'une baignoire, d'un
lavabo,
d'un évier, d'une machine à laver, dans un sous-sol
humide ou près d'une piscine. Le transfert de ce
produit d'un environnement froid vers un
environnement chaud peut entraîner l'apparition
de condensation sur certaines parties internes.
Laissez l'appareil sécher avant de le remettre en
marche.
Alimentation électrique
L'alimentation du produit doit respecter les
spécifications en matière d'alimentation figurant
sur les étiquettes.
Dans le cas où ce produit est alimenté par un bloc
d'alimentation :
• L'alimentation doit être de classe II, être une
source à puissance limitée conformément aux
exigences de la norme CEI60950-1/ EN60950-
1, clause 2.5, aux caractéristiques nominales
comme indiquées sur l’étiquette fixée sur le
produit. Elle doit être testée et répondre aux
normes nationales ou locales.
•Pour États-Unis et Canada : Ce produit est
destiné à être alimenté par une source
d'alimentation directe certifiée UL de «Classe
2» et considéré comme indiqué sur l'étiquette
de votre produit.
Utilisez uniquement le bloc d'alimentation livré
avec votre produit. L'utilisation d'autres types de
sources d'énergie est interdite. Si vous n'êtes pas
certain du type d'alimentation nécessaire, veuillez
consulter la documentation fournie avec le
produit ou contacter votre revendeur local.
Accessibilité
L'alimentation électrique est un moyen de
déconnecter ce produit. Assurez-vous donc que
le socle de la prise dans laquelle vous branchez le
cordon d'alimentation est facilement accessible,
et est située le plus près possible de l'équipement.
Surcharge
Ne surchargez pas les socles des prises du réseau
d'alimentation ni les rallonges car ceci augmente
les risques d'incendie et de choc électrique.
Câble téléphonique
Connectez uniquement le câble téléphonique
dans la prise PSTN, FXO ou DSL, Line du
produit. Ne le branchez jamais dans une autre
prise du produit.
Suivez la procédure pour connecter les câbles au
produit en suivant la séquence décrite dans le
guide d'installation.
Entretien
Pour réduire les risques de choc électrique, ne
démontez pas ce produit. Aucune de ses pièces
internes
ne peut être remplacée par un non-professionnel;
il n'y a dès lors pas de raison de l'ouvrir.
L'ouverture ou le retrait des couvercles peut vous
exposer à des tensions dangereuses. Un
remontage incorrect peut entraîner un choc
électrique lors de l’utilisation suivante.
Si votre appareil doit être réparé ou révisé,
confiez-le à un distributeur agréé.
!
ATTENTION
Pour réduire les risques d'incendie,
utilisez uniquement des conducteurs de
télécommunications 26 AWG ou de
section supérieure.
Détérioration nécessitant une intervention
Débranchez ce produit de la prise murale et faites
effectuer la réparation par un service après-vente
qualifié dans les cas suivants :
• Si l'alimentation ou sa fiche sont
endommagées.
• Si un des câbles fournis est endommagé ou
effiloché.
• Si vous avez renversé du liquide dans le produit.
• Si le produit a été exposé à la pluie ou à de
l'eau.
• Si le produit ne fonctionne pas normalement.
• Si le produit est tombé ou a été endommagé
d'une façon quelconque.
• S’il y a un signe perceptible de surchauffe.
• Si le produit présente des variations
importantes au niveau des performances.
Débranchez immédiatement le produit si vous
remarquez qu'il s'en dégage une odeur de brûlé
ou de la fumée. Vous ne devez en aucun cas
ouvrir l'appareil vous-même car vous risquez
d'être électrocuté.
Classification des interfaces (sur l'applicabilité)
Les interfaces externes du produit sont spécifiées
comme suit :
• DSL, Line : circuit TRT, sujet à des surtensions
(TRT-3)
• Phone, FXS : circuit TRT, non sujet à des
surtensions (TRT-2)
• PSTN, FXO : circuit TRT, sujet à des
surtensions (TRT-3)
• Tous les autres ports d'interface (par example,
Ethernet, USB, etc.)y compris l'entrée
d'alimentation basse tension depuis
l'alimentation du réseau : circuits TBTS
Avis réglementaire
L’appareil doit être installé et utilisé en stricte
conformité avec les instructions du fabricant,
énoncées dans la documentation accompagnant
le produit.
Avant d’installer ou d’utiliser le produit, lisez
attentivement ce document afin de prendre
connaissance des restrictions spécifiques à
l’appareil ou des règles en vigueur dans le pays où
vous comptez l’utiliser.
Dans certains environnements ou circonstances,
l’emploi de dispositifs sans fil peut être prohibé
par le propriétaire du bâtiment ou les
représentants responsables de l’organisation
concernée.
En cas de doute quant à la politique s’appliquant à
l’utilisation d’équipements sans fil dans une
organisation ou un environnement spécifique (par
exemple dans les aéroports), il est recommandé
de demander la permission d’utiliser l’appareil
avant de l’allumer.
Technicolor n’est pas responsable des
interférences avec les postes de radio ou de
télévision susceptibles de survenir à la suite d’une
modification non autorisée de l’appareil ou du
remplacement ou de la connexion de câbles et
d’équipements non agréés par Technicolor. C’est
par conséquent à l’utilisateur qu’il incombe de
remédier aux interférences causées par de telles
manipulations.
Technicolor et ses revendeurs et distributeurs
agréés déclinent toute responsabilité quant aux
dommages ou violation des réglementations
nationales découlant du non-respect de ces
instructions.
Amérique du Nord – Canada
Déclaration Canadienne d’interférence de
Fréquence Radio
Cet appareil numérique de Classe B est
conforme à la norme canadienne NMB-003.
Le présent produit est conforme aux
spécifications techniques applicables
d'Innovation, Sciences et Développement
Économique Canada.
NOTE : L’Indice d’Équivalence de la Sonnerie
(IES) de ce produit est 0.1. Le IES sert à indiquer
le nombre maximal de terminaux qui peuvent être
raccordés à une interface téléphonique. La
terminaison d'une interface peut consister en une
combinaison quelconque de dispositifs, à la seule
condition que la somme d'indices d'équivalence
de la sonnerie de tous les dispositifs n'excède pas
cinq.
Canada - Industrie Canada (IC)
Si le produit est équipé d'un émetteur-récepteur
sans fil, il est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux
conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage; (2) l’appareil doit accepter
!
AVERTISSEMENT
• Le port Phone, FXS sera classifié
comme un circuit TRT-3 lorsqu’il est
raccordé en interne au port PSTN,
FXO, par exemple, lorsque le
périphérique est mis hors tension.
• Si le produit est équipé d’une interface
USB (esclave et/ou maître) ou d’un
autre type de connecteur avec un
blindage métallique, il est interdit de
relier le port Phone, FXS au port
PSTN, FXO ou au port DSL, Line par
un moyen quelconque, par exemple, à
l’aide d’un câble téléphonique externe.
tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le
fonctionnement.
Canada - Avis radiation énoncées
Cet équipement se conforme avec les limites
d’exposition aux radiations énoncées pour un
environnement incontrôlé. Il doit être installé et
opéré avec une distance minimale de 20 cm
(8 pouces) entre la source de radiation et votre
corps.
Bandes de fréquences restreintes
Si le produit est équipé d'un émetteur-récepteur
sans fil fonctionnant dans la bande des 2.4 GHz, il
utilise uniquement les canaux 1 à 11 (2 412 à
2 462 MHz) sur le territoire canadien.
Si le produit est équipé d'un émetteur-récepteur
sans fil fonctionnant dans la bande des 5 GHz, il
peut uniquement être utilisé dans un
environnement intérieur.
La disponibilité de certains canaux spécifiques et /
ou bandes de fréquences de fonctionnement sont
en fonction du pays et sont firmware programmé
en usine pour correspondre à la destination
prévue. Le réglage du firmware n’est pas
accessible par l’utilisateur.

Navigation menu
