Technicolor Delivery Technologies Belgium TG789VNV3 WLAN Access Point TG789vn v3, TG788vn, TG589vn v2 User Manual TG789vn v3 SetupUserGuide en
Technicolor Delivery Technologies Belgium WLAN Access Point TG789vn v3, TG788vn, TG589vn v2 TG789vn v3 SetupUserGuide en
Contents
- 1. User Manual Annex
- 2. User Manual
User Manual
SETUP AND USER GUIDE
Technicolor TG789vn v3
SETUP AND USER GUIDE
Technicolor TG789vn v3
Copyright
Copyright ©1999-2011 Technicolor. All rights reserved.
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from
Technicolor. The content of this document is furnished for informational use only, may be subject to change without notice, and should not
be construed as a commitment by Technicolor. Technicolor assumes no responsibility or liability for any errors or inaccuracies that may
appear in this document.
Technicolor Delivery Technologies Belgium NV
Prins Boudewijnlaan, 47
2650 Edegem
Belgium
http://www.technicolor.com
Trademarks
The following trademarks may be used in this document:
DECT™ is a trademark of ETSI.
Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
Ethernet™ is a trademark of Xerox Corporation.
Wi-Fi®, WMM® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance®. Wi-Fi CERTIFIED, Wi-Fi ZONE, Wi-Fi
Protected Access, Wi-Fi Multimedia, Wi-Fi Protected Setup, WPA, WPA2 and their respective logos are trademarks of the Wi-Fi Alli-
ance®.
UPnP™ is a certification mark of the UPnP™ Implementers Corporation.
DLNA® is a registered trademark, DLNA disc logo is a service mark, and DLNA Certified is a trademark of the Digital Living Network
Alliance. Digital Living Network Alliance is a service mark of the Digital Living Network Alliance.
Microsoft®, MS-DOS®, Windows®, Windows NT® and Windows Vista® are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other countries.
UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.
Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorporated,
registered in the United States and/or other countries.
Other brands and product names may be trademarks or registered trademarks of their respective holders. All other logos, trademarks and
service marks are the property of their respective owners, where marked or not.
Document Information
Status: v0.1 (November 2011)
Reference: DMS-CTC-20101206-0033
Short Title: Setup and User Guide Technicolor TG789vn v3 R8.4.x
i
CONTENTS
DMS-CTC-20101206-0033 v0.1
1 Getting Started ......................................................................................................... 3
1.1 Features At A Glance............................................................................................................................... 4
1.2 User Scenarios ............................................................................................................................................5
1.3 Components .............................................................................................................................................. 6
1.3.1 Power ................................................................................................................................................................................7

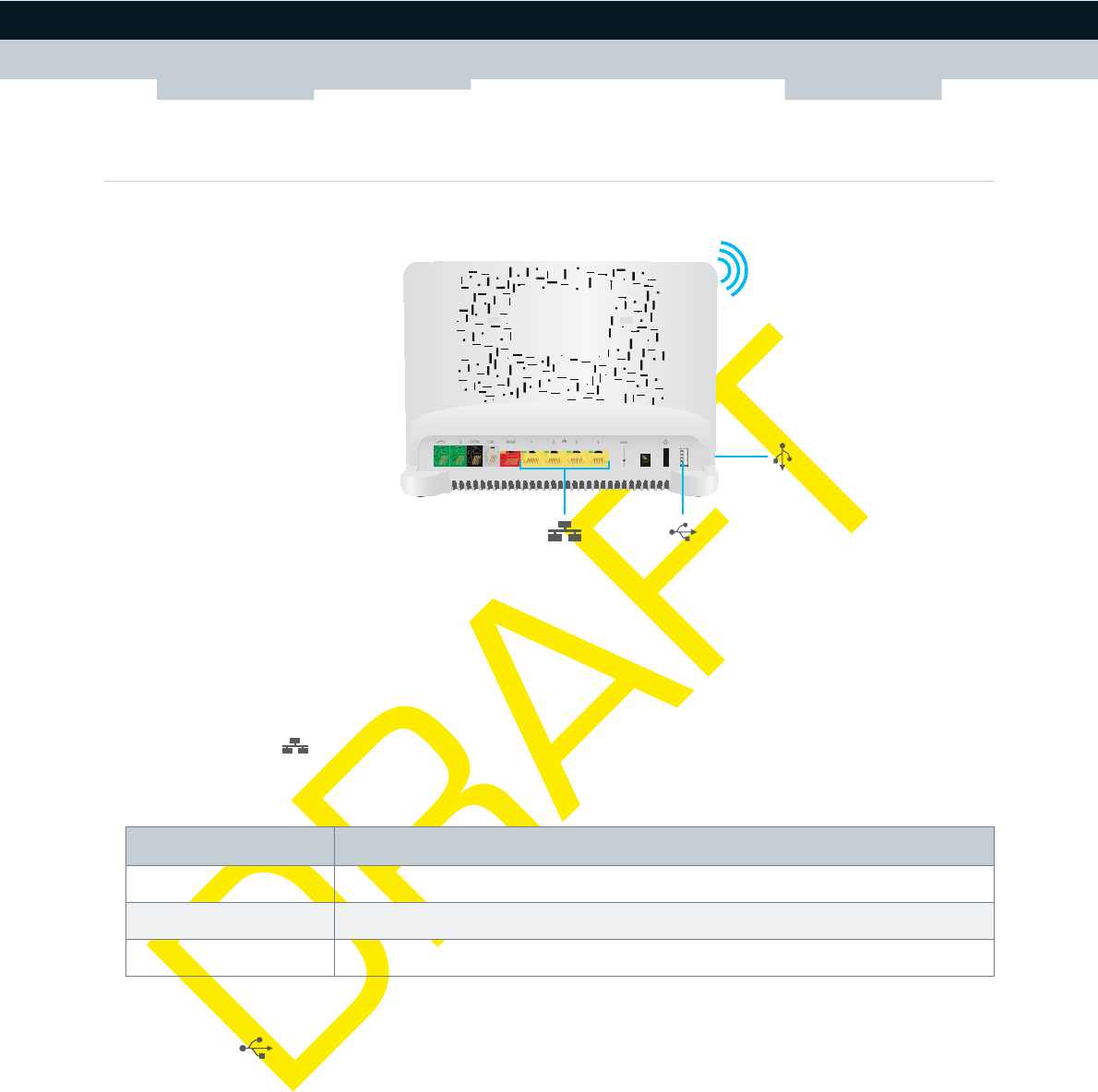

1.3.2 Local Network Connection........................................................................................................................................... 8
1.3.3 Broadband Connection ................................................................................................................................................. 9
1.3.4 Voice Connection........................................................................................................................................................ 10

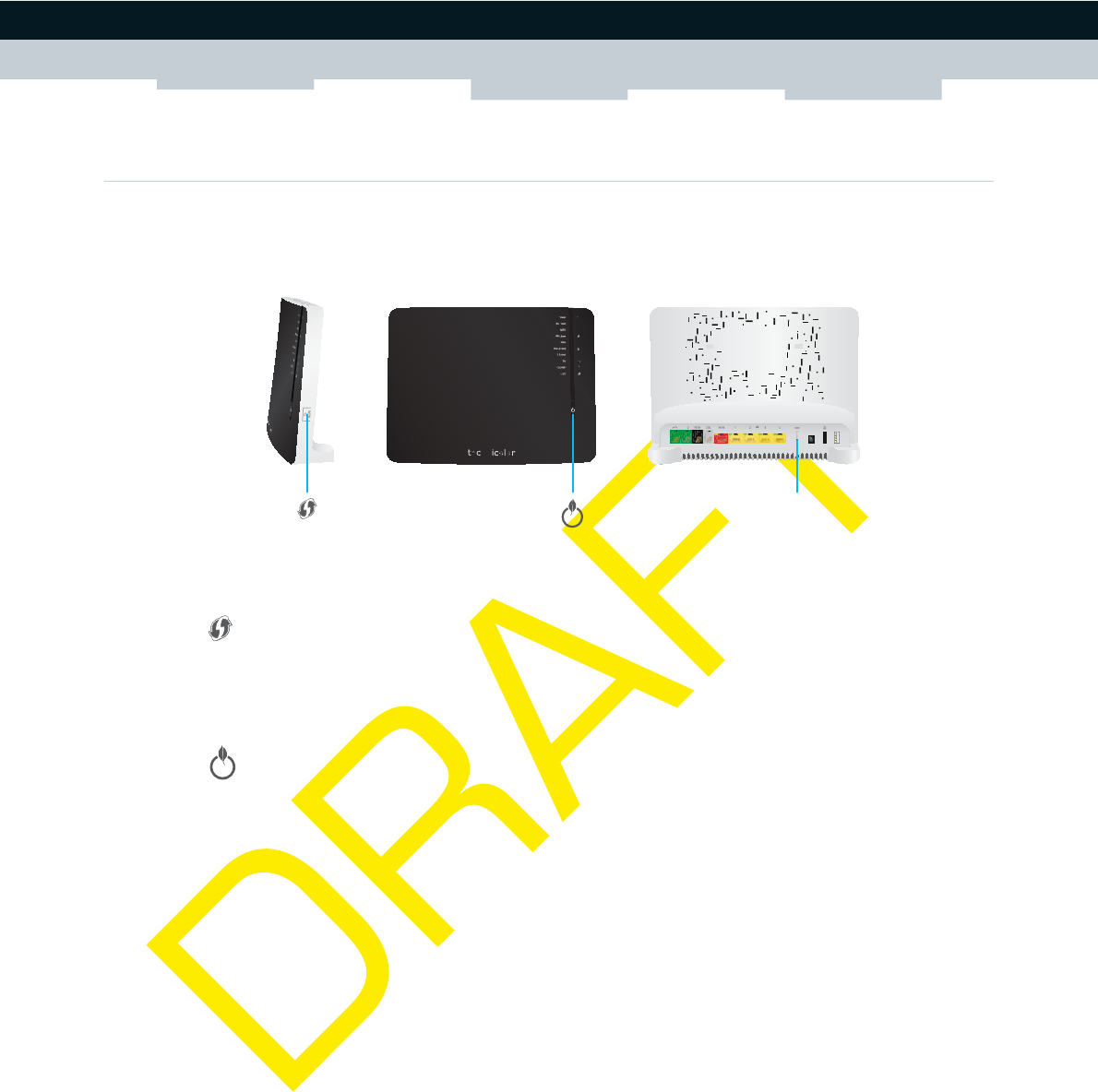

1.3.5 Buttons............................................................................................................................................................................ 11
1.3.6 Status LEDs ...................................................................................................................................................................12
1.4 Preparing for the Installation...................................................................................................................15

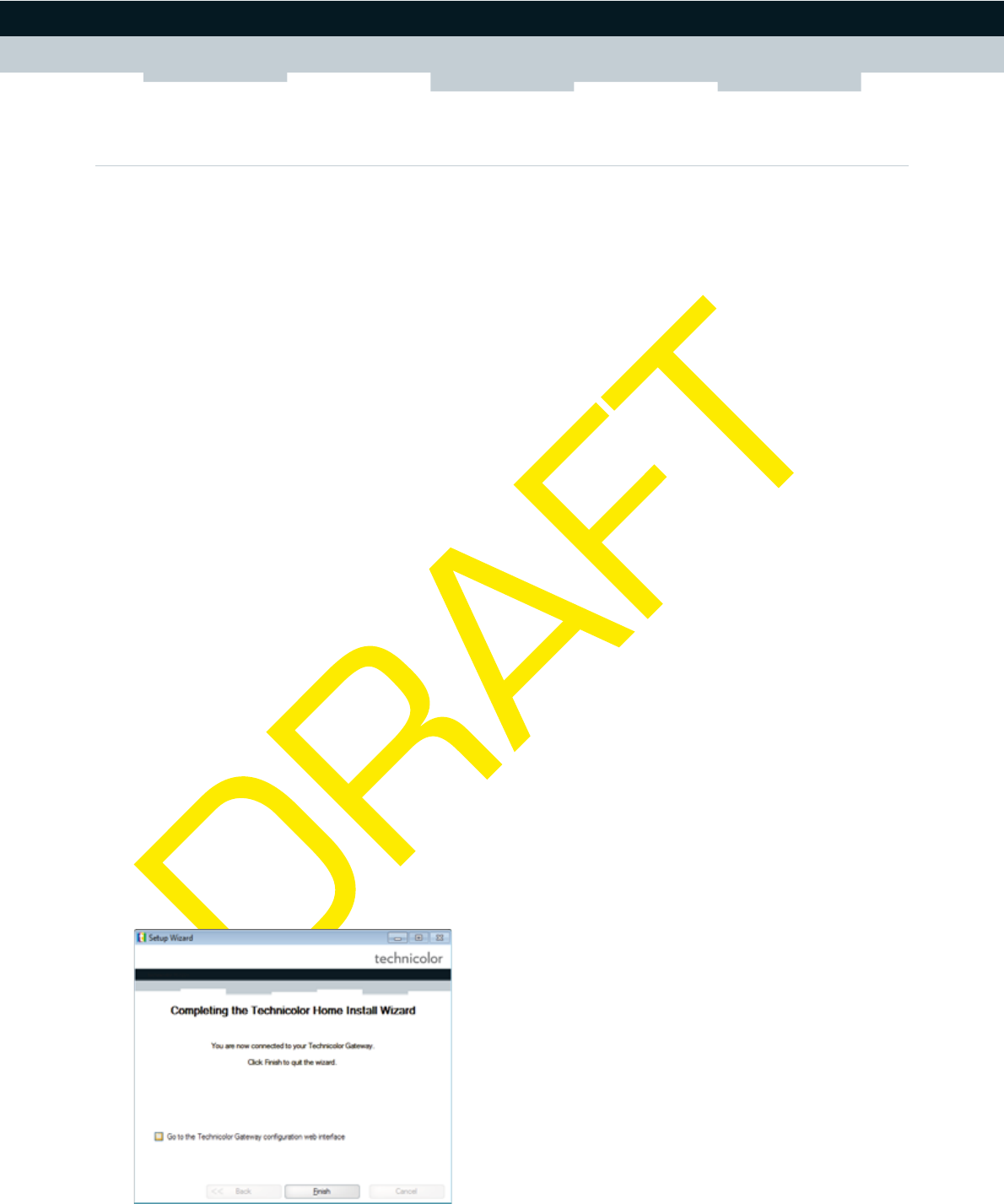

2 Guided Installation...................................................................................................17
3 Manual Installation...................................................................................................19
3.1 Connecting the Technicolor Gateway to your Service Provider’s Network.................................... 20
3.1.1 Setting up your Technicolor Gateway as DSL Gateway .........................................................................................21
3.1.2 Setting up your Technicolor Gateway as Local Router........................................................................................... 24
3.2 Powering on the Technicolor Gateway.................................................................................................25
3.3 Connecting Your Network Devices to the Technicolor Gateway.................................................... 26
3.3.1 Setting up a Wireless Connection...............................................................................................................................27

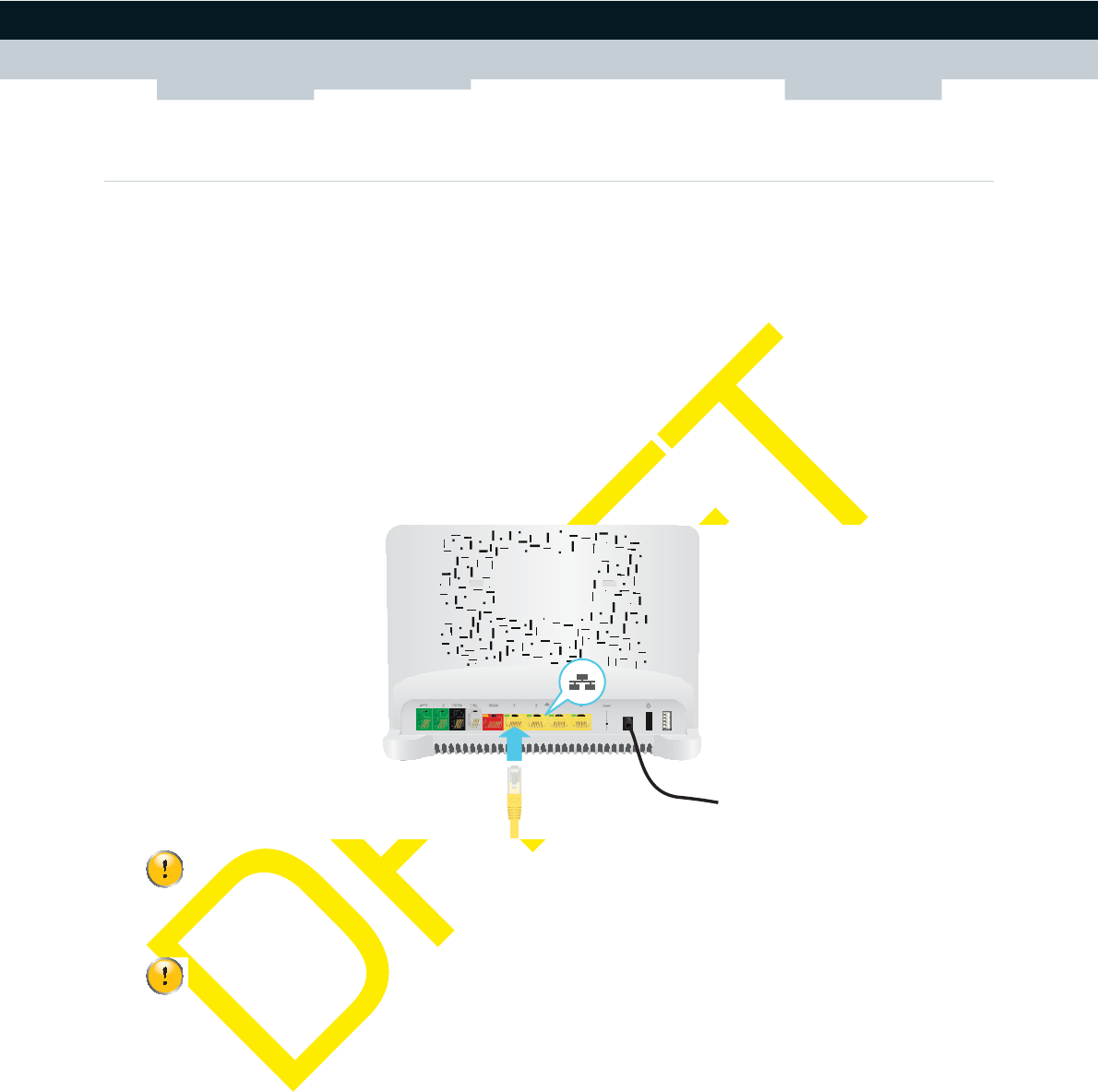

3.3.2 Setting up a Wired Connection.................................................................................................................................. 28
3.4 Configure the Technicolor Gateway.................................................................................................... 29
3.5 Setting Up the 3G Fall-Back WAN Connection................................................................................. 30
3.5.1 Managing your Mobile Connection with the Technicolor Gateway GUI .............................................................31
3.5.2 Inserting a Mobile USB Adapter.................................................................................................................................32
4 Configuration Tools.................................................................................................33
4.1 Technicolor Gateway GUI......................................................................................................................34
4.1.1 Access............................................................................................................................................................................ 35
4.1.2 Components ................................................................................................................................................................. 36
4.1.3 Protecting Access to the Technicolor Gateway....................................................................................................... 38
4.2 Backing Up/Restoring your Configuration...........................................................................................39
4.3 Access From the Internet....................................................................................................................... 40
5 The Technicolor Gateway Wireless Access Point...................................................41
5.1 Connecting Your Wireless Client via WPS ......................................................................................... 42
5.2 Connecting Your Wireless Client without WPS ................................................................................. 44
5.3 Securing Your Wireless Connection..................................................................................................... 45
6 Telephony................................................................................................................ 47
6.1 Setting Up Your Telephone Network .................................................................................................. 48
6.1.1 Connection to the Traditional Telephone Network................................................................................................ 49
6.1.2 Configuring the Technicolor Gateway VoIP Service..............................................................................................50

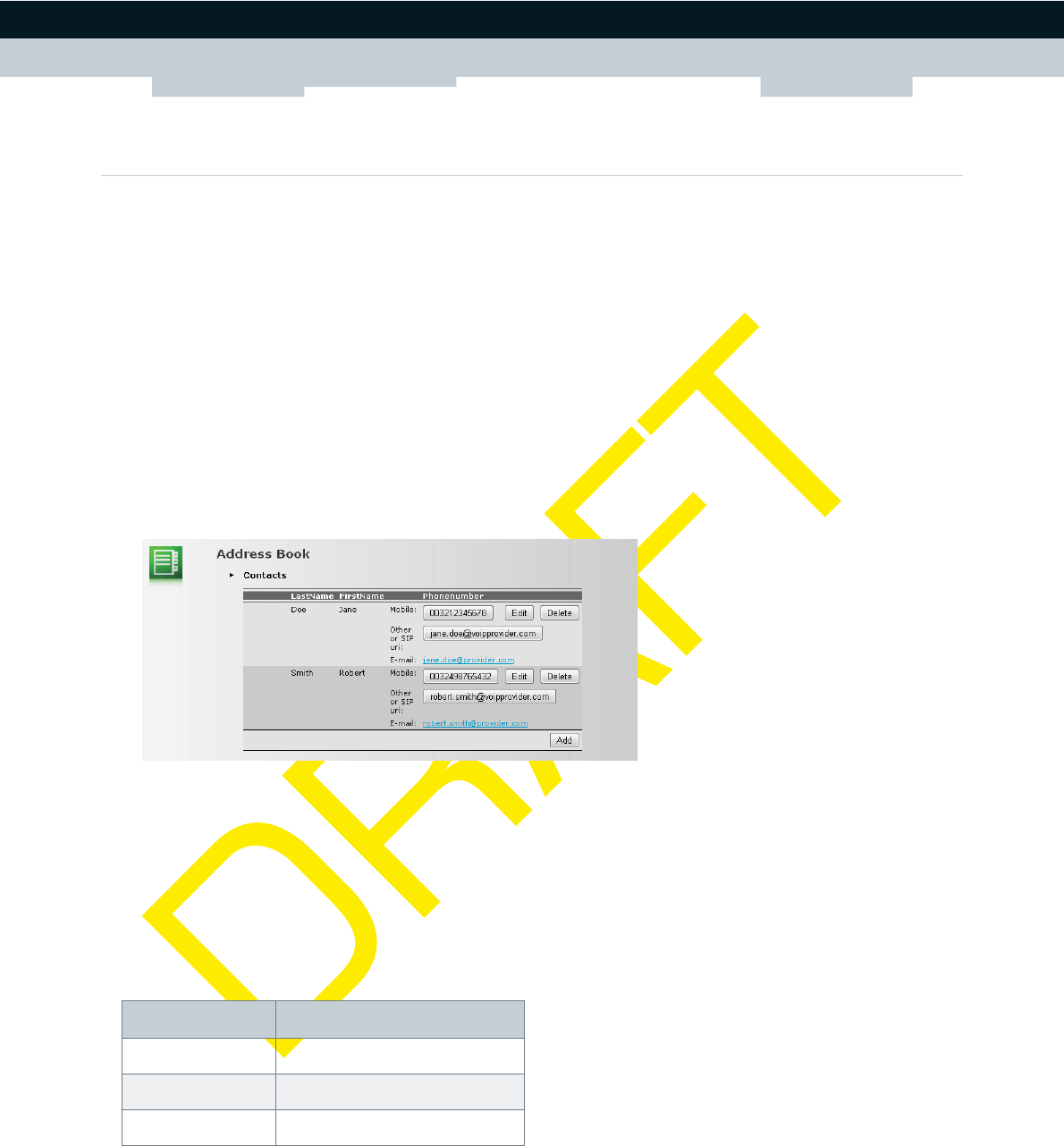

6.2 Address Book............................................................................................................................................52
ii
CONTENTS
DMS-CTC-20101206-0033 v0.1
6.3 Telephony Services................................................................................................................................. 54
6.3.1 Activating a Telephony Service on your Technicolor Gateway............................................................................. 55

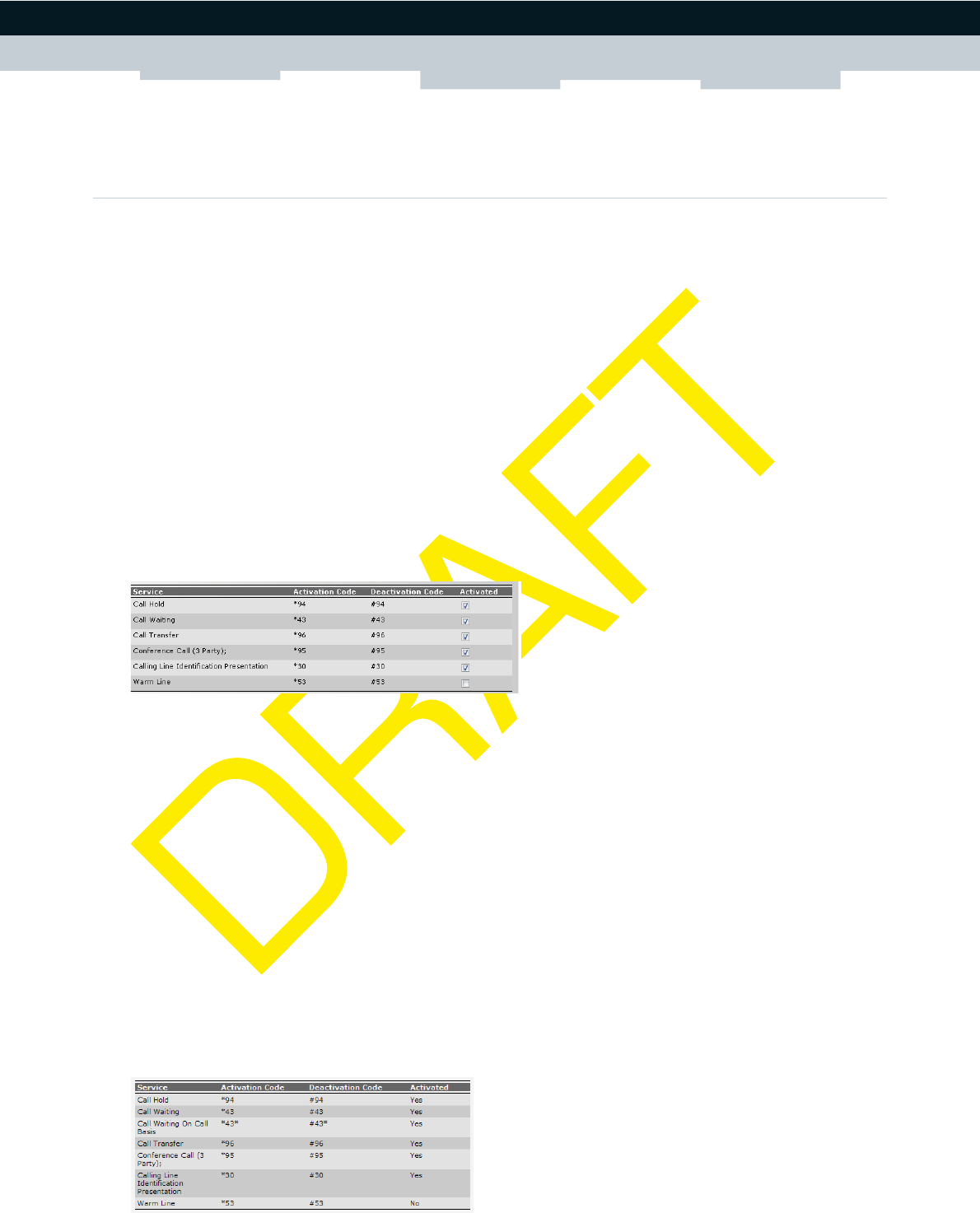

6.3.2 Common Telephony Services .................................................................................................................................... 56

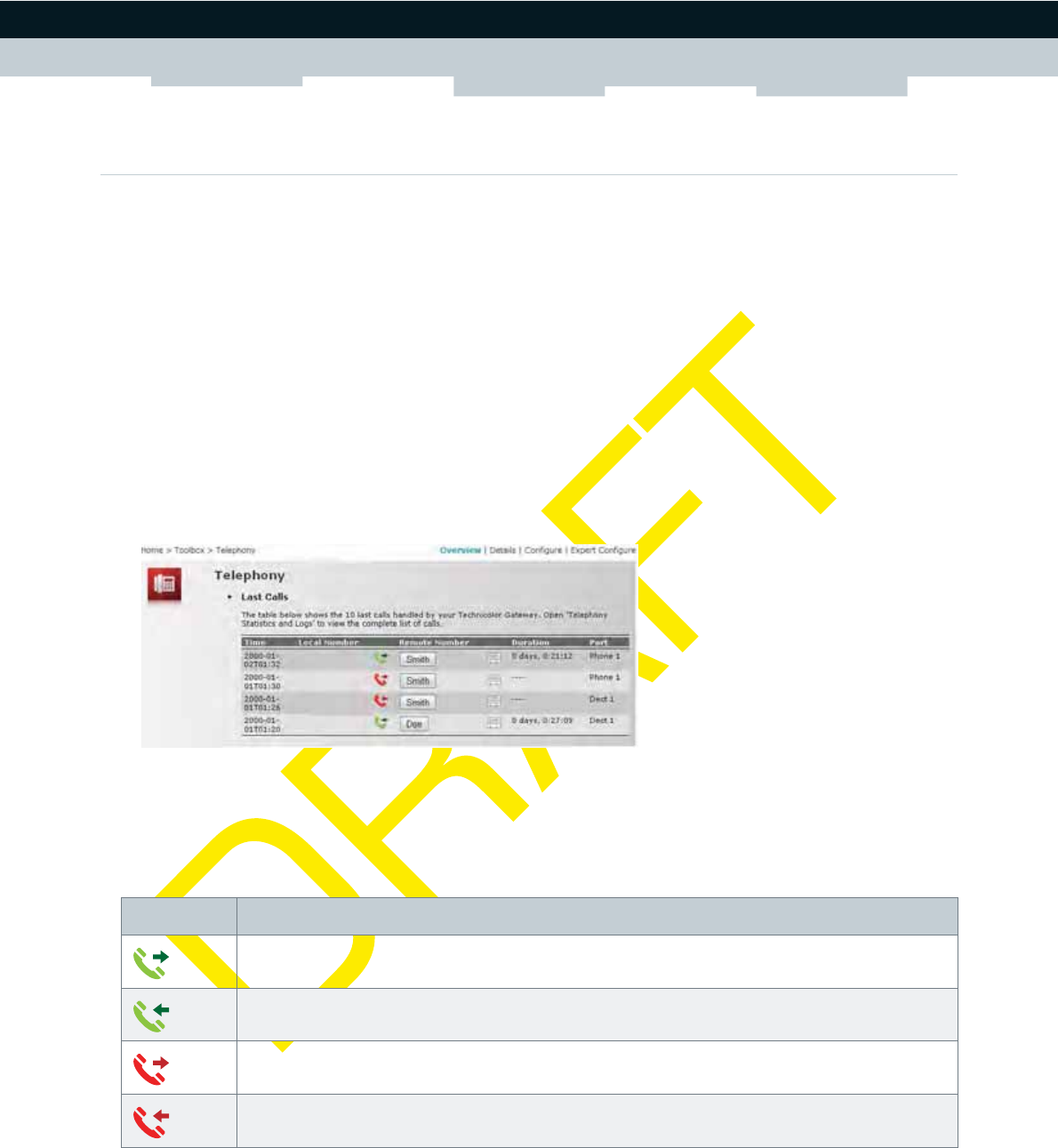

6.4 Viewing Call Logs ................................................................................................................................... 59
7 Saving Energy with Your Technicolor Gateway......................................................61
7.1 Code of Conduct.................................................................................................................................... 62
7.2 ECO Manager..........................................................................................................................................63
7.3 Manually Switching Off Services to Reduce Power ........................................................................... 64
8 Sharing Content on your Technicolor Gateway..................................................... 65

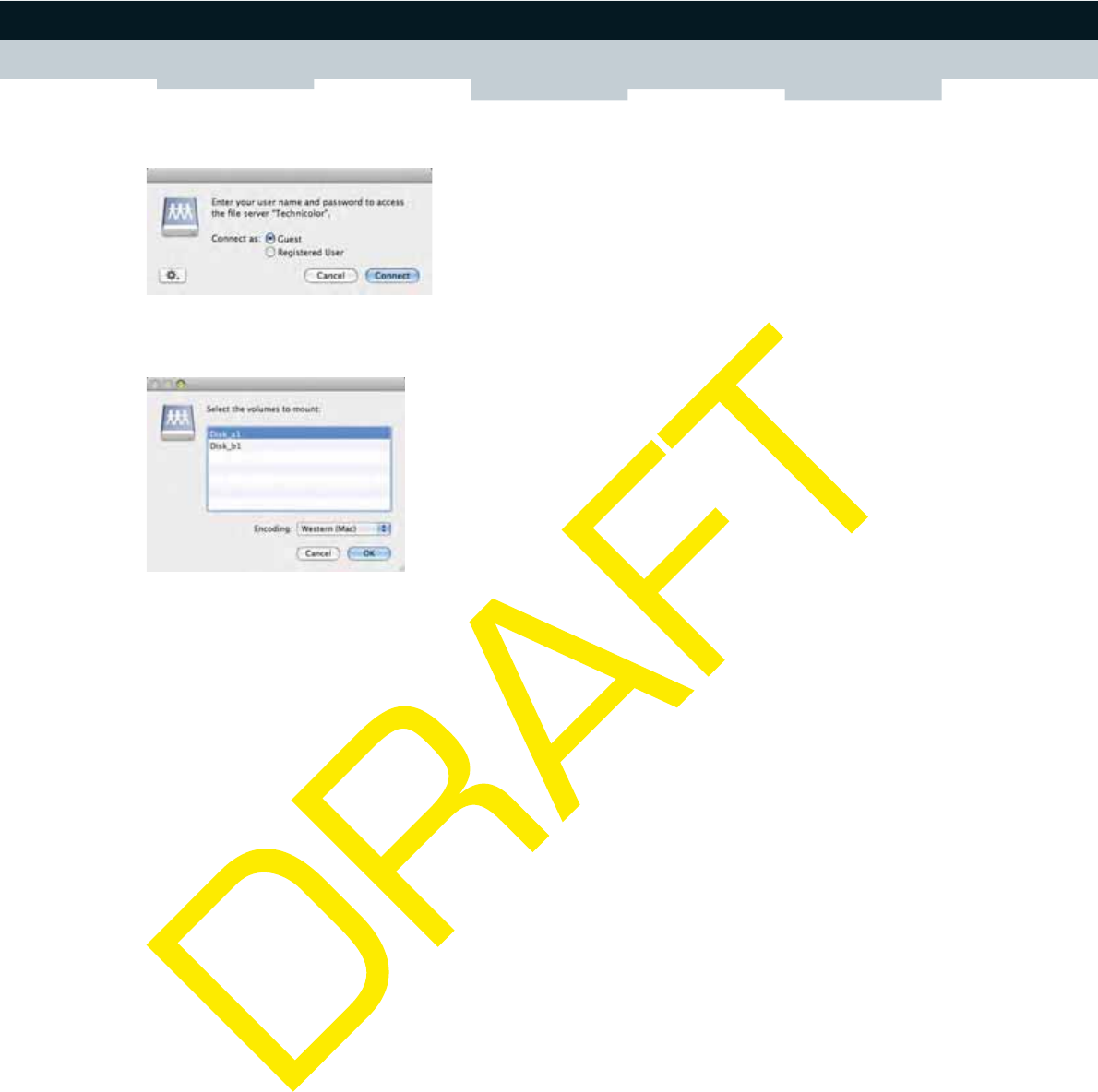

8.1 The Network File Server .........................................................................................................................67

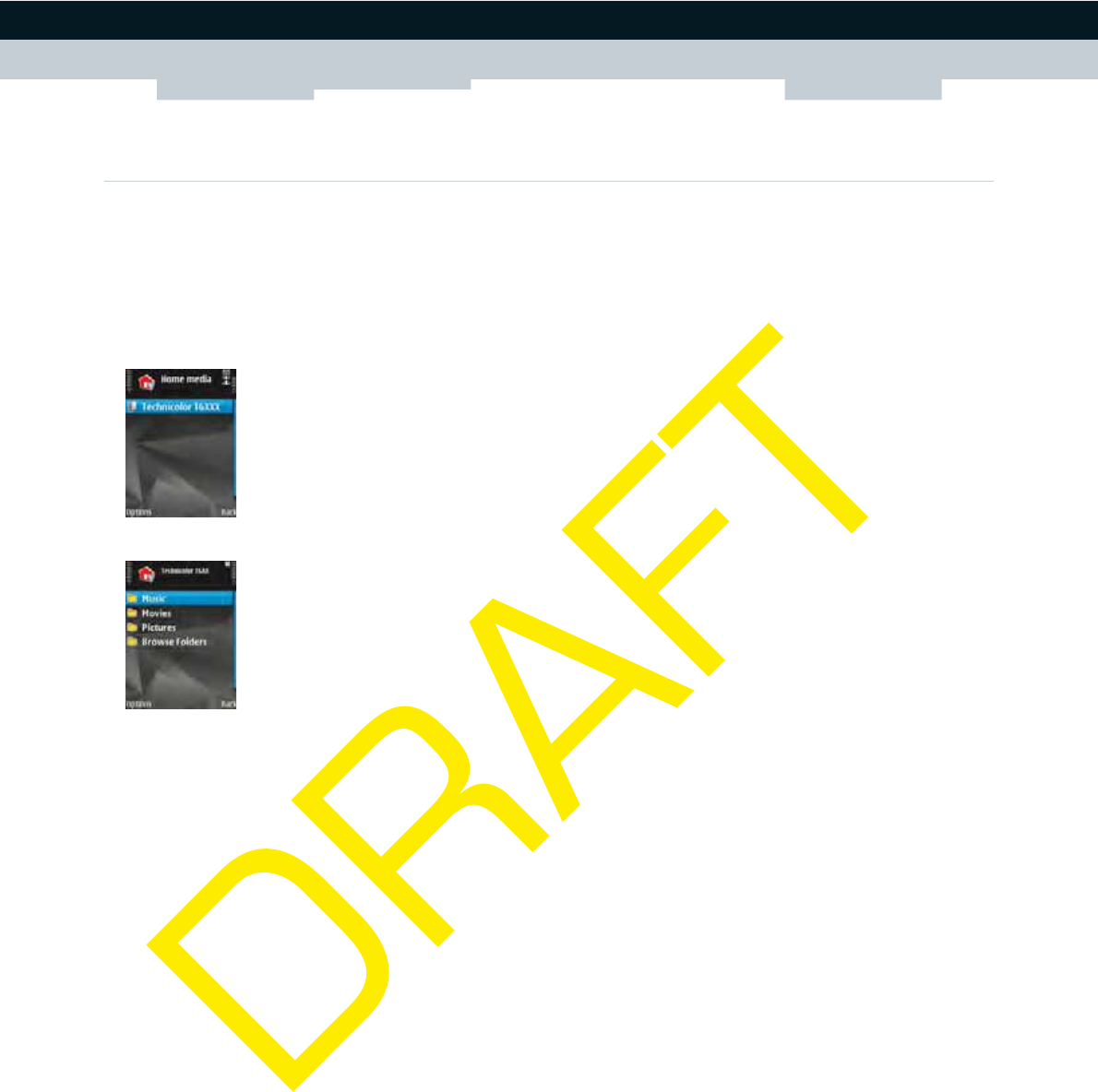

8.2 The UPnP AV Media Server................................................................................................................. 70

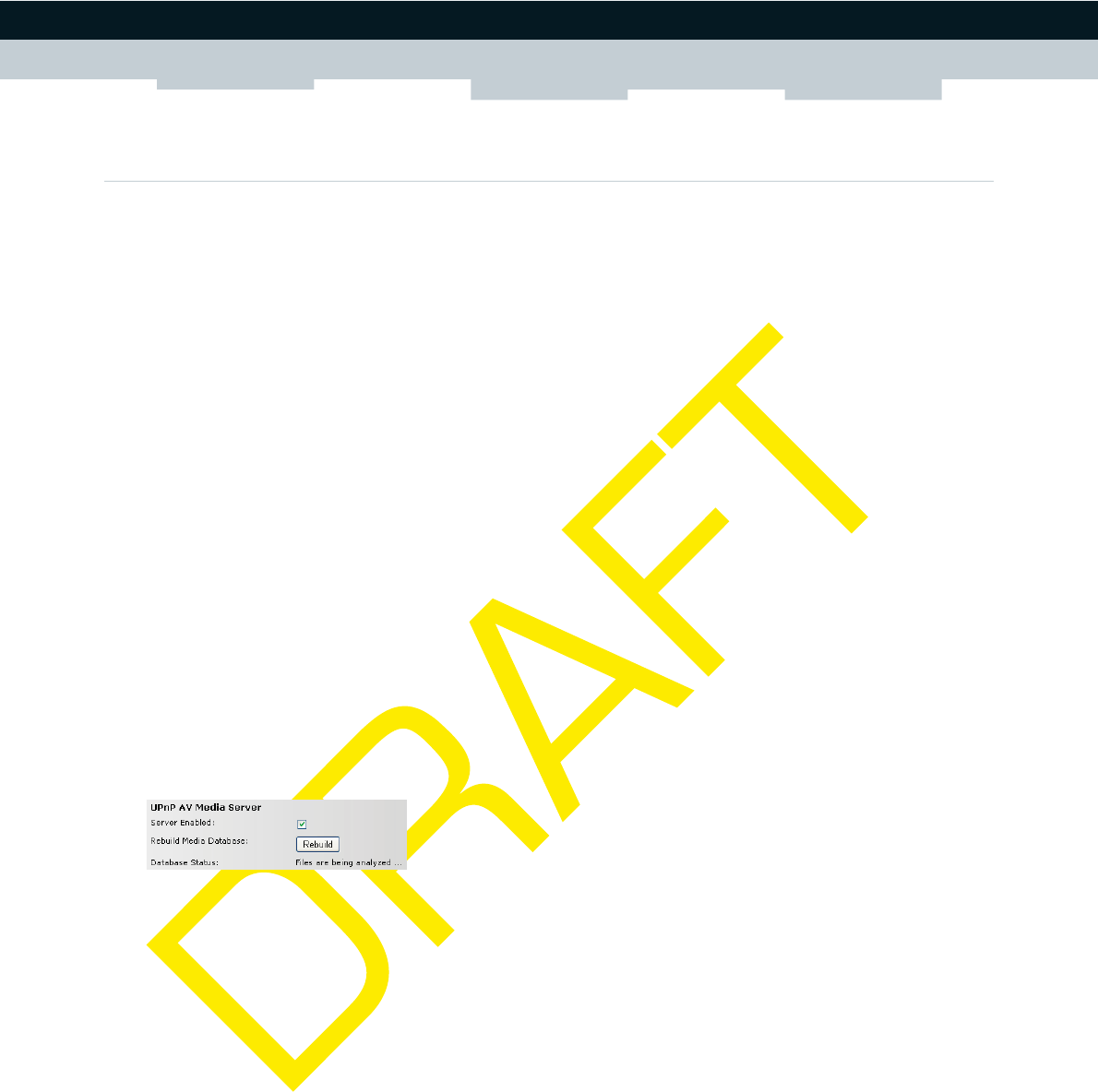

8.2.1 Configuring the UPnP AV Media Server ..................................................................................................................71
8.2.2 Using the UPnP AV Media Server .............................................................................................................................72
8.3 The FTP Server....................................................................................................................................... 74
8.4 Managing your Shared Content.............................................................................................................76
8.5 Safely Removing your USB Storage Device.........................................................................................78
9 Technicolor Gateway Network Services................................................................. 79
9.1 UPnP.........................................................................................................................................................80
9.1.1 Accessing Your Technicolor Gateway via UPnP......................................................................................................81
9.1.2 Managing your Internet connection via UPnP ......................................................................................................... 82
9.1.3 Configuring UPnP on the Technicolor Gateway..................................................................................................... 84

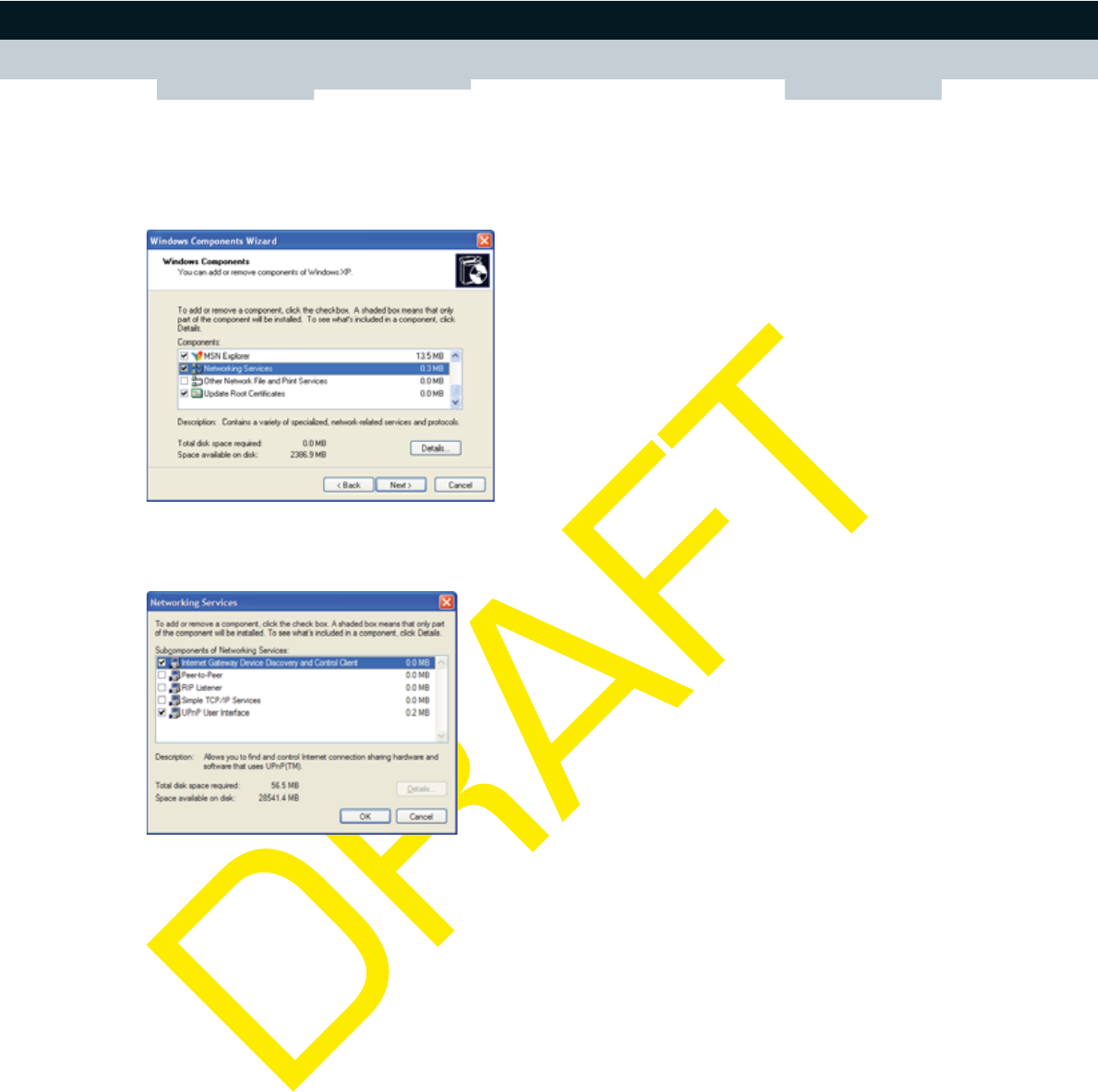

9.1.4 Installing UPnP on Windows XP................................................................................................................................ 85
9.2 Assigning a service (HTTP, FTP,...) to a Computer...........................................................................87
9.3 Dynamic DNS ......................................................................................................................................... 89
10 Internet Security.......................................................................................................91
10.1 Parental Control ...................................................................................................................................... 92
10.1.1 Configuring Content-based Filtering........................................................................................................................ 94
10.1.2 Adding Rules for Address-Based Filtering................................................................................................................ 95
10.2 Firewall ......................................................................................................................................................97
11 Support.................................................................................................................... 99
11.1 Setup Troubleshooting......................................................................................................................... 100
11.2 General Technicolor Gateway Troubleshooting ............................................................................... 101
11.3 Wired Connection Troubleshooting ...................................................................................................102
11.4 Wireless Connection Troubleshooting................................................................................................103
11.5 Voice over IP Troubleshooting ........................................................................................................... 104
11.6 Reset to Factory Defaults .....................................................................................................................105
1
ABOUT THIS SETUP AND USER GUIDE
DMS-CTC-20101206-0033 v0.1
About this Setup and User Guide
In this Setup and User Guide
The goal of this Setup and User Guide is to show you:
Set up your Technicolor Gateway and local network
Configure and use the main features of your Technicolor Gateway.
For more advanced scenarios and features visit the documentation pages on www.technicolor.com.
Used Symbols
Te r m i n o l o g y
Generally, the Technicolor TG789vn v3 will be referred to as Technicolor Gateway in this Setup and User Guide.
Typographical Conventions
Following typographical convention is used throughout this manual:
This sample text indicates a hyperlink to a Web site.
Example: For more information, visit us at www.technicolor.com.
This sample text indicates an internal link.
Example: If you want to know more about guide, see “About this Setup and User Guide” on page 1.
This sample text indicates an important content-related word.
Example: To enter the network, you must authenticate yourself.
This sample text indicates a GUI element (commands on menus and buttons, dialog box elements, file names, paths and
folders).
Example: On the File menu, click Open to open a file.
The danger symbol indicates that there may be a possibility of physical injury.
The warning symbol indicates that there may be a possibility of equipment damage.
The caution symbol indicates that there may be a possibility of service interruption.
The note symbol indicates that the text provides additional information about a topic.
2
ABOUT THIS SETUP AND USER GUIDE
DMS-CTC-20101206-0033 v0.1
3
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1 Getting Started
Introduction
This chapter gives you a brief overview of the main features and components of the Technicolor Gateway. After this chapter
we will start with the installation.
Do not connect any cables to the Technicolor Gateway until instructed to do so.
4
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.1 Features At A Glance
Introduction
This section provides a brief overview of the main features of your Technicolor Gateway.
Internet connection features
Broadband Internet access via the integrated DSL modem.
The first chapters describe how to connect your Technicolor Gateway to the Internet.
Broadband Internet access via the Gigabit WAN port.
The first chapters describe how to connect your Technicolor Gateway to the Internet.
3G (Fall-back) High-speed Internet Access via the optional mobile USB adaptor.
For more information, see “3.5 Setting Up the 3G Fall-Back WAN Connection” on page 30.
Internet Security for your entire network.
For more information, see “10 Internet Security” on page 91.
Useful network tools like UPnP, Dynamic DNS and many more.
For more information, see “9 Technicolor Gateway Network Services” on page 79.
Local networking features
Wired access for your local network devices via the Ethernet interface.
For more information, see “3.3.2 Setting up a Wired Connection” on page 28.
Wireless access for your local network devices via the integrated IEEE 802.11n wireless access point.
For more information, see “5 The Technicolor Gateway Wireless Access Point” on page 41.
An Integrated Media Server allowing you to share your media with media players and other network devices. For more
information, see “8 Sharing Content on your Technicolor Gateway” on page 65.
Telephony features
The Technicolor Gateway offers Voice over IP (VoIP) connectivity for traditional phones and IP phones.
For more information see “6 Telephony” on page 47
ECO label
Technicolor’s ECO label guarantees you that the Technicolor Gateway is able to reduce its power consumption to an
absolute minimum. For more information, see “7 Saving Energy with Your Technicolor Gateway” on page 61.
Technicolor Gateway configuration tools

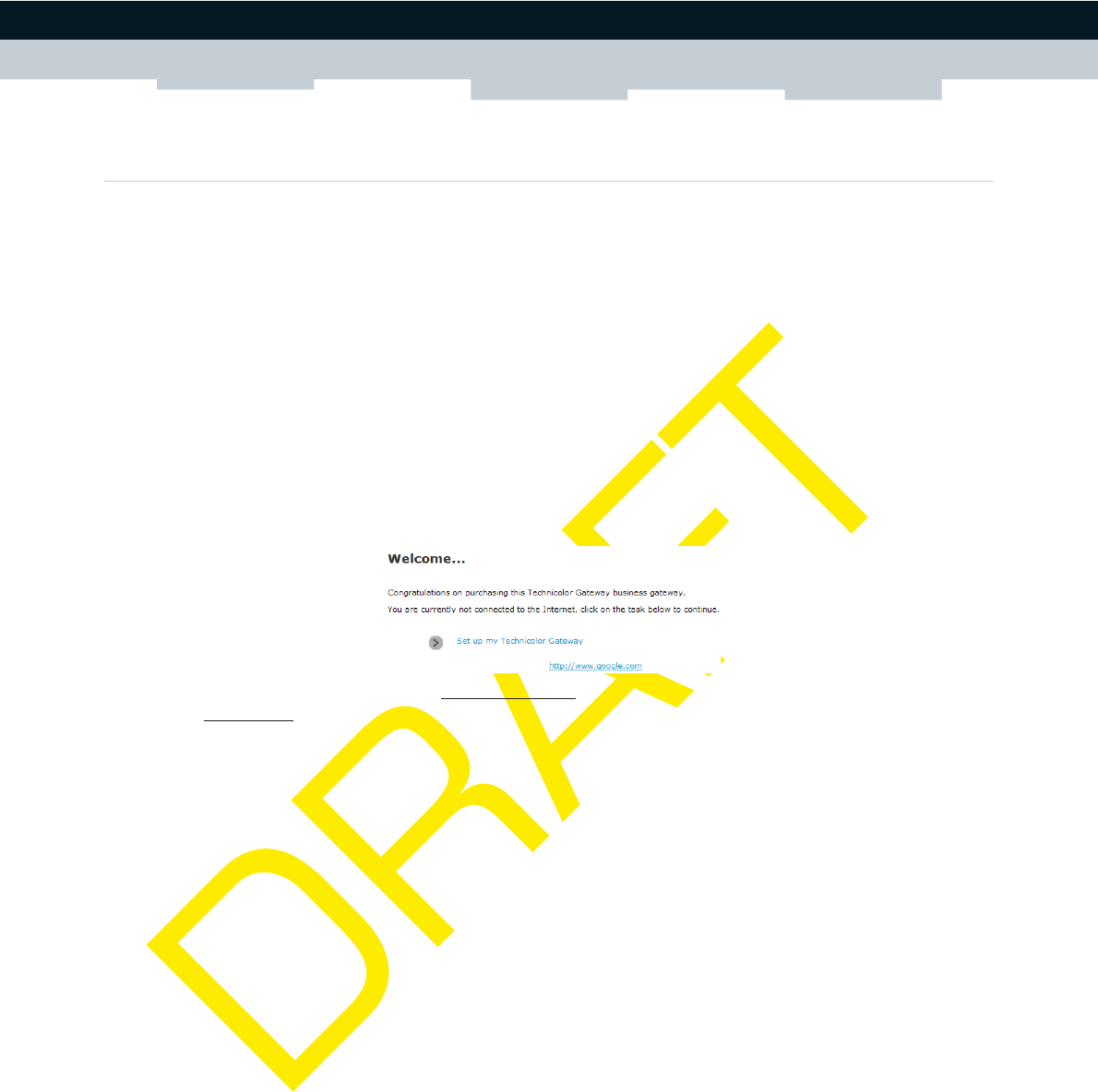

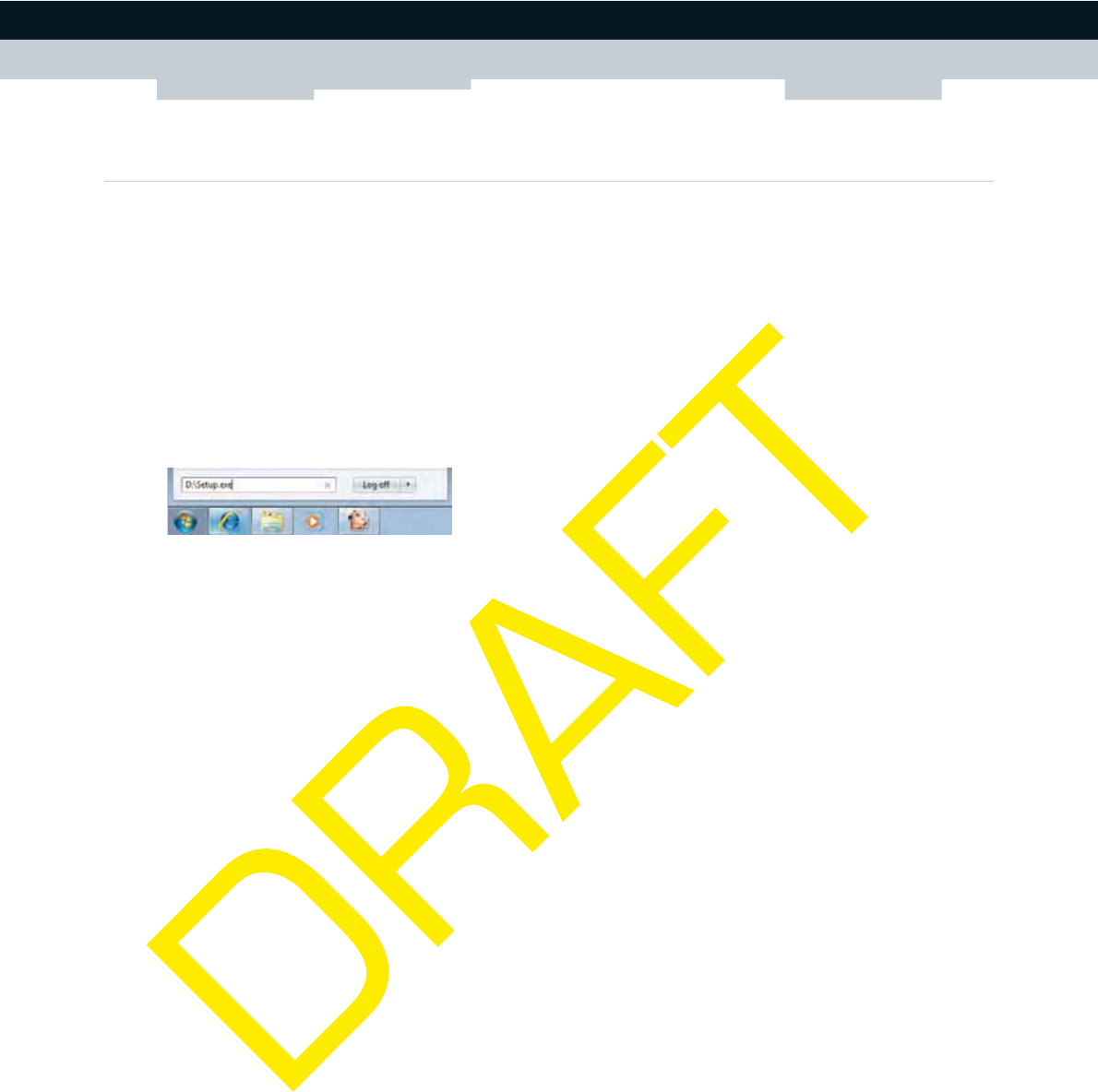

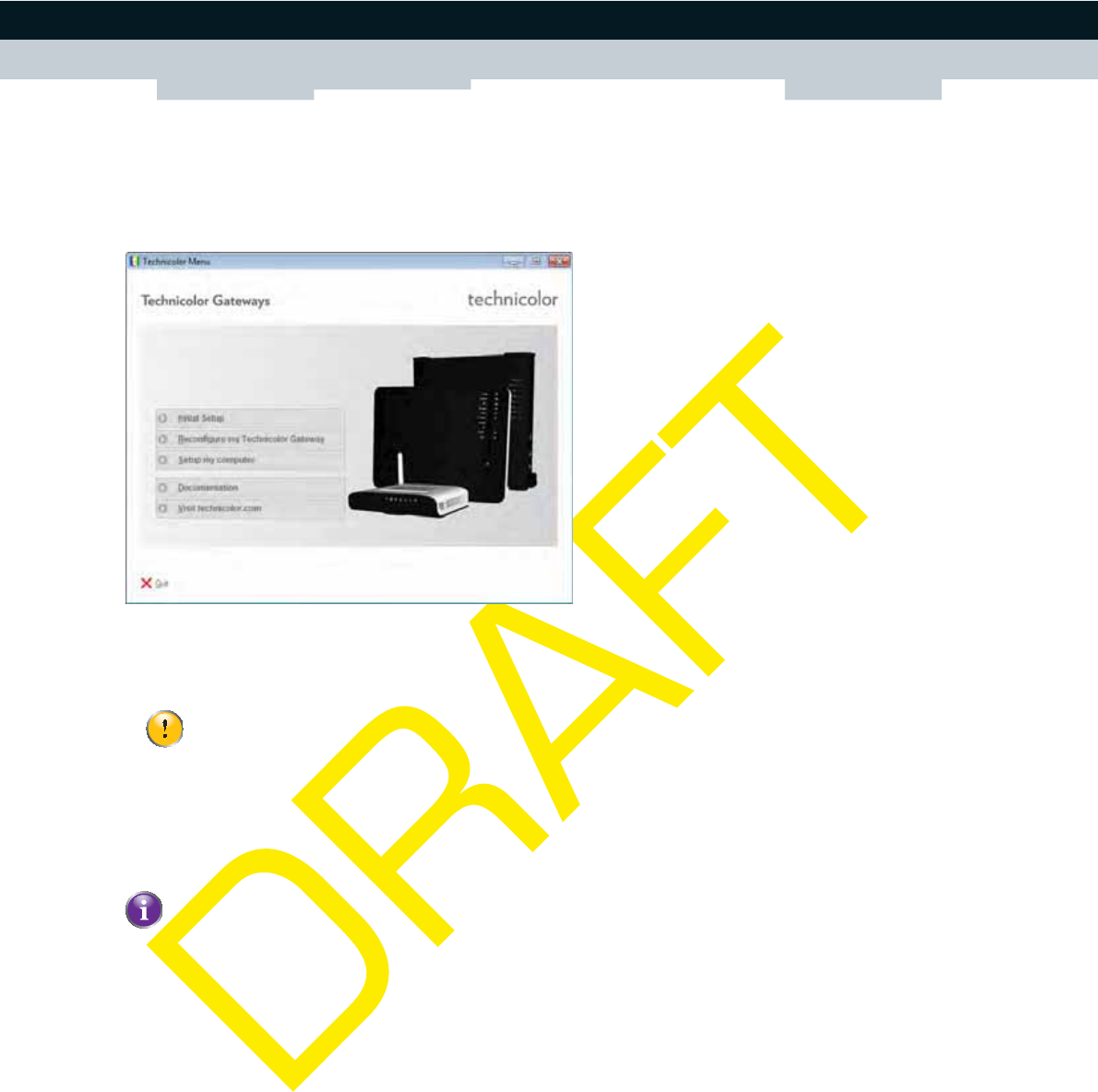

The Technicolor Gateway Setup CD allows you to configure your Technicolor Gateway and helps you to connect your
computers to the Technicolor Gateway.
The Technicolor Gateway GUI allows you to configure your Technicolor Gateway via your web browser.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
5
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1

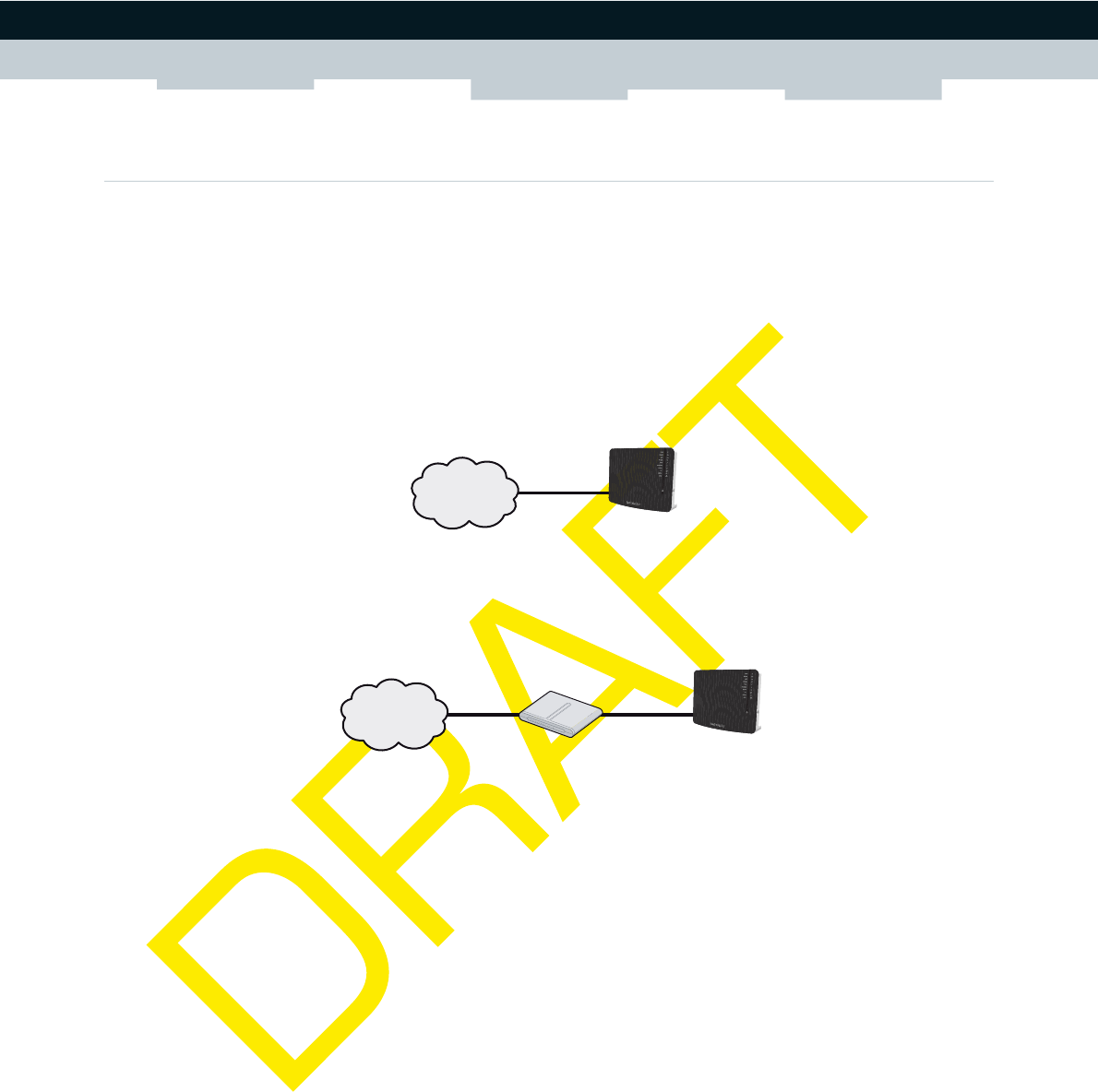

1.2 User Scenarios
Scenarios
Depending of the architecture of your home network, you can use the Technicolor Gateway in either of the following
scenarios:
DSL Gateway
Local Router

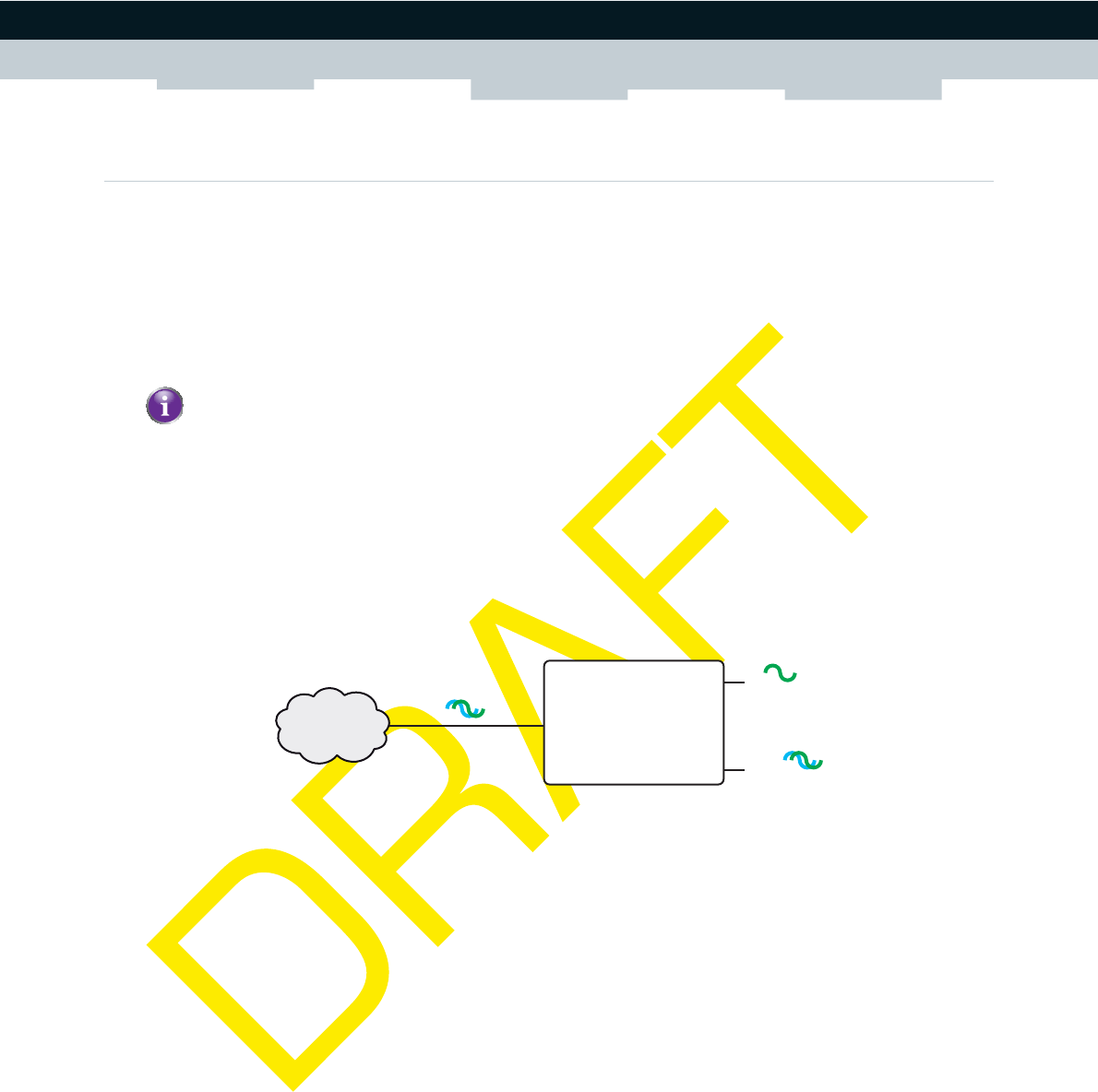

DSL Gateway
The Technicolor Gateway is connected to the DSL network of your service provider and brings the Internet to your home.
Local Router
The Technicolor Gateway is placed behind another gateway or modem. In this setup the gateway or modem in front of the
Technicolor Gateway will establish the connection to the Internet:
This scenario is used when:
The Internet connectivity is provided by another device (for example, a cable modem). The Technicolor Gateway is used
to add specific services to your home network.
Your service provider is using Ethernet in the First Mile (EFM).
The Ethernet signal is directly coming into your home.
Your service provider is using Ethernet To The Home (ETTH).
Technicolor Gateway is directly connected to the terminator of your service provider’s fiber-optic network and your local
network
Internet
Technicolor Gateway
Internet
Modem/Router Technicolor Gateway
6
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3 Components
Overview
This section provides an overview of the different components of the Technicolor Gateway:
To p i c Page
1.3.1 Power 7
1.3.2 Local Network Connection 8
1.3.3 Broadband Connection 9
1.3.4 Voice Connection 10
1.3.5 Buttons 11
1.3.6 Status LEDs 12
7
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.1 Power
Overview
Power inlet
The power inlet () allows you to connect the power supply.
Power switch
The power switch () allows you to power on/off your Technicolor Gateway.
Only use the power supply delivered with your Technicolor Gateway.
8
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.2 Local Network Connection
Overview
Wireless Access Point
The built-in WiFi-certified wireless access point provides wireless access to your WiFi-certified wireless clients.
For more information, see “5 The Technicolor Gateway Wireless Access Point” on page 41.
Ethernet switch
The Ethernet switch () allows you to connect an Ethernet device (for example, a computer) to your local network. For
more information, see “3.3.2 Setting up a Wired Connection” on page 28.
A LED may be provided per Ethernet port to indicate link integrity (or activity).
USB Port
The USB port () can be used to:
Connect a USB mass storage device to share your content (for example, music, movies,...):
On your local network via the Network File server or the UPnP AV Media Server.
On Internet via FTP.
For more information, see “8 Sharing Content on your Technicolor Gateway” on page 65.
LED Status Description
Solid on Device connected.
Blinking Device connected and sending/receiving data.
Off No device connected.
9
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.3 Broadband Connection
Overview
DSL port
This port can be used to connect your Technicolor Gateway to your service provider’s DSL network.
WAN port
This port allows you to use your Technicolor Gateway as Local Router. For more information, see “1.2 User Scenarios” on
page 5.
WAN
DSL
10
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.4 Voice Connection
Overview
Phone Port
The Phone ( ) port allows you to connect a traditional phone to your Technicolor Gateway. This way you will be able to
make phone calls over the Internet and save on communication costs, especially for long-distance calls.
For more information, see “6.1 Setting Up Your Telephone Network” on page 48.
PSTN Port (optional)
The PSTN port allows you to connect the Technicolor Gateway to the traditional telephone network, i.e. the Public
Switched Telephone Network (PSTN). When the VoIP connection is not available, the Technicolor Gateway will
automatically switch from VoIP to the traditional telephone network.
For more information, see “6.1.1 Connection to the Traditional Telephone Network” on page 49.
PSTN
If your Technicolor Gateway does not have a PSTN port, this means that:
Your Technicolor Gateways has an integrated filter
The Technicolor Gateway separates the phone signal from the signal coming from the DSL port. Your Technicolor
Gateway has an integrated filter if the product name printed on the label of your Technicolor Gateway ends with
“wIF” (with Integrated Filter). If this suffix is not present, then your Technicolor Gateway does not have an
integrated filter.
- or -
Your Technicolor Gateway is VoIP-only
All calls passing through the Technicolor Gateway will be done via VoIP.
Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible
when your Internet connection is down or your Technicolor Gateway is powered off.
11
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.5 Buttons
Overview
WPS button
The WPS ( ) button allows you to add new wireless clients to your network in a swift and easy way, without the need to
enter any of your wireless settings manually.
For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 42.
ECO button
The ECO ( ) button allows you to disable your wireless access point. You can do this when you do not have any devices
that are connected to the wireless access point. This allows you to save the energy that the Technicolor Gateway would be
using for the wireless access point. For more information, see “ECO button” on page 64.
Reset button
The Reset button allows you to reset your Technicolor Gateway to factory defaults.
For more information, see “11.6 Reset to Factory Defaults” on page 105.
Reset
12
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.3.6 Status LEDs
Introduction
On the front panel of your Technicolor Gateway, you can find a number of status LEDs, indicating the state of the device.
Power LED
Ethernet LED
Upgrade
Power
Ethernet
USB
Wireless
Voice
Broadband
Internet
TV
WPS
Colour State Description
Green Solid on Power on, normal operation
Blinking Bootloader active (during upgrade)
Red Solid on Power on, self-test failed, indicating device malfunction
Orange Solid on Bootloader selftest
Blinking Bootloader active (during upgrade)
Off The Technicolor Gateway is powered off.
Colour State Description
Green Solid on Network device connected to the Ethernet switch.
Blinking Network device connected to the Ethernet switch and sending/receiving
data.
Off No Ethernet connection on your local network
13
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
USB LED
Wireless LED
Broadband LED (if you are using the DSL Gateway scenario)
Broadband LED (if you are using the Local Router scenario)
Internet LED
Colour State Description
Green Solid on Device(s) connected to the Technicolor Gateway’s USB port
Off No device connected to the Technicolor Gateway’s USB port
Colour State Description
Green Solid on No wireless activity, WPA(2) encryption
Blinking Wireless activity, WPA(2) encryption
Orange Solid on No wireless activity, WEP encryption
Blinking Wireless activity, WEP encryption
Red Solid on No wireless activity, no security
Blinking Wireless activity, no security
Red/green Toggling Wireless client registration phase
Off Wireless access point disabled
Colour State Description
Green Solid on DSL line synchronised
Blinking Trying to detect carrier signal or pending DSL line synchronisation
Off Technicolor Gateway powered off.
Colour State Description
Green Solid on Connected to the WAN device
Off Not connected to the WAN device
Colour State Description
Green Solid on Connected to the Internet, no activity
Blinking Connected to the Internet, sending/receiving data
Red Solid on Failed to setup the Internet connection
Off No Internet connection
14
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
TV LED
Phone LED
Upgrade LED
WPS LED
For more information about WPS, see “5.1 Connecting Your Wireless Client via WPS” on page 42.
Colour State Description
Green Solid on Set-Top Box (STB) connected to the Technicolor Gateway
Blinking Unknown STB connected to the Technicolor Gateway
Off No STB connected to the Technicolor Gateway
Colour State Description
Green Solid on Registered at your VoIP provider, no activity.
Blinking Registered at your VoIP provider, activity.
Off Not registered to your VoIP provider.
Colour State Description
Blue Solid on Software upgrade ongoing
Off No software upgrade ongoing
Do not power off your Technicolor Gateway or disconnect any cables as long as the Upgrade LED is on.
Interrupting the upgrade procedure may damage your Technicolor Gateway.
Colour State Description
Green Solid On Client successfully registered via WPS
Orange Blinking WPS registration ongoing
Red Blinking Error occurred
15
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
1.4 Preparing for the Installation
DSL service requirements
This section is only applicable if you are using your Technicolor Gateway as DSL gateway. For more information, see
“1.2 User Scenarios” on page 5.
Make sure that:
Your service provider activated the DSL service on your telephone line by your service provider.
You have the installation information (for example, user name, password, service profile,...) provided by your service
provider at hand.
Local connection requirements
Wireless connection
If you want to connect your computer using a wireless connection, your computer must be equipped with a WiFi-certified
wireless client adapter.
Wired connection
If you want to connect a computer using a wired connection, your computer must be equipped with an Ethernet Network
Interface Card (NIC).
Start with the installation
You are now ready to start with the installation of your Technicolor Gateway.
16
1 GETTING STARTED
DMS-CTC-20101206-0033 v0.1
17
2 GUIDED INSTALLATION
DMS-CTC-20101206-0033 v0.1
2 Guided Installation
Introduction
In the guided installation, the Setup wizard on the Setup CD will assist you with the installation of your Technicolor Gateway.
If you do not want to use the Setup CD or if the Setup CD is not included in your package, follow the installation procedure
described in “3 Manual Installation” on page 19.
Requirements
To use the guided installation you must comply with the following requirements:
Your computer must run one of the following operating systems:
Microsoft Windows 7 and higher
Microsoft Windows 7 x64 and higher
Microsoft Windows Vista and higher
Microsoft Windows XP Service Pack 2 (SP2) and higher
Mac OS X 10.6 (Snow Leopard)
Mac OS X 10.5 (Leopard)
Mac OS X 10.4 (Tiger)
You must have administrative rights on your computer.
If you do not comply with these requirements, use the “3 Manual Installation” on page 19.
Running the Setup wizard
To start the Setup wizard:
1Insert the Setup CD into your computer's CD- or DVD drive.
2If your computer runs:
Microsoft Windows: The Setup CD starts automatically.
If the Setup CD does not autostart, see “The Setup CD does not start automatically” on page 100.
Mac OS X: Double-click Menu in the window with the content of the Setup CD.
3Select the language of your choice and click OK.
4The Setup wizard will now guide you through the installation of your Technicolor Gateway.
5At the end of the installation, the following screen appears:
Select Go to the Technicolor Gateway web interface if you want to go to the Technicolor Gateway GUI after closing the
wizard. On the Technicolor Gateway GUI, you can configure all services of your Technicolor Gateway.
18
2 GUIDED INSTALLATION
DMS-CTC-20101206-0033 v0.1
6Click Finish.
7The CD menu appears.
CD Menu
On the CD Menu, you can click:
Initial Setup to connect your computer to the Technicolor Gateway and configure your local network.
Reconfigure my Technicolor Gateway to fully reconfigure your Technicolor Gateway.
Setup my computer to connect your computer to the Technicolor Gateway network.
Documentation to view a list of the documentation that is available for your Technicolor Gateway.
Visit technicolor.com to visit the online support sections.
In case of problems
If you encounter problems during this installation please refer to “11.1 Setup Troubleshooting” on page 100.
Backup your configuration
Once you successfully installed your Technicolor Gateway, it is recommend to backup your configuration. This will allows
you to return to this configuration when needed (for example, after misconfiguration).
For more information, see “4.2 Backing Up/Restoring your Configuration” on page 39
If you reconfigure your Technicolor Gateway via the CD menu, the Technicolor Gateway will be reconfigured
from scratch. All your current settings will be lost. If you only want to make small changes to your configuration
(for example, changing the security), we recommended you to do this via the Technicolor Gateway GUI. For more
information, see “4.1 Technicolor Gateway GUI” on page 34.
Actual available items depend on the Setup CD delivered with your Technicolor Gateway.
19
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3 Manual Installation
Installation
This chapter will help you to manually install your Technicolor Gateway.
Setting up your network
Proceed as follows:
1Connect your Technicolor Gateway to your service provider’s network.
For more information, see “3.1 Connecting the Technicolor Gateway to your Service Provider’s Network” on page 20.
2Power on the Technicolor Gateway.
For more information, see “3.2 Powering on the Technicolor Gateway” on page 25.
3Connect your computer to the Technicolor Gateway.
For more information, see “3.3 Connecting Your Network Devices to the Technicolor Gateway” on page 26.
4Configure your Technicolor Gateway.
For more information, see “3.4 Configure the Technicolor Gateway” on page 29.
5Connect your phones.
For more information, see “6 Telephony” on page 47.
6Share your content or media on your local network, continue with “8 Sharing Content on your Technicolor Gateway” on
page 65.
7If you purchased the mobile USB adapter, setup the 3G backup connection.
For more information, see “3.5 Setting Up the 3G Fall-Back WAN Connection” on page 30.
8Once you successfully installed your Technicolor Gateway, it is recommend to backup your configuration. This will allows
you to return to this configuration when needed (for example, after misconfiguration). For more information, see
“4.2 Backing Up/Restoring your Configuration” on page 39.
20
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.1 Connecting the Technicolor Gateway to your Service
Provider’s Network
Identifying your setup
If you are using the Technicolor Gateway as:
DSL Gateway, continue with “3.1.1 Setting up your Technicolor Gateway as DSL Gateway” on page 21.
Local Router, continue with “3.1.2 Setting up your Technicolor Gateway as Local Router” on page 24.
For more information, see “1.2 User Scenarios” on page 5, you can use your Technicolor Gateway in either of the following
scenarios
21
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.1.1 Setting up your Technicolor Gateway as DSL Gateway
Introduction
This section helps you to connect the Technicolor Gateway to your service provider’s network.
Signal arriving at your home
The Line signal that arrives at your home consists the following components:
A Phone signal carrying the traffic for telephony.
A DSL signal carrying the Internet traffic.
DSL Gateways have a built-in solution to remove the Phone component. No additional devices are needed, you can
connect them directly to the Line.
Telephones do not have this capability, so here you have to use a filter or splitter to remove the DSL signal.
How does a filter/splitter look like
A splitter/filter is a box that typically has the following connectors:
A Line input
This connector must be connected to the input signal that needs to be filtered.
A Phone/PSTN output
This connector offers filtered output signal. It only contains the Vo i c e component and can only be used for connecting
phones.
A Modem/DSL output (optional)
This connector offers unfiltered output. It contains both the Phone and DSL signal and can be used to connect your
Technicolor Gateway.
Connecting the cables
The procedure to be followed depends on the fact if this filter has been integrated into your Technicolor Gateway or not.
Check the label of your Technicolor Gateway. If the product name contains:
“wIF” (for example Technicolor TG789vn v3 wIF) then your Technicolor Gateway has an integrated filter. No external
filters are needed. Follow the steps described in “Scenario 2: A Technicolor Gateway without integrated filter” on page 22.
No “wiF” (for example Technicolor TG789vn v3) then your Technicolor Gateway does not have an integrated filter.
Follow the steps described in “Scenario 2: A Technicolor Gateway without integrated filter” on page 22.
Scenario 1: A Technicolor Gateway with integrated filter
Proceed as follows:
1Take the DSL cable. This is the gray cable that is included in your box.
This Phone signal is only used for communication over the traditional telephone network (PSTN). Voice over IP
communication will be carried by the DSL signal.
DSL + Voice
Voice
DSL + Voice
Service
Provider
Filter/Splitter
LINE
PHONE
MODEM
22
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
2Plug one end of the cable in the grey DSL port on the back of your Technicolor Gateway.
3Plug the other end of the cable:
In the DSL/Modem output of your splitter/filter.
Directly into the telephone wall outlet if there is no splitter/filter between the network terminator and your local
phone network.
Scenario 2: A Technicolor Gateway without integrated filter
Proceed as follows:
1Take the DSL cable. This is the grey cable that is included in your box.
2Plug one end of the cable in the grey DSL port on the back of your Technicolor Gateway.
3Plug the other end of the cable into the DSL/MODEM output port of your filter/splitter.
DSL
DSL
23
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
If your Technicolor Gateway has a black PSTN port on the back, you are able to use the PSTN (this is the traditional
telephone network) as a backup for your Voice over IP connection. When the VoIP connection is down, the Technicolor
Gateway will automatically switch back to the PSTN network.
To setup this backup connection:
1Take a Telephone Cable
2Plug one end of the cable in the black PSTN port on the back of your Technicolor Gateway.
3Plug the other end of the cable into the Phone output port of your filter/splitter.
PSTN
24
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1

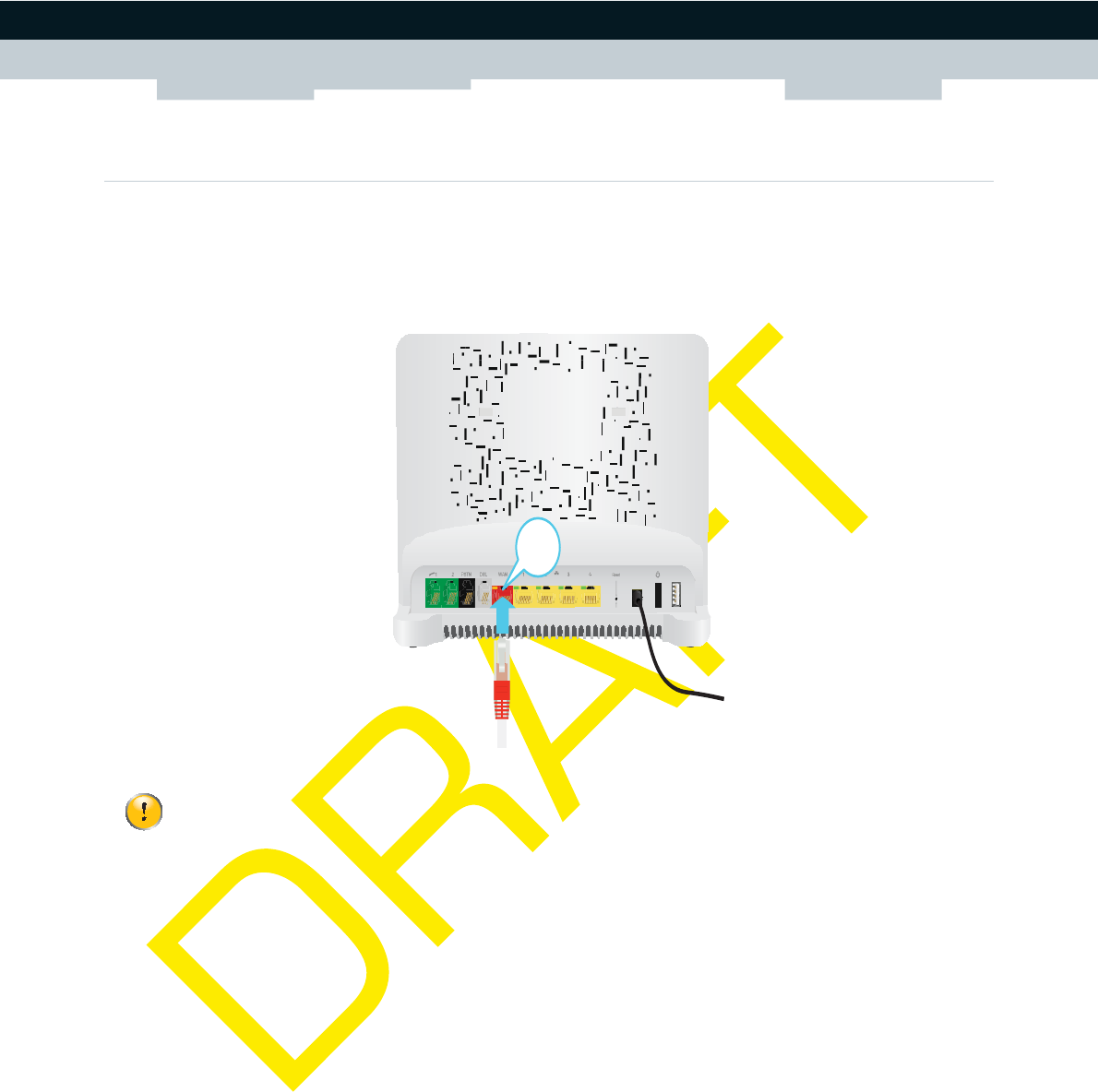

3.1.2 Setting up your Technicolor Gateway as Local Router
Procedure
Proceed as follows:
1Take an Ethernet cable. If your box contains an Ethernet cable with red connectors, you can use that cable.
2Plug one end of the cable in the red WAN port on the back of your Technicolor Gateway.
3Plug the other end of the cable into the Ethernet port of your Internet gateway/modem.
The WAN port can only be used to connect your Technicolor Gateway to an Internet gateway/modem. You can not
use it to connect other devices (for example, a computer) to the Technicolor Gateway.
WAN
25
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.2 Powering on the Technicolor Gateway
Procedure
Proceed as follows:
1Connect the power cord to the power port of the Technicolor Gateway.
2Plug the other end of the power cord into an electrical outlet.
3Press the power button to turn on the Technicolor Gateway.
4Wait at least two minutes to allow the Technicolor Gateway to complete the start up phase.
26
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.3 Connecting Your Network Devices to the Technicolor
Gateway
Choose your connection method
To connect your device via:
A wireless connection, continue with “3.3.1 Setting up a Wireless Connection” on page 27.
A wired connection, continue with “3.3.2 Setting up a Wired Connection” on page 28.
27
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.3.1 Setting up a Wireless Connection
The Technicolor Gateway access point
Your Technicolor Gateway is equipped with a wireless access point that supports the following standards:
IEEE 802.11n (2.4 Ghz)
IEEE 802.11g
IEEE 802.11b
Requirements
Your network device must be equipped with a WiFi-certified wireless client.
Connection speed
When setting up your wireless network, keep in mind that the following factors may have a negative impact on your wireless
connection speed:
The obstacles (walls, ceilings,...) between the wireless client and the access point.
Distance between the wireless client and the access point.
To fully benefit from the improved connection speed offered by the IEEE 802.11n standard, it is recommended to only
connect IEEE 802.11n wireless clients to your Technicolor Gateway. Connecting older (for example, IEEE 802.11g)
wireless clients may also slow down connection speed of the IEEE 802.11n capable clients.
If you have problems with your wireless performance, see “Poor Wireless Connectivity or Range” on page 103.
To set up a wireless connections
For more information on how to setup a wireless connection between your network device and your Technicolor Gateway,
see “5 The Technicolor Gateway Wireless Access Point” on page 41.
28
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.3.2 Setting up a Wired Connection
Requirements
Both your network device (for example, a computer, a gaming console,...) and Technicolor Gateway must have a free
Ethernet port.
Your network device must be configured to obtain an IP address automatically. This is the default setting.
Ethernet cable
In your package, you will find a cable with yellow connectors. This is the Ethernet cable.
Procedure
Proceed as follows:
1Connect one end of the Ethernet cable to one of the yellow Ethernet ports of your Technicolor Gateway:
2Connect the other end of the Ethernet cable to your network device.
3Your network device is now connected to your network. No additional configuration is needed unless specified by your
service provider.
You can not use the red WAN port to connect to the local Ethernet network. The WAN port can only be used to
connect your Technicolor Gateway to your broadband source.
For more information, see “1.2 User Scenarios” on page 5.
The Technicolor Gateway does not support Power over Ethernet (PoE). All network devices that are connected
to the Technicolor Gateway must be powered by their own power source.
29
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.4 Configure the Technicolor Gateway
Introduction
If your service provider did not preconfigure your Technicolor Gateway, you may have to configure the Technicolor
Gateway via its Graphical User Interface (GUI).
Requirements
JavaScript must be enabled on your web browser (this is the default setting). For more information, consult the help of your
web browser.
Procedure
Proceed as follows:

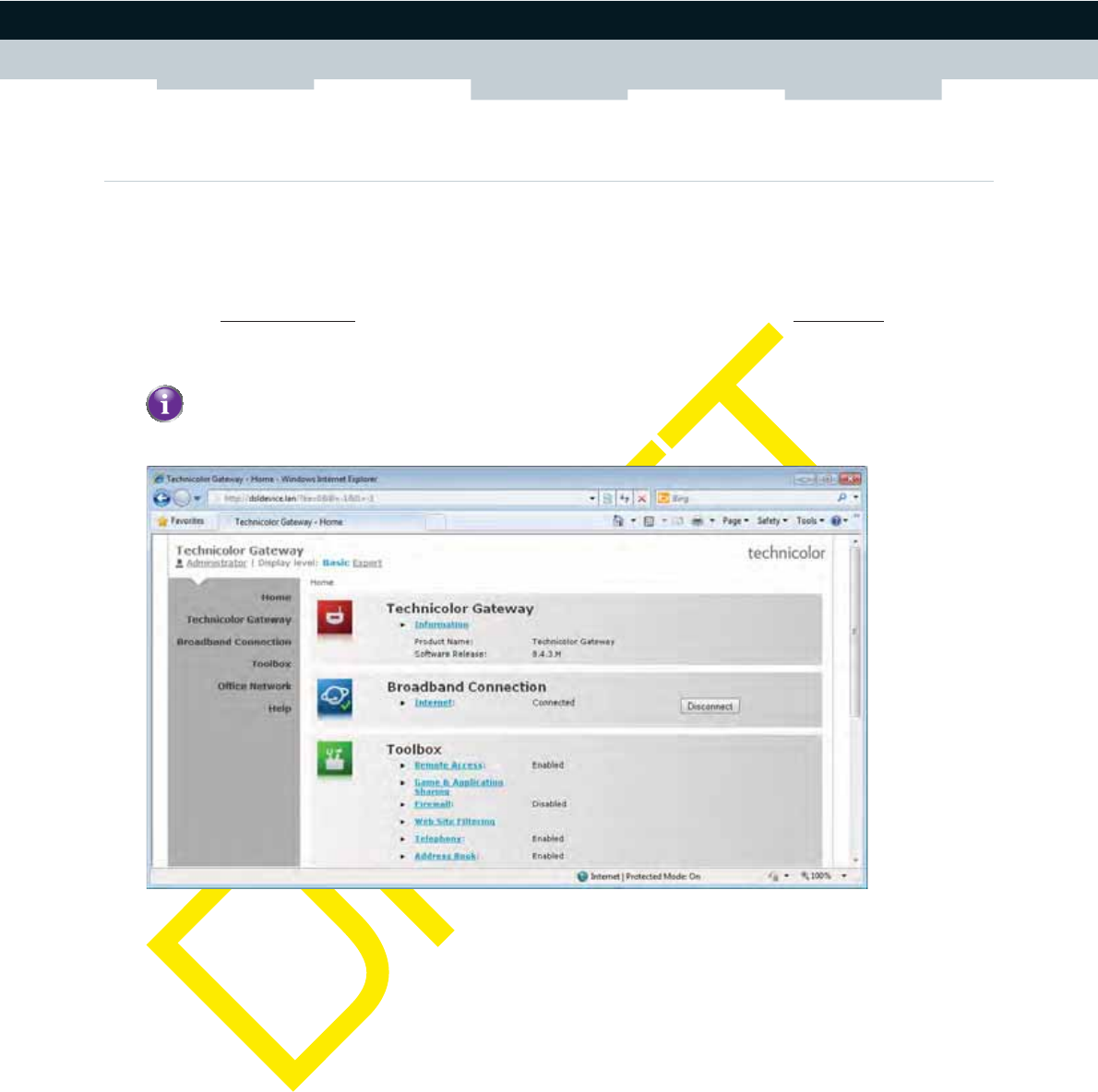

1Open your web browser.
2The Technicolor Gateway informs you that you have not yet configured your Technicolor Gateway.
If this window does not appear, browse to http://dsldevice.lan or to the IP address of your Technicolor Gateway (by
default: 192.168.1.254) and click Technicolor Gateway on the menu on the left-hand side.
3Click Setup my Technicolor Gateway.
4The Easy Setup wizard appears. This wizard will guide you through the configuration of your Technicolor Gateway. Click
Next and follow the instructions.
30
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.5 Setting Up the 3G Fall-Back WAN Connection
Introduction
Many SOHO (Small Offices, Home Offices) and SME (Small/Medium Enterprises) businesses choose DSL as their access
technology for a Wide Area Network (WAN) connection because this is typically cheaper than using leased lines. A dropout
of a DSL line can however have expensive consequences due to inaccessibility of the Internet and E-mail. Therefore backup
solutions are available that provide an alternative path when the DSL line is down.
For example it is possible to switch to 2G / 3G mobile access technologies such as GPRS, UMTS, HSDPA, HSUPA,
HSPA+, WIMAX and LTE when internet connectivity is not available via the main WAN connection. By plugging a mobile
USB adapter into one of the USB ports of your Technicolor Gateway, IP connectivity via a 2G / 3G network becomes
possible.
3G is an umbrella-term to indicate the third generation mobile telephony technology. The services associated with 3G
provide the ability to transfer both voice data and non-voice data. 3G networks are the successors of the 2G networks, such
as the GSM networks and provide new services and higher data transfer speeds.
What do I need?
To start using 2G / 3G as a connection on the Technicolor Gateway, you need:
A mobile USB adapter
A registered Security Identity Module (SIM) card.
Configure 2G / 3G as WAN connection
Proceed as follows:
1Configure your mobile connection.
For more information, see “3.5.1 Managing your Mobile Connection with the Technicolor Gateway GUI” on page 31.
2Insert your mobile USB adapter.
For more information, see “3.5.2 Inserting a Mobile USB Adapter” on page 32.
3Now your mobile connection is up and ready to use.
Result
Technicolor Gateway will automatically enable your 3G backup connection when both of the following conditions are met:
The main Internet connection has been unavailable for at least 60 seconds.
The Technicolor Gateway received a request to access the Internet (for example, when browsing to an Internet web site).
The Technicolor Gateway will automatically disable the 3G connection in either of the following cases:
The main Internet connection is available again. In this case the Technicolor Gateway switches back to the main Internet
connection.
No Internet traffic has been detected during the last 10 seconds. For example, you finished surfing the Internet.
If you need to remove your mobile USB adapter, make sure the Technicolor Gateway is powered off first.
31
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.5.1 Managing your Mobile Connection with the
Technicolor Gateway GUI
Introduction
You can view and manage the parameters of your mobile connection via the Technicolor Gateway GUI.
Procedure
To manage your mobile USB connection via the Technicolor Gateway GUI:
1Browse to the Technicolor Gateway GUI.
2On the Broadband Connection menu, click Internet Services.
3Click View more... for the mobile USB connection. The Overview page of the mobile USB connection is shown.
4In the location bar, click Configure. The Configure page of the mobile connection appears.
5Under Mobile Information, update the following fields if necessary:
APN:
The public APN used to access the Internet, or the private APN to access a local network.
Operator Mode:
2G / 3G / automatic (let the Technicolor Gateway choose the best operator mode)
Pin:
The PIN code of your SIM card.
6Click Apply to apply your configuration changes.
Configuration changes via the Technicolor Gateway GUI are automatically saved.
32
3 MANUAL INSTALLATION
DMS-CTC-20101206-0033 v0.1
3.5.2 Inserting a Mobile USB Adapter
Procedure
Once the mobile connection is configured you can proceed as follows to insert the mobile USB adapter:
1Power off the Technicolor Gateway.
2Insert your SIM card into the mobile USB adapter.
3Plug the mobile USB adapter in (one of) the USB port(s) of your Technicolor Gateway:
4Power on the Technicolor Gateway.
If you do not power off the Technicolor Gateway first, the mobile USB adapter will not be detected.
33
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
4 Configuration Tools
Configuration Tools
You can use the following tools to configure your Technicolor Gateway:
The Technicolor Gateway Setup CD allows you to configure your Technicolor Gateway and helps you to connect your
computers to the Technicolor Gateway. For more information, see “2 Guided Installation” on page 17.
The Technicolor Gateway GUI allows you to configure your Technicolor Gateway via your web browser.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
34
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
4.1 Technicolor Gateway GUI
Introduction
The Technicolor Gateway Graphical User Interface (GUI) allows you to configure your Technicolor Gateway using your web
browser.
Requirements
JavaScript must be enabled on your browser (this is the default setting). For more information, consult the help of your web
browser.
35
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
4.1.1 Access
Accessing the Technicolor Gateway GUI
Proceed as follows:
1Open your web browser.
2Browse to http://dsldevice.lan or to the IP address of your Technicolor Gateway (by default: 192.168.1.254).
3If you have protected your Technicolor Gateway with a user name and password, the Technicolor Gateway will prompt
you to enter these. Enter your user name and password and click OK.
4The Technicolor Gateway GUI appears.

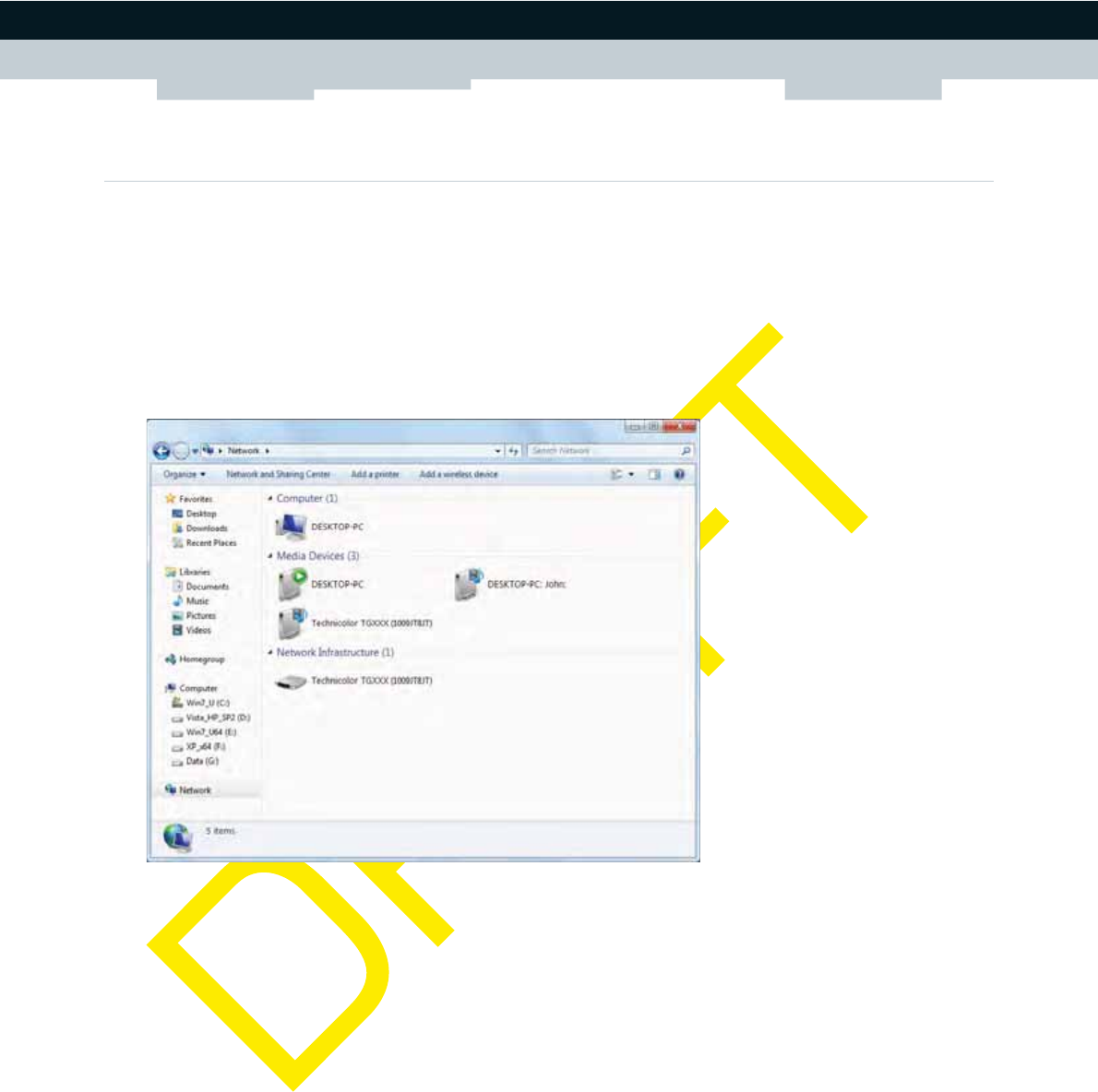

Access the Technicolor Gateway via UPnP
You can also access the Technicolor Gateway GUI using the Internet Gateway Device (IGD) icon if your computer runs one
of the following operating systems:
Microsoft Windows 7
Microsoft Windows Vista
Microsoft Windows XP
For more information, see “9.1 UPnP” on page 80.
Remote access
It is also possible to access the Technicolor Gateway GUI from the Internet. For more information, see “4.3 Access From the
Internet” on page 40.
For more information, see “4.1.3 Protecting Access to the Technicolor Gateway” on page 38.
36
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1

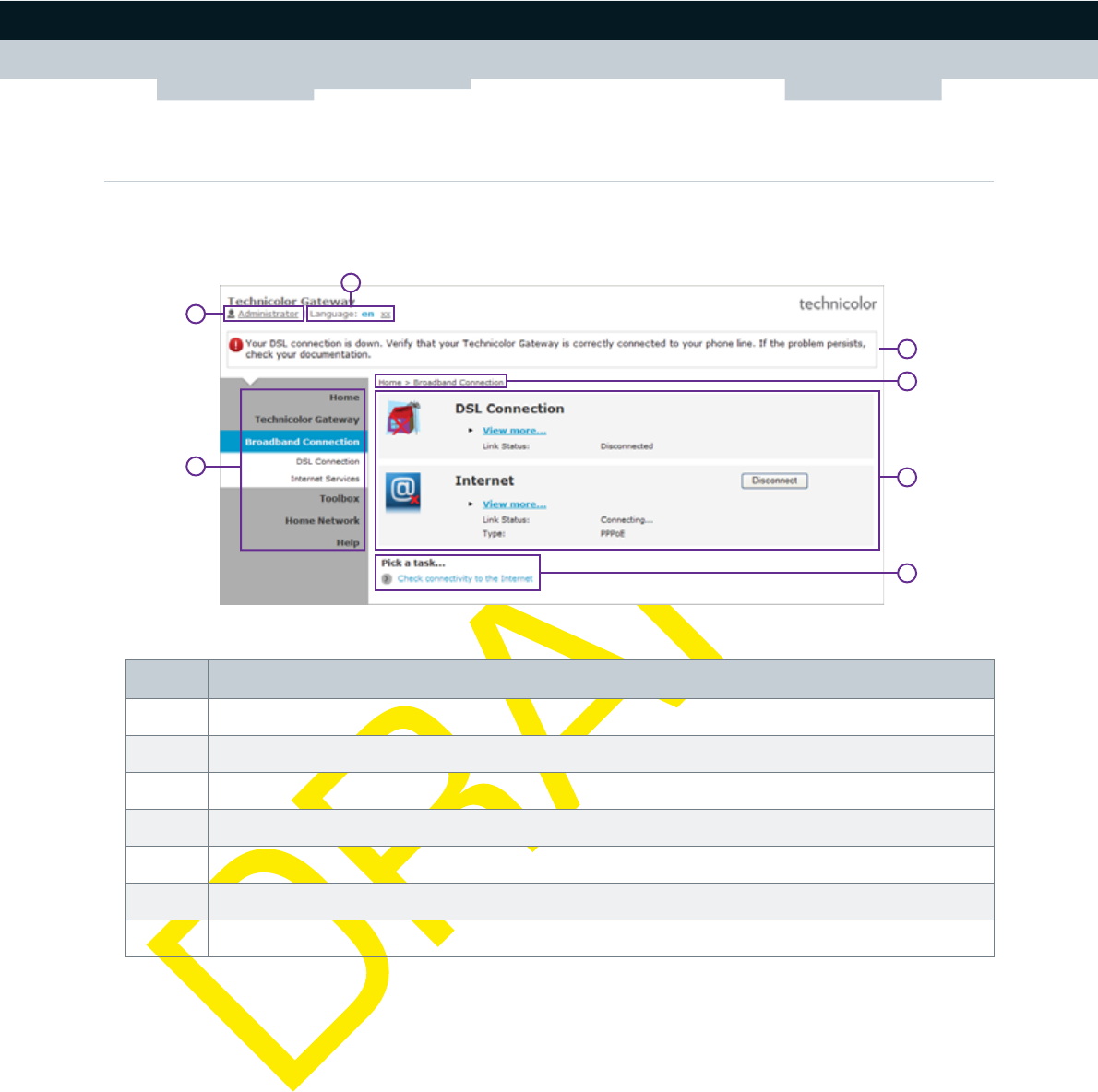

4.1.2 Components
Overview
Depending on your user right and location on the GUI, the following components can be available:
Menu
The menu consists of the following menu items:
Home:
Allows you to go back to the Technicolor Gateway home page.
Technicolor Gateway:
Provides basic information on the Technicolor Gateway.
Broadband Connection:
Allows you to view/configure your broadband connections.
To o l b o x :
Allows you to configure the network services and security settings of your Technicolor Gateway.
Home Network:
Allows you to manage your local network.
Help:
Allows you to view context-related help information.
Label Description
1Menu
2Login section
3Language bar
4Notification area
5Navigation bar
6Content pane
7Tasks pane
4
5
1
3
6
7
2
37
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
Each of these items contain a number of sub-menu items.
Login section
In the login section you can see the current user name.
By clicking the user name, you can:
Change your password.
Switch to another user.
Language bar
If more than one GUI language is available, a language bar is showed. This language bar allows you to change the language
of the Technicolor Gateway GUI.
Notification area
The notification area displays:
Error messages, indicated by a red traffic light.
Warning messages, indicated by an orange traffic light.
Information messages, indicated by a green traffic light.
Navigation bar
The Navigation bar displays your current position in the Technicolor Gateway GUI.
Some page are available in different configuration levels. These pages have additional links (for example, Overview,
Configure) in the right part of the navigation bar that allow you to switch between the configuration levels.
Content pane
The content pane displays the information and configurable items of the selected item.
Tasks pane
To allow a quick configuration of your Technicolor Gateway, some pages may offer you a number of related tasks in the Pick
a task list. These tasks will guide you to the page where you can perform the selected task.
If none of these events occur, the notification is not shown.
38
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
4.1.3 Protecting Access to the Technicolor Gateway
Introduction
To prevent that every user on your local network can access the Technicolor Gateway, the Technicolor Gateway is secured
with a user name and password.
Default user name
The default user name is Administrator.
Default password
The default password is either blank or the ACCESS KEY printed on the label of your Technicolor Gateway. This depends
on the settings chosen by your Service Provider.
Protected items
The following items are protected by these is will secure access to:
The Technicolor Gateway GUI.
The embedded FTP Server.
for more information, see “8.3 The FTP Server” on page 74.
How to change your password
Proceed as follows:
1On the Toolbox menu, click User Management.
2In the Pick a task list, click Change my password.
3Enter your new password and click OK.
4Your new password is now active. The next time that you log on to the Technicolor Gateway GUI you will have to enter this
password.
It is recommended to change the default password settings.
Choose a password that your can easily remember or write it down. If you forget your password the only option is to
reset your Technicolor Gateway. For more information, see “11.6 Reset to Factory Defaults” on page 105.
This password will also be used by the network file server and FTP server.
For more information about the network file server and FTP server, see “8 Sharing Content on your Technicolor
Gateway” on page 65
39
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1
4.2 Backing Up/Restoring your Configuration
Introduction
Once you have configured your Technicolor Gateway to your needs, it is recommended to backup your configuration for
later use. This way you can always return to your working configuration in case of problems.
Backing up your configuration
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2On the Technicolor Gateway menu, click Configuration.
3In the Pick a task list, click Save or Restore Configuration.
4Under Backup current configuration, click Backup Configuration Now.
5The Technicolor Gateway prompts you to save your backup file.
6Save your file to a location of your choice.
Restoring your configuration
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2On the Technicolor Gateway menu, click Configuration.
3In the Pick a task list, click Save or Restore Configuration.
4Under Restore saved configuration, click Browse and open your backup file.
5The Technicolor Gateway restores your configuration.
Do not edit the backup files, this may result in corrupt files making them worthless as configuration backup.
Backup files usually have.ini as extension.
40
4 CONFIGURATION TOOLS
DMS-CTC-20101206-0033 v0.1

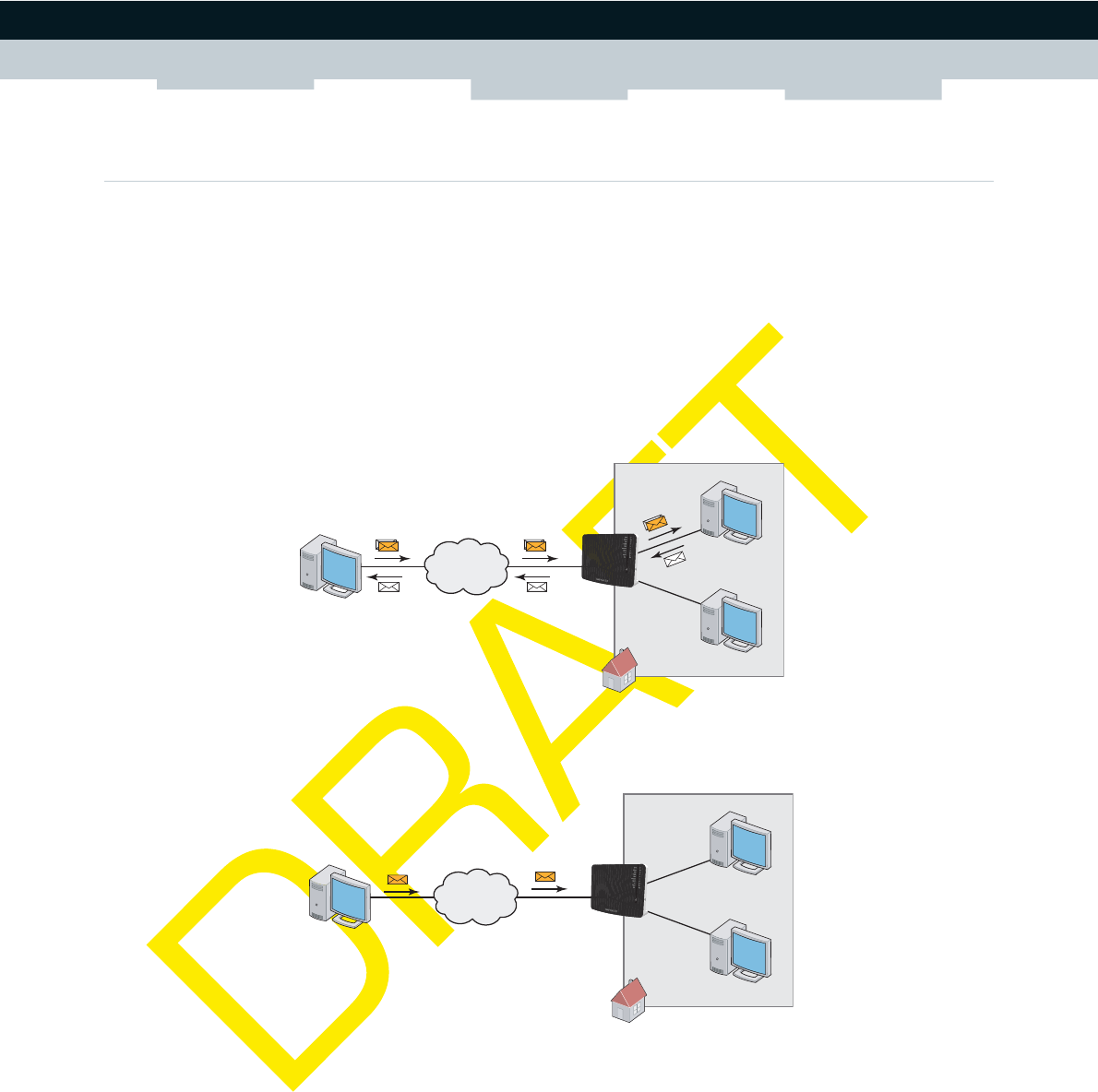

4.3 Access From the Internet
Modes
To access your Technicolor Gateway from the Internet, you can choose between two modes:
Permanent Mode (Remote Access):
The remote session ends when you disable remote assistance or after restarting your Technicolor Gateway.
Temporary Mode (Remote Assistance):
The remote session ends when you disable remote assistance, after restarting your Technicolor Gateway or after 20
minutes of inactivity.
To enable Remote Assistance / Remote Access.
To enable remote assistance/access:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2 Complete and check the following parameters:
Mode:
Select the mode that you want to use.
URL:
Contains the URL that must be used to access the Technicolor Gateway from the Internet.
User name and Password:
Contains the user name and password are needed to access your Technicolor Gateway remotely. If wanted you can
change the automatically generated password in the Password box.
3Click Enable Remote Assistance.
Accessing your Technicolor Gateway from the Internet
Proceed as follows:
1Open your web browser.
2Type the URL that was listed in the URL field on the Remote Assistance page (for example https://141.11.249.150:51003).
3Enter the user name and password that you specified on the Remote Assistance page.
4The Technicolor Gateway GUI appears.
It is now possible for a remote user to access your Technicolor Gateway via the specified URL using the provided user name
and password.
Enabling remote assistance is only possible when you are connected to the Internet.
You can replace the IP address in this URL by the dynamic DNS host name if you enabled and configured
Dynamic DNS. For more information, see Dynamic DNS.
Example: https://141.11.249.150:51003 can be replaced by https://mygateway.dyndns.org:51003.
41
5 THE TECHNICOLOR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
5 The Technicolor Gateway Wireless Access Point
Introduction
This section will help you set up your wireless network.
What you need to set up a wireless network
To set up a wireless network, you need the following components:
A Wireless Access Point (already integrated into your Technicolor Gateway)
A Wireless client the device that you want to connect (for example, a computer, smartphone, network printer,...)
Wireless Access Point
The wireless access point is the heart of your wireless network. The wireless access point:
Connects different wireless devices.
Secures the data sent over wireless connection.
The Technicolor Gateway comes with an integrated wireless access point.
Wireless client
The wireless client allows you to connect a device, typically a computer, to a wireless access point. Both built-in and external
(for example via USB) clients are available.
Check the documentation of your computer if you are not sure if your computer is equipped with a wireless client.
Configuring your wireless clients
For more information on how to establish a wireless connection to the Technicolor Gateway, see “5.1 Connecting Your
Wireless Client via WPS” on page 42 and “5.2 Connecting Your Wireless Client without WPS” on page 44.
Secure your wireless connection!
When using an unsecured connection, everyone who is within the range of your Technicolor Gateway can access your
network. If not:
People may use your connection to access the Internet.
Hackers may use your connection to commit computer crimes.
You can easily prevent this by securing your wireless access point. For more information, see “5.3 Securing Your Wireless
Connection” on page 45.
Devices like media players and smartphones may also have a built-in wireless client. Check the documentation of
your device for more information.
42
5THE TECHNICOL
OR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
5.1 Connecting Your Wireless Client via WPS
WPS
Wi-Fi Protected Setup (WPS) allows you to add new wireless clients to your local network in a swift and easy way, without
the need to enter any of your wireless settings (network name, wireless key, encryption type).
Requirements
Your wireless client must support WPS. Check the documentation of your wireless client for this.
Your Technicolor Gateway must use WPA(2)-PSK encryption (default encryption) or no encryption. WPS with WEP
encryption is not possible.
Procedure
Proceed as follows:
1Shortly press the WPS button on the Technicolor Gateway:
2The WPS button LED starts blinking orange. This indicates that the Technicolor Gateway is now searching for wireless
clients that are in registration mode. You now have two minutes to start WPS on your wireless client.
3Start WPS on your wireless client.
4The Technicolor Gateway is now exchanging the security settings.
5At the end of the procedure the status of the WPS LED will change to either of the following:
Solid green
This indicates that you have successfully registered your wireless client. You are now connected to the Technicolor
Gateway network.
Blinking red
This indicates that the Technicolor Gateway could not find your wireless client. Use the same procedure to try again
(you do not need to wait until the LED turns off).
Troubleshooting
If you are having trouble connecting your wireless client via WPS, this may be cause by one of the following reasons:
WPS can not be correctly executed:
Configure your wireless manually. For more information, see “5.2 Connecting Your Wireless Client without WPS” on
page 44.
Both Windows 7 and Windows Vista Service Pack 1 have native WPS support.
43
5 THE TECHNICOLOR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
Your wireless client is out of range:
If possible move your wireless client closer to your Technicolor Gateway or use a wireless repeater to extend the range of
your wireless network.
Another device is interfering on the selected wireless channel:
Change the wireless channel of your Technicolor Gateway. For more information, see “Change the wireless channel” on
page 103.
44
5THE TECHNICOL
OR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
5.2 Connecting Your Wireless Client without WPS
Before you start
Before you can connect a wireless client (for example, a computer) to your wireless network you need to know the wireless
settings that are currently used by the Technicolor Gateway, i.e.:
The Network Name (SSID)
The wireless key
What Network Name (SSID) is my Technicolor Gateway using?
If you did not change the SSID, your Technicolor Gateway uses the Network Name that is printed on the back panel label of
your Technicolor Gateway.
What wireless key is my Technicolor Gateway using?
If you did not change the security settings, no wireless key is used.
Forgot your wireless key?
If you have changed the wireless settings manually and you can’t remember your settings, try one of the following:
1Use a computer that is already connected to your network.
2Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
3On the Home Network menu, click Wireless.
4In the upper-right corner, click Details.
5Under:
Configuration, you can find the network name (SSID).
Security, you can find the encryption.
Connecting your wireless client
Configure your wireless client with the same wireless settings as your Technicolor Gateway (network name and wireless key).
For more information, consult the documentation of your wireless client.
If your service provider did choose to use a default wireless key, use the Wireless Key that is printed on the bottom
panel label of your Technicolor Gateway.
If none of your computers is connected yet, connect one with an Ethernet cable. For more information, see
“3.3.2 Setting up a Wired Connection” on page 28.
45
5 THE TECHNICOLOR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
5.3 Securing Your Wireless Connection
Introduction
You can protect the wireless communication between the wireless clients and your Technicolor Gateway with a wireless key.
This means that:
Only clients which use the correct Network Name (SSID) and wireless key can connect to your network.
All data passing through your wireless access point is secured and encrypted.
Encryption types
Over the years a number of encryption types have been developed. The list below gives you an overview of the supported
encryption types ordered by descending security level; you will find the highest level of security at the top of the list:
WPA-PSK Encryption:
The wireless connection is secured with a pre-shared key that has been defined by the user. Wireless clients must be
configured with this key before they can connect to the Technicolor Gateway. The Technicolor Gateway supports the
following WPA versions (ordered by descending security):
WPA2:
The most recent and most secure version of WPA. Choose this version if you are sure that all your wireless clients
support WPA2.
WPA+WPA2:
This is a mixed mode. In this mode WPA2, is the preferred encryption type but wireless clients do not support WPA2,
can still use WPA as encryption type. Choose this option if not all of your wireless clients support WPA2 or if you are
not sure. Wireless clients that support WPA2 will use WPA2, the others will use WPA.
WPA:
The first version of WPA. Choose this option if you are sure that none of your wireless clients support WPA2.
WEP Encryption:
The least safe encryption type used for wireless connections. Like WPA-PSK it uses a user-defined key, but WEP has
been proven to have security issues.
Configuration
Proceed as follows:
1Open the Technicolor Gateway GUI.
2Under Home Network, click Wireless.
3The Wireless Access Point page appears. In the upper-right corner, click Configure.
4Under Encryption, select Use WPA-PSK Encryption.
5In the WPA-PSK Encryption Key box, type a the key of your choice. The key must be in one of the following formats:
8 to 63 alphanumeric characters. For example: MyKey123
8 to 64 hexadecimal characters (characters from 0 to 9 and from A to F). For example: C54F48A5.
If you want to configure WPA2 on the built-in wireless utility of Windows XP Service Pack 2 (SP2), you first have
to:
Upgrade your Windows XP to Service Pack 3.
- or -
Install the following update: http://support.microsoft.com/kb/917021.
Although the Technicolor Gateway allows you to use WEP or no security, we strongly advise against using one of
them! Use WPA(2)-PSK instead.
46
5THE TECHNICOL
OR GATEWAY WIRELESS ACCESS POINT
DMS-CTC-20101206-0033 v0.1
6In the WPA-PSK Version list, click the WPA-version of your choice. For more information, see “Encryption types” on
page 45.
7Click Apply.
8Reconnect your wireless client(s) to the Technicolor Gateway using these new security settings.
For more information, see “5.1 Connecting Your Wireless Client via WPS” on page 42 or “5.2 Connecting Your Wireless
Client without WPS” on page 44.
47
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6 Telephony
Voice over IP (VoIP)
VoIP is a technology in which telephone calls are made over the Internet. This allows you to save on communication costs,
especially for long-distance calls.
The expensive solution
To be able to make your phone calls over the Internet you could either:
Buy an IP phone.
These IP phones are special phones that you can connect to your Internet Gateway.
Install VoIP software on your computer and make your phone calls via your computer.
The Technicolor solution
With the Technicolor Gateway you can make both VoIP and traditional telephone calls using a traditional analogue phone.
If your Technicolor Gateway is not powered, the traditional telephone network (if connected) will automatically selected.
This way you are still able to make emergency calls.
In this chapter
This chapter covers following topics:
To p i c Page
6.1 Setting Up Your Telephone Network 48
6.2 Address Book 52
6.3 Telephony Services 54
6.4 Viewing Call Logs 59
48
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.1 Setting Up Your Telephone Network
Procedure
To set up your telephone network, follow these steps:
1Connect your traditional phone(s), DECT base station or fax to the green Phone port(s) on the back panel of your
Technicolor Gateway.
2Connect your Technicolor Gateway to the traditional network.
For more information, see “6.1.1 Connection to the Traditional Telephone Network” on page 49.
3Configure the VoIP service on your Technicolor Gateway.
For more information, see “6.1.2 Configuring the Technicolor Gateway VoIP Service” on page 50.
49
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.1.1 Connection to the Traditional Telephone Network
Combining VoIP with the traditional telephone network
Some service providers use the traditional telephone network (PSTN) as a backup solution for your VoIP connection. This
way, you can still make calls over the traditional network if the VoIP service is down (for example, your Technicolor Gateway
is powered off).
Be aware that, if you are not connected to the traditional telephone network, emergency calls will not be possible
when your Internet connection is down or your Technicolor Gateway is powered off.
Applicability
If your Technicolor Gateway:
Has an integrated filter, no additional connections are needed.
The DSL port must be directly connected to your telephone outlet. Do not put any filter or splitter between them!
How do I know if my Technicolor Gateway has an integrated filter?
Check if the product name printed on the label of your Technicolor Gateway ends with “wIF” (with
Integrated Filter). If this suffix is not present, then your Technicolor Gateway does not have an integrated
filter.
Does not have an integrated filter, check if your Technicolor Gateway has a PSTN port on the back panel (for more
information, see “PSTN Port (optional)” on page 10). If your Technicolor Gateway has:
A PSTN port:
Connect the PSTN port to the Phone output of your filter or splitter.
No PSTN port, no connections are needed.
This is a VoIP-only variant. All calls passing through the Technicolor Gateway will be done via VoIP.
50
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.1.2 Configuring the Technicolor Gateway VoIP Service
Introduction
If your VoIP service has not been configured yet, follow the instructions in this section.
How can I check if the VoIP service has already been configured?
If the Phone LED is:
Solid or blinking green then the VoIP service is configured correctly. No configuration is needed.
Off then telephony service is not configured (yet). Follow the instructions below.
Requirements
Your Internet connection must be up and running before you can configure Internet telephony.
Configuring the VoIP settings
Proceed as follows:
1Enter the proxy and registrar settings.
2Enter your VoIP account settings.
Enter the proxy and registrar settings
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the T
oolbox menu, click Te l e p h o n y.
3In the Navigation bar, click Expert configure.
4Complete the following fields based on the settings provided by your VoIP provider:
Proxy:
Type the URL (for example: sip.provider.com) or IP address of the proxy.
Registrar:
Type the URL (for example: sip.provider.com) or IP address of the registrar.
Registrar Port and Proxy Port.
In most cases the default port (5060) will be used. Only change these values if your provider is using other port
numbers.
5Click Apply.
Enter your VoIP account settings
Proceed as follows:
1In the Navigation bar, click Configure.
2Under Service Configuration, select Enable Telephony.
3Under Telephone Numbers, complete the following fields:
SIP URI:
The Uniform Resource Identifier (URI) of your SIP account (for example: 035051979, john.doe,...). This is the
telephone number that people have to dial to call you.
Username:
The user name of your VoIP account (for example: 035051979, john.doe,...).
51
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
Password:
The password of your VoIP account.
Displayname:
The name that you want people to see on the display of their phone when you are calling.
Your VoIP provider may not support this feature.
Abbreviated number:
An internal number to call the phones associated with this VoIP account.
Port:
The phone port that you want to associate with this VoIP account. select
All to use this VoIP account for all connected phone.
Phone 1/2 to use this VoIP account for the phone connected to the Phone 1/2 port of your Technicolor Gateway.
4Click Apply.
Verifying Telephone Connectivity
Proceed as follows to verify the voice connection:
1Make sure the Technicolor Gateway is turned on.
2Make sure the Internet telephony service is enabled and configured. The Phone LED must be solid green.
3Pick up your phone, wait for the dialling tone, and dial the number.
52
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.2 Address Book
Introduction
The Address Book page allows you to:
Store your contacts on the Technicolor Gateway GUI.
Initiate a call or send a message by clicking the phone number or e-mail address in the contact details.
Everyone with access to the Technicolor Gateway GUI can view and use the address book.
Accessing the Address Book page
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click Address Book.
3The Address Book page appears.
For each contact, you can provide the following information:
Business: to make a call to the contact’s business telephone number
Home: to make a call to the contacts home telephone number
Mobile: to make a call to the contact’s mobile telephone number
Other or SIP uri: to make a call to the contact’s VoIP telephone number
E-mail to send an E-mail message to the contact with your e-mail client.
Managing contacts
Click... To . . .
Add Add a contact
Edit Edit a contact
Delete Delete a contact
All information provided per contact is optional except for the last and first name. The information can be updated or
completed at any time.
Making a phone call from the address book
Proceed as follows:
1Browse to the Address Book page.
53
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
2Click on the phone number of your contact.

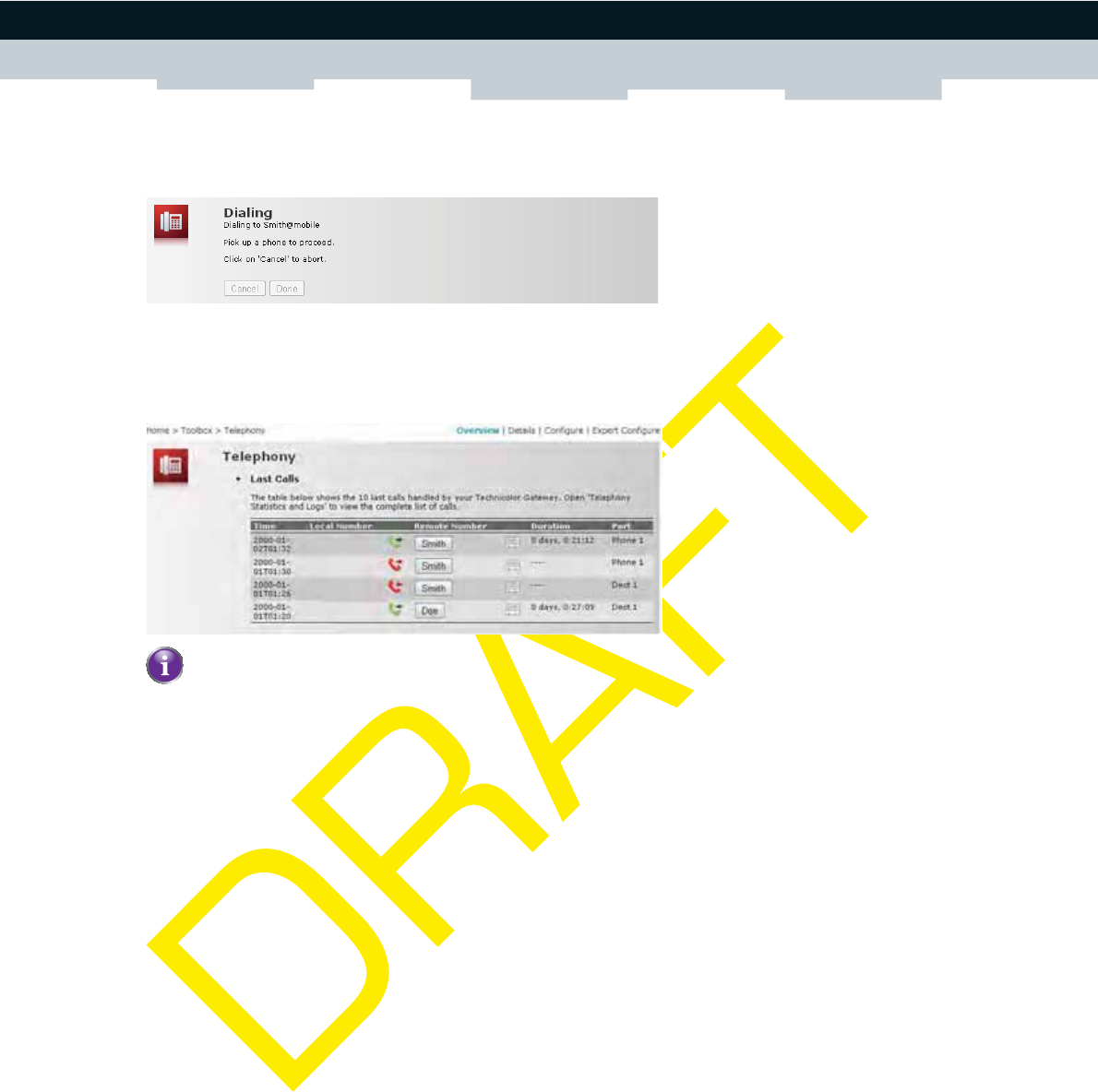

3The following page appears:
4Pick up the phone.
5The Technicolor Gateway is now initiating the call. Your contact’s phone is now ringing.
6At the end of the conversation, click Done to go to the Last Calls page. This page allows you to view the statistics of
your last calls (including the call that you just made).
You can use the buttons in the Remote Number column to make a new call to one of the contacts in your call log.
54
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.3 Telephony Services
Introduction
Telephony services add extra functionality to your phone. For example: putting a call on hold, transferring calls,...
Requirements
Before you can use a service, must both be:
1Supported by your service provider.
2Activated on your Technicolor Gateway.
Checking if a telephone service is activated/supported
To check which services are supported or activated, proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2On the Toolbox menu, click Te l e p h o n y.
3In the Navigation bar, click Configure.
4In the Pick a task list, click View Telephony Services.
5Under Te lephony Services, you can see the services that are supported by your provider.
In the Activated column, you can see if this service is also activated on the Technicolor Gateway.
6To (de)activate a service, proceed with “6.3.1 Activating a Telephony Service on your Technicolor Gateway” on page 55.
55
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.3.1 Activating a Telephony Service on your Technicolor
Gateway
How can I (de)activate a service on my Technicolor Gateway?
You can (de)activate services in two ways:
Via the Technicolor Gateway GUI.
Via (de)activation codes on your phone.
Activating a Telephony Service via the Technicolor Gateway GUI
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2On the Toolbox menu, click Te l e p h o n y.
3In the Navigation bar, click Configure.
4In the Pick a task list, click View Telephony Services.
5In the Navigation bar, click Configure.
6Under Telephony services you can now activate or deactivate the services of your choice:
To :
Activate a service select the check box next to the service.
Deactivate a service clear the check box next to the service.
7Click Apply.
Activating a Telephony Service via Your Phone
To (de)activate one of the services just dial the corresponding code on your phone. For example, to activate Call Hold dial
*94; to deactivate the service dial #94.
To know which code to use:
1Browse to the Technicolor Gateway GUI.
For more information, see “4.1 Technicolor Gateway GUI” on page 34.
2On the Toolbox menu, click Te l e p h o n y.
3In the Navigation bar, click Configure.
4In the Pick a task list, click View Telephony Services.
5In the Te lephony Services table, you can find the activation and deactivation codes.
56
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.3.2 Common Telephony Services
Introduction
This section provides an overview of the functions that will be available if you activate one of the following services:
Call Hold service
Call Waiting service
Conference Call (3 Party) service
Call Transfer
For more information on the other services, please contact your service provider.
Call Hold service
If the Call Hold service is activated, you can use the following functions:
To . . . Press... Illustration
Put an active call on hold and enable a call set up (the
dial tone is generated)
R, 2
BA
You
on hold
dial tone
BA
You
active
You press
R, 2
Terminate the call on hold R, 0
BA
You
active
BA
You
active on hold
You press
R, 0
Terminate an active call and switch to the call on hold R, 1
BA
You
active
BA
You
active on hold
You press
R, 1
Retrieve the call on hold (when there is no active call) R, 1
BA
You
active
BA
You
on hold
You press
R, 1
Terminate an active call and enables a call set up (the
dial tone is generated)
R, 9
BA
You
dial tone
on hold
BA
You
active on hold
You press
R, 9
57
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1

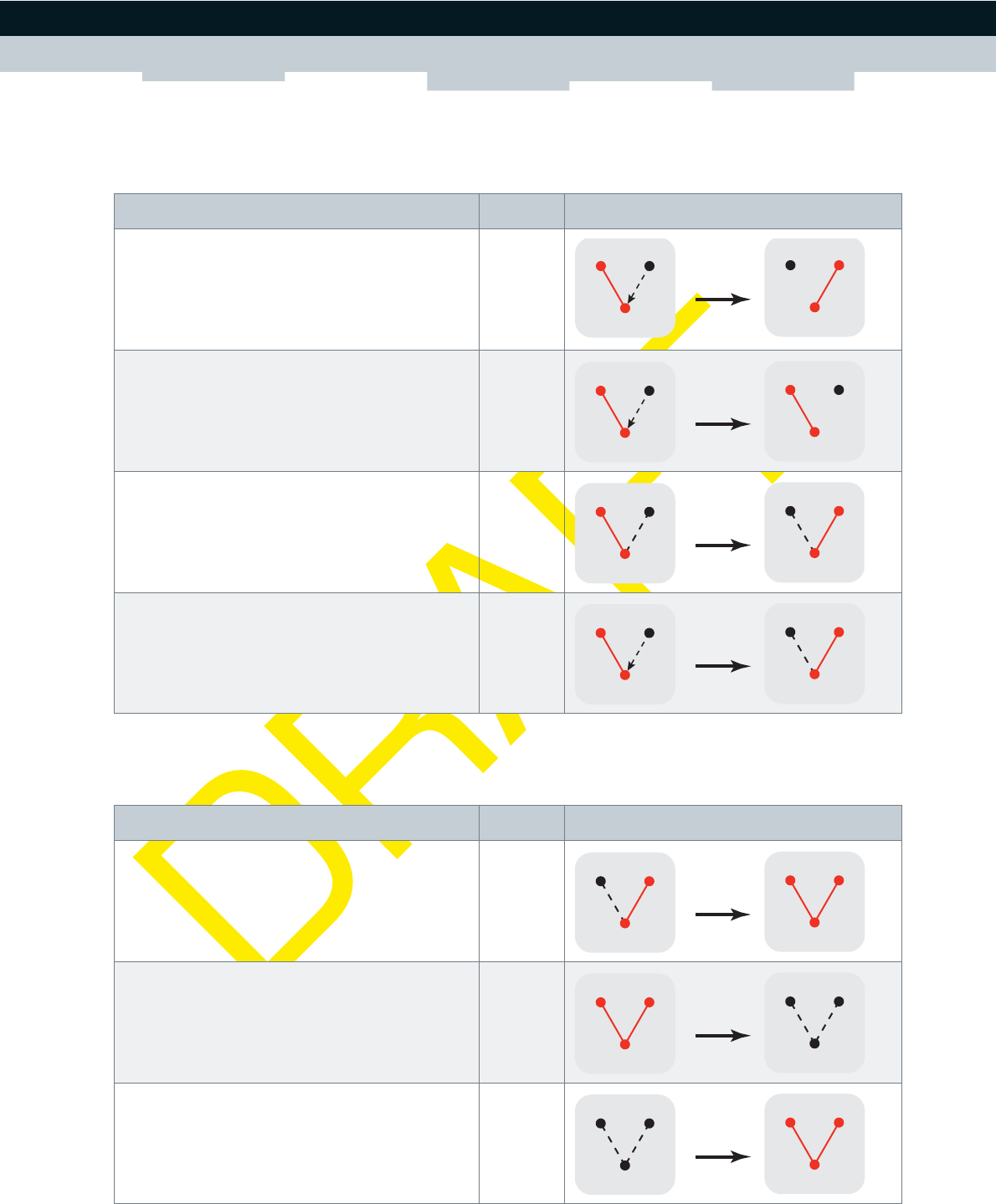

Call Waiting service
If the Call Waiting service is activated, you can use the following functions:
To . . . Press... Illustration
Terminate an active call and switch to an incoming call R, 1
BA
You
active
BA
You
active incoming
You press
R, 1
Reject an incoming call R, 0
BA
You
active
BA
You
active incoming
You press
R, 0
Switch between an active call and a call on hold R, 2
BA
You
on hold active
BA
You
active on hold
You press
R, 2
Switch between an active call and an incoming call R, 2
BA
You
on hold active
BA
You
active incoming
You press
R, 2
Conference Call (3 Party) service
If the Conference Call (3 Party) service is activated, you can use the following functions:
To . . . Press... Illustration
Establish a conference call (or 3 party connection) R, 3
BA
You
active active
BA
You
on hold active
You press
R, 3
During a conference call: put B and C on hold R, 2
BA
You
on hold on hold
BA
You
active active
You press
R, 2
During a conference call: retrieve B and C when they
are on hold
R, 3
BA
You
active active
BA
You
on hold on hold
You press
R, 3
58
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
Call Transfer
If the Call Transfer service is activated, you can use the following functions:
To . . . Press... Illustration
Transfer a call R, 4
BA
You
active
BA
You
on hold active
You press
R, 4
59
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
6.4 Viewing Call Logs
Introduction
The Call Logs page on the Technicolor Gateway GUI lists:
Successful incoming calls.
Missed incoming calls.
Successful outgoing calls.
Failed outgoing calls.
Viewing the telephony statistics
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Te l e p h o n y.
3The Te l e p h o n y page appears:
On this page you can see an overview of your last calls.
4To view more detailed statistics, click View telephony statistics and logs in the Pick a task list.
Used icons
The call logs use the following icons to illustrate the call type:
Icon Ty p e
Successful outgoing phone call
Successful incoming call
Failed outgoing call
Failed incoming call
Calling a contact from the call log
You can immediately start a new call to one of these contacts by clicking the button in the Remote Number column.
60
6 TELEPHONY
DMS-CTC-20101206-0033 v0.1
61
7 SAVING ENERGY WITH YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
7 Saving Energy with Your Technicolor Gateway
Code of Conduct
To prove its commitment to protect the environment, Technicolor has signed the Code of Conduct, a global agreement to
reduce the power consumption of broadband access devices.
For more information, see “7.1 Code of Conduct” on page 62.
Technicolor power saving innovations
To further reduce the power consumption, Technicolor has developed the ECO Manager. This system constantly monitors
the services provided by the Technicolor Gateway and automatically switches unused services to an ECO-friendly state. For
more information, see “7.2 ECO Manager” on page 63.
Next to this automated tool, you can also choose to manually disable services that you will not be using. For more
information, “7.3 Manually Switching Off Services to Reduce Power” on page 64.
62
7 SAVING ENERGY WITH YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
7.1 Code of Conduct
Power states
Code of Conduct provides rules for the power consumption in:
Full power state:
This is the normal operation mode of the device, where all functionality is enabled.
Low power state:
When there is no user traffic on the device, the device should switch to low power mode. This is a state in which devices
are only allowed to use a limited amount of energy to be able to power its components and respond to user activity.

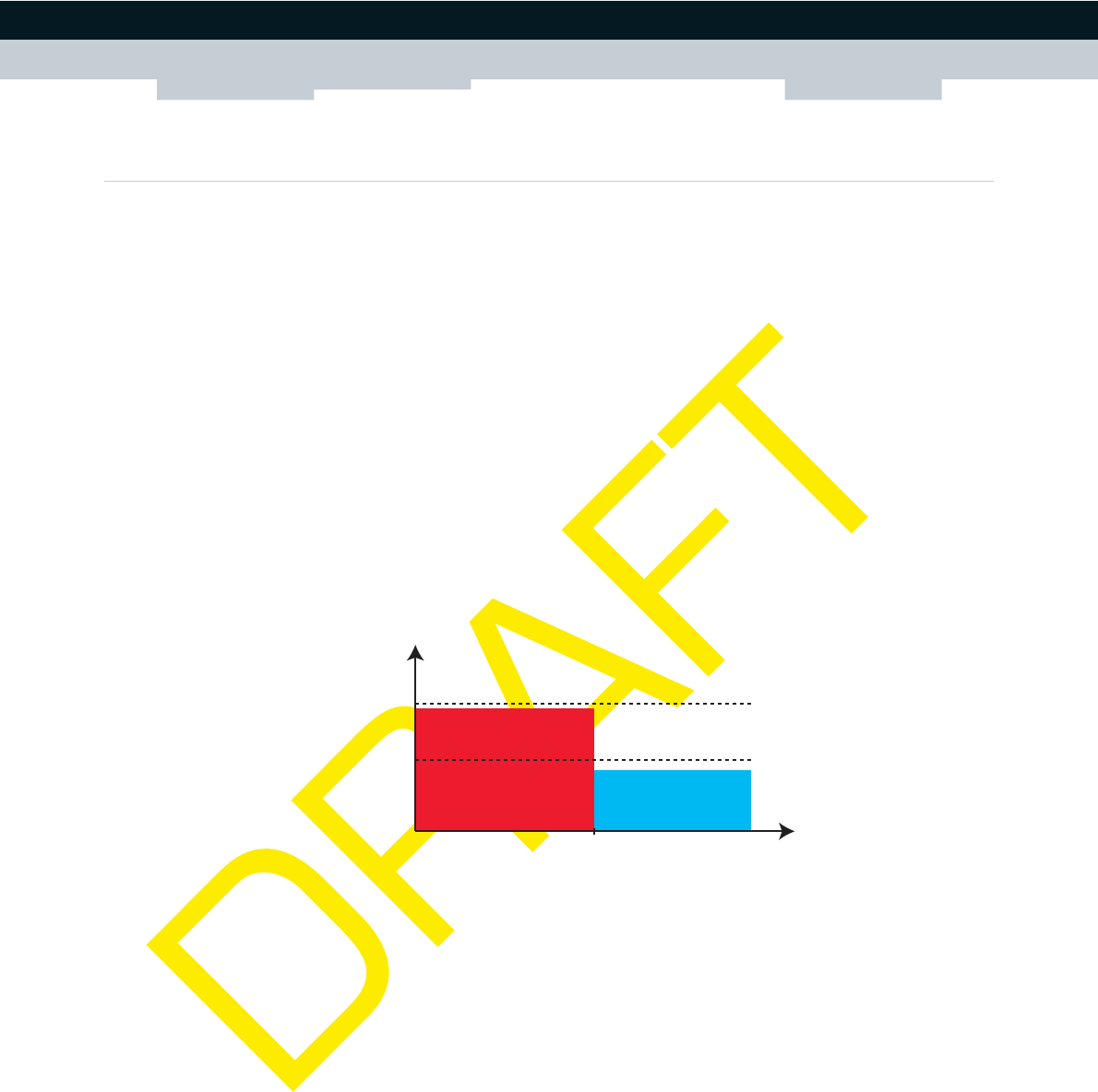

Example
Take the following example:
The user switches off his computer at 20:00.
There are no other devices connected to the Technicolor Gateway.
The Technicolor Gateway switches to low power mode. This results in a considerable drop in the overall power consumption
of the Technicolor Gateway.
No user traffic
User traffic
Time
Power
Consumption
Full power limit
Low power limit
20:00
63
7 SAVING ENERGY WITH YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
7.2 ECO Manager
Introduction
The Technicolor Gateway constantly monitors the user activity and uses this information to optimise the power
consumption:
For example:
The Technicolor Gateway reduces the clock frequency of the central processor when there is no or low user activity. This
lowered clock frequency will result in a lower power consumption of the Technicolor Gateway.
Disable the USB port(s) when they are not used
Switch the wireless interface to power reduction mode.
Wireless access point power reduction mode
When the Technicolor Gateway access point switches to power reduction mode, the access point is switched off and is only
power on periodically to be able to detect new clients. If new clients are detected the wireless access point is fully powered
again. This is only possible if there are no devices connected to the Technicolor Gateway.
Power reduction is disabled by default, but it is possible to enable it via the Technicolor Gateway GUI.
To enable power reduction:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2Under Home Network, click Wireless.
3In the Navigation bar, click Configure.
4Under Configuration:
Select Power Reduction Enabled to enable power reduction.
Clear Power Reduction Enabled to disable power reduction.
5Click Apply.

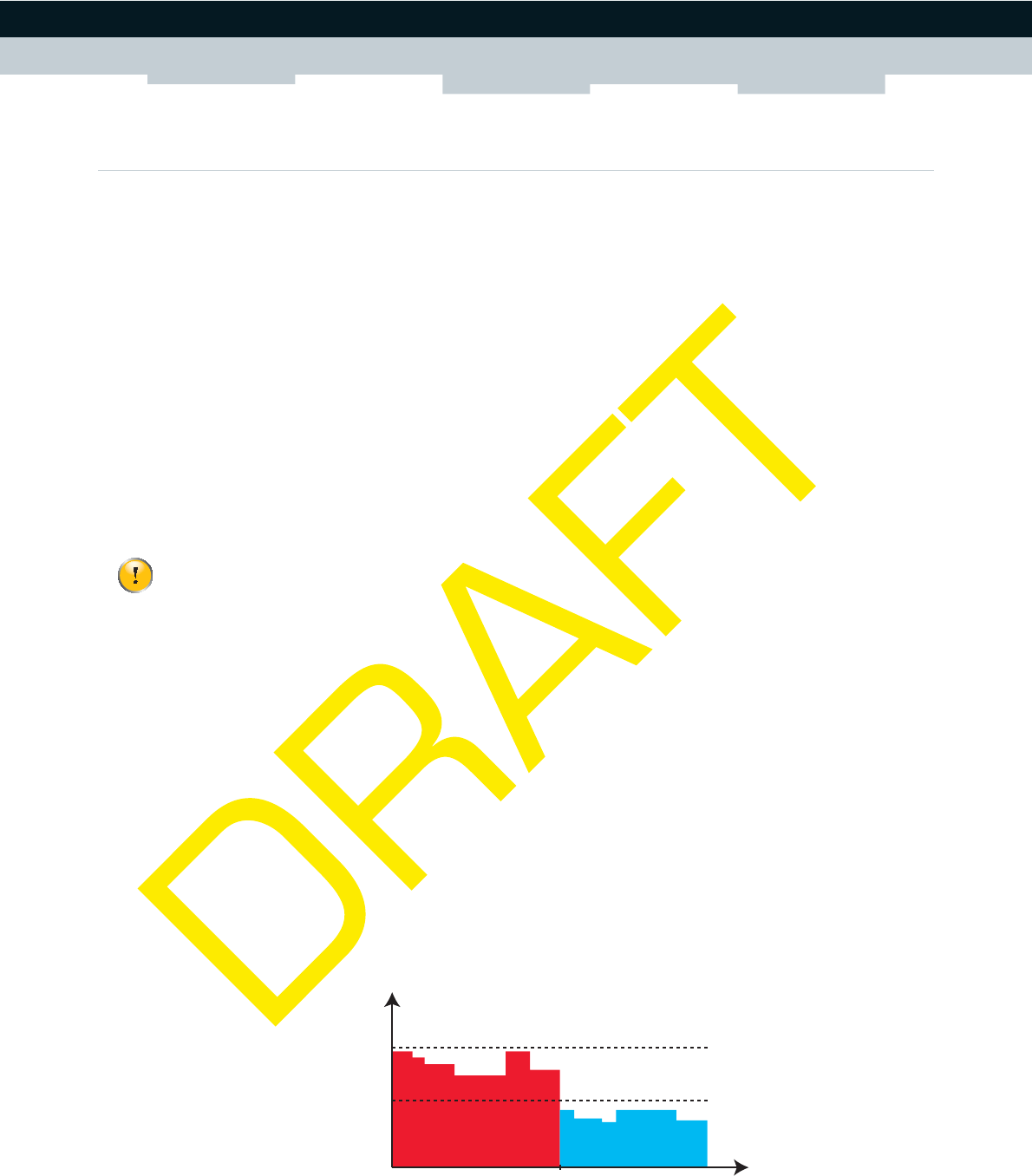

Example
If we use the same example as in the previous section, you can see that the Technicolor Gateway is now able to further
reduce the power consumption in periods where less action is required from the Technicolor Gateway.
Enabling power reduction may have impact on the reliability of your wireless connection. This feature is intended for
advanced users only.
No User Traffic
User Traffic
Time
20:00 Time
Power
Consumption
Full power limit
Low power limit
64
7 SAVING ENERGY WITH YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
7.3 Manually Switching Off Services to Reduce Power
ECO button
If you are not using the wireless access point of your Technicolor Gateway, you might consider to disable the wireless access
point permanently. This allows you to further reduce the power consumption.
To turn the wireless interface:
Off, press the ECO ( ) button until the Wireless LED is off.
On, press the ECO ( ) button until the Wireless LED is on.
Zero power consumption
If you will not be using your Technicolor Gateway for a longer time (for example: you are going on holiday), you should
consider to turn off the Technicolor Gateway. This way no energy will be consumed at all.
However, be aware that if you turn off the Technicolor Gateway, all services provided by the Technicolor Gateway that
require access to the Internet will not be available. For example:
No VoIP calls can be made/received
You will no longer be able to make or receive phone calls over the Internet. Your phone calls will automatically be done via
the traditional phone network (if available).
No Digital TV is provided
If your set-top box is connected to your Technicolor Gateway, it will no longer be able to connect to the Internet, hence
not be able to service your TV set.
65
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8 Sharing Content on your Technicolor Gateway
Introduction
The Technicolor Gateway allows you to share the content stored on your USB storage device with other users on your
network or even access this shared content from the Internet.
Features
The Technicolor Gateway supports USB 2.0
The following file systems are supported:
NTFS (optional)
FAT32
FAT16
HFS+ (optional)
EXT2/EXT3 (optional)
You can connect up to five USB storage devices (via a USB hub).
Each USB storage device can have up to 10 partitions. If your device has more partitions the extra partitions will be
ignored.
Content Sharing Servers
The Technicolor Gateway offers three types of services to share your content. The following table gives a you a brief
overview of the main functions:
Network File Server UPnP AV Media Server FTP Server
Function Store and access your data
on your local network.
Make media files available
for UPnP AV capable
devices like Media players,
Set-Top boxes from your
local network.
Store and access your data
from the Internet.
Access Read and write Read-only Read and write
Accessible from Local network Local network Internet and Local network
Type of content shared All files from all partitions
and disks that are
connected.
Media files (music, movies
and pictures) from all
partitions and disks that are
connected.
All files that are stored in
the Shared folder of the
managed partition.
For more information,
see...
“8.1 The Network File
Server” on page 67
“8.2 The UPnP AV Media
Server” on page 70
“8.3 The FTP Server” on
page 74
66
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
Configuration
All servers are enabled by default. The only thing that you need to do is to plug your USB memory stick or external hard
disk in (one of) the USB port(s) of your Technicolor Gateway.
By using a USB hub, you can connect up to five USB mass storage devices to the Technicolor Gateway.
Do not remove your USB storage device without stopping it first, otherwise data might be lost! For more
information, see “8.5 Safely Removing your USB Storage Device” on page 78.
67
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.1 The Network File Server
Introduction
The Network Server allows you to share the content on your USB storage device(s) with other devices that are connected to
your local network (mostly computers).
These devices have read and write access to this USB device(s).
Configuration
The Network File Server is enabled by default and ready for use.
To change the default settings, proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Tools menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Under Network File Server (Windows Networking), you can change the following settings:
Server Name:
Enter the name that you want to use to access the Technicolor Gateway.
Server Description:
Add a short description for what kind of data is stored on the USB storage device.
Workgroup:
Enter the same workgroup as used by your computer(s).
Server Enabled:
Select this option to enable the Network File Server
5Click Apply.
6All users connected to the Technicolor Gateway can now access the data on stored your USB storage device.
7If you want to limit the number of folders that can be accessed, continue with “8.4 Managing your Shared Content” on
page 76.
Accessing the shared content on Windows
Proceed as follows:
1Open Windows Explorer.
2In the address bar, type two backslashes followed by the name that you entered in the Server Name box (default:
\\Technicolor).
If you did not provide a server name, type \\192.168.1.253.
68
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1

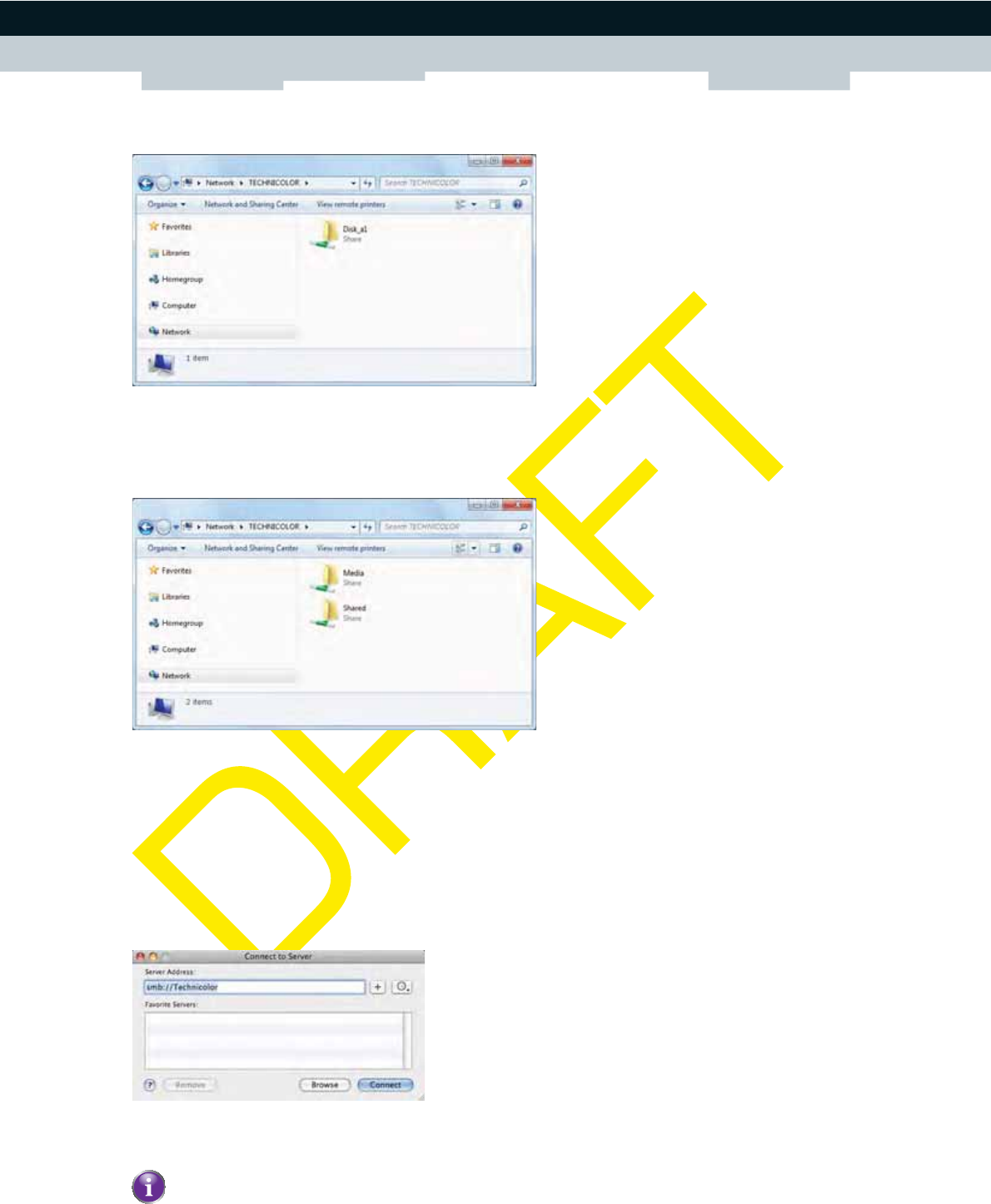

3An Explorer windows appears. The storage devices that are attached to your Technicolor Gateway are listed as folders.
If the storage device has multiple partitions an index number will be added at the end (for example: Disk_a1 and
Disk_a2).
If multiple storage devices are inserted the first one is listed as Disk_a1, the second one as Disk_b1, and so on.
If the partition is a managed partition, only the Media and Shared folders of the managed partition are displayed:
For more information on managed partitions, see “8.4 Managing your Shared Content” on page 76.
4If you plan to frequently use this folder, it might be useful to map this folder as a network drive. For more information, see
the help of your operating system.
Accessing the shared content on Mac
Proceed as follows:
1On the Go menu, click Connect To Server.
2The Connect To Server window appears.
In the Server Address box, type smb://<server name>, where <server name> is the Server Name you assigned to your
USB storage device (default: smb://Technicolor).
If you did not provide a server name, type smb://192.168.1.253.
69
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
3The following window appears:
Select Guest and click Connect.
4If prompted, select the partition that you want to open and click OK:
5Your USB storage device is now mounted and is displayed on your desktop.
70
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.2 The UPnP AV Media Server
Introduction
Your Technicolor Gateway has a built-in DLNA-certified UPnP AV media server. This section describes how to use and
configure this media server.
UPnP AV
UPnP AV (AV stands for Audio and Video) is a protocol especially designed to share media files on your local network.
DLNA-certified
The Digital Living Network Alliance (DLNA) is an organisation that imposes requirements to ensure the interoperatability
of your media devices and standardize the communication between them.
Buying a DLNA-certified device like the Technicolor Gateway guarantees you that it will seamlessly integrate with your
other DLNA-certified devices.
To allow you to access your media in a quick and easy way, the Technicolor Gateway scans your storage device for meta data
information (for example, title, artist, album) and stores it in a database. When you are looking for a file, the Technicolor
Gateway can simply query the database instead of having to go through all the files.
UPnP AV network components
A UPnP AV network consists of the following components:
The UPnP AV server is directly connected to your media files and makes them available on the network. In your network
the Technicolor Gateway will fulfil this role.
The UPnP AV client is a software application or hardware device that allows you to play or view the media files provided
by your UPnP AV media server.
This database will only be created if the following conditions are met:
Your disk or partition must have at least 250MB of free space
Your disk or partition must not be read-only.
71
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.2.1 Configuring the UPnP AV Media Server
Introduction
The Network File Server is enabled by default and ready to use.
Enabling/disabling the UPnP AV Media Server
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Tools menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Under UPnP AV Media Server, click Server Enabled.
5Click Apply.
Media Database
When you plug in your USB storage device, the Technicolor Gateway will automatically start building the media database.
This database contains all meta data of the media files stored on your USB storage device.
To view the status of the media database:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Tools menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Under UPnP AV Media Server, you can find the Database Status.
5If you want to rebuild the database, click Rebuild.
72
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.2.2 Using the UPnP AV Media Server
Introduction
The UPnP AV Media Server lists all audio, video and picture files located on the connected USB storage device. All UPnP
AV renderers (for example, a DLNA-certified Set-Top box) that are connected to your network are able to view this list and
play or view items from this list.
On your UPnP AV renderer, the Technicolor Gateway’s UPnP AV media server will be listed as Technicolor TGXXX. Below
you can find a screenshot taken on a smartphone with a UPnP AV client.
Via this entry, you can browse to your media files.
Windows 7
Windows 7 has native support for UPnP AV. It automatically detects UPnP AV and makes your media files available for
playback on your Windows Media Player.
Proceed as follows:
1On the Windows Start menu, click Network.
73
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1

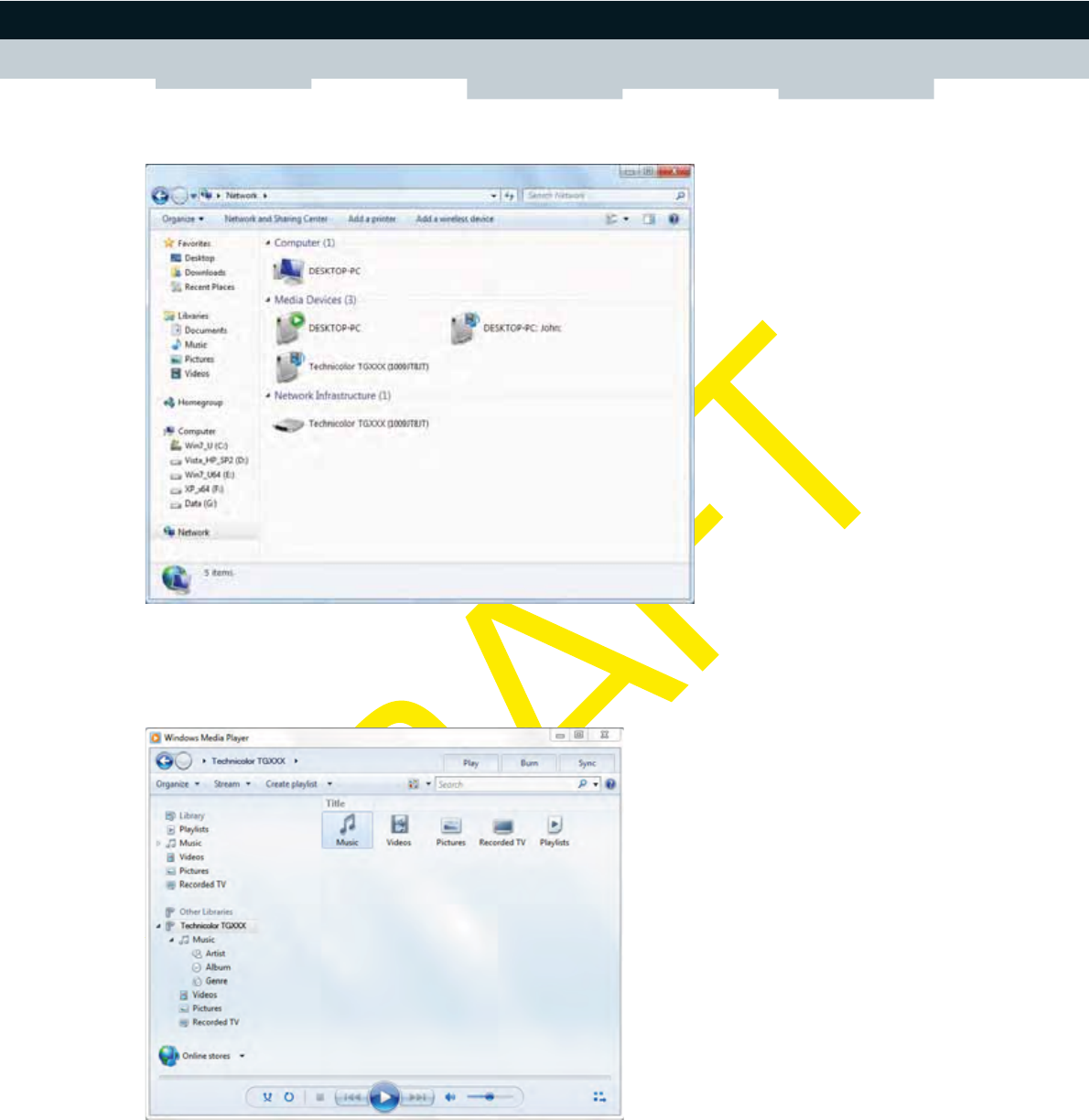

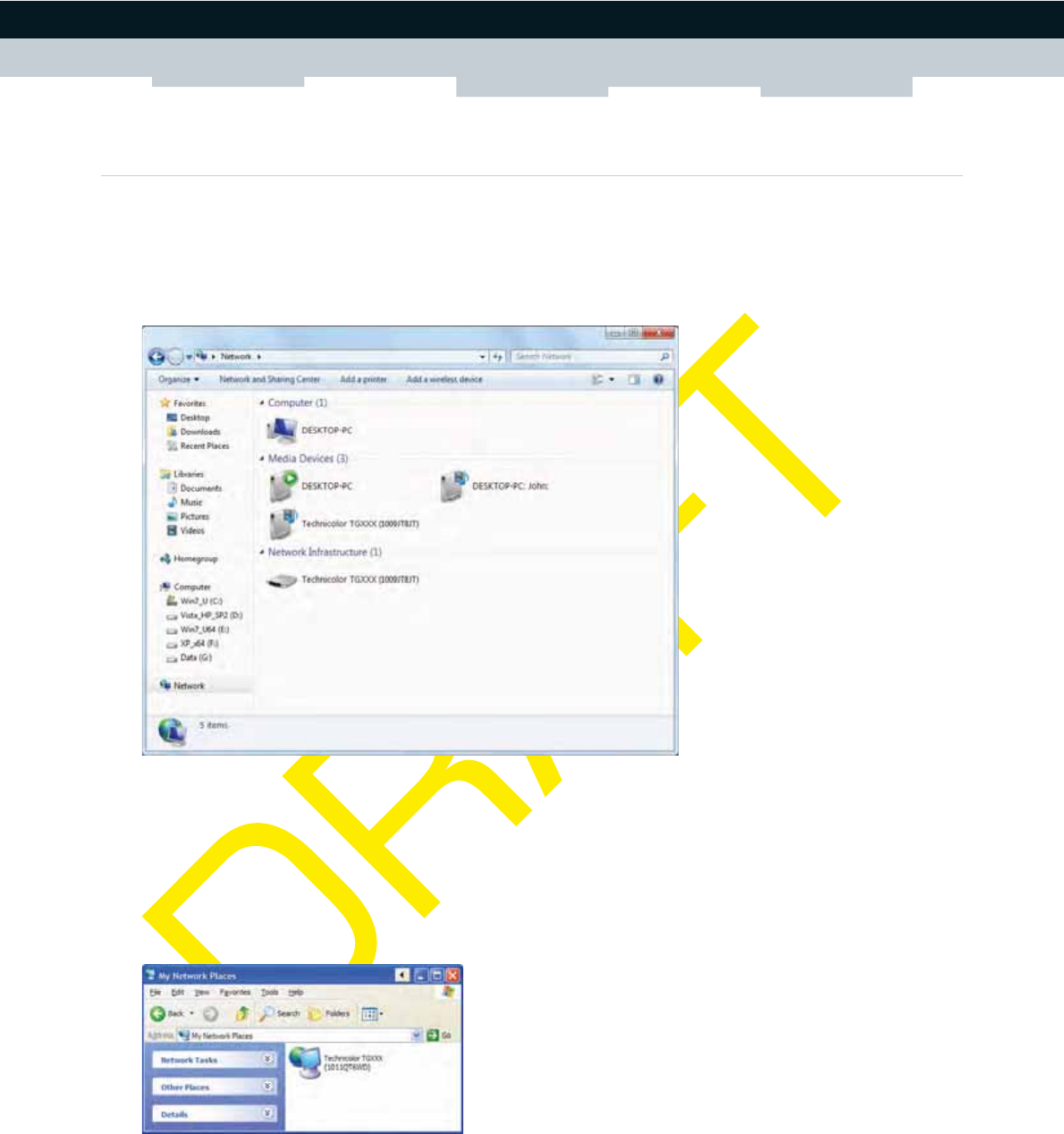

2The Network window appears:
Under Media Devices you will find the Technicolor Gateway’s UPnP AV Media Server (displayed as Technicolor
TGXXX).
3Double-click the Technicolor Gateway’s UPnP AV Media Server to access your media files.
4 Windows Media Player starts up.
Your Technicolor Gateway’s UPnP AV Media Server is listed on the left. This entry allows you to browse to your media
files.
74
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.3 The FTP Server
Introduction
The Technicolor Gateway allows you to access your shared content by FTP. This can be useful if you want to be able to
access your shared content from the Internet.
Via FTP you can download and upload all types of files both from your local network and the Internet.
Setting up the FTP server
Proceed as follows:
1Protect your account with a password.
2Enable the FTP Server and select the managed partition.
Protect your account with a password
If you did not yet configure your login to the Technicolor Gateway GUI with a password:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click User Management.
3In the Pick a task list, click Change my password.
4Leave the Old Password box empty.
5Type your new password both in the New Password box and Confirm New Password box.
Enable the FTP Server and select the managed partition
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Tools menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Under FTP Server, click Server Enabled.
5Under List of connected disks, click the radio button next to the partition to make it managed.
6The Technicolor Gateway now creates a Media and Shared folder on the selected partition. The Shared folder will be
used as root location for FTP sessions.
7Click Apply.
75
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
Result
The Shared folder and its subfolders are now accessible using FTP. The other folders are not accessible via FTP.
If you are connected to the Internet, the link to the FTP server is displayed under FTP Server:
On the Technicolor Gateway network, you can also access the FTP server using its local address (192.168.1.253).
Additional configuration
Because most service providers use dynamic IP addresses, the IP address of your Internet connection may change
frequently. This implies that the link to the FTP server will also change every time the public IP changes. With Dynamic
DNS, you can assign a host name to the IP address (for example mygateway.dyndns.org). For more information, see
“9.3 Dynamic DNS” on page 89.
76
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.4 Managing your Shared Content
Managed Partition
If you select your drive or partition as managed partition, users only have access to the following folders:
Media
Shared
All other folders will be hidden from the user. These hidden folders are still on the USB storage device, but you can not
access them. If you connected more than one USB storage device, those devices will also be hidden.
Media folder
Use the Media folder to share your audio, video and picture files. This folder can only be accessed via the following servers:
The Network File Server
For more information, see “8.1 The Network File Server”.
UPnP AV Media Server.
For more information, see “8.2 The UPnP AV Media Server”.
Shared folder
The Shared folder is a folder to share files both on the local network and the Internet. This folder can only be accessed via
the following server:
The Network File Server
For more information, see “8.1 The Network File Server”.
FTP Server
For more information, see “8.3 The FTP Server”.
Ummanaged vs. managed
The following table compares the two modes:
Setting up the managed partition
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Tools menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Under List of connected disks, click the radio button next to the partition you want to configure as Managed Partition.
If your partition is managed, the UPnP AV server will only use the media files that are located in the Media folder.
The FTP Server can only be used with a managed partition.
Access via Accessible folders
Unmanaged Managed
Network File Server All Media and Shared folder.
UPnP AV Media Server All Media folder.
FTP Server Not available in this mode. Shared folder.
77
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
5Click Apply.
Result
The Technicolor Gateway creates following folders:
Media:
Use this folder to share your media files with others users on your network. You can store your media files in following
subfolders:
Movies
Music
Pictures
Shared:
Use this folder to share your other data with other users on your network. Optionally, users can also access this folder
using FTP. For more information, see “8.3 The FTP Server” on page 74.
If the above folders already exist, the existing folders are used.
78
8 SHARING CONTENT ON YOUR TECHNICOLOR GATEWAY
DMS-CTC-20101206-0033 v0.1
8.5 Safely Removing your USB Storage Device
Introduction
If you just unplug your USB storage device from the Technicolor Gateway you may loose your data. To avoid this you must
first stop your USB storage device.
Stopping your USB storage device
Proceed as follows
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Content Sharing.
3In the Navigation bar, click Configure.
4Click Stop.
5Unplug your USB storage device from the Technicolor Gateway.
79
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9 Technicolor Gateway Network Services
In this chapter
In this chapter we will take a closer look at following features:
Feature availability
Depending on the configuration offered by your service provider, some features may not be available on your Technicolor
Gateway. For more information, contact your service provider.
To p i c Page
9.1 UPnP 80
9.2 Assigning a service (HTTP, FTP,...) to a Computer 87
9.3 Dynamic DNS 89
80
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.1 UPnP
Introduction
UPnP is designed to automate the installation and configuration of a (small) network as much as possible. This means that
UPnP-capable devices can join and leave a network without any effort of a network administrator.
Supported Operating Systems
The following operating systems support UPnP:
Windows 7
Windows Vista
Windows XP
UPnP and the Technicolor Gateway
UPnP offers you the following functions:
You can access the Technicolor Gateway GUI without having to remember the address of the Technicolor Gateway. For
more information, see “9.1.1 Accessing Your Technicolor Gateway via UPnP” on page 81.
If you are using a PPP connection to connect to the Internet, you can enable/disable your Internet connection without
having to open the Technicolor Gateway GUI.
For more information, see “9.1.2 Managing your Internet connection via UPnP” on page 82.
You do not have to manually create port mappings to run services on a computer. The automatic port configuration
mechanism for UPnP-enabled games and applications will do this for you. If the application is UPnP-enabled, UPnP will
create these entries automatically. For more information, see “9.2 Assigning a service (HTTP, FTP,...) to a Computer” on
page 87.
If your computer is running Windows XP, you first have to install the UPnP component. For more information, see
“9.1.4 Installing UPnP on Windows XP” on page 85.
81
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.1.1 Accessing Your Technicolor Gateway via UPnP
Windows 7/Vista
If you computer runs Windows 7/Vista:
1On the Windows Start menu, click Network.
2The Network window appears:
3Right-click your Technicolor Gateway (displayed as Technicolor TGXXX) and click View device web page.
4The Technicolor Gateway GUI appears.
Windows XP
If you computer runs Windows XP:
1Go to My Network Places.
2The My Network Places window appears:
3Double-click your Technicolor Gateway (displayed as Technicolor TGXXX).
4The Technicolor Gateway GUI appears.
82
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.1.2 Managing your Internet connection via UPnP
Applicability
This section only applicable if you are using a PPP connection to the Internet.
Windows 7/Vista
If you computer runs Windows 7/Vista:
1On the Windows Start menu, click Network.
2The Network window appears:
3Right-click your Technicolor Gateway (displayed as Technicolor TGXXX).
4If you are currently:
Connected to the Internet, click Disable to disconnect from the Internet.
Not connected to the Internet, click Enable to connect to the Internet.
Windows XP
Proceed as follows:
1On the Windows Start menu, click (Settings >) Control Panel.
2The Control Panel window appears.
Click (Network and Internet Connections) > Internet Connections.
83
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1

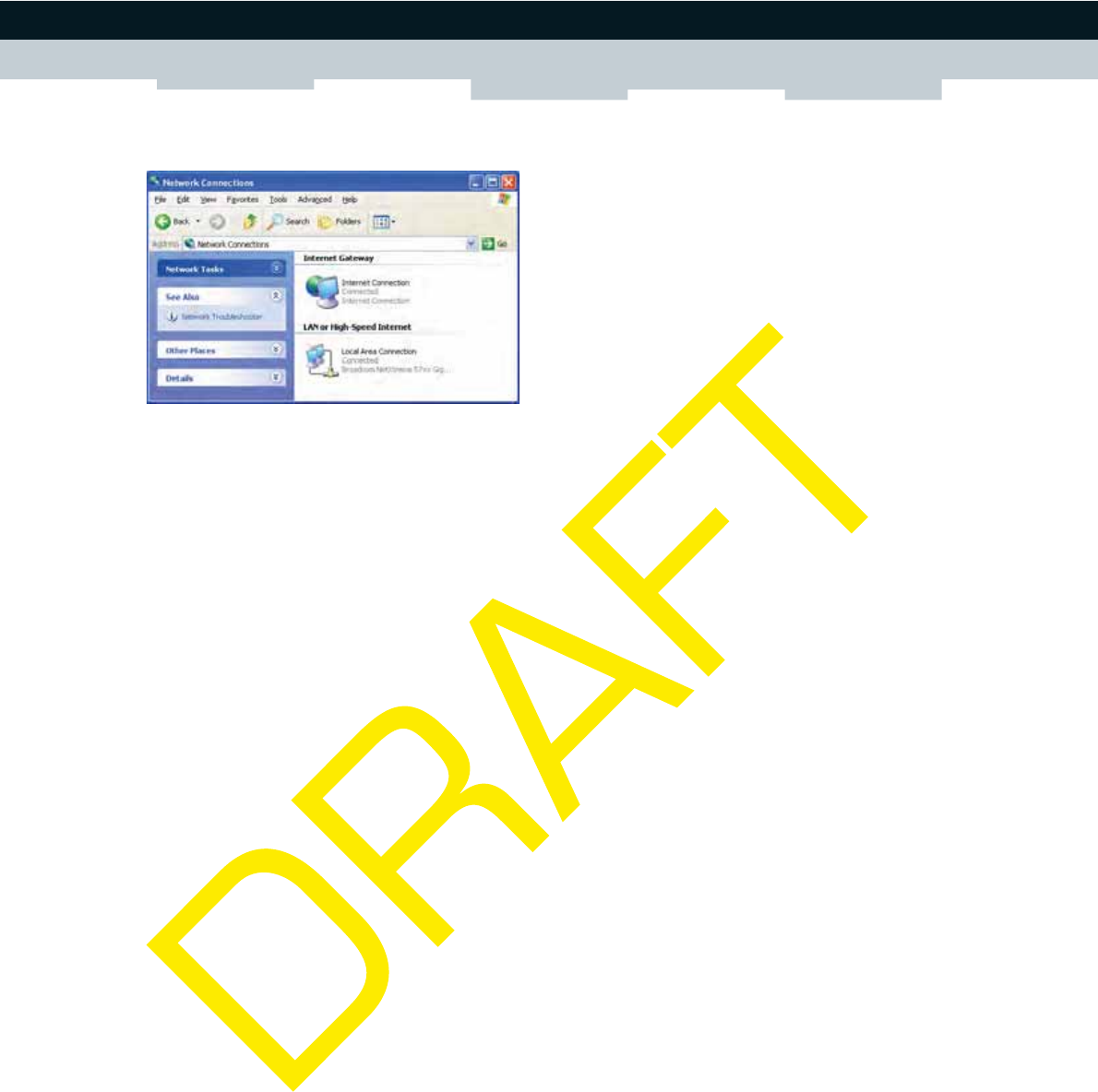

3The Network Connections window appears;
4If you right-click the Internet Connection icon, you can connect/disconnect your connection to the Internet.
Disabling this feature
To prevent that users can connect/disconnect you can enable Extended Security. This feature is enabled by default.
For more information, see “9.1.3 Configuring UPnP on the Technicolor Gateway” on page 84.
84
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.1.3 Configuring UPnP on the Technicolor Gateway
Introduction
On the Technicolor Gateway GUI you can:
Enable/Disable UPnP.
Enable/Disable Extended Security.
Enable/Disable UPnP
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click Game & Application Sharing.
3Under Universal Plug and Play:
Select the Use UPnP check box, to enable UPnP.
Clear the Use UPnP check box, to disable UPnP.
4Click Apply.
Extended Security
If Extended Security is enabled, only limited UPnP operation between the host and the Technicolor Gateway is allowed:
A local host is not allowed to connect/disconnect the Technicolor Gateway Internet connection. You can then only
connect/disconnect the Internet connection via the Technicolor Gateway GUI
Address translation mappings can only be added or changed via UPnP for the host on which the UPnP application is
running.
Enable/Disable Extended Security
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click Game & Application Sharing.
3Under Universal Plug and Play, select Use Extended Security.
4Click Apply.
85
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.1.4 Installing UPnP on Windows XP
Adding UPnP
If you are running Microsoft Windows XP, it is recommended to add the UPnP component to your system.
Proceed as follows:
1In the Start menu, click (Settings >) Control Panel.
2The Control Panel window appears.
Click Add or Remove Programs.
3The Add or Remove Programs window appears.
Click Add/Remove Windows Components.
4The Windows Components Wizard appears:
In the Components list, select Networking Services and click Details
5The Networking Services window appears:
Select Universal Plug and Play or UPnP User Interface and click OK.
6Click Next to start the installation and follow the instructions in the Windows Components Wizard.
7At the end of the procedure the wizard informs you that the installation was successful. Click Finish to quit.
Adding IGD Discovery and Control
Your Windows XP system is able to discover and control Internet Gateway Devices (IGD), like the Technicolor Gateway on
your local network. Therefore, it is recommended to add the IGD Discovery and Control client to your system.
Proceed as follows:
1On the Windows taskbar, click Start.
86
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
2Select (Settings >) Control Panel > Add or Remove Programs.
3In the Add or Remove Programs window, click Add/Remove Windows Components.
4The Windows Components Wizard appears:
Select Networking Services in the Components list and click Details.
5The Networking Services window appears:
Select Internet Gateway Device Discovery and Control Client and click OK.
6Click Next to start the installation and follow the instructions in the Windows Components Wizard.
7At the end of the procedure, the wizard informs you that the installation was successful. Click Finish to quit.
87
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.2 Assigning a service (HTTP, FTP,...) to a Computer
Introduction
The Technicolor Gateway allows you to use one Internet connection for multiple computers. This means that all your
computers share one public IP address, as if only one computer were connected to the outside world.
Issue
When the Technicolor Gateway receives an incoming message, the Technicolor Gateway has to decide to which computer it
has to send this message.
If the incoming message is a response to an outgoing message originating from one of your computers, the Technicolor
Gateway sends the incoming message to this computer.
If your are running a server or an application that acts as a server (for example a HTTP server, Internet game), the initial
message will come from the Internet and the Technicolor Gateway has no information to decide to which computer it should
forward the incoming message.
Solution
To avoid this problem you can do either of the following:
Enable UPnP.
Assign a game or application to a local networking device.
UPnP
UPnP is a technology that enables seamless operation of a wide range of games and messaging applications. Your computer
will use UPnP to communicate to the Technicolor Gateway which services are running on the computer.
For example, when you start a UPnP-enabled application on your computer, it will automatically create the necessary port
mappings on this computer and on the Technicolor Gateway.
For more information on UPnP, see “9.1 UPnP” on page 80.
Internet
Internet
?
88
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
Assign a game or application to a local networking device
If you assign a game or application to a local networking device, you will basically tell the Technicolor Gateway that if it
receives requests for a specific game or application, it has to forward these messages to a specific computer.
Proceed as follows to do so:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click Game & Application Sharing.
3In the Pick a task list, click Assign a game or application to a local network device.
4In the Game or application list, click the service you want to run on the computer. For example, HTTP Server (World
Wide Web).
5In the Device list, select the computer to which you want to assign the service. Your computer will be listed with its
computer name.
6All incoming requests for the selected service will now be directed to the selected device. The Technicolor Gateway will
also configure its firewall to allow this service.
If the service is not available in the list, click Create a new game or application in the Pick a task list. For more
information, click Help on the Technicolor Gateway GUI.
89
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
9.3 Dynamic DNS
Introduction
The Dynamic DNS service allows you to assign a dynamic DNS host name (for example mywebpage.dyndns.org) to a
broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic
DNS server updates its entry to the new IP address.
What you need
Before you can configure Dynamic DNS, you first have to create an account at a Dynamic DNS service provider. For
example:
www.dyndns.org
www.no-ip.com
www.dtdns.com
Procedure
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
For more information, see “Accessing the Technicolor Gateway GUI” on page 35.
2On the Toolbox menu, click Dynamic DNS.
3On the Navigation bar, click Configure.
4Select the Enabled check box.
5If necessary, select the broadband connection to which you want to assign the Dynamic DNS host name in the Interface
list.
6Type the user name and password of your Dynamic DNS service account in the corresponding fields.
7In the Service list, click the name of your Dynamic DNS service provider.
8In the Host box, type the host name that you got from the Dynamic DNS service provider (for example
mywebpage.dyndns.org).
9Click Apply.
90
9 TECHNICOLOR GATEWAY NETWORK SERVICES
DMS-CTC-20101206-0033 v0.1
91
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
10 Internet Security
Overview
The Technicolor Gateway offers various options to secure your network and network connection:
To p i c Page
10.1 Parental Control 92
10.2 Firewall 97
92
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
10.1 Parental Control
Introduction
The Technicolor Gateway allows you to deny access to specific web sites.

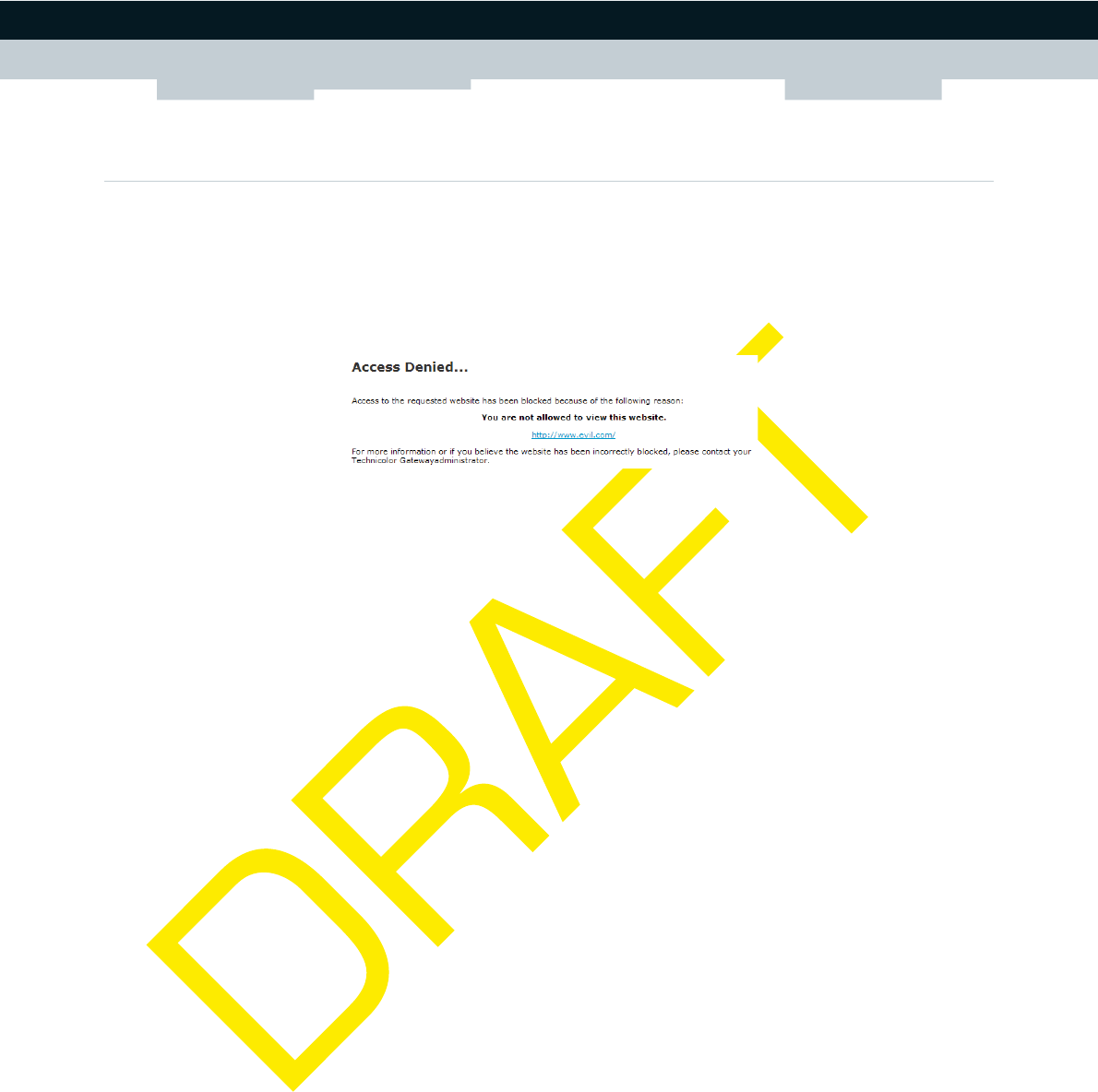

Access Denied page
When a user tries to access a page that is being blocked, the following page is displayed:
Address-based filtering
With address-based filtering (or URL-filtering) you can block web sites based on their address (for example
www.porn.com).
Content-based filtering
As you know, the Internet consists of a large number of web sites, and that number still increases every day. This makes it
almost impossible to keep the list of addresses up-to-date.
To solve this problem Technicolor Gateway introduced content-based filtering.
With content-based filtering you can block web sites based on their content category (for example pornography) instead
of their URL. This way, you only need to select the appropriate categories and the content category server takes care of the
rest. This content category server is updated at regular intervals.
Combining the two filters
Address-based filtering has priority over content-based filtering. This means that when you are blocking a specific
category, you can still access a specific address provided you create a rule to allow access to that URL.
For example, if you are blocking content from the Finance / Investment category, you can create a rule to make an
exception for netbanking.mybank.com.
Activating content-based filtering
Before you can use content-based filtering you must first activate it by purchasing a license key at your service provider or by
activating the 30-day trial.
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3In the Pick a task list, click Activate Web Filtering License.
4The Web Filtering Activation page appears. Under License Type, select:
30-days evaluation if you first want evaluate this feature.
Standard if you have already purchased a license key. The License key box appears as soon as you select this option.
Type the license key that you received from your service provider in this box.
5Click Apply.
93
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
Option 1: content-based filter (combined with the address-based filter)
If you want to use the content-based filtering:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3On the Navigation bar, click Configure.
4Make sure that the Use Content-Based Filter check box is selected.
5Configure the content-based filter. For more information, see “10.1.1 Configuring Content-based Filtering” on page 94.
6If you want to make exceptions for specific web sites, add the necessary rules in the address-based filter. For more
information, see “10.1.2 Adding Rules for Address-Based Filtering” on page 95.
Option 2: address-based filter only
Take this option if content filtering is not available on your Technicolor Gateway or you don’t want to use it.
To configure address-based filtering:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3On the Navigation bar, click Configure.
4Make sure that the Use Address-Based Filter check box is selected.
5In the Action for Unknown Sites, select:
Allow as the default rule if you want to allow access to all web sites and manually specify which web sites may not be
accessed.
Block as the default rule if you want to deny access to all web sites and manually specify a number of web sites that
may be accessed.
6Click Apply.
7If you want to make exceptions for specific web sites, add the necessary rules in the address-based filter.
For more information, see “10.1.2 Adding Rules for Address-Based Filtering” on page 95.
94
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
10.1.1 Configuring Content-based Filtering
Requirements
Content-based filtering must be activated on your Technicolor Gateway.
For more information, see “Activating content-based filtering” on page 92.
Accessing the configuration page
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3On the Navigation bar, click Configure.
4Under Content-Based Filtering you can change the settings of the content-based filter.
Configuration
Under Content-Based Filtering:
1Select Use Content-Based Filter check box (if needed).
2In the Action for uncategorised sites list, select a default action for sites that have not yet been categorised.
3Under Content Level, select the content level you want to use.
If you want a more detailed view of the content that will be blocked for this level, click the Edit link next to the content
level.
If needed, you can change the Name, Description and Configuration of the content level.
4Click Apply after you have made your changes.
Creating your own content level
Proceed as follows:
1In the Pick a task list, click Create a new content level.
2Enter a Name and Description for your content level and click Next.
3Under Configuration, select:
Clone Existing Level if you want to start from an existing level. You can now select the level that you want to clone.
White list if you want to block everything and select which content should be allowed.
Black list if you want to allow everything and select which content should be blocked.
Click Next.
4Under Configuration:
Select the check boxes of the categories/groups you want to allow.
Clear the check boxes of the categories/groups you want to block.
5Click Apply.
6Configure the content-based filter with the new level. For more information, see “Configuration” on page 94.
95
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
10.1.2 Adding Rules for Address-Based Filtering
Introduction
Address-based filtering has a higher priority than content-based filtering. This means that when you are blocking a specific
category, you can still access a specific site if you allow it in the address-based filter.
Example
If you block content from the Finance / Investment category and allow access to netbanking.mybank.com,
netbanking.mybank.com will still be accessible.
Options
With the address-based filter you can:
Deny access to a specific web site.
Allow access to a specific web site.
Redirect a web site.
Redirect all web sites.
Deny access to a specific web site
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3Make sure the Use Address-Based Filter check box is selected.
4Type the URL of the Web site you want to block (for example “mail.provider.com”) in the Web Site box.
5In the Action list, click Block.
6Click Add.
Allow access to a specific web site
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3Make sure the Use Address-Based Filter check box is selected.
4Type the URL of the Web site you want to allow (for example “netbanking.bank.com”) in the Web Site box.
5In the Action list, click Allow.
6Click Add.
Redirect a web site
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3Make sure the Use Address-Based Filter check box is selected.
4Type the URL of the Web site you want to redirect (for example “cracks.am”) in the Web Site box.
5Click Redirect in the Action list.
96
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
6Type the URL of the Web site you want to redirect to (for example “mycompany.com/internetpolicy.htm”) in the
Redirect box.
7Click Add.
Redirect all web sites
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Parental Control.
3Make sure the Use Address-Based Filter check box is selected.
4Type “*” in the Web Site box.
5Click Redirect in the Action list.
6Type the URL of the Web site you want to redirect to (for example “mycompany.com/internetpolicy.htm”) in the
Redirect box.
7Click Add.
97
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
10.2 Firewall
Introduction
The Technicolor Gateway comes with an integrated firewall that helps you protect your network from attacks from the
Internet. This firewall has a number of predefined levels to allow you to adjusted the firewall to your needs.
The Firewall is disabled by default. This means that all traffic passing through the Technicolor Gateway (from and to the
Internet) is allowed.
Predefined security levels
The Technicolor Gateway has a number of predefined security levels. The following levels are available:
BlockAll:
All traffic from and to the Internet is blocked. Game and Application Sharing is not allowed by the firewall.
Standard:
All outgoing connections are allowed. All incoming connections are blocked, except for inbound connections assigned to
a local host via Game and Application Sharing.
Disabled:
All in- and outgoing traffic is allowed to pass through your Technicolor Gateway, including Game and Application
Sharing.
This is the default firewall level.
Changing the security level
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Toolbox menu, click Firewall.
3The Firewall page appears. In the upper-right corner, click Configure.
4Under Security Settings, select the security level of your choice and click Apply.
Creating your own security level
Proceed as follows:
1 In the Toolbox menu click Firewall.
2 In the Firewall section, go to the Configure page.
3 In the Pick a task list, click Create a new Security Level.
4 In the Name box, type a name for the new security level and select an existing security level to clone from.
5Click Apply.
6A page with the firewall settings of your newly created security level appears. Click Edit.
7 Enter the following information:
The Name of the firewall rule.
Although BlockAll will block all connections, some mandatory types of traffic such as DNS will still be relayed
between LAN and WAN by the Technicolor Gateway.
Once you create a security level, you can not delete it anymore. It will always available in the list of available security
levels.
98
10 INTERNET SECURITY
DMS-CTC-20101206-0033 v0.1
The Source Interface and IP Address (range).
Or you can type a User-defined IP address (range).
The Destination Interface and IP Address (range)
Or you can type a User-defined IP address (range).
The Service type of the traffic; this can be a protocol (DNS, SMTP,...) or a specific Technicolor Gateway system
service.
8 Select an Action that should be done on traffic for which the firewall rules applies:
Accept: to allow the traffic to pass
Deny: to drop the traffic (without notification)
Count: to let the traffic pass, but count it (Hits)
9Click Apply.
Use Any as IP address in case all traffic for the interface should be parsed.
Use Any as IP address in case all traffic for the interface should be parsed.
99
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11 Support
Introduction
This chapter suggests solutions for issues that you may encounter while installing, configuring or using your Technicolor
Gateway.
If the suggestions do not resolve the problem, look at the support pages on www.technicolor.com or contact your service
provider.
To p i c s
This chapter describes the following topics:
To p i c Page
11.1 Setup Troubleshooting 100
11.2 General Technicolor Gateway Troubleshooting 101
11.3 Wired Connection Troubleshooting 103
11.4 Wireless Connection Troubleshooting 103
11.5 Voice over IP Troubleshooting 104
11.6 Reset to Factory Defaults 105
100
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.1 Setup Troubleshooting
Introduction
If you have trouble to install your Technicolor Gateway with the Setup CD, try the suggested solutions in this section.
The Setup CD does not start automatically
If your computer runs:
Microsoft Windows 7 and Vista:
aClick the Windows Start button.
bIn the Search programs and files box, type the following path: D:\Setup.exe, where D stands for the drive letter of
your CD- or DVD-ROM drive.
cPress ENTER.
Microsoft Windows XP:
aClick the Windows Start button.
bClick Run.
cIn the Open field, type the following path: D:\Setup.exe, where D stands for the drive letter of your CD- or DVD-
ROM drive.
Mac OS X:
aOn your desktop, double-click the CD icon.
bDouble-click Menu.
Your Technicolor Gateway has not been found
If you see this error during setup, make sure that:
The Technicolor Gateway is turned on and fully initialized.
Your computer has a valid IP address, that is any address but 0.0.0.0. For more information, consult the help of your
operating system.
No dedicated firewall device or router is placed between your computer and the Technicolor Gateway.
No personal network security software (for example firewall software) is running on your computer.
Your computer is correctly connected to the Technicolor Gateway.
101
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.2 General Technicolor Gateway Troubleshooting
None of the LEDs light up (Technicolor Gateway does not work)
Make sure that:
The Technicolor Gateway is plugged into a power socket outlet.
You are using the correct power supply for your Technicolor Gateway device.
The Technicolor Gateway is turned on via the push button or rocker switch on the back panel.
The Broadband LED does not light up or is blinking
Make sure that:
The DSL cable is correctly connected. For more information, see “3.1 Connecting the Technicolor Gateway to your Service
Provider’s Network”.
The DSL service is enabled on your telephone line. For more information, contact your Internet Service Provider.
The Internet LED does not light up
If you must authenticate to connect to the Internet, make sure that your user name and password are correct.
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Broadband menu, click Internet Services.
3Under Internet, click View More.
4Check your user name
5Re-enter your password.
6Click Connect.
Technicolor Gateway unreachable
If you can not access your Technicolor Gateway via your web browser or the Setup wizard, you might consider a hardware
reset as described in “11.6 Reset to Factory Defaults” on page 105.
The power requirements for your Technicolor Gateway are clearly indicated on the identification label of the
Technicolor Gateway. Only use the power adaptor supplied with your Technicolor Gateway.
102
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.3 Wired Connection Troubleshooting
Ethernet LED does not light up
Make sure that:
The Ethernet cable is securely connected to the Ethernet port on your Technicolor Gateway and your computer.
You are using the correct cable type for your Ethernet equipment, that is at least UTP CAT5 with RJ-45 connectors.
103
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.4 Wireless Connection Troubleshooting
No Wireless Connectivity
Try the following:
Make sure that the wireless client adapter is enabled (message like “radio on”).
Make sure that the wireless client is configured for the correct wireless settings (Network Name, security settings).
If the signal is low or not available, try to reposition the Technicolor Gateway or (if available) redirect the antenna(s) of
the Technicolor Gateway for optimal performance.
Change the wireless channel.
Poor Wireless Connectivity or Range
Try the following:
Check the signal strength, indicated by the wireless client manager. If the signal is low, try to reposition the Technicolor
Gateway or (if available) redirect the antenna(s) of the Technicolor Gateway for optimal performance.
Change the wireless channel.
Use WPA(2)-PSK as encryption.
For more information, see “5.3 Securing Your Wireless Connection” on page 45.
Change the wireless channel
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2Under Home Network, click Wireless
3The Wireless Access Point page appears.
4In the Navigation bar, click Configure.
5Under Configuration, select the channel of your choice in the Channel Selection list.
6Click Apply.
Can not connect via WPS
If you are having trouble connecting your wireless client via WPS, try to configure it manually. For more information, see
“5.2 Connecting Your Wireless Client without WPS” on page 44.
104
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.5 Voice over IP Troubleshooting
Introduction
If you cannot make or receive any phone calls via your Technicolor Gateway, try the suggestions in the following sections.
Calling over VoIP
If you have problems calling via VoIP, check whether:
Your phone is correctly connected to the Technicolor Gateway.
Your phone is working on the traditional telephone network (PSTN):
Connect your phone directly to the telephone wall outlet.
Try to make a phone call.
Your phone number, user name, and password are configured correctly.
The registrar’s and proxy server’s IP address and port number are configured correctly.
The Power, Broadband and Voice LEDs are on.
Calling over the traditional telephone network (PSTN)
If you have problems calling via the traditional telephone network, check whether:
Your phone is correctly connected to the Technicolor Gateway.
Your phone is working on the PSTN network:
Connect your phone directly to PSTN.
Try to make a phone call.
The Forced FXO service is activated, this means that your service provider may request you to dial an extra prefix for
making calls via PSTN.
Problems with Telephony Services
If you have a problem with a service, check whether the service is activated. For more information, see “6.3.1 Activating a
Telephony Service on your Technicolor Gateway” on page 55.
This is not possible on the VoIP-only variants. For more information, see “Applicability” on page 49.
This is not possible on the VoIP-only variants. For more information, see “Applicability” on page 49.
If the Technicolor Gateway is turned off, phone calls are always routed over PSTN.
105
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
11.6 Reset to Factory Defaults
Resetting your Technicolor Gateway
If at some point you can no longer connect to the Technicolor Gateway or you want to make a fresh install, it may be useful
to perform a reset to factory defaults.
Warning
A reset to factory default settings deletes all configuration changes you made. Therefore, after the reset a reconfiguration of
your Technicolor Gateway will be needed.
Also your wireless clients will have to be re-associated, as described in “5 The Technicolor Gateway Wireless Access Point” on
page 41.
Methods
You can choose between:
Resetting the Technicolor Gateway via the Technicolor Gateway GUI
Reset the Technicolor Gateway via the Reset button
Resetting the Technicolor Gateway via the Technicolor Gateway GUI
Proceed as follows:
1Browse to the Technicolor Gateway GUI.
2On the Technicolor Gateway menu, click Configuration.
3In the Pick a task list, click Reset my Technicolor Gateway.
4The Technicolor Gateway restores the initial configuration and restarts.
5The Technicolor Gateway returns to the Technicolor Gateway home page (unless the IP address of your computer is not
in the same subnet as the default IP address of the Technicolor Gateway, being 192.168.1.254).
Reset the Technicolor Gateway via the Reset button
Proceed as follows:
1Make sure the Technicolor Gateway is turned on.
2Push the Reset button for 7 seconds and the release it.
106
11 SUPPORT
DMS-CTC-20101206-0033 v0.1
3The Technicolor Gateway restarts.
Your system administrator may have disabled the physical reset button of the Technicolor Gateway. In this case, a
hardware reset to defaults is not possible.
